Essential Safety Equipment
2
Important information about safety equipment, including seats, seat
belt system, child-restraint systems and SRS air bags.
Seats
2-2
Child-Restraint System
Seat Precautions
2-2
Installation
2-40
Front Seat
2-5
Child-Restraint System Suitability
Rear Seat
2-15
for Various Seat Positions
Head Restraints
2-20
Table
2-42
Installing Child-Restraint
Systems
2-45
Seat Warmer/Seat Ventilation/Heated
Steering Wheel
2-22
Seat Warmer*
2-22
SRS Air Bags
2-56
Seat Ventilation*
2-23
Supplemental Restraint System
(SRS) Precautions
2-56
Heated Steering Wheel*
2-24
Supplemental Restraint System
Components
2-62
Seat Belt Systems
2-26
How the SRS Air Bags Work
2-64
Seat Belt Precautions
2-26
SRS Air Bag Deployment
Seat Belt
2-29
Criteria
2-68
Seat Belt Warning Systems
2-30
Limitations to SRS Air Bag
2-70
Seat Belt Pretensioner and Load
Front Passenger Occupant
Limiting Systems
2-31
Classification System*
2-72
Seat Belt Extender
2-33
Constant Monitoring
2-77
Child Restraint
2-35
Child-Restraint Precautions
2-35
*Some models.
2-1
Essential Safety Equipment
Seats
Seat Precautions
WARNING
Make sure the adjustable components of a seat are locked in place:
Adjustable seats and seatbacks that are not securely locked are dangerous. In a sudden stop
or collision, the seat or seatback could move, causing injury. Make sure the adjustable
components of the seat are locked in place by attempting to slide the seat forward and
backward and rocking the seatback.
Never allow children to adjust a seat:
Allowing children to adjust a seat is dangerous as it could result in serious injury if a child's
hands or feet become caught in the seat.
Do not drive with the seatback unlocked:
All of the seatbacks play an important role in your protection in a vehicle. Leaving the
seatback unlocked is dangerous as it can allow passengers to be ejected or thrown around
and baggage to strike occupants in a sudden stop or collision, resulting in severe injury. After
adjusting the seatback at any time, even when there are no other passengers, rock the
seatback to make sure it is locked in place.
Adjust a seat only when the vehicle is stopped:
If the seat is adjusted while the vehicle is being driven, the seating posture may become
unstable and the seat could move unexpectedly resulting in injury.
Do not modify or replace the front seats:
Modifying or replacing the front seats such as replacing the upholstery or loosening any bolts
is dangerous. The front seats contain air bag components essential to the supplemental
restraint system. Such modifications could damage the supplemental restraint system and
result in serious injury. Consult an Authorized Mazda Dealer if there is any need to remove or
reinstall the front seats.
Do not drive with damaged front seats:
Driving with damaged front seats, such as seat cushions torn or damaged down to the
urethane, is dangerous. A collision, even one not strong enough to inflate the air bags, could
damage the front seats which contain essential air bag components. If there was a
subsequent collision, an air bag may not deploy which could lead to injuries. Always have an
Authorized Mazda Dealer inspect the front seats, front seat belt pretensioners and air bags
after a collision.
2-2
Essential Safety Equipment
Seats
Do not drive with either front seats reclined:
Sitting in a reclined position while the vehicle is moving is dangerous because you do not get
the full protection from seat belts. During sudden braking or a collision, you can slide under
the lap belt and suffer serious internal injuries. For maximum protection, sit well back and
upright.
Do not place an object such as a cushion between the seatback and your back:
Putting an object such as a cushion between the seatback and your back is dangerous
because you will be unable to maintain a safe driving posture and the seat belt cannot
function at its full capacity in a collision, which could result in a serious accident, injury or
death.
Do not place objects under the seat:
The object could get stuck and cause the seat to not be fixed securely, and result in an
accident.
Do not stack cargo higher than the seatbacks:
Stacking luggage or other cargo higher than the seatbacks is dangerous. During sudden
braking or a collision, objects can fly around and become projectiles that may hit and injure
passengers.
Make sure luggage and cargo is secured before driving:
Not securing cargo while driving is dangerous as it could move or be crushed during sudden
braking or a collision and cause injury.
Additionally, if the air bags deploy, the cargo may scatter which could result in serious injury
or death.

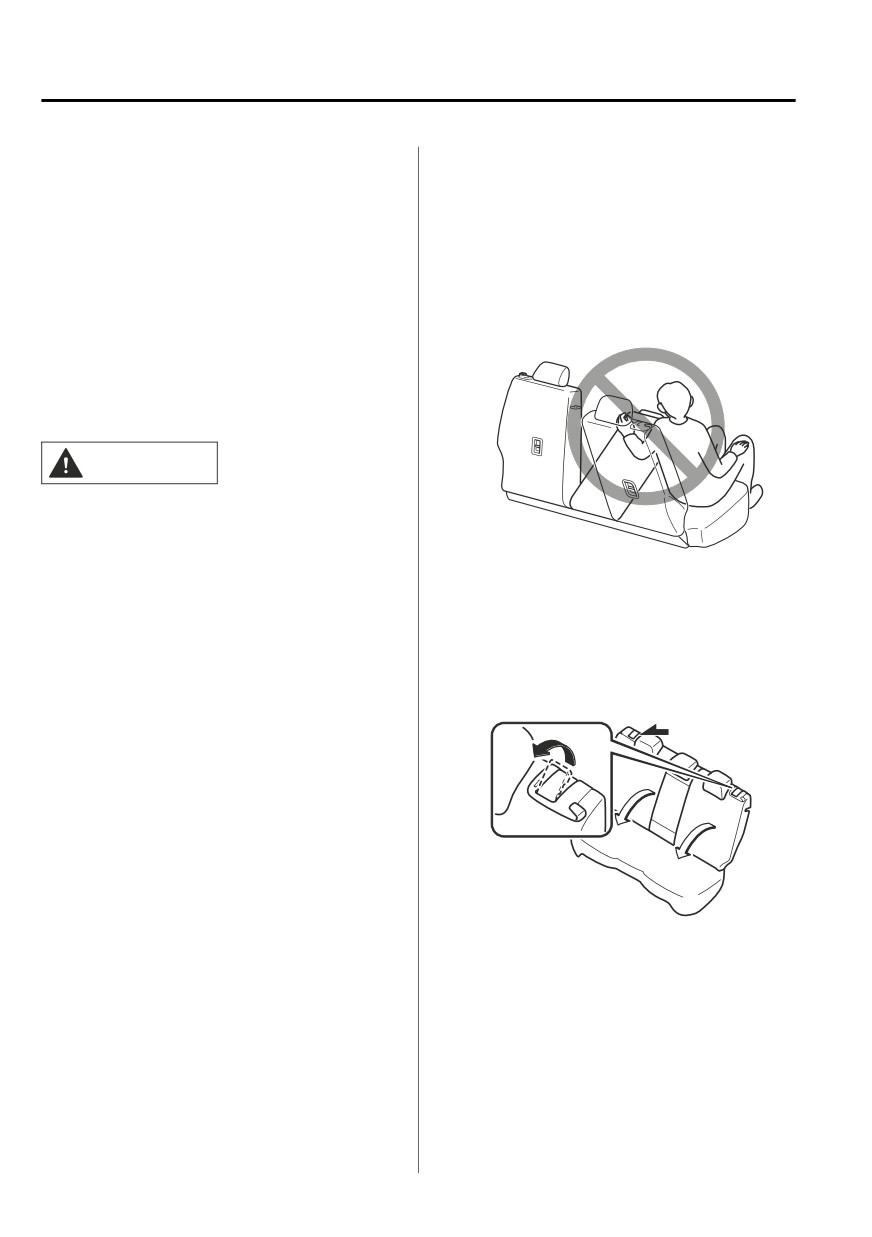

Never allow a passenger to sit or stand on the folded seatback while the vehicle is moving:
Driving with a passenger on the folded seatback is dangerous. Allowing a child to sit up on
the folded seatback while the vehicle is moving is particularly dangerous. In a sudden stop or
even a minor collision, a child not in a proper seat or child-restraint system and seat belt could
be thrown forward, back or even out of the vehicle resulting in serious injuries or death. The
child in the baggage area could be thrown into other occupants and cause serious injury.
CAUTION
¾ When operating a seat, be careful not to put your hands or fingers near the moving parts of
the seat or on the side trim to prevent injury.
¾ When moving the seats, make sure there is no cargo in the surrounding area. If the cargo
gets caught it could damage the cargo.
2-3
Essential Safety Equipment
Seats
¾ (Manual Seat)
When moving the seats forward and rearward or returning a rear-reclined seatback to its
upright position, make sure you hold onto the seatback with your hand while operating. If
the seatback is not held, the seat will move suddenly and could cause injury.
¾ When inserting your hand under the seat to clean the cabin or pick up something you
dropped under the seat, be careful not to hurt yourself. If you contact the moving parts of
the seat rail or seat frame, it could result in injury.
NOTE
When returning a rear seat to its original position, place the seat belt in its normal
position. Verify that the seat belt pulls out and retracts.
(Power Seat)
The seat-bottom power adjustment is operated by motors. Avoid extended operation
because excessive use can damage the motors.
To prevent the battery from running down, avoid using the power adjustment when the
engine is stopped. The adjuster uses a large amount of electrical power.
Do not use the switch to make more than one adjustment at a time.
2-4
Essential Safety Equipment
Seats
Front Seat
Adjusting the Driver's Seat
Using the driving position set up procedure recommended by Mazda allows you to maintain
a relaxed posture, drive the vehicle for longer periods without feeling tired, and make quick
operations naturally.
Also, you can be assured of a clear view in the forward direction to help you drive more
safely and comfortably.
The adjustments for the driving position recommended by Mazda are done using the
following procedures.
1. Moving the steering wheel and seat to their default positions.
2. Adjusting the seatback angle.
3. Adjusting the seat position forward and back.
4. Adjusting the seat height.
5. Adjusting the steering wheel position.
6. Adjusting the head restraint position.

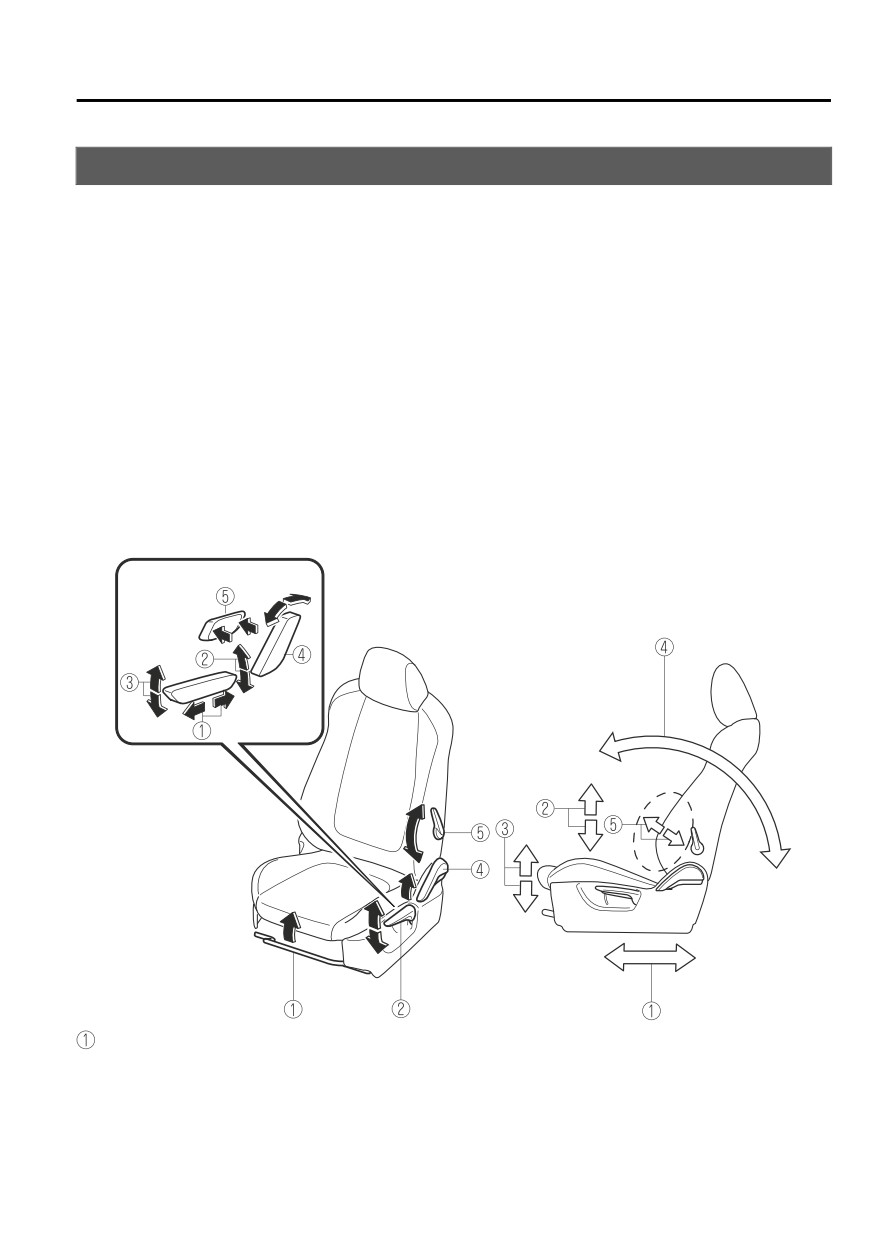

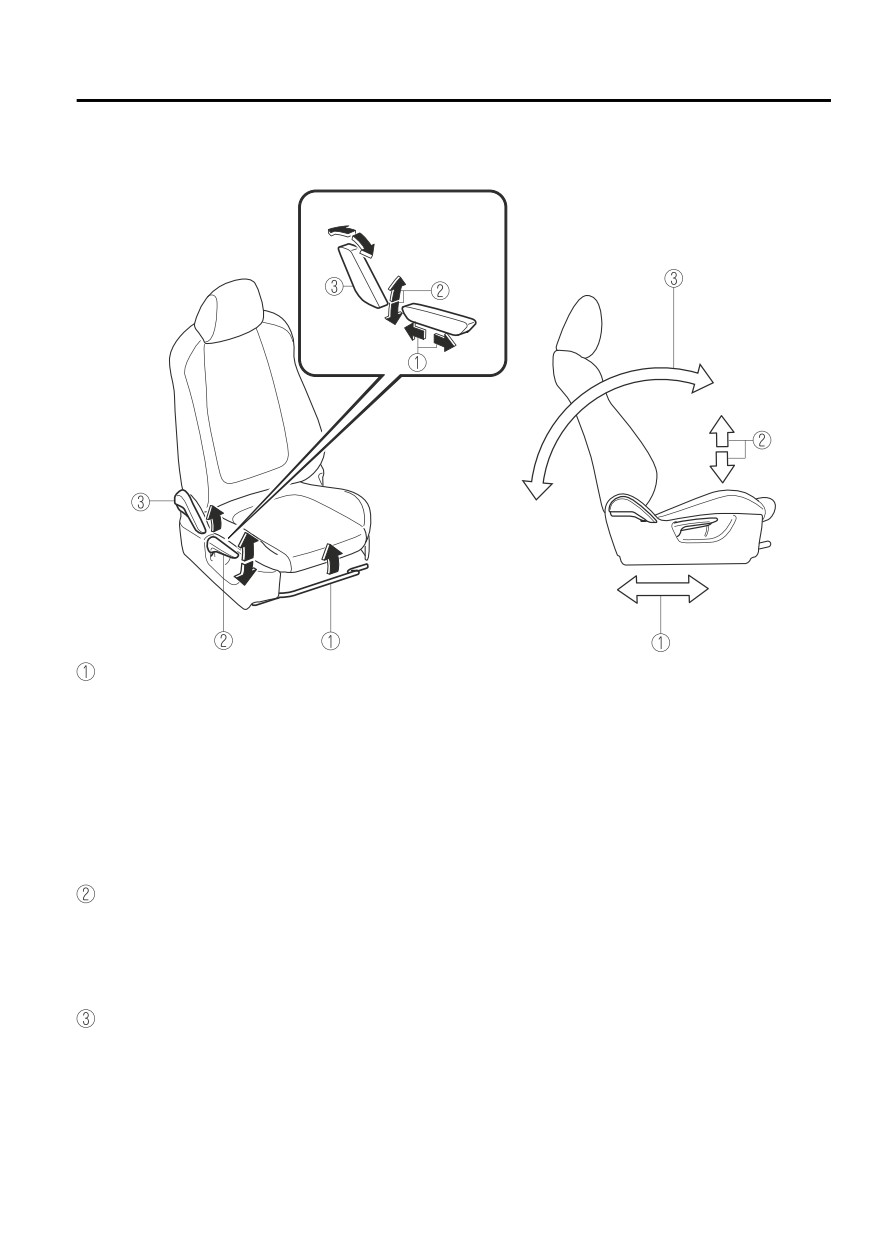

Power operation
Seat Slide
(Manual Seat)
To move a seat forward or backward, raise the lever and slide the seat to the desired position
and release the lever.
2-5
Essential Safety Equipment
Seats
Make sure the lever returns to its original position and the seat is locked in place by
attempting to push it forward and backward.
(Power Seat)
To slide the seat, move the slide lifter switch on the outside of the seat to the front or back
and hold it. Release the switch at the desired position.
Height Adjustment
(Manual Seat)
To adjust the seat height, move the lever up or down.
(Power Seat)
To adjust the seat height, move the slide lifter switch up or down.
Height Adjustment for Front Edge of Seat Bottom (Power Seat)*
To adjust the front height of the seat bottom, raise or lower the front of the slide lifter
switch.
Seat Recline
(Manual Seat)
To change the seatback angle, lean forward slightly while raising the lever. Then lean back
to the desired position and release the lever.
Make sure the lever returns to its original position and the seatback is locked in place by
attempting to push it forward and backward.
(Power Seat)
To change the seatback angle, press the front or rear side of the reclining switch. Release the
switch at the desired position.
Lumbar Support Adjustment*
(Manual Seat)
To increase the seat firmness, move the lever downward. Move the lever upward to decrease
firmness.
(Power Seat)
To increase the seat firmness, press and hold the front part of the switch to the desired
position, then release it.
Press the rear part of the switch to decrease firmness.
Before making adjustments to the driving position recommended by Mazda
Before making adjustments, move the steering wheel and seat to their default positions.
2-6
*Some models.
Essential Safety Equipment
Seats
How to move the steering wheel to its default position
WARNING
Never adjust the steering wheel while the vehicle is moving:
Adjusting the steering wheel while the vehicle is moving is dangerous. Moving it can very
easily cause the driver to abruptly turn to the left or right. This can lead to loss of control or an
accident.
After adjusting the steering wheel position, make sure it is securely locked by trying to move it
up and down:
Driving with the steering wheel not securely locked in position is dangerous. If the steering
wheel moves unexpectedly while driving, you could lose control of the steering resulting in an
accident.

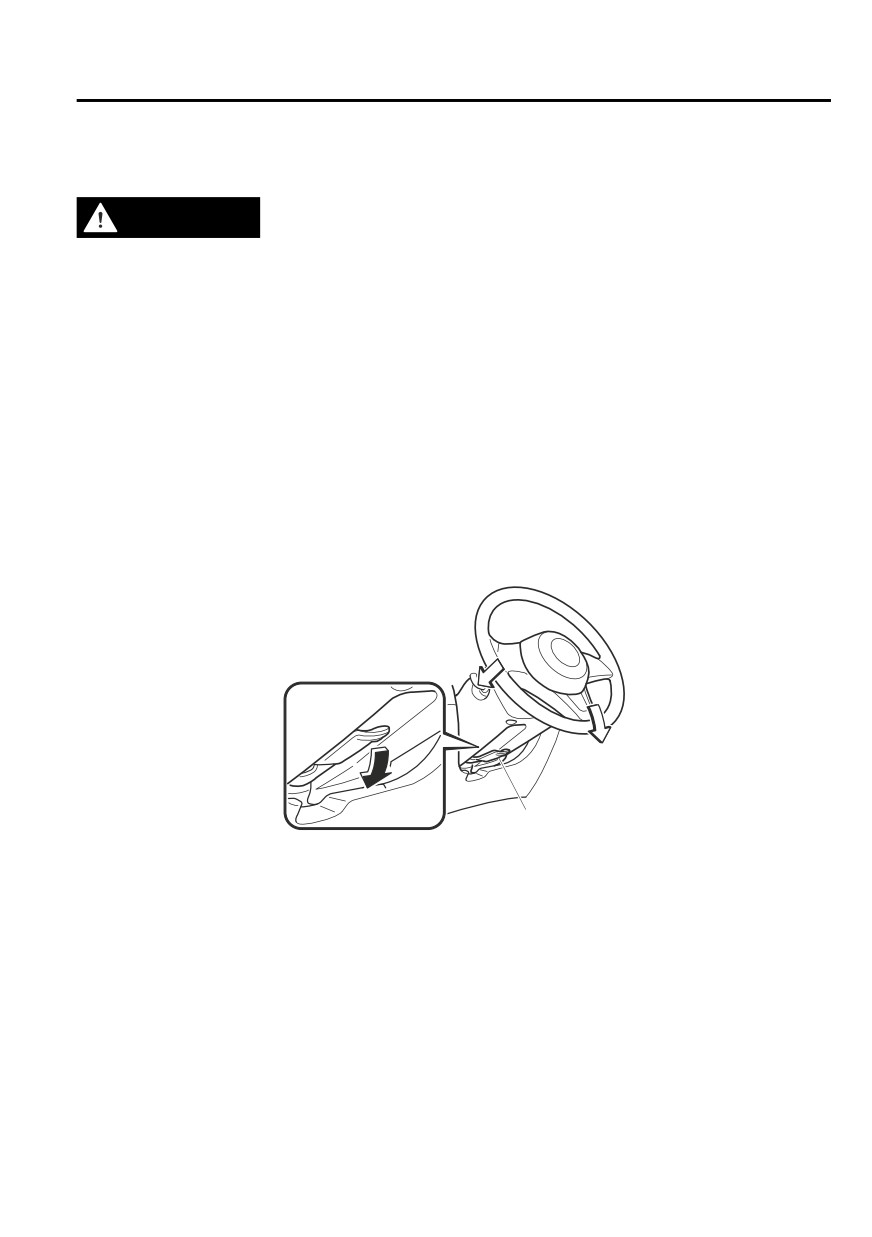

Lower the lever, move the steering wheel to the lowest position, and then push it down and
all the way back.
Lock release lever
How to move a driver’s seat to its default position
1. Slide the seat all the way back.
2. Lower the seat to its lowest height.
3. Sit squarely in the seat and rest your back against the seatback.
Seat adjustment procedure for the driving position recommended by Mazda
Adjusting the seatback angle (reclining)
Adjust the seatback to the angle providing a comfortable seated posture.
2-7
Essential Safety Equipment
Seats

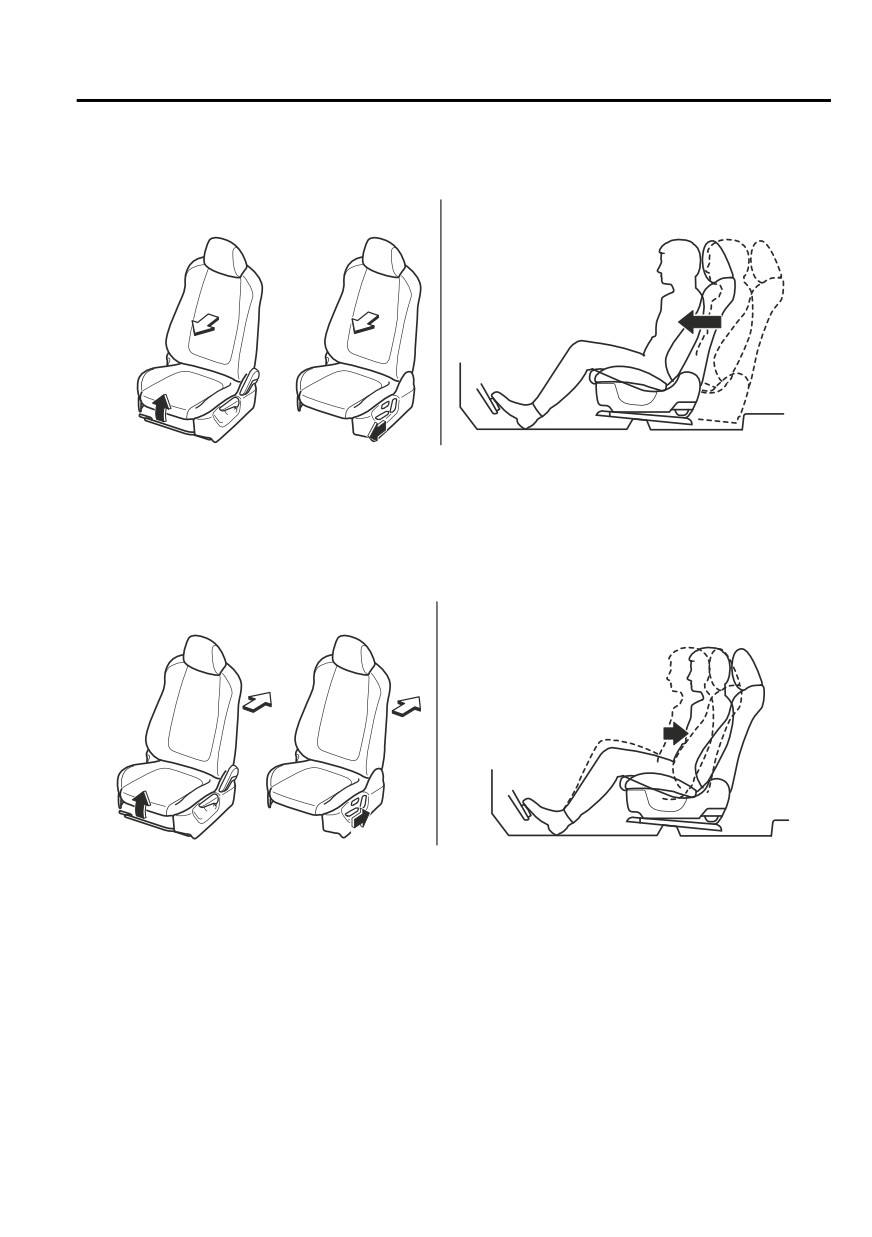

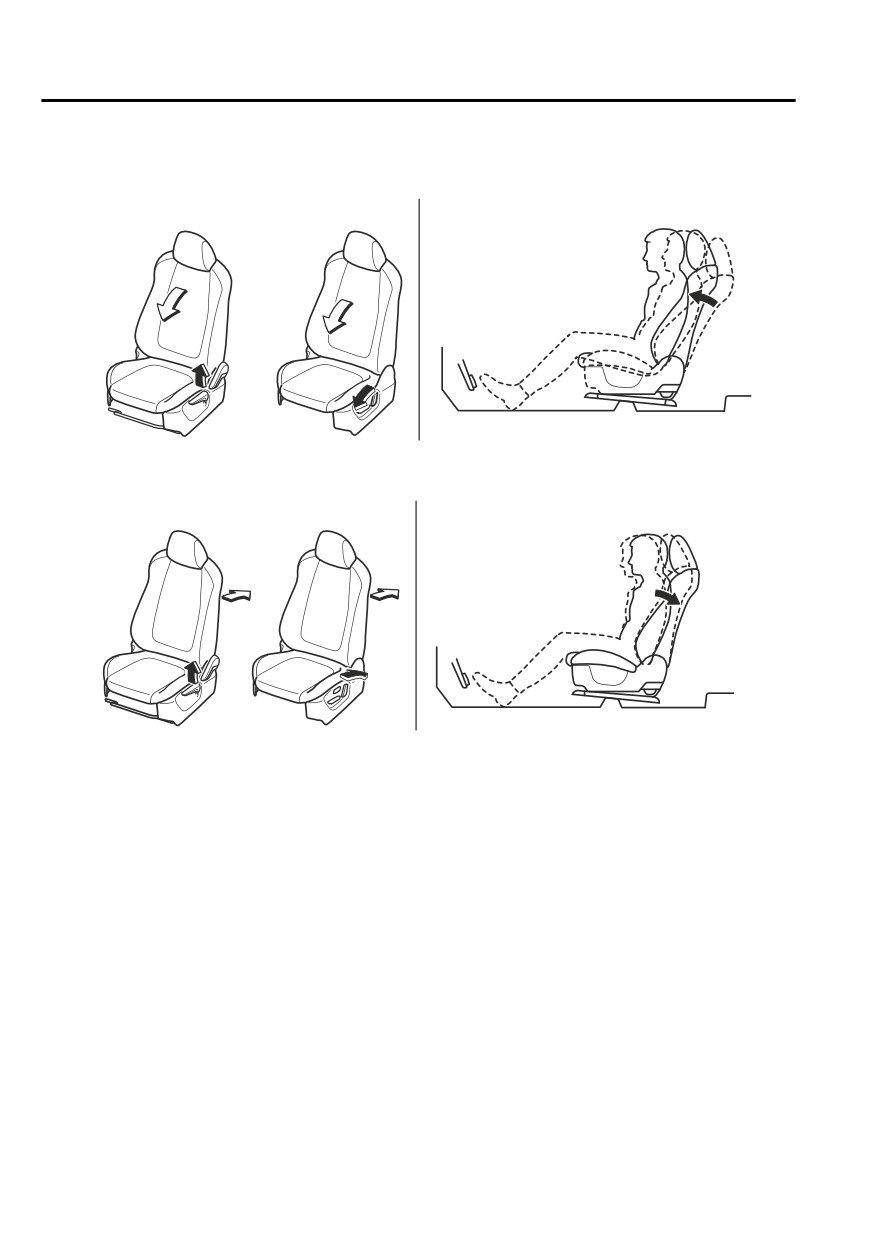

1. With your posture slightly slouched, move the seatback forward to the angle where your
waist feels slightly cramped.
Manual Seat
Power Seat
2. Move the seatback backward to a comfortable seated posture without any feeling of
cramping in your waist.
Manual Seat
Power Seat
Adjusting the seat position forward and back (sliding)
Adjust the seat to the position best for operating the accelerator and brake pedals.
1. Place your left foot on the footrest, your right foot between the accelerator and brake
pedals, and position your heel to the position allowing easy switching between the
pedals.
2-8
Essential Safety Equipment
Seats
2. With your heel set on the floor, set your right foot on the brake pedal and move the seat
forward as far as possible until you feel a slight cramping in your ankle.
Manual Seat
Power Seat
3. With your right foot set on the brake pedal, move the seat back until you no longer feel
cramping in your ankle.
4. With your heel set on the floor, make sure you can move your foot between the brake
pedal and accelerator pedal smoothly.
5. Depress the accelerator pedal completely with your heel set on the floor and make sure
that your ankle does not feel over-stretched.
Manual Seat
Power Seat

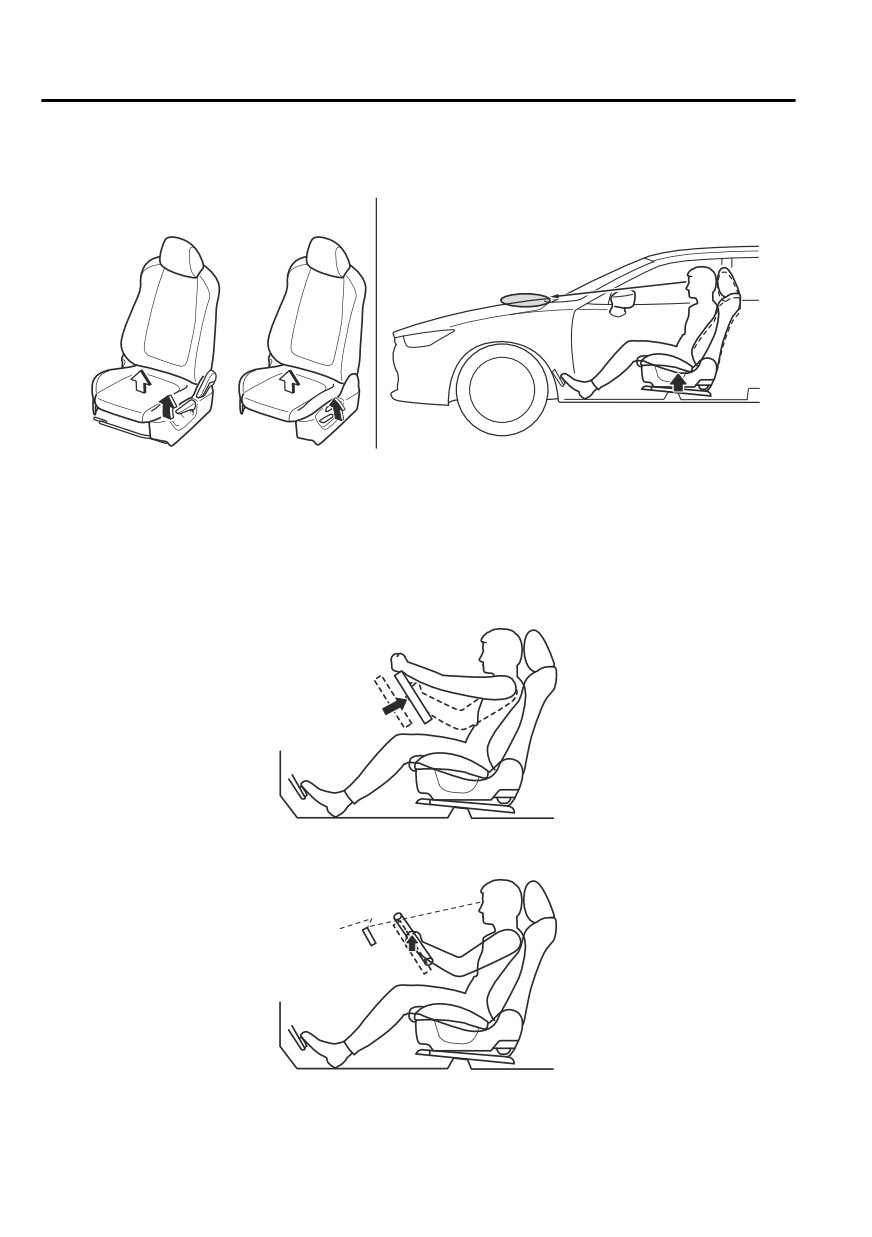

Adjusting the seat height
Adjust the seat height to a position where you have a clear forward view and you can drive
the vehicle easily.
1. With your back resting against the seatback, raise the seat to the height where you can
see the rear edge area of the hood surface from the windshield.
2-9
Essential Safety Equipment
Seats
With the manual seat, if you raise the seat height, the seat moves forward. Adjust the
seat forward or back again.
Manual Seat
Power Seat
Adjusting the steering wheel position
Adjust the steering wheel to the position where it can be operated easily and the gauges can
be viewed easily.
1. With your back resting against the seatback, extend both arms, place them on the top of
the steering wheel, and pull the steering wheel towards you to the position of your
wrists.
2. Adjust the steering wheel height so that the gauges can be viewed easily.
3. Raise the lever to securely lock the steering wheel.
Adjusting the head restraint position

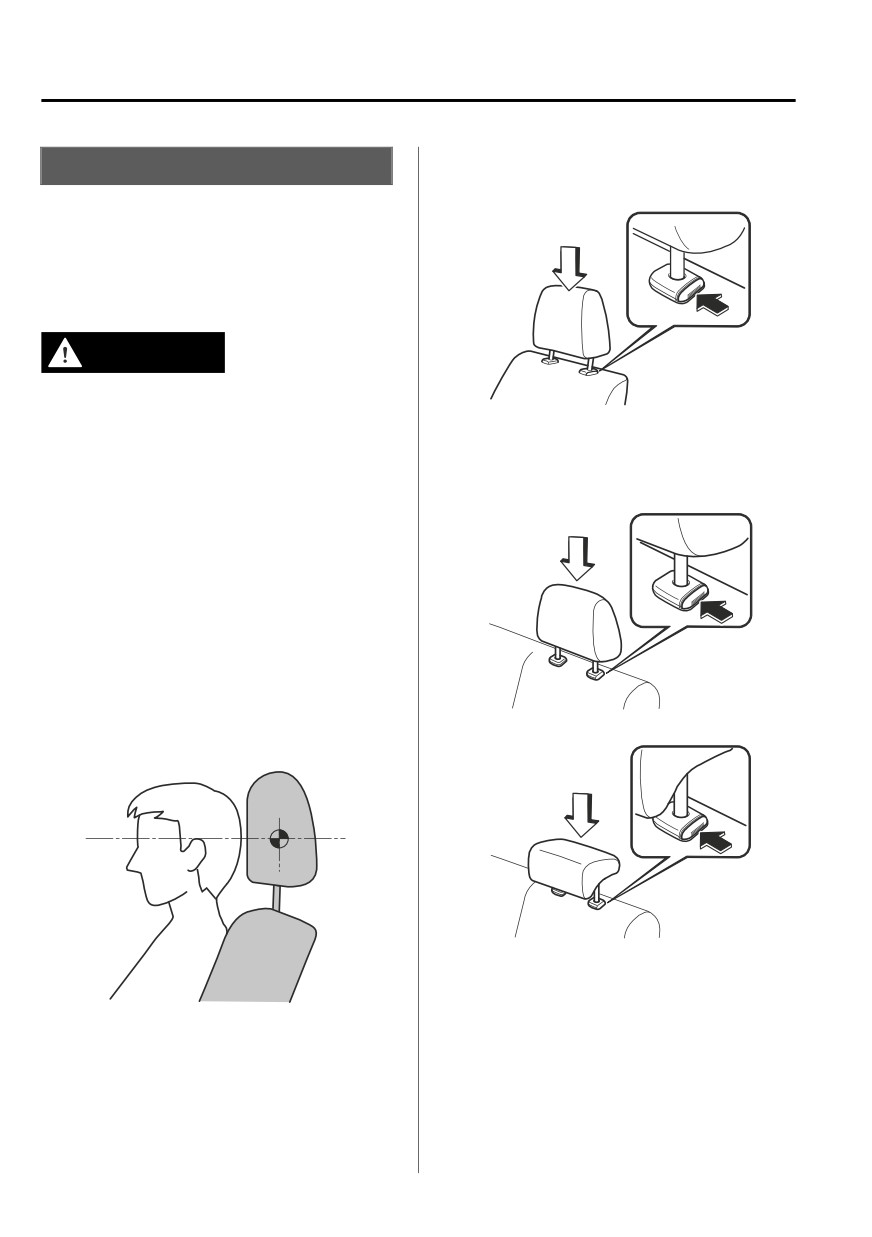

To prevent shock to the head and neck, adjust the head restraints to their correct positions.
2-10
Essential Safety Equipment
Seats
Refer to Height Adjustment on page 2-20.
Driving Position Memory*
NOTE
Lumbar support adjustment cannot be
The desired driving position can be called
up after programming the position.
programmed.
The following driving positions can be
A driving position can be programmed
programmed.
to the buttons on the side of the seat and
the key in use for driving the vehicle.
Driver’s seat position (seat slide, height
If the vehicle has been serviced and the
adjustment, front edge of seat bottom,
battery cables disconnected, the
seat recline)
programmed seat positions will have
Refer to Adjusting the Driver's Seat on
been erased. Re-program the seat
page 2-5.
positions.
Active driving display (display position,
brightness level, display information)
Programming
Refer to Active Driving Display on page
1.
Make sure the parking brake is on.
4-59.
2.
Make sure the selector lever is in the P
position.
CAUTION
3.
Start the engine.
4.
Adjust the seat and the active driving
Do not place fingers or hands around the
display to the desired driving position.
bottom of the seat while the seat memory
5.
Press the SET button on the seat until a
function is operating. The seat moves
beep sound is heard 1 time.
automatically while the seat memory
6.
Perform one of the following settings
function is operating and fingers or hands
within 5 seconds of completing step 5
could get pinched and injured.
above:

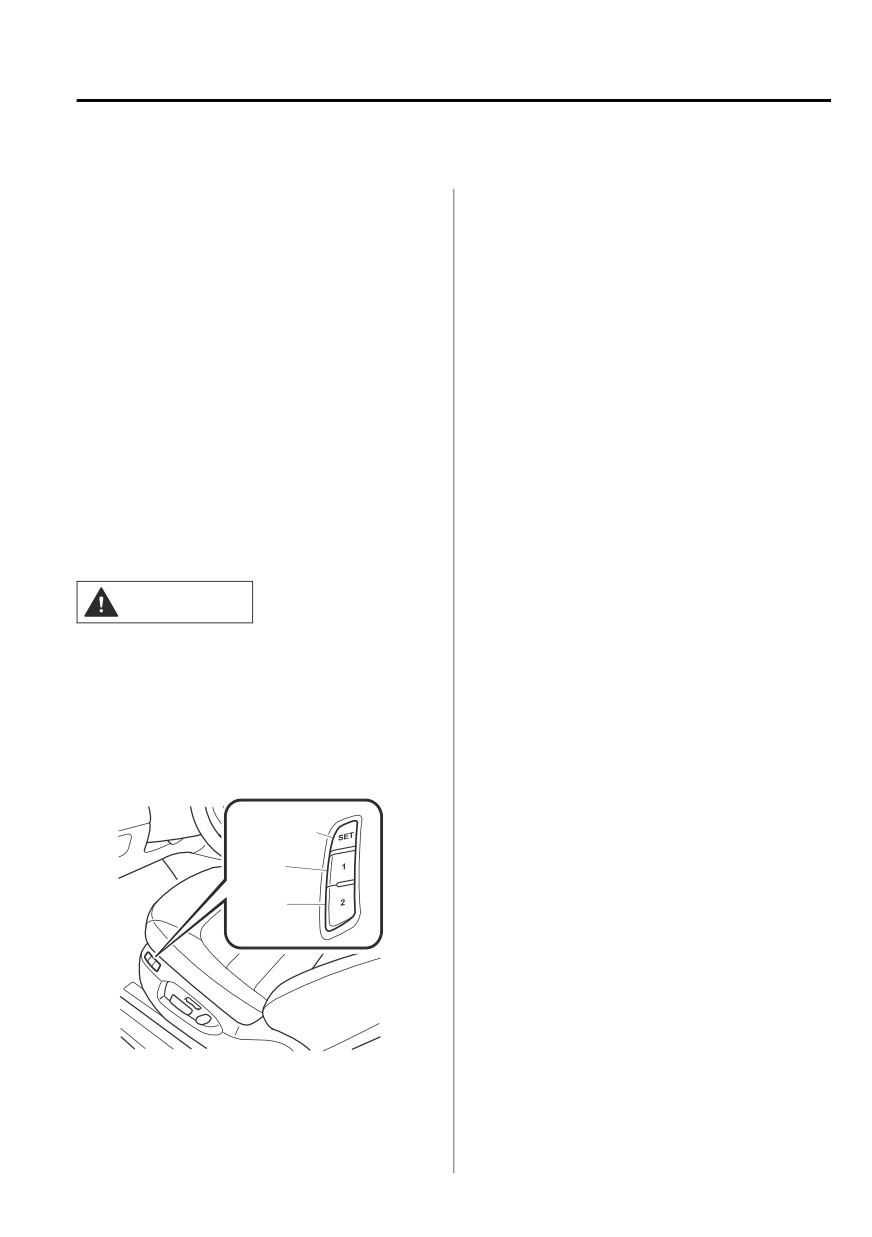

Programming using a button on
SET button
the side of the seat
Press the button you want to
1
program, either button 1 or 2, until a
2
beep sound is heard 1 time.
Programming using the key
Press the key unlock button until a
beep sound is heard 1 time.
NOTE
If a beep sound is heard 3 times, the
operation is canceled.
A driving position can be programmed or
operated using the buttons on the side of
the seat or the key.
*Some models.
2-11
Essential Safety Equipment
Seats
To move the driving position to a
and a beep sounds when the operation
programmed position
is finished.
3. Make sure the parking brake is on.
(Using a button on the side of the seat)
4. Make sure the selector lever is in the P
1. Make sure the parking brake is on.
position.
2. Make sure the selector lever is in the P
5. Start the engine.
position.
6. The active driving display adjustment
3. Start the engine.
begins.
4. Press the programming button for the
NOTE
driving position you want to call up
(button 1 or 2).
If there is no driving position movement,
5. A beep sound is heard when the
a beep is not heard.
driving position adjustment is
The driving position adjustment is
completed.
canceled in the following cases:
NOTE
Any of the seat adjustment switches is
operated.
If the driving position movement is not
The SET button is pressed.
changed, only the beep sounds.
Programming button 1 or 2 is pressed.
A seat position can be called up even
The key lock button or unlock button
with the engine not running.
is operated.
The driving position adjustment is
The vehicle starts moving.
canceled in the following cases:
The active driving display is adjusted.
Any of the seat adjustment switches is
Erasing programmed driving positions
operated.
The SET button is pressed.
(Erasing the driving positions
Programming button 1 or 2 is pressed.
programmed to the key)
The key lock button or unlock button
1. Switch the ignition OFF.
is operated.
2. Press the SET button on the side of the
The vehicle starts moving.
seat until a beep sound is heard 1 time.
The active driving display is adjusted.
3. After the beep sounds, press the key
(Using a programmed key)
lock button within 5 seconds until a
beep sound is heard 1 time.
1. Unlock the doors by pressing a request
switch or the key unlock button.
NOTE
2. After unlocking the doors, the seat
If a beep sound is heard 3 times, the
position adjustment begins within 40
operation is canceled.
seconds of opening the driver's door,
2-12
Essential Safety Equipment
Seats
Adjusting the Front Passenger's Seat
Power operation
Seat Slide
(Manual Seat)
To move a seat forward or backward, raise the lever and slide the seat to the desired position
and release the lever.
Make sure the lever returns to its original position and the seat is locked in place by
attempting to push it forward and backward.
(Power Seat)
To slide the seat, move the slide lifter switch on the outside of the seat to the front or back
and hold it. Release the switch at the desired position.
Height Adjustment*
(Manual Seat)
To adjust the seat height, move the lever up or down.
(Power Seat)
To adjust the seat height, move the slide lifter switch up or down.
Seat Recline
(Manual Seat)
To change the seatback angle, lean forward slightly while raising the lever. Then lean back
to the desired position and release the lever.
*Some models.
2-13
Essential Safety Equipment
Seats
Make sure the lever returns to its original position and the seatback is locked in place by
attempting to push it forward and backward.
(Power Seat)
To change the seatback angle, press the front or rear side of the reclining switch. Release the
switch at the desired position.
2-14
Essential Safety Equipment
Seats
NOTE
Rear Seat
When you fold down the left seatback, the
center seatback folds down at the same
Split Folding
time.
By lowering the rear seatbacks the luggage

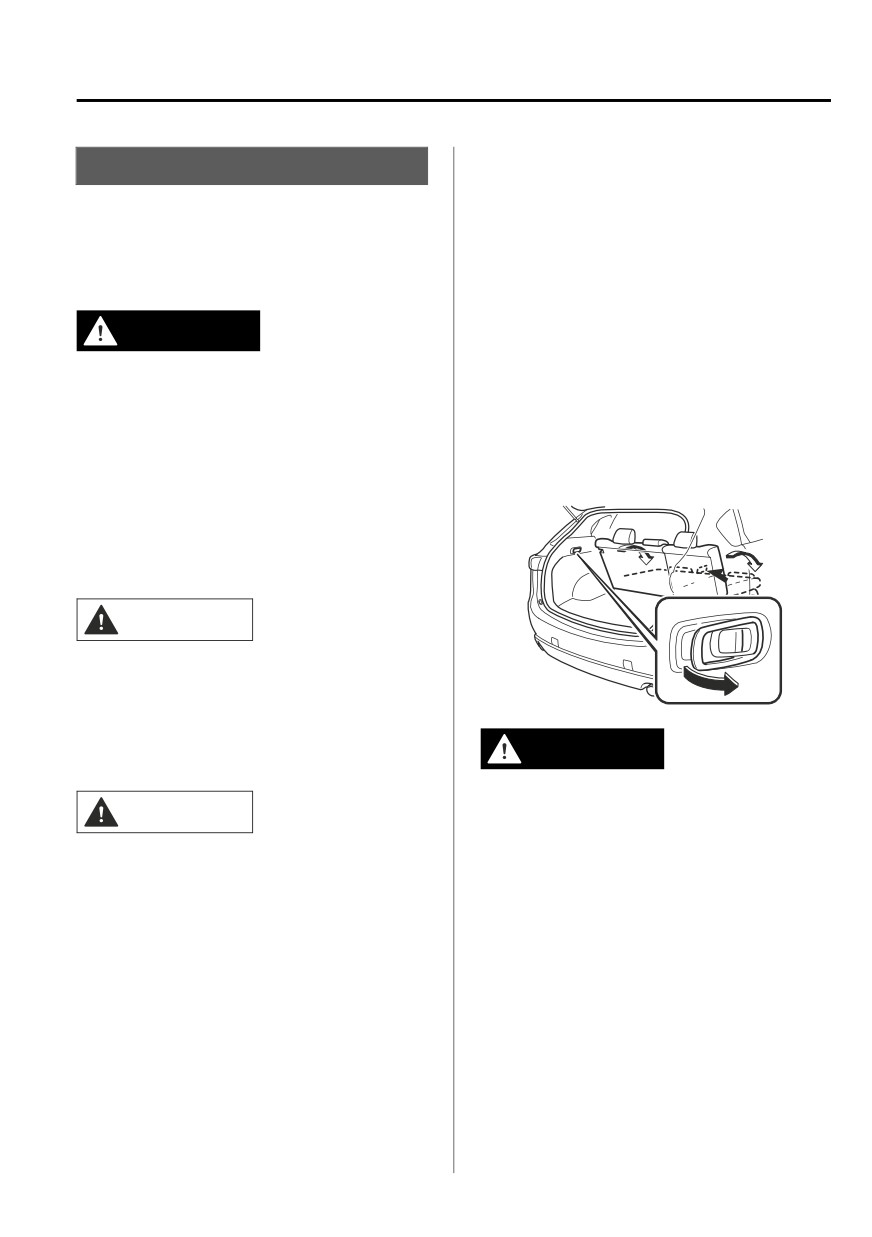

Using remote handle*
compartment space can be expanded.
1.
(With rear seat warmer)
Turn the rear seat warmer switch off.
WARNING
Refer to Seat Warmer on page 2-22.
2. After checking that the rear seats are
Tightly secure cargo in the luggage
clear, open the liftgate and lower the
compartment when it is transported with
seatback you want to fold down using
the seatbacks folded down:
the remote handle.
Driving without tightly securing cargo and
When folding the left side, operate the
luggage is dangerous as it could move and
outer part of the remote handle.
become an obstruction to driving during
emergency braking or a collision resulting
in an unexpected accident.
CAUTION
If the seatback is not supported by your
hand, it will move suddenly and could
cause injury.
Folding both seatbacks down
WARNING
Always remove the child-restraint system
CAUTION
from the rear seat before operating the
Check the position of a front seat before
remote handle for the rear seat:
folding a rear seatback. Depending on the
Operating the remote handle while a
position of a front seat, it may not be
rear-facing child-restraint system is in the
possible to fold a rear seatback all the way
rear seat is dangerous. It could cause injury
down because it may hit the seatback of
to a child seated in the child-restraint
the front seat which could scratch or
system when the seatback suddenly flips
damage the front seat or its pocket. Lower
forward.
or remove the head restraint on the rear
outboard seat if necessary.
*Some models.
2-15
Essential Safety Equipment
Seats
Make sure there is nobody in the rear seat
¾ (Folding the left seatback)
area before operating (pulling) the remote
Be careful when operating the remote
handle:
handle with the center seatback folded
Not checking the rear seat area for persons
down. If a person sitting in the right rear
before folding the seatbacks with the strap/
seat places a hand on the center
remote handle is dangerous. The rear seat
seatback, it could be pinched by a
area is difficult to see from the rear of the
seatback or seat component causing
vehicle. Operating (pulling) the remote
injury.
handle without checking could cause injury
to a person when a seatback suddenly flips
forward.
CAUTION
¾ Before folding the seatbacks down with
the remote handle, make sure there is no
cup in a rear cup holder. Folding the
seatbacks with the remote handle while
Using the lever
a cup is in the cup holder could soil or
1.
(With rear seat warmer)
damage the seat bottom and seatback.
Turn the rear seat warmer switch off.
¾ Be careful of the following when using
Refer to Seat Warmer on page 2-22.
the remote handle:
2. Pull the lever and fold the seatback
forward.
¾ On a downward slope, the seatback
could flip forward faster than on a flat
surface.
¾ On an upward slope, the seatback may
not fold down. When the seatbacks
cannot be folded down with the
remote handle, pull the rear seatback
forward from inside the vehicle.
Folding only center seatback
Using remote handle*
1.
(With rear seat warmer)
Turn the rear seat warmer switch off.
Refer to Seat Warmer on page 2-22.
2. If the center head restraint is in the
position for use, store it.
2-16
*Some models.
Essential Safety Equipment
Seats

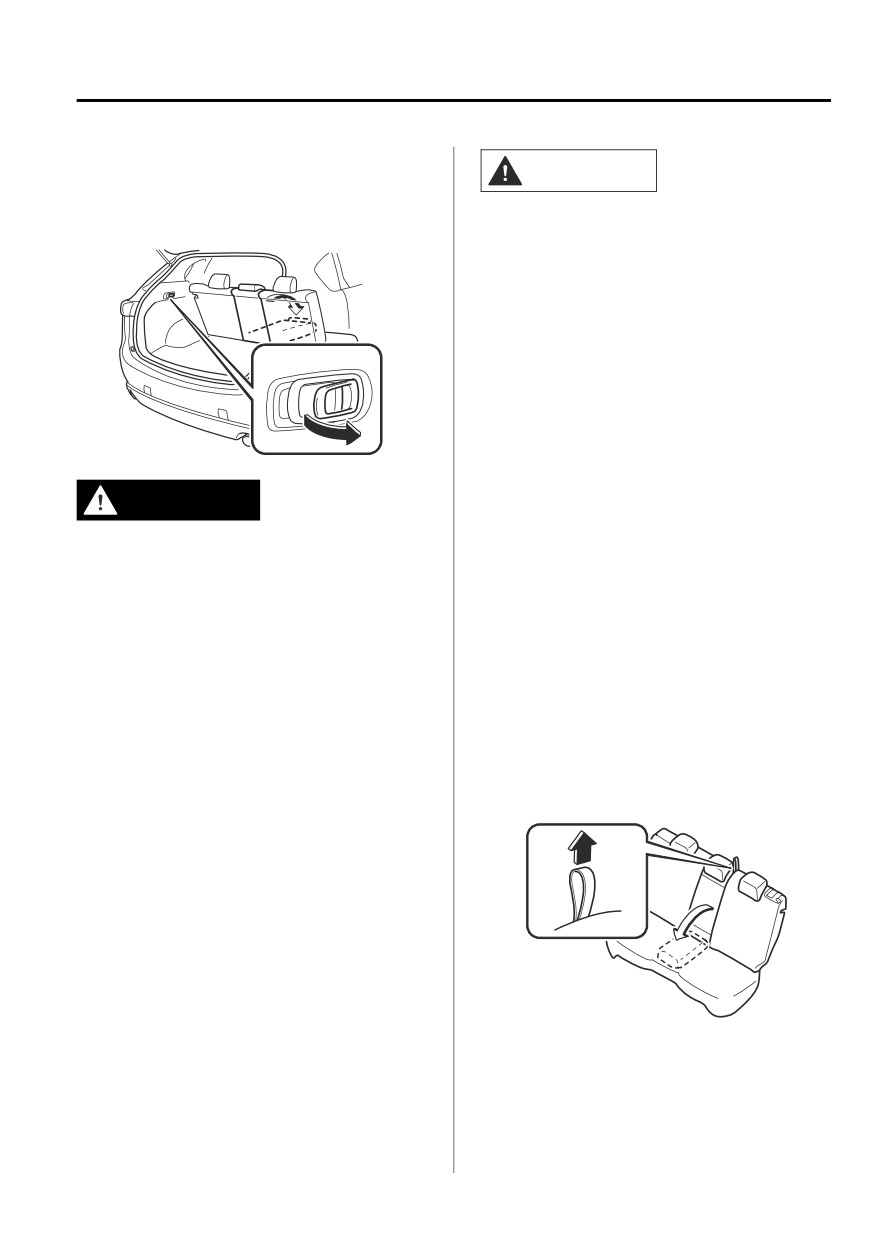

3. After checking that the center seat is
CAUTION
clear, open the liftgate and pull the
inside remote handle on the left side of
¾ Before folding the seatbacks down with
the liftgate compartment.
the remote handle, make sure there is no
cup in a rear cup holder. Folding the
seatbacks with the remote handle while
a cup is in the cup holder could soil or
damage the seat bottom and seatback.
¾ Be careful of the following when using
the remote handle:
¾ On a downward slope, the seatback
could flip forward faster than on a flat
surface.
WARNING
¾ On an upward slope, the seatback may
not fold down. When the seatbacks
cannot be folded down with the
Always remove the child-restraint system
remote handle, pull the rear seatback
from the rear seat before operating the
forward from inside the vehicle.
remote handle for the rear seat:
Operating the remote handle while a
Using strap
rear-facing child-restraint system is in the
1.
(With rear seat warmer)
rear seat is dangerous. It could cause injury
Turn the rear seat warmer switch off.
to a child seated in the child-restraint
Refer to Seat Warmer on page 2-22.
system when the seatback suddenly flips
2. If the center head restraint is in the
forward.
position for use, store it.
3. Pull the strap on the back of the
Make sure there is nobody in the rear seat
seatback to fold the seatback forward.
area before operating (pulling) the remote
handle:
Not checking the rear seat area for persons
before folding the seatbacks with the strap/
remote handle is dangerous. The rear seat
area is difficult to see from the rear of the
vehicle. Operating (pulling) the remote
handle without checking could cause injury
to a person when a seatback suddenly flips
forward.
2-17
Essential Safety Equipment
Seats
To return the seatbacks to the upright
1.
Make sure that the seat belt passes
position
through the seat belt guide.
Seat belt guide
WARNING
Always make sure the seat belts are fully
pulled out from under the seatbacks:
A seat belt caught under a seatback after
the seatback is returned to its upright
position is dangerous. In a collision or
sudden stop, the seat belt cannot provide
adequate protection.
2.
Press the seatback rearward and lock it
When returning the seatback to its upright
in place. After returning the seatback
position, make sure that it is firmly locked
to its upright position, make sure it is
and the red indication is not visible:
securely locked.
If the red indication is visible, the seatback

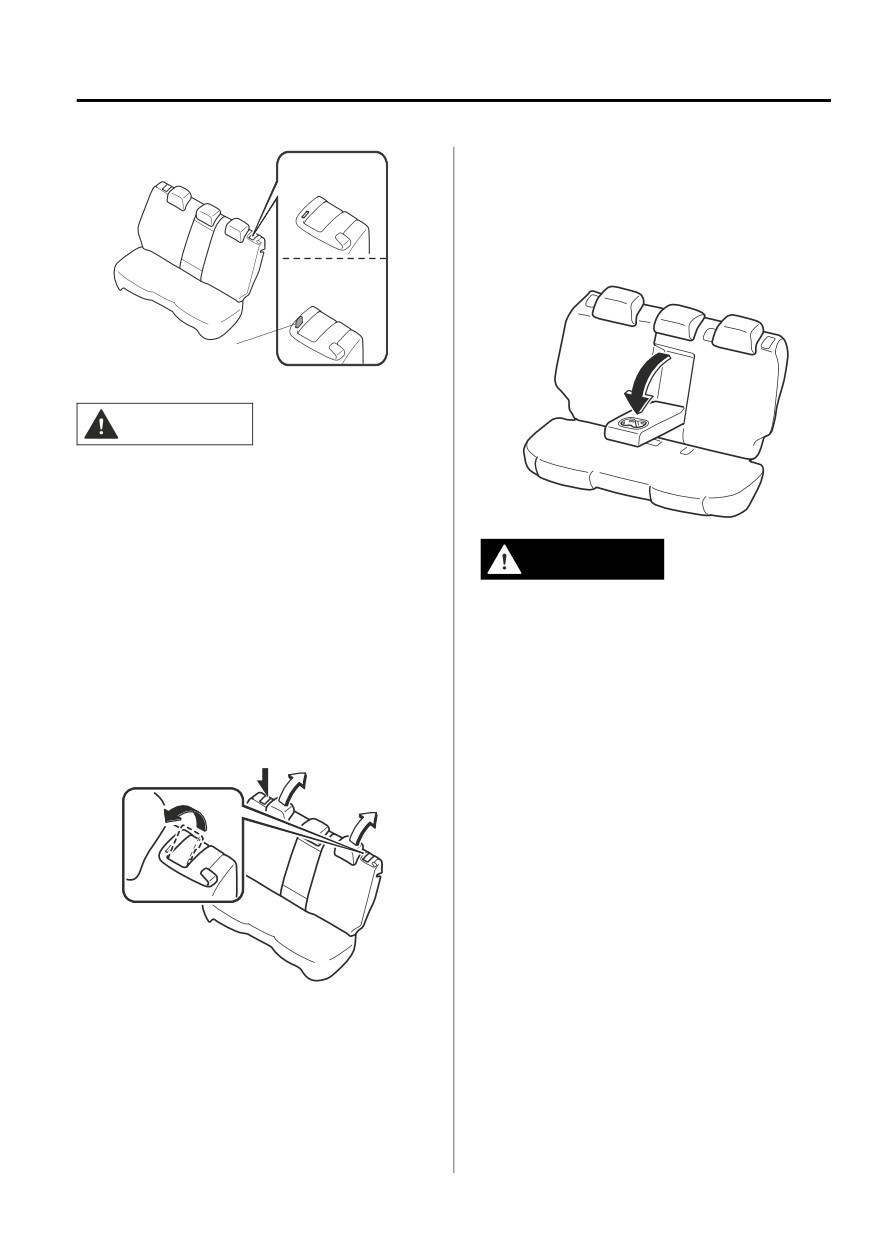

Rear Seat Recline
is not locked. If the vehicle is driven without
the seatback locked, it could fold down
suddenly and cause an accident.
WARNING
Locked
position
After adjusting the seatback, make sure
that it is firmly locked and the red
indication is not visible by attempting to
Unlocked
lightly move the seatback forward and
position
back:
If the red indication is visible, the seatback
is not locked. If the vehicle is driven with the
Red indicator
seatback unlocked, it may move
unexpectedly and the seating posture of
the occupant becomes unstable, resulting
in an accident.
2-18
Essential Safety Equipment
Seats
Locked
Armrest*
position

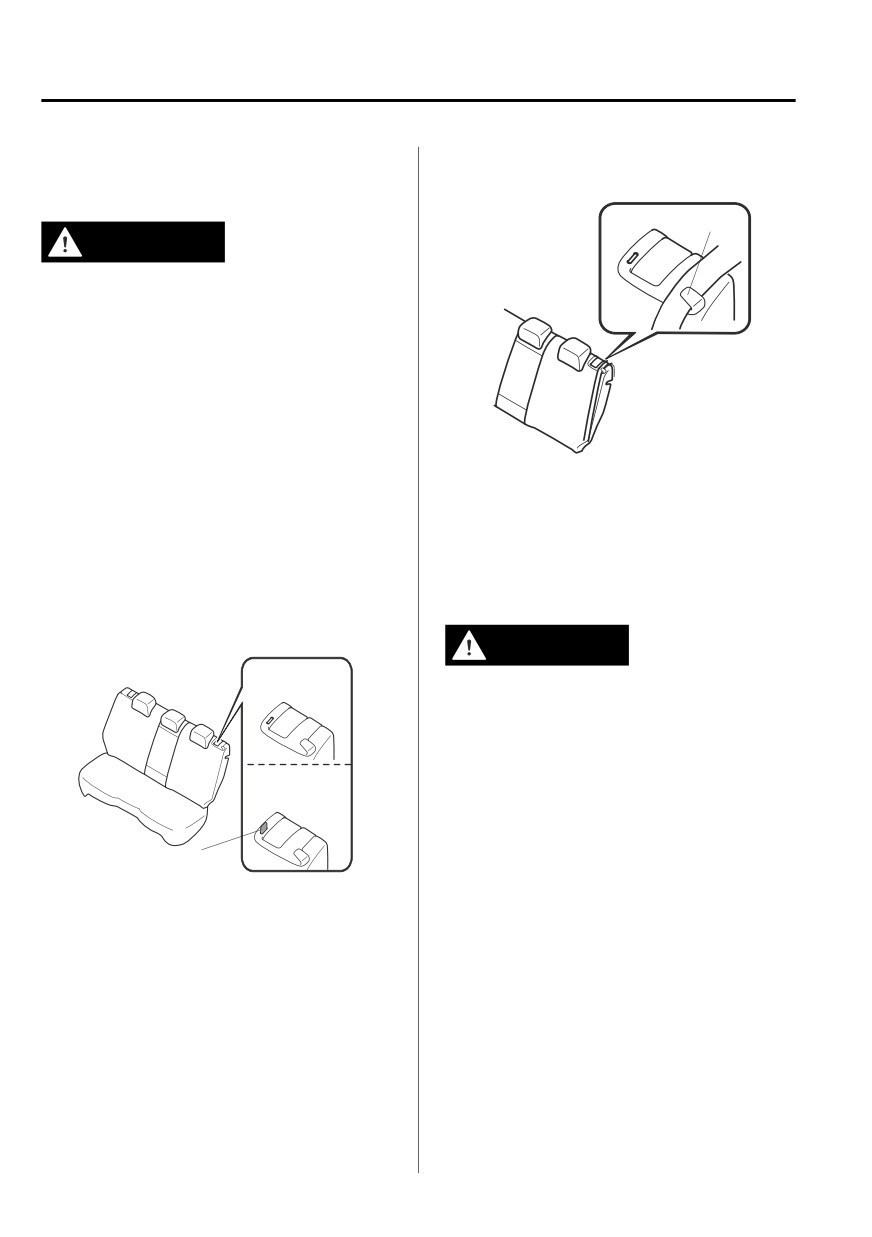

The rear armrest in the center of the rear
seatback can be used (no occupant in the
center seat) or placed upright.
Unlocked
position
Red indicator
CAUTION
When adjusting the seatback, always
support the seatback with your hand. If the
seatback is not supported by your hand, it
will move suddenly and could cause injury.
WARNING
NOTE
When you adjust the left seatback, the
Never put your hands and fingers around
center seatback moves at the same time.
the moving parts of the seat and armrest:
Putting your hands and fingers around the
The left and right seatbacks of the rear seat
moving parts of the seat and armrest is
can be adjusted separately.
dangerous as they could get injured.
Recline the seatback with the lever pulled
up.
*Some models.
2-19
Essential Safety Equipment
Seats
Front seats
Head Restraints
Your vehicle is equipped with head
restraints on all outboard seats and the rear
center seat. The head restraints are
intended to help protect you and the
passengers from neck injury.
WARNING
Always drive with the head restraints
installed when seats are being used and
Rear outboard seats
make sure they are properly adjusted. In
addition, always raise the head restraints
Except Mexico
on all rear seats when they are being used:
Driving with the head restraints adjusted
too low or removed is dangerous. With no
support behind your head, your neck could
be seriously injured in a collision.
Height Adjustment
Adjust the head restraint so that the center
is even with the top of the passenger's
ears.
Mexico
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the
stop-catch release, then push the head
restraint down.
2-20
Essential Safety Equipment
Seats
Rear center seat
CAUTION
¾ When installing a head restraint, make
sure that it is installed correctly with the
front of the head restraint facing
forward. If the head restraint is installed
incorrectly, it could detach from the seat
during a collision and result in injury.
¾ The head restraints on each of the front
and rear seats are specialized to each
seat. Do not switch around the head
restraint positions. If a head restraint is

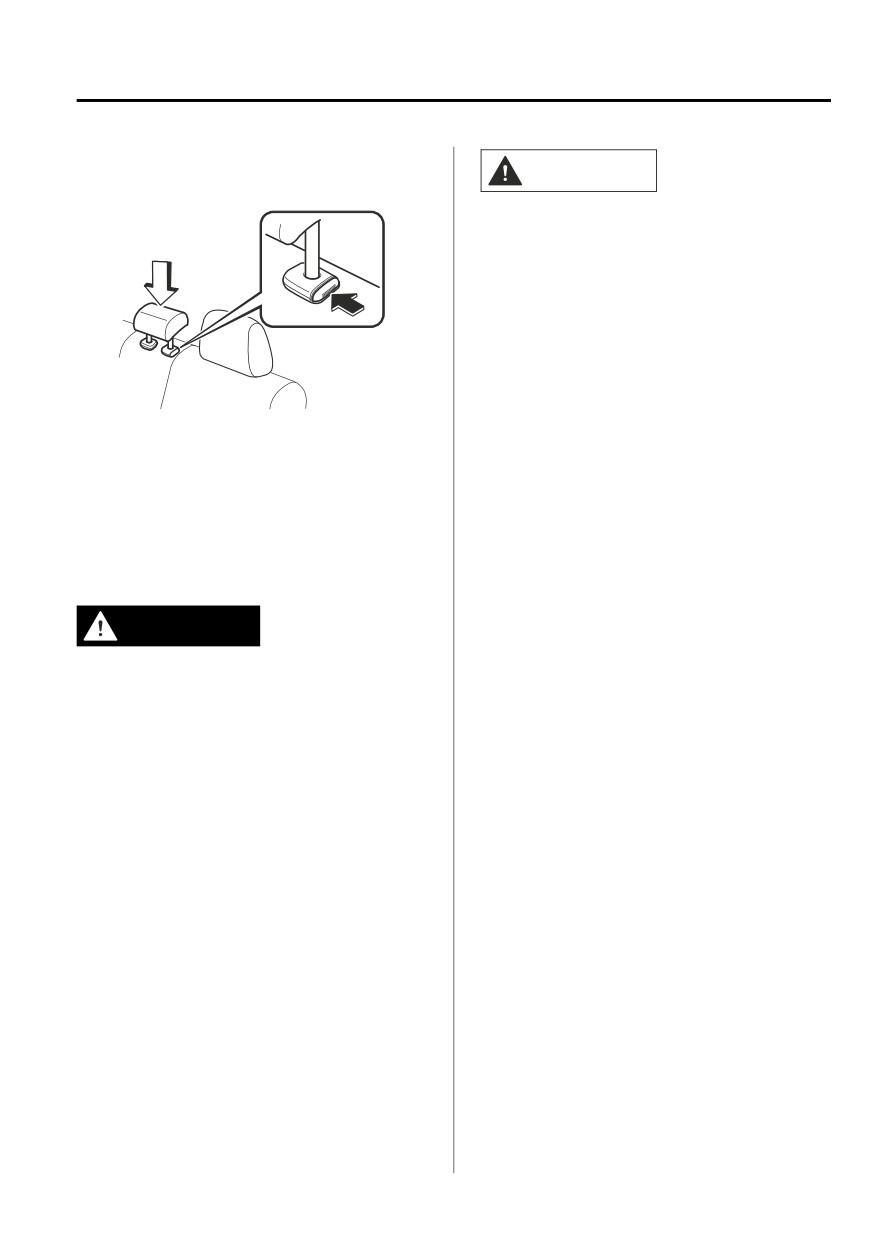

Removal/Installation
not installed to its correct seat position,
To remove the head restraint, pull it up
the effectiveness of the head restraint
while pressing the stop-catch.
during a collision will be compromised
To install the head restraint, insert the legs
which could cause injury.
into the holes while pressing the
stop-catch.
WARNING
Always drive with the head restraints
installed when seats are being used and
make sure they are properly installed:
Driving with the head restraints not
installed is dangerous. With no support
behind your head, your neck could be
seriously injured in a collision.
After installing a head restraint, try lifting it
to make sure that it does not pull out:
Driving with an unsecured head restraint is
dangerous as the effectiveness of the head
restraint will be compromised which could
cause it to unexpectedly detach from the
seat.
2-21
Essential Safety Equipment
Seat Warmer/Seat Ventilation/Heated Steering Wheel
Rear*
Seat Warmer*

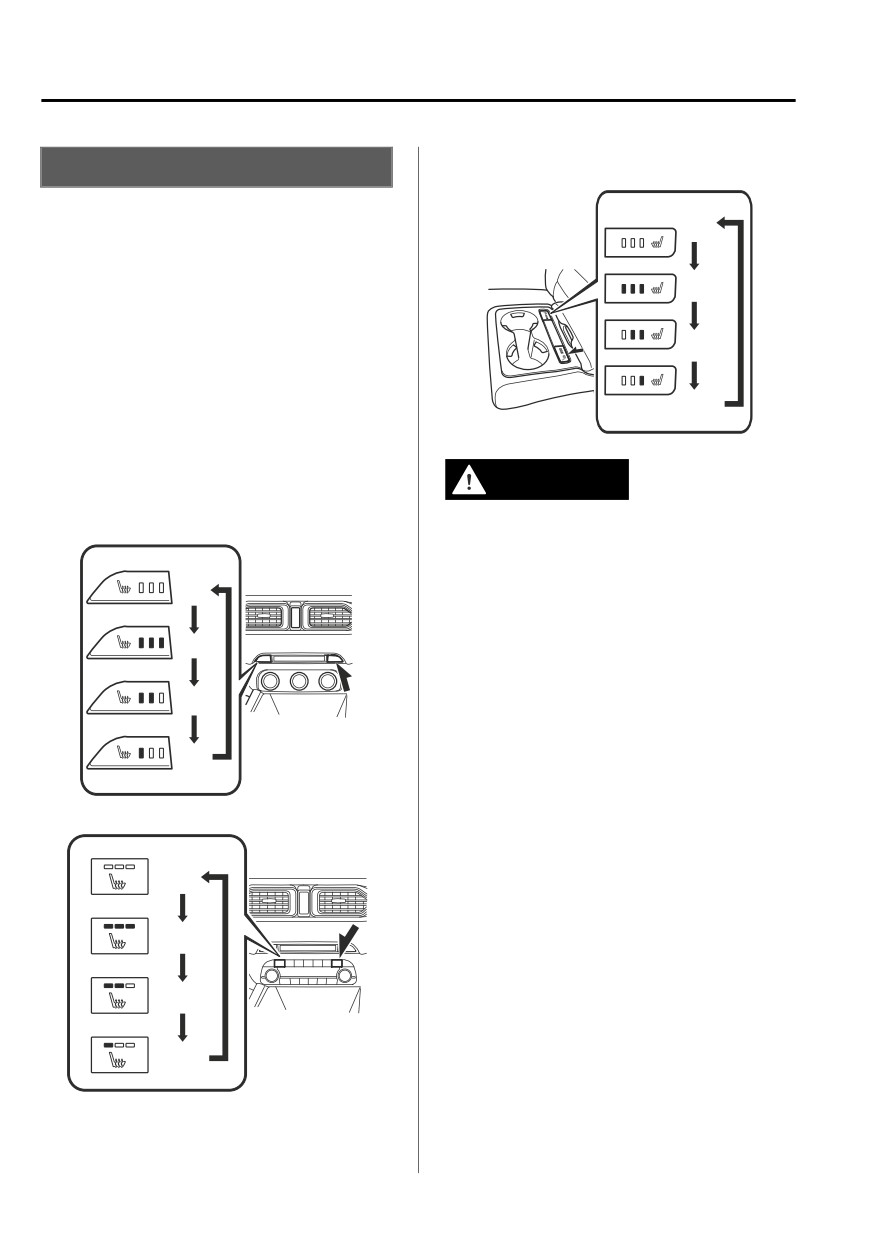

The front/rear seats are electrically heated.
OFF
The ignition must be switched ON.
Press the seat warmer switch while the
ignition is switched ON to operate the seat
High
warmer. The indicator lights turn on to
indicate that the seat warmer is operating.
Mid
The mode changes as follows each time
the seat warmer switch is pressed.
When using the rear seat warmer, fold the
Low
armrest forward.
Refer to Armrest on page 2-19.
WARNING
Front
(Manual Climate Control)
Be careful when using the seat warmer:
The heat from the seat warmer may be too
OFF
hot for some people, as indicated as
follows, and could cause a
low-temperature burn.
High
¾ Infants, small children, elderly people,
Mid
and physically challenged people
¾ People with delicate skin
¾ People who are excessively fatigued
Low
¾ People who are intoxicated
¾ People who have taken sleep-inducing
(Fully Automatic Climate Control)
medicine such as sleeping pills or cold
medicine
OFF
Do not use the seat warmer with anything
having high moisture-retention ability such
High
as a blanket or cushion on the seat:
The seat may be heated excessively and
cause a low-temperature burn.
Mid
Do not use the seat warmer even when
Low
taking a short nap in the vehicle:
The seat may be heated excessively and
cause a low-temperature burn.
2-22
*Some models.
Essential Safety Equipment
Seat Warmer/Seat Ventilation/Heated Steering Wheel
Do not place heavy objects with sharp

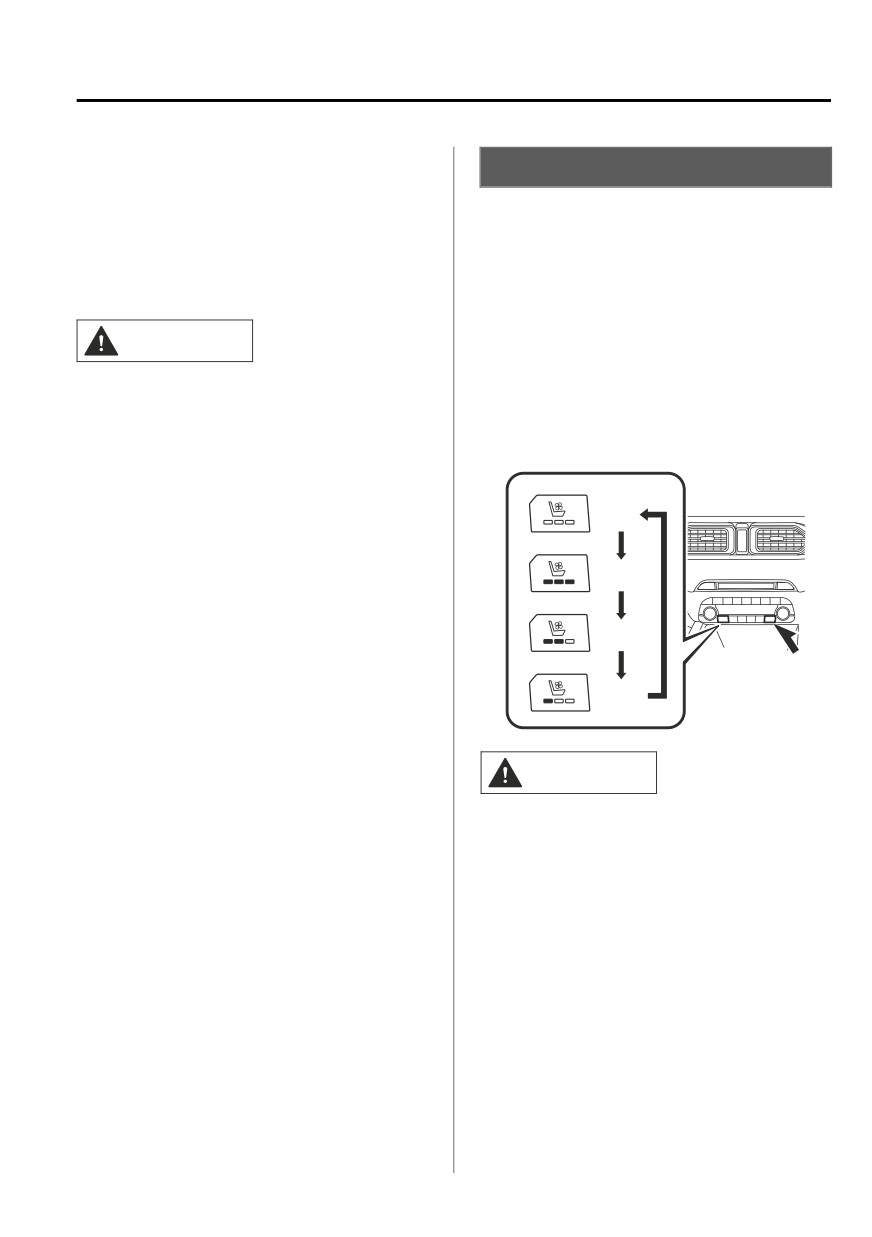

Seat Ventilation
projections on the seat, or insert needles or
pins into it:
The seat ventilation uses fans installed in
This could cause the seat to become
the seats to draw air around the seat
excessively heated and result in injury from
surface and ventilate them. The ignition
a minor burn.
must be switched ON.
Press the seat ventilation switch while the
ignition is switched ON to operate the seat
CAUTION
ventilation. The indicator lights turn on to
indicate that the seat ventilation is
¾ (Rear)
operating. The mode changes as follows
Before folding a rear seatback, make sure
each time the seat ventilation switch is
that the rear seat warmer switch is off. If
pressed.
a rear seatback is folded while the rear
seat warmer is in operation, it may heat
the seat excessively and damage the seat
OFF
surface.
¾ Do not use organic solvents to clean the
High
seat. It may damage the seat surface and
the heater.
Mid
NOTE
Use the seat warmer when the engine is
Low
running. Leaving the seat warmer on for
long periods with the engine not running
could cause the battery power to be
CAUTION
depleted.
When the engine is stopped while the
¾ Do not use organic solvents to clean the
seat warmers are operating and then the
seat. It may damage the seat surface and
ignition is switched ON, the seat
the seat ventilation parts.
warmers will not turn back on
¾ Do not place heavy objects with sharp
automatically. To turn the seat warmers
projections on the seat, or insert needles
back on, press the switch. In addition,
or pins into it.
the seat warmer operation stops
automatically after the seat warmers
NOTE
have operated for about 90 minutes.
Use the seat ventilation when the engine
(Vehicles with seat ventilation)
is running. Leaving the seat ventilation
The front seat warmer cannot be used at
on for long periods with the engine not
the same time as the seat ventilation.
running could cause the battery power
to be depleted.
*Some models.
2-23
Essential Safety Equipment
Seat Warmer/Seat Ventilation/Heated Steering Wheel
When the engine is stopped while the

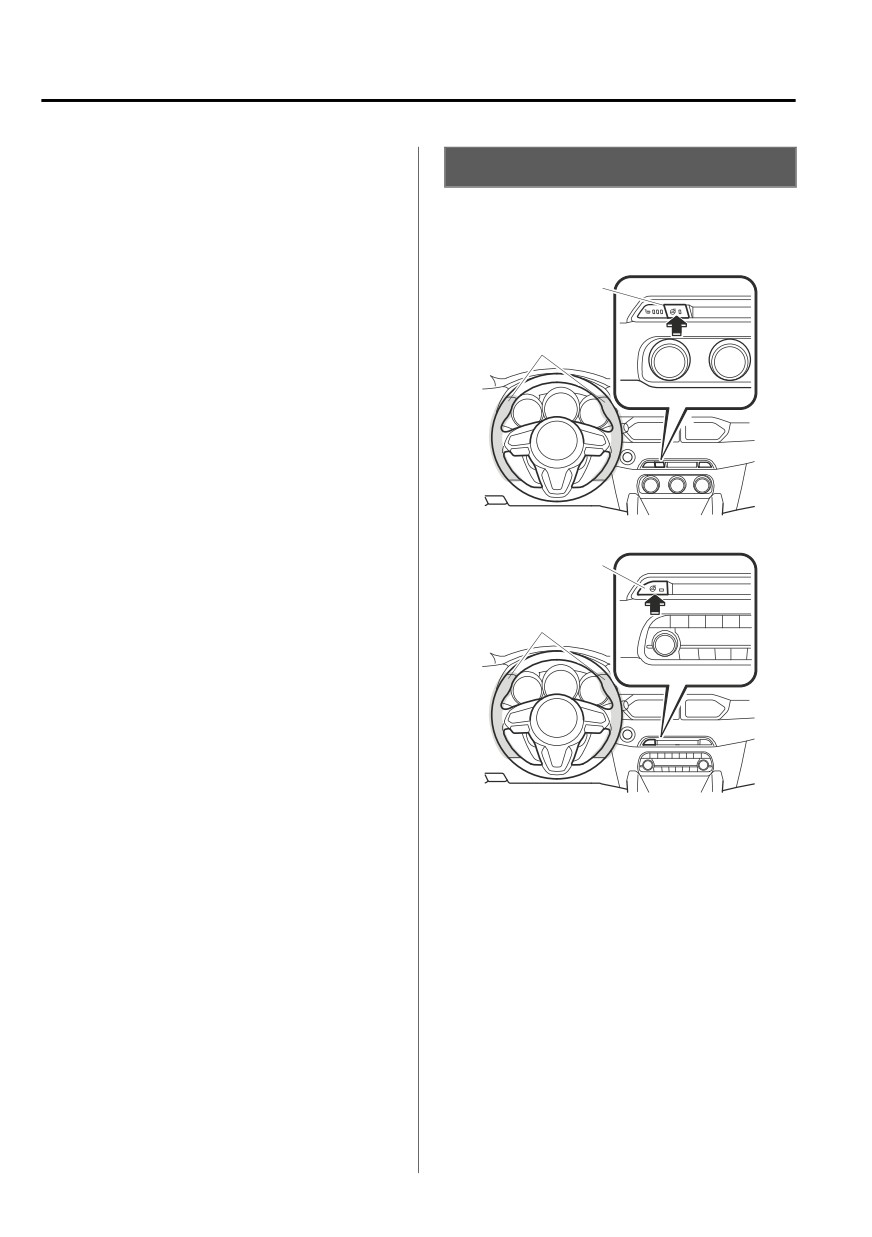

Heated Steering Wheel*
seat ventilations are operating and then
the ignition is switched ON, the seat
The grips on the left and right of the
ventilations will not turn back on
steering wheel can be warmed up.
automatically.
(Manual Climate Control)
(Vehicles with front seat warmer)
Heated steering
wheel switch
The seat ventilation cannot be used at
the same time as the front seat warmer.
Heating area
(Fully Automatic Climate Control)
Heated steering
wheel switch
Heating area
The ignition must be switched ON.
Press the switch to turn on the heated
steering wheel. The heated steering wheel
operates for about 30 minutes and then
turns off automatically.
The indicator light illuminates when the
heater is operating.
To turn off the heated steering wheel
before the 30 minutes has elapsed, press
the switch again.
2-24
*Some models.
Essential Safety Equipment
Seat Warmer/Seat Ventilation/Heated Steering Wheel
CAUTION
The following types of persons should be
careful not to touch the steering wheel.
Otherwise, it could cause a
low-temperature burn.
¾ Infants, small children, elderly people,
and physically challenged people
¾ People with delicate skin
¾ People who are excessively fatigued
¾ People who are intoxicated
¾ People who have taken sleep-inducing
medicine such as sleeping pills or cold
medicine
2-25
Essential Safety Equipment
Seat Belt Systems
Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
(Except Mexico)
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way when
not in use.
The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the front passenger's seat and all rear lap/shoulder belt retractors operate in two
modes: emergency locking mode, and for child-restraint systems, automatic locking mode.
While we recommend you put all children in the rear seats, if you must use the front
passenger seat for a child, slide the front passenger seat as far back as possible and make
sure any child-restraint system is secured properly.
(Mexico)
All the seats have lap/shoulder belts. These belts have retractors with inertia locks that keep
them out of the way when not in use. The locks allow the belts to remain comfortable on
users, but they will lock in position during a collision.
WARNING
Always wear your seat belt and make sure all occupants are properly restrained:
Not wearing a seat belt is extremely dangerous. During a collision, occupants not wearing
seat belts could hit someone or things inside the vehicle or even be thrown out of the vehicle.
They could be seriously injured or even killed. In the same collision, occupants wearing seat
belts would be much safer.
Do not wear twisted seat belts:
Twisted seat belts are dangerous. In a collision, the full width of the belt is not available to
absorb the impact. This puts more force on the bones beneath the belt, which could cause
serious injury or death. So, if your seat belt is twisted, you must straighten the seat belt to
remove any twists and to allow the full width of the belt to be used.
Never use one seat belt on more than one person at a time:
Using one seat belt for more than one person at a time is dangerous. A seat belt used in this
way cannot spread the impact forces properly and the two passengers could be crushed
together and seriously injured or even killed. Never use one belt for more than one person at a
time and always operate the vehicle with each occupant properly restrained.
2-26
Essential Safety Equipment
Seat Belt Systems
Do not operate a vehicle with a damaged seat belt:
Using a damaged seat belt is dangerous. An accident could damage the belt webbing of the
seat belt in use. A damaged seat belt cannot provide adequate protection in a collision. Have
an Authorized Mazda Dealer inspect all seat belt systems in use during an accident before
they are used again.
Have your seat belts changed immediately if the pretensioner or load limiter has been
expended:
Always have an Authorized Mazda Dealer immediately inspect the seat belt pretensioners
and air bags after any collision. Like the air bags, the seat belt pretensioners and load limiters
will only function once and must be replaced after any collision that caused them to deploy. A
seat belt with an expended pretensioner or load limiter is still better than wearing no seat belt
at all; however, if the seat belt pretensioners and load limiters are not replaced, the risk of
injury in a collision will increase.
Positioning the Shoulder Portion of the Seat Belt:
Improper positioning of the shoulder portion of the seat belt is dangerous. Always make sure
the shoulder portion of the seat belt is positioned across your shoulder and near your neck,
but never under your arm, on your neck, or on your upper arm.
Positioning the Lap Portion of the Seat Belt:
The lap portion of the seat belt worn too high is dangerous. In a collision, this would
concentrate the impact force directly on the abdominal area, causing serious injury. Wear the
lap portion of the belt snugly and as low as possible.
In a rollover crash, an unbelted person is significantly more likely to die than a person wearing
a seat belt.

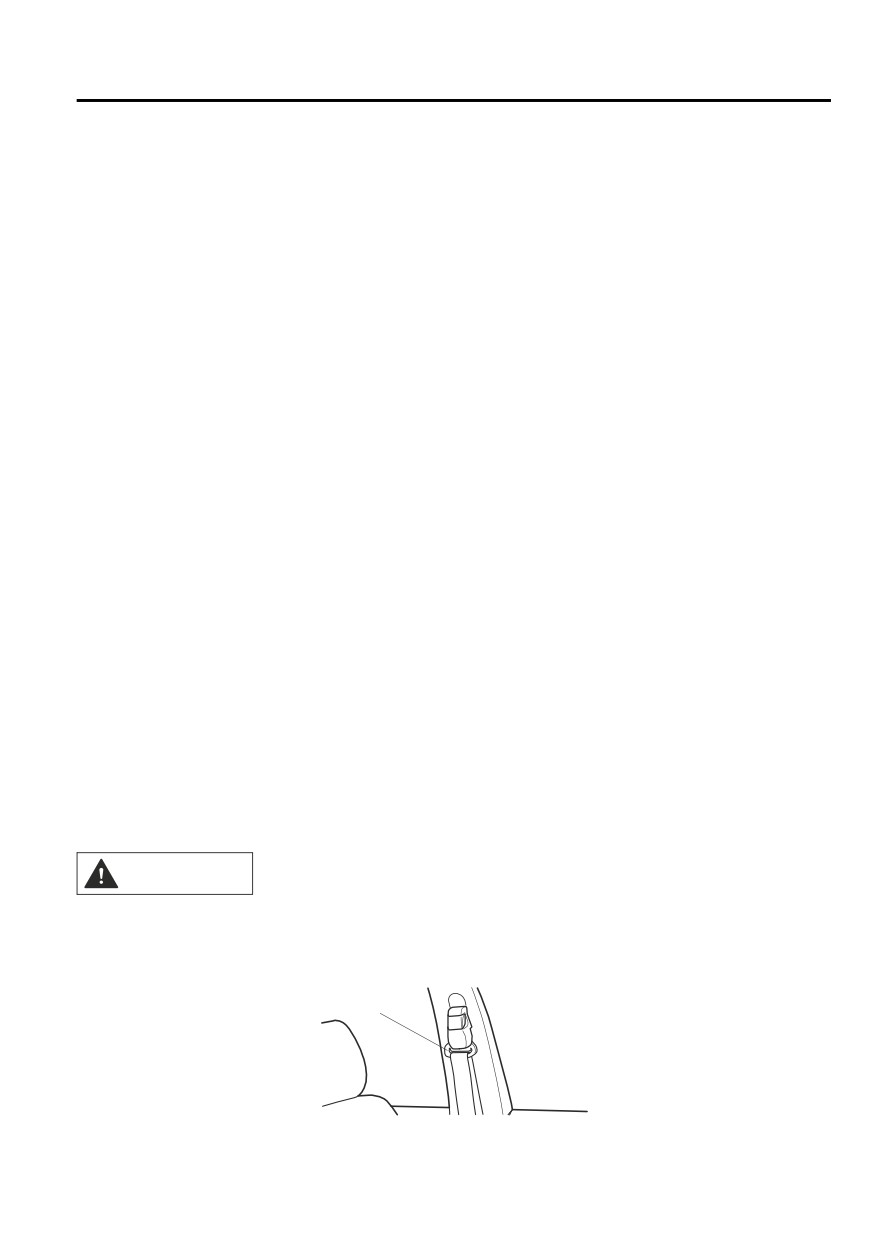

CAUTION
Belt retraction may become difficult if the belts and rings are soiled, so try to keep them clean.
For more details about cleaning the seat belts, refer to "Seat Belt Maintenance" (page 6-55).
Ring
2-27
Essential Safety Equipment
Seat Belt Systems

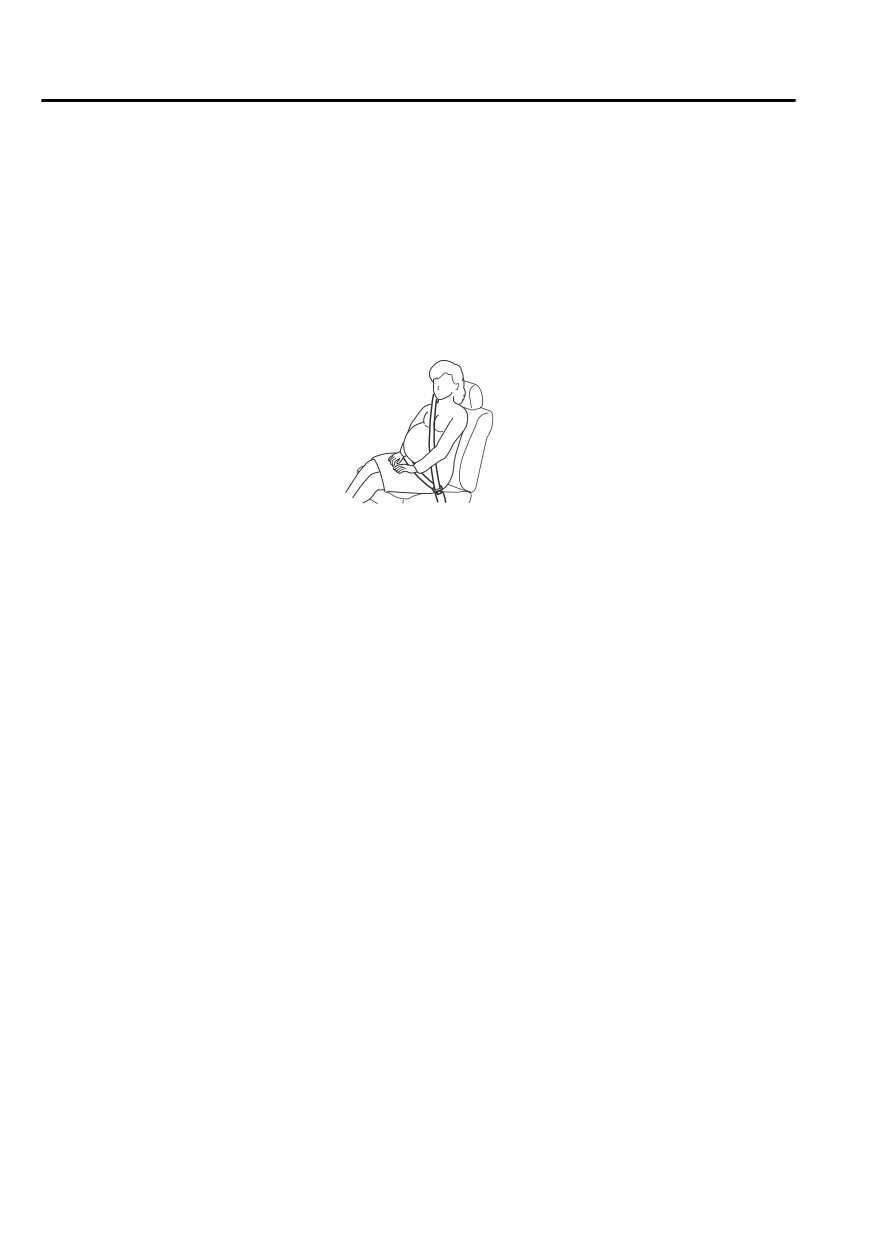

Pregnant Women and Persons with Serious Medical Conditions
Pregnant women should always wear seat belts. Ask your doctor for specific
recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your doctor
for any special instructions regarding specific medical conditions.
Emergency Locking Mode
When the seat belt is fastened, it will always be in the emergency locking mode.
In the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision.
If the belt is locked and cannot be pulled out, retract the belt once, and then try pulling it out
slowly. If this fails, pull the belt strongly 1 time and loosen, then pull it out again slowly.
(Seat Belt with Automatic Locking Mode)
When the seat belt is fastened, it will always be in the emergency locking mode until it is
switched to automatic locking mode by pulling it all the way out to its full length. If the belt
feels tight and hinders comfortable movement while the vehicle is stopped or in motion, it
may be in the automatic locking mode because the belt has been pulled too far out. To return
the belt to the more comfortable emergency locking mode, wait until the vehicle has stopped
in a safe, level area, retract the belt fully to convert it back to emergency locking mode and
then extend it around you again.
Automatic Locking Mode*
Always use the automatic locking mode to keep the child-restraint system from shifting to
an unsafe position in the event of an accident. To enable seat belt automatic locking mode,
pull it all the way out and connect it as instructed on the child-restraint system. It will retract
down to the child-restraint system and stay locked on it. See the section on child restraint
(page 2-35).
2-28
*Some models.
Essential Safety Equipment
Seat Belt Systems
seat belt guide correctly and it is not
Seat Belt
twisted.

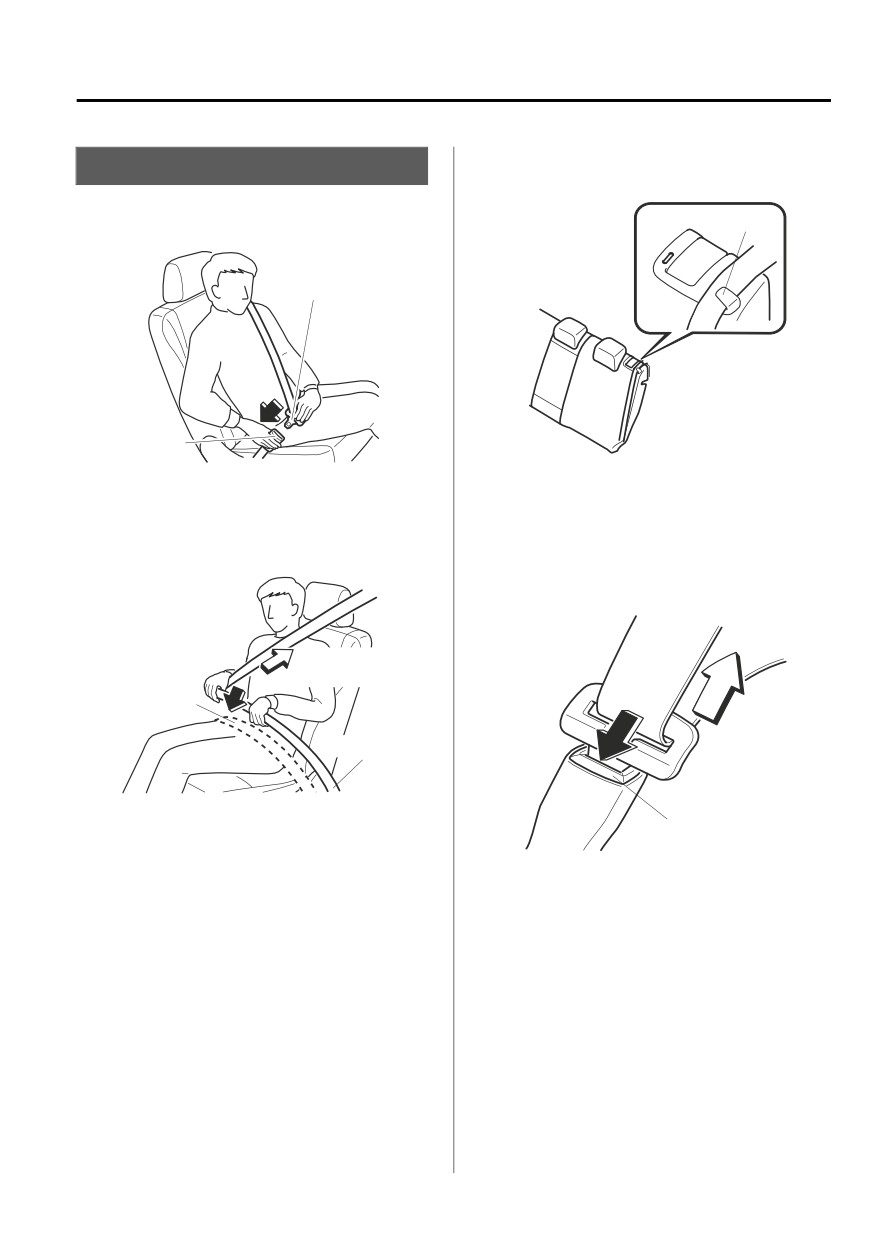

Fastening the Seat Belt
Seat belt guide
Seat belt tongue
Seat belt
buckle
Position the lap belt as low as possible, not
Unfastening the Seat Belt
on the abdominal area, then adjust the
Depress the button on the seat belt buckle.
shoulder belt so that it fits snugly against
If the belt does not fully retract, pull it out
your body.
and check for kinks or twists. Then make
sure it remains untwisted as it retracts.
Take up
Keep low
slack
on hip bone
Too high
Button
Before fastening the rear seat belt, make
sure that the seat belt passes through the
NOTE
If a belt does not fully retract, inspect it
for kinks and twists. If it is still not
retracting properly, have it inspected at an
Authorized Mazda Dealer.
2-29
Essential Safety Equipment
Seat Belt Systems

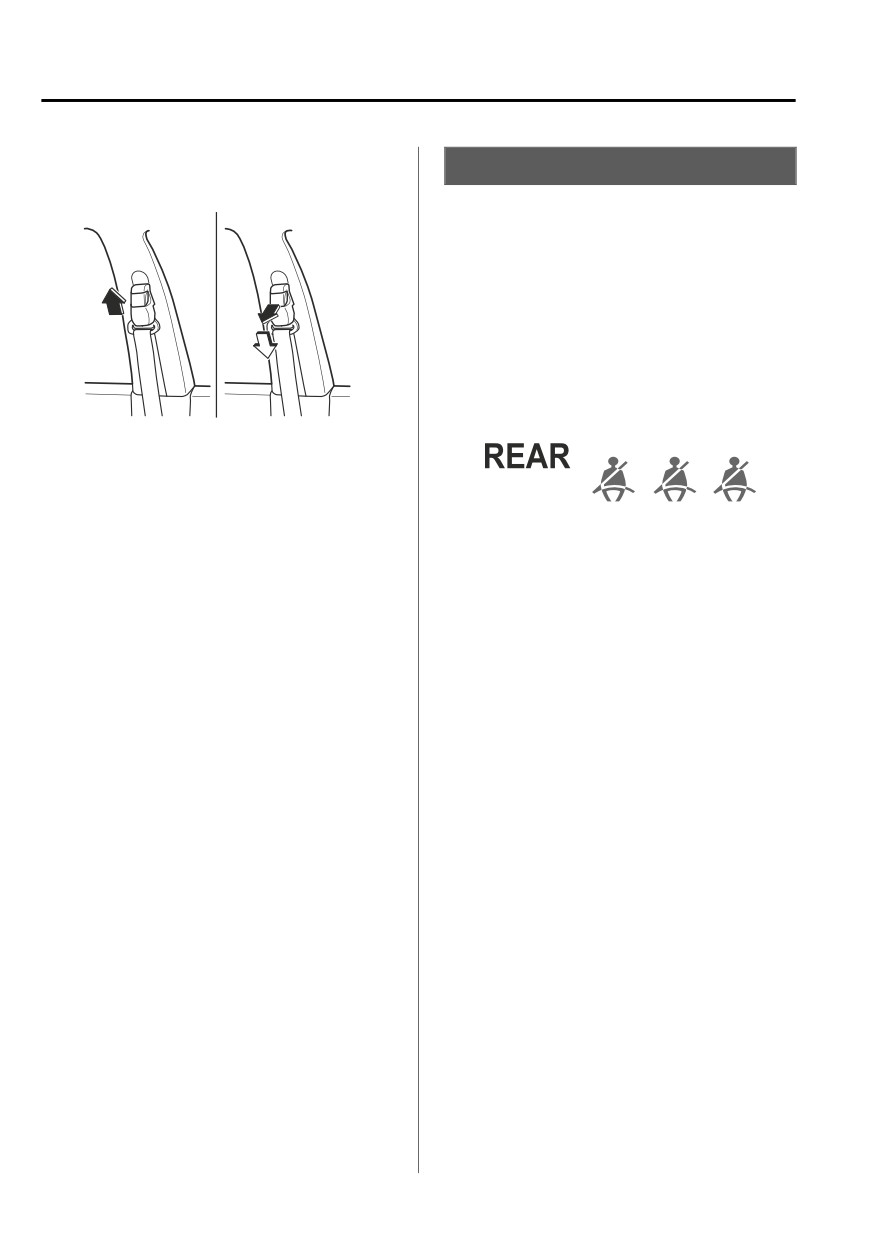

Front Shoulder Belt Adjuster
Seat Belt Warning Systems
To raise
To lower
If it detects that the occupant seat belt is
unfastened, the warning light or beep
alerts the occupant.
Refer to Taking Action on page 7-31.
Refer to Seat Belt Warning Beep on page
7-41.
Seat belt indicator light (rear seat)
(green)
Make sure the adjuster is locked.
The light turns on when the ignition is
switched ON and a rear seat belt is
fastened, and then it turns off after 30
seconds.
2-30
Essential Safety Equipment
Seat Belt Systems
For details, refer to the front passenger
Seat Belt Pretensioner and
occupant classification sensor (page
Load Limiting Systems
2-72).
For optimum protection, the front seat
Load limiter:
belts and rear outboard seat belts* are
The load limiting system releases belt
equipped with pretensioner and load
webbing in a controlled manner to reduce
limiting systems. For both these systems
belt force on the occupant's chest. While
to work properly you must wear the seat
the most severe load on a seat belt occurs
belt properly.
in frontal collisions, the load limiter has an
Pretensioners:
automatic mechanical function and can
When a collision is detected, the
activate in any accident mode with
pretensioners deploy simultaneously with
sufficient occupant movement.
the air bags.
Even if the pretensioners have not fired,
For vehicles with the front passenger
the load limiting function must be checked
occupant classification system, the
by an Authorized Mazda Dealer.
pretensioners deploy simultaneously with
the air bags when a roll-over is also
WARNING
detected.
For deployment details, refer to the SRS
Wear seat belts only as recommended in
Air Bag Deployment Criteria (page
this owner's manual:
2-68).
Incorrect positioning of the driver and front
The front seat belt retractors remove slack
passenger seat belts is dangerous. Without
quickly as the air bags are expanding. Any
proper positioning, the pretensioner and
time the air bags and seat belt
load limiting systems cannot provide
pretensioners have fired they must be
adequate protection in an accident and
replaced.
this could result in serious injury. For more
A system malfunction or operation
details about wearing seat belts, refer to
conditions are indicated by a warning.
"Fastening the seat belts" (page 2-29).
Refer to Taking Action on page 7-31.
Refer to Air Bag/Seat Belt Pretensioner
System Warning Beep on page 7-41.
(With Front Passenger Occupant
Classification System)
In addition, the pretensioner system for the
front passenger, like the front and side
passenger air bag, is designed to only
deploy when the front passenger occupant
classification sensor detects a passenger
sitting on the front passenger's seat.
*Some models.
2-31

















Content      ..      1       2         ..





///////////////////////////////////////
