When Driving
i-ACTIVSENSE
CAUTION
In the following cases, turn the system off to prevent a mis-operation:
¾ The vehicle is being towed or when towing another vehicle.
¾ The vehicle is on a chassis roller.
¾ When driving on rough roads such as in areas of dense grass or off-road.
Refer to Stopping the Smart City Brake Support (SCBS) system Operation on page 4-102 on
how to turn off the SCBS system.
NOTE
The SCBS system will operate under the following conditions.
The engine is running.
The Smart City Brake Support (SCBS) system warning indication/warning light (amber)
does not illuminate.
(Rear-end collision warning)
The vehicle speed is about 4 to 80 km/h (2 to 50 mph).
(Brake control (Smart City Brake Support (SCBS) brake))
The vehicle speed is about 4 to 30 km/h (2 to 18 mph).
The SCBS system is not turned off.
Under the following conditions, the SCBS system may not operate normally:
The SCBS system will not operate if the driver is deliberately performing driving
operations (accelerator pedal and steering wheel).
If there is the possibility of partial contact with a vehicle ahead.
The vehicle is driven on a slippery road surface such as wet roads or icy or snow-bound
roads.
The braking performance is adversely affected due to cold temperatures or wet brakes.
The vehicle is driven at the same speed as the vehicle ahead.
The accelerator pedal is depressed.
The brake pedal is depressed.
The steering wheel is being operated.
The selector lever is being operated.
In the following cases, the Forward Sensing Camera (FSC) determines that there is a
vehicle ahead and the SCBS may operate.
Objects on the road at the entrance to a curve.
Vehicles passing in the opposite lane while making a curve.
Metal objects, bumps, or protruding objects on the road.
When passing through a toll gate.
When passing through low gates, narrow gates, car washing machines, or tunnels.
4-100
When Driving
i-ACTIVSENSE
If you suddenly come close to a vehicle ahead.
2-wheeled vehicles, pedestrians, animals or standing trees.
Vehicle is driven with some of the tires having significant wear.
(Manual transmission)
If the vehicle is stopped by the Smart City Brake Support (SCBS) operation and the clutch
pedal is not depressed, the engine stops.
Smart City Brake Support (SCBS)

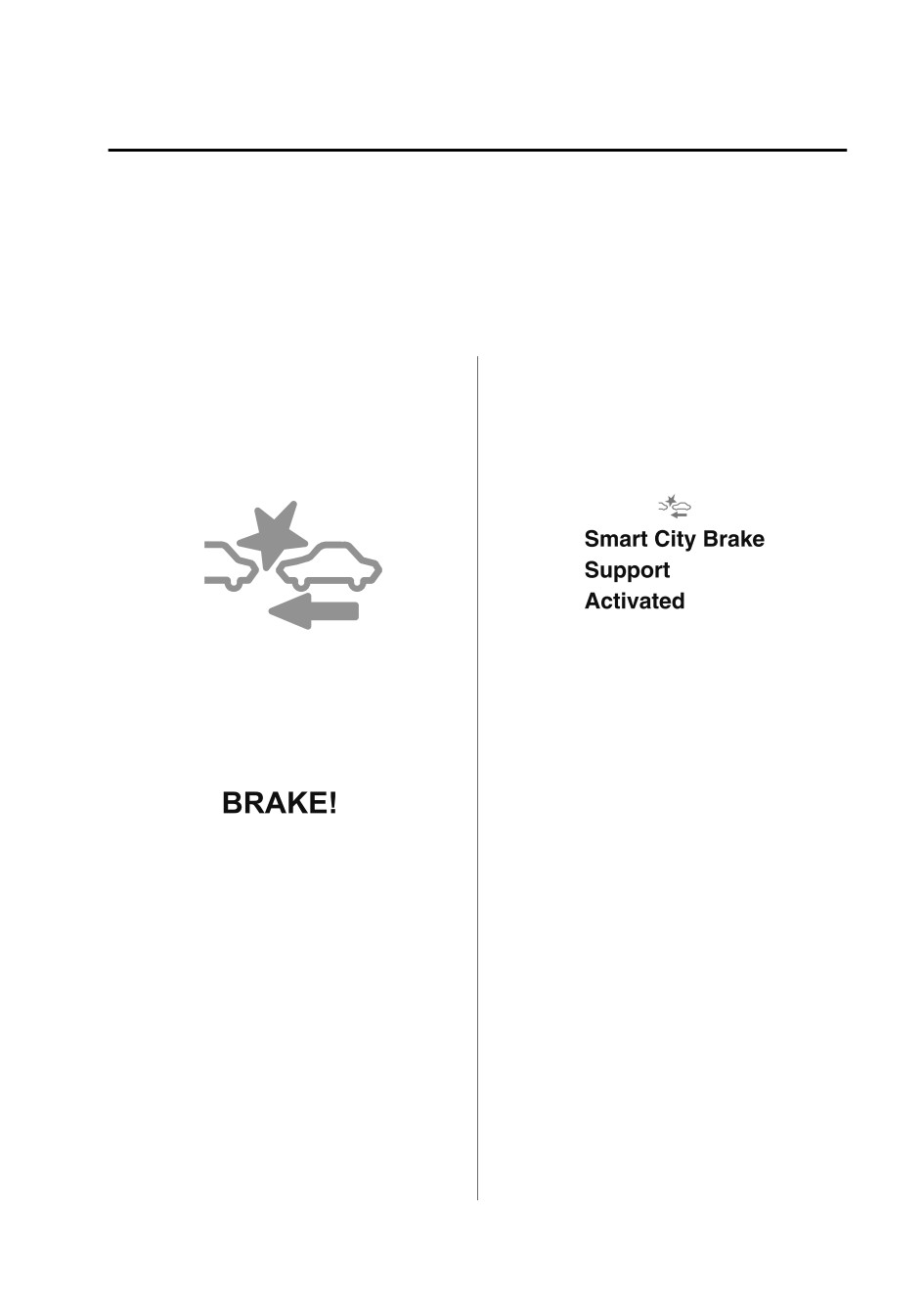

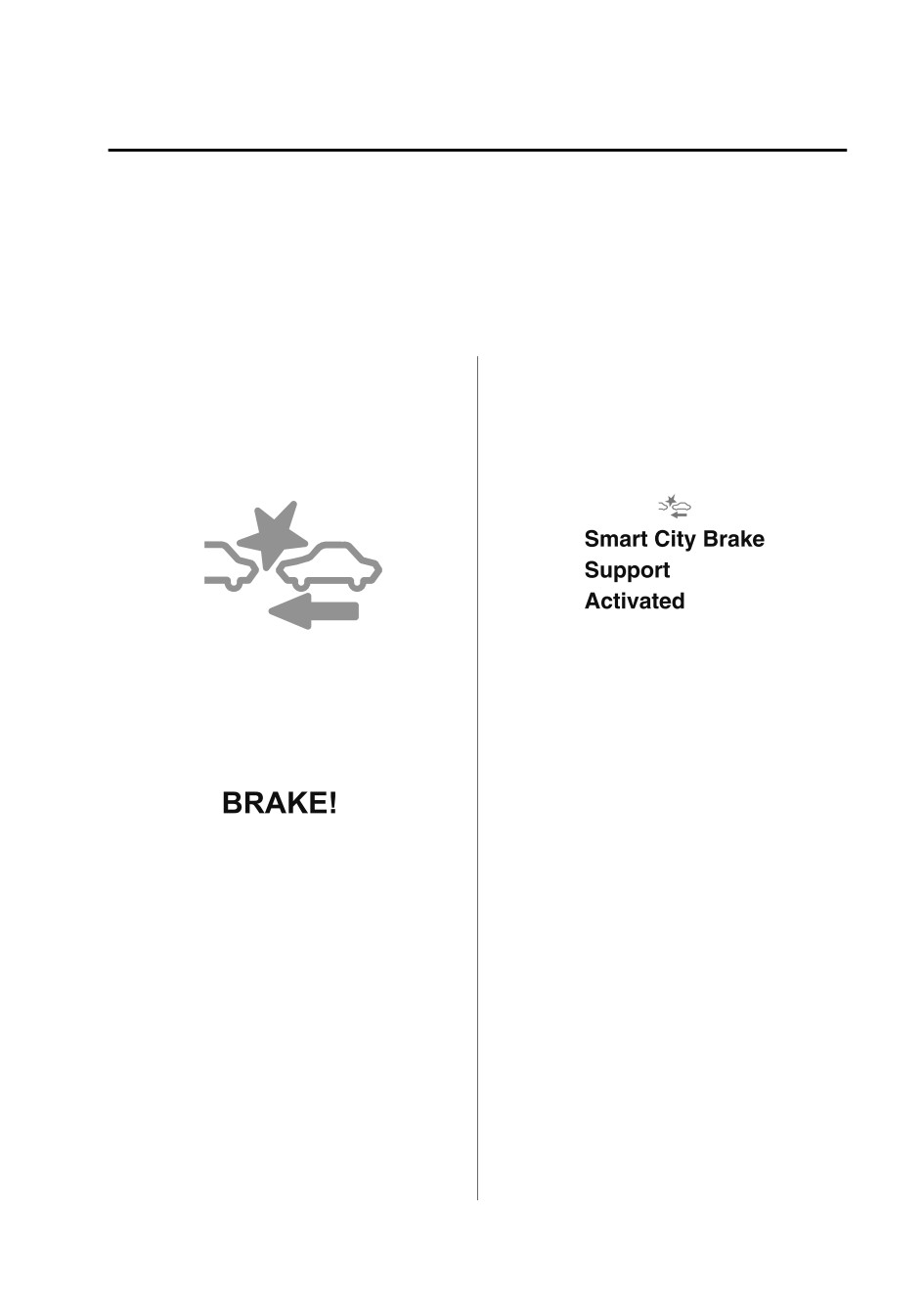

Automatic Brake Operation
Indicator Light (Red)*
Display*
If the Smart City Brake Support (SCBS) is
The automatic brake operation display is
operating, the indicator light (red) flashes.
indicated on the multi-information display
after the SCBS is operated.
NOTE
Collision Warning*
The collision warning beep sounds
intermittently while the SCBS brake or
If there is the possibility of a collision with
brake assist (SCBS brake assist) is
a vehicle ahead, the beep sounds
operating.
continuously and a warning is indicated in
If the vehicle is stopped by the SCBS
the multi-information display.
operation and the brake pedal is not
depressed, the warning beep sounds 1
NOTE
time after about 2 seconds and the SCBS
The operation distance and volume of the
brake is automatically released.
collision warning can be changed. Refer
to the Settings section in the Mazda
Connect Owner's Manual.
*Some models.
4-101
When Driving
i-ACTIVSENSE
Stopping the Smart City Brake
Support (SCBS) System Operation
The SCBS system can be temporarily
deactivated.
Refer to the Settings section in the Mazda
Connect Owner's Manual.

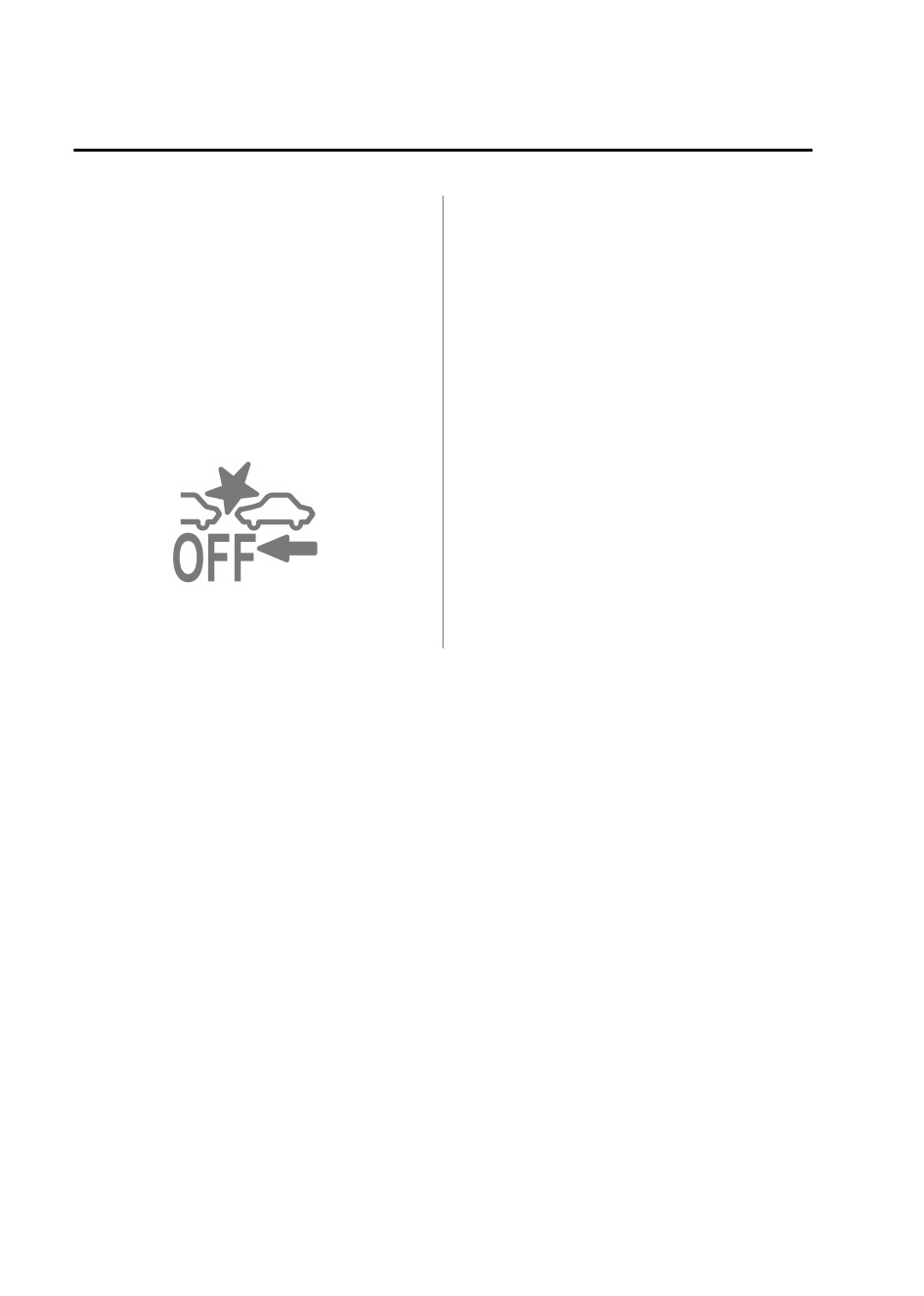

When the SCBS system is turned off, the
Smart City Brake Support (SCBS) OFF
indicator light turns on.
When the engine is restarted, the system
becomes operational.
4-102
When Driving
i-ACTIVSENSE

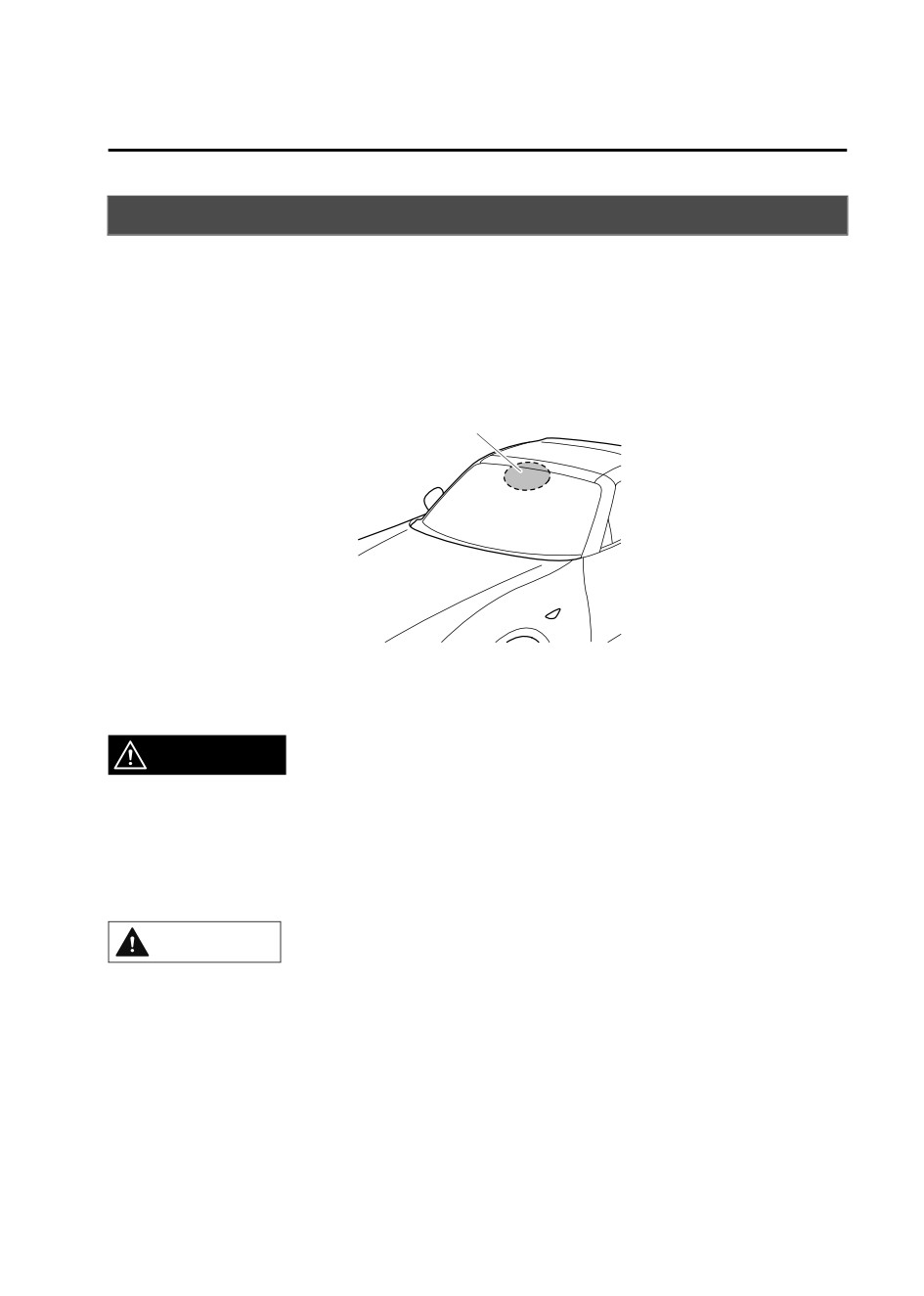

Forward Sensing Camera (FSC)*
Your vehicle is equipped with a Forward Sensing Camera (FSC). The Forward Sensing
Camera (FSC) is positioned near the rearview mirror and used by the following systems.
High Beam Control System (HBC)
Lane Departure Warning System (LDWS)
Traffic Sign Recognition System (TSR)
Smart City Brake Support (SCBS)
Forward Sensing Camera (FSC)
The Forward Sensing Camera (FSC) determines the conditions ahead of the vehicle while
traveling at night and detects traffic lanes. The distance in which the Forward Sensing
Camera (FSC) can detect objects varies depending on the surrounding conditions.
WARNING
Do not modify the suspension:
If the vehicle height or inclination is changed, the system will not be able to correctly detect
vehicles ahead. This will result in the system not operating normally or mistakenly operating,
which could cause a serious accident.
CAUTION
¾ Do not apply accessories, stickers or film to the windshield near the Forward Sensing
Camera (FSC).
If the area in front of the Forward Sensing Camera (FSC) lens is obstructed, it will cause the
system to not operate correctly. Consequently, each system may not operate normally
which could lead to an unexpected accident.
¾ Do not disassemble or modify the Forward Sensing Camera (FSC).
Disassembly or modification of the Forward Sensing Camera (FSC) will cause a malfunction
or mistaken operation. Consequently, each system may not operate normally which could
lead to an unexpected accident.
*Some models.
4-103
When Driving
i-ACTIVSENSE
¾ Heed the following cautions to assure the correct operation of the Forward Sensing Camera
(FSC).
¾ Be careful not to scratch the Forward Sensing Camera (FSC) lens or allow it to get dirty.
¾ Do not remove the Forward Sensing Camera (FSC) cover.
¾ Do not place objects on the dashboard which reflect light.
¾ Always keep the windshield glass around the camera clean by removing dirt or fogging.
Use the windshield defroster to remove fogging on the windshield.
¾ Consult an Authorized Mazda Dealer regarding cleaning the interior side of the
windshield around the Forward Sensing Camera (FSC).
¾ Consult an Authorized Mazda Dealer before performing repairs around the Forward
Sensing Camera (FSC).
¾ The Forward Sensing Camera (FSC) is installed to the windshield. Consult an Authorized
Mazda Dealer for windshield repair and replacement.
¾ When cleaning the windshield, do not allow glass cleaners or similar cleaning fluids to
get on the Forward Sensing Camera (FSC) lens. In addition, do not touch the Forward
Sensing Camera (FSC) lens.
¾ When performing repairs around the rearview mirror, consult an Authorized Mazda
Dealer.
¾ Consult an Authorized Mazda Dealer regarding cleaning of the camera lens.
¾ Do not hit or apply strong force to the Forward Sensing Camera (FSC) or the area around
it. If the Forward Sensing Camera (FSC) is severely hit or if there are cracks or damage
caused by flying gravel or debris in the area around it, stop using the following systems
and consult an Authorized Mazda Dealer.
¾ High Beam Control System (HBC)
¾ Lane Departure Warning System (LDWS)
¾ Traffic Sign Recognition System (TSR)
¾ Smart City Brake Support (SCBS)
¾ The direction in which the Forward Sensing Camera (FSC) is pointed has been finely
adjusted. Do not change the installation position of the Forward Sensing Camera (FSC) or
remove it. Otherwise, it could result in damage or malfunction.
¾ Always use tires for all wheels that are of the specified size, and the same manufacturer,
brand, and tread pattern. In addition, do not use tires with significantly different wear
patterns on the same vehicle as the system may not operate normally.
¾ The Forward Sensing Camera (FSC) includes a function for detecting a soiled windshield
and informing the driver, however, depending on the conditions, it may not detect plastic
shopping bags, ice or snow on the windshield. In such cases, the system cannot accurately
determine a vehicle ahead and may not be able to operate normally. Always drive carefully
and pay attention to the road ahead.
4-104
When Driving
i-ACTIVSENSE
NOTE
In the following cases, the Forward Sensing Camera (FSC) cannot detect target objects
correctly, and each system may be unable to operate normally.
The height of the vehicle ahead is low.
You drive your vehicle at the same speed as the vehicle ahead.
Headlights are not turned on during the night or when going through a tunnel.
In the following cases, the Forward Sensing Camera (FSC) may not be able to detect
target objects correctly.
Under bad weather condition, such as rain, fog and snow.
The window washer is being used or the windshield wipers are not used when it's
raining.
Ice, fog, snow, frost, rainfall, dirt, or foreign matter such as a plastic bag is stuck on the
windshield.
Trucks with low loading platforms and vehicles with an extremely low or high profile.
When driving next to walls with no patterning (including fences and longitudinally
striped walls).
The taillights of the vehicle ahead are turned off.
A vehicle is outside the illumination range of the headlights.
The vehicle is making a sharp turn, or ascending or descending a steep slope.
Entering or exiting a tunnel.
Heavy luggage is loaded causing the vehicle to tilt.
Strong light is shone at the front of the vehicle (back light or high-beam light from
on-coming vehicles).
There are many light emitters on the vehicle ahead.
When the vehicle ahead is not equipped with taillights or the taillights are turned off at
nighttime.
Elongated luggage or cargo is loaded onto installed roof rails and covers the Forward
Sensing Camera (FSC).
Exhaust gas from the vehicle in front, sand, snow, and water vapor rising from
manholes and grating, and water splashed into the air.
When towing a malfunctioning vehicle.
The vehicle is driven with tires having significantly different wear.
The vehicle is driven on down slopes or bumpy roads.
There are water puddles on the road.
The surroundings are dark such as during the night, early evening, or early morning, or
in a tunnel or indoor parking lot.
The illumination brightness of the headlights is reduced or the headlight illumination is
weakened due to dirt or a deviated optical axis.
The target object enters the blind spot of the Forward Sensing Camera (FSC).
A person or object bursts onto the road from the shoulder or cuts right in front of you.
4-105
When Driving
i-ACTIVSENSE
You change lanes and approach a vehicle ahead.
When driving extremely close to the target object.
Tire chains or a temporary spare tire is installed.
The vehicle ahead has a special shape. For example, a vehicle towing a trailer house or
a boat, or a vehicle carrier carrying a vehicle with its front pointed rearward.
If the Forward Sensing Camera (FSC) cannot operate normally due to backlight or fog,
the system functions related to the Forward Sensing Camera (FSC) are temporarily
stopped and the following warning lights turn on. However, this does not indicate a
malfunction.
High Beam Control System (HBC) warning light (amber)
Lane Departure Warning System (LDWS) warning indication/warning light
Smart City Brake Support (SCBS) warning indication/warning light (amber)
If the Forward Sensing Camera (FSC) cannot operate normally due to high temperatures,
the system functions related to the Forward Sensing Camera (FSC) are temporarily
stopped and the following warning lights turn on. However, this does not indicate a
malfunction. Cool down the area around the Forward Sensing Camera (FSC) such as by
turning on the air conditioner.
High Beam Control System (HBC) warning light (amber)
Lane Departure Warning System (LDWS) warning indication/warning light
Smart City Brake Support (SCBS) warning indication/warning light (amber)
If the Forward Sensing Camera (FSC) detects that the windshield is dirty or foggy, the
system functions related to the Forward Sensing Camera (FSC) are temporarily stopped
and the following warning lights turn on. However, this does not indicate a problem.
Remove the dirt from the windshield or press the defroster switch and defog the
windshield.
High Beam Control System (HBC) warning light (amber)
Lane Departure Warning System (LDWS) warning indication/warning light
Smart City Brake Support (SCBS) warning indication/warning light (amber)
If there are recognizable cracks or damage caused by flying gravel or debris on the
windshield, always have the windshield replaced. Consult an Authorized Mazda Dealer
for replacement.
4-106
When Driving
i-ACTIVSENSE
Radar Sensors (Rear)*
Your vehicle is equipped with radar sensors (rear). The following systems also use the radar
sensors (rear).
Blind Spot Monitoring (BSM)
Rear Cross Traffic Alert (RCTA)
The radar sensors (rear) function by detecting the radio waves reflected off a vehicle
approaching from the rear or an obstruction sent from the radar sensor.

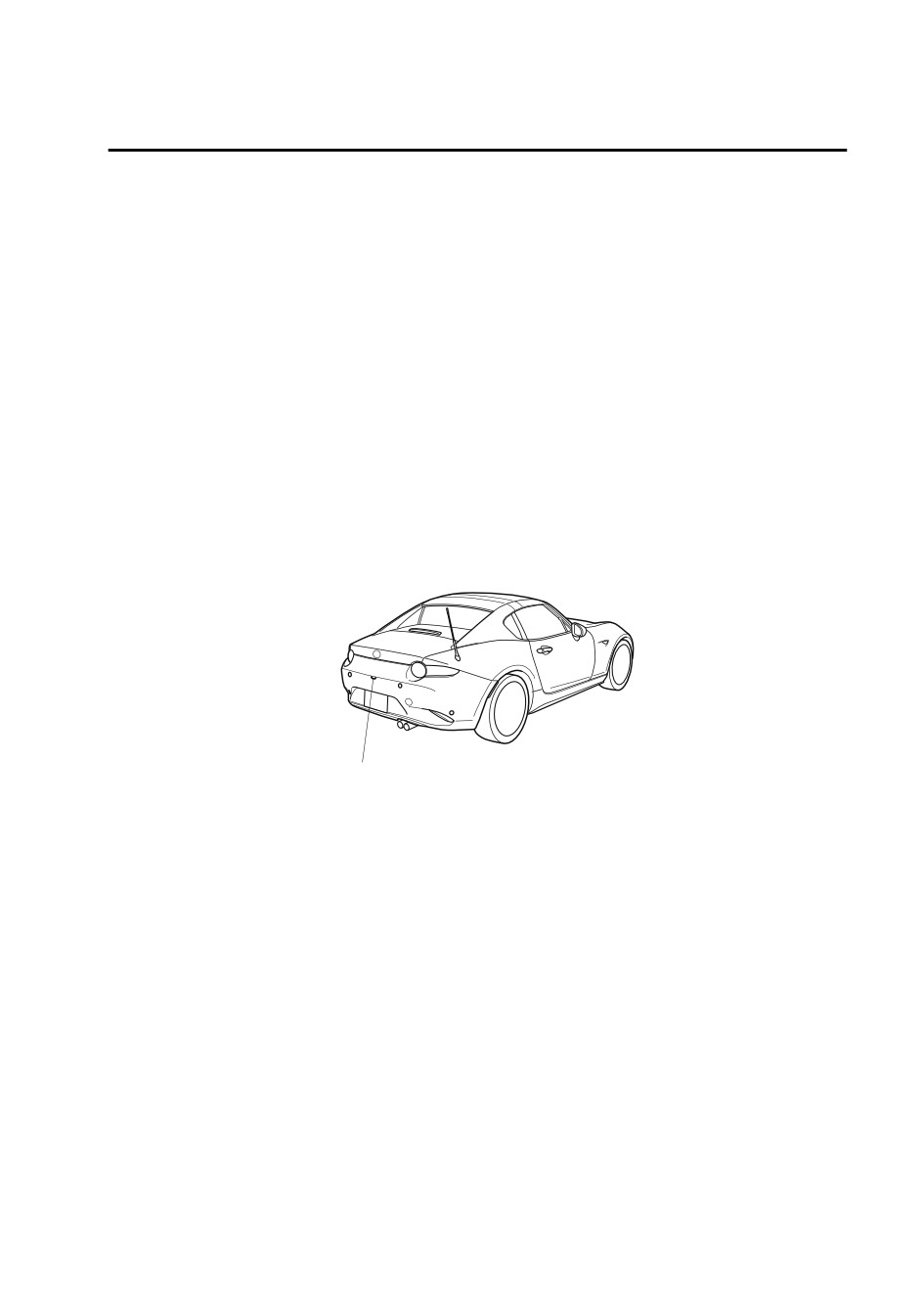

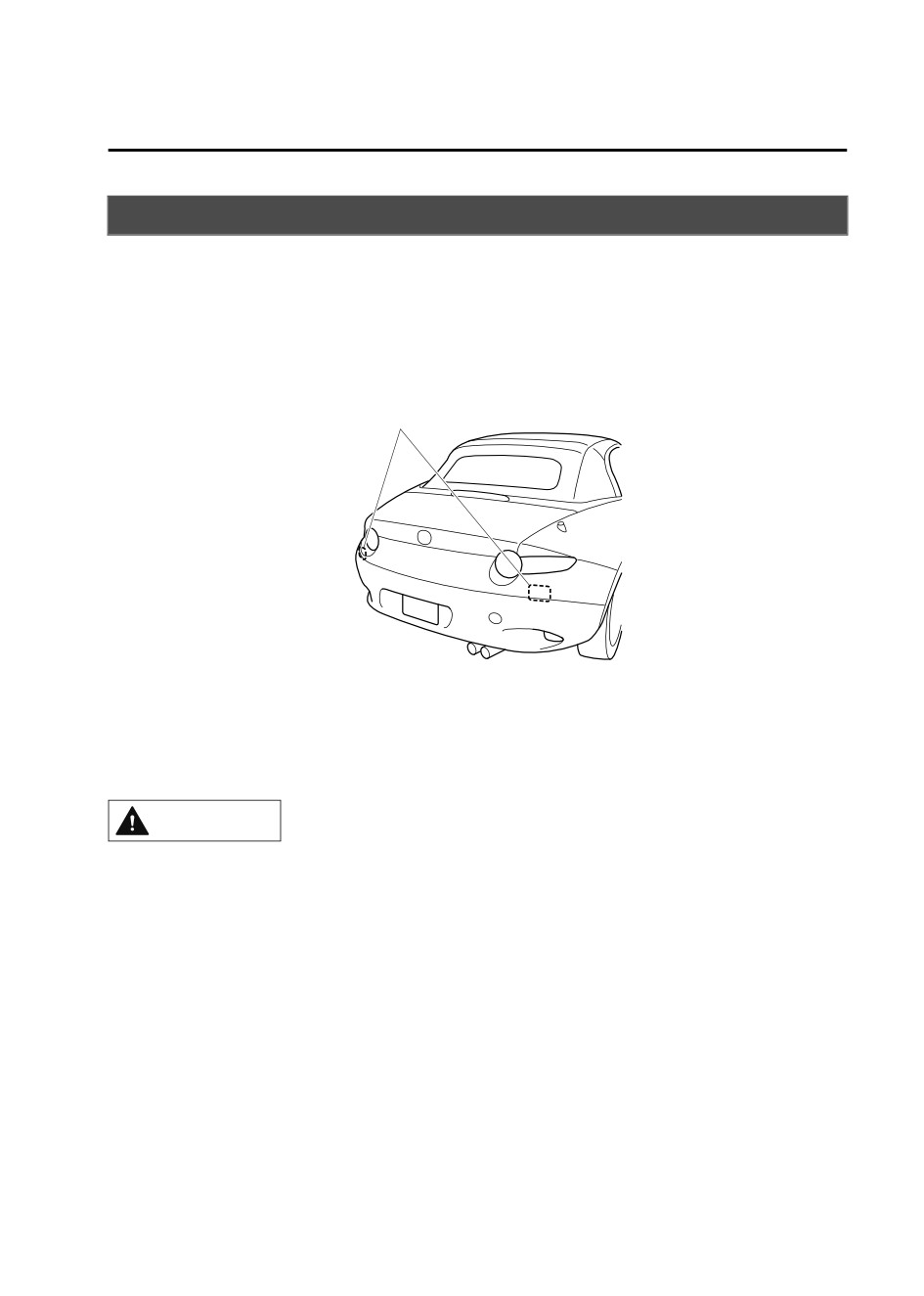

Radar sensors (rear)
The radar sensors (rear) are installed inside the rear bumper, one each on the left and right
sides.
Always keep the surface of the rear bumper near the radar sensors (rear) clean so that the
radar sensors (rear) operate normally. Also, do not apply items such as stickers.
Refer to Exterior Care on page 6-53.
CAUTION
If the rear bumper receives a severe impact, the system may no longer operate normally. Stop
the system immediately and have the vehicle inspected at an Authorized Mazda Dealer.
NOTE
The detection ability of the radar sensors (rear) has limitations. In the following cases,
the detection ability may lower and the system may not operate normally.
The rear bumper near the radar sensors (rear) has become deformed.
Snow, ice or mud adheres to the radar sensors (rear) on the rear bumper.
Under bad weather conditions such as rain, snow and fog.
Under the following conditions, the radar sensors (rear) cannot detect target objects or it
may be difficult to detect them.
Stationary objects on a road or a road side such as small, two-wheeled vehicles,
bicycles, pedestrians, animals, and shopping carts.
*Some models.
4-107
When Driving
i-ACTIVSENSE
Vehicle shapes which do not reflect radar waves well such as empty trailers with a low
vehicle height and sports cars.
Vehicles are shipped with the direction of the radar sensors (rear) adjusted for each
vehicle to a loaded vehicle condition so that the radar sensors (rear) detect approaching
vehicles correctly. If the direction of the radar sensors (rear) has deviated for some
reason, have the vehicle inspected at an Authorized Mazda Dealer.
For repairs or replacement of the radar sensors (rear), or bumper repairs, paintwork, and
replacement near the radar sensors, consult an Authorized Mazda Dealer.
Turn off the system while pulling a trailer or while an accessory such as a bicycle carrier
is installed to the rear of the vehicle. Otherwise, the radio waves emitted by the radar will
be blocked causing the system to not operate normally.
The radar sensors are regulated by the relevant radio wave laws of the country in which
the vehicle is driven. If the vehicle is driven abroad, authorization from the country in
which the vehicle is driven may be required.
4-108
When Driving
Cruise Control
Cruise Control*
With cruise control, you can set and automatically maintain any speed of more than about
25 km/h (16 mph).
WARNING
Do not use the cruise control under the following conditions:
Using the cruise control under the following conditions is dangerous and could result in loss
of vehicle control.
¾ Hilly terrain
¾ Steep inclines
¾ Heavy or unsteady traffic
¾ Slippery or winding roads
¾ Similar restrictions that require inconsistent speed

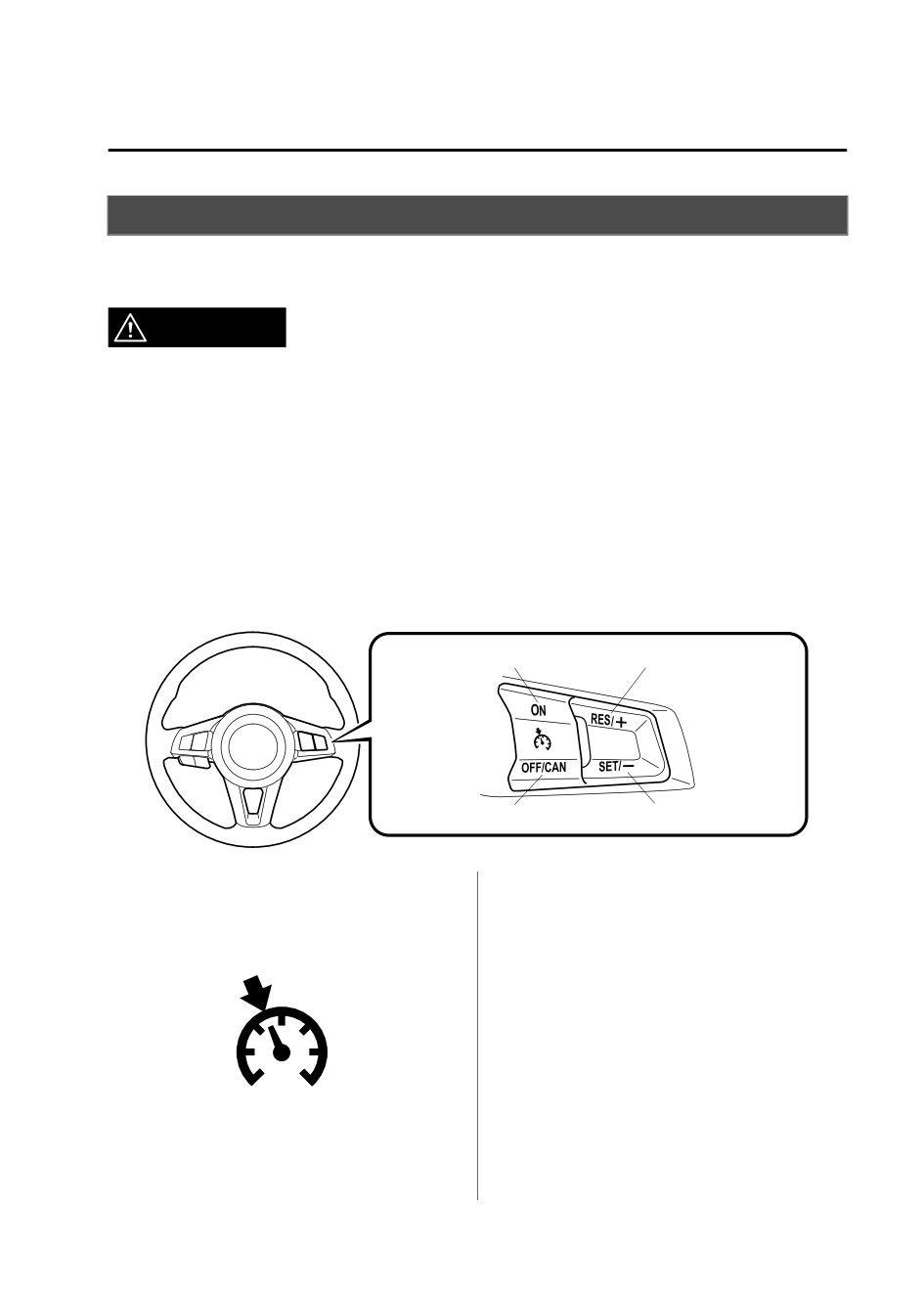

Cruise Control Switch
ON switch RESUME/+ switch
OFF/CANCEL switch
SET/- switch
Cruise Main Indication, Cruise Set
Type A instrument cluster
Indication/Cruise Set Indicator
(Cruise main indication (white))
Light
The indication turns on (white) when the
cruise control system is activated.
(Cruise set indication (green))
The indication turns on (green) when a
cruising speed has been set.
Type B instrument cluster
(Cruise main indication (white))
The indication turns on (white) when the
cruise control system is activated.
*Some models.
4-109
When Driving
Cruise Control
(Cruise set indication (white)/indicator
To Set Speed
light (green))
1.
Activate the cruise control system by
The cruise set indication (white) is
pressing the ON switch. The cruise
displayed in the instrument cluster and the
main indication (white) turns on.
cruise set indicator light (green) turns on
2.
Accelerate to the desired speed, which
when a cruising speed has been set.
must be more than 25 km/h (16 mph).
Activation/Deactivation
3.
Type A instrument cluster
Set the cruise control by pressing the
To activate the system, press the ON
SET/ switch at the desired speed. The
switch. The cruise main indication (white)
cruise control is set at the moment the
turns on.
SET/ switch is pressed. Release the
To deactivate the system, press the OFF/
accelerator pedal simultaneously. The
CANCEL switch.
cruise set indication (green) turns on.
The cruise main indication (white) turns
Type B instrument cluster
off.
Set the cruise control by pressing the
SET/ switch at the desired speed. The
WARNING
cruise control is set at the moment the
SET/ switch is pressed. Release the
Always turn off the cruise control system
accelerator pedal simultaneously. The
when it is not in use:
cruise set indication (white) is
Leaving the cruise control system in an
displayed and the cruise set indicator
activation-ready state while the cruise
light (green) turns on.
control is not in use is dangerous as the
NOTE
cruise control could unexpectedly activate
if the activation button is accidentally
The cruise control speed setting cannot
pressed, and result in loss of vehicle control
be performed under the following
and an accident.
conditions:
(Automatic transmission)
NOTE
The selector lever is in the P or N
When the ignition is switched OFF, the
position.
system status before it was turned off is
(Manual transmission)
maintained. For example, if the ignition is
The shift lever is in the neutral
switched OFF with the cruise control
position.
system operable, the system will be
The parking brake is applied.
operable when the ignition is switched ON
the next time.
4-110
When Driving
Cruise Control
Release the SET/ or RESUME/
To Increase Cruising Speed
switch at the desired speed, otherwise
Follow either of these procedures.
the speed will continue increasing while
the RESUME/ switch is pressed and
To increase speed using cruise control
held, and continue decreasing while the
switch
SET/ switch is pressed and held
Press the RESUME/ switch and hold it.
(except when the accelerator pedal is
Your vehicle will accelerate. Release the
depressed).
switch at the desired speed.
On a steep grade, the vehicle may
momentarily slow down while ascending
Press the RESUME/ switch and release
or speed up while descending.
it immediately to adjust the preset speed.
The cruise control will cancel if the
Multiple operations will increase the
vehicle speed decreases below 21 km/h
preset speed according to the number of
(13 mph) when the cruise control is
times it is operated.
activated, such as when climbing a steep
grade.
Increasing speed with a single
The cruise control may cancel at about
RESUME/ switch operation
15 km/h (9 mph) below the preset speed,

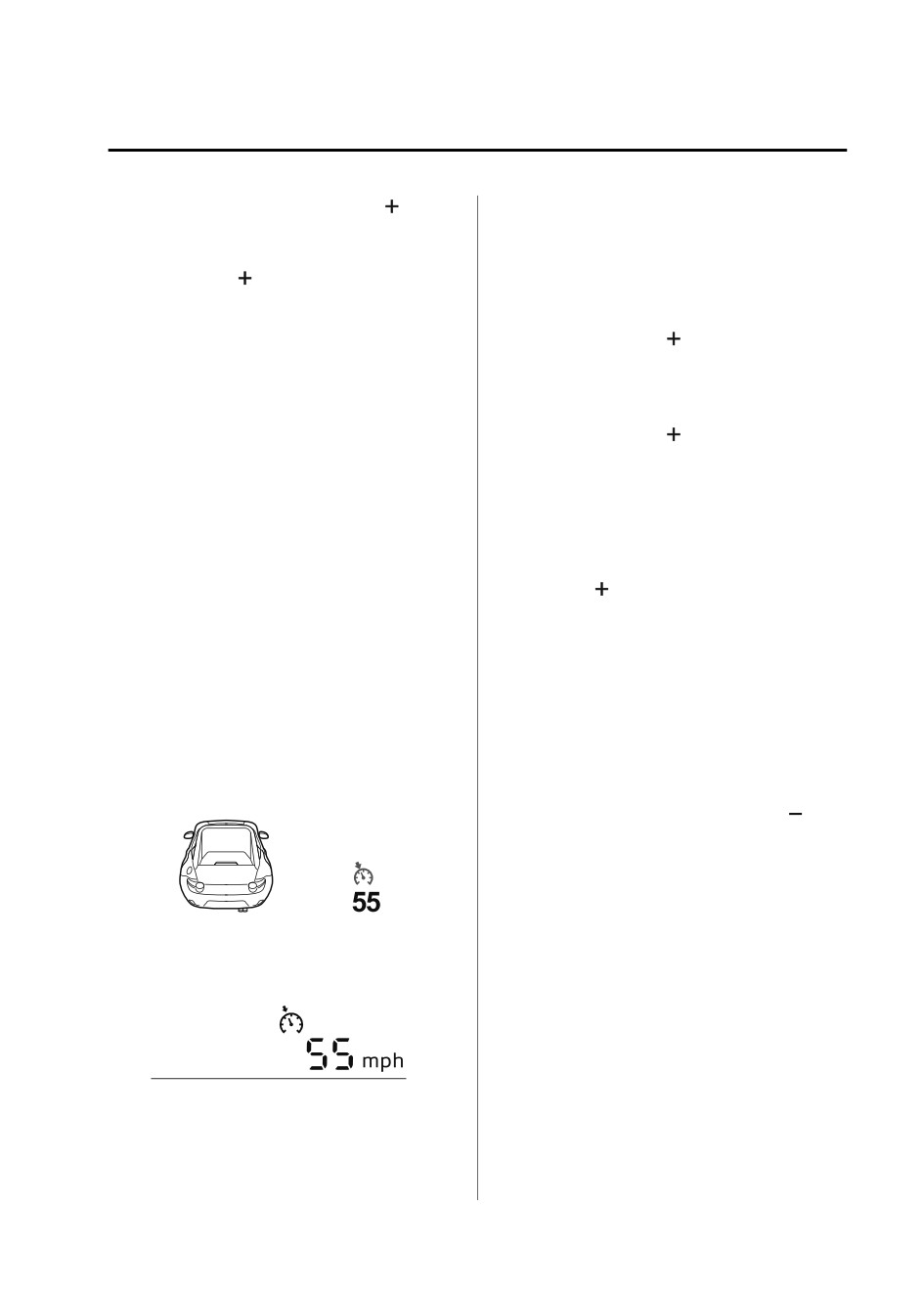

Instrument cluster display for vehicle
such as when climbing a long, steep
speed indicated in km/h: 1 km/h (0.6 mph)
grade.
Instrument cluster display for vehicle
The vehicle speed preset using the cruise
speed indicated in mph: 1 mph (1.6 km/h)
control is displayed in the instrument
To increase speed using accelerator
cluster.
pedal
Type A Instrument Cluster
Depress the accelerator pedal to accelerate
to the desired speed. Press the SET/
switch and release it immediately.
NOTE
Accelerate if you want to speed up
temporarily when the cruise control is on.
Greater speed will not interfere with or
Type B Instrument Cluster
change the set speed. Take your foot off
the accelerator to return to the set speed.
4-111
When Driving
Cruise Control
To Decrease Cruising Speed
To Temporarily Cancel
Press the SET/ switch and hold it. The
To temporarily cancel the system, use one
vehicle will gradually slow.
of these methods:
Release the switch at the desired speed.
Slightly depress the brake pedal.
(Manual transmission)
Press the SET/ switch and release it
Depress the clutch pedal.
immediately to adjust the preset speed.
Press the OFF/CANCEL switch.
Multiple operations will decrease the
preset speed according to the number of
If the RESUME/ switch is pressed when
times it is operated.
the vehicle speed is 25 km/h (16 mph) or
higher, the system reverts to the previously
Decreasing speed with a single SET/
set speed.
switch operation
NOTE
Instrument cluster display for vehicle
speed indicated in km/h: 1 km/h (0.6 mph)
If any of the following conditions occur,
Instrument cluster display for vehicle
the cruise control system is temporarily
canceled.
speed indicated in mph: 1 mph (1.6 km/h)
The parking brake is applied.
To Resume Cruising Speed at More
(Automatic transmission)
Than 25 km/h (16 mph)
The selector lever is in the P or N
If the cruise control system temporarily
position.
canceled (such as by applying the brake
(Manual transmission)
pedal) and the system is still activated, the
The shift lever is in the neutral
most recent set speed will automatically
position.
resume when the RESUME/ switch is
When the cruise control system is
pressed.
temporarily canceled by even one of the
If vehicle speed is below 25 km/h (16
applicable cancel conditions, the speed
mph), increase the vehicle speed up to 25
cannot be re-set.
km/h (16 mph) or more and press the
(Automatic transmission)
RESUME/ switch.
The cruise control cannot be cancelled
while driving in manual mode (selector
lever shifted from D to M position).
Therefore, engine braking will not be
applied even if the transmission is
shifted down to a lower gear. If
deceleration is required, lower the set
speed or depress the brake pedal.
4-112
When Driving
Cruise Control
To Deactivate
Type A instrument cluster
When a cruising speed has been set
(cruise set cruise set indication (green)
turns on)
Long-press the OFF/CANCEL switch or
press the OFF/CANCEL switch 2 times.
When a cruising speed has not been set
(cruise main indication (white) turns
on)
Press the OFF/CANCEL switch.
Type B instrument cluster
When a cruising speed has been set
(cruise set indication (white) is
displayed/cruise set indicator light
(green) turns on)
Long-press the OFF/CANCEL switch or
press the OFF/CANCEL switch 2 times.
When a cruising speed has not been set
(cruise main indication (white) turns
on)
Press the OFF/CANCEL switch.
4-113
When Driving
Tire Pressure Monitoring System
Tire Pressure Monitoring System
The Tire Pressure Monitoring System (TPMS) monitors the pressure for each tire.
If tire pressure is too low in one or more tires, the system will inform the driver via the
warning light in the instrument cluster and by the warning beep sound.
Refer to Contact Authorized Mazda Dealer and Have Vehicle Inspected on page 7-36.
Refer to Taking Action on page 7-40.
Refer to Tire Inflation Pressure Warning Beep on page 7-50.
The tire pressure sensors installed on each wheel send tire pressure data by radio signal to
the receiver unit in the vehicle.

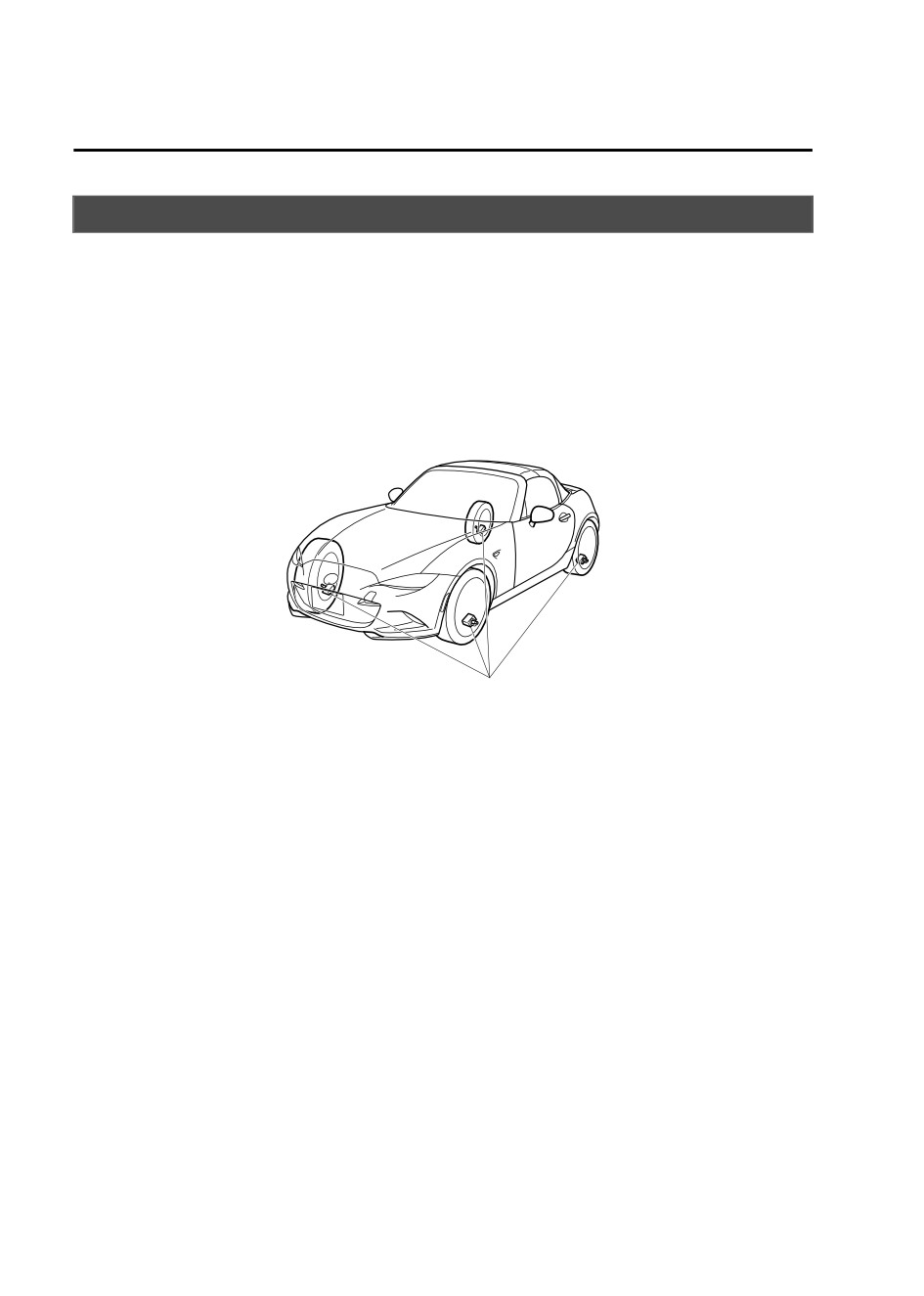

Tire pressure sensors
NOTE
When the ambient temperature is low due to seasonal changes, tire temperatures are also
lower. When the tire temperature decreases, the air pressure decreases as well. The TPMS
warning light may illuminate more frequently. Visually inspect the tires daily before driving,
and check tire pressures monthly with a tire pressure gauge. When checking tire pressures,
use of a digital tire pressure gauge is recommended.
TPMS does not alleviate your need to check the pressure and condition of all four tires
regularly.
4-114
When Driving
Tire Pressure Monitoring System
CAUTION
¾ Each tire, including the spare (if provided), should be checked monthly when cold and
inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your vehicle has tires of a different size than the
size indicated on the vehicle placard or tire inflation pressure label, you should determine
the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure monitoring
system (TPMS) that illuminates a low tire pressure telltale when one or more of your tires is
significantly under-inflated. Accordingly, when the low tire pressure telltale illuminates, you
should stop and check your tires as soon as possible, and inflate them to the proper
pressure. Driving on a significantly under-inflated tire causes the tire to overheat and can
lead to tire failure. Under-inflation also reduces fuel efficiency and tire tread life, and may
affect the vehicle's handling and stopping ability.
Please note that the TPMS is not a substitute for proper tire maintenance, and it is the
driver's responsibility to maintain correct tire pressure, even if under-inflation has not
reached the level to trigger illumination of the TPMS low tire pressure telltale.
Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when
the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire pressure telltale. When the
system detects a malfunction, the telltale will flash for approximately one minute and then
remain continuously illuminated. This sequence will continue upon subsequent vehicle
start-ups as long as the malfunction exists. When the malfunction indicator is illuminated,
the system may not be able to detect or signal low tire pressure as intended. TPMS
malfunctions may occur for a variety of reasons, including the installation of replacement
or alternate tires or wheels on the vehicle that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or more tires or wheels on
your vehicle to ensure that the replacement or alternate tires and wheels allow the TPMS to
continue to function properly.
¾ To avoid false readings, the system samples for a little while before indicating a problem. As
a result it will not instantaneously register a rapid tire deflation or blow out.
4-115
When Driving
Tire Pressure Monitoring System
System Error Activation
Tires and Wheels
When the warning light flashes, there may
be a system malfunction. Consult an
CAUTION
Authorized Mazda Dealer.
A system error activation may occur in the
When inspecting or adjusting the tire air
following cases:
pressures, do not apply excessive force to
the stem part of the wheel unit. The stem
When there is equipment or a device
part could be damaged.
near the vehicle using the same radio
frequency as that of the tire pressure
Changing tires and wheels
sensors.
The following procedure allows the TPMS
When a metallic device such as a
to recognize a tire pressure sensor's unique
non-genuine navigation system is
ID signal code whenever tires or wheels
equipped near the center of the
are changed, such as changing to and from
dashboard, which may block radio
winter tires.
signals from the tire pressure sensor to
the receiver unit.
NOTE
When using the following devices in the
Each tire pressure sensor has a unique ID
vehicle that may cause radio
signal code. The signal code must be
interference with the receiver unit.
registered with the TPMS before it can
work. The easiest way to do it is to have
A digital device such as a personal
an Authorized Mazda Dealer, change your
computer.
tire and complete ID signal code
A current converter device such as a
registration.
DC-AC converter.
When excess snow or ice adheres to the
When having tires changed at an
vehicle, especially around the wheels.
Authorized Mazda Dealer
When the tire pressure sensor batteries
When an Authorized Mazda Dealer,
are exhausted.
changes your vehicle's tires, they will
When using a wheel with no tire
complete the tire pressure sensor ID signal
pressure sensor installed.
code registration.
When using tires with steel wire
reinforcement in the sidewalls.
When using tire chains.
4-116
When Driving
Tire Pressure Monitoring System
When changing tires yourself
Be sure to have the tire pressure sensors
installed whenever tires or wheels are
If you or someone else changes tires, you
replaced.
or someone else can also undertake the
When having a tire or wheel or both
steps for the TPMS to complete the ID
replaced, the following types of tire
signal code registration.
pressure sensor installations are possible.
1. After tires have been changed, switch
the ignition ON, then back to ACC or
The tire pressure sensor is removed
OFF.
from the old wheel and installed to the
2. Wait for about 15 minutes.
new one.
3. After about 15 minutes, drive the
The same tire pressure sensor is used
vehicle at a speed of at least 25 km/h
with the same wheel. Only the tire is
(16 mph) for 10 minutes and the tire
replaced.
pressure sensor ID signal code will be
A new tire pressure sensor is installed to
registered automatically.
a new wheel.
NOTE
NOTE
If the vehicle is driven within about 15
minutes of changing tires, the tire pressure
The tire pressure sensor ID signal code
monitoring system warning light will flash
must be registered when a new tire
pressure sensor is purchased. For
because the sensor ID signal code would
not have been registered. If this happens,
purchase of a tire pressure sensor and
park the vehicle for about 15 minutes,
registration of the tire pressure sensor
after which the sensor ID signal code will
ID signal code, consult an Authorized
Mazda Dealer.
register upon driving the vehicle for 10
minutes.
When reinstalling a previously removed
tire pressure sensor to a wheel, replace
Replacing tires and wheels
the grommet (seal between valve body/
sensor and wheel) for the tire pressure
CAUTION
sensor.
¾ When replacing/repairing the tires or
wheels or both, have the work done by
an Authorized Mazda Dealer, or the tire
pressure sensors may be damaged.
¾ The wheels equipped on your Mazda are
specially designed for installation of the
tire pressure sensors. Do not use
non-genuine wheels, otherwise it may
not be possible to install the tire pressure
sensors.
4-117
When Driving
Rear View Monitor
Rear View Monitor*
The rear view monitor provides visual images of the rear of the vehicle when reversing.
WARNING
Always drive carefully confirming the safety of the rear and the surrounding conditions by
looking directly with your eyes:
Reversing the vehicle by only looking at the screen is dangerous as it may cause an accident
or a collision with an object. The rear view monitor is only a visual assist device when
reversing the vehicle. The images on the screen may be different from the actual conditions.
CAUTION
¾ Do not use the rear view monitor under the following conditions: Using the rear view
monitor under the following conditions is dangerous and could result in injury or vehicle
damage or both.
¾ Icy or snow-covered roads.
¾ Tire chains or a temporary spare tire is installed.
¾ The vehicle is on a road incline.
¾ When the display is cold, images may course across the monitor or the screen and may be
dimmer than usual, which could cause difficulty in confirming the surrounding conditions
of the vehicle. Always drive carefully confirming the safety of the rear and the surrounding
conditions by looking directly with your eyes.
¾ Do not apply excessive force to the camera. The camera position and angle may deviate.
¾ Do not disassemble, modify, or remove it as it may no longer be waterproof.
¾ The camera cover is made of plastic. Do not apply degreasing agents, organic solvents,
wax, or glass coating agents to the camera cover. If any are spilled on the cover, wipe off
with a soft cloth immediately.
¾ Do not rub the camera cover forcefully with an abrasive or hard brush. The camera cover or
lens may be scratched which might affect the images.
4-118
*Some models.
When Driving
Rear View Monitor
NOTE
If water, snow, or mud is stuck on the camera lens, wipe it off using a soft cloth. If it
cannot be wiped off, use a mild detergent.
If the camera temperature changes rapidly (Hot to cold, cold to hot), the rear view
monitor may not operate correctly.
When replacing the tires, consult an Authorized Mazda Dealer. Replacing the tires could
result in deviation of the guide lines which appear on the display.
If the vehicle's front, side, or rear has been involved in a collision, the alignment of the
rear view parking camera (location, installation angle) may have deviated. Always
consult an Authorized Mazda Dealer to have the vehicle inspected.
If “No Video Signal Available” is indicated in the display, there could be a problem with
the camera. Have your vehicle inspected at an Authorized Mazda Dealer.
The screen tone may differ from the actual tone for a while after the camera image is
displayed, however, this does not indicate a problem.
Rear View Parking Camera Location
Rear view parking camera
Switching to the Rear View Monitor Display
Shift the shift lever/selector lever to R with the ignition switched ON to switch the display
to the rear view monitor display.
NOTE
When the shift lever/selector lever is shifted from R to another shift lever/selector lever
position, the screen returns to the previous display.
4-119
When Driving
Rear View Monitor

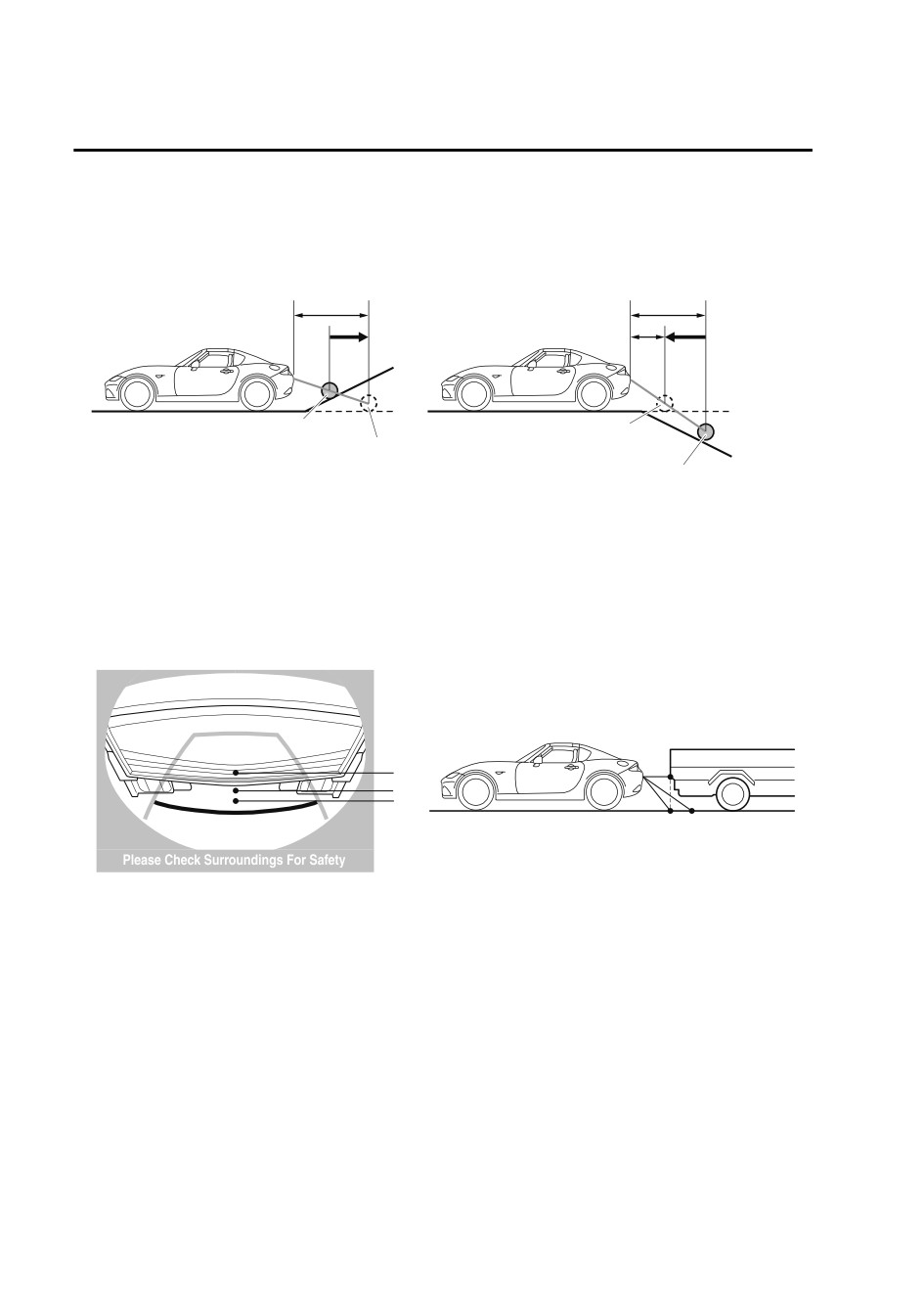

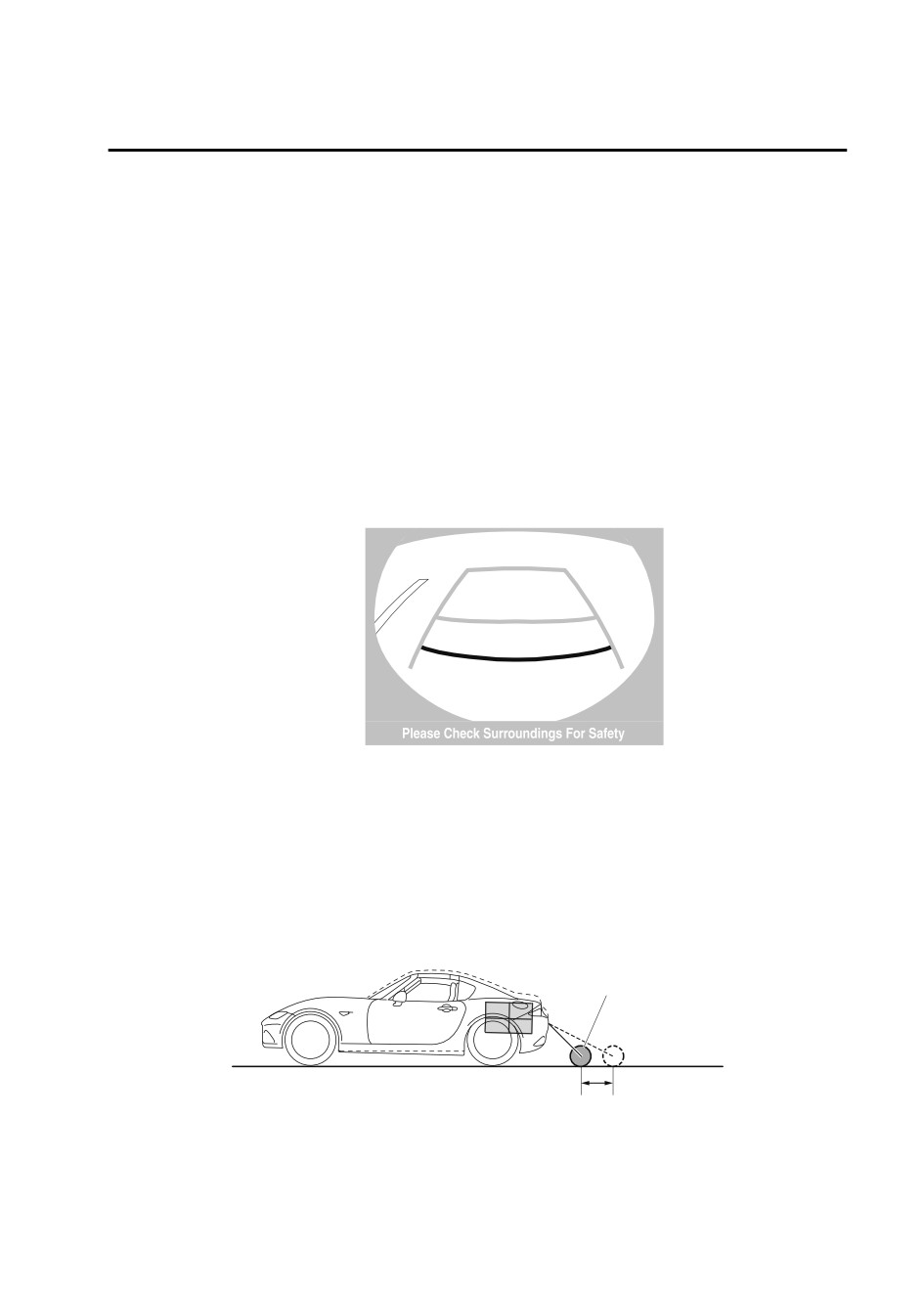

Displayable Range on the Screen
The images on the screen may be different from the actual conditions.
(Screen display)
Bumper
(Actual view)
Object
NOTE
The displayable range varies depending on the vehicle and road conditions.
The displayable range is limited. Objects under the bumper or around the bumper ends
cannot be displayed.
The distance appearing in the displayed image is different from the actual distance
because the rear view parking camera is equipped with a specific lens.
Some optionally installed vehicle accessories may be picked up by the camera. Do not
install any optional parts that can interfere with the camera view, such as illuminating
parts or parts made of reflective material.
It may be difficult to see the display under the following conditions, however, it does not
indicate a malfunction.
In darkened areas.
When the temperature around the lens is high/low.
When the camera is wet such as on a rainy day or during periods of high humidity.
When foreign material such as mud is stuck around the camera.
When the camera lens reflects sunlight or headlight beams.
Image display may be delayed if the temperature around the camera is low.
4-120
When Driving
Rear View Monitor

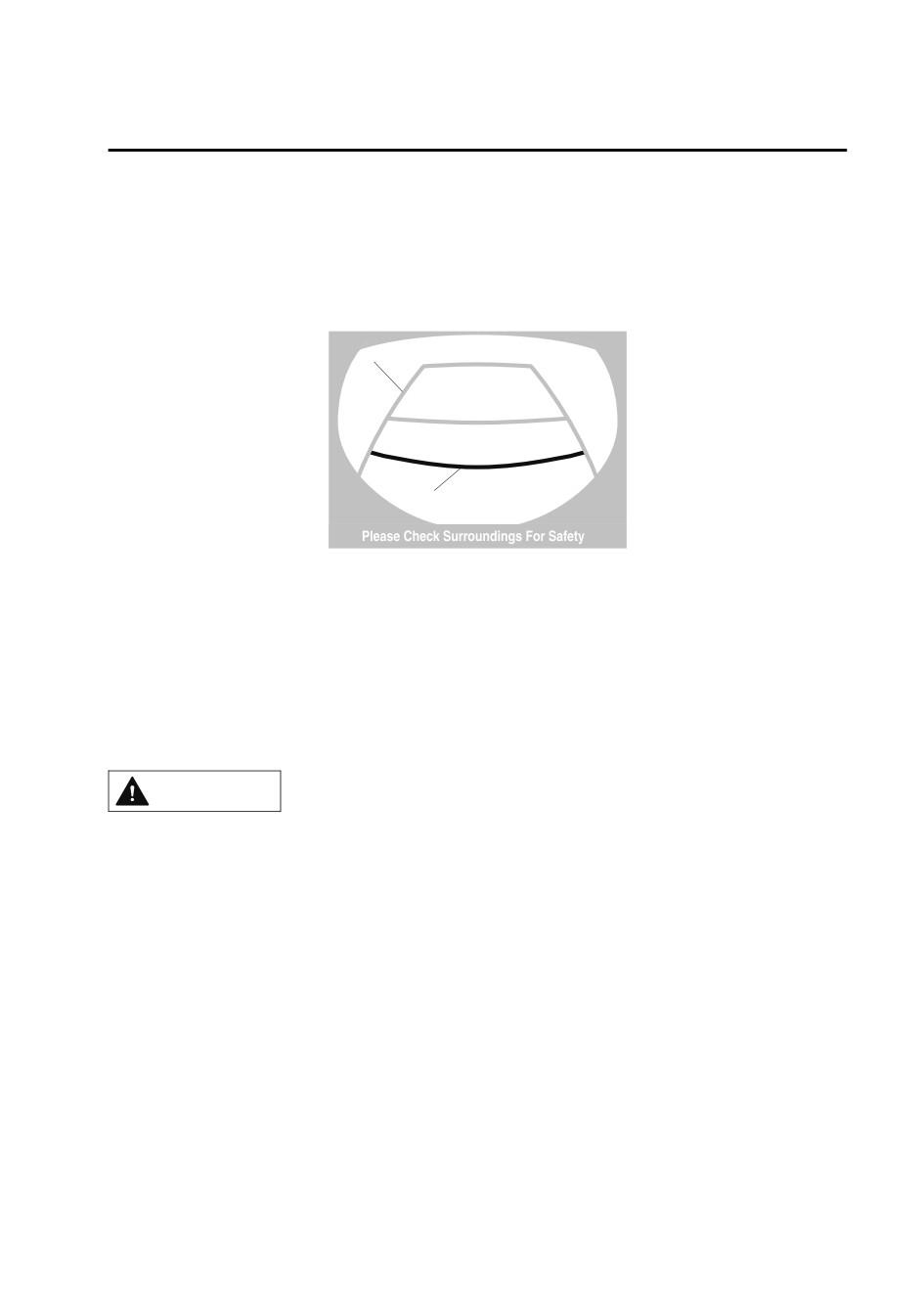

Viewing the Display
Guide lines which indicate the width of the vehicle (yellow) are displayed on the screen as a
reference to the approximate width of the vehicle in comparison to the width of the parking
space you are about to back into.
Use this display view for parking your vehicle in a parking space or garage.
a
b
a) Vehicle width guide lines (yellow)
These guide lines serve as a reference to the approximate width of the vehicle.
b) Distance guide lines.
These guide lines indicate the approximate distance to a point measured from the
vehicle's rear (from the end of the bumper).
The red and yellow lines indicate the points about 0.5 m (19.7 in) for the red line and
1.0 m (39.4 in) for the yellow lines from the rear bumper (at the center point of each of
the lines).
CAUTION
The guide lines on the screen are fixed lines. They are not synced to the driver's turning of the
steering wheel. Always be careful and check the area to the vehicle's rear and the surrounding
area directly with your eyes while backing up.

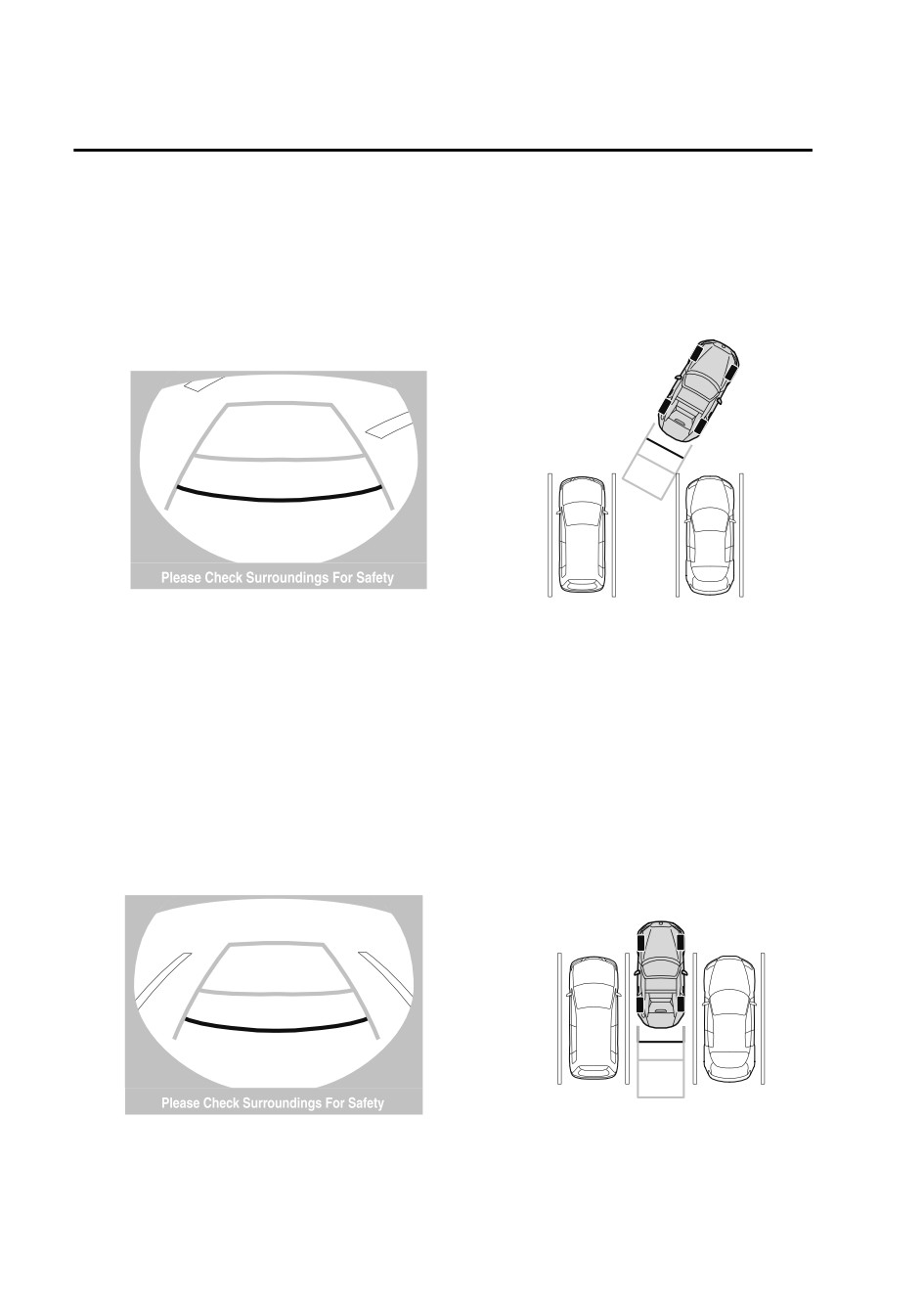

Rear View Monitor Operation
The operation of the rear view monitor when reversing the vehicle varies depending on the
traffic, road, and vehicle conditions. The amount of steering and the timing also varies
depending on conditions, so confirm the surrounding conditions directly with your eyes and
steer the vehicle in accordance with the conditions.
Be well aware of the above cautions prior to using the rear view monitor.
NOTE
Images displayed on the monitor from the rear view parking camera are reversed images
(mirror images).
4-121
When Driving
Rear View Monitor
1. Shift the shift lever/selector lever to R to switch the display to the rear view monitor
display.
2. Confirming the surrounding conditions, reverse the vehicle.
(Display condition)
(Vehicle condition)
3. After your vehicle begins entering the parking space, continue backing up slowly so that
the distance between the vehicle width lines and the sides of the parking space on the
left and right are roughly equal.
4. Continue to adjust the steering wheel until the vehicle width guide lines are parallel to
the left and right sides of the parking space.
5. Once they are parallel, straighten the wheels and back your vehicle slowly into the
parking space. Continue checking the vehicle's surroundings and then stop the vehicle in
the best possible position.
(Display condition)
(Vehicle condition)
6. When the shift lever/selector lever is shifted from R to another shift lever/selector lever
position, the screen returns to the previous display.
4-122
When Driving
Rear View Monitor
NOTE
If the parking space has division lines, straighten the wheels when the vehicle width
guide lines are parallel to them.
Because there may be a difference between the displayed image, such as indicated
below, and the actual conditions when parking, always verify the safety at the rear of
the vehicle and the surrounding area directly with your eyes.
In the image of the parking space (or garage) displayed on the screen, the back end
and distance guide lines may appear aligned in the monitor, but they may not
actually be aligned on the ground.
When parking in a space with a division line on only one side of the parking space,
the division line and the vehicle width guide line appear aligned in the monitor, but
they may not actually be aligned on the ground.

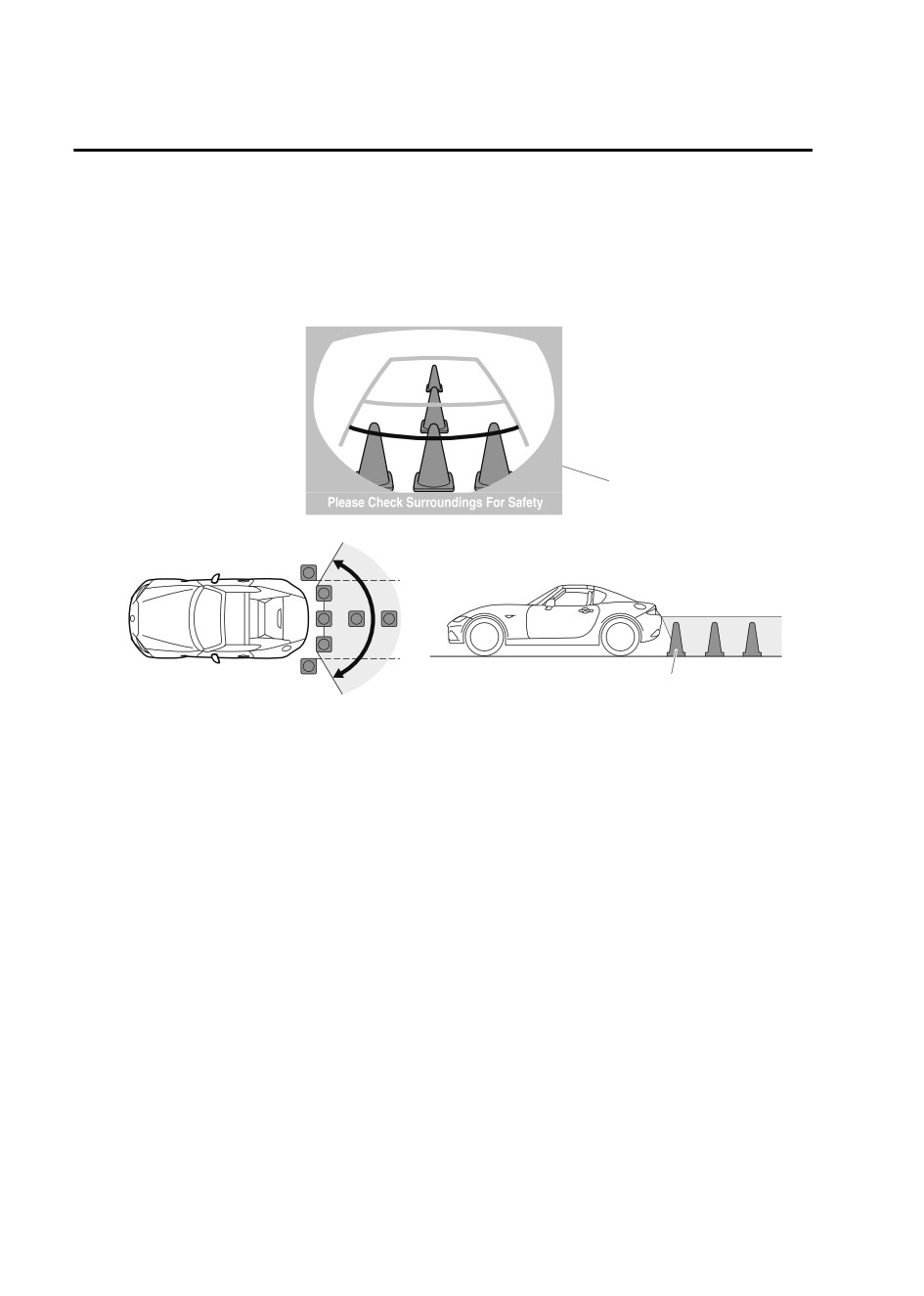

Variance Between Actual Road Conditions and Displayed Image
Some variance occurs between the actual road and the displayed road. Such variance in
distance perspective could lead to an accident. Note the following conditions that may cause
a variance in distance perspective.
When the vehicle is tilted due to the weight of passengers and load
When the vehicle rear is lowered, the object displayed on the screen appears farther than the
actual distance.
Object
Variance
4-123
When Driving
Rear View Monitor
When there is a steep grade behind the vehicle
When there is a steep upgrade (downgrade) behind the vehicle, the object displayed on the
screen appears farther (downgrade: closer) than the actual distance.
Appears
Appears
A
farther than
B
closer than
B
A
actual
actual
distance
distance
Object at actual position
Object on screen
Object on screen
A: Distance between the vehicle and object displayed on the screen.
Object at actual
B: Actual distance between the vehicle and object.
position
Three-dimensional object on vehicle rear
Because the distance guide lines are displayed based on a flat surface, the distance to the
three-dimensional object displayed on the screen is different from the actual distance.
(Screen display)
(Actual condition)
A
A
B
C
C B
(Actual distance) B>C=A
Sensed distance on screen A>B>C
4-124
When Driving
Rear View Monitor
Picture Quality Adjustment
WARNING
Always adjust the picture quality of the rear view monitor while the vehicle is stopped:
Do not adjust the picture quality of the rear view monitor while driving the vehicle. Adjusting
the picture quality of the rear view monitor such as brightness, contrast, color, and tint while
driving the vehicle is dangerous as it could distract your attention from the vehicle operation
which could lead to an accident.
Picture quality adjustment must be done while the shift lever/selector lever is in reverse (R).
There are four settings which can be adjusted including, brightness, contrast, tint, and color.
When adjusting, pay sufficient attention to the vehicle surroundings.
1. Select the
icon on the screen to display the tabs.
2. Select the desired tab item.
3. Adjust the brightness, contrast, tint, and color using the slider.
If you need to reset, press the reset button.
4. Select the
icon on the screen to close the tab.
4-125
Interior Features
5
Use of various features for ride comfort, including air-conditioning
system and audio system.
Climate Control System
5-2
Interior Equipment
5-35
Operating Tips
5-2
Sunvisors
5-35
Vent Operation
5-3
Interior Lights
5-35
Manual Type
5-5
Accessory Socket
5-36
Fully Automatic Type
5-10
Cup Holder
5-38
Storage Compartments
5-42
Windblocker
5-44
Mazda Connect
5-14
What is Mazda Connect ?
5-14
Mazda Connect Basic
Operations
5-17
5-1
Interior Features
Climate Control System

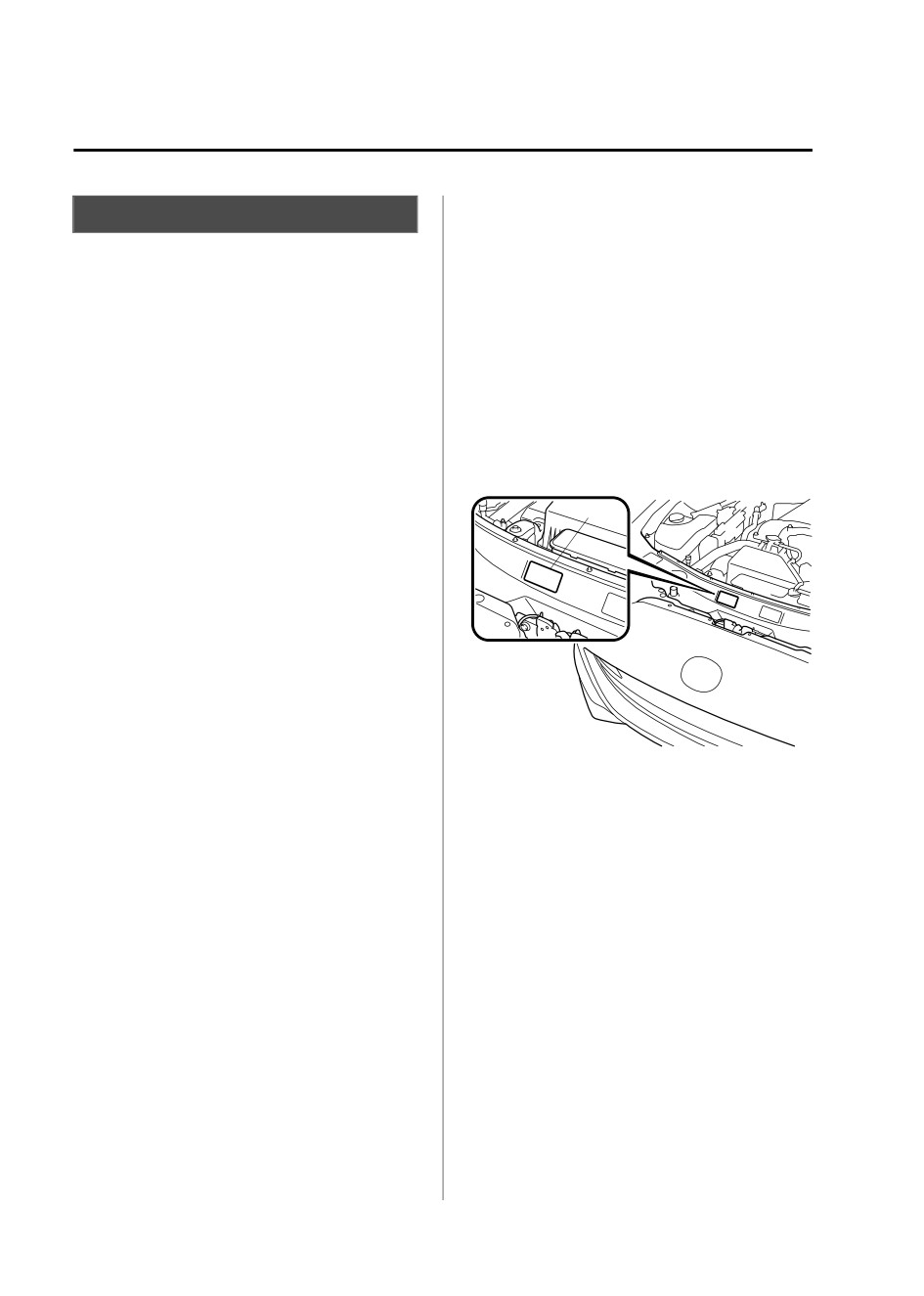

The refrigerant specifications are
Operating Tips
indicated on a label attached to the
Operate the climate control system with
inside of the engine compartment. If the
the engine running.
wrong type of refrigerant is used, it
To prevent the battery from being
could result in a serious malfunction of
discharged, do not leave the fan control
the air conditioner. Consult a
dial on for a long period of time with the
professional, government certified
ignition switched ON when the engine is
repairer for the inspection or repair
not running.
because a special device is required for
Clear all obstructions such as leaves,
the air conditioner maintenance.
snow and ice from the hood and the air
For details, consult an Authorized
inlet in the cowl grille to improve the
Mazda Dealer.
system efficiency.
Label
Use the climate control system to defog
the windows and dehumidify the air.
The recirculate mode should be used
when driving through tunnels or while
in a traffic jam, or when you would like
to shut off outside air for quick cooling
of the interior.
Use the outside air position for
ventilation or windshield defrosting.
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then
run the climate control system.
Run the air conditioner about 10
minutes at least once a month to keep
internal parts lubricated.
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient.
5-2
Interior Features
Climate Control System
Airflow direction adjustment
Vent Operation

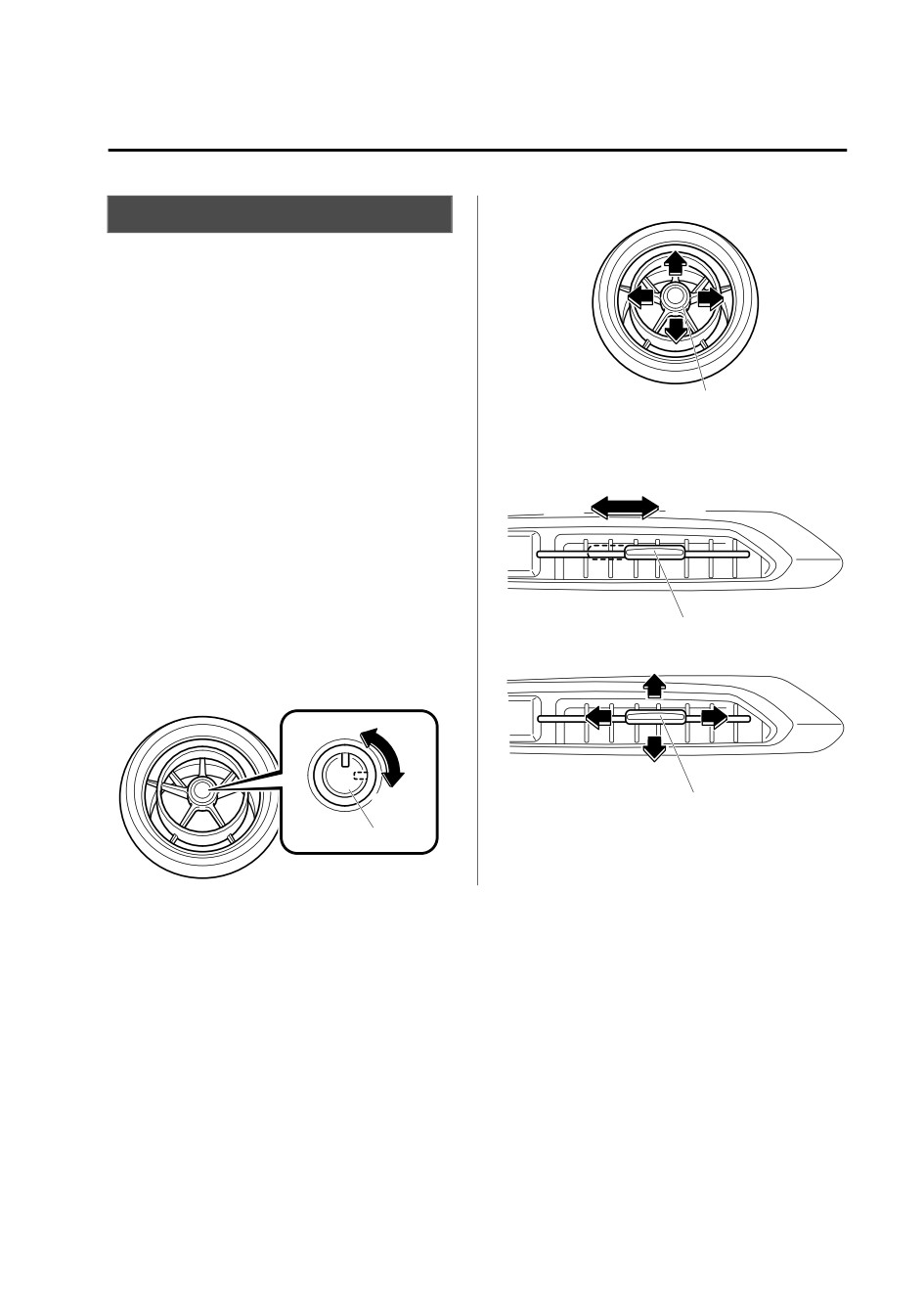

Adjusting the Vents
Directing airflow
To adjust the direction of airflow, move
the adjustment knob.
NOTE
Knob
When using the air conditioner under
Center vents (passenger)
humid ambient temperature conditions,
the system may blow fog from the vents.
Air vent open/close
This is not a sign of trouble but a result
Close
Open
of humid air being suddenly cooled.
Center vents (driver) and Side vents
Air vent open/close
Knob
NOTE
The air vents can be fully opened and
Airflow direction adjustment
closed by operating the knob.
Open
Close
Knob
Knob
5-3
Interior Features
Climate Control System

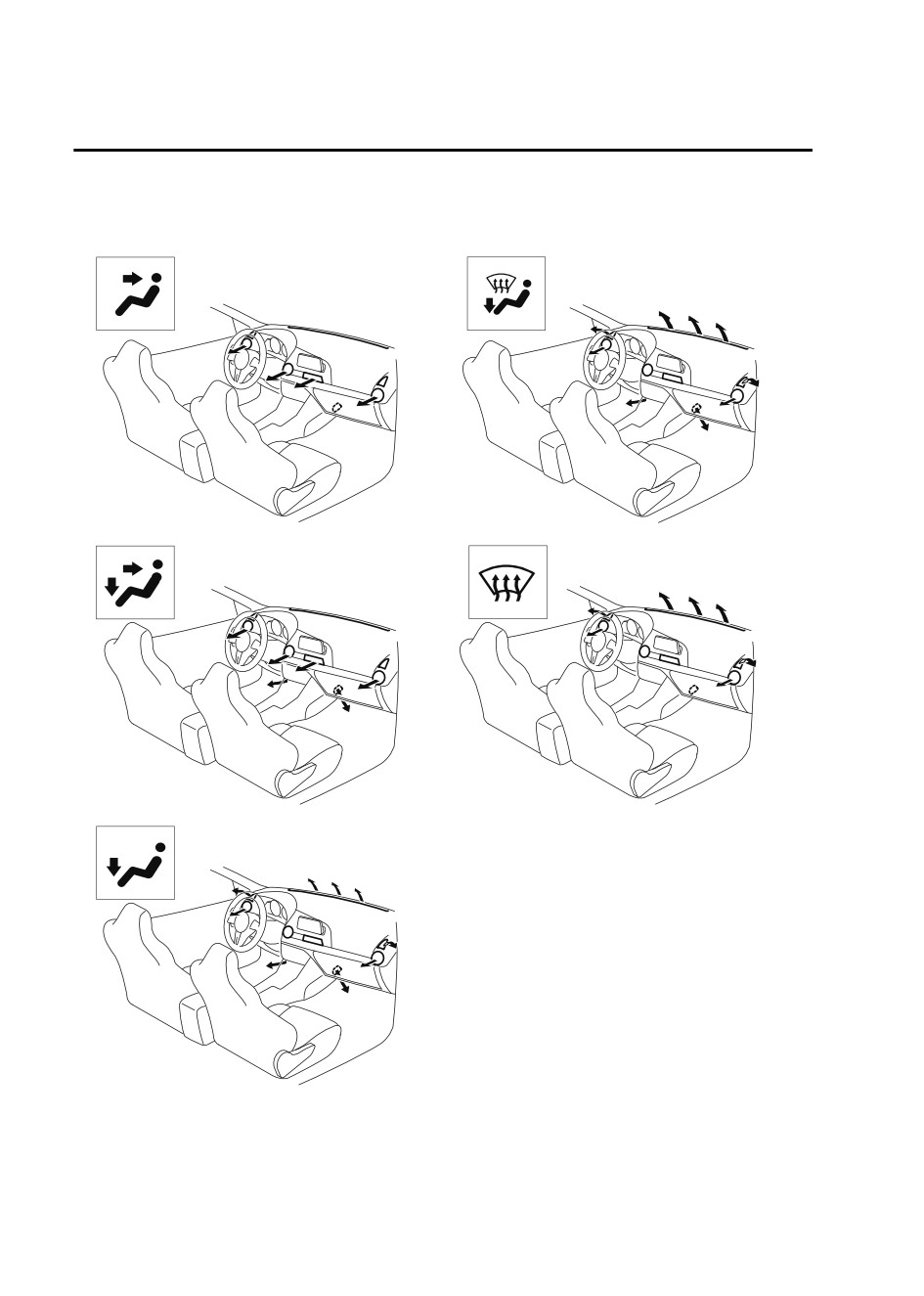

Selecting the Airflow Mode
Dashboard Vents
Defroster and Floor Vents
Dashboard and Floor Vents
Defroster Vents
Floor Vents
NOTE
The location airflow exits the air vents and the airflow amount may change depending on
the open or close status of the air vents.
5-4
Interior Features
Climate Control System

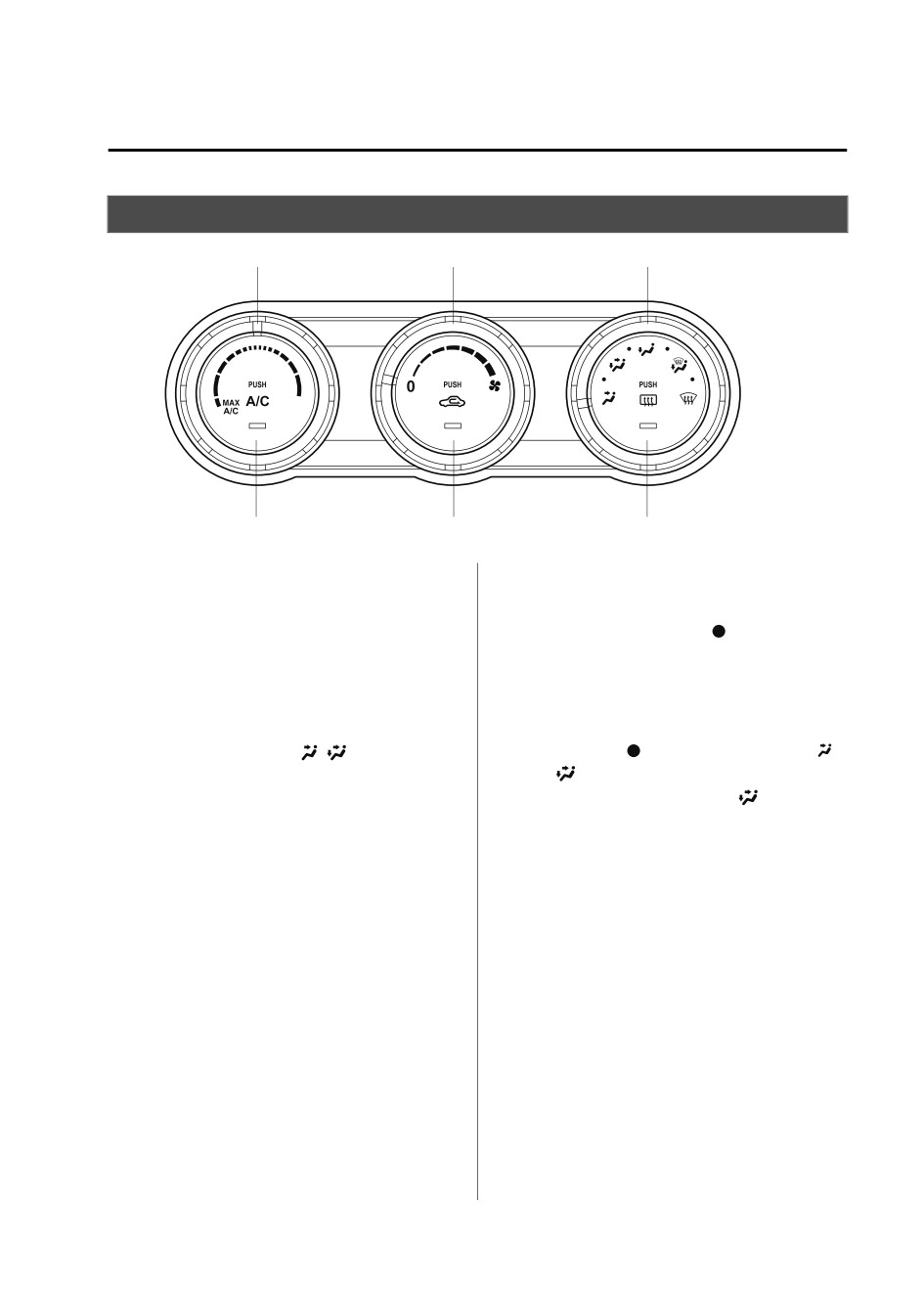

Manual Type
Temperature control dial
Fan control dial
Mode selector dial
A/C switch
Air intake selector switch
Rear window defogger switch
Control Switches
NOTE
The mode selector dial can be set at the
Temperature control dial
intermediate positions (
) between each
This dial controls temperature. Turn it
mode. Set the dial to an intermediate
clockwise for hot and counterclockwise
position if you want to split the airflow
for cold.
between the two modes.
NOTE
For example, when the mode selector
When the mode is set to
,
or a
dial is at the position between the
position in between them with the fan
and positions, airflow from the floor
control dial in a position other than 0 and
vent is less than that of the
position.
the temperature control dial in the
maximum cold position, the air intake
selector switches to the recirculated air
position and the A/C turns on
automatically.
If A/C is not desired, press the A/C switch
to turn it off.
Fan control dial
This dial allows variable fan speeds.
The fan has seven speeds.
Mode selector dial
Turn the mode selector dial to select
airflow mode (page 5-4).
5-5















Content      ..     6      7      8      9     ..
