When Driving
Start/Stop Engine
NOTE
NOTE
If the push button start indicator
Under the following conditions, the
light (green) flashes, make sure that
KEY warning light (red) flashes after
the key is being carried (for vehicles
the push button start is pressed. This
with a type A instrument cluster
informs the driver that the push
(page 4-27), messages are
button start will not switch to ACC
displayed in the instrument cluster).
even if it is pressed from off (for
If the push button start indicator
vehicles with a type A instrument
light (green) flashes with the key
cluster (page 4-27), messages are
being carried, touch the key to the
displayed in the instrument cluster).
push button start and start the
The key battery is dead.
engine (for vehicles with a type A
The key is out of operational
instrument cluster (page 4-27),
range.
messages are displayed in the
The key is placed in areas where it
instrument cluster). Refer to Engine
is difficult for the system to detect
Start Function When Key Battery is
the signal (page 3-9).
Dead on page 4-8.
A key from another manufacturer
similar to the key is in the
CAUTION
operational range.
If the KEY warning light (red)
illuminates, or the push button start
indicator light (amber) flashes, this
could indicate a problem with the
engine starting system. This may
prevent the engine from starting or
from switching the ignition to ACC or
ON (for vehicles with a type A
instrument cluster (page 4-27),
messages are displayed in the
instrument cluster). Have your vehicle
inspected at an Authorized Mazda
Dealer as soon as possible.
4-7
When Driving
Start/Stop Engine
(Forced engine starting method)
NOTE
If the KEY warning light (red)
After starting the engine, the push
illuminates, or the push button start
button start indicator light (amber)
indicator light (amber) flashes, this
turns off and the ignition switches to
could indicate that the engine may
the ON position.
not start using the usual starting
After pressing the push button start
method (for vehicles with a type A
and before the engine starts, the
instrument cluster (page 4-27),
operation sound of the fuel pump
messages are displayed in the
motor from near the fuel tank can be
instrument cluster). Have your
heard, however, this does not
vehicle inspected at an Authorized
indicate a malfunction.
Mazda Dealer as soon as possible. If
8.
After starting the engine, let it idle for
this occurs, the engine can be
about ten seconds.
force-started. Press and hold the
push button start until the engine
NOTE
starts. Other procedures necessary
Do not use high engine speeds until
for starting the engine, such as
reaching the operating temperature.
having the key in the cabin, and
Whether the engine is cold or warm,
depressing the clutch pedal (manual
it should be started without the use
transmission) or the brake pedal
of the accelerator.
(automatic transmission) are
If the engine does not start the first
required.
time, refer to Starting a Flooded
When the engine is force-started, the
Engine under Emergency Starting. If
KEY warning light (red) remains
the engine still does not start, have
illuminated and the push button start
your vehicle inspected by an
indicator light (amber) remains
Authorized Mazda Dealer (page
flashing.
7-26).
(Automatic transmission)
When the selector lever is in the
Engine Start Function When Key
neutral (N) position, the KEY
Battery is Dead
indicator light (green) and the push
button start indicator light (green)
do not illuminate.
CAUTION
7.
Press the push button start after both
When starting the engine by holding the
the KEY indicator light (green) in the
transmitter over the push button start due
instrument cluster and the push button
to a dead key battery or a malfunctioning
start indicator light (green) illuminate.
key, be careful not to allow the following,
otherwise the signal from the key will not
be received correctly and the engine may
not start.
4-8
When Driving
Start/Stop Engine
¾ Metal parts of other keys or metal objects
4. Align the center area of the emblem on
touch the key.
the transmitter with the center area of
the push button start while the push
button start indicator light (green)
flashes.
¾ Spare keys or keys for other vehicles
equipped with an immobilizer system
touch or come near the key.
Indicator light
Emblem
Push
button
start
Key
¾ Devices for electronic purchases, or
security passage touch or come near the
key.
If the engine cannot be started due to a
dead key battery, the engine can be started
using the following procedure:
1. Continue to depress the brake pedal
firmly until the engine has completely
started.
2.
(Manual transmission)
Continue to depress the clutch pedal
firmly until the engine has completely
started.
3. Make sure that the push button start
indication light (green) flashes.
4-9
When Driving
Start/Stop Engine
5.
Make sure that the push button start
Emergency Operation for Starting
indicator light (green) turns on.
the Engine
6.
Press the push button start to start the
If the KEY warning light (red) illuminates,
engine.
or the push button start indicator light
NOTE
(amber) flashes, this could indicate that
the engine may not start using the usual
The engine cannot be started unless
starting method (for vehicles with a type A
the clutch pedal is fully depressed
instrument cluster (page 4-27), messages
(manual transmission) or the brake
are displayed in the instrument cluster).
pedal is fully depressed (automatic
Have your vehicle inspected at an
transmission).
Authorized Mazda Dealer as soon as
If there is a malfunction with the
possible. If this occurs, the engine can be
push button start function, the push
force-started. Press and hold the push
button start indicator light (amber)
button start until the engine starts. Other
flashes. In this case, the engine may
procedures necessary for starting the
start, however, have the vehicle
engine such as having the key in the cabin,
checked at an Authorized Mazda
and depressing the clutch pedal (manual
Dealer as soon as possible.
transmission) or the brake pedal
If the push button start indicator
(automatic transmission) are required.
light (green) does not illuminate,
perform the operation from the
beginning again. If it does not
illuminate, have the vehicle checked
at an Authorized Mazda Dealer.
To switch the ignition position
without starting the engine, perform
the following operations after the
push button start indicator light
(green) turns on.
1. Release the clutch pedal (manual
transmission) or brake pedal
(automatic transmission).
2. Press the push button start to
switch the ignition position. The
ignition switches in the order of
ACC, ON, and off each time the
push button start is pressed. To
switch the ignition position
again, perform the operation
from the beginning.
4-10
When Driving
Start/Stop Engine
If the system detects that the remaining
Turning the Engine Off
battery power of the key is low when the
ignition is switched from ON to ACC or
WARNING
OFF, the following is indicated.
Replace with a new battery before the
key becomes unusable.
Do not stop the engine while the vehicle is
Refer to Key Battery Replacement on
moving:
page 6-31.
Stopping the engine while the vehicle is
(Vehicle equipped with Type A
moving for any reason other than in an
instrument cluster)
emergency is dangerous. Stopping the
A message is indicated in the display of
engine while the vehicle is moving will
the instrument cluster.
result in reduced braking ability due to the
(Vehicle equipped with Type B
loss of power braking, which could cause
instrument cluster)
an accident and serious injury.
The KEY indicator light (green) flashes
1. Stop the vehicle completely.
for approximately 30 seconds.
2.
(Manual transmission)
Refer to Warning/Indicator Lights on
Shift into neutral and set the parking
page 4-27.
brake.
(Automatic transmission)
(Automatic transmission)
If the engine is turned off while the
Shift the selector lever to the P
selector lever is in a position other than
position and set the parking brake.
P, the ignition switches to ACC.
3. Press the push button start to turn off
the engine. The ignition position is off.
Emergency Engine Stop
Continuously pressing the push button
CAUTION
start or quickly pressing it any number of
times while the engine is running or the
¾ When leaving the vehicle, make sure the
vehicle is being driven will turn the engine
push button start is off.
off immediately. The ignition switches to
ACC.
NOTE
The cooling fan in the engine
compartment could turn on for a few
minutes after the ignition is switched
from ON to OFF, whether or not the A/C
is on or off, to cool the engine
compartment quickly.
4-11
When Driving
Instrument Cluster and Display
Meters and Gauges
Instrument Cluster
Type A
(With Multi-information Display)
Type B
(Without Multi-information Display)
Steering Switch
Speedometer
page 4-13
Odometer, Trip Meter and Trip Meter Selector
page 4-13
Tachometer
page 4-14
Engine Coolant Temperature Gauge
page 4-15
Fuel Gauge
page 4-15
Dashboard Illumination
page 4-16
Outside Temperature Display
page 4-17
Cruise Control Set Vehicle Speed Display
page 4-17
Trip Computer and INFO Switch
page 4-17

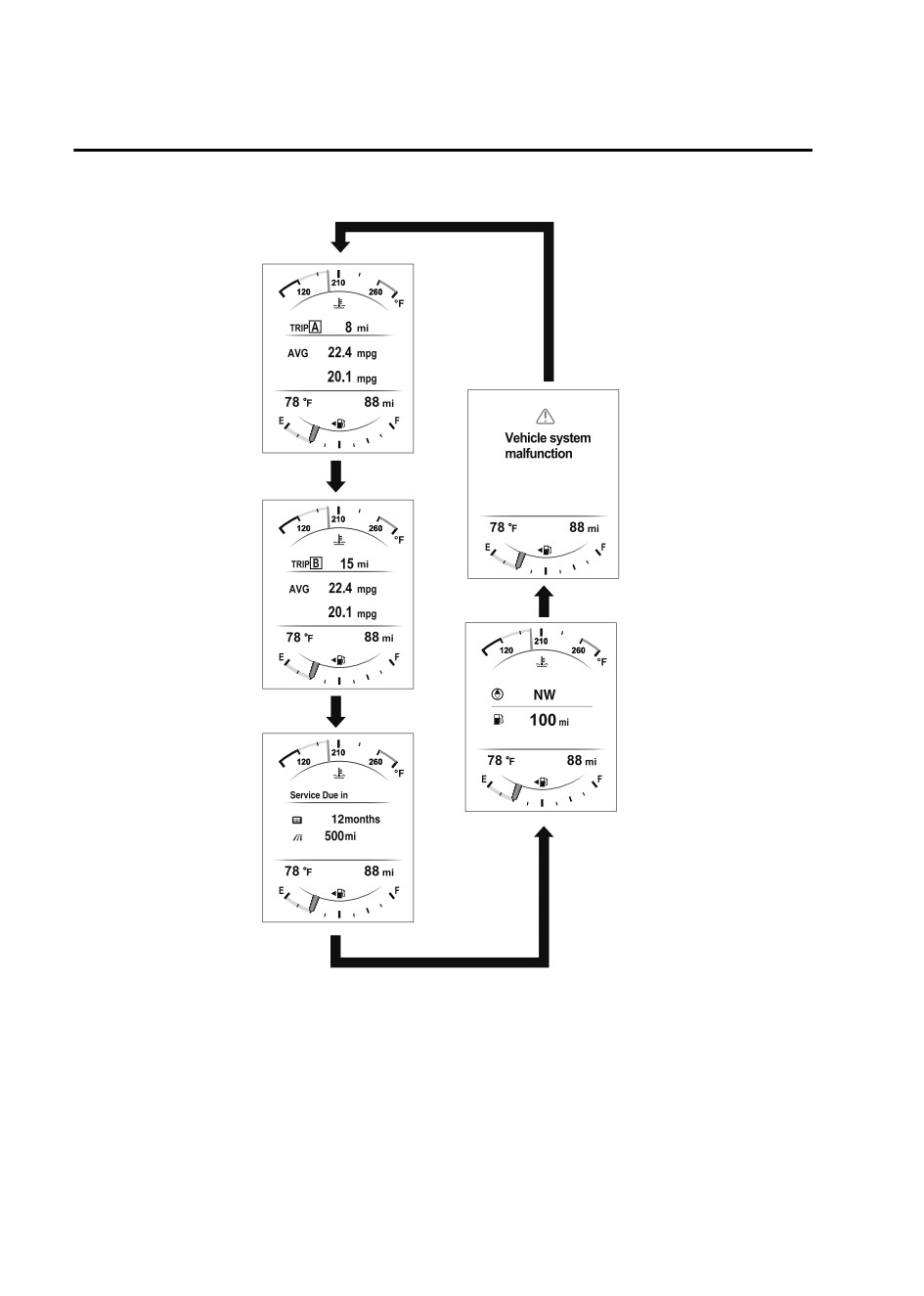

Multi-information Display and INFO Switch
page 4-19
4-12
When Driving
Instrument Cluster and Display
Speedometer
NOTE
When the ignition is switched to ACC or
The speedometer indicates the speed of the
off, the odometer or trip meters cannot be
vehicle.
displayed, however, pressing the
dashboard illumination knob can
Odometer, Trip Meter and Trip
Meter Selector (Without
inadvertently switch the trip meters or
Multi-information Display)
reset them during an approximate
ten-minute period in the following cases:
The display mode can be changed from
After the ignition is switched to off from
odometer to trip meter A to trip meter B
ON.
and then back to odometer by pressing the
After the driver's door is opened.
dashboard illumination knob while one of
them is displayed. The selected mode will
Odometer
be displayed.
The odometer records the total distance
the vehicle has been driven.
Dashboard illumination knob
Trip meter
The trip meter can record the total distance
of two trips. One is recorded in trip meter
A, and the other is recorded in trip meter
B.
For instance, trip meter A can record the
Odometer
distance from the point of origin, and trip
Press the Dashboard
meter B can record the distance from
illumination knob
where the fuel tank is filled.
Trip meter A
Press the Dashboard
When trip meter A is selected, pressing the
illumination knob
dashboard illumination knob again within
one second will change to trip meter B
Trip meter B
mode.
Press the Dashboard
illumination knob
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
4-13
When Driving
Instrument Cluster and Display
The trip meter records the total distance
Tachometer
the vehicle is driven until the meter is
The tachometer shows engine speed in
again reset. Return it to “0.0” by
thousands of revolutions per minute (rpm).
depressing and holding the dashboard
illumination knob for one second or more.
CAUTION
Use this meter to measure trip distances
and to compute fuel consumption.
Do not run the engine with the tachometer
NOTE
needle in the RED ZONE.
This may cause severe engine damage.
If TRIP A is reset using the trip meter
when the function which synchronizes
(resets) the fuel economy monitor and
the trip meter (TRIP A) is on, the fuel
Striped zone
economy data resets in conjunction with
Red zone
TRIP A.
Refer to the Fuel Economy Monitor
section in the Mazda Connect Owner's
Manual.
Only the trip meters record tenths of
kilometers (miles).
The trip record will be erased when:
NOTE
The power supply is interrupted
When the tachometer needle enters the
(blown fuse or the battery is
STRIPED ZONE, this indicates to the
disconnected).
driver that the gears should be shifted
The vehicle is driven over 9999.9 km
before entering the RED ZONE.
(mile).
4-14
When Driving
Instrument Cluster and Display
Engine Coolant Temperature Gauge
Fuel Gauge (Without
(Without Multi-information
Multi-information Display)
Display)
The fuel gauge shows approximately how
Indicates engine coolant temperature.
much fuel is remaining in the tank when
the ignition is switched ON. We
recommend keeping the tank over 1/4 full.
Full
CAUTION
If the high engine coolant temperature
warning light (red) flashes, there is a
1/4 Full
possibility of overheating. Drive slowly to
reduce engine load until you can find a safe
place to stop the vehicle and wait for the
engine to cool down.
Refer to Overheating on page 7-27.
NOTE
Empty
The temperature unit (Centigrade/
Fahrenheit) of the engine coolant gauge
display changes in conjunction with the
temperature unit of the outside
If the low fuel warning light illuminates or
temperature display.
the fuel level is very low, refuel as soon as
Refer to the Settings section in the
possible.
Mazda Connect Owner's Manual.
If inconsistency in engine performance or
During normal driving, the engine
stalling occurs due to low fuel level
coolant temperature stabilizes at 100 °C
conditions, refuel the vehicle as soon as
(210 °F) or less, and the gauge indicates
possible and add at least 10 L (2.7 US gal,
a range lower than 100 °C (210 °F).
2.2 Imp gal) of fuel.
If the engine load increases and the
Refer to Taking Action on page 7-40.
engine coolant temperature exceeds
100 °C (210 °F), the gauge indicates the
NOTE
engine coolant temperature.
After refueling, it may require some time
for the indicator to stabilize. In addition,
the indicator may deviate while driving
on a slope or curve since the fuel moves
in the tank.
4-15
When Driving
Instrument Cluster and Display
The display indicating a quarter or less
The brightness decreases by rotating the
remaining fuel has more segments to
knob to the left. A beep sound will be
show the remaining fuel level in greater
heard when the knob has been rotated to
detail.
the maximum dim position.
The direction of the arrow (
) indicates
The brightness increases by rotating the
that the fuel-filler lid is on the left side
knob to the right.
of the vehicle.
Dim
Dashboard Illumination
(Without auto-light control)
When the position lights are turned on
Bright
with the ignition switched ON, the
brightness of the dashboard illumination is
dimmed.
(With auto-light control)
When the position lights are turned on
with the ignition switched ON, the
brightness of the dashboard illumination is
Function for cancelling illumination
dimmed. However, when the light sensor
dimmer
detects that the surrounding area is bright
The illumination dimmer can be canceled
such as when the position lights are turned
by rotating the dashboard illumination
on in the daytime, the dashboard
knob to the right until a beep sound is
illumination does not dim.
heard while the instrument cluster is
NOTE
dimmed with the ignition switched ON. If
the instrument cluster's visibility is
(With auto-light control)
reduced due to glare from surrounding
When the ignition is switched ON in the
brightness, cancel the illumination
early evening or at dusk, the dashboard
dimmer.
illumination is dimmed for several
seconds until the light sensor detects the
NOTE
brightness of the surrounding area,
When the illumination dimmer is
however, the dimmer may cancel after
canceled, the instrument cluster cannot
the brightness is detected.
be dimmed even if the position lights are
When the position lights are turned on,
turned on.
the position lights indicator light in the
When the illumination dimmer is
instrument cluster turns on.
canceled, the screen in the center
Refer to Headlights on page 4-45.
display switches to constant display of
The brightness of the instrument cluster
the daytime screen.
and dashboard illuminations can be
adjusted by rotating the knob.
4-16
When Driving
Instrument Cluster and Display
Outside Temperature Display
Cruise Control Set Vehicle Speed
(Without Multi-information
Display (Without Multi-information
Display)
Display)*
When the ignition is switched ON, the
The vehicle speed preset using the cruise
outside temperature is displayed.
control is displayed.
NOTE
Under the following conditions, the
Trip Computer and INFO Switch
outside temperature display may differ
(Without Multi-information
from the actual outside temperature
Display)
depending on the surroundings and
The following information can be selected
vehicle conditions:
by pressing the INFO switch with the
Significantly cold or hot temperatures.
ignition switched ON.
Sudden changes in outside
Approximate distance you can travel on
temperature.
the available fuel
The vehicle is parked.
Average fuel economy
The vehicle is driven at low speeds.
Current fuel economy
Changing the Temperature Unit of the
Average vehicle speed
Outside Temperature Display
If you have any problems with your trip
The outside temperature unit can be
computer, consult an Authorized Mazda
switched between Celsius and Fahrenheit
Dealer.
using the following procedure.
Distance-to-empty mode
Settings can be changed by operating the
center display screen.
This mode displays the approximate
Refer to the Settings section in the Mazda
distance you can travel on the remaining
Connect Owner's Manual.
fuel based on the fuel economy.
NOTE
The distance-to-empty will be calculated
When the temperature unit indicated in the
and displayed every second.
outside temperature display is changed,
the temperature unit indicated in the
engine coolant gauge display changes in
conjunction with it.
*Some models.
4-17
When Driving
Instrument Cluster and Display
NOTE
NOTE
If TRIP A is reset using the trip meter
Even though the distance-to-empty
when the function which synchronizes
display may indicate a sufficient amount
(resets) the fuel economy monitor and the
of remaining driving distance before
trip meter (TRIP A) is on, the displayed
refueling is required, refuel as soon as
past data is reset.
possible if the fuel level is very low or
the low fuel warning light illuminates.
Current fuel economy mode
The display may not change unless you
This mode displays the current fuel
add more than approximately 9 L (2.3
economy by calculating the amount of fuel
US gal, 1.9 Imp gal) of fuel.
consumption and the distance traveled.
The distance-to-empty is the
approximate remaining distance the
Current fuel economy will be calculated
vehicle can be driven until all the
and displayed every 2 seconds.
graduation marks in the fuel gauge
(indicating the remaining fuel supply)
disappear.
If there is no past fuel economy
information such as after first
When you've slowed to about 5 km/h (3
purchasing your vehicle or the
mph), - - - L/100 km (- - - mpg) will be
information is deleted when the battery
displayed.
cables are disconnected, the actual
distance-to empty/range may differ from
Average vehicle speed mode
the amount indicated.
This mode displays the average vehicle
Average fuel economy mode
speed by calculating the distance and the
time traveled since connecting the battery
This mode displays the average fuel
or resetting the data.
economy by calculating the total traveled
Average vehicle speed will be calculated
distance and the total fuel consumption
and displayed every 10 seconds.
since the vehicle was purchased or the past
data was reset. The average fuel economy
is calculated and displayed every minute.
To clear the data being displayed, press the
INFO switch for more than 1.5 seconds.
After pressing the INFO switch, - - - km/h
To reset the displayed past data, press the
(- - - mph) will be displayed for about 1
INFO switch for 1.5 seconds or longer.
minute before the vehicle speed is
After resetting the data, - - - L/100 km
recalculated and displayed.
(- - - mpg) is displayed for one minute
before the fuel economy is recalculated
and displayed.
4-18
When Driving
Instrument Cluster and Display
Multi-information Display and INFO Switch*
Multi-information Display
INFO switch
The multi-information display indicates the following information.
Odometer
Trip meter
Engine coolant temperature gauge
Fuel gauge
Outside temperature
Distance-to-empty
Average fuel economy
Current fuel economy
Maintenance Monitor
Traffic Sign Recognition System (TSR) Display
Lane Departure Warning System (LDWS) Display
Cruise Control Display
Compass Display
Roof Operation Display (Hardtop)
Message Display
*Some models.
4-19
When Driving
Instrument Cluster and Display
The screen content changes each time the INFO switch is pressed.
Engine Coolant
Temperature Gauge,
Trip Meter A, Average
Fuel Economy, Current
Press the INFO switch
Fuel Economy, Outside
Temperature,
*1
Odometer, Fuel Gauge
Warning message,
Outside
Press the INFO switch
Temperature,
Odometer, Fuel
Engine Coolant
Gauge
Temperature Gauge,
Trip Meter B, Average
Fuel Economy, Current
Fuel Economy, Outside
Press the INFO switch
Temperature,
*2
Odometer, Fuel Gauge
Engine Coolant
Temperature Gauge,
Compass,
Press the INFO switch
Distance-to-empty,
Outside Temperature,
Odometer, Fuel Gauge
Engine Coolant
Temperature Gauge,
Maintenance Monitor,
Outside Temperature,
Odometer, Fuel Gauge
Press the INFO switch
*1: Displayed only when a warning occurs.
*2: Displayed only while vehicle is being driven.
4-20
When Driving
Instrument Cluster and Display
Odometer, Trip Meter and Trip
Odometer
Meter Selector
The odometer records the total distance
The odometer is constantly displayed on
the vehicle has been driven.
the screen when the ignition is switched
Trip meter
ON, and the TRIP A or TRIP B screen can
be displayed by operating the INFO
The driving distance for a specified
switch.
interval is indicated. Two types (TRIP A,
TRIP B) of interval distance and the
INFO switch
average fuel economy for each can be
measured.
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.
Trip meter A,
When trip meter A is selected, TRIP A
Odometer
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
Press the INFO switch
The trip meter and average fuel economy
can be reset by pressing the INFO switch
for 1.5 seconds or more while in each
Trip meter B,
mode.
Odometer
NOTE
Only the trip meters record tenths of
kilometers (miles).
The trip record will be erased when:
The power supply is interrupted
(blown fuse or the battery is
disconnected).
The vehicle is driven over 9999.9 km
(mile).
4-21
When Driving
Instrument Cluster and Display
Engine Coolant Temperature Gauge
Fuel Gauge
Displays the engine coolant temperature.
The fuel gauge shows approximately how
The blue gauge indicates that the engine
much fuel is remaining in the tank when
coolant temperature is low, and the red
the ignition is switched ON. We
gauge indicates that the engine coolant
recommend keeping the tank over 1/4 full.
temperature is high and overheating.
Full
The engine coolant temperature gauge can
be switched to indicate only the high
engine coolant temperature range by
pressing the panel light control switch.
1/4 Full
CAUTION
Empty
If the high engine coolant temperature
warning light (red) flashes, there is a
possibility of overheating. Drive slowly to
reduce engine load until you can find a safe
If the fuel level is low, (
) and ( ) turn an
place to stop the vehicle and wait for the
amber color. Refuel as soon as possible.
engine to cool down.
If inconsistency in engine performance or
Refer to Overheating on page 7-27.
stalling occurs due to low fuel level
conditions, refuel the vehicle as soon as
NOTE
possible and add at least 10 L (2.7 US gal,
The temperature unit (Centigrade/
2.2 Imp gal) of fuel.
Fahrenheit) of the engine coolant gauge
Refer to Taking Action on page 7-40.
display changes in conjunction with the
temperature unit of the outside
temperature display.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
4-22
When Driving
Instrument Cluster and Display
NOTE
Changing the Temperature Unit of the
Outside Temperature Display
After refueling, it may require some time
for the indicator to stabilize. In addition,
The outside temperature unit can be
the indicator may deviate while driving
switched between Celsius and Fahrenheit
on a slope or curve since the fuel moves
using the following procedure.
in the tank.
Settings can be changed by operating the
The display indicating a quarter or less
center display screen.
remaining fuel has more segments to
Refer to the Settings section in the Mazda
show the remaining fuel level in greater
Connect Owner's Manual.
detail.
NOTE
The direction of the arrow (
) indicates
When the temperature unit indicated in the
that the fuel-filler lid is on the left side
outside temperature display is changed,
of the vehicle.
the temperature unit indicated in the
Outside Temperature Display
engine coolant gauge display changes in
conjunction with it.
When the ignition is switched ON, the
outside temperature is displayed.
Distance-to-empty
This displays the approximate distance
you can travel on the remaining fuel based
on the fuel economy.
NOTE
The distance-to-empty will be calculated
Under the following conditions, the
and displayed every second.
outside temperature display may differ
from the actual outside temperature
depending on the surroundings and
vehicle conditions:
NOTE
Significantly cold or hot temperatures.
Sudden changes in outside
Even though the distance-to-empty
temperature.
display may indicate a sufficient amount
The vehicle is parked.
of remaining driving distance before
The vehicle is driven at low speeds.
refueling is required, refuel as soon as
possible if the fuel level is very low or
the low fuel warning light illuminates.
The display will not change unless you
add more than approximately 9 L (2.3
US gal, 1.9 Imp gal) of fuel.
4-23
When Driving
Instrument Cluster and Display
The distance-to-empty is the
Current Fuel Economy
approximate remaining distance the
This displays the current fuel economy by
vehicle can be driven until all the
calculating the amount of fuel
graduation marks in the fuel gauge
consumption and the distance traveled.
indicating the remaining fuel supply
Current fuel economy will be calculated
disappear.
and displayed every two seconds.
If there is no past fuel economy
information such as after first
purchasing your vehicle or the
information is deleted when the battery
cables are disconnected, the actual
distance-to empty/range may differ from
the amount indicated.
Average Fuel Economy
When you've slowed to about 5 km/h (3
mph), - - - L/100 km (- - - mpg) will be
The average fuel economy is calculated
displayed.
every minute from the total traveled
distance on the trip meter and the total fuel
Maintenance Monitor
consumption, and the average fuel
The following maintenance period
economy for either TRIP A or TRIP B is
notifications can be displayed by turning
displayed.
the Maintenance Monitor on.
Scheduled Maintenance
Tire Rotation
Oil Change
For the setting method and indications for
the maintenance monitor, refer to the
Maintenance Monitor.
The average fuel economy and trip meters
Refer to the Maintenance Monitor section
can be reset by pressing the INFO switch
in the Mazda Connect Owner's Manual.
for 1.5 seconds or more while in each
The maintenance monitor displays the
mode. After the data is cleared, the fuel
information when the ignition is switched
consumption is recalculated and the - - -
ON.
L/100 km (- - - mpg) for the 1 minute prior
to it being displayed is indicated.
NOTE
This function is inoperable while the
vehicle is being driven.
4-24
When Driving
Instrument Cluster and Display
Message display
Lane Departure Warning System
(LDWS) Display*
When the remaining days to the
maintenance period is 15 days or less, or
Displays the system status.
the remaining distance is 1,000 km (600
miles) or shorter, a message is indicated
when the ignition is switched ON.
NOTE
If any of the INFO switch is pressed
Refer to Lane Departure Warning on page
while a message is displayed, it will no
4-84.
longer be displayed the next time the
Cruise Control Set Vehicle Speed
ignition is switched ON.
Display*
After the vehicle is serviced and the
remaining time/distance is reset, the
The vehicle speed preset using the cruise
message for the next maintenance
control is displayed.
period will be displayed when the
remaining distance or time to the next
maintenance period approaches 0
(displays when engine is started).
If there are multiple messages, they are
displayed according to their order.
Refer to Cruise Control on page 4-109.
If OFF is set for Messages, messages
are not displayed.
Traffic Sign Recognition System
(TSR) Display*
Displays the traffic sign.
Refer to Traffic Sign Recognition System
(TSR) on page 4-90.
*Some models.
4-25
When Driving
Instrument Cluster and Display
Compass Display
Message Display
The direction the vehicle is moving is
A message such as the system operation
displayed in one of the eight cardinal
status, a malfunction, or an abnormality is
directions while the vehicle is being
indicated.
driven.
Warning/indicator light in instrument
cluster turns on/flashes or symbol is
indicated on display at same time as
message
Display
Direction
Check the information regarding the
N
North
warning/indicator light or indicated
S
South
symbol.
E
East
Refer to If a Warning Indication/Warning
W
West
Lights on page 4-27.
Refer to If a Indication/Indicator Lights on
NE
Northeast
page 4-29.
NW
Northwest
SE
Southeast
Message only is indicated on display
SW
Southwest
Follow the instructions indicated on the
display. For the display content, refer to
Roof Operation Display (Hardtop)
the next page.
Displays the roof operation status.
Refer to If a Message Indicated on
Multi-information Display on page 7-45.
Refer to Operation Indication on page
3-40.
4-26
When Driving
Instrument Cluster and Display
Warning/Indicator Lights
Instrument Cluster varies depending on model and specifications.
Instrument Cluster
Type A
Type B
(With Multi-information Display)
(Without Multi-information Display)
Center of Dashboard
Warning/Indicator lights will appear in any of the highlighted areas
Warning Indication/Warning Lights
These lights turn on or flash to notify the user of the system operation status or a system
malfunction.
Signal
Warning Lights
Page
Brake System Warning Light*1*2
7-33
Charging System Warning Indication/Warning Light*1
7-33
Engine Oil Warning Light*1
7-33
High Engine Coolant Temperature Warning Indication/Warning
7-33
Light*1
(Red)
Power Steering Malfunction Indication/Malfunction Indicator
7-33
Light*1
*Master Warning Indication/Warning Light*1
7-36
Electric Vacuum Pump Warning Light*1
7-36
*Some models.
4-27
When Driving
Instrument Cluster and Display
Signal
Warning Lights
Page
Electronic Brake Force
Distribution System
Warning
ABS Warning Light*1
7-33
ABS warning
7-36
Check Engine Light*1
7-36
*Automatic Transmission Warning Indication/Warning Light*1
7-36
Air Bag/Seat Belt Pretensioner System Warning Light*1
7-36
Flashing
7-36
Tire Pressure Monitoring System Warning Light*1
Turns on
7-40
Turns on
7-36
*KEY Warning Light*1
Flashing
(Red)
7-40
*KEY Warning Indication
7-36
(Amber)
Turns on
*Lane Departure Warning System (LDWS) Warning Indication/
7-36
Warning Light*1
Flashing
4-84
*High Beam Control System (HBC) Warning Indication/Warnဨ
7-36
ing Light*1
(Amber)
*Blind Spot Monitoring (BSM) Warning Indication
7-36
*Retractable Hardtop Warning Indication
7-36
LED Headlight Warning Light*1
7-36
*Smart City Brake Support (SCBS) Warning Indication/Warnဨ
7-40
ing Light*1
(Amber)
Seat Belt Warning Light
7-40
*Door-Ajar Warning Light
7-40
4-28
*Some models.
When Driving
Instrument Cluster and Display
Signal
Warning Lights
Page
*Door-Ajar Warning Indication
7-40
*Trunk lid-Ajar Warning Indication
7-40
*Low Fuel Warning Indication/Warning Light
7-40
Check Fuel Cap Warning Light*1
7-40
*Low Washer Fluid Level Warning Indication/Warning Light
7-40
*1
The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or
when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
Authorized Mazda Dealer.
*2
The light turns on continuously when the parking brake is applied.
Indication/Indicator Lights
These lights turn on or flash to notify the user of the system operation status or a system
malfunction.
Signal
Indicator Lights
Page
*Passenger Air Bag Deactivation Indicator Light (Type A)*1
2-49
*Passenger Air Bag Deactivation Indicator Light (Type B)*1
2-49
*KEY Indicator/Indicator Light
3-10
(White/Green)
Security Indicator Light*1
3-45
*Retractable Hardtop Operation Indicator Light
3-40
*Wrench Indication/Indicator Light*1
4-31
Low Engine Coolant Temperature Indicator Light
4-31
(Blue)
*Shift Position Indication
4-37
*Some models.
4-29
When Driving
Instrument Cluster and Display
Signal
Indicator Lights
Page
Lights-On Indicator Light
4-45
Headlight High-Low
Beam
Headlight High-Beam Indicator Light
4-49
Flashing the Headlights
4-49
Turn and Lane-Change
Signals
Turn Signal/Hazard Warning Indicator Lights
4-51
Hazard Warning Flasher
4-58
Traction Control System
(TCS)
4-67
Dynamic Stability Conဨ
TCS/DSC Indicator Light*1
trol (DSC)
4-68
(Turns on)
7-36
DSC OFF Indicator Light*1
4-69
*Select Mode Indication
4-71
*High Beam Control System (HBC) Indicator Light
4-77
(Green)
*Blind Spot Monitoring (BSM) OFF Indicator Light*1
4-89
*Lane Departure Warning System (LDWS) OFF Indicator
4-82
Light*1
Smart City Brake Supဨ
*Smart City Brake Support (SCBS) Indication
port (SCBS)
4-101
Smart City Brake Supဨ
*Smart City Brake Support (SCBS) Indicator Light
port (SCBS)
4-101
(Red)
Smart City Brake Supဨ
*Smart City Brake Support (SCBS) OFF Indicator Light*1
port (SCBS)
4-102
4-30
*Some models.
When Driving
Instrument Cluster and Display
Signal
Indicator Lights
Page
*Cruise Main Indication
4-110
(White)
*Cruise Set Indication/Indicator Light
4-110
(Green)
*1
The light turns on when the ignition is switched on for an operation check, and turns off
a few seconds later or when the engine is started. If the light does not turn on or remains
turned on, have the vehicle inspected at an Authorized Mazda Dealer.
Wrench Indication/Indicator Light*
Low Engine Coolant Temperature
Indicator Light (Blue)
Type A instrument cluster
Perform maintenance in accordance with
The light illuminates continuously when
the message.
the engine coolant temperature is low and
turns off after the engine is warm.
Type B instrument cluster
If the low engine coolant temperature
When the ignition is switched ON, the
indicator light remains illuminated after
wrench indicator light is illuminated and
the engine has been sufficiently warmed
then turns off after a few seconds.
up, the temperature sensor could have a
The wrench indicator light turns on when
malfunction. Consult an Authorized
the preset maintenance period arrives.
Mazda Dealer.
Verify the content and perform
maintenance.
Refer to the Maintenance Monitor section
in the Mazda Connect Owner's Manual.
*Some models.
4-31
When Driving
Manual Transmission Operation
Manual Transmission Shift
WARNING
Pattern
Do not use sudden engine braking on
slippery road surfaces or at high speeds:
Shifting down while driving on wet, snowy,
or frozen roads, or while driving at high
speeds causes sudden engine braking,
which is dangerous. The sudden change in
Neutral position
tire speed could cause the tires to skid. This
could lead to loss of vehicle control and an
accident.
Always leave the shift lever in 1 or R
The shift pattern of the transmission is
position and set the parking brake when
conventional, as shown.
leaving the vehicle unattended:
Otherwise the vehicle could move and
Depress the clutch pedal all the way down
cause an accident.
while shifting; then release it slowly.
Your vehicle is equipped with a device to
CAUTION
prevent shifting to R (reverse) by mistake.
Push the shift lever downward and shift to
¾ Keep your foot off the clutch pedal except
R.
when shifting gears. Also, do not use the
clutch to hold the vehicle on an upgrade.
Riding the clutch will cause needless
clutch wear and damage.
¾ Do not apply any excessive lateral force
to the shift lever when changing from
5th to 4th gear. This could lead to the
accidental selection of 2nd gear, which
could result in damage to the
transmission.
¾ Make sure the vehicle comes to a
complete stop before shifting to R.
Shifting to R while the vehicle is still
moving may damage the transmission.
4-32
When Driving
Manual Transmission Operation
NOTE
Indication
Condition
The selected gear position is disဨ
A natural driving posture can be
Numeral
played.
realized by lightly gripping the shift
Shift up or down to the indicated
lever from the side without having to
and numeral
gear position is recommended.
rest your elbow on the center console
box.
CAUTION
Do not rely solely on the shift-up/
shift-down recommendations by
indications. The actual driving situation
might require shift operations different
from indication. To avoid the risk of
accidents, the road and traffic conditions
have to be judged correctly by the driver
before shifting.
NOTE
If shifting to R is difficult, shift back into
The GSI turns off when the following
neutral, release the clutch pedal, and try
operations are performed.
again.
The vehicle is stopped.
Gear Shift Indicator (GSI)
The vehicle is put in neutral.
The vehicle is driven in reverse.
The GSI supports you to obtain optimum
The clutch is not fully engaged when
fuel economy and smooth driving. It
accelerating from a stop.
displays the selected gear position in the
The clutch pedal remains depressed for
instrument cluster as well as notifies the
2 seconds or longer while driving.
driver to change to the most suitable gear
position corresponding to the actual
Recommendations for Shifting
driving condition.
Upshifting
For normal acceleration, Mazda
recommends these shift points:
Gear
Vehicle speed
1 to 2
23 km/h (14 mph)
2 to 3
39 km/h (24 mph)
3 to 4
53 km/h (33 mph)
Selected gear position Suitable gear position
4 to 5
61 km/h (38 mph)
5 to 6
77 km/h (48 mph)
4-33
When Driving
Manual Transmission Operation
For cruising, Mazda recommends these
shift points:
Gear
Vehicle speed
1 to 2
11 km/h (7 mph)
2 to 3
31 km/h (19 mph)
3 to 4
42 km/h (26 mph)
4 to 5
55 km/h (34 mph)
5 to 6
66 km/h (41 mph)
Downshifting
When you must slow down in heavy
traffic or on a steep upgrade, downshift
before the engine starts to overwork. This
reduces the chance of stalling and gives
better acceleration when you need more
speed.
On a steep downgrade, downshifting
helps maintain safe speed and prolongs
brake life.
4-34
When Driving
Automatic Transmission
Automatic Transmission Controls
Lock-release button
Various Lockouts:
Indicates that you must depress the brake pedal and hold in the lock-release
button to shift (The ignition must be switched ON).
Indicates the selector lever can be shifted freely into any position.
Indicates that you must hold in the lock-release button to shift.
NOTE
The Sport AT has an option that is not included in the traditional automatic transmission
that gives the driver the option of selecting each gear instead of leaving it to the
transmission to shift gears. Even if you intend to use the automatic transmission functions as
a traditional automatic, you should also be aware that you can inadvertently shift into
manual shift mode and an inappropriate gear may be retained as the vehicle speed
increases. If you notice the engine speed going higher or hear the engine racing, confirm
you have not accidentally slipped into manual shift mode (page 4-38).
4-35
When Driving
Automatic Transmission
Shift-Lock System
Transmission Ranges
The shift-lock system prevents shifting out
The shift position indication in the
of P unless the brake pedal is depressed.
instrument cluster illuminates.
Refer to Warning/Indicator Lights on
To shift from P:
page 4-27.
1. Depress and hold the brake pedal.
The selector lever must be in P or N
2. Start the engine.
position to operate the starter.
3. Press and hold the lock-release button.
P (Park)
4. Move the selector lever.
P locks the transmission and prevents the
NOTE
rear wheels from rotating.
When the ignition is switched to ACC or
the ignition is switched off, the selector
WARNING
lever cannot be shifted from P position.
The ignition cannot be switched to OFF
Always set the selector lever to P position
if the selector lever is not in P position.
and set the parking brake:
Only setting the selector lever to the P
Shift-Lock Override
position without using the parking brake to
If the selector lever will not move from P
hold the vehicle is dangerous. If P fails to
using the proper shift procedure, continue
hold, the vehicle could move and cause an
to hold down the brake pedal.
accident.
1. Remove the shift-lock override cover
using a cloth-wrapped flat head
CAUTION
screwdriver.
2. Insert a screwdriver and push it down.
¾ Shifting into P, N or R while the vehicle is
moving can damage your transmission.
¾ Shifting into a driving gear or reverse
when the engine is running faster than
idle can damage the transmission.
Cover
R (Reverse)
In position R, the vehicle moves only
backward. You must be at a complete stop
before shifting to or from R, except under
rare circumstances as explained in
Rocking the Vehicle (page 3-50).
3. Press and hold the lock-release button.
4. Move the selector lever.
Take the vehicle to an Authorized Mazda
Dealer to have the system checked.
4-36
When Driving
Automatic Transmission
N (Neutral)
M (Manual)
In N, the wheels and transmission are not
M is the manual shift mode position.
locked. The vehicle will roll freely even
Gears can be shifted up or down by
on the slightest incline unless the parking
operating the selector lever. Refer to
brake or brakes are on.
Manual Shift Mode on page 4-38.
Shift Position Indication
WARNING
If the engine is running faster than idle, do
not shift from N or P into a driving gear:
It's dangerous to shift from N or P into a
driving gear when the engine is running
faster than idle. If this is done, the vehicle
The selector position is indicated when the
could move suddenly, causing an accident
ignition is switched ON.
or serious injury.
Gear position indication
Do not shift into N when driving the
In manual shift mode, the “M” of the shift
vehicle:
position indication illuminates and the
Shifting into N while driving is dangerous.
numeral for the selected gear is displayed.
Engine braking cannot be applied when
Active Adaptive Shift (AAS)
decelerating which could lead to an
accident or serious injury.
Active Adaptive Shift (AAS)
automatically controls the transmission
shift points to best suit the road conditions
CAUTION
and driver input. This improves driving
feel. The transmission may switch to AAS
Do not shift into N when driving the
mode when driving up and down slopes,
vehicle. Doing so can cause transmission
cornering, driving at high elevations, or
damage.
depressing the accelerator pedal quickly
while the selector lever is in the D
NOTE
position. Depending on the road and
Apply the parking brake or depress the
driving conditions/vehicle operations, gear
brake pedal before moving the selector
shifting could be delayed or not occur,
lever from N position to prevent the
however, this does not indicate a problem
vehicle from moving unexpectedly.
because the AAS mode will maintain the
D (Drive)
optimum gear position.
D is the normal driving position. From a
stop, the transmission will automatically
shift through a 6-gear sequence.
4-37















Content      ..     3      4      5      6     ..
