Maintenance and Care
Essential Information
Introduction
Be careful not to hurt yourself when inspecting your vehicle, replacing a tire, or doing some
kind of maintenance such as car washing. In particular, wear thick work gloves such as
cotton gloves when touching areas that are difficult to see while inspecting or working on
your vehicle. Doing inspections or procedures with your bare hands could cause injury.
If you are unsure about any procedure this manual describes, we strongly urge you to have a
reliable and qualified service shop perform the work, preferably an Authorized Mazda
Dealer.
Factory-trained Mazda technicians and genuine Mazda parts are best for your vehicle.
Without this expertise and the parts that have been designed and made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may result in problems. This
could lead to vehicle damage or an accident and injuries.
For expert advice and quality service, consult an Authorized Mazda Dealer.
To continue warranty eligibility and to protect your investment, it is your responsibility to
properly maintain your vehicle according to factory recommended schedules outlined in this
manual. As part of this you must keep your maintenance records, receipts, repair orders and
any other documents as evidence this maintenance was performed. You must present these
documents, should any warranty coverage disagreement occur. Failure to do so can result in
your warranty being voided either in whole or in part.
This evidence may consist of the following:
The Mazda Scheduled Maintenance Record, refer to the Warranty Booklet, must be
completely filled out showing mileage, repair order number, date for each service, and
signed by a qualified automotive service technician who service vehicles.
Original copies of repair orders or other receipts that include the mileage and date the
vehicle was serviced. Each receipt should be signed by a qualified automotive service
technician.
For self maintenance, a statement that you completed the maintenance yourself,
displaying mileage and the date the work was performed. Also, receipts for the
replacement parts (fluid, filters, etc.) indicating the date and mileage must accompany this
statement.
6-2
Maintenance and Care
Essential Information
NOTE
If you elect to perform maintenance yourself or have your vehicle serviced at a location
other than an Authorized Mazda Dealer, Mazda requires that all fluids, parts and materials
must meet Mazda standards for durability and performance as described in this manual.
Claims against the warranty resulting from lack of maintenance, as opposed to defective
materials or authorized Mazda workmanship, will not be honored.
Any auto repair shop using parts equivalent to your Mazda's original equipment may
perform maintenance. But we recommend that it always be done by an Authorized
Mazda Dealer using genuine Mazda parts.
Selecting “Maintenance Monitor” enables the system to notify you of your vehicle's
approaching inspection/servicing period, refer to the Information section in the Mazda
Connect Owner's Manual for the details.

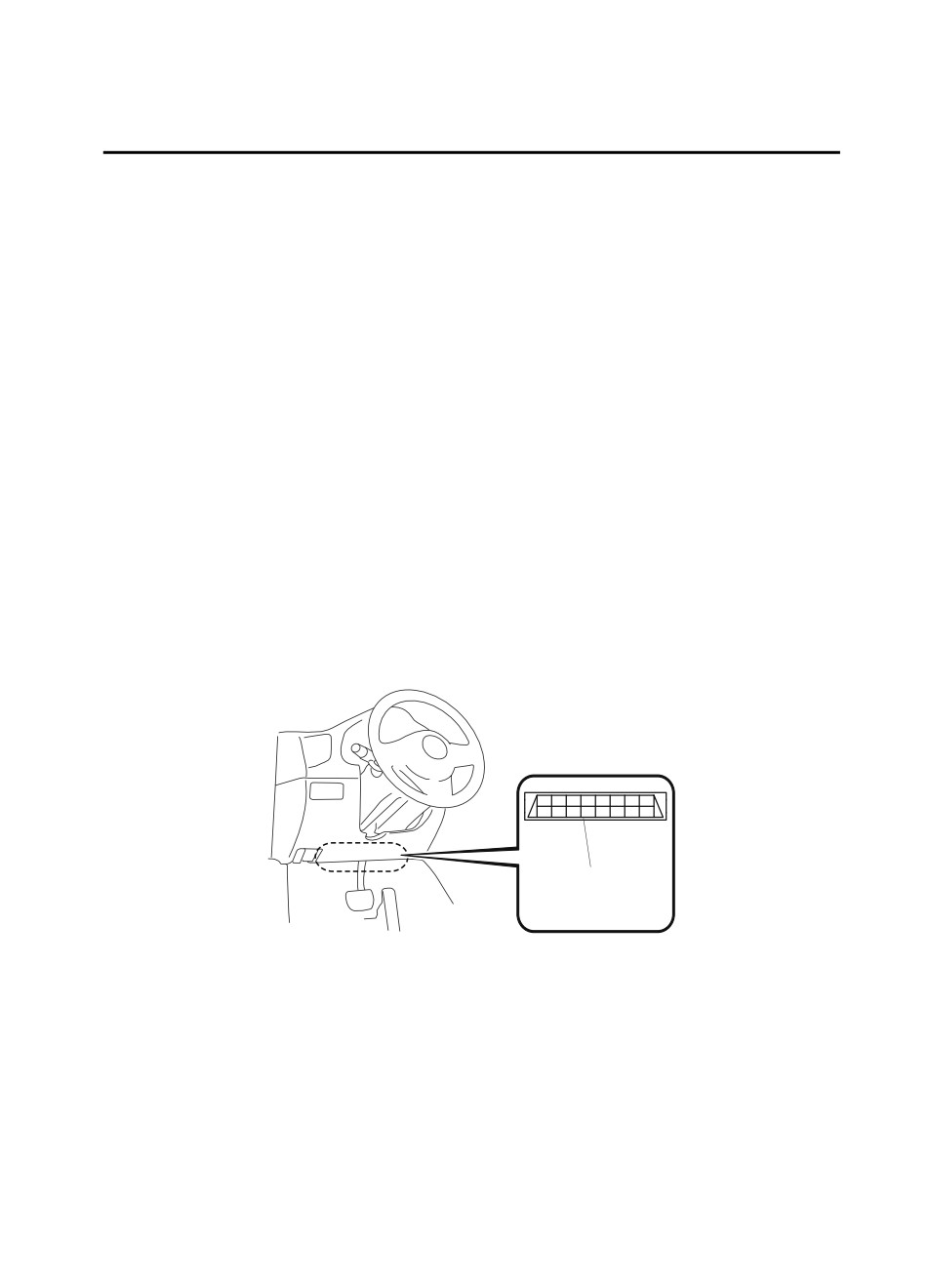

The malfunction diagnosis connector is designed exclusively for connecting the specially
designed device to perform on-board diagnosis.
Do not connect any devices other than the specially designed malfunction diagnosis devices
for servicing. If any device other than the malfunction diagnosis device is connected, it may
affect the vehicle's electrical devices or lead to damage such as battery depletion.
Malfunction
diagnosis
connector
6-3
Maintenance and Care
Scheduled Maintenance
Scheduled Maintenance (U.S.A., Canada, and Puerto
Rico)
Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions
(severe driving conditions) apply.
Repeated short-distance driving
Driving in dusty conditions
Driving with extended use of brakes
Driving in areas where salt or other corrosive materials are used
Driving on rough or muddy roads
Extended periods of idling or low-speed operation
Driving for long periods in cold temperatures or extremely humid climates
Driving in extremely hot conditions
Driving in mountainous conditions continually
If any do apply, follow Schedule 2. (Canada residents follow Schedule 2.)
Vehicles using Engine Oil Flexible Maintenance
Engine Oil Flexible Maintenance is selected by default for U.S.A. and Puerto Rico
residents.
If any following conditions do apply, follow Schedule 2 with engine oil fixed maintenance.
Extended periods of idling or low-speed operation such as police car, taxi or driving
school car
Driving in dusty conditions
The vehicle calculates the remaining oil life based on engine operating conditions. The
vehicle lets you know when an oil change is due by illuminating the wrench indicator light
in the instrument cluster. Change the oil as soon as possible within the next 1,000 km (600
mile) or 15 days. Refer to the Information section in the Mazda Connect Owner's Manual
for the details.
NOTE
Please ensure that the Flexible Oil Maintenance Setting is reset after each Oil and Filter
replacement.
For maintenance guidelines beyond the miles/months listed, follow the maintenance
intervals provided in the Scheduled Maintenance Tables.
6-4
Maintenance and Care
Scheduled Maintenance
Schedule 1
U.S.A. and Puerto Rico residents - Engine oil flexible maintenance interval
Use when the maintenance monitor for "Oil Change" is set to "Flexible". For the de-
tails, refer to the Information section in the Mazda Connect Owner's Manual.
Number of months or kilometers (miles), whichever comes first.
Months
12
24
36
48
60
72
84
96
Maintenance Interval
×1000 km
12
24
36
48
60
72
84
96
×1000 miles
7.5
15
22.5
30
37.5
45
52.5
60
Spark plugs
Replace every 64,000 km (40,000 miles).
Air filter
R
R
Drive belts
I
I
Replace when wrench indicator light is ON. (Max interval: 12
Engine oil & filter*1
months or 12,000 km (7,500 miles))
Replace at first 192,000 km (120,000 miles) or 10 years; after
Engine coolant*2
that, every 96,000 km (60,000 miles) or 5 years.
Fuel lines and hoses*3
I
I
I
I
Hoses and tubes for emission*3
I
I
Brake lines, hoses and connections
I
I
I
I
Disc brakes
I
I
I
I
I
I
I
I
Tire (Rotation)
Rotate every 12,000 km (7,500 miles).
Steering operation and linkages
I
I
I
I
Front and rear suspension, ball joints and wheel
I
I
I
I
bearing axial play
Driveshaft dust boots
I
I
I
I
Bolts and nuts on chassis and body
T
T
T
T
Exhaust system and heat shields
I
Emergency flat tire repair kit (if equipped)*4
Inspect annually.
Cabin air filter
R
R
R
R
Chart symbols:
I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
R: Replace
L: Lubricate
C: Clean
T: Tighten
D: Drain
Remarks:
*1
The engine oil and filter must be changed at least once a year or within 12,000 km (7,500 miles) since last
engine oil and filter change. Reset the engine oil data whenever replacing the engine oil regardless of the
message/wrench indicator light display.
6-5
Maintenance and Care
Scheduled Maintenance
2

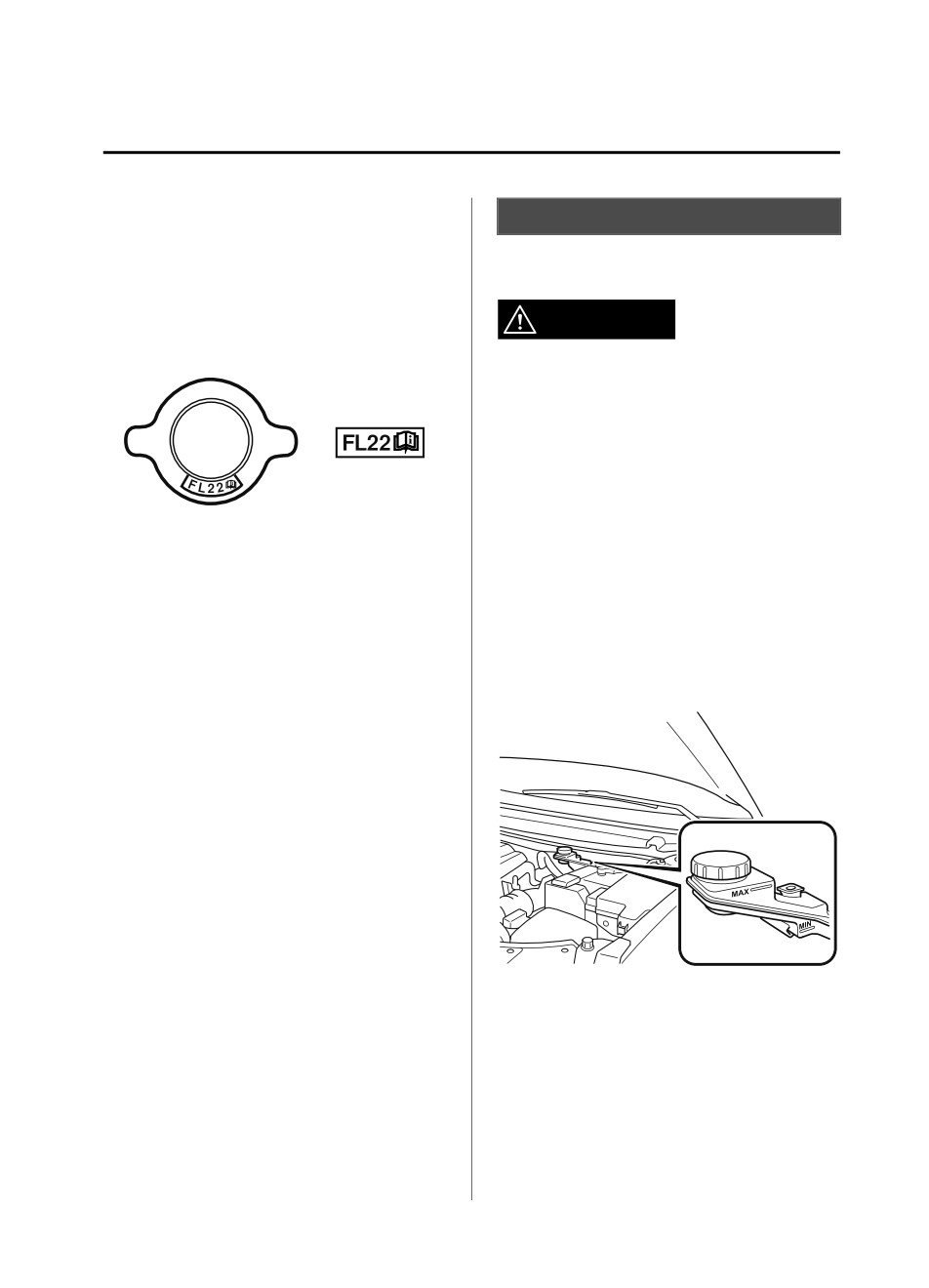

Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*3
According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage/kilometer period to ensure long-term reliability.
*4
Check the tire repair fluid expiration date every year when performing the periodic maintenance. Replace the
tire repair fluid bottle with new one before the expiration date.
Schedule 2
U.S.A. and Puerto Rico residents - Severe driving conditions maintenance interval
Number of months or kilometers (miles), whichever comes first.
Months
6
12
18
24
30
36
42
48
54
60
66
72
Maintenance Interval
×1000 km
8
16
24
32
40
48
56
64
72
80
88
96
×1000 miles
5
10
15
20
25
30
35
40
45
50
55
60
Spark plugs
Replace every 64,000 km (40,000 miles).
Air filter*1
R
R
Drive belts
I
I
I
Replace when wrench indicator light is ON. (Max interval: 12
Flexible*2
Engine oil & filter
months or 12,000 km (7,500 miles))
Fixed*3
R
R
R
R
R
R
R
R
R
R
R
R
Replace at first 192,000 km (120,000 miles) or 10 years; after
Engine coolant*4
that, every 96,000 km (60,000 miles) or 5 years.
Engine coolant level
I
I
I
I
I
I
I
I
I
I
I
I
Fuel lines and hoses*5
I
I
I
I
Hoses and tubes for emission*5
I
I
Function of all lights
I
I
I
I
I
I
I
I
I
I
I
I
Brake lines, hoses and connections
I
I
I
I
Brake and clutch fluid level
I
I
I
I
I
I
I
I
I
I
I
I
Disc brakes
I
I
I
I
I
I
I
I
I
I
I
I
Tire (Rotation)
Rotate every 8,000 km (5,000 miles).
Tire inflation pressure and tire wear
I
I
I
I
I
I
I
I
I
I
I
I
Steering operation and linkages
I
I
I
I
Front and rear suspension, ball joints and wheel
I
I
I
I
bearing axial play
Driveshaft dust boots
I
I
I
I
Bolts and nuts on chassis and body
T
T
T
T
Exhaust system and heat shields
I
All locks and hinges
L
L
L
L
L
L
L
L
L
L
L
L
Washer fluid level
I
I
I
I
I
I
I
I
I
I
I
I
Emergency flat tire repair kit (if equipped)*6
Inspect annually.
6-6
Maintenance and Care
Scheduled Maintenance
Number of months or kilometers (miles), whichever comes first.
Months
6
12
18
24
30
36
42
48
54
60
66
72
Maintenance Interval
×1000 km
8
16
24
32
40
48
56
64
72
80
88
96
×1000 miles
5
10
15
20
25
30
35
40
45
50
55
60
Cabin air filter
Replace every 40,000 km (25,000 miles) or 2 years.
Chart symbols:
I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
R: Replace
L: Lubricate
C: Clean
T: Tighten
D: Drain
Remarks:
*1
If the vehicle is operated in very dusty or sandy areas, clean and if necessary, replace the air filter more often
than the recommended intervals.
*2
Engine oil flexible maintenance is available for U.S.A. and Puerto Rico residents whose vehicle is operated
mainly where none of the following conditions apply.
Extended periods of idling or low-speed operation such as police car, taxi or driving school car
Driving in dusty conditions
If any do apply, follow fixed maintenance.
The engine oil and filter must be changed at least once a year or within 12,000 km (7,500 miles) since last
engine oil and filter change. Reset the engine oil data whenever replacing the engine oil regardless of the
message/wrench indicator light display.
*3
Reset the engine oil data whenever replacing the engine oil regardless of the message/wrench indicator light
display.
*4
Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*5
According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage/kilometer period to ensure long-term reliability.
*6
Check the tire repair fluid expiration date every year when performing the periodic maintenance. Replace the
tire repair fluid bottle with new one before the expiration date.
Canada residents
Number of months or kilometers (miles), whichever comes first.
Months
6
12
18
24
30
36
42
48
54
60
66
72
Maintenance Interval
×1000 km
8
16
24
32
40
48
56
64
72
80
88
96
×1000 miles
5
10
15
20
25
30
35
40
45
50
55
60
Spark plugs
Replace every 64,000 km (40,000 miles).
I
I
I
I
I
I
I
I
I
I
I
I
Air filter
Replace every 56,000 km (35,000 miles) or 3 years.
Drive belts
I
I
6-7
Maintenance and Care
Scheduled Maintenance
Number of months or kilometers (miles), whichever comes first.
Months
6
12
18
24
30
36
42
48
54
60
66
72
Maintenance Interval
×1000 km
8
16
24
32
40
48
56
64
72
80
88
96
×1000 miles
5
10
15
20
25
30
35
40
45
50
55
60
Engine oil & filter*1
R
R
R
R
R
R
R
R
R
R
R
R
Replace at first 192,000 km (120,000 miles) or 10 years; after
Engine coolant*2
that, every 96,000 km (60,000 miles) or 5 years.
Engine coolant level
I
I
I
I
I
I
I
I
I
I
I
I
Fuel lines and hoses*3
I
I
I
Hoses and tubes for emission*3
I
Function of all lights
I
I
I
I
I
I
I
I
I
I
I
I
Brake lines, hoses and connections
I
I
I
Brake and clutch fluid level
I
I
I
I
I
I
I
I
I
I
I
I
Disc brakes
Inspect every 24,000 km (15,000 miles) or 1 year.
Tire (Rotation)
Rotate every 8,000 km (5,000 miles).
Tire inflation pressure and tire wear
I
I
I
I
I
I
I
I
I
I
I
I
Steering operation and linkages
I
I
I
Front and rear suspension, ball joints and wheel
I
I
I
bearing axial play
Driveshaft dust boots
I
I
I
Bolts and nuts on chassis and body
T
T
T
Exhaust system and heat shields
Inspect every 72,000 km (45,000 miles) or 5 years.
All locks and hinges
L
L
L
L
L
L
L
L
L
L
L
L
Washer fluid level
I
I
I
I
I
I
I
I
I
I
I
I
Emergency flat tire repair kit (if equipped)*4
Inspect annually.
Cabin air filter
R
R
R
Chart symbols:
I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
R: Replace
L: Lubricate
C: Clean
T: Tighten
D: Drain
Remarks:
*1
Reset the engine oil data whenever replacing the engine oil regardless of the message/wrench indicator light
display.
*2
Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
6-8
Maintenance and Care
Scheduled Maintenance
3
According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage/kilometer period to ensure long-term reliability.
*4
Check the tire repair fluid expiration date every year when performing the periodic maintenance. Replace the
tire repair fluid bottle with new one before the expiration date.
6-9
Maintenance and Care
Scheduled Maintenance
Scheduled Maintenance (Mexico)
Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions
(severe driving conditions) apply.
Repeated short-distance driving
Driving in dusty conditions
Driving with extended use of brakes
Driving in areas where salt or other corrosive materials are used
Driving on rough or muddy roads
Extended periods of idling or low-speed operation
Driving for long periods in cold temperatures or extremely humid climates
Driving in extremely hot conditions
Driving in mountainous conditions continually
If any do apply, follow Schedule 2.
NOTE
For maintenance guidelines beyond the kilometers/months listed, follow the maintenance
intervals provided in the Scheduled Maintenance Tables.
Schedule 1
Number of months or kilometers, whichever comes first
Maintenance Interval
Months
6
12
18
24
30
36
42
48
54
60
66
72
×1000 km
10
20
30
40
50
60
70
80
90
100
110
120
Drive belts
I
I
I
Engine oil & filter*1
R
R
R
R
R
R
R
R
R
R
R
R
Cooling system
I
I
I
Replace at first 200,000 km or 10 years; after that, every
Engine coolant*2
100,000 km or 5 years
Air filter
R
R
R
R
R
R
Fuel lines and hoses
I*3
I*3
I
Hoses and tubes for emission
I*3
I*3
I
Fuel filter
Replace every 60,000 km
I
I
I
I
I
I
I
I
I
I
I
I
Spark plugs
Replace every 64,000 km
Brake lines, hoses and connections
I
I
I
I
I
I
Brake and clutch fluid level
I
I
I
I
I
I
I
I
I
Brake fluid
R
R
R
Disc brakes
I
I
I
I
I
I
I
I
I
I
I
I
Tire (Rotation)
Rotate every 10,000 km
6-10
Maintenance and Care
Scheduled Maintenance
Number of months or kilometers, whichever comes first
Maintenance Interval
Months
6
12
18
24
30
36
42
48
54
60
66
72
×1000 km
10
20
30
40
50
60
70
80
90
100
110
120
Tire inflation pressure and tire wear
I
I
I
I
I
I
I
I
I
I
I
I
Steering operation and linkages
I
I
I
I
I
I
I
I
I
I
I
I
Front and rear suspension, ball joints and wheel
I
I
I
I
I
I
bearing axial play
Driveshaft dust boots
I
I
I
I
I
I
Bolts and nuts on chassis and body
T
T
T
T
T
T
Exhaust system and heat shields
I
I
I
I
I
I
All locks and hinges
L
L
L
L
L
L
L
L
L
L
L
L
Washer fluid level
I
I
I
I
I
I
I
I
I
I
I
I
Emergency flat tire repair kit (if equipped)*4
Inspect annually.
Cabin air filter
R
R
R
Chart symbols:
I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
R: Replace
L: Lubricate
C: Clean
T: Tighten
D: Drain
Remarks:
*1
Reset the engine oil data whenever replacing the engine oil regardless of the message/wrench indicator light
display.
*2
Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*3
According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or kilometer period to ensure long-term reliability.
*4
Check the tire repair fluid expiration date every year when performing the periodic maintenance. Replace the
tire repair fluid bottle with new one before the expiration date.
Schedule 2
Number of months or kilometers, whichever comes first
Maintenance Interval
Months
3
6
9
12
15
18
21
24
27
30
33
36
×1000 km
5
10
15
20
25
30
35
40
45
50
55
60
Drive belts
I
Engine oil & filter*1
R
R
R
R
R
R
R
R
R
R
R
R
Cooling system
I
Replace at first 200,000 km or 10 years; after that, every
Engine coolant*2
100,000 km or 5 years
6-11
Maintenance and Care
Scheduled Maintenance
Number of months or kilometers, whichever comes first
Maintenance Interval
Months
3
6
9
12
15
18
21
24
27
30
33
36
×1000 km
5
10
15
20
25
30
35
40
45
50
55
60
Engine coolant level
I
I
I
I
I
I
I
I
I
I
I
I
Air filter
C
R
C
R
C
R
Fuel lines and hoses
I*3
Hoses and tubes for emission
I*3
Fuel filter
Replace every 60,000 km
I
I
I
I
I
I
Spark plugs
Replace every 64,000 km
Function of all lights
I
I
I
I
I
I
I
I
I
I
I
I
Brake lines, hoses and connections
I
I
I
Brake and clutch fluid level
I
I
I
I
I
Brake fluid
R
Disc brakes
I
I
I
I
I
I
Tire (Rotation)
Rotate every 10,000 km
Tire inflation pressure and tire wear
I
I
I
I
I
I
Steering operation and linkages
I
I
I
I
I
I
Front and rear suspension, ball joints and wheel
I
I
I
bearing axial play
Driveshaft dust boots
I
I
I
Bolts and nuts on chassis and body
T
T
T
Exhaust system and heat shields
I
I
I
All locks and hinges
L
L
L
L
L
L
Washer fluid level
I
I
I
I
I
I
Emergency flat tire repair kit (if equipped)*4
Inspect annually.
Cabin air filter
R
R
R
Chart symbols:
I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
R: Replace
L: Lubricate
C: Clean
T: Tighten
D: Drain
Remarks:
*1
Reset the engine oil data whenever replacing the engine oil regardless of the message/wrench indicator light
display.
*2
Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
6-12
Maintenance and Care
Scheduled Maintenance
3
According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or kilometer period to ensure long-term reliability.
*4
Check the tire repair fluid expiration date every year when performing the periodic maintenance. Replace the
tire repair fluid bottle with new one before the expiration date.
(Cont.)
Number of months or kilometers, whichever comes first
Maintenance Interval
Months
39
42
45
48
51
54
57
60
63
66
69
72
×1000 km
65
70
75
80
85
90
95
100
105
110
115
120
Drive belts
I
I
Engine oil & filter*1
R
R
R
R
R
R
R
R
R
R
R
R
Cooling system
I
I
Replace at first 200,000 km or 10 years; after that, every
Engine coolant*2
100,000 km or 5 years
Engine coolant level
I
I
I
I
I
I
I
I
I
I
I
I
Air filter
C
R
C
R
C
R
Fuel lines and hoses
I*3
I
Hoses and tubes for emission
I
*3
I
Fuel filter
Replace every 60,000 km
I
I
I
I
I
I
Spark plugs
Replace every 64,000 km
Function of all lights
I
I
I
I
I
I
I
I
I
I
I
I
Brake lines, hoses and connections
I
I
I
Brake and clutch fluid level
I
I
I
I
Brake fluid
R
R
Disc brakes
I
I
I
I
I
I
Tire (Rotation)
Rotate every 10,000 km
Tire inflation pressure and tire wear
I
I
I
I
I
I
Steering operation and linkages
I
I
I
I
I
I
Front and rear suspension, ball joints and wheel
I
I
I
bearing axial play
Driveshaft dust boots
I
I
I
Bolts and nuts on chassis and body
T
T
T
Exhaust system and heat shields
I
I
I
All locks and hinges
L
L
L
L
L
L
Washer fluid level
I
I
I
I
I
I
Emergency flat tire repair kit (if equipped)*4
Inspect annually.
Cabin air filter
R
R
R
6-13
Maintenance and Care
Scheduled Maintenance
Chart symbols:
I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
R: Replace
L: Lubricate
C: Clean
T: Tighten
D: Drain
Remarks:
*1
Reset the engine oil data whenever replacing the engine oil regardless of the message/wrench indicator light
display.
*2
Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*3
According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or kilometer period to ensure long-term reliability.
*4
Check the tire repair fluid expiration date every year when performing the periodic maintenance. Replace the
tire repair fluid bottle with new one before the expiration date.
6-14
Maintenance and Care
Owner Maintenance
Owner Maintenance Precautions
The owner or a qualified service technician should make these vehicle inspections at the
indicated intervals to ensure safe and dependable operation.
Bring any problem to the attention of an Authorized Mazda Dealer or qualified service
technician as soon as possible.
When Refueling
Brake fluid level (page 6-23)
Engine coolant level (page 6-22)
Engine oil level (page 6-21)
Washer fluid level (page 6-24)
At Least Monthly
Tire inflation pressures (page 6-34)
At Least Twice a Year (For Example, Every Spring and Fall)
You can do the following scheduled maintenance items if you have some mechanical ability
and a few basic tools and if you closely follow the directions in this manual.
Engine coolant (page 6-22)
Engine oil (page 6-20)
Improper or incomplete service may result in problems. This section gives instructions only
for items that are easy to perform.
As explained in the Introduction (page 6-2), several procedures can be done only by a
qualified service technician with special tools.
Improper owner maintenance during the warranty period may affect warranty coverage.
Refer to Introduction (page 6-2) for owner's responsibility in protecting your investment.
For details, read the separate Mazda Warranty statement provided with the vehicle. If you
are unsure about any servicing or maintenance procedure, have it done by an Authorized
Mazda Dealer.
There are strict environmental laws regarding the disposal of waste oil and fluids. Please
dispose of your waste properly and with due regard to the environment.
We recommend that you entrust the oil and fluid changes of your vehicle to an Authorized
Mazda Dealer.
6-15
Maintenance and Care
Owner Maintenance
WARNING
Do not perform maintenance work if you lack sufficient knowledge and experience or the
proper tools and equipment to do the work. Have maintenance work done by a qualified
technician:
Performing maintenance work on a vehicle is dangerous if not done properly. You can be
seriously injured while performing some maintenance procedures.
If you must run the engine while working under the hood, make certain that you remove all
jewelry (especially rings, bracelets, watches, and necklaces) and all neckties, scarves, and
similar loose clothing before getting near the engine or cooling fan which may turn on
unexpectedly:
Working under the hood with the engine running is dangerous. It becomes even more
dangerous when you wear jewelry, loose clothing or have long hair or a long beard.
Either can become entangled in moving parts and result in injury.
Pull over to a safe location, then switch the ignition off and make sure the fan is not
running before attempting to work near the cooling fan:
Working near the cooling fan when it is running is dangerous. The fan could continue running
indefinitely even if the engine has stopped and the engine compartment temperature is high.
You could be hit by the fan and seriously injured.
Do not leave items in the engine compartment:
After you have finished checking or doing servicing in the engine compartment, do not forget
and leave items such as tools or rags in the engine compartment.
Tools or other items left in the engine compartment could cause engine damage or a fire
leading to an unexpected accident.
6-16
Maintenance and Care
Owner Maintenance

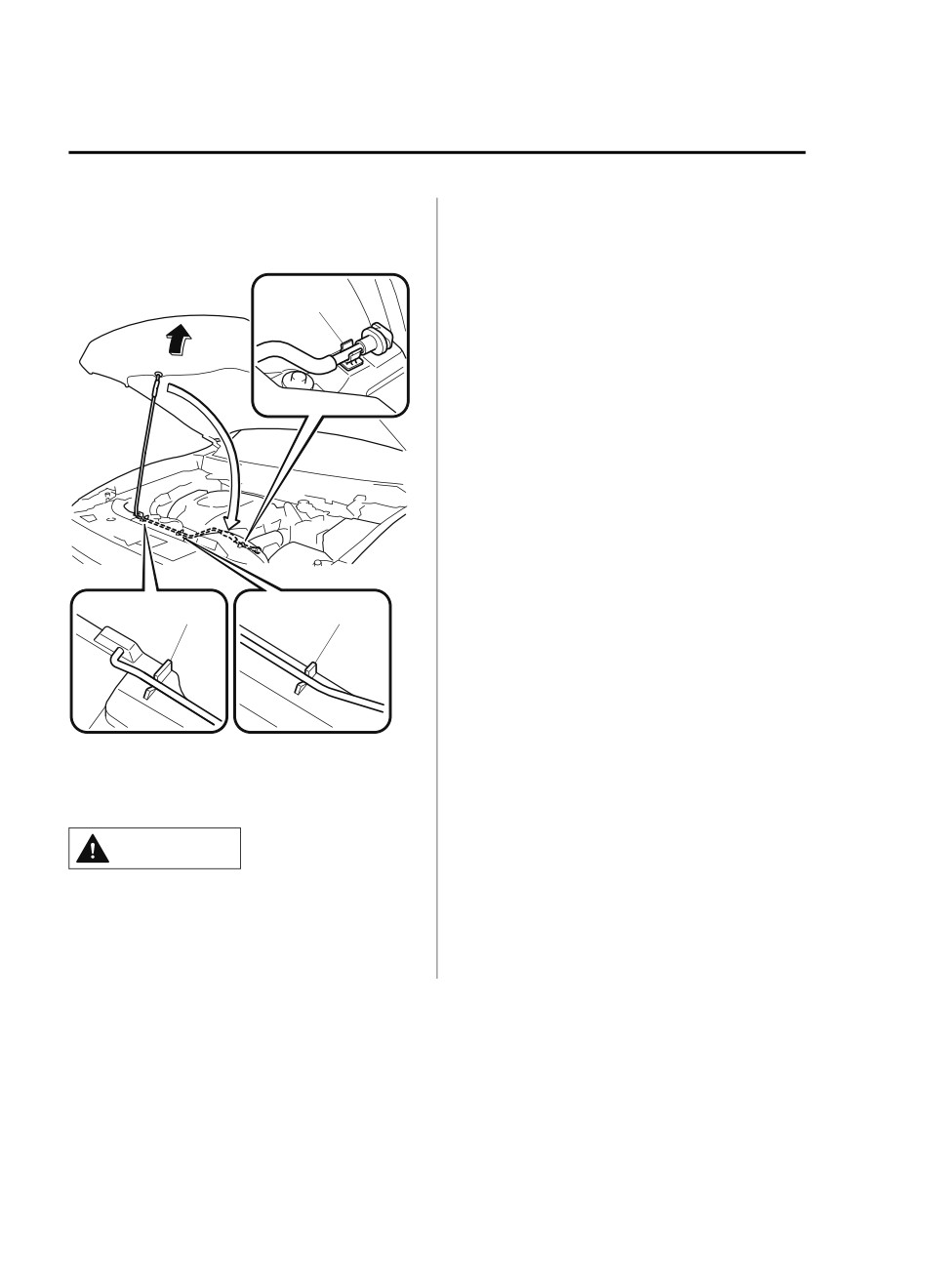

2. Insert your hand into the hood
Hood
opening, slide the latch lever to the
right, and lift up the hood.
WARNING
Always check that the hood is closed and
securely locked:
A hood that is not closed and securely
locked is dangerous as it could fly open
while the vehicle is moving and block the
Lever
driver's vision which could result in a
serious accident.

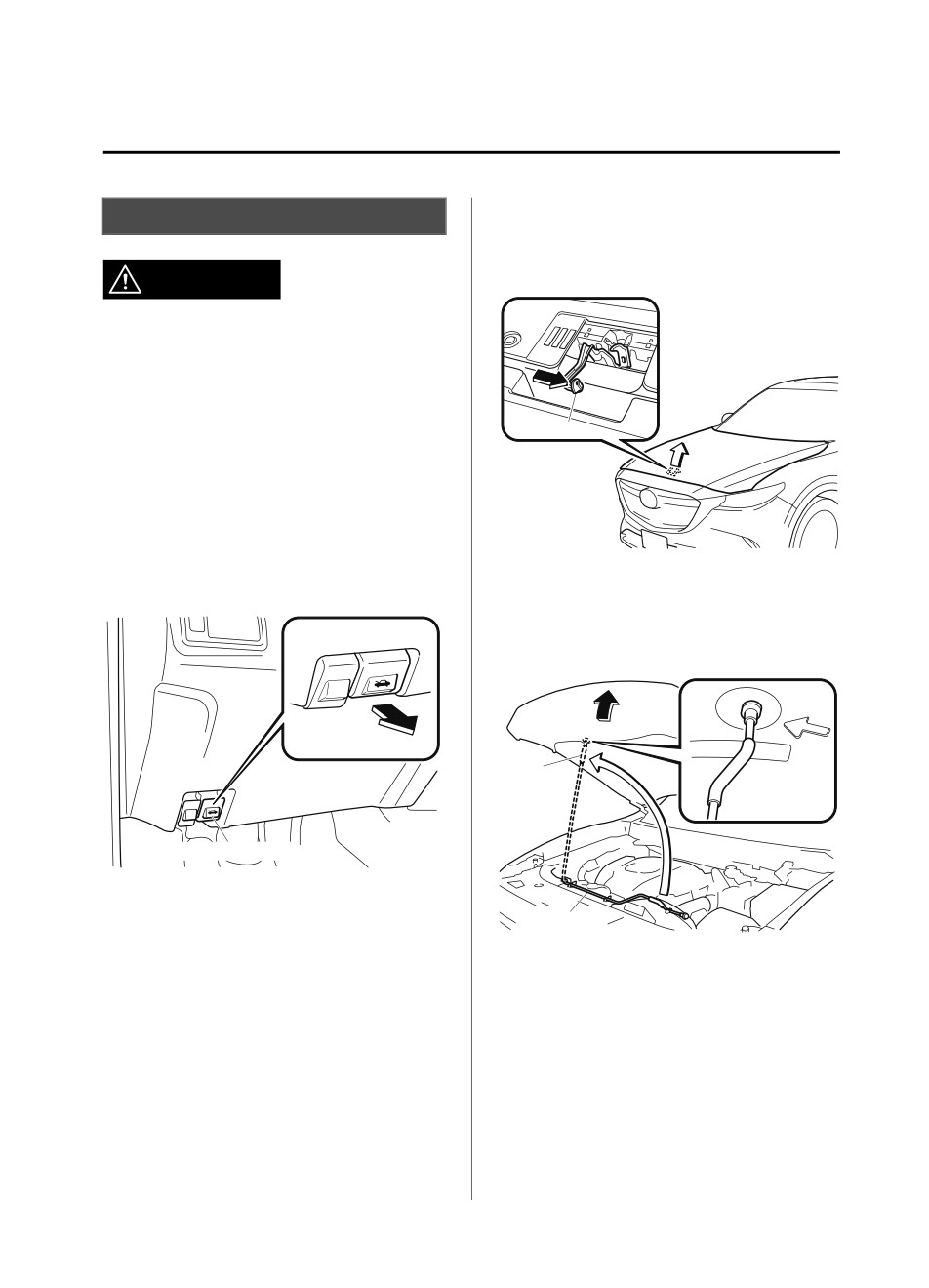

Opening the Hood
1. With the vehicle parked, pull the
3. Grasp the support rod in the padded
release handle to unlock the hood.
area and secure it in the support rod
hole indicated by the arrow to hold the
hood open.
Pad
Release handle
Support rod
Closing the Hood
1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Lift the hood, grasp the padded area on
the support rod, and secure the support
rod in the clip. Verify that the support
6-17
Maintenance and Care
Owner Maintenance
rod is secured in the clip before closing
the hood.
Clip
Clip
Clip
3. Lower the hood slowly to a height of
about 20 cm (7.9 in) above its closed
position and then let it drop.
CAUTION
When closing the hood, do not push it
excessively such as by applying your
weight. Otherwise, the hood could be
deformed.
6-18
Maintenance and Care
Owner Maintenance

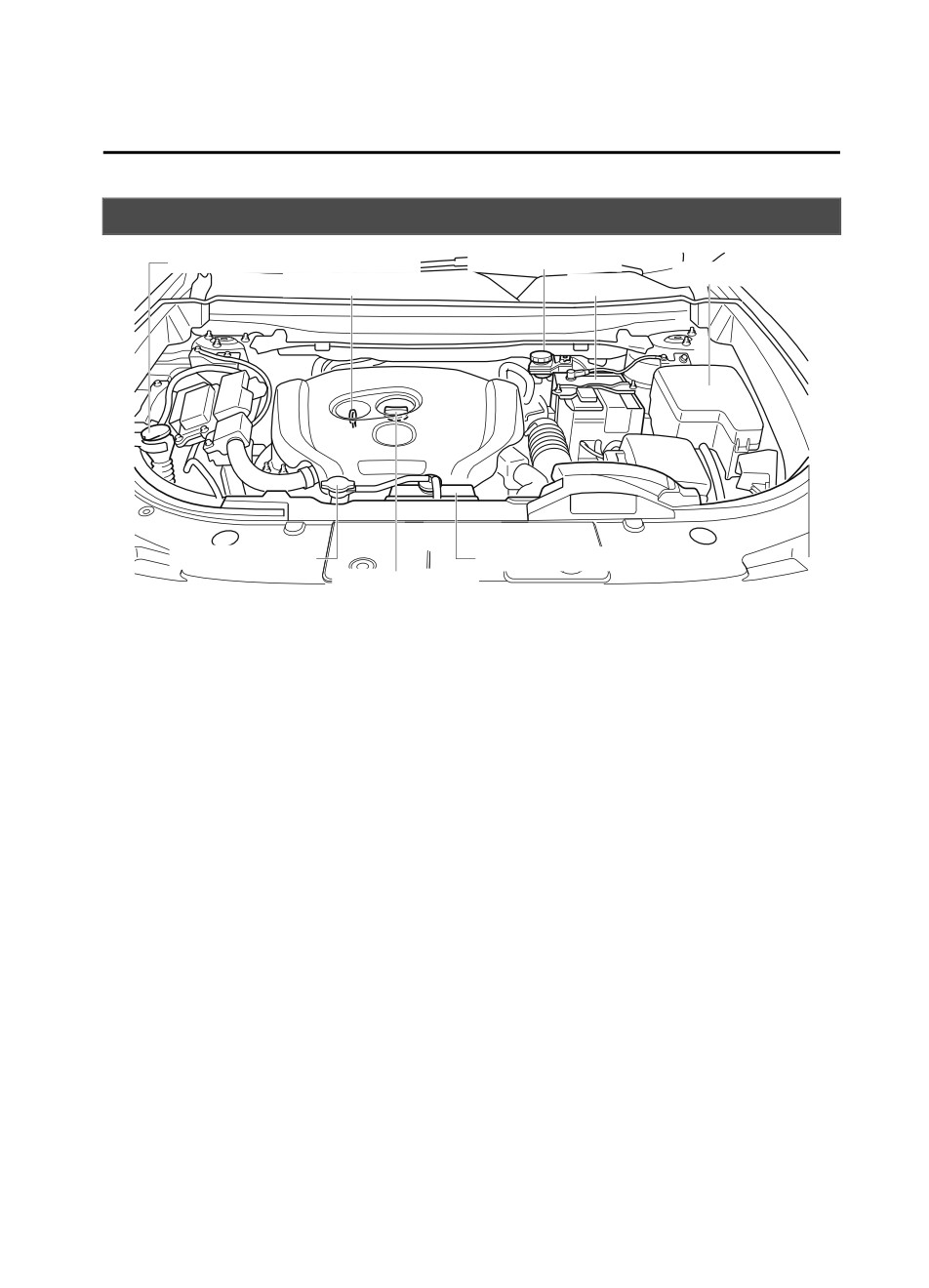

Engine Compartment Overview
Windshield washer fluid reservoir
Brake fluid reservoir
Fuse block
Engine oil dipstick
Battery
Cooling system cap
Engine coolant reservoir
Engine oil-filler cap
6-19
Maintenance and Care
Owner Maintenance
Committee (ILSAC), comprised of U.S.
Engine Oil
and Japanese automobile manufacturers.
NOTE
-40
-30 -20
-10
0
10
20
30
40
Changing the engine oil should be
performed by an Authorized Mazda
Dealer.
–40
-20
0
20
40
60
80
100
Refer to Introduction (page 6-2) for
owner's responsibility in protecting your
investment.

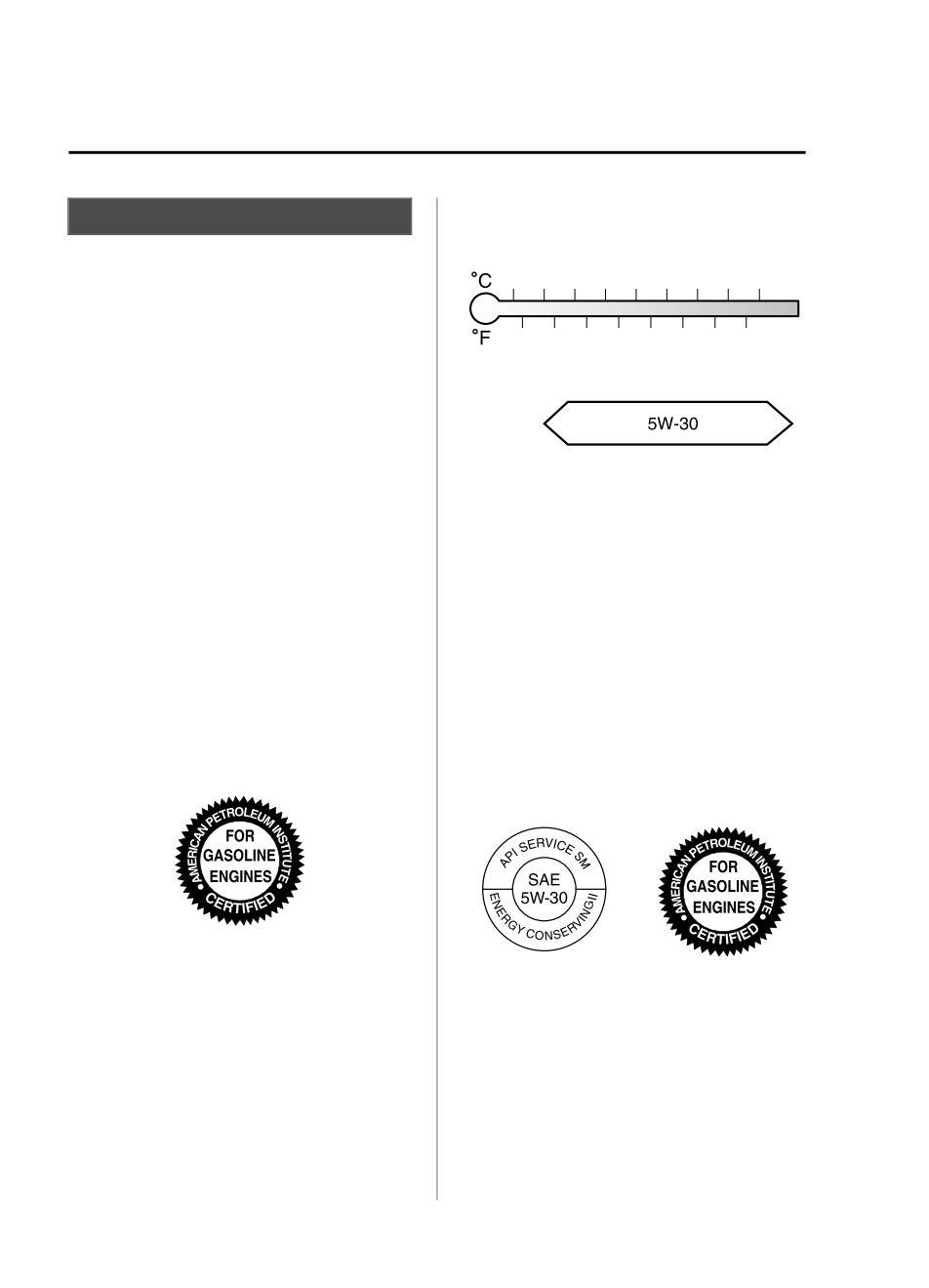

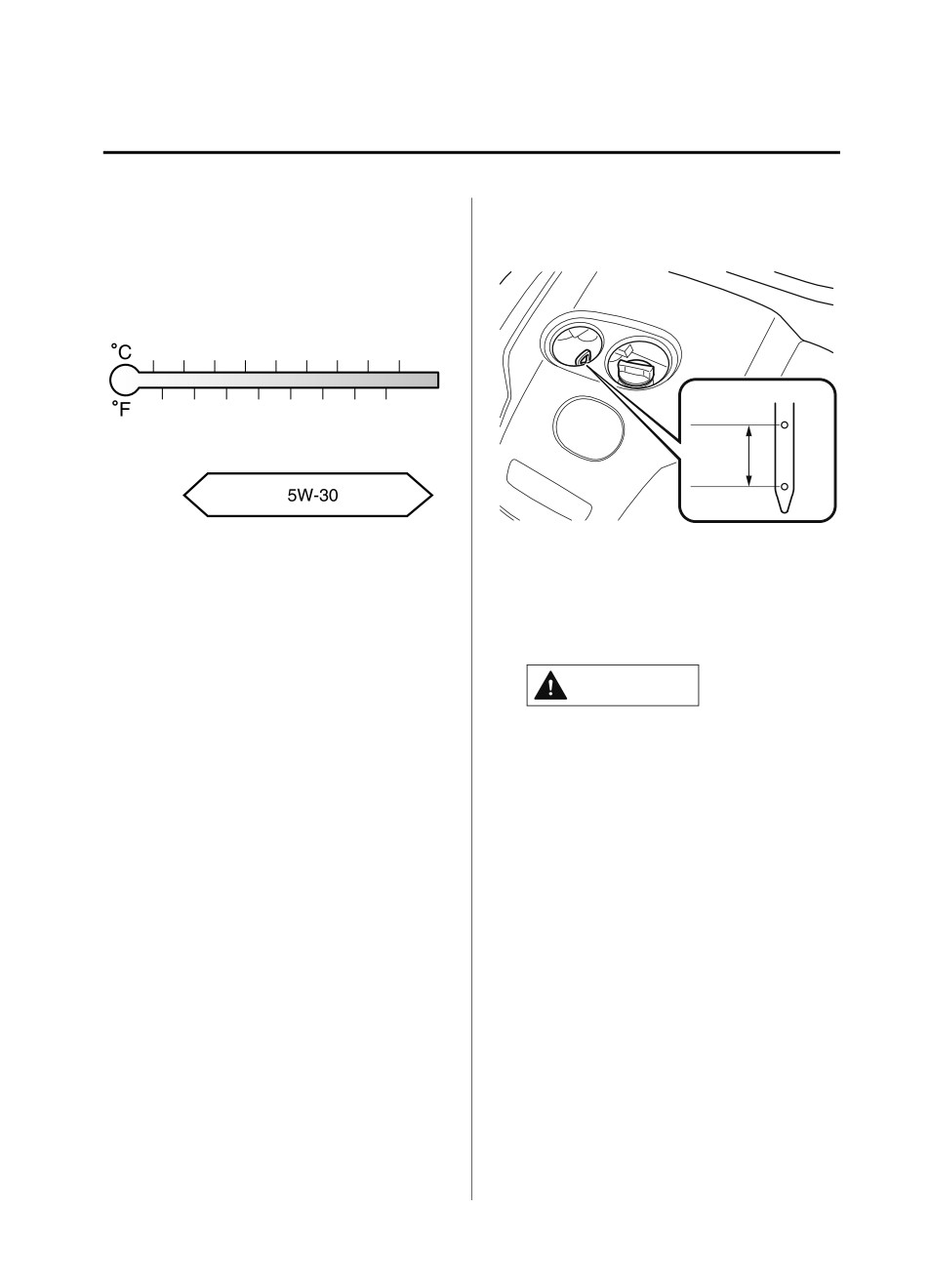

Recommended Oil
Except U.S.A., Canada, and Puerto Rico
U.S.A., Canada, and Puerto Rico
Use SAE 5W-30 engine oil.
Use SAE 5W-30 engine oil.
Oil container labels provide important
Mazda Genuine Oil is used in your Mazda
information.
vehicle. Mazda Genuine 5W-30 Oil is
A chief contribution this type of oil makes
required to achieve optimum fuel
to fuel economy is reducing the amount of
economy.
fuel necessary to overcome engine
friction.
For maintenance service, Mazda
recommends Genuine Mazda Parts and
For maintenance service, Mazda
Genuine Mazda Premium Oil.
recommends Mazda Genuine Parts.
(ILSAC)
(ILSAC)
Only use SAE 5W-30 oil “Certified For
(Mexico)
Gasoline Engines” by the American
Use API SM or higher, or SAE 5W-30
Petroleum Institute (API).
engine oil. If SAE 5W-30 engine oil is not
Oil with this trademark symbol conforms
to the current engine and emission system
protection standards and fuel economy
requirements of the International
Lubricant Standardization and Approval
6-20
Maintenance and Care
Owner Maintenance
available, use SAE 0W-30 or SAE
4. Pull out the dipstick, wipe it clean, and
10W-30 engine oil.
reinsert it fully.
The quality designation SM, SN or SP, or
ILSAC must be on the label.
-40
-30 -20
-10
0
10
20
30
40
–40
-20
0
20
40
60
80
100
MAX
OK
MIN
5.
Pull it out again and examine the level.
Vehicle Engine Control Unit Reset
The level is normal if it is between the
Procedure
MIN and MAX marks.
After replacing the engine oil, it is
If it is near or below MIN, add enough
recommended to have a repair shop such
oil to bring the level to MAX.
as an Authorized Mazda Dealer perform
the initialization (engine oil data resetting)
CAUTION
of the recorded value. If the value
recorded by the computer is not initialized,
Do not overfill the engine oil. This may
the wrench indicator light may not turn off
cause engine damage.
or it may turn on earlier than normal.
6.
Make sure the O-ring on the dipstick is
For the details, refer to the Information
positioned properly before reinserting
section in the Mazda Connect Owner's
the dipstick.
Manual.
7.
Reinsert the dipstick fully.
Inspecting Engine Oil Level
1. Be sure the vehicle is on a level
surface.
2. Warm up the engine to normal
operating temperature.
3. Turn it off and wait at least 5 minutes
for the oil to return to the oil pan.
6-21
Maintenance and Care
Owner Maintenance
NOTE

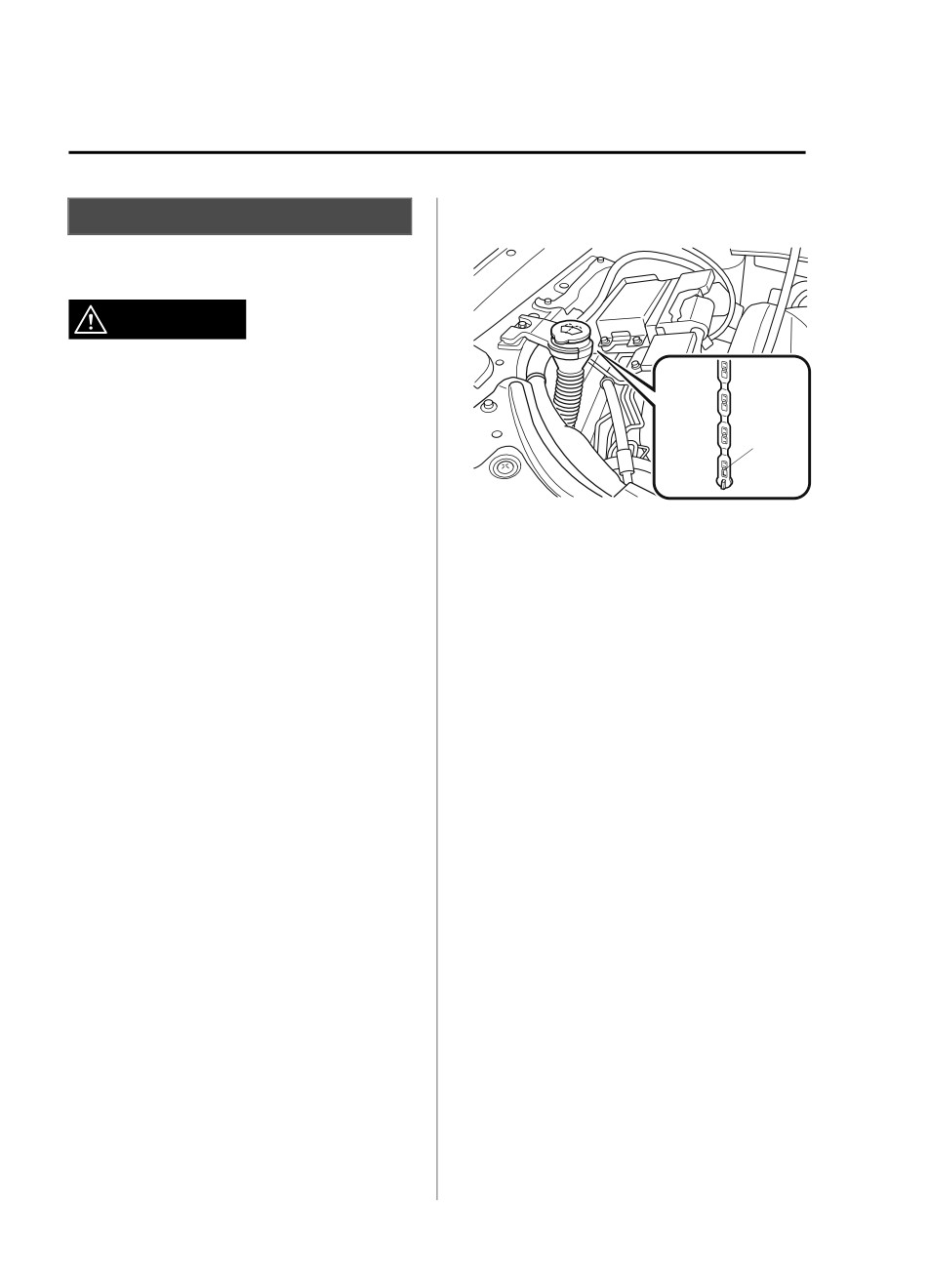

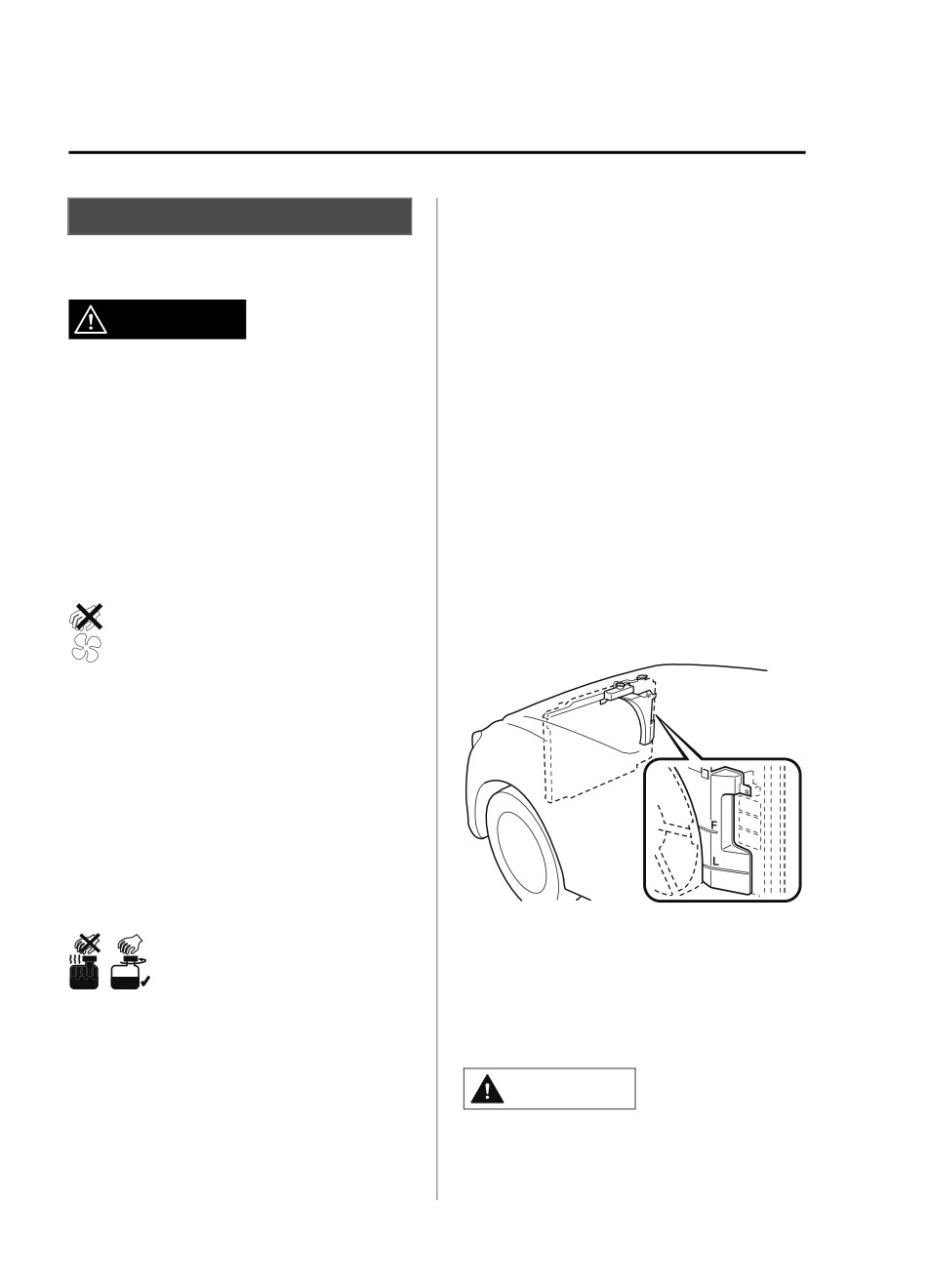

Engine Coolant
Changing the coolant should be done by
Inspecting Coolant Level
an Authorized Mazda Dealer.
Inspect the antifreeze protection and
coolant level in the coolant reservoir at
WARNING
least once a year―at the beginning of the
winter season―and before traveling where
Do not use a match or live flame in the
temperatures may drop below freezing.
engine compartment. DO NOT ADD
COOLANT WHEN THE ENGINE IS HOT:
Inspect the condition and connections of
A hot engine is dangerous. If the engine has
all cooling system and heater hoses.
been running, parts of the engine
Replace any that are swollen or
compartment can become very hot. You
deteriorated.
could be burned. Carefully inspect the
engine coolant in the coolant reservoir, but
The coolant should be at full in the
do not open it.
radiator and between the F and L marks on
the coolant reservoir when the engine is
cool.
Pull over to a safe location, then switch
the ignition off and make sure the fan is
not running before attempting to work
near the cooling fan:
Working near the cooling fan when it is
running is dangerous. The fan could
continue running indefinitely even if the
engine has stopped and the engine
compartment temperature is high. You
could be hit by the fan and seriously
injured.
If it is at or near L, add enough coolant to
the coolant reservoir to provide freezing
and corrosion protection and to bring the
Do not remove either cooling
level to F.
system cap when the engine and radiator
Securely tighten the coolant reservoir tank
are hot:
cap after adding coolant.
When the engine and radiator are hot,
scalding coolant and steam may shoot out
CAUTION
under pressure and cause serious injury.
¾ Radiator coolant will damage paint.
Rinse it off quickly if spilled.
6-22
Maintenance and Care
Owner Maintenance
¾ If the “FL22” mark is shown on or near
Brake Fluid
the cooling system cap, use of FL-22 is
recommended when replacing engine
Inspecting Brake Fluid Level
coolant. Using engine coolant other than
FL-22 may cause serious damage to the
WARNING
engine and cooling system.
If the brake fluid level is low, have the
brakes inspected:
A low brake fluid level is dangerous.
A low level could indicate brake lining wear
or a brake system leak which could cause
the brakes to fail and lead to an accident.
If the coolant reservoir is empty or new
Inspect the fluid level in the reservoir
regularly. It should be kept between the
coolant is required frequently, consult an
MAX and MIN lines.
Authorized Mazda Dealer.
The level normally drops with
accumulated distance, a condition
associated with wear of brake linings. If it
is excessively low, have the brake system
inspected by an Authorized Mazda Dealer.
6-23
Maintenance and Care
Owner Maintenance
The top of the fluid level is lower than L
Washer Fluid
(if equipped).
Inspecting Washer Fluid Level
WARNING
Use only windshield washer fluid or plain
water in the reservoir:
Using radiator antifreeze as washer fluid is
dangerous. If sprayed on the windshield, it
L
will dirty the windshield, affect your
visibility, and could result in an accident.
Using Washer Fluid Without Anti-freeze
Use plain water if washer fluid is
Protection in Cold Weather:
unavailable.
Operating your vehicle in temperatures
But use only washer fluid in cold weather
below 4 °C (40 °F) using washer fluid
to prevent it from freezing.
without anti-freeze protection is dangerous
as it could cause impaired windshield
NOTE
vision and result in an accident. In cold
Front and rear washer fluid is supplied
weather, always use washer fluid with
from the same reservoir.
anti-freeze protection.
NOTE
State or local regulations may restrict the
use of volatile organic compounds
(VOCs), which are commonly used as
anti-freeze agents in washer fluid. A
washer fluid with limited VOC content
should be used only if it provides adequate
freeze resistance for all regions and
climates in which the vehicle will be
operated.
Add washer fluid under any of the
following conditions.
The top of the fluid level is low.
The Low Washer Fluid Level Warning
Indication/Warning Light (if equipped)
turns on.
6-24
Maintenance and Care
Owner Maintenance
Body Lubrication
Wiper Blades
All moving points of the body, such as
door and hood hinges and locks, should be
CAUTION
lubricated each time the engine oil is
changed. Use a nonfreezing lubricant on
¾ Hot waxes applied by automatic car
locks during cold weather.
washers have been known to affect the
wiper's ability to clean windows.
Make sure the hood's secondary latch
¾ To prevent damage to the wiper blades,
keeps the hood from opening when the
do not use gasoline, kerosene, paint
primary latch is released.
thinner, or other solvents on or near
them.
¾ When the wiper lever is in the AUTO
position and the ignition is switched ON,
the wipers may move automatically in
the following cases:
¾ If the windshield above the rain sensor
is touched.
¾ If the windshield above the rain sensor
is wiped with a cloth.
¾ If the windshield is struck with a hand
or other object.
¾ If the rain sensor is struck with a hand
or other object from inside the vehicle.
Be careful not to pinch hands or fingers
as it may cause injury, or damage the
wipers. When washing or servicing the
vehicle, make sure the wiper lever is in
the OFF position.
Contamination of either the windshield or
the blades with foreign matter can reduce
wiper effectiveness. Common sources are
insects, tree sap, and hot wax treatments
used by some commercial car washes.
If the blades are not wiping properly, clean
the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.
6-25
Maintenance and Care
Owner Maintenance

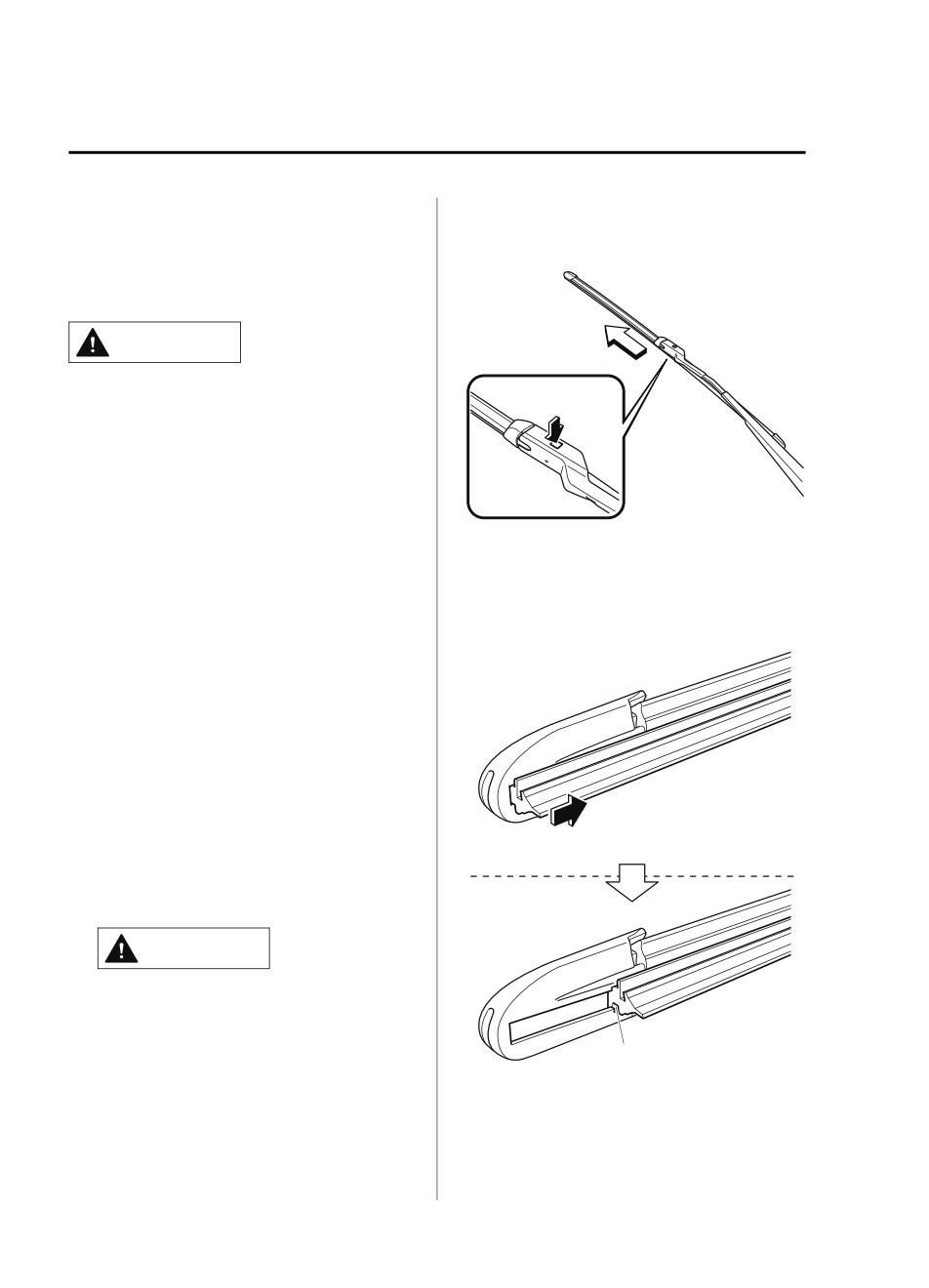

Replacing Windshield Wiper Blades
the wiper arm tab to remove the blade
component from the wiper arm.
When the wipers no longer clean well, the
blades are probably worn or cracked.
Replace them.
CAUTION
¾ To prevent damage to the wiper arms
and other components, do not try to
sweep the wiper arm by hand.
¾ Do not bend the blade rubber
unnecessarily when replacing it.
Otherwise, the metal stiffener in the
blade may deform and the windshield
3.
Pull the blade rubber in the direction of
wiper operation may be adversely
the arrow and slide it to a position
affected.
where the blade holder groove can be
checked.
NOTE
When raising both windshield wiper arms,
raise the driver's side wiper arm first.
When lowering the wiper arms, slowly
lower the wiper arm from the passenger's
side first while supporting it with your
hand. Forcefully lowering the wiper arms
could damage the wiper arm and blade,
and may scratch or crack the windshield.
Replace the wiper blades using the
following procedure.
1. Raise the wiper arm.
CAUTION
To prevent damage to the windshield
let the wiper arm down easily, do not
let it slap down on the windshield.
Groove

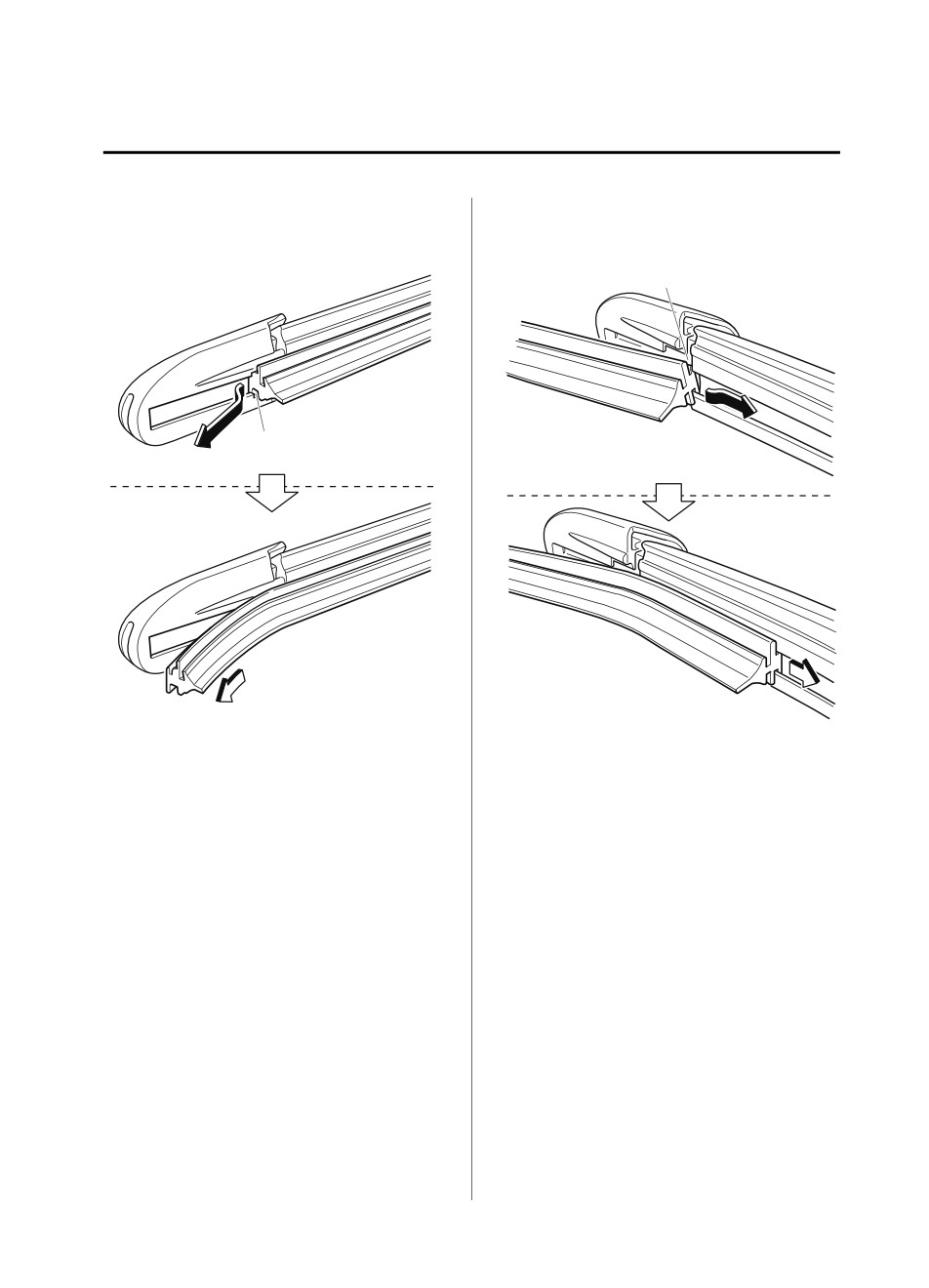

2. Slide the blade component in the
4.
Pull the end of the blade rubber from
direction of the arrow while pressing
the blade holder groove in the direction
6-26
Maintenance and Care
Owner Maintenance
of the arrow and remove the blade
until it contacts the end of the blade
rubber from the blade holder.
holder.
Groove
Groove

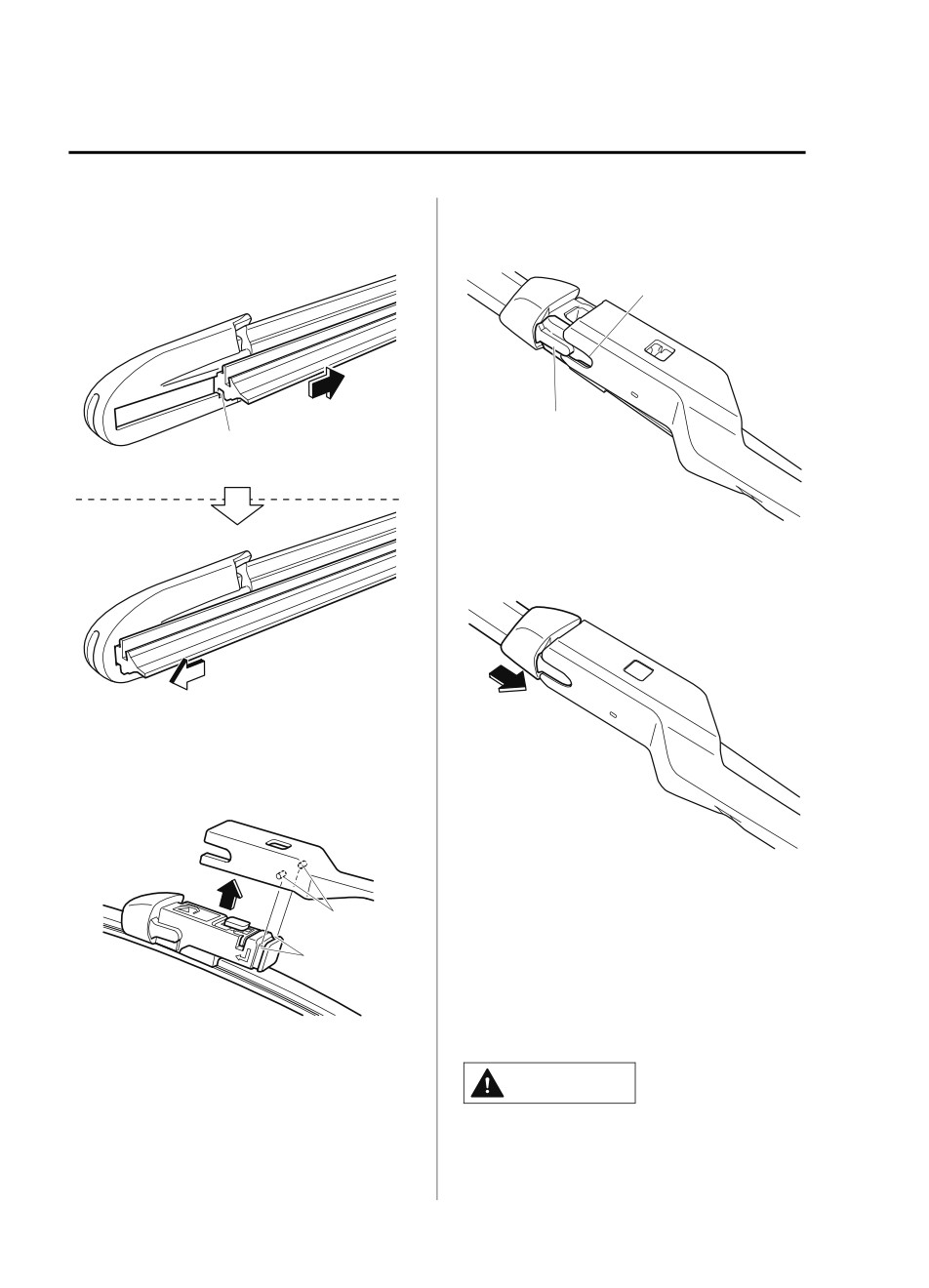

5. Insert the end of the new blade rubber
6. After pulling the blade rubber in the
into the groove of the blade holder
direction of the arrow and sliding the
blade rubber to a position to check the
6-27
Maintenance and Care
Owner Maintenance
blade holder groove, slide the blade
9. Align the blade component projection
rubber end in the opposite direction.
with the wiper arm notch.
Notch
Projection
Groove
10. Slide the blade component and install
it to the wiper arm.
7. Make sure that the blade rubber is
correctly installed to the blade holder.
8. Align the wiper arm tabs with the
blade component grooves.
11. Slowly lower the wiper arm onto the
windshield.
Tabs
Replacing Rear Window Wiper
Blade
Grooves
When the wiper no longer cleans well, the
blade is probably worn or cracked.
Replace it.
CAUTION
To prevent damage to the wiper arm and
other components, do not move the wiper
by hand.
6-28
Maintenance and Care
Owner Maintenance

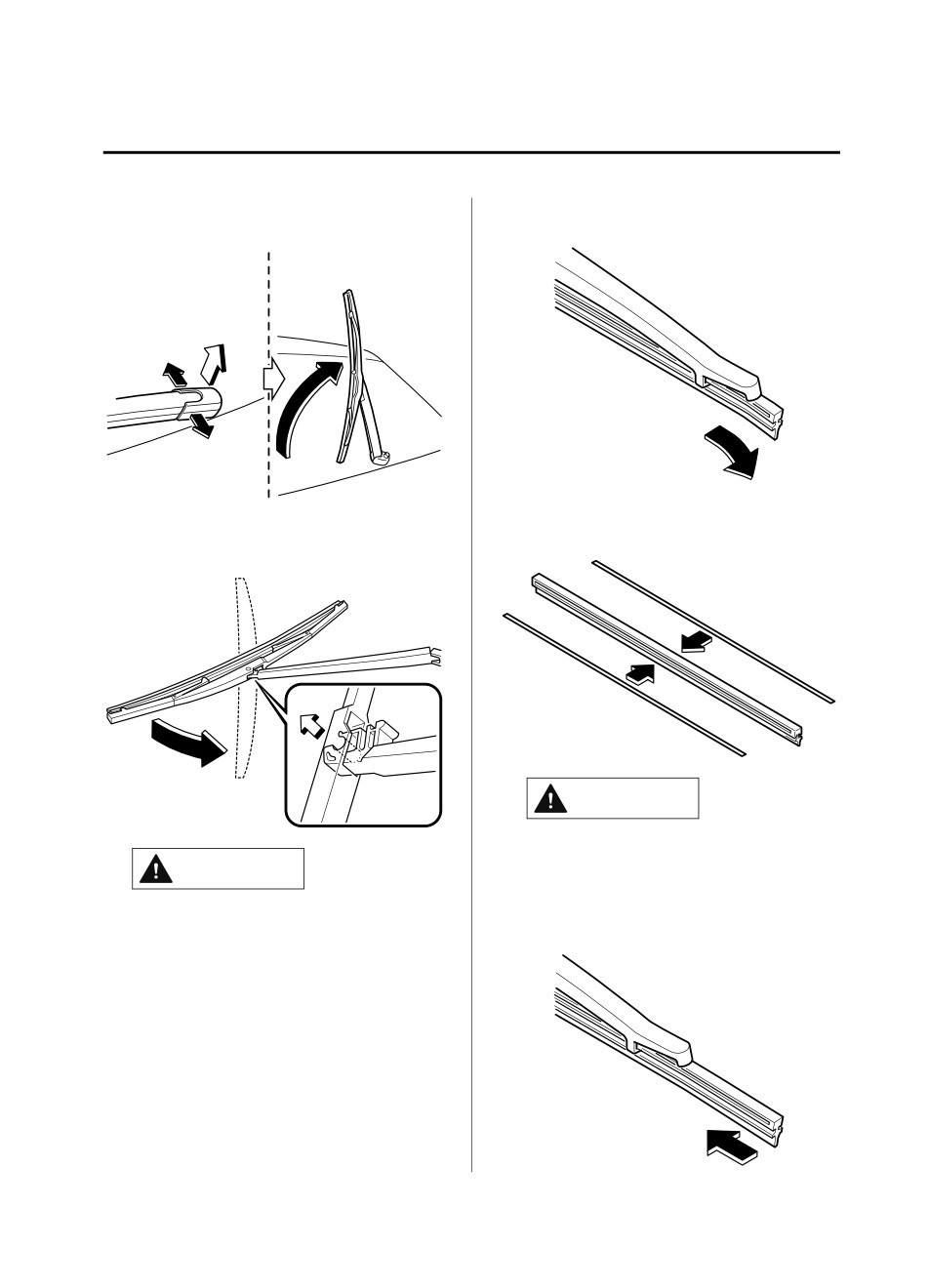

1. Remove the cover and raise the wiper
3. Pull down the blade rubber and slide it
arm.
out of the blade holder.
4. Remove the metal stiffeners from the
2. Firmly rotate the wiper blade to the
blade rubber and install them in the
right until it unlocks, then remove the
new blade.
blade.
CAUTION
Do not bend or discard the stiffeners.
CAUTION
You need to use them again.
5. Carefully insert the new blade rubber.
To prevent damage to the rear window,
Then install the blade assembly in the
do not let the wiper arm fall on it.
reverse order of removal.
6-29
Maintenance and Care
Owner Maintenance
Battery
WARNING
Wash hands after handling the battery and related accessories:
Battery posts, terminals and related accessories contain lead and lead compounds, chemicals
known to the State of California to cause cancer and reproductive harm.
Read the following precautions carefully before using the battery or inspecting to
ensure safe and correct handling:
Always wear eye protection when working near the battery:
Working without eye protection is dangerous. Battery fluid contains SULFURIC ACID which
could cause blindness if splashed into your eyes. Also, hydrogen gas produced during normal
battery operation, could ignite and cause the battery to explode.
Wear eye protection and protective gloves to prevent contact with battery fluid:
Spilled battery fluid is dangerous.
Battery fluid contains SULFURIC ACID which could cause serious injuries if it gets in eyes, or on
the skin or clothing. If this happens, immediately flush your eyes with water for 15 minutes or
wash your skin thoroughly and get medical attention.
Always keep batteries out of the reach of children:
Allowing children to play near batteries is dangerous. Battery fluid could cause serious injuries
if it gets in the eyes or on the skin.
6-30
Maintenance and Care
Owner Maintenance

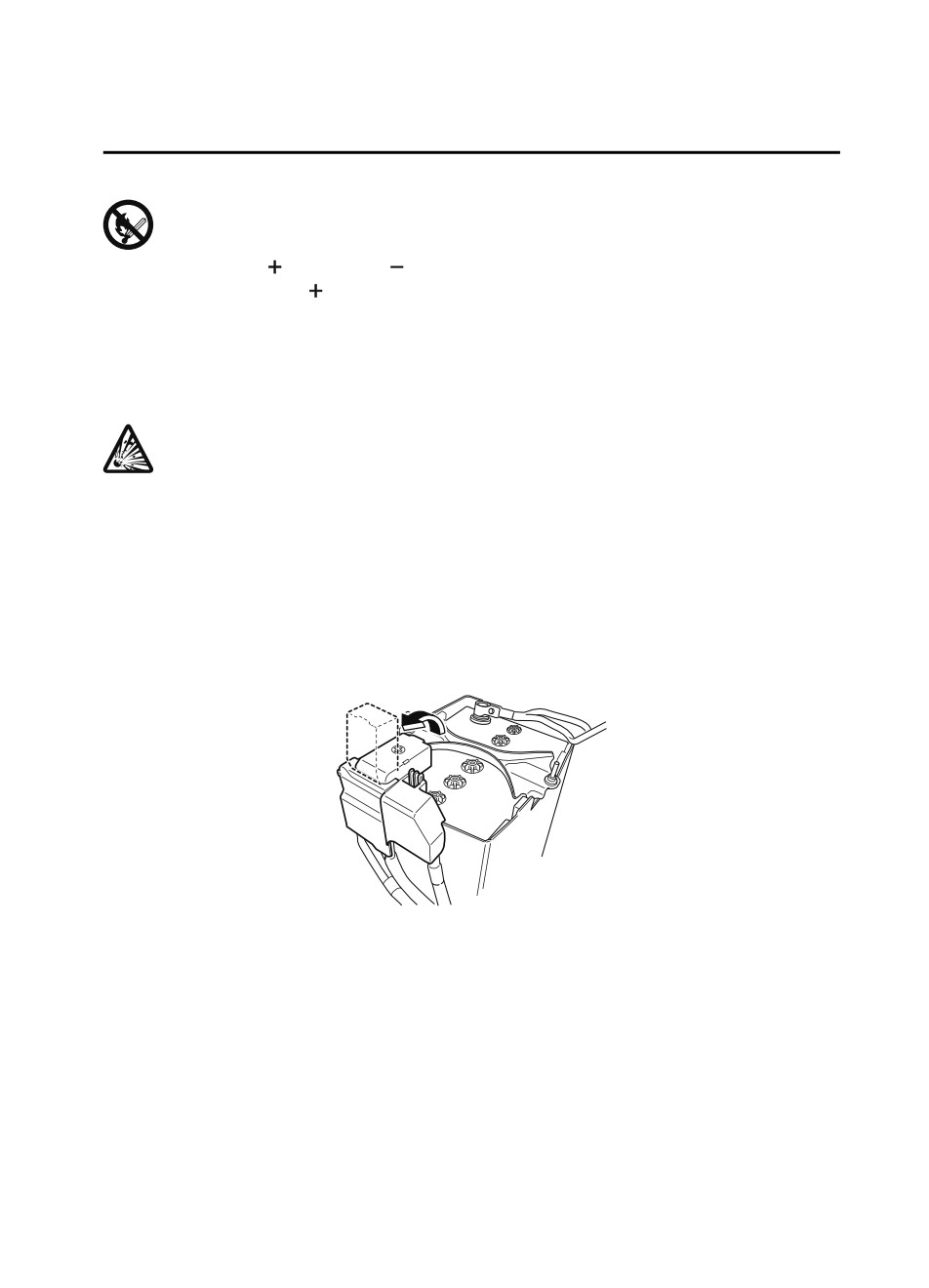

Keep flames and sparks away from open battery cells and do not allow metal tools to
contact the positive (
) or negative (
) terminal of the battery when working near a battery.
Do not allow the positive (
) terminal to contact the vehicle body:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during
normal battery operation, could ignite and cause the battery to explode. An exploding battery
can cause serious burns and injuries. Keep all flames including cigarettes and sparks away
from open battery cells.
Keep all flames and sparks away from open battery cells because hydrogen gas is
produced from open battery cells while charging the battery or adding battery fluid:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during
normal battery operation, could ignite and cause the battery to explode. An exploding battery
can cause serious burns and injuries. Keep all flames including cigarettes and sparks away
from open battery cells.
NOTE
Before performing battery maintenance, remove the battery cover.
6-31
Maintenance and Care
Owner Maintenance

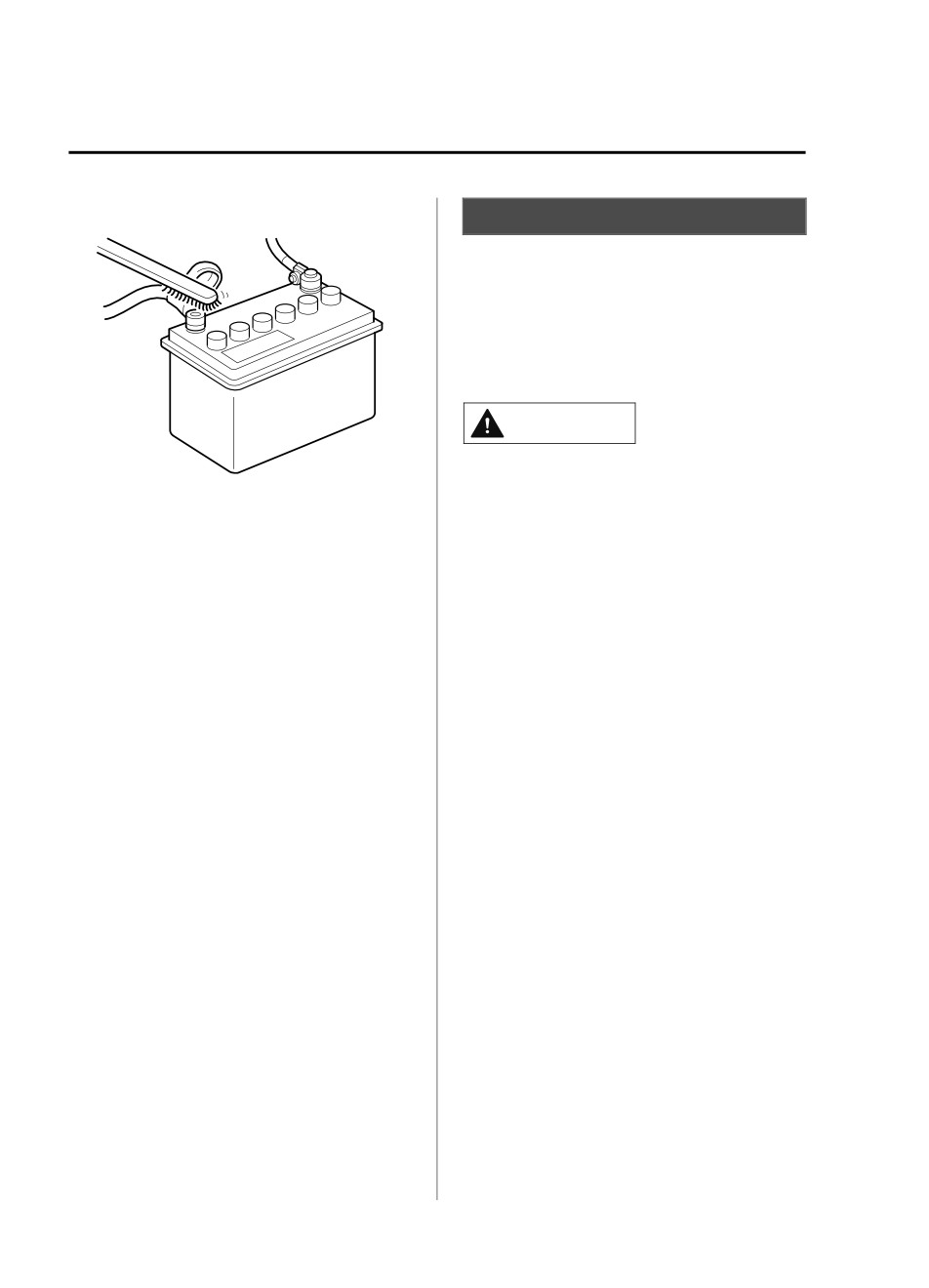

Battery Maintenance

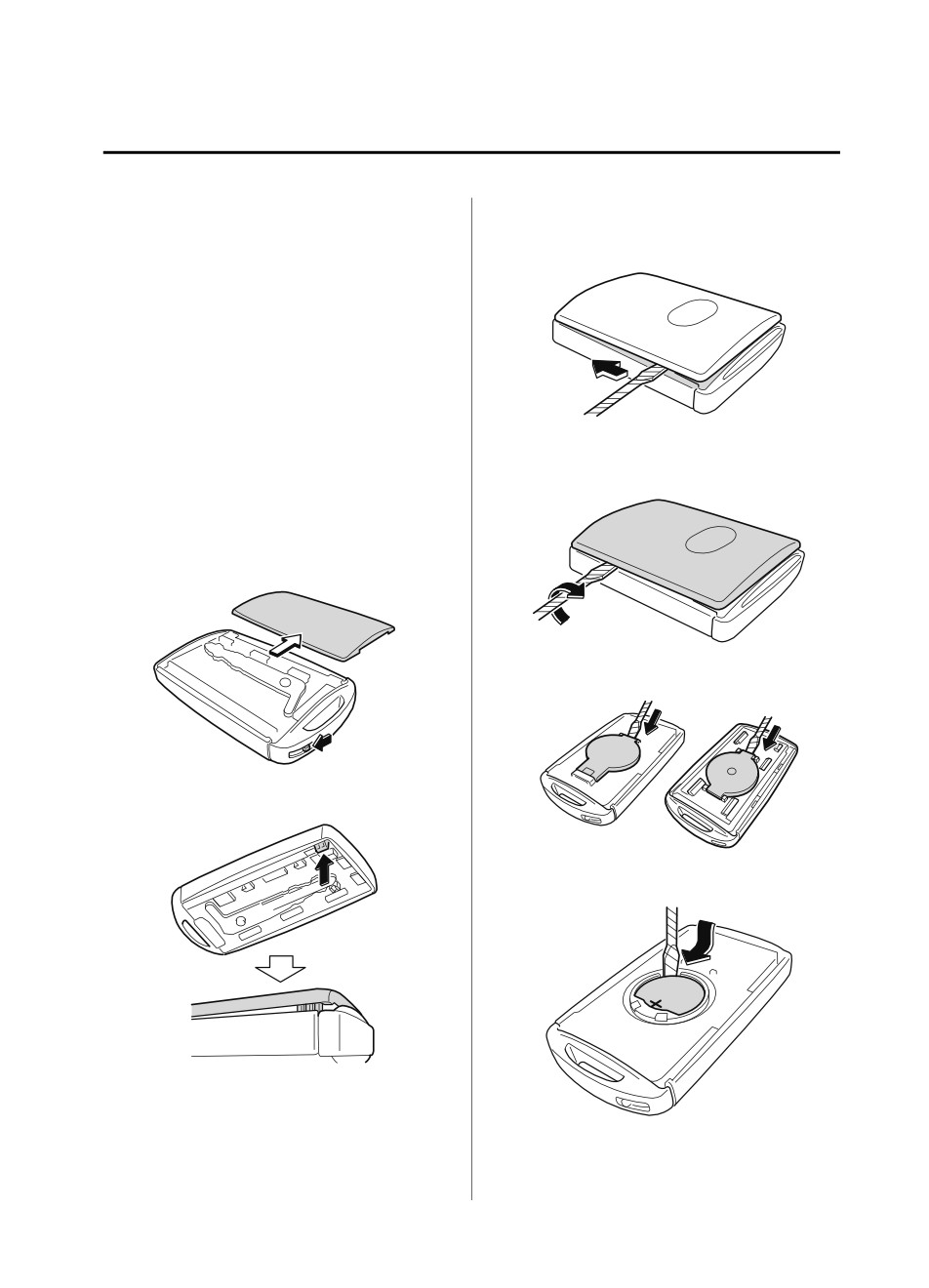

Key Battery Replacement
If the buttons on the transmitter are
inoperable and the operation indicator
light does not flash, the battery may be
dead.
Replace with a new battery before the
transmitter becomes unusable.
CAUTION
¾ Make sure the battery is installed
To get the best service from a battery:
correctly. Battery leakage could occur if it
is not installed correctly.
Keep it securely mounted.
¾ When replacing the battery, be careful
Keep the top clean and dry.
not to touch any of the internal circuitry
Keep terminals and connections clean,
and electrical terminals, bend the
tight, and coated with petroleum jelly or
electrical terminals, or get dirt in the
terminal grease.
transmitter as the transmitter could be
Rinse off spilled electrolyte immediately
damaged.
with a solution of water and baking
¾ There is the danger of explosion if the
soda.
battery is not correctly replaced.
If the vehicle will not be used for an
¾ Dispose of used batteries according to
extended time, disconnect the battery
the following instructions.
cables and charge the battery every 6
weeks.
¾ Insulate the plus and minus terminals
of the battery using cellophane or
Battery Replacement
equivalent tape.
Contact an Authorized Mazda Dealer for
¾ Never disassemble.
battery replacement.
¾ Never throw the battery into fire or
water.
¾ Never deform or crush.
¾ Replace only with the same type battery
(CR2032 or equivalent).
The following conditions indicate that the
battery power is low:
The KEY indicator light (green) flashes
in the instrument cluster for about 30
seconds after the engine is switched
OFF (for vehicles with a type A/type B
instrument cluster (page 4-12, 4-29),
6-32
Maintenance and Care
Owner Maintenance
messages are displayed in the instrument
3. Insert a tape-wrapped flathead
cluster).
screwdriver into the gap and slide it in
The system does not operate and the
the direction of the arrow.
operation indicator light on the
transmitter does not flash when the
buttons are pressed.
The system's operational range is
reduced.
Replacing the battery at an Authorized
Mazda Dealer, is recommended to prevent
4. Twist the flathead screwdriver in the
damage to the key. If replacing the battery
direction of the arrow and remove the
by yourself, follow the instruction.
upper cover.
Replacing the key battery
1. Remove the lower cover while sliding
the knob in the direction of the arrow.
5. Remove the cap using the
tape-wrapped flathead screwdriver.
2. Press in the tab to unlock the upper
cover.
6. Remove the battery using
tape-wrapped flathead screwdriver.
7. Insert a new battery into the transmitter
so that the positive pole is facing up.
6-33















Content      ..     15      16      17      18     ..
