Essential Safety Equipment
Seats

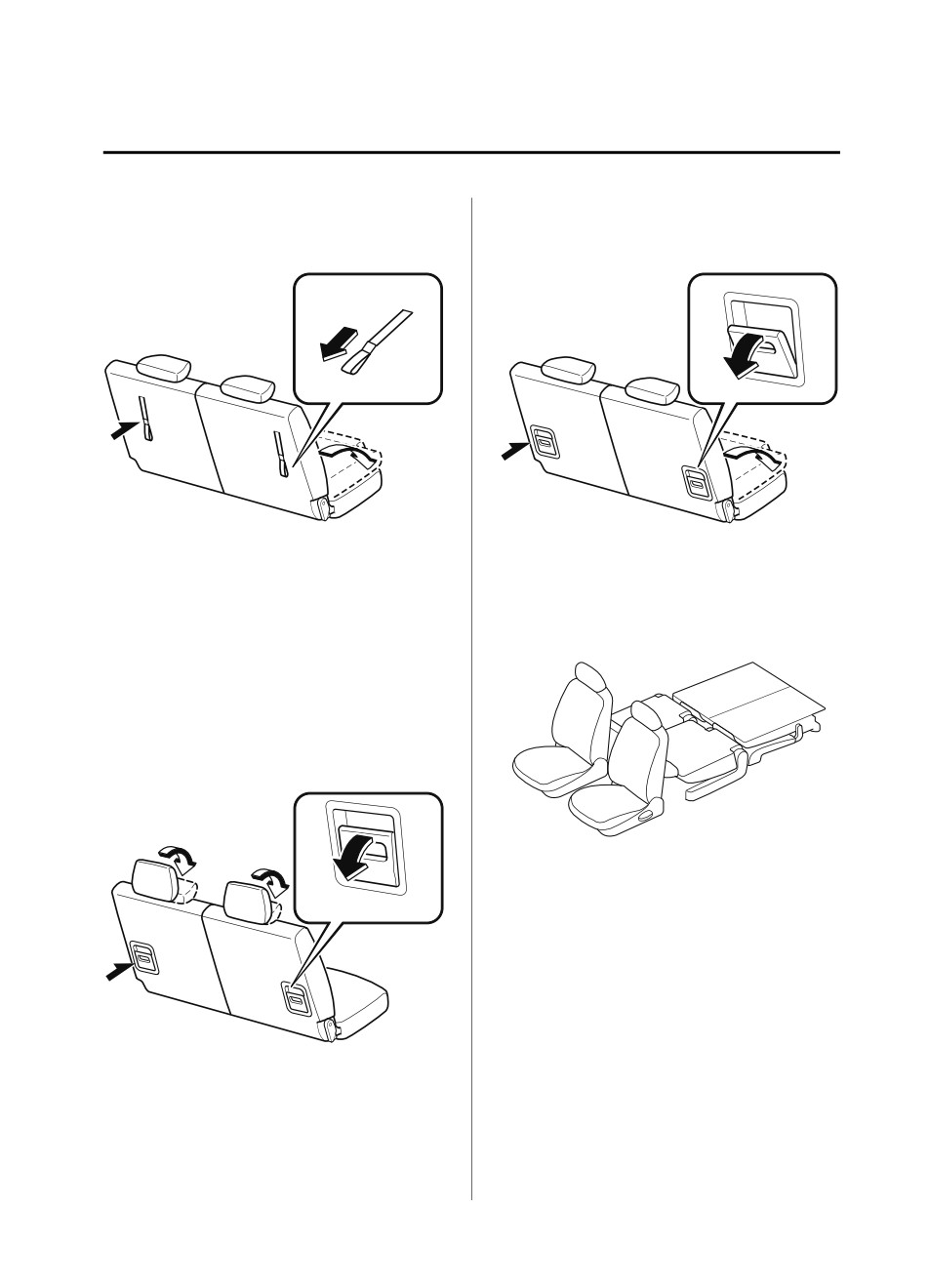

4. Pull the strap further to fold the
4. Lower the lever further to fold the
third-row seat forward.
third-row seat forward.

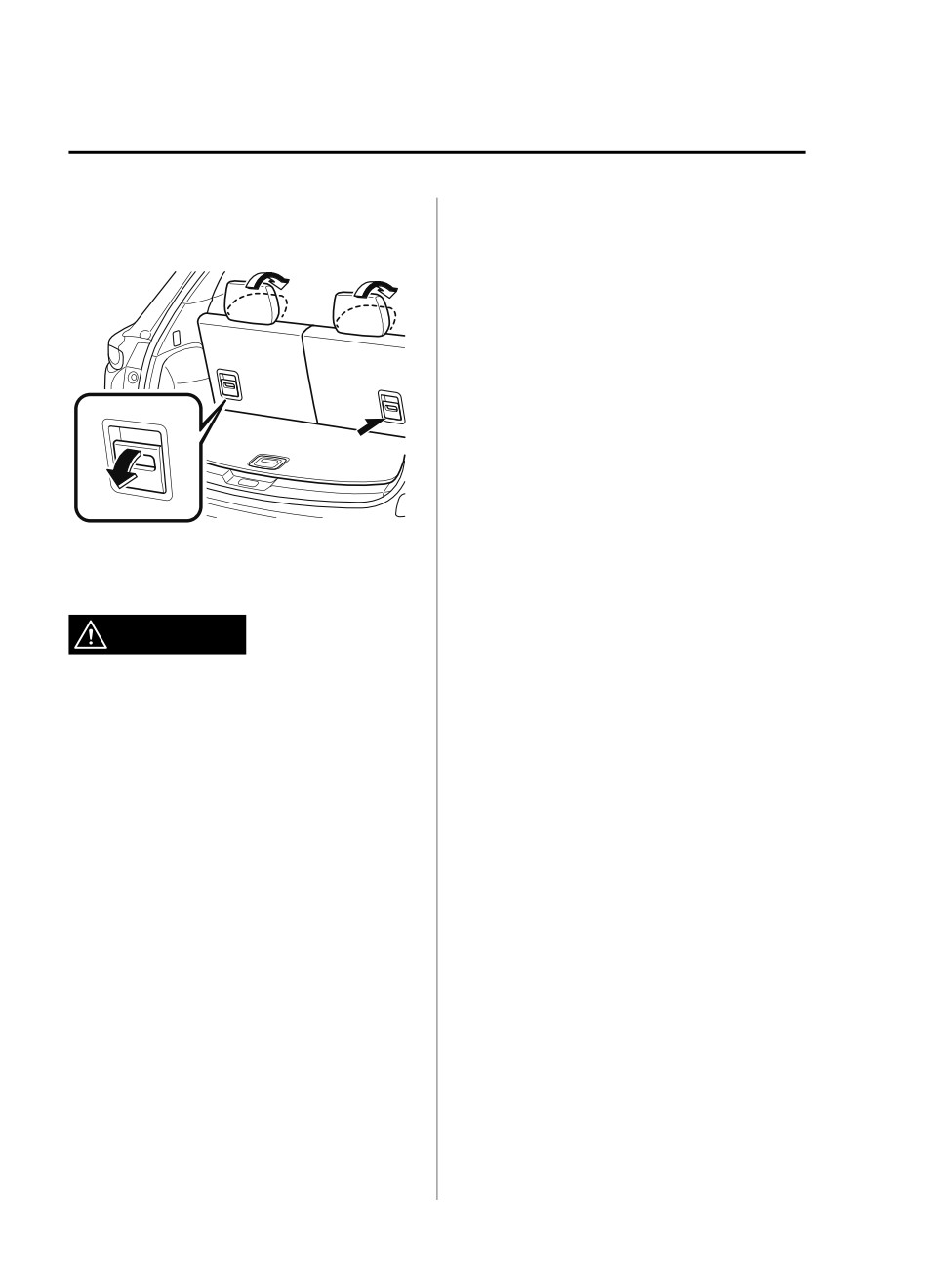

Folding the seatbacks (With lever)
NOTE
To create a flat luggage compartment
1. Secure the third-row seat seat belts into
space from the rear of the vehicle to the
their holders.
back of the front seats, fold the second-row
Refer to Unfastening the Seat Belt on
and third-row seats (page 2-20, 2-25).
page 2-38.
2. Slide the second-row seat all the way
forward.
3. Lower the lever to fold down the head
restraint.
To return third-row seat to its original
position
1. Return the seatback to its original
position by pulling the strap/lever on
the back of the seatback.
Make sure the seatback is secured by
attempting to lightly move it forward
and back.
2. Lift the head restraint upward to its
upright position.
2-27
Essential Safety Equipment
Seats
To raise a head restraint, pull it up to the
Head Restraints
desired position.
Your vehicle is equipped with head
To lower the head restraint, press the
restraints on all outboard seats and the
stop-catch release, then push the head
second-row center seat. The head
restraint down.
restraints are intended to help protect you
Front outboard seat
and the passengers from neck injury.
WARNING
Always drive with the head restraints
installed when seats are being used and
make sure they are properly adjusted. In
addition, always raise the head restraints
on all second-row seats when they are
being used:
Driving with the head restraints adjusted
Second-row outboard seat
too low or removed is dangerous. With no
support behind your head, your neck could
(6:4 Split Adjustable-type Bench Seat
be seriously injured in a collision.
Type)
NOTE
(Third-row seat)
The head restraints are non-adjustable.
Height Adjustment

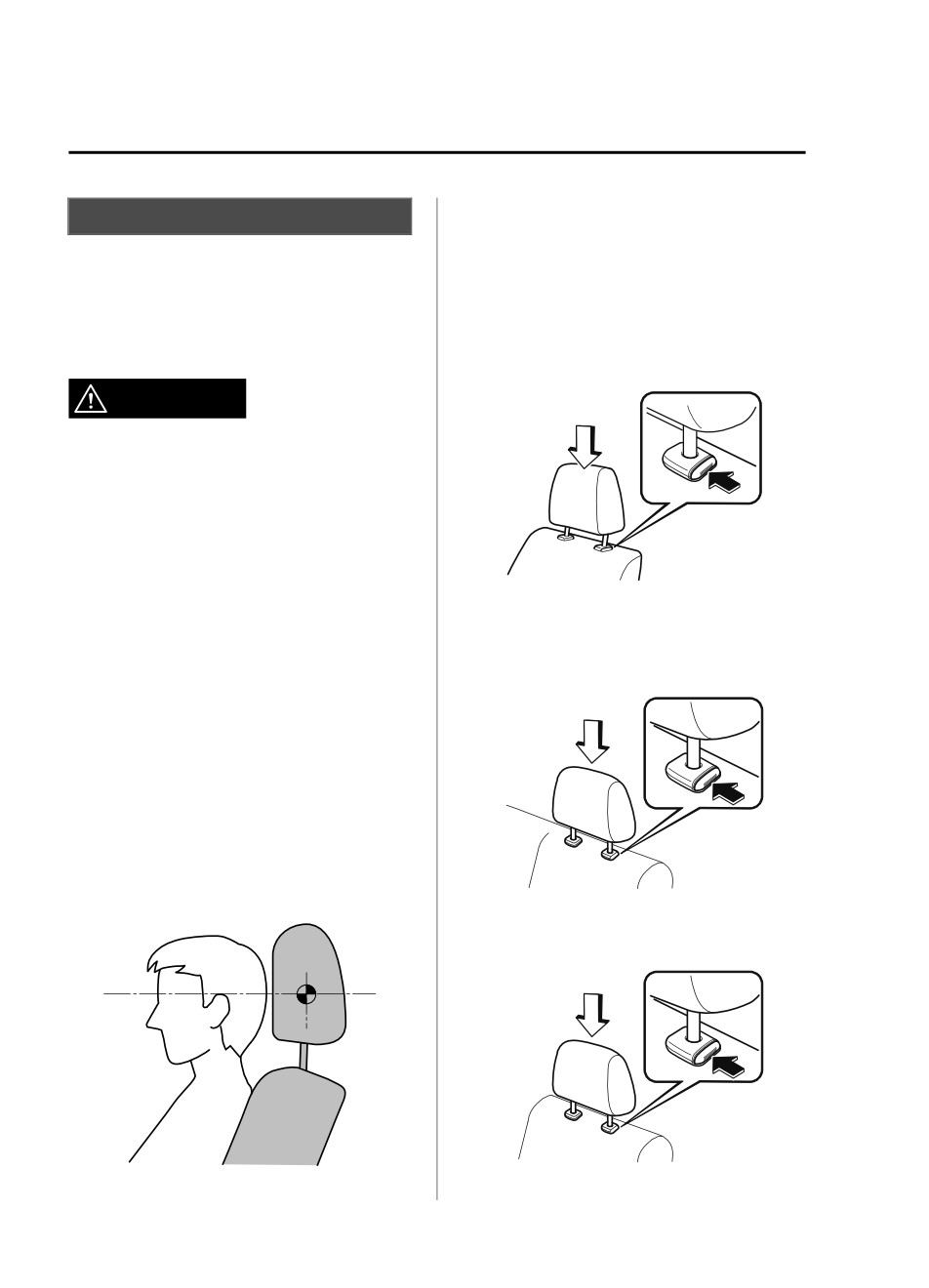

Adjust the head restraint so that the center
is even with the top of the passenger's
ears.
(Captain Seat Type)
2-28
Essential Safety Equipment
Seats
Second-row center seat (6:4 Split
CAUTION
Adjustable-type Bench Seat Type)
¾ When installing a head restraint, make
sure that it is installed correctly with the
front of the head restraint facing
forward. If the head restraint is installed
incorrectly, it could detach from the seat
during a collision and result in injury.
¾ The head restraints on each of the front
and second-row seats are specialized to
each seat. Do not switch around the
head restraint positions. If a head
restraint is not installed to its correct seat
Removal/Installation (Front
outboard seat/Second-row seat)
position, the effectiveness of the head
restraint during a collision will be
To remove the head restraint, pull it up
compromised which could cause injury.
while pressing the stop-catch.
To install the head restraint, insert the legs
Foldable Head Restraints
into the holes while pressing the
(Third-row Seat)
stop-catch.
The third-row seats are equipped with
foldable head restraints.
WARNING
NOTE
The foldable head restraints cannot be
Always drive with the head restraints
adjusted or removed.
installed when seats are being used and
make sure they are properly installed:
(With strap)
Driving with the head restraints not

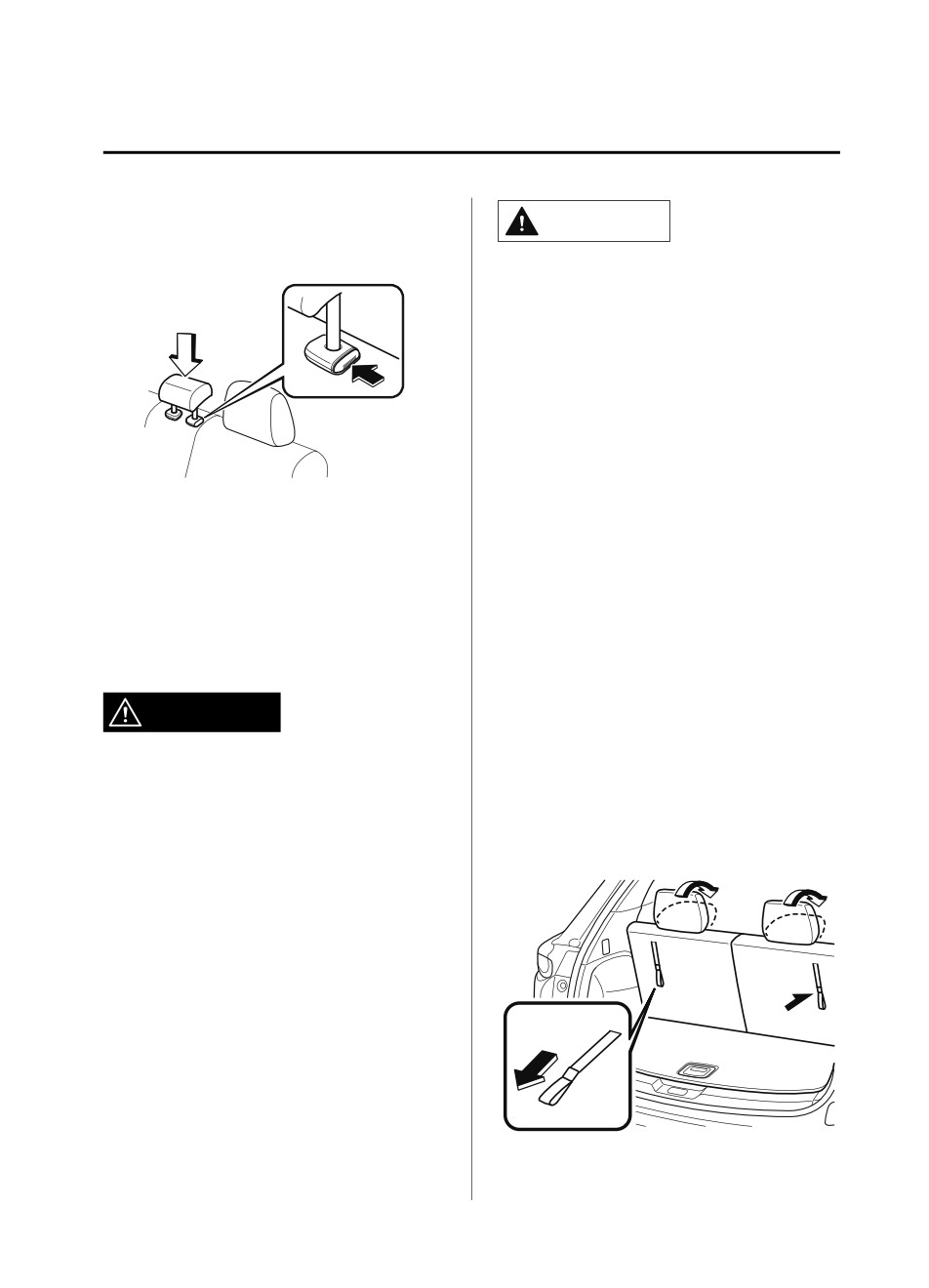

To fold the head restraint, pull the strap
installed is dangerous. With no support
and fold the head restraint downward.
behind your head, your neck could be
seriously injured in a collision.
After installing a head restraint, try lifting it
to make sure that it does not pull out:
Driving with an unsecured head restraint is
dangerous as the effectiveness of the head
restraint will be compromised which could
cause it to unexpectedly detach from the
seat.
2-29
Essential Safety Equipment
Seats
(With lever)
To fold the head restraint, lower the lever
down.
To return the head restraint to its upright
position, lift it upward.
WARNING
Always drive with the head restraints in
their upright positions when the third-row
seats are occupied, and make sure they are
securely locked in place:
Driving with the head restraints folded
down is dangerous. With no support
behind your head, your neck could be
seriously injured in a collision.
2-30
Essential Safety Equipment
Seat Warmer/Seat Ventilation/Heated Steering Wheel
(Captain Seat Type)

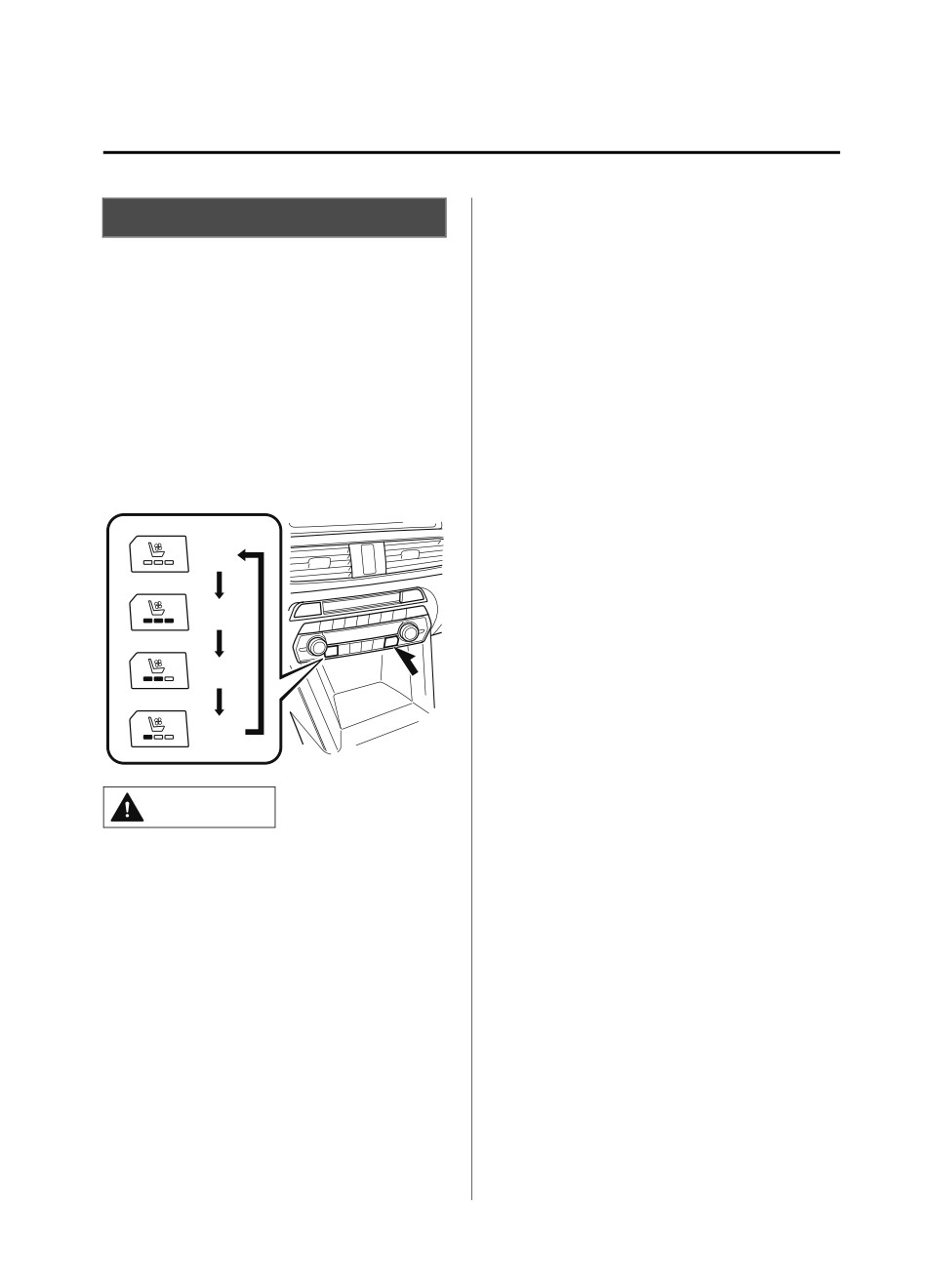

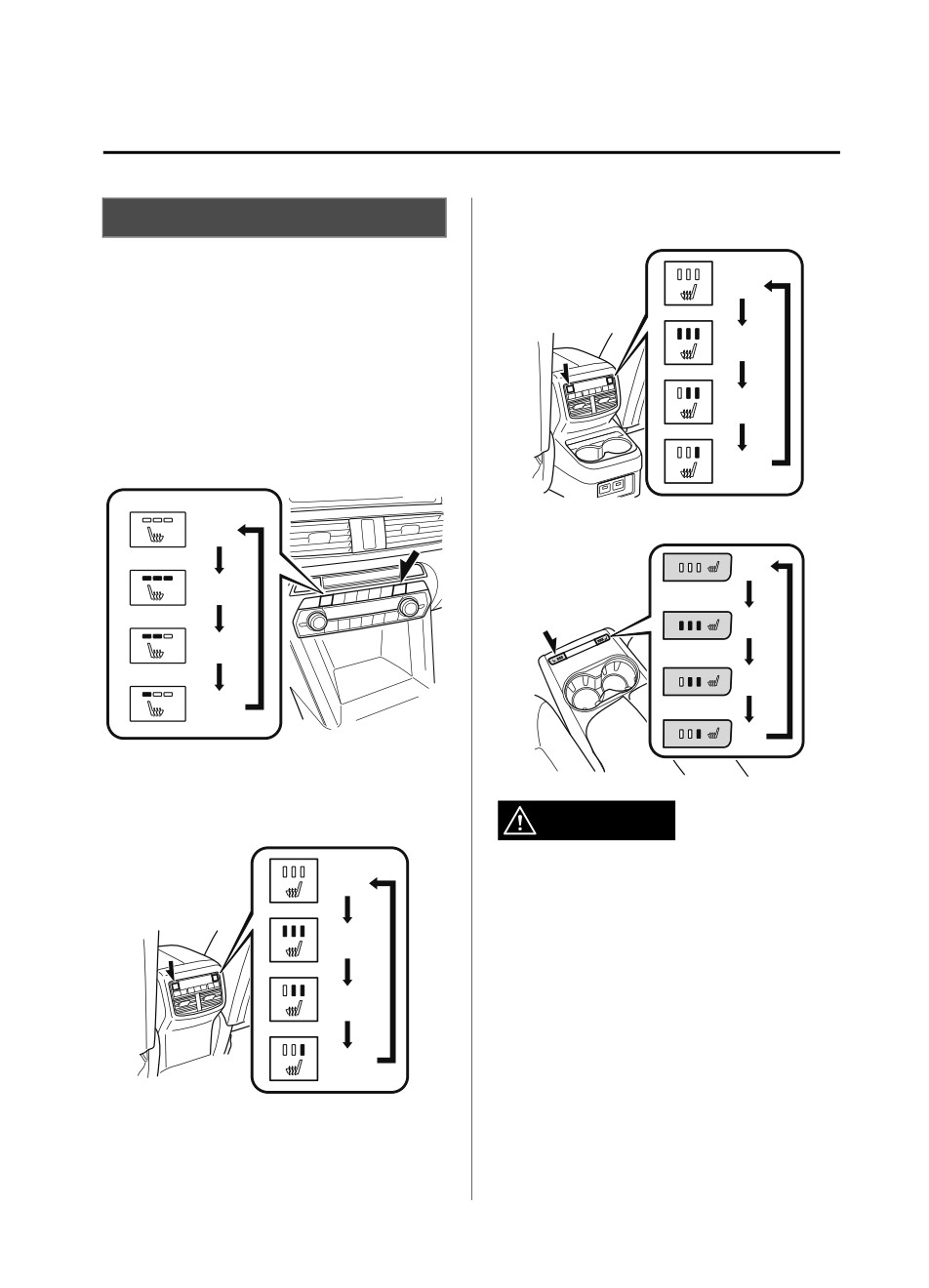

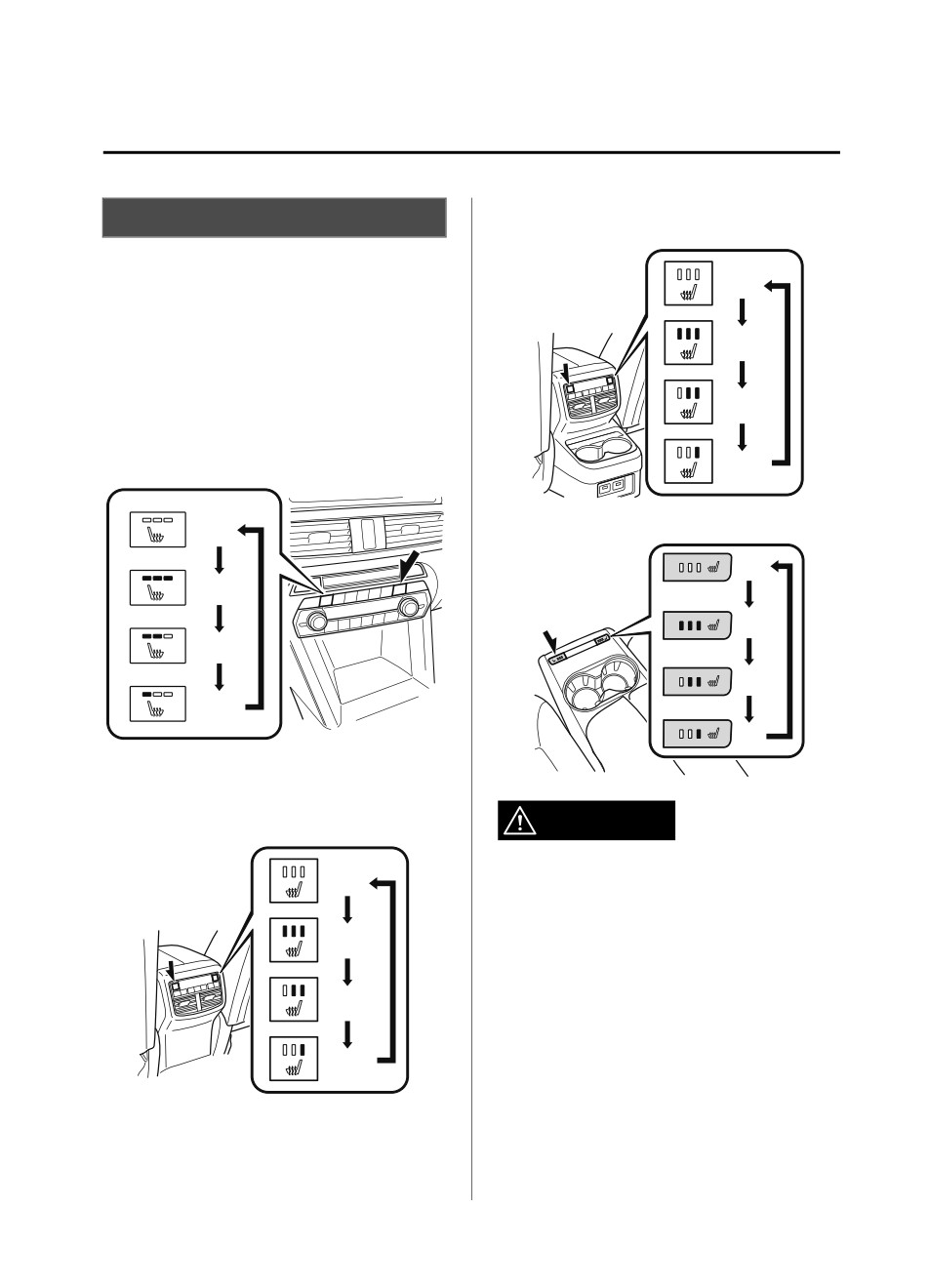

Seat Warmer*
Center Walk-thorough Type
The front/second-row seats are electrically
heated. The ignition must be switched ON.
OFF
Press the seat warmer switch while the
ignition is switched ON to operate the seat
High
warmer. The indicator lights turn on to
indicate that the seat warmer is operating.
The mode changes as follows each time
Mid
the seat warmer switch is pressed.
Front
Low
Second-row Console Type
OFF
OFF
High
High
Mid
Mid
Low
Low
Second-row seat*
(6:4 Split Adjustable-type Bench Seat
WARNING
Type)
OFF
Be careful when using the seat warmer:
The heat from the seat warmer may be too
hot for some people, as indicated as
High
follows, and could cause a
low-temperature burn.
Mid
¾ Infants, small children, elderly people,
and physically challenged people
¾ People with delicate skin
Low
¾ People who are excessively fatigued
¾ People who are intoxicated
¾ People who have taken sleep-inducing
medicine such as sleeping pills or cold
medicine
*Some models.
2-31
Essential Safety Equipment
Seat Warmer/Seat Ventilation/Heated Steering Wheel
Do not use the seat warmer with anything
When the engine is stopped while the
having high moisture-retention ability such
seat warmers are operating and then the
as a blanket or cushion on the seat:
ignition is switched ON, the seat
The seat may be heated excessively and
warmers will not turn back on
cause a low-temperature burn.
automatically. To turn the seat warmers
back on, press the switch. In addition,
Do not use the seat warmer even when
the second-row seat warmer operation
taking a short nap in the vehicle:
stops automatically after the seat
The seat may be heated excessively and
warmers have operated for about 90
cause a low-temperature burn.
minutes.
The temperature of the seat warmer
Do not place heavy objects with sharp
cannot be adjusted beyond High, Mid
projections on the seat, or insert needles or
and Low because the seat warmer is
pins into it:
controlled by a thermostat.
This could cause the seat to become
(Vehicles with seat ventilation)
excessively heated and result in injury from
The front seat warmer cannot be used at
a minor burn.
the same time as the seat ventilation.
CAUTION
¾ (Second-row seat)
Before folding a second-row seatback,
make sure that the second-row seat
warmer switch is off. If a second-row
seatback is folded while the second-row
seat warmer is in operation, it may heat
the seat excessively and damage the seat
surface.
¾ Do not use organic solvents to clean the
seat. It may damage the seat surface and
the heater.
NOTE
Use the seat warmer when the engine is
running. Leaving the seat warmer on for
long periods with the engine not running
could cause the battery power to be
depleted.
2-32
Essential Safety Equipment
Seat Warmer/Seat Ventilation/Heated Steering Wheel
When the engine is stopped while the
Seat Ventilation*
seat ventilations are operating and then
The seat ventilation uses fans installed in
the ignition is switched ON, the seat
the seats to draw air around the seat
ventilations will not turn back on
surface and ventilate them. The ignition
automatically.
must be switched ON.
(Vehicles with front seat warmer)
Press the seat ventilation switch while the
The seat ventilation cannot be used at
ignition is switched ON to operate the seat
the same time as the front seat warmer.
ventilation. The indicator lights turn on to
indicate that the seat ventilation is
operating. The mode changes as follows
each time the seat ventilation switch is
pressed.
OFF
High
Mid
Low
CAUTION
¾ Do not use organic solvents to clean the
seat. It may damage the seat surface and
the seat ventilation parts.
¾ Do not place heavy objects with sharp
projections on the seat, or insert needles
or pins into it.
NOTE
Use the seat ventilation when the engine
is running. Leaving the seat ventilation
on for long periods with the engine not
running could cause the battery power
to be depleted.
*Some models.
2-33
Essential Safety Equipment
Seat Warmer/Seat Ventilation/Heated Steering Wheel
¾ People who have taken sleep-inducing

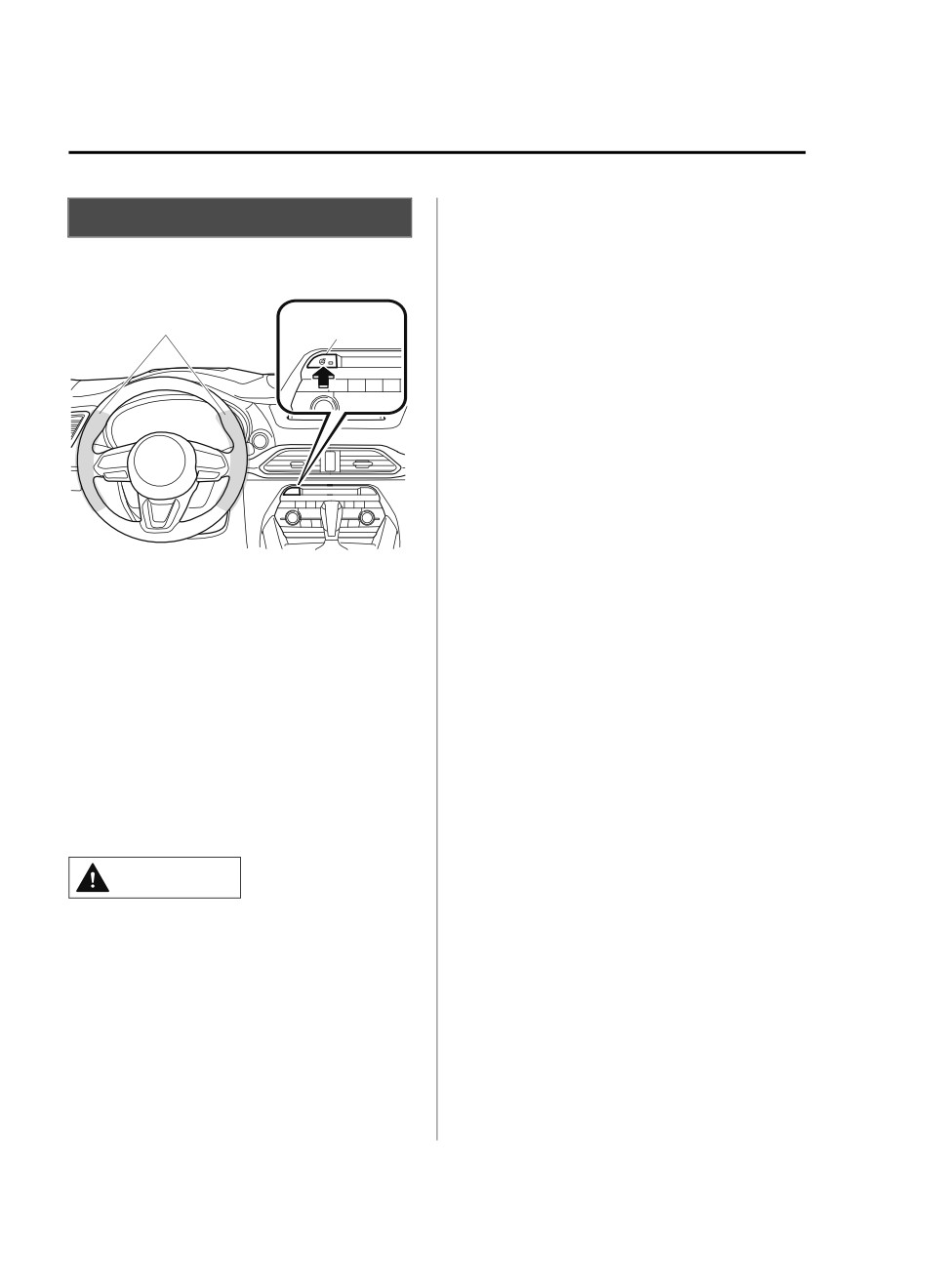

Heated Steering Wheel*
medicine such as sleeping pills or cold
The grips on the left and right of the
medicine
steering wheel can be warmed up.
Heated steering
Heating area
wheel switch
The ignition must be switched ON.
Press the switch to turn on the heated
steering wheel. The heated steering wheel
operates for about 30 minutes and then
turns off automatically.
The indicator light illuminates when the
heater is operating.
To turn off the heated steering wheel
before the 30 minutes has elapsed, press
the switch again.
CAUTION
The following types of persons should be
careful not to touch the steering wheel.
Otherwise, it could cause a
low-temperature burn.
¾ Infants, small children, elderly people,
and physically challenged people
¾ People with delicate skin
¾ People who are excessively fatigued
¾ People who are intoxicated
2-34
*Some models.
Essential Safety Equipment
Seat Belt Systems
Seat Belt Precautions
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
(Except Mexico)
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way when
not in use.
The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the front passenger's seat and all rear lap/shoulder belt retractors operate in two
modes: emergency locking mode, and for child-restraint systems, automatic locking mode.
While we recommend you put all children in the rear seats, if you must use the front
passenger seat for a child, slide the front passenger seat as far back as possible and make
sure any child-restraint system is secured properly.
(Mexico)
All the seats have lap/shoulder belts. These belts have retractors with inertia locks that keep
them out of the way when not in use. The locks allow the belts to remain comfortable on
users, but they will lock in position during a collision.
WARNING
Always wear your seat belt and make sure all occupants are properly restrained:
Not wearing a seat belt is extremely dangerous. During a collision, occupants not wearing
seat belts could hit someone or things inside the vehicle or even be thrown out of the vehicle.
They could be seriously injured or even killed. In the same collision, occupants wearing seat
belts would be much safer.
Do not wear twisted seat belts:
Twisted seat belts are dangerous. In a collision, the full width of the belt is not available to
absorb the impact. This puts more force on the bones beneath the belt, which could cause
serious injury or death. So, if your seat belt is twisted, you must straighten the seat belt to
remove any twists and to allow the full width of the belt to be used.
Never use one seat belt on more than one person at a time:
Using one seat belt for more than one person at a time is dangerous. A seat belt used in this
way cannot spread the impact forces properly and the two passengers could be crushed
together and seriously injured or even killed. Never use one belt for more than one person at a
time and always operate the vehicle with each occupant properly restrained.
2-35
Essential Safety Equipment
Seat Belt Systems
Do not operate a vehicle with a damaged seat belt:
Using a damaged seat belt is dangerous. An accident could damage the belt webbing of the
seat belt in use. A damaged seat belt cannot provide adequate protection in a collision. Have
an Authorized Mazda Dealer inspect all seat belt systems in use during an accident before
they are used again.
Have your seat belts changed immediately if the pretensioner or load limiter has been
expended:
Always have an Authorized Mazda Dealer immediately inspect the seat belt pretensioners
and air bags after any collision. Like the air bags, the seat belt pretensioners and load limiters
will only function once and must be replaced after any collision that caused them to deploy. A
seat belt with an expended pretensioner or load limiter is still better than wearing no seat belt
at all; however, if the seat belt pretensioners and load limiters are not replaced, the risk of
injury in a collision will increase.
Positioning the Shoulder Portion of the Seat Belt:
Improper positioning of the shoulder portion of the seat belt is dangerous. Always make sure
the shoulder portion of the seat belt is positioned across your shoulder and near your neck,
but never under your arm, on your neck, or on your upper arm.
Positioning the Lap Portion of the Seat Belt:
The lap portion of the seat belt worn too high is dangerous. In a collision, this would
concentrate the impact force directly on the abdominal area, causing serious injury. Wear the
lap portion of the belt snugly and as low as possible.
In a rollover crash, an unbelted person is significantly more likely to die than a person wearing
a seat belt.
CAUTION

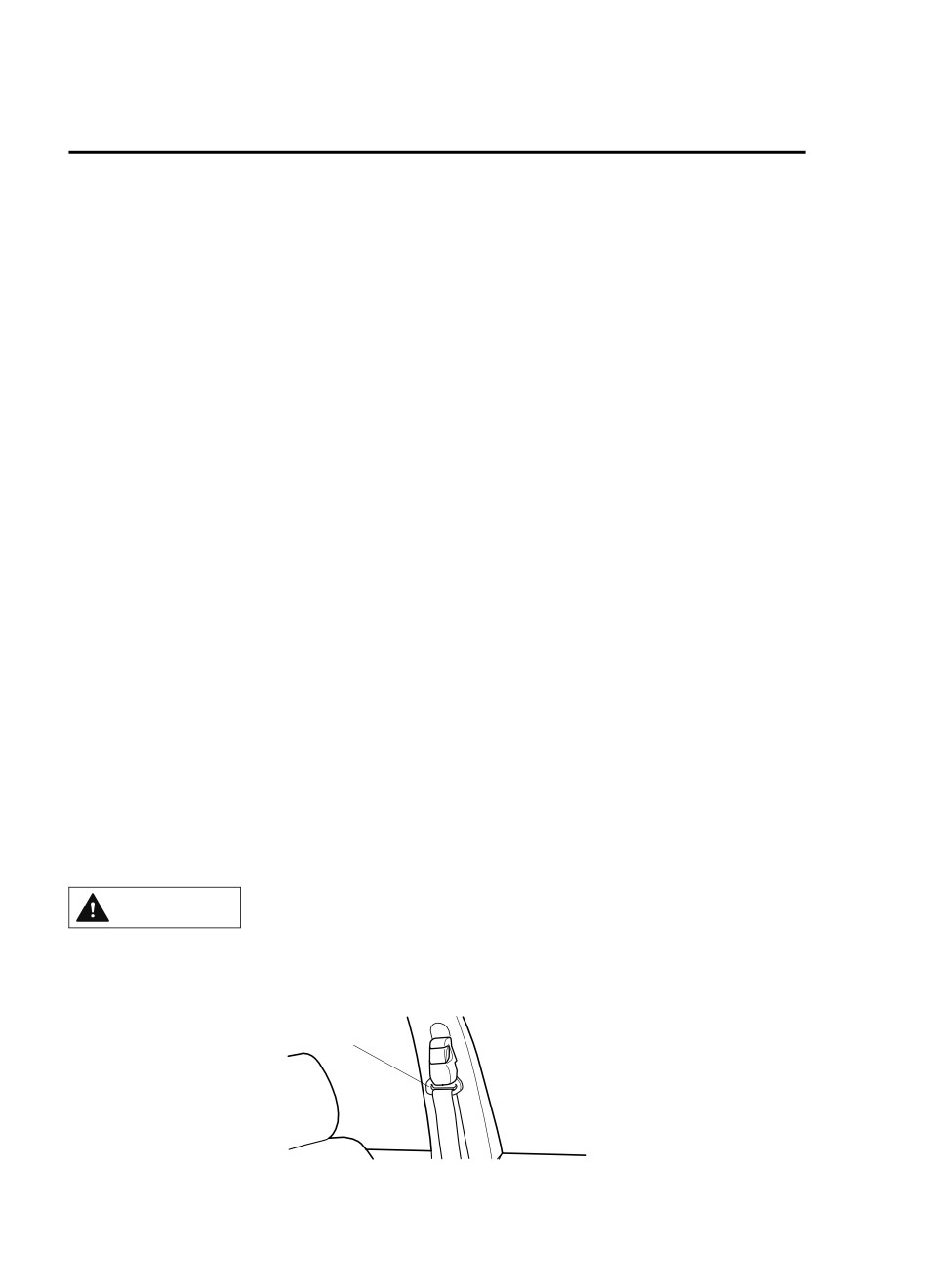

Belt retraction may become difficult if the belts and rings are soiled, so try to keep them clean.
For more details about cleaning the seat belts, refer to "Seat Belt Maintenance" (page 6-58).
Ring
2-36
Essential Safety Equipment
Seat Belt Systems

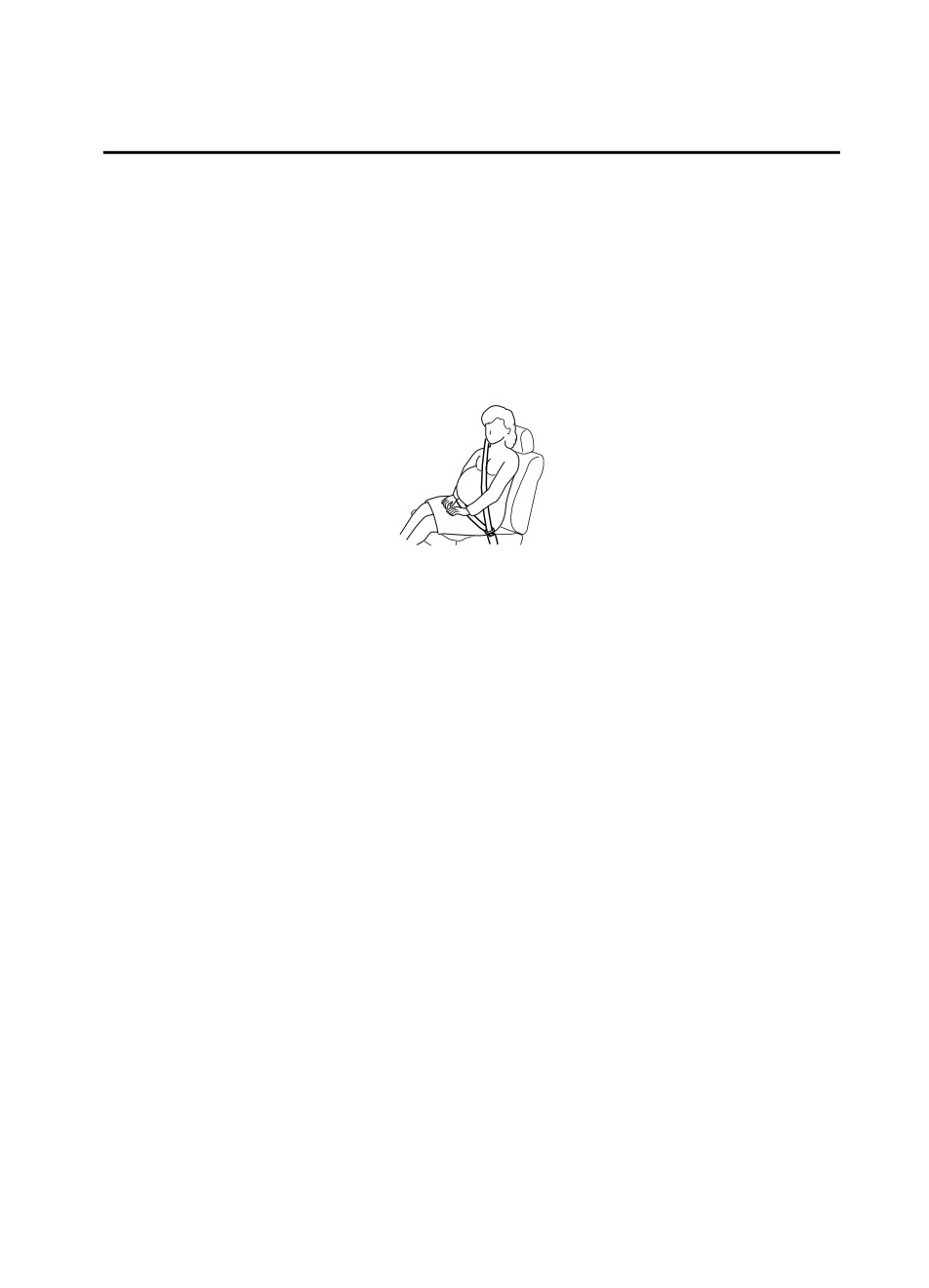

Pregnant Women and Persons with Serious Medical Conditions
Pregnant women should always wear seat belts. Ask your doctor for specific
recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your doctor
for any special instructions regarding specific medical conditions.
Emergency Locking Mode
When the seat belt is fastened, it will always be in the emergency locking mode.
In the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision.
If the belt is locked and cannot be pulled out, retract the belt once, and then try pulling it out
slowly. If this fails, pull the belt strongly 1 time and loosen, then pull it out again slowly.
(Seat Belt with Automatic Locking Mode)
When the seat belt is fastened, it will always be in the emergency locking mode until it is
switched to automatic locking mode by pulling it all the way out to its full length. If the belt
feels tight and hinders comfortable movement while the vehicle is stopped or in motion, it
may be in the automatic locking mode because the belt has been pulled too far out. To return
the belt to the more comfortable emergency locking mode, wait until the vehicle has stopped
in a safe, level area, retract the belt fully to convert it back to emergency locking mode and
then extend it around you again.
Automatic Locking Mode*
Always use the automatic locking mode to keep the child-restraint system from shifting to
an unsafe position in the event of an accident. To enable seat belt automatic locking mode,
pull it all the way out and connect it as instructed on the child-restraint system. It will retract
down to the child-restraint system and stay locked on it. See the section on child restraint
(page 2-44).
*Some models.
2-37
Essential Safety Equipment
Seat Belt Systems
and check for kinks or twists. Then make
Seat Belt
sure it remains untwisted as it retracts.

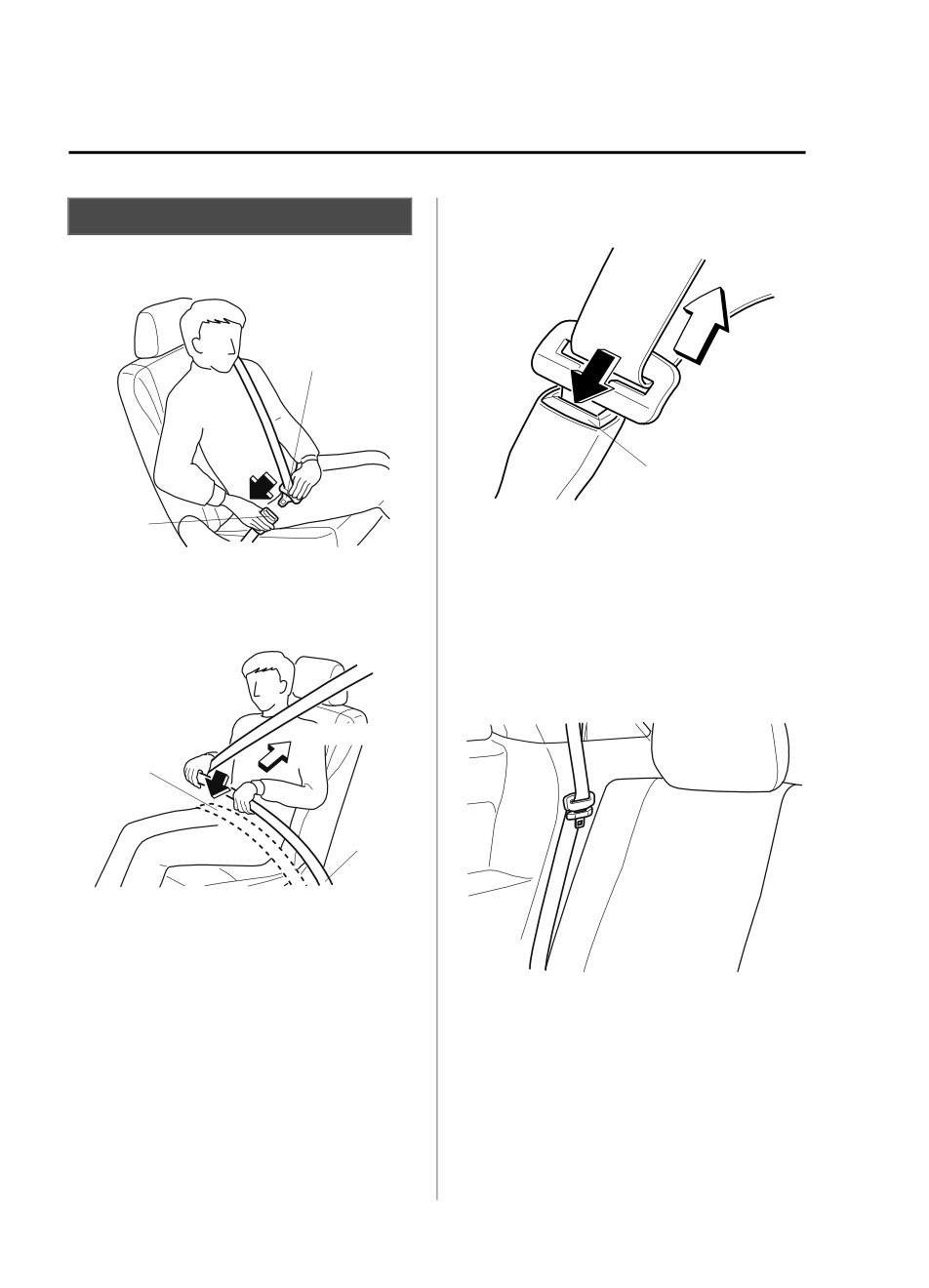

Fastening the Seat Belt
Seat belt tongue
Button
Seat belt
buckle
NOTE
If a belt does not fully retract, inspect it
Position the lap belt as low as possible, not
for kinks and twists. If it is still not
on the abdominal area, then adjust the
retracting properly, have it inspected at an
shoulder belt so that it fits snugly against
Authorized Mazda Dealer.
your body.
To secure the outboard-third row seat belts
when not in use, insert the belts into their
seat belt retainers.
Take up slack
Keep low on
hip bone
Too high
Unfastening the Seat Belt
Depress the button on the seat belt buckle.
If the belt does not fully retract, pull it out
2-38
Essential Safety Equipment
Seat Belt Systems

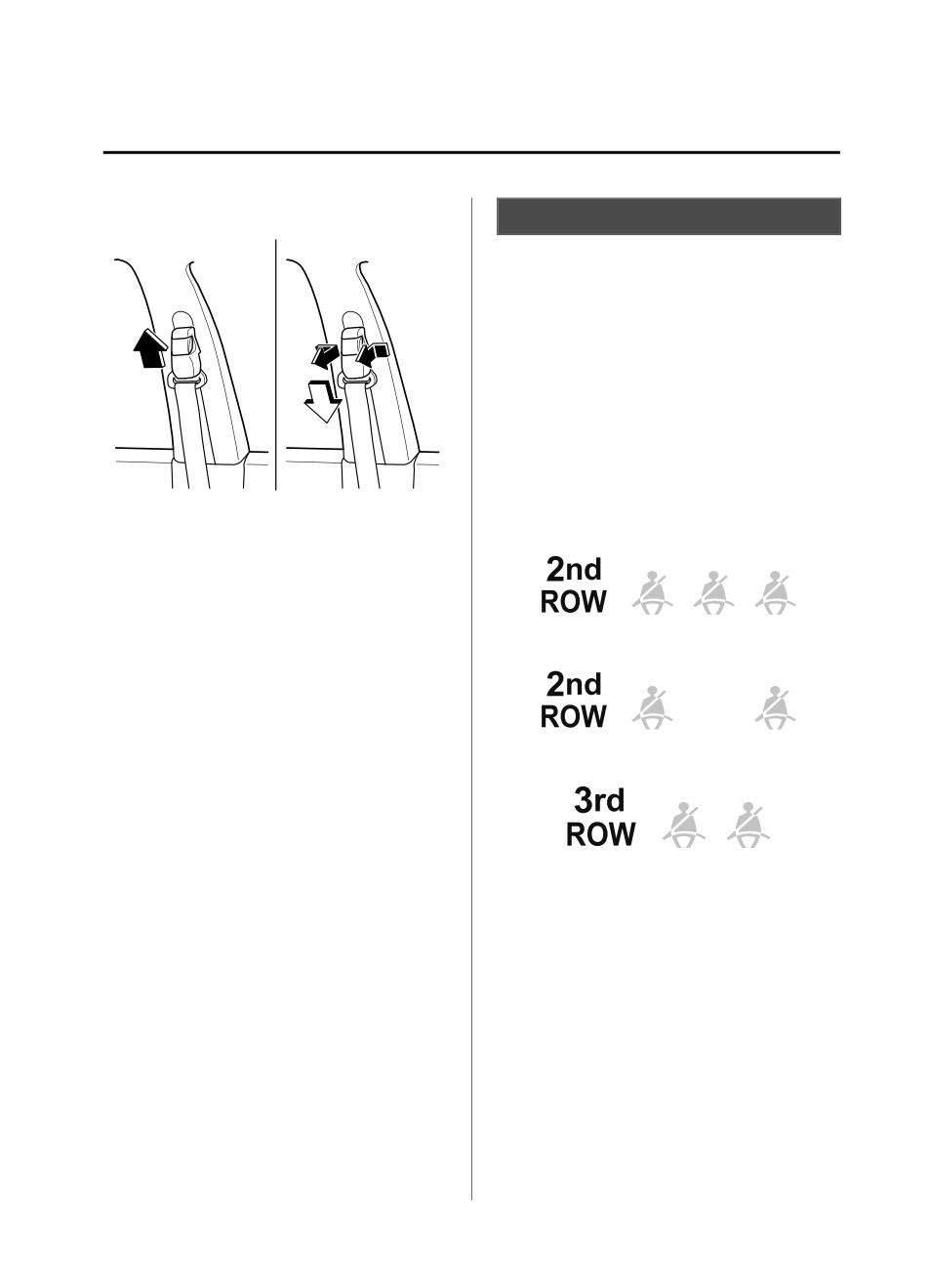

Front Shoulder Belt Adjuster
Seat Belt Warning Systems
To raise
To lower
If it detects that the occupant seat belt is
unfastened, the warning light or beep
alerts the occupant.
Refer to Taking Action on page 7-36.
Refer to Seat Belt Warning Beep on page
7-45.
Seat belt indicator light (second-row
seat/third-row seat) (green)
(Second-row seat)
Make sure the adjuster is locked.
6:4 Split Adjustable-type Bench Seat
Type
Captain Seat Type
(Third-row seat)
The light turns on when the ignition is
switched ON and a second-row seat belt/
third-row seat belt is fastened, and then it
turns off after about 30 seconds.
2-39
Essential Safety Equipment
Seat Belt Systems
classification sensor detects a passenger
Front Seat Belt
sitting on the front passenger's seat.
Pretensioner and Load
For details, refer to the front passenger
occupant classification sensor (page
Limiting Systems
2-85).
For optimum protection, the driver and
front passenger seat belts are equipped
Load limiter:
with pretensioner and load limiting
The load limiting system releases belt
systems. For both these systems to work
webbing in a controlled manner to reduce
properly you must wear the seat belt
belt force on the occupant's chest. While
properly.
the most severe load on a seat belt occurs
in frontal collisions, the load limiter has an
Pretensioners:
automatic mechanical function and can
When a collision is detected, the
activate in any accident mode with
pretensioners deploy simultaneously with
sufficient occupant movement.
the air bags.
Even if the pretensioners have not fired,
For vehicles with the front passenger
the load limiting function must be checked
occupant classification system, the
by an Authorized Mazda Dealer.
pretensioners deploy simultaneously with
the air bags when a roll-over is also
WARNING
detected.
For deployment details, refer to the SRS
Wear seat belts only as recommended in
Air Bag Deployment Criteria (page
this owner's manual:
2-82).
Incorrect positioning of the driver and front
The front seat belt retractors remove slack
passenger seat belts is dangerous. Without
quickly as the air bags are expanding. Any
proper positioning, the pretensioner and
time the air bags and seat belt
load limiting systems cannot provide
pretensioners have fired they must be
adequate protection in an accident and
replaced.
this could result in serious injury. For more
A system malfunction or operation
details about wearing seat belts, refer to
conditions are indicated by a warning.
"Fastening the seat belts" (page 2-38).
Refer to Taking Action on page 7-36.
Refer to Air Bag/Front Seat Belt
Pretensioner System Warning Beep on
page 7-45.
(With Front Passenger Occupant
Classification System)
In addition, the pretensioner system for the
front passenger, like the front and side
passenger air bag, is designed to only
deploy when the front passenger occupant
2-40
Essential Safety Equipment
Seat Belt Systems
Have your seat belts changed immediately
NOTE
if the pretensioner or load limiter has been
The pretensioner system may not
expended:
operate depending on the type of the
Always have an Authorized Mazda Dealer
collision. For details, refer to the SRS
immediately inspect the seat belt
Air Bag Deployment Criteria (page
pretensioners and air bags after any
2-82).
collision. Like the air bags, the seat belt
Some smoke (non-toxic gas) will be
pretensioners and load limiters will only
released when the air bags and
function once and must be replaced after
pretensioners deploy. This does not
any collision that caused them to deploy. A
indicate a fire. This gas normally has no
seat belt with an expended pretensioner or
effect on occupants, however, those with
load limiter is still better than wearing no
sensitive skin may experience light skin
seat belt at all; however, if the seat belt
irritation. If residue from the
pretensioners and load limiters are not
deployment of the air bags or the front
replaced, the risk of injury in a collision will
pretensioner system gets on the skin or
increase.
in the eyes, wash it off as soon as
possible.
Do not modify the components or wiring,
or use electronic testing devices on the
pretensioner system:
Modifying the components or wiring of the
pretensioner system, including the use of
electronic testing devices is dangerous. You
could accidentally activate it or make it
inoperable which would prevent it from
activating in an accident. The occupants or
repairers could be seriously injured.
Properly dispose of the pretensioner
system:
Improper disposal of the pretensioner
system or a vehicle with non-deactivated
pretensioners is dangerous. Unless all
safety procedures are followed, injury could
result. Have an Authorized Mazda Dealer
safely dispose of the pretensioner system or
scrap a pretensioner system equipped
vehicle.
2-41
Essential Safety Equipment
Seat Belt Systems
Using a seat belt extender that is for
Seat Belt Extender
another person or a different vehicle or seat
If your seat belt is not long enough, even
is dangerous. The seat belt will not provide
when fully extended, a seat belt extender
adequate protection and the user could be
may be available to you at no charge from
seriously injured in an accident. Only use
your Authorized Mazda Dealer.
the extender provided for you and for the
This extender will be only for you and for
particular vehicle and seat. NEVER use the
the particular vehicle and seat. Even if it
extender in a different vehicle or seat. If you
plugs into other seat belts, it may not hold
sell your Mazda, do not leave your seat belt
in the critical moment of a crash.
extender in the vehicle. It could be used
When ordering an extender, only order one
accidentally by the new owner of the
that provides the necessary additional
vehicle. After removing the seat belt
length to fasten the seat belt properly.
extender, discard it. Never use the seat belt
Please contact your Authorized Mazda
extender in any other vehicle you may own
Dealer for more information.
in the future.
WARNING
Do not use an extender that is too long:
Using an extender that is too long is
dangerous. The seat belt will not fit
Do not use a seat belt extender unless it is
properly. In an accident, the seat belt will
necessary:
not provide adequate protection and you
Using a seat belt extender when not
could be seriously injured. Do not use the
necessary is dangerous. The seat belt will
extender or choose one shorter in length if
be too long and not fit properly. In an
the distance between the extender's buckle
accident, the seat belt will not provide
and the center of the user's body is less
adequate protection and you could be
than 15 cm (6 in).
seriously injured. Only use the extender
when it is required to fasten the seat belt
properly.
Do not use an improper extender:
2-42
Essential Safety Equipment
Seat Belt Systems
Do not leave a seat belt extender
connected to the buckle:
Leaving a seat belt extender connected to
the buckle without using the seat belt is
dangerous. When the seat belt extender is
connected to the driver's seat belt buckle
(or front passenger's seat belt buckle), the
SRS driver's (or front passenger's) air bag
system will determine that the driver (or
front passenger) is wearing the seat belt
even if the driver (or front passenger) is not
wearing it. This condition could cause the
driver's (or front passenger's) air bag to not
activate correctly and result in death or
serious injury in the event of collision.
Always wear the seat belt with the seat belt
extender.
Do not use the seat belt extender when
installing a child-restraint system on the
front or rear passenger seat:
Using a seat belt extender to fasten a
child-restraint system on any seat is
dangerous. Always follow the
child-restraint system manufacturer's
installation instructions and never use a
seat belt extender.
NOTE
When not in use, remove the seat belt
extender and store it in the vehicle. If the
seat belt extender is left connected, the
seat belt extender might get damaged as it
will not retract with the rest of the seat belt
and can easily fall out of the door when
not in use and be damaged. In addition,
the seat belt warning light will not
illuminate and function properly.
2-43
Essential Safety Equipment
Child Restraint
Child-Restraint Precautions
Mazda strongly urges the use of child-restraint systems for children small enough to use
them.
You are required by law to use a child-restraint system for children in the U.S. and Canada.
Check your local and state or provincial laws for specific requirements regarding the safety
of children riding in your vehicle.
Whatever child-restraint system you consider, please pick the appropriate one for the age
and size of the child, obey the law and follow the instructions that come with the individual
child-restraint system.
A child who has outgrown child-restraint systems should sit in the rear and use seat belts,
both lap and shoulder. If the shoulder belt crosses the neck or face, move the child closer to
the center of the vehicle in the outboard seats, and towards the buckle on the right if the
child is seated on the center seat.
Statistics confirm that the rear seat is the best place for all children up to 12 years of age,
and more so with a supplemental restraint system (air bags).
A rear-facing child-restraint system should NEVER be used on the front seat with the air
bag system activated. The front passenger's seat is also the least preferred seat for other
child-restraint systems.
(With Front Passenger Occupant Classification System)
To reduce the chance of injuries caused by deployment of the front passenger air bag, the
front passenger occupant classification sensor works as a part of the supplemental restraint
system. This system deactivates the front passenger front and side air bags and also the front
passenger seat belt pretensioner system when the front passenger air bag deactivation
indicator light illuminates.
When an infant or small child sits on the front passenger seat, the system shuts off the front
passenger front and side air bags and seat belt pretensioner system, so make sure the front
passenger air bag deactivation indicator light illuminates.
Even if the front passenger air bag is shut off, Mazda strongly recommends that children be
properly restrained and child-restraint systems of all kinds are properly secured on the rear
seats which are the best place for children.
For more details, refer to "Front passenger occupant classification sensor" (page 2-85).
2-44
Essential Safety Equipment
Child Restraint
WARNING
Use the correct size child-restraint system:
For effective protection in vehicle accidents and sudden stops, a child must be properly
restrained using a seat belt or child-restraint system depending on age and size. If not, the
child could be seriously injured or even killed in an accident.
Follow the manufacturer's instructions and always keep the child-restraint system buckled
down:
An unsecured child-restraint system is dangerous. In a sudden stop or a collision it could move
causing serious injury or death to the child or other occupants. Make sure any child-restraint
system is properly secured in place according to the child-restraint system manufacturer's
instructions. When not in use, remove it from the vehicle or fasten it with a seat belt, or attach
it to BOTH ISOFIX/LATCH*1 lower anchors for ISOFIX/LATCH*1 child-restraint systems and the
corresponding tether anchor.
*1
ISOFIX (Mexico)/LATCH (Except Mexico)
Always secure a child in a proper child-restraint system:
Holding a child in your arms while the vehicle is moving is extremely dangerous. No matter
how strong the person may be, he or she cannot hold onto a child in a sudden stop or collision
and it could result in serious injury or death to the child or other occupants. Even in a
moderate accident, the child may be exposed to air bag forces that could result in serious
injury or death to the child, or the child may be slammed into an adult, causing injury to both
child and adult.

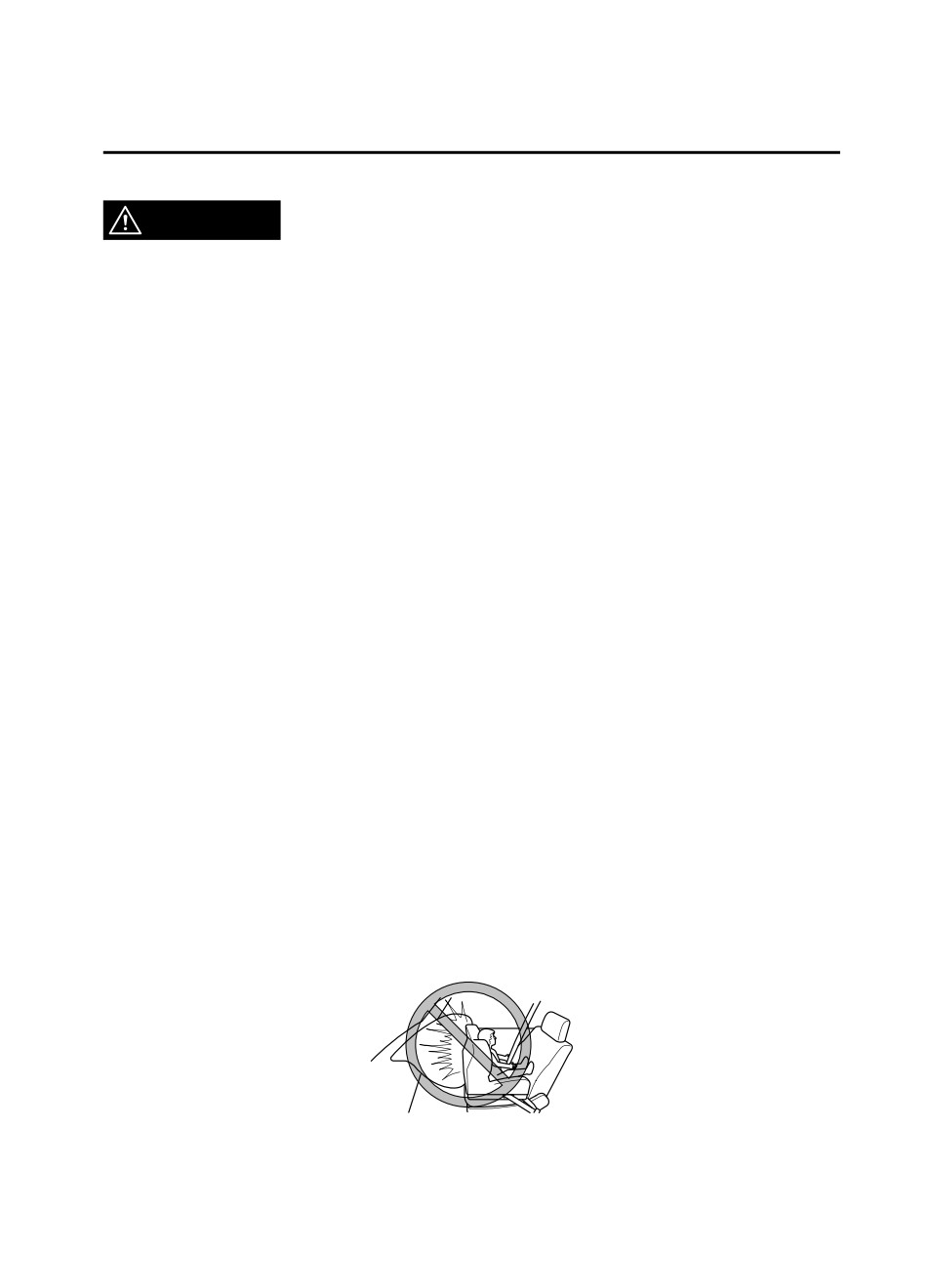

Never use a rear-facing child-restraint system in the front seat with an air bag that could
deploy:
Rear-facing child-restraint systems on the front seat are particularly dangerous even though
you may feel assured that a front passenger air bag will not deploy based on the fact that the
front passenger air bag deactivation indicator light illuminates. The child-restraint system
can be hit by a deploying air bag and moved violently backward resulting in serious injury or
death to the child.
(Except Mexico)
2-45
Essential Safety Equipment
Child Restraint

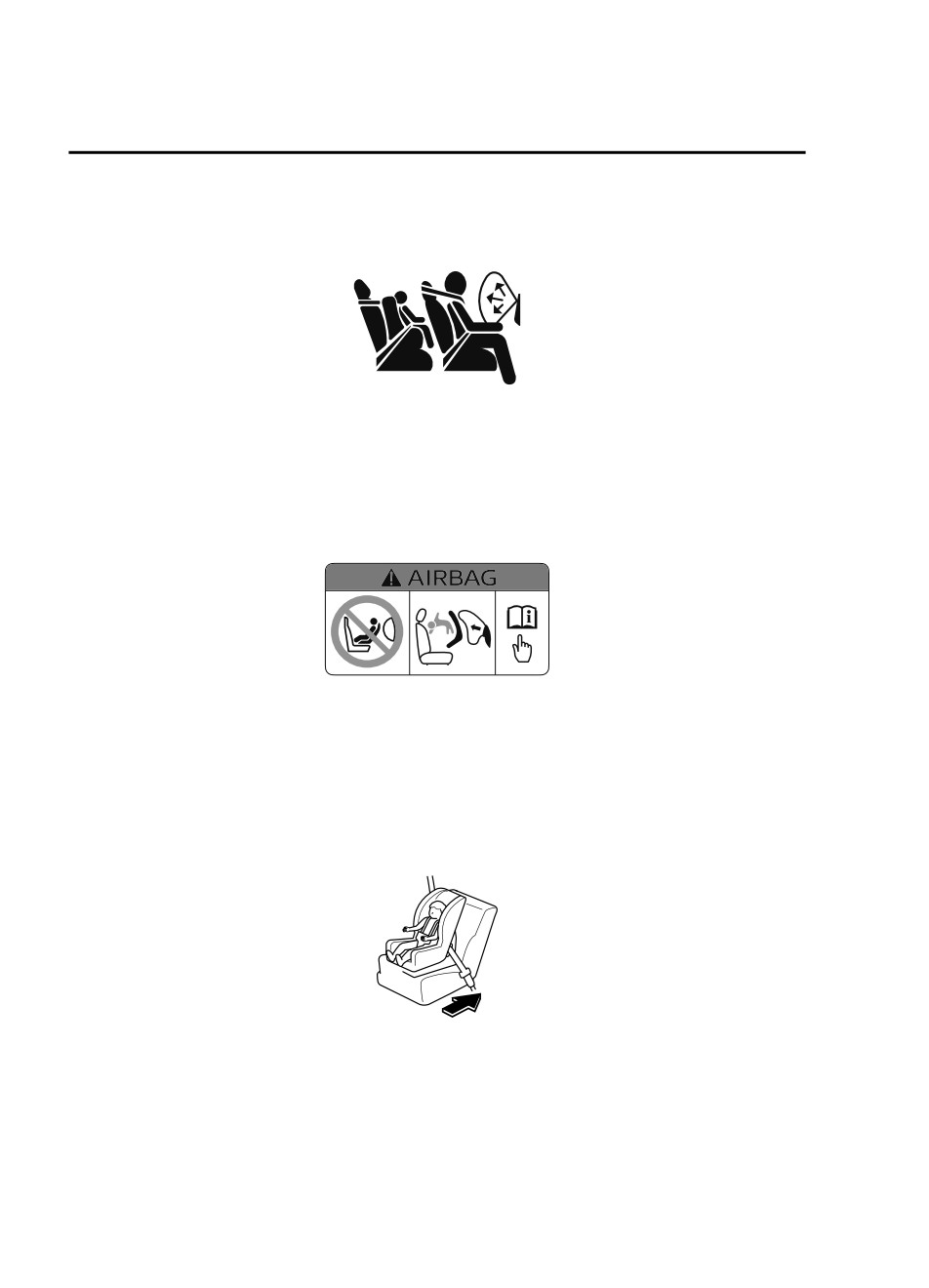

Vehicles with a front passenger air bag have the following warning label. The warning label
reminds you not to put a rear-facing child-restraint system on the front passenger seat at any
time.
(Mexico)
NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIRBAG in front
of it, DEATH or SERIOUS INJURY to the CHILD can occur.
Vehicles with a front passenger air bag have the following warning label. The warning label
reminds you not to put a rear-facing child-restraint system on the front passenger seat at any
time.
Do not install a front-facing child-restraint system on the front passenger seat unless it is
unavoidable:
In a collision, the force of a deploying air bag could cause serious injury or death to the child. If
installing a front-facing child-restraint system on the front passenger seat is unavoidable,
move the front passenger seat as far back as possible and adjust the seat bottom (height
adjustable seat bottom) to the highest position at which the seat belt fastening the
child-restraint system is securely tightened.
2-46
Essential Safety Equipment
Child Restraint
Seating a child in a child-restraint system on the front passenger seat is dangerous under
certain conditions (With Front Passenger Occupant Classification System):
Your vehicle is equipped with front passenger occupant classification sensor. Even with the
front passenger occupant classification sensor, if you must use the front passenger seat to
seat a child, using a child-restraint system on the front passenger seat under the following
conditions increases the danger of the front passenger air bag deploying and could result in
serious injury or death to the child.
¾ The front passenger air bag deactivation indicator light does not illuminate when seating a
child in the child-restraint system.
¾ Luggage or other items are placed on the seat with the child in the child-restraint system.
¾ A rear passenger or luggage pushing or pulling down on the front passenger seatback.
¾ Luggage or other items are placed on the seatback or hung on the head restraint.
¾ The seat is washed.
¾ Liquids are spilled on the seat.
¾ The front passenger seat is moved backward, pushing into luggage or other items placed
behind it.
¾ The front passenger seatback contacts the rear seat.
¾ Luggage or other items are placed between the front passenger seat and driver seat.
¾ An electric device is put on the front passenger's seat.
¾ An additional electrical device, such as a seat warmer is installed to the surface of the front
passenger seat.
The designated positions with seat belts on the rear seats are the safest places for children.
Always use seat belts and child restraints.
Do not allow a child or anyone to lean over to or against the side window of a vehicle with
side and curtain air bags:
It is dangerous to allow anyone to lean over to or against the side window, the area of the
front passenger seat, the front and rear window pillars and the roof edge along both sides
from which the side and curtain air bags deploy, even if a child-restraint system is used. The
impact of inflation from a side or curtain air bag could cause serious injury or death to an out
of position child. Furthermore, leaning over to or against the door could block the side and
curtain air bags and eliminate the advantages of supplemental protection. Because the front
seats are equipped with front air bags, the rear seat is always a better location for children.
Take special care not to allow a child to lean over to or against the side window, even if the
child is seated in a child-restraint system.
2-47
Essential Safety Equipment
Child Restraint
Never use one seat belt on more than one person at a time:
Using one seat belt for more than one person at a time is dangerous. A seat belt used in this
way cannot spread the impact forces properly and the two passengers could be crushed
together and seriously injured or even killed. Never use one belt for more than one person at a
time and always operate the vehicle with each occupant properly restrained.
CAUTION
A seat belt or child-restraint system can become very hot in a closed vehicle during warm
weather. To avoid burning yourself or a child, check them before you or your child touches
them.
NOTE
Your Mazda is equipped with ISOFIX/LATCH*1 lower anchors for attachment of specially
designed ISOFIX/LATCH*1 child-restraint systems on the second-row seats. When using
these anchors to secure a child-restraint system, refer to "(Mexico) Using ISOFIX Lower
Anchor (Second-Row Seats)/(Except Mexico) Using LATCH Lower Anchor (Second-Row
Seats)" (page 2-64).
*1
ISOFIX (Mexico)/LATCH (Except Mexico)
2-48
Essential Safety Equipment
Child Restraint
Child-Restraint System Installation
Categories of Child-Restraint Systems
NOTE
When purchasing, ask the manufacturer of the child-restraint system which type of
child-restraint system is appropriate for your child and vehicle.
(Mexico)
Child-restraint systems are classified into the following 5 groups according to the UN-R 44
regulation.
Size Classification/
Group
Age
Weight
Fixture (CRF)
ISO/L1
0
Up to about 9 months old
Up to 10 kg (up to 22 lb)
ISO/L2
ISO/R1
ISO/R1
0+
Up to about 2 years old
Up to 13 kg (up to 29 lb)
ISO/R2
ISO/R3
ISO/R2
ISO/R3
1
About 8 months to 4 years old
9 kg ― 18 kg (20 lb ― 40 lb)
ISO/F2
ISO/F2X
ISO/F3
2
About 3 to 7 years old
15 kg ― 25 kg (33 lb ― 55 lb)
3
About 6 to 12 years old
22 kg ― 36 kg (48 lb ― 79 lb)
(Except Mexico)
Please comply with the legal regulations concerning the use of child-restraint systems in
your country.

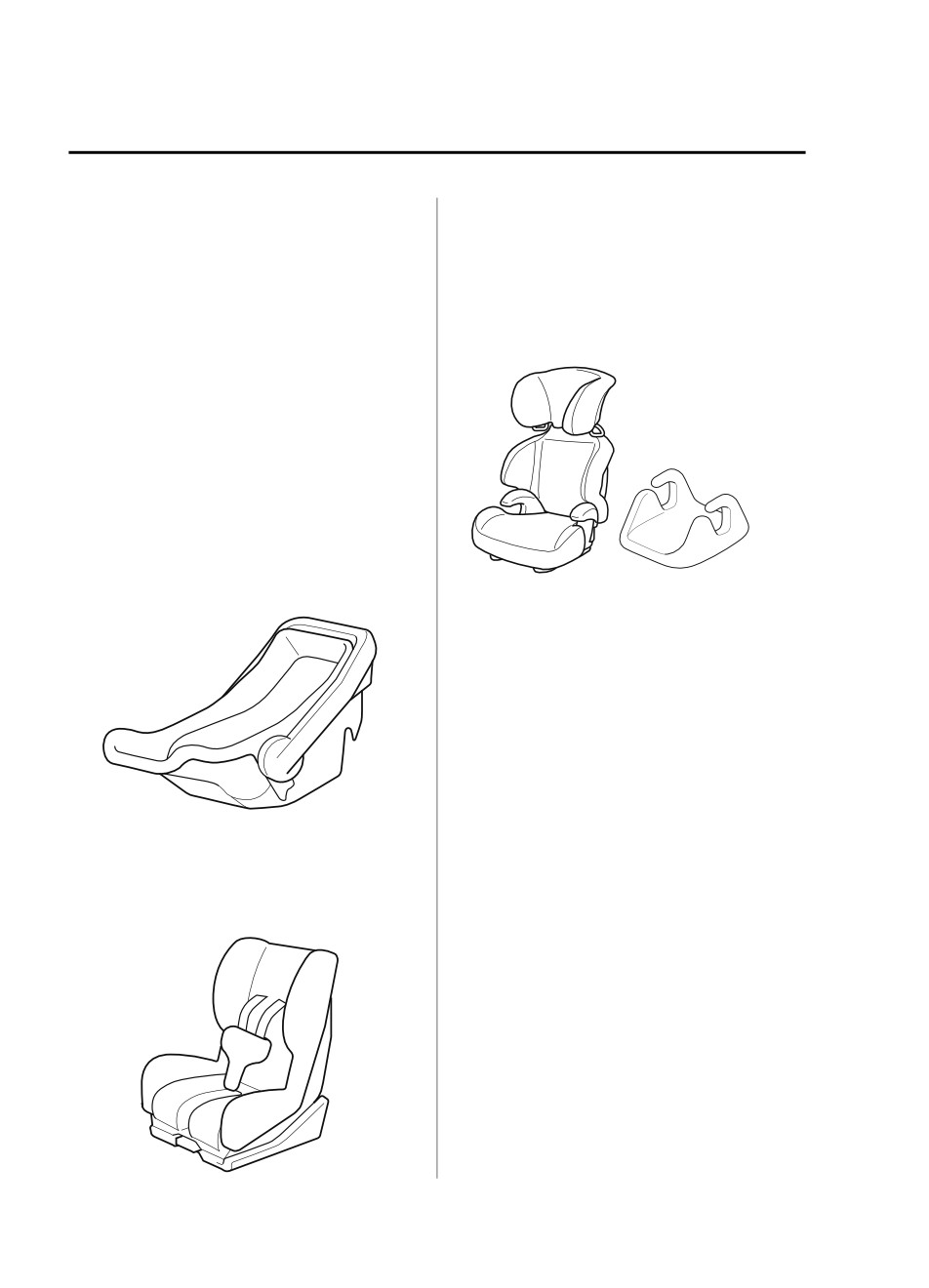

Child-Restraint System Types
NOTE
In this owner's manual, explanation of
Installation position is determined by
child-restraint systems is provided for the
the type of child-restraint system.
Always read the manufacturer's
following three types of popular
instructions and this owner's manual
child-restraint systems: infant seat, child
seat, booster seat.
carefully.
2-49
Essential Safety Equipment
Child Restraint
Due to variations in the design of
Booster seat
child-restraint systems, vehicle seats
A booster seat is a child restraint
and seat belts, all child-restraint systems
accessory designed to improve the fit of
may not fit all seating positions. Before
the seat belt system around the child's
purchasing a child-restraint system, it
body.
should be tested in the specific vehicle
Equal to Group 2 and 3 of the UN-R 44
seating position (or positions) where it
and UN-R 129 regulation.
is intended to be used. If a previously
purchased child-restraint system does
not fit, you may need to purchase a
*1
different one that will.
Backless booster seat
Infant seat
An infant seat provides restraint by
bracing the infant's head, neck and back
against the seating surface.
Equal to Group 0 and 0+ of the UN-R 44
*1
When using a backless booster seat, always
and UN-R 129 regulation.
install the vehicle head restraint to the seat
where the backless booster seat is installed.
Child seat
A child seat restrains a child's body using
the harness.
Equal to Group 1 of the UN-R 44 and
UN-R 129 regulation.
2-50
Essential Safety Equipment
Child Restraint
Child-Restraint System Suitability for Various Seat
Positions Table
(Mexico)
Provided information in the table shows your child-restraint system suitability for various
seating position. For installation suitability of other manufacturer child-restraint system,
carefully consult the manufacturer's instructions which accompany the child-restraint
system.
When installing a child-restraint system, the following points must be observed:
(Front passenger seat/Second-row seat)
Always remove the head restraint before installing a child-restraint system. However,
when installing a backless booster seat, always install the vehicle head restraint to the seat
where the backless booster seat is installed. In addition, always use a tether strap and
attach it securely. Refer to Head Restraints on page 2-28.
When installing a child-restraint system to the front passenger seat, adjust the seat slide
position as far back as possible. Adjust the seat bottom (height adjustable seat bottom) to
the highest position so that the seat belt can securely fasten the child-restraint system.
Refer to Adjusting the Front Passenger's Seat on page 2-13.
When it is difficult to install a child-restraint system to the front passenger seat/
second-row seat, or the seat belt cannot be secured to the child-restraint system, perform
the following operations to adjust the seat holding the child-restraint system so that the
seat belt can be secured completely to it.
Move the seat forward or back.
Move the seatback forward or back.
Move the seat upward or downward. (Vehicles with height adjustment function)
(Second-row seat)
When installing a child-restraint system came equipped with a tether, remove the head
restraint.
Refer to Head Restraints on page 2-28.
When installing a child-restraint system using the ISOFIX lower anchors, if the
connectors of the child-restraint system do not reach the lower anchorage and the
child-restraint system cannot be installed, slightly tilt the seatback of the seat holding the
child-restraint system rearward. If the seatback of a second-row seat cannot be reclined
due to interference with luggage on the rear seat or passengers, slide the seat forward once
and then recline the seatback.
(Second-row seat/Third-row seat)
If the tether strap does not reach the anchor bracket, use an extension strap.
2-51
Essential Safety Equipment
Child Restraint
When installing a child-restraint system to the second-row seat or third-row seat, adjust
the seat position of the front seat so that the child-restraint system does not contact the
front seat.
Refer to Adjusting the Driver's Seat on page 2-5.
Refer to Adjusting the Front Passenger's Seat on page 2-13.
Refer to Seat Operation on page 2-15.
When installing a child-restraint system to the rear seat, refer to the child-restraint system
manufacturer's instructions and the Using ISOFIX Lower Anchor on page 2-64.
An i-Size child-restraint system refers to a child-restraint system which has acquired
i-Size category certification for the UN-R 129 regulation.
Seating posi-
Second-row
Second-row
Second-row
Third-row
Third-row
Passenger
tion
seat (Left)
seat (Center)
seat (Right)
seat (Left)
seat (Right)
Seating posi-
tion suitable
for universal
No
Yes (U)
Yes (U)
Yes (U)
Yes (U)
Yes (U)
belted
(Yes/No)
i-Size seating
position
No
No
No
No
No
No
(Yes/No)
Largest suita-
ble rearward
No
Yes (IL)
No
Yes (IL)
No
No
facing fixture
(R1)
Largest suita-
ble rearward
No
Yes (IL)
No
Yes (IL)
No
No
facing fixture
(R2)
Largest suita-
ble rearward
No
Yes (IL)
No
Yes (IL)
No
No
facing fixture
(R2X)
Largest suita-
ble rearward
No
Yes (IL)
No
Yes (IL)
No
No
facing fixture
(R3)
Largest suita-
ble forward
No
Yes (IUF)
No
Yes (IUF)
No
No
facing fixture
(F2)
2-52
Essential Safety Equipment
Child Restraint
Seating posi-
Second-row
Second-row
Second-row
Third-row
Third-row
Passenger
tion
seat (Left)
seat (Center)
seat (Right)
seat (Left)
seat (Right)
Largest suita-
ble forward
No
Yes (IUF)
No
Yes (IUF)
No
No
facing fixture
(F2X)
Largest suita-
ble forward
No
Yes (IUF)
No
Yes (IUF)
No
No
facing fixture
(F3)
Largest suita-
ble lateral fac-
No
No
No
No
No
No
ing fixture
(L1)
Largest suita-
ble lateral fac-
No
No
No
No
No
No
ing fixture
(L2)
Largest suita-
ble booster
No
Yes (IUF)
No
Yes (IUF)
No
No
fixture
(B2)
Largest suita-
ble booster
No
Yes (IUF)
No
Yes (IUF)
No
No
fixture
(B3)
Non i-size
compatible
Yes*1
Yes
No
Yes
Yes
Yes
with a support
leg (Yes/No)
Lower ISO-
FIX anchorag-
es but without
No
No
No
No
No
No
Top Tether
(Yes/No)
U = Suitable for “universal” category restraints approved for use in this mass group.
UF = Suitable for forward-facing “universal” category restraints approved for use in this mass group.
IUF = Suitable for ISOFIX forward child restraints systems of universal category approved for use in the mass
group.
L = Suitable for particular child restraints given on attached list. These restraints may be of the “specific vehicle”,
“restricted” or “semi-universal” categories.
IL = Suitable for particular ISOFIX child restraint systems (CRS) given in the attached list. These ISOFIX CRS are
those of the “specific vehicle”, “restricted” or “semi-universal” categories.
i-U = Suitable for i-Size “universal” Child Restraint Systems forward and rearward facing.
i-UF = Suitable for forward-facing i-Size “universal” Child Restraint Systems only.
Yes = Child-restraint system can be secured on the seat.
No = Child-restraint system cannot be secured on the seat, or there is no fixture.
2-53
Essential Safety Equipment
Child Restraint
X = Child-restraint system cannot be installed.
*1
Child restraint system can only be installed in the forward-facing position.
A Mazda genuine child-restraint system can be installed. Regarding child-restraint systems which can be installed,
refer to the accessories catalog.
(Except Mexico)
Regarding child-restraint systems which can be installed to your Mazda, consult an Authorized Mazda Dealer.
A child-restraint system with a support leg cannot be installed on the rear center seat position.
For the CRS which do not carry the ISO/XX size class identification (A to G), for the applicable mass group, the
child seat manufacturer shall indicate the vehicle specific LATCH child-restraint systems recommended for each
position.
2-54
Essential Safety Equipment
Child Restraint
Installation of a tether equipped
Installing Child-Restraint
child-restraint system in the front
Systems
passenger's seat defeats the safety design
of the system and will result in an increased
Accident statistics reveal that a child is
chance of serious injury if the
safer in the rear seat. The front passenger's
child-restraint system goes forward
seat is clearly the worst choice for any
without benefit of being tethered.
child under 12, and with rear-facing
Place tether equipped child-restraint
child-restraint systems it is clearly unsafe
systems where there are tether anchors.
due to air bags.
Anchor Bracket
NOTE
Anchor brackets for securing
Even if your vehicle is equipped with front
child-restraint systems are equipped in the
passenger occupant classification sensor
vehicle. Locate each anchor position using
(page 2-85), which automatically
the illustration.
deactivates the front passenger air bag, a
To install a child-restraint system, remove
rear seat is the safest place for a child of
the head restraint (except third-row seat).
any age or size.
Some child-restraint systems now come
with tethers and therefore must be
installed on the seats that take tethers to be
effective. In your Mazda, tethered
child-restraint systems can only be
accommodated in the four positions on the
rear seat.
Some child-restraint systems also employ
specially designed ISOFIX/LATCH*1
attachments; refer to " (Mexico) Using
ISOFIX Lower Anchor (Second-Row
Seats)/(Except Mexico) Using LATCH
Lower Anchor (Second-Row Seats)" (page
2-64).
*1
ISOFIX (Mexico)/LATCH (Except
Mexico)
WARNING
Tethered Child-Restraint Systems Work
Only on Tether-Equipped Rear Seats:
2-55
Essential Safety Equipment
Child Restraint
Always follow the instruction manual
Always remove the head restraint and
accompanying the child-restraint system.
install child-restraint system (Second-row
seat):

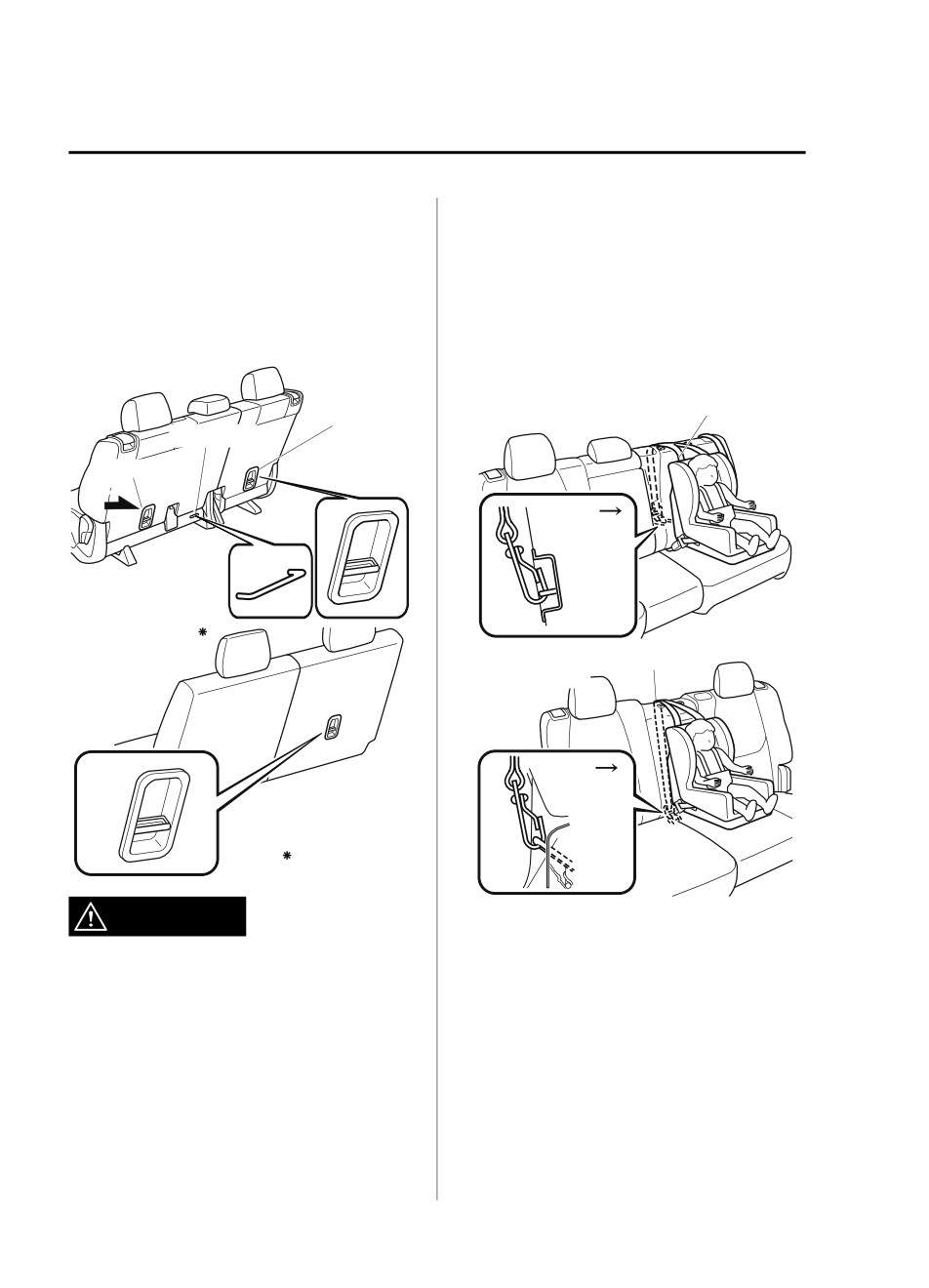

Anchor bracket location
Installing a child-restraint system without
Use the indicated anchor bracket locations
removing the head restraint is dangerous.
when installing a child-restraint system
The child-restraint system cannot be
equipped with a tether.
installed correctly which may result in
Second-row seat
death or injury to the child in a collision.
Second-row
Tether strap
For right
outboard seat
For center
For left
Forward
* Except Mexico
Third-row seat
Second-row
Tether strap
center seat
Forward
Some models.
WARNING
Always install the head restraint and adjust
it to the appropriate position after
Always attach the tether strap to the
removing the child-restraint system
correct tether anchor position:
(Second-row seat):
Attaching the tether strap to the incorrect
Driving with the head restraint removed is
tether anchor position is dangerous. In a
dangerous as impact to the occupant's
collision, the tether strap could come off
head cannot be prevented during
and loosen the child-restraint system. If the
emergency braking or in a collision, which
child-restraint system moves it could result
could result in a serious accident, injury or
in death or injury to the child.
death.
Refer to Head Restraints on page 2-28.
2-56
Essential Safety Equipment
Child Restraint

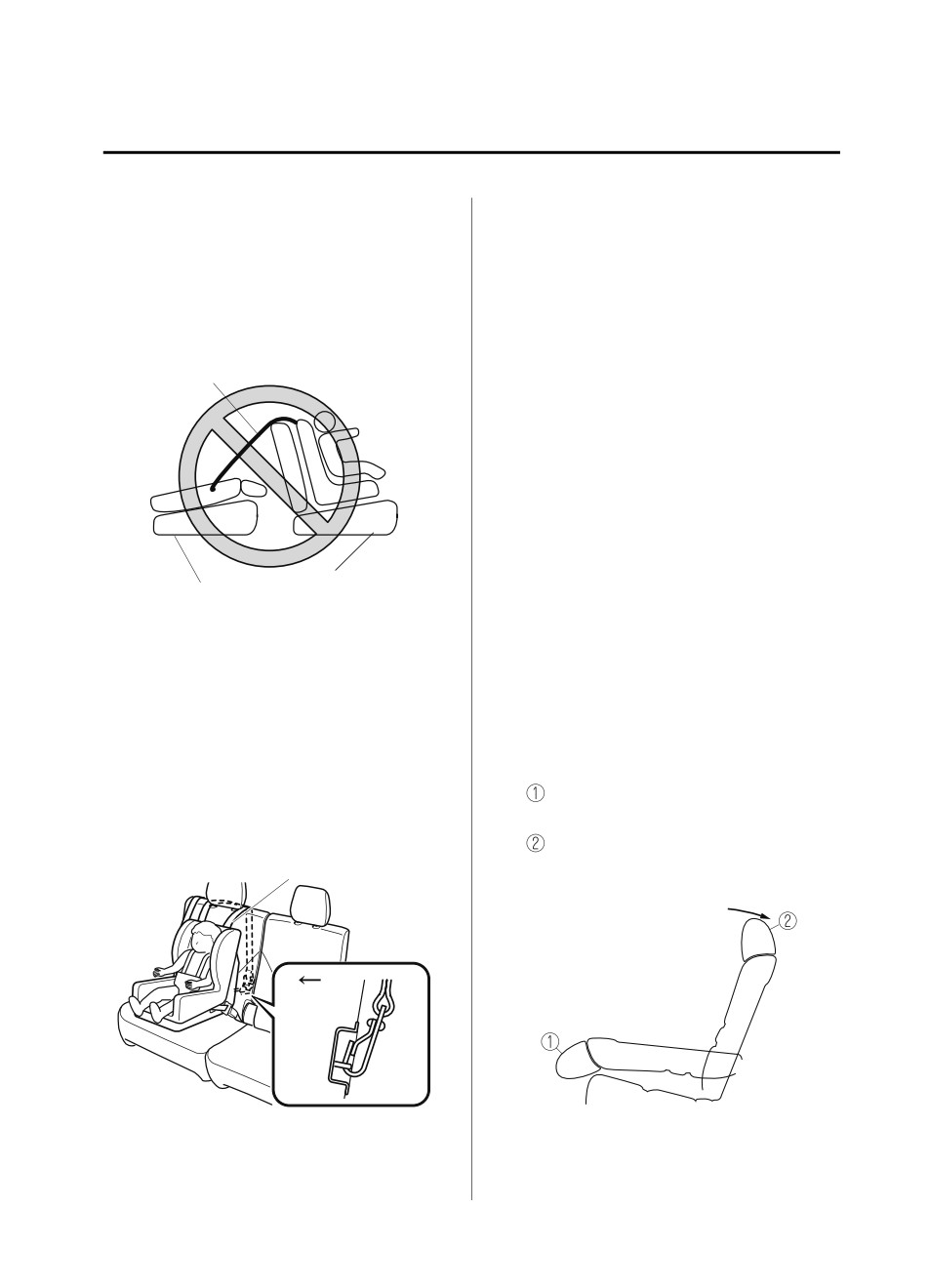

Only use a tether anchor designed for the

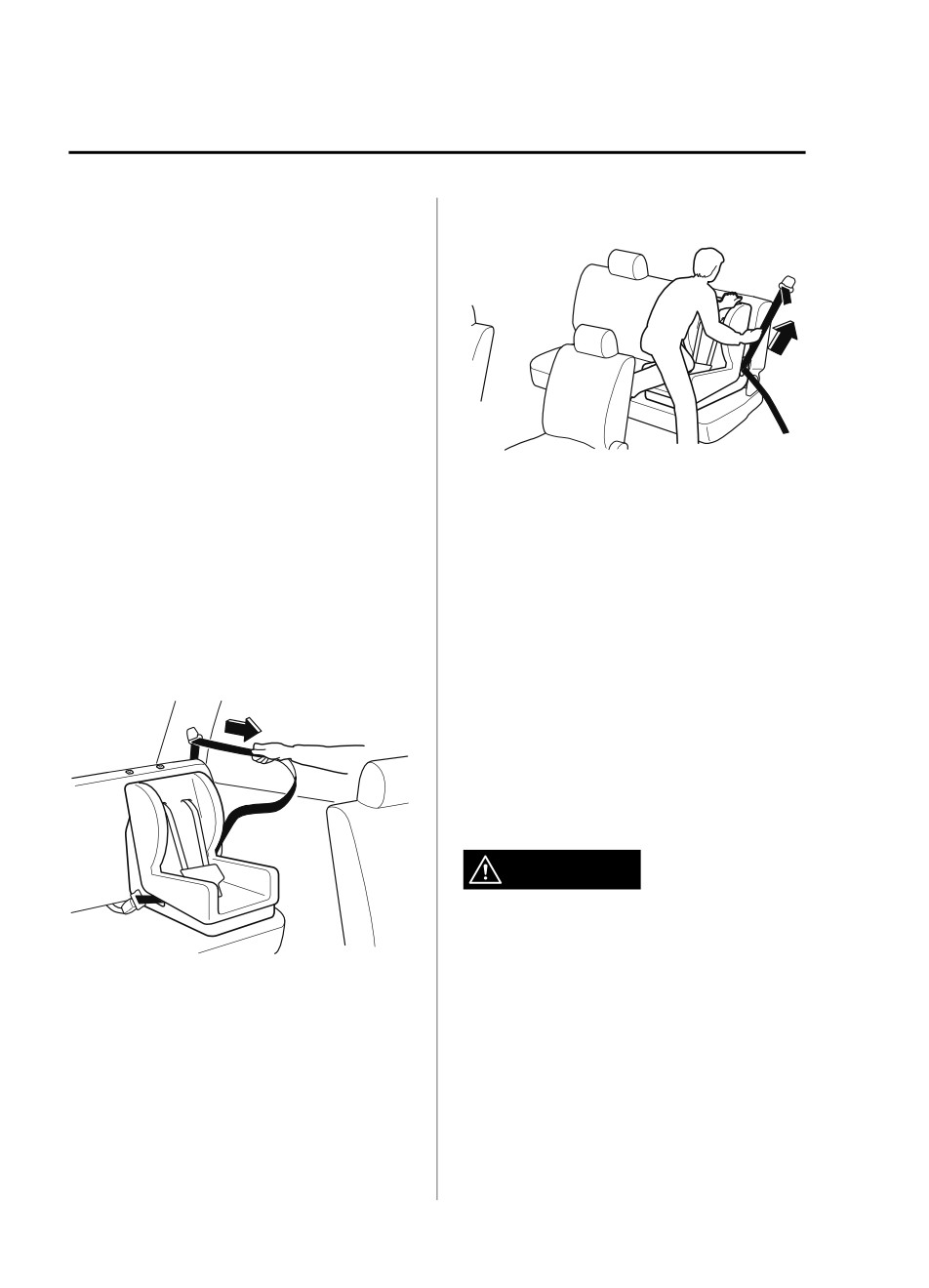

Using Automatic Locking Mode
second-row seats:
(Except Mexico)
Using a third-row seat tether anchor on the
Follow these instructions when using a
second-row seat is dangerous. The
child-restraint system, unless you are
child-restraint system cannot be installed
attaching a LATCH-equipped
correctly which may result in death or
child-restraint system to the rear LATCH
injury to the child in a collision.
lower anchors. Refer to “Using LATCH
Tether strap
Lower Anchor” (page 2-64).
NOTE
Follow the child-restraint system
manufacturer's instructions carefully. If
you are not sure whether you have a
LATCH system or tether, check in the
child-restraint system manufacturer's
instructions and follow them accordingly.
Second-row
Third-row seat
Depending on the type of child-restraint
outboard/center
system, it may use LATCH system instead
of seat belts or if the belt goes across the
Always route the tether straps to the sides
child's chest, may recommend against
of the head restraint (Third-row seat):
using automatic locking mode.
Routing the tether straps on top of the
head restraint is dangerous. In a collision
1.
(Second-row seat)
the tether straps could slide off the head
Adjust the second-row seat position
restraint and loosen the child-restraint
using the following procedure.
system. The child-restraint system could
Fold the second-row seatback
move which may result in death or injury to
forward.
the child.
Raise the second-row seatback until
Third-row seat
Tether strap
a click sound is heard and it is locked
in place.
Forward
2. Adjust the angle of the second-row
seatback so that there is no gap
2-57
Essential Safety Equipment
Child Restraint
between the child-restraint system and
belt does not lock the seat down tight,
the second-row seatback.
repeat this step.
3.
Make sure the seatback is securely
latched by pushing it back until it is
fully locked.
4.
(Second-row seat)
Remove the head restraint. However,
when installing a backless booster seat,
always install the vehicle head restraint
to the seat where the backless booster
seat is installed.
Refer to Head Restraints on page 2-28.
NOTE
5.
Secure the child-restraint system with
Inspect this function before each use
the lap portion of the lap/shoulder belt.
of the child-restraint system. You
See the manufacturer's instructions on
should not be able to pull the
the child-restraint system for belt
shoulder belt out of the retractor
routing instructions.
while the system is in the automatic
6.
To get the retractor into the automatic
locking mode. When you remove the
locking mode, pull the shoulder belt
child-restraint system, be sure the
portion of the seat belt until the entire
belt fully retracts to return the
length of the belt is out of the retractor.
system to emergency locking mode
before occupants use the seat belts.
8.
If your child-restraint system requires
the use of a tether strap, refer to the
manufacturer's instructions to hook
and tighten the tether strap.
WARNING
Use the tether and tether anchor only for a
7. Push the child-restraint system firmly
child-restraint system:
into the vehicle seat. Be sure the belt
Using the tether or tether anchor to secure
retracts as snugly as possible. A
anything but a child-restraint system is
clicking noise from the retractor will
dangerous. This could weaken or damage
be heard during retraction if the system
the tether or tether anchor and result in
is in the automatic locking mode. If the
injury.
2-58















Content      ..      1      2      3      ..
