NOTE



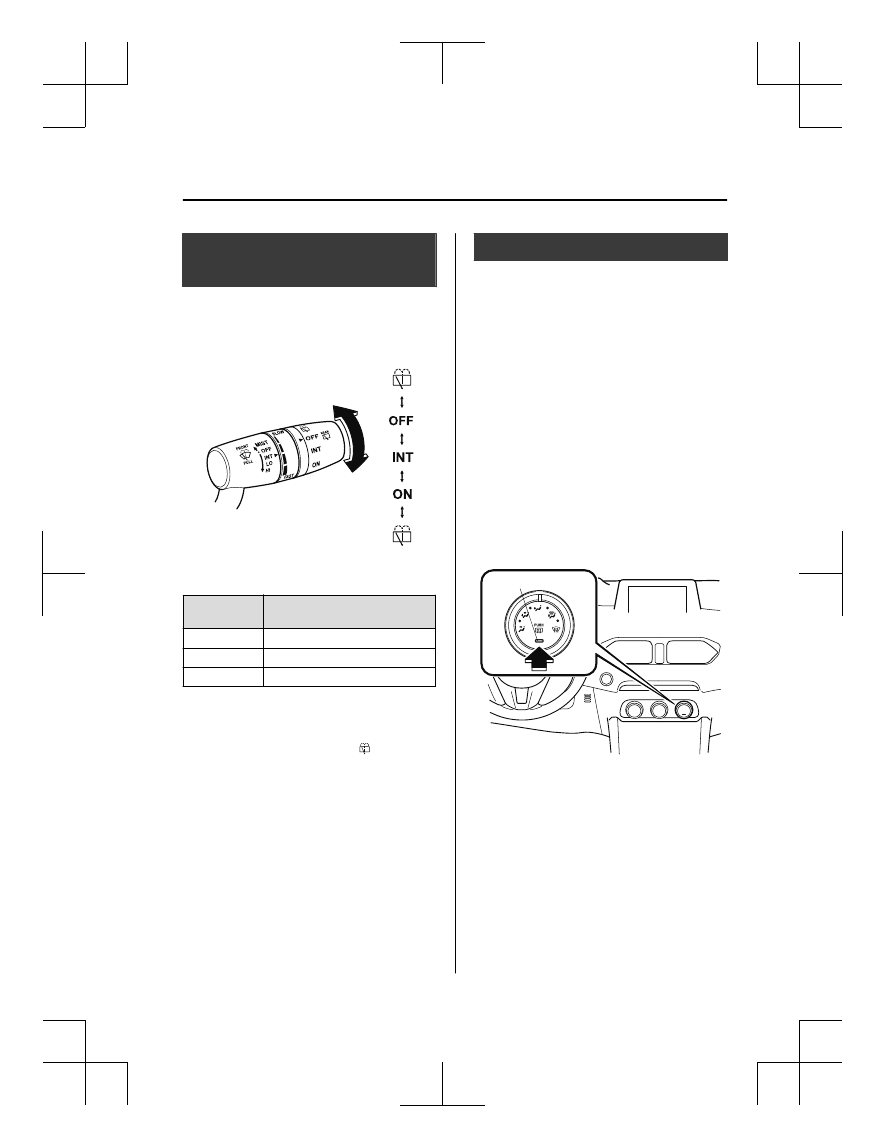

Switching the auto-wiper lever from the
OFF to the AUTO position while driving
activates the windshield wipers once,
after which they operate according to
the rainfall amount.



The auto-wiper control may not operate
when the rain sensor temperature is
about

－

10 °C (14 °F) or lower, or

about 85 °C (185 °F) or higher.



If the windshield is coated with water
repellent, the rain sensor may not be
able to sense the amount of rainfall
correctly and the auto-wiper control
may not operate properly.



If dirt or foreign matter (such as ice or
matter containing salt water) adheres to
the windshield above the rain sensor, or
if the windshield is iced, it could cause
the wipers to move automatically.
However, if the wipers cannot remove
this ice, dirt or foreign matter, the
auto-wiper control will stop operation.
In this case, set the wiper lever to the
low speed position or high speed
position for manual operation, or
remove the ice, dirt or foreign matter by
hand to restore the auto-wiper
operation.



If the auto-wiper lever is left in the
AUTO position, the wipers could
operate automatically from the effect of
strong light sources, electromagnetic
waves, or infrared light because the rain
sensor uses an optical sensor. It is
recommended that the auto-wiper lever
be switched to the OFF position other
than when driving the vehicle under
rainy conditions.



(With auto-wiper control (Except
Canada))

If the headlight switch and the
windshield wiper switch are in AUTO,
and the wipers are operated at low or
high speed by the auto wiper control for
several seconds, bad weather conditions
are determined and the headlights may
be turned on.



The auto-wiper control functions can be
turned off. Refer to the Settings section
in the Mazda Connect Owner's Manual.

▼

Windshield Washer

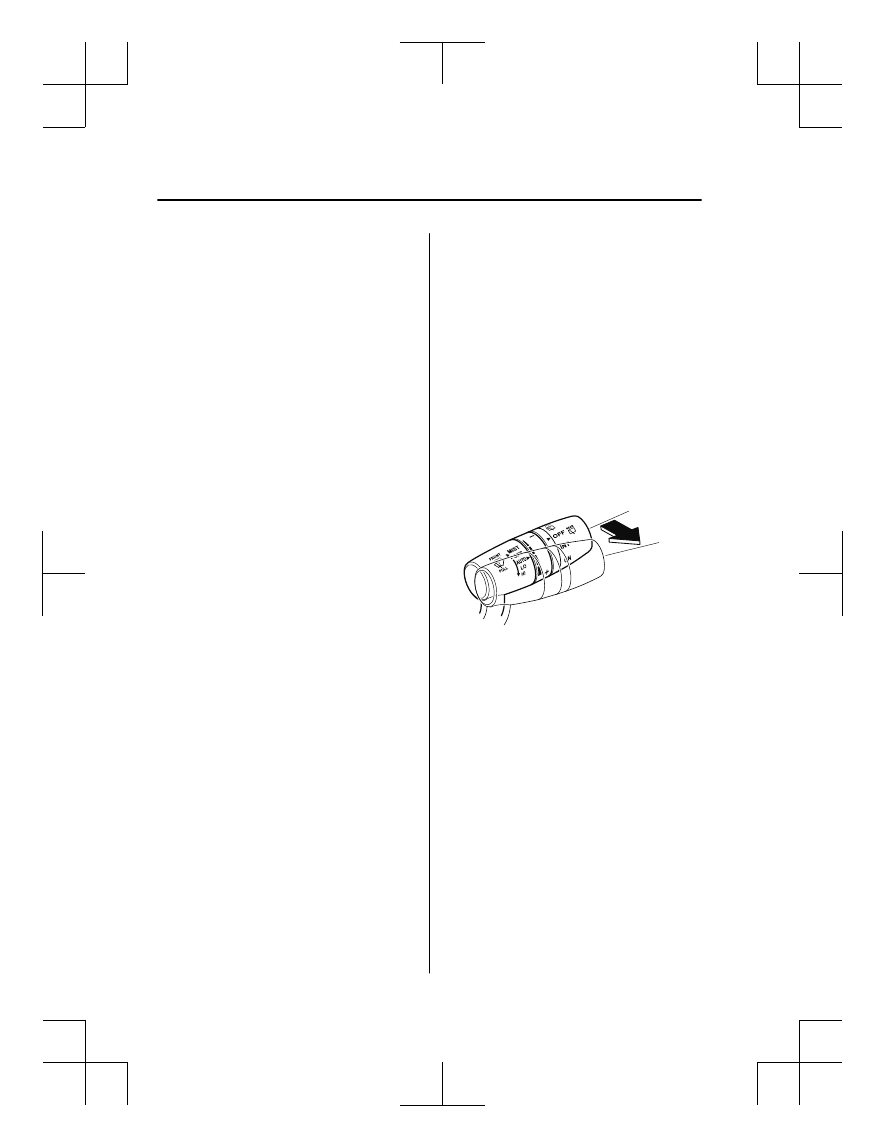

Pull the lever toward you and hold it to
spray washer fluid.

Washer

OFF

NOTE

If the windshield washer is turned on when
the windshield wipers are not operating,
the windshield wipers operate a few times.

If the washer does not work, inspect the
fluid level (page 6-24). If the fluid level
is normal, consult an Authorized Mazda
Dealer.

When Driving

Switches and Controls

4-82

Rear Window Wiper and

Washer

The ignition must be switched ON to use
the wiper.

▼

Rear Window Wiper

Turn the wiper on by turning the rear
wiper/washer switch.

Switch Posi

‐

tion

Wiper operation

OFF

Stop

INT

Intermittent

Normal

▼

Rear Window Washer

To spray washer fluid, turn the rear wiper/
washer switch to either of the position.
After the switch is released, the washer
will stop.
If the washer does not work, inspect the
fluid level (page 6-24). If the fluid level
is normal and the washer still does not
work, consult an Authorized Mazda
Dealer.

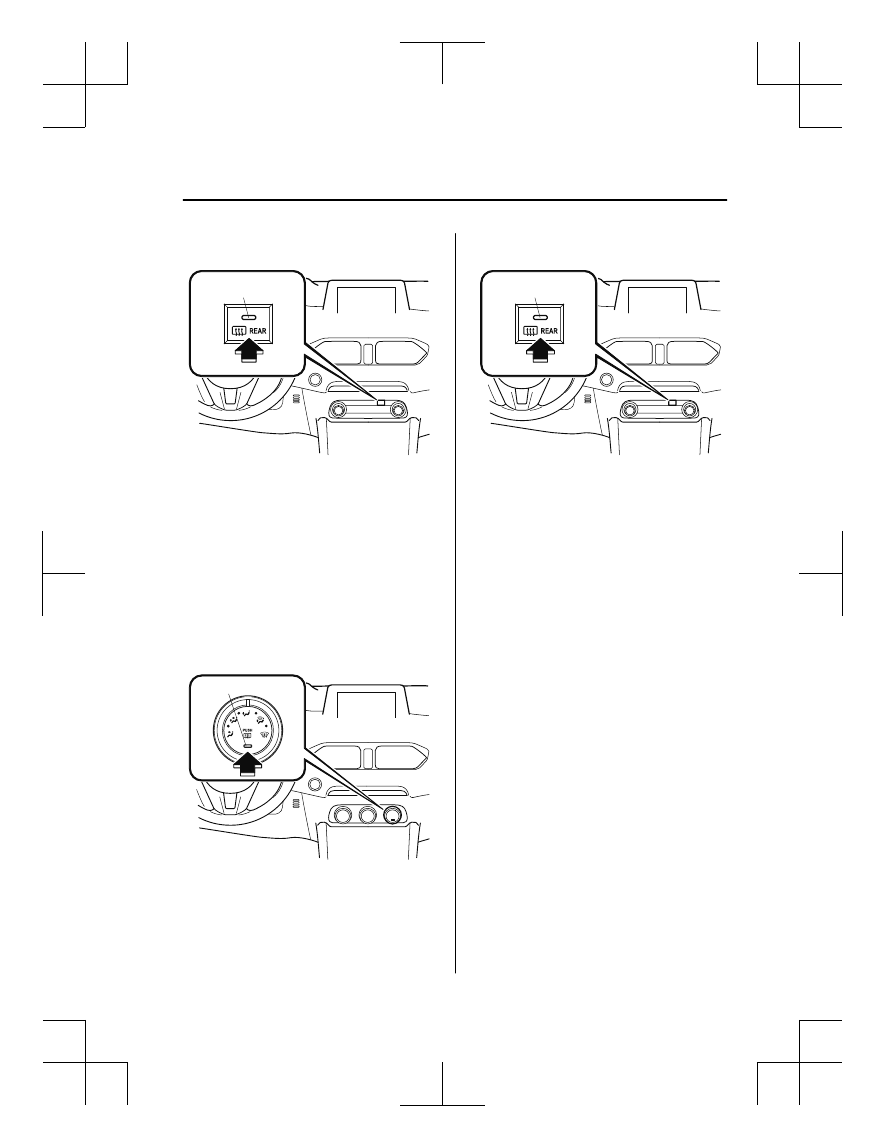

Rear Window Defogger

The rear window defogger clears fog from
the rear window.

The ignition must be switched ON to use
the defogger.

Press the switch to turn on the rear
window defogger. The rear window
defogger operates for about 15 minutes
and then turns off automatically.
The indicator light illuminates when the
defogger is operating.

To turn off the rear window defogger
before the 15 minutes has elapsed, press
the switch again.

Manual Climate Control System

Indicator light

When Driving

Switches and Controls

4-83

Fully Automatic Climate Control
System

Indicator light

CAUTION



Do not use sharp instruments or window
cleaners with abrasives to clean the
inside of the rear window surface. They
may damage the defogger grid inside the
window.

NOTE



This defogger is not designed for
melting snow. If there is an
accumulation of snow on the rear
window, remove it before using the
defogger.



The rear window defogger setting can
be changed. After changing the setting,
the rear window defogger stops
automatically after 15 minutes have
elapsed and when the ambient
temperature is high. When the ambient
temperature is low, it continues to
operate until the switch is pressed
again.
Refer to the Settings section in the
Mazda Connect Owner's Manual.

▼

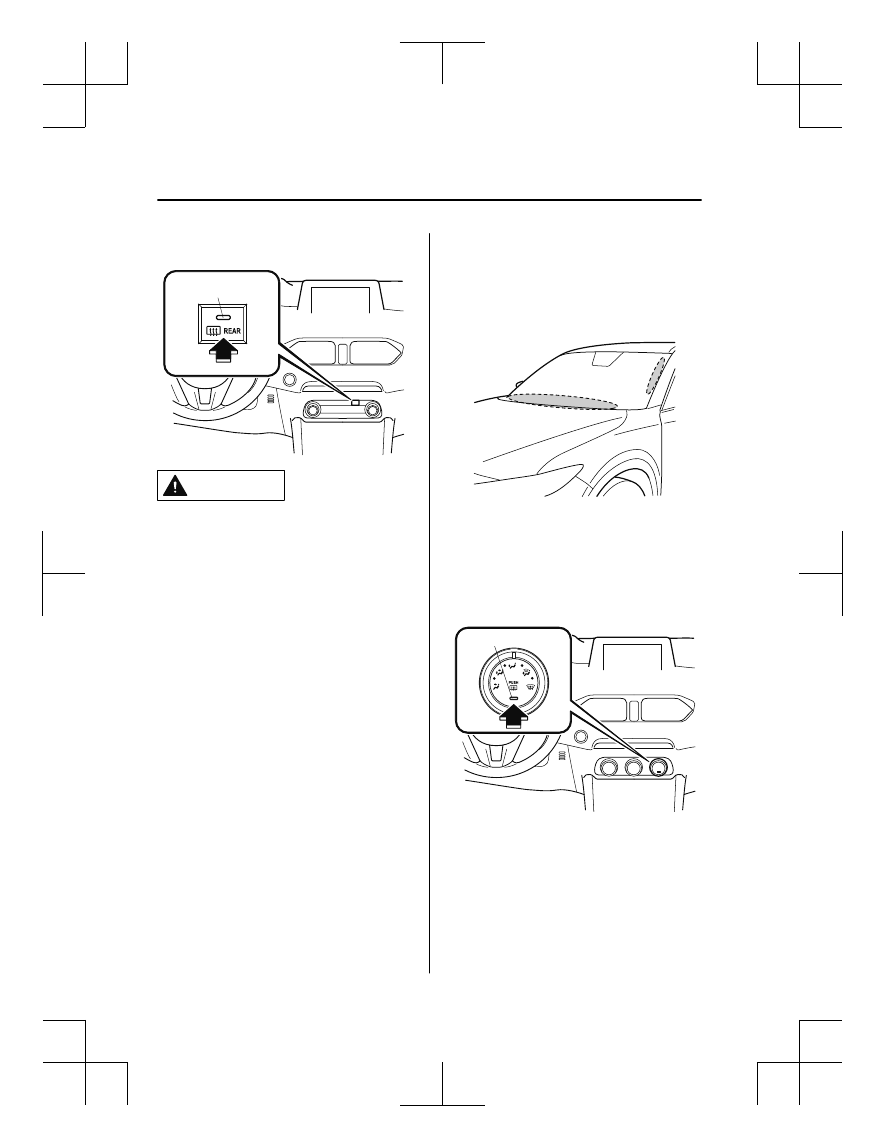

Windshield Wiper De-icer

The thermal filaments at the following
positions heat up and facilitate the removal
of snow accumulated on the windshield.

The windshield wiper de-icer operates in
conjunction with the rear window
defogger.
To turn on the windshield wiper de-icer,
switch the ignition ON and press the rear
window defogger switch (page 4-83).

Manual Climate Control System

Indicator light

When Driving

Switches and Controls

4-84

*Some models.

Fully Automatic Climate Control
System

Indicator light

▼

Mirror Defogger

The mirror defoggers defrost the outside
mirrors.

The mirror defoggers operate in
conjunction with the rear window
defogger.
To turn on the mirror defoggers, switch the
ignition ON and press the rear window
defogger switch (page 4-83).

Manual Climate Control System

Indicator light

Fully Automatic Climate Control
System

Indicator light

When Driving

Switches and Controls

*Some models.

4-85

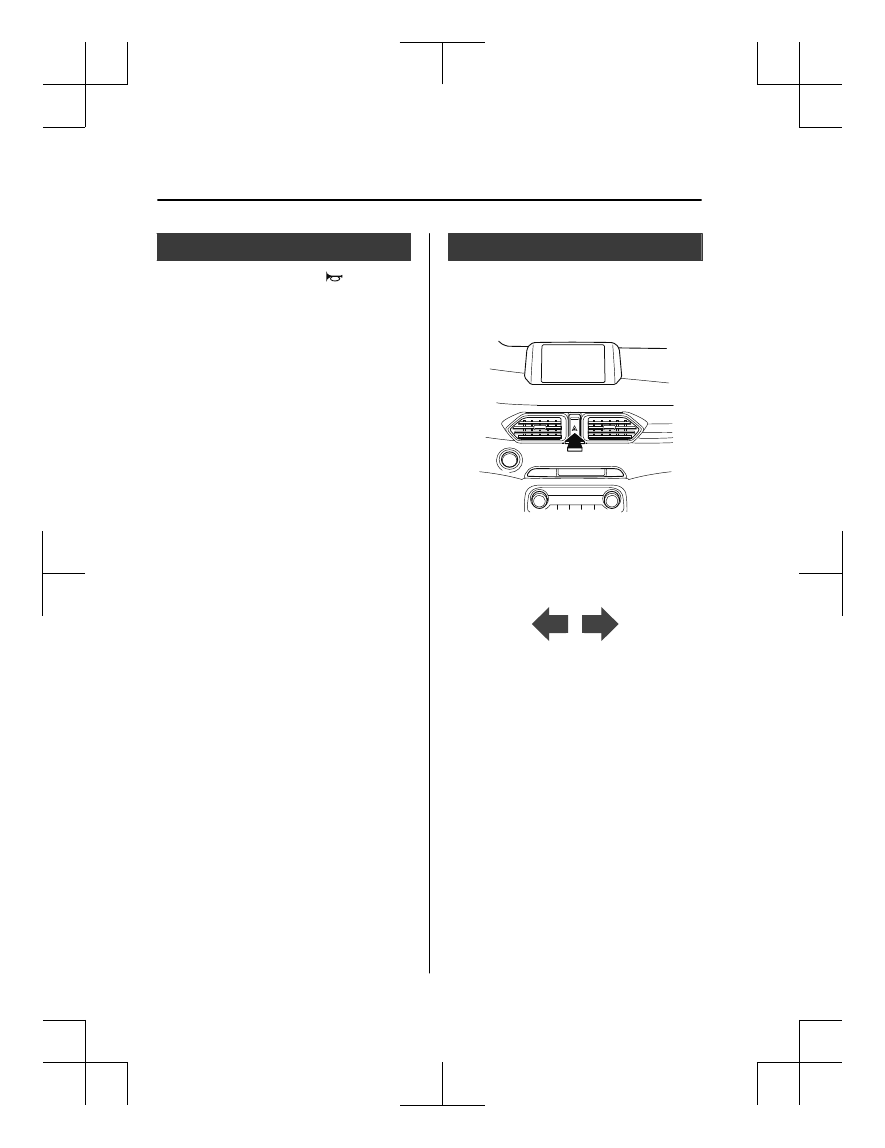

Horn

To sound the horn, press the mark on
the steering wheel.

Hazard Warning Flasher

The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.

The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.

Depress the hazard warning flasher and all
the turn signals will flash. The hazard
warning indicator lights in the instrument
cluster flash simultaneously.

NOTE



The turn signals do not work when the
hazard warning lights are on.



Check local regulations about the use of
hazard warning lights while the vehicle
is being towed to verify that it is not in
violation of the law.

When Driving

Switches and Controls

4-86

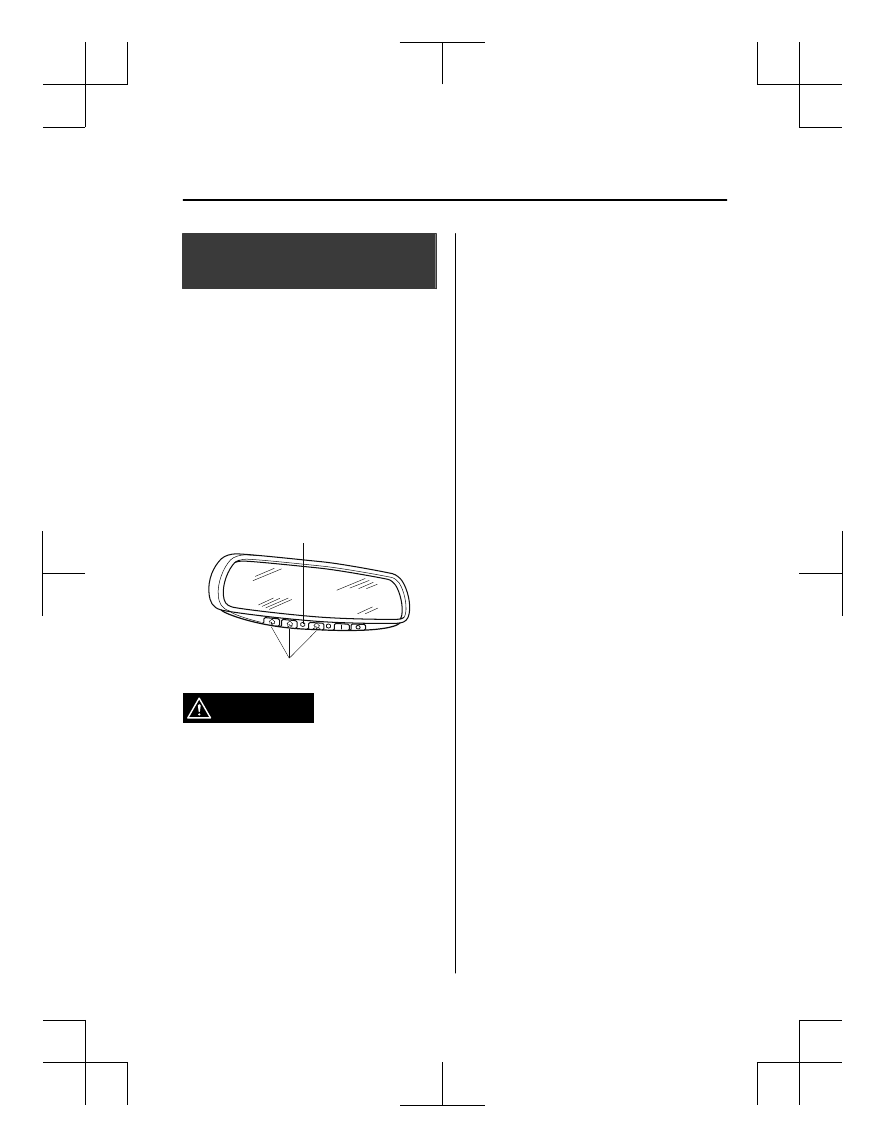

HomeLink Wireless

Control System (Type A)

NOTE

HomeLink and HomeLink house icon are
registered trademarks of Gentex
Corporation.

The HomeLink system replaces up to 3
hand-held transmitters with a single
built-in component in the auto-dimming
mirror. Pressing the HomeLink button on
the auto-dimming mirror activates garage
doors, gates and other devices surrounding
your home.

HomeLink button

Indicator light

WARNING

Do not use the HomeLink system with any
garage door opener that lacks the safety
stop and reverse feature:

Using these garage door openers can
increase the risk of serious injury or death.
For further information, contact HomeLink
at 1-800-355-3515 or www.homelink.com
or an Authorized Mazda Dealer.

Always check the areas surrounding
garage doors and gates for people or
obstructions before programming or
during operation of the HomeLink system:

Programming or operating the HomeLink
system without verifying the safety of areas
surrounding garage doors and gates is
dangerous and could result in an
unexpected accident and serious injury if
someone were to be hit.

NOTE

The programming will not be erased even
if the battery is disconnected.

▼

Pre-programming the HomeLink
System

NOTE

It is recommended that a new battery be
placed in the hand-held transmitter of the
device being programmed to HomeLink
for quicker training and accurate
transmission of the radio-frequency signal.



Verify that there is a remote control
transmitter available for the device you
would like to program.



Disconnect the power to the device.

When Driving

Switches and Controls

*Some models.

4-87

▼

Programming the HomeLink
System

CAUTION

When programming a garage door opener
or a gate, disconnect the power to these
devices before performing programming.
Continuous operation of the devices could
damage the motor.

The HomeLink system provides 3 buttons
which can be individually selected and
programmed using the transmitters for
current, on-market devices as follows:
1. Disconnect the power to the garage

door opener or gate programmed to the
hand-held transmitter.

2. Position the end of your hand-held

transmitter 2.5

―

7.5 cm (1

―

3 inches)

away from the HomeLink button you
wish to program while keeping the
indicator light in view.

3. Simultaneously press and hold both the

chosen HomeLink and hand-held
transmitter buttons.

Do not release the

buttons until step 3 has been
completed.

NOTE

Some gate operators and garage door
openers may require you to replace
this Programming Step 2 with
procedures noted in the “Gate
Operator/Canadian Programming”
section.

4. After the HomeLink indicator light

changes from a slow to a rapidly
blinking light, release both the
HomeLink and hand-held transmitter
buttons.

NOTE

If the HomeLink indicator light does
not change to a rapidly blinking light,
contact HomeLink at

www.homelink.com

or call

1-800-355-3515

for assistance.

5. Connect the power to the garage door

opener or gate programmed to the
hand-held transmitter.

6. Firmly press and hold the programmed

HomeLink button for five seconds, and
then release it. Perform this operation
two times to activate the door or gate.
If the door or gate does not activate,
press and hold the just-trained
HomeLink button and observe the
indicator light.
If the indicator light stays on
constantly, programming is complete
and your device should activate when
the HomeLink button is pressed and
released.

NOTE

To program the remaining two
HomeLink buttons, begin with
“Programming”

―

step 1

If the indicator light blinks

rapidly for

two seconds and then turns to a
constant light, continue with
“Programming” steps 7

―

complete the programming of a rolling
code equipped device (most commonly
a garage door opener).

7. At the garage door opener receiver

(motor-head unit) in the garage, locate
the “learn” or “smart” button. This can
usually be found where the hanging
antenna wire is attached to the
motor-head unit.

8. Firmly press and release the “learn” or

“smart” button. (The name and color

When Driving

Switches and Controls

4-88

of the button may vary by
manufacturer.)

NOTE

Complete the programming within 30
seconds.

9. Return to the vehicle and firmly

press,

hold for two seconds and release

the

programmed HomeLink button. Repeat
the “

press/hold/release

” sequence a

second time, and, depending on the
brand of the garage door opener (or
other rolling code equipped device),
repeat this sequence a third time to
complete the programming process.

HomeLink should now activate your
rolling code equipped device.

NOTE

To program the remaining two HomeLink
buttons, begin with “Programming”

―

step 1

For questions or comments, please contact
HomeLink at

www.homelink.com

1-800-355-3515

▼

Gate operator/Canadian
Programming

Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit)
after several seconds of transmission

―

which may not be long enough for
HomeLink to pick up the signal during
programming. Similar to this Canadian
law, some U.S. gate operators are designed
to “time-out” in the same manner.

If you live in Canada or you are having
difficulties programming a gate operator
by using the “Programming” procedures
(regardless of where you live),

replace

“Programming HomeLink” step 3

with

the following:

NOTE

If programming a garage door opener or
gate operator, it is advised to unplug the
device during the “cycling” process to
prevent possible overheating.

Continue to press and hold the HomeLink
button while you

press and release

―

every two seconds

(“cycle”) your

hand-held transmitter until the frequency
signal has successfully been accepted by
HomeLink. (The indicator light will flash
slowly and then rapidly.)
Proceed with “Programming” step 4 to
complete.

▼

Operating the HomeLink System

Press the programmed HomeLink button
to operate a programmed device. The code
will continue being transmitted for a
maximum of 20 seconds.

▼

Reprogramming the HomeLink
system

To program a device to HomeLink using a
HomeLink button previously trained,
follow these steps:
1. Press and hold the desired HomeLink

button.

DO NOT

release the button.

2. The indicator light will begin to flash

after 20 seconds. Without releasing the
HomeLink button, proceed with
“Programming” - step 1.

▼

Erasing Programmed HomeLink
Buttons

To erase the existing programming from
all three operating channels, press and
hold the two outside buttons (

) on

When Driving

Switches and Controls

4-89

the auto-dimming mirror until the
HomeLink indicator light begins to flash
after approximately 10 seconds.
Verify that the programming has been
erased when you resell the vehicle.

HomeLink Wireless

Control System (Type B)

NOTE

HomeLink and HomeLink house are
registered trademarks of Gentex
Corporation.

HomeLink button

Indicator Light

WARNING

Do not use the HomeLink system with any
garage door opener that lacks the safety
stop and reverse feature:

Using the HomeLink system with any
garage door opener that lacks the safety
stop and reverse feature as required by
federal safety standards is dangerous. (This
includes garage doors manufactured
before April 1, 1982.)
Using these garage door openers can
increase the risk of serious injury or death.
For further information, contact

HomeLink

at www.homelink.com

www.youtube.com/HomeLinkGentex

or an

Authorized Mazda Dealer.

When Driving

Switches and Controls

4-90

*Some models.

Always check the areas surrounding
garage doors and gates for people or
obstructions before programming or
during operation of the HomeLink system:

NOTE

The programming will not be erased even
if the battery is disconnected.

▼

Pre-programming the HomeLink
System

NOTE

It is recommended that a new battery be
placed in the hand-held transmitter of the
device being programmed to HomeLink
for quicker training and accurate
transmission of the radio-frequency signal.



Verify that there is a remote control
transmitter available for the device you
would like to program.

▼

Programming the HomeLink
System

The HomeLink system provides 3 buttons
which can be individually selected and
programmed using the transmitters for
current, on-market devices as follows:
1. Press and release the HomeLink button

you would like to program. The

indicator light flashes slowly in amber
when the button is pressed.

HomeLink button

Indicator Light

2. Hold the hand-held transmitter 2.5 to

7.5 cm (1 to 3 in) away from the
HomeLink button you would like to
program while keeping the indicator
light in view.

NOTE

Depending on the hand-held
transmitter, it may be easier to do the
programming by holding it 15 to 20 cm
(6 to 7.8 in) away from the HomeLink
button.

3. Press the hand-held transmitter button

continuously until the indicator light
changes from amber (flashing) to
green (on/flashing).

NOTE

Some gate operators and garage door
openers may require you to replace
this Programming Step 3 with
procedures noted in the “Gate
Operator/Canadian Programming”
section.

4. Press the HomeLink button again to

check if the programming has been
completed.



If the indicator light remains on in
green, the programming is complete
and the device becomes operational.



If the indicator light flashes rapidly
in green, firmly press and hold the
Homelink button and release it after

When Driving

Switches and Controls

4-91

two seconds have passed. Repeat
this process up to three times to
complete the programming. The
device becomes operational and
programming is complete. If the
device does not operate, go to the
next step.

5. At the garage door opener receiver

(motor-head unit) in the garage, locate
the “learn” or “smart” button. This can
usually be found where the hanging
antenna wire is attached to the
motor-head unit.

6. Firmly press and release the “learn” or

“smart” button. (The name and color
of the button may vary by
manufacturer.)

NOTE
Complete the programming within 30
seconds.

7. Return to the vehicle and firmly

press

and

hold

the Homelink button, and

then

release

it after two seconds have

passed. Repeat the “

press/hold/

release

” sequence a second time, and,

depending on the brand of the garage
door opener (or other rolling code
equipped device), repeat this sequence
a third time to complete the
programming process.
Press the programmed HomeLink
button and make sure that the
HomeLink System operates.

8. If the status indicator arrows are

flashing, refer to Garage Door
Two-Way Communication.

Indicator Light

NOTE

To program the remaining two HomeLink
buttons, go back to

Step 1

Programming the HomeLink System and
repeat the procedure.

For questions or comments, please contact

HomeLink at www.homelink.com

www.youtube.com/HomeLinkGentex

, or

the HomeLink toll-free hotline at
1-800-355-3515 (for calls placed outside
of the USA, Canada, and Puerto Rico,
international rates will apply and may
differ based on landline or mobile phone).

▼

Gate operator/Canadian
Programming

Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit)
after several seconds of transmission

―

which may not be long enough for
HomeLink to pick up the signal during
programming. Similar to this Canadian
law, some U.S. gate operators are designed
to “time-out” in the same manner.

If you live in Canada or are having
difficulties programming a gate operator
by using the programming procedures
(regardless of where you live),

replace

Step 3 of Programming the HomeLink
System

with the following:

NOTE

If programming a garage door opener or
gate operator, it is advised to unplug the
device during the “cycling” process to
prevent possible overheating.

While the indicator light is flashing in
amber, press the button on the hand-held
transmitter for 2 seconds and release it

When Driving

Switches and Controls

4-92

repeatedly until the indicator light changes
from amber to green.
Go back to Step 4 of Programming the
HomeLink System to complete the
procedure.

▼

Operating the HomeLink System

Press the programmed HomeLink button
to operate a programmed device.

▼

Reprogramming the HomeLink
system

To program a device to HomeLink using a
HomeLink button previously trained,
follow these steps:
1. Press and hold the desired HomeLink

button.

DO NOT

release the button.

2. After 20 seconds, the indicator light

flashes in amber. After the indicator
light flashes, release the HomeLink
button.

3. Go back to Step 2 of Programming the

HomeLink System to complete the
procedure.

NOTE

If the programming has not been
completed, the system returns to the
previous programming.

▼

Erasing Programmed HomeLink
Buttons

NOTE



All of the programmed HomeLink
buttons are reset. Individual buttons
cannot be reset, however, individual
buttons can be reprogrammed. For
individual button reprogramming, refer
to Reprogramming the HomeLink
System (page 4-93).



Verify that the programming has been
erased if you resell the vehicle.

1. Press the two outer HomeLink buttons

continuously at the same time until the
indicator light flashes.

HomeLink button 1

HomeLink button 3

2. Stop pressing the HomeLink buttons.

▼

Garage Door Two-Way
Communication

The garage door two-way communication
is a function that communicates with the
garage door opener and indicates whether
the garages door is open or closed using
the indicator lights in the rear view mirror.
It can indicate the status of the garage door
within a range up-to 250 m (820 ft).

NOTE

The communication range may shorten
depending on obstructions.

Programming two-way communication

Within five seconds after programming a
new HomeLink button, both of the garage
door status indicator lights will flash
rapidly in green indicating that the garage
door two-way communication has been
established. If the garage door status
indicator lights flash, the two-way
communication programming is complete.

If the garage door status indicator lights do
not flash, the two-way communication
programming is not completed. For

When Driving

Switches and Controls

4-93

additional HomeLink information and
programming videos, refer to the
following Websites:



www.HomeLink.com



www.youtube.com/HomeLinkGentex

Operating the garage door two-way
communication

By pressing HomeLink buttons 1 and 2 at
the same time for two seconds, the status
of the garage door is indicated for about 3
seconds as follows:

HomeLink button 1

HomeLink button 2

Garage door

status

Indicator light

Closing

Amber flashes

Opening

Amber flashes

Closed

Green turns on

Opened

Green turns on

NOTE

The programming will not be erased even
if the battery is disconnected.

When Driving

Switches and Controls

4-94

Brake System

▼

Foot Brake

This vehicle has power-assisted brakes
that adjust automatically through normal
use.

Should power-assist fail, you can stop by
applying greater force than normal to the
brake pedal. But the distance required to
stop will be greater than usual.

WARNING

Do not coast with the engine stalled or
turned off, find a safe place to stop:

Coasting with the engine stalled or turned
off is dangerous. Braking will require more
effort, and the brake's power-assist could
be depleted if you pump the brake. This will
cause longer stopping distances or even an
accident.

Shift to a lower gear when going down
steep hills:

Driving with your foot continuously on the
brake pedal or steadily applying the brakes
for long distances is dangerous. This causes
overheated brakes, resulting in longer
stopping distances or even total brake
failure. This could cause loss of vehicle
control and a serious accident. Avoid
continuous application of the brakes.

Dry off brakes that have become wet by
driving slowly, releasing the accelerator
pedal and lightly applying the brakes
several times until the brake performance
returns to normal:

Driving with wet brakes is dangerous.
Increased stopping distance or the vehicle
pulling to one side when braking could
result in a serious accident. Light braking
will indicate whether the brakes have been
affected.

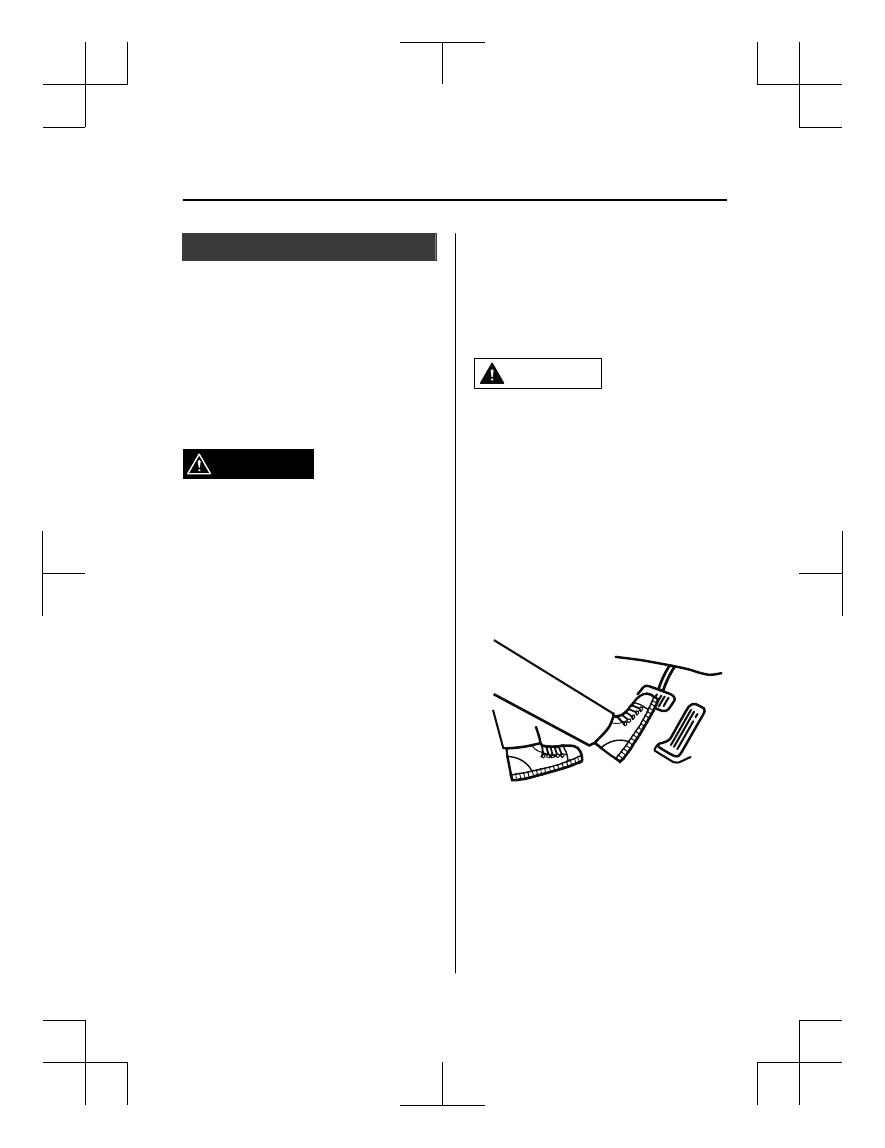

CAUTION



Do not drive with your foot held on the
brake pedal. Doing so could result in the
following:



The brake parts will wear out more
quickly.



The brakes can overheat and adversely
affect brake performance.



Always depress the brake pedal with the
right foot. Applying the brakes with the
unaccustomed left foot could slow your
reaction time to an emergency situation
resulting in insufficient braking
operation.



Wear shoes appropriate for driving in
order to avoid your shoe contacting the
brake pedal when depressing the
accelerator pedal.

▼

Electric Parking Brake (EPB)

The EPB equipment applies the parking
brake using an electric motor. When the

When Driving

Brake

4-95

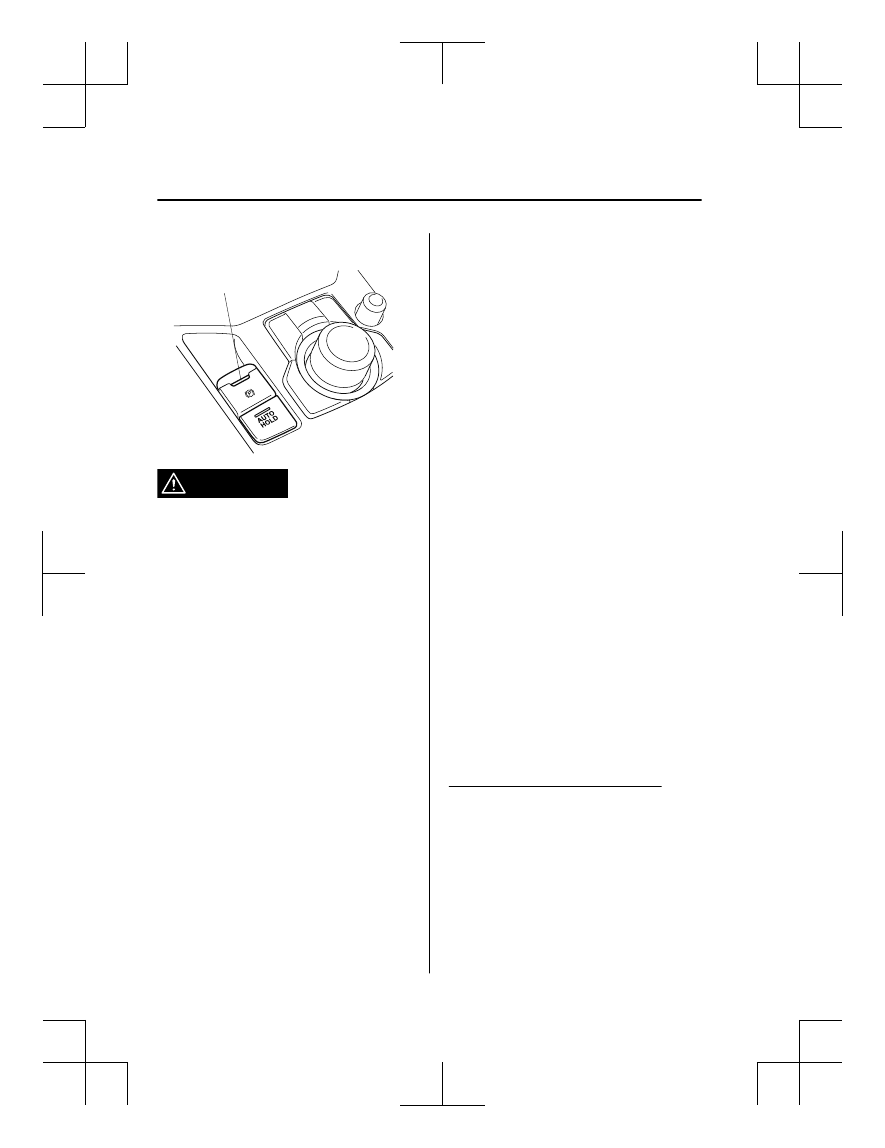

parking brake is applied, the EPB switch
indicator light turns on.

Indicator light

WARNING

Do not drive the vehicle with the parking
brake applied:

If the vehicle is driven with the parking
brake applied, the brake parts may
generate heat and the brake system may
not operate, leading to an accident.
Before driving, release the parking brake
and verify that the EPB indicator light is
turned off.

NOTE



The parking brake cannot be applied or
released while the vehicle battery is
dead.



If the EPB is repeatedly applied and
released it may stop operating to
prevent overheating of the motor. If this
occurs, wait approx. 1 minute before
operating the EPB switch again.



An operation sound occurs when
applying or releasing the parking brake,
however, this does not indicate a
malfunction.



If the EPB is not used for long periods,
an automatic inspection of the system is
performed while the vehicle is parked.
An operation sound can be heard,
however, this does not indicate a
problem.



When the parking brake is applied and
the ignition is switched OFF, an
operation sound can be heard, however,
this does not indicate a problem.



The brake pedal may move while the
parking brake is being applied or
released, however, this does not indicate
a problem.



If the EPB switch is continually pulled
while driving the vehicle, the parking
brake will be applied and the EPB
warning beep will be activated. When
the switch is released, the parking brake
is released and the beep stops.



If the parking brake is applied with the
ignition switched off or in ACC, the EPB
indicator light in the instrument cluster
and the indicator light in the switch may
turn on for 15 seconds.



When running the vehicle through an
automatic car wash, it may be necessary
to switch the ignition off with the
parking brake released depending on
the type of automatic car wash.

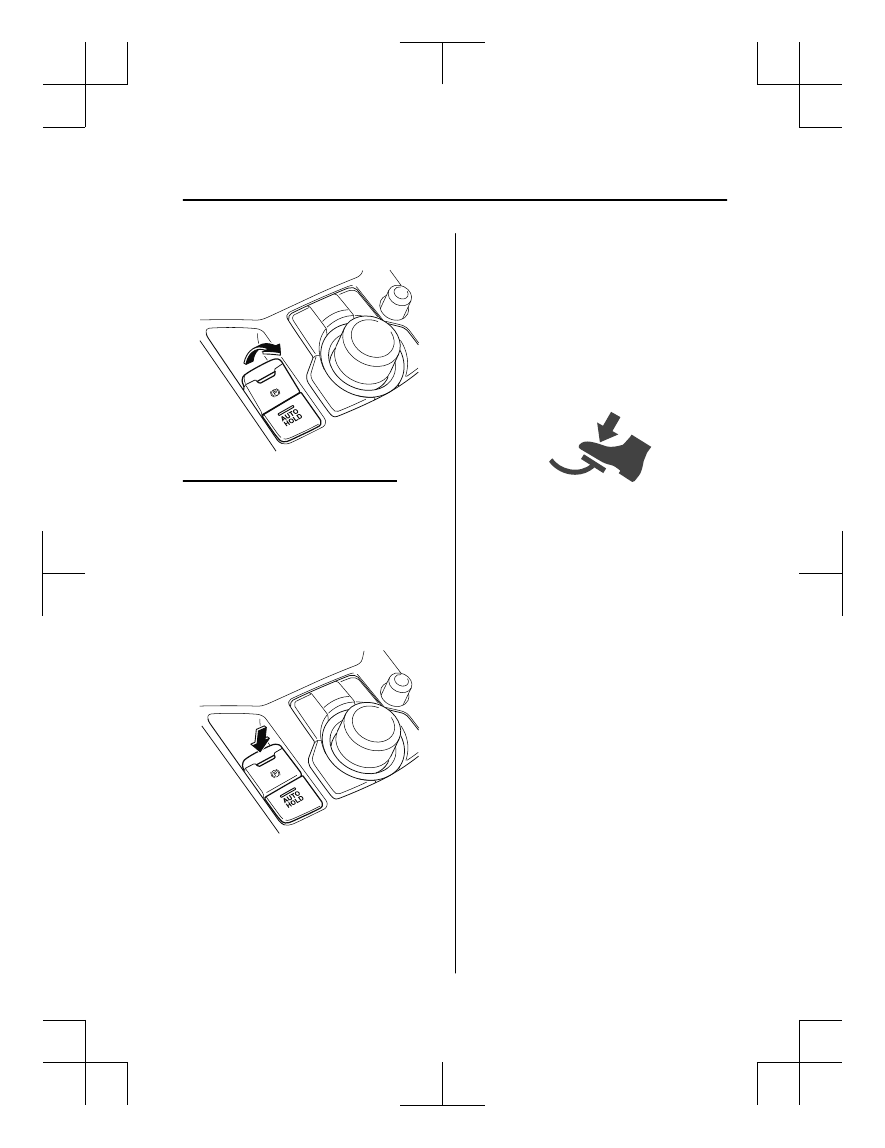

When applying the parking brake

The parking brake can be applied
regardless of the ignition switch position.
Securely depress the brake pedal and pull
up the EPB switch.
The parking brake is applied and the EPB
indicator light and the EPB switch
indicator light turn on.

When Driving

Brake

4-96

Refer to If a Warning Light Turns On or
Flashes on page 7-22.

When releasing the parking brake

The parking brake can be released while
the ignition is switched ON or the engine
is running. When the parking brake is
released, the EPB indicator light and the
EPB switch indicator light turn off.

Parking brake manual release

Firmly depress the brake pedal and press
the EPB switch.

If the EPB switch is pressed without
depressing the brake pedal, the display or
indicator light in the instrument cluster
notifies the driver that the brake is not
depressed.

(Type A/B instrument cluster)

A message is displayed on the
multi-information display in the
instrument cluster.
Refer to Message Indicated in
Multi-information Display on page 7-37.

(Type C instrument cluster)

The brake pedal operation demand
indicator light (green) in the instrument
cluster turns on.

(Green)

Parking brake automatic release

If the accelerator pedal is depressed with
the parking brake applied and all of the
following conditions met, the parking
brake is released automatically.



The engine is running.



The driver's door is closed.



The driver's seat belt is fastened.



Selector lever is in the D, M, or R
position

NOTE

If something such as the driver's foot
contacts the accelerator pedal with the
engine running and the parking brake
applied, the parking brake may be
released automatically. If you do not
intend to drive immediately, shift the
selector lever to the P or N position.

▼

Warning Light

The warning light turns on when the
system has a malfunction.

When Driving

Brake

4-97

Mazda CX-5 (2022 year). Manual in english - page 15
