Mazda CX-5 (2022 year). Manual in english - page 10

i-ACTIVSENSE............................. 4-117

i-ACTIVSENSE

......................4-117

Adaptive Front Lighting System
(AFS)

...................................... 4-120

High Beam Control System
(HBC)

......................................4-121

Blind Spot Monitoring (BSM)

.........

.................................................. 4-124
Traffic Sign Recognition System
(TSR)

...................................... 4-129

Distance Recognition Support
System (DRSS)

.......................4-135

Driver Attention Alert (DAA)

..........

.................................................. 4-139
Rear Cross Traffic Alert (RCTA)

.....

.................................................. 4-141
Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function)

...............4-145

Traffic Jam Assist (TJA)

.........4-160

Lane-keep Assist System (LAS) &
Lane Departure Warning System
(LDWS)

.................................. 4-176

Advanced Smart City Brake Support
(Advanced SCBS)

...................4-190

Smart City Brake Support [Forward]
(SCBS F)

.................................4-193

Smart City Brake Support [Reverse]
(SCBS R)

................................ 4-196

Smart Brake Support (SBS)

....4-200

360° View Monitor (Mazda Connect
(Type A))

................................ 4-202

360° View Monitor (Mazda Connect
(Type B))

.................................4-228

Forward Sensing Camera (FSC)

......

.................................................. 4-256

Radar Sensor (Front)

.............. 4-261

Radar Sensors (Rear)

..............4-264

Ultrasonic Sensor (Rear)

.........4-266

Front Camera/Side Cameras/Rear
Camera

.................................... 4-267

Cruise Control............................... 4-268

Cruise Control

.........................4-268

Tire Pressure Monitoring
System.............................................4-273

Tire Pressure Monitoring
System...................................... 4-273

Rear View Monitor (Mazda Connect
(Type A))........................................ 4-277

Rear View Monitor (Mazda Connect
(Type A))

................................ 4-277

Rear View Monitor (Mazda Connect
(Type B)).........................................4-285

Rear View Monitor (Mazda Connect
(Type B))

.................................4-285

Parking Sensor System (Mazda
Connect (Type A))......................... 4-293

Parking Sensor System (Mazda
Connect (Type A))

..................4-293

Parking Sensor System (Mazda
Connect (Type B))......................... 4-302

Parking Sensor System (Mazda
Connect (Type B))

.................. 4-302

4-2

*Some models.

MEMO

4-3

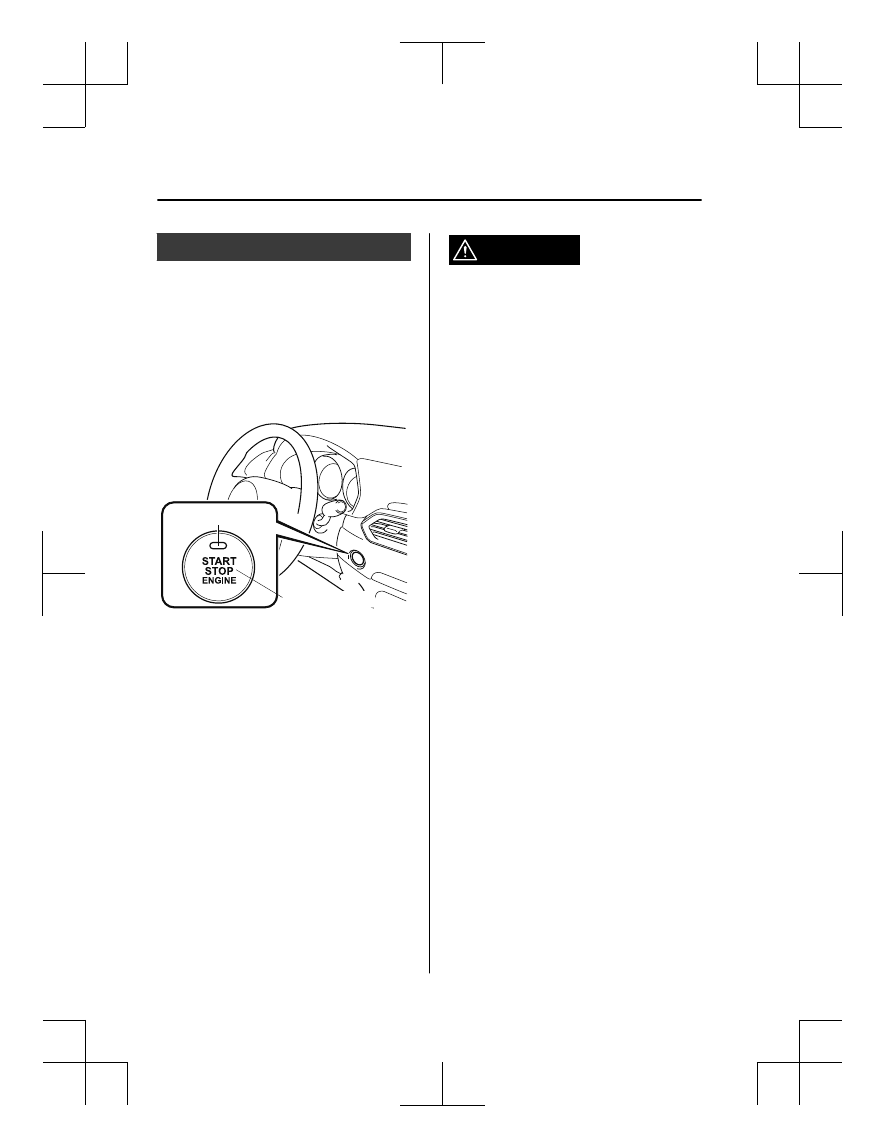

Ignition Switch

▼

Push Button Start Positions

The system operates only when the key is
within operational range.
Each time the push button start is pressed,
the ignition switches in the order of off,
ACC, and ON. Pressing the push button
start again from ON switches the ignition
off.

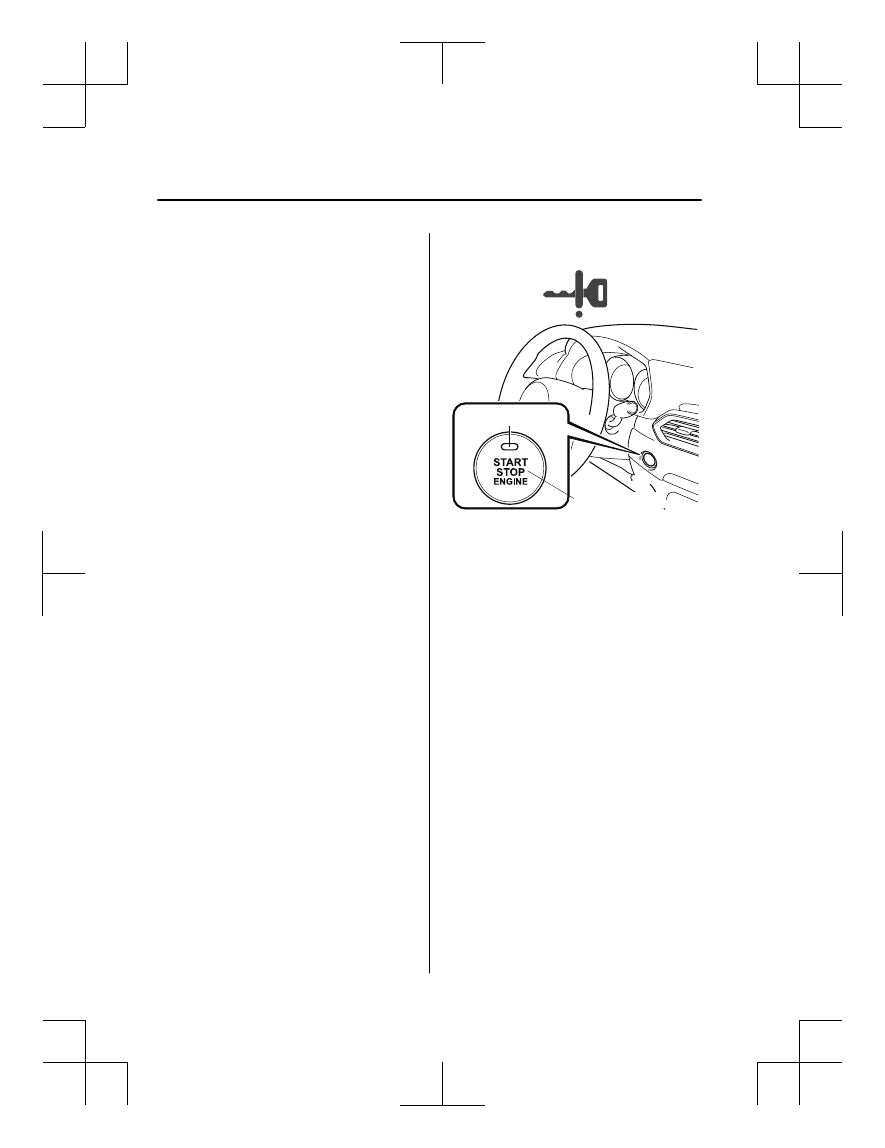

Indicator light

Push button start

NOTE



The engine starts by pressing the push
button start while depressing the brake
pedal. To switch the ignition position,
press the push button start without
depressing the pedal.



Do not leave the ignition switched ON
while the engine is not running. Doing
so could result in the battery going
dead. If the selector lever is in the P
position, and the ignition is in ACC, the
ignition switches off automatically after
about 25 minutes.

Off

The power supply to electrical devices
turns off and the push button start
indicator light (amber) also turns off.

WARNING

Before leaving the driver's seat, always
switch the ignition off, set the parking
brake, and make sure the selector lever is in
P position:

Leaving the driver's seat without switching
the ignition off, setting the parking brake,
and shifting the selector lever to P position
is dangerous. Unexpected vehicle
movement could occur which could result
in an accident.
In addition, if your intention is to leave the
vehicle for even a short period, it is
important to switch the ignition off, as
leaving it in another position will disable
some of the vehicle's security systems and
run the battery down.

ACC (Accessory)

Some electrical accessories will operate
and the indicator light (amber) illuminates.

NOTE

The keyless entry system does not function
while the push button start has been
pressed to ACC, and the doors will not
lock/unlock even if they have been locked
manually.

This is the normal running position after
the engine is started. The indicator light
(amber) turns off. (The indicator light
(amber) illuminates when the ignition is
switched ON and the engine is not
running.)
Some indicator lights/warning lights
should be inspected before the engine is
started (page 4-11).

When Driving

Start/Stop Engine

4-4

NOTE

When the push button start is pressed to
ON, the sound of the fuel pump motor
operating near the fuel tank can be heard.
This does not indicate an abnormality.

Starting the Engine

WARNING

Radio waves from the key may affect
medical devices such as pacemakers:

Before using the key near people who use
medical devices, ask the medical device
manufacturer or your physician if radio
waves from the key will affect the device.

NOTE



The key must be carried because the key
carries an immobilizer chip that must
communicate with the engine controls at
short range.



The engine can be started when the push
button start is pressed from off, ACC, or
ON.



The push button start system functions
(function which can start the engine by
only carrying the key) can be
deactivated to prevent any possible
adverse effect on a user wearing a
pacemaker or other medical device. If
the system is deactivated, you will be
unable to start the engine by carrying
the key. Consult an Authorized Mazda
Dealer for details. If the push button
start system functions have been
deactivated, you can start the engine by
following the procedure indicated when
the key battery goes dead.
Refer to Engine Start Function When
Key Battery is Dead on page 4-8.



After starting a cold engine, the engine
speed increases and a whining sound
from the engine compartment can be
heard.

When Driving

Start/Stop Engine

4-5

This is for improved exhaust gas
purification and does not indicate any
parts defect.



Engine-starting is controlled by the
spark ignition system.
This system meets all Canadian
Interference-Causing Equipment
Standard requirements regulating the
impulse electrical field strength of radio
noise.

1. Make sure you are carrying the key.
2. Occupants should fasten their seat

belts.

3. Make sure the parking brake is on.
4. Continue to press the brake pedal

firmly until the engine has completely
started.

5. Put the vehicle in park (P). If you must

restart the engine while the vehicle is
moving, shift into neutral (N).

NOTE

The starter will not operate if the
selector lever is not in P or N position
and the brake pedal is not depressed
sufficiently.

6. Verify that the KEY indicator light

(green) (if equipped) in the instrument

cluster and the push button start
indicator light (green) illuminate.

Indicator light

Push button start

NOTE



If the push button start indicator
light (green) flashes, make sure that
the key is being carried (for vehicles
with a type A/type B instrument
cluster (page 7-22), messages are
displayed in the instrument cluster).



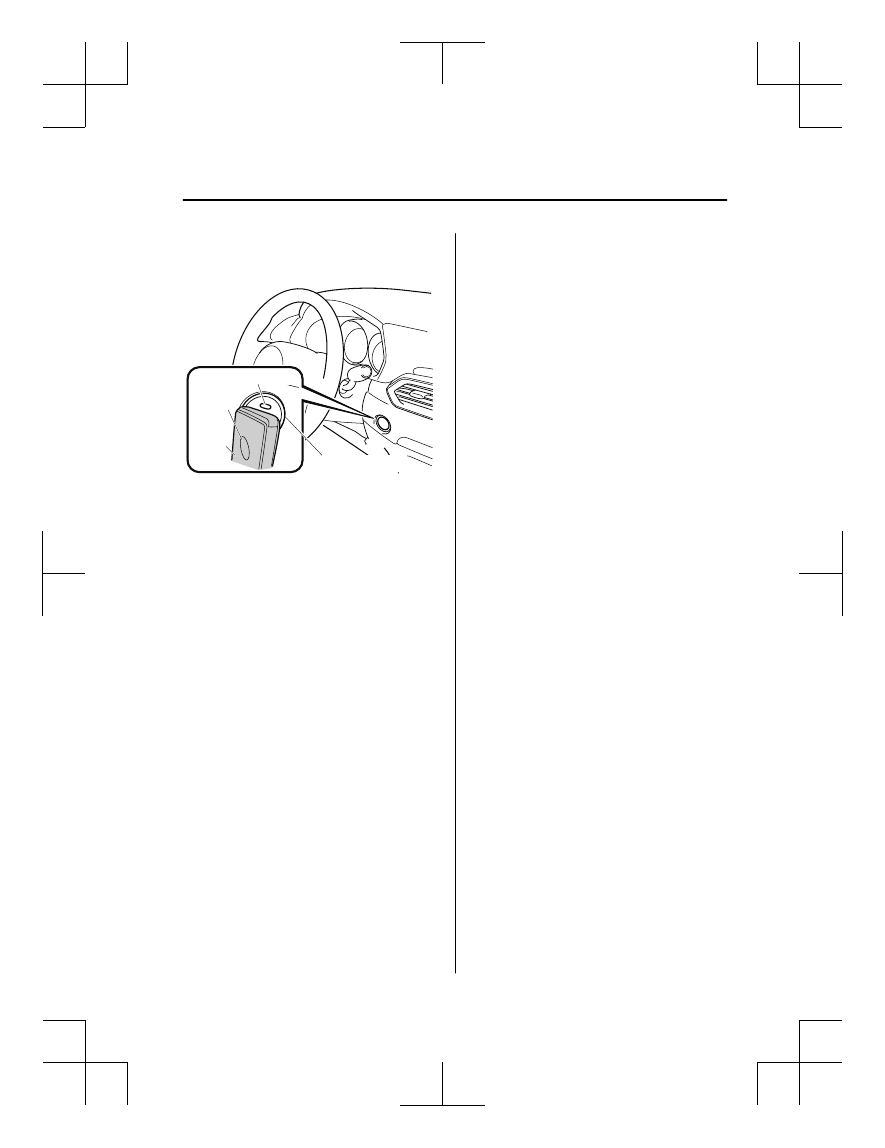

If the push button start indicator
light (green) flashes with the key
being carried, touch the key to the
push button start and start the
engine (for vehicles with a type A/
type B instrument cluster (page
7-22), messages are displayed in
the instrument cluster). Refer to
Engine Start Function When Key
Battery is Dead on page 4-8.

When Driving

Start/Stop Engine

4-6

CAUTION

If the KEY warning light (red)
illuminates, or the push button start
indicator light (amber) flashes, this
could indicate a problem with the
engine starting system. This may
prevent the engine from starting or
from switching the ignition to ACC or
ON (for vehicles with a type A/type B
instrument cluster (page 7-22),
messages are displayed in the
instrument cluster). Have your vehicle
inspected at an Authorized Mazda
Dealer as soon as possible.

NOTE



Under the following conditions, the
KEY warning light (red) flashes after
the push button start is pressed. This
informs the driver that the push
button start will not switch to ACC,
even if it is pressed from off (for
vehicles with a type A/type B
instrument cluster (page 7-22),
messages are displayed in the
instrument cluster).



The key battery is dead.



The key is out of operational
range.



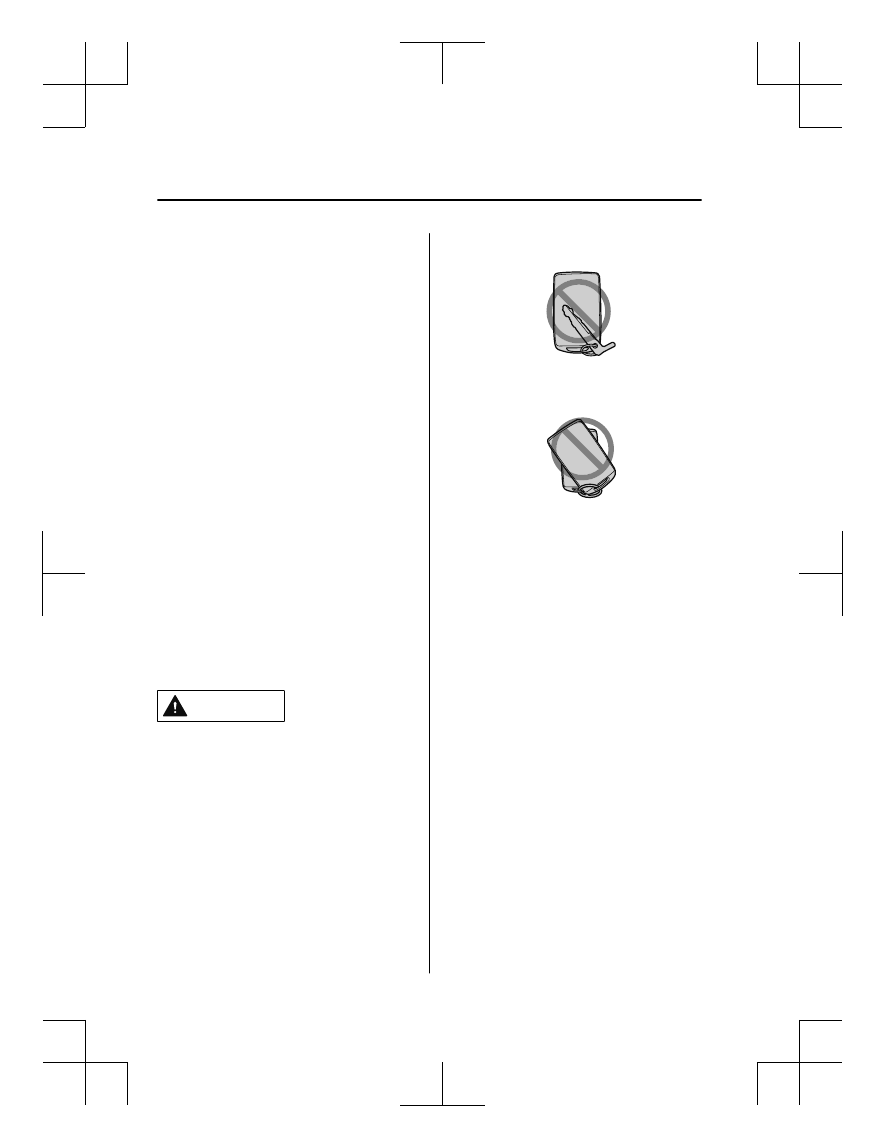

The key is placed in areas where it
is difficult for the system to detect
the signal (page 3-8).



A key from another manufacturer
similar to the key is in the
operational range.



(Forced engine starting method)

If the KEY warning light (red)
illuminates, or the push button start
indicator light (amber) flashes, this
could indicate that the engine may
not start using the usual starting
method (for vehicles with a type A/
type B instrument cluster (page
7-22), messages are displayed in
the instrument cluster). Have your
vehicle inspected at an Authorized
Mazda Dealer as soon as possible. If
this occurs, the engine can be
force-started. Press and hold the
push button start until the engine
starts. Other procedures necessary
for starting the engine, such as
having the key in the cabin, and
depressing the brake pedal are
required.



When the engine is force-started, the
KEY warning light (red) (if
equipped) remains illuminated and
the push button start indicator light
(amber) remains flashing.



When the selector lever is in the
neutral (N) position, the KEY
indicator light (green) (if equipped)
and the push button start indicator
light (green) do not illuminate.

7. Press the push button start after both

the KEY indicator light (green) (if
equipped) in the instrument cluster and
the push button start indicator light
(green) illuminate.

NOTE



After starting the engine, the push
button start indicator light (amber)
turns off and the ignition switches to
the ON position.

When Driving

Start/Stop Engine

4-7



After pressing the push button start
and before the engine starts, the
operation sound of the fuel pump
motor from near the fuel tank can be
heard, however, this does not
indicate a malfunction.

8. After starting the engine, let it idle for

about 10 seconds.

NOTE



Do not use high engine speeds until
reaching the operating temperature.



Whether the engine is cold or warm,
it should be started without the use
of the accelerator.



If the engine does not start the first
time, refer to Starting a Flooded
Engine under Emergency Starting. If
the engine still does not start, have
your vehicle inspected by an
Authorized Mazda Dealer (page
7-16).

▼

Engine Start Function When Key
Battery is Dead

CAUTION

When starting the engine by holding the
transmitter over the push button start due
to a dead key battery or a malfunctioning
key, be careful not to allow the following,
otherwise the signal from the key will not
be received correctly and the engine may
not start.



Metal parts of other keys or metal objects
touch the key.



Spare keys or keys for other vehicles
equipped with an immobilizer system
touch or come near the key.



Devices for electronic purchases, or
security passage touch or come near the
key.

If the engine cannot be started due to a
dead key battery, the engine can be started
using the following procedure:
1. Continue to depress the brake pedal

firmly until the engine has completely
started.

2. Make sure that the push button start

indication light (green) flashes.

3. Align the center area of the emblem on

the transmitter with the center area of
the push button start while the push

When Driving

Start/Stop Engine

4-8

button start indicator light (green)
flashes.

Push button start

Indicator light

Key

Emblem

4. Make sure that the push button start

indicator light (green) turns on.

5. Press the push button start to start the

engine.

NOTE



The engine cannot be started unless
the brake pedal is fully depressed.



If there is a malfunction with the
push button start function, the push
button start indicator light (amber)
flashes. In this case, the engine may
start, however, have the vehicle
checked at an Authorized Mazda
Dealer as soon as possible.



If the push button start indicator
light (green) does not illuminate,
perform the operation from the
beginning again. If it does not
illuminate, have the vehicle checked
at an Authorized Mazda Dealer.



To switch the ignition position
without starting the engine, perform
the following operations after the
push button start indicator light
(green) turns on.
1. Release the brake pedal.

2. Press the push button start to

switch the ignition position. The
ignition switches in the order of
ACC, ON, and off each time the
push button start is pressed. To
switch the ignition position
again, perform the operation
from the beginning.

▼

Emergency Operation for Starting
the Engine

If the KEY warning light (red) illuminates,
or the push button start indicator light
(amber) flashes, this could indicate that
the engine may not start using the usual
starting method (for vehicles with a type
A/type B instrument cluster (page 7-22),
messages are displayed in the instrument
cluster). Have your vehicle inspected at an
Authorized Mazda Dealer as soon as
possible. If this occurs, the engine can be
force-started. Press and hold the push
button start until the engine starts. Other
procedures necessary for starting the
engine such as having the key in the cabin,
and depressing the brake pedal are
required.

When Driving

Start/Stop Engine

4-9

Turning the Engine Off

WARNING

Do not stop the engine while the vehicle is
moving:

Stopping the engine while the vehicle is
moving for any reason other than in an
emergency is dangerous. Stopping the
engine while the vehicle is moving will
result in reduced braking ability due to the
loss of power braking, which could cause
an accident and serious injury.

1. Stop the vehicle completely.
2. Shift the selector lever to the P

position and set the parking brake.

3. Press the push button start to turn off

the engine. The ignition position is off.

CAUTION



When leaving the vehicle, make sure the
push button start is off.

NOTE



The cooling fan in the engine
compartment could turn on for a few
minutes after the ignition is switched
from ON to OFF, whether or not the A/C
is on or off, to cool the engine
compartment quickly.



If the system detects that the remaining
battery power of the key is low when the
ignition is switched from ON to ACC or
OFF, the following is indicated.
Replace with a new battery before the
key becomes unusable.
Refer to Key Battery Replacement on
page 6-33.

(Vehicle equipped with Type A/B
instrument cluster)

A message is indicated in the display of
the instrument cluster.

(Vehicle equipped with Type C
instrument cluster)

The KEY indicator light (green) flashes
for approximately 30 seconds.
Refer to Taking Action on page 7-31.



If the engine is turned off while the
selector lever is in a position other than
P, the ignition switches to ACC.

▼

Emergency Engine Stop

Continuously pressing the push button
start or quickly pressing it any number of
times while the engine is running or the
vehicle is being driven will turn the engine
off immediately. The ignition switches to
ACC.

When Driving

Start/Stop Engine

4-10

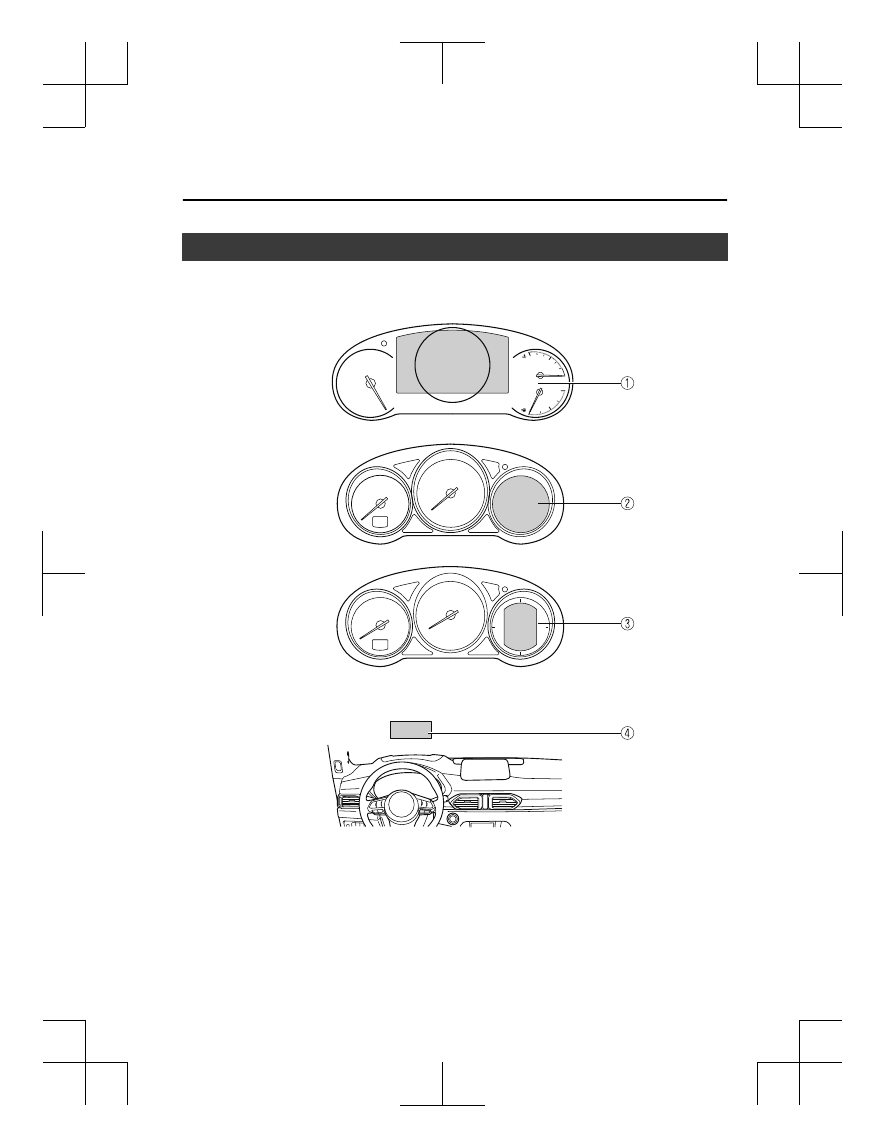

Instrument Cluster and Display

Instrument Cluster

Type A

Type B

Type C

Active Driving Display

Instrument Cluster (Type A)................................................................................. page 4-12
Instrument Cluster (Type B)..................................................................................page 4-30
Instrument Cluster (Type C)..................................................................................page 4-46
Active Driving Display......................................................................................... page 4-58

When Driving

Instrument Cluster and Display

4-11

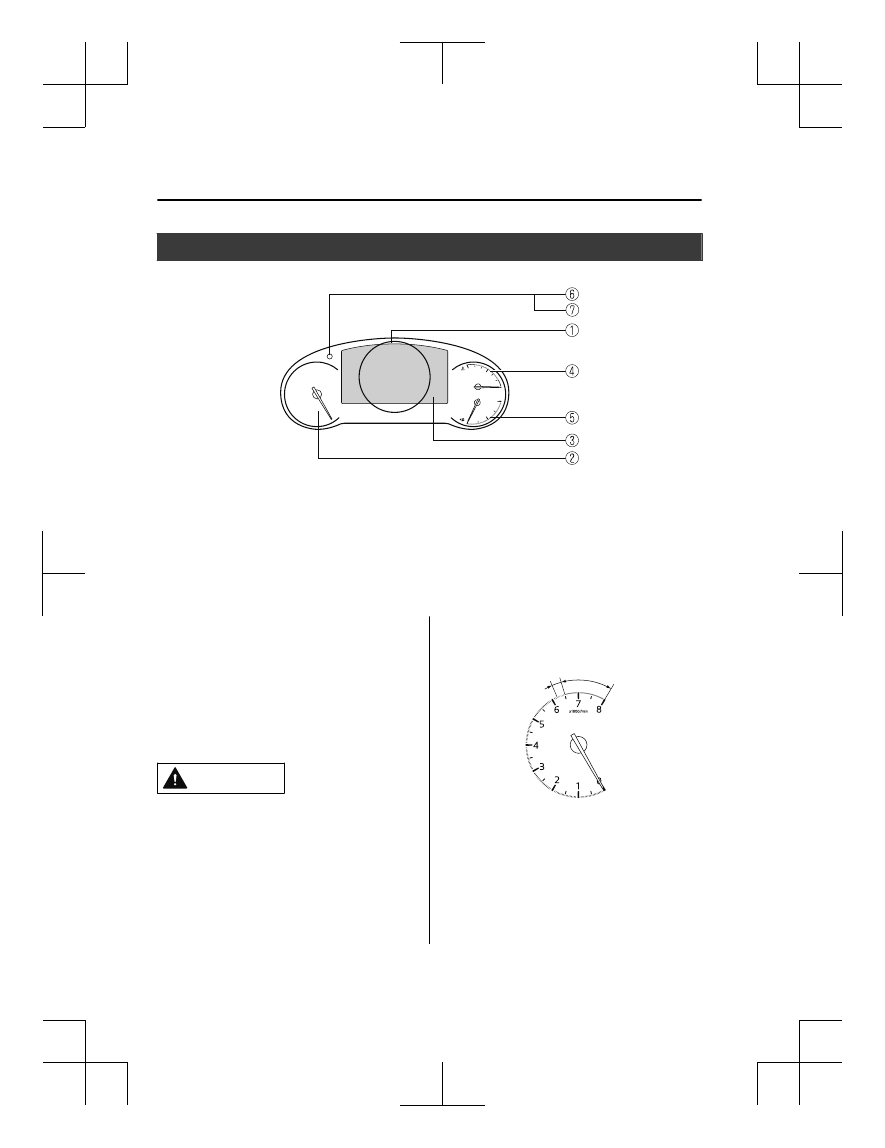

Instrument Cluster (Type A)

Speedometer..........................................................................................................page 4-12
Tachometer............................................................................................................ page 4-12
Multi-information Display (Type A).....................................................................page 4-13
Engine Coolant Temperature Gauge..................................................................... page 4-16
Fuel Gauge............................................................................................................ page 4-17
Dashboard Illumination.........................................................................................page 4-17
Speed Unit Selector...............................................................................................page 4-18

▼

Speedometer

The speedometer indicates the speed of the
vehicle.

▼

Tachometer

The tachometer shows engine speed in
thousands of revolutions per minute (rpm).

CAUTION

Do not run the engine with the tachometer
needle in the RED ZONE.

This may cause severe engine damage.

STRIPED ZONE

RED ZONE

The range varies depending on the type
of gauge.

NOTE

When the tachometer needle enters the
STRIPED ZONE, this indicates to the
driver that the gears should be shifted
before entering the RED ZONE.

When Driving

Instrument Cluster and Display

4-12

▼

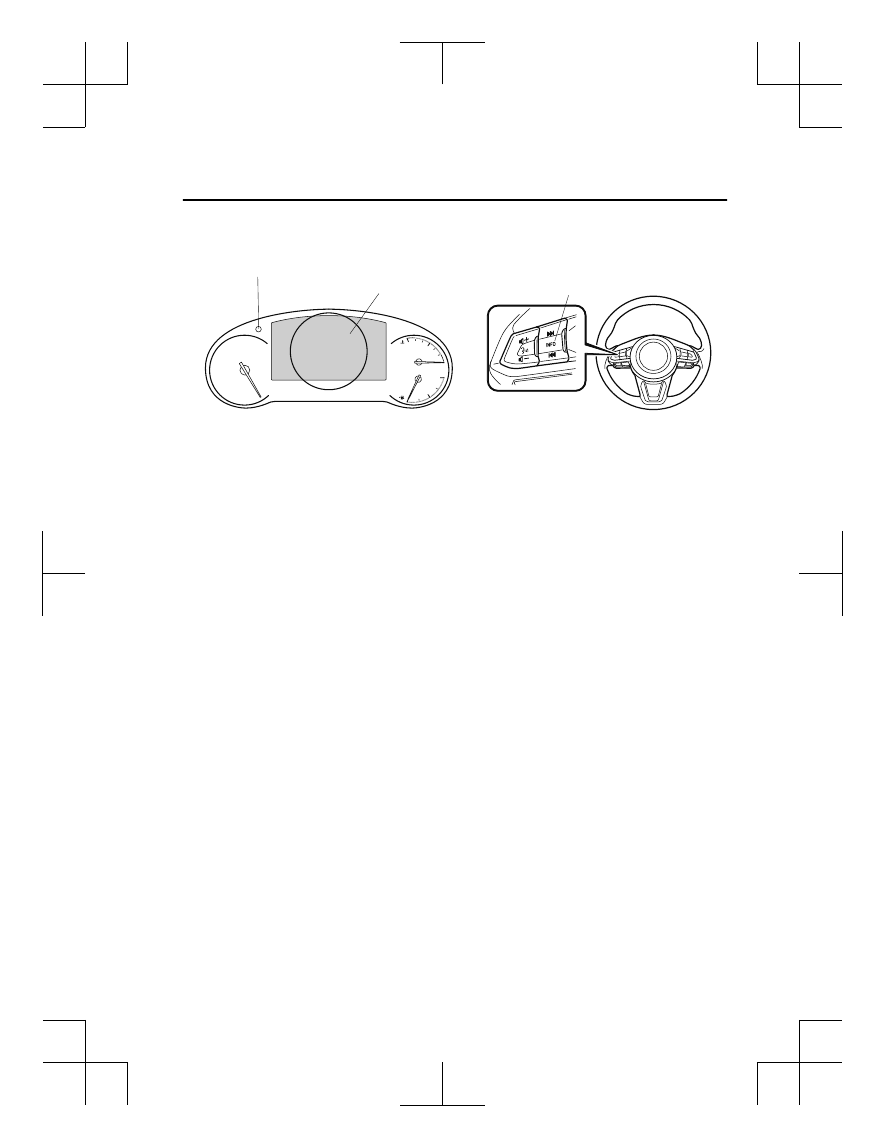

Multi-information Display (Type A)

INFO switch

Multi-information Display (Type A)

Dashboard illumination knob

The multi-information display indicates the following information.



Speedometer



Odometer



Trip meter



Outside temperature



Distance-to-empty



Average fuel economy



Current fuel economy



Maintenance Monitor



Mazda intelligent Drive Select (Mi-Drive) Display



Blind Spot Monitoring (BSM) Display



Traffic Sign Recognition System (TSR) Display



Distance Recognition Support System (DRSS) Display



Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function)
System Display



Traffic Jam Assist (TJA) Display



Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Display



Cruise Control Display



Compass Display



Door-Ajar/Liftgate-Ajar Warning Indication



Message Display

When Driving

Instrument Cluster and Display

4-13

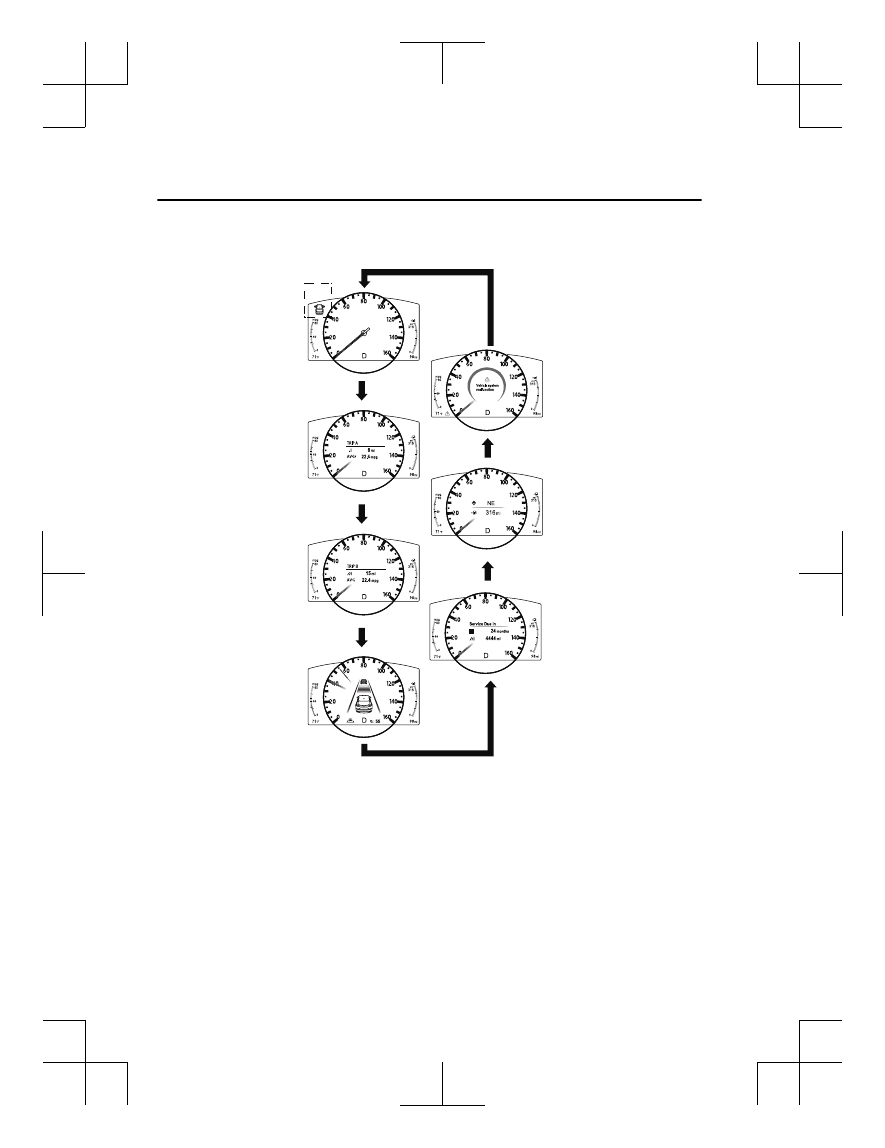

The screen content changes each time the INFO switch is pressed.

Press the INFO switch

*2: Displayed only when a warning occurs.

*1: Displayed when opening/closing door/trunk lid.

Press the INFO switch

Basic display

Warning message
display

Trip Meter A display

Trip Meter B display

Press the INFO switch

i-ACTIVSENSE display

Maintenance Monitor
display

Compass display

When Driving

Instrument Cluster and Display

4-14

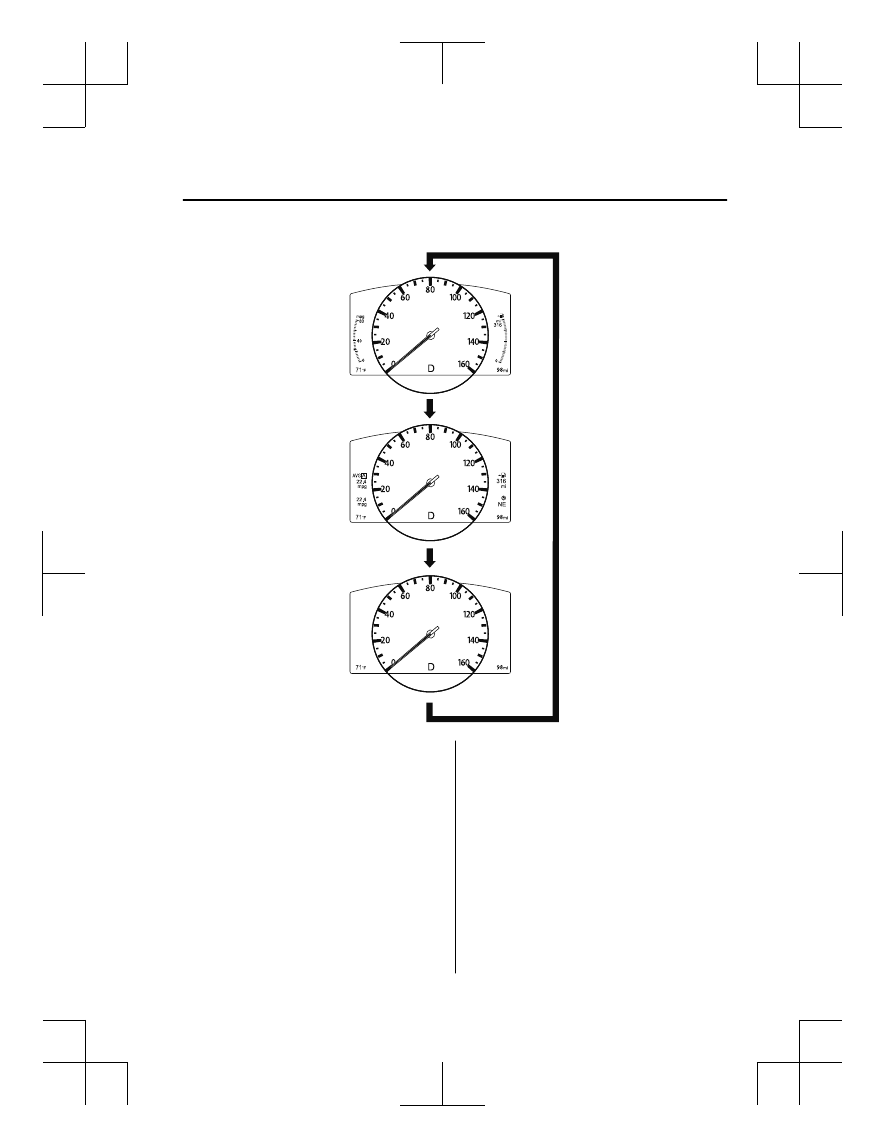

The screen content changes each time the dashboard illumination knob is pressed and held.

Gauge indication

Display off

Numerical indication

Press and hold
dashboard illumination
knob

Press and hold dashboard
illumination knob

▼

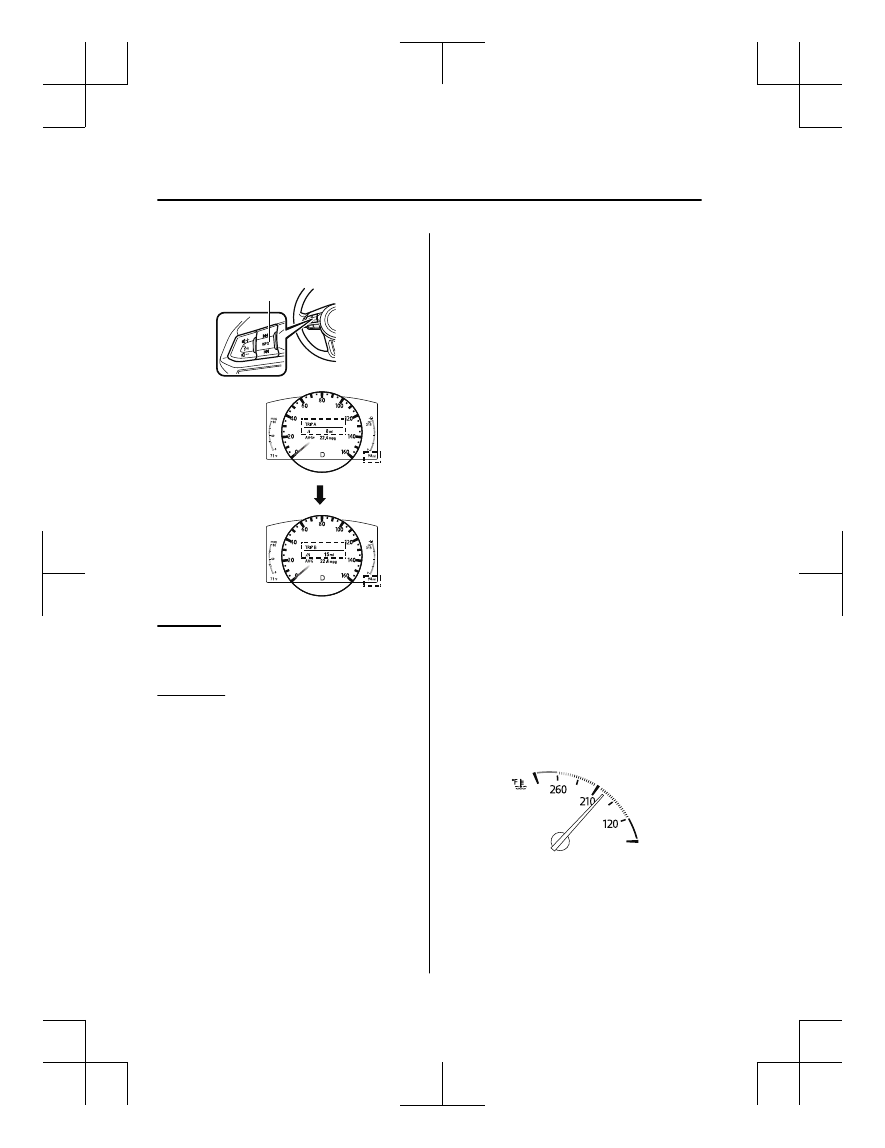

Odometer, Trip Meter and Trip
Meter Selector

The odometer is constantly displayed on
the screen when the ignition is switched
ON, and the TRIP A or TRIP B screen can

When Driving

Instrument Cluster and Display

4-15

be displayed by operating the INFO
switch.

INFO switch

Press the INFO switch

Trip Meter A
display

Trip Meter B
display

Odometer

The odometer records the total distance
the vehicle has been driven.

Trip meter

The driving distance for a specified
interval is indicated. Two types (TRIP A,
TRIP B) of interval distance and the
average fuel economy for each can be
measured.

For instance, trip meter A can record the
distance from the point of origin, and trip

meter B can record the distance from
where the fuel tank is filled.

When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.

The trip meter and average fuel economy
can be reset by pressing the INFO switch
for 1.5 seconds or more while in each
mode.

NOTE



Only the trip meters record tenths of
kilometers (miles).



The trip record will be erased when:



The power supply is interrupted
(blown fuse or the battery is
disconnected).



The vehicle is driven over 9999.9 km
(mile).

▼

Engine Coolant Temperature Gauge

Displays the engine coolant temperature.
The blue range of the gauge indicates that
the engine coolant temperature is low, and
the red range of the gauge indicates that
the engine coolant temperature is high and
overheating.

When Driving

Instrument Cluster and Display

4-16

CAUTION

If the engine coolant temperature gauge needle is
in the red range, there is the possibility of
overheating. Drive slowly to reduce engine load
until you can find a safe place to stop the vehicle
and wait for the engine to cool down.
Refer to Overheating on page 7-17.

NOTE



(SKYACTIV-G 2.5T)

If the engine coolant temperature is high
or the engine is hot, the engine output
may be limited.

▼

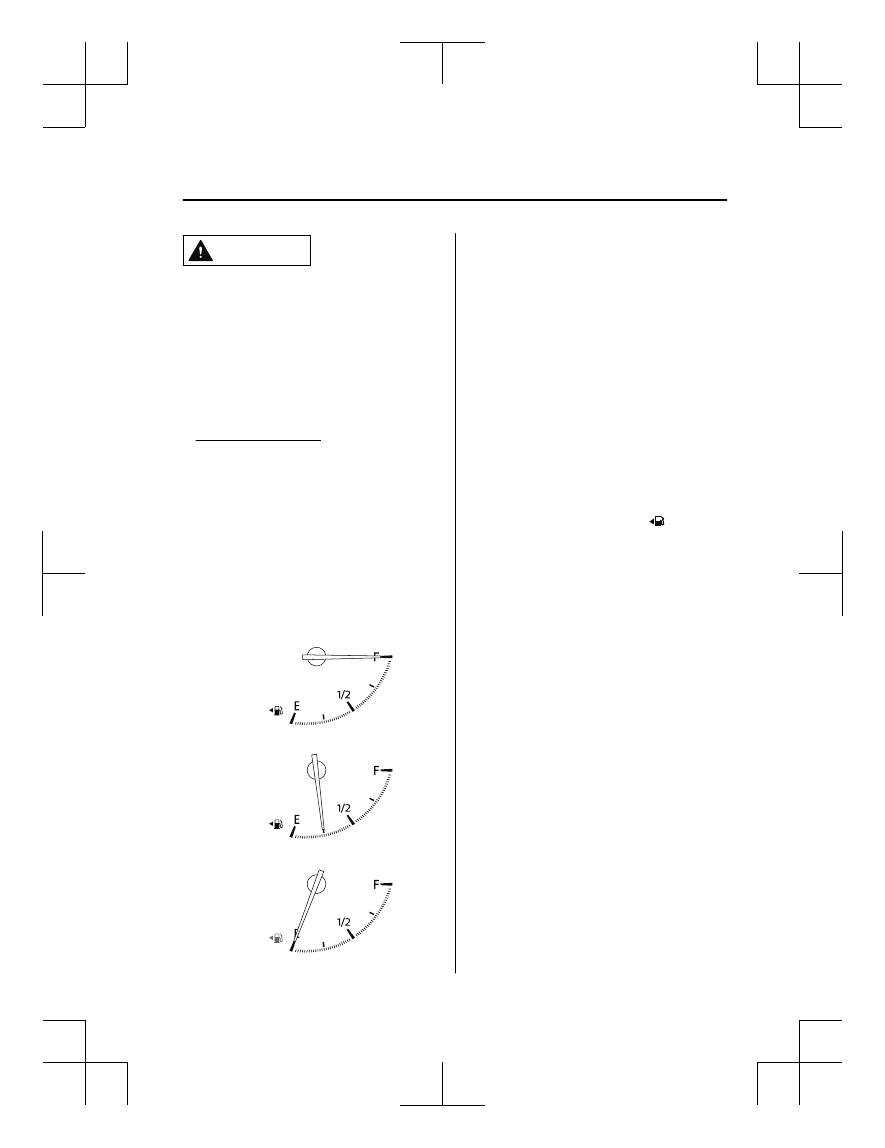

Fuel Gauge

The fuel gauge shows approximately how
much fuel is remaining in the tank when
the ignition is switched ON. We
recommend keeping the tank over 1/4 full.

Full

1/4 Full

Empty

If the low fuel warning light illuminates or
the fuel level is very low, refuel as soon as
possible.
If inconsistency in engine performance or
stalling occurs due to low fuel level
conditions, refuel the vehicle as soon as
possible and add at least 10 L (2.7 US gal,
2.2 Imp gal) of fuel.
Refer to Taking Action on page 7-31.

NOTE



After refueling, it may require some time
for the indicator to stabilize. In addition,
the indicator may deviate while driving
on a slope or curve since the fuel moves
in the tank.



The direction of the arrow ( ) indicates
that the fuel-filler lid is on the left side
of the vehicle.

▼

Dashboard Illumination

When the lights are turned on with the
ignition switched ON, the brightness of
the dashboard illumination is dimmed.
However, when the light sensor detects
that the surrounding area is bright such as
when the lights are turned on in the
daytime, the dashboard illumination does
not dim.

NOTE



When the ignition is switched ON in the
early evening or at dusk, the dashboard
illumination is dimmed for several
seconds until the light sensor detects the
brightness of the surrounding area,
however, the dimming may cancel after
the brightness is detected.



When the lights are turned on, the
lights-on indicator light in the
instrument cluster turns on.
Refer to Headlights on page 4-71.

When Driving

Instrument Cluster and Display

4-17

Content .. 8 9 10 11 ..
