Mazda 6 (2021 year). Manual in english - page 12





When Driving
i-ACTIVSENSE

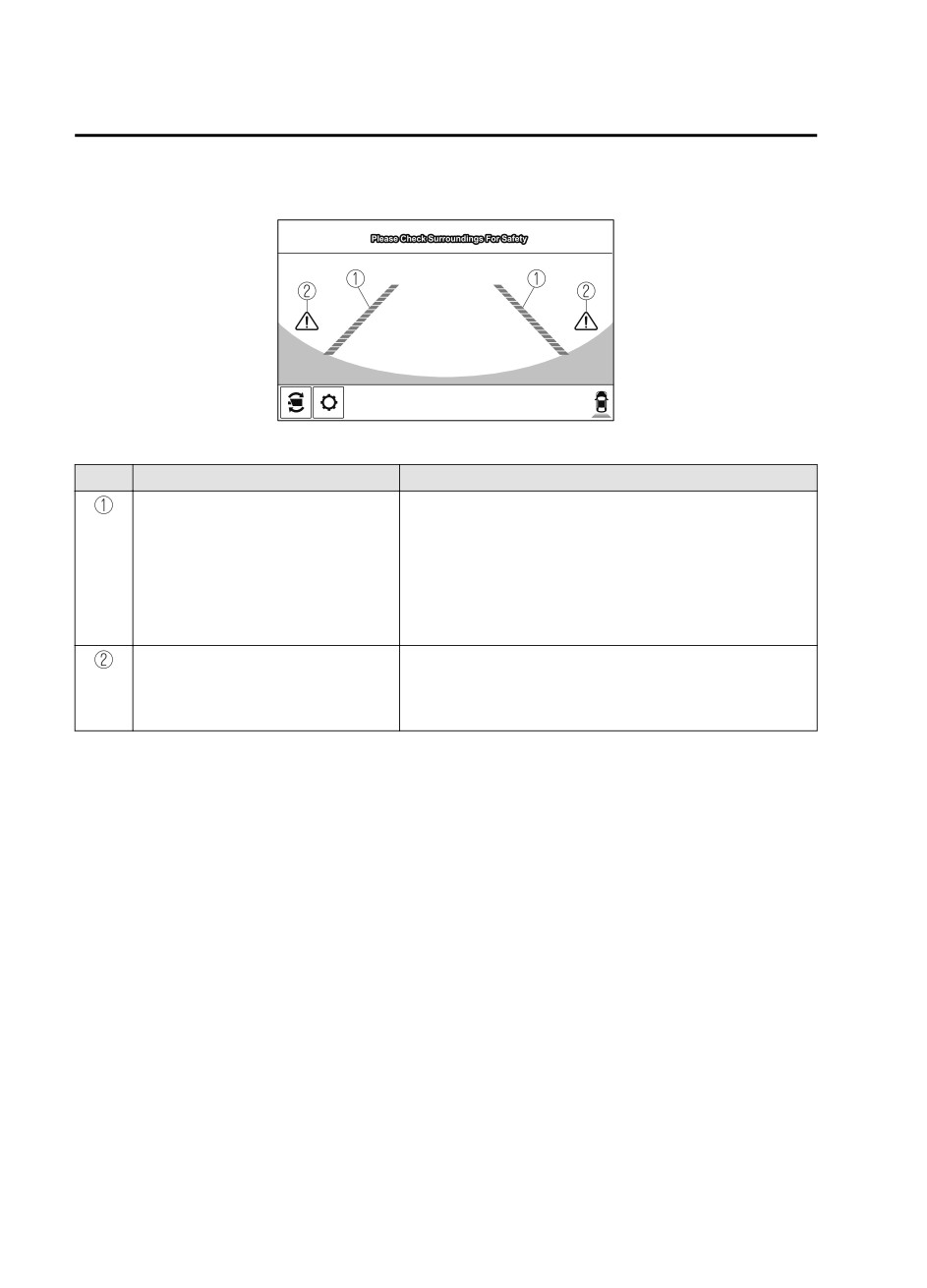

Viewing the screen
Display/Icon
Content
Extended vehicle width lines and dis-
These guide lines indicate the approximate width of the vehi-
tance guide lines (red/blue)
cle and distance to a point measured from the rear of the vehi-
cle (from the end of the bumper).
The red lines indicate the points up to about 0.5 m (19 in)
from the rear end of the bumper.
The blue lines indicate the points from about 0.5 m (19 in)
and up to 2 m (78 in) from the rear end of the bumper.
Blind Spot Monitoring (BSM) warning
Indicates when the Rear Cross Traffic Alert (RCTA) has oper-
lights
ated.
For details, refer to Rear Cross Traffic Alert (RCTA).
Refer to Rear Cross Traffic Alert (RCTA) on page 4-146.
NOTE
The parking sensor obstruction detection indication does not display. Switch the screen
display to the top view/rear view display if the parking sensor warning sound is activated.
The rear wide view screen displays the image at the rear of the vehicle at a wide angle
and corrects the image to help detect approaching obstructions from the side. Therefore, it
differs from the actual view.
4-210
When Driving
i-ACTIVSENSE
Margin of Error Between Road Surface on Screen and Actual Road Surface
There might be some margin of error between the road surface appearing on the screen and
the actual road surface. A margin of error in the perceived distance could lead to an
accident, therefore be aware of the following conditions which can more easily produce
errors in the perceived distance.

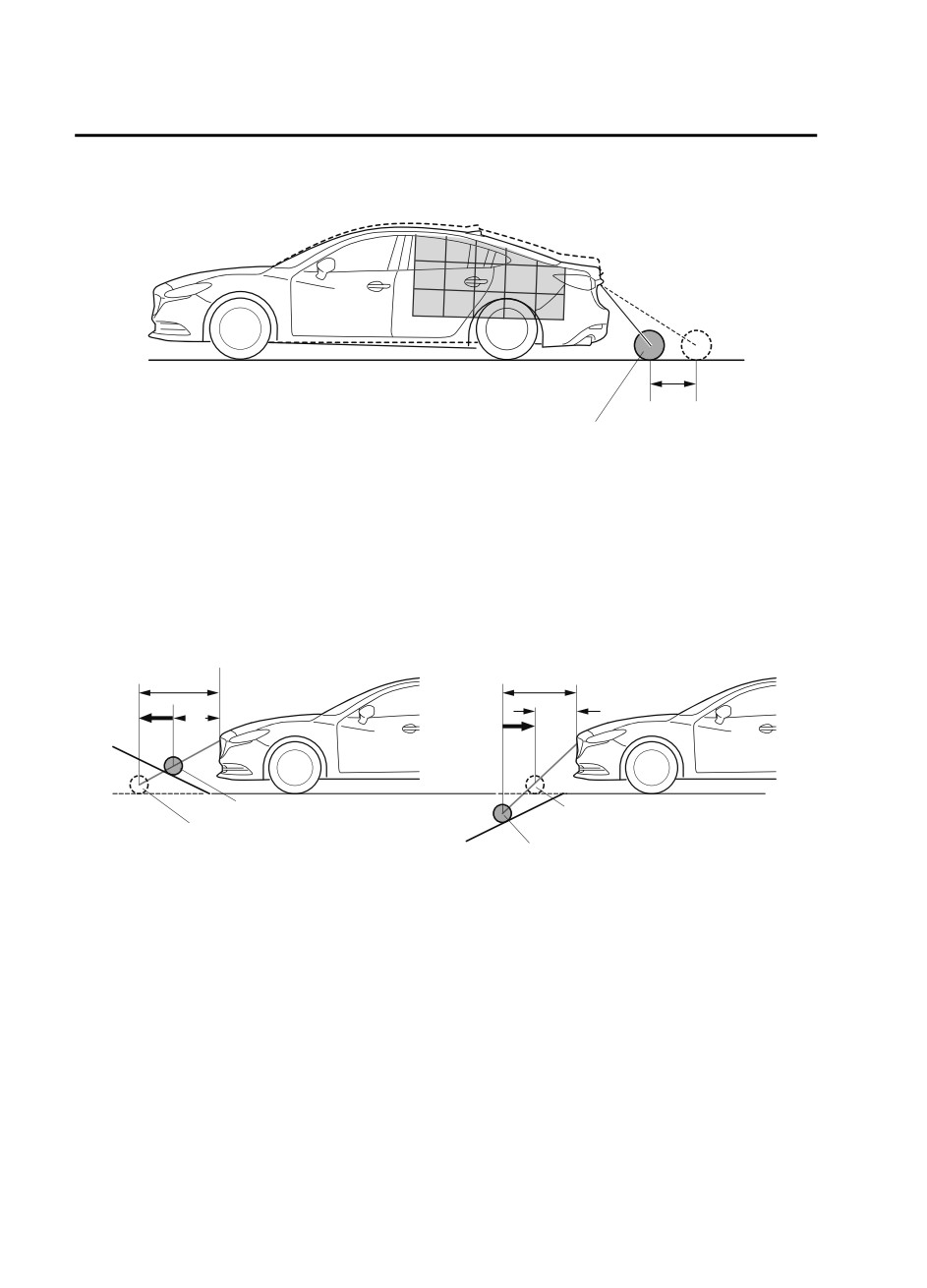

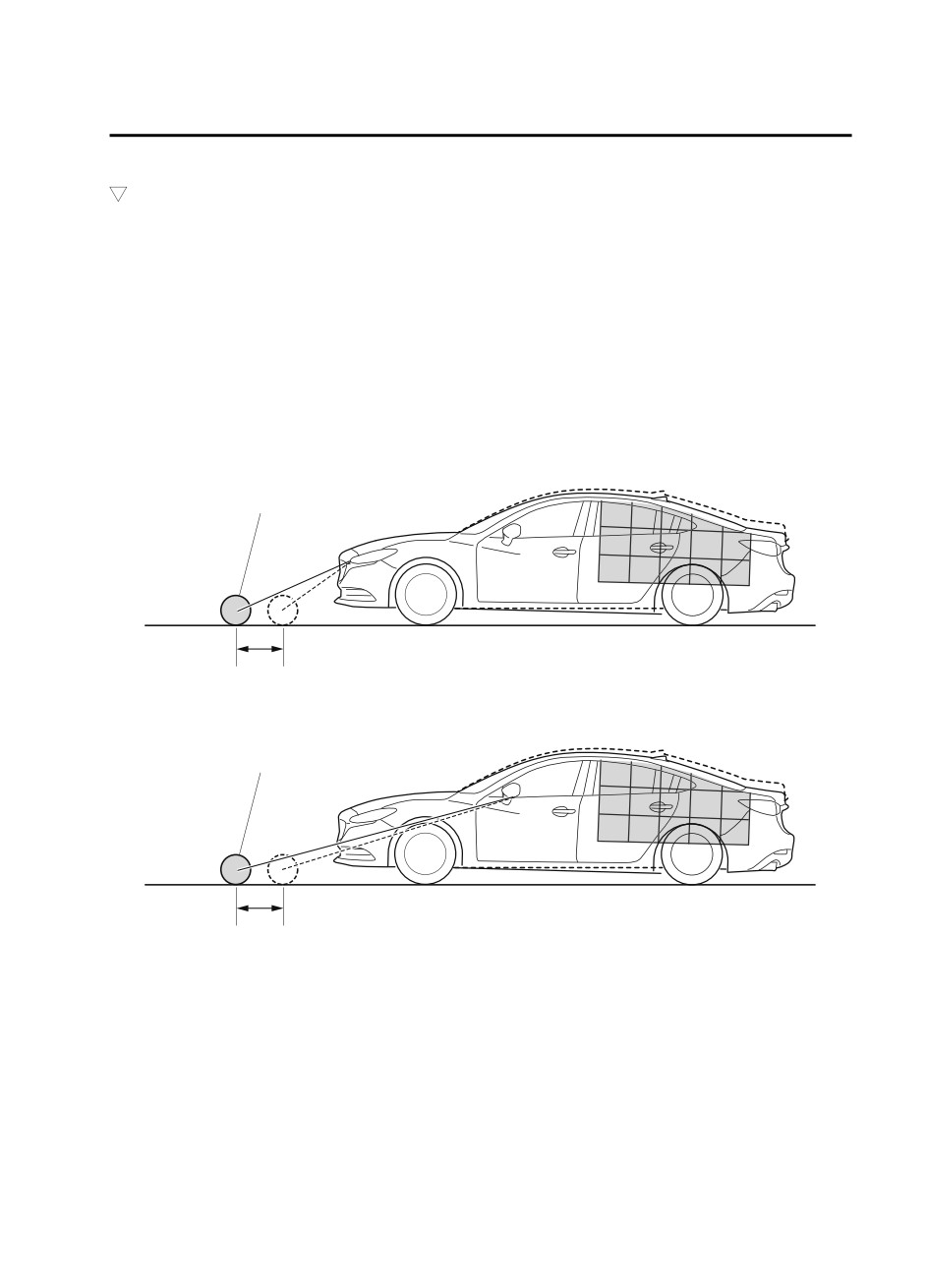

The vehicle tilts due to weight of passengers and cargo.
If the vehicle is tilted, obstructions picked up by a camera can appear farther or closer than
the actual distance from the vehicle.
Front camera
Obstruction
Margin of error
Side camera
Obstruction
Margin of error
4-211
When Driving
i-ACTIVSENSE
Rear camera
Margin of error
Obstruction

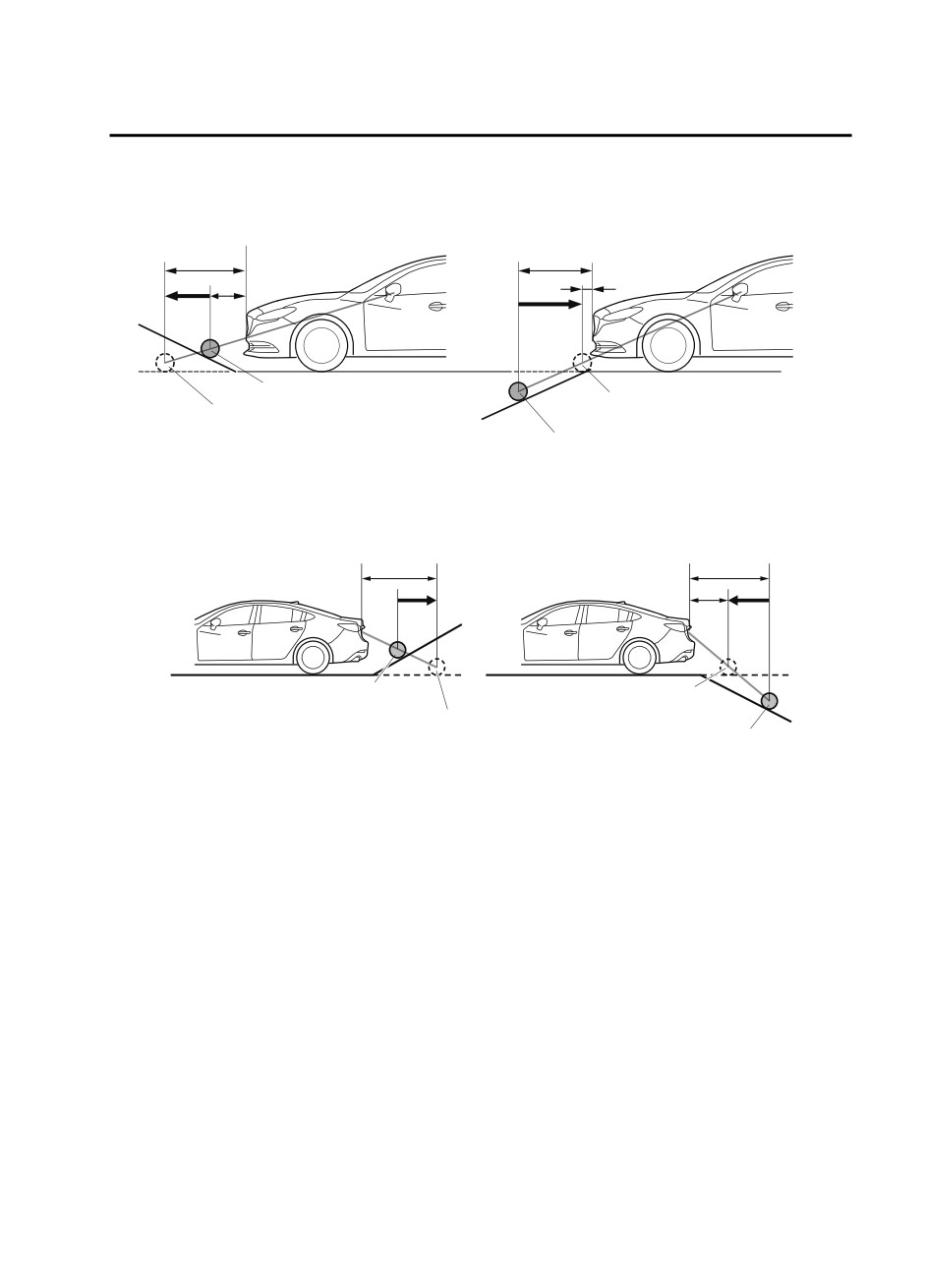

There is a steep up or down grade in the road at the front or rear of the vehicle
If there is a steep up or down grade in the road at the front or rear of the vehicle,
obstructions picked up by the camera can appear farther or closer than the actual distance
from the vehicle.
Front camera
Appears further than
Appears closer than
actual distance
actual distance
A
B
A
B
Actual obstruction
Obstruction appearing
Obstruction appearing
on screen
on screen
Actual obstruction
A: Distance of obstruction being viewed on screen
B: Actual distance of obstruction from vehicle
4-212
When Driving
i-ACTIVSENSE
Side camera
Appears further than
Appears closer than
actual distance
actual distance
A
B
B
A
Actual obstruction
Obstruction appearing
Obstruction appearing
on screen
on screen
Actual obstruction
A: Distance of obstruction being viewed on screen
B: Actual distance of obstruction from vehicle
Rear camera
Appears further than
Appears closer than
A
B
actual distance
actual distance
B
A
Actual obstruction
Obstruction appearing
Obstruction appearing on screen
on screen
Actual obstruction
A: Distance of obstruction being viewed on screen
B: Actual distance of obstruction from vehicle
NOTE
If the vehicle is on a slope, obstructions taken by the camera can appear farther or closer
than the actual distance from the vehicle.
4-213
When Driving
i-ACTIVSENSE

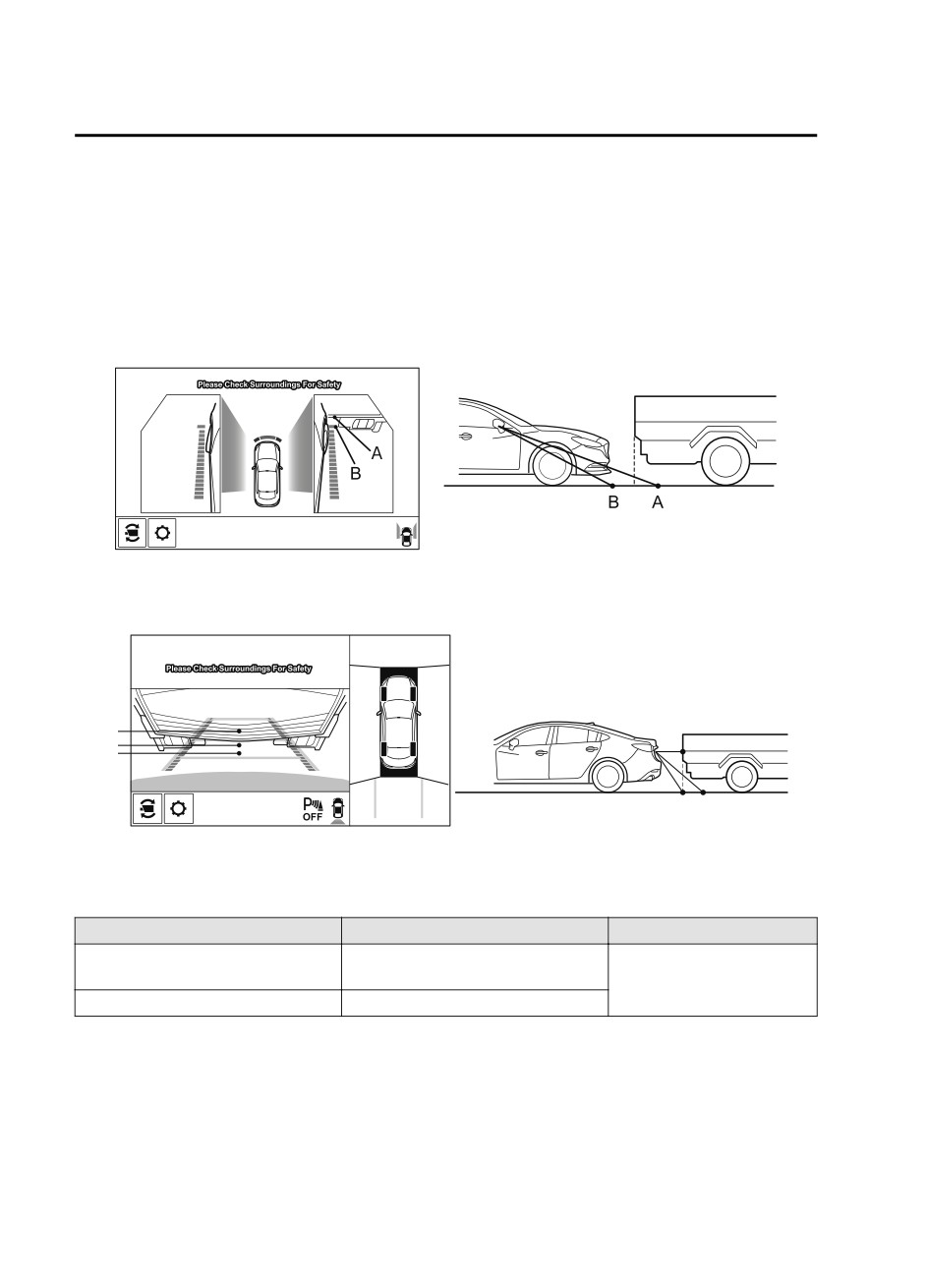

Three-dimensional object at vehicle front or rear
Because the vehicle front end guide lines (side camera) or the distance guide lines (rear
camera) are displayed based on a flat surface, the distance to the three-dimensional object
displayed on the screen is different from the actual distance.
Side camera
(Screen display)
(Actual condition)
Rear camera
(Screen display)
(Actual condition)
A
B
A
C
C B
Sensed distance on screen A > B > C
Actual distance B > C = A
System Problem Indication
Center display indication
Cause
Action to be taken
“No image signal reception” is dis-
Have your vehicle inspected
The control unit might be damaged.
played
by an Authorized Mazda
Screen is pitch-black and blank
The camera might be damaged.
Dealer.
4-214
When Driving
i-ACTIVSENSE

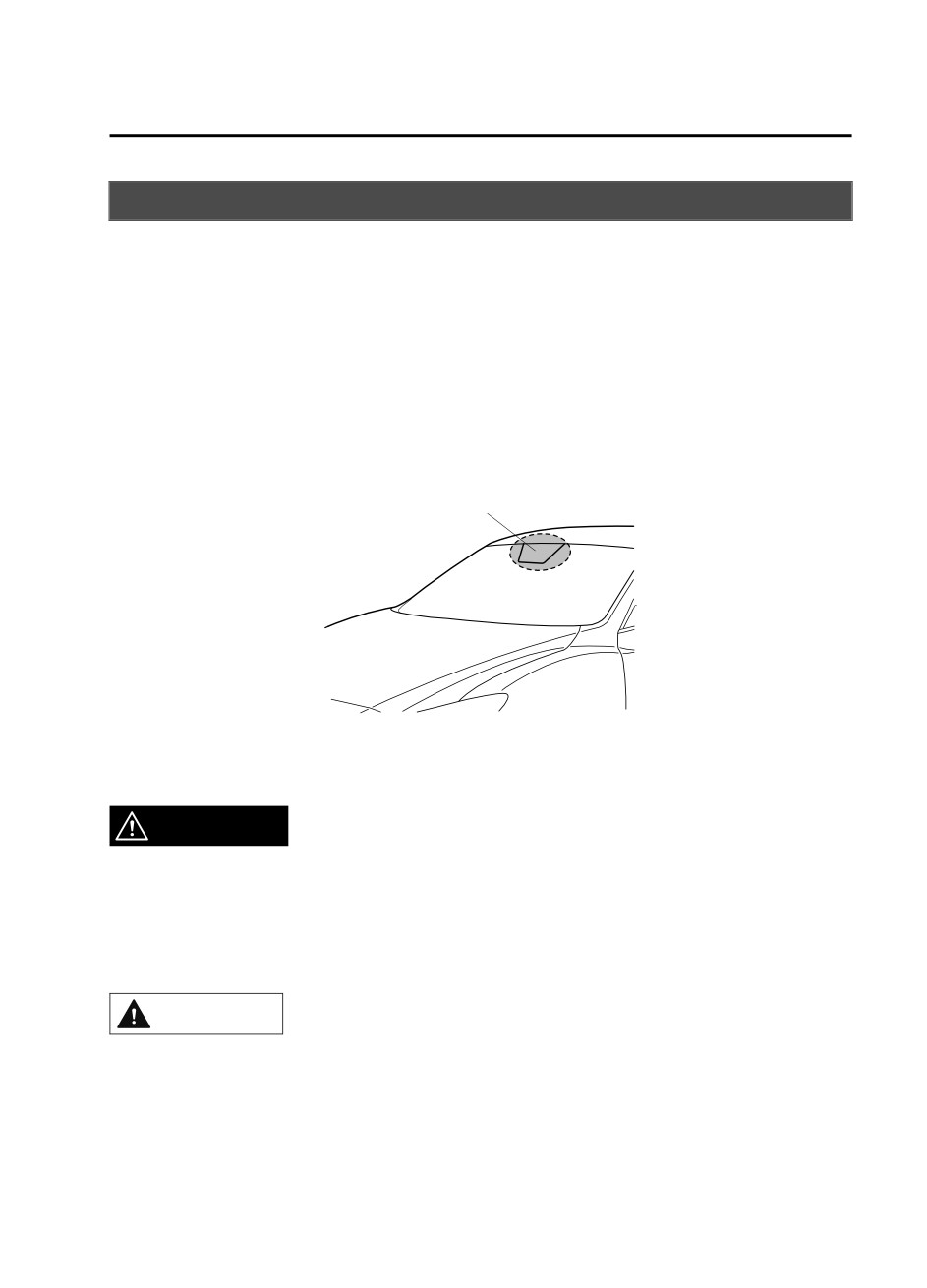

Forward Sensing Camera (FSC)*
Your vehicle is equipped with a Forward Sensing Camera (FSC). The Forward Sensing
Camera (FSC) is positioned near the rearview mirror and used by the following systems.
High Beam Control System (HBC)
Driver Attention Alert (DAA)
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS)
Traffic Sign Recognition System (TSR)
Advanced Smart City Brake Support (Advanced SCBS)
Smart City Brake Support [Forward] (SCBS F)
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function)
Smart Brake Support (SBS)
Forward Sensing Camera (FSC)
The Forward Sensing Camera (FSC) determines the conditions ahead of the vehicle while
traveling at night and detects traffic lanes. The distance in which the Forward Sensing
Camera (FSC) can detect objects varies depending on the surrounding conditions.
WARNING
Do not modify the suspension:
If the vehicle height or inclination is changed, the system will not be able to correctly detect
vehicles ahead. This will result in the system not operating normally or mistakenly operating,
which could cause a serious accident.
CAUTION
¾ Do not apply accessories, stickers or film to the windshield near the Forward Sensing
Camera (FSC).
If the area in front of the Forward Sensing Camera (FSC) lens is obstructed, it will cause the
system to not operate correctly. Consequently, each system may not operate normally
which could lead to an unexpected accident.
*Some models.
4-215
When Driving
i-ACTIVSENSE
¾ Do not disassemble or modify the Forward Sensing Camera (FSC).
Disassembly or modification of the Forward Sensing Camera (FSC) will cause a malfunction
or mistaken operation. Consequently, each system may not operate normally which could
lead to an unexpected accident.
¾ Heed the following cautions to assure the correct operation of the Forward Sensing Camera
(FSC).
¾ Be careful not to scratch the Forward Sensing Camera (FSC) lens or allow it to get dirty.
¾ Do not remove the Forward Sensing Camera (FSC) cover.
¾ Do not place objects on the dashboard which reflect light.
¾ Always keep the windshield glass around the camera clean by removing dirt or fogging.
Use the windshield defroster to remove fogging on the windshield.
¾ Consult an Authorized Mazda Dealer regarding cleaning the interior side of the
windshield around the Forward Sensing Camera (FSC).
¾ Consult an Authorized Mazda Dealer before performing repairs around the Forward
Sensing Camera (FSC).
¾ The Forward Sensing Camera (FSC) is installed to the windshield. Consult an Authorized
Mazda Dealer for windshield repair and replacement.
¾ When cleaning the windshield, do not allow glass cleaners or similar cleaning fluids to
get on the Forward Sensing Camera (FSC) lens. In addition, do not touch the Forward
Sensing Camera (FSC) lens.
¾ When performing repairs around the rearview mirror, consult an Authorized Mazda
Dealer.
¾ Consult an Authorized Mazda Dealer regarding cleaning of the camera lens.
¾ Do not hit or apply strong force to the Forward Sensing Camera (FSC) or the area around
it. If the Forward Sensing Camera (FSC) is severely hit or if there are cracks or damage
caused by flying gravel or debris in the area around it, stop using the following systems
and consult an Authorized Mazda Dealer.
¾ High Beam Control System (HBC)
¾ Driver Attention Alert (DAA)
¾ Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS)
¾ Traffic Sign Recognition System (TSR)
¾ Advanced Smart City Brake Support (Advanced SCBS)
¾ Smart City Brake Support [Forward] (SCBS F)
¾ Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function)
¾ Smart Brake Support (SBS)
¾ The direction in which the Forward Sensing Camera (FSC) is pointed has been finely
adjusted. Do not change the installation position of the Forward Sensing Camera (FSC) or
remove it. Otherwise, it could result in damage or malfunction.
4-216
When Driving
i-ACTIVSENSE
¾ Always use tires for all wheels that are of the specified size, and the same manufacturer,
brand, and tread pattern. In addition, do not use tires with significantly different wear
patterns on the same vehicle as the system may not operate normally.
¾ The Forward Sensing Camera (FSC) includes a function for detecting a soiled windshield
and informing the driver, however, depending on the conditions, it may not detect plastic
shopping bags, ice or snow on the windshield. In such cases, the system cannot accurately
determine a vehicle ahead and may not be able to operate normally. Always drive carefully
and pay attention to the road ahead.
NOTE
In the following cases, the Forward Sensing Camera (FSC) cannot detect target objects
correctly, and each system may be unable to operate normally.
The height of the vehicle ahead is low.
You drive your vehicle at the same speed as the vehicle ahead.
Headlights are not turned on during the night or when going through a tunnel.
In the following cases, the Forward Sensing Camera (FSC) may not be able to detect
target objects correctly.
Under bad weather condition, such as rain, fog and snow.
The window washer is being used or the windshield wipers are not used when it's
raining.
Ice, fog, snow, frost, rainfall, dirt, or foreign matter such as a plastic bag is stuck on the
windshield.
Trucks with low loading platforms and vehicles with an extremely low or high profile.
When driving next to walls with no patterning (including fences and longitudinally
striped walls).
The taillights of the vehicle ahead are turned off.
A vehicle is outside the illumination range of the headlights.
The vehicle is making a sharp turn, or ascending or descending a steep slope.
Entering or exiting a tunnel.
Heavy luggage is loaded causing the vehicle to tilt.
Strong light is shone at the front of the vehicle (back light or high-beam light from
on-coming vehicles).
There are many light emitters on the vehicle ahead.
When the vehicle ahead is not equipped with taillights or the taillights are turned off at
nighttime.
Elongated luggage or cargo is loaded onto installed roof rails and covers the Forward
Sensing Camera (FSC).
Exhaust gas from the vehicle in front, sand, snow, and water vapor rising from
manholes and grating, and water splashed into the air.
When towing a malfunctioning vehicle.
4-217
When Driving
i-ACTIVSENSE
The vehicle is driven with tires having significantly different wear.
The vehicle is driven on down slopes or bumpy roads.
There are water puddles on the road.
The surroundings are dark such as during the night, early evening, or early morning, or
in a tunnel or indoor parking lot.
The illumination brightness of the headlights is reduced or the headlight illumination is
weakened due to dirt or a deviated optical axis.
The target object enters the blind spot of the Forward Sensing Camera (FSC).
A person or object bursts onto the road from the shoulder or cuts right in front of you.
You change lanes and approach a vehicle ahead.
When driving extremely close to the target object.
Tire chains or a temporary spare tire is installed.
The vehicle ahead has a special shape. For example, a vehicle towing a trailer house or
a boat, or a vehicle carrier carrying a vehicle with its front pointed rearward.
If the Forward Sensing Camera (FSC) cannot operate normally due to backlight or fog,
the system functions related to the Forward Sensing Camera (FSC) are temporarily
stopped and the following warning lights turn on. However, this does not indicate a
malfunction.
High Beam Control System (HBC) warning light (amber)
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) warning
indication
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go
function) warning indication
Smart Brake Support/Smart City Brake Support (SBS/SCBS) warning indication/
warning light (amber)
If the Forward Sensing Camera (FSC) cannot operate normally due to high temperatures,
the system functions related to the Forward Sensing Camera (FSC) are temporarily
stopped and the following warning lights turn on. However, this does not indicate a
malfunction. Cool down the area around the Forward Sensing Camera (FSC) such as by
turning on the air conditioner.
High Beam Control System (HBC) warning light (amber)
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) warning
indication
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go
function) warning indication
Smart Brake Support/Smart City Brake Support (SBS/SCBS) warning indication/
warning light (amber)
4-218
When Driving
i-ACTIVSENSE
If the Forward Sensing Camera (FSC) detects that the windshield is dirty or foggy, the
system functions related to the Forward Sensing Camera (FSC) are temporarily stopped
and the following warning lights turn on. However, this does not indicate a problem.
Remove the dirt from the windshield or press the defroster switch and defog the
windshield.
High Beam Control System (HBC) warning light (amber)
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) warning
indication
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go
function) warning indication
Smart Brake Support/Smart City Brake Support (SBS/SCBS) warning indication/
warning light (amber)
If there are recognizable cracks or damage caused by flying gravel or debris on the
windshield, always have the windshield replaced. Consult an Authorized Mazda Dealer
for replacement.
(With Advanced Smart City Brake Support (Advanced SCBS))
The Forward Sensing Camera (FSC) recognizes pedestrians when all of the following
conditions are met:
The height of a pedestrian is about 1 to 2 meters.
An outline such as the head, both shoulders, or the legs can be determined.
In the following cases, the Forward Sensing Camera (FSC) may not be able to detect
target objects correctly:
Multiple pedestrians are walking, or there are groups of people.
A pedestrian is close to a separate object.
A pedestrian is crouching, lying, or slouching.
A pedestrian suddenly jumps into the road right in front of the vehicle.
A pedestrian opens an umbrella, or is carrying large baggage or articles.
A pedestrian is in a dark location such as during the night, or blends into the
background by wearing clothes matching the background color.
4-219
When Driving
i-ACTIVSENSE
Radar Sensor (Front)*
Your vehicle is equipped with a radar sensor (front).
The following systems also use the radar sensor (front).
Distance Recognition Support System (DRSS)
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function)
Smart Brake Support (SBS)
The radar sensor (front) functions by detecting the radio waves reflected off a vehicle ahead
or an obstruction sent from the radar sensor.

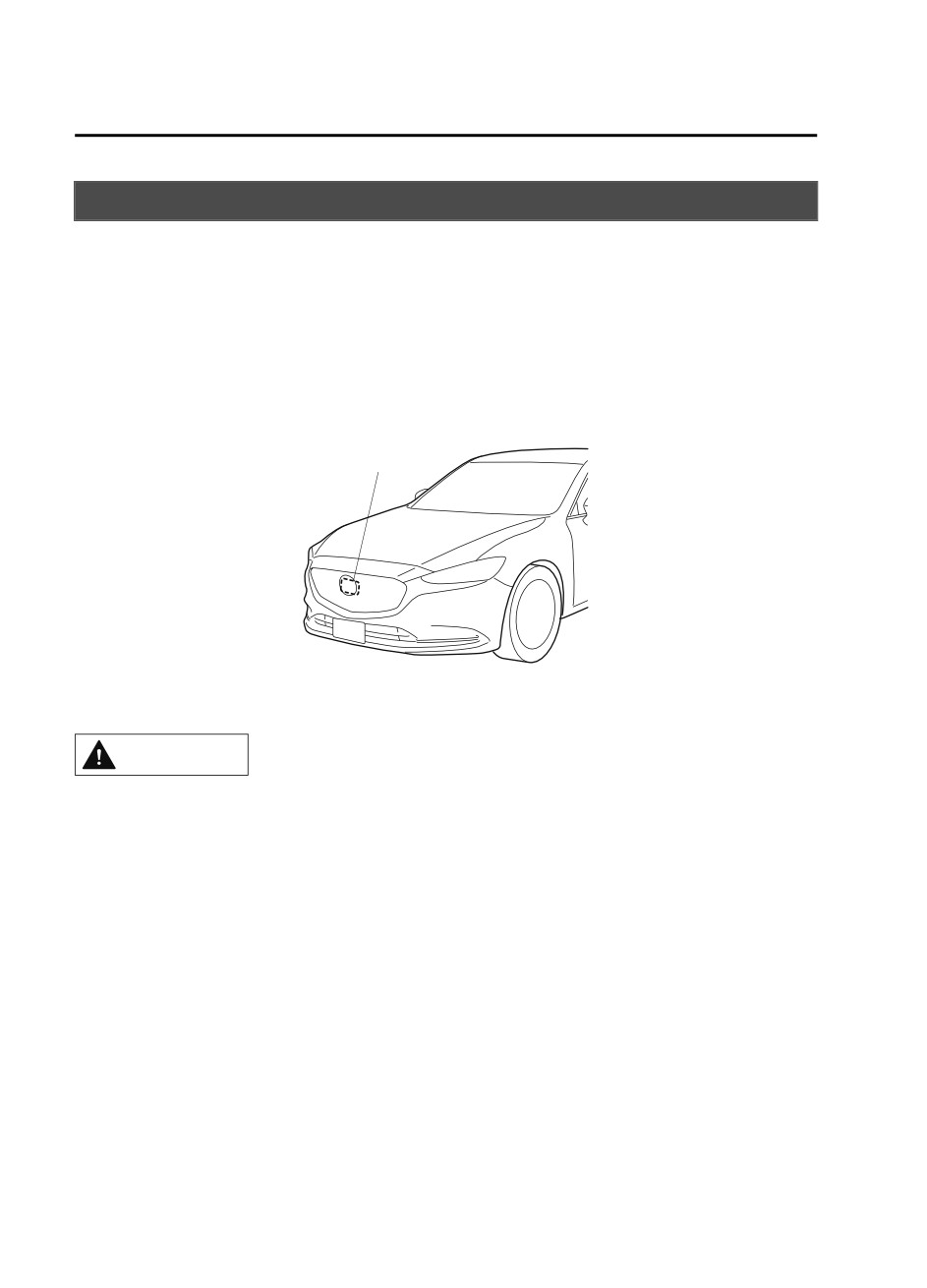

The radar sensor (front) is mounted behind the front emblem.
Radar Sensor (Front)
If “Front Radar Sensor Blocked” is displayed in the multi-information display of the
instrument cluster, clean the area around the radar sensor (front).
CAUTION
Heed the following precautions to assure correct operation of each system.
¾ Do not adhere stickers (including transparent stickers) to the surface of the radiator grille
and front emblem in and around the radar sensor (front), and do not replace the radiator
grille and front emblem with any product that is not a genuine product designed for use
with the radar sensor (front).
¾ The radar sensor (front) includes a function for detecting soiling of the radar sensor's front
surface and informing the driver, however, depending on the conditions, it may require
time to detect or it may not detect plastic shopping bags, ice or snow. If this occurs, the
system may not operate correctly, therefore always keep the radar sensor (front) clean.
¾ Do not install a grille guard.
¾ If the front part of the vehicle has been damaged in a vehicle accident, the position of the
radar sensor (front) may have moved. Stop the system immediately and always have the
vehicle inspected at an Authorized Mazda Dealer.
¾ Do not use the front bumper to push other vehicles or obstructions such as when pulling
out of a parking space. Otherwise, the radar sensor (front) could be hit and its position
deviated.
4-220
*Some models.
When Driving
i-ACTIVSENSE
¾ Do not remove, disassemble, or modify the radar sensor (front).
¾ For repairs, replacement or paint work around the radar sensor (front), consult an
Authorized Mazda Dealer.
¾ Do not modify the suspension. If the suspension are modified, the vehicle's posture could
change and the radar sensor (front) may not be able to correctly detect a vehicle ahead or
an obstruction.
NOTE
Under the following conditions, the radar sensor (front) may not be able to detect vehicles
ahead or obstructions correctly and each system may not operate normally.
The rear surface of a vehicle ahead does not reflect radio waves effectively, such as an
unloaded trailer or an automobile with a loading platform covered by a soft top,
vehicles with a hard plastic tailgate, and round-shaped vehicles.
Vehicles ahead with low vehicle height and thus less area for reflecting radio waves.
Visibility is reduced due to a vehicle ahead casting off water, snow, or sand from its tires
and onto your windshield.
The trunk compartment is loaded with heavy objects or the rear passenger seats are
occupied.
Ice, snow, or soiling is on the front surface of the front emblem.
During inclement weather such as rain, snow, or sand storms.
When driving near facilities or objects emitting strong radio waves.
Under the following conditions, the radar sensor (front) may not be able to detect vehicles
ahead or obstructions.
The beginning and end of a curve.
Roads with continuous curves.
Narrow lane roads due to road construction or lane closures.
The vehicle ahead enters the radar sensor's blind spot.
The vehicle ahead is running abnormally due to accident or vehicle damage.
Roads with repeated up and down slopes
Driving on poor roads or unpaved roads.
The distance between your vehicle and the vehicle ahead is extremely short.
A vehicle suddenly comes close such as by cutting into the lane.
To prevent incorrect operation of the system, use tires of the same specified size,
manufacturer, brand, and tread pattern on all four wheels. In addition, do not use tires
with significantly different wear patterns or tire pressures on the same vehicle (Including
the temporary spare tire).
If the battery power is weak, the system may not operate correctly.
When driving on roads with little traffic and few vehicles ahead or obstructions for the
radar sensor (front) to detect, “Front Radar Sensor Blocked” may be temporarily
displayed, however, this does not indicate a problem.
4-221
When Driving
i-ACTIVSENSE
The radar sensors are regulated by the relevant radio wave laws of the country in which
the vehicle is driven. If the vehicle is driven abroad, authorization from the country in
which the vehicle is driven may be required.
4-222
When Driving
i-ACTIVSENSE

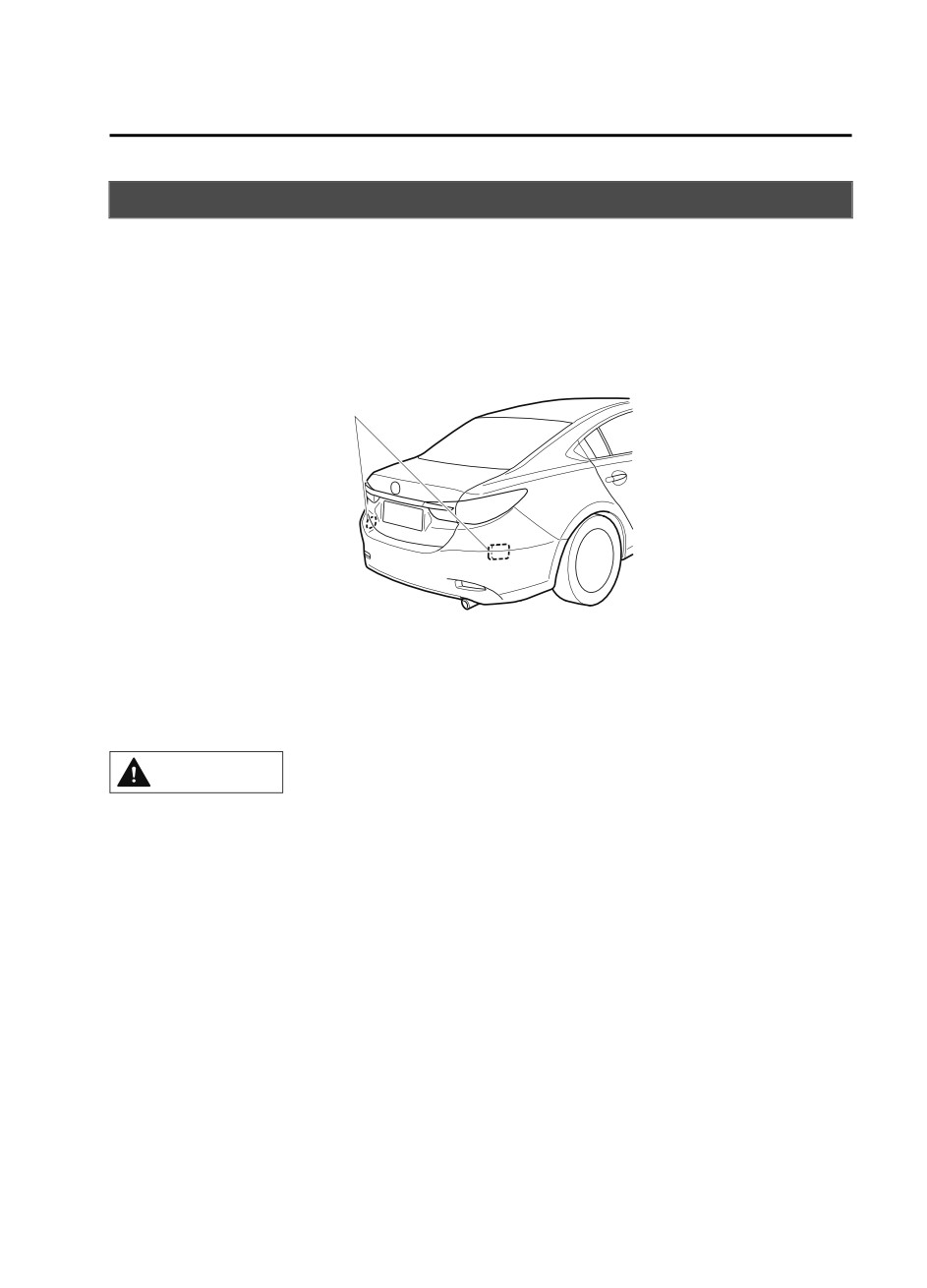

Radar Sensors (Rear)
Your vehicle is equipped with radar sensors (rear). The following systems also use the radar
sensors (rear).
Blind Spot Monitoring system (BSM)
Rear Cross Traffic Alert (RCTA)
The radar sensors (rear) function by detecting the radio waves reflected off a vehicle
approaching from the rear or an obstruction sent from the radar sensor.
Radar Sensors (Rear)

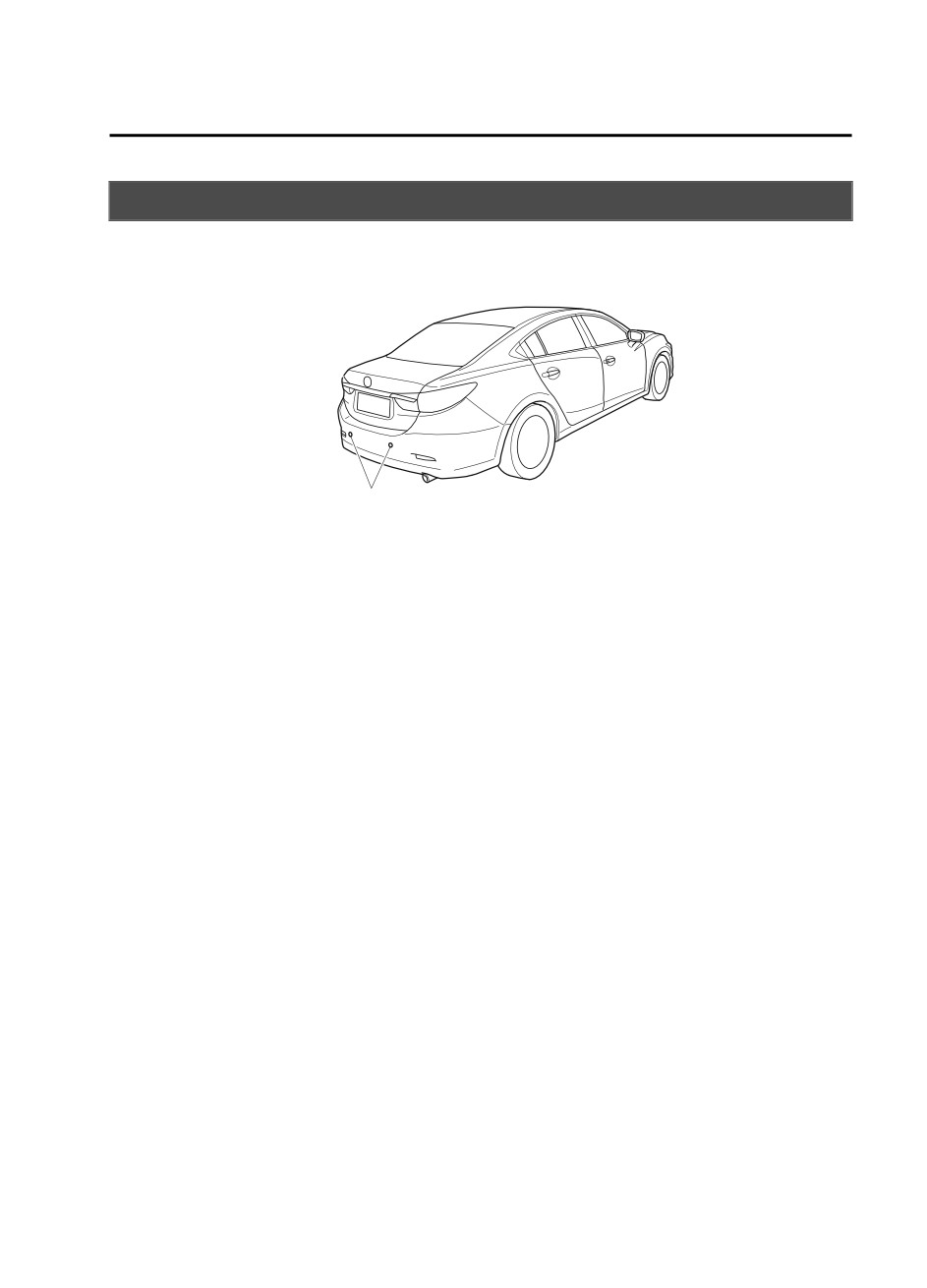

The radar sensors (rear) are installed inside the rear bumper, one each on the left and right
sides.
Always keep the surface of the rear bumper near the radar sensors (rear) clean so that the
radar sensors (rear) operate normally. Also, do not apply items such as stickers.
Refer to Exterior Care on page 6-59.
CAUTION
If the rear bumper receives a severe impact, the system may no longer operate normally. Stop
the system immediately and have the vehicle inspected at an Authorized Mazda Dealer.
NOTE
The detection ability of the radar sensors (rear) has limitations. In the following cases,
the detection ability may lower and the system may not operate normally.
The rear bumper near the radar sensors (rear) has become deformed.
Snow, ice or mud adheres to the radar sensors (rear) on the rear bumper.
Under bad weather conditions such as rain, snow and fog.
4-223
When Driving
i-ACTIVSENSE
Under the following conditions, the radar sensors (rear) cannot detect target objects or it
may be difficult to detect them.
Stationary objects on a road or a road side such as small, two-wheeled vehicles,
bicycles, pedestrians, animals, and shopping carts.
Vehicle shapes which do not reflect radar waves well such as empty trailers with a low
vehicle height and sports cars.
Vehicles are shipped with the direction of the radar sensors (rear) adjusted for each
vehicle to a loaded vehicle condition so that the radar sensors (rear) detect approaching
vehicles correctly. If the direction of the radar sensors (rear) has deviated for some
reason, have the vehicle inspected at an Authorized Mazda Dealer.
For repairs or replacement of the radar sensors (rear), or bumper repairs, paintwork, and
replacement near the radar sensors, consult an Authorized Mazda Dealer.
Turn off the system while pulling a trailer or while an accessory such as a bicycle carrier
is installed to the rear of the vehicle. Otherwise, the radio waves emitted by the radar will
be blocked causing the system to not operate normally.
The radar sensors are regulated by the relevant radio wave laws of the country in which
the vehicle is driven. If the vehicle is driven abroad, authorization from the country in
which the vehicle is driven may be required.
4-224
When Driving
i-ACTIVSENSE
Ultrasonic Sensor (Rear)*
The ultrasonic sensors (rear) function by emitting ultrasonic waves which are reflected off
obstructions at the rear and the returning ultrasonic waves are picked up by the ultrasonic
sensors (rear).
Ultrasonic sensor (rear)
The ultrasonic sensors (rear) are mounted in the rear bumper.
*Some models.
4-225
When Driving
i-ACTIVSENSE

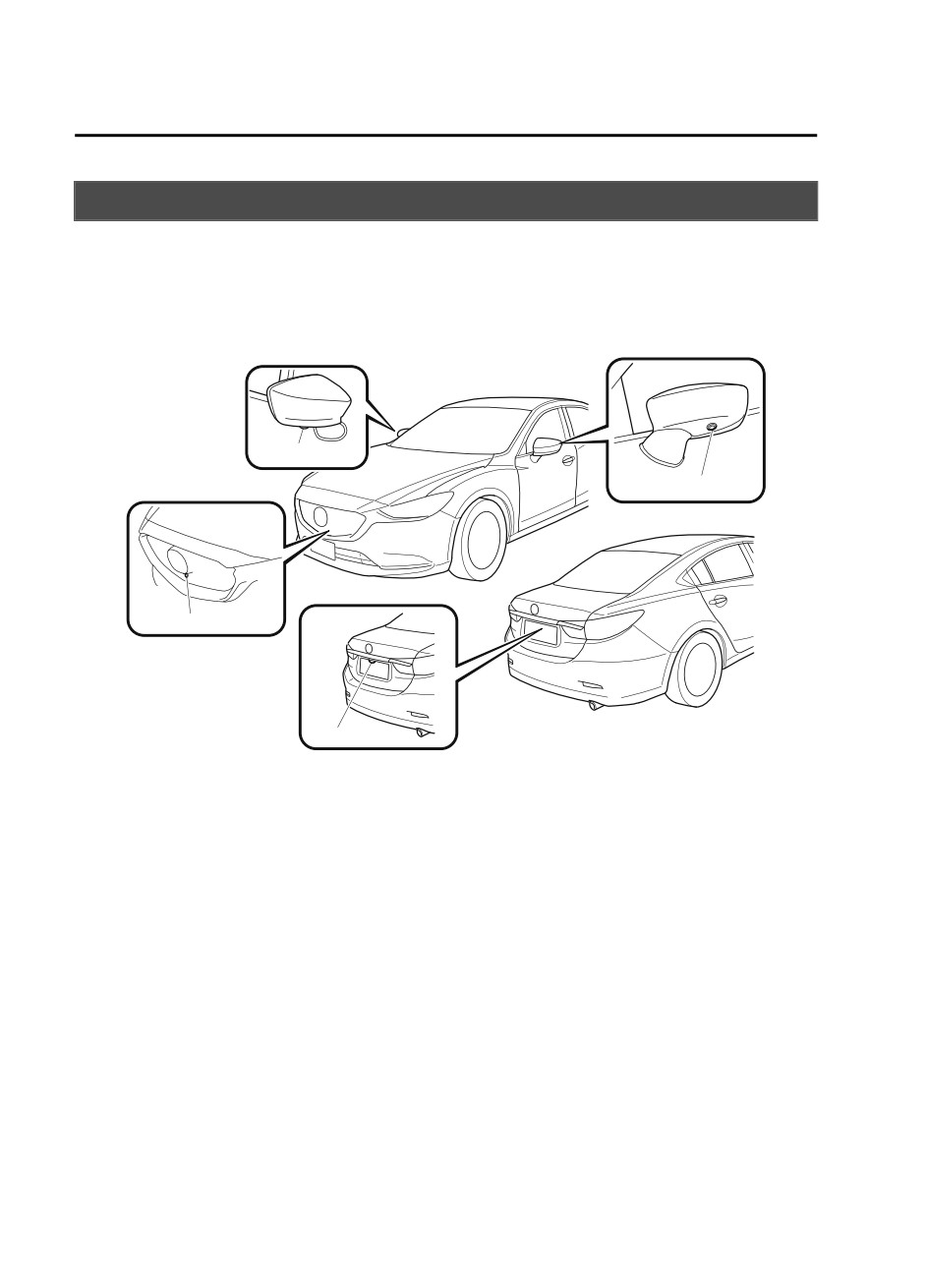

Front Camera/Side Cameras/Rear Camera*
Your vehicle is equipped with a front camera, side cameras, and a rear camera. The 360°
View Monitor uses each camera.
The front camera, side cameras, and rear camera shoot images of the area surrounding the
vehicle.
Each camera is installed to the following positions.
Side camera
Side camera
Front camera
Rear camera
4-226
*Some models.
When Driving
Cruise Control
Cruise Control*
With cruise control, you can set and automatically maintain any speed of more than about
25 km/h (16 mph).
WARNING
Do not use the cruise control under the following conditions:
Using the cruise control under the following conditions is dangerous and could result in loss
of vehicle control.
¾ Hilly terrain
¾ Steep inclines
¾ Heavy or unsteady traffic
¾ Slippery or winding roads
¾ Similar restrictions that require inconsistent speed

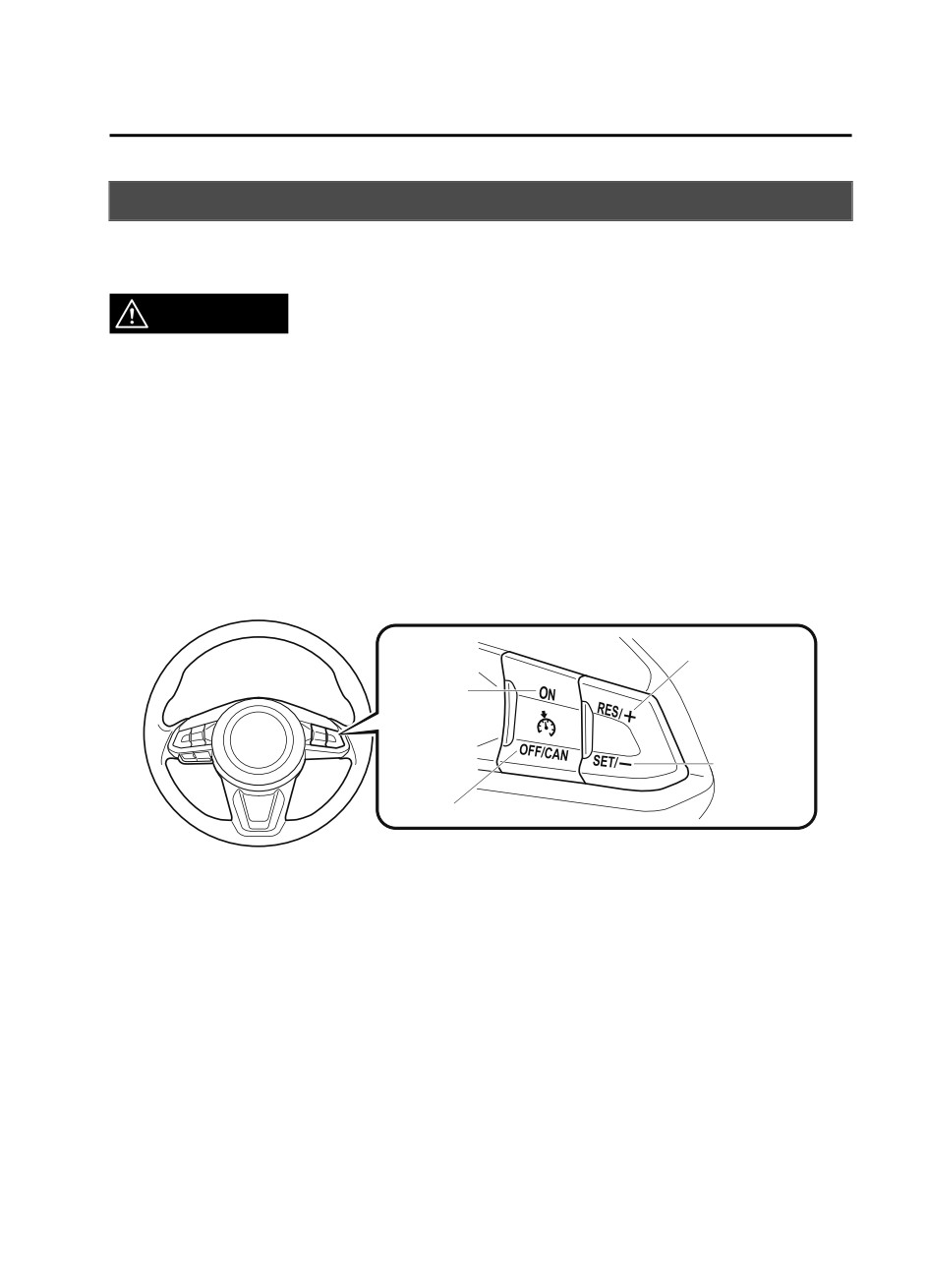

Cruise Control Switch
RESUME/+ switch
ON switch
SET/- switch
OFF/CANCEL switch
NOTE
If your Mazda has the following steering switch, your Mazda is equipped with the Mazda
Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function) system.
*Some models.
4-227
When Driving
Cruise Control

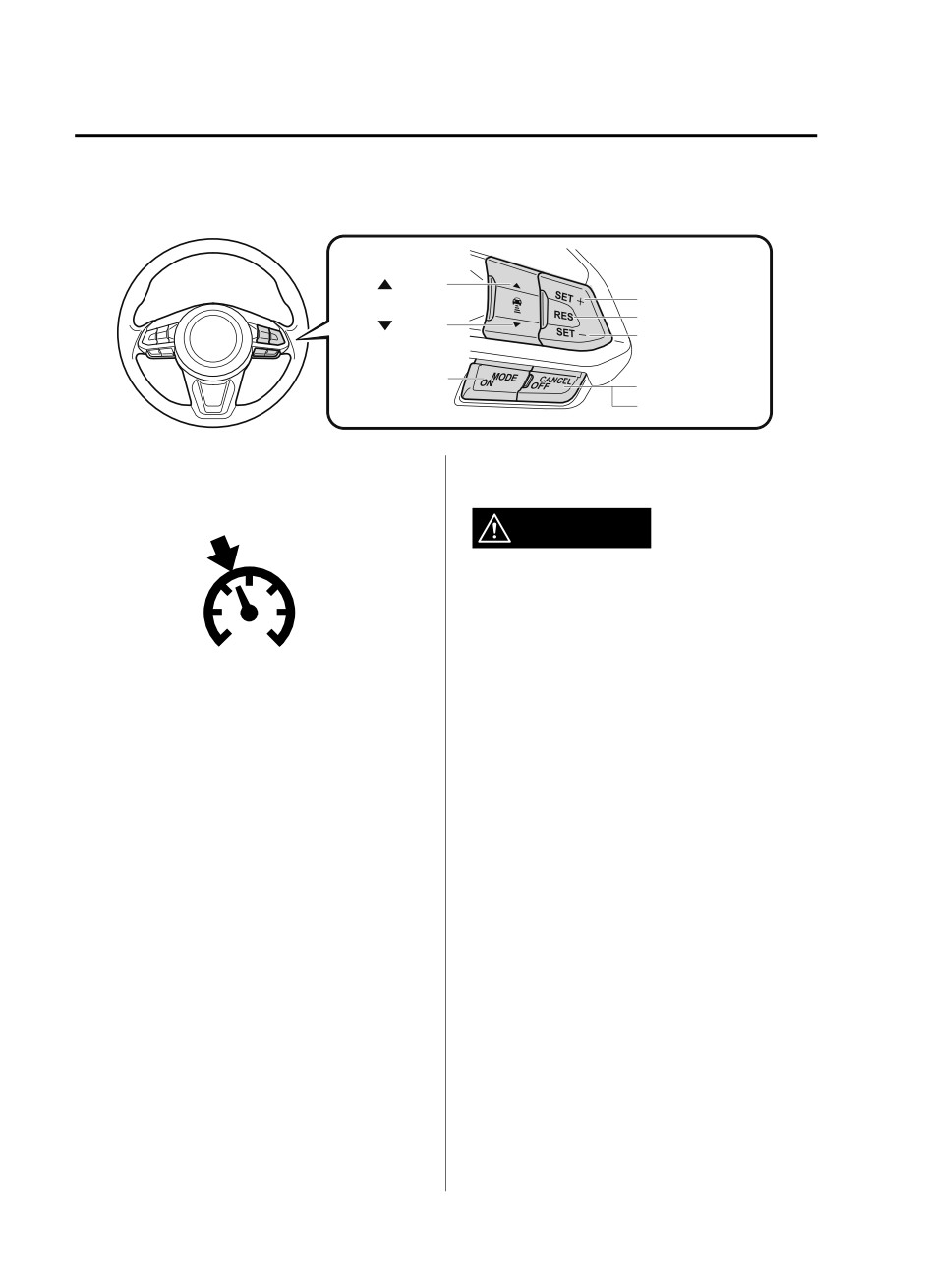

Refer to Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go
function) on page 4-150.
switch
SET+ switch
switch
RES switch
SET- switch
MODE switch
CANCEL switch
OFF switch

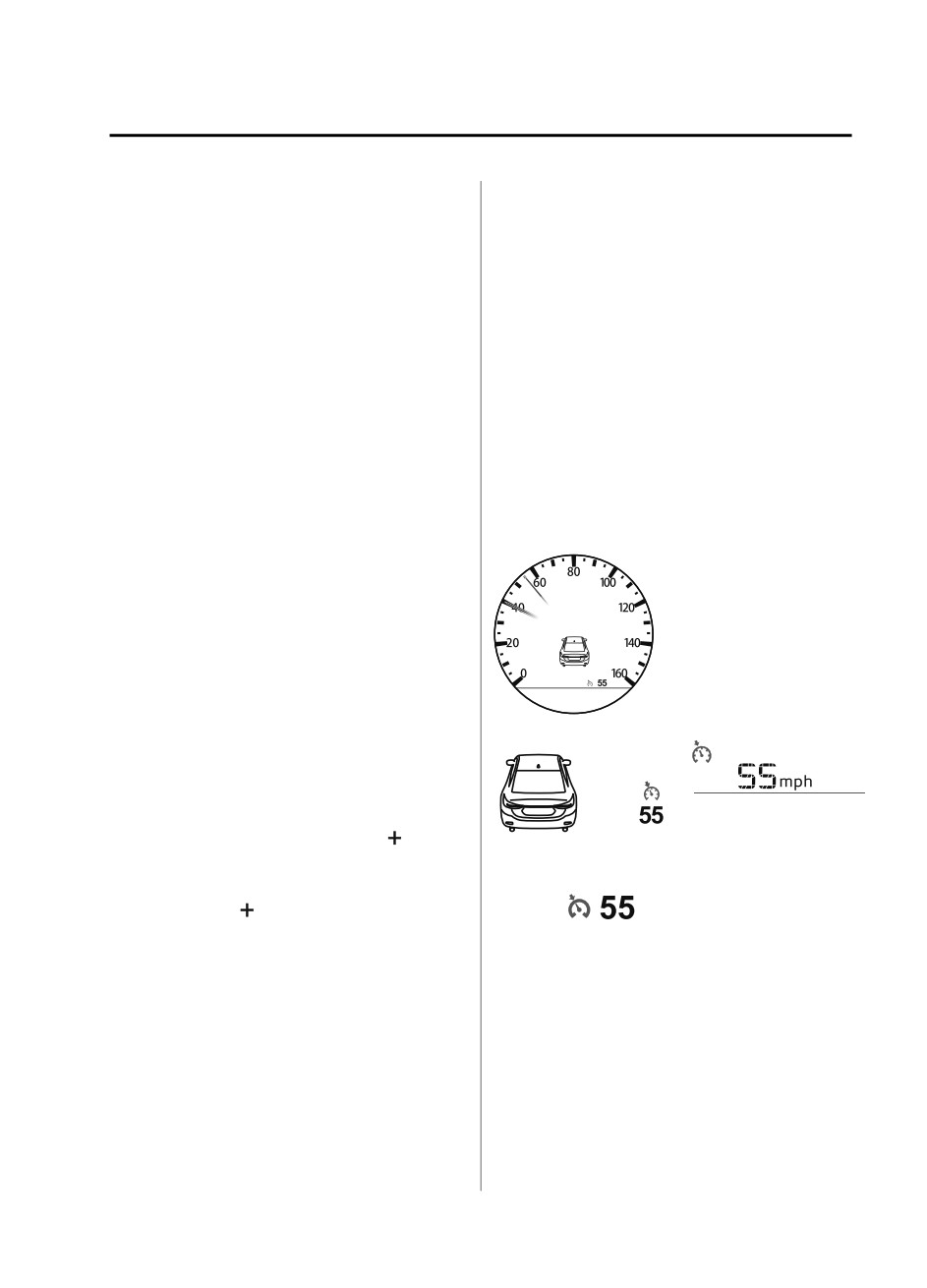

Cruise Main Indication (White)/
Activation/Deactivation
Cruise Set Indication (Green)
WARNING
Always turn off the cruise control system
when it is not in use:
Leaving the cruise control system in an
activation-ready state while the cruise
The indication has 2 colors.
control is not in use is dangerous as the
cruise control could unexpectedly activate
Cruise Main Indication (White)
if the activation button is accidentally
The indication turns on (white) when the
pressed, and result in loss of vehicle control
cruise control system is activated.
and an accident.
Cruise Set Indication (Green)
NOTE
The indication turns on (green) when a
When the ignition is switched OFF, the
cruising speed has been set.
system status before it was turned off is
maintained. For example, if the ignition is
switched OFF with the cruise control
system operable, the system will be
operable when the ignition is switched ON
the next time.
Activation
To activate the system, press the ON
switch. The cruise main indication (white)
turns on.
4-228
When Driving
Cruise Control
Deactivation
The cruise control will cancel if the
vehicle speed decreases below 21 km/h
To deactivate the system, press the OFF/
(13 mph) when the cruise control is
CANCEL switch.
activated, such as when climbing a steep
The cruise main indication (white) turns
grade.
off.
The cruise control may cancel at about
To Set Speed
15 km/h (9 mph) below the preset speed,
such as when climbing a long, steep
1. Activate the cruise control system by
grade.
pressing the ON switch. The cruise
main indication (white) turns on.
The vehicle speed preset using the cruise
2. Accelerate to the desired speed, which
control is displayed in the instrument
must be more than 25 km/h (16 mph).
cluster and the active driving display
3. Set the cruise control by pressing the
(vehicles with active driving display).
SET/ switch at the desired speed. The
Instrument Cluster
cruise control is set at the moment the
Type A
SET/ switch is pressed. Release the
accelerator pedal simultaneously. The
cruise set indication (green) turns on.
NOTE
The cruise control speed setting cannot
be performed under the following
conditions:
Type B
Type C
The selector lever is in the P or N
position.
The parking brake is applied.
Release the SET/ or RESUME/
switch at the desired speed, otherwise
Active Driving Display
the speed will continue increasing while
the RESUME/ switch is pressed and
held, and continue decreasing while the
SET/ switch is pressed and held
(except when the accelerator pedal is
depressed).
On a steep grade, the vehicle may
momentarily slow down while ascending
or speed up while descending.
4-229
When Driving
Cruise Control
To Increase Cruising Speed
To Decrease Cruising Speed
Follow either of these procedures.
Press the SET/ switch and hold it. The
vehicle will gradually slow.
To increase speed using cruise control
Release the switch at the desired speed.
switch
Press the RESUME/ switch and hold it.
Press the SET/ switch and release it
Your vehicle will accelerate. Release the
immediately to adjust the preset speed.
switch at the desired speed.
Multiple operations will decrease the
preset speed according to the number of
Press the RESUME/ switch and release
times it is operated.
it immediately to adjust the preset speed.
Decreasing speed with a single SET/
Multiple operations will increase the
switch operation
preset speed according to the number of
times it is operated.
Instrument cluster display for vehicle
speed indicated in km/h: 1 km/h (0.6 mph)
Increasing speed with a single
Instrument cluster display for vehicle
RESUME/ switch operation
speed indicated in mph: 1 mph (1.6 km/h)
Instrument cluster display for vehicle
To Resume Cruising Speed at More
speed indicated in km/h: 1 km/h (0.6 mph)
Than 25 km/h (16 mph)
Instrument cluster display for vehicle
speed indicated in mph: 1 mph (1.6 km/h)
If the cruise control system temporarily
canceled (such as by applying the brake
To increase speed using accelerator
pedal) and the system is still activated, the
pedal
most recent set speed will automatically
Depress the accelerator pedal to accelerate
resume when the RESUME/ switch is
to the desired speed. Press the SET/
pressed.
switch and release it immediately.
If vehicle speed is below 25 km/h (16
mph), increase the vehicle speed up to 25
NOTE
km/h (16 mph) or more and press the
Accelerate if you want to speed up
RESUME/ switch.
temporarily when the cruise control is on.
Greater speed will not interfere with or
change the set speed. Take your foot off
the accelerator to return to the set speed.
4-230
When Driving
Cruise Control
To Temporarily Cancel
To Deactivate
To temporarily cancel the system, use one
When a cruising speed has been set
of these methods:
(cruise set indication (green) turns on)
Slightly depress the brake pedal.
Long-press the OFF/CANCEL switch or
Press the OFF/CANCEL switch.
press the OFF/CANCEL switch 2 times.
If the RESUME/ switch is pressed when
When a cruising speed has not been set
the vehicle speed is 25 km/h (16 mph) or
(cruise main indication (white) turns
higher, the system reverts to the previously
on)
set speed.
Press the OFF/CANCEL switch.
NOTE
If any of the following conditions occur,
the cruise control system is temporarily
canceled.
The parking brake is applied.
The selector lever is in the P or N
position.
When the cruise control system is
temporarily canceled by even one of the
applicable cancel conditions, the speed
cannot be re-set.
The cruise control cannot be cancelled
while driving in manual mode (selector
lever shifted from D to M position).
Therefore, engine braking will not be
applied even if the transaxle is shifted
down to a lower gear. If deceleration is
required, lower the set speed or depress
the brake pedal.
4-231
When Driving
Tire Pressure Monitoring System
Tire Pressure Monitoring System
The Tire Pressure Monitoring System (TPMS) monitors the pressure for each tire.
If tire pressure is too low in one or more tires, the system will inform the driver via the
warning light in the instrument cluster and by the warning beep sound.
Refer to Contact Authorized Mazda Dealer and Have Vehicle Inspected on page 7-28.
Refer to Taking Action on page 7-35.
Refer to Tire Inflation Pressure Warning Beep on page 7-48.

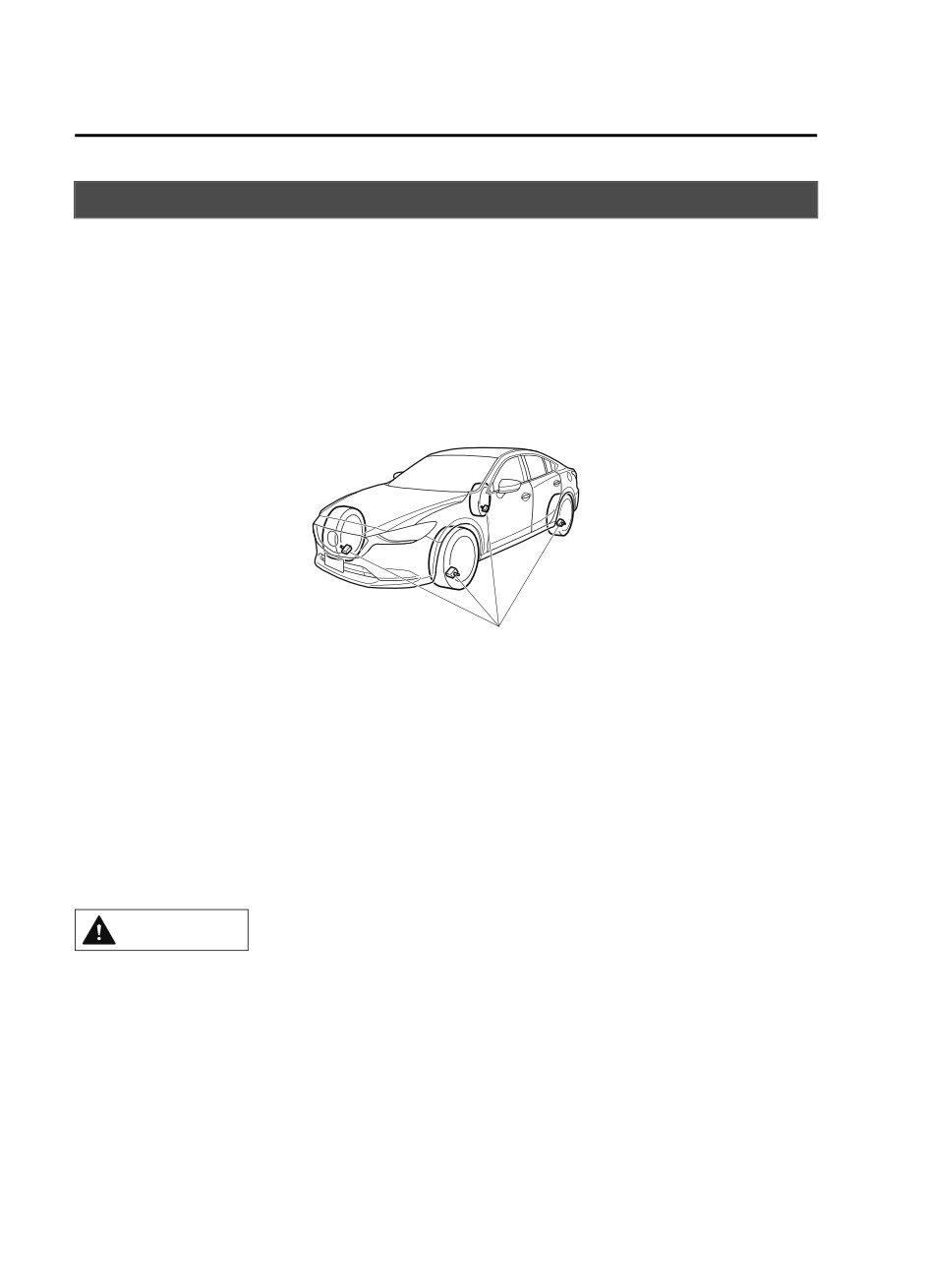

The tire pressure sensors installed on each wheel send tire pressure data by radio signal to
the receiver unit in the vehicle.
Tire pressure sensors
NOTE
When the ambient temperature is low due to seasonal changes, tire temperatures are also
lower. When the tire temperature decreases, the air pressure decreases as well. The TPMS
warning light may illuminate more frequently. Visually inspect the tires daily before driving,
and check tire pressures monthly with a tire pressure gauge. When checking tire pressures,
use of a digital tire pressure gauge is recommended.
TPMS does not alleviate your need to check the pressure and condition of all four tires
regularly.
CAUTION
¾ Each tire, including the spare (if provided), should be checked monthly when cold and
inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your vehicle has tires of a different size than the
size indicated on the vehicle placard or tire inflation pressure label, you should determine
the proper tire inflation pressure for those tires.)
4-232
When Driving
Tire Pressure Monitoring System
As an added safety feature, your vehicle has been equipped with a tire pressure monitoring
system (TPMS) that illuminates a low tire pressure telltale when one or more of your tires is
significantly under-inflated. Accordingly, when the low tire pressure telltale illuminates, you
should stop and check your tires as soon as possible, and inflate them to the proper
pressure. Driving on a significantly under-inflated tire causes the tire to overheat and can
lead to tire failure. Under-inflation also reduces fuel efficiency and tire tread life, and may
affect the vehicle's handling and stopping ability.
Please note that the TPMS is not a substitute for proper tire maintenance, and it is the
driver's responsibility to maintain correct tire pressure, even if under-inflation has not
reached the level to trigger illumination of the TPMS low tire pressure telltale.
Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when
the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire pressure telltale. When the
system detects a malfunction, the telltale will flash for approximately one minute and then
remain continuously illuminated. This sequence will continue upon subsequent vehicle
start-ups as long as the malfunction exists. When the malfunction indicator is illuminated,
the system may not be able to detect or signal low tire pressure as intended. TPMS
malfunctions may occur for a variety of reasons, including the installation of replacement
or alternate tires or wheels on the vehicle that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or more tires or wheels on
your vehicle to ensure that the replacement or alternate tires and wheels allow the TPMS to
continue to function properly.
¾ To avoid false readings, the system samples for a little while before indicating a problem. As
a result it will not instantaneously register a rapid tire deflation or blow out.
System Error Activation
When using the following devices in the
vehicle that may cause radio
When the warning light flashes, there may
interference with the receiver unit.
be a system malfunction. Consult an
Authorized Mazda Dealer.
A digital device such as a personal
A system error activation may occur in the
computer.
following cases:
A current converter device such as a
DC-AC converter.
When there is equipment or a device
When excess snow or ice adheres to the
near the vehicle using the same radio
vehicle, especially around the wheels.
frequency as that of the tire pressure
When the tire pressure sensor batteries
sensors.
are exhausted.
When a metallic device such as a
When using a wheel with no tire
non-genuine navigation system is
pressure sensor installed.
equipped near the center of the
When using tires with steel wire
dashboard, which may block radio
reinforcement in the sidewalls.
signals from the tire pressure sensor to
the receiver unit.
When using tire chains.
4-233
When Driving
Tire Pressure Monitoring System
Tires and Wheels
3. After about 15 minutes, drive the
vehicle at a speed of at least 25 km/h
(16 mph) for 10 minutes and the tire
CAUTION
pressure sensor ID signal code will be
registered automatically.
When inspecting or adjusting the tire air
pressures, do not apply excessive force to
NOTE
the stem part of the wheel unit. The stem
If the vehicle is driven within about 15
part could be damaged.
minutes of changing tires, the tire pressure
monitoring system warning light will flash
Changing tires and wheels
because the sensor ID signal code would
The following procedure allows the TPMS
not have been registered. If this happens,
to recognize a tire pressure sensor's unique
park the vehicle for about 15 minutes,
ID signal code whenever tires or wheels
after which the sensor ID signal code will
are changed, such as changing to and from
register upon driving the vehicle for 10
winter tires.
minutes.
NOTE
Replacing tires and wheels
Each tire pressure sensor has a unique ID
signal code. The signal code must be
CAUTION
registered with the TPMS before it can
work. The easiest way to do it is to have
¾ When replacing/repairing the tires or
an Authorized Mazda Dealer, change your
wheels or both, have the work done by
tire and complete ID signal code
an Authorized Mazda Dealer, or the tire
registration.
pressure sensors may be damaged.
When having tires changed at an
¾ The wheels equipped on your Mazda are
Authorized Mazda Dealer
specially designed for installation of the
tire pressure sensors. Do not use
When an Authorized Mazda Dealer,
non-genuine wheels, otherwise it may
changes your vehicle's tires, they will
not be possible to install the tire pressure
complete the tire pressure sensor ID signal
sensors.
code registration.
Be sure to have the tire pressure sensors
installed whenever tires or wheels are
When changing tires yourself
replaced.
If you or someone else changes tires, you
When having a tire or wheel or both
or someone else can also undertake the
replaced, the following types of tire
steps for the TPMS to complete the ID
pressure sensor installations are possible.
signal code registration.
The tire pressure sensor is removed
1. After tires have been changed, switch
from the old wheel and installed to the
the ignition ON, then back to ACC or
new one.
OFF.
2. Wait for about 15 minutes.
4-234
When Driving
Tire Pressure Monitoring System
The same tire pressure sensor is used
with the same wheel. Only the tire is
replaced.
A new tire pressure sensor is installed to
a new wheel.
NOTE
The tire pressure sensor ID signal code
must be registered when a new tire
pressure sensor is purchased. For
purchase of a tire pressure sensor and
registration of the tire pressure sensor
ID signal code, consult an Authorized
Mazda Dealer.
When reinstalling a previously removed
tire pressure sensor to a wheel, replace
the grommet (seal between valve body/
sensor and wheel) for the tire pressure
sensor.
4-235
When Driving
Diesel Particulate Filter
Diesel Particulate Filter
CAUTION
(SKYACTIV-D 2.2)
If the vehicle continues to be driven with
The diesel particulate filter collects and
“DPF Clogged” indicated in the display, the
removes most of the particulate matter
particulate matter (PM) increases and the
(PM) in the exhaust gas of a diesel engine.
indication may change to “DPF
PM collected by the diesel particulate
malfunction”. If the indication changes to
filter is cleared during normal driving,
“DPF malfunction”, have the vehicle
however, PM may not be removed and the
inspected immediately at an Authorized
diesel particulate filter indicator light may
Mazda Dealer. If the vehicle is not
illuminate under the following conditions:
inspected and continues to be driven, the
engine may malfunction.
If the vehicle is driven at 15 km/h (9
mph) or less continuously.
NOTE
If the vehicle is repeatedly driven for a
short period of time (10 minute or less)
When “DPF malfunction” is indicated
or driven while the engine is cold.
in the display, the engine output is
If the vehicle is idled for a long time.
restricted to protect the diesel
particulate filter.
When “DPF Clogged” is indicated
The engine sound and exhaust gas smell
The particulate matter (PM) cannot be
may change when PM is being removed
removed automatically and the amount of
while driving.
collected PM reaches a specified amount.
After the engine has sufficiently warmed
up (engine coolant temperature of 80 °C
(176 °F) or more), depress the accelerator
pedal and drive the vehicle at a speed of
20 km/h (12 mph) or more for about 15 to
20 minutes to eliminate the PM.
When “DPF malfunction” is indicated
Contact an Authorized Mazda Dealer.
4-236

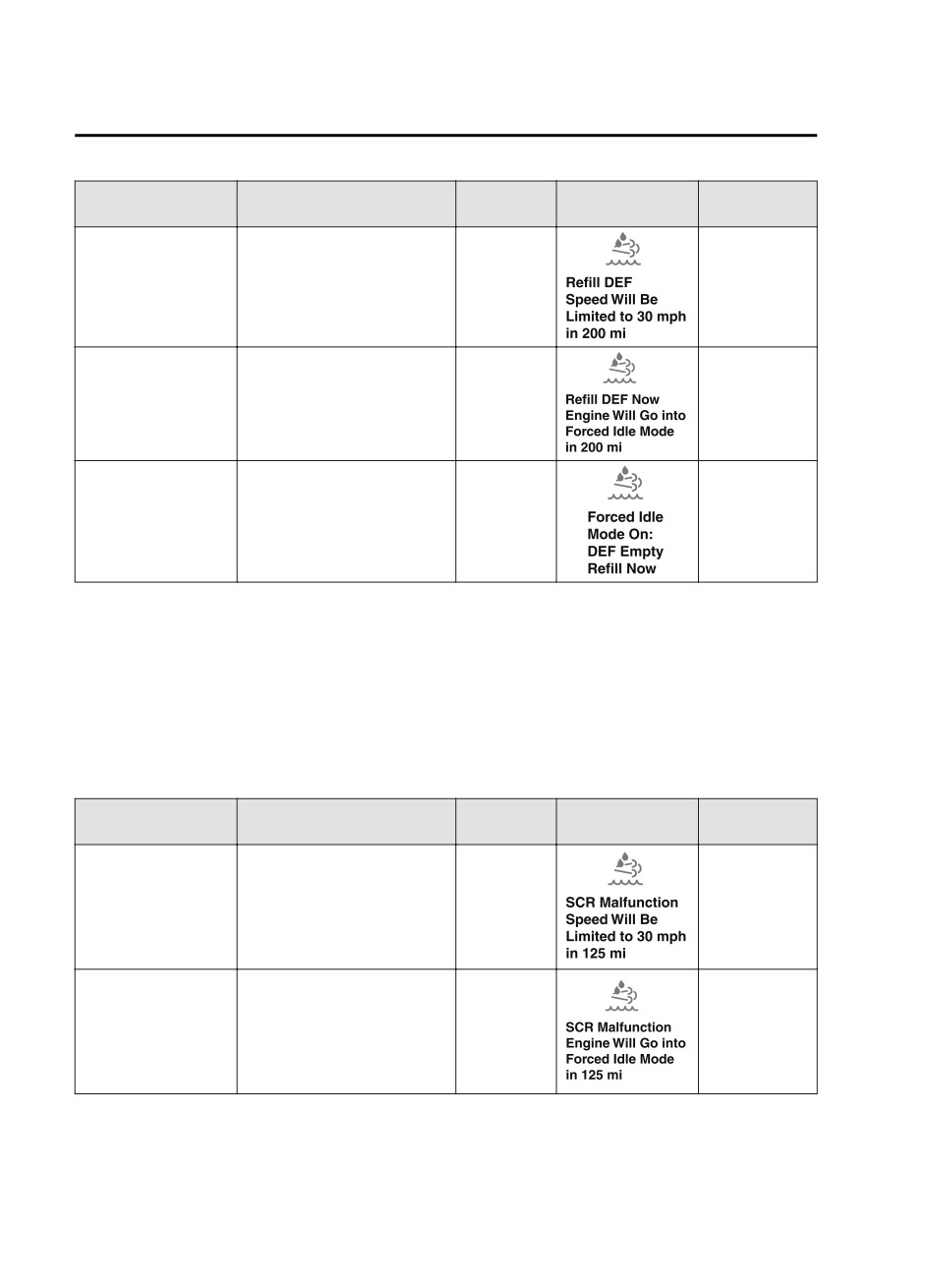

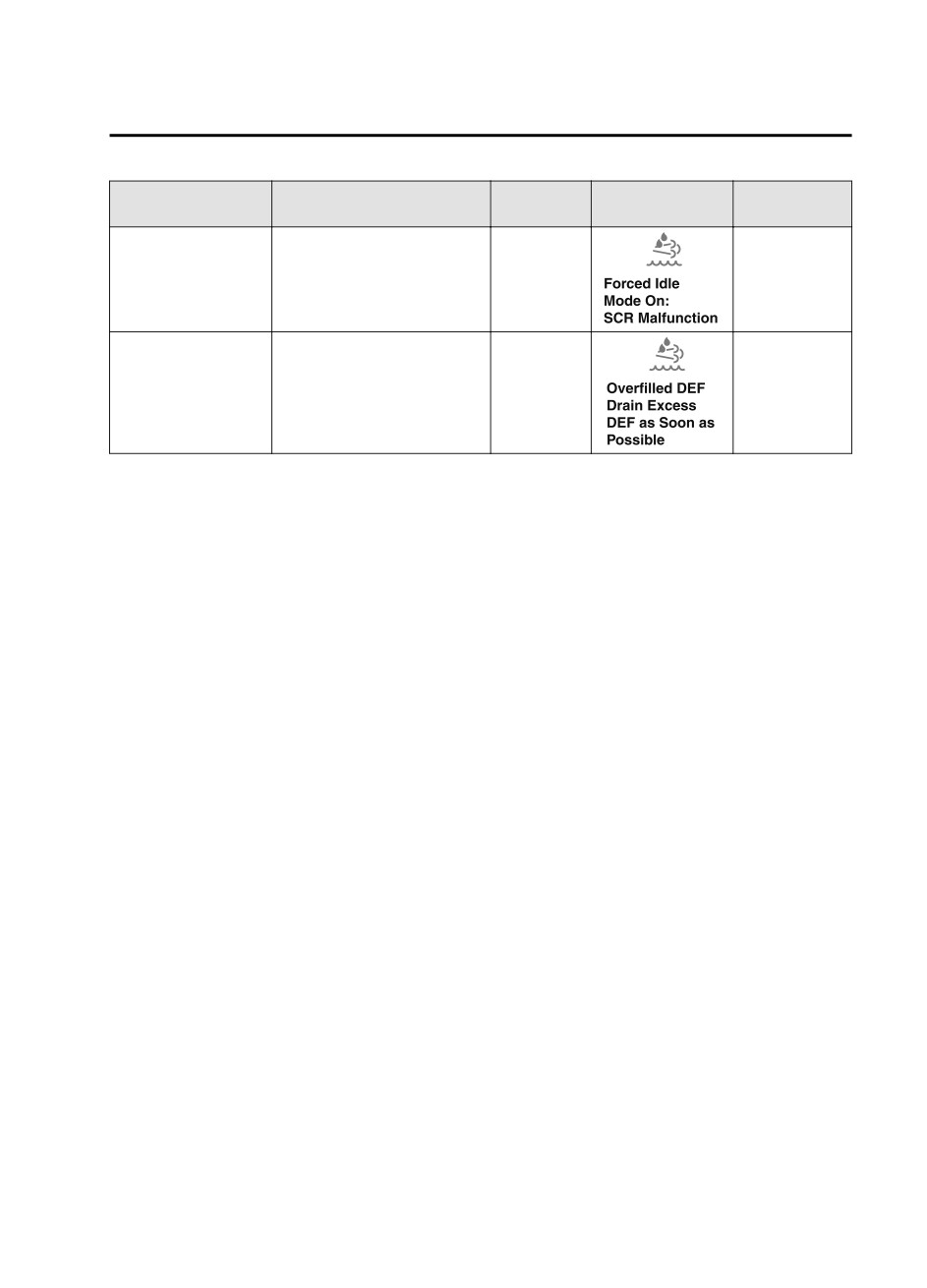

When Driving
Selective Catalytic Reduction (SCR) System
Selective Catalytic Reduction (SCR) System
(SKYACTIV-D 2.2)
The SCR system is designed to reduce nitrogen oxide (NOx) in the exhaust gas and purify
the exhaust gas by injecting it with Diesel Exhaust Fluid (DEF).
WARNING
Be careful not to allow the DEF to run out. If the DEF completely runs out, the SCR system will
not operate normally.
When the remaining DEF is low, a message is displayed on the multi-information display, and
the SCR warning light turns on/flashes.
Refer to Selective Catalytic Reduction (SCR) System Indications on page 4-237.
In this case, consult an Authorized Mazda Dealer. If DEF needs to be replenished, add DEF
following the specified procedure.
Refer to Diesel Exhaust Fluid (DEF) Replenishment on page 6-30.
NOTE
DEF needs to be replenished periodically according to the scheduled maintenance
information.
Normally, the vehicle can be driven about 12,000 km (7,500 miles) before the DEF needs
to be replenished. However, it may need to be replenished earlier depending on the
driving and environmental conditions (such as putting a high load on the engine while
driving or driving the vehicle at high altitudes).
The sound of the SCR system operating may be heard from the area under the vehicle,
however, this does not indicate a problem.
Selective Catalytic Reduction (SCR) System Indications
As the remaining amount of Diesel Exhaust Fluid (DEF) lowers, the SCR system notifies
the driver using the following indications.
The vehicle speed may be restricted for a while even if the warning light turns off after
replenishing the DEF. To cancel the vehicle speed restriction immediately, switch the
ignition OFF after the warning light turns off and then switch the ignition ON again.
SCR warn-
Multi-information
Driving restric-
Status
Warning sound
ing light
display indication
tion
Remaining DEF has
decreased
Sound is activated when igni-
(Maximum driving dis-
Turns off
None
tion is switched ON
tance : 966 km (600
miles) or less)
4-237
When Driving
Selective Catalytic Reduction (SCR) System
SCR warn-
Multi-information
Driving restric-
Status
Warning sound
ing light
display indication
tion
Remaining DEF is low
Vehicle speed of
(Maximum driving dis-
Sound is activated when igni-
Turns on
80 km/h (50
tance : 644 km (400
tion is switched ON
mph) or slower
miles) or less)
Remaining DEF is ex-
tremely low
Vehicle speed of
Sound is activated when igni-
(Maximum driving dis-
Flashes
48 km/h (30
tion is switched ON
tance : 322 km (200
mph) or slower
miles) or less)
No remaining DEF
Sound is activated when re-
(Maximum driving dis-
maining-distance-to-empty in-
Flashes
Creep travel*1
tance : 0 km (0 miles))
dication is 0 km (0 miles)
*1
The vehicle speed will be restricted (Creep travel) the next time the vehicle is driven
after the maximum driving distance reaches 0 km (0 miles).
The following indications are displayed when there is a problem with the SCR system/DEF.
If there is a problem with the SCR system/DEF, consult an Authorized Mazda Dealer.
The vehicle speed may be restricted for a while even if the warning light turned off after
having the vehicle repaired. To cancel the vehicle speed restriction immediately, switch the
ignition OFF after the warning light turns off, and then switch the ignition ON again.
SCR warn-
Multi-information
Driving restric-
Status
Warning sound
ing light
display indication
tion
There is a problem
with the SCR
Sound is activated when
system/DEF
there is a problem
Flashes
None
(Maximum driving dis-
Sound is activated when igni-
tance : 402 km (250
tion is switched ON
miles) or less)
Condition in which a
problem with SCR sys-
Vehicle speed of
tem/DEF continues
Sound is activated when igni-
Flashes
48 km/h (30
(Maximum driving dis-
tion is switched ON
mph) or slower
tance : 201 km (125
miles) or less)
4-238
When Driving
Selective Catalytic Reduction (SCR) System
SCR warn-
Multi-information
Driving restric-
Status
Warning sound
ing light
display indication
tion
Condition in which a
problem with SCR sys-
Sound is activated when re-
tem/DEF continues
maining-distance-to-empty in-
Flashes
Creep travel*1
(Maximum driving dis-
dication is 0 km (0 miles)
tance : 0 km (0 miles))
DEF has been replen-
ished over the specified
Turns on
None
amount
*1
The vehicle speed will be restricted (Creep travel) the next time the vehicle is driven
after the maximum driving distance reaches 0 km (0 miles).
4-239
When Driving
Rear View Monitor
Rear View Monitor*
The rear view monitor provides visual images of the rear of the vehicle when reversing.
WARNING
Always drive carefully confirming the safety of the rear and the surrounding conditions by
looking directly with your eyes:
Reversing the vehicle by only looking at the screen is dangerous as it may cause an accident
or a collision with an object. The rear view monitor is only a visual assist device when
reversing the vehicle. The images on the screen may be different from the actual conditions.
CAUTION
¾ Do not use the rear view monitor under the following conditions: Using the rear view
monitor under the following conditions is dangerous and could result in injury or vehicle
damage or both.
¾ Icy or snow-covered roads.
¾ Tire chains or a temporary spare tire is installed.
¾ The trunk lid is not fully closed.
¾ The vehicle is on a road incline.
¾ When the display is cold, images may course across the monitor or the screen and may be
dimmer than usual, which could cause difficulty in confirming the surrounding conditions
of the vehicle. Always drive carefully confirming the safety of the rear and the surrounding
conditions by looking directly with your eyes.
¾ Do not apply excessive force to the camera. The camera position and angle may deviate.
¾ Do not disassemble, modify, or remove it as it may no longer be waterproof.
¾ The camera cover is made of plastic. Do not apply degreasing agents, organic solvents,
wax, or glass coating agents to the camera cover. If any are spilled on the cover, wipe off
with a soft cloth immediately.
¾ Do not rub the camera cover forcefully with an abrasive or hard brush. The camera cover or
lens may be scratched which might affect the images.
NOTE
If water, snow, or mud is stuck on the camera lens, wipe it off using a soft cloth. If it
cannot be wiped off, use a mild detergent.
If the camera temperature changes rapidly (Hot to cold, cold to hot), the rear view
monitor may not operate correctly.
When replacing the tires, consult an Authorized Mazda Dealer. Replacing the tires could
result in deviation of the guide lines which appear on the display.
4-240
*Some models.















Content      ..     10      11      12      13     ..
