Mazda MX-5 RF (2017 year). Instruction - part 23

5–66

Interior Features

Audio System

 NOTE



  For safety reasons, images are not

displayed while the vehicle is being
driven.



  Slide the

  of the controller to

move the controller.



  If the mode is switched to DVD

mode once the DVD playback
has stopped, the playback restarts
without displaying the DVD menu
screen.

  Setting  DVD  functions

    Sound quality and aspect ratio settings can
be performed.

  Setting  sound  quality

     1.   Select  the       icon.
   2.   Select

  to adjust the sound

quality.



Refer  to  Volume/Display/Sound
Controls on page  5-50 .

  Setting  aspect  ratio

     1.   Select  the       icon.
   2.   Select

 .

   3.   Select  a  desired  aspect  ratio.

  Setting  image  quality

    Brightness,  contrast,  tint,  colour  density
can be adjusted.
  When  the      icon is selected, the following
tabs are displayed at the bottom of the
screen.

 Tab

 Function

 Screen brightness can be
adjusted using the slider.

 Screen contrast can be
adjusted using the slider.

 Colour tone of the screen
can be adjusted using the
slider.

 Screen colour can be
adjusted using the slider.

 Screen settings can be reset
to initial values.
  Select

 .

 How to use Auxiliary jack/USB

port

    Audio can be heard from the vehicle's
speakers by connecting a commercially-
available portable audio unit to the
auxiliary jack.
  Use a commercially-available, non-
impedance (3.5   ) stereo mini plug lead.
  In addition, audio can be played from the
vehicle audio device by connecting a USB
device to the USB port.
  Refer to AUX/USB mode on page  5-71 .

/:A



5–67

Interior Features

Audio System

 Settings

 NOTE

 Depending on the grade and speci

¿ cation, the screen display may differ.

  Select  the

  icon on the home screen to display the Settings screen.

  Switch the tab and select the setting item you want to change.
  You can customize settings in the setup display as follows:

 Tab

 Item

 Function

 Display

 Refer to Volume/Display/Sound Controls on page  5-50 .

 Safety

 Blind Spot Monitoring Volume
  Other

 Refer to Personalisation Features on page
 9-10 .

 Sound

 Refer to Volume/Display/Sound Controls on page  5-50 .

 Clock

 Adjust  Time

 Displays the currently set time is displayed.
  Press

  to advance the hour/minute, and select

  to move the hour/minute back.

  AM/PM can only be selected with the 12-hour
clock display.

 GPS  Sync

 Synchronizes with GPS when turned on.
  When turned off, the time can be changed from
“Adjust Time”.

 Time  Format

 Changes the display between 12 and 24-hour
clock time.

 Time Zone Select

 When it's not synchronized with GPS, select
the region you want to specify.

 Daylight  Savings  Time

 Turns the daylight saving time setting on/off.
  When ON, the time advances 1 hour. When
OFF, it returns to normal time.

 Vehicle

 Rain  Sensing  Wiper
  Door  Lock
  Other

 Refer to Personalisation Features on page
 9-10 .

 Devices

 Bluetooth

®

 Refer to Bluetooth

®

  Preparation on page

 5-93 .

 Network  Management

 Wi-Fi

™

 is used to obtain Navi POI/Real Time

Traf

¿ c function (Such as gas prices, weather,

nearest restaurant)

/:A



5–68

Interior Features

Audio System

 Tab

 Item

 Function

 System

 Tool Tips

 Turns button explanations ON/OFF.

 Language

 Changes  the  language.

 Temperature

 Changes the setting between Fahrenheit and
Celsius.

 Distance

 Changes the setting between miles and
kilometres.

 Music Database Update

 Used to update Gracenote

®

 . Gracenote is used

with USB Audio, and provides:

   1.  Supplementary  music  information  (Such  as

song name, artist name)

  2. Voice recognition assistance for Play Artist
and  Play  Album
  Gracenote can be downloaded from the Mazda
Handsfree Website.
  Refer to Gracenote Database (Type B/Type C)
on page  5-87 .

 Factory  Reset

 Memory and settings are initialized to the
factory settings.
  The initialization launches by selecting the

   button.

 About

 Agreements  and
Disclaimers

 Verify the disclaimer and agree.

 Version  Information

 Can verify the current audio unit OS version
and Gracenote Database version.

/:A



5–69

Interior Features

Audio System

*Some models.

 Applications

 NOTE

 Depending on the grade and
speci

¿ cation, the screen display may

differ.

  Select  the

  icon on the home screen to

display the Applications screen. The
following information can be veri

¿ ed.

 Top  screen

 Item

 Function

 Fuel  Economy
Monitor

 Fuel
Consumption
  Control  Status
  Effectiveness
Display
  Settings

 Refer to Fuel
Economy
Monitor on
page   4-93 .

 Vehicle
Status
Monitor

 Maintenance

 Scheduled
Maintenance
  Tyre  Rotation
  Oil  Change

 Refer  to
Maintenance
Monitor on
page   6-10 .

 Warning
Guidance

 Warnings
currently
active can be
veri

¿ ed.

 Refer to If
a Warning
Light Turns
On or Flashes
on page
 7-31 .

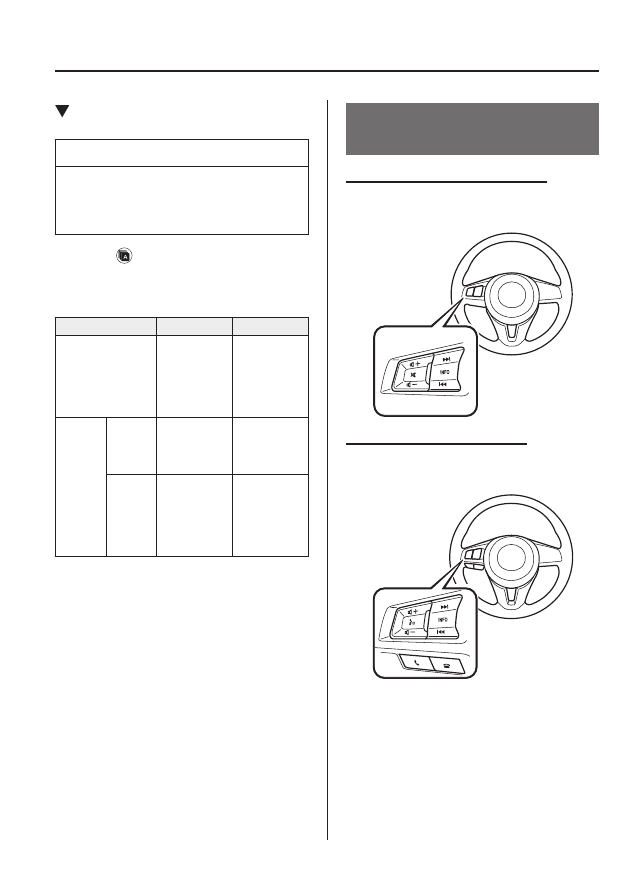

 Audio Control Switch
Operation

*

            Without  Bluetooth

®

   Hands-Free

  With  Bluetooth

®

   Hands-Free

/:A



5–70

Interior Features

Audio System

*Some models.

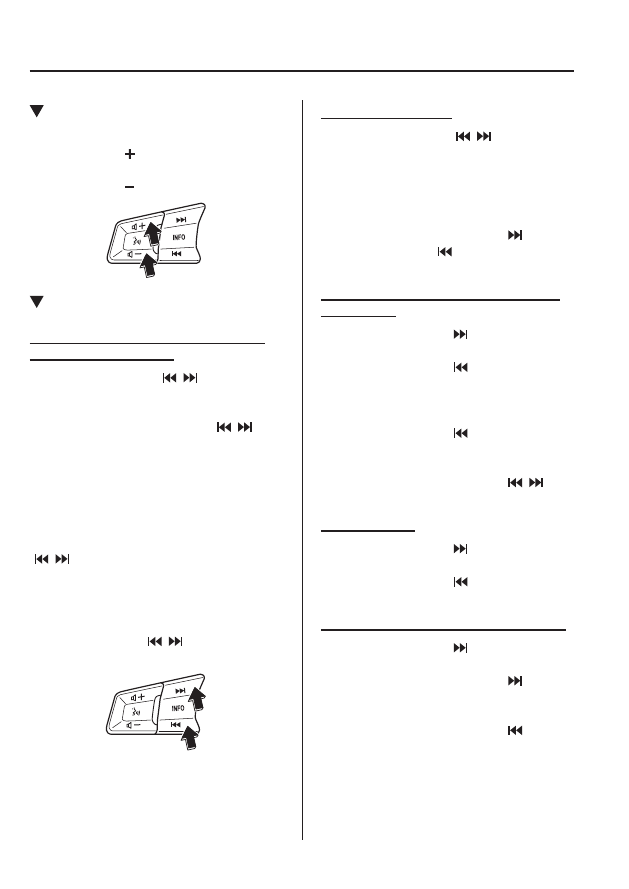

 Adjusting  the  Volume

            To  increase  the  volume,  press  up  the
volume switch (   ).
  To decrease the volume, press down the
volume switch (   ).

 Seek  Switch

            AM/FM  radio  (Type  B/Type  C),  MW/
LW/FM radio (Type A)

    Press  the  seek  switch  (

 ,

 ).  The  radio

switches to the next/previous stored station
in the order that it was stored.
  Press and hold the seek switch (   ,

 )  to

seek all usable stations at a higher or lower
frequency whether programmed or not.

  Radio stations which have been previously
stored in the auto memory tuning (Type
A)/favourite radio (Type B/Type C) can be
called up by pressing the seek switch
(

 ,

 ) while any radio station stored in

the auto memory tuning (Type A)/
favourite radio (Type B/Type C) is being
received. Radio stations can be called up
in the order they were stored with each
press of the switch (   ,

 ).

  DAB radio (Type C)

*

    Press  the  Seek  switch  (

 ,

 )  while

listening to DAB radio to call up a station
previously stored to the favourites list.
With each operation of the switch, radio
stations can be called up in the order they
were stored.
  Press and hold the seek switch (   ) to go
to the next station, (   ) to return to the
previous station.

  USB  Audio/Bluetooth

®

  Audio (Type B/

Type C)/CD

    Press  the  seek  switch  (

 ) to skip forward

to the beginning of the next track.
  Press the seek switch (   ) within a few
seconds after playback begins to track
down to the beginning of the previous
track.
  Press the seek switch (   ) after a few
seconds have elapsed to start playback
from the beginning of the current track.
  Press and hold the seek switch (   ,

 )  to

continuously switch the tracks up or down.

  DVD  (Type  B)

*

    Press  the  seek  switch  (

 ) to skip forward

to the beginning of the next chapter.
  Press the seek switch (   ) to return to the
beginning of the previous chapter.

  Aha

™

/Stitcher

™

 Radio (Type B/Type C)

    Press  the  seek  switch  (

 ) to skip forward

to the beginning of the next track.
  Press and hold the seek switch (   )  to
evaluate the playback of the current song
as “Like”.
  Press and hold the seek switch (   )  to
evaluate the playback of the current song
as “Dislike”.

/:A



5–71

Interior Features

Audio System

*Some models.

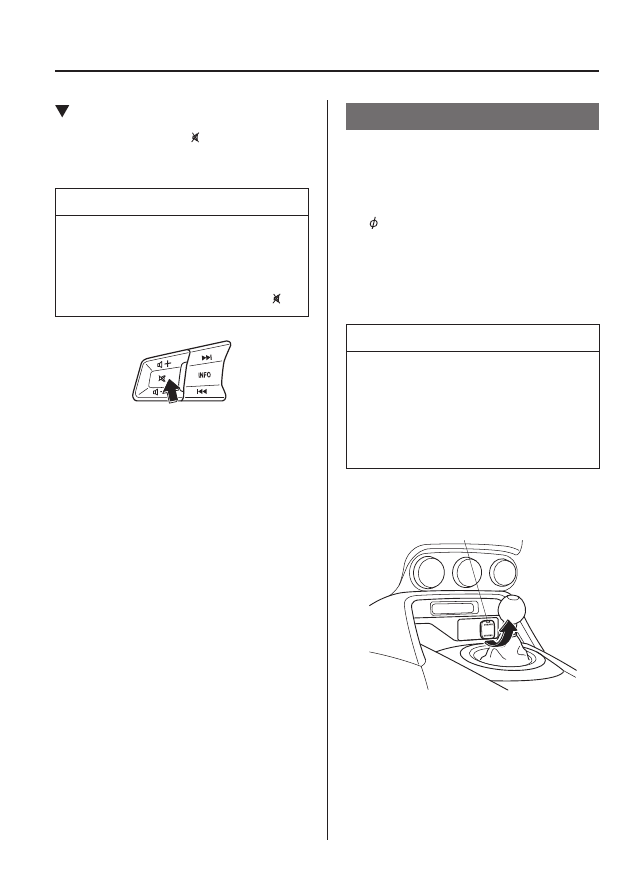

 Mute  Switch

*

            Press  the  mute  switch  (   ) once to mute
audio, press it again to resume audio
output.

 NOTE

 If the ignition is switched off with the
audio muted, the mute will be cancelled.
Therefore, when the engine is restarted,
the audio is not muted. To mute the
audio again, press the mute switch (   ).

 AUX/USB  mode

            Audio  can  be  heard  from  the  vehicle's
speakers by connecting a commercially-
available portable audio unit to the
auxiliary jack.
  A  commercially-available,  non-impedance
(3.5  ) stereo mini plug lead is required.
Contact an expert repairer, we recommend
an Authorised Mazda Repairer for details.
  In addition, audio can be played from the
vehicle audio device by connecting a USB
device to the USB port.

 NOTE

(Type B/Type C)
 The SD card slot is for the navigation
system. For vehicles with the navigation
system, the SD card (Mazda genuine)
with stored map data is inserted into the
SD card slot and used.

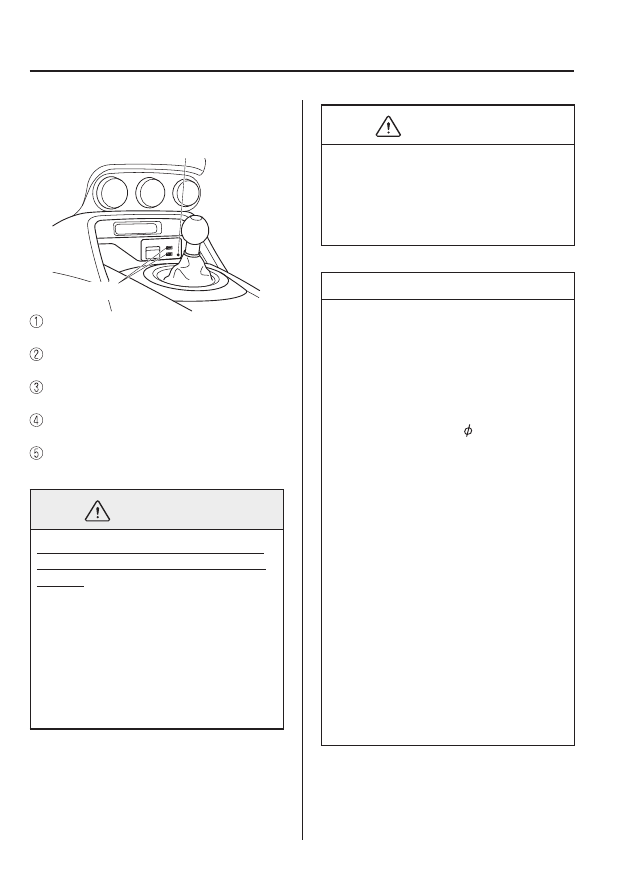

Type A

Auxiliary jack/USB port

/:A



5–72

Interior Features

Audio System

Type B/Type C

USB port

Auxiliary jack

  How to use AUX mode

(Type A)  ............................... page  5-74

  How to use USB mode

(Type A) ................................ page  5-76

  How to use iPod mode

(Type A) ................................ page  5-80

  How to use AUX mode

(Type B/Type C) ................... page  5-83

  How to use USB mode

(Type B/Type C) ................... page  5-84

 WARNING

 Do not adjust the portable audio unit
or a similar product while driving the
vehicle:
 Adjusting the portable audio unit
or a similar product while driving
the vehicle is dangerous as it could
distract your attention from the vehicle
operation which could lead to a serious
accident. Always adjust the portable
audio unit or a similar product while
the vehicle is stopped.

 CAUTION

   Depending on the portable audio device,
noise may occur when the device is
connected to the vehicle accessory
socket. (If noise occurs, do not use the
accessory socket.)

 NOTE



  This mode may not be usable

depending on the portable audio
device to be connected.



  Before using the auxiliary jack/USB

port, refer to the instruction manual
for the portable audio device.



  Use a commercially-available,

non-impedance (3.5   ) stereo mini
plug for connecting the portable
audio unit to the auxiliary jack.
Before using the auxiliary jack, read
the manufacturer's instructions for
connecting a portable audio unit to
the auxiliary jack.



  To prevent discharging of the battery,

do not use the auxiliary input for
long periods with the engine off or
idling.



  When connecting a device to the

auxiliary jack or USB port, noise
may occur depending on the
connected device. If the device is
connected to the vehicle's accessory
socket, the noise can be reduced by
unplugging it from the accessory
socket.

/:A



5–73

Interior Features

Audio System

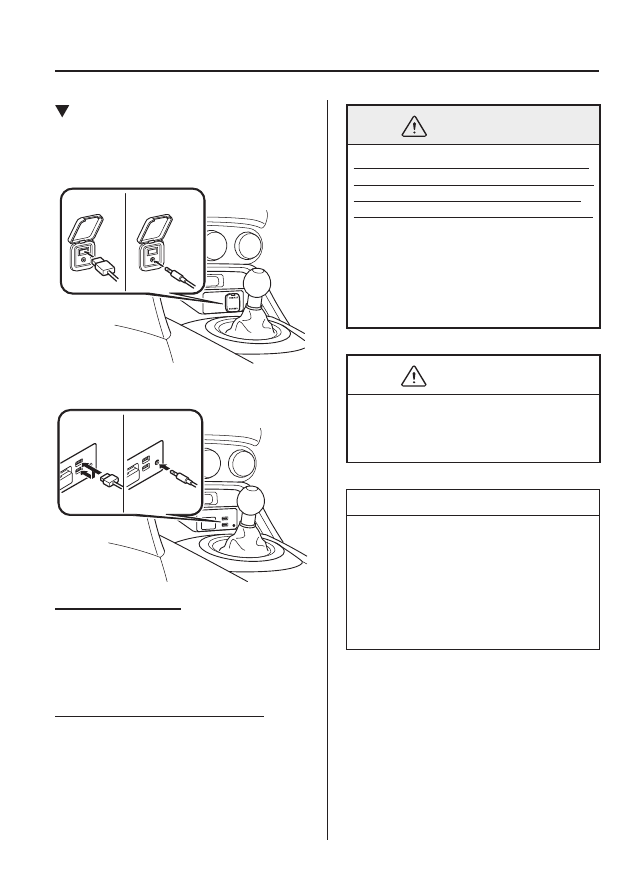

 How to connect USB port/

Auxiliary jack

Type A

USB port Auxiliary jack

Type B/Type C

USB port Auxiliary jack

  Connecting  a  device

     1.   If there is a cover on the AUX jack or

USB port, remove the cover.

   2.   Connect the connector on the device to

the USB port.

  Connecting with a connector lead

     1.   If there is a cover on the AUX jack or

USB port, remove the cover.

   2.   Connect  the  device  plug/connector  lead

to the auxiliary jack/USB port.

 WARNING

 Do not allow the connection plug cord
to get tangled with the parking brake or
the shift lever (manual transmission)/
selector lever (automatic transmission):
 Allowing the plug cord to become
tangled with the parking brake or the
shift lever (manual transmission)/
selector lever (automatic transmission)
is dangerous as it could interfere with
driving, resulting in an accident.

 CAUTION

 Do not place objects or apply force to
the auxiliary jack/USB port with the
plug connected.

 NOTE



  Insert the plug into the auxiliary jack/

USB port securely.



  Insert or pull out the plug with the

plug perpendicular to the auxiliary
jack/USB port hole.



  Insert or remove the plug by holding

its base.

/:A



5–74

Interior Features

Audio System

 How to use AUX mode (Type A)

     1.   Switch  the  ignition  to  ACC  or  ON.
   2.   Press the power/volume dial to turn the

audio system on.

   3.   Press  the  media  button  (

 ) of the

audio unit to change to the AUX mode.

 NOTE



  When the device is not connected to

the auxiliary jack, the mode does not
switch to the AUX mode.



  Adjust the audio volume using the

portable audio device or audio unit.



  Audio adjustments other than audio

volume can only be done using the
portable audio device.



  If the connection plug is pulled out

from the auxiliary jack while in AUX
mode, noise may occur.

/:A



MEMO

5–75

/:A



5–76

Interior Features

Audio System

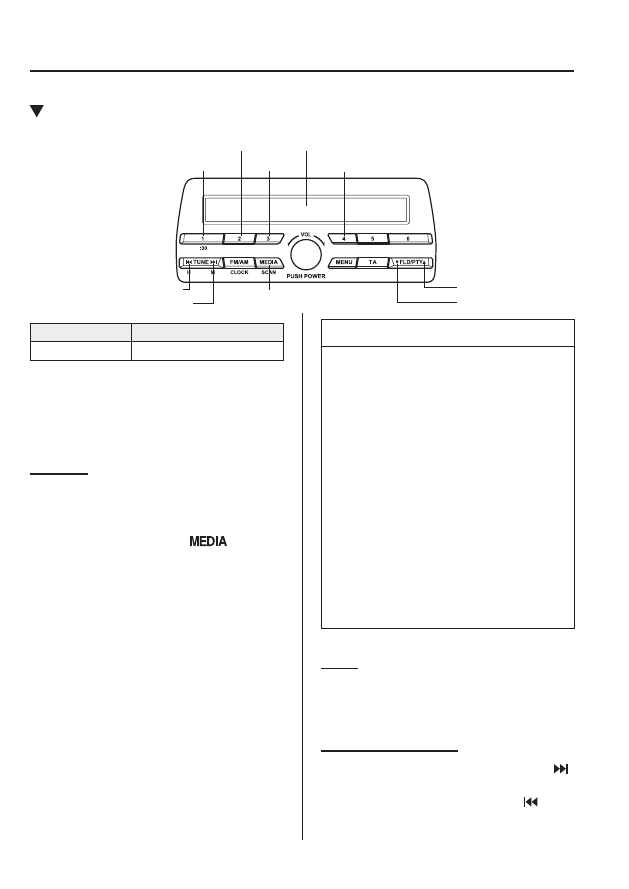

 How to use USB mode (Type A)

Media/Scan button

Folder down button

Folder up button

Play/Pause button

Random button

Repeat button

Audio display

Text button

Track down/Reverse button
Track up/Fast-forward button

 Type

 Playable  data

 USB  mode

 MP3/WMA/AAC

¿ le

  This unit does not support a USB 3.0
device. In addition, other devices may not
be supported depending on the model or
OS version.

  Playback

     1.   Switch the ignition to ACC or ON.
   2.   Press the power/volume dial to turn the

audio system on.

   3.   Press  the  media  button  (

 )  to

switch to the USB mode and start
playback.

 NOTE



  Some devices such as smart phones

may require a setting change to allow
operation using a USB connection.



  When the USB device is not

connected, the mode does not switch
to USB mode.



  When there is no playable data in the

USB device, “ NO CONTENTS ”is
À ashed.



  Playback of the USB device is in the

order of the folder numbers. Folders
which have no MP3/WMA/AAC
¿ les are skipped.



  Do not remove the USB device while

in the USB mode. The data may be
damaged.

  Pause

    To stop playback, press the play/pause
button  ( 4 ).
  Press the button again to resume playback.

  Fast-forward/Reverse

    Press and hold the fast-forward button (   )
to advance through a track at high speed.
  Press and hold the reverse button (   )  to
reverse through a track at high speed.

/:A



5–77

Interior Features

Audio System

  Track  search

    Press the track up button (   ) once to skip
forward to the beginning of the next track.
  Press the track down button (   ) within a
few seconds after playback begins to track
down to the beginning of the previous
track.
  Press the track down button (   ) after a
few seconds have elapsed to start playback
from the beginning of the current track.

  Folder  search

    To change to the previous folder, press the
folder down button (   ), or press the folder
up button (   ) to advance to the next
folder.

  Music  scan

    This function scans the titles in a folder
currently being played and plays ten
seconds of each song to aid you in

¿ nding

a song you want to listen to.
  Press and hold the scan button (

 )

during playback to start the scan play
operation (the track number will

À ash).

Press and hold the scan button (

 )

again to cancel scan playback.

 NOTE

 If the unit is left in scan, normal
playback will resume where scan was
selected.

  Repeat  playback

    Track repeat

     1.   Press  the  repeat  button  ( 1 )  during

playback to play the current track
repeatedly. “ TRACK RPT ” is displayed
(   is displayed next to RPT at the
bottom of the display area).

   2.   To cancel the repeat playback, press the

button again after 3 seconds.

  Folder  repeat

     1.   Press  the  repeat  button  ( 1 )  during

playback, and then press the button
again within 3 seconds to play the
tracks in the current folder repeatedly.
“ FOLDER RPT ” is displayed (     is
displayed next to RPT at the bottom of
the display area).

   2.   Press the button again to cancel the

repeat playback.

  Random  playback

    Tracks are randomly selected and played.

  Folder  random

     1.   Press  the  random  button  ( 2 )  during

playback to play the tracks in the folder
randomly. “ FOLDER RDM ” is
displayed (    is displayed next to RDM
at the bottom of the display area).

   2.   To cancel the random playback, press

the button again after 3 seconds.

/:A



5–78

Interior Features

Audio System

  All  random

     1.   Press  the  random  button  ( 2 )  during

playback, and then press the button
again within 3 seconds to play the
tracks in the USB device randomly.
“ ALL RDM ” is displayed (     is
displayed next to RDM at the bottom of
the display area).

   2.   Press the button again to cancel the

random playback.

  Switching  the  display

    The information displayed on the audio
display changes as follows each time the
text button ( 3 ) is pressed during playback.

 Button

 Information  displayed

on audio display

 File  number/Elapsed

time

 Folder  number/File

number

 File  name

 Folder  name

 Album  name

 Song  name

 Artist  name

 NOTE



  The information (artist name, music

name) is displayed only when the
USB device information in the USB
device has information which can be
displayed on the screen.



  This unit cannot display some

characters. Characters which cannot
be displayed are indicated by an
asterisk (   ).

  Display  scroll

    Only 13 characters can be displayed at one
time. To display the rest of the characters
of a long title, press and hold the text
button ( 3 ). The display scrolls the next 13
characters. Press and hold the text button
( 3 ) again after the last 13 characters have
been displayed to return to the beginning
of the title.

 NOTE

 The number of characters which can be
displayed is restricted.

  Error  Messages

    When  the  message  “ CHECK  USB ”  is
displayed, it indicates that there is some
error in the USB device. Verify that the
content recorded in the USB device has
MP3/WMA/AAC

¿ les and re-connect

correctly. If the message reappears, have
the unit checked by an Authorised Mazda
Repairer.

/:A



MEMO

5–79

/:A



5–80

Interior Features

Audio System

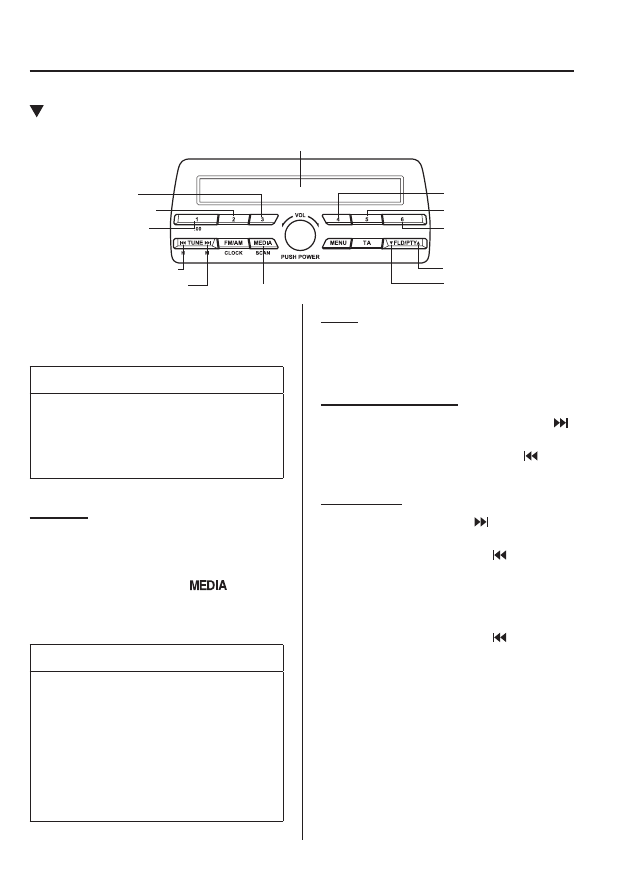

 How to use iPod mode (Type A)

Media/Scan button

List down button

List up button

Play/Pause button

Random button

Repeat button

Audio display

Text button

Track down/Reverse button
Track up/Fast-forward button

Category down button

Category up button

    An iPod may not be compatible depending
on the model or OS version. In this case,
an error message is displayed.

 NOTE

 The iPod functions on the iPod cannot
be operated while it is connected to the
unit because the unit controls the iPod
functions.

  Playback

     1.   Switch the ignition to ACC or ON.
   2.   Press the power/volume dial to turn the

audio system on.

   3.   Press  the  media  button  (

 )  to

switch to the iPod mode and start
playback.

 NOTE



  When an iPod is not connected, the

mode does not switch to the iPod
mode.



  When there is no playable data in the

iPod, “ NO CONTENTS ” is

À ashed.



  Do not remove the iPod while in the

iPod mode. Otherwise, the data could
be damaged.

  Pause

    To stop playback, press the play/pause
button  ( 4 ).
  Press the button again to resume playback.

  Fast-forward/Reverse

    Press and hold the fast-forward button (   )
to advance through a track at high speed.
  Press and hold the reverse button (   )  to
reverse through a track at high speed.

  Track  search

    Press the track up button (   ) once to skip
forward to the beginning of the next track.
  Press the track down button (   ) within a
few seconds (depends on iPod software
version) after playback begins to track
down to the beginning of the previous
track.
  Press the track down button (   ) after a
few seconds (depends on iPod software
version) have elapsed to start playback
from the beginning of the current track.

/:A



5–81

Interior Features

Audio System

  Category  search

    Press  the  category  down  button  ( 5 )  to
select the previous category and press the
category up button ( 6 ) to select the next
category.

 NOTE

 The types of categories include Playlist,
Artist, Album, Song, Podcast, Genre,
Composer, and Audio book.

  List  search

    Press the list down button (   ) to select the
previous list and press the list up button
(  ) to select the next list.

 NOTE

 When the selected category is Song or
Audio book, there is no list.

  Music  scan

    This function scans the titles in a list
currently being played and plays 10
seconds of each song to aid you in

¿ nding

a song you want to listen to.
  Press and hold the scan button (

 )

during playback to start the scan play
operation (the track number will

À ash).

Press and hold the scan button (

 )

again to cancel scan playback.

 NOTE

 If the unit is left in scan, normal
playback will resume where scan was
selected.

  Repeat  playback

     1.   Press  the  repeat  button  ( 1 )  during

playback to play the current track
repeatedly. “ TRACK RPT ” is displayed
(   is displayed next to RPT at the
bottom of the display area).

   2.   Press the button again to cancel the

repeat playback.

  Random  playback

    Tracks are randomly selected and played.

  Song  random

     1.   Press  the  random  button  ( 2 )  during

playback to play the tracks in the list
randomly. “ SONG RDM ” is displayed
(

  is displayed next to RDM at the

bottom of the display area).

   2.   To cancel the random playback, press

the button again after 3 seconds.

  Album  random

     1.   Press  the  random  button  ( 2 )  during

playback, and then press the button
again within 3 seconds to play the
tracks in the iPod randomly. “ ALBUM
RDM ” is displayed (    is displayed
next to RDM at the bottom of the
display area).

   2.   Press the button again to cancel the

random playback.

 NOTE

 The track number being played
randomly is in the order of the iPod
shuf

À e table.

/:A
