Interior Features

Air-Conditioning System

Operating Tips

Operate the air-conditioning system with

the engine running.

To prevent the battery from being

discharged, do not leave the fan control
dial on for a long period of time with the
ignition switched ON when the engine is
not running.

(With i-stop)

The air

À ow amount may decrease

slightly while the i-stop function is
operating.

Clear all obstructions such as leaves,

snow and ice from the bonnet and the
air inlet in the cowl grille to improve the
system ef

¿ ciency.

Use the air-conditioning system to defog

the windows and dehumidify the air.

The recirculate mode should be used

when driving through tunnels or while in
a traf

¿ c jam, or when you would like to

shut off outside air for quick cooling of
the interior.

Use the outside air position for

ventilation or windscreen defrosting.

If the vehicle has been parked in direct

sunlight during hot weather, open the
windows to let warm air escape, then
run the air-conditioning system.

Run the air conditioner about 10 minutes

at least once a month to keep internal
parts lubricated.

Have the air conditioner checked before

the weather gets hot. Lack of refrigerant
may make the air conditioner less
ef

¿ cient.

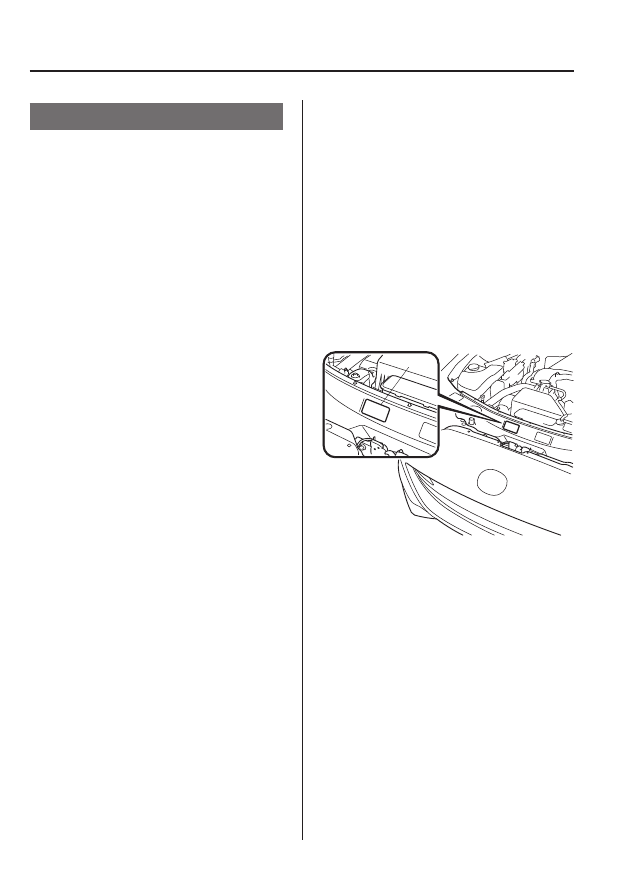

The refrigerant speci

¿ cations are

indicated on a label attached to the
inside of the engine compartment. Check
the label before re

¿ lling the refrigerant.

If the wrong type of refrigerant is used,
it could result in a serious malfunction
of the air conditioner.

For details, consult an expert repairer,

we recommend an Authorised Mazda
Repairer.

Label

/:A

5–3

Interior Features

Air-Conditioning System

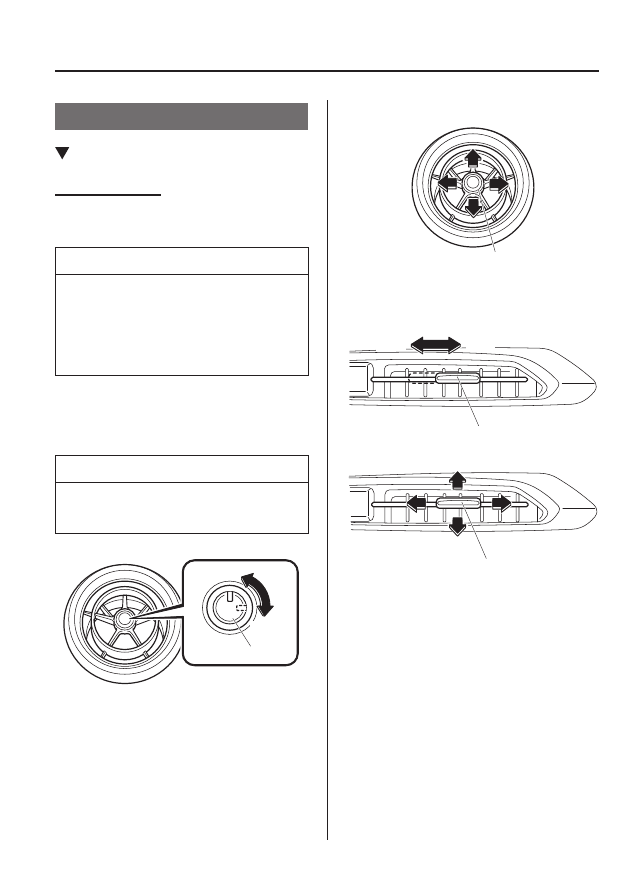

Vent Operation

Adjusting the Vents

Directing air

À ow

To adjust the direction of air

À ow, move the

adjustment knob.

NOTE

When using the air conditioner under
humid ambient temperature conditions,
the system may blow fog from the vents.
This is not a sign of trouble but a result
of humid air being suddenly cooled.

Centre vents (driver) and Side vents

Air vent open/close

NOTE

The air vents can be fully opened and
closed by operating the knob.

Open

Knob

Air

À ow direction adjustment

Knob

Centre vents (passenger)

Air vent open/close

Open

Knob

Air

À ow direction adjustment

Knob

/:A

5–5

Interior Features

Air-Conditioning System

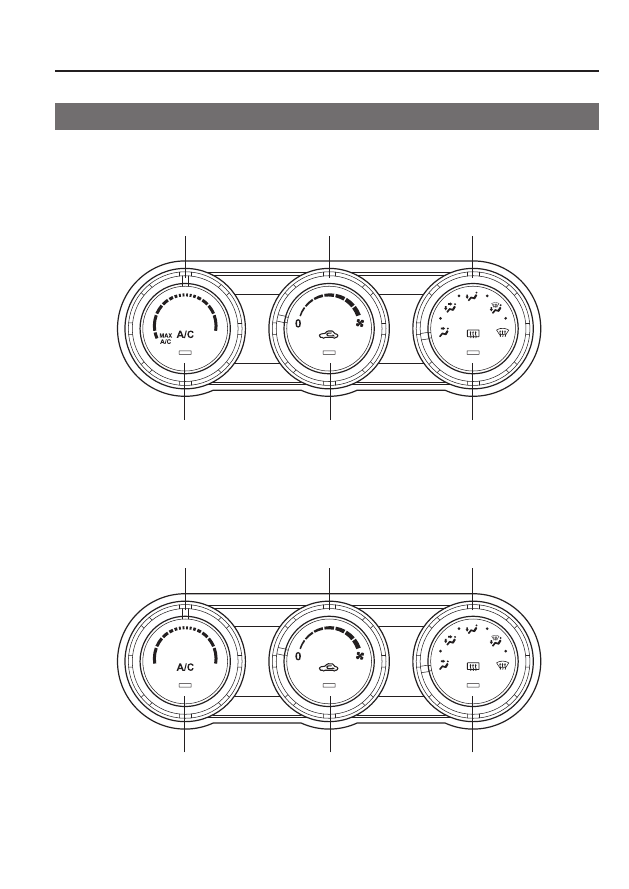

Manual Type

Rear window defogger switch

Air intake selector switch

Fan control dial

Temperature control dial

A/C switch

Rear window defogger switch

Air intake selector switch

A/C switch

Mode selector dial

Fan control dial

Temperature control dial

Mode selector dial

Type A

Type B

/:A

5–6

Interior Features

Air-Conditioning System

Control Switches

Temperature control dial

This dial controls temperature. Turn it
clockwise for hot and anticlockwise for
cold.

NOTE

(Type A)

When the mode is set to ,

or a

position in between them with the fan
control dial in a position other than 0
and the temperature control dial in the
maximum cold position, the air intake
selector switches to the recirculated air
position and the A/C turns on
automatically.
If A/C is not desired, press the A/C
switch to turn it off.

Fan control dial

This dial allows variable fan speeds.
The fan has seven speeds.

Mode selector dial

Turn the mode selector dial to select
air

À ow mode (page 5-4 ).

NOTE

The mode selector dial can be set at

the intermediate positions ( )
between each mode. Set the dial to
an intermediate position if you want
to split the air

À ow between the two

modes.

For example, when the mode selector

dial is at the

position between the

and positions, air

À ow from the

À oor vent is less than that of the
position.

A/C switch

Press the A/C switch to turn the air
conditioner on. The indicator light on the
switch will illuminate when the fan control
dial is in any position except OFF.

Press the switch once again to turn the air
conditioner off.

NOTE

The air conditioner may not function
when the outside temperature
approaches 0 °C (32 °F).

Air intake selector

This switch controls the source of air
entering the vehicle.

Outside or recirculated air positions can be
selected. Press the switch to select outside/
recirculated air positions.

Recirculated air position (indicator light
illuminated)

Outside air is shut off. Use this position
when going through tunnels, driving in
congested traf

¿ c (high engine exhaust

areas) or when quick cooling is desired.

Outside air position (indicator light
turned off)

Outside air is allowed to enter the
cabin. Use this mode for ventilation or
windscreen defrosting.

/:A

5–7

Interior Features

Air-Conditioning System

WARNING

Do not use the position in cold or
rainy weather:
Using the

position in cold or rainy

weather is dangerous as it will cause
the windows to fog up. Your vision will
be hampered, which could lead to a
serious accident.

Rear window defogger switch

Press the rear window defogger switch to
defrost the rear window.
Refer to Rear Window Defogger on page
4-77 .

Heating

1. Set the mode selector dial to the

position.

2. Set the air intake selector to the outside

air position (indicator light turns off).

3. Set the temperature control dial to the

hot position.

4. Set the fan control dial to the desired

speed.

5. If dehumidi

¿ ed heating is desired, turn

on the air conditioner.

NOTE

If the windscreen fogs up easily, set

the mode selector dial to the
position.

If cooler air is desired at face level,

set the mode selector dial at the
position and adjust the temperature
control dial to maintain maximum
comfort.

The air to the

À oor is warmer than

air to the face (except when the
temperature control dial is set at the
extreme hot or cold position).

Cooling (With air conditioner)

1. Set the mode selector dial to the

position.

2. Set the temperature control dial to the

cold position.

3. Set the fan control dial to the desired

speed.

4. Turn on the air conditioner by pressing

the A/C switch.

5. After cooling begins, adjust the fan

control dial and temperature control
dial as needed to maintain maximum
comfort.

CAUTION

If the air conditioner is used while
driving up long hills or in heavy traf

¿ c,

monitor the engine coolant temperature
warning light to see if it is illuminated or
À ashing (page 4-42 ).
The air conditioner may cause engine
overheating. If the warning light is
illuminated or

À ashing, turn the air-

conditioning off (page 7-24 ).

/:A

5–8

Interior Features

Air-Conditioning System

NOTE

When maximum cooling is desired,

set the temperature control dial to
the extreme cold position and set the
air intake selector to the recirculated
air position, then turn the fan control
dial fully clockwise.

If warmer air is desired at

À oor level,

set the mode selector dial at the
position and adjust the temperature
control dial to maintain maximum
comfort.

The air to the

À oor is warmer than

air to the face (except when the
temperature control dial is set at the
extreme hot or cold position).

Ventilation

1. Set the mode selector dial to the

position.

2. Set the air intake selector to the outside

air position (indicator light turns off).

3. Set the temperature control dial to the

desired position.

4. Set the fan control dial to the desired

speed.

Windscreen Defrosting and

Defogging

1. Set the mode selector dial to the

position.

2. Set the temperature control dial to the

desired position.

3. Set the fan control dial to the desired

speed.

4. If dehumidi

¿ ed heating is desired, turn

on the air conditioner.

WARNING

Do not defog the windscreen using the
position with the temperature
control set to the cold position:
Using the position with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windscreen to fog up.
Your vision will be hampered, which
could lead to a serious accident. Set the
temperature control to the hot or warm
position when using the

position.

/:A

5–9

Interior Features

Air-Conditioning System

NOTE

For maximum defrosting, turn on the

air conditioner, set the temperature
control dial to the extreme hot
position, and turn the fan control dial
fully clockwise.

If warm air is desired at the

À oor, set

the mode selector dial to the
position.

(Type A)

When the fan control dial is ON, and

the mode selector dial is in the
position, the outside air position is
automatically selected.

(Type B)

When the fan control dial is ON, and

the mode selector dial is in the
position, the outside air position is
automatically selected. The air intake
selector cannot be changed to the
recirculated air position.

Dehumidifying (With air

conditioner)

Operate the air conditioner in cool or cold
weather to help defog the windscreen and
side windows.

1. Set the mode selector dial to the desired

position.

2. Set the air intake selector to the outside

air position (indicator light turns off).

3. Set the temperature control dial to the

desired position.

4. Set the fan control dial to the desired

speed.

5. Turn on the air conditioner by pressing

the A/C switch.

NOTE

One of the functions of the air
conditioner is dehumidifying the air
and, to use this function, the temperature
does not have to be set to cold.
Therefore, set the temperature control
dial to the desired position (hot or cold)
and turn on the air conditioner when you
want to dehumidify the cabin air.

/:A

5–10

Interior Features

Air-Conditioning System

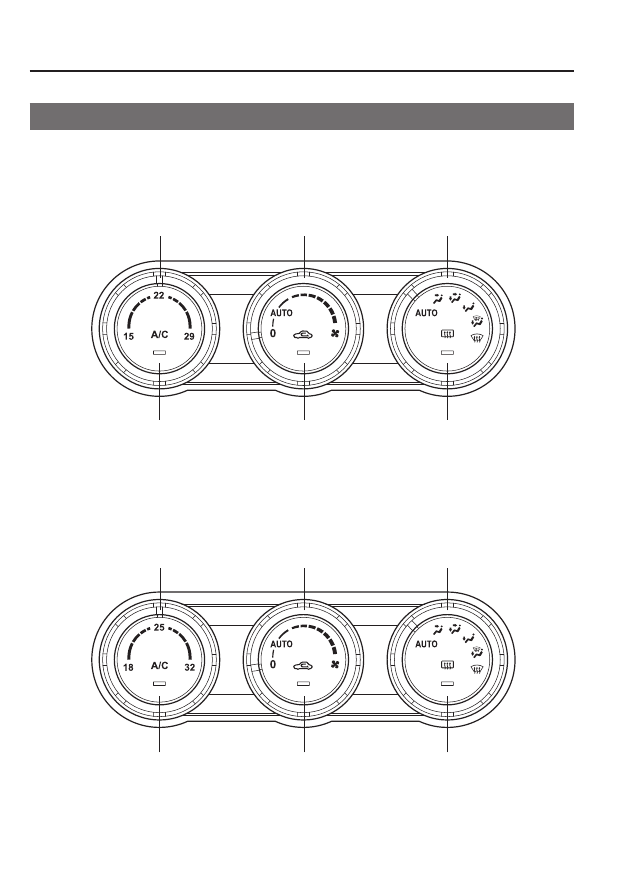

Fully Automatic Type

Rear window defogger switch

Air intake selector switch

Fan control dial

Temperature control dial

A/C switch

Rear window defogger switch

Air intake selector switch

A/C switch

Mode selector dial

Fan control dial

Temperature control dial

Mode selector dial

Type A

Type B

/:A

5–11

Interior Features

Air-Conditioning System

Control Switches

Temperature control dial

This dial controls temperature. Turn it
clockwise for hot and anticlockwise for
cold.

Fan control dial

The fan has seven speeds.

AUTO position

The amount of air

À ow will be

automatically controlled in accordance
with the set temperature.

Except AUTO position

The air

À ow amount can be adjusted to the

desired level by turning the dial.

0 position

To turn off the system, set the dial to 0
position.

Mode selector dial

Turn the mode selector dial to select
air

À ow mode (page 5-4 ).

AUTO position

The air

À ow mode automatically adjusts to

the selected temperature.

Except AUTO position

The desired air

À ow position can be

selected by turning the dial.

NOTE

With the air

À ow mode set to the

position and the temperature control
dial set at a medium temperature,
heated air is directed to the feet and

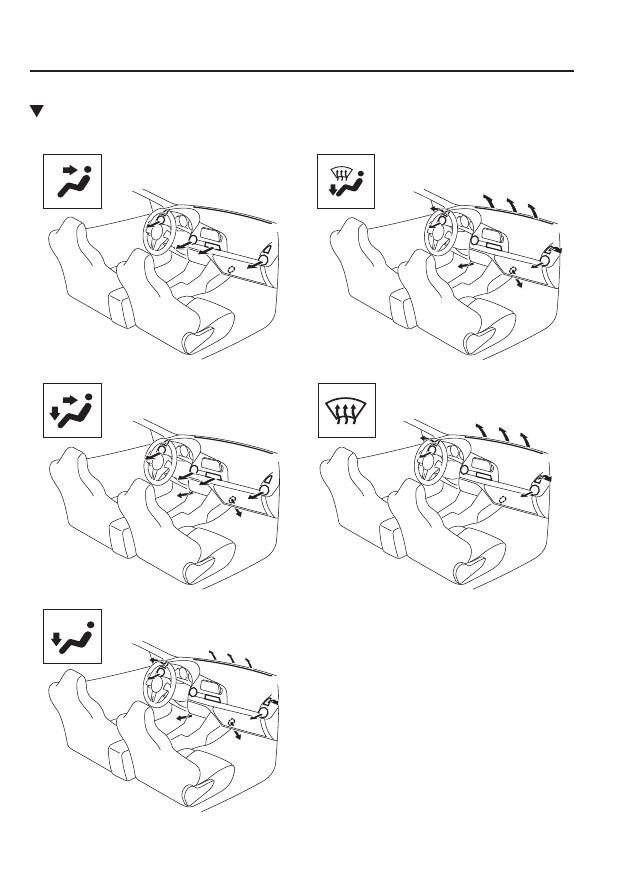

air at a comparably lower
temperature will

À ow through the

central, left and right vents.

When the fan control dial is ON, and

the mode selector dial is in the
position, the air conditioner is
automatically turned on and the
outside air position is automatically
selected to defrost the windscreen.

A/C switch

The air-conditioning (cooling/
dehumidifying functions) can be turned on
or off by pressing the switch while the fan
control dial is at a position other than 0.
The indicator light turns on while the air-
conditioning is operating.

NOTE

The air conditioner may not function
when the outside temperature
approaches 0 °C (32 °F).

/:A

5–12

Interior Features

Air-Conditioning System

Air intake selector

Outside or recirculated air positions can be
selected. Press the switch to select outside/
recirculated air positions.

Recirculated air position (indicator light
illuminated)

Outside air is shut off. Use this position
when going through tunnels, driving in
congested traf

¿ c (high engine exhaust

areas) or when quick cooling is desired.

Outside air position (indicator light
turned off)

Outside air is allowed to enter the
cabin. Use this mode for ventilation or
windscreen defrosting.

WARNING

Do not use the position in cold or
rainy weather:
Using the

position in cold or rainy

weather is dangerous as it will cause
the windows to fog up. Your vision will
be hampered, which could lead to a
serious accident.

Rear window defogger switch

Press the rear window defogger switch to
defrost the rear window.
Refer to Rear Window Defogger on page
4-77 .

Operation of Automatic Air-

conditioning

1. Set the mode selector dial to the AUTO

position.

2. Set the air intake selector to the outside

air position (indicator light turned off).

NOTE

If the recirculated air position is used
for long periods in cold weather or high
humidity, the windscreen may fog up
more easily.

3. Set the fan control dial to the AUTO

position.

4. Press the A/C switch to operate the air-

conditioning (turn indicator light on).

5. Set the temperature control dial to the

desired position.

6. To turn off the system, set the fan

control dial to the 0 position.

NOTE

Setting the temperature to maximum

hot or cold will not provide the
desired temperature at a faster rate.

When selecting heat, the system will

restrict air

À ow until it has warmed to

prevent cold air from blowing out of
the vents.

/:A

5–13

Interior Features

Air-Conditioning System

Windscreen Defrosting and

Defogging

    Set the mode selector dial to the
position and turn the fan control dial to the
desired speed.
  In this position, the outside air position
is automatically selected, and when the
fan control dial is ON, the air conditioner
automatically turns on. The air conditioner
will directly dehumidify the air to the
front windscreen and side windows (page
5-4 ).  Air

À ow amount will be increased.

WARNING

Set the temperature control to the hot
or warm position when defogging
( position):
Using the position with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windscreen to fog up.
Your vision will be hampered, which
could lead to a serious accident.

NOTE

Use the temperature control dial to
increase the air

À ow temperature and

defog the windscreen more quickly.

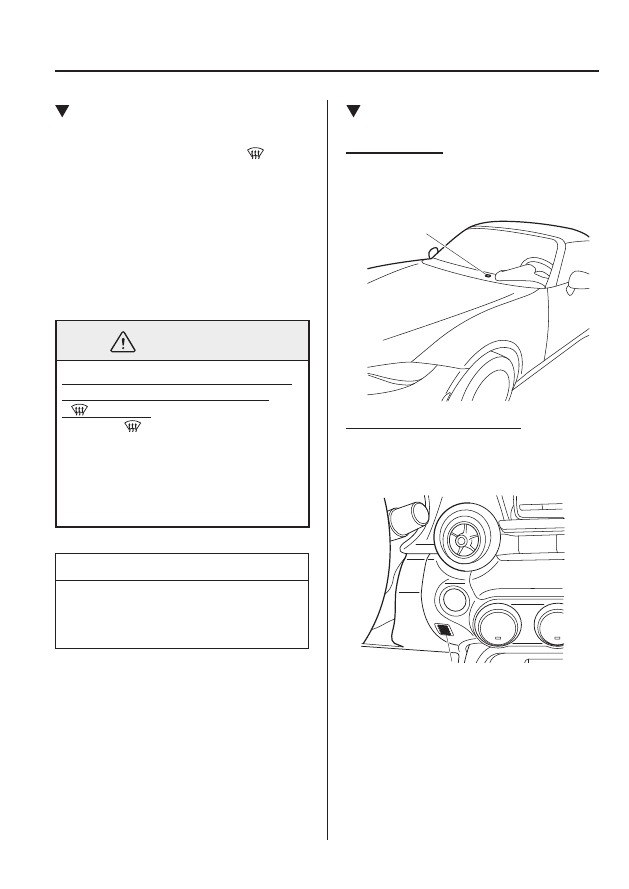

Sunlight/Temperature Sensor

Sunlight sensor

Do not place objects on the sunlight
sensor. Otherwise, the interior temperature
may not adjust correctly.

Sunlight sensor

Interior temperature sensor

Do not cover the interior temperature
sensor. Otherwise, the interior temperature
may not adjust correctly.

Interior temperature sensor

/:A

5–14

Interior Features

Audio System

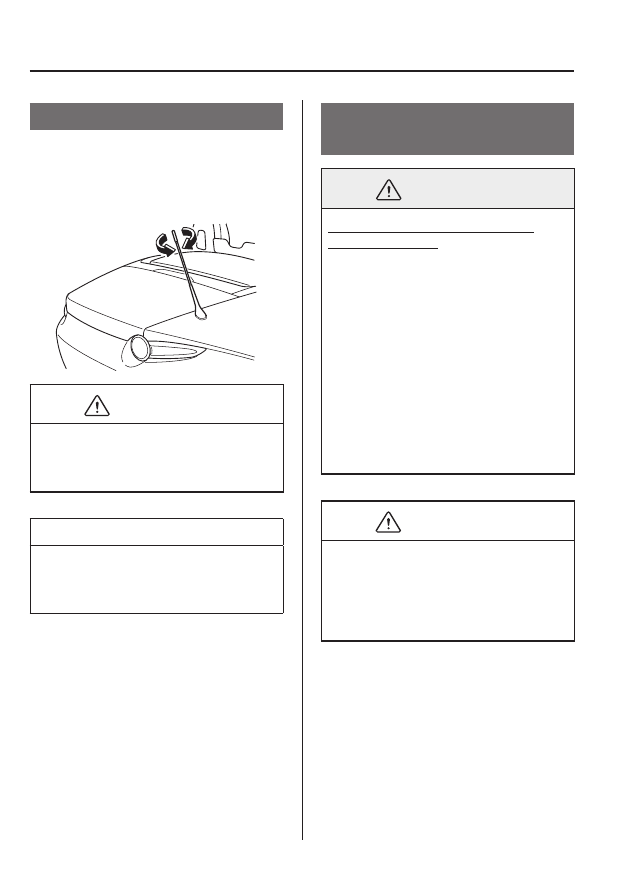

Aerial

To  remove  the  aerial,  turn  it  anticlockwise.
  To install the aerial, turn it clockwise.
  Make sure the aerial is securely installed.

Install

Remove

CAUTION

To prevent damage to the aerial, remove
it before passing beneath a low overhead
clearance.

NOTE

When leaving your vehicle unattended,
we recommend that you remove the
aerial and store it inside the vehicle.

Operating Tips for Audio
System

WARNING

Always adjust the audio while the
vehicle is stopped:
Do not adjust the audio control
switches while driving the vehicle.
Adjusting the audio while driving
the vehicle is dangerous as it could
distract your attention from the vehicle
operation which could lead to a serious
accident.
Even if the audio control switches are
equipped on the steering wheel, learn
to use the switches without looking
down at them so that you can keep your
maximum attention on the road while
driving the vehicle.

CAUTION

For the purposes of safe driving, adjust
the audio volume to a level that allows
you to hear sounds outside of the vehicle
including car horns and particularly
emergency vehicle sirens.

/:A

5–15

Interior Features

Audio System

NOTE

To prevent the battery from being

discharged, do not leave the audio
system on for a long period of time
when the engine is not running.

If a cellular phone or CB radio is

used in or near the vehicle, it could
cause noise to occur from the audio
system, however, this does not
indicate that the system has been
damaged.

Do not spill any liquid on the audio
system.

Do not insert any objects, other than CDs,
into the slot.

Radio Reception

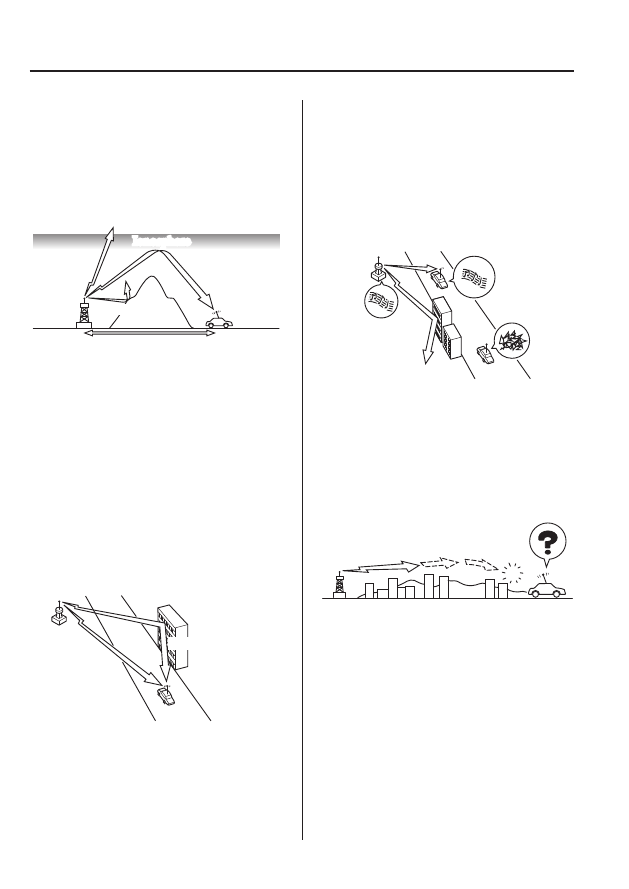

AM characteristics

    AM signals bend around such things as
buildings or mountains and bounce off the
ionosphere.
  Therefore, they can reach longer distances
than FM signals.
  Because of this, two stations may
sometimes be picked up on the same
frequency at the same time.

Station 2

Station 1

Ionosphere

FM characteristics

An FM broadcast range is usually about
40—50 km (25—30 miles) from the
source. Because of extra coding needed to
break the sound into two channels, stereo
FM has even less range than monaural
(non-stereo) FM.

FM Station

40—50km
(25—30 miles)

/:A

5–16

Interior Features

Audio System

Signals from an FM transmitter are similar
to beams of light because they do not
bend around corners, but they do re

À ect.

Unlike AM signals, FM signals cannot
travel beyond the horizon. Therefore, FM
stations cannot be received at the great
distances possible with AM reception.

AM wave

FM wave

100—200 km (60—120 miles)

Ionosphere

Atmospheric conditions can also affect
FM reception. High humidity will cause
poor reception. However, cloudy days may
provide better reception than clear days.

Multipath noise

Since FM signals can be re

À ected by

obstructions, it is possible to receive both
the direct signal and the re

À ected signal

at the same time. This causes a slight
delay in reception and may be heard as a
broken sound or a distortion. This problem
may also be encountered when in close
proximity to the transmitter.

Reflected wave

Direct

Flutter/Skip noise

Signals from an FM transmitter move in
straight lines and become weak in valleys
between tall buildings, mountains, and
other obstacles. When a vehicle passes
through such an area, the reception
conditions may change suddenly, resulting
in annoying noise.

Weak signal noise

In suburban areas, broadcast signals
become weak because of distance from the
transmitter. Reception in such fringe areas
is characterised by sound breakup.

/:A

5–17

Interior Features

Audio System

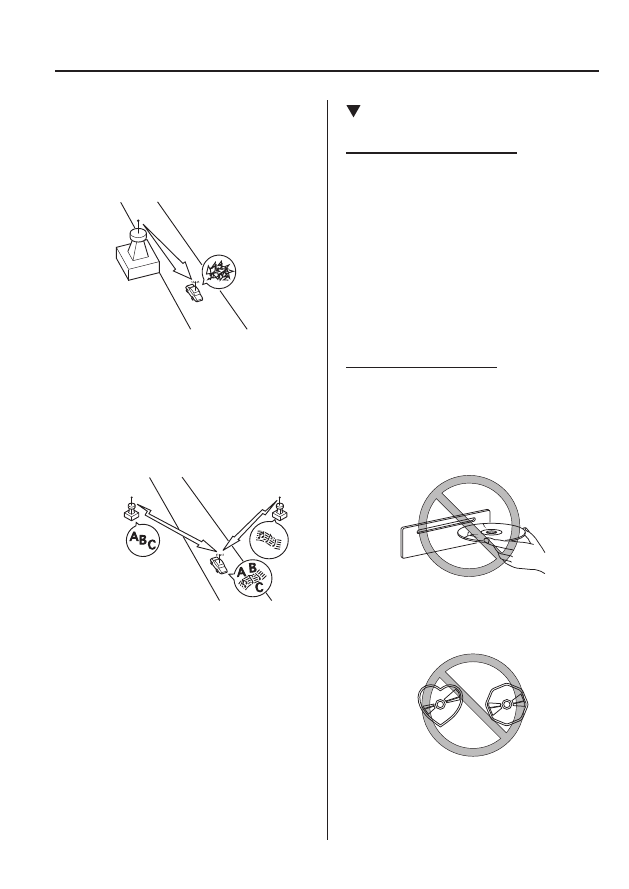

Strong signal noise

This occurs very close to a transmitter
tower. The broadcast signals are extremely
strong, so the result is noise and sound
breakup at the radio receiver.

Station drift noise

When a vehicle reaches the area of two
strong stations broadcasting at similar
frequencies, the original station may be
temporarily lost and the second station
picked up. At this time there will be some
noise from this disturbance.

Station 2
88.3 MHz

Station 1
88.1 MHz

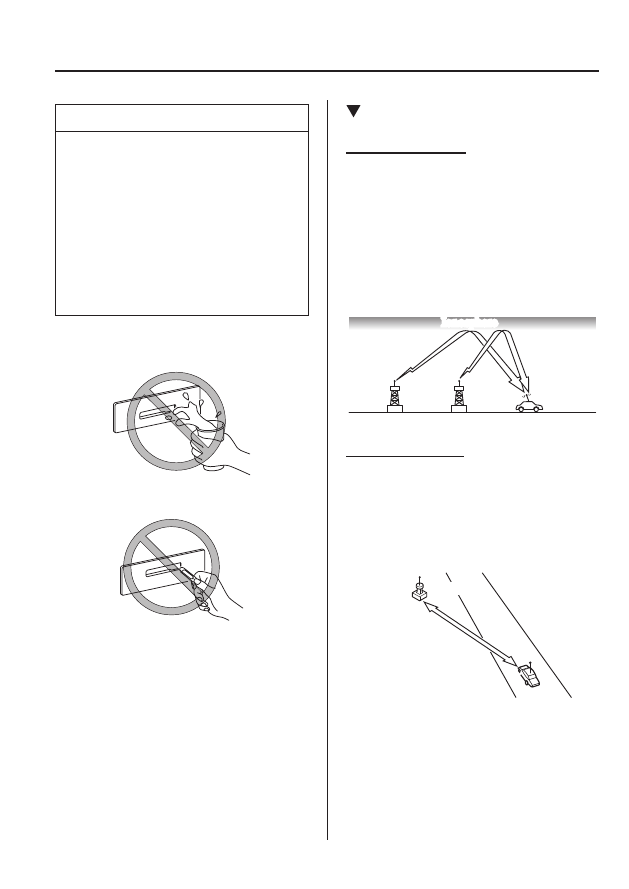

Operating Tips for CD Player

Condensation phenomenon

Immediately after turning on the heater
when the vehicle is cold, the CD or
optical components (prism and lens) in
the CD player may become clouded with
condensation. At this time, the CD will
eject immediately when placed in the unit.
A clouded CD can be corrected simply by
wiping it with a soft cloth. Clouded optical
components will clear naturally in about
an hour. Wait for normal operation to
return before attempting to use the unit.

Handling the CD player

The following precautions should be
observed.

Do not use deformed or cracked CDs.

The disc may not eject resulting in a
malfunction.

Do not use non-conventional discs such

as heart-shaped, octagonal discs, etc.
The disc may not eject resulting in a
malfunction.

/:A

Mazda MX-5 RF (2017 year). Instruction - part 19
