qPower/Volume/Sound Controls

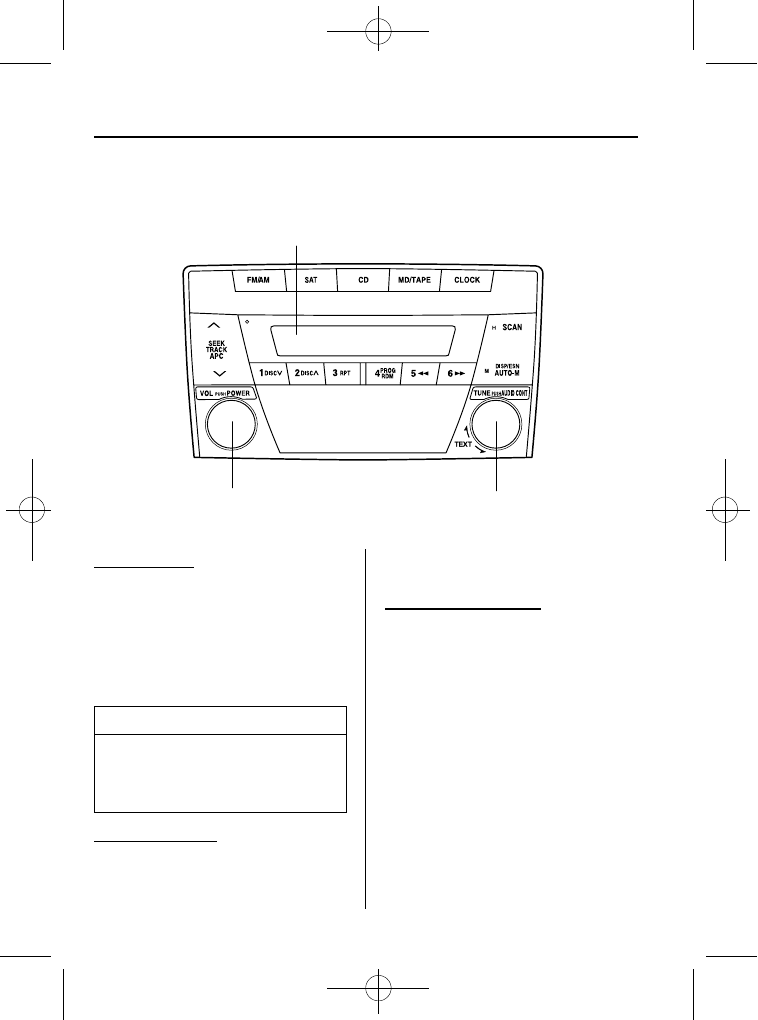

Display

Audio control dial

Power/Volume dial

Power ON/OFF

Turn the ignition switch to the ACC or
ON position.

Press the power/volume dial to turn the
audio system on.
Press the power/volume dial again to turn
the audio system off.

NOTE

To prevent the battery from being
discharged, do not leave the audio
system on for a long period of time
when the engine is not running.

Volume adjustment

To adjust the volume, turn the power/
volume dial.

Turn the power/volume dial to the right to
increase volume, to the left to decrease it.

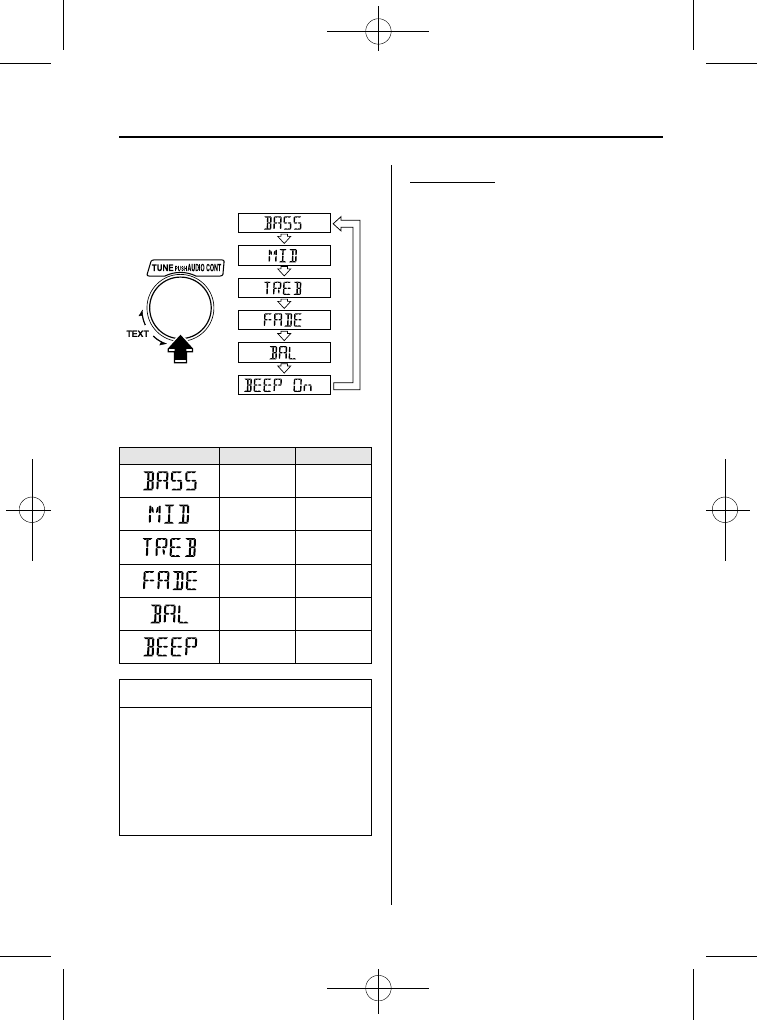

Audio sound adjustment

1. Press the audio control dial to select the

function. The selected function will be
indicated.

6-22

Interior Comfort

Audio System

Mazda MPV_8U61-EA-05G_Edition1 Page200
Tuesday, June 21 2005 9:35 AM

Black plate (201,1)

2. Turn the audio control dial to adjust the

selected functions as follows:

* Depending on the mode selected, the

indication changes.

Indication

Turn Left

Turn Right

Decrease bass

Increase bass

Decrease

mid-range

Increase

mid-range

Decrease

treble

Increase

treble

Shift the sound

to the front

Shift the sound

to the rear

Shift the sound

to the left

Shift the sound

to the right

OFF

NOTE

About 5 seconds after selecting any
mode, the volume function will be
automatically selected. To reset bass,
mid-range, treble, fade and balance,
press the audio control dial for 2
seconds. The unit will beep and

“CLEAR” will be displayed.

BEEP setting

The beep-sound when operating the audio
system can be set on or off.

Interior Comfort

Audio System

6-23

Mazda MPV_8U61-EA-05G_Edition1 Page201
Tuesday, June 21 2005 9:35 AM

Black plate (202,1)

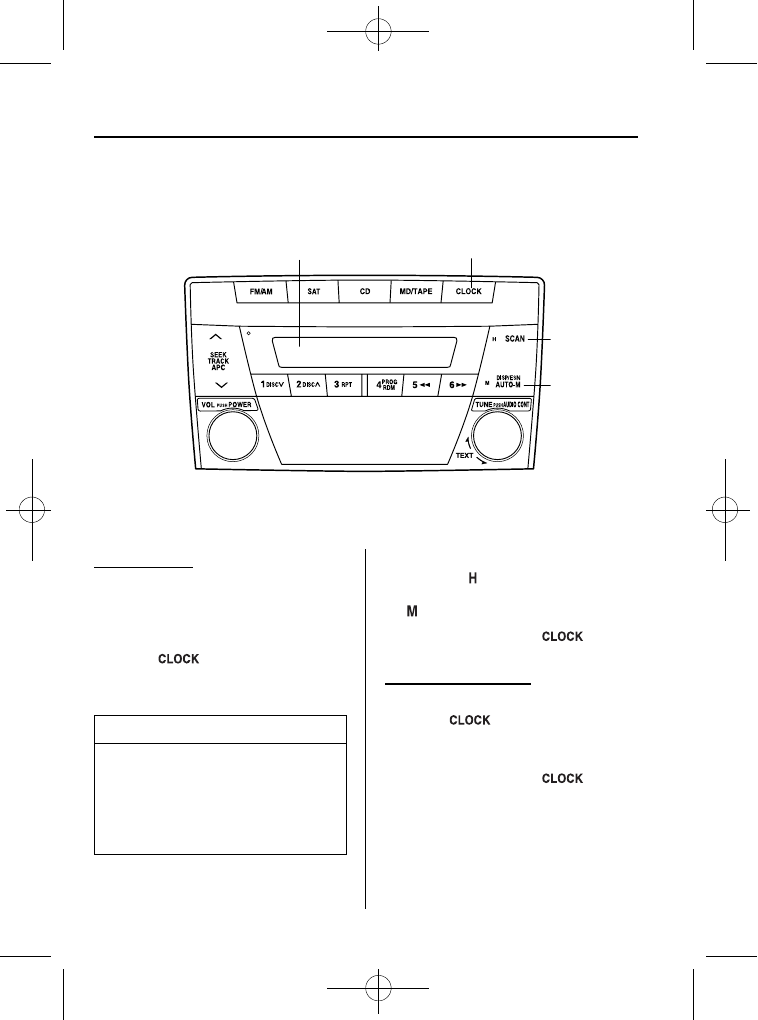

qClock

Display

Clock button

Hour set
button

Minute set
button

Setting the time

The clock can be set at any time when the
ignition switch is in the ACC or ON
position.

1. To adjust the time, press the clock

button (

) for about 2 seconds

until a beep is heard.
The clock's current time will flash.

NOTE

To select 12-hour or 24-hour clock
time, turn the audio control dial while
the clock display is flashing. After
selecting the desired display, press the
audio control dial to return to the
flashing clock display.

2. To advance the hours, press the hour

set button ( ). To advance the
minutes, press the minute set button
(

) while the time is flashing.

3. Press the clock button (

) again

to start the clock.

Exact hour adjustment

1. To set the exact hour, press the clock

button (

) for about 2 seconds

until a beep is heard.
The clock's current time will flash.

2. Press the clock button (

) again

and the time will be adjusted as
follows:
(Example)
12:01

―12:29→12:00

12:30

―12:59→1:00

6-24

Interior Comfort

Audio System

Mazda MPV_8U61-EA-05G_Edition1 Page202
Tuesday, June 21 2005 9:35 AM

Black plate (203,1)

NOTE

When the clock button (

) is

released, the seconds are reset to

“00”.

If the power supply to the unit is
interrupted (if the fuse blows or the
vehicle's battery is disconnected), the
clock will need to be reset.

Changing the display mode

The display on the unit can be changed by
pressing the clock button (

). This

alternates the display between clock mode
and normal mode. When the clock mode
has been selected, the time will be
displayed.

NOTE

The displays differ when using the
audio in clock mode and normal mode.

Interior Comfort

Audio System

6-25

Mazda MPV_8U61-EA-05G_Edition1 Page203
Tuesday, June 21 2005 9:36 AM

Black plate (204,1)

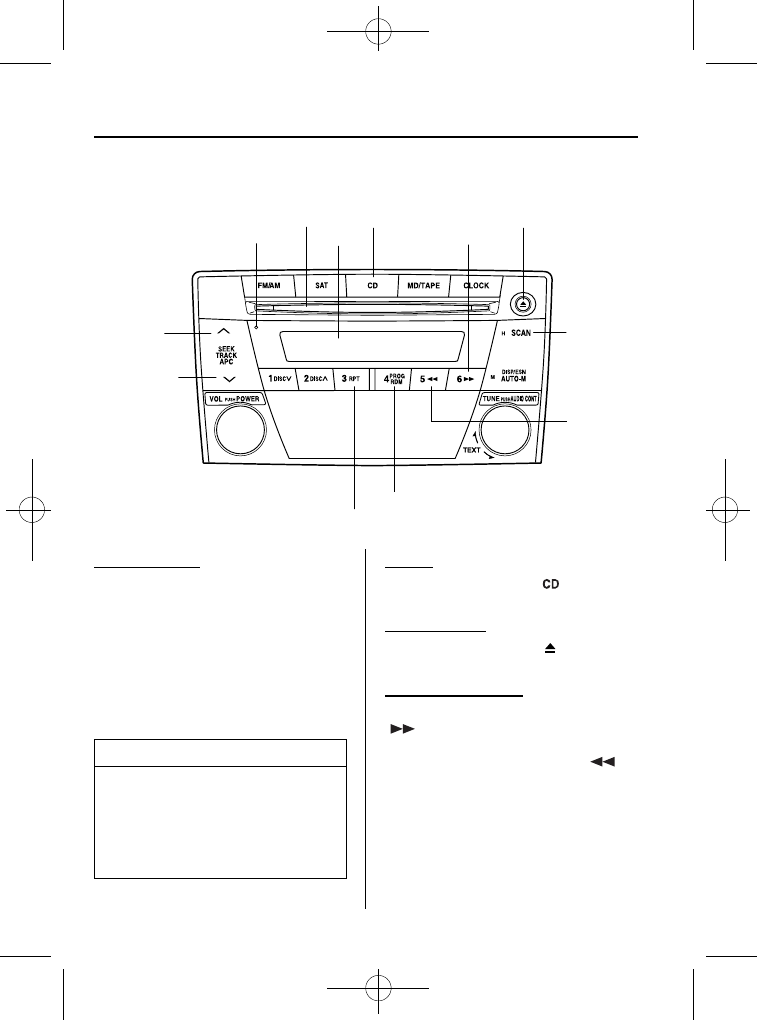

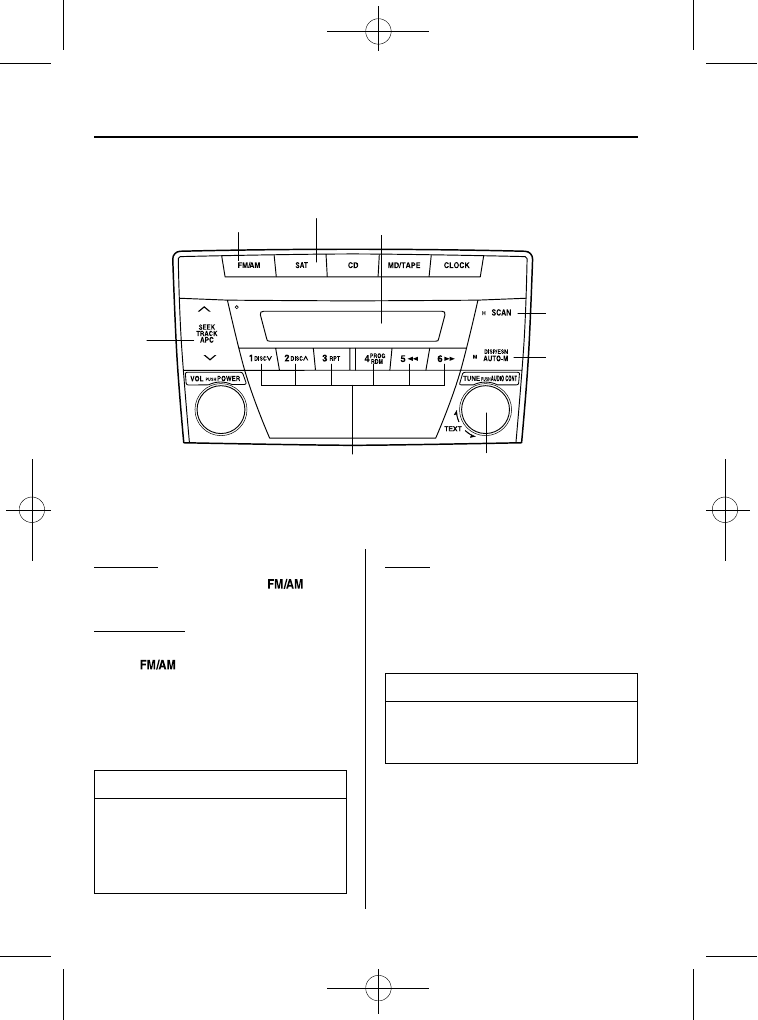

qOperating the Radio

Band selector button

Display

Channel preset buttons

Manual tuning dial

Scan button

Satellite button*

*For reception of optional SIRIUS digital satellite radio.

Used on vehicles equipped with the separately sold SIRIUS digital satellite radio unit.
For information on use, read the manual accompanying the SIRIUS unit.

Subscription of SIRIUS digital satellite radio service is available in the U.S. (Except Alaska and Hawaii).

Seek tuning
button

Auto memory
button/Electric
serial number
button*

Radio ON

Press a band selector button (

) to

turn the radio on.

Band selection

Successively pressing the band selector
button (

) switches the bands as

follows: FM1

→FM2→AM.

The selected mode will be indicated. If
FM stereo is being received,

“ST” will be

displayed.

NOTE

If the FM broadcast signal becomes
weak, reception automatically changes
from STEREO to MONO for reduced
noise, and the

“ST” indicator will go

out.

Tuning

The radio has the following tuning
methods: Manual, Seek, Scan, Preset
channel, and Auto memory tuning. The
easiest way to tune stations is to set them
on preset channels.

NOTE

If the power supply is interrupted (fuse
blows or the battery is disconnected),
the preset channels will be canceled.

Manual tuning

Turning the manual tuning dial will
change the frequency higher or lower.

6-26

Interior Comfort

Audio System

Mazda MPV_8U61-EA-05G_Edition1 Page204
Tuesday, June 21 2005 9:36 AM

Black plate (205,1)

Seek tuning

Pressing the seek tuning button (

)

will cause the tuner to seek a higher or
lower frequency automatically.

NOTE

If you continue to press and hold the
button, the frequency will continue
changing without stopping.

Scan tuning

Press the scan button (

) to

automatically sample strong stations.
Scanning stops at each station for about 5
seconds. To hold a station, merely press
the scan button (

) again during this

interval.

Preset channel tuning

The 6 preset channels can be used to store
6 AM and 12 FM stations.

1. To set a channel first select AM, FM1,

or FM2. Tune to the station you want.

2. Depress a channel preset button for

about 2 seconds until a beep is heard.
The preset channel number and station
frequency will be displayed. The
station is now held in the memory.

NOTE

When the clock is displayed, the preset
channel number will not be displayed.

3. Repeat this operation for the other

stations and bands you want to store.
To tune one in the memory, select AM,
FM1, or FM2 and then press its
channel preset button. The station
frequency and the channel number will
be displayed.

NOTE

If the power supply is interrupted (fuse
blows or the battery is disconnected),
the preset channels will be canceled.

Auto memory tuning

This is especially useful when driving in
an area where the local stations are not
known. Additional AM/FM stations can
be stored without disturbing the
previously set channels.

Press and hold the auto memory button
(

) for about 2 seconds until a beep

is heard; the system will automatically
scan and temporarily store up to 6 stations
with the strongest frequencies in each
selected band in that area.

After scanning is completed, the station
with the strongest frequency will be tuned
and its frequency displayed.
Press and release the auto memory button
(

) to recall stations from the auto-

stored stations. One stored station will be
selected each time; its frequency and
channel number will be displayed.

NOTE

When the clock is displayed, the
preset channel number will not be
displayed.

If no stations can be tuned after
scanning operations,

“A” will be

displayed.

Interior Comfort

Audio System

6-27

Mazda MPV_8U61-EA-05G_Edition1 Page205
Tuesday, June 21 2005 9:36 AM

Black plate (206,1)

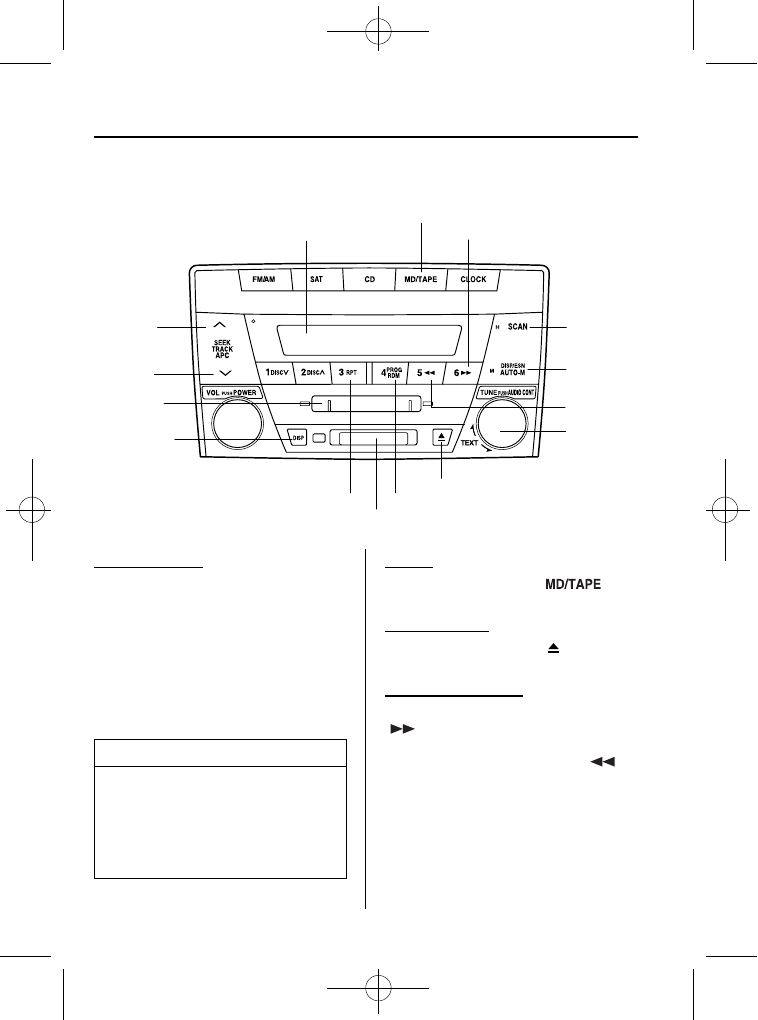

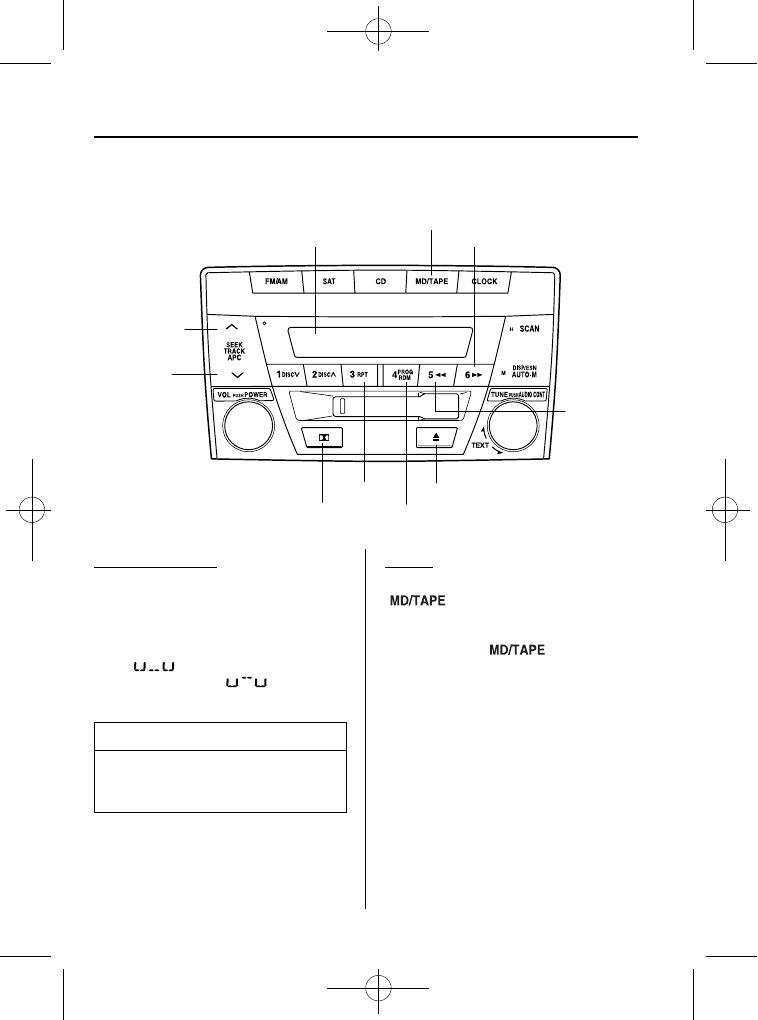

qOperating the Cassette Tape Player

Display

Cassette tape play button

Cassette tape eject button

Fast-forward button

Program button

Dolby NR button

Repeat button

(one being
played)

APC button:
(next program)

Rewind
button

Cassette tape insert

Insert the cassette tape into the slot, open
edge to the right and cassette tape will
begin play and

“TAPE” will be displayed.

At the end of the cassette tape, the unit
automatically reverses cassette tape play.
When

is lit, the cassette tape's top

side is playing. When

is lit, the

bottom side is on.

NOTE

When a metal tape is inserted, the
player will automatically compensate
for it.

Playing

Press the cassette tape play button
(

) to start playing when a

cassette tape is in the unit. If there isn't a
cassette tape in the unit when the cassette
tape play button (

) is pressed,

“No TAPE” will flash on and off in
sequence.

6-28

Interior Comfort

Some models.

Audio System

Mazda MPV_8U61-EA-05G_Edition1 Page206
Tuesday, June 21 2005 9:36 AM

Black plate (207,1)

Dolby noise reduction

When using a tape with Dolby NR*, push
the Dolby NR button (

). The

symbol will be displayed. To play a tape
without Dolby NR, push the button once
again.

* Noise reduction system manufactured

under license from Dolby Laboratories
Licensing Corporation.
Dolby and the double-D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.

Ejecting the cassette tape

Press the cassette tape eject button (

) to

eject the cassette tape.

NOTE

The cassette tape can be ejected when
the ignition switch is in the OFF
position.

Fast-forward/Rewind

Press the fast-forward button (

) to

fast-forward.
Press the rewind button (

) to rewind.

To stop this operation and play the
cassette tape, press the button again.

NOTE

When the cassette tape ends during fast-
forward or rewind, it automatically
stops and starts playing.

Reversing

Press the program button (

) to

change cassette tape-playing direction.

NOTE

When the cassette tape ends, the unit
automatically reverses play.

Automatic program control (APC)

APC is used to find the beginning of
either the next program or the one being
played.

Press the APC button (

) to the

beginning of the next selection.
Press the APC button (

) to the

beginning of the one being played. To
stop this operation and play the cassette
tape, press the button again.

If APC detects 4 seconds of blank space it
will automatically advance the tape to the
next selection.

NOTE

APC may not operate properly if

A tape was recorded at a low level.

A tape has long, silent intervals.

A tape is a live recording.

A tape has very short intervals of
less than 3 seconds.

Repeat play

This operation makes it possible to listen
to a selection repeatedly.

Press the repeat button (

) during play.

The current selection playing will be
repeated (

“RPT” will be displayed).

Press the repeat button (

) once again

to cancel repeat play.

Interior Comfort

Audio System

6-29

Mazda MPV_8U61-EA-05G_Edition1 Page207
Tuesday, June 21 2005 9:36 AM

Black plate (208,1)

NOTE

RPT may not operate properly if

A tape was recorded at a low level.

A tape has long, silent intervals.

A tape is a live recording.

A tape has very short intervals of
less than 3 seconds.

6-30

Interior Comfort

Audio System

Mazda MPV_8U61-EA-05G_Edition1 Page208
Tuesday, June 21 2005 9:36 AM

Black plate (209,1)

MEMO

6-31

Mazda MPV_8U61-EA-05G_Edition1 Page209
Tuesday, June 21 2005 9:36 AM

Black plate (210,1)

qOperating the Mini Disc (MD) Player

MD play button

Random button

Repeat button

Fast-forward button

MD slot

MD eject button

MD display

Main display

Display
feed dial

Display
button

Scan
button

Reverse
button

MD display
button

Track down
button

Track up
button

Inserting the MD

Insert the MD, label-side up with the
arrow pointed to the slot. The auto-
loading mechanism will set the MD and
begin play. There will be a short lapse
before play begins while the player reads
the digital signals on the MD.
The track number and the elapsed play
back time for the current track will be
displayed on the display.

NOTE

When the clock is displayed, the
elapsed play back time will not be
displayed. To display the elapsed play
back time, turn the audio control dial to
the right. Turn the dial to the left to
return to the previous display.

Playing

Press the MD play button (

) to

start playing when a MD is in the unit.

Ejecting the MD

Press the MD eject button (

) to eject the

MD.

Fast-forward/Reverse

Press and hold the fast-forward button
(

) to advance through a track at high

speed.
Press and hold the reverse button (

)

to reverse through a track at high speed.

6-32

Interior Comfort

Some models.

Audio System

Mazda MPV_8U61-EA-05G_Edition1 Page210
Tuesday, June 21 2005 9:36 AM

Black plate (211,1)

Track search

Press the track up button (

) once to

skip forward to the beginning of the next
track.
Press the track down button (

) once to

skip back to the beginning of the current
track.

Music scan

This feature helps to find a program by
playing about the first 10 seconds of each
track.

Press the scan button (

) during play

to start scan play operation (the track
number will flash).
Press the scan button (

) once again

to cancel scan play.

NOTE

If the unit is left in scan, normal play
will resume where scan was selected.

Repeat play

This feature makes it possible to listen to
a selection repeatedly.

Press the repeat button (

) during play.

The current selection will be repeated
(

“RPT” will be displayed).

Press the repeat button (

) once again

to cancel repeat play.

Random play

This feature allows the MD player to
randomly select the order of the songs.

Press the random button (

) during

play. The next selection will be randomly
selected (

“RDM” will be displayed).

Press the random button (

) once

again to cancel random play.

Changing the display

Display

To change the display during MD play,
press the display button (

) to advance

through each of the following displays:
Track number/Elapsed play back
time

→Song title→Disc title.

NOTE

If there is no song or disc title
recorded on the MD,

“No TITLE”

will be displayed.

The display can only display English
(including numerals) one-byte
characters. If any other character is
included

“No TITLE” will be

displayed.

When long disc or song titles cannot be
completely displayed, rotate the display
feed dial (

) to the right.

The remainder of the title will proceed
and appear on the display to the end of the
title.

MD display

To change the MD display during MD
play, press and hold the MD display
button (

) for about half a second to

advance through each of the following
displays:
Song title

→Disc title→No display.

NOTE

If there is no song or disc title recorded
on the MD,

“No TITLE” will be

displayed.

Interior Comfort

Audio System

6-33

Mazda MPV_8U61-EA-05G_Edition1 Page211
Tuesday, June 21 2005 9:36 AM

Black plate (212,1)

When long disc or song titles cannot be
completely displayed, press the MD
display button (

) to display the

remaining part of the title.

6-34

Interior Comfort

Audio System

Mazda MPV_8U61-EA-05G_Edition1 Page212
Tuesday, June 21 2005 9:36 AM

Black plate (213,1)

MEMO

6-35

Mazda MPV_8U61-EA-05G_Edition1 Page213
Tuesday, June 21 2005 9:36 AM

Black plate (214,1)

qOperating the Compact Disc (CD) Player

Display

CD slot

CD play button

CD eject button

Random button

Repeat button

Fast-forward button

Disc-in indicator

Track up
button

Track down
button

Scan
button

Reverse
button

Inserting the CD

Insert the CD into the slot, label-side up.
The auto-loading mechanism will set the
CD and begin play. There will be a short
lapse before play begins while the player
reads the digital signals on the CD.
The disc-in indicator will illuminate, and
the track number and the elapsed play
back time for the current track will be
displayed.

NOTE

Playing

Press the CD play button (

) to start

playing when a CD is in the unit.

Ejecting the CD

Press the CD eject button (

) to eject the

CD.

Fast-forward/Reverse

Press and hold the fast-forward button
(

) to advance through a track at high

speed.
Press and hold the reverse button (

)

to reverse through a track at high speed.

6-36

Interior Comfort

Some models.

Audio System

Mazda MPV_8U61-EA-05G_Edition1 Page214
Tuesday, June 21 2005 9:36 AM

Black plate (215,1)

Track search

Press the track up button (

) once to

skip forward to the beginning of the next
track.
Press the track down button (

) once to

skip back to the beginning of the current
track.

Music scan

This feature helps to find a program by
playing about the first 10 seconds of each
track.

Press the scan button (

) during play

to start scan play operation (the track
number will flash).
Press the scan button (

) once again

to cancel scan play.

NOTE

If the unit is left in scan, normal play
will resume where scan was selected.

Repeat play

This feature makes it possible to listen to
a selection repeatedly.

Press the repeat button (

) during play.

The current selection will be repeated
(

“RPT” will be displayed).

Press the repeat button (

) once again

to cancel repeat play.

Random play

This feature allows the CD player to
randomly select the order of the songs.

Press the random button (

) during

play. The next selection will be randomly
selected (

“RDM” will be displayed).

Press the random button (

) once

again to cancel random play.

Interior Comfort

Audio System

6-37

Mazda MPV_8U61-EA-05G_Edition1 Page215
Tuesday, June 21 2005 9:36 AM

Content .. 11 12 13 14 ..
