Black plate (8,1)

The equipment and installation position varies by model.

Power window lock switch ................................................................................ page 3-21
Power window switches .................................................................................... page 3-20
Power door lock switch ..................................................................................... page 3-10

1-2

Your Vehicle at a Glance

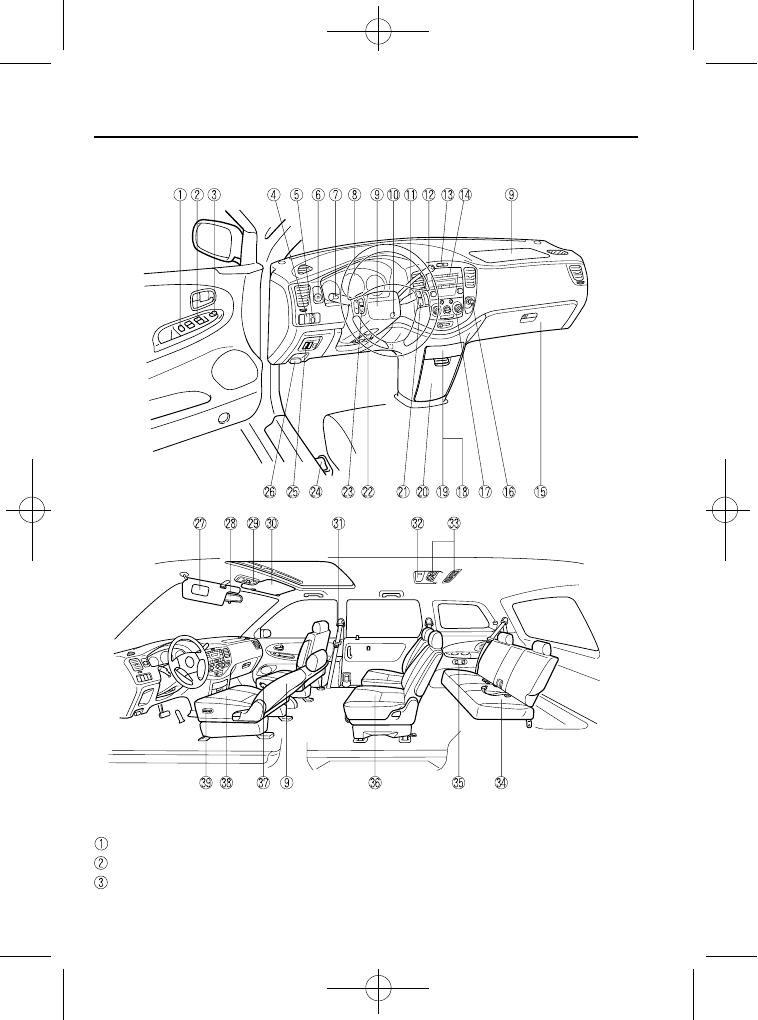

Dashboard and Interior Overview

Mazda MPV_8U61-EA-05G_Edition1 Page8
Tuesday, June 21 2005 9:31 AM

Black plate (9,1)

Your Vehicle at a Glance

Dashboard and Interior Overview

1-3

Mazda MPV_8U61-EA-05G_Edition1 Page9
Tuesday, June 21 2005 9:31 AM

Black plate (10,1)

The equipment and installation position varies by model.

1-4

Your Vehicle at a Glance

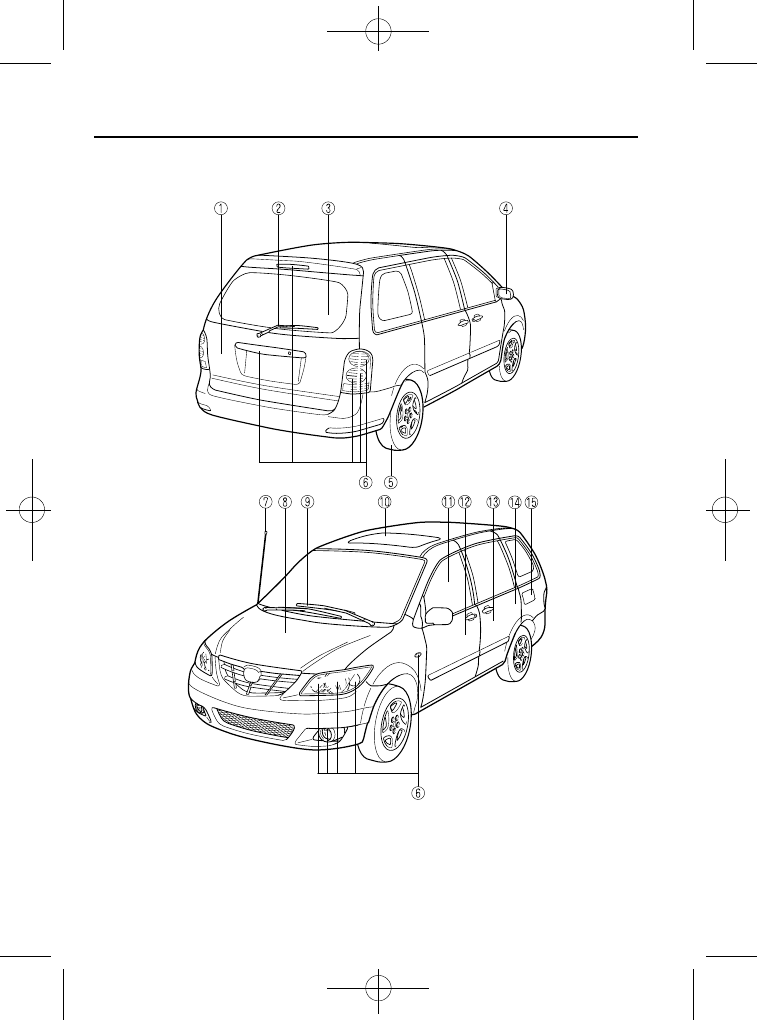

Exterior Overview

Mazda MPV_8U61-EA-05G_Edition1 Page10
Tuesday, June 21 2005 9:31 AM

Black plate (11,1)

Your Vehicle at a Glance

Exterior Overview

1-5

Mazda MPV_8U61-EA-05G_Edition1 Page11
Tuesday, June 21 2005 9:31 AM

Black plate (12,1)

1-6

Mazda MPV_8U61-EA-05G_Edition1 Page12
Tuesday, June 21 2005 9:31 AM

Black plate (13,1)

Use of safety equipment, including seats, seat belt system, SRS air bags and
child-restraint systems.

Seats ............................................................................................... 2-2

Seat Belt Systems ........................................................................ 2-30

Child Restraint ............................................................................ 2-41

Child Restraint Precautions ..................................................... 2-41
Installing Child-Restraint Systems .......................................... 2-45
LATCH Child-Restraint Systems ............................................ 2-53

SRS Air Bags ............................................................................... 2-56

Supplemental Restraint Systems (SRS) Precautions ............... 2-56
Supplemental Restraint System Components ......................... 2-60
How the Air Bags Work .......................................................... 2-63

2-1

Mazda MPV_8U61-EA-05G_Edition1 Page13
Tuesday, June 21 2005 9:31 AM

Black plate (14,1)

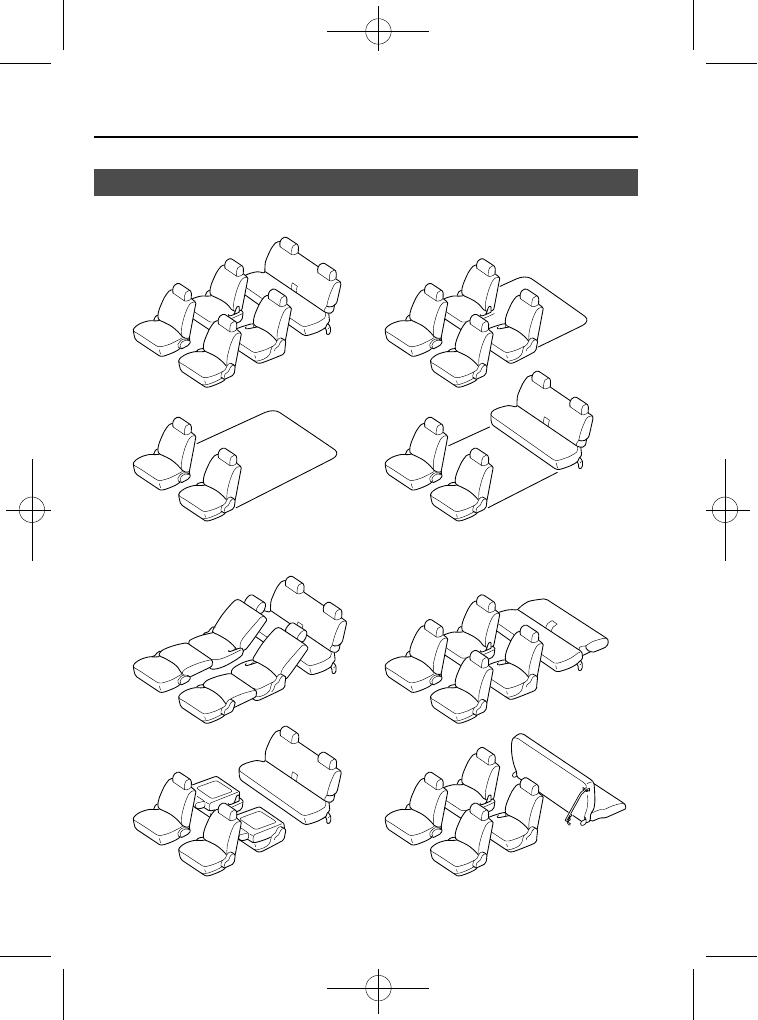

Seat Arrangements

Road positions (while driving)

Non-road positions (Parking/Camping)

2-2

Seats

Mazda MPV_8U61-EA-05G_Edition1 Page14
Tuesday, June 21 2005 9:31 AM

Black plate (15,1)

Front Seats (Manually
Operated Seats)

WARNING

Modification of the Front Seats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.

Damaged Front Seats:
Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag components.
If there was a subsequent collision, the
air bag may not deploy which could
lead to injuries. Always have an
Authorized Mazda Dealer inspect the
front seats, front seat belt
pretensioners and air bags after a
collision.

WARNING

Securing the Seats:
Adjustable seats and seatbacks that
are not securely locked are dangerous.
In a sudden stop or collision, the seat
or seatback could move, causing
injury. Make sure the adjustable
components of the seat are locked in
place by attempting to slide the seat
forward and backward and rocking
the seatback.

qSeat Slide

WARNING

Driver's Seat Adjustment:
Adjusting the driver's seat while the
vehicle is moving is dangerous. The
driver could lose control of the vehicle
and have an accident. Adjust the
driver's seat only when the vehicle is
stopped.

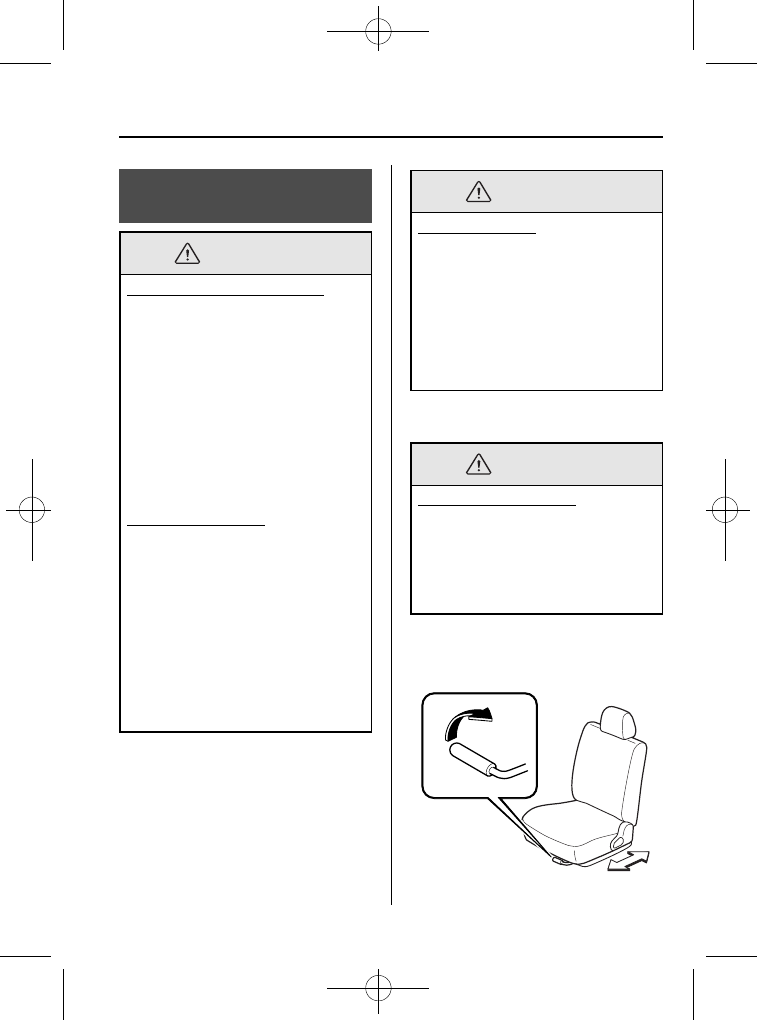

To move a seat forward or backward, raise
the lever and slide the seat to the desired
position and release the lever.

Seats

2-3

Mazda MPV_8U61-EA-05G_Edition1 Page15
Tuesday, June 21 2005 9:31 AM

Black plate (16,1)

Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.

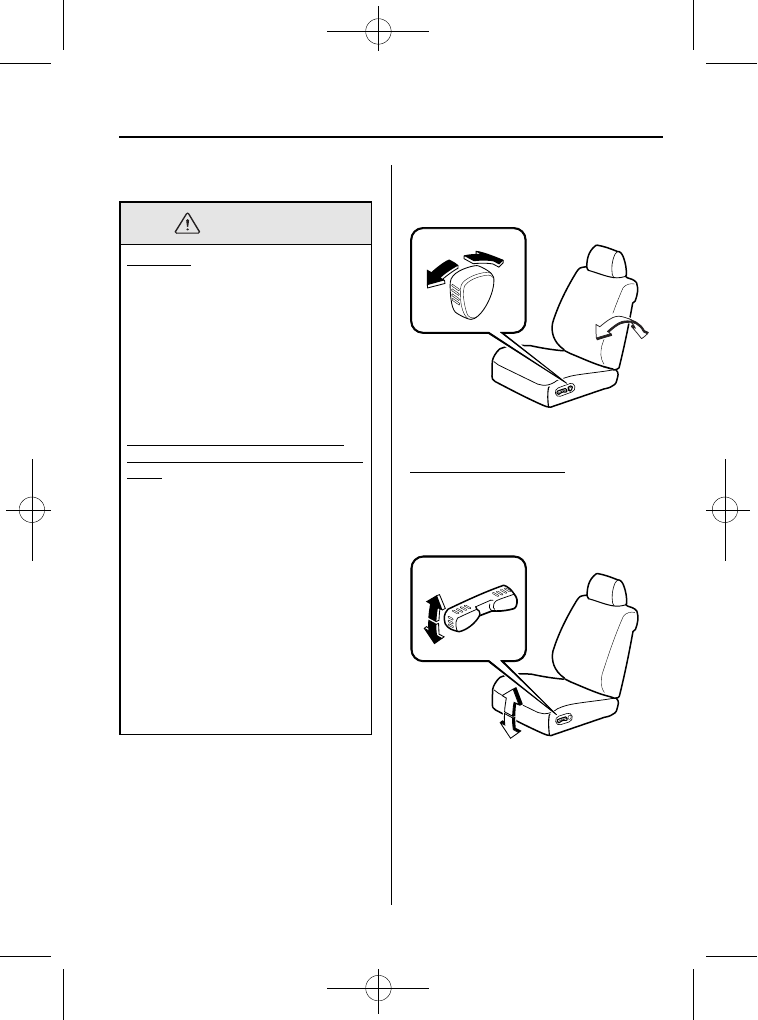

qSeat Recline

WARNING

Reclining:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don't get the full
protection from seat belts. During
sudden braking or a collision, you can
slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back and
upright.

Reclining the Front Passenger Seat
Can Turn Off the Front Passenger Air
Bags:
If your vehicle is equipped with front
passenger seat weight sensors, sitting
in the front passenger seat improperly
out of position or with the seatback
reclined too far while the vehicle is
moving is dangerous as it can take off
weight from the seat bottom and affect
the decision of the front passenger
sensing system. The front passenger
will not have the supplementary
protection of the air bags and
pretensioner, which could result in
serious injury. Always sit upright
against your seatback, with your feet
on the floor.

WARNING

Unlocked Seatback:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when there
are no other passengers, rock the
seatback to make sure it is locked in
place.

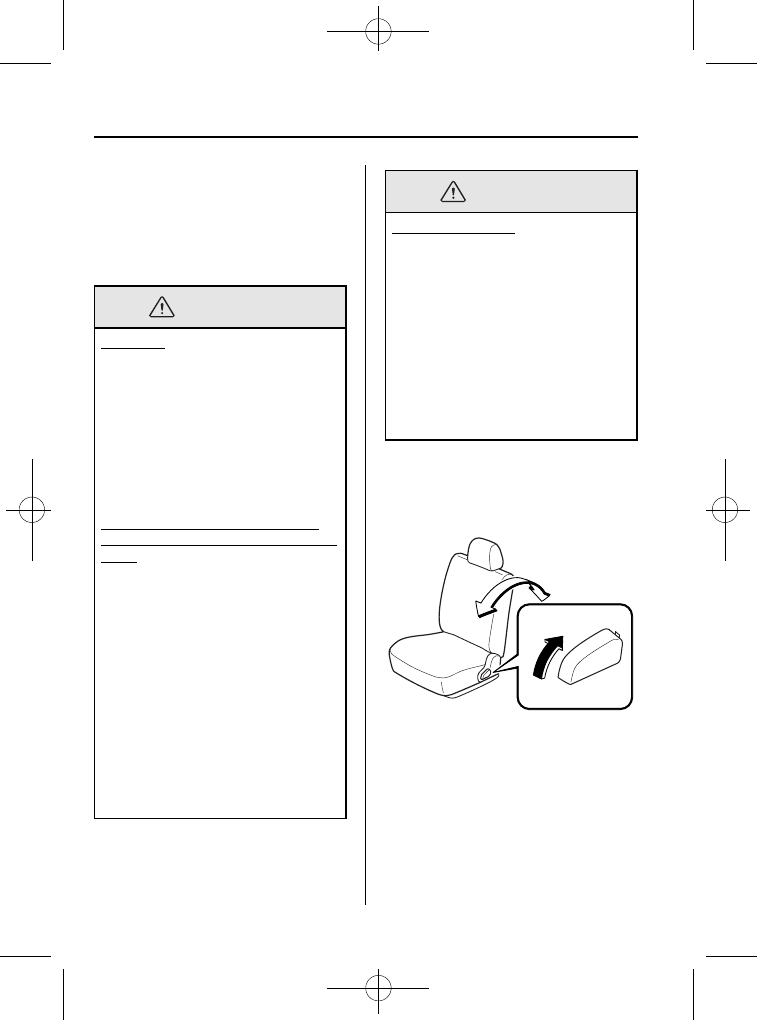

To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.

Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.

2-4

Seats

Mazda MPV_8U61-EA-05G_Edition1 Page16
Tuesday, June 21 2005 9:31 AM

Black plate (17,1)

CAUTION

When returning a rear-reclined seatback
to its upright position, make sure you
hold onto the seatback with your other
hand while operating the lever. If the
seatback is not supported, it will flip
forward suddenly and could cause
injury.

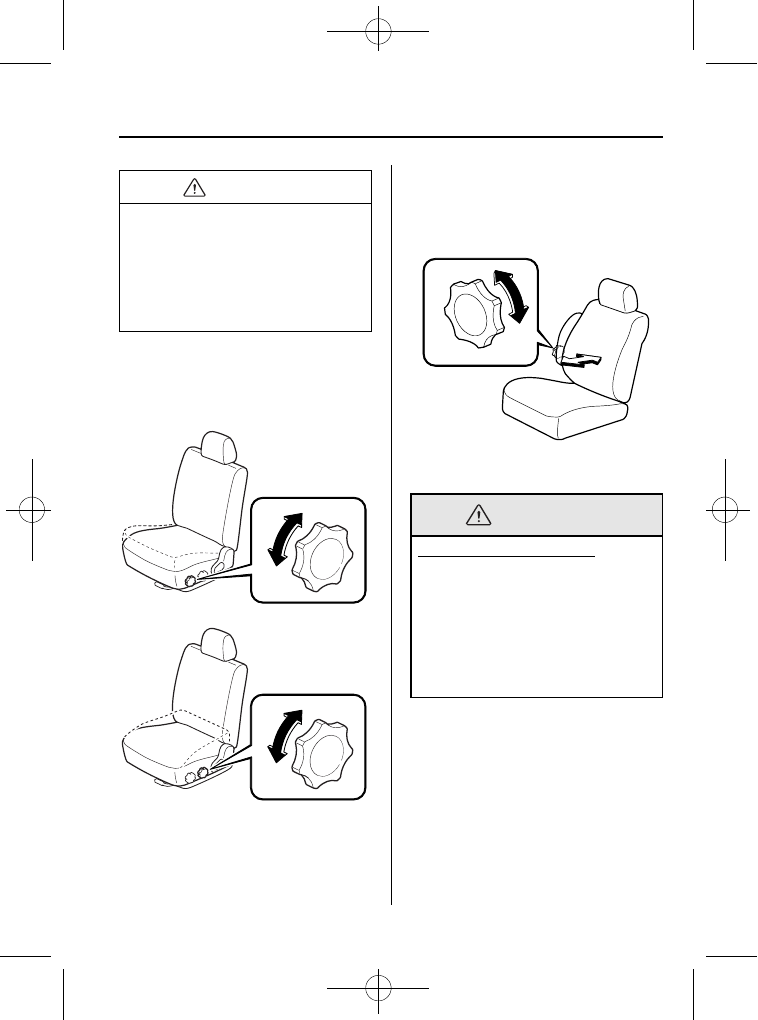

qHeight Adjustment (Driver's Seat)

The seat-bottom angle can be adjusted by
rotating the dial.

Down

Front of seat bottom

Down

Rear of seat bottom

qLumber Support Adjustment

(Driver's Seat)

The amount of lumber support can be
adjusted by rotating dial.

qHead Restraint

WARNING

Head Restraints Adjustment:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision. Always
drive with the head restraints inserted
when seats are being used and make
sure they are properly adjusted.

Seats

2-5

Some models.

Mazda MPV_8U61-EA-05G_Edition1 Page17
Tuesday, June 21 2005 9:31 AM

Black plate (18,1)

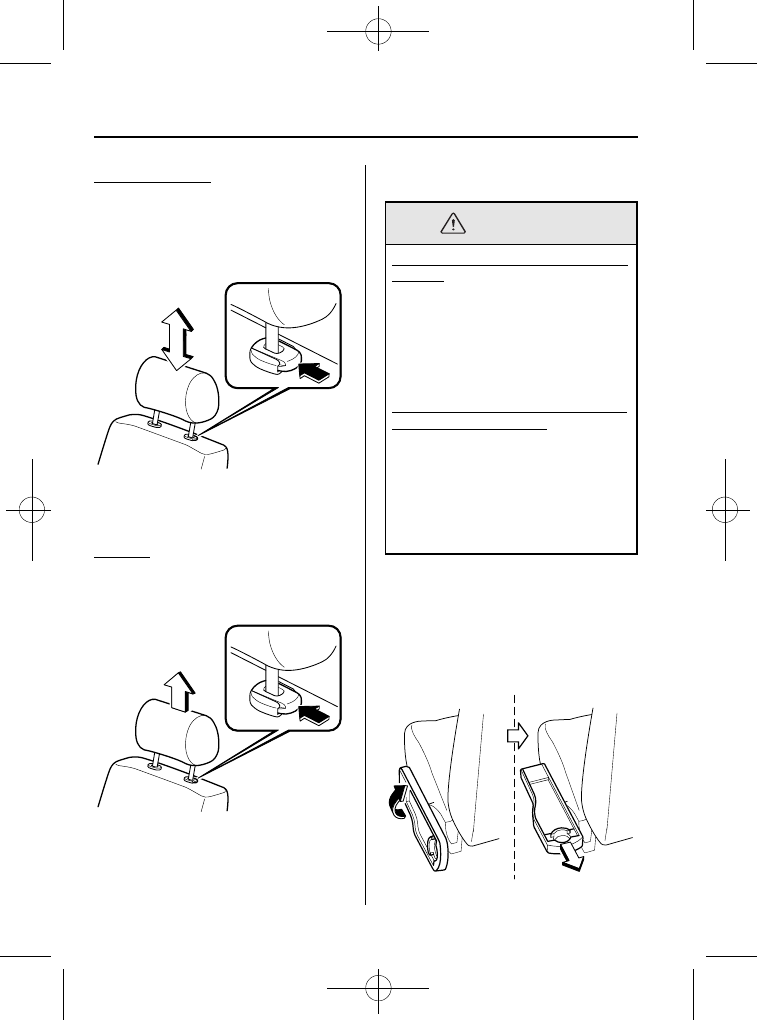

Height adjustment

To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.

Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck.

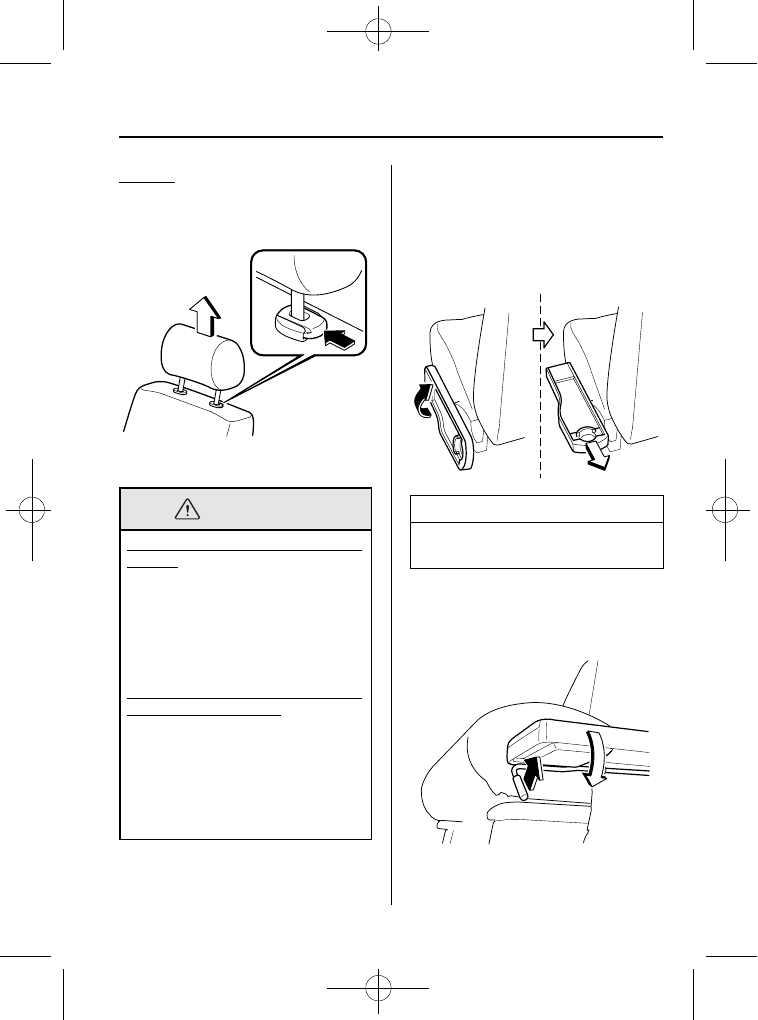

Removal

To remove the head restraint, press the
stop-catch release, then pull up on the
head restraint.

qFront Passenger Seat Side Table

WARNING

Using Seat Side Table While Vehicle is
Moving:
Using the seat side table while the
vehicle is moving is dangerous. Hot
liquids could cause scalding if spilled,
or objects could fall causing injury.
Do not use the seat side table while the
vehicle is moving.

Adjusting Front Passenger Seat While
Seat Side Table is in Use:
Adjusting the front passenger seat
forward or rearward while the seat
side table is in use is dangerous. Hot
liquids could cause scalding if spilled,
or objects could fall causing injury.
Do not adjust the front passenger seat
while the seat side table is in use.

The pull-up table on the side of the front
passenger seat is collapsible. The table
can be used when the vehicle is safely
parked.
Pull up the table to use it. After pulling
the table up, push the table downward and
verify that it is locked.

2-6

Some models.

Seats

Mazda MPV_8U61-EA-05G_Edition1 Page18
Tuesday, June 21 2005 9:31 AM

Black plate (19,1)

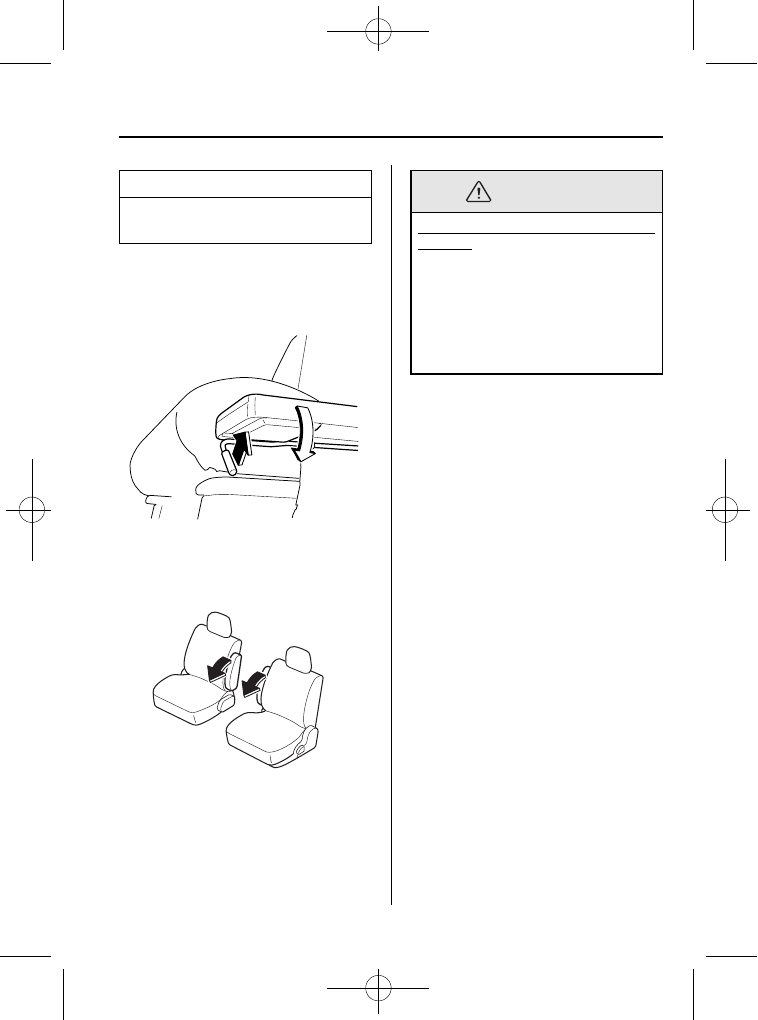

NOTE

The table can be expanded rearward by
pulling out the rear end.

When collapsing the table, pull the lever
under the table. After the table is
collapsed, press the table surface to lock it
in place.

qArmrest

The armrest can be used or placed upright.

WARNING

Positioning the Shoulder Belt Over the
Armrest:
Positioning the shoulder portion of a
front seat belt over the armrest is
dangerous as it cannot provide
adequate protection in a collision and
could result in serious injuries. Never
position the shoulder portion of a
front seat belt over the armrest.

Seats

2-7

Mazda MPV_8U61-EA-05G_Edition1 Page19
Tuesday, June 21 2005 9:31 AM

Black plate (20,1)

Front Seats (Electrically
Operated Seats)

WARNING

CAUTION

The seat-bottom power adjustment is
operated by motors. Avoid extended
operation because excessive use can
damage the motors.

To prevent the battery from running
down, avoid using the power
adjustment when the engine is
stopped. The adjuster uses a large
amount of electrical power.

Don't use the switch to make more
than one adjustment at a time.

qSeat Slide

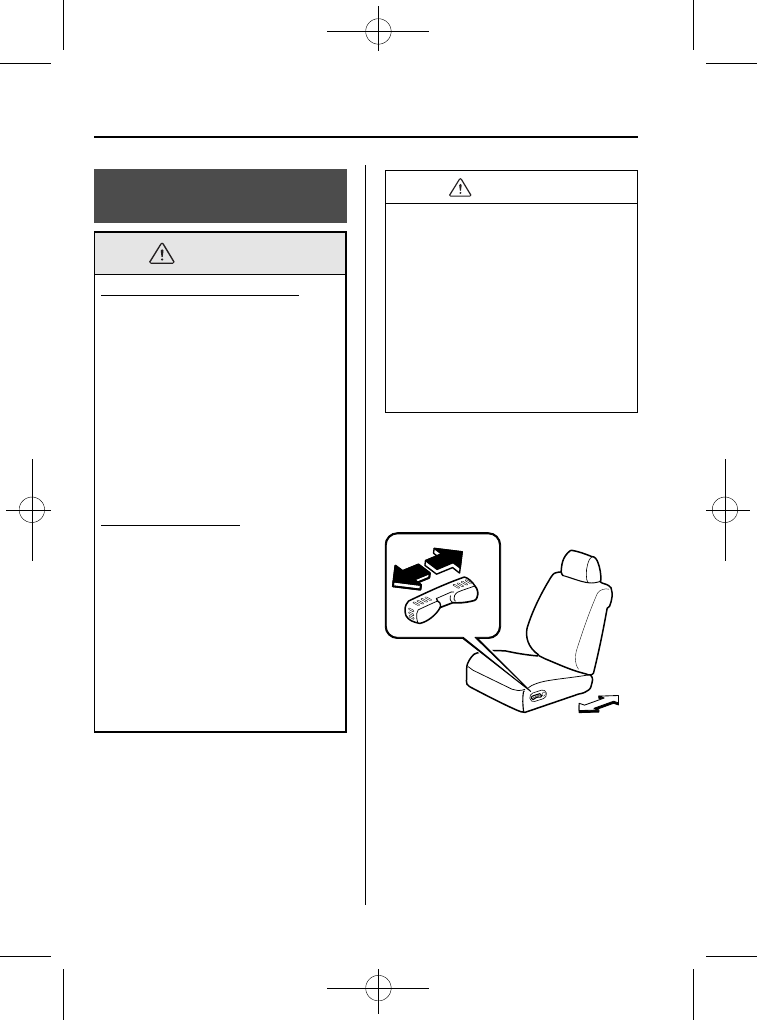

To slide the seat, move the slide lifter
switch on the outside of the seat to the
front or back and hold it. Release the
switch at the desired position.

2-8

Seats

Mazda MPV_8U61-EA-05G_Edition1 Page20
Tuesday, June 21 2005 9:31 AM

Black plate (21,1)

qSeat Recline

WARNING

Change the seatback angle by pressing the
front or rear side of the reclining switch.
Release the switch at the desired position.

qHeight Adjustment

Front height adjustment

To adjust the front height of the seat-
bottom, raise or lower the front of the
slide lifter switch on the left side of the
seat.

Seats

2-9

Mazda MPV_8U61-EA-05G_Edition1 Page21
Tuesday, June 21 2005 9:31 AM

Black plate (22,1)

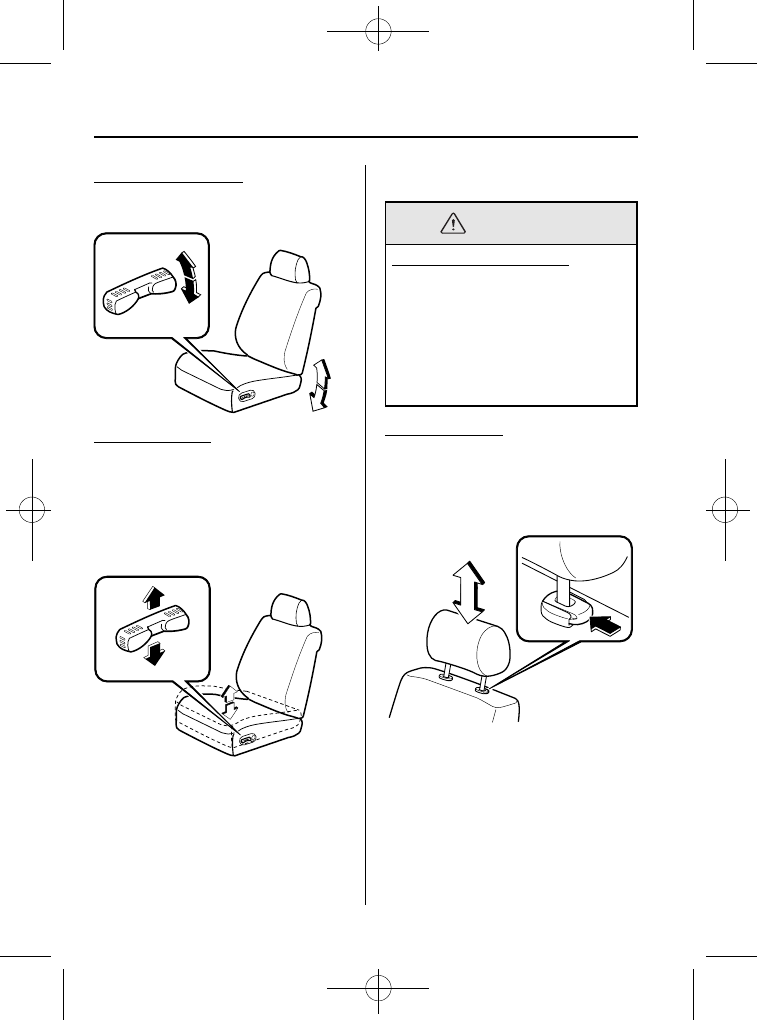

Rear height adjustment

Raise or lower the back of the switch to
adjust the rear height of the seat-bottom.

Height adjustment

Raise the seat-bottom by pulling up on the
center of the switch. Release the switch at
the desired position.

Lower the seat-bottom by pressing down
on the center of the switch. Release the
switch at the desired position.

qHead Restraint

WARNING

Height adjustment

To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.

Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck.

2-10

Seats

Mazda MPV_8U61-EA-05G_Edition1 Page22
Tuesday, June 21 2005 9:31 AM

Black plate (23,1)

Removal

To remove the head restraint, press the
stop-catch release, then pull up on the
head restraint.

qFront Passenger Seat Side Table

WARNING

NOTE

The table can be expanded rearward by
pulling out the rear end.

When collapsing the table, pull the lever
under the table. After the table is
collapsed, press the table surface to lock it
in place.

Seats

2-11

Some models.

Mazda MPV_8U61-EA-05G_Edition1 Page23
Tuesday, June 21 2005 9:31 AM

Content .. 1 2 ..
