Mazda Millenia (2002 year). Instruction - part 9





6-22

Interior Comfort

Audio System

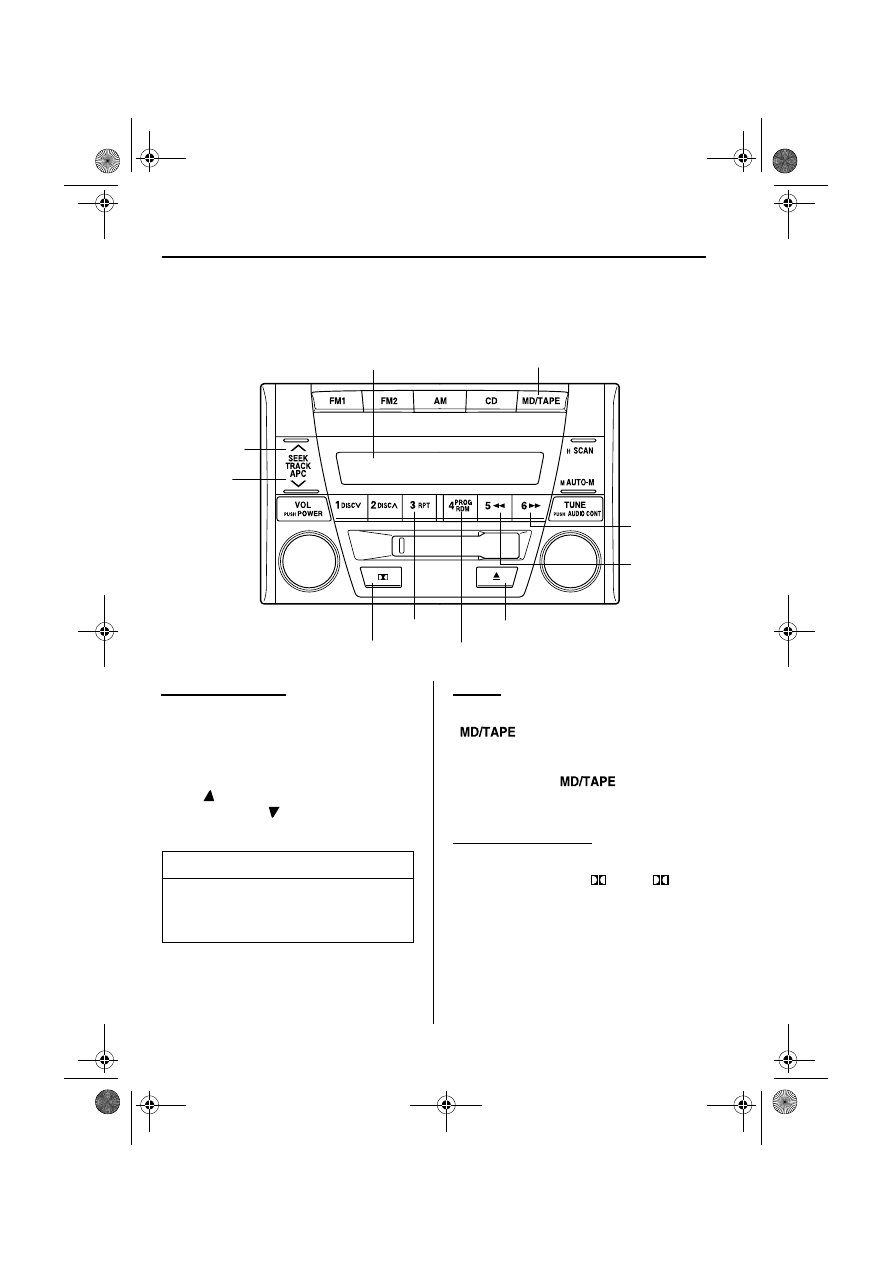

▼ Operating the Cassette Tape Player

Cassette tape insert

Insert the cassette tape into the slot, open
edge to the right and cassette tape will
begin play and "TAPE" will be displayed.
At the end of the cassette tape, the unit
automatically reverses cassette tape play.
When

 is lit, the cassette tape’s top side

is playing. When

 is lit, the bottom side

is on.

Playing

Press the cassette tape play button
(

) to start playing when a

cassette tape is in the unit. If there isn’t a
cassette tape in the unit when the cassette
tape play button (

) is pressed,

"NO TAPE" will flash on and off in
sequence.

Dolby noise reduction

When using a tape with Dolby NR*, push
the Dolby NR button (

). The



symbol will be displayed. To play a tape
without Dolby NR, push the button once
again.

Display

APC button:
(next program)

(one being
played)

Cassette tape play button

Cassette tape eject button

Program button

Dolby NR button

Repeat button

Rewind
button

Fast-
forward
button

NOTE

When a metal tape is inserted, the
player will automatically compensate
for it and "MTL" will be displayed.

6-23

Interior Comfort

Audio System

* Noise reduction system manufactured
under license from Dolby Laboratories
Licensing Corporation.
Dolby and the double-D symbol

 are

trademarks of Dolby Laboratories
Licensing Corporation.

Ejecting the cassette tape

Press the cassette tape eject button (

) to

eject the cassette tape.

Fast forward/Rewind

Press the fast-forward button (

) to

fast-forward.
Press the rewind button (

) to rewind.

To stop this operation and play the
cassette tape, press the button again.

Reversing

Press the program button (

) to

change cassette tape-playing direction.

Automatic program control (APC)

APC is used to find the beginning of
either the next program or the one being
played.

Press the APC button (

) to the

beginning of the next selection.
Press the APC button (

) to the

beginning of the one being played. To
stop this operation and play the cassette
tape, press the button again.

If APC detects 15 seconds of blank space
it will automatically advance the tape to
the next selection.

Repeat play

This operation makes it possible to listen
to a selection repeatedly.

Press the repeat button (

) during play.

The current selection playing will be
repeated ("RPT" will be displayed).
Press the repeat button (

) once again

to cancel repeat play.

NOTE

The cassette tape can be ejected when
the ignition switch is in the OFF
position.

NOTE

When the cassette tape ends during
fast forward or rewind, it automatically
stops and starts playing.

NOTE

When the cassette tape ends, the unit
automatically reverses play.

NOTE

APC may not operate properly if

• A tape was recorded at a low level.
• A tape has long, silent intervals.
• A tape is a live recording.
• A tape has very short intervals of

less than 3 seconds.

NOTE

RPT may not operate properly if

• A tape was recorded at a low level.
• A tape has long, silent intervals.
• A tape is a live recording.
• A tape has very short intervals of

less than 3 seconds.

6-24

Interior Comfort

Audio System

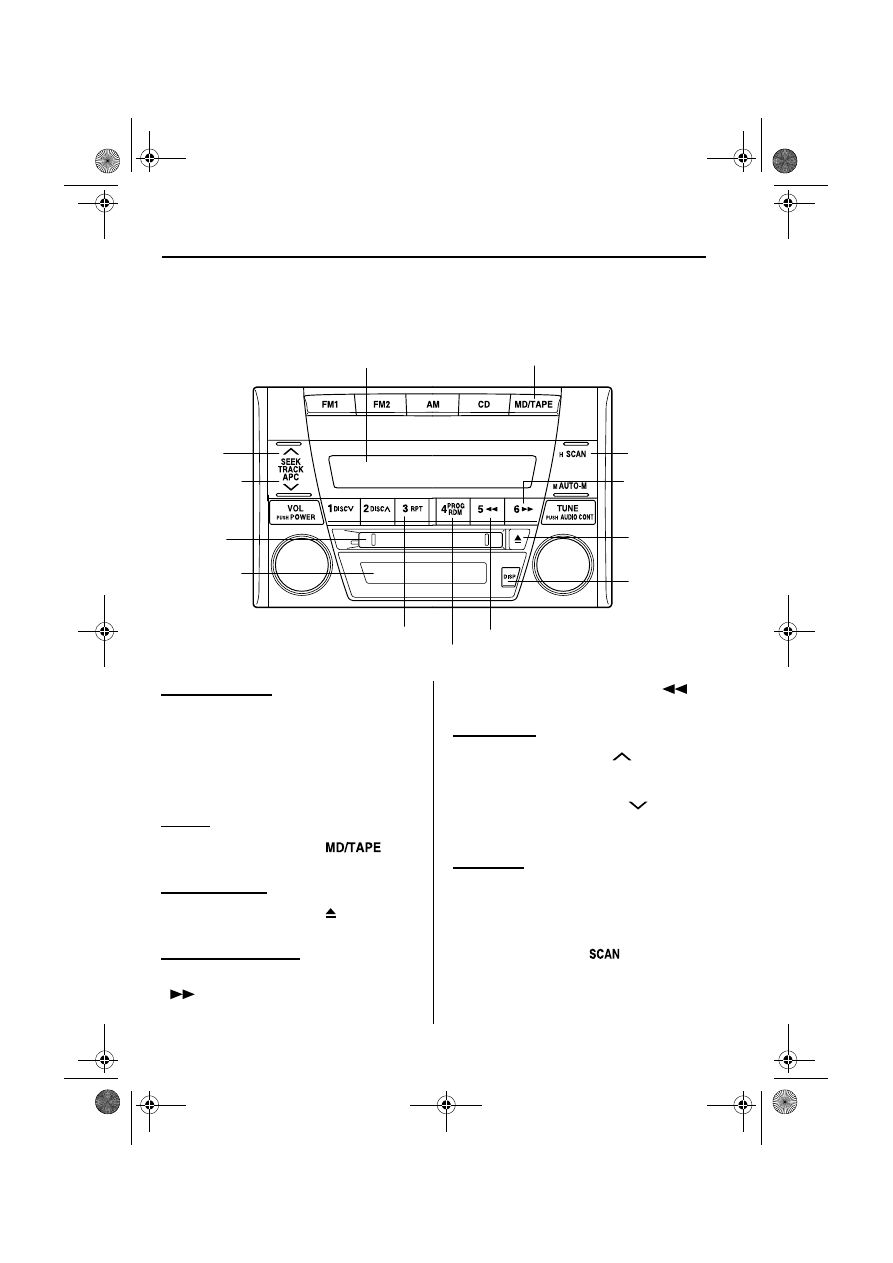

▼ Operating the Mini Disc (MD) Player

Inserting the MD

Insert the MD, label-side up with the
arrow pointed to the slot. The auto-
loading mechanism will set the MD and
begin play. There will be a short lapse
before play begins while the player reads
the digital signals on the MD.

Playing

Press the MD play button (

) to

start playing when a MD is in the unit.

Ejecting the MD

Press the MD eject button (

) to eject the

MD.

Fast-forward/Reverse

Press and hold the fast-forward button
(

) to advance through a track at high

speed.

Press and hold the reverse button (

)

to reverse through a track at high speed.

Track search

Press the track up button (

) once to

skip forward to the beginning of the next
track.
Press the track down button (

) once to

skip back to the beginning of the current
track.

Music scan

This feature helps to find a program by
playing about the first 10 seconds of each
track.

Press the scan button (

) during play

to start scan play operation (the track
number will flash).

Display

Track up
button

Track down
button

MD play button

Reverse button

Scan
button

Repeat button

MD display

MD slot

Random button

MD eject
button

Display
button

Fast-
forward
button

6-25

Interior Comfort

Audio System

Press the scan button (

) once again

to cancel scan play.

Repeat play

This feature makes it possible to listen to
a selection repeatedly.

Press the repeat button (

) during play.

The current selection will be repeated
("RPT" will be displayed).
Press the repeat button (

) once again

to cancel repeat play.

Random play

This feature allows the MD player to
randomly select the order of the songs.

Press the random button (

) during

play. The next selection will be randomly
selected ("RDM" will be displayed).
Press the random button (

) once again

to cancel random play.

Changing the MD display

To change the MD display during MD
play, press and hold the display button
(

) for about half a second to advance

through each of the following displays:

Long disc or song titles

When disc or song titles exceed 10 letters
or numerals, press the display button
(

) to display the remaining part of the

title.

NOTE

If the unit is left in scan, normal play
will resume where scan was selected.

Song title

No display

Disc title

NOTE

If there is no song or disc title recorded
on the MD, "NO TITLE" will be
displayed.

6-26

Interior Comfort

Audio System

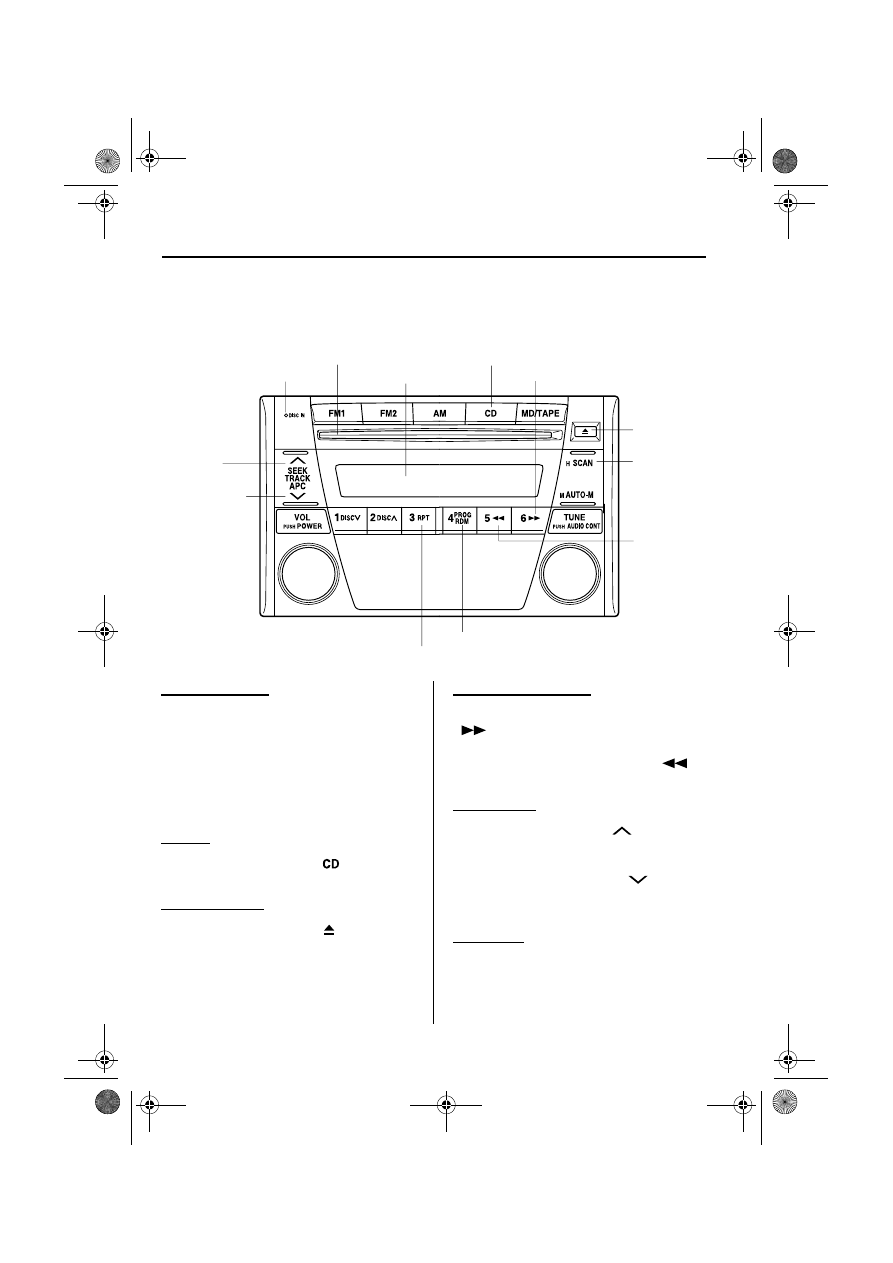

▼ Operating the Compact Disc (CD) Player

Inserting the CD

Insert the CD into the slot, label-side up.
The auto-loading mechanism will set the
CD and begin play. There will be a short
lapse before play begins while the player
reads the digital signals on the CD.
The disc-in indicator will illuminate and
the track number will be displayed.

Playing

Press the CD play button (

) to start

playing when a CD is in the unit.

Ejecting the CD

Press the CD eject button (

) to eject the

CD.

Fast-forward/Reverse

Press and hold the fast-forward button
(

) to advance through a track at high

speed.
Press and hold the reverse button (

)

to reverse through a track at high speed.

Track search

Press the track up button (

) once to

skip forward to the beginning of the next
track.
Press the track down button (

) once to

skip back to the beginning of the current
track.

Music scan

This feature helps to find a program by
playing about the first 10 seconds of each
track.

Display

CD slot

Disc-in indicator

    CD eject

button

CD play button

Random button

Repeat button

Scan
button

Fast-forward button

Reverse
button

Track up
button

Track down
button

6-27

Interior Comfort

Audio System

Press the scan button (

) during play

to start scan play operation (the track
number will flash).
Press the scan button (

) once again

to cancel scan play.

Repeat play

This feature makes it possible to listen to
a selection repeatedly.

Press the repeat button (

) during play.

The current selection will be repeated
("RPT" will be displayed).
Press the repeat button (

) once again

to cancel repeat play.

Random play

This feature allows the CD player to
randomly select the order of the songs.

Press the random button (

) during

play. The next selection will be randomly
selected ("RDM" will be displayed).
Press the random button (

) once again

to cancel random play.

NOTE

If the unit is left in scan, normal play
will resume where scan was selected.

6-28

Interior Comfort

Audio System

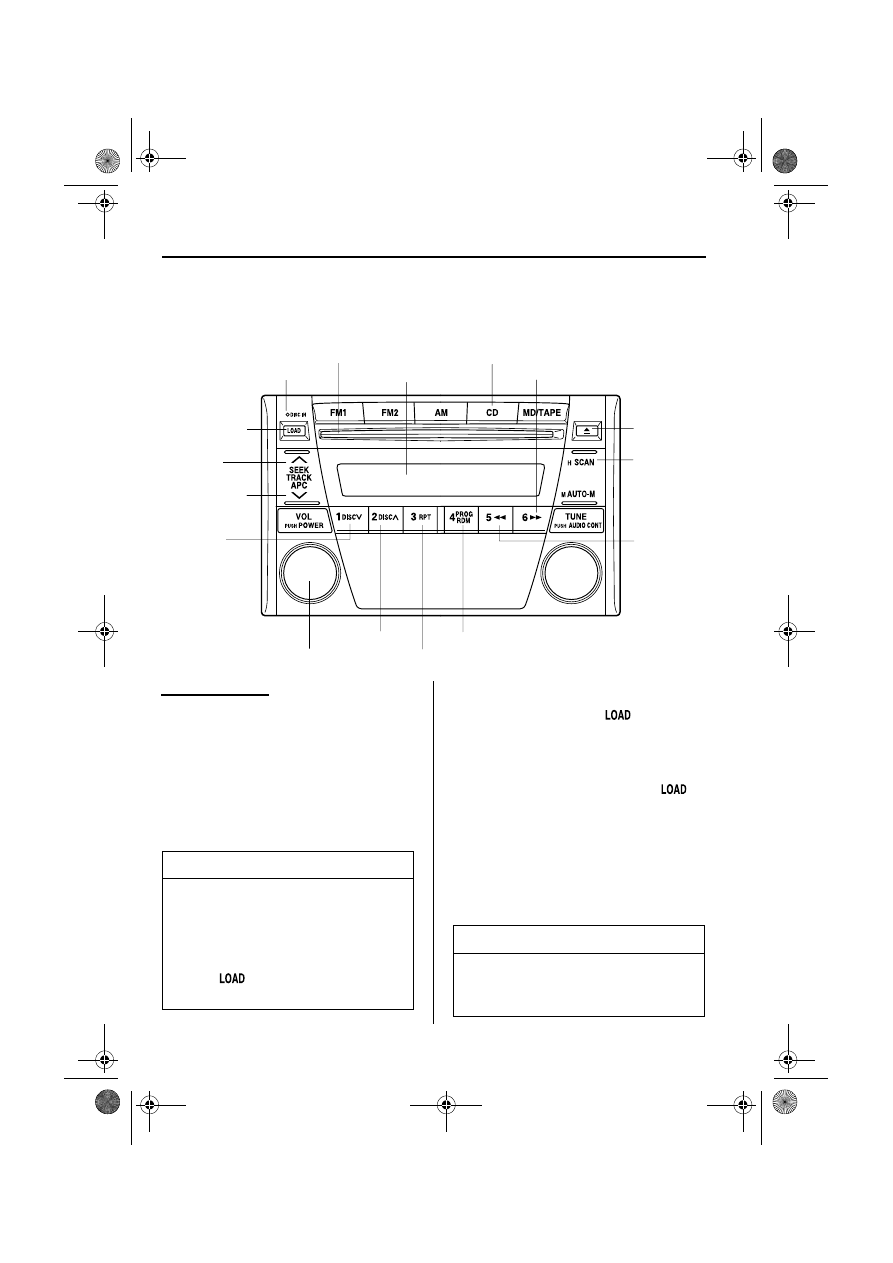

▼ Operating the In-Dash CD Changer

Inserting the CD

The CD must be label-side up when
inserting. The auto-loading mechanism
will set the CD and begin play. There will
be a short lapse before play begins while
the player reads the digital signals on the
CD.
The disc number and the track number
will be displayed.

Normal insertion

1. Press the load button (

).

2. When "In" is displayed, insert the CD.

Inserting CDs into desired tray number

1. Press and hold the load button (

)

for about 2 seconds until a beep is
heard.

2. Press the channel preset button for the

desired tray number within 5 seconds
after the beep is heard.

3. When "In" is displayed, insert the CD.

Display

CD slot

Disc-in indicator

    CD eject

button

CD play button

Random button

Repeat button

Disc up button

Scan
button

Fast-forward button

Reverse
button

Track up
button

Track down
button

Disc down
button

Load button

Power/Volume knob

NOTE

A CD cannot be inserted while the
display reads "WAIT". A beeping
sound can be heard during this waiting
time. Simultaneously pressing the
power/volume knob and the load
button (

) for about 2 seconds will

turn this beeping sound ON or OFF.

NOTE

The CD cannot be inserted to the
desired tray number if the number is
already occupied.

6-29

Interior Comfort

Audio System

Multiple insertion

1. Press and hold the load button (

)

for about 2 seconds until a beep is
heard.

2. When "In" is displayed, insert the CD.

3. When "In" is displayed again, insert

the next CD.

Ejecting the CD

Normal ejection

1. Press the CD eject button (

). The

disc number and "OUT" will be
displayed.

2. Pull out the CD.

Ejecting CDs from desired tray number

1. Press and hold the CD eject button (

)

for about 2 seconds until a beep is
heard.

2. Press the channel preset button for the

desired CD number within 5 seconds
after the beep is heard.

3. Pull out the CD.

Multiple ejection

1. Press and hold the CD eject button (

)

for about 2 seconds until a beep is
heard.

2. Wait 5 seconds or press the CD eject

button (

) again within 5 seconds

after the beep is heard.

3. Pull out the CD, then the next CD will

be ejected.

Playing

Press the CD play button (

) to start

playing when a CD is in the unit.

Fast-forward/Reverse

Press and hold the fast-forward button
(

) to advance through a track at high

speed.
Press and hold the reverse button (

)

to reverse through a track at high speed.

Track search

Press the track up button (

) once to

skip forward to the beginning of the next
track.
Press the track down button (

) once to

skip back to the beginning of the current
track.

NOTE

The first-inserted CD will be played
automatically when:

• No CD is inserted within 15

seconds after "In" is displayed.

• The CD trays are full.

NOTE

When the CD is ejected during play,
the next CD will be played
automatically.

NOTE

• CDs will be ejected starting with the

one with the lowest number.

• All CDs in the tray will be ejected

continuously.

• CDs can be ejected when the

ignition switch is off. Press and hold
the CD eject button (

) for about 2

seconds and all CDs will eject.

6-30

Interior Comfort

Audio System

Disc search

Press the disc up button (

) to skip

forward to the beginning of the next CD.
Press the disc down button (

) to

skip back to the beginning of the previous
CD.

Music scan

This feature helps to find a program by
playing about the first 10 seconds of each
track.

Press the scan button (

) during play

to start scan play operation (the track
number will flash).
Press the scan button (

) once again

to cancel scan play.

Repeat play

This feature makes it possible to listen to
a selection repeatedly.

Press the repeat button (

) during play.

The current selection will be repeated
("RPT" will be displayed).
Press the repeat button (

) once again

to cancel repeat play.

Random play

This feature allows the CD player to
randomly select the order of the songs.

Press the random button (

) during

play. The next selection will be randomly
selected ("RDM" will be displayed).
Press the random button (

) once again

to cancel random play.

NOTE

If the unit is left in scan, normal play
will resume where scan was selected.

6-31

Interior Comfort

Audio System

▼ Error Indications

If you see an error indication on the display, find the cause in the chart. If you cannot clear
the error indication, take the vehicle to an Authorized Mazda Dealer.

Indication

Cause

Solution

CHECK MD

MD is inserted upside down

Insert the MD properly. If the error indication does not
disappear, consult an Authorized Mazda Dealer

CHECK MD

MD is defective

Insert another MD properly. If the error indication does
not disappear, consult an Authorized Mazda Dealer

CHECK CD

CD is inserted upside down

Insert the CD properly. If the error indication does not
disappear, consult an Authorized Mazda Dealer

CHECK CD

CD is defective

Check the CD for scratches or soiling

6-32

Interior Comfort

Audio System

▼ Adjusting the Volume

To increase the volume, press VOL UP
button.

To decrease the volume, press VOL
DOWN button.

▼ SELECT Switch

When listening to the radio

Press the switch to seek a higher
frequency automatically.

When playing a cassette tape

Press the switch, release, and it will
advance to the next selection.

When playing a CD

Press the switch to skip to the next track.

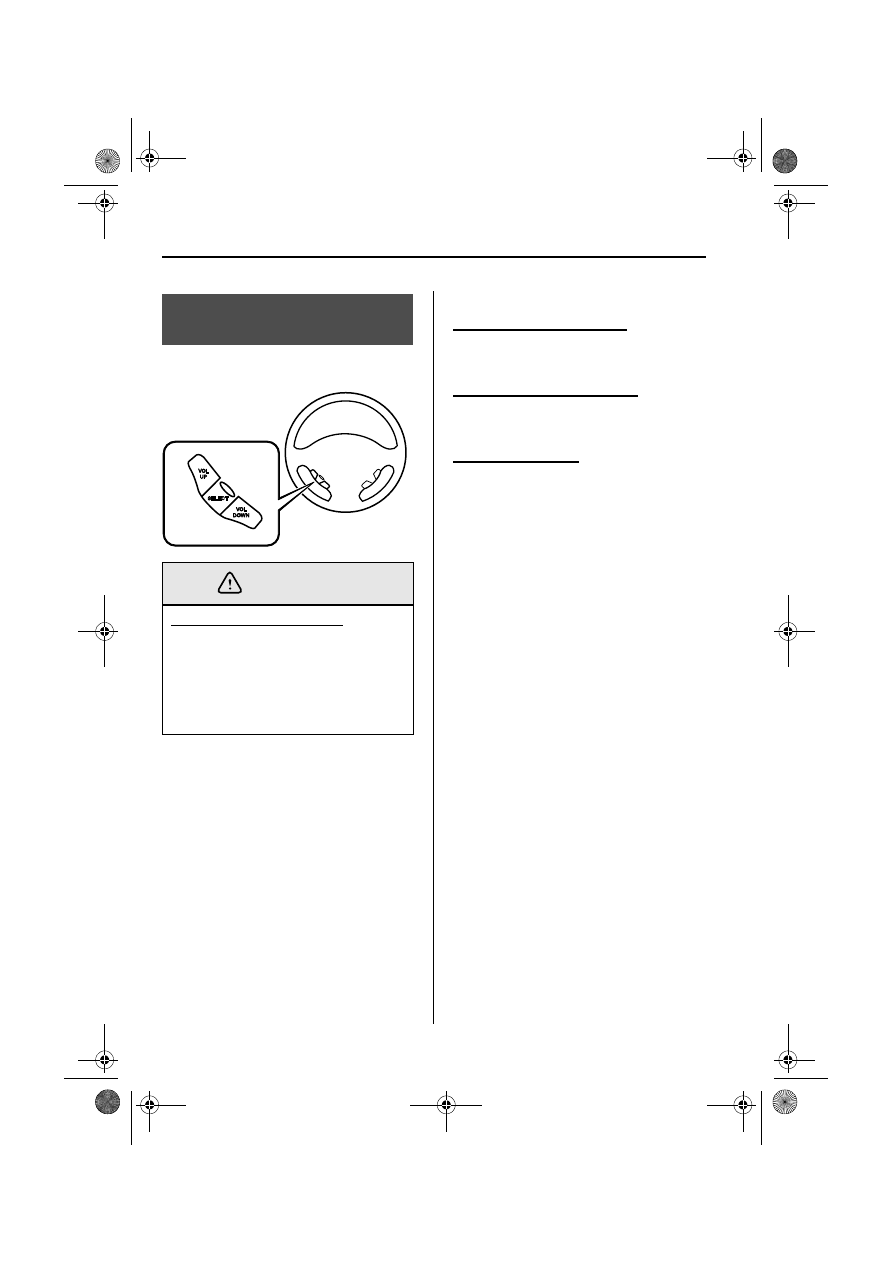

Audio Control Switch
Operation

Using Audio Control Panel:
Using the audio control panel while
driving is dangerous. Your attention
could be diverted and cause an
accident. When driving, always use
the audio system operation from the
audio control switch.

WARNING

6-33

Interior Comfort

Audio System

This CD player is made and tested to meet exacting safety standards. It meets FCC
requirements and complies with safety performance standards of the U.S. Department of
Health and Human Services.

Safety Certification

• This CD player should not be adjusted or repaired by anyone except qualified service

personnel.
If servicing is required, contact an Authorized Mazda dealer.

• Use of controls or adjustments or performance of procedures other than those

specified herein may result in hazardous laser exposure. Never operate the CD player
with the top case of the unit removed.

• Changes or modifications not expressly approved by Mazda may void the user’s

authority to operate this equipment.

NOTE

For CD player section:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.

CAUTION

6-34

Interior Comfort

Interior Equipment

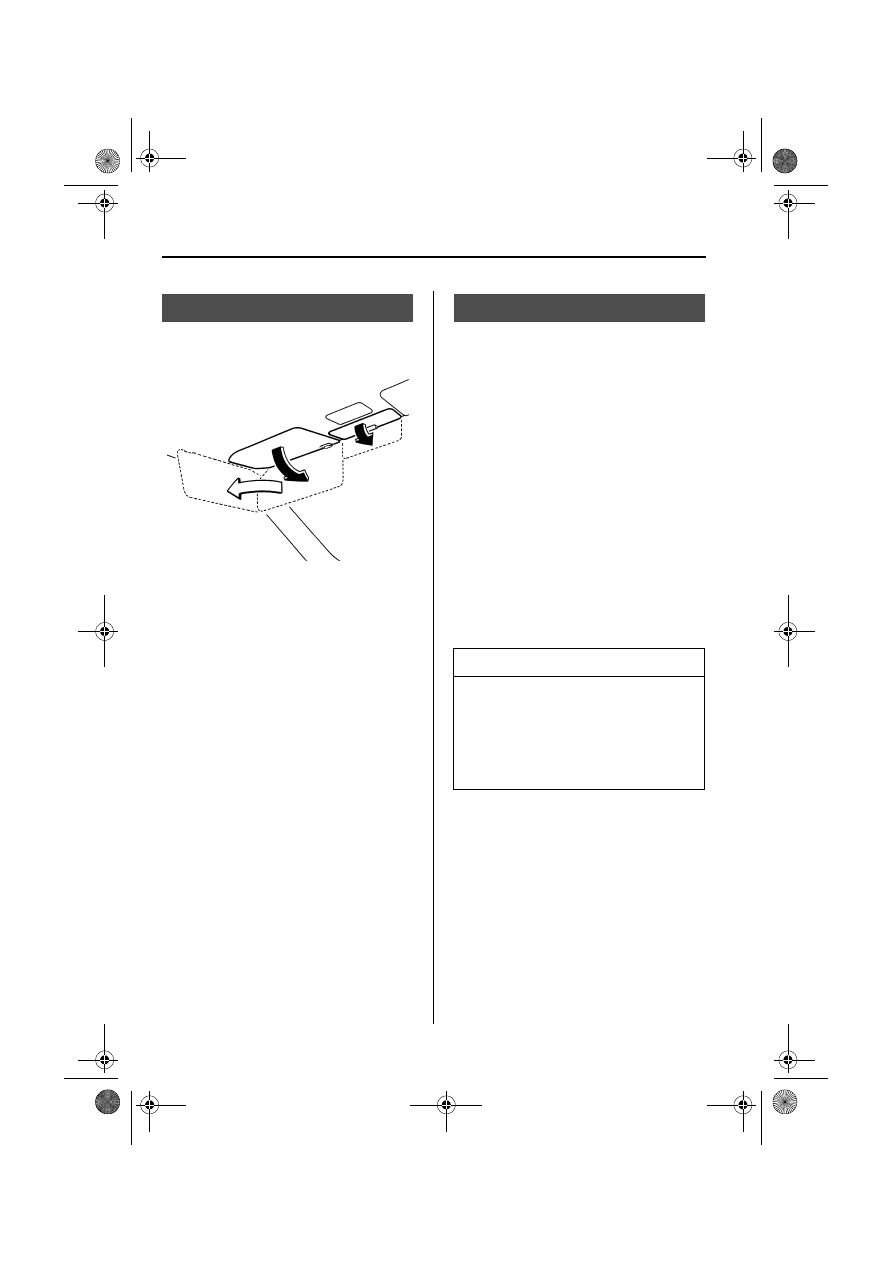

When you need a sunvisor, lower it for use
in front or swing it to the side.

▼ Vanity Mirrors

To use the vanity mirror, lower the
sunvisor.

▼ Illuminated Entry System

When the switch is in the DOOR position,
the overhead light comes on for:
• about 30 seconds after the driver’s door

is unlocked and the ignition key is
removed.

• about 15 seconds after all doors are

closed.

• about 15 seconds after the key is

removed from the ignition.

The light also goes out when:
• the ignition switch is turned to the ON

position and all doors are closed.

• the driver’s door is locked.

Sunvisors

Interior Lights

NOTE

If any door is left opened, the light
goes out after about 5 minutes.
The light turns on again when the
ignition switch is turned to the ON
position, or when any door is opened
after all doors have been closed.

6-35

Interior Comfort

Interior Equipment

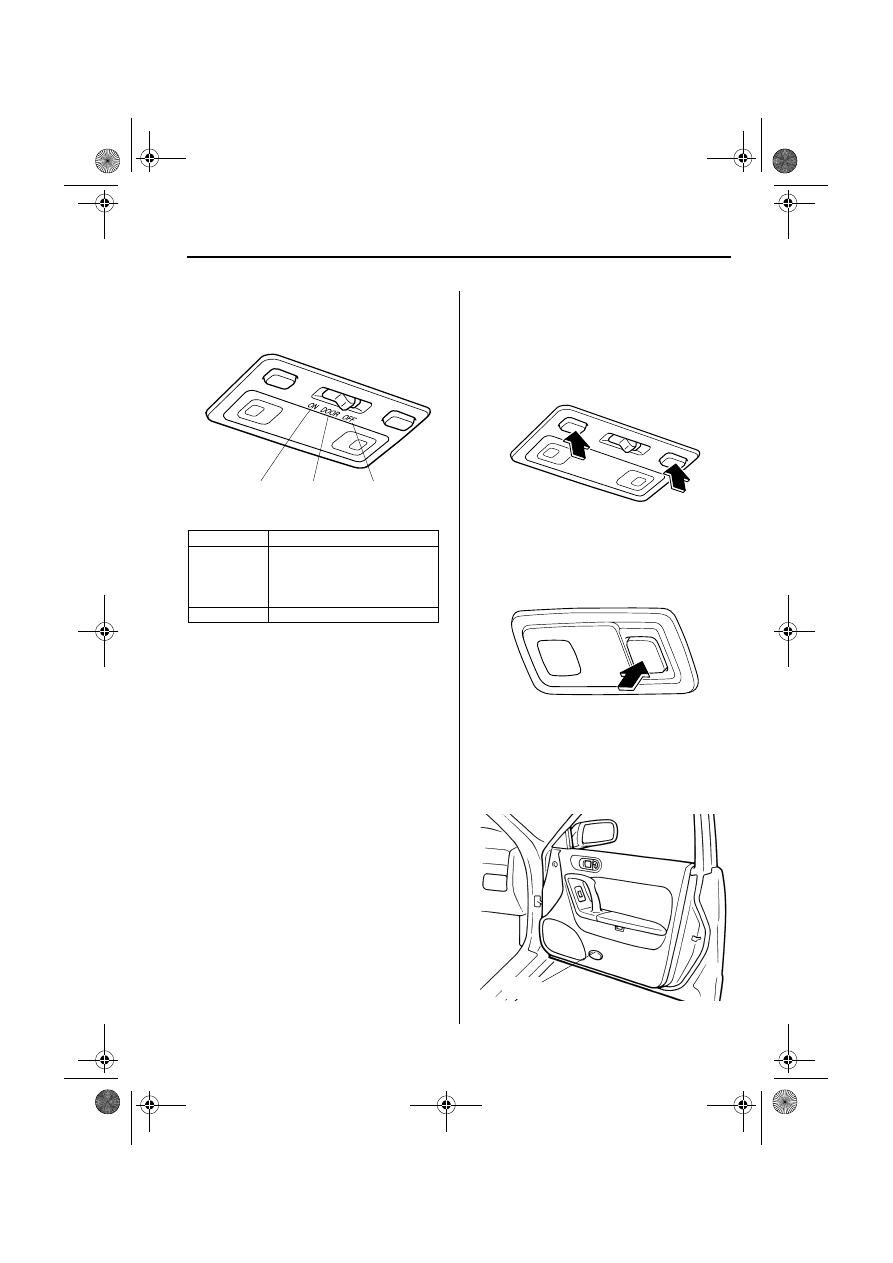

▼ Overhead light

▼ Map Lights

The map lights are switched on or off by
pressing the switches.

▼ Courtesy Lights

Turns on when any door is open.

OFF

Light off

DOOR

• Light on when any door is

open

• Light on or off when the

illuminated entry system is on

ON

Light on

ON

ON

DOOR

DOOR

OFF

OFF

Front

Rear

Courtesy light

6-36

Interior Comfort

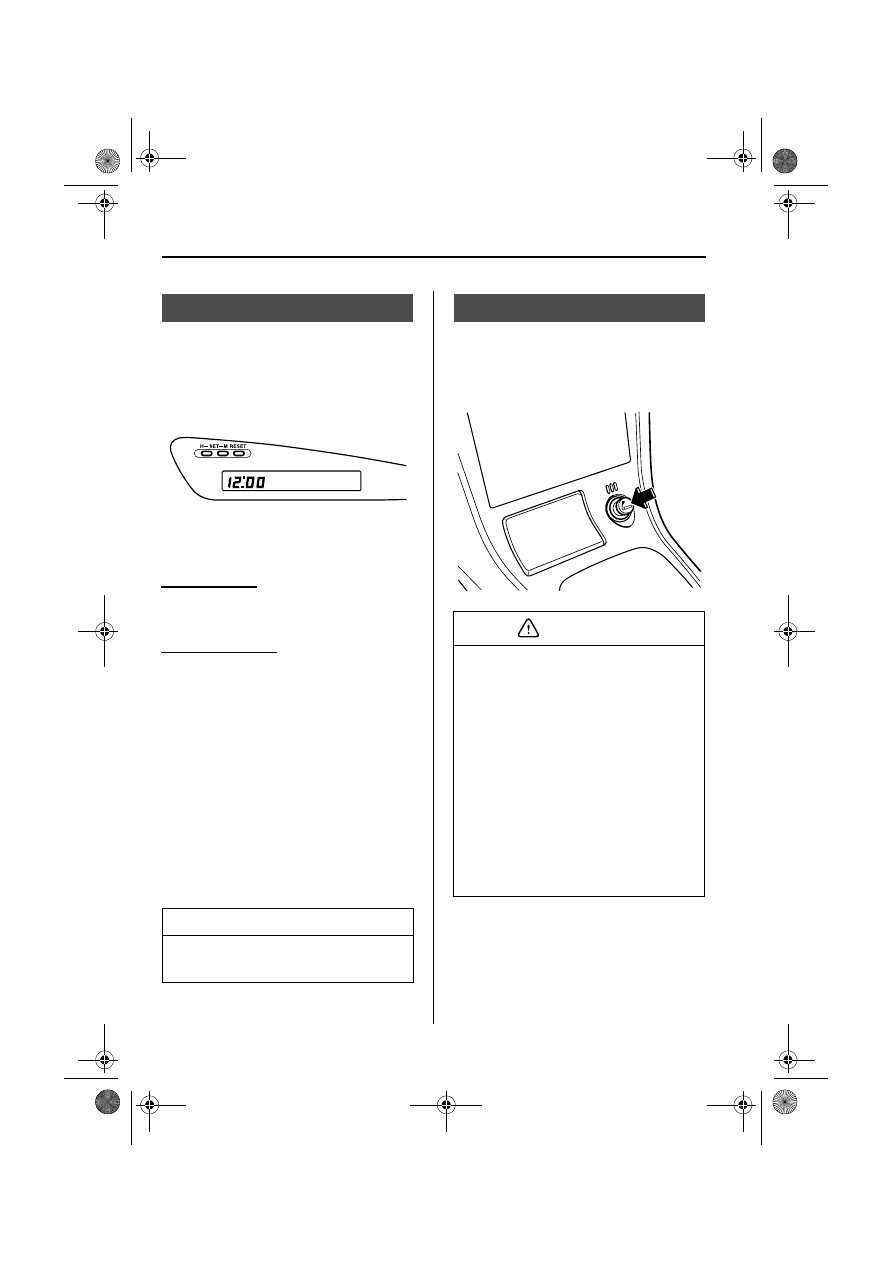

The ignition switch must be in the ACC or
ON position.

To set the hour

Press the H (hour) button to change the
hour.

To set the minutes

Press the M (minute) button to change the
minutes.

Press the RESET button to clear minutes.
The clock will be set on the hour.
If the RESET button is pressed from
12:01 to 12:29, for example, the time will
be reset to 12:00. If pressed from
12:30 to 12:59, the time will be reset to
1:00.

 (Example)
12:01—12:29

→12:00

12:30—12:59

→1:00

The ignition switch must be in the ACC or
ON position.
Press the lighter in and release it. When
ready for use, it automatically pops out.

Clock

NOTE

When the power is disconnected, the
time is automatically set at 1:00.

Lighter

• Don’t touch the metal part of the

lighter, you may burn yourself.

• Don’t hold the lighter in because it

will overheat.

• Don’t use the lighter socket for

plug-in accessories such as shavers
and coffee pots. They may damage
it or cause electrical failure. Use
only a genuine Mazda lighter or the
equivalent.

• If the lighter doesn’t pop out within

30 seconds, remove it to prevent
overheating.

CAUTION

6-37

Interior Comfort

Interior Equipment

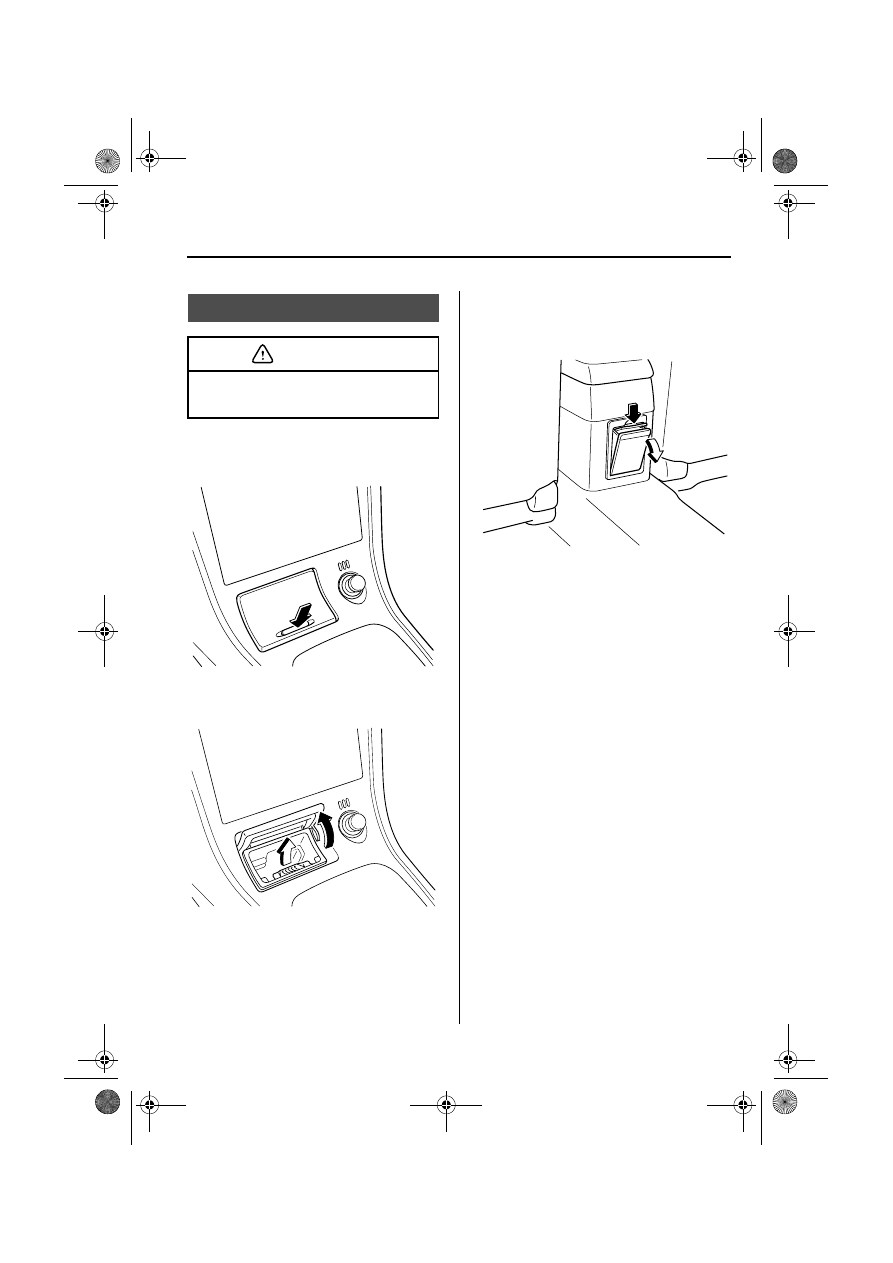

▼ Front

To open, push the lower part of the cover.

To remove, push the cover forward and
pull out the ashtray.

To reinstall the ashtray, set it completely
back into its fixed position and close the
cover.

▼ Rear

To remove, open and push down on the
lock spring.

Ashtrays

Don’t use ashtrays for trash. You might
start a fire.

CAUTION
