Black plate (329,1)

NOTE

Tires degrade over time, even when they are not being used on the road. It is
recommended that tires generally be replaced when they are 6 years or older. Heat
caused by hot climates or frequent high loading conditions can accelerate the aging
process. You should replace the spare tire when you replace the other road tires due to
the aging of the spare tire. Regarding the manufacturing week and year is indicated with
4 digit. Refer to The tire labeling on page 9-18.

qSafety Practices

The way you drive has a great deal to do with your tire mileage and safety. So cultivate
good driving habits for your own benefit.

Observe posted speed limits

Avoid fast starts, stops and turns

Avoid potholes and objects on the road

Do no run over curbs or hit the tire against the curb when parking

CAUTION

If you feel a sudden vibration or ride disturbance while driving or you suspect your tire
or vehicle has been damaged, immediately reduce your speed. Drive with caution until
you can safely pull off the road. Stop and inspect the tire for damage. If the tire is under-
inflated or damaged, deflate it, remove the tire and rim and replace it with your spare
tire. If you cannot detect a cause, have the vehicle towed to the nearest vehicle or tire
dealer to have the vehicle inspected.

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

9-29

Mazdaspeed6_8V77-EA-06F_Edition1 Page329
Tuesday, May 9 2006 10:46 AM

Black plate (330,1)

Vehicle Loading

WARNING

Do not taw a trailer with this vehicle:
Towing a trailer with this vehicle is dangerous because it has not been designed to tow
a trailer and doing so will affect the drive system which could result in vehicle
damage.

This section will guide you in the proper loading of your vehicle and/or trailer, to keep
your loaded vehicle weight within its design rating capability, with or without a trailer.
Properly loading your vehicle will provide maximum return of vehicle design performance.
Before loading your vehicle, familiarize yourself with the following terms for determining
your vehicle's weight ratings, with or without a trailer, from the vehicle's Safety
Certification Label and Tire and Load Information Label:

WARNING

Overloaded Vehicle:
Overloading a vehicle is dangerous. The results of overloading can have serious
consequences in terms of passenger safety. Too much weight on a vehicle's suspension
system can cause spring or shock absorber failure, brake failure, handling or steering
problems, irregular tire wear, tire failure or other damage.
Overloading makes a vehicle harder to drive and control. It also increases the distance
required for stopping. In cases of serious overloading, brakes can fail completely,
particularly on steep grades. The load a tire will carry safely is a combination of the
size of the tire, its load range, and corresponding inflation pressure.
Never overload the vehicle and always observe the vehicle's weight ratings from the
vehicle's Safety Certification and Tire and Load Information labels.

9-30

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

Mazdaspeed6_8V77-EA-06F_Edition1 Page330
Tuesday, May 9 2006 10:46 AM

Black plate (331,1)

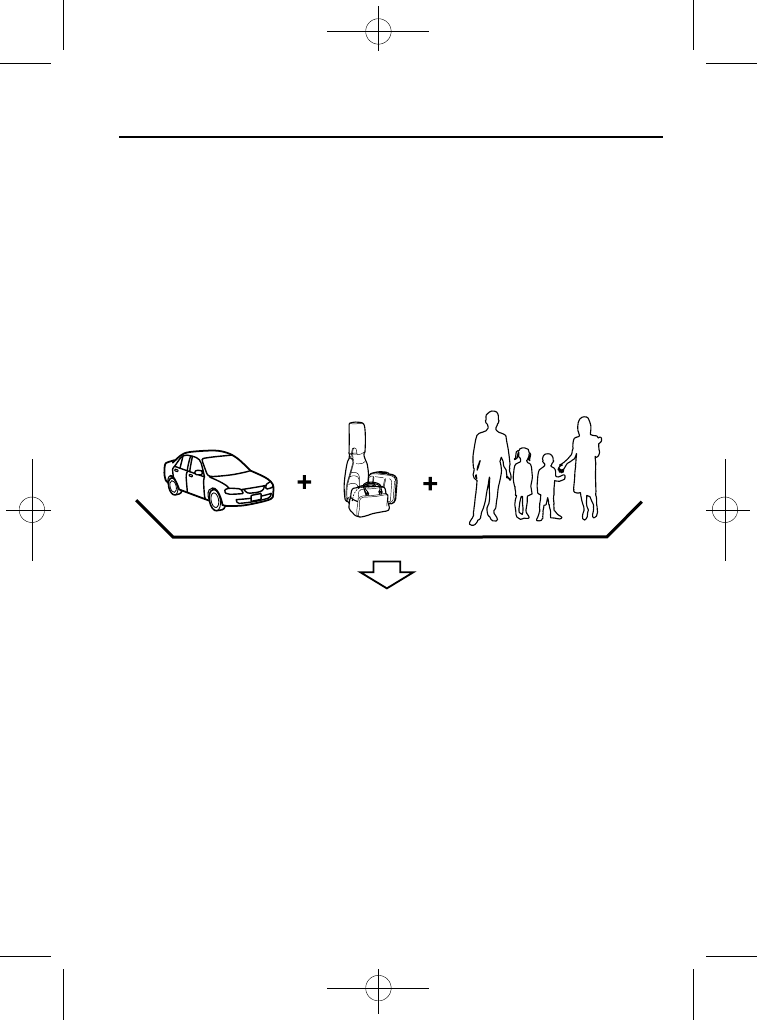

Base Curb Weight is the weight of the vehicle including a full tank of fuel and all
standard equipment. It does not include passengers, cargo, or optional equipment.

Vehicle Curb Weight is the weight of your new vehicle when you picked it up from your
dealer plus any aftermarket equipment.

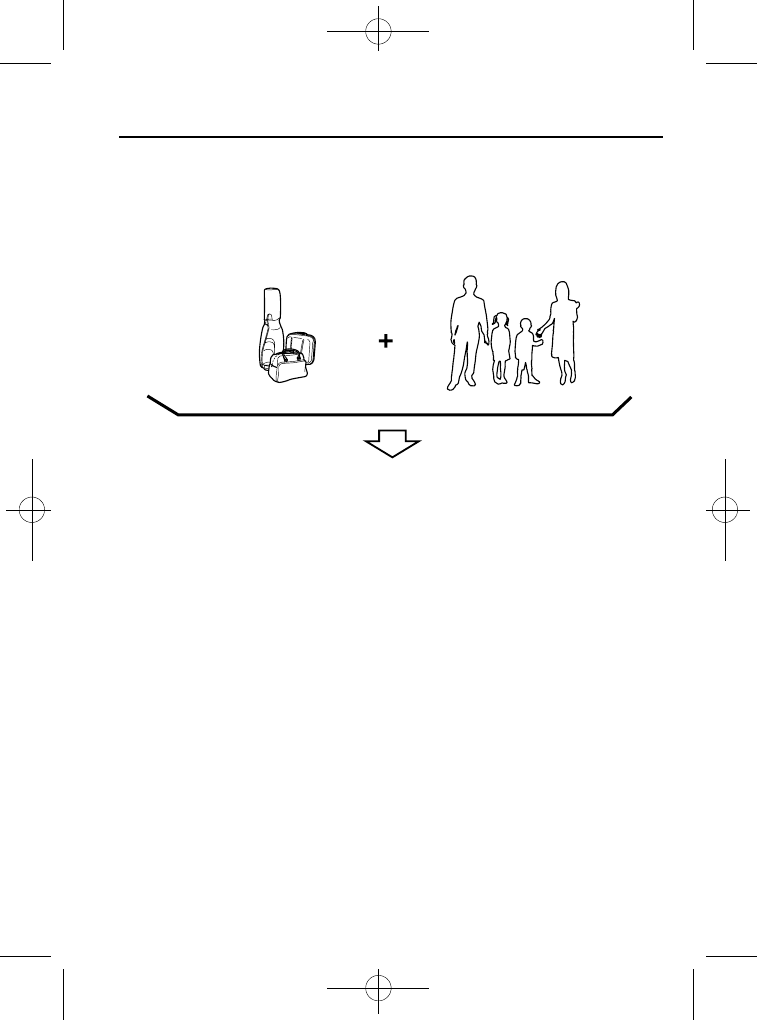

PAYLOAD

Payload is the combination weight of cargo and passengers that the vehicle is designed to
carry. The maximum payload for your vehicle can be found on the Tire and Load
Information label on the driver's door frame or door pillar. Look for

“THE

COMBINATION WEIGHT OF OCCUPANTS AND CARGO SHOULD NEVER
EXCEED XXX kg or XXX lbs

” for your maximum payload. The payload listed on the tire

label is the maximum payload for the vehicle as built by the assembly plant. If any
aftermarket or dealer installed equipment has been installed on the vehicle, the weight of
the equipment must be subtracted from the payload listed on the tire label in order to be
accurate.

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

9-31

Mazdaspeed6_8V77-EA-06F_Edition1 Page331
Tuesday, May 9 2006 10:46 AM

Black plate (332,1)

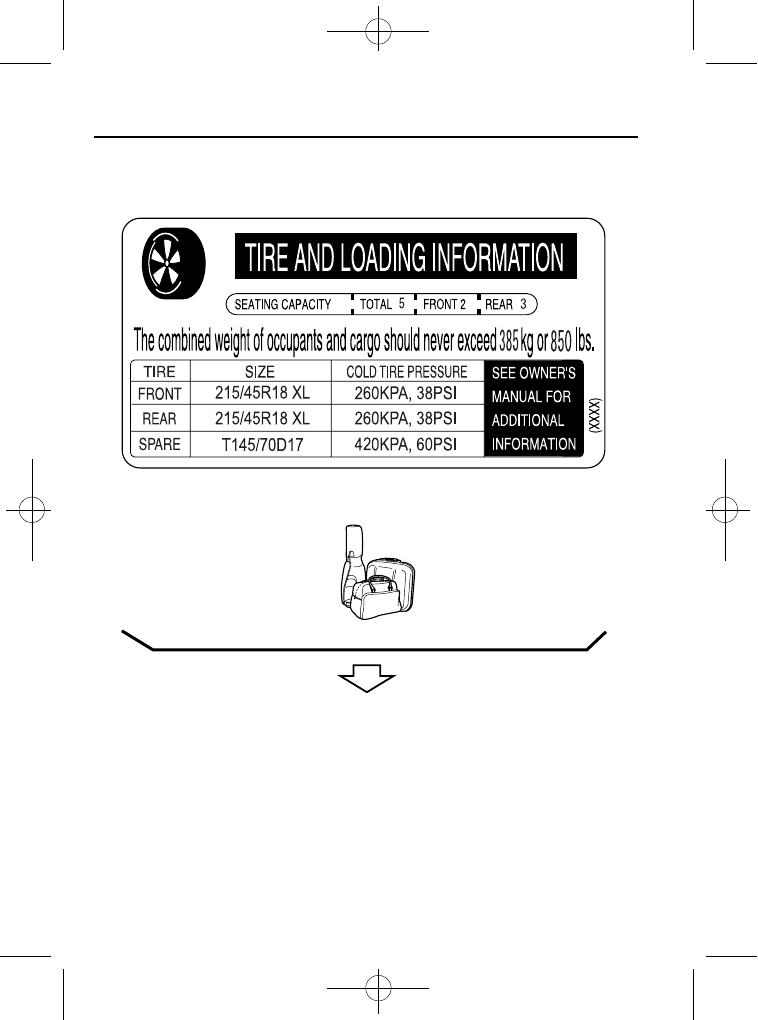

SAMPLE

CARGO

Cargo Weight includes all weight added to the Base Curb Weight, including cargo and
optional equipment. When towing, trailer tongue load or king pin weight is also part of
cargo weight.

The cargo weight limit decreases depending on the number of vehicle occupants. The cargo
weight limit can be calculated by subtracting the total weight of the vehicle occupants from
the

“combination weight of occupants and cargo should never exceed” value on the tire

label.

9-32

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

Mazdaspeed6_8V77-EA-06F_Edition1 Page332
Tuesday, May 9 2006 10:46 AM

Black plate (333,1)

Examples: Based on a single occupant weight of 68 kg, and a value of 385 kg for the

“combination weight of occupants and cargo should never exceed”:
The cargo weight limit with one occupant is 385 kg _ 68 kg = 317 kg
The cargo weight limit with two occupants is 385 kg _ (68 × 2) kg = 249 kg
If the weight of the occupant increases, the cargo weight limit decreases by that much.

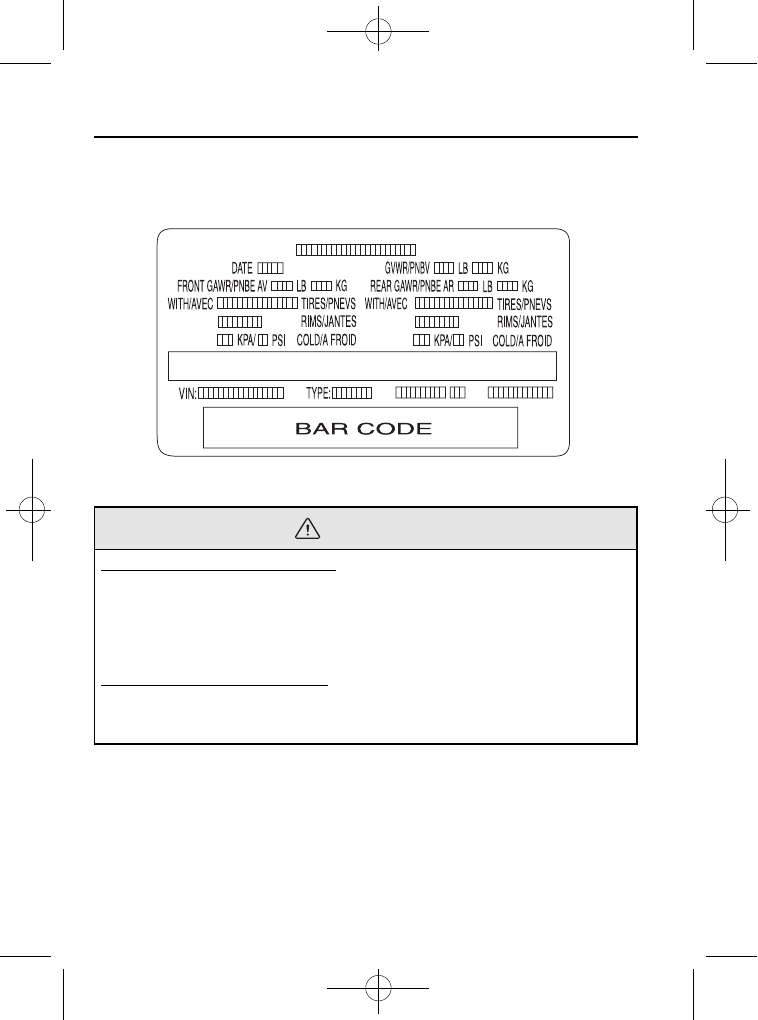

GAW (Gross Axle Weight) is the total weight placed on each axle (front and rear) -
including vehicle curb weight and all payload.

GAWR (Gross Axle Weight Rating) is the maximum allowable weight that can be carried
by a single axle (front or rear). These numbers are shown on the Safety Compliance
Certification Label located on the driver's door frame or door pillar. The total load on
each axle must never exceed its GAWR.

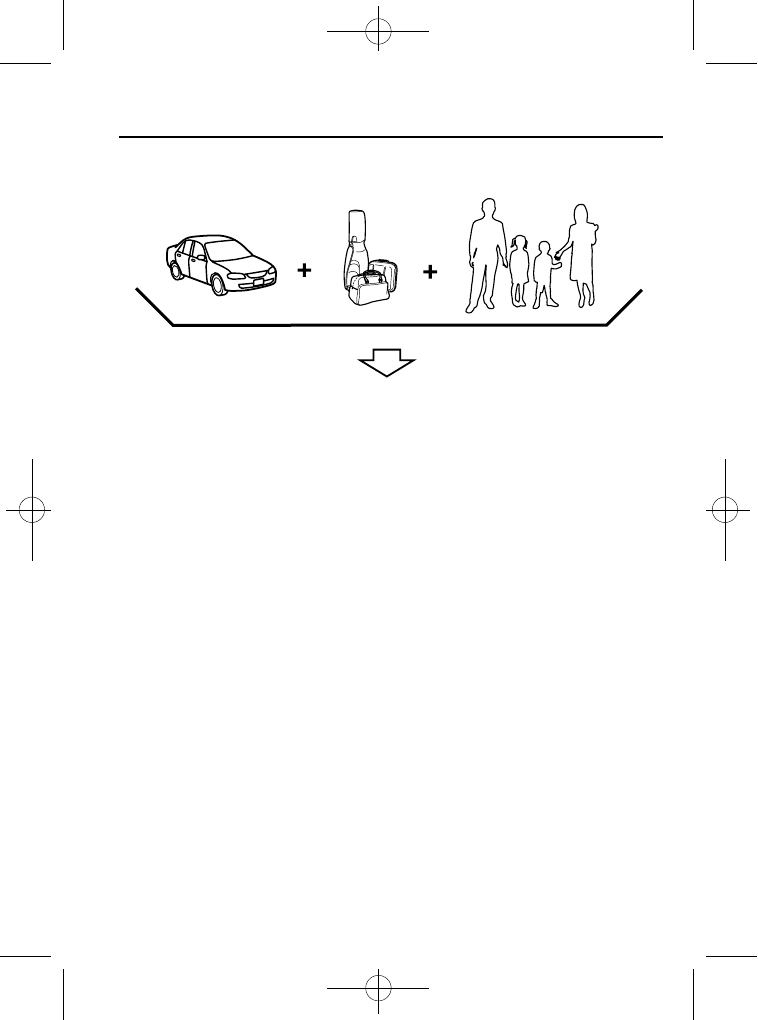

GVW

GVW (Gross Vehicle Weight) is the Vehicle Curb Weight + cargo + passengers.

GVWR (Gross Vehicle Weight Rating) is the maximum allowable weight of the fully
loaded vehicle (including all options, equipment, passengers and cargo). The GVWR is
shown on the Safety Compliance Certification Label located on the driver's door
frame or door pillar. The GVW must never exceed the GVWR.

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

9-33

Mazdaspeed6_8V77-EA-06F_Edition1 Page333
Tuesday, May 9 2006 10:46 AM

Black plate (334,1)

SAMPLE

WARNING

Exceeding Axle Weight Rating Limits:
Exceeding the Safety Certification Label axle weight rating limits is dangerous and
could result in death or serious injury as a result of substandard vehicle handling,
performance, engine, transmission and/or structural damage, serious damage to the
vehicle, or loss of control.
Always keep the vehicle within the axle weight rating limits.

9-34

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

Mazdaspeed6_8V77-EA-06F_Edition1 Page334
Tuesday, May 9 2006 10:46 AM

Black plate (335,1)

GCW

GCW (Gross Combination Weight) is the weight of the loaded vehicle (GVW) plus the
weight of the fully loaded trailer.

GCWR (Gross Combination Weight Rating) is the maximum allowable weight of the
vehicle and the loaded trailer - including all cargo and passengers - that the vehicle can
handle without risking damage. (Important: The towing vehicle's braking system is rated
for operation at GVWR, not at GCWR. Separate functional brakes should be used for safe
control of towed vehicles and for trailers weighing more than 1,500 lbs). The GCW must
never exceed the GCWR.

Maximum Loaded Trailer Weight is the highest possible weight of a fully loaded trailer
the vehicle can tow. It assumes a vehicle with only mandatory options, no cargo (internal or
external), a tongue load of 10_15% (conventional trailer) or king pin weight of 15_25%
(fifth-wheel trailer), and driver only (150 lbs). Consult your dealership (or the RV and
Trailer Towing Guide provided by your dealership) for more detailed information.
Tongue Load or Fifth-Wheel King Pin Weight refers to the amount of the weight that a
trailer pushes down on a trailer hitch.

Examples: For a 5000 lb conventional trailer, multiply 5000 by 0.10 and 0.15 to obtain a
proper tongue load range of 500 to 750 lbs. For an 11,500 lb fifth-wheel trailer, multiply by
0.15 and 0.25 to obtain a proper king pin load range of 1,725 to 2,875 lbs.

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

9-35

Mazdaspeed6_8V77-EA-06F_Edition1 Page335
Tuesday, May 9 2006 10:46 AM

Black plate (336,1)

WARNING

Exceeding GVWR or GAWR Specifications:
Exceeding the GVWR or the GAWR specified on the certification label is dangerous.
Exceeding any vehicle rating limitation could result in a serious accident, injury, or
damage to the vehicle.
Do not use replacement tires with lower load carrying capacities than the originals
because they may lower the vehicle's GVWR and GAWR limitations. Replacement
tires with a higher limit than the originals do not increase the GVWR and GAWR
limitations.
Never exceed the GVWR or the GAWR specified on the certification label.

9-36

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

Mazdaspeed6_8V77-EA-06F_Edition1 Page336
Tuesday, May 9 2006 10:46 AM

Black plate (337,1)

Steps for Determining the Correct Load Limit:

Steps for Determining Correct Load Limit:

(1) Locate the statement

“The combination weight of occupants and cargo should never

exceed XXX kg or XXX lbs

” on your vehicle's placard.

(2) Determine the combination weight of the driver and passengers that will be riding in

your vehicle.

(3) Subtract the combination weight of the driver and passengers from XXX kg or XXX

lbs.

(4) The resulting figure equals the available amount of cargo and luggage load capacity.

For example, if the

“XXX” amount equals 1400 lbs. and there will be five 150 lb

passengers in your vehicle, the amount of available cargo and luggage load capacity is
650 lbs. (1400_ 750 (5 × 150) = 650 lbs.)

(5) Determine the combination weight of luggage and cargo being loaded on the vehicle.

That weight may not safely exceed the available cargo and luggage load capacity
calculated in Step 4.

(6) If your vehicle will be towing a trailer, the load from your trailer will be transferred to

your vehicle. Consult this manual to determine how this reduces the available cargo
and luggage load capacity of your vehicle.

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

9-37

Mazdaspeed6_8V77-EA-06F_Edition1 Page337
Tuesday, May 9 2006 10:46 AM

Black plate (338,1)

Reporting Safety Defects (U.S.A.)

If you believe that your vehicle has a defect which could cause a crash or could
cause injury or death, you should immediately inform the National Highway
Traffic Safety Administration (NHTSA) in addition to notifying Mazda Motor
Corporation (Your Mazda Importer/Distributor).

If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a group of vehicles, it may order a recall and
remedy campaign. However, NHTSA cannot become involved in individual
problems between you, your dealer, or Mazda Motor Corporation (Your Mazda
Importer/Distributor).

To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153) ; go to http://www.safercar.gov; or write to:
Administrator, NHTSA, 400 Seventh Street, SW., Washington, DC 20590. You
can also obtain other information about motor vehicle safety from http://
www.safercar.gov.

NOTE

If you live in the U.S.A., all correspondence to Mazda Motor Corporation should be
forwarded to:

Mazda North American Operations
7755 Irvine Center Drive
Irvine, California 92618-2922
P.O. Box 19734
Irvine, CA 92623-9734
Customer Assistance Center or toll free at 1 (800) 222-5500

If you live outside of the U.S.A., please contact the nearest Mazda Distributor shown
(page 9-8) in this booklet.

9-38

Customer Information and Reporting Safety Defects

Reporting Safety Defects

Mazdaspeed6_8V77-EA-06F_Edition1 Page338
Tuesday, May 9 2006 10:46 AM

Black plate (339,1)

Reporting Safety Defects (Canada)

Canadian customers who wish to report a safety-related defect to Transport Canada, Defect
Investigations and Recalls, may telephone the toll free hotline 1-800-333-0510, or contact
Transport Canada by mail at: Transport Canada, ASFAD, Place de Ville Tower C, 330
Sparks Street, Ottawa ON K1A 0N5.

For additional road safety information, please visit the Road Safety website at:
http://www.tc.gc.ca/roadsafety/menu.htm

Customer Information and Reporting Safety Defects

Reporting Safety Defects

9-39

Mazdaspeed6_8V77-EA-06F_Edition1 Page339
Tuesday, May 9 2006 10:46 AM

Black plate (340,1)

Service Publications

Factory-authorized Mazda service publications are available for owners who wish to do
some of their own maintenance and repair.

When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.

If they don't have what you need in stock, they can order it for you.

PUBLICATION ORDER NUMBER

PUBLICATION DESCRIPTION

9999-95-063B-07

2007 WORKSHOP MANUAL (English)

9999-95-039G-07

2007 WIRING DIAGRAM (English)

9999-95-MS6C-07 (U.S.A. only)

2007 OWNER'S MANUAL

9999-EC-MS6C-07 (Canada only)

2007 OWNER'S MANUAL

9999-PR-MS6C-07 (Puerto Rico only)

2007 OWNER'S MANUAL

qWORKSHOP MANUAL:

Covers recommended maintenance and repair procedures of the drive train, body and
chassis.

qWIRING DIAGRAM:

Provides electrical schematics as well as component location for the entire electrical
system.

qOWNER'S MANUAL:

This booklet contains information regarding the proper care and operation of your vehicle.
This is not a technician's manual.

9-40

Customer Information and Reporting Safety Defects

Service Publications

Mazdaspeed6_8V77-EA-06F_Edition1 Page340
Tuesday, May 9 2006 10:46 AM

Black plate (342,1)

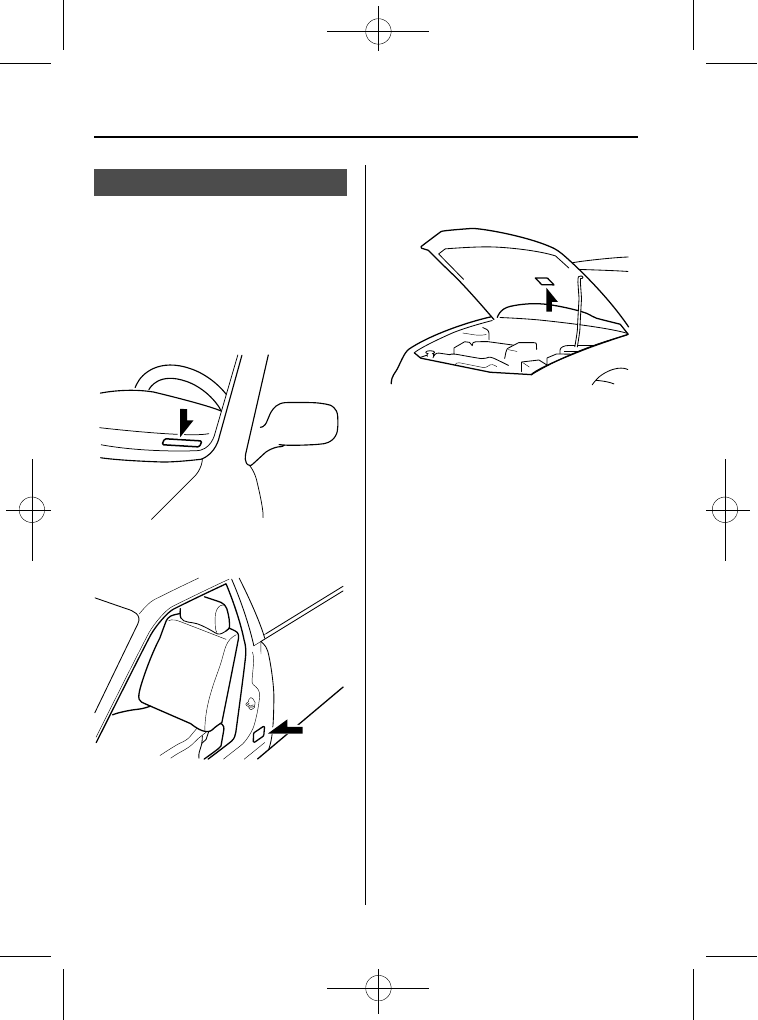

Vehicle Information Labels

qVehicle Identification Number

The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the cowl panel located
on the left corner of the dashboard. This
plate can easily be seen through the
windshield.

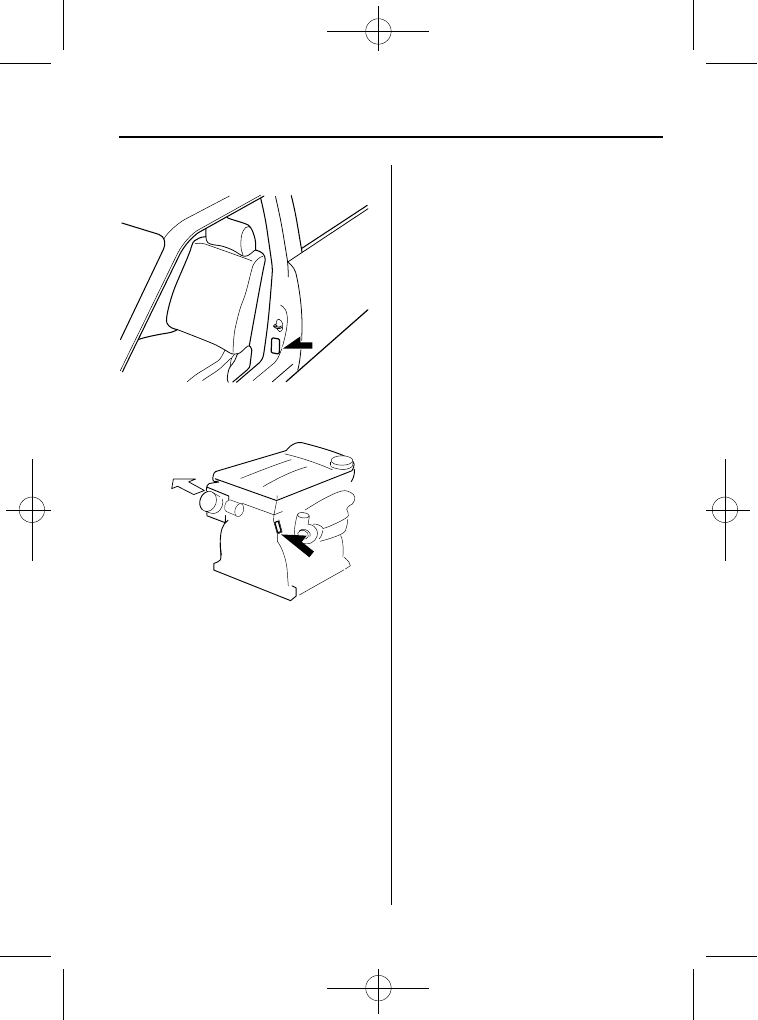

qMotor Vehicle Safety Standard Label

qVehicle Emission Control

Information Label

10-2

Identification Numbers

Mazdaspeed6_8V77-EA-06F_Edition1 Page342
Tuesday, May 9 2006 10:46 AM

Black plate (344,1)

Specifications

qEngine

Item

Specification

Type

DOHC-16V in-line, 4-cylinder

Bore×Stroke

87.5 × 94.0 mm (3.44 × 3.70 in)

Displacement

2,261 ml (2,261 cc, 137.9 cu in)

Compression ratio

9.5

qElectrical System

Item

Classification

Battery

12V-48AH/5HR

12V-55AH/5HR

Spark-plug number

L3K9 18 110A

L3Y3 18 110

Spark-plug gap

0.70

―0.80 mm (0.028―0.031 in)

*1 ex factory

CAUTION

When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on
the iridium alloy and platinum tips could be damaged.

qLubricant Quality

Lubricant

Classification

Engine oil

Refer to the recommended SAE viscosity numbers on
page 8-13.

Manual transaxle oil

API Service GL-4 (SAE 75W-90)

Transfer case oil

API Service GL-5 (SAE 80W-90)

Rear differential oil

API Service GL-5 (SAE 80W-90)

Power steering fluid

ATF M-III, M-V, or equivalent (e.g. Dexron® II)

Brake/Clutch fluid

SAE J1703, or FMVSS116 DOT-3

10-4

Specifications

Mazdaspeed6_8V77-EA-06F_Edition1 Page344
Tuesday, May 9 2006 10:46 AM

Mazda Mazdaspeed 6 (2007 year). Instruction - part 21
