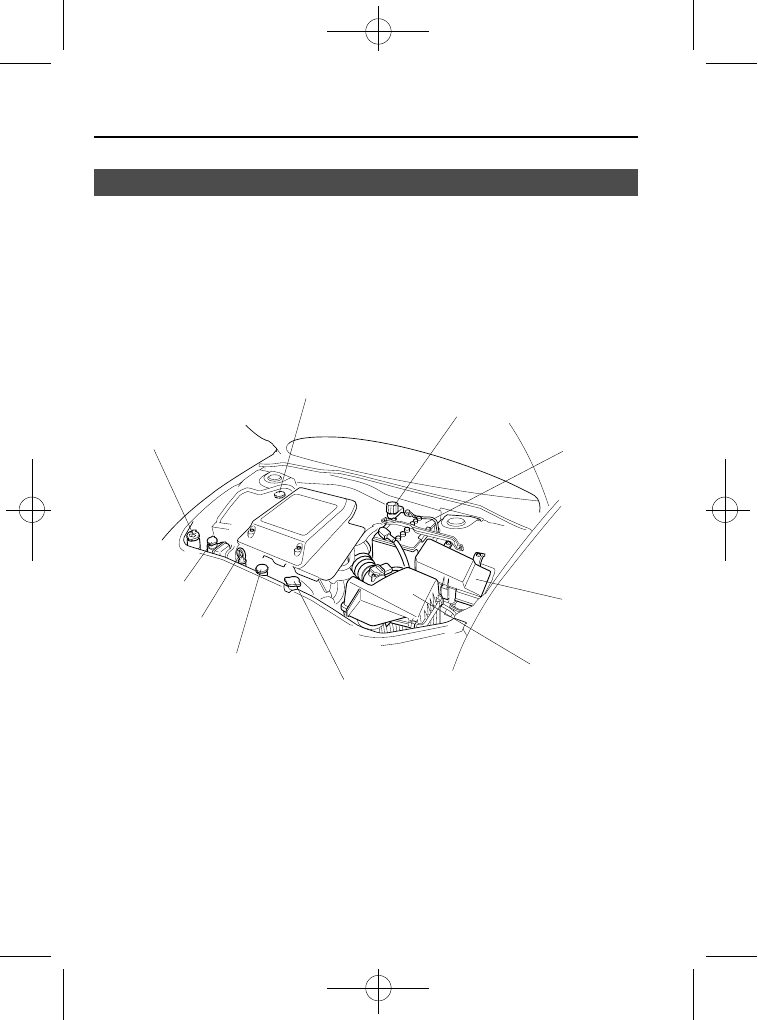

Engine Compartment Overview

Cooling system cap

Power steering
fluid reservoir

Windshield washer
fluid reservoir

Engine oil dipstick

Engine oil-filler cap

Battery

Fuse block

Air filter

Brake/Clutch fluid reservoir

Engine coolant
reservoir

8-12

Maintenance and Care

Owner Maintenance

Mazdaspeed6_8V77-EA-06F_Edition1 Page266
Tuesday, May 9 2006 10:45 AM

Black plate (267,1)

Engine Oil

NOTE

Changing the engine oil should be done
by an Authorized Mazda Dealer.

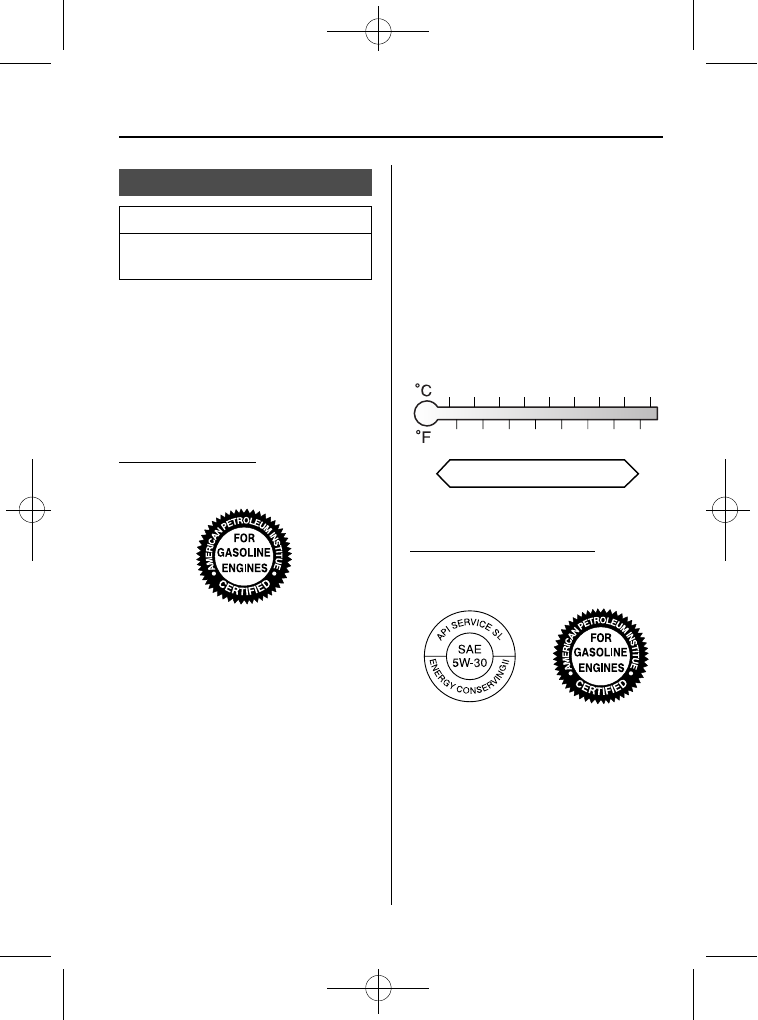

qRecommended Oil

Use SAE 5W-30 engine oil.
Oil container labels provide important
information.
A chief contribution this type of oil makes
to fuel economy is reducing the amount of
fuel necessary to overcome engine
friction.

U.S.A. and CANADA

(ILSAC)

Only use oils

“Certified For Gasoline

Engines

” by the American Petroleum

Institute (API). An oil with this trademark
symbol conforms to the current engine
and emission system protection standards
and fuel economy requirements of the
International Lubricant Standardization
and Approval Committee (ILSAC),
comprised of U.S. and Japanese
automobile manufacturers.

–30 –20 –10

–20

100 120

5W-30

Except U.S.A. and CANADA

(ILSAC)

Maintenance and Care

Owner Maintenance

8-13

Mazdaspeed6_8V77-EA-06F_Edition1 Page267
Tuesday, May 9 2006 10:45 AM

Black plate (268,1)

The quality designation SL, or ILSAC
must be on the label.

–30 –20 –10

–20

100 120

5W-30

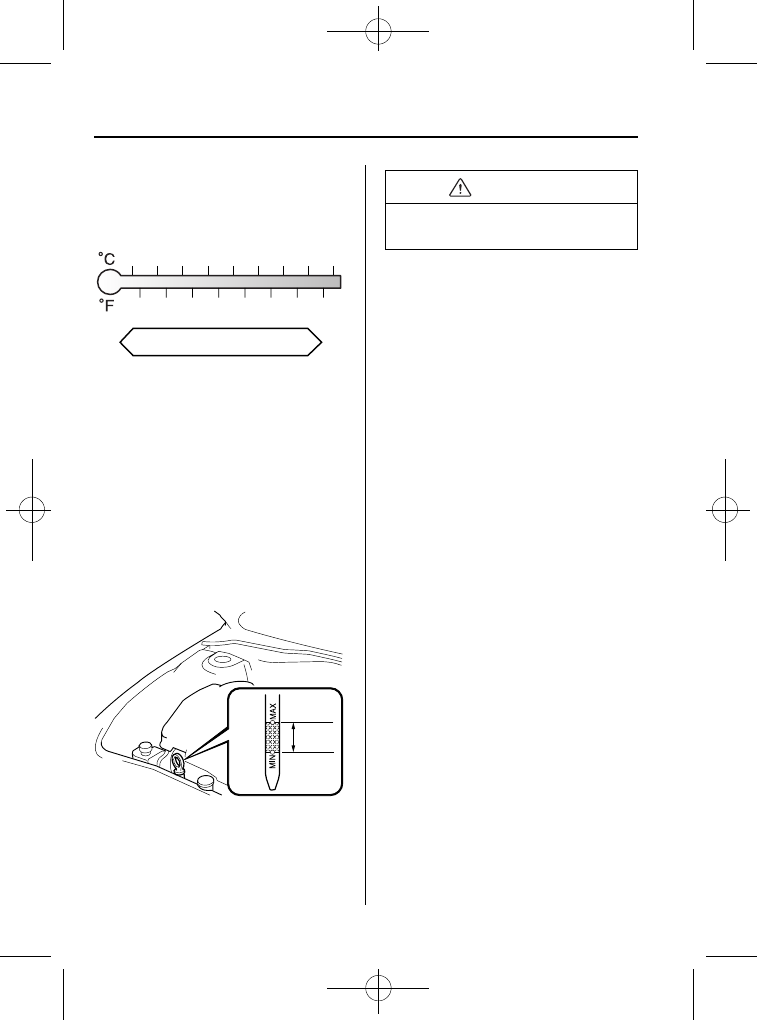

qInspecting Engine Oil Level

1. Be sure the vehicle is on a level

surface.

2. Warm up the engine to normal

operating temperature.

3. Turn it off and wait at least 5 minutes

for the oil to return to the oil pan.

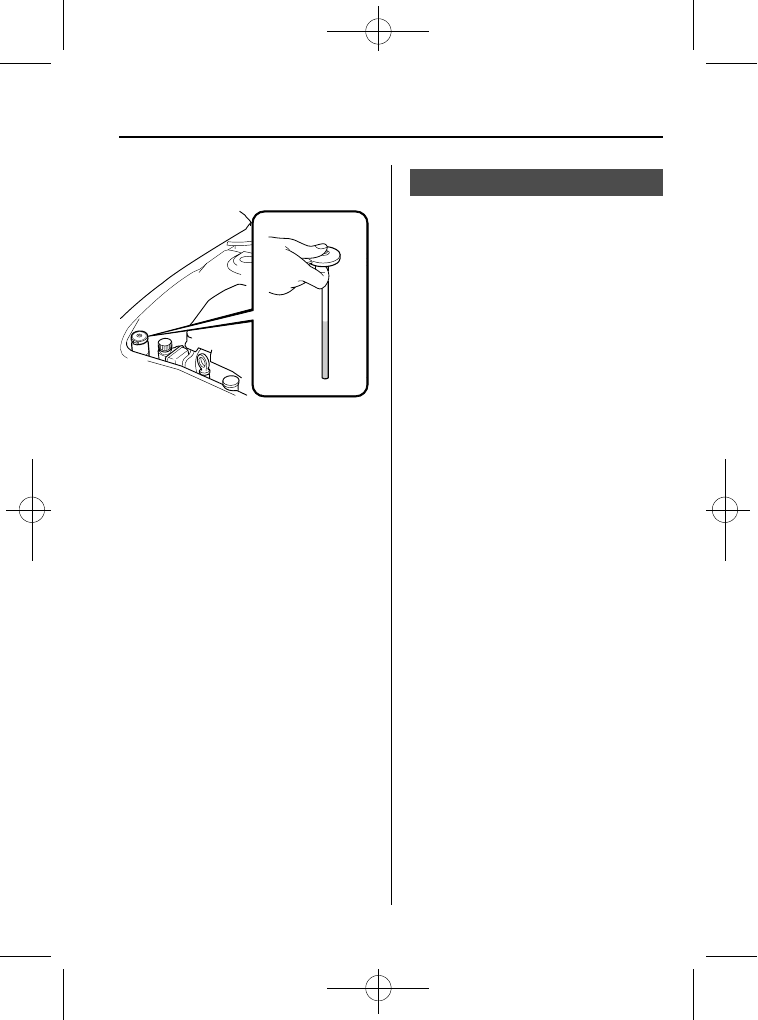

4. Pull out the dipstick, wipe it clean, and

reinsert it fully.

Full

Low

5. Pull it out again and examine the level.

It's OK between MIN and MAX.
But if it's near or below MIN, add
enough oil to bring the level to MAX.

CAUTION

Don't add engine oil over MAX. This
may cause engine damage.

6. Make sure the O-ring on the dipstick is

positioned properly before reinserting
the dipstick.

8-14

Maintenance and Care

Owner Maintenance

Mazdaspeed6_8V77-EA-06F_Edition1 Page268
Tuesday, May 9 2006 10:45 AM

Black plate (269,1)

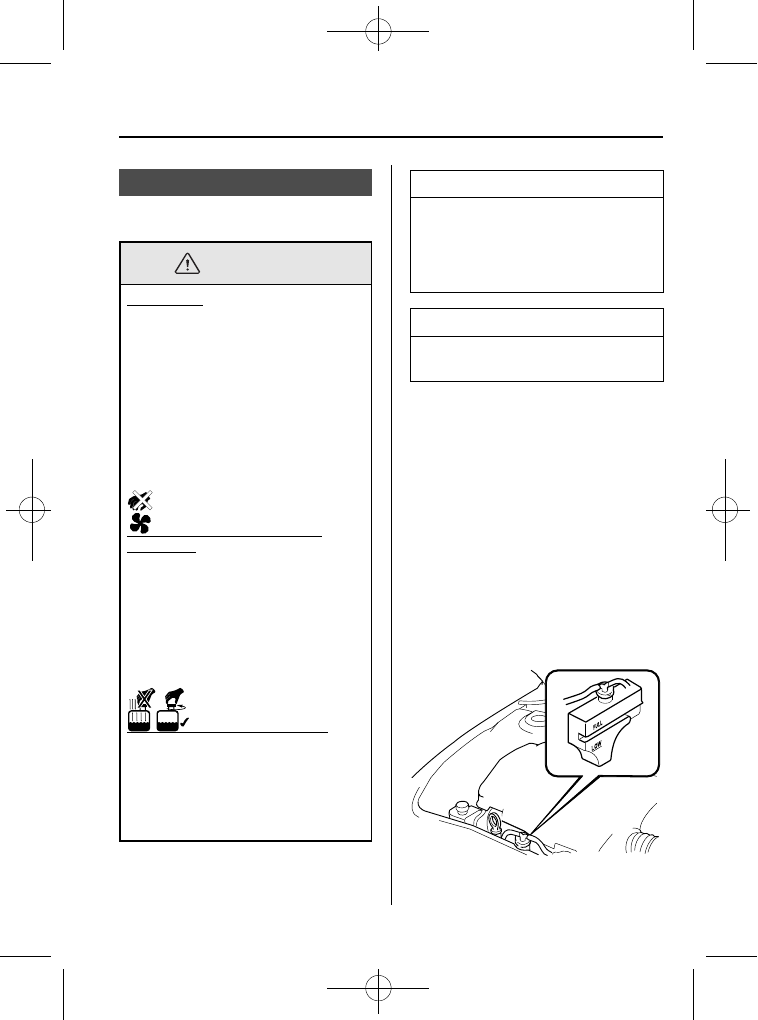

Engine Coolant

qInspecting Coolant Level

WARNING

Hot Engine:
A hot engine is dangerous. If the
engine has been running, parts of the
engine compartment can become very
hot. You could be burned. Carefully
inspect the engine coolant in the
coolant reservoir, but do not open it.
Do not use a match or live flame in the
engine compartment. DO NOT ADD
COOLANT WHEN THE ENGINE IS
HOT.

Electrical Fan and Engine

Inspection:
Working near the electrical cooling
fan when it is running is dangerous.
You could be hit by the fan and
seriously injured. Turn off the ignition
switch and make sure the fan is not
running before attempting to work
near the electrical cooling fan.

Cooling System Caps:

When the engine and radiator are hot,
scalding coolant and steam may shoot
out under pressure and cause serious
injury. Don't remove either cooling
system cap when the engine and
radiator are hot.

NOTE

Once the engine coolant exceeds a
preset temperature, an electrical cooling
fan turns on. It will continue running
for about 10 minutes after the ignition
switch is turned to off.

NOTE

Changing the coolant should be done
by an Authorized Mazda Dealer.

Inspect the antifreeze protection and
coolant level in the coolant reservoir at
least once a year

―at the beginning of the

winter season

―and before traveling

where temperatures may drop below
freezing.

Inspect the condition and connections of
all cooling system and heater hoses.
Replace any that are swollen or
deteriorated.

The coolant should be at full in the
radiator and between the FULL and LOW
marks on the coolant reservoir when the
engine is cool.

Maintenance and Care

Owner Maintenance

8-15

Mazdaspeed6_8V77-EA-06F_Edition1 Page269
Tuesday, May 9 2006 10:45 AM

Black plate (270,1)

If it's at or near LOW, add enough coolant
to the coolant reservoir to provide
freezing and corrosion protection and to
bring the level to FULL.

CAUTION

Radiator coolant will damage paint.
Rinse it off quickly if spilled.

Use only soft (demineralized) water
in the coolant mixture. Water that
contains minerals will cut down on
the coolant's effectiveness.

Don't add only water. Always add a
proper coolant mixture.

The engine has aluminum parts and
must be protected by an ethylene-
glycol-based coolant to prevent
corrosion and freezing.

DO NOT USE coolants Containing
Alcohol, methanol, Borate or
Silicate.
These coolants could damage the
cooling system.

DO NOT MIX alcohol or methanol
with the coolant. This could damage
the cooling system.

Don't use a solution that contains
more than 60% antifreeze.
This would reduce effectiveness.

NOTE

If the

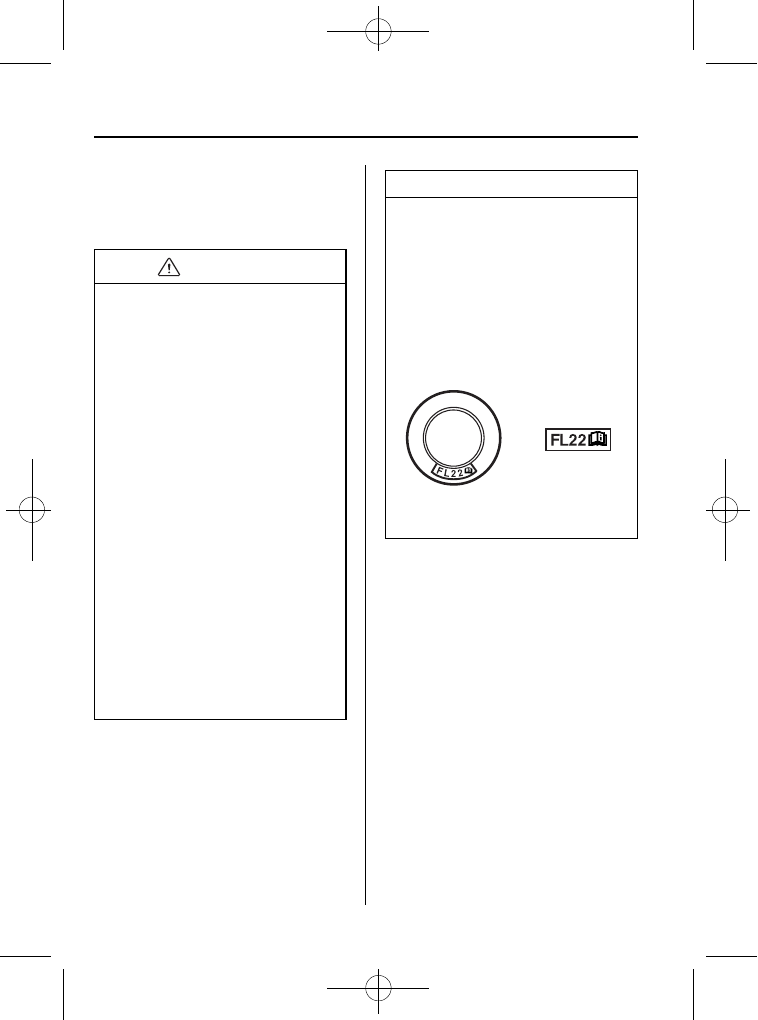

“FL22” mark is shown on or near

the cooling system cap, use FL22 type
engine coolant. If engine coolant other
than FL22 type is used, the engine
coolant must be replaced earlier than
the specified replacement interval
indicated in the scheduled maintenance
(page 8-3).

If the coolant reservoir is empty or new
coolant is required frequently, consult an
Authorized Mazda Dealer.

8-16

Maintenance and Care

Owner Maintenance

Mazdaspeed6_8V77-EA-06F_Edition1 Page270
Tuesday, May 9 2006 10:45 AM

Black plate (271,1)

Brake/Clutch Fluid

qInspecting Brake/Clutch Fluid Level

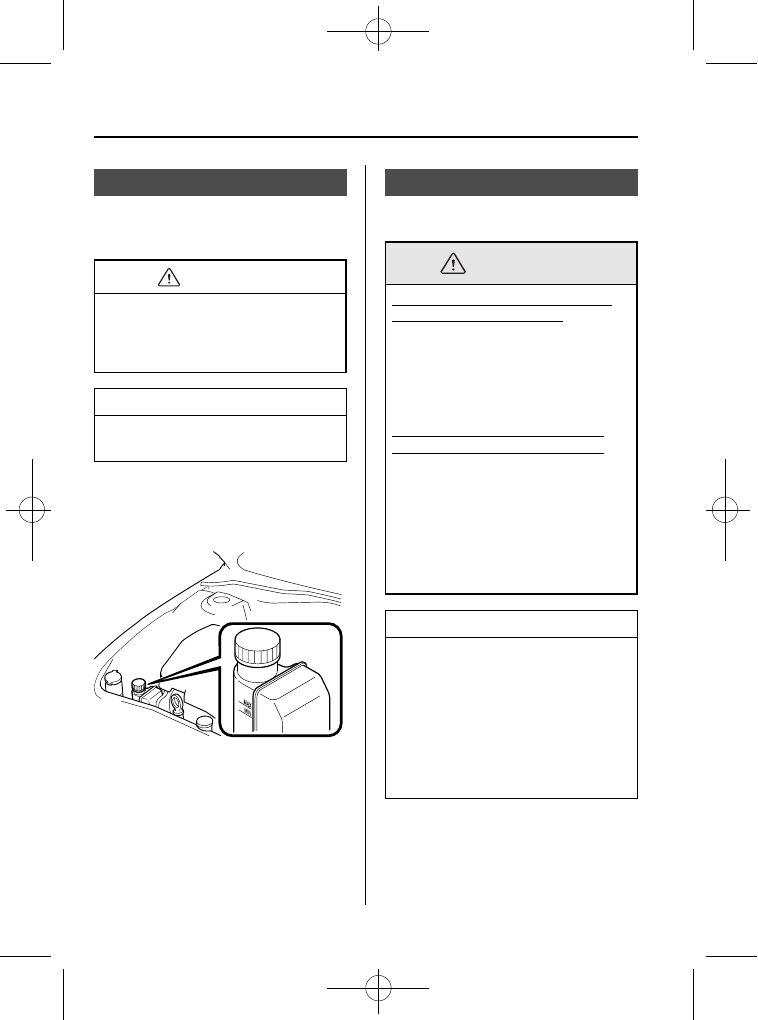

The brakes and clutch draw fluid from the
same reservoir.
Inspect the fluid level in the reservoir
regularly. It should be kept at MAX.
The level normally drops with
accumulated distance, a condition
associated with wear of brake and clutch
linings. If it is excessively low, have the
brake/clutch system inspected by an
Authorized Mazda Dealer.

qAdding Brake/Clutch Fluid

WARNING

Spilled Brake Fluid:
Spilled brake fluid is dangerous. If it
gets in your eyes, they could be
seriously injured. If this happens,
immediately flush your eyes with water
and get medical attention. Brake fluid
spilled on a hot engine could cause a
fire. Be careful not to spill brake fluid
on yourself or on the engine.

Low Brake/Clutch Fluid Levels:
Low brake/clutch fluid levels are
dangerous. Low levels could signal
brake lining wear or a brake system
leak. Your brakes could fail and cause
an accident. If you find a low fluid
level, have the brakes and clutch
inspected.

If the fluid level is low, add fluid until it
reaches MAX.
Before adding fluid, thoroughly clean the
area around the cap.

CAUTION

Brake and clutch fluid will damage
painted surfaces. If brake or clutch
fluid does get on a painted surface,
wash it off with water immediately.

Using nonspecified brake and clutch
fluids (page 10-4) will damage the
systems. Mixing different fluids will
also damage them.
If the brake/clutch system frequently
requires new fluid, consult an
Authorized Mazda Dealer.

Maintenance and Care

Owner Maintenance

8-17

Mazdaspeed6_8V77-EA-06F_Edition1 Page271
Tuesday, May 9 2006 10:45 AM

Black plate (272,1)

Power Steering Fluid

qInspecting Power Steering Fluid

Level

CAUTION

To avoid damage to the power steering
pump, don't operate the vehicle for long
periods when the power steering fluid
level is low.

NOTE

Use specified power steering fluid
(page 10-4).

Inspect the fluid level in the reservoir at
each engine oil change with the engine off
and cold. Add fluid if necessary; it does
not require periodic changing.

The level must be kept between MIN and
MAX.

Visually examine the lines and hoses for
leaks and damage.

If new fluid is required frequently, consult
an Authorized Mazda Dealer.

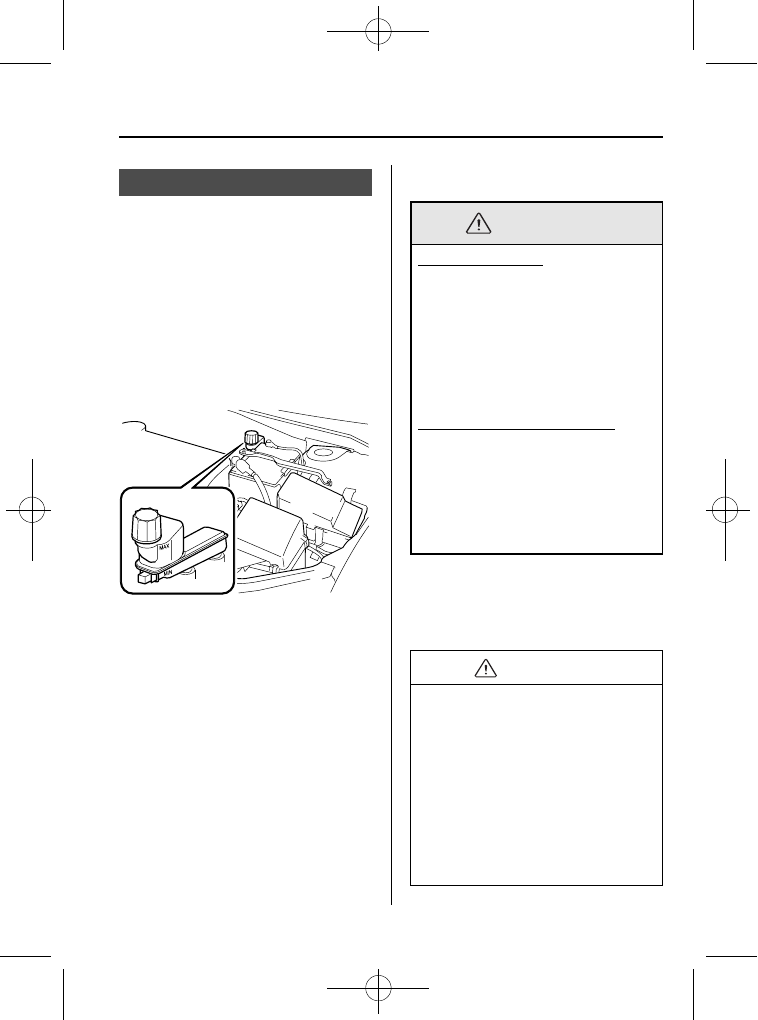

Washer Fluid

qInspecting Washer Fluid Level

WARNING

Use only windshield washer fluid or
plain water in the reservoir:
Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will dirty the windshield,
affect your visibility, and could result
in an accident.

Using Washer Fluid Without Anti-
freeze Protection in Cold Weather:
Operating your vehicle in
temperatures below 4 degrees C (40
degrees F) using washer fluid without
anti-freeze protection is dangerous as
it could cause impaired windshield
vision and result in an accident. In
cold weather, always use washer fluid
with anti-freeze protection.

NOTE

State or local regulations may restrict
the use of volatile organic compounds
(VOCs), which are commonly used as
anti-freeze agents in washer fluid. A
washer fluid with limited VOC content
should be used only if it provides
adequate freeze resistance for all
regions and climates in which the
vehicle will be operated.

8-18

Maintenance and Care

Owner Maintenance

Mazdaspeed6_8V77-EA-06F_Edition1 Page272
Tuesday, May 9 2006 10:45 AM

Black plate (273,1)

Inspect fluid level in the washer fluid
reservoir; add fluid if necessary.

To inspect the washer fluid level in the
front reservoir, pull off the cap. Then,
holding your thumb over the hole in the
center of the cap, lift it straight up. The
fluid level can be seen from the fluid
column in the pipe. Add fluid if necessary.

Use plain water if washer fluid is
unavailable. But use only washer fluid in
cold weather to prevent it from freezing.

Body Lubrication

All moving points of the body, such as
door and hood hinges and locks, should
be lubricated each time the engine oil is
changed. Use a nonfreezing lubricant on
locks during cold weather.

Make sure the hood's secondary latch
keeps the hood from opening when the
primary latch is released.

Maintenance and Care

Owner Maintenance

8-19

Mazdaspeed6_8V77-EA-06F_Edition1 Page273
Tuesday, May 9 2006 10:45 AM

Black plate (274,1)

Wiper Blades

CAUTION

Hot waxes applied by automatic car
washers have been known to affect
the wiper's ability to clean windows.

To prevent damage to the wiper
blades, don't use gasoline, kerosene,
paint thinner, or other solvents on or
near them.

Contamination of either the windshield or
the blades with foreign matter can reduce
wiper effectiveness. Common sources are
insects, tree sap, and hot wax treatments
used by some commercial car washes.

If the blades are not wiping properly,
clean the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.

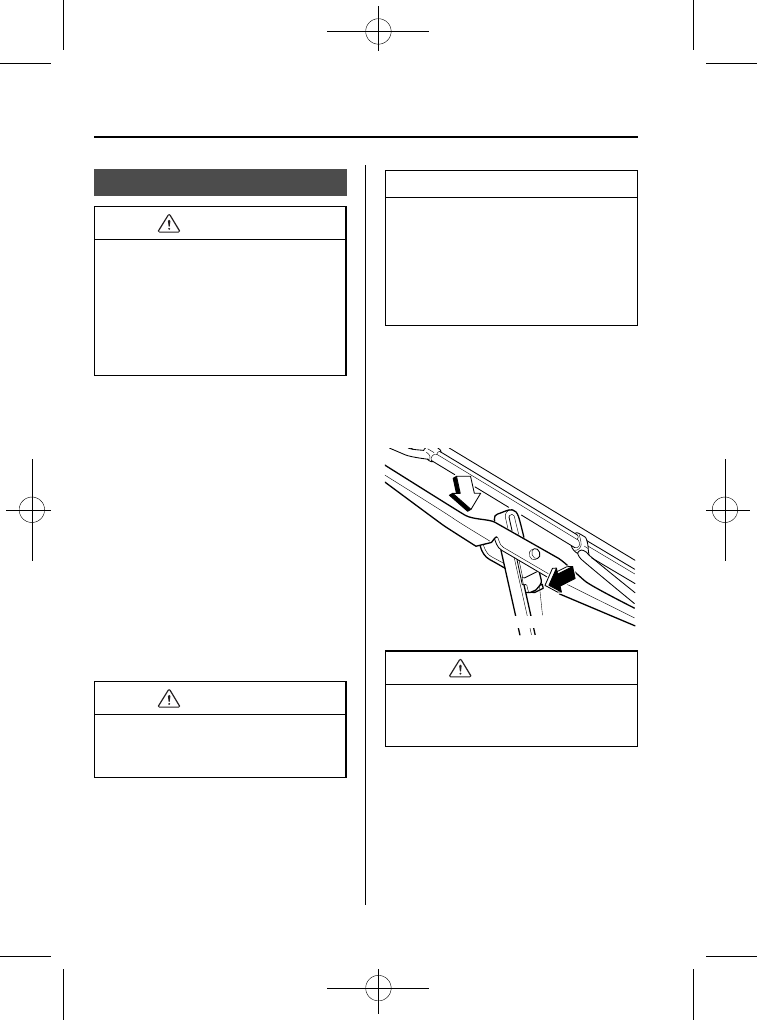

qReplacing Windshield Wiper Blades

When the wipers no longer clean well, the
blades are probably worn or cracked.
Replace them.

CAUTION

To prevent damage to the wiper arms
and other components, don't try to
sweep the wiper arm by hand.

NOTE

To prevent damage to the wiper arm
blades when raising both the driver and
passenger side wiper arms, raise the
driver side wiper arm first. Conversely,
when setting down the wiper arms, set
the passenger side wiper arm down
first.

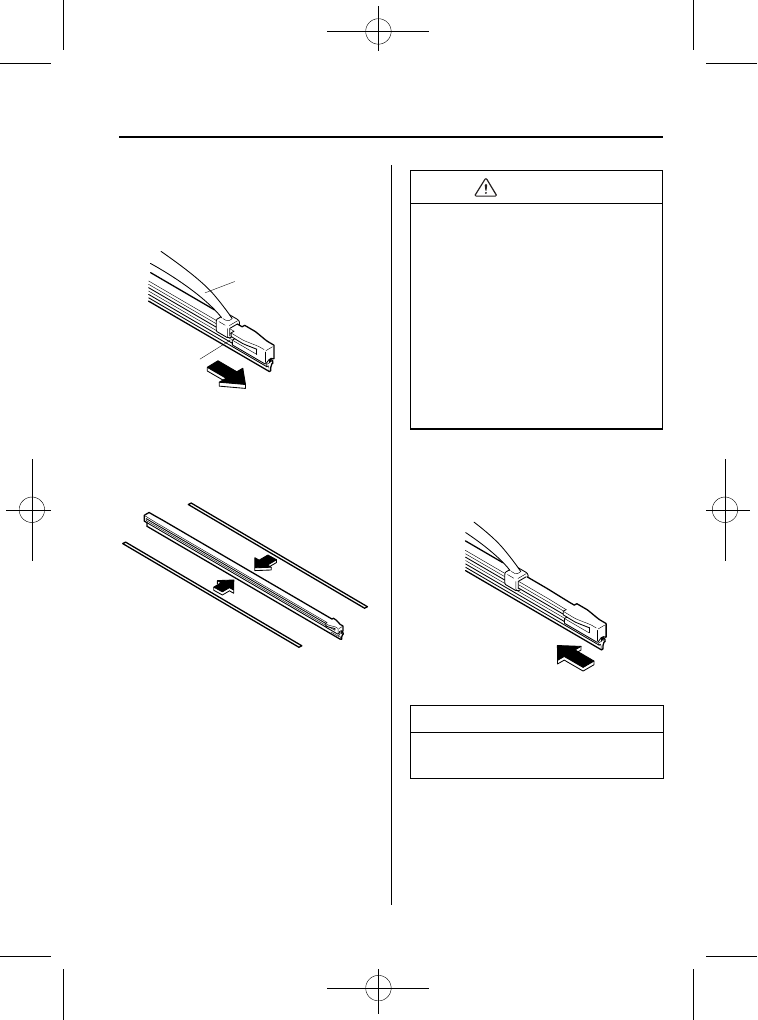

1. Raise the wiper arm and turn the blade

assembly to expose the plastic locking
clip.
Compress the clip and slide the
assembly downward; then lift it off the
arm.

Plastic locking clip

CAUTION

To prevent damage to the windshield let
the wiper arm down easily, don't let it
slap down on the windshield.

8-20

Maintenance and Care

Owner Maintenance

Mazdaspeed6_8V77-EA-06F_Edition1 Page274
Tuesday, May 9 2006 10:45 AM

Black plate (275,1)

2. Hold the end of the rubber and pull

until the tabs are free of the metal
support.

Metal support

Tab

3. Remove the metal stiffeners from the

blade rubber and install them in the
new blade.

CAUTION

Don't bend or discard the stiffeners.
You need to use them again.

If the metal stiffeners are switched,
the blade's wiping efficiency could
be reduced.
So don't use the driver's side metal
stiffeners on the passenger's side, or
vice versa.

Be sure to reinstall the metal
stiffeners in the new blade rubber so
that the curve is the same as it was in
the old blade rubber.

4. Carefully insert the new blade rubber.

Then install the blade assembly in the
reverse order of removal.

NOTE

Install the blade so that the tabs are
toward the bottom of the wiper arm.

Maintenance and Care

Owner Maintenance

8-21

Mazdaspeed6_8V77-EA-06F_Edition1 Page275
Tuesday, May 9 2006 10:45 AM

Black plate (276,1)

Battery

WARNING

Battery-Related Lead Materials:
Battery posts, terminals and related accessories contain lead and lead compounds,
chemicals known to the State of California to cause cancer and reproductive harm.
Wash hands after handling.

Follow These Precautions Carefully:

To ensure safe and correct handling of the battery, read the following precautions
carefully before using the battery or inspecting it.

Eye Protection:

Working without eye protection is dangerous. Battery fluid contains SULFURIC
ACID which could cause blindness if splashed into your eyes. Also, hydrogen gas
produced during normal battery operation, could ignite and cause the battery to
explode. Always wear eye protection when working near the battery.

Spilled Battery Fluid:

Spilled battery fluid is dangerous.
Battery fluid contains SULFURIC ACID which could cause serious injuries if it gets
in eyes, skin or clothing. If this happens, immediately flush your eyes with water for
15 minutes or wash your skin thoroughly and get medical attention. Wear eye
protection and protective gloves to prevent contact with battery fluid.

Children and Batteries:

Allowing children to play near batteries is dangerous. Battery fluid could cause
serious injuries if it gets in the eyes or on the skin. Always keep batteries out of the
reach of children.

8-22

Maintenance and Care

Owner Maintenance

Mazdaspeed6_8V77-EA-06F_Edition1 Page276
Tuesday, May 9 2006 10:45 AM

Black plate (277,1)

WARNING

Keep Flames Away:

Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. Keep all flames including
cigarettes and sparks away from open battery cells. When working near a battery, do
not allow metal tools to contact the positive (

) or negative (

) terminal of the

battery. Do not allow the positive (

) terminal to contact the vehicle body.

Battery-Related Explosion:

Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. Keep all flames, including
cigarettes, and sparks away from open battery cells.

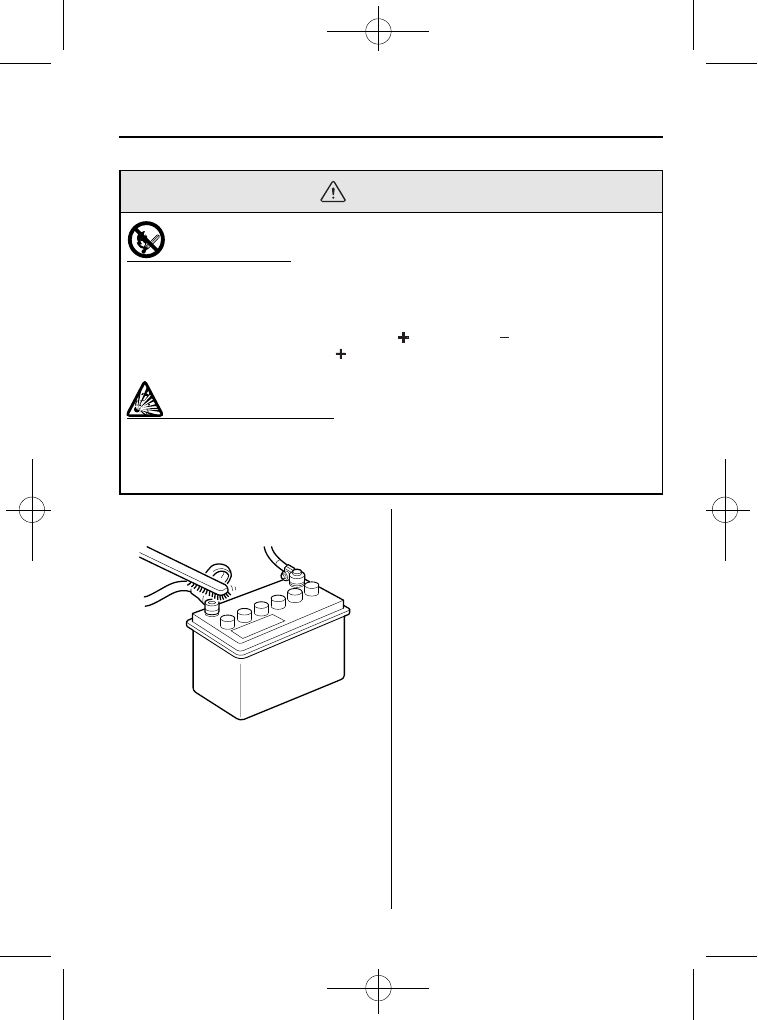

qBattery Maintenance

To get the best service from a battery:

Keep it securely mounted.

Keep the top clean and dry.

Keep terminals and connections clean,
tight, and coated with petroleum jelly
or terminal grease.

Rinse off spilled electrolyte
immediately with a solution of water
and baking soda.

If the vehicle will not be used for an
extended time, disconnect the battery
cables and charge the battery every six
weeks.

Maintenance and Care

Owner Maintenance

8-23

Mazdaspeed6_8V77-EA-06F_Edition1 Page277
Tuesday, May 9 2006 10:45 AM

Black plate (278,1)

Tires

For reasons of proper performance, safety,
and better fuel economy, always maintain
recommended tire inflation pressures and
stay within the recommended load limits
and weight distribution.

WARNING

Using Different Tire Types:
Driving your vehicle with different
types of tires is dangerous. It could
cause poor handling and poor
braking; leading to loss of control.
Except for the limited use of the
temporary spare tire, use only the
same type tires (radial, bias-belted,
bias-type) on all four wheels.

Using Wrong-Sized Tires:
Using any other tire size than what is
specified for your Mazda (page 10-6)
is dangerous. It could seriously affect
ride, handling, ground clearance, tire
clearance, and speedometer
calibration. This could cause you to
have an accident. Use only tires that
are the correct size specified for your
Mazda.

qTire Inflation Pressure

WARNING

Incorrect Tire Inflation:
Overinflation or underinflation of tires
is dangerous. Adverse handling or
unexpected tire failure could result in
a serious accident. Always inflate the
tires to the correct pressure (page
10-6).

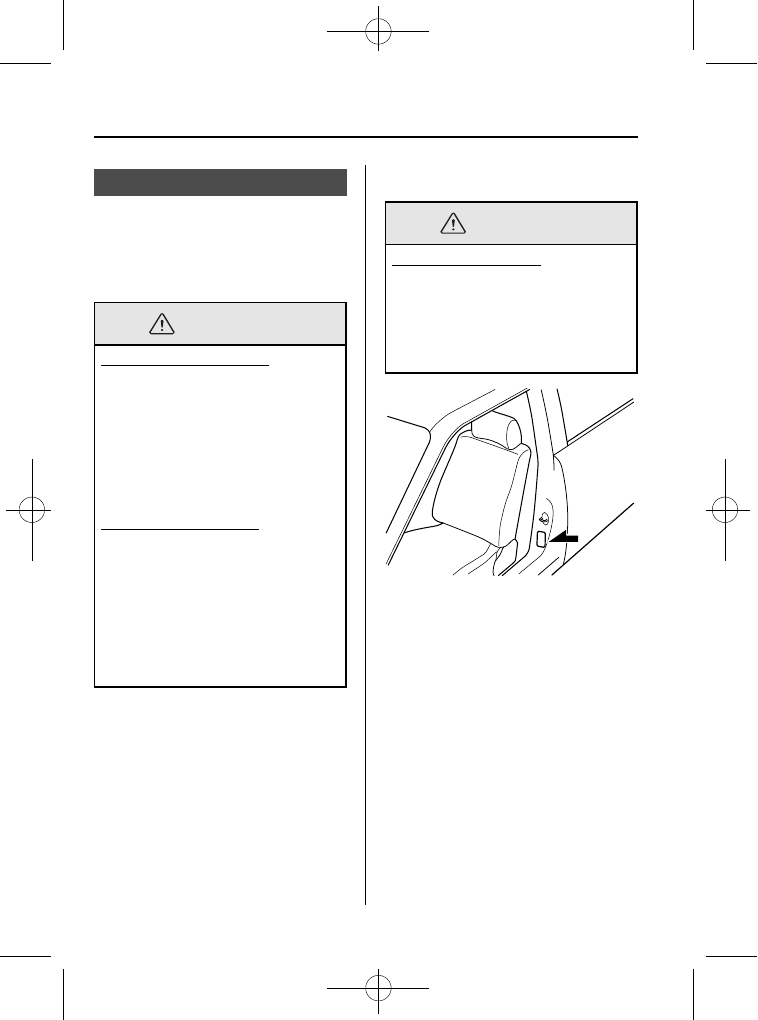

Refer to the specification charts (page
10-6).

8-24

Maintenance and Care

Owner Maintenance

Mazdaspeed6_8V77-EA-06F_Edition1 Page278
Tuesday, May 9 2006 10:45 AM

Black plate (279,1)

NOTE

Always check tire pressure when
tires are cold.

Warm tires normally exceed
recommended pressures. Don't
release air from warm tires to adjust
the pressure.

Underinflation can cause reduced
fuel economy, uneven and
accelerated tire wear, and poor
sealing of the tire bead, which will
deform the wheel and cause
separation of tire from rim.

Overinflation can produce a harsh
ride, uneven and accelerated tire
wear, and a greater possibility of
damage from road hazards.
Keep your tire pressure at the correct
levels. If one frequently needs
inflating, have it inspected.

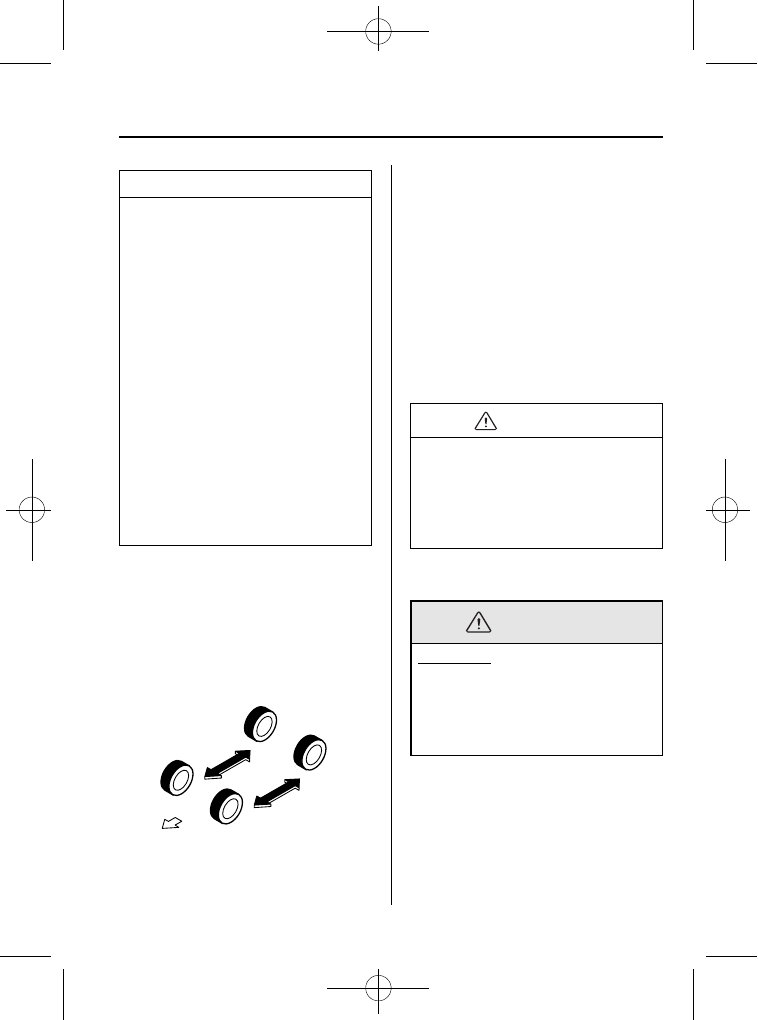

qTire Rotation

To equalize tread wear, rotate the tires if
irregular wear develops. According to the
scheduled maintenance charts.Refer to
Scheduled Maintenance on page 8-3.
During rotation, inspect them for correct
balance.

Do not include (TEMPORARY USE ONLY)
spare tire in rotation.

Forward

Also, inspect them for uneven wear and
damage. Abnormal wear is usually caused
by one or a combination of the following:

Incorrect tire pressure

Improper wheel alignment

Out-of-balance wheel

Severe braking

After rotation, inflate all tire pressures to
specification (page 10-6) and inspect the
lug nuts for tightness.

CAUTION

Rotate unidirectional tires and radial
tires that have an asymmetrical tread
pattern or studs only from front to rear,
not from side to side. Tire performance
will be weakened if rotated from side to
side.

qReplacing a Tire

WARNING

Worn Tires:
Driving with worn tires is dangerous.
Reduced braking, steering, and
traction could result in an accident.
Always use tires that are in good
condition.

Maintenance and Care

Owner Maintenance

8-25

Mazdaspeed6_8V77-EA-06F_Edition1 Page279
Tuesday, May 9 2006 10:45 AM

Black plate (280,1)

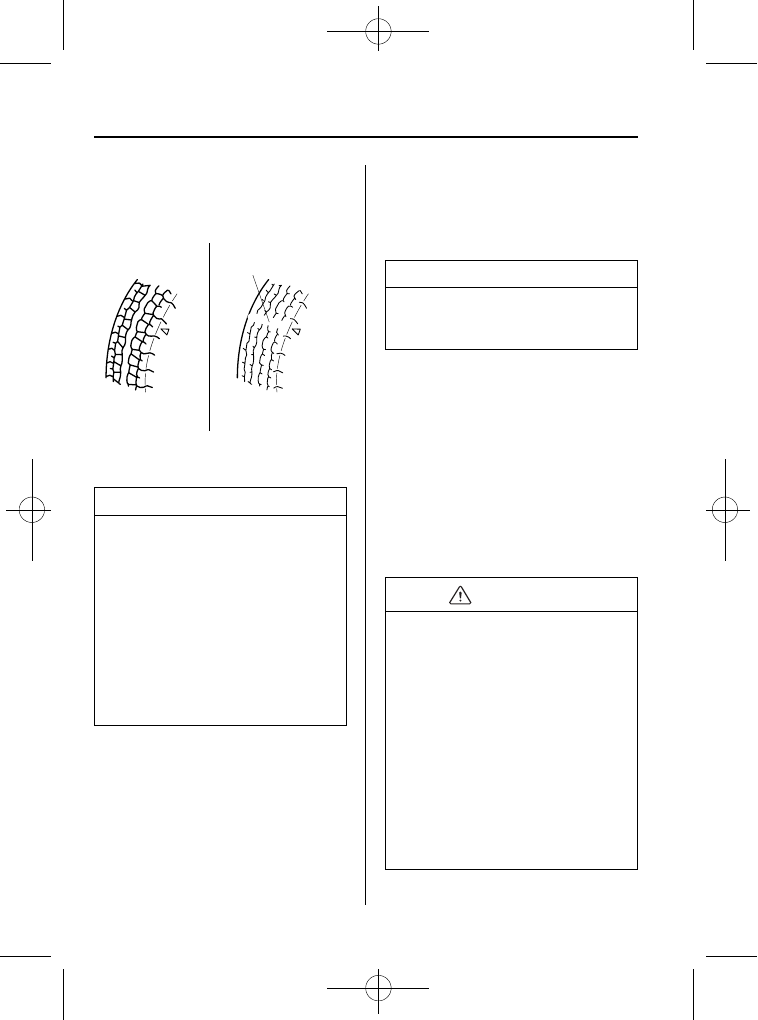

If a tire wears evenly, a wear indicator
will appear as a solid band across the
tread.
Replace the tire when this happens.

New tread

Tread wear indicator

Worn tread

You should replace it before the band is
across the entire tread.

NOTE

Tires degrade over time, even when
they are not being used on the road. It is
recommended that tires generally be
replaced when they are 6 years or older.
Heat caused by hot climates or frequent
high loading conditions can accelerate
the aging process. You should replace
the spare tire when you replace the
other road tires due to the aging of the
spare tire. Regarding the manufacturing
week and year is indicated with 4 digit.
Refer to The tire labeling on page 9-18.

qTemporary Spare Tire

Inspect the temporary spare tire at least
monthly to make sure it's properly inflated
and stored.

NOTE

The temporary spare tire condition
gradually deteriorates even if it has not
been used.

The temporary spare tire is easier to
handle because of its construction. It is
lighter and smaller than a conventional
tire and should be used only for an
emergency and only for a short distance.

Use the temporary only until the
conventional tire is repaired, which should
be as soon as possible.

Maintain its pressure at 420 kPa (4.2
kgf/cm

or bar, 60 psi).

CAUTION

Don't use your temporary spare tire
rim with a snow tire or a
conventional tire. Neither will
properly fit and could damage both
tire and rim.

The temporary spare tire has a tread
life of less than 5,000 km (3,000
miles). The tread life may be shorter
depending on driving conditions.

The temporary spare tire is for
limited use, however, if the tread
wear solid-band indicator appears,
replace the tire with the same type of
temporary spare (page 8-25).

8-26

Maintenance and Care

Owner Maintenance

Mazdaspeed6_8V77-EA-06F_Edition1 Page280
Tuesday, May 9 2006 10:45 AM

Mazda Mazdaspeed 6 (2007 year). Instruction - part 17
