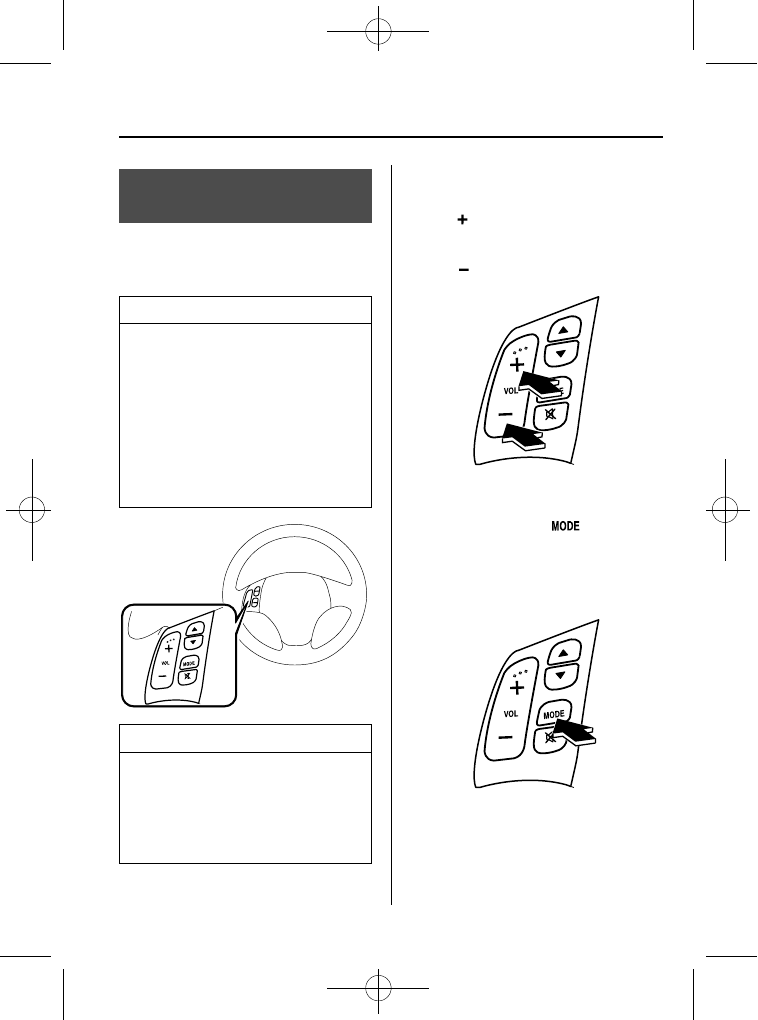

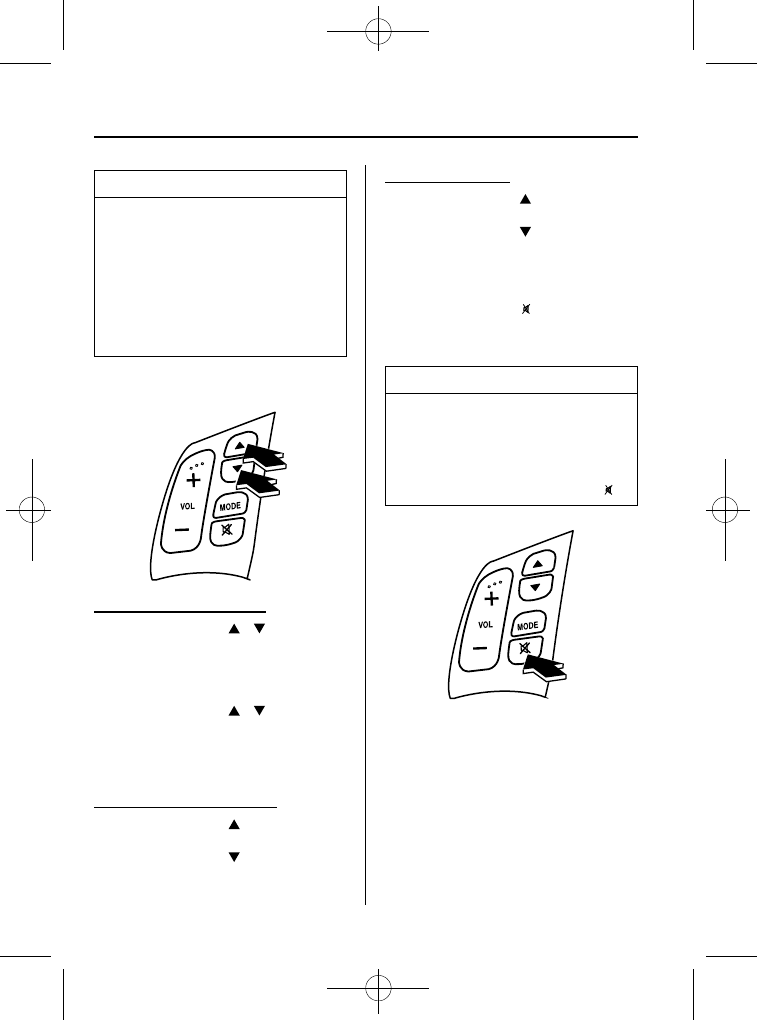

Audio Control Switch
Operation (Steering Wheel)

When the audio unit is turned on,
operation of the audio unit from the
steering wheel is possible.

NOTE

Because the audio unit will be turned
off under the following conditions, the
switches will be inoperable.

When the ignition switch is turned to
the LOCK position.

When the power button on the audio
unit is pressed and the audio unit is
turned off.

When all CDs are ejected.

NOTE

Mazda has installed this system to
prevent distraction while driving the
vehicle and using audio controls on the
dashboard.
Always make safe driving your first
priority.

qAdjusting the Volume

To increase the volume, press the volume
button (

To decrease the volume, press the volume
button (

qChanging the Source

Press the mode switch (

) to change

the audio source (FM1 radio> FM2 radio>
AM radio> CD changer> Cassette tape
player> SIRIUS1> SIRIUS2> SIRIUS3>
cyclical).

Interior Comfort

Audio System

6-37

Mazdaspeed6_8V77-EA-06F_Edition1 Page217
Tuesday, May 9 2006 10:45 AM

Black plate (218,1)

NOTE

Cassette tape, CD changer, and SIRIUS
digital satellite radio modes cannot be
selected in the following cases:

A cassette deck, CD changer, or
SIRIUS digital satellite radio unit is
not equipped on the audio system.

A cassette tape, or CD has not been
inserted.

qSeek Switch

When listening to the radio

Press the seek switch (

), the radio

switches to the next/previous stored
station in the order that it was stored
(1

―6).

Press the seek switch (

) for about 2

seconds until a beep sound is heard to
seek all usable stations at a higher or
lower frequency whether programmed or
not.

When playing a cassette tape

Press the seek switch (

), release, and it

will advance to the next selection.
Press the seek switch (

), release, and it

will repeat the selection being played.

When playing a CD

Press the seek switch (

) to skip to the

next track.
Press the seek switch (

) to repeat the

current track.

qMute Switch

Press the mute switch ( ) once to mute
audio, press it again to resume audio
output.

NOTE

If the ignition switch is turned to the
LOCK position with the audio muted,
the mute will be canceled.
Therefore, when the engine is restarted,
the audio is not muted. To mute the
audio again, press the mute switch ( ).

6-38

Interior Comfort

Audio System

Mazdaspeed6_8V77-EA-06F_Edition1 Page218
Tuesday, May 9 2006 10:45 AM

Black plate (219,1)

Safety Certification

This CD player is made and tested to meet exacting safety standards. It meets FCC
requirements and complies with safety performance standards of the U.S. Department of
Health and Human Services.

CAUTION

This CD player should not be adjusted or repaired by anyone except qualified service
personnel.
If servicing is required, contact an Authorized Mazda Dealer.

Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous laser exposure. Never operate the CD player
with the top case of the unit removed.

Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.

NOTE

For CD player section:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.

Interior Comfort

Audio System

6-39

Mazdaspeed6_8V77-EA-06F_Edition1 Page219
Tuesday, May 9 2006 10:45 AM

Black plate (220,1)

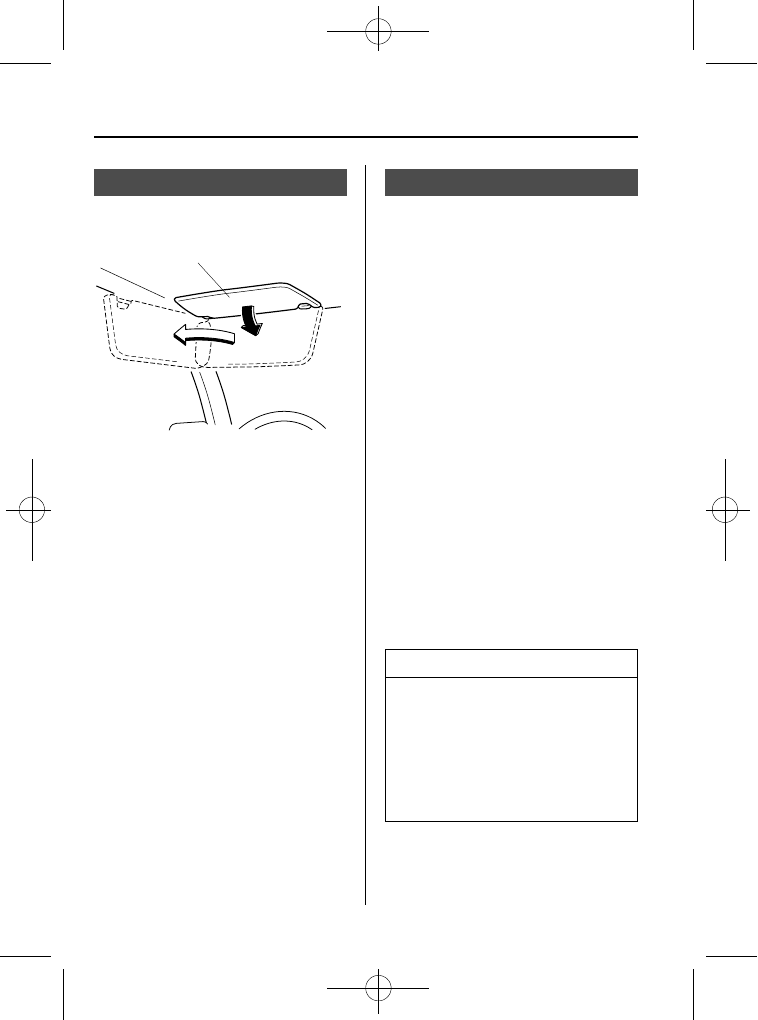

Sunvisors

When you need a sunvisor, lower it for
use in front or swing it to the side.

Sunvisor

qVanity Mirrors

To use the vanity mirror, lower the
sunvisor.
The vanity mirror light will illuminate
when you open the cover.

Interior Lights

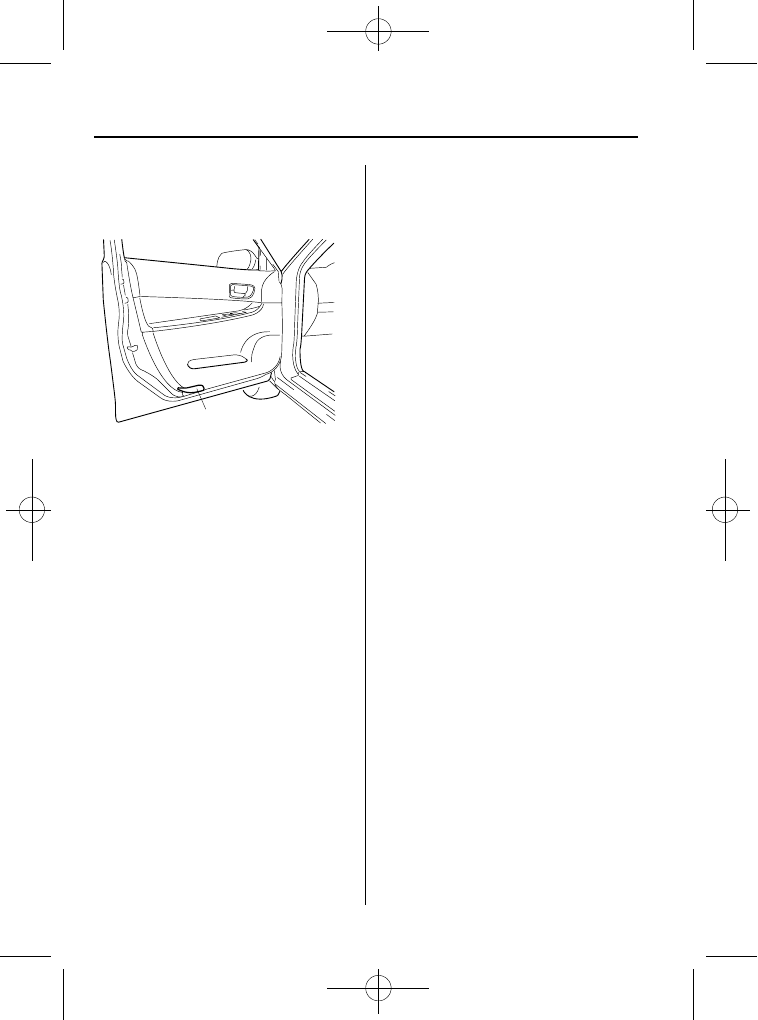

qIlluminated Entry System

When the illuminated entry system
operates, the overhead light (switch is in
the DOOR position) and the courtesy
lights turn on for:

About 30 seconds after the driver's
door is unlocked and the ignition
switch is in the LOCK position (with
the ignition key removed).

About 15 seconds after all doors are
closed (If your vehicle is equipped with
the advanced key, the overhead light
turns on for about 5 seconds when the
advanced key is outside of the vehicle).

About 15 seconds after the ignition
switch is in the LOCK position (with
the ignition key removed) with all
doors closed.

The light also turns off when:

The ignition switch is turned to the ON
position and all doors are closed.

The driver's door is locked.

NOTE

Battery saver
If any door is left opened, the light goes
out after about 30 minutes to save the
battery.
The light turns on again when the
ignition switch is turned to the ON
position, or when any door is opened
after all doors have been closed.

6-40

Interior Comfort

Mazdaspeed6_8V77-EA-06F_Edition1 Page220
Tuesday, May 9 2006 10:45 AM

Black plate (221,1)

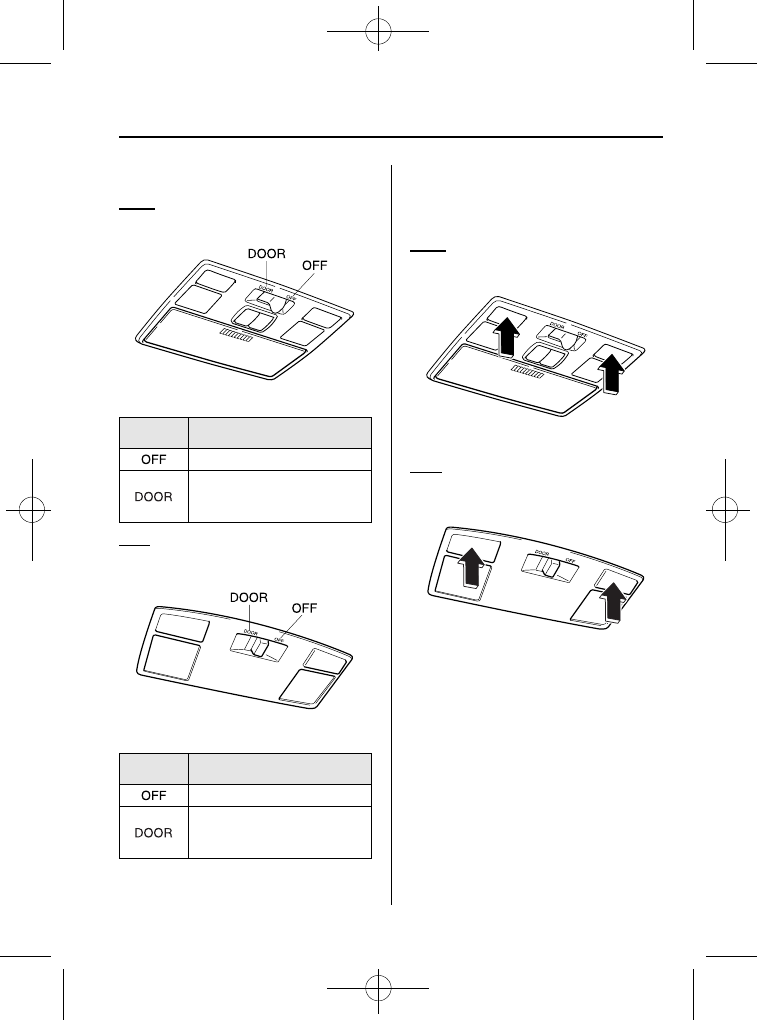

qOverhead Lights

Front

Switch

Position

Front Overhead Lights

Light off

Light on when any door is open

Light on or off when the
illuminated entry system is on

Rear

Switch

Position

Rear Overhead Lights

Light off

Light on when any door is open

Light on or off when the
illuminated entry system is on

qMap Lights

The map lights are switched on or off by
pressing the switches.

Front

Rear

Interior Comfort

6-41

Mazdaspeed6_8V77-EA-06F_Edition1 Page221
Tuesday, May 9 2006 10:45 AM

Black plate (223,1)

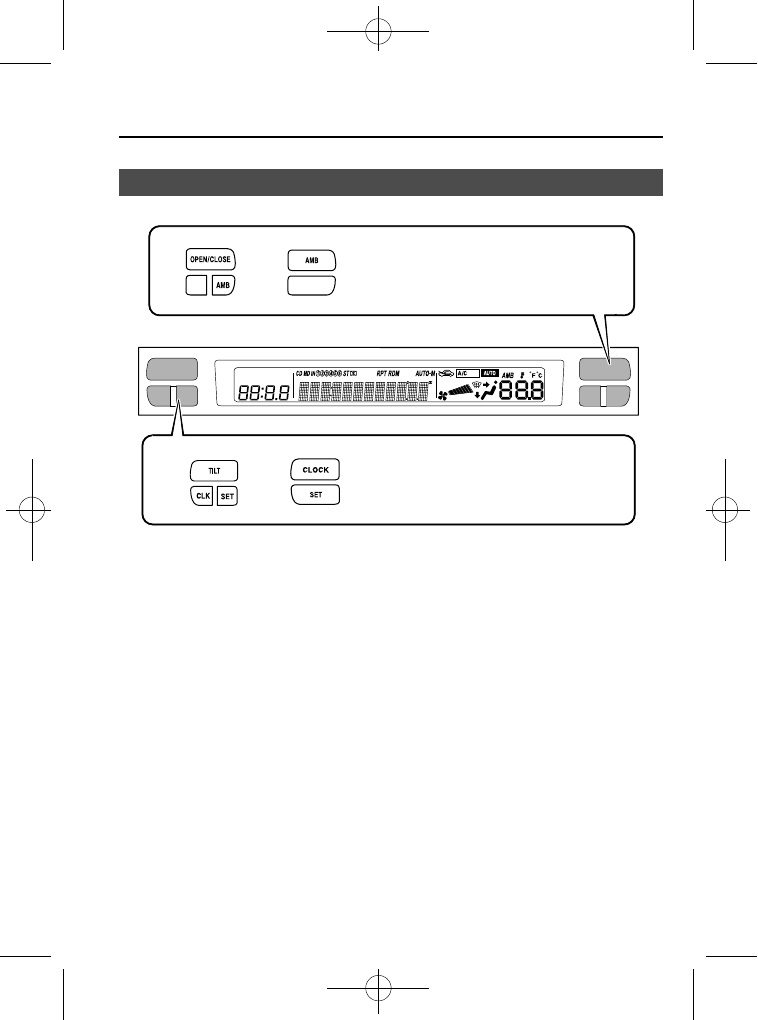

Information Display

OPEN/CLOSE switch (with navigation system)

AMB switch (with outside temperature display )

TILT switch (with navigation system)

CLOCK/CLK switch

SET switch

qInformation Display Functions

The information display has the following functions:

Clock

Ambient Temperature Display (Outside Temperature Display)

Climate Control Display

Audio Display

Interior Comfort

6-43

Mazdaspeed6_8V77-EA-06F_Edition1 Page223
Tuesday, May 9 2006 10:45 AM

Black plate (224,1)

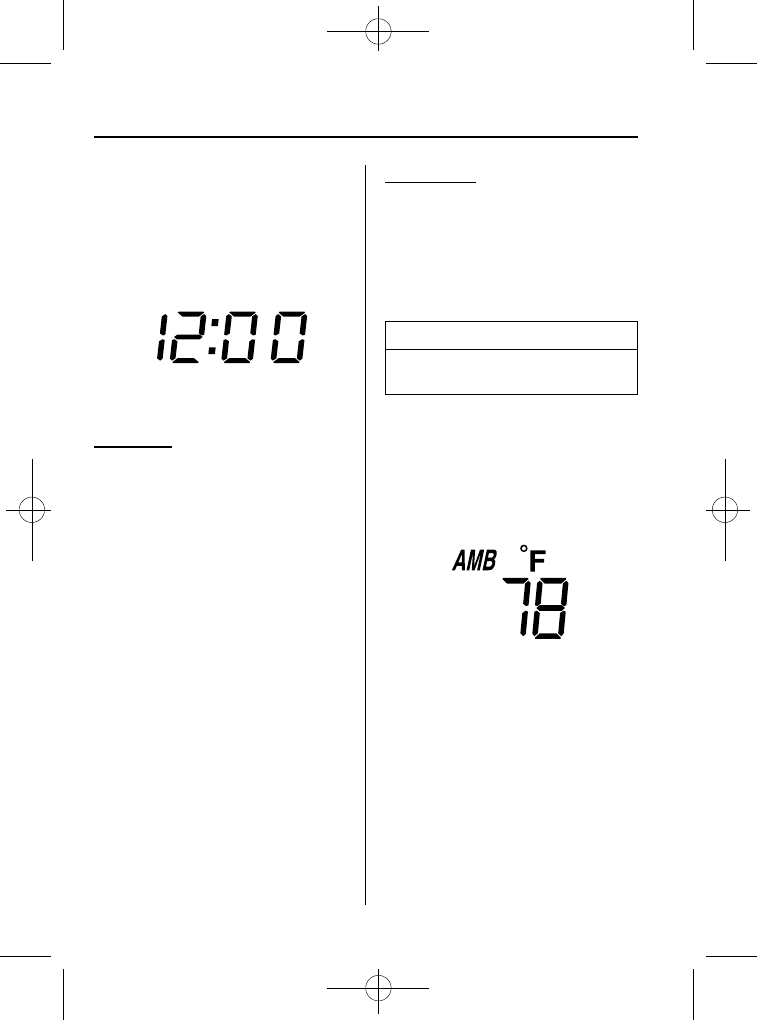

qClock

When the ignition switch is in the ACC or
ON position, the time is displayed.

Time setting

1. Press the CLOCK/CLK switch until a

beep sounds, and

“12Hr” and “24Hr”

will be displayed.

2. Press the SET switch to switch between

“12Hr” and “24Hr” displays. The
selected display will flash.
To select the desired clock setting,
press the CLOCK/CLK switch again
while the preferred setting is flashing.

“Hr. ADJUST” will be displayed next,
and the hour portion of the display will
flash. Press the SET switch to set the
hour, then press the CLOCK/CLK
switch.

“Min. ADJUST” will be displayed
next, and the minutes portion of the
display will flash. Press the SET switch
to set the minutes, then press the
CLOCK/CLK switch.

Time resetting

While the clock is displayed, press the
SET switch 1.5 seconds or more. When
the switch is released, a beep will sound
and the clock will be reset as follows:
(Example)
12:01

―12:29→12:00

12:30

―12:59→1:00

NOTE

When the SET switch is released, the
seconds are reset to

“00”.

qAmbient Temperature Display

When the ignition switch is in the ON
position, press the AMB switch to display
the ambient temperature.

6-44

Interior Comfort

Mazdaspeed6_8V77-EA-06F_Edition1 Page224
Tuesday, May 9 2006 10:45 AM

Black plate (225,1)

NOTE

Under the following conditions, the
ambient temperature display may
differ from the actual ambient
temperature depending on the
surroundings and vehicle conditions:

Significantly cold or hot
temperatures.

Sudden changes in ambient
temperature.

The vehicle is parked.

The vehicle is driven at low
speeds.

Press the AMB switch 2 seconds or
more to switch the display from
Fahrenheit to Centigrade or vice
versa.

Press the AMB switch again to
switch the display from ambient
temperature to the temperature set
for the air conditioner.

qClimate Control Display

The climate control system status is
displayed. To operate the climate control
system, refer to

“Climate Control System”

(page 6-2).

qAudio Display

The audio system status is displayed. To
operate the audio system, refer to

“Audio System” (page 6-10).

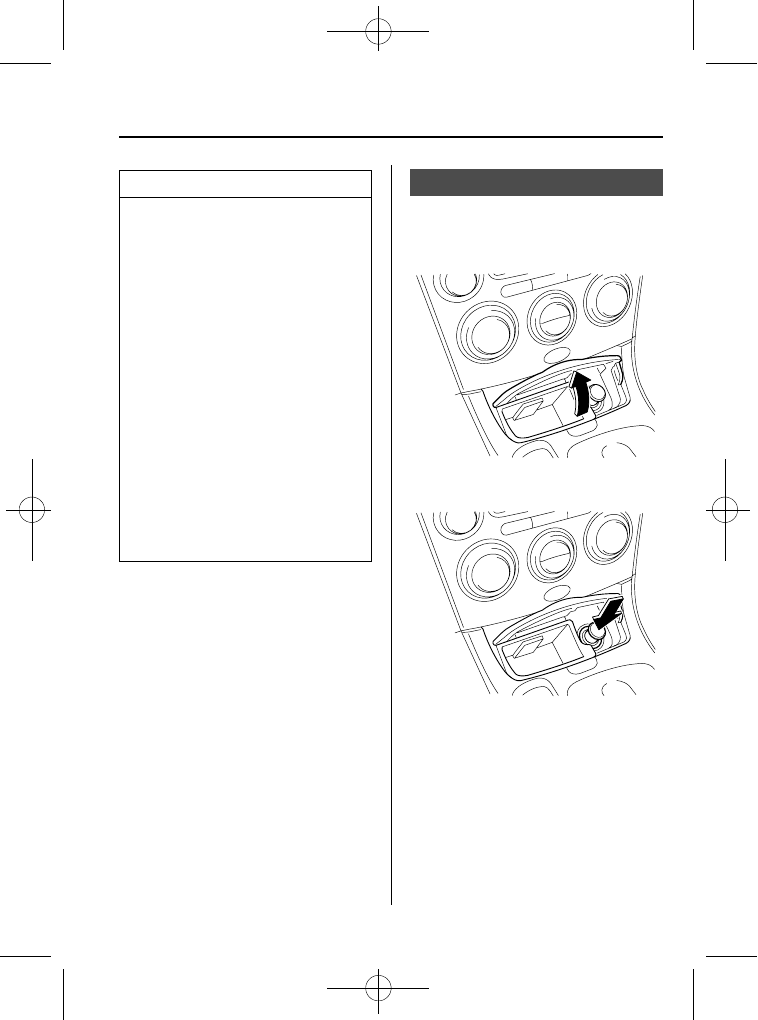

Lighter

The ignition switch must be in the ACC
or ON position.

1. Open the cover.

2. Press the lighter in and release it. When

ready for use, it automatically pops out.

Interior Comfort

6-45

Mazdaspeed6_8V77-EA-06F_Edition1 Page225
Tuesday, May 9 2006 10:45 AM

Black plate (226,1)

CAUTION

Don't touch the metal part of the
lighter, you may burn yourself.

Don't hold the lighter in because it
will overheat.

Don't use the lighter socket for plug-
in accessories such as shavers and
coffee pots. They may damage it or
cause electrical failure. Use only a
genuine Mazda lighter or the
equivalent.

If the lighter doesn't pop out within
30 seconds, remove it to prevent
overheating.

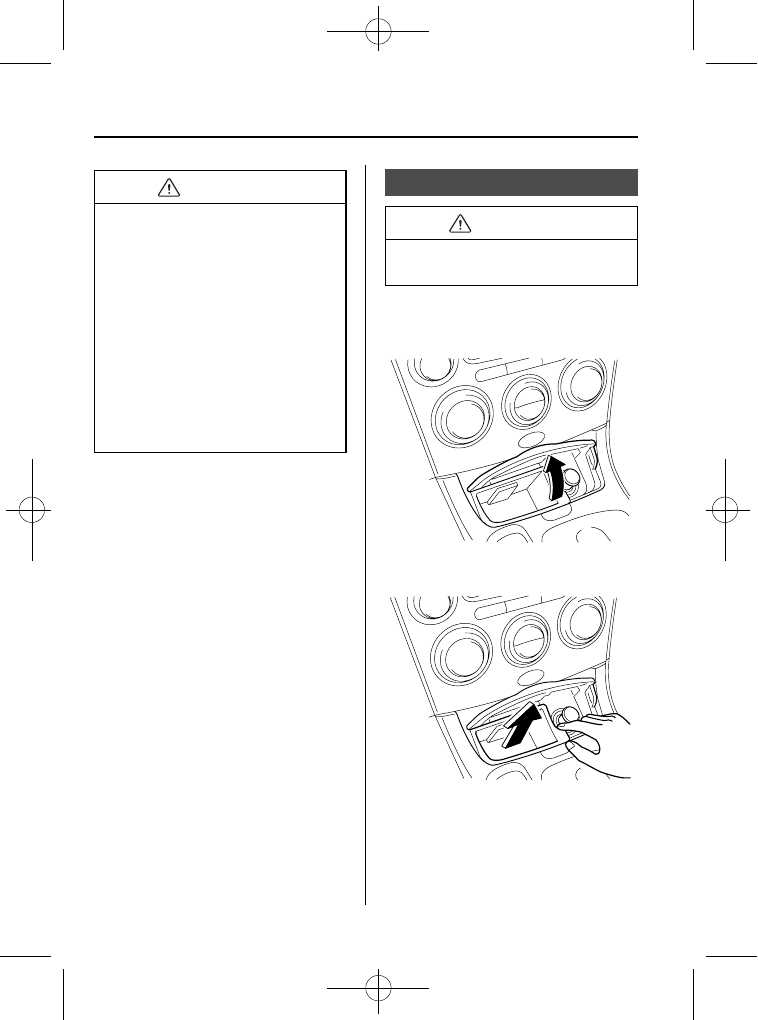

Ashtray

CAUTION

Don't use the ashtray for trash. You
might start a fire.

qFront

To use, open the cover.

To remove, open the cover and pull up the
ashtray.

6-46

Interior Comfort

Mazdaspeed6_8V77-EA-06F_Edition1 Page226
Tuesday, May 9 2006 10:45 AM

Black plate (227,1)

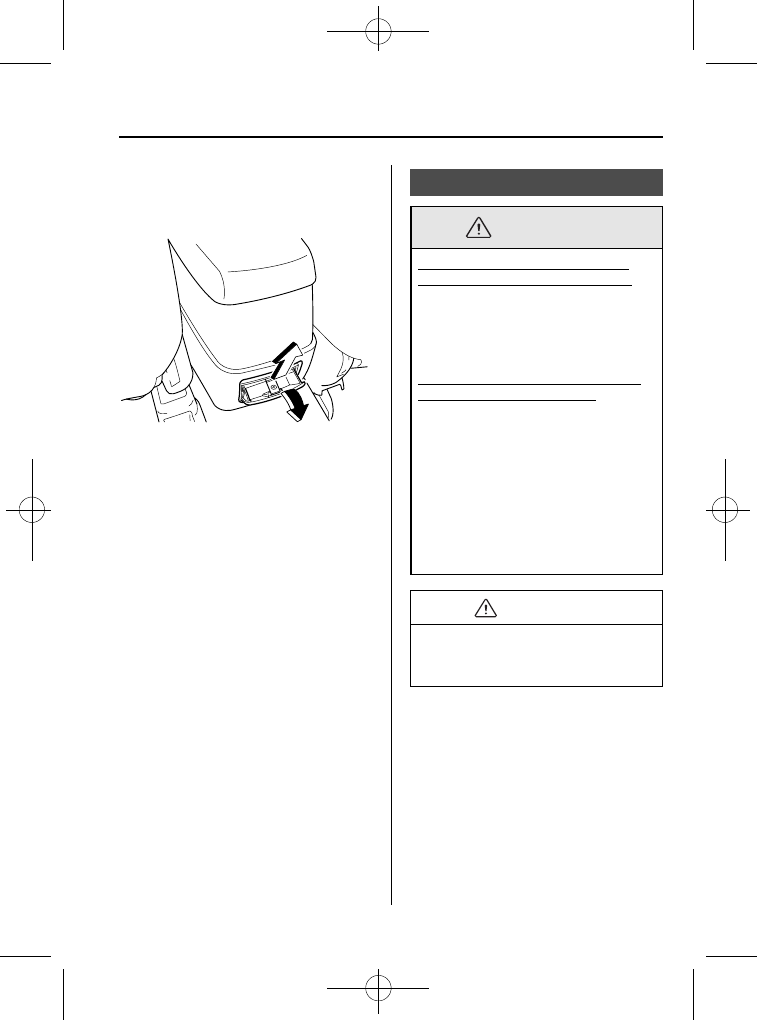

qRear

To remove, open the ashtray lid, grasp
both sides of the ashtray and pull it out.

Cup Holder

WARNING

Never use a cup holder to hold hot
liquids while the vehicle is moving:
Using a cup holder to hold hot liquids
while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.

Do not put anything other than cups
or drink cans in cup holders:
Putting objects other than cups or
drink cans in a cup holder is
dangerous.
During sudden braking or
maneuvering, occupants could be hit
and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.

CAUTION

To reduce the possibility of injury in an
accident or a sudden stop, keep cup
holders closed when not in use.

Interior Comfort

6-47

Mazdaspeed6_8V77-EA-06F_Edition1 Page227
Tuesday, May 9 2006 10:45 AM

Black plate (228,1)

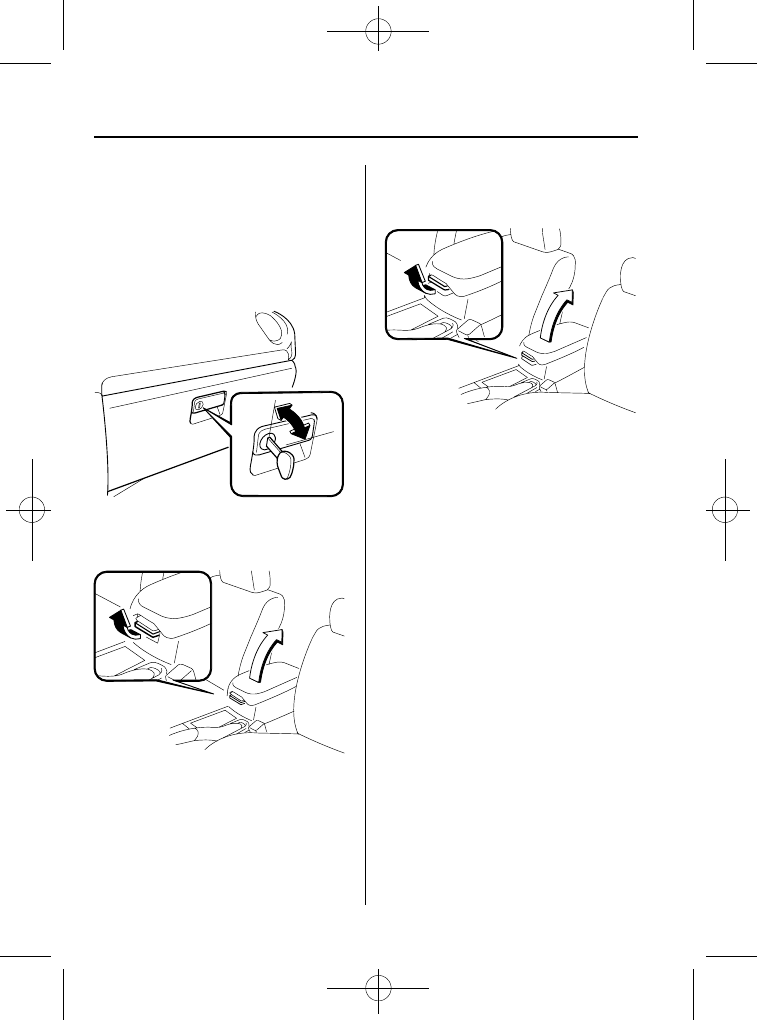

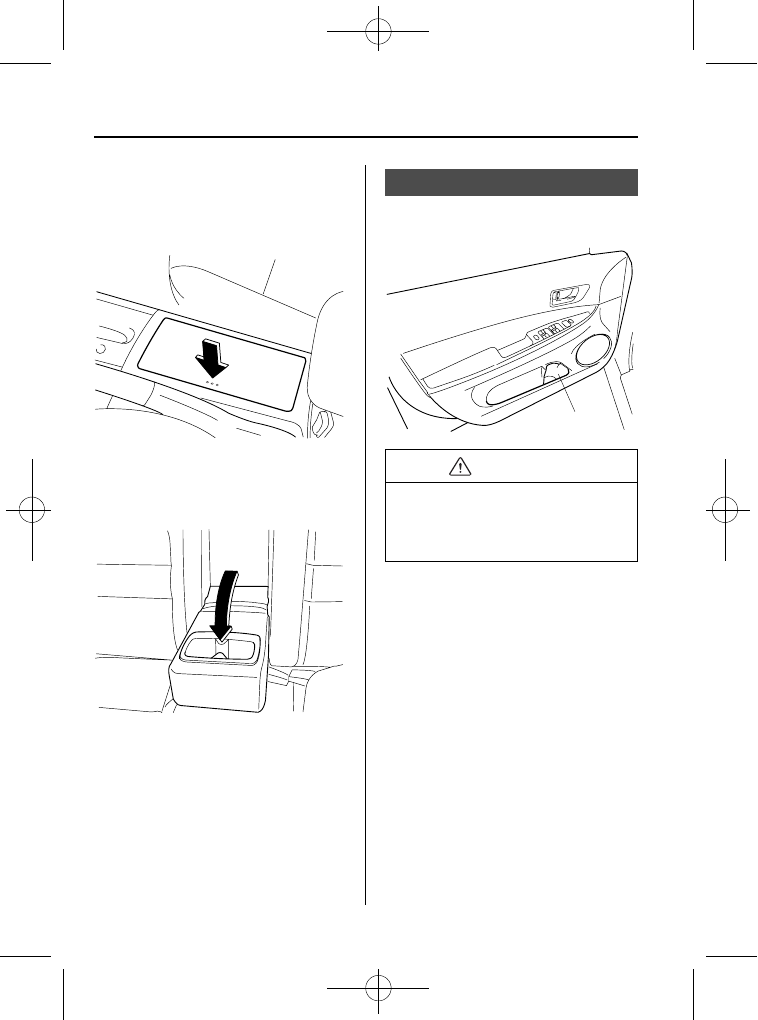

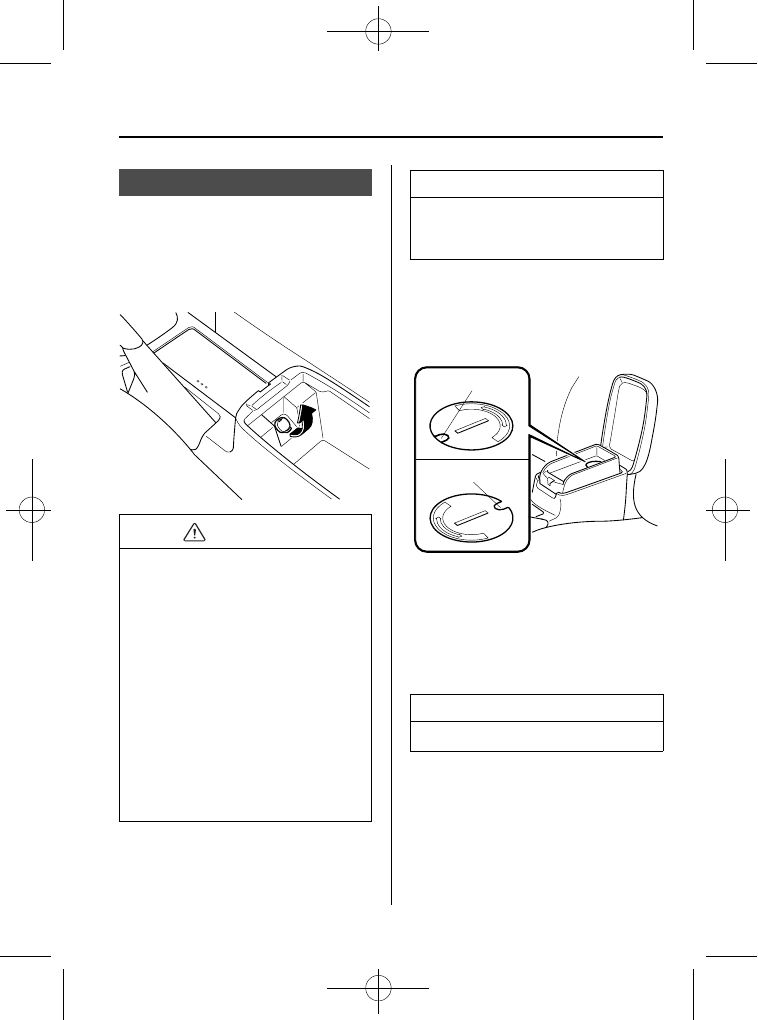

qFront

To use the cup holder, open the center
console by pressing the lower center part
of its cover.

qRear

The rear cup holder is on the rear center
armrest.

Bottle Holder

Bottle holders are on the inside of the
front doors.

Bottle holder

CAUTION

Do not use the bottle holders for
containers without caps. The contents
may spill when the door is opened or
closed.

6-48

Interior Comfort

Mazdaspeed6_8V77-EA-06F_Edition1 Page228
Tuesday, May 9 2006 10:45 AM

Black plate (229,1)

Storage Compartments

WARNING

Keep storage boxes closed when
driving:
Driving with the storage boxes open is
dangerous. To reduce the possibility of
injury in an accident or a sudden stop,
keep the storage boxes closed when
driving.

CAUTION

Do not leave lighters or eyeglasses in
the storage boxes while parked under
the sun. A lighter could explode or the
plastic material in eyeglasses could
deform and crack from high
temperature.

qOverhead Console

This console box is designed to store
eyeglasses or other accessories.
Push and release to open.

qStorage Pocket

To open, push the release catch down and
pull the lid downward.

qCenter Box with Lid (Without

Navigation System)

To use, pull the knob, and the lid opens
automatically.

Knob

Interior Comfort

6-49

Mazdaspeed6_8V77-EA-06F_Edition1 Page229
Tuesday, May 9 2006 10:45 AM

Black plate (230,1)

qGlove Box

To open the glove box, pull the latch
toward you.
Insert the master key (auxiliary key

) and

turn it clockwise to lock,
counterclockwise to unlock.

* Advanced key equipped vehicle

Unlock

Lock

qCenter Console

To open, pull the lower release latch.

Small items can be placed in the tray of
the center console lid.
To open it, pull the upper release latch.

6-50

Interior Comfort

Mazdaspeed6_8V77-EA-06F_Edition1 Page230
Tuesday, May 9 2006 10:45 AM

Black plate (231,1)

Accessory Sockets

The ignition switch must be in the ACC
or ON position to prevent the battery from
discharging.
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).

CAUTION

To prevent accessory socket damage or
electrical failure, pay attention to the
following:

Don't use accessories that require
more than 120 W (DC 12 V, 10 A).

Don't use accessories that are not
genuine Mazda accessories or the
equivalent.

Close the cover when the accessory
socket is not in use to prevent
foreign objects and liquids from
getting into the accessory socket.

Correctly insert the plug into the
accessory socket.

NOTE

To prevent discharging the battery, don't
use the socket for long periods with the
engine off or idling.

When placing an electrical device (e.g.
cellular phone) in the tray which is
connected to the accessory socket, pass
the connection plug cord through the slot
in the cap.

Cap slot, closed

Cap slot, opened

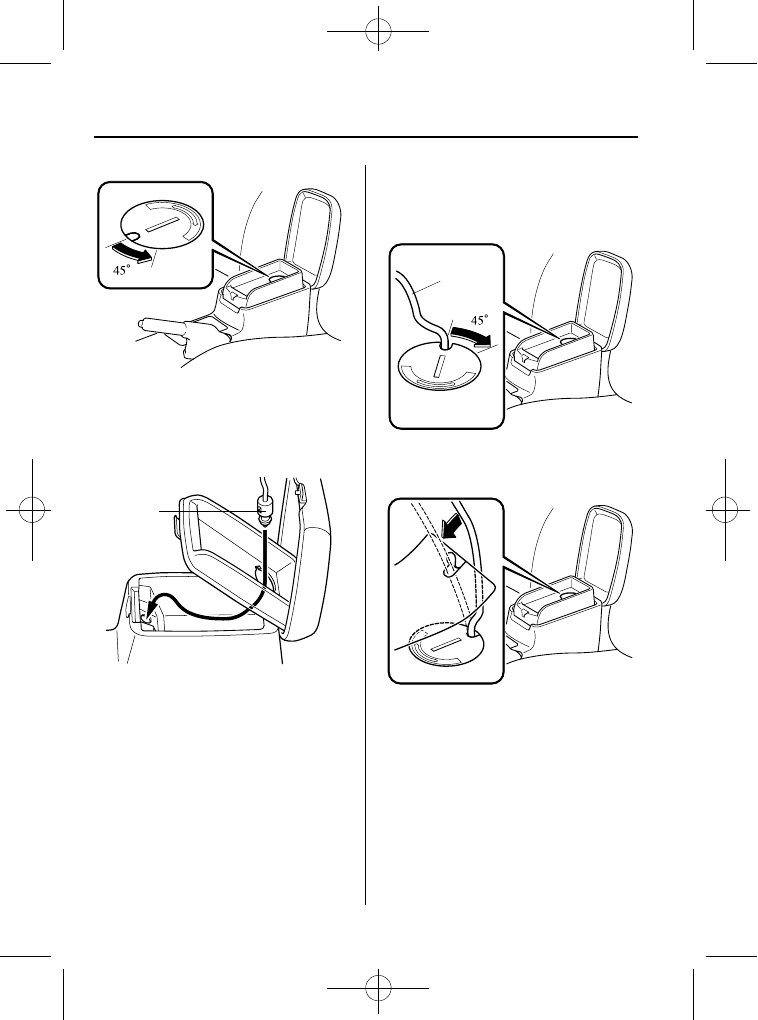

1. Open the lid by pulling the upper

release catch.

2. Remove the tray mat.

3. Using a coin, turn the cap

counterclockwise (about 45° from the
closed position) and remove it.

NOTE

Do NOT discard the cap.

Interior Comfort

6-51

Mazdaspeed6_8V77-EA-06F_Edition1 Page231
Tuesday, May 9 2006 10:45 AM

Black plate (232,1)

4. Open the tray by pulling the lower

release catch.

5. Pass the connection plug cord through

the hole of the tray and insert the plug
in the socket.

Plug

6. Make sure the connection plug cord is

running through the cap slot; reinstall
the cap and turn it clockwise (about
45° to the opened position).

Plug cord

7. Pass the connection plug cord through

the slit in the tray mat and then set the
tray mat in place.

6-52

Interior Comfort

Mazdaspeed6_8V77-EA-06F_Edition1 Page232
Tuesday, May 9 2006 10:45 AM

Mazda Mazdaspeed 6 (2007 year). Instruction - part 14
