Manual opening/closing

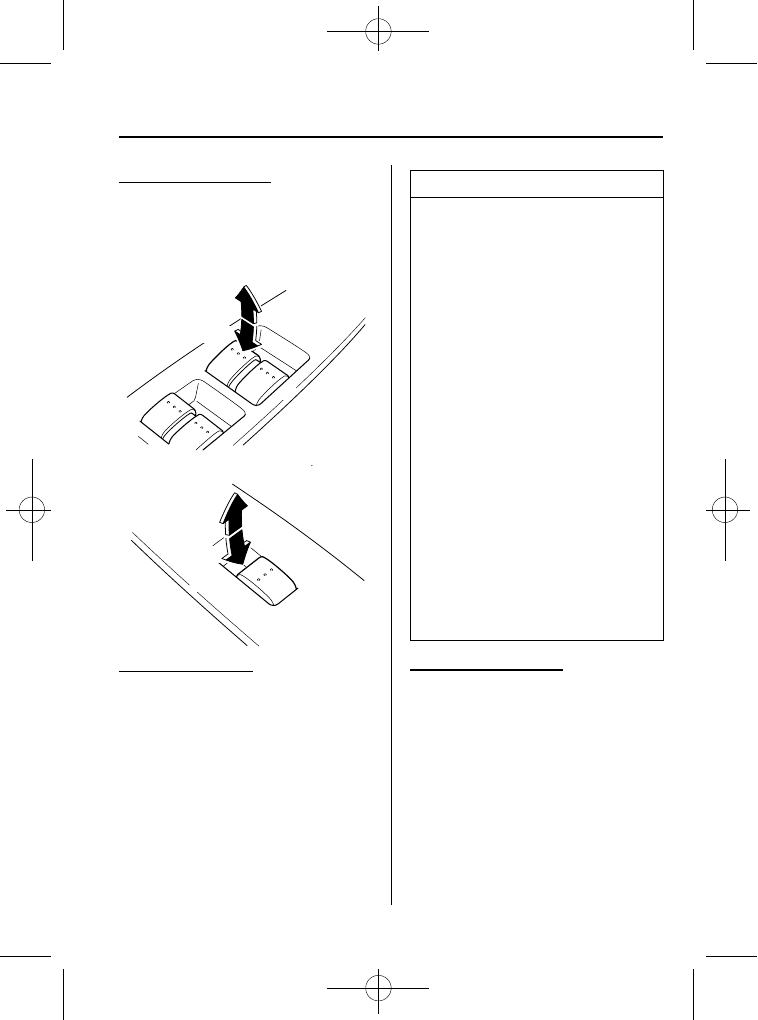

To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.

Open

Master control switches

Open

Front/rear passenger switch

Auto-opening/closing

To fully open the window automatically,
press the switch completely down.
To fully close the window automatically,
pull the switch completely up.

To stop the window partway, pull or press
the switch in the opposite direction and
then release it.

NOTE

If the battery was disconnected during
vehicle maintenance, or for other
reasons such as a switch continues to be
operated after the window is fully open/
close, the windows will not fully open
and close automatically. Re-
initialization of the automatic function
on each passenger window cannot be
performed using the master control
switches. Carry out the following
procedure on each door switch to
resume operation:

1. Turn the ignition switch to the ON

position.

2. Press the switch and fully open the

window.

3. Pull up the switch to fully close the

window and continue holding the
switch for about 2 seconds after the
window fully closed.

After the system has been re-initialized,
each passenger window can be fully
opened or closed automatically using
the master control switches.

Two-step down function

With the window completely closed, press
the switch lightly and the window will
open and stop about 3 cm (1 in) from the
top.
If you continue to press and hold the
switch, the window will resume opening
all the way.

Knowing Your Mazda

Doors and Locks

3-35

Mazdaspeed6_8V77-EA-06F_Edition1 Page105
Tuesday, May 9 2006 10:44 AM

Black plate (106,1)

NOTE

Pressing the power window switch once
when the window is fully closed will
only open it about 3 cm (1 in) to allow
convenient ventilation of the cabin.

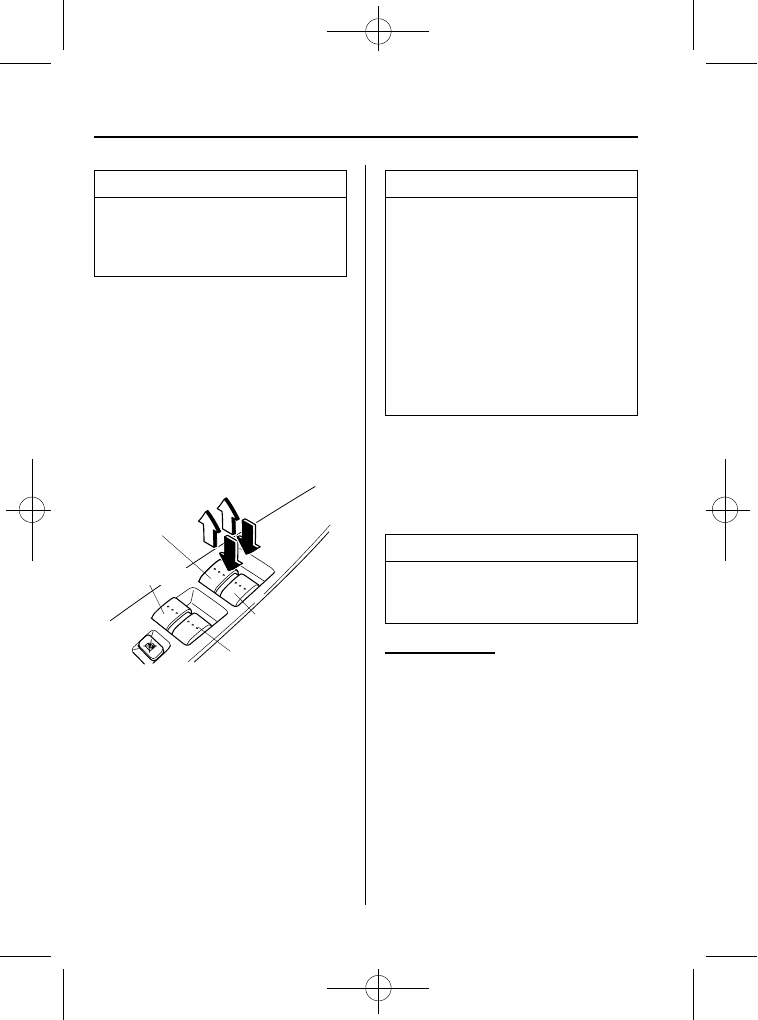

Canceling the two-step down function

To cancel the two-step down function for
each passenger window, carry out the
following procedure using the master
control switches.

1. Turn the ignition switch to the ON

position and complete the following
procedure within 5 seconds:
Press the power window switch 2 times
firmly, then pull it 2 times firmly.

Driver's window

Master control switches

Front passenger's
window

Right rear window

Left rear window

2. Turn the ignition switch to the LOCK

position.

3. With the ignition switch in the LOCK

position, and within 40 seconds, turn
the ignition switch to the ON position
and complete the following procedure
within 5 seconds:
Press the power window switch 2 times
firmly, then pull 2 times firmly.

NOTE

The two-step down function cannot
be canceled if the procedure is not
completed within the specified times,
or the procedure is changed along
the way. To redo the procedure, first
turn the ignition switch to the LOCK
position and proceed from the
beginning.

If you are unable to cancel the
function despite carrying out the
cancellation procedure, consult an
Authorized Mazda Dealer.

Restoring the two-step down function

With the two-step down function in the
canceled state, repeat the previous
procedure for canceling the function on
each door switch and it will be restored.

NOTE

If you are unable to restore the function
despite doing the restore procedure,
consult an Authorized Mazda Dealer.

Jam-safe window

If a person's hands, head or an object
blocks the window during the manual
closing operation or the auto-closing
operation, the window will stop and open
halfway.

3-36

Knowing Your Mazda

Doors and Locks

Mazdaspeed6_8V77-EA-06F_Edition1 Page106
Tuesday, May 9 2006 10:44 AM

Black plate (107,1)

WARNING

Make sure nothing blocks the window
just before it reaches the fully closed
position or while fully holding up the
power window switch:
Blocking the power window just
before it reaches the fully closed
position or while fully holding up the
power window switch is dangerous.
In this case, the jam-safe function
cannot prevent the window from
stopping. If fingers are caught, serious
injuries could occur.

NOTE

Depending on driving conditions, a
closing power window could stop and
start opening when the window feels a
shock that is similar to something
blocking it.
In the event the jam-safe function
activates and the power window cannot
be closed automatically, pull and hold
the switch fully and the window will
close.

Engine-off power window operation

The power window can be operated for
about 40 seconds after the ignition switch
is turned from the ON position to the
ACC or LOCK position with all doors
closed. If either front door is opened, the
power window will be inoperable.

NOTE

For engine-off operation of the
power window, the switch must be
held up firmly throughout window
closure because the auto-closing
function will be inoperable.

The two-step down function is
inoperable during engine-off
operation.

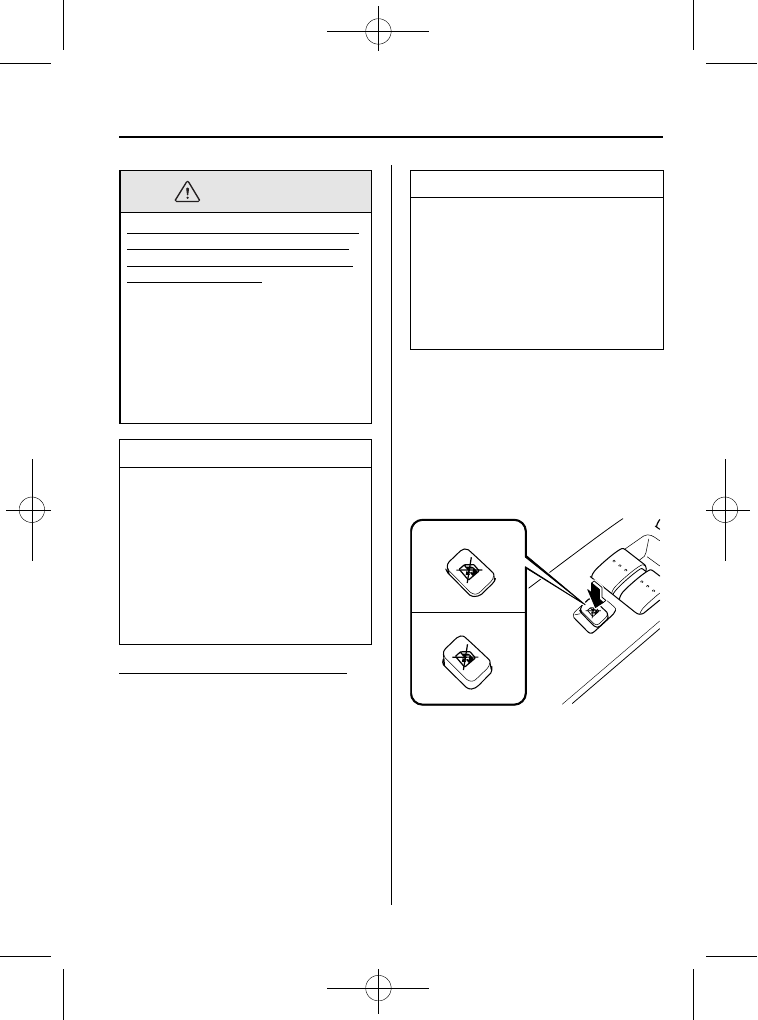

qPower Window Lock Switch

With the lock switch in the unlocked
position, all power windows on each door
can be operated.

With the lock switch in the locked
position, only the driver's side power
window can be operated.

Locked position

Unlocked position

Knowing Your Mazda

Doors and Locks

3-37

Mazdaspeed6_8V77-EA-06F_Edition1 Page107
Tuesday, May 9 2006 10:44 AM

Black plate (108,1)

WARNING

Unless a passenger needs to operate a
power window, keep the power window
lock switch in the locked position:
Unintentional power window
operation is dangerous. A person's
hands, head, or neck could be caught
by the window and result in serious
injury.

NOTE

When the power window lock switch is
in the locked position, the light on each
power window switch, except for the
driver's power window switch, turns
off. The light may be difficult to see
depending on the surrounding
brightness.

qOpening/Closing the Power

Windows from Outside

All power windows can be opened or
closed from outside the vehicle after the
doors and the trunk lid are closed.
The power windows may be operated
when the power window lock switch on
the driver's door is in the lock or unlocked
position.

WARNING

Make sure the opening is clear before
closing a window:
Closing power windows are
dangerous. A person's hands, head, or
even neck could be caught by the
window and result in serious injury or
even death.
This warning applies especially to
children.

NOTE

The power windows cannot be
opened or closed from outside the
vehicle under the following
condition:

A door or the trunk lid is opened.

The key is inserted into the
ignition switch.

(With advanced key)
The start knob is pushed into the
ignition switch.

The power windows may not close
completely under the following
conditions:

The vehicle battery is weak
(starter motor is too weak to start
the engine).

Extreme cold conditions.

If the power windows cannot be
closed completely, operate each
power window switch from inside
the vehicle. After closing the
windows from outside the vehicle,
verify that they are completely
closed.

3-38

Knowing Your Mazda

Doors and Locks

Mazdaspeed6_8V77-EA-06F_Edition1 Page108
Tuesday, May 9 2006 10:44 AM

Black plate (109,1)

Auto-Opening

Because nobody likes getting into a very
hot car, we have introduced a way to get a
head start on cooling it, even before you
put your seat belts on and insert your key
in the ignition. If you see the vehicle is in
a secure area, you can open the all
windows as you approach the vehicle to
get the air moving before you even step
into the hot vehicle.

WARNING

Use the auto-window function only
when you can see the vehicle and it is
in a secure area:
Do not let children play with your
keys. If they open the window without
your knowing, the open windows are
an even bigger invitation to a thief
than leaving the doors unlocked.

The windows can be opened for
ventilating the cabin before getting in the
vehicle.

With unlock button (Keyless entry
system)

Press and hold the unlock button on the
transmitter. After the doors and the trunk
lid are unlocked, the windows fully open
automatically.

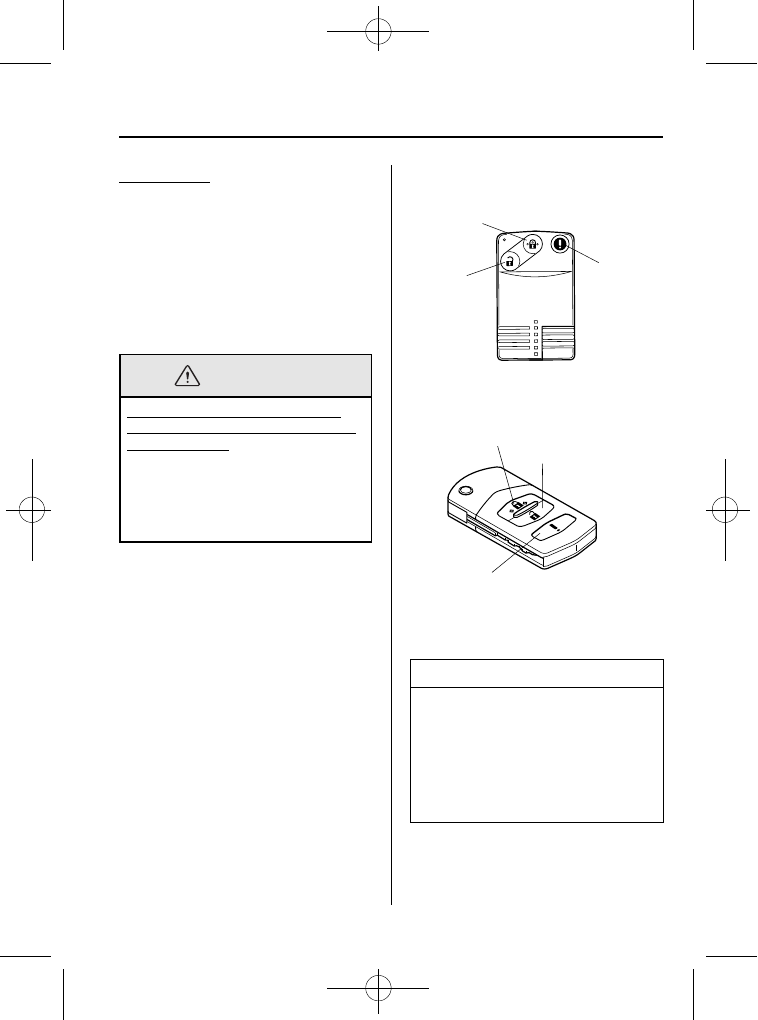

Advanced key

Panic button

Unlock button

Lock button

Retractable type key

Lock button

Unlock button

Panic button

To stop this operation, press the unlock
button.

NOTE

The window opening operation also
can be stopped by pressing the lock
button or panic button. However,
pressing these buttons will operate
their functions.

The lock button cannot be used to
close the power windows.

With key

1. Insert the key in the driver's door key

cylinder.

Knowing Your Mazda

Doors and Locks

3-39

Mazdaspeed6_8V77-EA-06F_Edition1 Page109
Tuesday, May 9 2006 10:44 AM

Black plate (110,1)

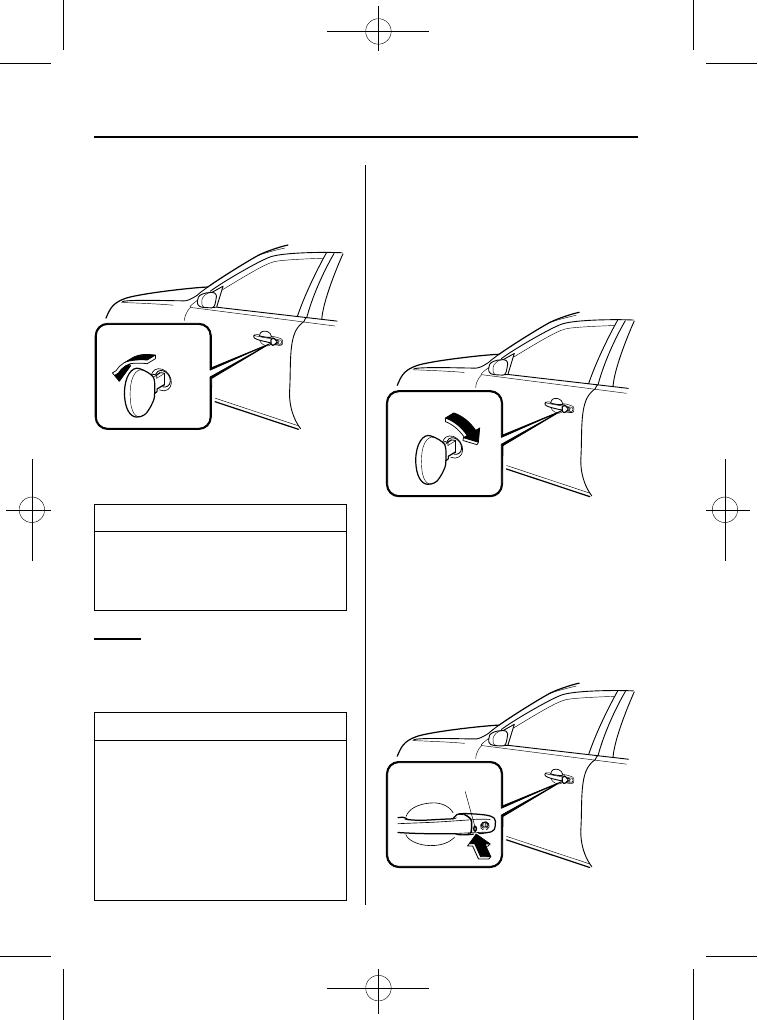

2. Turn the key toward the front and hold

it. After the doors and the trunk lid are
unlocked, the windows fully open
automatically.

Open

To stop this operation, turn the key to the
center position, then turn it toward the
front again.

NOTE

The window opening operation also can
be stopped by turning the key toward
the back. However, the doors and the
trunk lid will lock.

Closing

The windows can be closed in case they
are left open after getting out of the
vehicle.

NOTE

(With advanced key)
If the auto-lock function (page 3-8) has
been activated, the doors and the trunk
lid automatically lock as you walk away
from the vehicle, however, the power
windows cannot be closed. When
leaving the vehicle, close the windows
using the power window switch inside
the vehicle, the key, or a request switch.

With key

1. Insert the key in the driver's door key

cylinder.

2. Turn the key toward the back and hold

it. After the doors and the trunk lid are
locked, the windows close while the
key is turned.

With request switch on the driver's
door (Advanced key)

1. If the doors and the trunk lid are

locked, unlock them.

2. Press and hold the request switch on

the driver's door. After the doors and
the trunk lid are locked, the windows
close while the request switch is
pressed.

Request switch

3-40

Knowing Your Mazda

Doors and Locks

Mazdaspeed6_8V77-EA-06F_Edition1 Page110
Tuesday, May 9 2006 10:44 AM

Black plate (111,1)

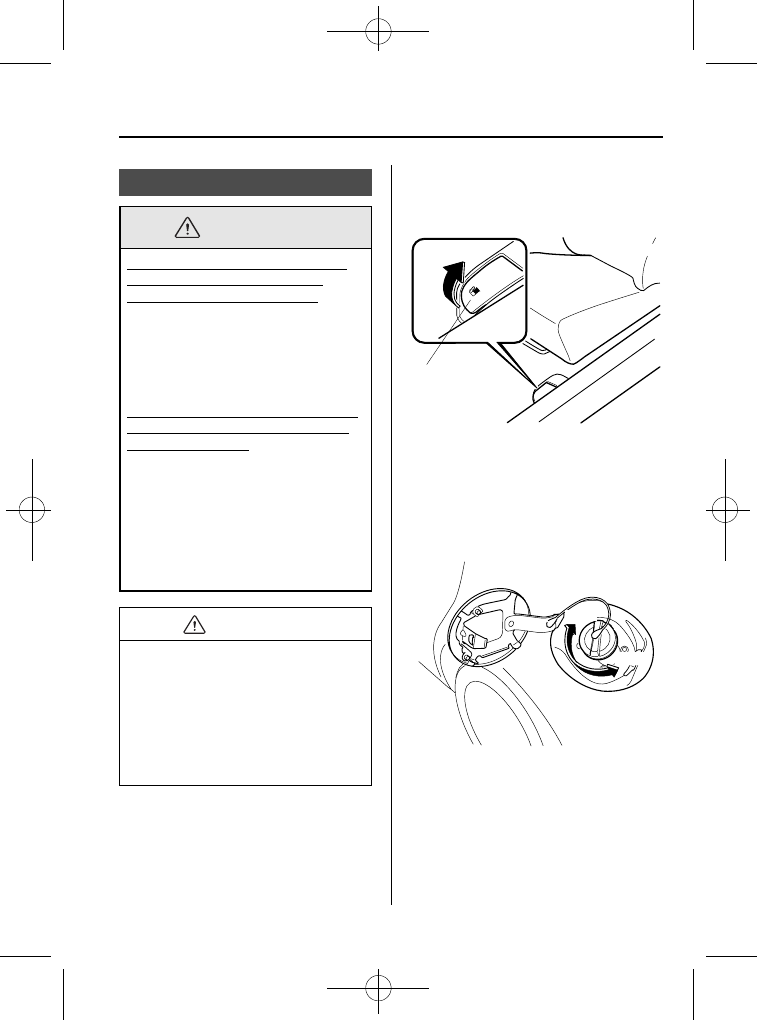

Fuel-Filler Lid and Cap

WARNING

When removing the fuel cap, loosen
the cap slightly and wait for any
hissing to stop. Then remove it:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness if
ingested. Fuel spray is released when
there is pressure in the fuel tank and
the fuel cap is removed too quickly.

Before refueling, stop the engine, and
always keep sparks and flames away
from the filler neck:
Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel
filler cap or not using a fuel filler cap
may result in fuel leak, which could
result in serious burns or death in an
accident.

CAUTION

Always use only a genuine Mazda fuel
cap or an approved equivalent,
available at an Authorized Mazda
Dealer. The wrong cap can result in a
serious malfunction of the fuel and
emission control systems. It may also
cause the check engine light in the
instrument cluster to illuminate.

qFuel-Filler Lid

To open, pull up the remote fuel-filler lid
release.

Remote fuel-filler
lid release

qFuel-Filler Cap

To remove the filler cap, turn it
counterclockwise.

To close the filler cap, turn it clockwise
until it clicks.

Open

Knowing Your Mazda

Doors and Locks

3-41

Mazdaspeed6_8V77-EA-06F_Edition1 Page111
Tuesday, May 9 2006 10:44 AM

Black plate (112,1)

CAUTION

Make sure the fuel-filler cap is
tightened securely. The check engine
light may illuminate when the cap isn't
tightened securely. If the light remains
on (even after you have tightened the
cap securely, driven, and restarted the
engine several times), it may indicate a
different problem. Contact an
Authorized Mazda Dealer as soon as
possible.

Hood

WARNING

Always check that the hood is closed
and securely locked:
A hood that is not closed and securely
locked is dangerous as it could fly
open while the vehicle is moving and
block the driver's vision which could
result in a serious accident.

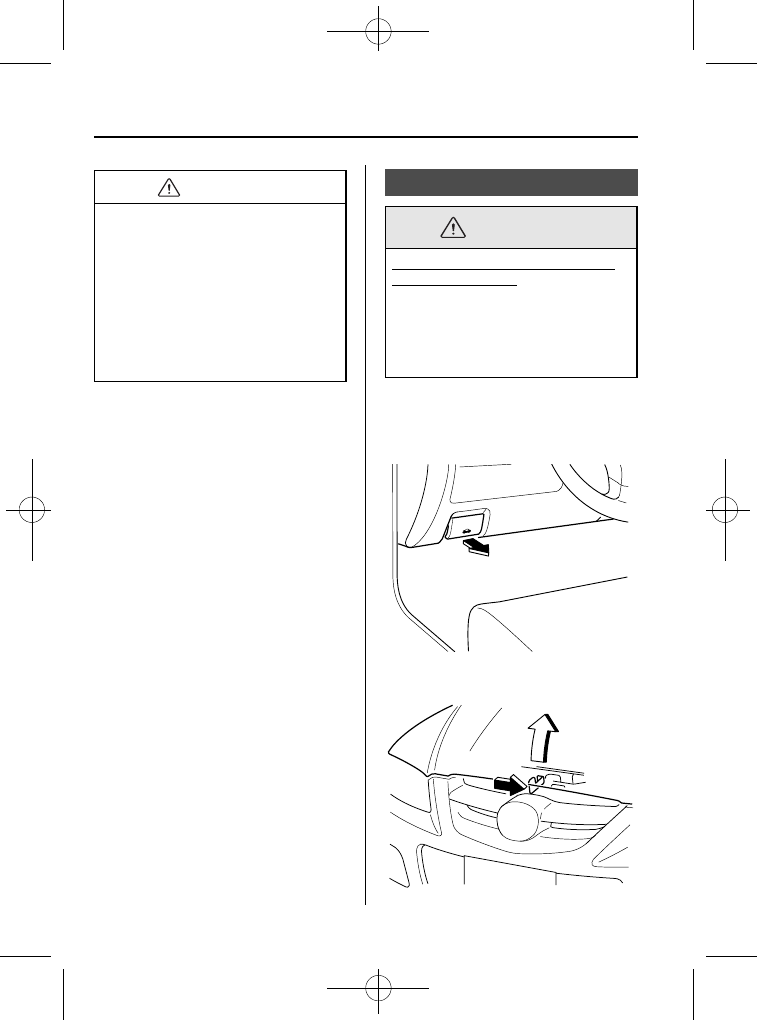

qOpening the Hood

1. With the vehicle parked, pull the

release handle to unlock the hood.

2. Slide the hood latch to the right and lift

the hood.

3-42

Knowing Your Mazda

Doors and Locks

Mazdaspeed6_8V77-EA-06F_Edition1 Page112
Tuesday, May 9 2006 10:44 AM

Black plate (113,1)

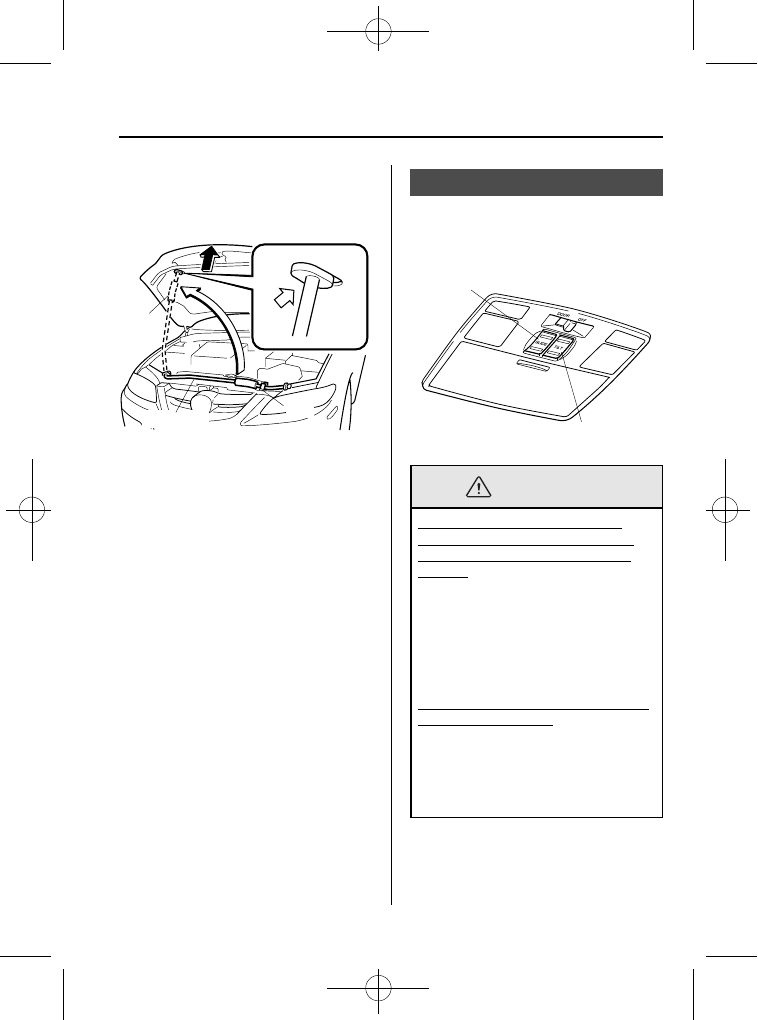

3. Grasp the support rod in the padded

area and secure it in the stay hole
indicated by the arrow to hold the hood
open.

Clip

Pad

Support rod

qClosing the Hood

1. Check under the hood area to make

certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.

2. Insert the support rod in its clip while

holding up the hood. Verify that the
support rod is secured in the clip before
closing the hood.

3. Close the hood so that it locks securely.

Moonroof

The moonroof can be opened or closed
electrically only when the ignition switch
is in the ON position.

Tilt switch

Slide switch

WARNING

Do not let passengers stand up or
extend part of the body through the
open moonroof while the vehicle is
moving:
Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
serious injury or death.

Make sure the opening is clear before
closing the moonroof:
A closing moonroof is dangerous. The
hands, head, or even neck of a person

―especially a child― could be caught
in it as it closes, causing serious injury
or even death.

Knowing Your Mazda

Doors and Locks

3-43

Some models.

Mazdaspeed6_8V77-EA-06F_Edition1 Page113
Tuesday, May 9 2006 10:44 AM

Black plate (114,1)

NOTE

After washing your Mazda or after it
rains, wipe the water off the moonroof
before operating it to avoid water
penetration which could cause rust and
water damage to your headliner.

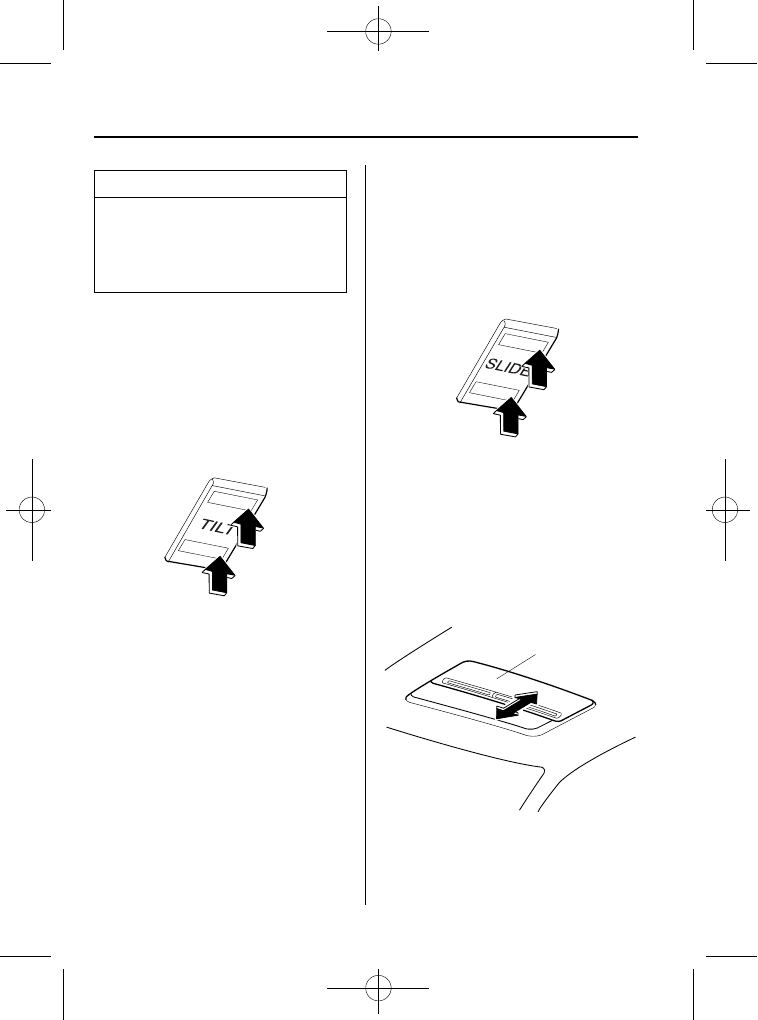

qTilt Operation

The rear of the moonroof can be tilted
open to provide more ventilation.

To tilt, push the rear of the tilt switch.

To close, push the front of the tilt switch.

Tilt up

qSlide Operation

To open to any position, press the rear of
the switch.

To close, press the front of the slide
switch.

Open

qSunshade

The sunshade can be opened and closed
by hand.

The sunshade opens automatically when
the moonroof is opened, but must be
closed by hand.

Sunshade

3-44

Knowing Your Mazda

Doors and Locks

Mazdaspeed6_8V77-EA-06F_Edition1 Page114
Tuesday, May 9 2006 10:44 AM

Black plate (116,1)

Immobilizer System (with
Advanced Key)

The immobilizer system allows the engine
to start only with an advanced key the
system recognizes.

If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.

CAUTION

Radio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to operate
the equipment.

To avoid damage to the key, do not:

Drop the key.

Get the key wet.

Expose the key to any kind of
magnetic field.

Expose the key to high
temperatures on places such as the
dashboard or hood, under direct
sunlight.

CAUTION

Do not allow the following when
starting the engine with the auxiliary
key due to an advanced key dead
battery or other malfunction. Otherwise
the signal from the auxiliary key will
not be received correctly and the engine
may not start.

Metal parts of other keys or metal
objects touch the key grip.

Spare auxiliary keys or keys for
other vehicles equipped with an
immobilizer system touch or come
near the auxiliary key.

Equipment containing electronic
components or cards with magnetic
strips such as credit cards come near
the auxiliary key.

NOTE

(U.S.A.)
This device complies with Part 15 of
the FCC Rules. Operation is subject
to the following two conditions: (1)
this device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.

(CANADA)
This device complies with RSS-210
of Industry CANADA. Operation is
subject to the following two
conditions: (1) this device may not
cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.

3-46

Knowing Your Mazda

Security System

Mazdaspeed6_8V77-EA-06F_Edition1 Page116
Tuesday, May 9 2006 10:44 AM

Black plate (117,1)

qOperation

Arming

The system is armed when the ignition
switch is turned from the ON position to
the ACC or LOCK position. The security
indicator light in the instrument cluster
flashes every 2 seconds until the system is
disarmed.

Disarming

The system is disarmed when the ignition
switch is turned to the ON position with
the registered advanced key.
The security indicator light illuminates for
about 3 seconds and goes out.

If the engine doesn't start with the correct
ignition key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.

NOTE

The engine may not start and the
security indicator light may
illuminate or flash if the advanced
key is placed in an area where it is
difficult for the system to detect the
signal, such as on the dashboard, or
in the glove box. Move the advanced
key to another place, turn the
ignition switch to the LOCK
position, and then restart the engine.

Signals from a TV or radio station, or
from a transceiver or a mobile
telephone could interfere with your
immobilizer system. If you are using
the proper advanced key and the
engine fails to start, check the
security indicator light. If the
indicator light is flashing, turn the
ignition switch to the ACC or LOCK
position and wait for a while, then
restart the engine. If it doesn't start
after 3 or more tries, contact an
Authorized Mazda Dealer.

If the security indicator light flashes
continuously while you are driving,
don't shut off the engine. Go to an
Authorized Mazda Dealer and have
it checked. If the engine is shut off
while the indicator light is flashing,
you won't be able to restart it.

Since the electronic codes are reset
when repairing the immobilizer
system, the advanced key (including
auxiliary key) are needed. Bring all
the advanced keys (including
auxiliary keys) to an Authorized
Mazda Dealer.

Knowing Your Mazda

Security System

3-47

Mazdaspeed6_8V77-EA-06F_Edition1 Page117
Tuesday, May 9 2006 10:44 AM

Black plate (118,1)

qMaintenance

If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.

NOTE

The advanced keys (including
auxiliary key) carry a unique
electronic code. For this reason, and
to assure your safety, obtaining a
replacement advanced key (including
auxiliary key) requires some waiting
time. They are only available
through an Authorized Mazda
Dealer.

Always keep a spare advanced key
in case one is lost. If an advanced
key is lost, consult an Authorized
Mazda Dealer as soon as possible.

If you lose an advanced key
(including auxiliary key), an
Authorized Mazda Dealer will reset
the electronic codes of your
remaining advanced keys (including
auxiliary keys) and immobilizer
system. Bring all the remaining
advanced keys (including auxiliary
keys) to an Authorized Mazda
Dealer to reset.
Starting the vehicle with a key that
has not been reset is not possible.

qModification and Add-On

Equipment

Mazda cannot guarantee the immobilizer
system's operation if the system has been
modified or if any add-on equipment has
been installed to it.

CAUTION

To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to the immobilizer
system or the vehicle.

3-48

Knowing Your Mazda

Security System

Mazdaspeed6_8V77-EA-06F_Edition1 Page118
Tuesday, May 9 2006 10:44 AM

Black plate (119,1)

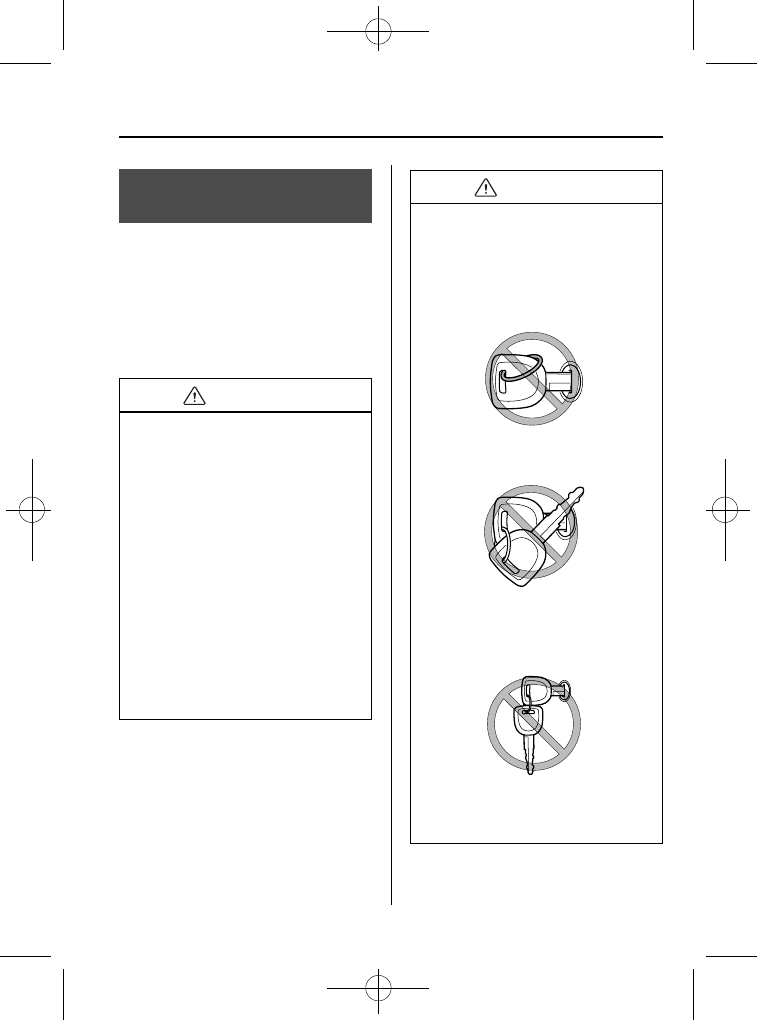

Immobilizer System
(without Advanced Key)

The immobilizer system allows the engine
to start only with a key the system
recognizes.

If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.

CAUTION

To avoid damage to the key, do not:

Drop the key.

Get the key wet.

Expose the key to any kind of
magnetic field.

Expose the key to high
temperatures on places such as the
dashboard or hood, under direct
sunlight.

CAUTION

When starting the engine do not allow
the following, as the engine may not
start due to the electronic signal from
the ignition key not being transmitted
correctly.

A key ring rests on the key grip.

Metal parts of other keys or metal
objects touch the key grip.

Spare keys or keys for other vehicles
equipped with an immobilizer
system touch or come near the key
grip.

Devices for electronic purchases, or
security passage touch or come near
the key.

Knowing Your Mazda

Security System

3-49

Mazdaspeed6_8V77-EA-06F_Edition1 Page119
Tuesday, May 9 2006 10:44 AM

Black plate (120,1)

NOTE

qOperation

Arming

The system is armed when the ignition
switch is turned from the ON to the ACC
position.
The security indicator light in the
instrument panel flashes every 2 seconds
until the system is disarmed.

Disarming

The system is disarmed when the ignition
switch is turned to the ON position with
the correct ignition key.
The security indicator light illuminates for
about 3 seconds and goes out.

If the engine doesn't start with the correct
ignition key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorized Mazda Dealer.

NOTE

If the security indicator light comes
on and stays on when the ignition
switch is turned to the ON position,
the engine will not start.

Signals from a TV or radio station, or
from a transceiver or a mobile
telephone, could interfere with your
immobilizer system. If you are using
the proper key and your engine fails
to start, check the security indicator
light. If it is flashing, remove the
ignition key and wait 2 seconds or
more, then reinsert it and try starting
the engine again. If it doesn't start
after 3 or more tries, contact an
Authorized Mazda Dealer.

If the security indicator light flashes
continuously while you are driving,
don't shut off the engine. Go to an
Authorized Mazda Dealer and have
it checked. If you shut off the engine
while the light is flashing you won't
be able to restart it.

3-50

Knowing Your Mazda

Security System

Mazdaspeed6_8V77-EA-06F_Edition1 Page120
Tuesday, May 9 2006 10:44 AM

Mazda Mazdaspeed 6 (2007 year). Instruction - part 7
