Mazda Mazdaspeed 3 (2013 year). Instruction - part 15

NOTE

If an indicator light stays on without
flashing or if it flashes abnormally, one of
the turn signal bulbs may be burned out.

A personalized function is available to
change the number of flashes.
Refer to Personalization Features on page
10-13.

A personalized function is available to
change the turn indicator sound volume.
Refer to Settings on page 6-188.

Fog Lights

Use this switch to turn on the fog lights.
The fog lights will improve visibility at
night and during foggy conditions.

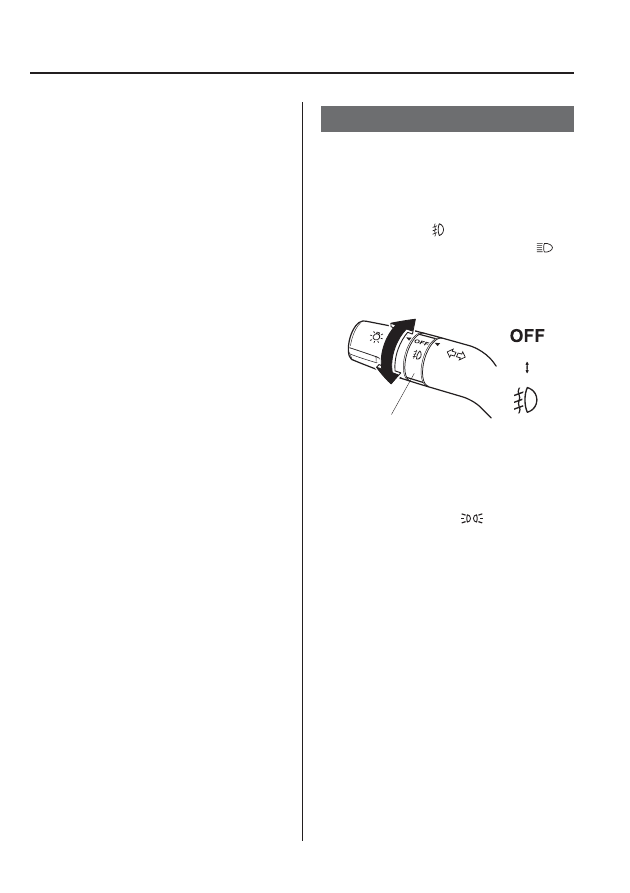

To turn the fog lights on, rotate the fog
light switch to the

position.

The headlight switch must be in the
position before turning on the fog lights.

Fog light switch

To turn them off, rotate the fog light
switch to the OFF position or turn the
headlight switch to the

or OFF

position.

NOTE

The fog lights will turn off when the
headlights are set at high beam.

(With auto-light control)
If the fog light switch is in the ON position
and the headlight switch is in the AUTO
position, the fog lights will be turned on
when the headlights, the exterior lights and
dashboard illumination are automatically
turned on.

5-70

Driving Your Mazda

Some models.

Switches and Controls

Windshield Wipers and
Washer

The ignition must be switched ON.

WARNING

Use only windshield washer fluid or
plain water in the reservoir:

Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will dirty the
windshield, affect your visibility, and
could result in an accident.

Only use windshield washer fluid
mixed with anti-freeze protection in
freezing weather conditions:

Using windshield washer fluid
without anti-freeze protection in
freezing weather conditions is
dangerous as it could freeze on the
windshield and block your vision
which could cause an accident.
In addition, make sure the
windshield is sufficiently warmed
using the defroster before spraying
the washer fluid.

NOTE

Because heavy ice and snow can jam the wiper
blades, the wiper motor is protected from
motor breakdown, overheating and possible
fire by a circuit breaker. This mechanism will
automatically stop operation of the blades, but
only for about 5 minutes.
If this happens, turn off the wiper switch and
park off the right-of-way, and remove the snow
and ice.
After 5 minutes, turn on the switch and the
blades should operate normally. If they do not
resume functioning, consult an Authorized
Mazda Dealer as soon as possible. Drive to
the side of the road and park off the right-of-
way. Wait until the weather clears before trying
to drive with the wipers inoperative.

qWindshield Wipers

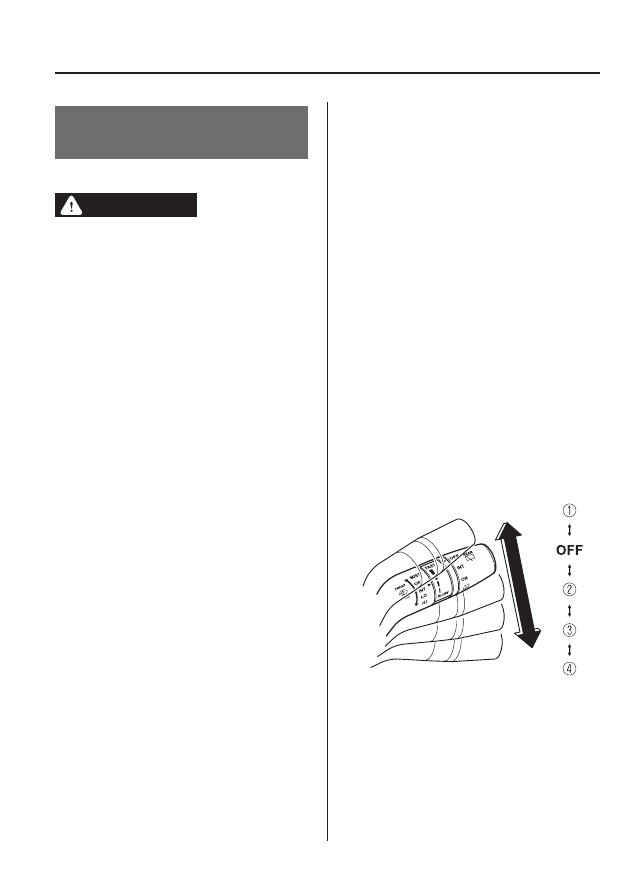

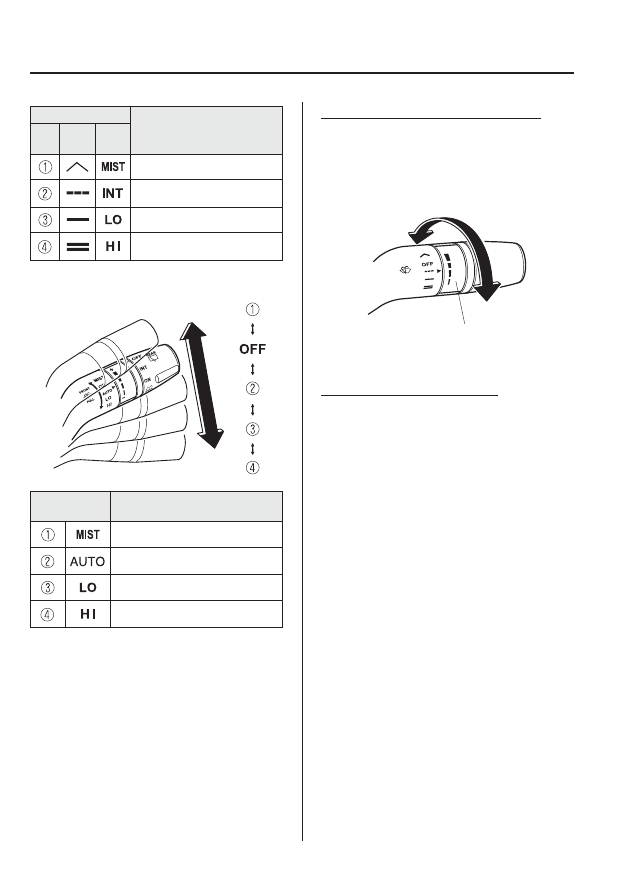

Turn the wipers on by pressing the lever
up or down.

With INT position

Driving Your Mazda

Switches and Controls

5-71

Switch Position

Wiper operation

No.

Type

Single wipe cycle (mist)

Intermittent

Low speed

High speed

With AUTO position

Switch

Position

Wiper operation

Single wipe cycle (mist)

Auto control

Low speed

High speed

Variable-speed intermittent wipers

Set the lever to the intermittent position
and choose the interval timing by rotating
the ring.

INT ring

AUTO (Auto-wiper control)

When the wiper lever is in the AUTO
position, the rain sensor senses the
amount of rainfall on the windshield and
turns the wipers on or off automatically
(off

―intermittent―low speed―high

speed).

5-72

Driving Your Mazda

Switches and Controls

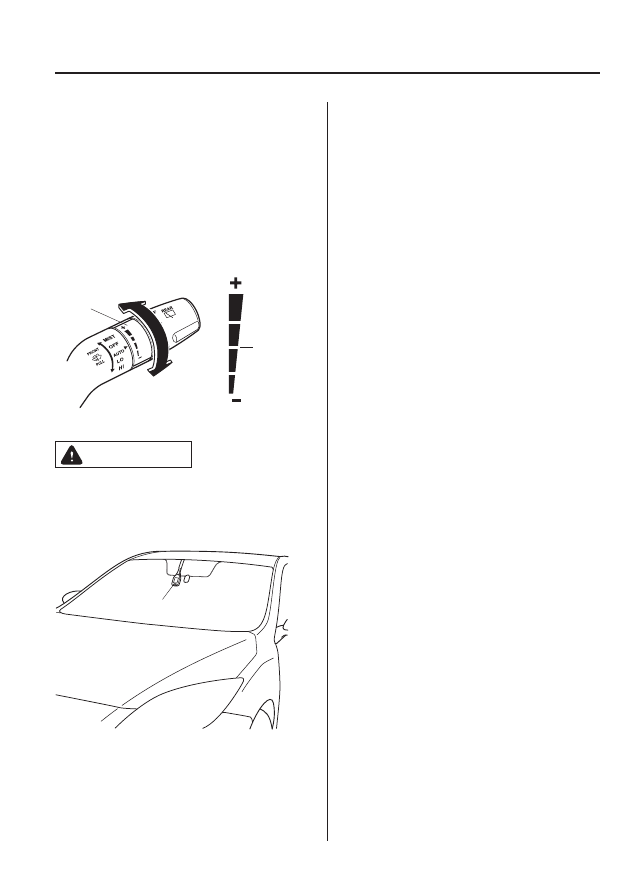

The sensitivity of the rain sensor can be
adjusted by turning the switch on the
wiper lever.
From the center position (normal), rotate
the switch downward for higher
sensitivity (faster response) or rotate it
upward for less sensitivity (slower
response).

Higher sensitivity

Less sensitivity

Switch

Center
position

CAUTION

Ø Do not shade the rain sensor by

adhering a sticker or a label on
the windshield. Otherwise the rain
sensor will not operate correctly.

Rain sensor

Ø When the wiper lever is in the

AUTO position and the ignition is
switched ON, the wipers may
move automatically in the
following cases:

If the windshield above the rain
sensor is touched or wiped with
a cloth.

If the windshield is struck with
a hand or other object from
either outside or inside the
vehicle.

Keep hands and scrapers clear of
the windshield when the wiper
lever is in the AUTO position and
the ignition is switched ON as
fingers could be pinched or the
wipers and wiper blades damaged
when the wipers activate
automatically.
If you are going to clean the
windshield, be sure the wipers are
turned off completely

―this is

particularly important when
clearing ice and snow

―when it is

most likely that the engine is left
running.

Driving Your Mazda

Switches and Controls

5-73

NOTE

Switching the auto-wiper lever from the
OFF to the AUTO position while driving
activates the windshield wipers once, after
which they operate according to the rainfall
amount.

The auto-wiper control may not operate
when the rain sensor temperature is about

_10 °C (14 °F) or lower, or about 85 °C
(185 °F) or higher.

If the windshield is coated with water
repellent, the rain sensor may not be able to
sense the amount of rainfall correctly and
auto-wiper control may not operate
properly.

If dirt or foreign matter (Such as ice or
matter containing salt water) adheres to the
windshield above the rain sensor or if the
windshield is iced, it could cause the wipers
to move automatically. However, if the
wipers cannot remove this ice, dirt or
foreign matter, the auto-wiper control will
stop operation. In this case, set the wiper
lever to the low speed position or high
speed position for manual operation, or
remove the ice, dirt or foreign matter by
hand to restore the auto-wiper operation.

If the auto-wiper lever is left in the AUTO
position, the wipers could operate
automatically from the effect of strong light
sources, electromagnetic waves, or infrared
light because the rain sensor uses an
optical sensor. It is recommended that the
auto-wiper lever be switched to the OFF
position other than when driving the vehicle
under rainy conditions.

qWindshield Washer

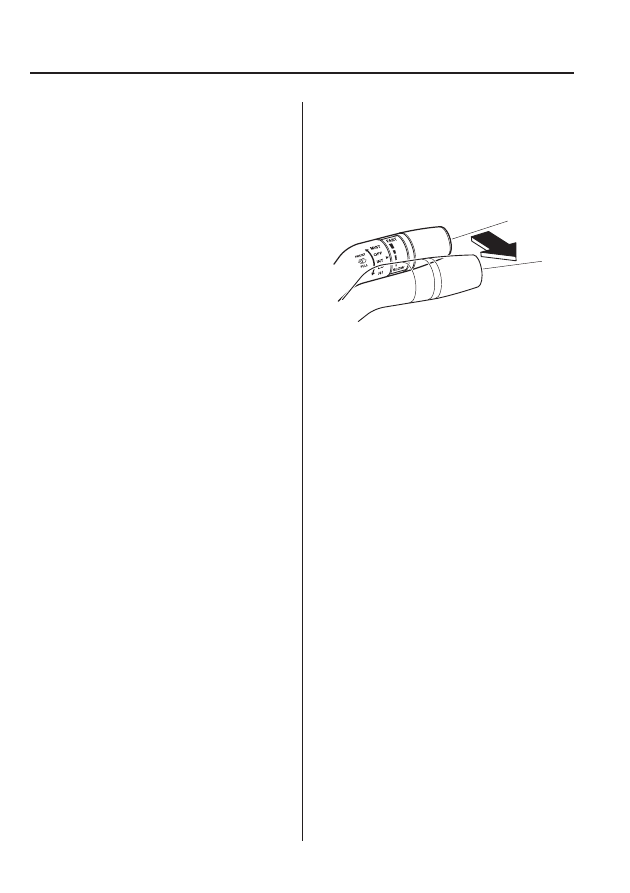

Pull the lever toward you and hold it to
spray washer fluid.

Washer

OFF

NOTE

With the wiper lever in the OFF or intermittent
position/AUTO position, the wipers will
operate continuously until the lever is
released.

If the washer does not work, inspect the
fluid level (page 8-29). If it's normal,
consult an Authorized Mazda Dealer.

5-74

Driving Your Mazda

Switches and Controls

Rear Window Wiper and
Washer (5 Door)

The ignition must be switched ON.

qRear Window Wiper

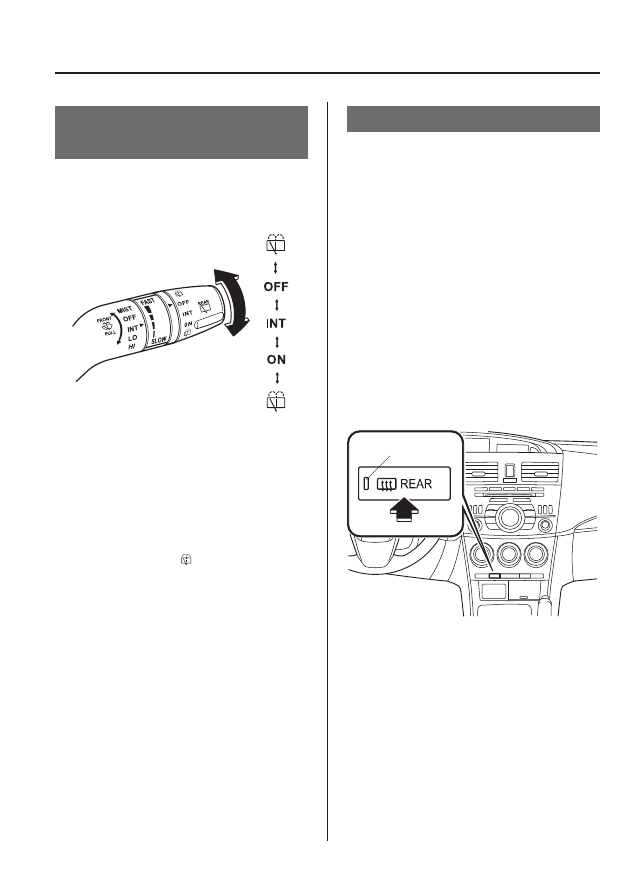

Turn the wiper on by turning the rear
wiper/washer switch.
ON

― Normal

INT

― Intermittent

qRear Window Washer

To spray washer fluid, turn the rear wiper/
washer switch to the

position. After

the switch is released, the washer will
stop.
If the washer does not work, inspect the
fluid level (page 8-29). If it's normal and
the washer still does not work, consult an
Authorized Mazda Dealer.

Rear Window Defroster

The rear window defroster clears frost,
fog, and thin ice from the rear window.

The ignition must be switched ON.

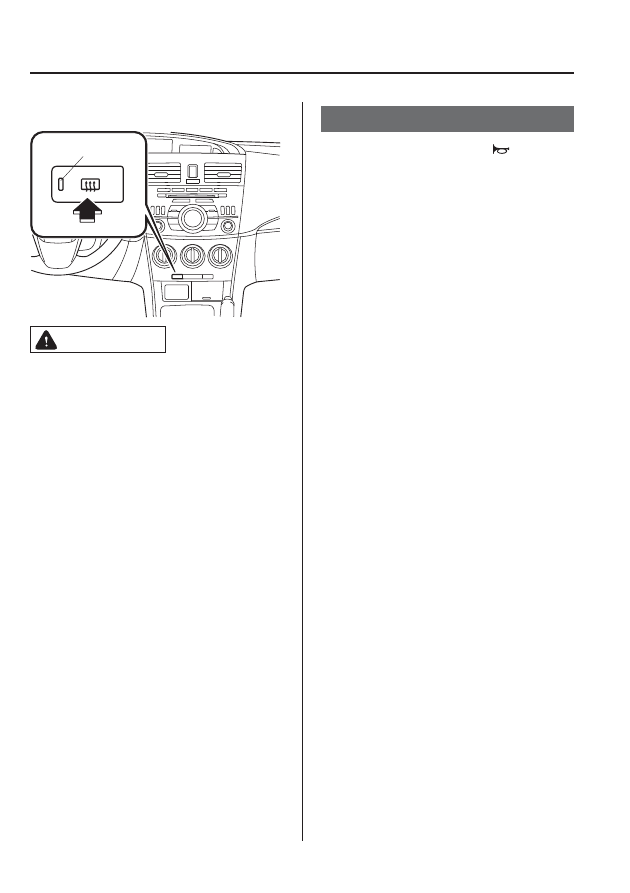

Press the switch to turn on the rear
window defroster. The rear window
defroster operates for about 15 minutes
and turns off automatically.
The indicator light illuminates during
operation.

To turn off the rear window defroster
before the 15 minutes has elapsed, press
the switch again.

Fully Automatic Type Air-Conditioning

Indicator light

Driving Your Mazda

Switches and Controls

5-75

Manual Type Air-Conditioning

Indicator light

CAUTION

Do not use sharp instruments or
window cleaners with abrasives to
clean the inside of the rear window
surface. They may damage the
defroster grid inside the window.

NOTE

This defroster is not designed for melting snow.
If there is an accumulation of snow on the rear
window, remove it before using the defroster.

qMirror Defroster

To turn on the mirror defrosters, switch
the ignition ON and press the rear window
defroster switch (page 5-75).

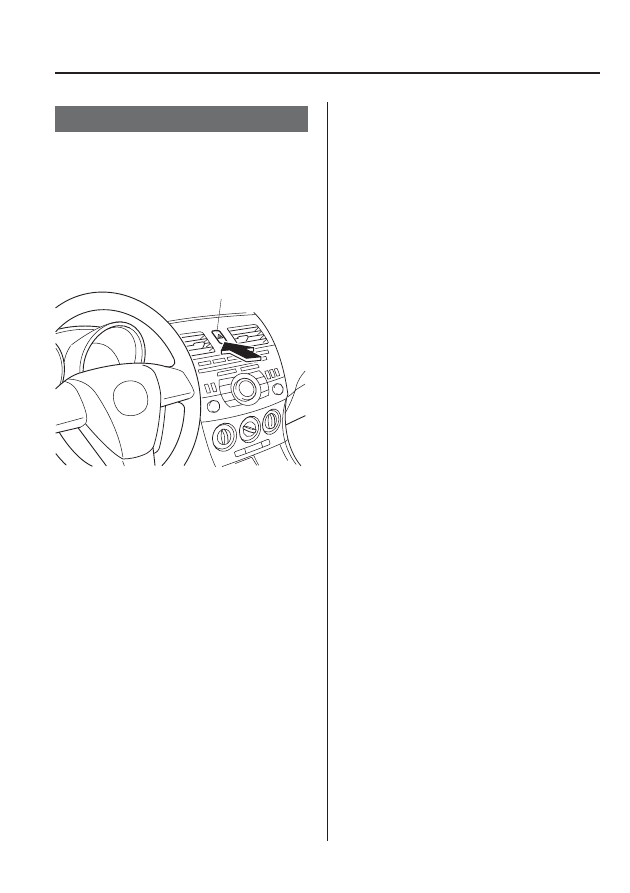

Horn

To sound the horn, press the

mark on

the steering wheel.

5-76

Driving Your Mazda

Some models.

Switches and Controls

Hazard Warning Flasher

The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.

The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.

Hazard warning flasher

Depress the hazard warning flasher and all
the turn signals will flash.

NOTE

The turn signals do not work when the
hazard warning lights are on.

Check local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.

Driving Your Mazda

Switches and Controls

5-77

5-78

Interior Comfort

Use of various features for drive comfort, including air-conditioning and audio
system.

Climate Control System .......................... 6-2

Operating Tips .................................... 6-2
Vent Operation .................................... 6-3
Types of the Climate Control
System ................................................. 6-5
Manual Type

.................................... 6-6

Fully Automatic Type

.................... 6-10

Audio System ......................................... 6-16

Antenna ............................................. 6-16
Operating Tips for Audio System ..... 6-17
Types of the Audio Set/System ......... 6-31
Audio Set (Type A) ........................... 6-33
Audio Set (Type B) ........................... 6-63
Audio Control Switch Operation

.... 6-84

AUX/USB/iPod Mode ...................... 6-88
Safety Certification ......................... 6-107

Bluetooth® Audio (Type A) ................ 6-108

Bluetooth® Audio

........................ 6-108

Bluetooth® Hands-Free (Type A) ....... 6-118

Bluetooth® Hands-Free

............... 6-118

Basic Bluetooth® Hands-Free
Operation ........................................ 6-122
Convenient Use of the Hands-Free
System ............................................. 6-127
Hands-Free Setting .......................... 6-133
When Bluetooth® Hands-Free Cannot be
Used ................................................ 6-139
Safety Certification ......................... 6-140
Mazda Bluetooth® Hands-Free Customer
Service ............................................ 6-140

Bluetooth® (Type B) ............................ 6-141

Bluetooth®

................................... 6-141

Bluetooth® Hands-Free .................. 6-147
Bluetooth® Audio ........................... 6-166
Troubleshooting .............................. 6-170
Safety Certification ......................... 6-174

Interior Equipment ............................. 6-176

Sunvisors ......................................... 6-176
Interior Lights ................................. 6-176
Information Display ........................ 6-178
Multi Information Display

........... 6-180

Cup Holder ...................................... 6-189
Bottle Holder ................................... 6-190
Storage Compartments .................... 6-191
Accessory Sockets .......................... 6-194

6-1

Some models.

Operating Tips

qOperating the Climate Control

System

Operate the climate control system with
the engine running.

NOTE

To prevent the battery from being discharged,
do not leave the fan control dial on for a long
period of time with the ignition switched ON
when the engine is not running.

qClearing the Air Inlet

Clear all obstructions such as leaves,
snow and ice from the hood and the air
inlet in the cowl grille to improve the
system efficiency.

qFoggy Windows

The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.

To help defog the windows, operate the
air conditioner to dehumidify the air.

NOTE

The air conditioner may be used along with the
heater to dehumidify the air.

qParking in Direct Sunlight

If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.

qNot Using for a Long Period

Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.

qCheck the Refrigerant before the

Weather Gets Hot

Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.

The air conditioner is filled with
HFC134a (R134a), a refrigerant that will
not damage the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.

qReplacement of the Cabin Air

Filter

Your vehicle is equipped with an air filter
for the air conditioner. It is necessary to
change the filter periodically as indicated
in scheduled maintenance (page 8-4).
Consult an Authorized Mazda Dealer for
replacement of the cabin air filter.

6-2

Interior Comfort

Some models.

Climate Control System

Vent Operation

qAdjusting the Vents

Directing airflow

Side Vents

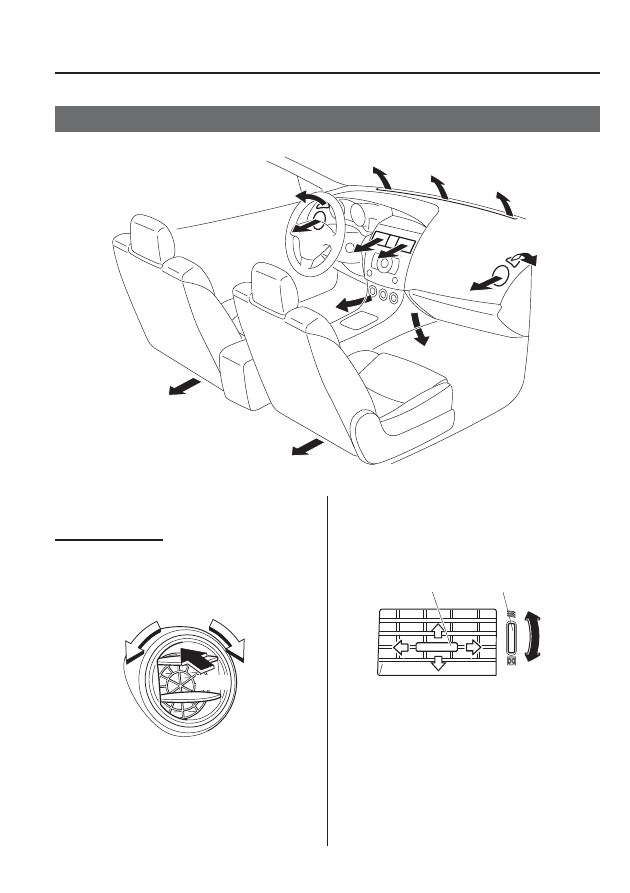

To adjust the direction of airflow, open the
vents and rotate them left and right.

Push

Center Vents

To adjust the direction of airflow, move
the adjustment knob.

Knob

Dial

Open

NOTE

When using the air conditioner under humid
ambient temperature conditions, the system
may blow fog from the vents. This is not a sign
of trouble but a result of humid air being
suddenly cooled.

Interior Comfort

Climate Control System

6-3

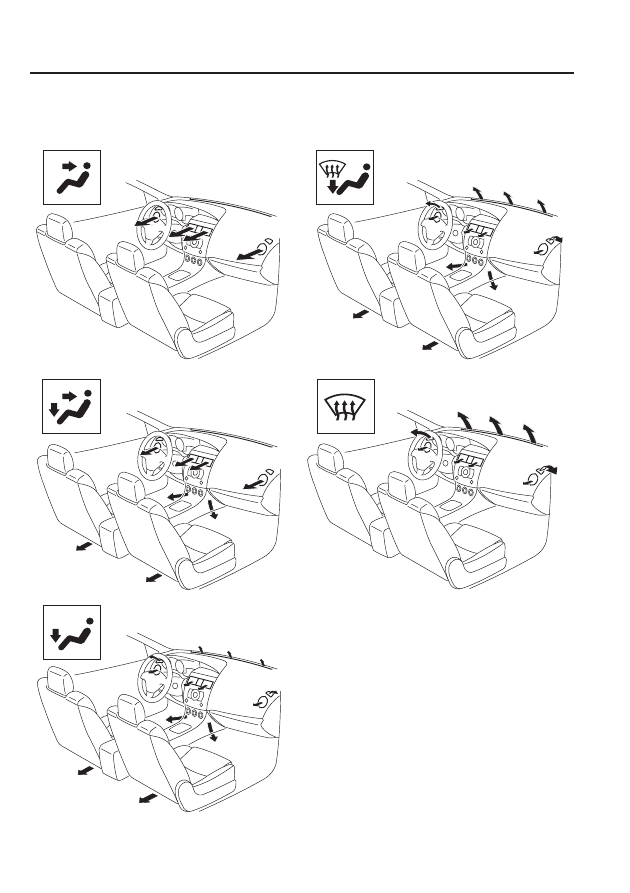

qSelecting the Airflow Mode

Dashboard Vents

Dashboard and Floor Vents

Floor Vents

Defroster and Floor Vents

Defroster Vents

6-4

Interior Comfort

Climate Control System

Types of the Climate Control System

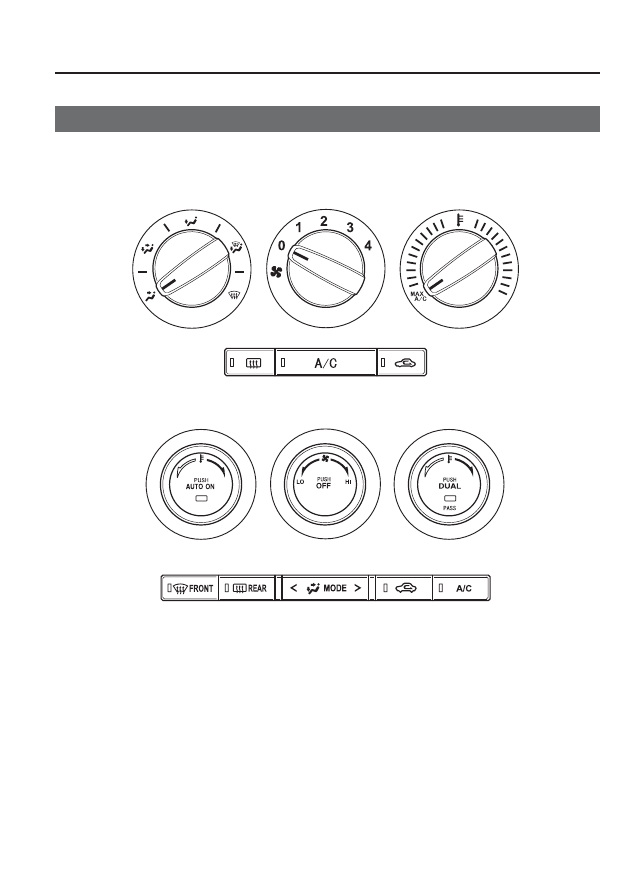

Manual type and fully automatic type climate control systems are explained separately.
Check your vehicle's climate control type and read the appropriate pages.
Manual Type ............................................................................................................ page 6-6

Fully Automatic Type ............................................................................................ page 6-10

Interior Comfort

Climate Control System

6-5

Manual Type

Temperature control dial

Fan control dial

Mode selector dial

Air intake selector

A/C switch

Some models.

Rear window defroster switch

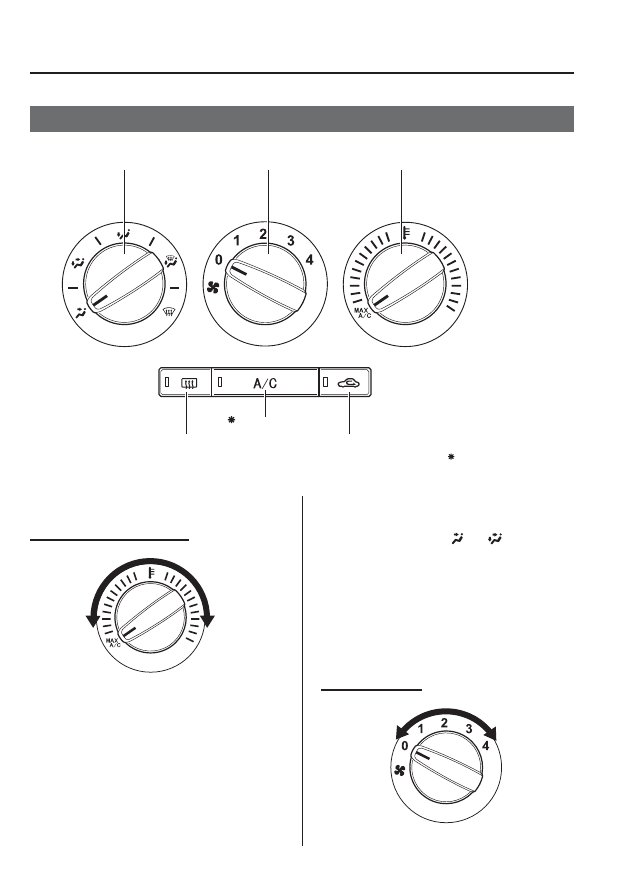

qControl Switches

Temperature control dial

Cold

Hot

This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.

NOTE

(U.S.A.)
When the mode is set to

with the fan

control dial in a position other than 0 and the
temperature control dial in the maximum cold
position, the air intake selector switches to the
recirculated air mode and the A/C turns on
automatically.
If A/C is not desired, press the A/C switch to
turn it off.

Fan control dial

6-6

Interior Comfort

Some models.

Climate Control System

This dial allows variable fan speeds.
0

―Fan off

―Low speed

―Medium low speed

―Medium high speed

―High speed

Mode selector dial

Turn the mode selector dial to select
airflow mode (page 6-4).

NOTE

The mode selector dial can be set at the
intermediate positions (

) between each

mode. Set the dial to an intermediate
position if you want to slightly adjust the
airflow amount.

For example, when the mode selector dial is
at the

position between the

and

positions, airflow from the floor vent is less
than that of the

position.

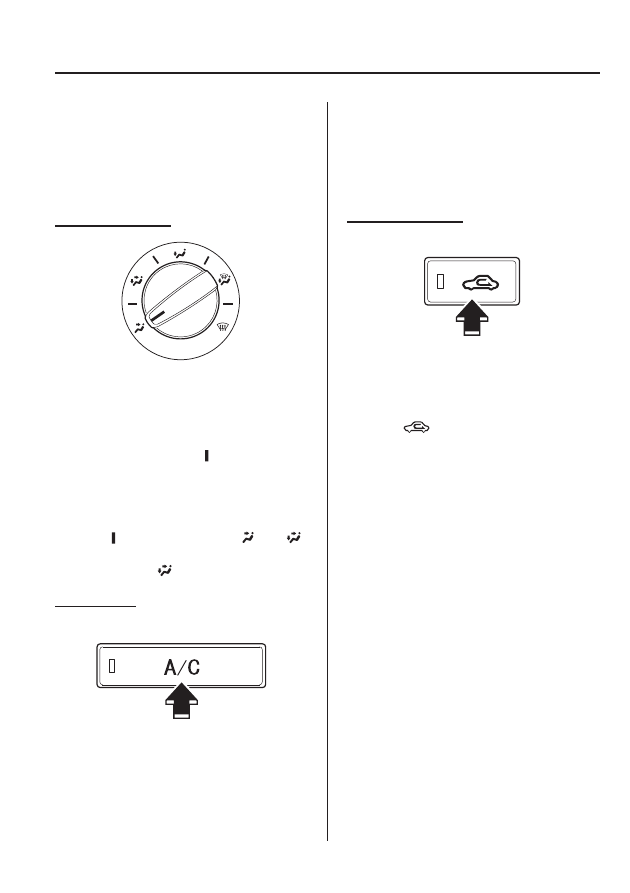

A/C switch

Press the A/C switch to turn the air
conditioner on. The indicator light on the
switch will illuminate when the fan
control dial is set at position 1, 2, 3, or 4.

Press the switch once again to turn the air
conditioner off.

NOTE

The air conditioner may not function when the
outside temperature approaches 0 °C (32 °F).

Air intake selector

This switch controls the source of air
entering the vehicle.

Press the

switch to alternate

between the outside air and recirculated
air modes.

It is recommended that under normal
conditions the switch be kept in the
outside air mode.

Outside air mode (indicator light
turned off)

Outside air is taken into the vehicle. Use
this mode for normal ventilation and
heating.

Recirculated air mode (indicator light
illuminated)

Outside air is shut off. Air within the
vehicle is recirculated.

This mode can be used when driving on a
dusty road or in similar conditions. It also
helps to provide quicker cooling of the
interior.

Interior Comfort

Climate Control System

6-7

Some models.

Content .. 13 14 15 16 ..
