Mazda CX-9 (2019 year). Instruction - part 31

▼ Rear

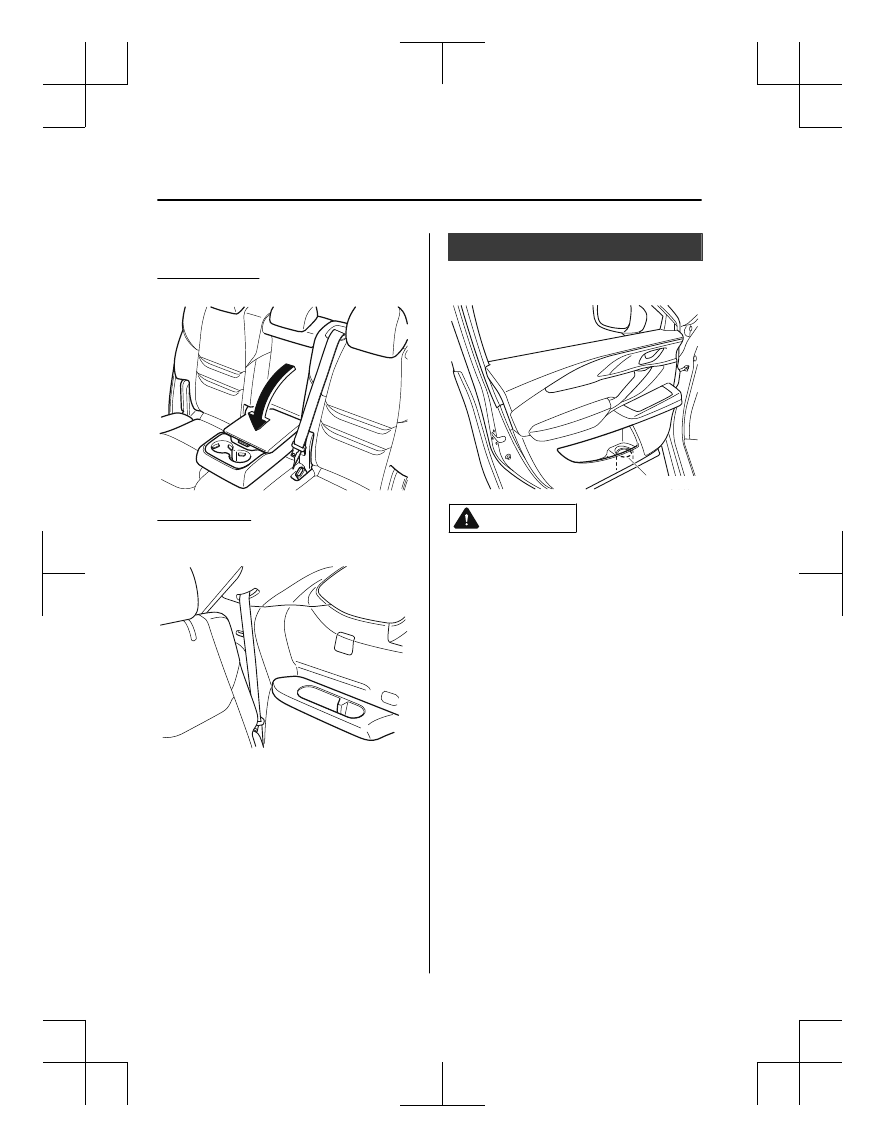

Second-row seat

Cup holders are located in the armrest.

Third-row seat

Cup holders are located in the third-row
seat side trims.

Bottle Holder

Bottle holders are on the inside of the
doors.

Bottle holder

CAUTION

Do not use the bottle holders for containers
without caps. The contents may spill when
opening/closing the door or while driving
the vehicle.

Interior Features

Interior Equipment

5-100

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Storage Compartments

WARNING

Keep storage boxes closed when driving:
Driving with the storage boxes open is
dangerous. To reduce the possibility of
injury in an accident or a sudden stop, keep
the storage boxes closed when driving.

Do not put articles in storage spaces with
no lid:
Putting articles in storage spaces with no
lid is dangerous as they could be thrown
around the cabin if the vehicle is suddenly
accelerated and cause injury depending on
how the article is stored.

CAUTION

Do not leave lighters or eyeglasses in the
storage boxes while parked under the sun.
A lighter could explode or the plastic
material in eyeglasses could deform and
crack from high temperature.

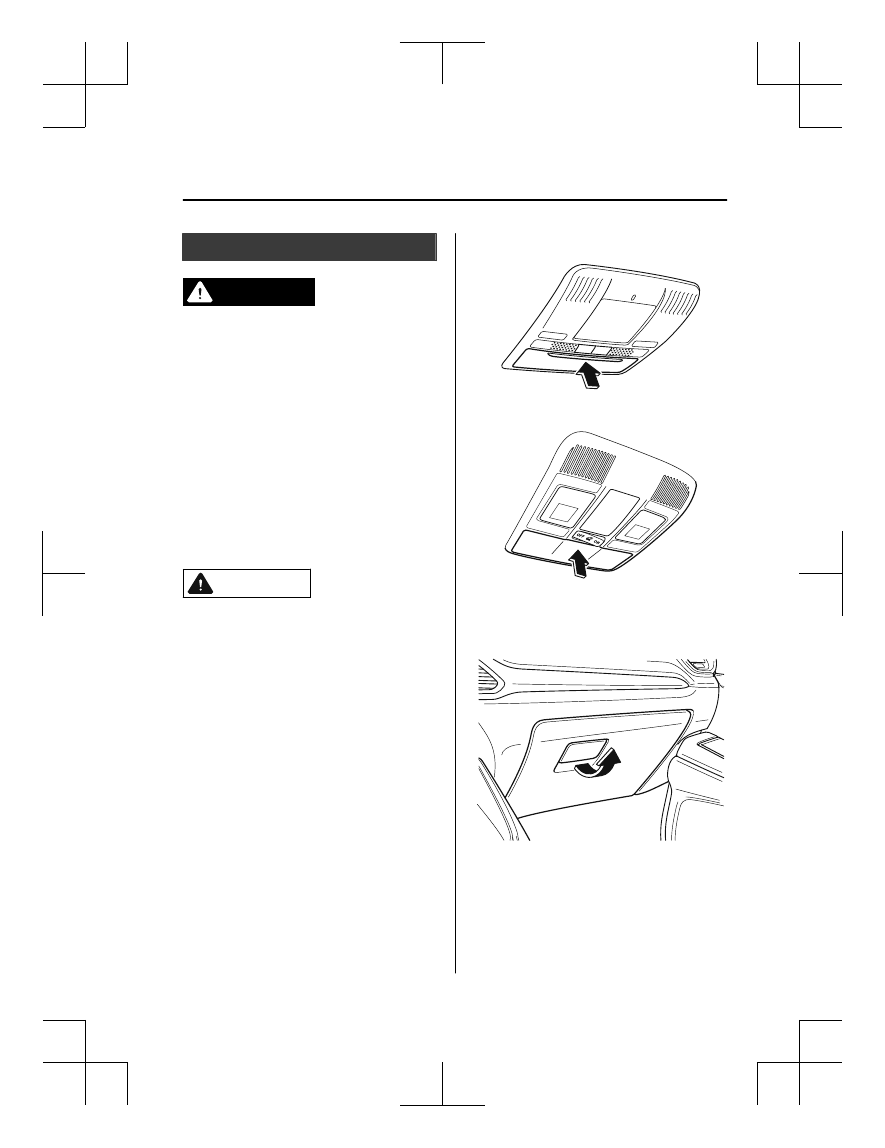

▼ Overhead Console

This console box is designed to store
eyeglasses or other accessories.

Push and release to open.

Type A

Type B

▼ Glove Compartment

To open the glove compartment, pull the
latch toward you.

To close the glove compartment, firmly
press in the center of the glove
compartment lid.

Interior Features

5-101

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

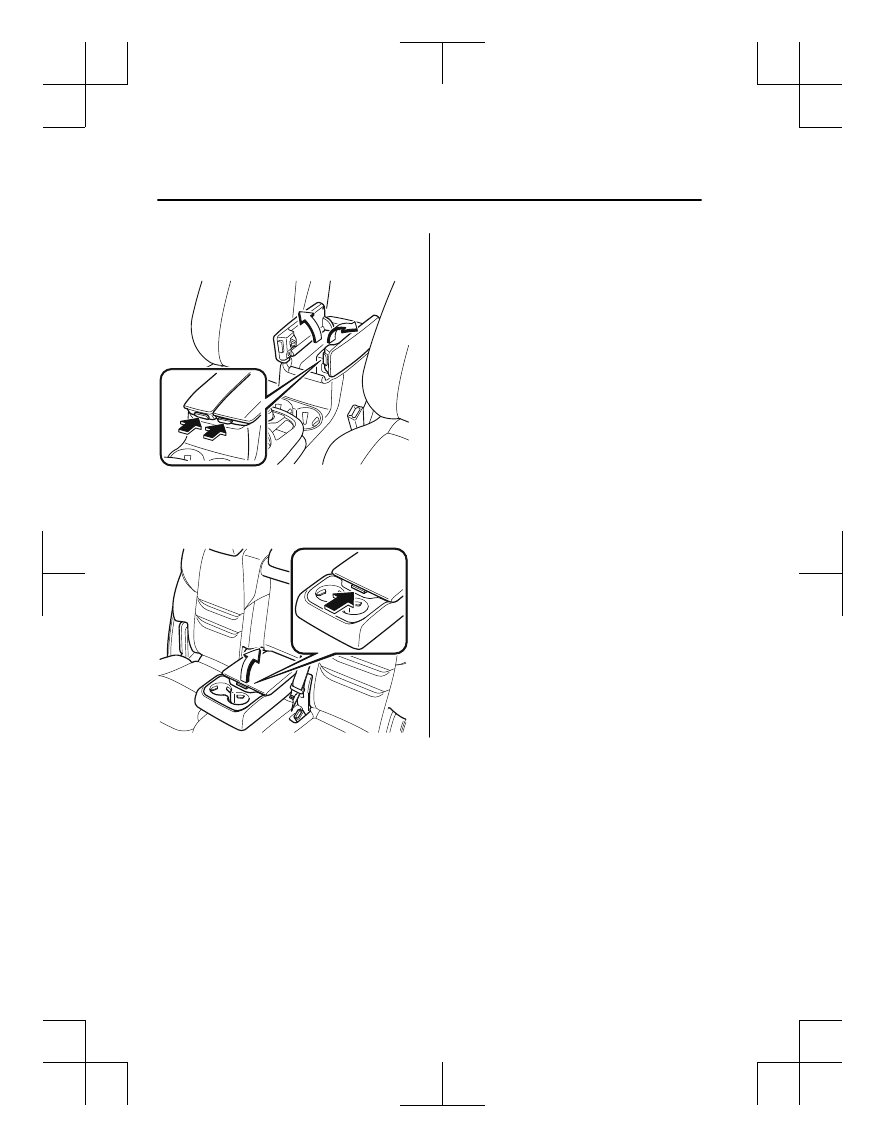

▼ Center Console

To open, push the button.

▼ Armrest Box

*

To open, push the button and pull up the
lid.

Interior Features

Interior Equipment

5-102

*Some models.

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

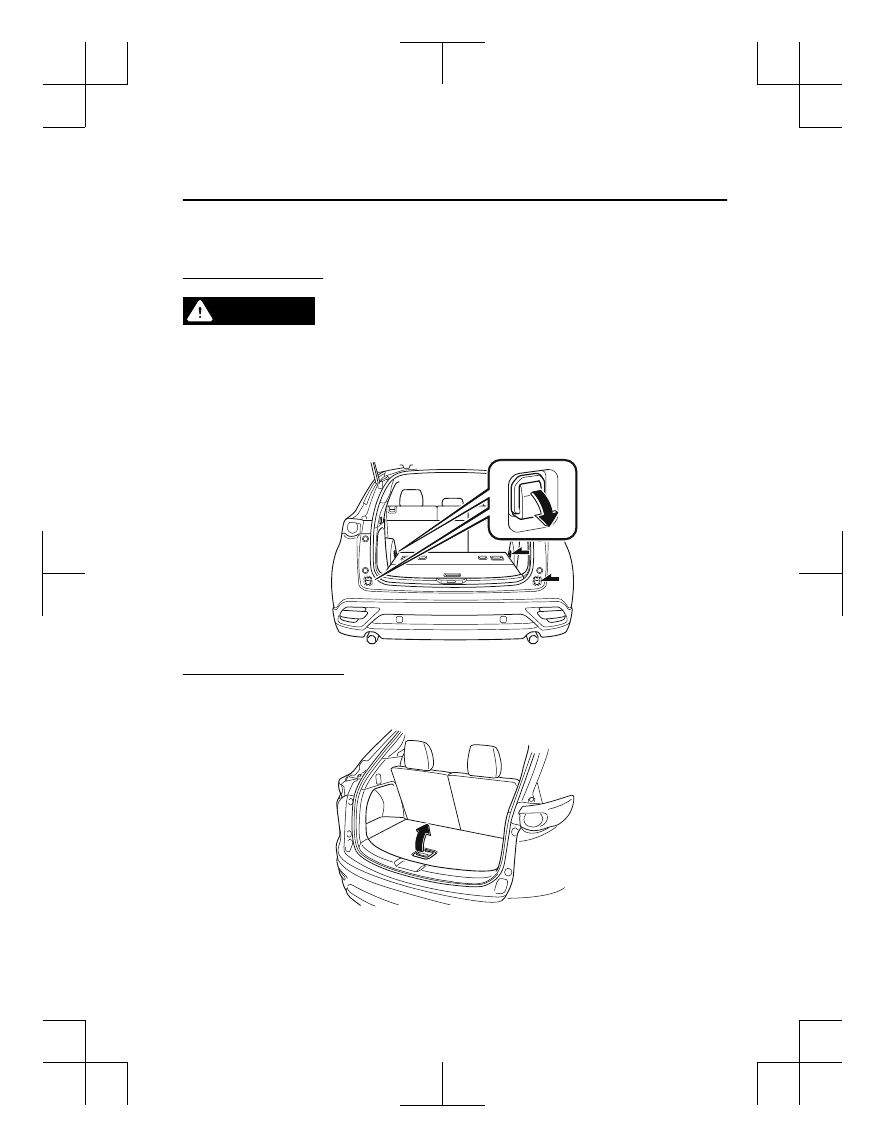

▼ Luggage Compartment

Cargo Securing Loops

WARNING

Make sure luggage and cargo is secured before driving:
Not securing cargo while driving is dangerous as it could move or be crushed during sudden
braking or a collision and cause injury.

Use the loops in the luggage compartment to secure cargo with a rope or net. The tensile
strength of the loops is 196 N (20 kgf, 44 lbf). Do not apply excessive force to the loops as
it will damage them.

Cargo Sub-Compartment

Center cargo sub-compartment

*

Raise the luggage board to put small items in the cargo sub-compartment.

Interior Features

*Some models.

5-103

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

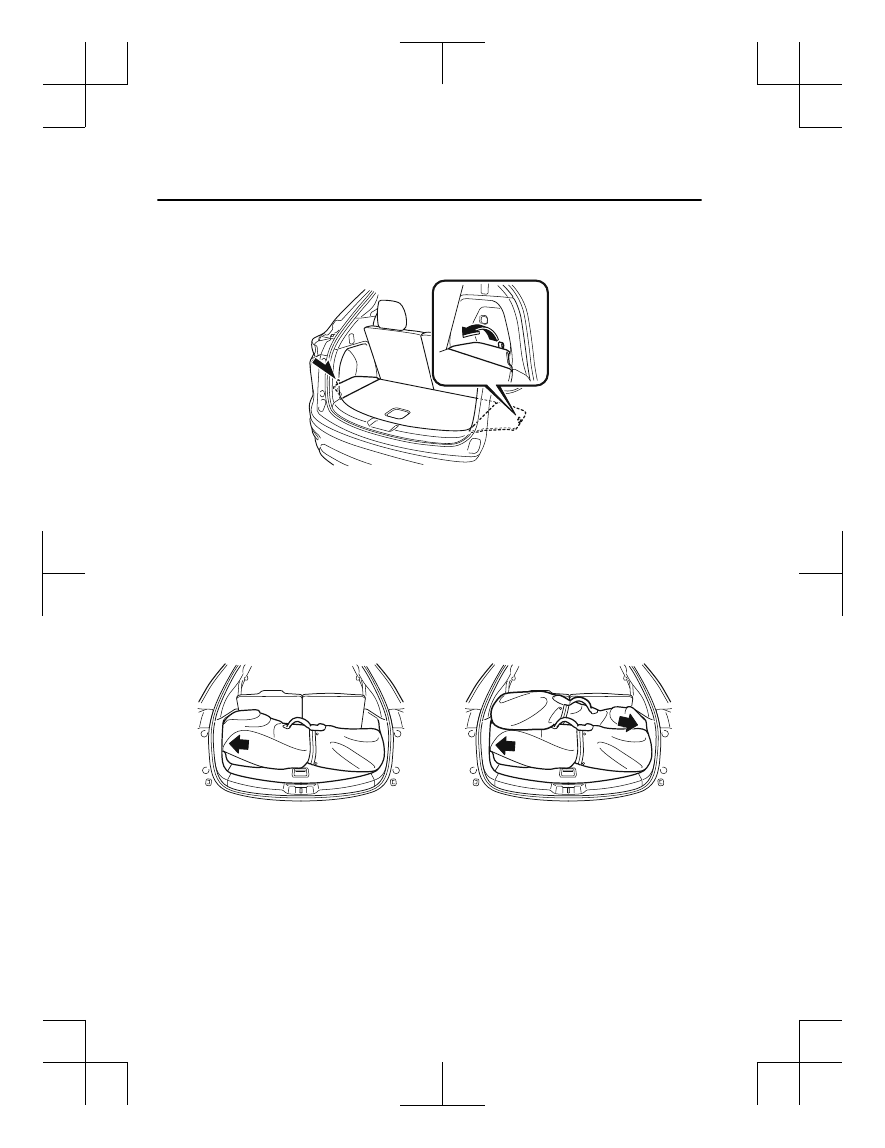

Side cargo sub-compartment

Open the cover to put small items in the cargo sub-compartment.

NOTE
Loading golf bags
(Some golf bags may not fit using the following methods depending on their sizes.)
Up to two golf bags can be carried in the luggage compartment.

Bottom: Place the first golf bag in the luggage compartment with the bottoms pointed to the
left.
Top: Place the second golf bag with its bottom pointed to the right in the luggage
compartment.

The arrows indicate the bottoms of the golf bags.

Top

Bottom

Interior Features

Interior Equipment

5-104

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

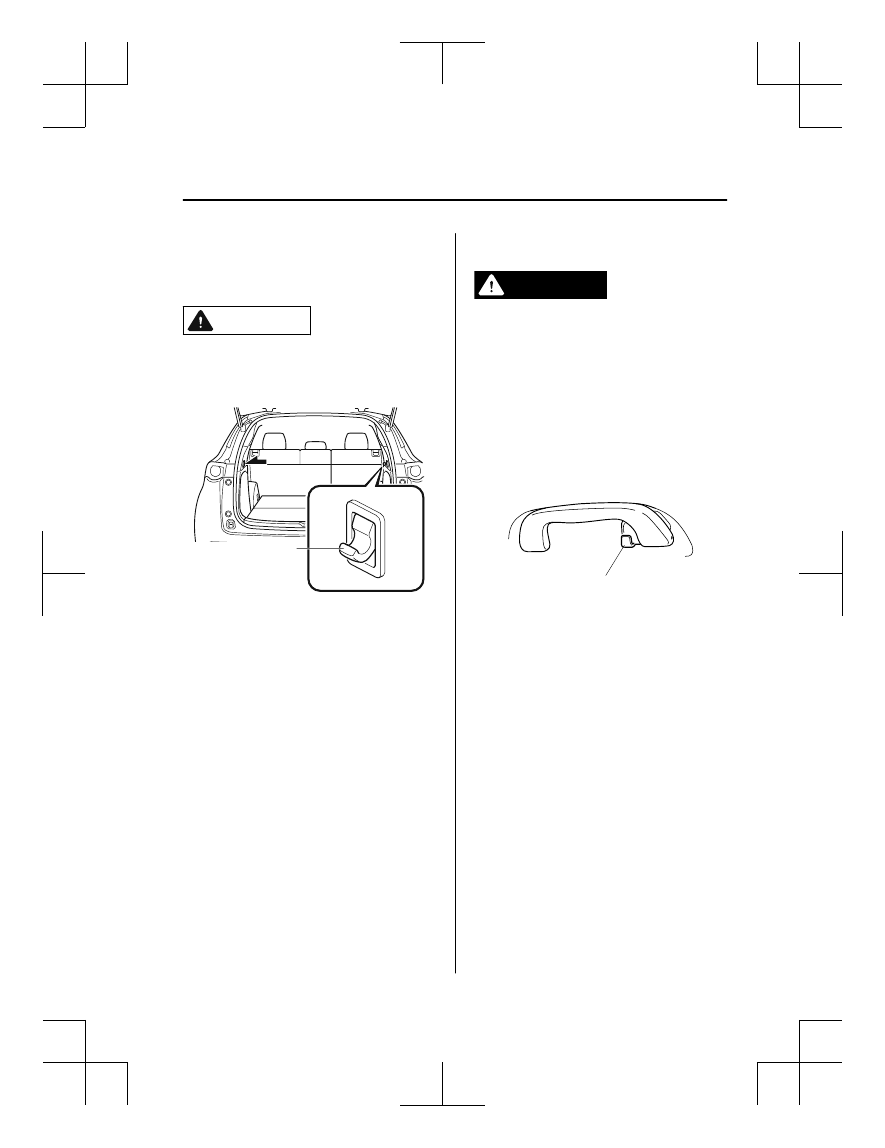

▼ Shopping Bag Hook

The shopping bag hook can be used for
hanging shopping bags.

CAUTION

Do not hang excessive weight on the
shopping bag hook as it could be
damaged.

Shopping bag hook
(tensile strength:3 kg
(6.6 lb))

▼ Rear Coat Hooks

WARNING

Never hang heavy or sharp objects on the
assist grips and coat hooks:
Hanging heavy or sharp-ended objects
such as a coat hanger from the assist grips
or coat hooks is dangerous as they can fly
off and hit an occupant in the cabin if a
curtain air bag was to deploy, which could
result in serious injury or death.

Always hang clothes on the coat hooks
and the assist grips without hangers.

Coat hook

Interior Features

5-105

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

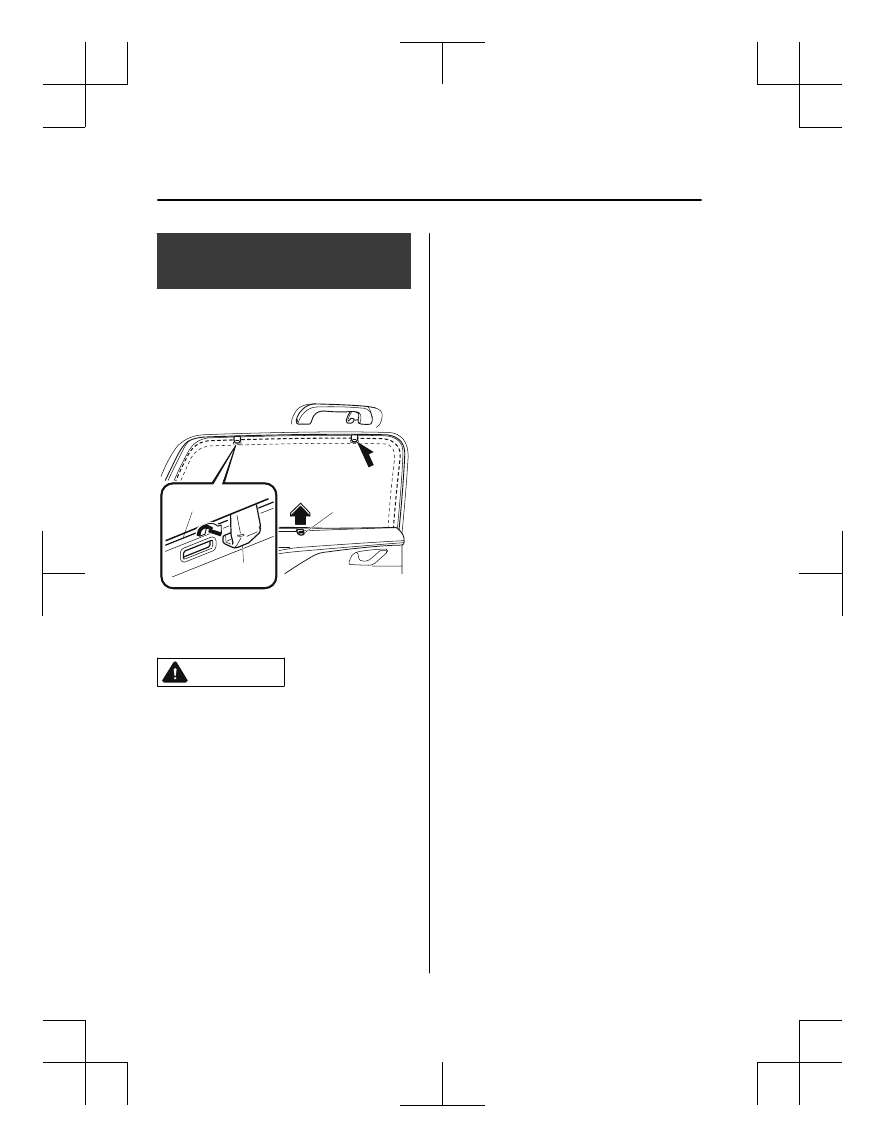

Sunshade (Rear Door

Window)

*

The sunshades are equipped to the
windows on both sides of the second-row
seats.

Hold the tab and pull the sunshade upward
and hook the slots.

Tab

Hook

Sunshade

To return the sunshade to its original
position, unhook the sunshade and retract
it slowly.

CAUTION

Securely hook the sunshade. Otherwise,

the sunshade may retract suddenly
resulting in injury such as fingers get
pinched.

Use the sunshades only when the

windows are fully closed. Using a
sunshade while a window is open could
cause is to unhook and flap around
inside the cabin where it can hit
someone sitting near the window,
resulting in injury.

Interior Features

Interior Equipment

5-106

*Some models.

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

6

Maintenance and Care

How to keep your Mazda in top condition.

Essential Information........................6-2

Introduction.................................. 6-2

Scheduled Maintenance.................... 6-4

Scheduled Maintenance (U.S.A.,
Canada, and Puerto Rico)............. 6-4
Scheduled Maintenance
(Mexico)..................................... 6-10
Maintenance Monitor................. 6-16

Owner Maintenance........................6-18

Owner Maintenance
Precautions................................. 6-18
Hood........................................... 6-20
Engine Compartment
Overview.................................... 6-22
Engine Oil...................................6-23
Engine Coolant........................... 6-25
Brake Fluid................................. 6-27
Washer Fluid...............................6-27
Body Lubrication........................6-28
Wiper Blades.............................. 6-29
Battery........................................ 6-34
Key Battery Replacement...........6-36
Tires............................................ 6-38
Light Bulbs................................. 6-42
Fuses........................................... 6-50

Appearance Care.............................6-57

Exterior Care.............................. 6-57
Interior Care................................6-63

6-1

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Introduction

Be careful not to hurt yourself when inspecting your vehicle, replacing a tire, or doing some
kind of maintenance such as car washing. In particular, wear thick work gloves such as
cotton gloves when touching areas that are difficult to see while inspecting or working on
your vehicle. Doing inspections or procedures with your bare hands could cause injury.

If you are unsure about any procedure this manual describes, we strongly urge you to have a
reliable and qualified service shop perform the work, preferably an Authorized Mazda
Dealer.

Factory-trained Mazda technicians and genuine Mazda parts are best for your vehicle.
Without this expertise and the parts that have been designed and made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may result in problems. This
could lead to vehicle damage or an accident and injuries.

For expert advice and quality service, consult an Authorized Mazda Dealer.

To continue warranty eligibility and to protect your investment, it is your responsibility to
properly maintain your vehicle according to factory recommended schedules outlined in this
manual. As part of this you must keep your maintenance records, receipts, repair orders and
any other documents as evidence this maintenance was performed. You must present these
documents, should any warranty coverage disagreement occur. Failure to do so can result in
your warranty being voided either in whole or in part.

This evidence may consist of the following:



The Mazda Scheduled Maintenance Record, refer to the Warranty Booklet, must be
completely filled out showing mileage, repair order number, date for each service, and
signed by a qualified automotive service technician who service vehicles.



Original copies of repair orders or other receipts that include the mileage and date the
vehicle was serviced. Each receipt should be signed by a qualified automotive service
technician.



For self maintenance, a statement that you completed the maintenance yourself,
displaying mileage and the date the work was performed. Also, receipts for the
replacement parts (fluid, filters, etc.) indicating the date and mileage must accompany this
statement.



Maintenance and Care

Essential Information

6-2

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

NOTE
If you elect to perform maintenance yourself or have your vehicle serviced at a location
other than an Authorized Mazda Dealer, Mazda requires that all fluids, parts and materials
must meet Mazda standards for durability and performance as described in this manual.


Claims against the warranty resulting from lack of maintenance, as opposed to defective
materials or authorized Mazda workmanship, will not be honored.

Any auto repair shop using parts equivalent to your Mazda's original equipment may
perform maintenance. But we recommend that it always be done by an Authorized
Mazda Dealer using genuine Mazda parts.
Selecting “Maintenance Monitor” enables the system to notify you of your vehicle's
approaching inspection/servicing period (page 6-16).

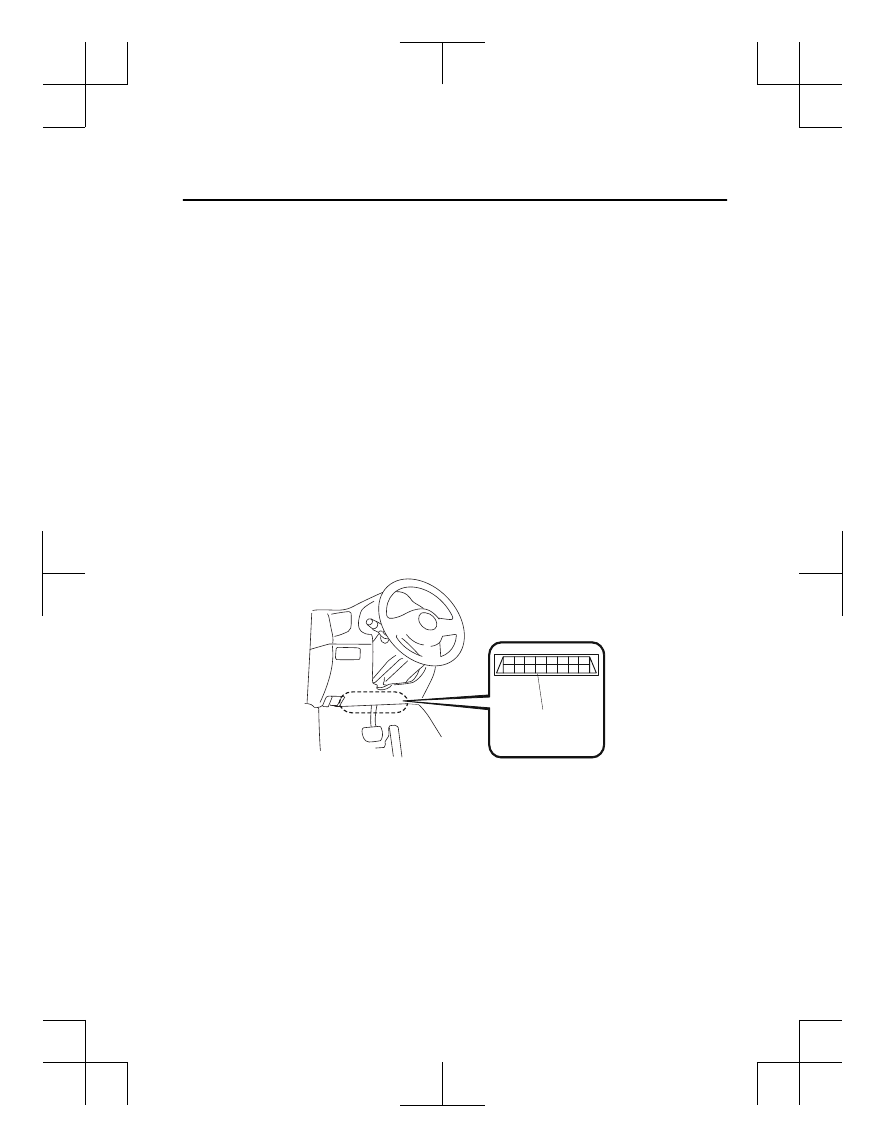

The malfunction diagnosis connector is designed exclusively for connecting the specially
designed device to perform on-board diagnosis.
Do not connect any devices other than the specially designed malfunction diagnosis devices
for servicing. If any device other than the malfunction diagnosis device is connected, it may
affect the vehicle's electrical devices or lead to damage such as battery depletion.

Malfunction
diagnosis
connector

Maintenance and Care

Essential Information

6-3

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Scheduled Maintenance (U.S.A., Canada, and Puerto

Rico)

Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions
(severe driving conditions)apply.



Repeated short-distance driving



Driving in dusty conditions



Driving with extended use of brakes



Driving in areas where salt or other corrosive materials are used



Driving on rough or muddy roads



Extended periods of idling or low-speed operation



Driving for long periods in cold temperatures or extremely humid climates



Driving in extremely hot conditions



Driving in mountainous conditions continually

If any do apply, follow Schedule 2. (Canada residents follow Schedule 2.)
Vehicles using Engine Oil Flexible Maintenance
Engine Oil Flexible Maintenance is selected by default for U.S.A. and Puerto Rico
residents.
If any following conditions do apply, follow Schedule 2 with engine oil fixed maintenance.



Extended periods of idling or low-speed operation such as police car, taxi or driving
school car



Driving in dusty conditions

The vehicle calculates the remaining oil life based on engine operating conditions. The
vehicle lets you know when an oil change is due by illuminating the wrench indicator light
in the instrument cluster. Change the oil as soon as possible within the next 1,000 km (600
mile) or 15 days. Refer to Maintenance Monitor on page 6-16 for the details.

NOTE



Please ensure that the Flexible Oil Maintenance Setting is reset after each Oil and Filter
replacement.



For maintenance guidelines beyond the miles/months listed, follow the maintenance
intervals provided in the Scheduled Maintenance Tables.

Maintenance and Care

Scheduled Maintenance

6-4

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

▼ Schedule 1

U.S.A. and Puerto Rico residents - Engine oil flexible maintenance interval

Use when the maintenance monitor for “Oil Change” is set to “Flexible”. For details,
see maintenance monitor. (page 6-16)

Maintenance Interval

Number of months or kilometers (miles), whichever comes first.

Months

12

24

36

48

60

72

84

96

×1000 km

12

24

36

48

60

72

84

96

×1000 miles

7.5

15

22.5

30

37.5

45

52.5

60

Spark plugs

Replace every 64,000 km (40,000 miles).

Air filter

R

R

Drive belts

I

I

Engine oil & filter

*1

Replace when wrench indicator light is ON. (Max interval:12

months or 12,000 km (7,500 miles))

Engine coolant

*2

Replace at first 192,000 km (120,000 miles) or 10 years; after

that, every 96,000 km (60,000 miles) or 5 years.

Fuel lines and hoses

*3

I

I

I

I

Hoses and tubes for emission

*3

I

I

Brake lines, hoses and connections

I

I

I

I

Disc brakes

I

I

I

I

I

I

I

I

Tire (Rotation)

Rotate every 12,000 km (7,500 miles).

Steering operation and linkages

I

I

I

I

Front and rear suspension, ball joints and wheel
bearing axial play

I

I

I

I

Rear differential oil

*4

Transfer oil

*4

Driveshaft dust boots

I

I

I

I

Bolts and nuts on chassis and body

T

T

T

T

Exhaust system and heat shields

I

Emergency flat tire repair kit (if installed)

*5

Inspect annually.

Cabin air filter

R

R

R

R

Chart symbols:

I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
R: Replace
L: Lubricate
C: Clean
T: Tighten
D: Drain

Maintenance and Care

Scheduled Maintenance

6-5

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Remarks:

*

1 The engine oil and filter must be changed at least once a year or within 12,000 km (7,500 miles) since last

engine oil and filter change. Reset the engine oil data whenever replacing the engine oil regardless of the
message/wrench indicator light display.

*

2 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may

cause serious damage to the engine and cooling system.

*

3 According to state/provincial and federal regulations, failure to perform maintenance on these items will not

void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage/kilometer period to ensure long-term reliability.

*

4 If this component has been submerged in water, the oil should be replaced.

*

5 Check the tire repair fluid expiration date every year when performing the periodic maintenance. Replace the

tire repair fluid bottle with new one before the expiration date.

▼ Schedule 2

U.S.A. and Puerto Rico residents - Severe driving conditions maintenance interval

Maintenance Interval

Number of months or kilometers (miles), whichever comes first.

Months

6

12

18

24

30

36

42

48

54

60

66

72

×1000 km

8

16

24

32

40

48

56

64

72

80

88

96

×1000 miles

5

10

15

20

25

30

35

40

45

50

55

60

Spark plugs

Replace every 64,000 km (40,000 miles).

Air filter

*1

R

R

Drive belts

I

I

I

Engine oil & filter

Flexible

*2

Replace when wrench indicator light is ON. (Max interval:12

months or 12,000 km (7,500 miles))

Fixed

*3

R

R

R

R

R

R

R

R

R

R

R

R

Engine coolant

*4

Replace at first 192,000 km (120,000 miles) or 10 years; after

that, every 96,000 km (60,000 miles) or 5 years.

Engine coolant level

I

I

I

I

I

I

I

I

I

I

I

I

Fuel lines and hoses

*5

I

I

I

I

Hoses and tubes for emission

*5

I

I

Function of all lights

I

I

I

I

I

I

I

I

I

I

I

I

Brake lines, hoses and connections

I

I

I

I

Brake and clutch fluid level

I

I

I

I

I

I

I

I

I

I

I

I

Disc brakes

I

I

I

I

I

I

I

I

I

I

I

I

Tire (Rotation)

Rotate every 8,000 km (5,000 miles).

Tire inflation pressure and tire wear

I

I

I

I

I

I

I

I

I

I

I

I

Steering operation and linkages

I

I

I

I

Front and rear suspension, ball joints and wheel
bearing axial play

I

I

I

I

Rear differential oil

*6

Transfer oil

*6

Maintenance and Care

Scheduled Maintenance

6-6

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Maintenance Interval

Number of months or kilometers (miles), whichever comes first.

Months

6

12

18

24

30

36

42

48

54

60

66

72

×1000 km

8

16

24

32

40

48

56

64

72

80

88

96

×1000 miles

5

10

15

20

25

30

35

40

45

50

55

60

Driveshaft dust boots

I

I

I

I

Bolts and nuts on chassis and body

T

T

T

T

Exhaust system and heat shields

I

All locks and hinges

L

L

L

L

L

L

L

L

L

L

L

L

Washer fluid level

I

I

I

I

I

I

I

I

I

I

I

I

Emergency flat tire repair kit (if installed)

*7

Inspect annually.

Cabin air filter

Replace every 40,000 km (25,000 miles) or 2 years.

Maintenance and Care

Scheduled Maintenance

6-7

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Chart symbols:

I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
R: Replace
L: Lubricate
C: Clean
T: Tighten
D: Drain

Remarks:

*

1 If the vehicle is operated in very dusty or sandy areas, clean and if necessary, replace the air filter more often

than the recommended intervals.

*

2 Engine oil flexible maintenance is available for U.S.A. and Puerto Rico residents whose vehicle is operated

mainly where none of the following conditions apply.



Extended periods of idling or low-speed operation such as police car, taxi or driving school car



Driving in dusty conditions

If any do apply, follow fixed maintenance.
The engine oil and filter must be changed at least once a year or within 12,000 km (7,500 miles) since last
engine oil and filter change. Reset the engine oil data whenever replacing the engine oil regardless of the
message/wrench indicator light display.

*

3 Reset the engine oil data whenever replacing the engine oil regardless of the message/wrench indicator light

display.

*

4 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may

cause serious damage to the engine and cooling system.

*

5 According to state/provincial and federal regulations, failure to perform maintenance on these items will not

void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage/kilometer period to ensure long-term reliability.

*

6 If this component has been submerged in water, the oil should be replaced.

*

7 Check the tire repair fluid expiration date every year when performing the periodic maintenance. Replace the

tire repair fluid bottle with new one before the expiration date.



Canada residents

Maintenance Interval

Number of months or kilometers (miles), whichever comes first.

Months

6

12

18

24

30

36

42

48

54

60

66

72

×1000 km

8

16

24

32

40

48

56

64

72

80

88

96

×1000 miles

5

10

15

20

25

30

35

40

45

50

55

60

Spark plugs

Replace every 64,000 km (40,000 miles).

Air filter

I

I

I

I

I

I

I

I

I

I

I

I

Replace every 56,000 km (35,000 miles) or 3 years.

Drive belts

I

I

Engine oil & filter

*1

R

R

R

R

R

R

R

R

R

R

R

R

Engine coolant

*2

Replace at first 192,000 km (120,000 miles) or 10 years; after

that, every 96,000 km (60,000 miles) or 5 years.

Engine coolant level

I

I

I

I

I

I

I

I

I

I

I

I

Fuel lines and hoses

*3

I

I

I

Maintenance and Care

Scheduled Maintenance

6-8

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Maintenance Interval

Number of months or kilometers (miles), whichever comes first.

Months

6

12

18

24

30

36

42

48

54

60

66

72

×1000 km

8

16

24

32

40

48

56

64

72

80

88

96

×1000 miles

5

10

15

20

25

30

35

40

45

50

55

60

Hoses and tubes for emission

*3

I

Function of all lights

I

I

I

I

I

I

I

I

I

I

I

I

Brake lines, hoses and connections

I

I

I

Brake and clutch fluid level

I

I

I

I

I

I

I

I

I

I

I

I

Disc brakes

Inspect every 24,000 km (15,000 miles) or 1 year.

Tire (Rotation)

Rotate every 8,000 km (5,000 miles).

Tire inflation pressure and tire wear

I

I

I

I

I

I

I

I

I

I

I

I

Steering operation and linkages

I

I

I

Front and rear suspension, ball joints and wheel
bearing axial play

I

I

I

Rear differential oil

*4

Transfer oil

*4

Driveshaft dust boots

I

I

I

Bolts and nuts on chassis and body

T

T

T

Exhaust system and heat shields

Inspect every 72,000 km (45,000 miles) or 5 years.

All locks and hinges

L

L

L

L

L

L

L

L

L

L

L

L

Washer fluid level

I

I

I

I

I

I

I

I

I

I

I

I

Emergency flat tire repair kit (if installed)

*5

Inspect annually.

Cabin air filter

Replace every 40,000 km (25,000 miles) or 2 years.

Chart symbols:

I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
R: Replace
L: Lubricate
C: Clean
T: Tighten
D: Drain

Remarks:

*

1 Reset the engine oil data whenever replacing the engine oil regardless of the message/wrench indicator light

display.

*

2 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may

cause serious damage to the engine and cooling system.

*

3 According to state/provincial and federal regulations, failure to perform maintenance on these items will not

void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage/kilometer period to ensure long-term reliability.

*

4 If this component has been submerged in water, the oil should be replaced.

*

5 Check the tire repair fluid expiration date every year when performing the periodic maintenance. Replace the

tire repair fluid bottle with new one before the expiration date.

Maintenance and Care

Scheduled Maintenance

6-9

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27
