Mazda CX-9 (2019 year). Instruction - part 13

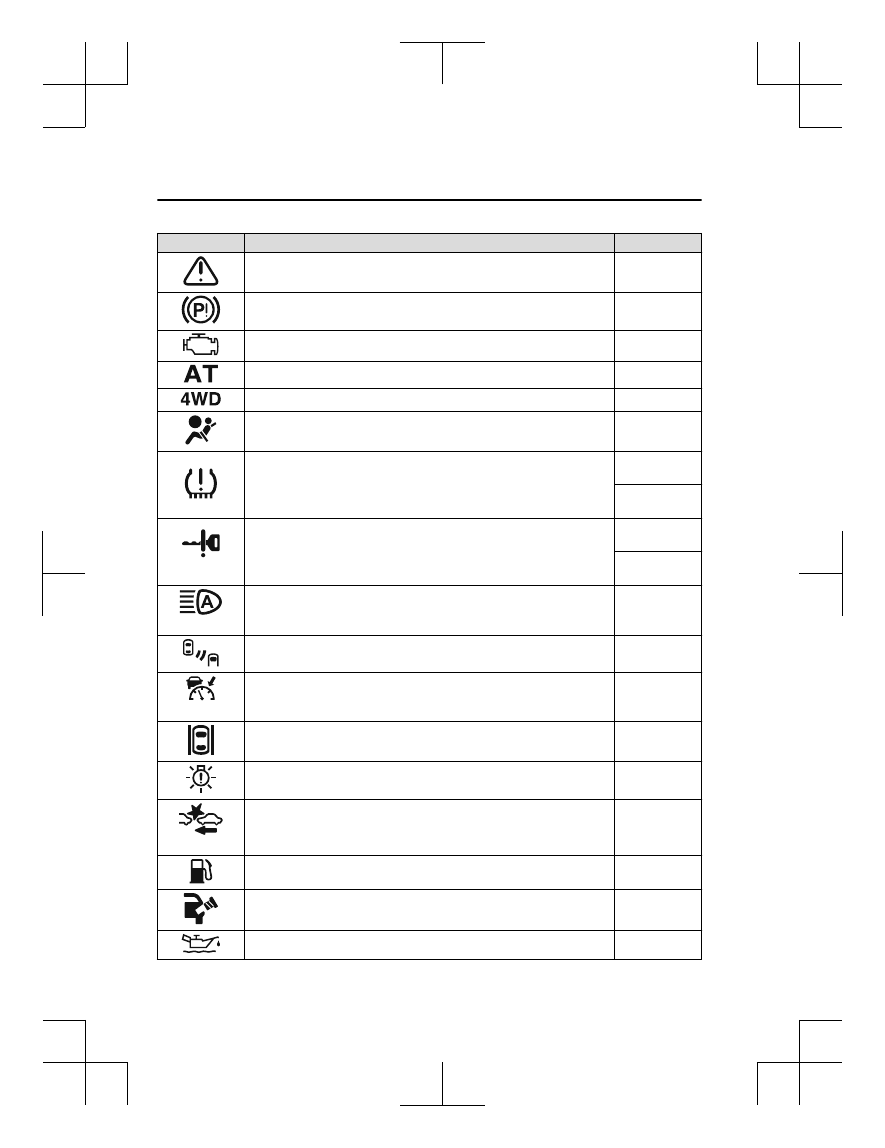

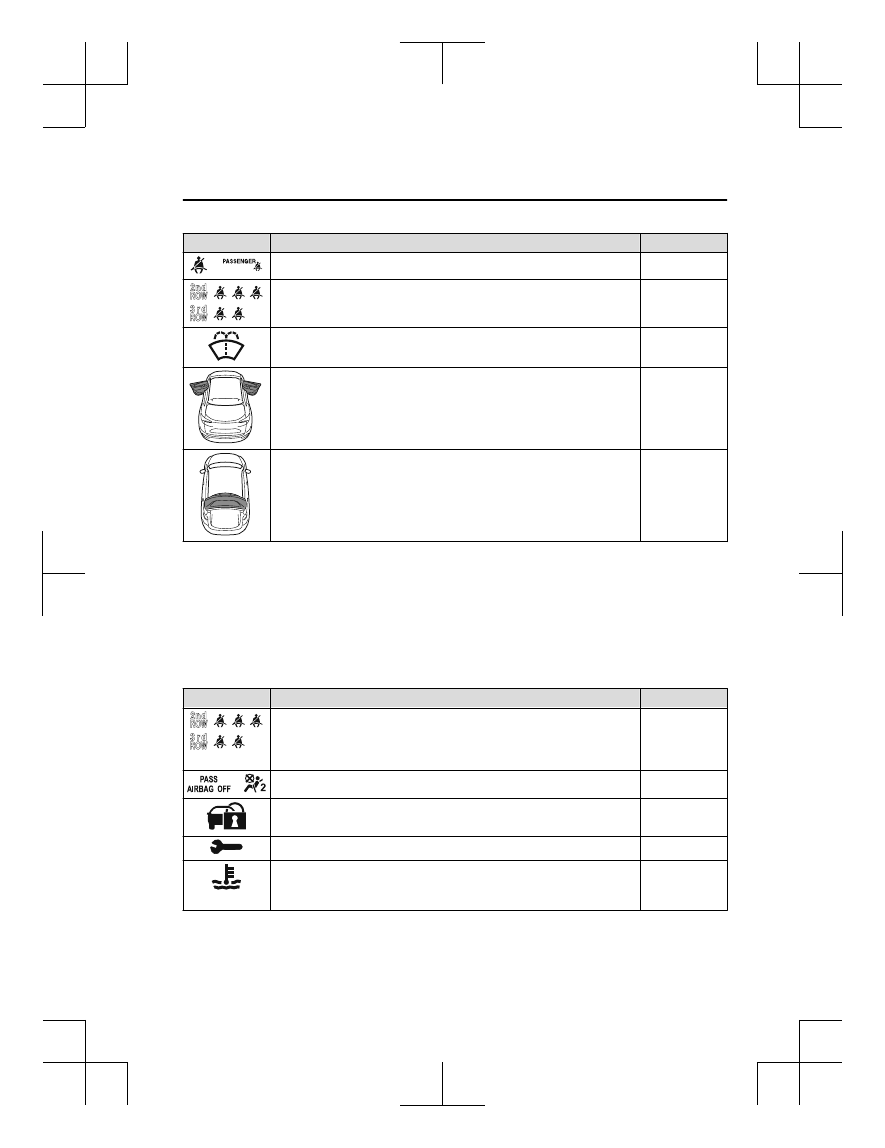

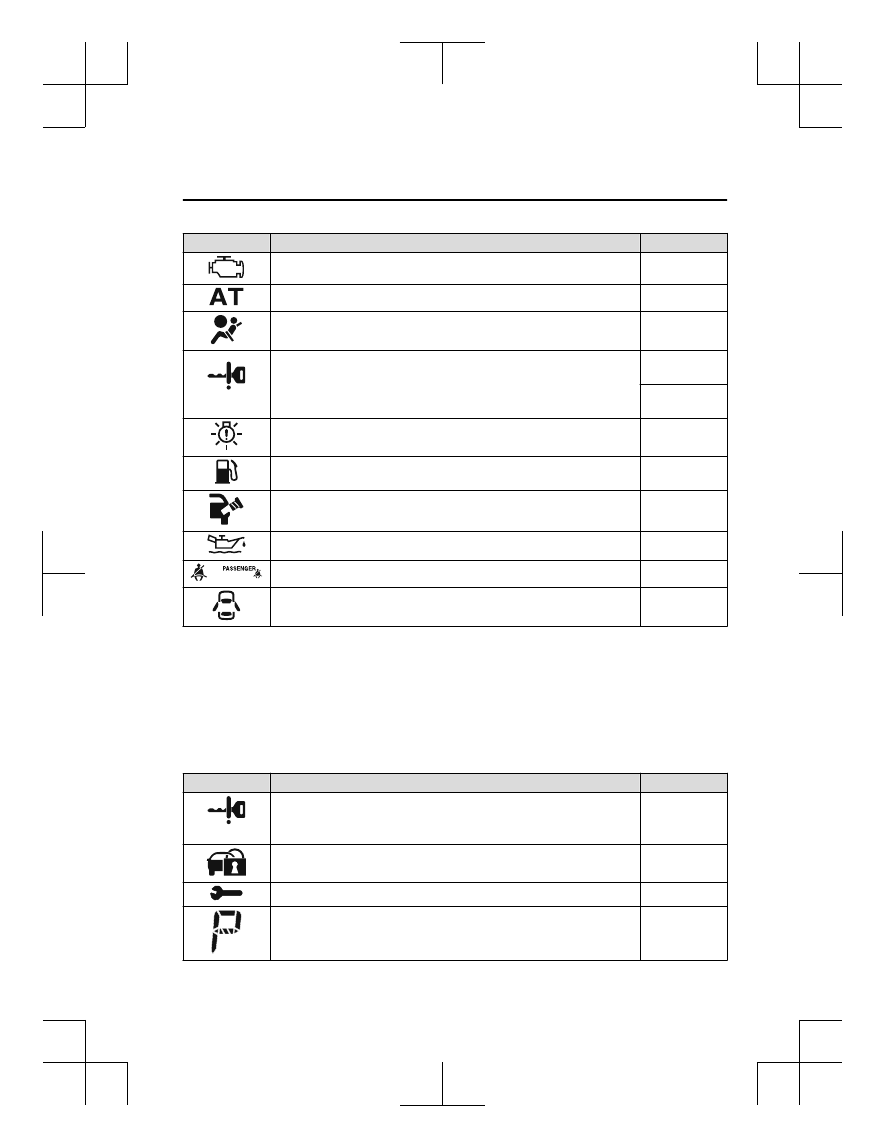

Signal

Warning

Page

Master Warning Indication

Electric Parking Brake (EPB) Warning Indication/Warning Light

*1

Check Engine Light

*1

Automatic Transaxle Warning Indication

*

AWD Warning Indication

Air Bag/Front Seat Belt Pretensioner System Warning Light

*1

*

Tire Pressure Monitoring System Warning Light

*1

Flashing

Turns on

(Amber/White)

KEY Warning Indication

Amber

White

(Amber)

*

High Beam Control System (HBC) Warning Indication/Warning Light

*1

*

Blind Spot Monitoring (BSM) Warning Indication

(Amber)

*

Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop

& Go function) Warning Indication

*

Lane-keep Assist System (LAS) & Lane Departure Warning System

(LDWS) Warning Indication

LED Headlight Warning Light

*1

(Amber)

*

Smart Brake Support/Smart City Brake Support (SBS/SCBS) Warning In‐

dication

Low Fuel Warning Indication

Check Fuel Cap Warning Indication/Warning Light

*1

Engine Oil Level Warning Light

*1

When Driving

Instrument Cluster and Display

4-40

*Some models.

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Signal

Warning

Page

Seat Belt Warning Light (Front seat)

*

Seat Belt Warning Light (Rear seat)

*

Low Washer Fluid Level Warning Indication

Door-Ajar Warning Indication

Liftgate-Ajar Warning Indication

*

1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or

when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
Authorized Mazda Dealer.

*

2 The light turns on continuously when the parking brake is applied.

▼ Indication/Indicator Lights

These lights turn on or flash to notify the user of the system operation status or a system
malfunction.

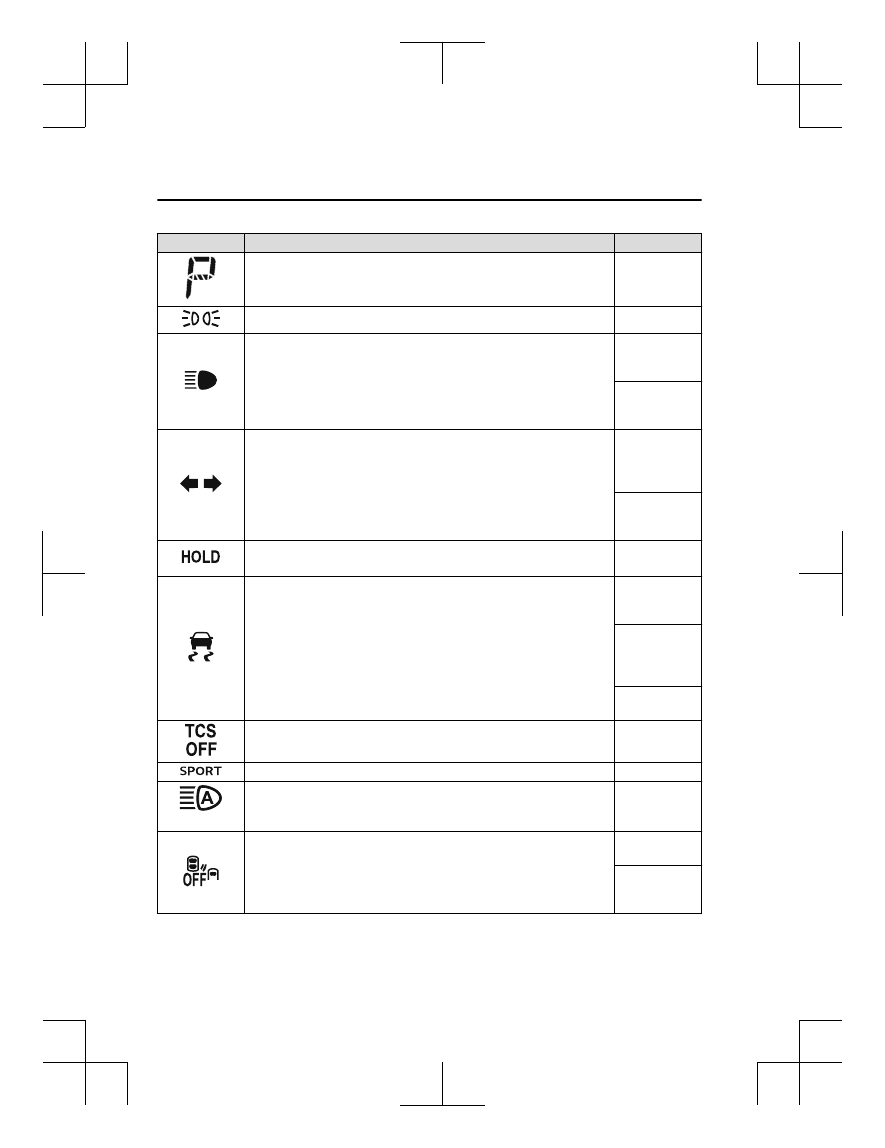

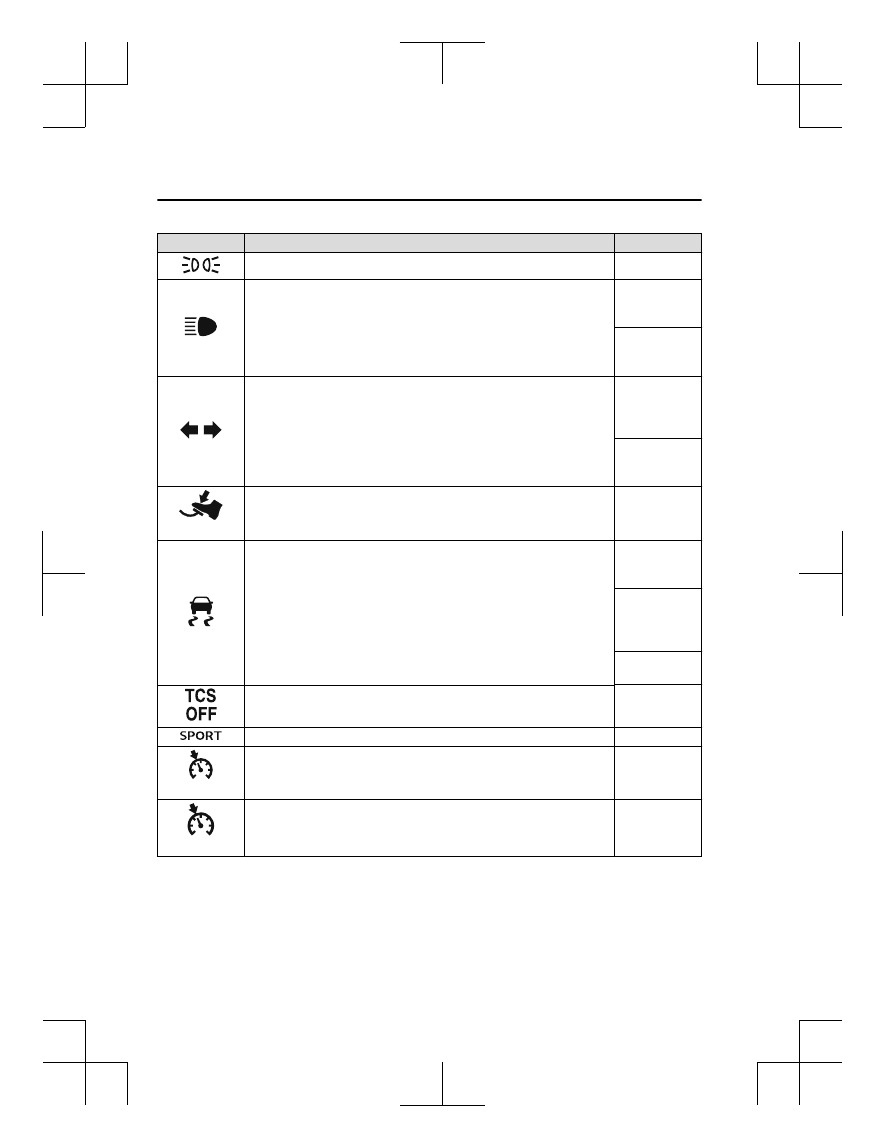

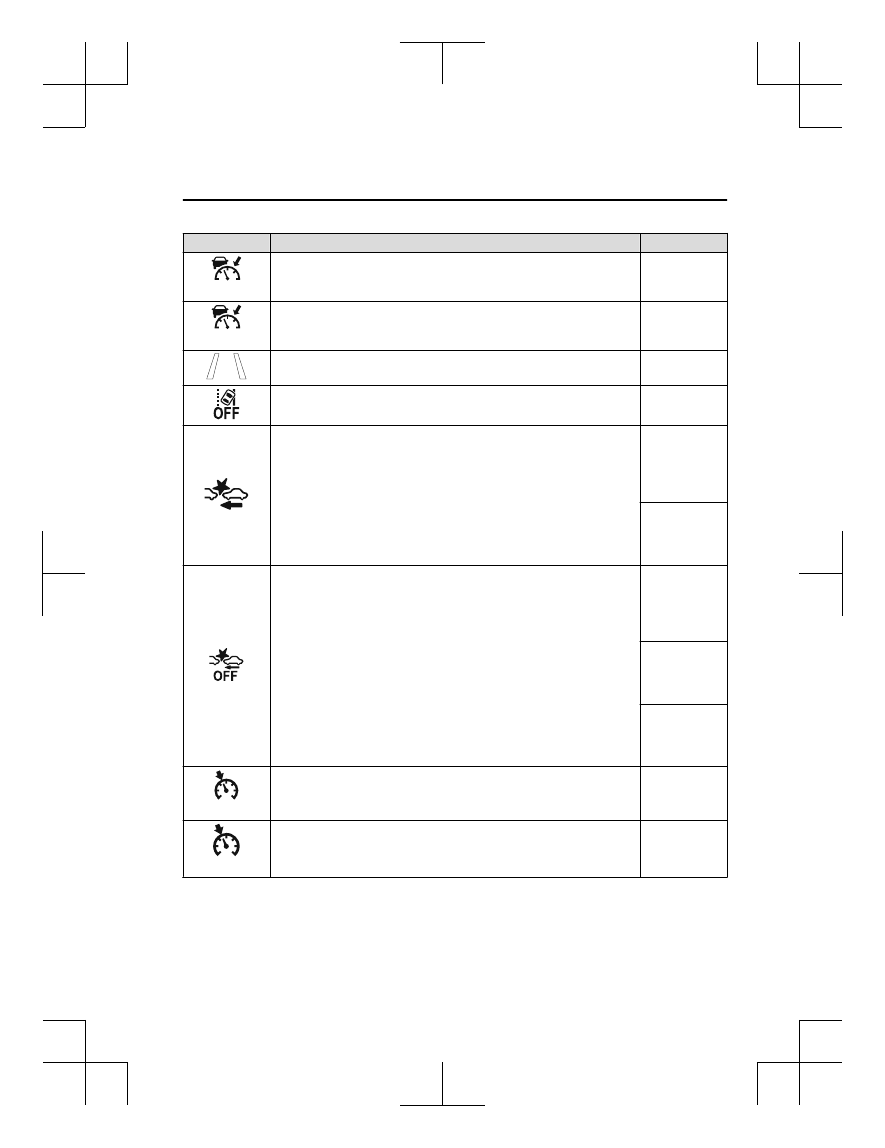

Signal

Indicator

Page

(Green)

*

Seat Belt Indicator Light (Rear seat)

*

Front Passenger Air Bag Deactivation Indicator Light

*1

Security Indicator Light

*1

Wrench Indication

(Blue)

Low Engine Coolant Temperature Indicator Light

When Driving

Instrument Cluster and Display

*Some models.

4-41

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Signal

Indicator

Page

Shift Position Indication

Lights-On Indication/Indicator Light

Headlight High-Beam Indicator Light

Headlight

High-Low Beam

Flashing the

Headlights

Turn Signal/Hazard Warning Indicator Lights

Turn and

Lane-Change

Signals

Hazard Warning

Flasher

*

Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop

& Go function) indicator Light

*1

TCS/DSC Indicator Light

*1

Traction Control

System (TCS)

Dynamic Stabil‐

ity Control

(DSC)

Turns on

TCS OFF Indicator Light

*1

Select Mode Indication

(Green)

*

High Beam Control System (HBC) Indicator Light

*

Blind Spot Monitoring (BSM) OFF Indicator Light

*1

Malfunction

Except malfunc‐

tion

When Driving

Instrument Cluster and Display

4-42

*Some models.

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Signal

Indicator

Page

(White)

*

Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop

& Go function) Main Indication

(Green)

*

Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop

& Go function) Set Indication

*

Lane-keep Assist System (LAS) & Lane Departure Warning System

(LDWS) Indication

*

Lane-keep Assist System (LAS) & Lane Departure Warning System

(LDWS) OFF Indicator Light

*1

*

Smart City Brake Support (SCBS) Indication

Advanced Smart

City Brake Sup‐

port (Advanced

SCBS)

Smart City

Brake Support

(SCBS)

*

Smart Brake Support/Smart City Brake Support (SBS/SCBS) OFF Indica‐

tor Light

*1

Advanced Smart

City Brake Sup‐

port (Advanced

SCBS)

Smart City

Brake Support

(SCBS)

Smart Brake

Support (SBS)

System

(White)

*

Cruise Main Indication

(Green)

*

Cruise Set Indication

*

1 The light turns on when the ignition is switched on for an operation check, and turns off

a few seconds later or when the engine is started. If the light does not turn on or remains
turned on, have the vehicle inspected at an Authorized Mazda Dealer.

When Driving

Instrument Cluster and Display

*Some models.

4-43

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

▼ Wrench Indicator Light

The wrench indication is displayed under
the following conditions.



When the preset maintenance period has
arrived.
Refer to Maintenance Monitor on page
6-16.



When the engine oil replacement period
has arrived.

NOTE



The wrench indication may display
earlier than the preset period depending
on vehicle usage conditions.



Whenever the engine oil is replaced, a
reset of the vehicle engine control unit
necessary.
Your Authorized Mazda Dealer will be
able to reset the engine control unit or
see page 6-24 for the Vehicle engine
control unit reset procedure.

▼ Low Engine Coolant Temperature

Indicator Light (Blue)

The light illuminates continuously when
the engine coolant temperature is low and
turns off after the engine is warm.

When Driving

Instrument Cluster and Display

4-44

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

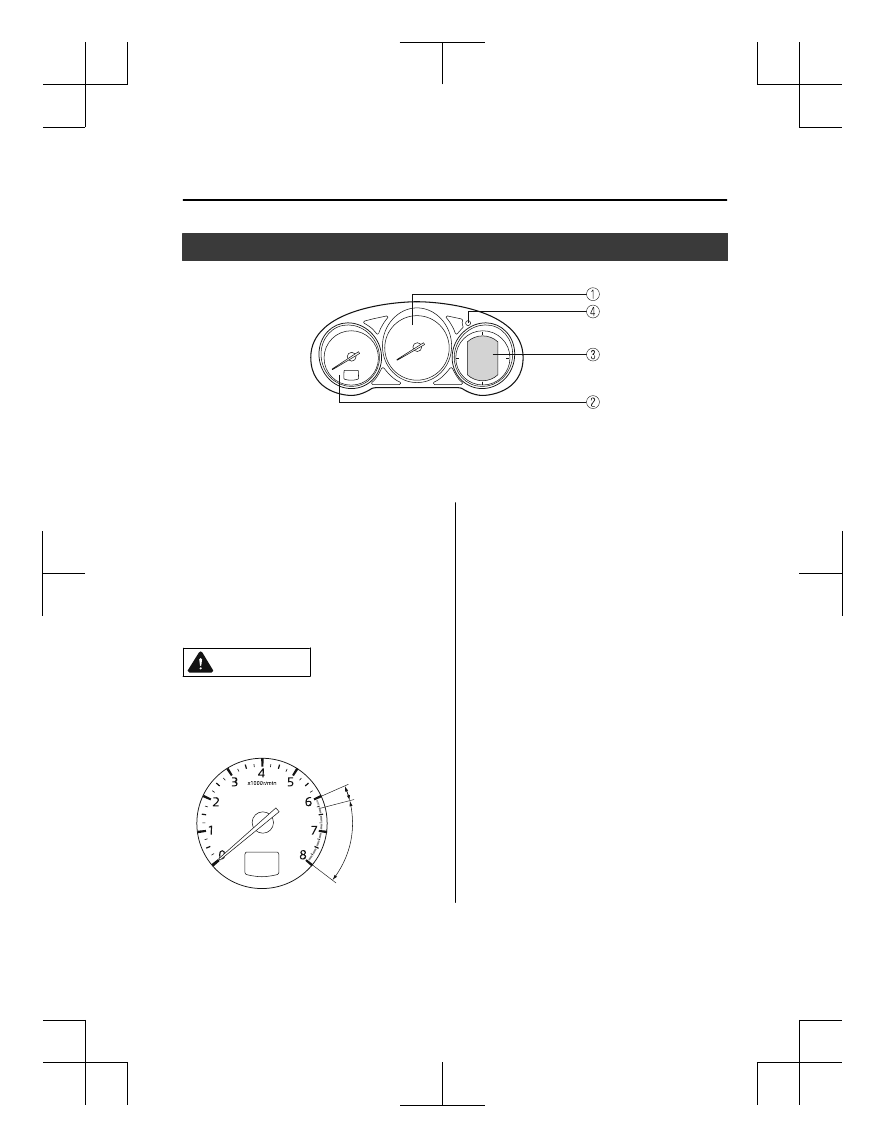

Instrument Cluster (Type C)

①

Speedometer..........................................................................................................page 4-45

②

Tachometer............................................................................................................ page 4-45

③

Multi-information Display (Type C)..................................................................... page 4-46

④

Dashboard Illumination.........................................................................................page 4-49

▼ Speedometer

The speedometer indicates the speed of the
vehicle.

▼ Tachometer

The tachometer shows engine speed in
thousands of revolutions per minute (rpm).

CAUTION

Do not run the engine with the tachometer
needle in the RED ZONE.
This may cause severe engine damage.

STRIPED
ZONE

RED ZONE

NOTE
When the tachometer needle enters the
STRIPED ZONE, this indicates to the
driver that the gears should be shifted
before entering the RED ZONE.

When Driving

Instrument Cluster and Display

4-45

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

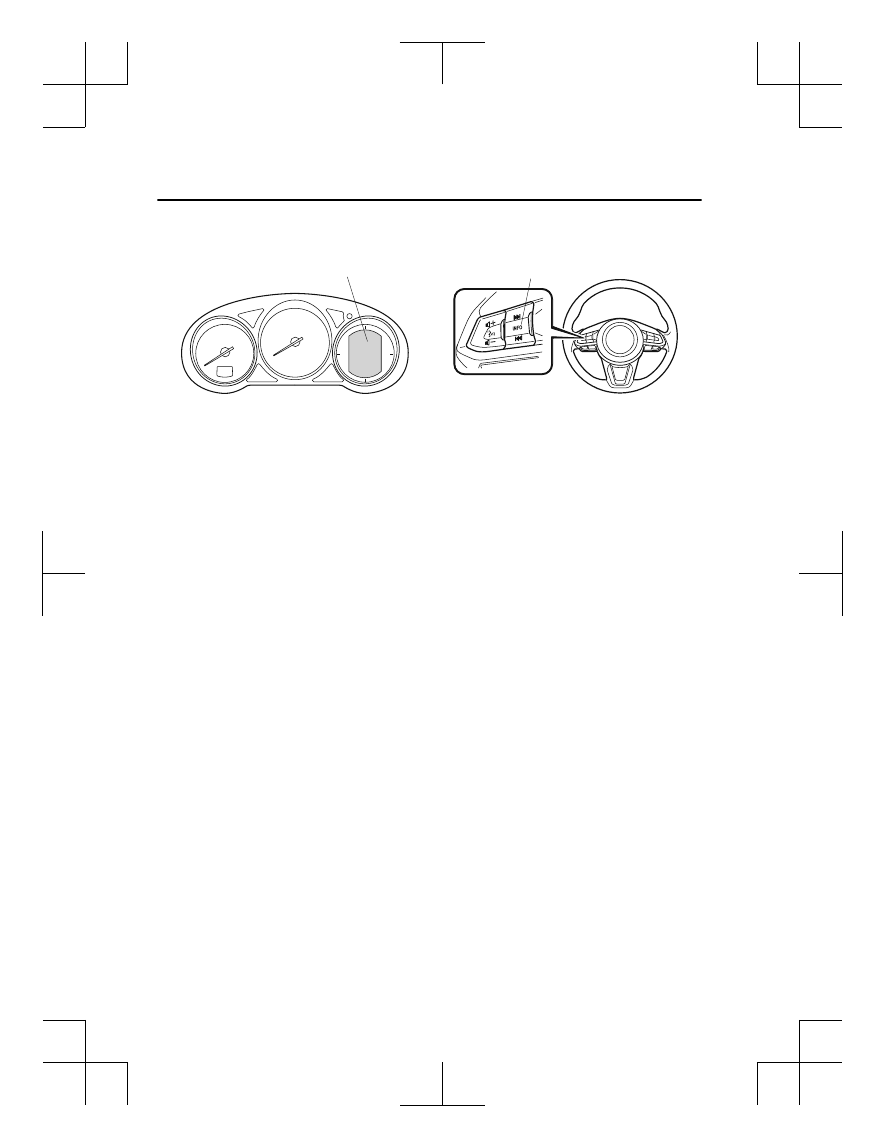

▼ Multi-information Display (Type C)

INFO switch

Multi-information Display (Type C)

The multi-information display indicates the following information.



Odometer



Trip meter



Engine coolant temperature gauge



Fuel gauge



Outside temperature



Trip Computer



Cruise Control Display



Compass Display

When Driving

Instrument Cluster and Display

4-46

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

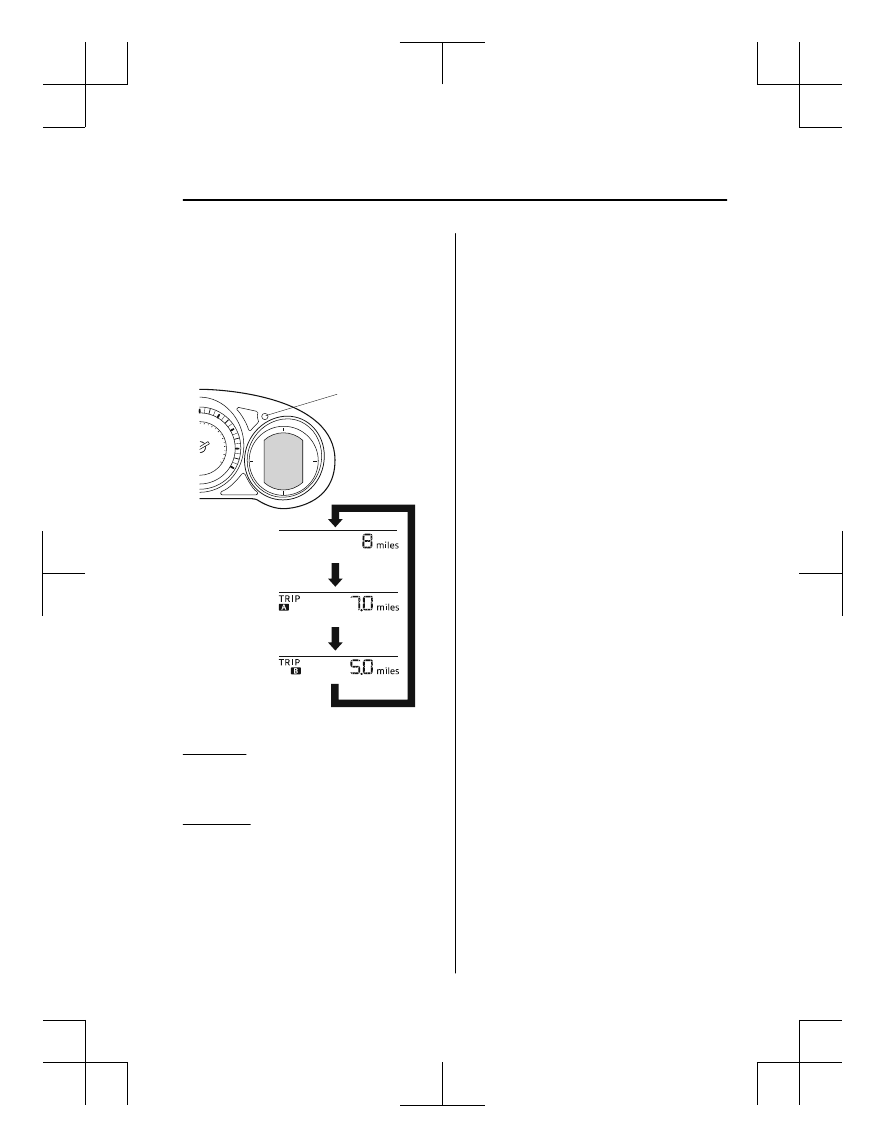

▼ Odometer, Trip Meter and Trip

Meter Selector

The display mode can be changed from
odometer to trip meter A to trip meter B
and then back to odometer by pressing the
selector while one of them is displayed.
The selected mode will be displayed.

Selector knob

Press the selector knob

Press the selector knob

Press the selector knob

Odometer

Trip meter A

Trip meter B

Odometer

The odometer records the total distance
the vehicle has been driven.

Trip meter

The trip meter can record the total distance
of two trips. One is recorded in trip meter
A, and the other is recorded in trip meter
B.

For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.

When trip meter A is selected, pressing the
selector again within 1 second will change
to trip meter B mode.

When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.

The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to “0.0” by
depressing and holding the selector for 1
second or more. Use this meter to measure
trip distances and to compute fuel
consumption.

NOTE



If TRIP A is reset using the trip meter
when the function which synchronizes
(resets) the fuel economy monitor and
the trip meter (TRIP A) is on, the fuel
economy data resets in conjunction with
TRIP A.
Refer to Fuel Economy Monitor on page
4-99.



Only the trip meters record tenths of
kilometers (miles).



The trip record will be erased when:



The power supply is interrupted
(blown fuse or the battery is
disconnected).



The vehicle is driven over 9999.9 km
(mile).

When Driving

Instrument Cluster and Display

4-47

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

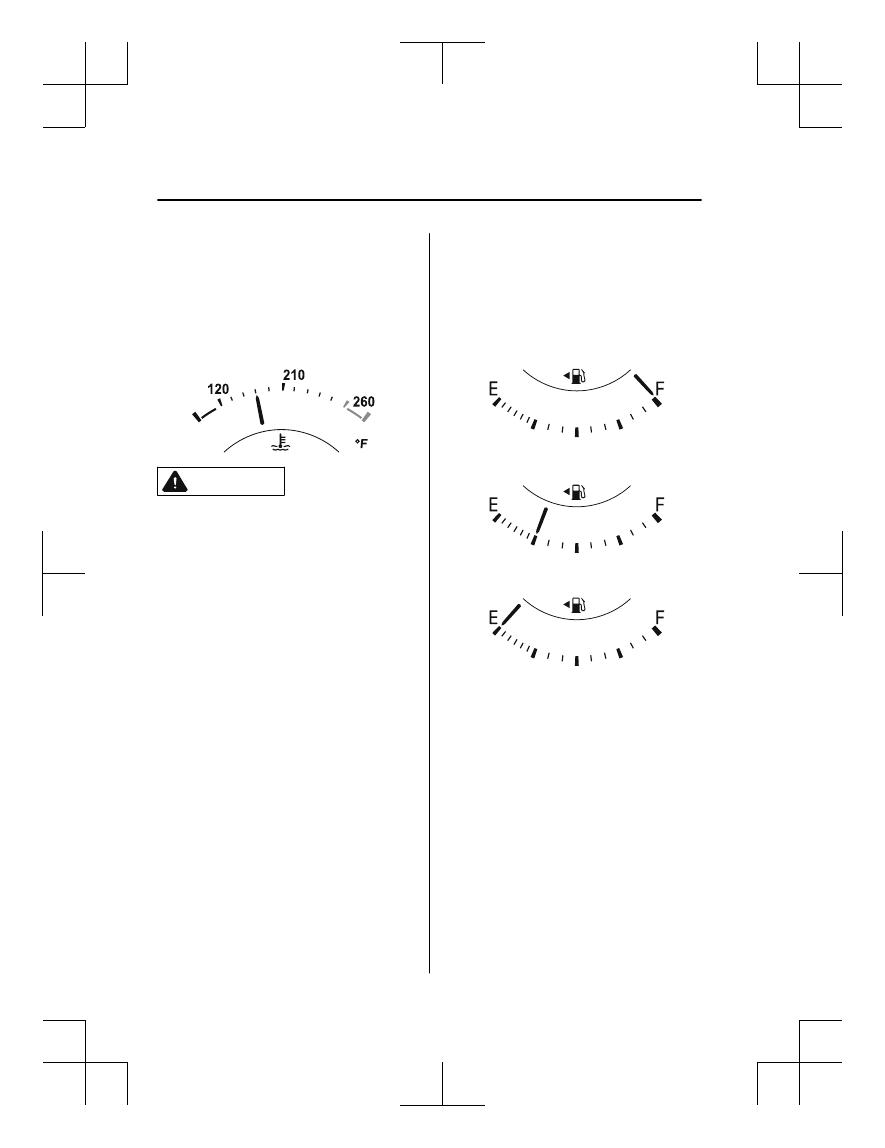

▼ Engine Coolant Temperature Gauge

Displays the engine coolant temperature.
The white gauge indicates that the engine
coolant temperature is low, and the red
gauge indicates that the engine coolant
temperature is high and overheating.

CAUTION

If the engine coolant temperature gauge
needle (white) flashes, there is a possibility
of overheating. Drive slowly to reduce
engine load until you can find a safe place
to stop the vehicle and wait for the engine
to cool down.
Refer to Overheating on page 7-23.

NOTE



If the engine coolant temperature is high
or the engine is hot, the engine output
may be limited.



The temperature unit (Centigrade/
Fahrenheit) of the engine coolant gauge
display changes in conjunction with the
temperature unit of the outside
temperature display.
Refer to Personalization Features on
page 9-10.



During normal driving, the engine
coolant temperature stabilizes at 100 °C
(210 °F) or less, and the gauge indicates
a range lower than 100 °C (210 °F).

▼ Fuel Gauge

The fuel gauge shows approximately how
much fuel is remaining in the tank when
the ignition is switched ON. We
recommend keeping the tank over 1/4 full.

Full

1/4 Full

Empty

If the low fuel warning light illuminates or
the fuel level is very low, refuel as soon as
possible.
Refer to Taking Action on page 7-37.

NOTE



After refueling, it may require some time
for the indicator to stabilize. In addition,
the indicator may deviate while driving
on a slope or curve since the fuel moves
in the tank.



The display indicating a quarter or less
remaining fuel has more segments to
show the remaining fuel level in greater
detail.

When Driving

Instrument Cluster and Display

4-48

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27



The direction of the arrow ( ) indicates
that the fuel-filler lid is on the left side
of the vehicle.

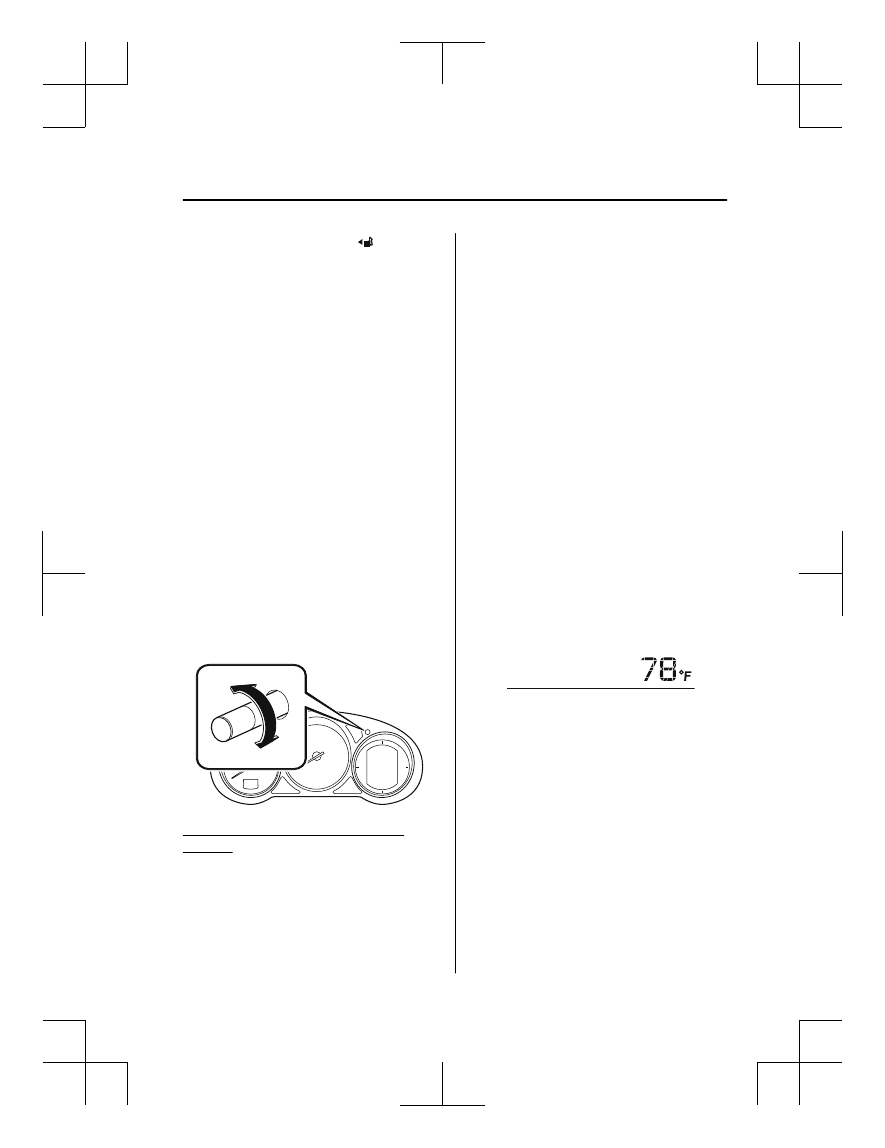

▼ Dashboard Illumination

When the lights are turned on with the
ignition switched ON, the brightness of
the dashboard illumination is dimmed.

NOTE



When the lights are turned on, the
lights-on indicator light in the
instrument cluster turns on.
Refer to Headlights on page 4-68.

The brightness of the instrument cluster
and dashboard illuminations can be
adjusted by rotating the knob.



The brightness decreases by rotating the
knob to the left. A beep sound will be
heard when the knob has been rotated to
the maximum dim position.



The brightness increases by rotating the
knob to the right.

Dim

Bright

Function for canceling illumination
dimmer

The illumination dimmer can be canceled
by rotating the dashboard illumination
knob to the right until a beep sound is
heard while the instrument cluster is
dimmed with the ignition switched ON. If
the instrument cluster's visibility is
reduced due to glare from surrounding
brightness, cancel the illumination
dimmer.

NOTE



When the illumination dimmer is
canceled, the instrument cluster cannot
be dimmed even if the lights are turned
on.



When the illumination dimmer is
canceled, the screen in the center
display switches to constant display of
the daytime screen.

▼ Outside Temperature Display

When the ignition is switched ON, the
outside temperature is displayed.

NOTE



Under the following conditions, the
outside temperature display may differ
from the actual outside temperature
depending on the surroundings and
vehicle conditions:



Significantly cold or hot temperatures.



Sudden changes in outside
temperature.



The vehicle is parked.



The vehicle is driven at low speeds.

When Driving

Instrument Cluster and Display

4-49

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Changing the Temperature Unit of the
Outside Temperature Display

The outside temperature unit can be
switched between Celsius and Fahrenheit.
Settings can be changed by operating the
center display screen.
Refer to Personalization Features on page
9-10.

NOTE
When the temperature unit indicated in the
outside temperature display is changed,
the temperature unit indicated in the
engine coolant gauge display changes in
conjunction with it.

▼ Trip Computer

The following information can be selected
by pressing the INFO switch with the
ignition switched ON.



Distance-to-empty mode



Average fuel economy mode



Current fuel economy mode



Compass mode

If you have any problems with your trip
computer, consult an Authorized Mazda
Dealer.

Distance-to-empty mode

This mode displays the approximate
distance you can travel on the remaining
fuel based on the fuel economy.

The distance-to-empty will be calculated
and displayed every second.

NOTE



Even though the distance-to-empty
display may indicate a sufficient amount
of remaining driving distance before
refueling is required, refuel as soon as
possible if the fuel level is very low or
the low fuel warning light illuminates.



The display may not change unless you
add more than approximately 9 L (2.3
US gal, 1.9 Imp gal) of fuel.



The distance-to-empty is the
approximate remaining distance the
vehicle can be driven until all the
graduation marks in the fuel gauge
(indicating the remaining fuel supply)
disappear.



If there is no past fuel economy
information such as after first
purchasing your vehicle or the
information is deleted when the battery
cables are disconnected, the actual
distance-to empty/range may differ from
the amount indicated.

Average fuel economy mode

This mode displays the average fuel
economy by calculating the total traveled
distance and the total fuel consumption
since the vehicle was purchased or the past
data was reset. The average fuel economy
is calculated and displayed every minute.

To reset the displayed past data, press the
INFO switch for 1.5 seconds or longer.
After resetting the data, - - - L/100 km
(- - - mpg) is displayed for one minute
before the fuel economy is recalculated
and displayed.

When Driving

Instrument Cluster and Display

4-50

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

NOTE
If TRIP A is reset using the trip meter
when the function which synchronizes
(resets) the fuel economy monitor and the
trip meter (TRIP A) is on, the displayed
past data is reset.

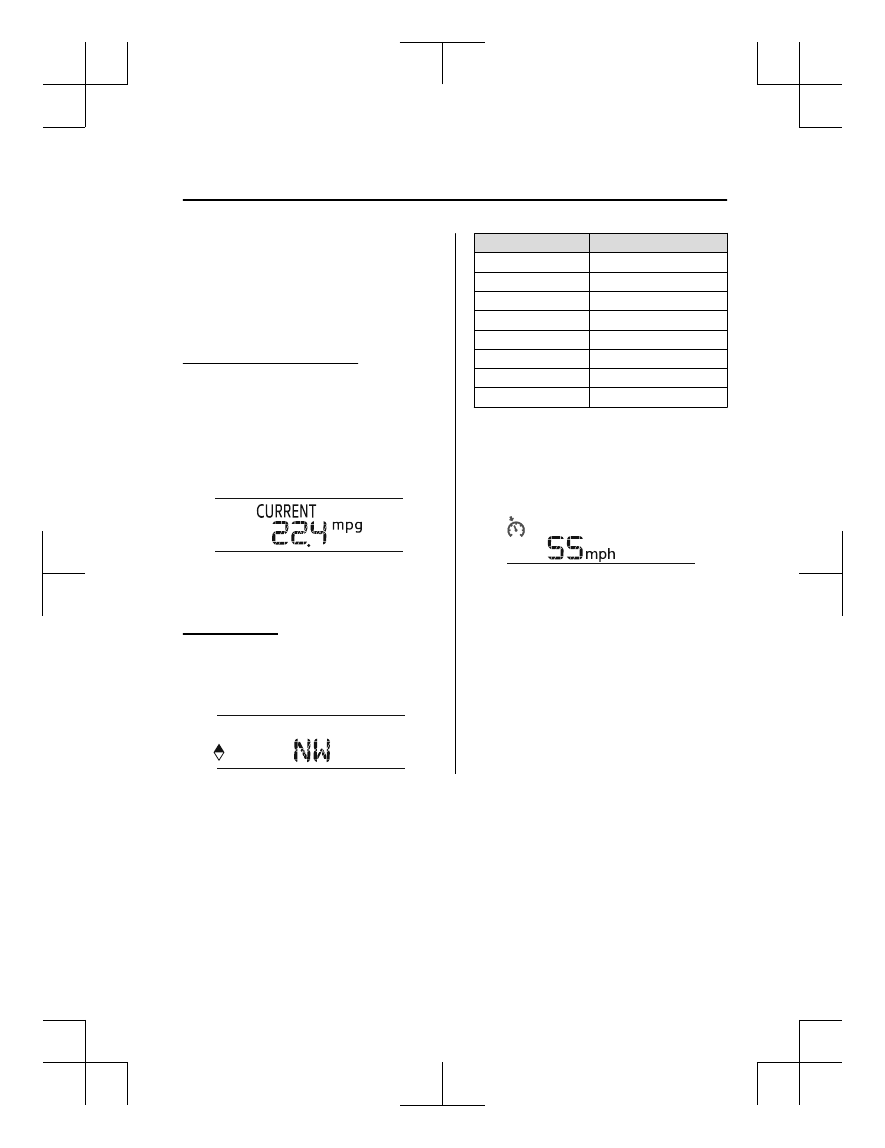

Current fuel economy mode

This mode displays the current fuel
economy by calculating the amount of fuel
consumption and the distance traveled.

Current fuel economy will be calculated
and displayed every 2 seconds.

When you've slowed to about 5 km/h (3
mph), - - - L/100 km (- - - mpg) will be
displayed.

Compass mode

The direction the vehicle is moving is
displayed in one of eight directions while
the vehicle is being driven.

Display

Direction

N

North

S

South

E

East

W

West

NE

Northeast

NW

Northwest

SE

Southeast

SW

Southwest

▼ Cruise Control Set Vehicle Speed

Display

The vehicle speed preset using the cruise
control is displayed.

Refer to Cruise Control on page 4-203.

When Driving

Instrument Cluster and Display

4-51

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

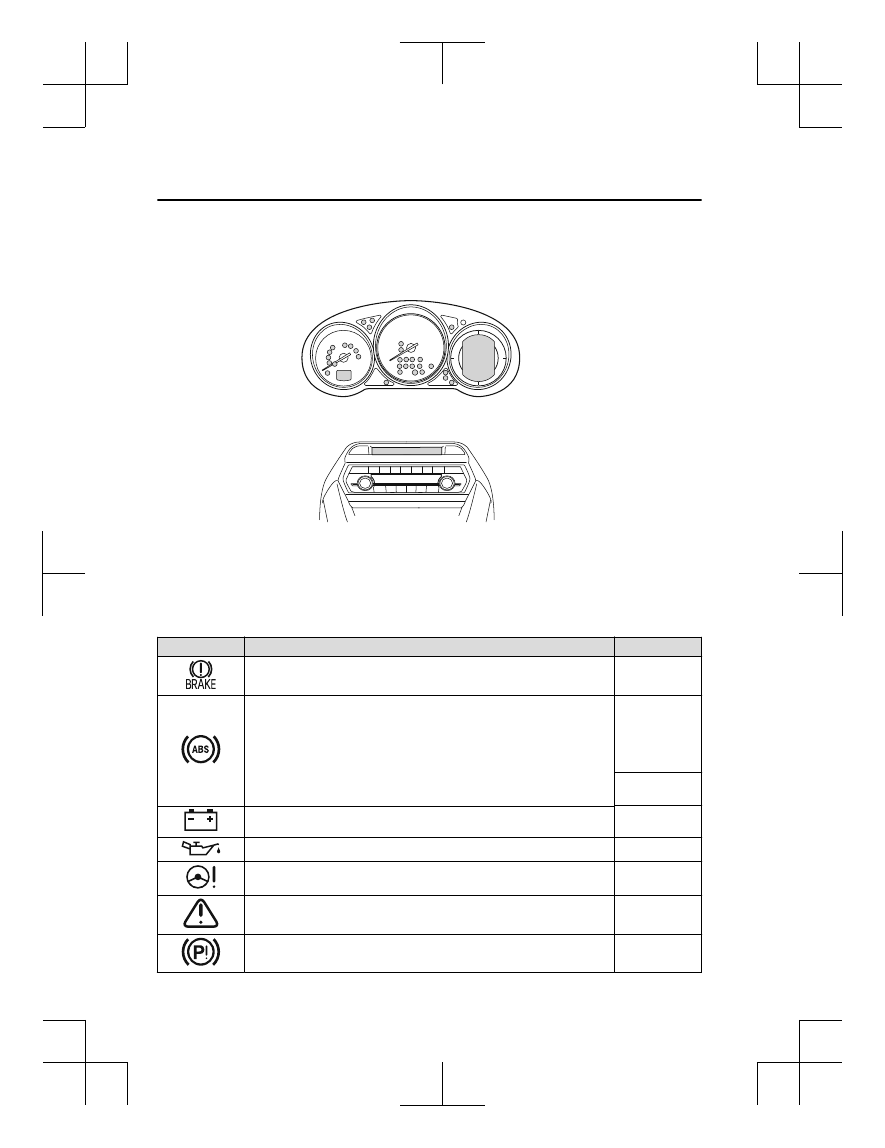

▼ Warning/Indicator Lights

Instrument Cluster varies depending on model and specifications.

Instrument Cluster

Center of Dashboard

Warning lights will appear in any of the highlighted areas

▼ Warning Indication/Warning Lights

These lights turn on or flash to notify the user of the system operation status or a system
malfunction.

Signal

Warning

Page

Brake System Warning Light

*1*2

ABS Warning Light

*1

Electronic Brake

Force Distribu‐

tion System

Warning

ABS warning

Charging System Warning Light

*1

Engine Oil Warning Light

*1

Power Steering Malfunction Indicator Light

*1

Master Warning Light

*1

Electric Parking Brake (EPB) Warning Light

*1

When Driving

Instrument Cluster and Display

4-52

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Signal

Warning

Page

Check Engine Light

*1

Automatic Transaxle Warning Light

*1

Air Bag/Front Seat Belt Pretensioner System Warning Light

*1

(Red)

KEY Warning Light

*1

Turns on

Flashing

LED Headlight Warning Light

*1

Low Fuel Warning Light

Check Fuel Cap Warning Light

*1

Engine Oil Level Warning Light

*1

Seat Belt Warning Light

Door-Ajar Warning Light

*

1 The light turns on when the ignition is switched on for an operation check, and turns off a few seconds later or

when the engine is started. If the light does not turn on or remains turned on, have the vehicle inspected at an
Authorized Mazda Dealer.

*

2 The light turns on continuously when the parking brake is applied.

▼ Indication/Indicator Lights

These lights turn on or flash to notify the user of the system operation status or a system
malfunction.

Signal

Indicator

Page

(Green)

KEY Indicator Light

Security Indicator Light

*1

Wrench Indicator Light

*1

Shift Position Indication

When Driving

Instrument Cluster and Display

4-53

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Signal

Indicator

Page

Lights-On Indication/Indicator Light

Headlight High-Beam Indicator Light

Headlight

High-Low Beam

Flashing the

Headlights

Turn Signal/Hazard Warning Indicator Lights

Turn and

Lane-Change

Signals

Hazard Warning

Flasher

(Green)

Brake Pedal Operation demand Indicator Light

TCS/DSC Indicator Light

*1

Traction Control

System (TCS)

Dynamic Stabil‐

ity Control

(DSC)

Turns on

TCS OFF Indicator Light

*1

Select Mode Indication

(White)

Cruise Main Indication

(Green)

Cruise Set Indication

*

1 The light turns on when the ignition is switched on for an operation check, and turns off

a few seconds later or when the engine is started. If the light does not turn on or remains
turned on, have the vehicle inspected at an Authorized Mazda Dealer.

When Driving

Instrument Cluster and Display

4-54

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

▼ Wrench Indicator Light

When the ignition is switched ON, the
wrench indicator light turns on and then
turns off after a few seconds.

The wrench indicator light turns on under
the following conditions:



When the preset maintenance period has
arrived.



When it’s time to replace the engine oil.

Refer to Maintenance Monitor on page
6-16.

NOTE



The wrench indicator light turns on
earlier than the preset period depending
on vehicle usage conditions.



Whenever the engine oil is replaced, a
reset of the vehicle engine control unit
necessary.
Your Authorized Mazda Dealer will be
able to reset the engine control unit or
see page 6-24 for the Vehicle engine
control unit reset procedure.

When Driving

Instrument Cluster and Display

4-55

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Content .. 11 12 13 14 ..
