qPower/Volume/Sound Controls

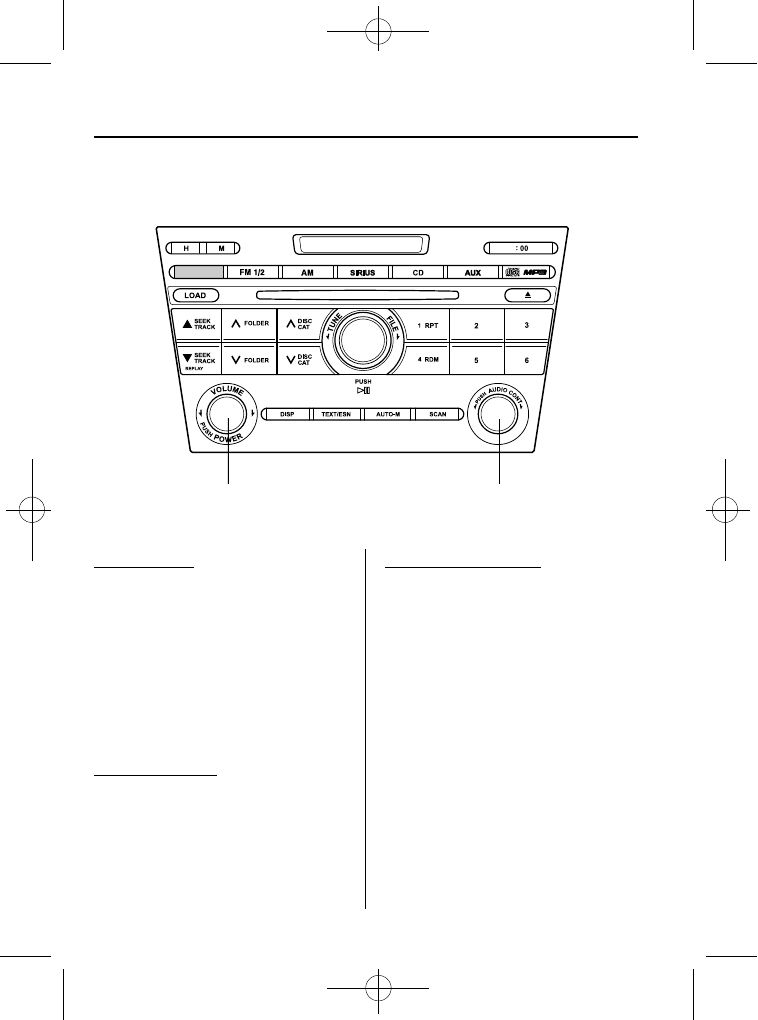

Power/Volume dial

Audio control dial

Power ON/OFF

Switch the ignition to ACC or ON.

Press the power/volume dial to turn the
audio system on.
Press the power/volume dial again to turn
the audio system off.

NOTE

To prevent the battery from being discharged,
do not leave the audio system on for a long
period of time when the engine is not running.

Volume adjustment

To adjust the volume, turn the power/
volume dial.

Turn the power/volume dial to the right to
increase volume, to the left to decrease it.

Audio sound adjustment

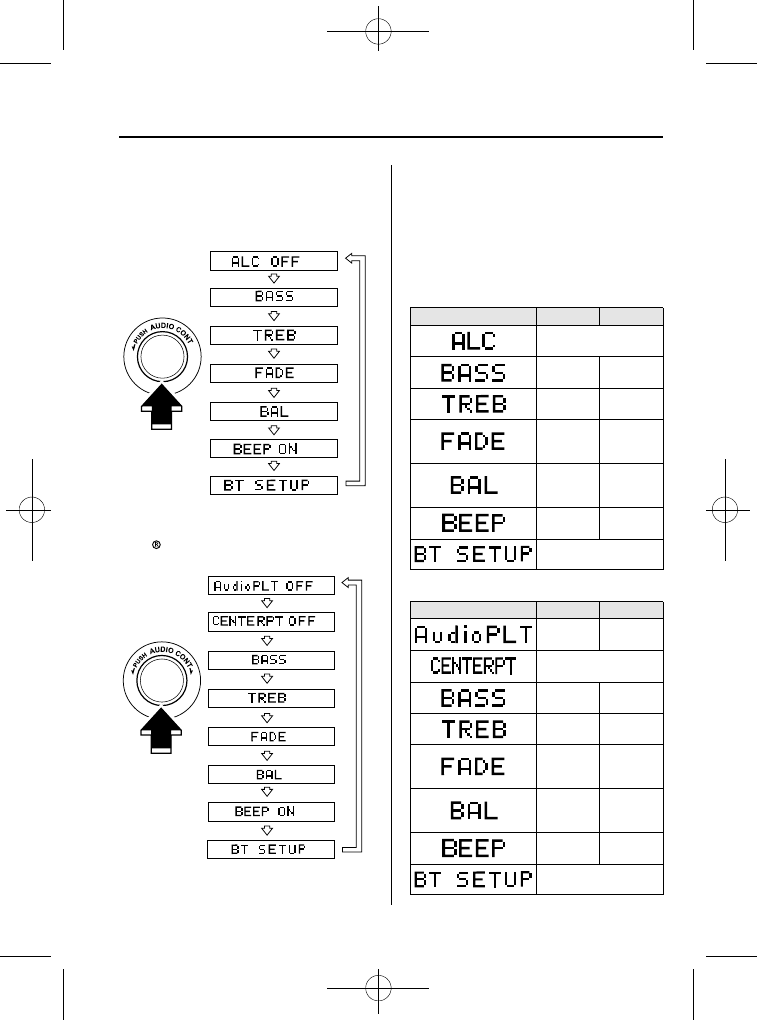

1. Press the audio control dial to select the

function. The selected function will be
indicated.

6-26

Interior Comfort

Audio System

CX-7_8CG3-EA-11J_Edition1 Page264
Saturday, September 24 2011 10:32 AM

Black plate (265,1)

Standard audio-equipped model

Bose Sound System-equipped model

*1 Depending on the mode selected, the

indication changes.

*2 Depending on the model, this function

may not be available.

2. Turn the audio control dial to adjust the

selected functions as follows:

Standard audio-equipped model

Indication

Turn Left Turn Right

Select mode

Decrease

bass

Increase

bass

Decrease

treble

Increase

treble

Shift the

sound to the

front

Shift the

sound to the

rear

Shift the

sound to the

left

Shift the

sound to the

right

Off

Select mode

Bose

Sound System-equipped model

Indication

Turn Left Turn Right

Off

Select mode

Decrease

bass

Increase

bass

Decrease

treble

Increase

treble

Shift the

sound to the

front

Shift the

sound to the

rear

Shift the

sound to the

left

Shift the

sound to the

right

Off

Select mode

Interior Comfort

Audio System

6-27

CX-7_8CG3-EA-11J_Edition1 Page265
Saturday, September 24 2011 10:32 AM

Black plate (266,1)

NOTE

About 5 seconds after selecting any mode, the
volume function will be automatically selected.
To reset bass, treble, fade, and balance, press
the audio control dial for 2 seconds. The unit
will beep and

“CLEAR” will be displayed.

Automatic Level Control (ALC)

(Standard audio-equipped model)

The automatic level control (ALC) is a
feature that automatically adjusts audio
volume and sound quality according to
the vehicle speed.
The volume increases in accordance with
the increase in vehicle speed, and
decreases as vehicle speed decreases.

Select the desired ALC mode.

Mode

Volume change

No change

Minimum

Medium

Maximum

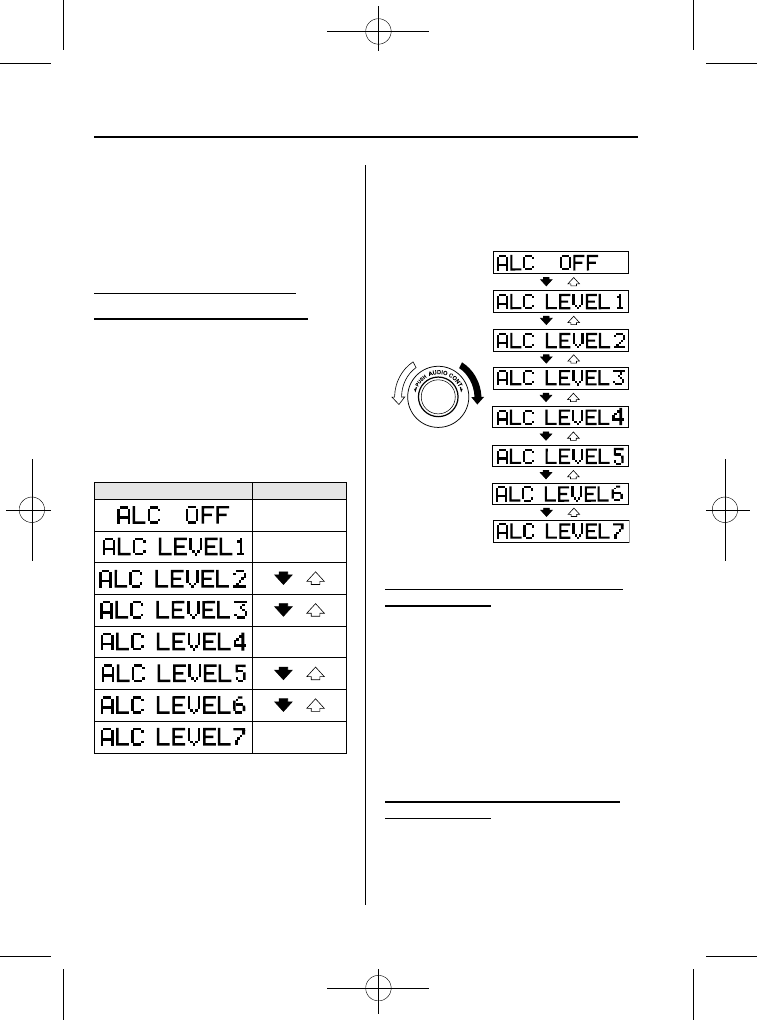

Turn the audio control dial to select ALC
OFF or ALC LEVEL1

―7 modes. The

selected mode will be indicated.

AudioPilot

(Bose

Sound System-

equipped model)

AudioPilot

2 automatically adjusts audio

volume and sound quality in accordance
with the level of noise entering the vehicle
interior while driving. When AudioPilot

2 is turned ON, the system automatically
calculates the conditions for optimum
hearing of sound which may be difficult
to hear depending on exterior noise.
* AudioPilot

2 is a registered trademark

of Bose Corporation.

Centerpoint

®*

(Bose

Sound System-

equipped model)

Centerpoint

offers you the experience of

5.1-channel surround sound in your
vehicle even with your conventional 2-
channel stereo CDs.

6-28

Interior Comfort

Audio System

CX-7_8CG3-EA-11J_Edition1 Page266
Saturday, September 24 2011 10:32 AM

Black plate (267,1)

The true surround sound effect of
Centerpoint

can be adjusted to any one

of five level between minimum and
maximum enhancement.

Indication

Enhance level

Off

Minimum

Low

Medium

High

Maximum

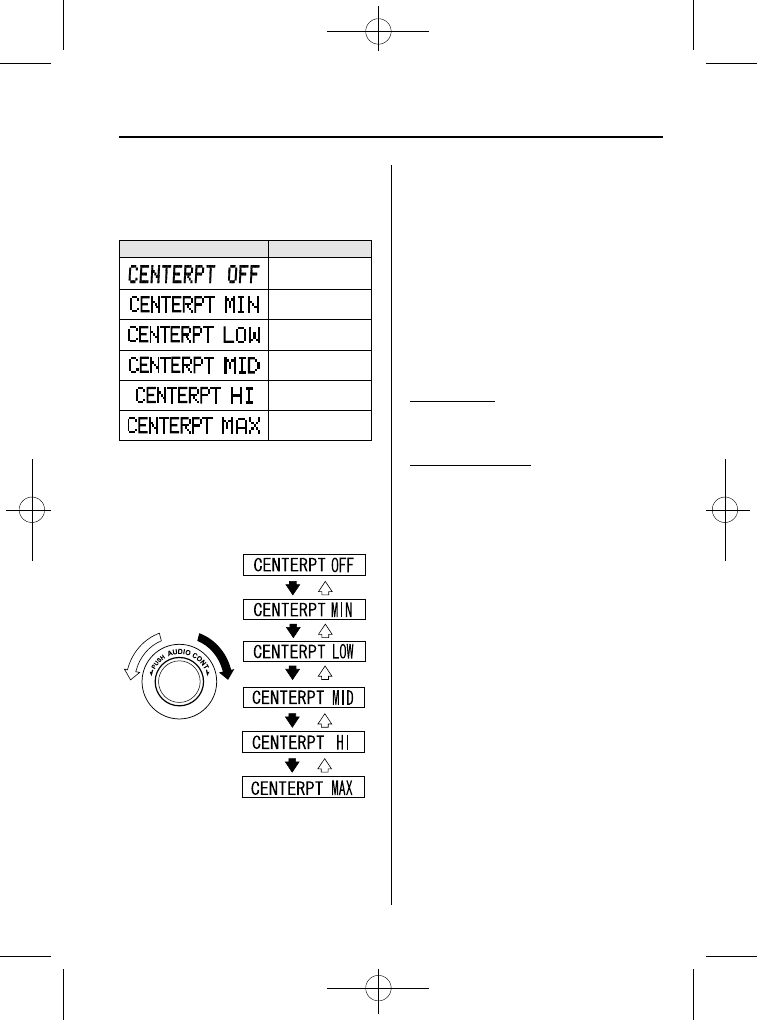

Turn the audio control dial to select
CENTERPT MIN

―MAX mode. The

selected mode will be indicated.

NOTE

Centerpoint

operates optimally with a 2-

channel stereo CD. MP3 audio files can be
played, however, MP3 audio files encoded
with high compression may result in poor
sound quality.

Centerpoint

is available for 2-channel

stereo audio except for AM radio/FM radio/
SIRIUS digital satellite radio/AUX/BT
audio.

* Centerpoint

is a registered trademark

of Bose Corporation.

BEEP setting

The beep-sound when operating the audio
system can be set on or off.

BT SETUP mode

Music and other audio such as voice data
recorded on portable audio devices and
mobile phones available on the market
which are equipped with the Bluetooth

transmission function can be listened to
via wireless transmission over the
vehicle's speakers. Using the BT SETUP
mode, these devices can be programmed
to the Bluetooth

unit or changed.

Refer to Bluetooth® Audio on page 6-61.

Interior Comfort

Audio System

6-29

Some models.

CX-7_8CG3-EA-11J_Edition1 Page267
Saturday, September 24 2011 10:32 AM

Black plate (268,1)

qOperating the Radio

Channel
preset
buttons

Seek
tuning
buttons

Band selector buttons

Scan button

Manual tuning dial

Auto memory button

Radio ON

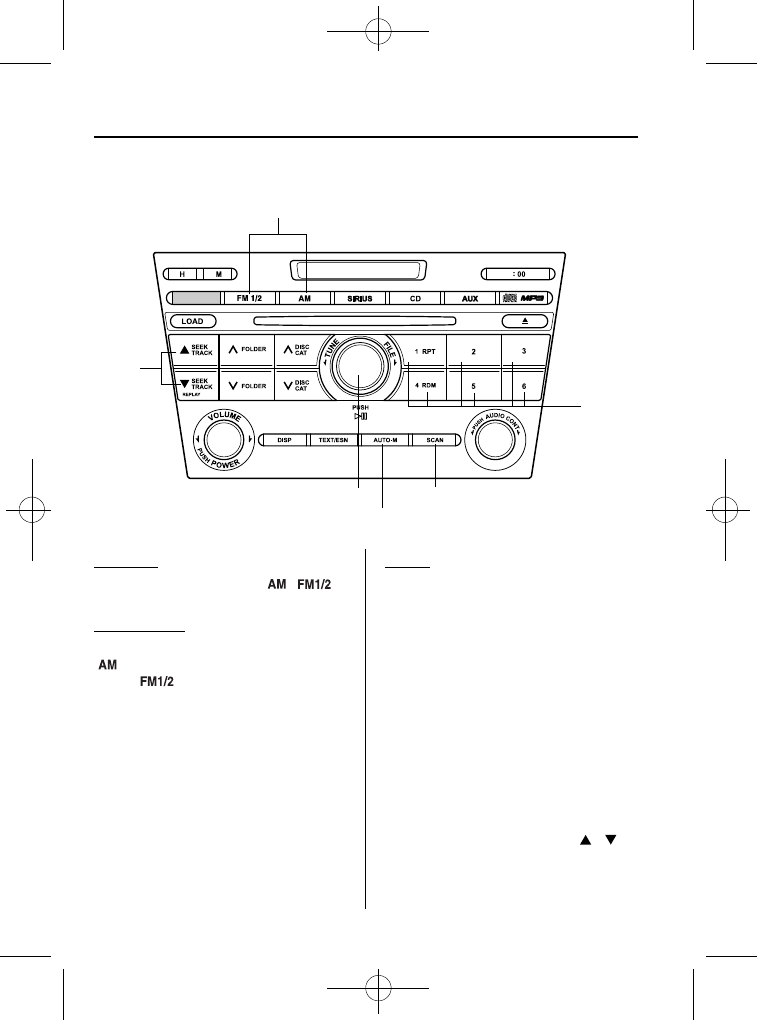

Press a band selector button (

)

to turn the radio on.

Band selection

Choose AM by pressing the AM button
(

) and FM by pressing the FM1/2

button (

The selected mode will be indicated. If
FM stereo is being received,

“ST” will be

displayed.

NOTE

If the FM broadcast signal becomes weak,
reception automatically changes from
STEREO to MONO for reduced noise, and the
“ST” indicator will go out.

Tuning

The radio has the following tuning
methods: Manual, Seek, Scan, Preset
channel, and Auto memory tuning. The
easiest way to tune stations is to set them
on preset channels.

NOTE

If the power supply is interrupted (fuse blows
or the battery is disconnected), the preset
channels will be erased.

Manual tuning

Turning the manual tuning dial will
change the frequency higher or lower.

Seek tuning

Pressing the seek tuning button (

)

will cause the tuner to seek a higher or
lower frequency automatically.

6-30

Interior Comfort

Audio System

CX-7_8CG3-EA-11J_Edition1 Page268
Saturday, September 24 2011 10:32 AM

Black plate (269,1)

NOTE

If you continue to press and hold the button,
the frequency will continue changing without
stopping.

Scan tuning

Press the scan button (

) to

automatically sample strong stations.
Scanning stops at each station for about 5
seconds. To hold a station, press the scan
button (

) again during this interval.

Preset channel tuning

The 6 preset channels can be used to store
6 AM and 12 FM stations.

1. To set a channel first select AM, FM1,

or FM2. Tune to the desired station.

2. Depress a channel preset button for

about 2 seconds until a beep sound is
heard. The preset channel number and
station frequency will be displayed.
The station is now held in the memory.

3. Repeat this operation for the other

stations and bands you want to store.
To tune one in the memory, select AM,
FM1, or FM2 and then press its
channel preset button. The station
frequency and the channel number will
be displayed.

NOTE

If the power supply is interrupted (fuse blows
or the battery is disconnected), the preset
channels will be erased.

Auto memory tuning

This is especially useful when driving in
an area where the local stations are not
known. Additional AM/FM stations can
be stored without disturbing the
previously set channels.

Press and hold the auto memory button
(

) for about 2 seconds until a beep

sound is heard; the system will
automatically scan and temporarily store
up to 6 stations with the strongest
frequencies in each selected band in that
area.

After scanning is completed, the station
with the strongest frequency will be tuned
and its frequency displayed.
Press and release the auto memory button
(

) to recall stations from the auto-

stored stations. One stored station will be
selected each time; its frequency and
channel number will be displayed.

NOTE

If no stations can be tuned after scanning
operations,

“A” will be displayed.

Interior Comfort

Audio System

6-31

CX-7_8CG3-EA-11J_Edition1 Page269
Saturday, September 24 2011 10:32 AM

Black plate (270,1)

qOperating the Satellite Radio

Seek
tuning
buttons

Channel
preset
buttons

Category
buttons

Scan button

Display button

Text/Electronic serial number button

Manual tuning dial/Instant replay button

Auto memory button

Satellite button

Information display

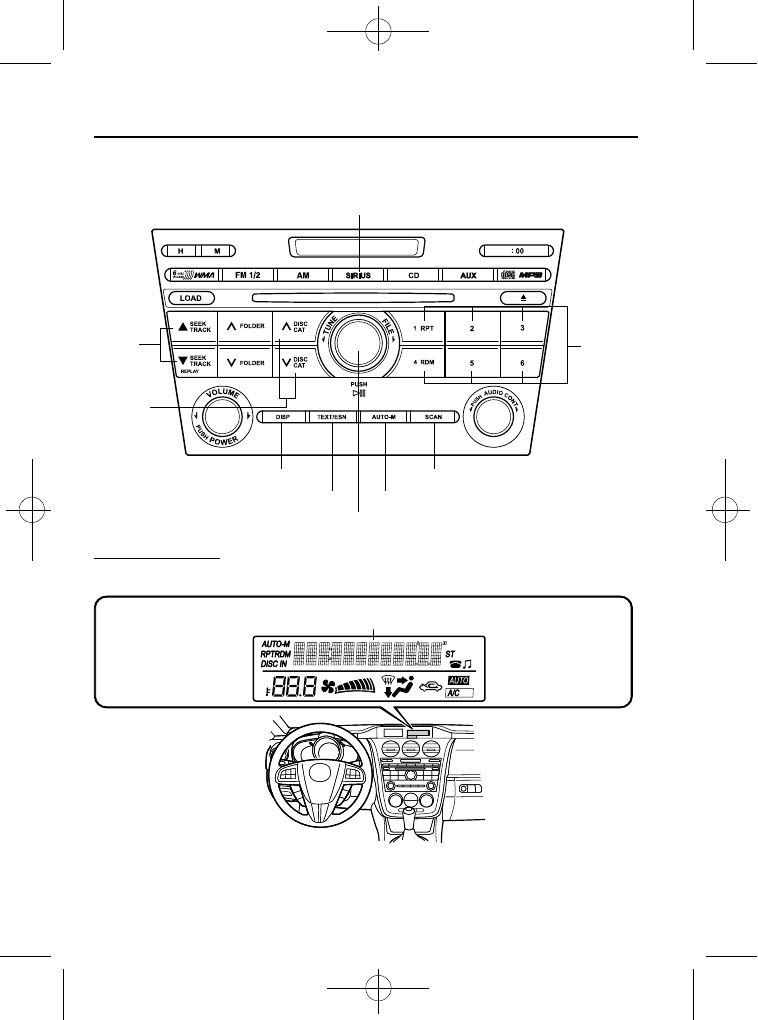

All operations of the satellite radio are displayed on the Information display.

Channel number, Channel name, Category name, Artist name, Song title,
ID code, Preset channel number, Bank number, Error signs

6-32

Interior Comfort

Some models.

Audio System

CX-7_8CG3-EA-11J_Edition1 Page270
Saturday, September 24 2011 10:32 AM

Black plate (271,1)

NOTE

This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and if not installed and
used in accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
- Increase the separation between the
equipment and tuner.
- Connect the equipment into an outlet on a
circuit different from that to which the tuner is
connected.
- Consult the dealer or an experienced radio/
TV technician for help.

What is satellite radio?

With over 130 channels, SIRIUS Satellite
Radio brings you more of what you love.
Get 69 channels of 100 % commercial-
free music, plus all your favorite sports,
news, talk and entertainment. Everything
worth listening to is now on SIRIUS.
100 % Commercial-free Music

―With

music from every genre, artist-dedicated
channels, live performances and more,
SIRIUS is the home of 100 %
commercial-free music.
Live Sports Play-by-Play & Expert
Talk

―Hear every NFL game, every

NASCAR

race and college sports

coverage from over 150 schools. Plus
24/7 sports talk with channels like
SIRIUS NFL Radio, SIRIUS NASCAR
Radio and more.
Exclusive Entertainment and
Talk

―The biggest names, compelling

talk, hilarious comedy. Hear Howard
Stern, Martha Stewart, Jamie Foxx, Blue
Collar Comedy, Playboy Radio, political
talk and more.
World-class News

―Stay informed with

FOX, CNN, CNBC, NPR

, BBC and

more.
Plus local traffic and weather.
Family & Kids

―Entertain the entire

family with Radio Disney, Kids Place
Live, Laugh USA and more.

Sign up for SIRIUS Radio today! For
more information, visit www.sirius.com.
Satellite radio can be subscribed to and
received in the United States. (Except
Alaska and Hawaii) and Canada.

How to Activate Satellite Radio

You must call SIRIUS to activate your
service. Activation is free and takes only a
few minutes.

Interior Comfort

Audio System

6-33

CX-7_8CG3-EA-11J_Edition1 Page271
Saturday, September 24 2011 10:32 AM

Black plate (272,1)

SIRIUS service uses an ID code to
identify your radio. This code is needed to
activate SIRIUS service, and report any
problems.

To activate you SIRIUS radio tuner, call a
SIRIUS customer service specialist at 1-
888-539-7474 or you can visit SIRIUS
online at www.sirius.com.

Please have the following information
ready:

SIRIUS ID (12-digit electronic serial
no., or ESN

)

Valid credit card information (may not
be required at initial sign-up)

Be sure you are parked outside with a
clear view of open sky, you will be
instructed to turn on your radio (in SAT
mode and tuned to channel 184).
Activation typically takes only 2

―5

minutes.
*ESN: Electronic Serial Number

SIRIUS operation

All operations of the satellite radio are
conducted by means of the audio unit.

SIRIUS radio mode selection

When the satellite button (

) is

pressed during ACC ON, it will play the
last SIRIUS channel in use before the
mode was switched over to another mode
or the power was turned off.
When the satellite button (

) is

pressed in a mode other than the SIRIUS
mode, the last channel in use will be
received.

Every time the satellite button (

)

is pressed, the bank changes in the order
shown below.

SR2

SR1

SR3

NOTE

SR1, SR2 and SR3: six stations can be stored
in each bank for convenient access to your
favorite stations.

Operation in the initial state

It may take some time to start up the
equipment when it is in the initial state,
when there is a change in the user's
subscription condition, or when the
SIRIUS channel map is changed.

“UPDATING xx%” is displayed when the
SIRIUS channel map is changed. If the
unit is initialized or the user contract
content is changed,

“UPDATING” is

displayed. Updating could take as long as
three minutes depending on the
geographical area. When the unit is in an
initialized state, channel 184 is displayed
after the display indicates

“UPDATING 100%”. If the SIRIUS
channel map or the user contract content
is changed, the channel prior to the
change is displayed after

“UPDATING” is

displayed. After the initialization display,
it may take as long as 12 seconds to
receive channel 184.

6-34

Interior Comfort

Audio System

CX-7_8CG3-EA-11J_Edition1 Page272
Saturday, September 24 2011 10:32 AM

Black plate (273,1)

NOTE

Do not perform the following operation while
“UPDATING” is displayed. Otherwise, the
updating procedure will be cancelled.

Turning off the audio power

Switching to other modes

Switching the ignition off

When the SIRIUS mode is switched to
another mode, or when the power is
turned off, the present channel which is
being received is stored as the last
channel.

Channel selection

Turning the manual tuning dial allows you
to select the desired receiving channel.

Turn the knob clockwise: Channel Up

Turn the knob counterclockwise:
Channel Down

Unsubscribed channel

When a selected station has not been
subscribed to, the display indicates the
following:
[CALL

888] and [539

SIRI]

(Flashes alternately)

NOTE

When the subscription contract is canceled, all
of the channels including channel 184 appear
as unsubscribed.

Invalid channel

When a selected channel is not
broadcasting, [SR

(bank number)

INVALID] is displayed for one second,
followed by [SR

(bank number)

CHANNEL], which is also displayed for
one second. The display then returns to
the previous valid channel.

NOTE

If the last channel selected has become
unavailable because of a channel update the
above indication is displayed until any button
is pressed.

Preset channel programming

(Programming with

“channel number”

display)

1. Select the desired channel to be

programmed. At this point, the
following is displayed:
[SR

(bank number)

(channel

number)]

2. Keep pressing the channel preset

button for 1.5 seconds or more.
The programming process is complete
after the channel number flashes. Then,
[SR

(bank number)] is displayed

and a beep sound is heard at the same
time.

3. [SR

(bank number)

(preset number)

(channel number)]

are displayed.

(Programming with

“text” display (e.g.

channel name))

1. Select the desired channel to be

programmed. At this point, the
following is displayed:
[SR

(bank number)

(selected text

(e.g. channel name))]

2. Keep pressing the channel preset

button for 1.5 seconds or more.
The programming process is complete
after the text (e.g. channel name)
flashes. Then, [SR

(bank number)]

is displayed and you will hear beep
sound at the same time.

Interior Comfort

Audio System

6-35

CX-7_8CG3-EA-11J_Edition1 Page273
Saturday, September 24 2011 10:32 AM

Black plate (274,1)

3. SR

(bank number)

(preset

number)

(channel number)] are

displayed.

4. Three seconds later, it returns to normal

display. [SR

(bank number)

(text

(e.g. channel name))]

NOTE

Six stations can be stored in each bank, SR1,
SR2, and SR3 for convenient access to your
favorite stations.

Preset channel call-up

Press and release the channel preset
button,
[SR

(bank number)

(preset

number)

(channel number)] appears.

When the preset button is pressed during
text mode, its channel number is
displayed first for three second and then
its text is displayed.

NOTE

In the initial setting, all channels are preset to
184.

Category change

Press the category button (

) and

select the desired category.

Press the category button ( ):
Category up

Press the category button ( ):
Category down

Every time the category button ( ) is
pressed, the category is changed over in
the order shown below.
At this time, the lowest (smallest-number)
channel within the category indicated is
received.
When the highest (or lowest) category is
reached, the category is changed over in
the order shown below.
Highest category

→ All categories →

Lowest category

NOTE

While all categories are selected, all channels
covering a category can be accessed
(Category off condition).

Channel selection within a category

If you are in a selected category and the
channel number is displayed, turning the
manual tuning dial moves the channel
number up/down in that category.

Turn the manual tuning dial clockwise:
Channel Up

Turn the manual tuning dial
counterclockwise: Channel Down

NOTE

The channel number needs to be indicated in
the display to use manual tuning dial for this
function.

Scan tuning

Press the scan button (

) to

automatically sample stations. Scanning
stops at each station for about five
seconds. To hold a station, press the scan
button (

) again during this interval.

NOTE

Unsubscribed channels, invalid channels,
parental lock channels and channel 0 are
not subject to the scan, therefore these
channels will be skipped automatically.

You can scan all channels while all
categories are selected. If you are in a
selected category, you can only scan the
channels in that category.

6-36

Interior Comfort

Audio System

CX-7_8CG3-EA-11J_Edition1 Page274
Saturday, September 24 2011 10:33 AM

Black plate (275,1)

Channel number, channel name,
category, artist, song titles and info
display

Each time the display button (

) is

pressed during SIRIUS reception, the
display of the text data is changed over in
the order shown below.

Channel number

Channel name

Category
name

Artist name

Info

Song title

NOTE

Eight characters are displayed on one
screen.

To display the rest of the characters of a
long title, press the text button (

The display scrolls the next eight
characters. Press the text button (

)

again after the last eight characters have
been displayed to return to the beginning of
the title.

(Channel number display)

When the display button (

) is

pressed while in info display mode, the
mode changes to the channel number
display mode.

(Channel name display)

When the display button (

) is

pressed while in channel number
display mode, it changes to channel
name display mode.

There are short (eight fixed characters)
and long names for the channel name.

The long name is displayed first, and
three seconds later the short name is
displayed. If there is no short name, the
long name is displayed.

To display the rest of the characters of
the channel name, press the text button
(

). The display scrolls the next

eight characters. Press the text button
(

) again after the last eight

characters have been displayed to
return to the beginning of the title.

Press the text button (

) while the

short name is displayed to switch the
display to the long name.

Three seconds after scrolling the long
name, the display automatically returns
to the first part of the long name. Three
more seconds and the short name
appears.

If there is no channel name,

“No TITLE” is displayed.

(Category name display)

When the display button (

) is

pressed while in channel name display
mode, it changes to the category name
display mode.

There are short (eight fixed characters)
and long names for the category name.

The long name is displayed first, and
three seconds later the short name is
displayed. If there is no short name, the
long name is displayed.

To display the rest of the characters of
the category name, press the text
button (

). The display scrolls the

next eight characters. Press the text
button (

) again after the last

eight characters have been displayed to
return to the beginning of the title.

Press the text button (

) while the

short name is displayed to switch the
display to the long name.

Interior Comfort

Audio System

6-37

CX-7_8CG3-EA-11J_Edition1 Page275
Saturday, September 24 2011 10:33 AM

Black plate (276,1)

Three seconds after scrolling the long
name, the display automatically returns
to display the first part of the long
name. Three more seconds and the
short name appears.

If there is no category name,

“No CATEGORY” is displayed.

(Artist name display)

When the display button (

) is

pressed while in category name display
mode, it changes to the artist name
display mode.

To display the rest of the characters of
the artist's name, press the text button
(

). The display scrolls the next

eight characters. Press the text button
(

) again after the last eight

characters have been displayed to
return to the beginning of the title.

Three seconds after scrolling the artist
name, the display automatically return
to display the first part of the artist's
name.

If there is no artist's name,

“No ARTIST” is displayed.

(Song title display)

When the display button (

) is

pressed while in artist name display
mode, it changes to the song title
display mode.

To display the rest of the characters of
the song title, press the text button
(

). The display scrolls the next

eight characters. Press the text button
(

) again after the last eight

characters have been displayed to
return to the beginning of the title.

Three more seconds after scrolling the
song title, the display automatically
returns to display the first part of the
song title.

If there is no song title,

“No SONG” is

displayed.

(INFO (such as composer's name)
display)

When the display button (

) is

pressed while in song title display
mode, it changes to the INFO display
mode.

To display the rest of the characters of
the composer's name, press the text
button (

). The display scrolls the

next eight characters. Press the text
button (

) again after the last

eight characters have been displayed to
return to the beginning of the title.

Three seconds after scrolling the text,
the display automatically returns to
display the first part of the text.

If there is no composer name,

“No INFO” is displayed.

Instant replay

This function allows you to rewind and
replay the program that you were
previously or are currently listening to.
Press the instant replay button (

When the seek tuning button (

) is

pressed (about 1.5 seconds), playback
starts from the beginning of the current
program.
When the seek tuning button (

) is

pressed twice, playback starts from the
beginning of the previous program.
When the seek tuning button (

) is

pressed for about 1.5 seconds or longer,
the program is reversed while the button
is being pressed.

6-38

Interior Comfort

Audio System

CX-7_8CG3-EA-11J_Edition1 Page276
Saturday, September 24 2011 10:33 AM

Black plate (277,1)

When the seek tuning button (

) is

pressed (about 1.5 seconds), playback
starts from the beginning of the next
program. When the seek tuning button
(

) is pressed (about 1.5 seconds) while

the last program is being played, the
instant replay mode is cancelled.
When the seek tuning button (

) is

pressed for 1.5 seconds or longer, the
program is fast-forwarded while the
button is being pressed. When pressing
and holding the button until the end of the
program, the instant replay mode is
cancelled.
When the instant replay button (

) is

pressed again, playback is paused, or
playback starts if it has been paused.
Instant replay (PAUSE)
If the instant replay button (

) is

pressed while the instant replay mode is
off, instant replay mode is turned on in a
paused condition (PAUSE). Press the
instant replay button (

) again to

resume playback from the point at which
it was paused.

NOTE

If the channel is changed, the instant replay
buffer data is deleted.

After turning on the power and switching to
SIRIUS digital satellite radio mode, the
instant replay mode is not available for
several seconds after changing channels.

Displaying the SIRIUS ID (ESN)

When the ESN button (

) is pressed

for 1.5 seconds or longer, or the manual
tuning dial is turned to channel 0, a 12-
digit Electronic Serial Number (ESN) for
the SIRIUS tuner is displayed.

(If the SIRIUS ID (ESN) for the tuner
does not display)
If

“ESN

FAIL

” is displayed after

pressing the ESN button (

) for 1.5

seconds or longer, contact an Authorized
Mazda Dealer.

Initialization of ID code

If the registered ID code is forgotten,
return the ID code to the default [0000] by
performing the following steps:
Setting condition: SAT mode

(Master code input preparation)

1. Press and hold the auto memory button

(

), then press channel preset

button 4. Hold both buttons together
for 1.5 seconds.

“ENTER PIN” appears for two seconds
which indicates that it is in code input
mode.

“SR1 - - - -” appears, which indicates
that it is ready for code input.

(Master code input)

4. Input the master code using the channel

preset buttons 1-4.
(The master code is already set at the
time of factory shipment.)

(Master code input determination)

5. Determine the master code which has

been input by pressing the auto
memory button (

“PIN CLEARED” appears which
indicates that the master code input has
been completed.

7. The ID code is set to the default [0000]

and the initialization process is
completed.

Interior Comfort

Audio System

6-39

CX-7_8CG3-EA-11J_Edition1 Page277
Saturday, September 24 2011 10:33 AM

Black plate (278,1)

NOTE

Master code:
The Master Code is used to initialize or re-
initialize the ID code in the event that the code
is not set to [0000] and/or the personalized ID
code is not known. The initialization process
resets the ID code to [0000]. The master code
can potentially defeat the intent of the security
of the parental lock if it is located by persons
not authorized by the owner to access certain
channels.

SIRIUS Satellite Radio Master Code: [0913]

NOTE

When a numeric value other than the
master code is input and the auto memory
button (

) is pressed,

“SR1 Err” is

displayed and then it returns to the
“SR1 - - - -” display again.

If an ID code is not input for ten seconds,
“Err” is displayed and it returns to the
former display.

Channel preset buttons 1, 2, 3, 4 and the
auto memory button (

) are used for

inputting the ID code. Buttons 5 and 6
cannot be used.

Change of ID code

Setting condition: SAT mode
When changing the ID code, the new ID
code is input after the previous one is
input first.

(Registered ID code input)

1. Press and hold the auto memory button

(

), then press channel preset

button 5. Hold both buttons together
for 1.5 seconds.

“ENTER PIN” appears for two seconds
which indicates that it is in code input
mode.

“SR1 - - - -” appears, which indicates
that it is ready for code input.

4. Input the registered ID code using

channel preset buttons 1-4.
Example: When the registered ID code
is

“2323”, input “2323”. At this time

“SR1 2323” is displayed.
Press 1 for the first digit, 2 for the
second, 3 for the third, and 4 for the
last digit. For example, if your number
is 2323, press 1 three times (includes
0), 2 four times, 3 three times, and 4
four times. If the display goes off while
inputting, begin from Step 1.

NOTE

The registered ID code is the default [0000] at
the time of factory shipment. If [0000] results
in

“Err” on the display, go to the

“INITIALIZATION OF ID CODE” section to
reset to [0000].

(Verification with the registered ID
code)

5. Determine the input code by pressing

the auto memory button (

6. If it does not match with the previously

registered code,

“SR1 Err” is displayed

and then it returns to

“SR1 - - - -”.

7. If it matches with the previously

registered code,

“ENTER PIN” appears

again and it switches to code input
mode.

“SR1 - - - -” appears, and it is ready for
input of the new ID code.

(New ID code input)

9. Input the new ID code using channel

preset buttons 1-4.
Example: If

“1234” is input as the new

code,

“SR1 1234” is displayed.

6-40

Interior Comfort

Audio System

CX-7_8CG3-EA-11J_Edition1 Page278
Saturday, September 24 2011 10:33 AM

Black plate (279,1)

(New ID code input determination)

10. Determine the new ID code which

has been input by pressing the auto
memory button (

11.

“PIN CHANGED” appears for three
seconds which indicates that the new
ID code input has been completed.

12. It returns to the former display.

NOTE

If an ID code is not input for ten seconds,
“Err” is displayed and it returns to the
former display.

Channel preset buttons 1, 2, 3, 4 and the
auto memory button (

) are used for

input of the ID code. Buttons 5 and 6
cannot be used.

Individual channel locking

If a channel is locked, the channel is
muted.

NOTE

If the registered ID code is forgotten, return
the ID code to the default [0000]. (See
“INTIALIZATION OF ID CODE” section)

(Locking a channel)

1. Select a channel to be locked by

turning the manual tuning dial.
Example: Select channel 100

(Registered ID code input preparation)

2. Press and hold the auto memory button

(

), then press channel preset

button 6. Hold both buttons together
for 1.5 seconds.

“ENTER PIN” appears for two seconds
which indicates that it is in code input
mode.

“SR1 - - - -” appears which indicates
that it is ready for code input.

(Registered ID code input)

5. Input the registered ID code using

channel preset buttons 1-4. Example: If
the registered ID code is

“2323”, input

“2323”. At this time “SR1 2323” is
displayed.

(Registered ID code input
determination)

6. Determine the code which has been

input by pressing the auto memory
button (

7. If it does not match the registered code,

“SR1 Err” is displayed and then it
returns to

“SR1 - - - -”.

8. If it matches the registered code,

“SR1 LOCK” appears for three
seconds which indicates that the code
input has been completed.

“SR1 LOCK 100” appears which
indicates that the parental lock is
activated. At this time, mute is on and
no sound is heard.

NOTE

If an ID code is not input for ten seconds,
“Err” is displayed and it returns to the
former display.

Channel preset buttons 1, 2, 3, 4 and the
auto memory button (

) are used for

input of the ID code. Buttons 5 and 6
cannot be used.

Lock cancellation

Setting condition: SAT mode

(Releasing a locked channel)

1. Select a channel to be released by

turning the manual tuning dial.
Example: Select the locked channel
(i.e. 100). At this time,

“SR1 LOCK 100” is displayed.

Interior Comfort

Audio System

6-41

CX-7_8CG3-EA-11J_Edition1 Page279
Saturday, September 24 2011 10:33 AM

Mazda CX-7 (2012 year). Instruction - part 17
