Mazda CX-5 (2019 year). Instruction

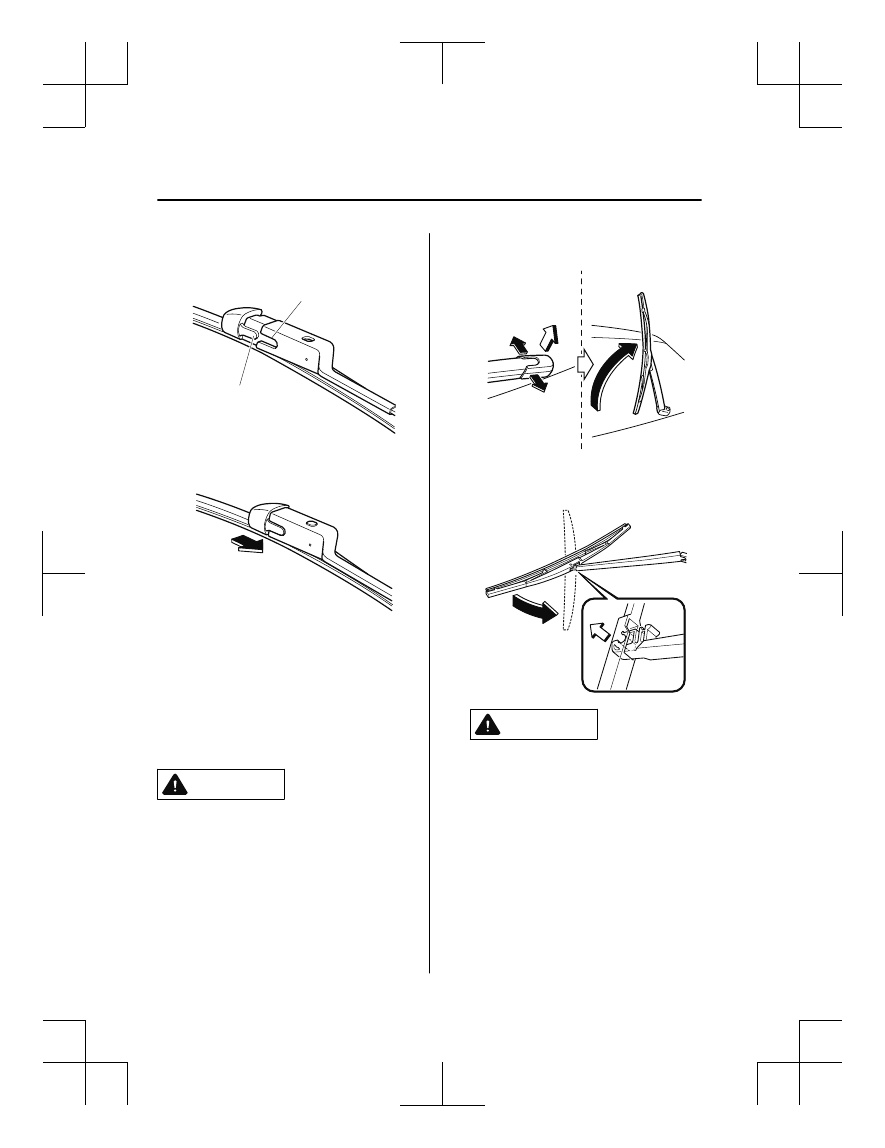

9. Align the blade component projection

with the wiper arm notch.

Notch

Projection

10. Slide the blade component and install

it to the wiper arm.

11. Slowly lower the wiper arm onto the

windshield.

▼ Replacing Rear Window Wiper

Blade

When the wiper no longer cleans well, the
blade is probably worn or cracked.
Replace it.

CAUTION

To prevent damage to the wiper arm and
other components, do not move the wiper
by hand.

1. Remove the cover and raise the wiper

arm.

2. Firmly rotate the wiper blade to the

right until it unlocks, then remove the
blade.

CAUTION

To prevent damage to the rear window,
do not let the wiper arm fall on it.

Maintenance and Care

Owner Maintenance

6-34

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

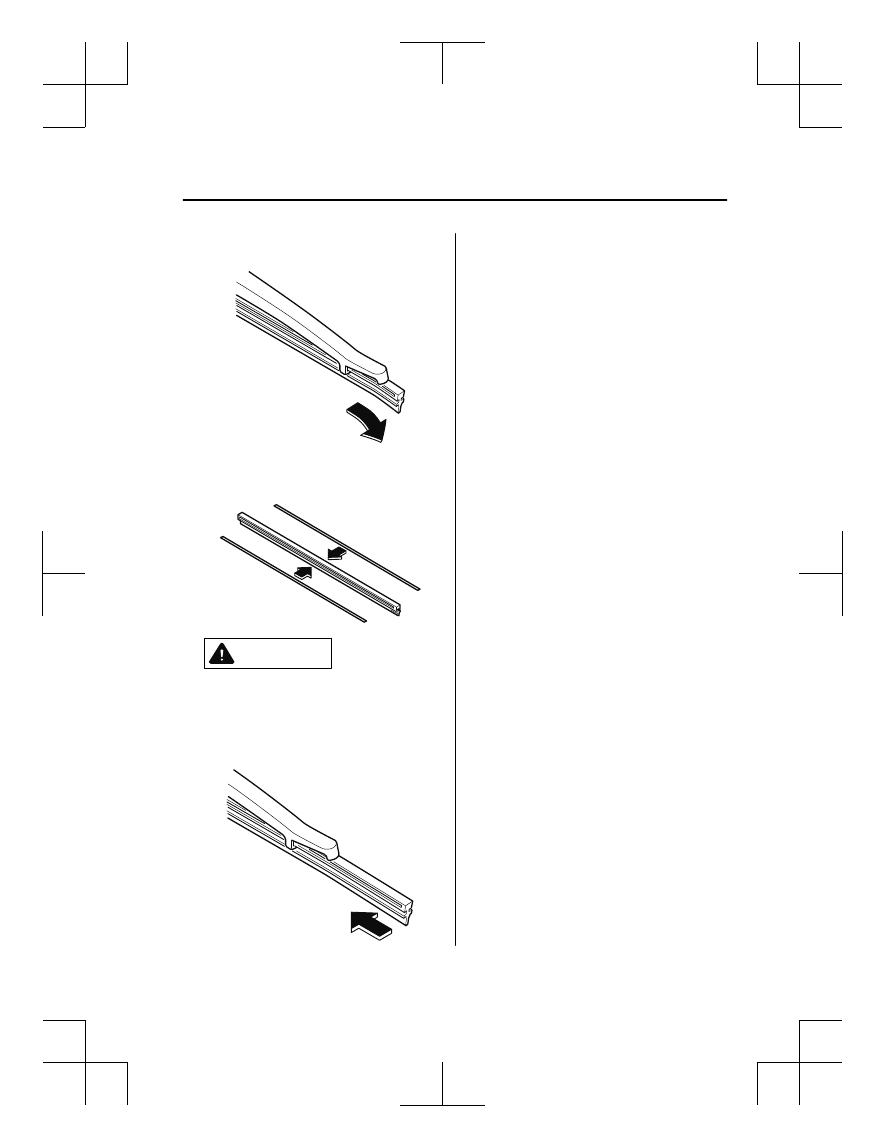

3. Pull down the blade rubber and slide it

out of the blade holder.

4. Remove the metal stiffeners from the

blade rubber and install them in the
new blade.

CAUTION

Do not bend or discard the stiffeners.
You need to use them again.

5. Carefully insert the new blade rubber.

Then install the blade assembly in the
reverse order of removal.

Maintenance and Care

Owner Maintenance

6-35

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Battery

WARNING

Wash hands after handling the battery and related accessories:
Battery posts, terminals and related accessories contain lead and lead compounds, chemicals
known to the State of California to cause cancer and reproductive harm.

Read the following precautions carefully before using the battery or inspecting to

ensure safe and correct handling:

Always wear eye protection when working near the battery:

Working without eye protection is dangerous. Battery fluid contains SULFURIC ACID which
could cause blindness if splashed into your eyes. Also, hydrogen gas produced during normal
battery operation, could ignite and cause the battery to explode.

Wear eye protection and protective gloves to prevent contact with battery fluid:

Spilled battery fluid is dangerous.
Battery fluid contains SULFURIC ACID which could cause serious injuries if it gets in eyes, or on
the skin or clothing. If this happens, immediately flush your eyes with water for 15 minutes or
wash your skin thoroughly and get medical attention.

Always keep batteries out of the reach of children:

Allowing children to play near batteries is dangerous. Battery fluid could cause serious injuries
if it gets in the eyes or on the skin.

Maintenance and Care

Owner Maintenance

6-36

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

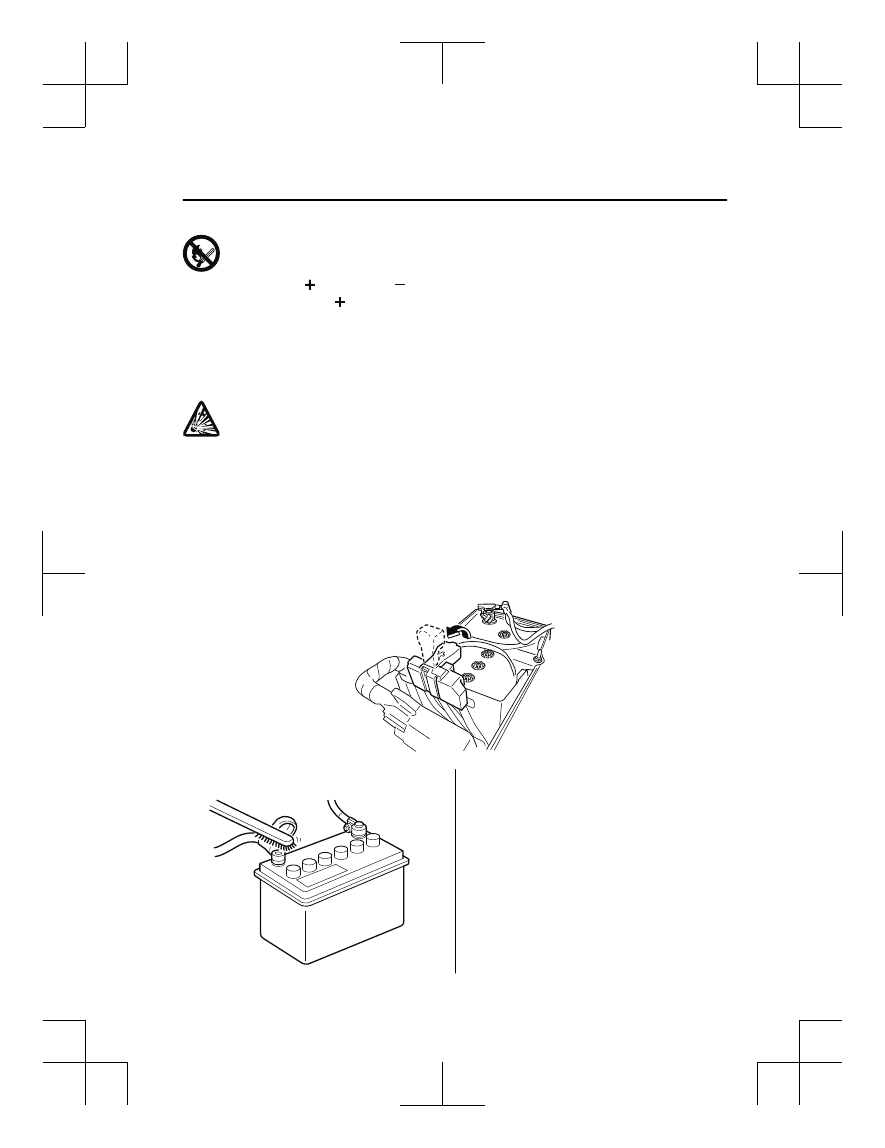

Keep flames and sparks away from open battery cells and do not allow metal tools to

contact the positive ( ) or negative ( ) terminal of the battery when working near a battery.
Do not allow the positive ( ) terminal to contact the vehicle body:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during
normal battery operation, could ignite and cause the battery to explode. An exploding battery
can cause serious burns and injuries. Keep all flames including cigarettes and sparks away
from open battery cells.

Keep all flames and sparks away from open battery cells because hydrogen gas is

produced from open battery cells while charging the battery or adding battery fluid:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during
normal battery operation, could ignite and cause the battery to explode. An exploding battery
can cause serious burns and injuries. Keep all flames including cigarettes and sparks away
from open battery cells.

NOTE
Before performing battery maintenance, remove the battery cover.

▼ Battery Maintenance

To get the best service from a battery:



Keep it securely mounted.



Keep the top clean and dry.



Keep terminals and connections clean,
tight, and coated with petroleum jelly or
terminal grease.



Rinse off spilled electrolyte immediately
with a solution of water and baking
soda.

Maintenance and Care

Owner Maintenance

6-37

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47



If the vehicle will not be used for an
extended time, disconnect the battery
cables and charge the battery every 6
weeks.

▼ Battery Replacement

Contact an Authorized Mazda Dealer for a
battery replacement purchase.

Key Battery Replacement

If the buttons on the transmitter are
inoperable and the operation indicator
light does not flash, the battery may be
dead.
Replace with a new battery before the
transmitter becomes unusable.

CAUTION

Make sure the battery is installed

correctly. Battery leakage could occur if it
is not installed correctly.

When replacing the battery, be careful

not to touch any of the internal circuitry
and electrical terminals, bend the
electrical terminals, or get dirt in the
transmitter as the transmitter could be
damaged.

There is the danger of explosion if the

battery is not correctly replaced.

Dispose of used batteries according to

the following instructions.

Insulate the plus and minus terminals

of the battery using cellophane or
equivalent tape.

Never disassemble.
Never throw the battery into fire or

water.

Never deform or crush.

Replace only with the same type battery

(CR2025 or equivalent).

Maintenance and Care

Owner Maintenance

6-38

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

The following conditions indicate that the
battery power is low:



The KEY indicator light (green) flashes
in the instrument cluster for about 30
seconds after the engine is switched
OFF (for vehicles with a type A/type B
instrument cluster (page 4-13, 4-29),
messages are displayed in the instrument
cluster).



The system does not operate and the
operation indicator light on the
transmitter does not flash when the
buttons are pressed.



The system's operational range is
reduced.

Replacing the battery at an Authorized
Mazda Dealer is recommended to prevent
damage to the key. If replacing the battery
by yourself, follow the instruction.

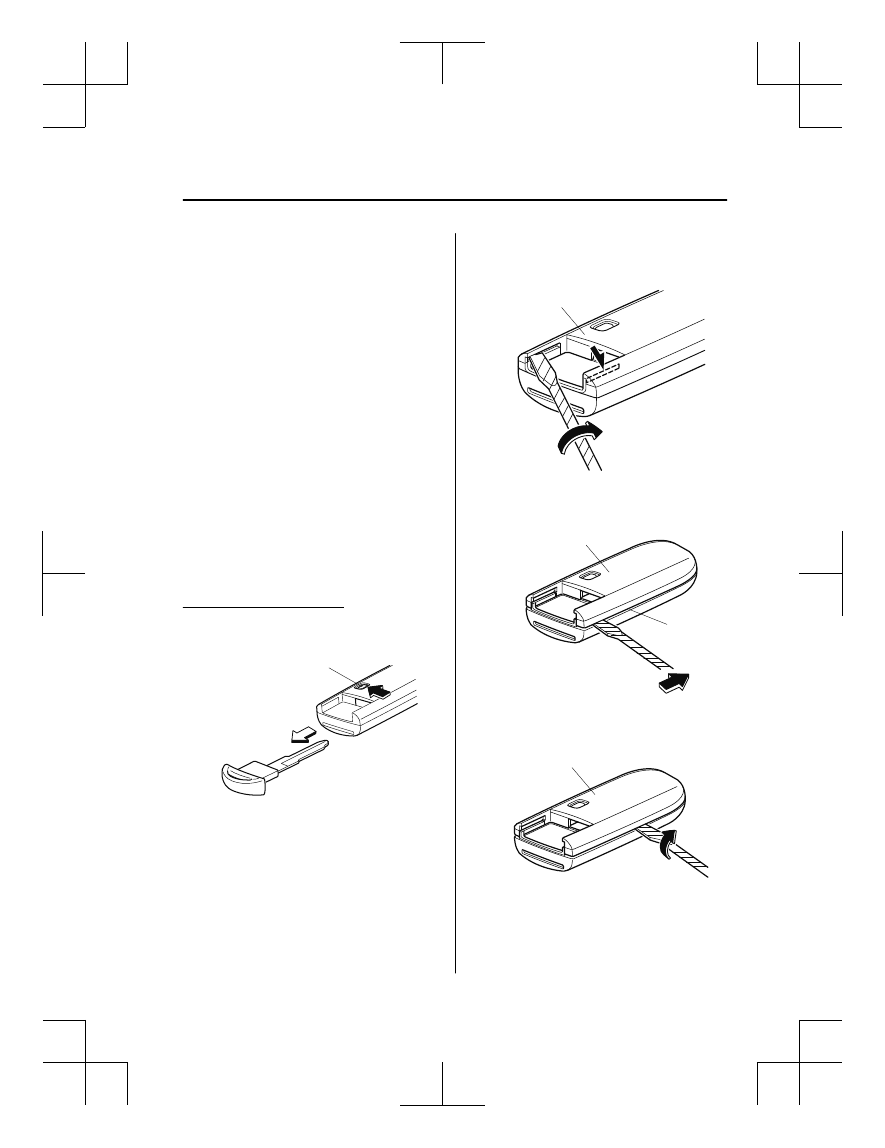

Replacing the key battery

1. Press the knob and pull out the

auxiliary key.

Knob

2. Twist a tape-wrapped flathead

screwdriver in the direction of the
arrow and open the cover slightly.

Cover

3. Insert the tape-wrapped flathead

screwdriver into the gap and slide it in
the direction of the arrow.

Cover

Gap

4. Twist the flathead screwdriver in the

direction of the arrow and remove the
cover.

Cover

Maintenance and Care

Owner Maintenance

6-39

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

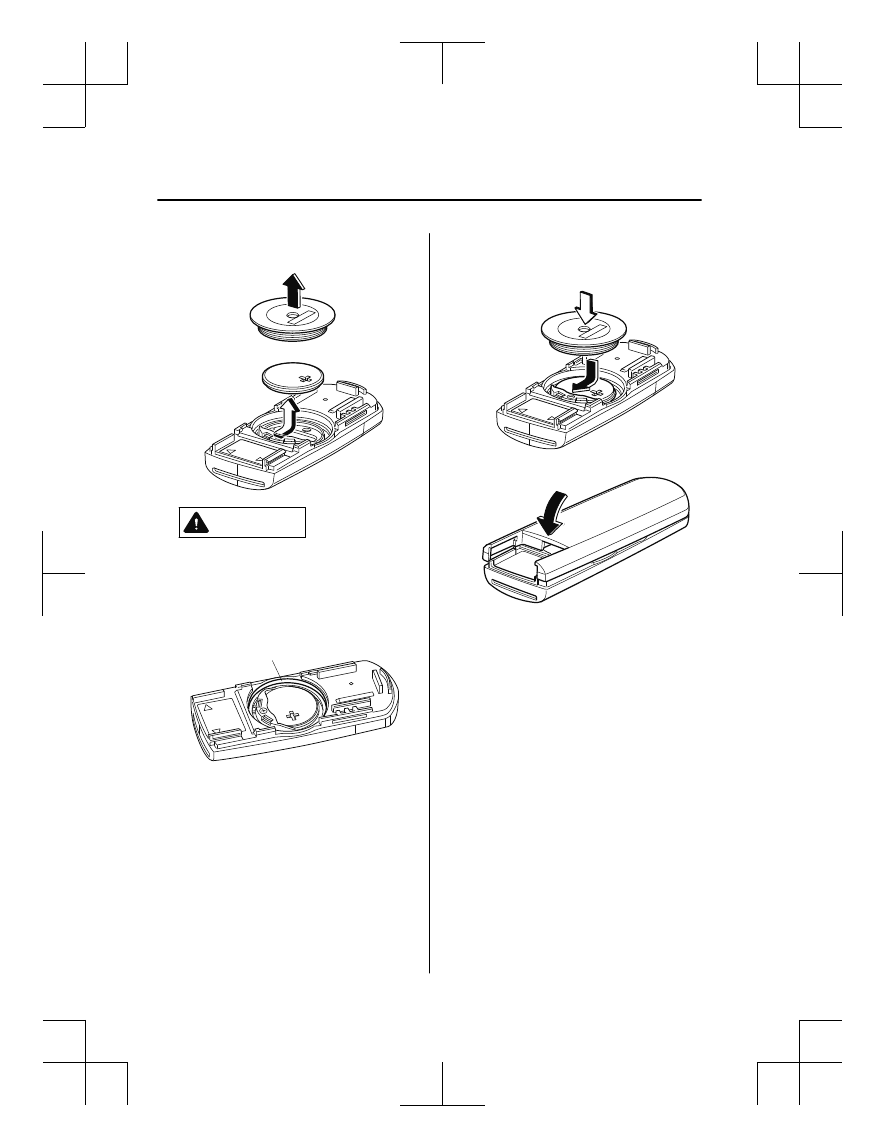

5. Remove the battery cap, then remove

the battery.

CAUTION

Be careful not to allow the rubber

ring shown in the figure to be
scratched or damaged.

If the rubber ring detaches, reattach

it before inserting a new battery.

Rubber ring

6. Insert a new battery with the positive

pole facing up, and then cover the
battery with the battery cap.

7. Close the cover.

8. Reinsert the auxiliary key.

Maintenance and Care

Owner Maintenance

6-40

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Tires

For reasons of proper performance, safety,
and better fuel economy, always maintain
recommended tire inflation pressures and
stay within the recommended load limits
and weight distribution.

WARNING

Using Different Tire Types:
Driving your vehicle with different types of
tires is dangerous. It could cause poor
handling and poor braking; leading to loss
of control.
Except for the limited use of the temporary
spare tire, use only the same type tires
(radial, bias-belted, bias-type) on all four
wheels.

Using Wrong-Sized Tires:
Using any other tire size than what is
specified for the vehicle (page 9-10) is
dangerous. It could seriously affect ride,
handling, ground clearance, tire clearance,
and speedometer calibration. This could
cause you to have an accident. Use only
tires that are the correct size specified for
the vehicle.

▼ Tire Inflation Pressure

WARNING

Always inflate the tires to the correct
pressure:
Overinflation or underinflation of tires is
dangerous. Adverse handling or
unexpected tire failure could result in a
serious accident.
Refer to Tires on page 9-10.

Use only a Mazda-genuine tire valve cap:
Use of a non-genuine part is dangerous as
the correct tire air pressure cannot be
maintained if the tire valve becomes
damaged. If the vehicle is driven under this
condition, the tire air pressure will decrease
which could result in a serious accident. Do
not use any part for the tire valve cap that
is not a Mazda-genuine part.

Inspect all tire pressures monthly
(including the spare) when the tires are
cold. Maintain recommended pressures for
the best ride, handling, and minimum tire
wear.
Refer to the specification charts (page
9-10).

NOTE



Always check tire pressure when tires
are cold.



Warm tires normally exceed
recommended pressures. Do not release
air from warm tires to adjust the
pressure.



Underinflation can cause reduced fuel
economy, uneven and accelerated tire
wear, and poor sealing of the tire bead,
which will deform the wheel and cause
separation of tire from rim.



Overinflation can produce a harsh ride,
uneven and accelerated tire wear, and a
greater possibility of damage from road
hazards.
Keep your tire pressure at the correct
levels. If one frequently needs inflating,
have it inspected.

Maintenance and Care

Owner Maintenance

6-41

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

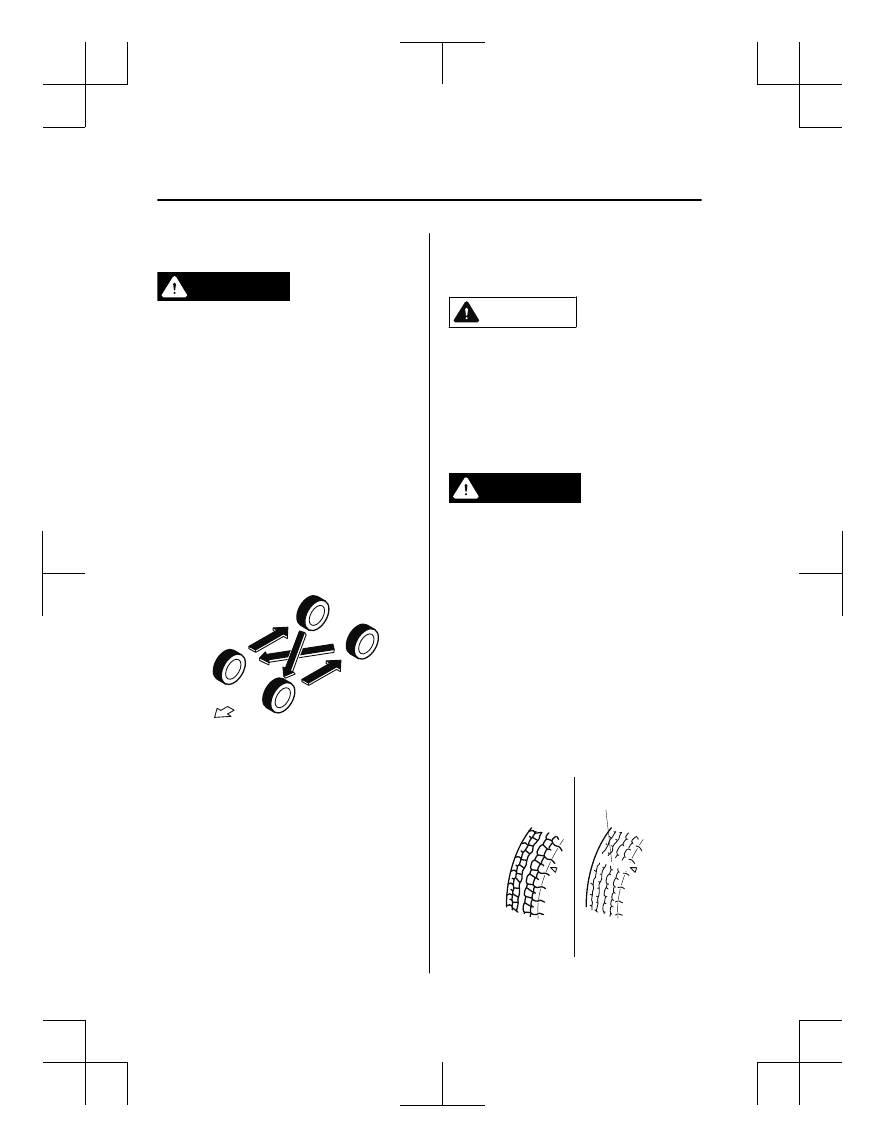

▼ Tire Rotation

WARNING

Rotate tires periodically:
Irregular tire wear is dangerous. To
equalize tread wear for maintaining good
performance in handling and braking,
rotate the tires every 12,000 km (7,500
miles). However Mazda recommends to
rotate every 8,000 km (5,000 miles) to help
increase tire life and distribute wear more
evenly.
Refer to Scheduled Maintenance on page
6-4.

During rotation, inspect them for correct
balance.

Do not include (TEMPORARY USE
ONLY) spare tire in rotation.

Forward

Also, inspect them for uneven wear and
damage. Abnormal wear is usually caused
by one or a combination of the following:



Incorrect tire pressure



Improper wheel alignment



Out-of-balance wheel



Severe braking

After rotation, inflate all tire pressures to
specification (page 9-10) and inspect the
lug nuts for tightness.

CAUTION

Rotate unidirectional tires and radial tires
that have an asymmetrical tread pattern or
studs only from front to rear, not from side
to side. Tire performance will be reduced if
rotated from side to side.

▼ Replacing a Tire

WARNING

Always use tires that are in good condition:
Driving with worn tires is dangerous.
Reduced braking, steering, and traction
could result in an accident.

Replace all four tires at the same time:
Replacing just one tire is dangerous. It
could cause poor handling and poor
braking resulting in loss of vehicle control.
Mazda strongly recommends that you
replace all four tires at the same time.

If a tire wears evenly, a wear indicator will
appear as a solid band across the tread.
Replace the tire when this happens.

New tread

Tread wear
indicator

Worn tread

Maintenance and Care

Owner Maintenance

6-42

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

You should replace the tire before the band
crosses the entire tread.

NOTE
Tires degrade over time, even when they
are not being used on the road. It is
recommended that tires generally be
replaced when they are 6 years or older.
Heat caused by hot climates or frequent
high loading conditions can accelerate the
aging process. You should replace the
spare tire when you replace the other road
tires due to the aging of the spare tire. The
period in which the tire was manufactured
(both week and year) is indicated by a
4-digit number.
Refer to Tire Labeling on page 8-25.

▼ Temporary Spare Tire

Inspect the temporary spare tire at least
monthly to make sure it is properly
inflated and stored.

NOTE
The temporary spare tire condition
gradually deteriorates even if it has not
been used.

The temporary spare tire is easier to
handle because of its construction which is
lighter and smaller than a conventional
tire. This tire should be used only for an
emergency and only for a short distance.

Use the temporary spare tire only until the
conventional tire is repaired, which should
be as soon as possible.
Refer to Tires on page 9-10.

CAUTION

Do not use your temporary spare tire rim

with a snow tire or a conventional tire.
Neither will properly fit and could
damage both tire and rim.

The temporary spare tire has a tread life

of less than 5,000 km (3,000 miles). The
tread life may be shorter depending on
driving conditions.

The temporary spare tire is for limited

use, however, if the tread wear
solid-band indicator appears, replace the
tire with the same type of temporary
spare (page 6-42).

Maintenance and Care

Owner Maintenance

6-43

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

▼ Replacing a Wheel

WARNING

Always use wheels of the correct size on
your vehicle:
Using a wrong-sized wheel is dangerous.
Braking and handling could be affected,
leading to loss of control and an accident.

CAUTION

A wrong-sized wheel may adversely affect:

Tire fit
Wheel and bearing life
Ground clearance
Snow-chain clearance
Speedometer calibration
Headlight aim
Bumper height
Tire Pressure Monitoring System

NOTE



When replacing a wheel, make sure the
new one is the same as the original
factory wheel in diameter, rim width,
and offset (inset/outset).



For details, contact an Authorized
Mazda Dealer.

Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.

Maintenance and Care

Owner Maintenance

6-44

*Some models.

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

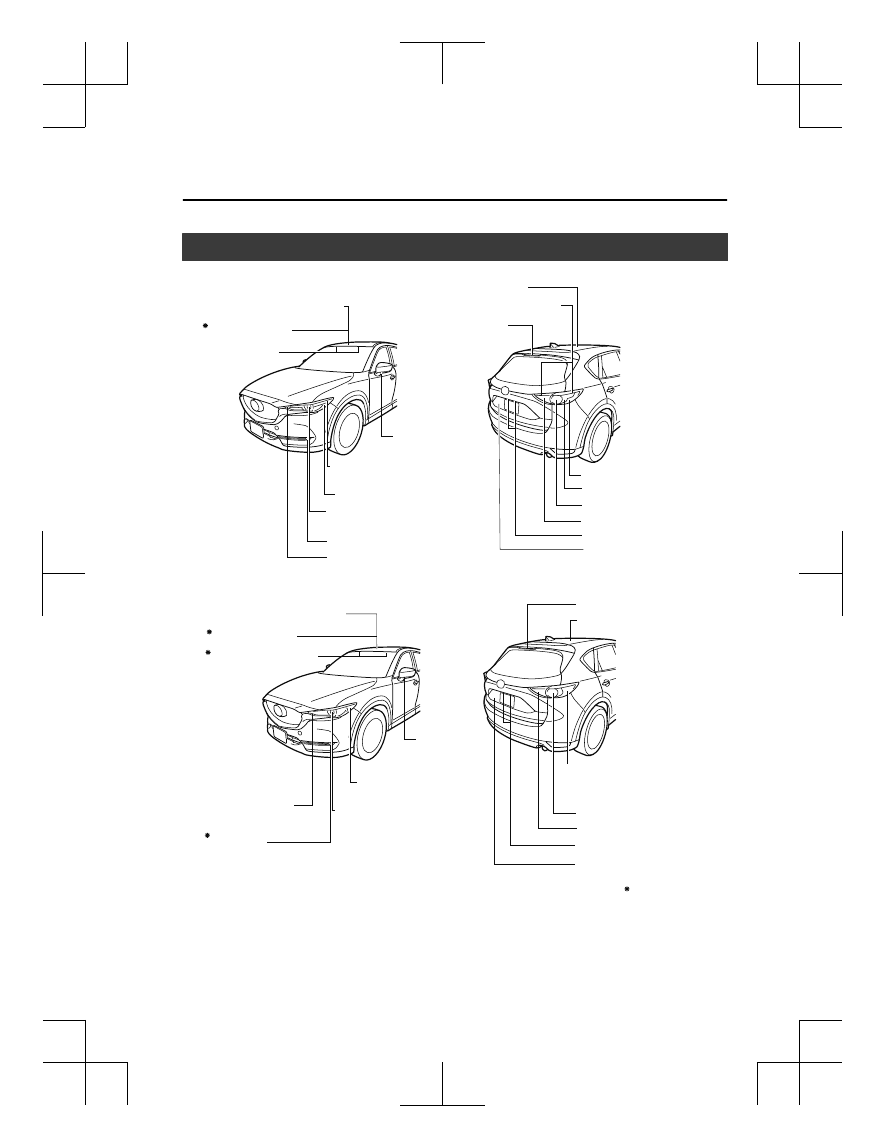

Light Bulbs

Side turn signal
lights

Vanity mirror
lights

Type A

Type B

Overhead lights/Front map
lights

Side turn
signal lights

Vanity mirror lights

Overhead lights/Front map
lights

Front turn signal lights/Parking
lights

Rear turn signal lights

License plate lights

Luggage compartment
light

Reverse lights

Brake lights/Taillights

Brake lights

High-mount
brake light

Rear map lights

Rear turn signal lights

License plate lights

Luggage compartment
light

Reverse lights

Brake lights/Taillights/Rear
side-marker lights

High-mount brake light
Rear map lights

Fog lights

Headlights (High/Low beam)
/Daytime running lights

Front side-marker lights

Rear side-marker lights

Daytime running lights/Parking
lights

Front turn signal
lights/Parking lights

Fog lights

Front side-marker lights

Some models.

Headlights (High/Low beam)
/Daytime running lights

Ambient lights

Maintenance and Care

Owner Maintenance

6-45

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

CAUTION

When removing the lens or lamp unit using
a flathead screwdriver, make sure that the
flathead screwdriver does not contact the
interior terminal. If the flathead screwdriver
contacts the terminal, a short circuit may
occur.

NOTE



To replace the bulb, contact an
Authorized Mazda Dealer.



Use the protective cover and carton for
the replacement bulb to dispose of the
old bulb promptly and out of the reach
of children.

▼ Replacing Exterior Light Bulbs

The exterior lights have either LEDs or
normal bulbs.

LED type



Headlights/Daytime running lights



Daytime running lights/Parking lights
(Type A)



Front side-marker lights (Type A)



Fog lights



Brake lights (Type A)



Taillights (Type A)



Reverse lights



High-mount brake light



Side turn signal lights



Rear side-marker lights (Type A)



License plate lights

The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with the
unit. We recommend an Authorized
Mazda Dealer when the replacement is
necessary.

Bulb type

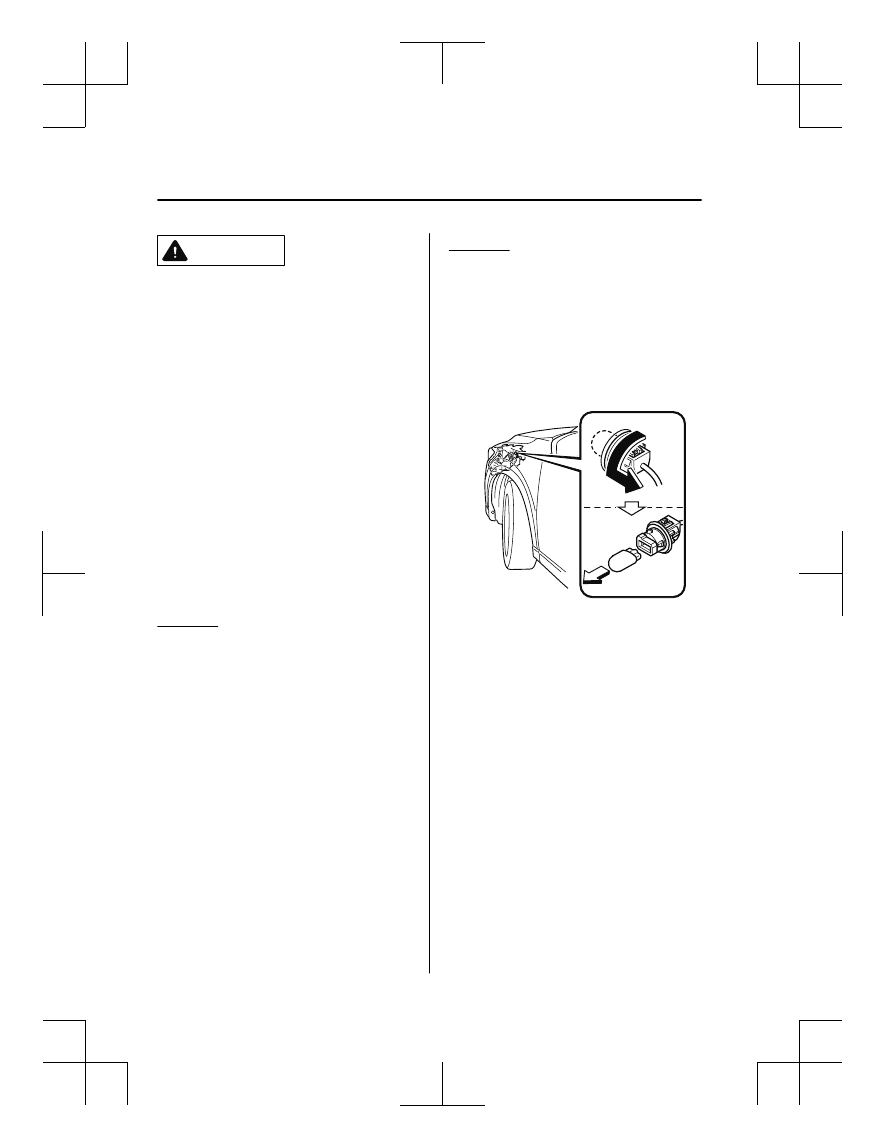

Front turn signal lights/Parking lights

1. Make sure the ignition is switched off,

and the headlight switch is off.

2. Lift the hood.

Refer to Hood on page 6-21.

3. Turn the socket and bulb assembly

counterclockwise and remove it.

4. Disconnect the bulb from the socket.

5. Install the new bulb in the reverse

order of the removal procedure.

Front side-marker lights (Type B)

1. Make sure the ignition is switched off,

and the headlight switch is off.

2. If you are changing the right bulb, start

the engine, turn the steering wheel all
the way to the left, and turn off engine.
If you are changing the left bulb, turn
the steering wheel to the right.

Maintenance and Care

Owner Maintenance

6-46

*Some models.

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

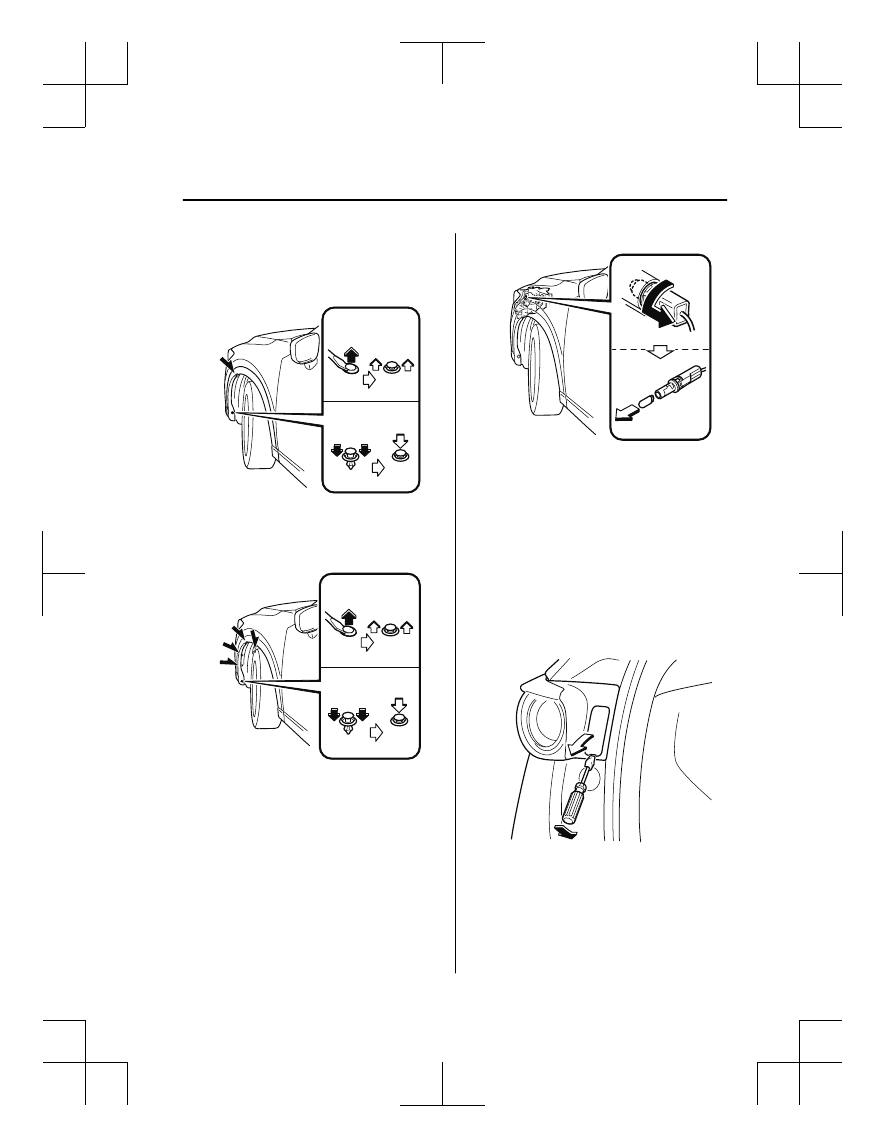

3. Pull the center of each plastic retainer

using a flathead screwdriver and
remove the retainers, and then partially
peel back the over fender.

Removal

Installation

4. Pull the center of each plastic retainer

using a flathead screwdriver and
remove the retainers, and then partially
peel back the mudguard.

Removal

Installation

5. Turn the socket and bulb assembly

counterclockwise and remove it.

6. Disconnect the bulb from the socket.

7. Install the new bulb in the reverse

order of the removal procedure.

Rear turn signal lights, Brake lights/
Taillights/Rear side-marker lights (Type
B)

1. Make sure the ignition is switched off,

and the turn signal switch is off.

2. Wrap a small flathead screwdriver with

a soft cloth to prevent damage to the
cover, and then remove the cover with
the flathead screwdriver.

Maintenance and Care

Owner Maintenance

6-47

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

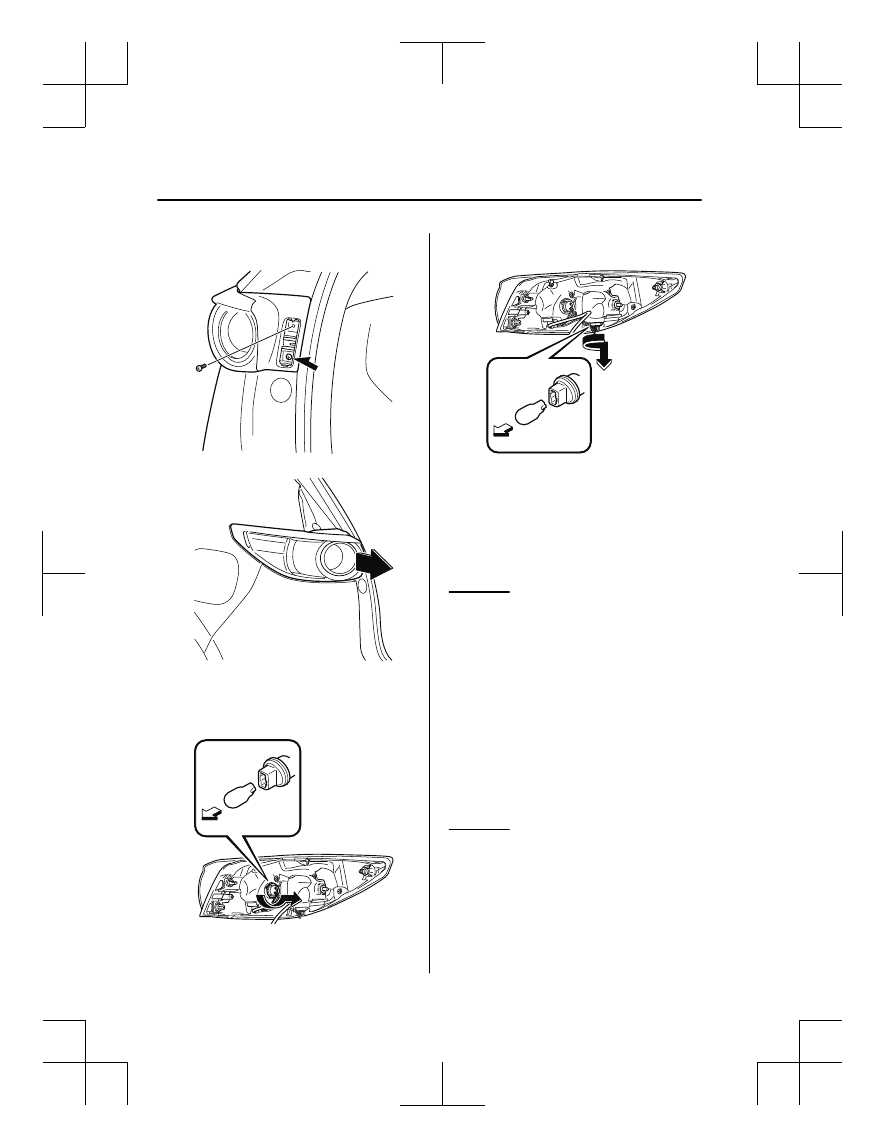

3. Turn the screws counterclockwise and

remove them.

4. Pull the unit rearward to remove it.

5. Turn the socket and bulb assembly

counterclockwise and remove it.

6. Disconnect the bulb from the socket.

Rear turn signal lights

Brake lights/Taillights/Rear
side-marker lights

7. Install the new bulb in the reverse

order of the removal procedure.

▼ Replacing Interior Light Bulbs

The interior lights have either LEDs or
normal bulbs.

LED type



Overhead lights/Front map lights



Rear map lights



Vanity mirror lights



Luggage compartment light



Ambient lights

Bulb type

Overhead light/Front map lights, Rear
map lights, Vanity mirror lights

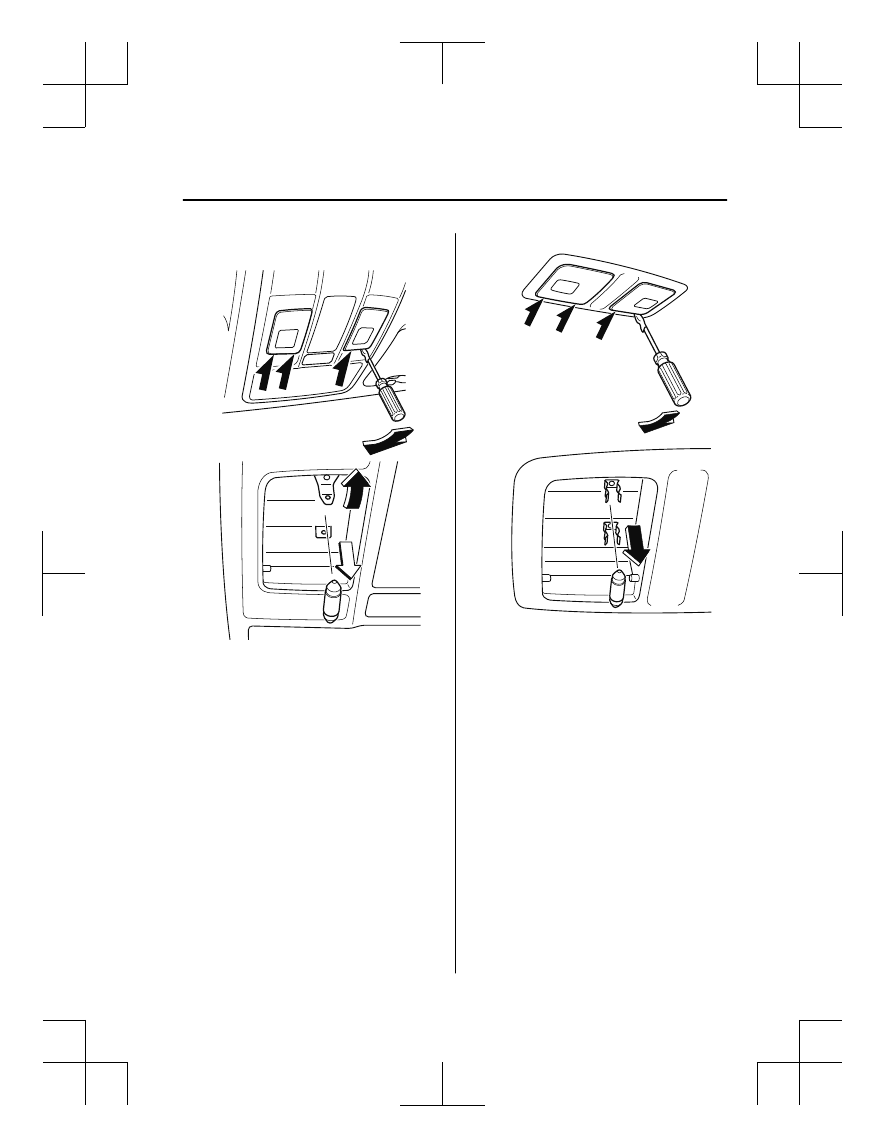

1. Wrap a flathead screwdriver with a

soft cloth to prevent damage to the
lens, and then remove the lens by
carefully prying on the edge of the lens
with a flathead screwdriver.

Maintenance and Care

Owner Maintenance

6-48

*Some models.

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Mazda CX-5 (2019 year). Instruction - part 34
