Mazda CX-5 (2019 year). Instruction - part 31

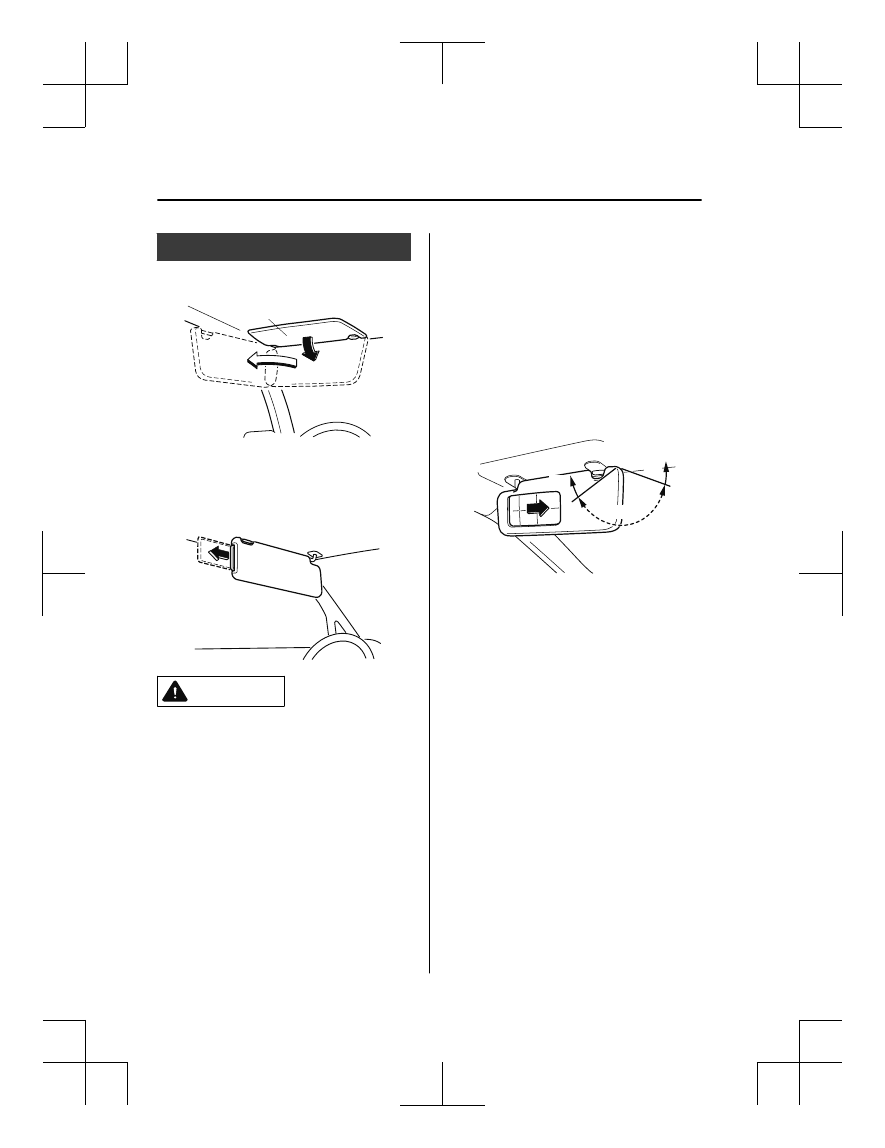

Sunvisors

When you need a sunvisor, lower it for use
in front or swing it to the side.

Sunvisor

▼ Side Extension Sunvisors

The visor extender extends the sunvisor's
range of sun shading.
To use, pull it out.

CAUTION

When moving the sunvisor, retract the visor
extender to its original position. Otherwise,
the visor extender could hit the rearview
mirror.

▼ Vanity Mirrors

To use the vanity mirror, lower the
sunvisor.
If your vehicle is equipped with a vanity
mirror light, it will illuminate when you
open the cover.
To prevent the battery from being
discharged, the vanity mirror will only
illuminate in the tilt range shown in the
figure.

off

Interior Features

Interior Equipment

5-94

*Some models.

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Interior Lights

NOTE
Do not leave the lights on for long periods
while the engine is turned off. Otherwise
the battery power could be depleted.

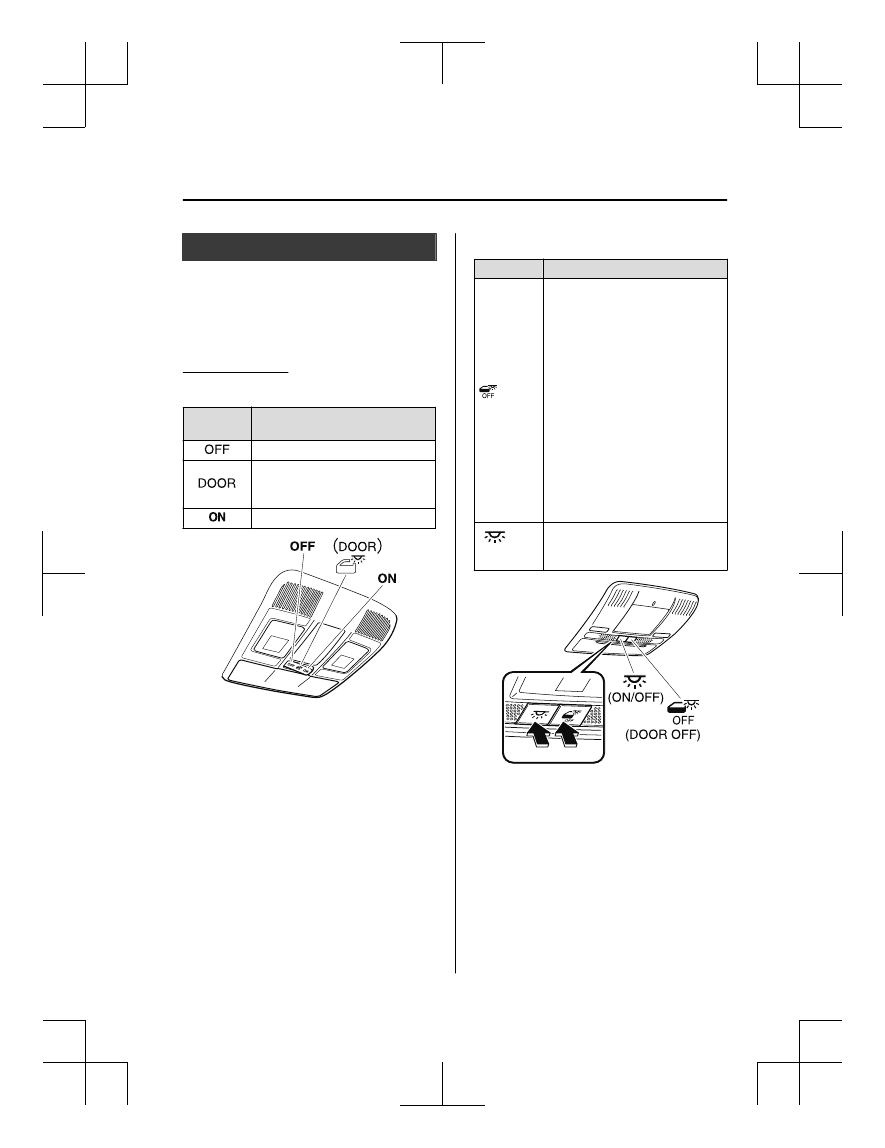

Overhead Lights

Type A

Switch Posi‐

tion

Overhead Lights

Light off



Light is on when any door is open



Light is on or off when the illumi‐
nated entry system is on

Light on

NOTE
The rear map lights also turn on and off
when the overhead light switch is
operated.

Type B

Switch

Overhead Lights

(DOOR

OFF)

The DOOR OFF switch can be
switched between the DOOR posi‐
tion and DOOR OFF position.
DOOR position



The lights turn on when any of the
doors is opened.



The lights turn on/off in conjunc‐
tion with the illuminated entry
system.

DOOR OFF position



The lights do not turn on even if
any of the doors is opened.



The lights do not turn on/off in
conjunction with the illuminated
entry system.

(ON/

OFF)

Press the switch to turn it on. Press
the switch again to turn off the
lights.

Interior Features

5-95

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

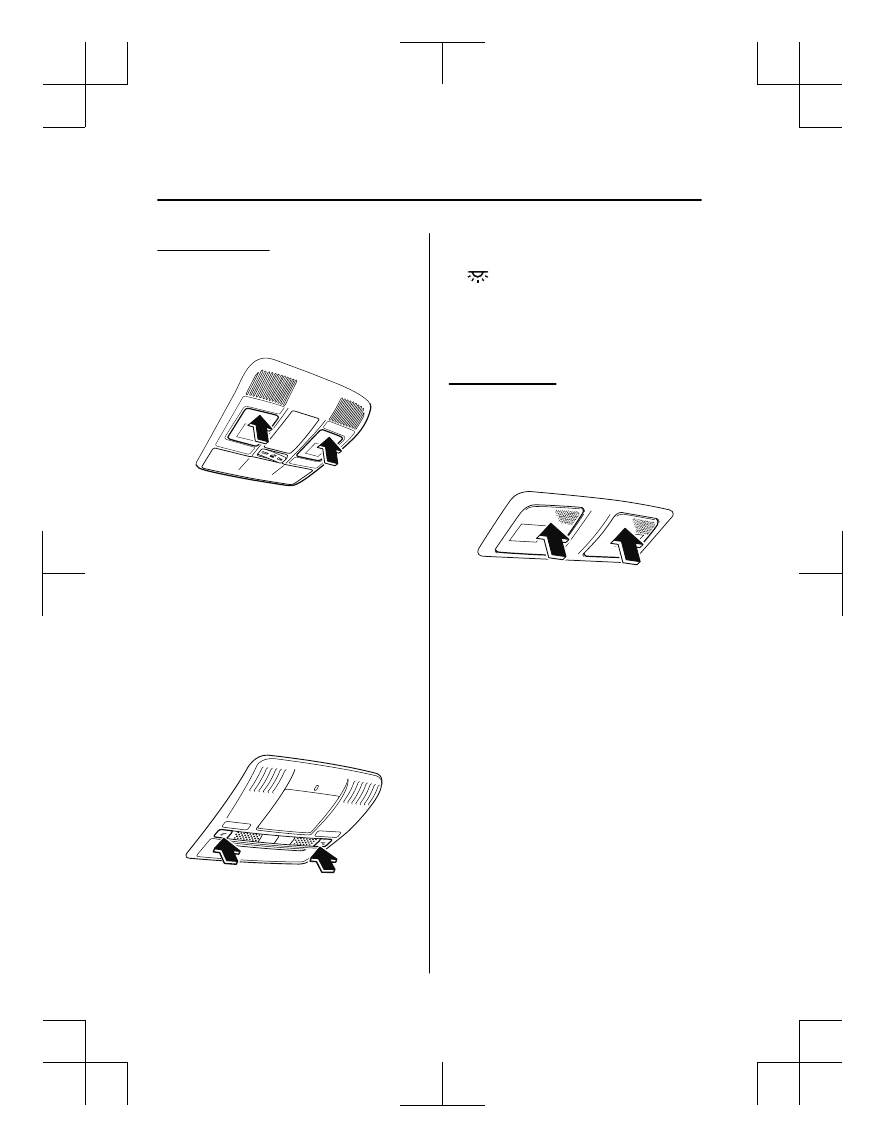

Front Map Lights

Type A

When the overhead light switch is in the
door or off position, press the lens to
illuminate the front map lights, and then
press the lens again to turn them off.

NOTE
The front map lights will not turn off even
if the lens is pressed in the following
cases:



The overhead light switch is in the ON
position.



The overhead light switch is in the door
position with the door open.



The illuminated entry system is on.

Type B

Press the switch to illuminate the front
map lights, and then press the switch again
to turn them off.

NOTE
The front map lights will not turn off even
if the switch is pressed in the following
cases:



The overhead lights turn on by
operating the overhead ON/OFF switch
(



The overhead lights turn on in
conjunction with a door opening/
closing.



The illuminated entry system is on.

Rear Map Lights

Type A

When the overhead light switch is in the
door or off position, press the lens to
illuminate a rear map light, and then press
the lens again to turn it off.

NOTE



Once the rear map lights have been
turned off, they will turn on and off
depending on the position to which the
overhead light is switched.



The rear map lights will not turn off
even if the lens is pressed in the
following cases:



The overhead light switch is ON.



The overhead light switch is in the
door position with the door open.



The illuminated entry system is on.

Interior Features

Interior Equipment

5-96

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Type B

Press the switch to illuminate the rear map
lights, and then press the switch again to
turn them off.

NOTE



Once the rear map lights have been
turned off, they will turn on and off in
conjunction with the overhead light
operation.



The rear map lights will not turn off
even if the switch is pressed in the
following cases:



The overhead lights turn on by
operating the overhead ON/OFF
switch (



The overhead lights turn on in
conjunction with a door opening/
closing.



The illuminated entry system is on.

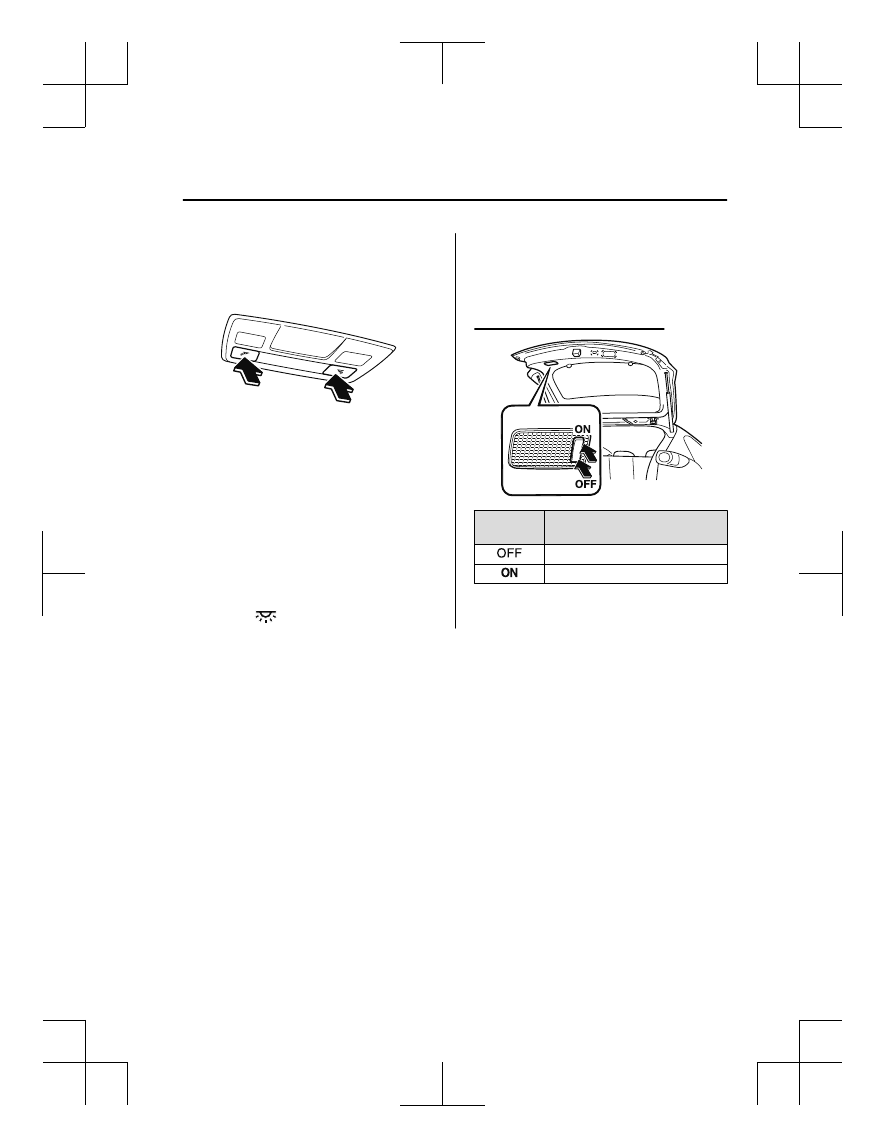

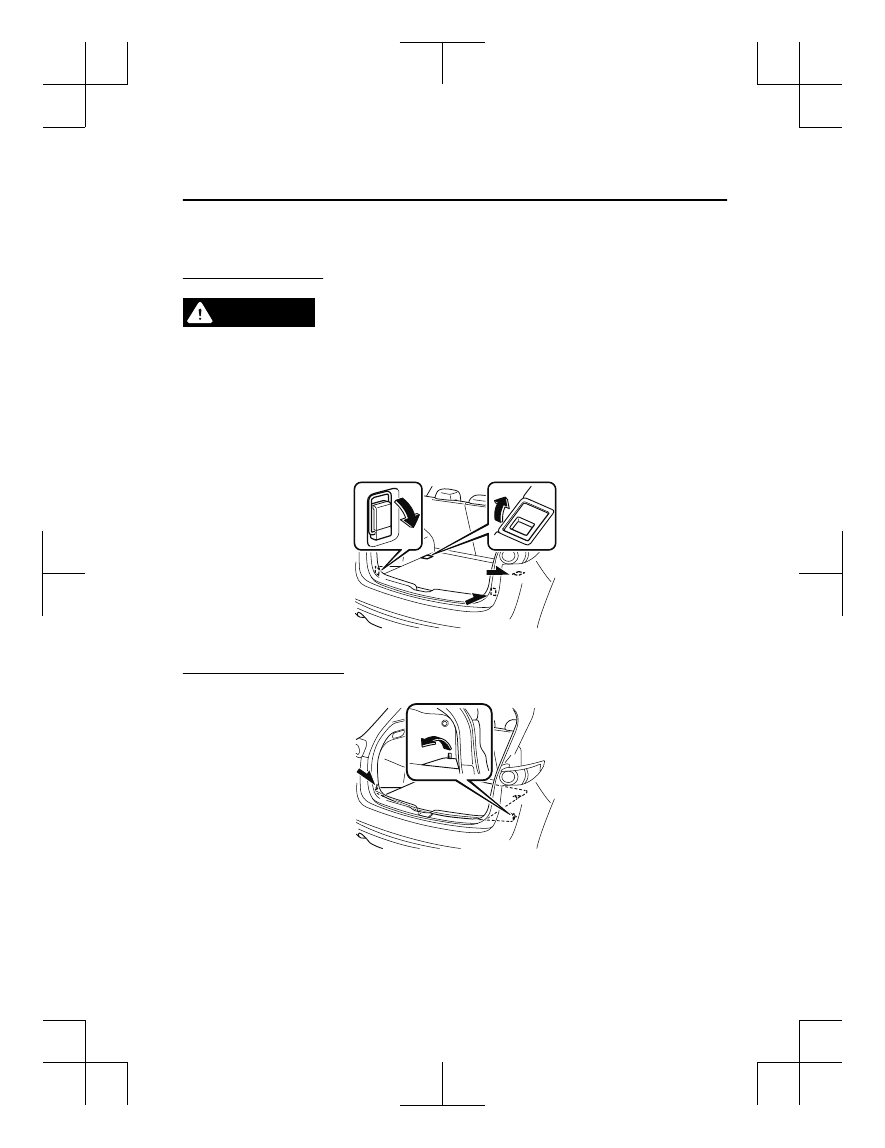

Luggage Compartment Lights

Switch Posi‐

tion

Luggage Compartment Light

Light off
Light on when the liftgate is open

Interior Features

5-97

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

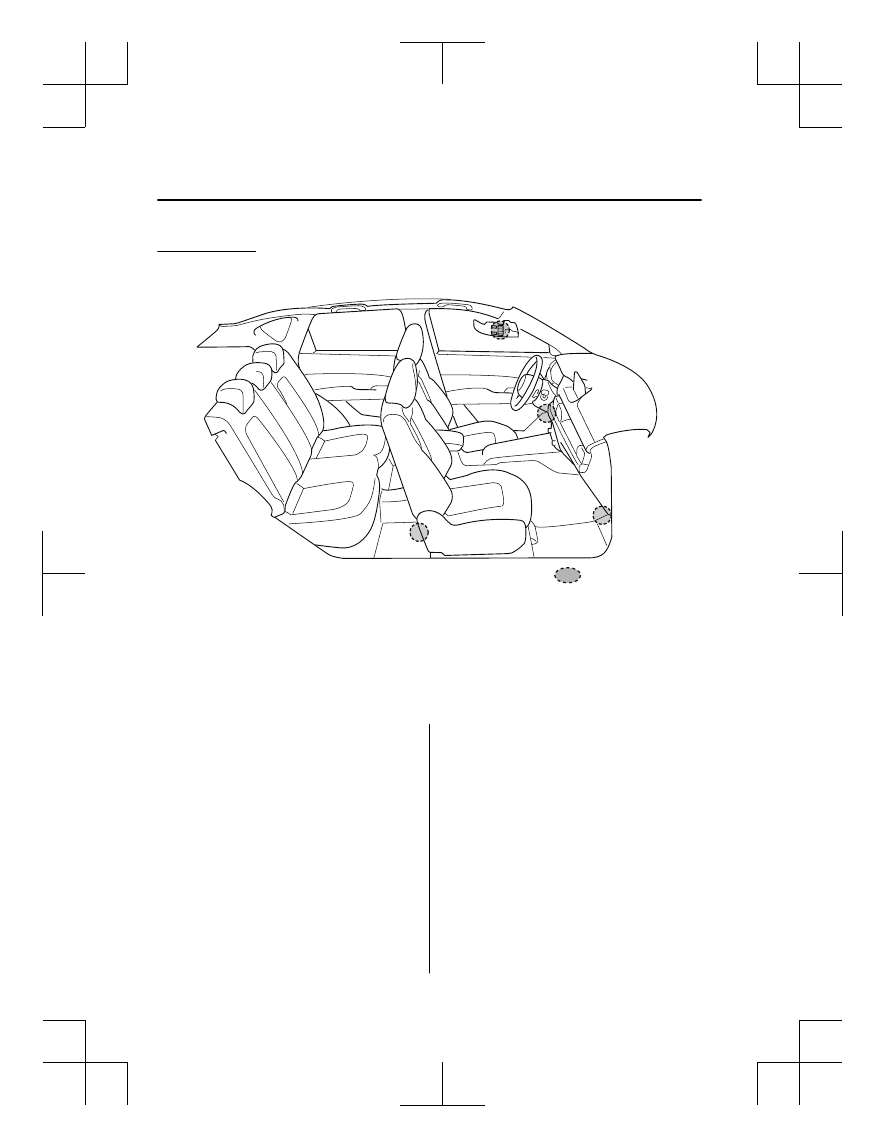

Ambient Light

An ambient light continuously turn on when the ignition is switched ON.
An ambient light dim when the parking lights or headlights are turned on.

Ambient light

NOTE



An ambient light turn on or off in conjunction with the illuminated entry system when the
ignition is switched OFF.



The ambient light illumination level can be changed while the parking lights or headlights
are turned on.
Refer to Personalization Features on page 9-12.

▼ Illuminated Entry System

The overhead lights turn on when any of
the following operations is done with the
overhead light switch in the DOOR
position.
The ambient lights turn on regardless of
the overhead light switch position.



The driver's door is unlocked with the
ignition is switched OFF.



The ignition is switched OFF with all
doors closed.

NOTE



The illumination time differs depending
on the operation.



Battery saver
If an interior light is left on with the
ignition switched OFF, the light is
turned off automatically after about 30
minutes to prevent battery depletion.



The operation of the illuminated entry
system can be changed.
Refer to Personalization Features on
page 9-12.

Interior Features

Interior Equipment

5-98

*Some models.

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47



(Type B)
The illumination entry system does not
operate in conjunction with the
overhead lights when the overhead
lights are turned on using the overhead
light ON/OFF switch.

Accessory Sockets

Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).

Front

The ignition must be switched to ACC or
ON.

Interior Features

5-99

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Center, Rear

The accessory sockets can be used
regardless of whether the ignition is on or
off.

Center

Rear

CAUTION

To prevent accessory socket damage or

electrical failure, pay attention to the
following:

Do not use accessories that require

more than 120 W (DC 12 V, 10 A).

Do not use accessories that are not

genuine Mazda accessories or the
equivalent.

Close the cover when the accessory

socket is not in use to prevent foreign
objects and liquids from getting into
the accessory socket.

Correctly insert the plug into the

accessory socket.

Do not insert the cigarette lighter into

the accessory socket.

Noise may occur on the audio playback

depending on the device connected to
the accessory socket.

Depending on the device connected to

the accessory socket, the vehicle's
electrical system may be affected, which
could cause the warning light to
illuminate. Disconnect the connected
device and make sure that the problem is
resolved. If the problem is resolved,
disconnect the device from the socket
and switch the ignition off. If the problem
is not resolved, consult an Authorized
Mazda Dealer.

NOTE
To prevent discharging of the battery, do
not use the socket for long periods with the
engine off or idling.

Connecting the accessory socket

1. Open the lid.
2. Pass the connection plug cord through

the cutout of the console and insert the
plug into the accessory socket.

Plug

Interior Features

Interior Equipment

5-100

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

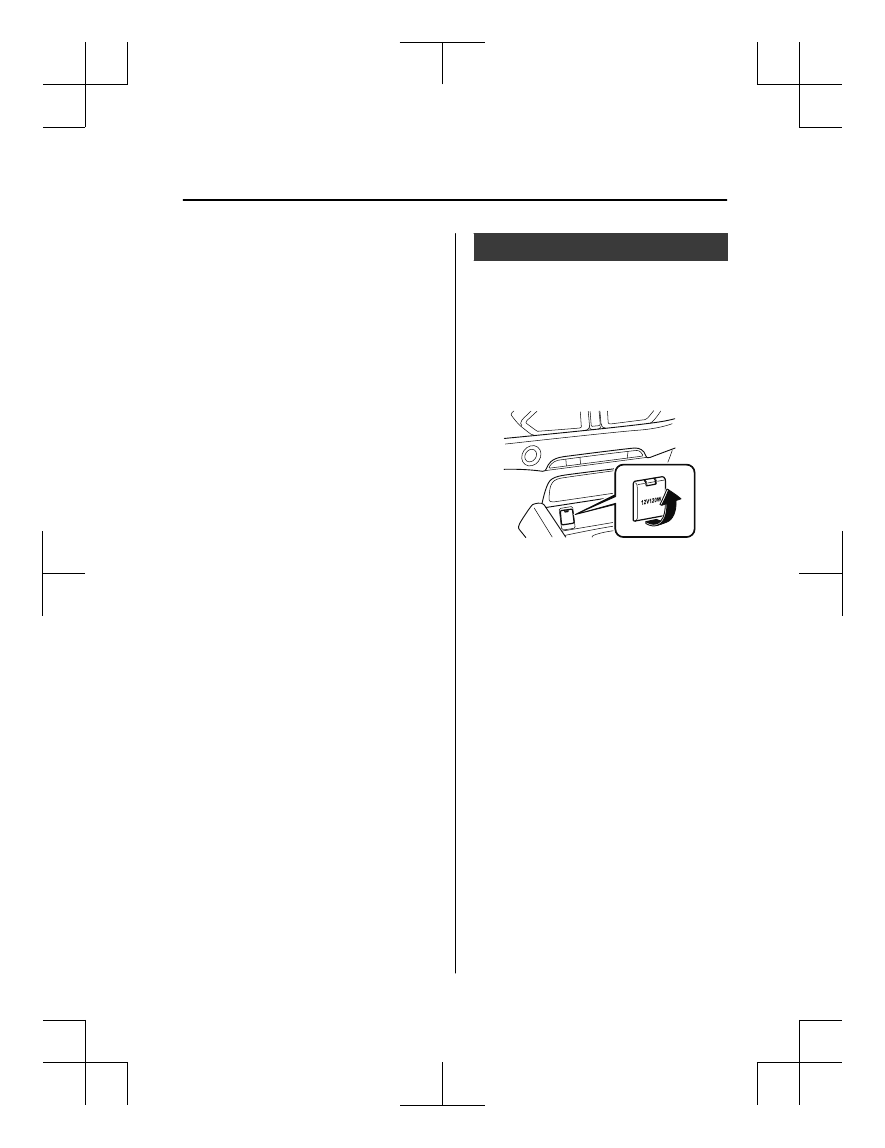

USB Power Outlet

The USB power outlets can be used
regardless of whether the ignition is
switched to ACC or ON.
Only use USB devices that have a
maximum power consumption of 10.5W
(DC5V, 2.1A) or below.

USB power outlet

CAUTION

To prevent USB power outlets damage or

electrical failure, pay attention to the
following:

Do not use USB devices that require

more than 10.5 W (DC 5 V, 2.1 A).

Close the lid when the USB power

outlets are not in use to prevent
foreign objects and liquids from
getting into the USB power outlets.

Correctly connect the USB connector

into the USB power outlets.

NOTE



The USB power outlets are designed
only for charging and they cannot be
used for connecting to the vehicle's
audio system.



To prevent discharging of the battery, do
not use the USB power outlets for long
periods with the engine off or idling.

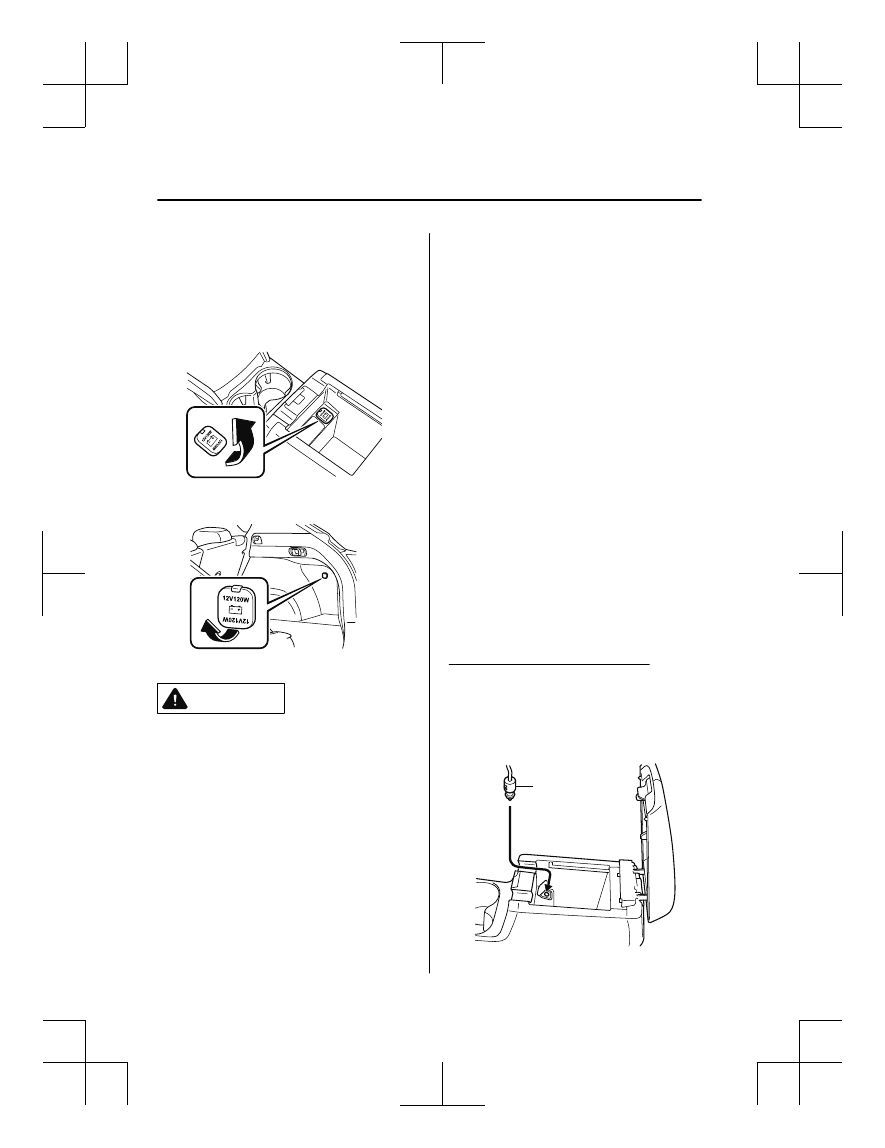

How to connect

The groove in the armrest box can be used
to pass the cord of the device into the box
to connect it to the USB power outlets.
1. Open the lid.
2. Route the cord through the groove in

the armrest box and insert the USB
connector into the USB power outlets.

Connector

Interior Features

*Some models.

5-101

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

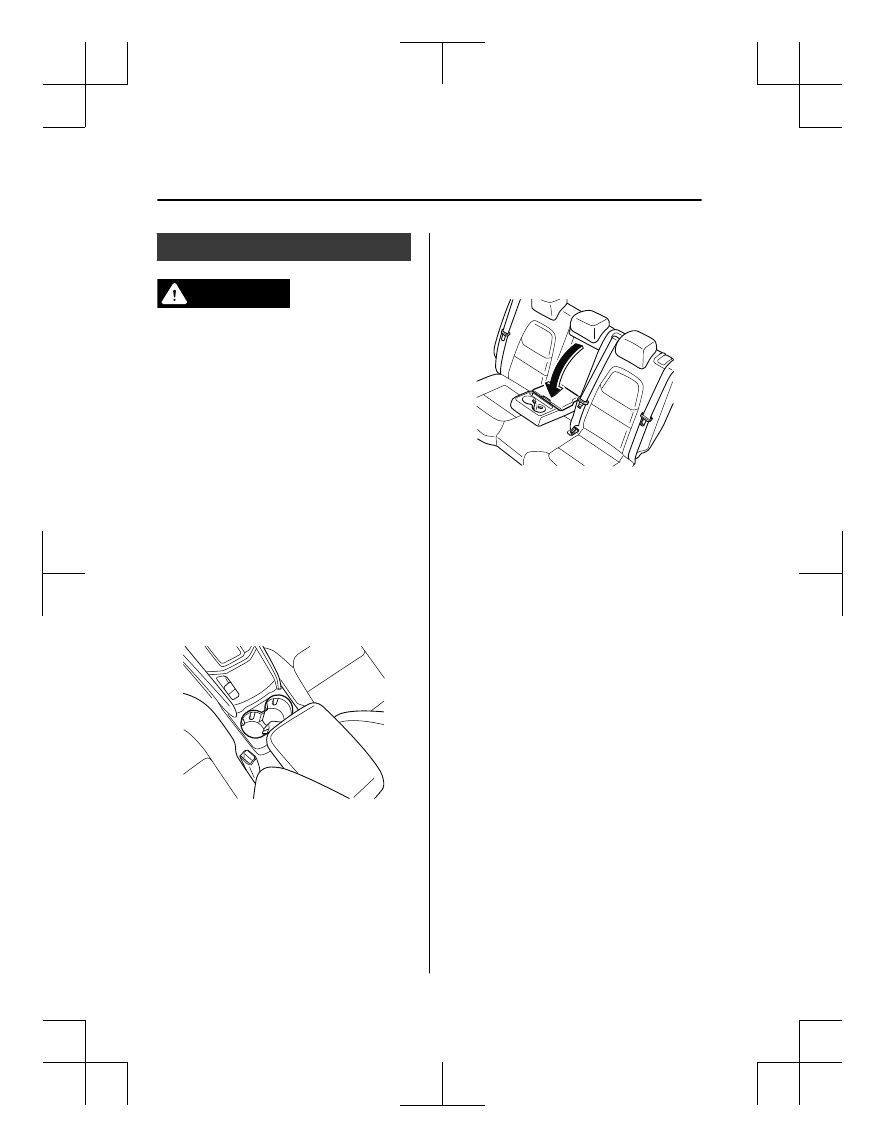

Cup Holder

WARNING

Never use a cup holder to hold hot liquids
while the vehicle is moving:
Using a cup holder to hold hot liquids while
the vehicle is moving is dangerous. If the
contents spill, you could be scalded.

Do not put anything other than cups or
drink cans in cup holders:
Putting objects other than cups or drink
cans in a cup holder is dangerous.
During sudden braking or maneuvering,
occupants could be hit and injured, or
objects could be thrown around the
vehicle, causing interference with the driver
and the possibility of an accident. Only use
a cup holder for cups or drink cans.

▼ Front

▼ Rear

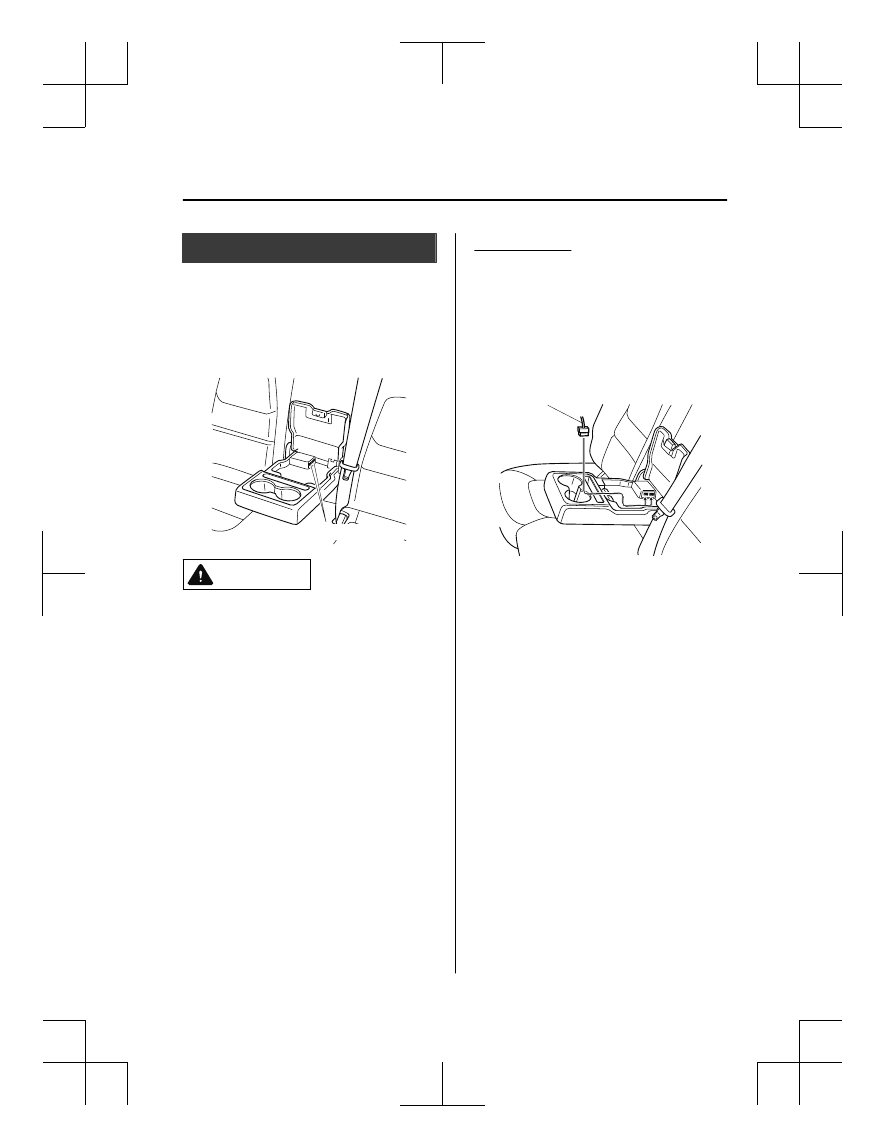

The rear cup holder is on the rear center
armrest.

Interior Features

Interior Equipment

5-102

*Some models.

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

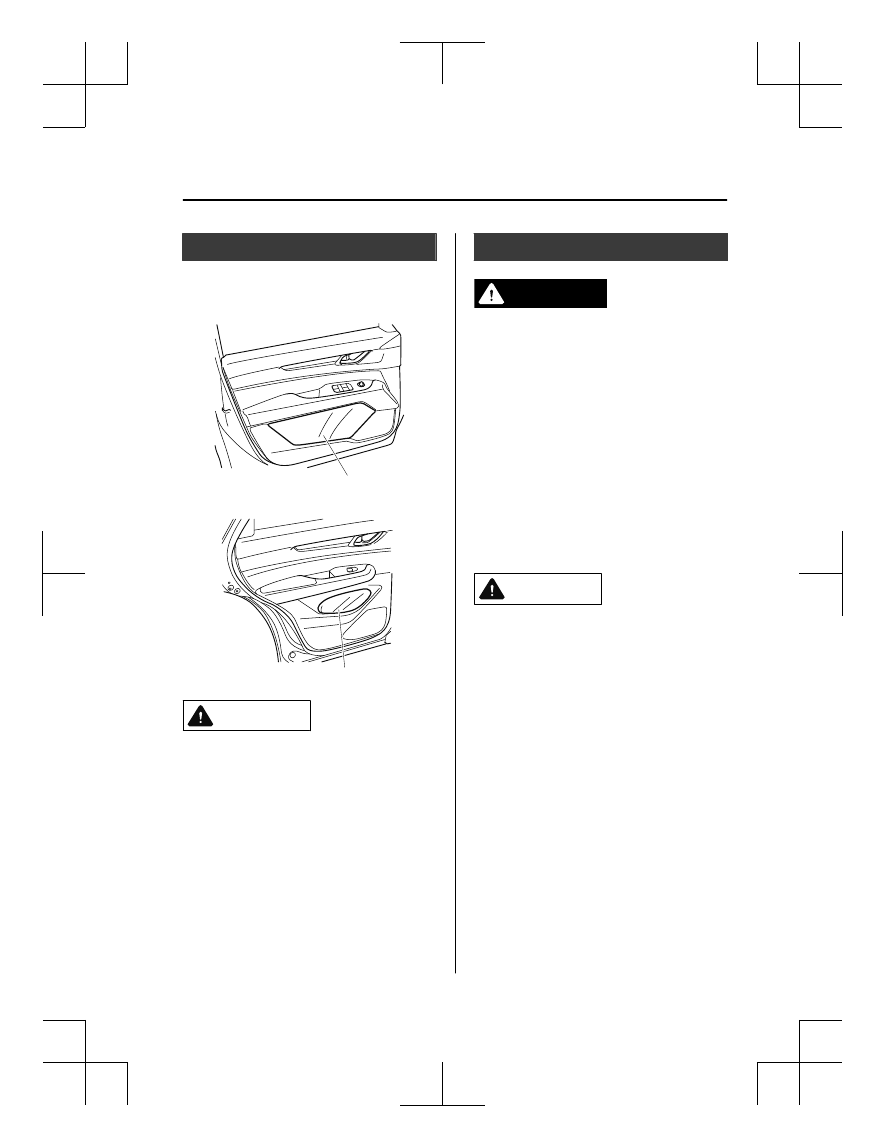

Bottle Holder

Bottle holders are on the inside of the
doors.
Front

Bottle holder

Rear

Bottle holder

CAUTION

Do not use the bottle holders for containers
without caps. The contents may spill when
opening/closing the door or while driving
the vehicle.

Storage Compartments

WARNING

Keep storage boxes closed when driving:
Driving with the storage boxes open is
dangerous. To reduce the possibility of
injury in an accident or a sudden stop, keep
the storage boxes closed when driving.

Do not put articles in storage spaces with
no lid:
Putting articles in storage spaces with no
lid is dangerous as they could be thrown
around the cabin if the vehicle is suddenly
accelerated and cause injury depending on
how the article is stored.

CAUTION

Do not leave lighters or eyeglasses in the
storage boxes while parked under the sun.
A lighter could explode or the plastic
material in eyeglasses could deform and
crack from high temperature.

Interior Features

5-103

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

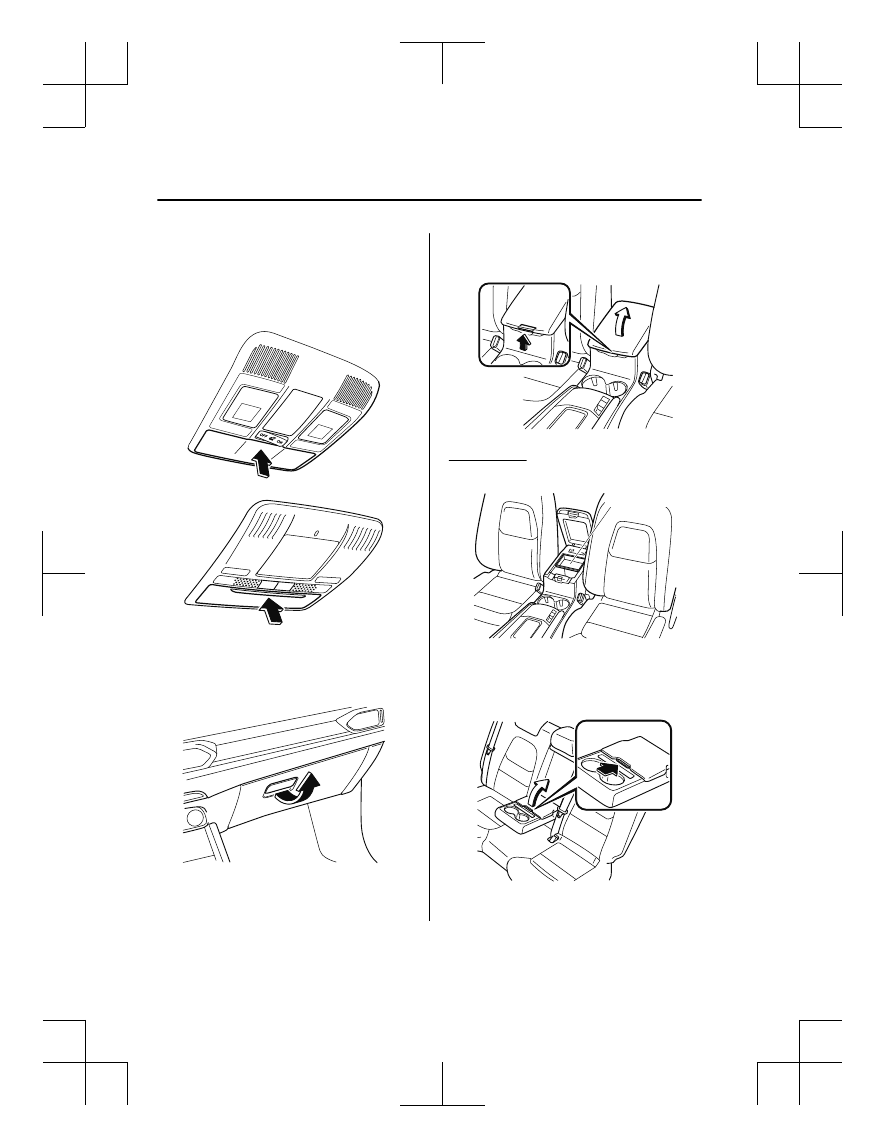

▼ Overhead Console

This console box is designed to store
eyeglasses or other accessories.
Push and release to open.

Type A

Type B

▼ Glove Compartment

To open the glove compartment, pull the
latch toward you.

To close the glove compartment, firmly
press in the center of the glove
compartment lid.

▼ Center Console

To open, pull the release latch.

Storage tray

The storage tray can be removed.

Storage tray

▼ Armrest Box

To open, push the button and pull up the
lid.

Interior Features

Interior Equipment

5-104

*Some models.

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

▼ Luggage Compartment

Cargo Securing Loops

WARNING

Make sure luggage and cargo is secured before driving:
Not securing cargo while driving is dangerous as it could move or be crushed during sudden
braking or a collision and cause injury.

Use the loops in the luggage compartment to secure cargo with a rope or net. The tensile
strength of the loops is 196 N (20 kgf, 44 lbf). Do not apply excessive force to the loops as
it will damage them.

Cargo Sub-Compartment

Open the cover to put small items in the cargo sub-compartment.

Interior Features

5-105

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

NOTE

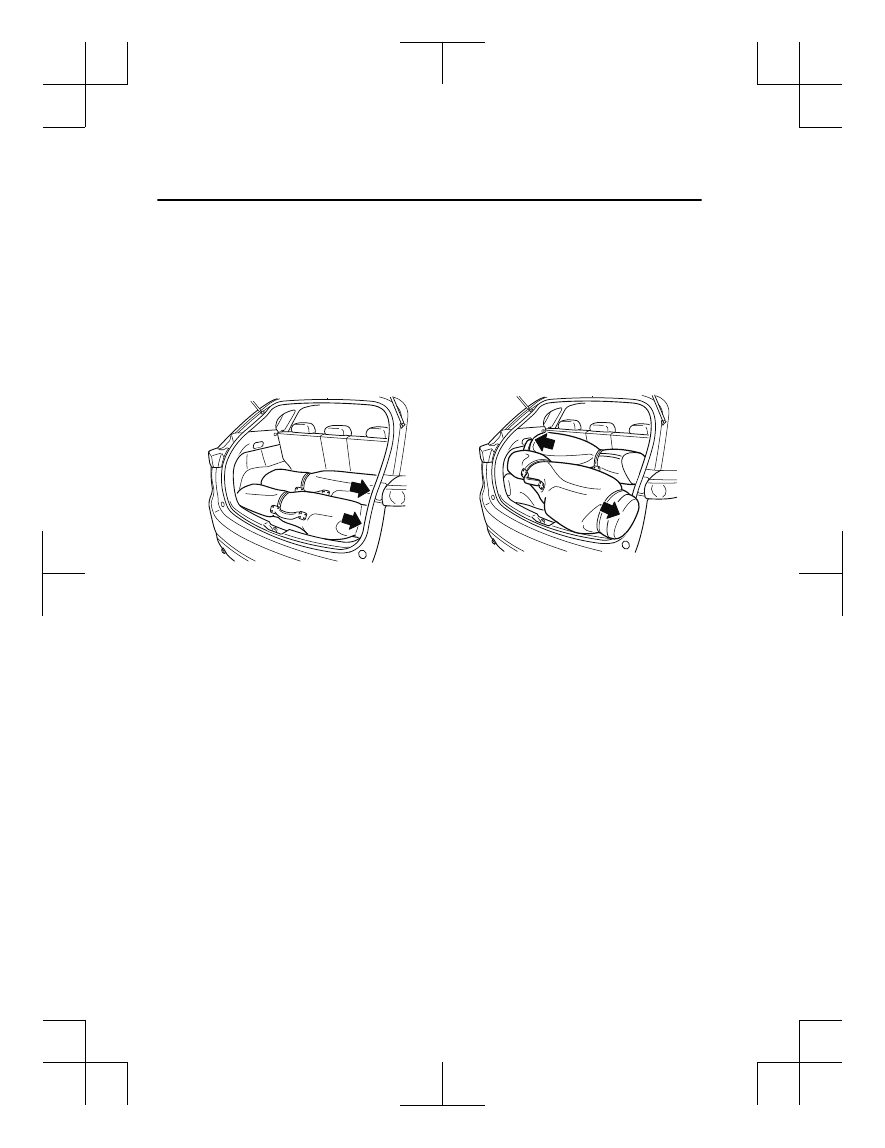

Loading golf bags
(Some golf bags may not fit using the following methods depending on their sizes.)
Up to four golf bags can be carried in the luggage compartment.

Bottom: Place the first and second golf bags in the luggage compartment with the bottoms
pointed to the right.
Top: Place the third golf bag with its bottom pointed to the left and the fourth golf bag with
its bottom pointed to the right in the luggage compartment.

The arrows indicate the bottoms of the golf bags.

Top

Bottom

Interior Features

Interior Equipment

5-106

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

▼ Rear Coat Hooks

WARNING

Never hang heavy or sharp objects on the
assist grips and coat hooks:
Hanging heavy or sharp-ended objects
such as a coat hanger from the assist grips
or coat hooks is dangerous as they can fly
off and hit an occupant in the cabin if a
curtain air bag was to deploy, which could
result in serious injury or death.

Always hang clothes on the coat hooks
and the assist grips without hangers.

Coat hook

Interior Features

5-107

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

MEMO

5-108

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Maintenance and Care

How to keep your Mazda in top condition.

Essential Information........................6-2

Introduction.................................. 6-2

Scheduled Maintenance.................... 6-4

Scheduled Maintenance (U.S.A.,
Canada, and Puerto Rico)............. 6-4
Scheduled Maintenance
(Mexico)..................................... 6-11
Maintenance Monitor................. 6-16

Owner Maintenance........................6-19

Owner Maintenance
Precautions................................. 6-19
Hood........................................... 6-21
Engine Compartment
Overview.................................... 6-23
Engine Oil...................................6-24
Engine Coolant........................... 6-27
Brake/Clutch Fluid..................... 6-29
Washer Fluid...............................6-29
Body Lubrication........................6-30
Wiper Blades.............................. 6-31
Battery........................................ 6-36
Key Battery Replacement...........6-38
Tires............................................ 6-41
Light Bulbs................................. 6-45
Fuses........................................... 6-51

Appearance Care.............................6-58

Exterior Care.............................. 6-58
Interior Care................................6-64

6-1

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Content .. 29 30 31 32 ..
