Mazda CX-5 (2019 year). Instruction - part 22

▼ Front Wide View

Use the front wide view to assist in checking the safety of the surrounding area when
accelerating from a stop or entering a T-shaped intersection and intersection.

Display range

(Actual condition)

(Screen display)

Target object

When Driving

i-ACTIVSENSE

4-190

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Viewing the screen



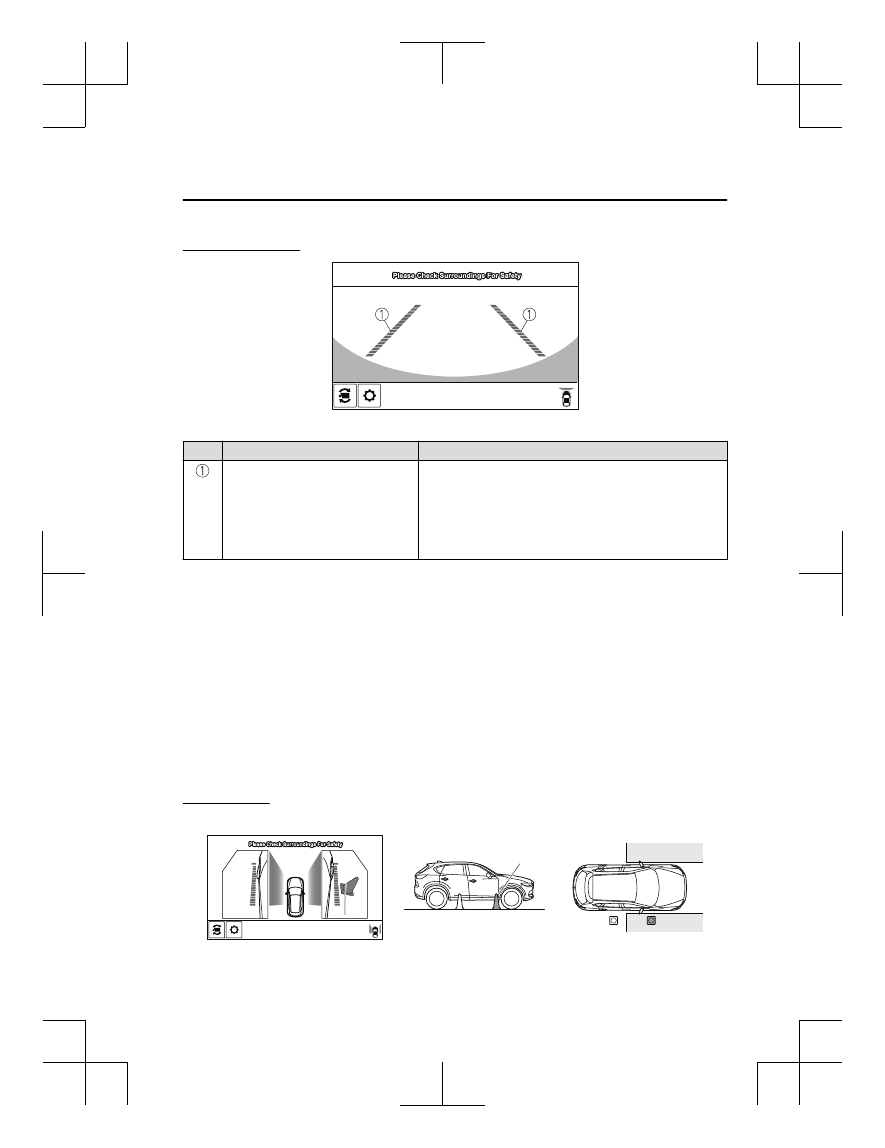

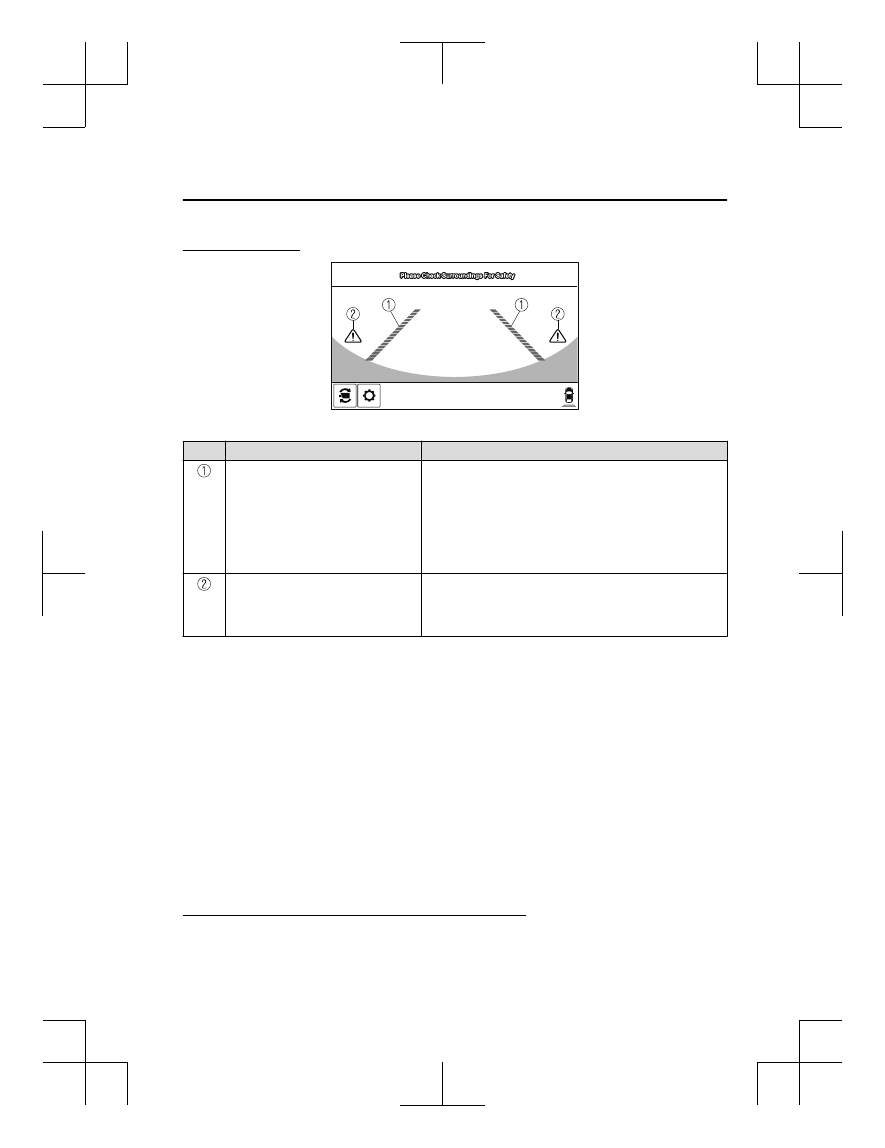

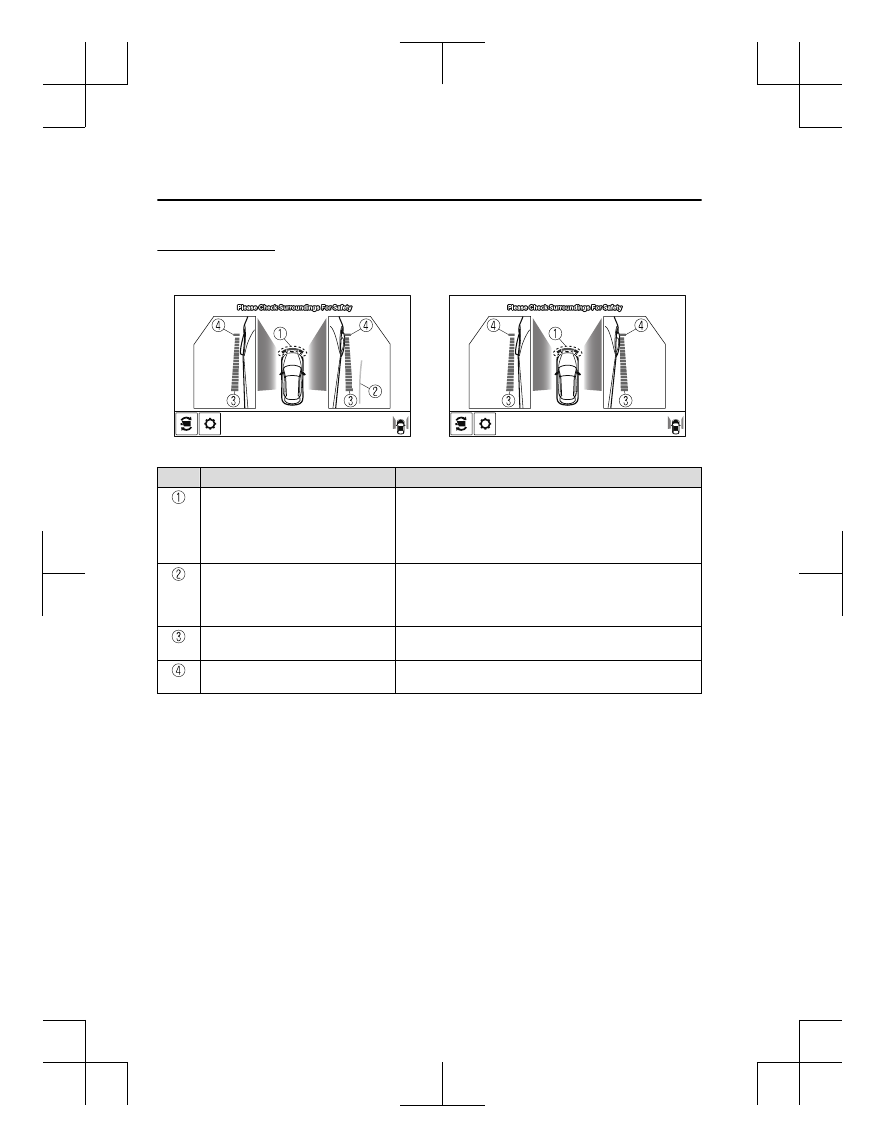

Display/Icon

Content

Extended vehicle width lines and dis‐
tance guide lines (red/blue)

Indicates the approximate width of the vehicle and the distance
(from front end of bumper) in front of the vehicle.



The red lines indicate the points up to about 0.5 m (20 in)
from the front end of the bumper.



The blue lines indicate the points from about 0.5 m (20 in)
and up to 2 m (79 in) from the front end of the bumper.

NOTE



The parking sensor obstruction detection indication does not display. Switch the screen
display to the top view/front view or side view display if the parking sensor warning sound
is activated.



The front wide view screen displays the image in front of the vehicle at a wide angle and
corrects the image to help detect approaching obstructions from the side. Therefore, it
differs from the actual view.

▼ Side View

Use the side view to assist in checking the safety of the surrounding area when accelerating
from a stop, parking, or stopping the vehicle.

Display range

(Actual condition)

(Screen display)

Target object

When Driving

i-ACTIVSENSE

4-191

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Viewing the screen

(When the projected vehicle
path line display is on)

(When the projected vehicle
path line display is off)



Display/Icon

Content

Parking sensor view

Displays the parking sensor detection condition when the
parking sensor is activated.
For details, refer to the parking sensor obstruction detection
indication and warning sound.
Refer to Parking Sensor System on page 4-231.

Projected vehicle path lines (amber)

Indicates the approximate projected path of the vehicle.
Moves in conjunction with the steering wheel operation.
The projected vehicle path lines (amber) indicate the path the
inner side of the vehicle is expected to travel.

Vehicle parallel guide lines (blue)

Indicates the approximate vehicle width including the door
mirrors.

Vehicle front end guide lines (blue)

Indicates the point about 0.25 m (9.8 in) from the front edge
of the vehicle (front edge of the bumper).

NOTE
The setting can be changed so that the projected vehicle path lines are not displayed.
Refer to Personalization Features on page 9-12.

When Driving

i-ACTIVSENSE

4-192

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

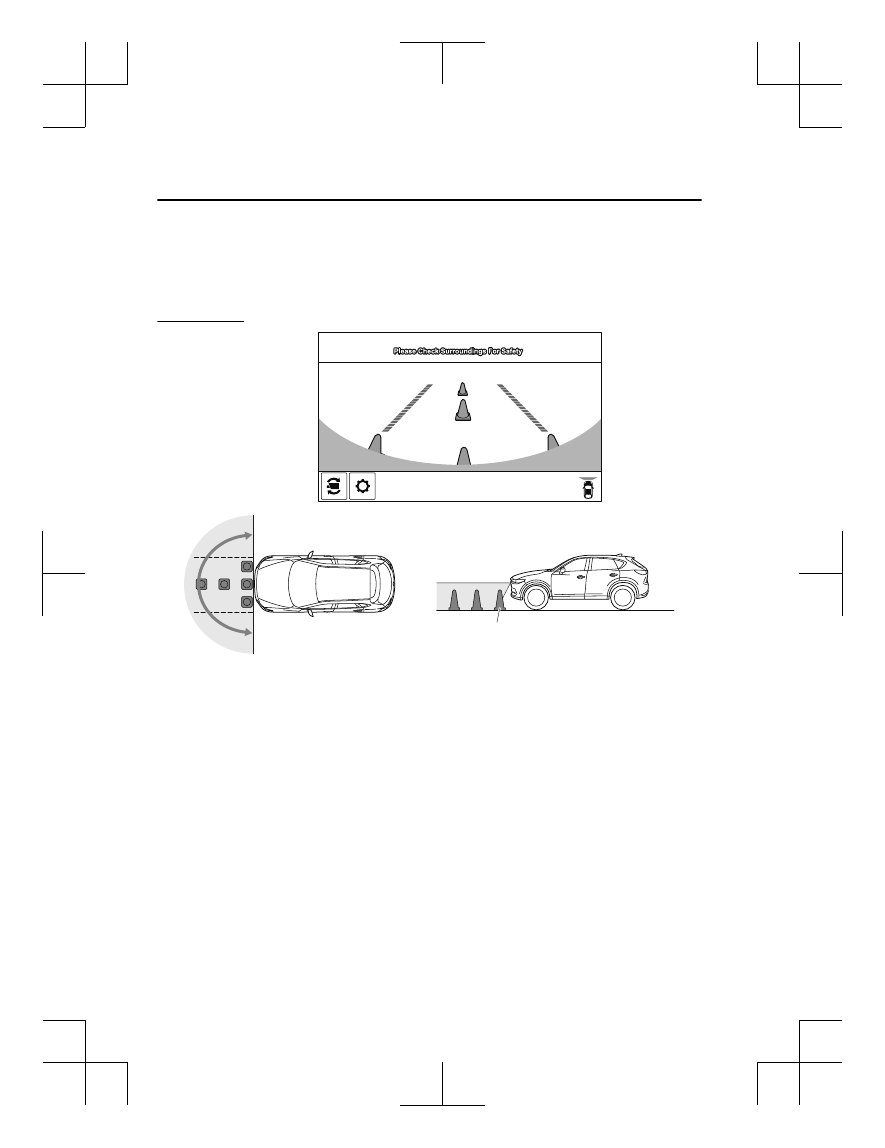

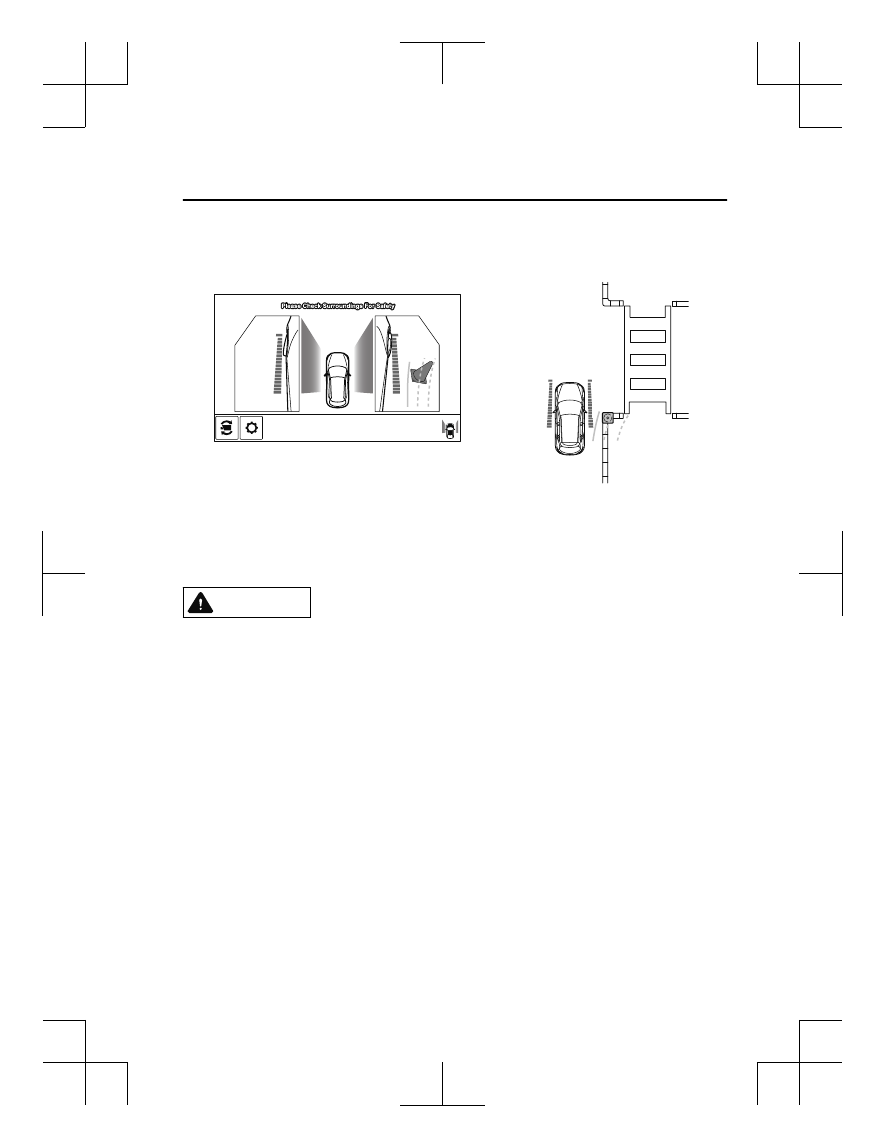

How to use the projected vehicle path line function

(Actual condition)

(Screen display)

A B

A B C

C

Make sure that there are no obstructions within the projected vehicle path lines.
Turn the steering wheel so that the projected vehicle path lines travel inside of the
obstruction (A), and drive the vehicle forward until it passes the obstruction.
If the projected vehicle path lines are on an obstruction (B) or outside of the obstruction (C),
the vehicle may contact the obstruction when turning the vehicle sharply.

CAUTION

The parking sensor detection range has limitations. For example, obstructions closing in

from the side and objects short in height may not be detected. Always confirm the safety
around the vehicle visually when driving.
For details, refer to the parking sensor obstruction detection indication and warning sound.
Refer to Parking Sensor System on page 4-231.

Do not turn the steering wheel any more until the vehicle has passed the obstruction, even

if the obstruction is not visible on the side view image. If the steering wheel is turned even
more, the vehicle may contact the obstruction if it is turned sharply.

NOTE



Because there might be a difference between the image displayed on the screen and the
actual conditions, always check the safety of the surrounding area using the mirrors and
directly with your eyes when driving.



Even though the object displayed on the screen, such as a road curb or a division line of a
parking space, and the vehicle parallel guide lines appear parallel, they may not actually
be parallel.

When Driving

i-ACTIVSENSE

4-193

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

▼ Top View/Rear View

Use the top view/rear view to assist in checking the safety of the surrounding area when
accelerating from a stop, parking, or stopping the vehicle.

Range of displayed screen image

(Actual condition)

(Screen display)

Target object

NOTE



In the top view screen, the areas in black at the front and rear of the vehicle image and the
seams where each of the camera images merge are blind spots.



Because images displayed in the top view screen are processed from each camera, the top
view screen may display in the following ways.



If an image containing an object with a conspicuous color is picked up by any of the
cameras, the whole screen may be affected and it may display in that color.



Obstructions displayed in the rear view may not display on the top view screen.



If the position or angle of each camera changes due to tilting of the vehicle, the image
may appear distorted.



Lines on the road may appear distorted at the seams where each of the camera images
merge.



The entire screen may appear bright/dark depending on the illumination level around
any of the cameras.

When Driving

i-ACTIVSENSE

4-194

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

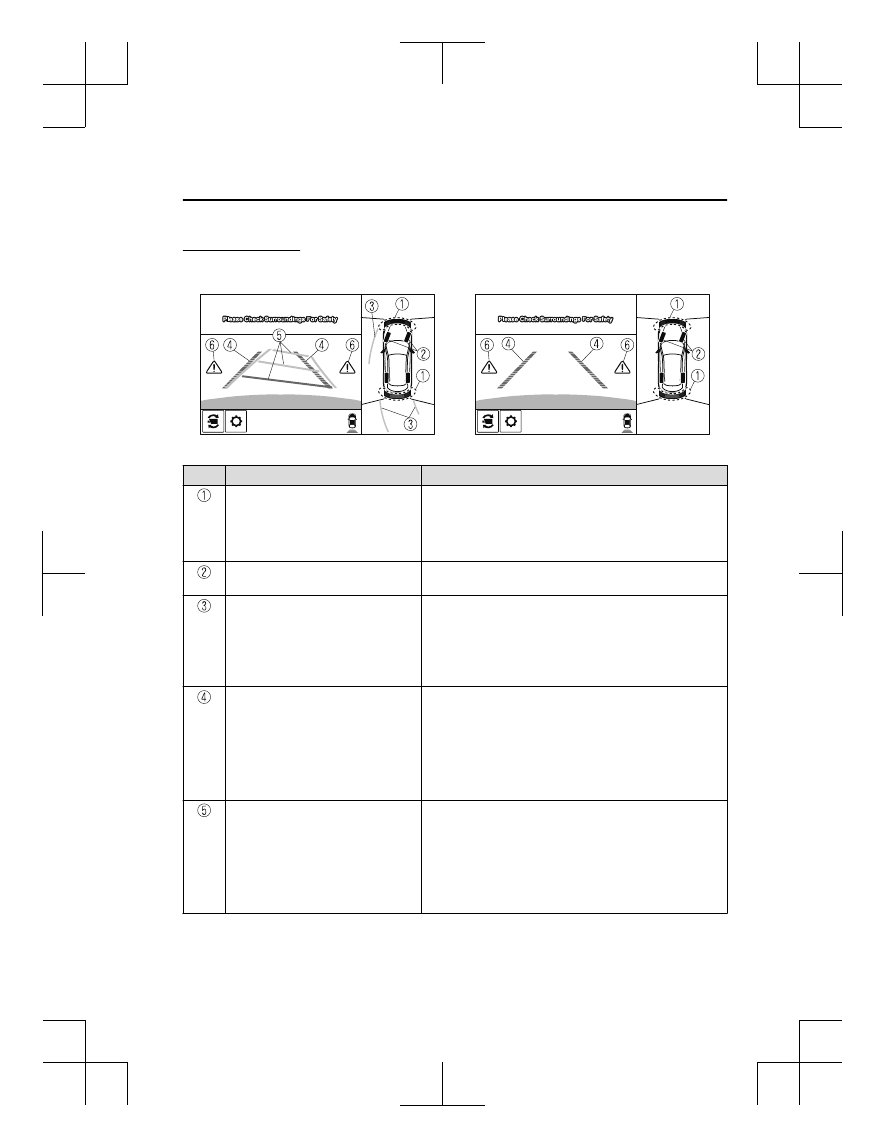

Viewing the screen

-a

-b

(When the projected vehicle
path line display is on)

(When the projected vehicle
path line display is off)



Display/Icon

Content

Parking sensor view

Displays the parking sensor detection condition when the
parking sensor is activated.
For details, refer to the parking sensor obstruction detection
indication and warning sound.
Refer to Parking Sensor System on page 4-231.

Tire icon

Indicates the tire direction. Moves in conjunction with the
steering wheel operation.

Projected vehicle path lines (amber)

Indicates the approximate projected path of the vehicle.
Moves in conjunction with the steering wheel operation.
a) Indicates the path where the rear wheels are expected to
travel.
b) Indicates the path where the outer side of the vehicle is ex‐
pected to travel.

Extended vehicle width lines and dis‐
tance guide lines (red/blue)

These guide lines indicate the approximate width of the vehi‐
cle and distance to a point measured from the rear of the vehi‐
cle (from the end of the bumper).



The red lines indicate the points up to about 0.5 m (20 in)
from the rear end of the bumper.



The blue lines indicate the points from about 0.5 m (20 in)
and up to 2 m (79 in) from the rear end of the bumper.

Projected vehicle path distance guide
lines (red/amber)

These guide lines indicate the approximate distance to a point
measured from the rear of the vehicle (from the end of the
bumper).



The red line indicates the point about 0.5 m (20 in) from the
rear end of the bumper.



The amber lines indicate the points about 1 m (39 in) and 2
m (79 in) from the rear end of the bumper.

When Driving

i-ACTIVSENSE

4-195

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Display/Icon

Content

Blind Spot Monitoring (BSM) warning
lights

Indicates when the Rear Cross Traffic Alert (RCTA) has oper‐
ated.
For details, refer to Rear Cross Traffic Alert (RCTA).
Refer to Rear Cross Traffic Alert (RCTA) on page 4-138.

NOTE
The setting can be changed so that the projected vehicle path lines are not displayed.
Refer to Personalization Features on page 9-12.

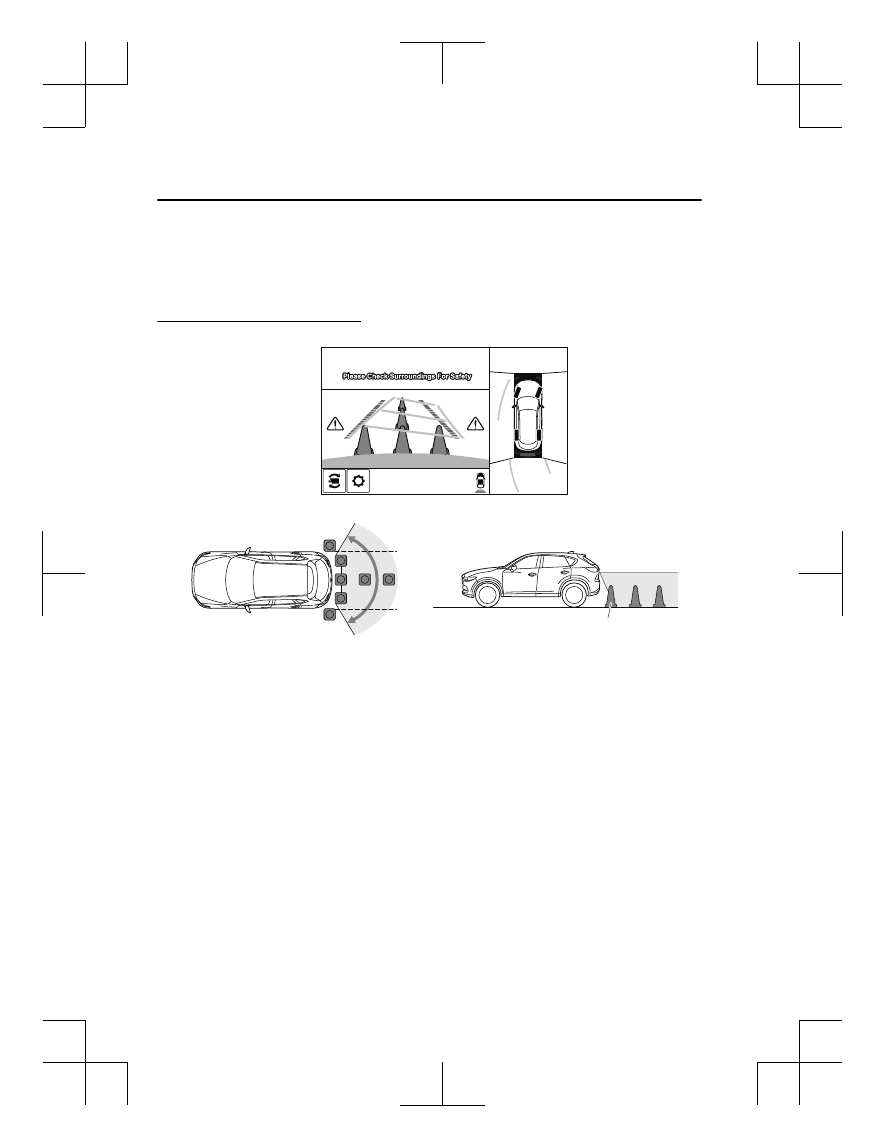

How to use the projected vehicle path line function

CAUTION

The front of the vehicle swings out wide when turning the steering wheel while reversing.

Maintain sufficient distance between the vehicle and an obstruction.

The parking sensor detection range has limitations. For example, obstructions closing in

from the side and objects short in height may not be detected. Always confirm the safety
around the vehicle visually when driving.
For details, refer to the parking sensor obstruction detection indication and warning sound.
Refer to Parking Sensor System on page 4-231.

NOTE



Because there might be a difference between the image displayed on the screen, such as
indicated in the following, and the actual conditions when parking, always check the
safety at the rear of the vehicle and the surrounding area directly with your eyes.



Even though the back end of the parking space (or garage) displayed on the screen and
distance guide lines appear parallel, they may not actually be parallel.



When parking in a space with a division line on only one side of the parking space, even
though the division line and the vehicle width guide line appear parallel, they may not
actually be parallel.



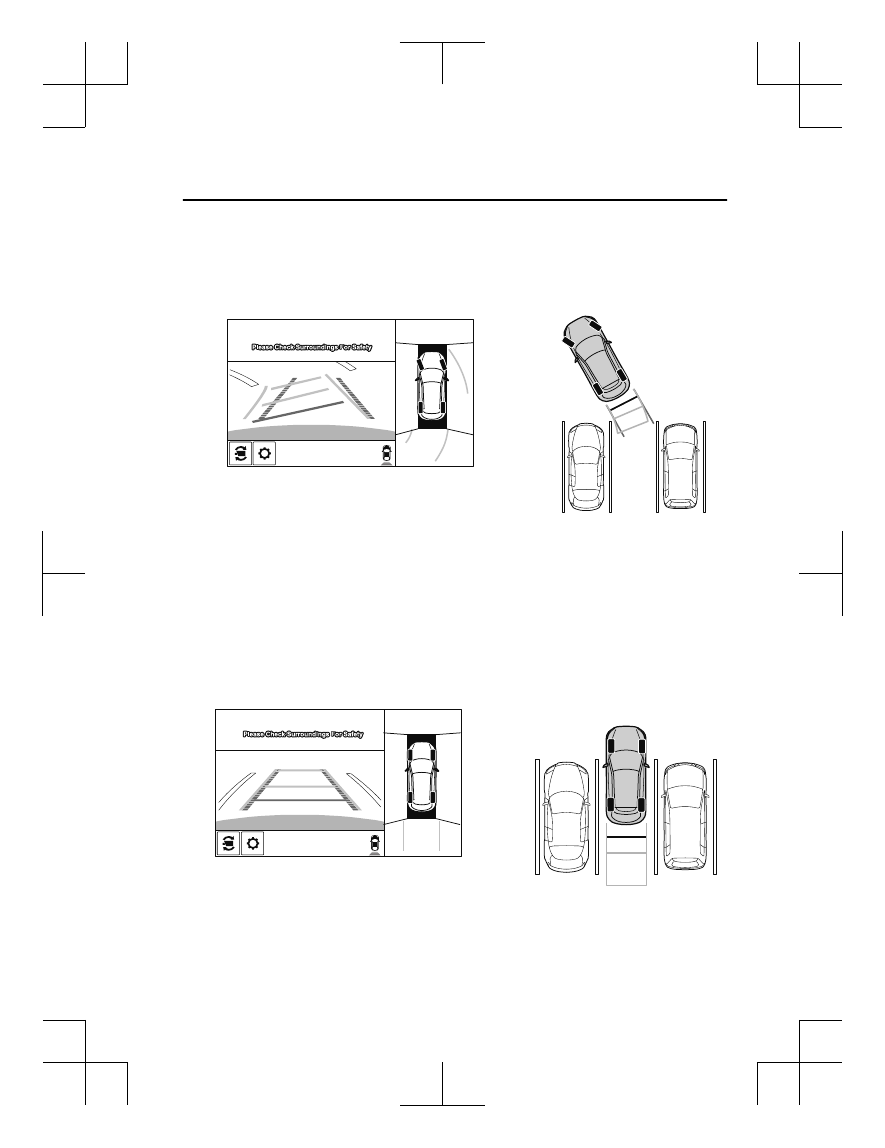

The following shows an example of vehicle parking with the steering wheel turned to the
left while backing up the vehicle. When backing into a parking space from the opposite
direction, the steering operation is reversed.

When Driving

i-ACTIVSENSE

4-196

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

1. Back the vehicle into the parking space by turning the steering wheel so that the vehicle

enters the center of the parking space.


(Actual condition)

(Screen display)

2. After the vehicle starts entering the parking space, stop and adjust the steering wheel so

that the distance between the vehicle width lines and the sides of the parking space on
the left and right are roughly equal, and then continue backing up slowly.

3. Once the vehicle width lines and the sides of the parking space on the left and right are

parallel, straighten the wheels and back the vehicle slowly into the parking space.
Continue checking the vehicle's surroundings and then stop the vehicle in the best
possible position. (If the parking space has division lines, check whether the vehicle
width guide lines are parallel to them.)


(Actual condition)

(Screen display)

When Driving

i-ACTIVSENSE

4-197

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

▼ Rear Wide View

Use the rear wide view to assist in checking the safety of the surrounding area when
accelerating from a stop, parking, or stopping the vehicle.

Range of displayed screen image

(Actual condition)

(Screen display)

Target object

When Driving

i-ACTIVSENSE

4-198

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Viewing the screen



Display/Icon

Content

Extended vehicle width lines and dis‐
tance guide lines (red/blue)

These guide lines indicate the approximate width of the vehi‐
cle and distance to a point measured from the rear of the vehi‐
cle (from the end of the bumper).



The red lines indicate the points up to about 0.5 m from the
rear end of the bumper.



The blue lines indicate the points from about 0.5 m (20 in)
and up to 2 m (79 in) from the rear end of the bumper.

Blind Spot Monitoring (BSM) warning
lights

Indicates when the Rear Cross Traffic Alert (RCTA) has oper‐
ated.
For details, refer to Rear Cross Traffic Alert (RCTA).
Refer to Rear Cross Traffic Alert (RCTA) on page 4-138.

NOTE



The parking sensor obstruction detection indication does not display. Switch the screen
display to the top view/rear view display if the parking sensor warning sound is activated.



The rear wide view screen displays the image at the rear of the vehicle at a wide angle
and corrects the image to help detect approaching obstructions from the side. Therefore, it
differs from the actual view.

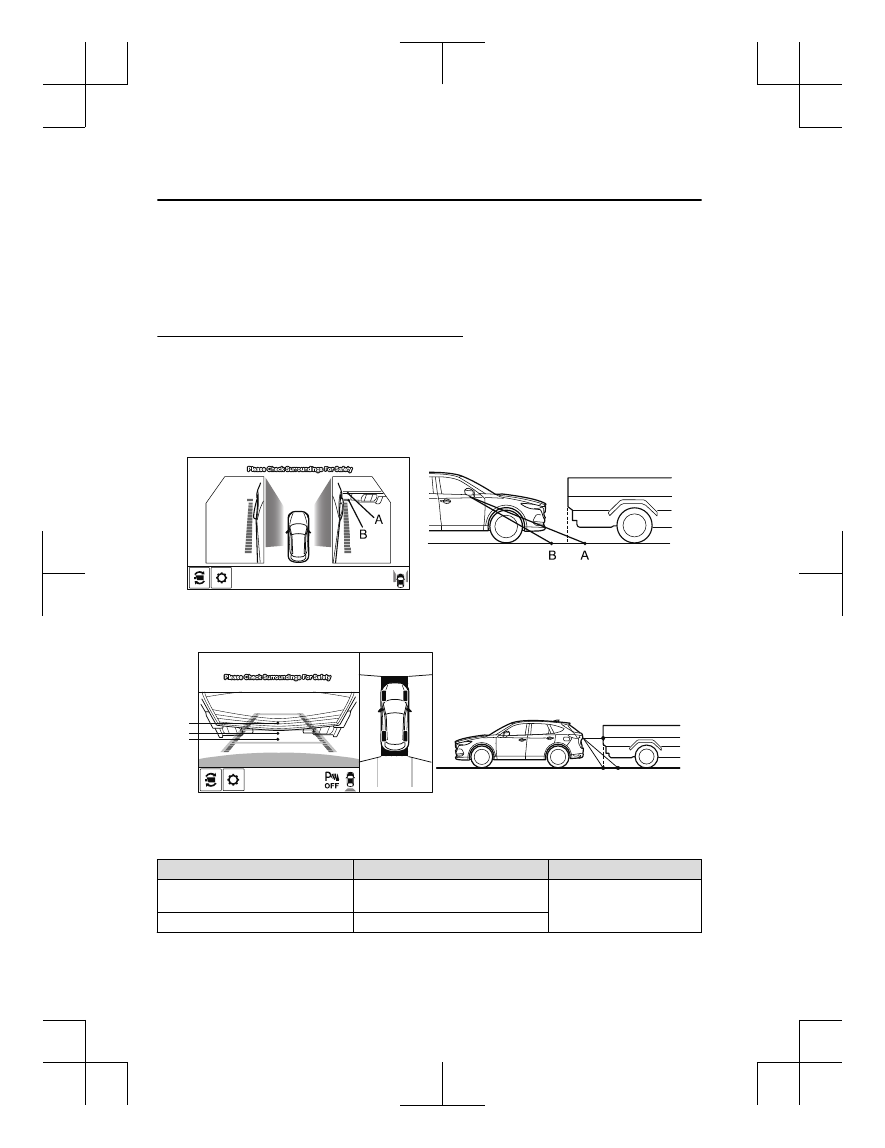

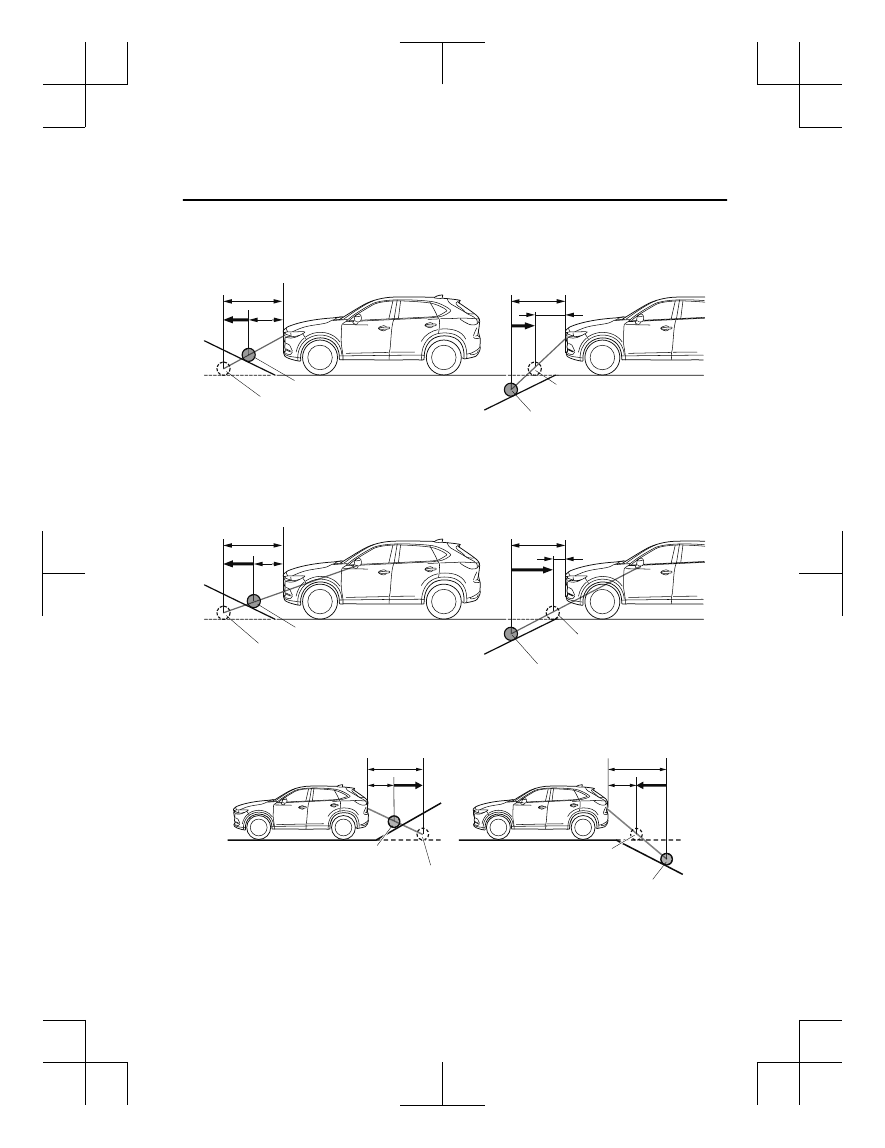

▼ Margin of Error Between Road Surface on Screen and Actual Road Surface

There might be some margin of error between the road surface appearing on the screen and
the actual road surface. A margin of error in the perceived distance could lead to an
accident, therefore be aware of the following conditions which can more easily produce
errors in the perceived distance.


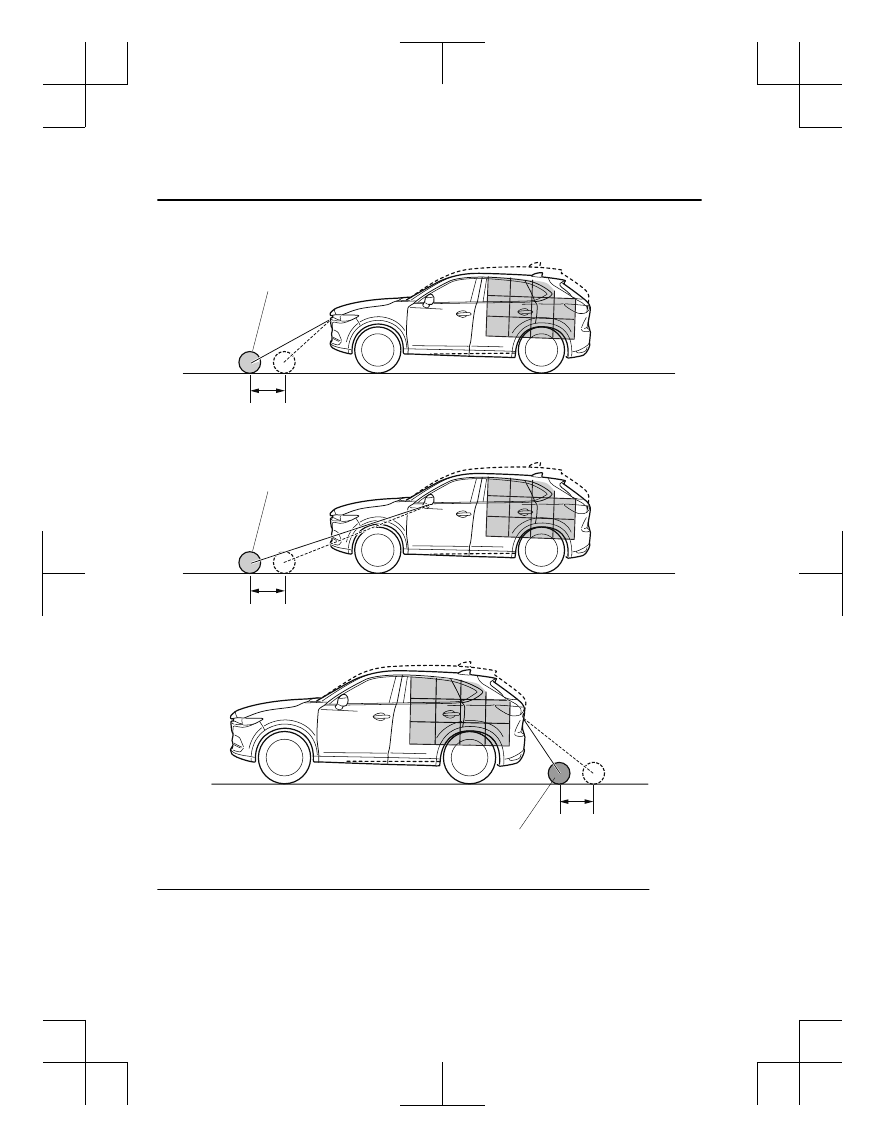

The vehicle tilts due to weight of passengers and cargo.

If the vehicle is tilted, obstructions picked up by a camera can appear farther or closer than
the actual distance from the vehicle.

When Driving

i-ACTIVSENSE

4-199

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Front camera

Obstruction

Margin of error

Side camera

Obstruction

Margin of error

Rear camera

Obstruction

Margin of error



There is a steep up or down grade in the road at the front or rear of the vehicle

If there is a steep up or down grade in the road at the front or rear of the vehicle,
obstructions picked up by the camera can appear farther or closer than the actual distance
from the vehicle.

When Driving

i-ACTIVSENSE

4-200

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Front camera

 Actual obstruction

 Actual obstruction

A: Distance of obstruction being viewed on screen
B: Actual distance of obstruction from vehicle

Obstruction appearing
on screen

Obstruction appearing
on screen

Appears further than
actual distance

Appears closer than
actual distance

A

A

B

B

Side camera

 Actual obstruction

 Actual obstruction

A: Distance of obstruction being viewed on screen
B: Actual distance of obstruction from vehicle

Obstruction appearing
on screen

Obstruction appearing
on screen

Appears further than
actual distance

Appears closer than
actual distance

A

A

B

B

Rear camera

 Actual obstruction

 Actual obstruction

A: Distance of obstruction being viewed on screen
B: Actual distance of obstruction from vehicle

Obstruction appearing on screen

Obstruction appearing
on screen

Appears further than
actual distance

Appears closer than
actual distance

A

A

B

B

When Driving

i-ACTIVSENSE

4-201

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

NOTE
If the vehicle is on a slope, obstructions taken by the camera can appear farther or closer
than the actual distance from the vehicle.



Three-dimensional object at vehicle front or rear

Because the vehicle front end guide lines (side camera) or the distance guide lines (rear
camera) are displayed based on a flat surface, the distance to the three-dimensional object
displayed on the screen is different from the actual distance.

Side camera

(Actual condition)

(Screen display)

Rear camera

(Actual condition)

Sensed distance on screen A > B > C

Actual distance B > C = A

A

A

B

B

C

C

(Screen display)

▼ System Problem Indication

Center display indication

Cause

Action to be taken

“No image signal reception” is dis‐
played

The control unit might be damaged.

Have your vehicle inspected
by an Authorized Mazda
Dealer.

Screen is pitch-black and blank

The camera might be damaged.

When Driving

i-ACTIVSENSE

4-202

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

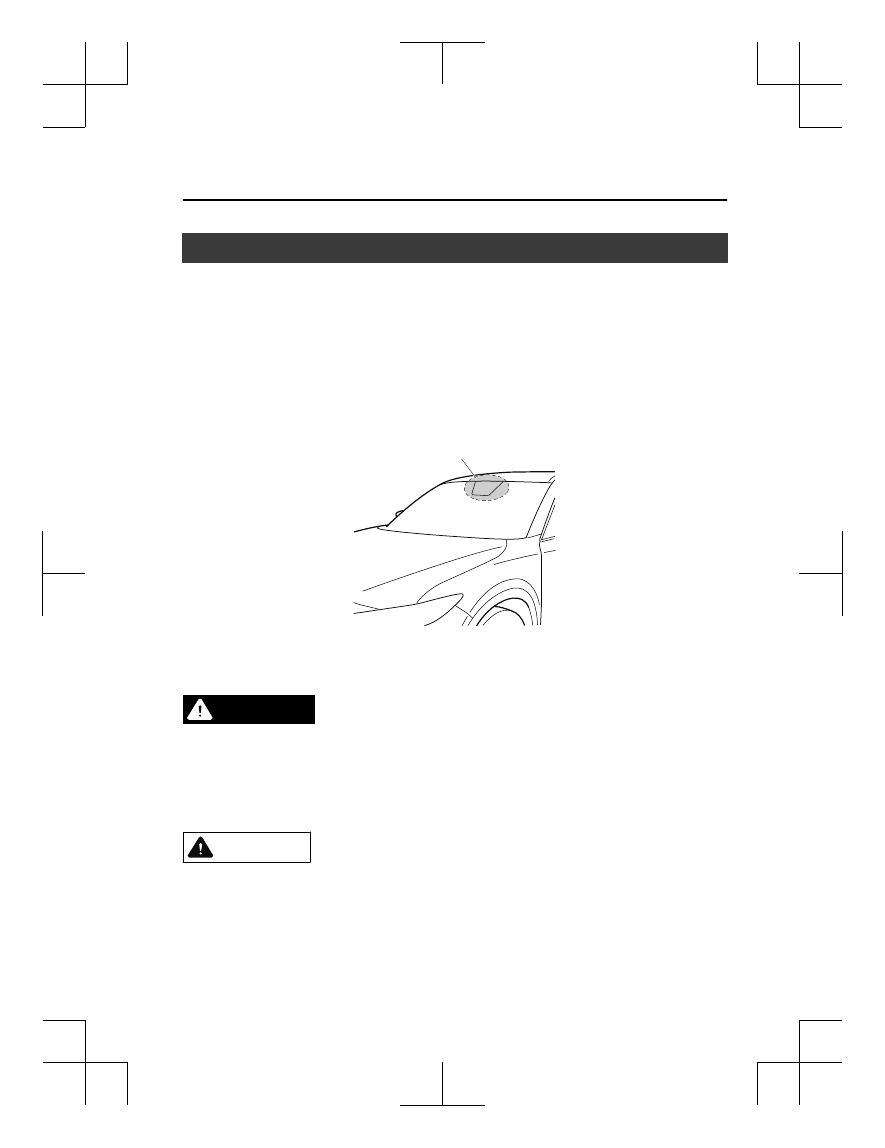

Forward Sensing Camera (FSC)

*

Your vehicle is equipped with a Forward Sensing Camera (FSC). The Forward Sensing
Camera (FSC) is positioned near the rearview mirror and used by the following systems.



High Beam Control System (HBC)



Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS)



Traffic Sign Recognition System (TSR)



Advanced Smart City Brake Support (Advanced SCBS)



Smart City Brake Support (SCBS)



Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function)



Smart Brake Support (SBS)

Forward Sensing Camera (FSC)

The Forward Sensing Camera (FSC) determines the conditions ahead of the vehicle while
traveling at night and detects traffic lanes. The distance in which the Forward Sensing
Camera (FSC) can detect objects varies depending on the surrounding conditions.

WARNING

Do not modify the suspension:
If the vehicle height or inclination is changed, the system will not be able to correctly detect
vehicles ahead. This will result in the system not operating normally or mistakenly operating,
which could cause a serious accident.

CAUTION

Do not apply accessories, stickers or film to the windshield near the Forward Sensing

Camera (FSC).
If the area in front of the Forward Sensing Camera (FSC) lens is obstructed, it will cause the
system to not operate correctly. Consequently, each system may not operate normally
which could lead to an unexpected accident.

When Driving

i-ACTIVSENSE

*Some models.

4-203

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

Do not disassemble or modify the Forward Sensing Camera (FSC).

Disassembly or modification of the Forward Sensing Camera (FSC) will cause a malfunction
or mistaken operation. Consequently, each system may not operate normally which could
lead to an unexpected accident.

Heed the following cautions to assure the correct operation of the Forward Sensing Camera

(FSC).

Be careful not to scratch the Forward Sensing Camera (FSC) lens or allow it to get dirty.
Do not remove the Forward Sensing Camera (FSC) cover.
Do not place objects on the dashboard which reflect light.
Always keep the windshield glass around the camera clean by removing dirt or fogging.

Use the windshield defroster to remove fogging on the windshield.

Consult an Authorized Mazda Dealer regarding cleaning the interior side of the

windshield around the Forward Sensing Camera (FSC).

Consult an Authorized Mazda Dealer before performing repairs around the Forward

Sensing Camera (FSC).

The Forward Sensing Camera (FSC) is installed to the windshield. Consult an Authorized

Mazda Dealer for windshield repair and replacement.

When cleaning the windshield, do not allow glass cleaners or similar cleaning fluids to

get on the Forward Sensing Camera (FSC) lens. In addition, do not touch the Forward
Sensing Camera (FSC) lens.

When performing repairs around the rearview mirror, consult an Authorized Mazda

Dealer.

Consult an Authorized Mazda Dealer regarding cleaning of the camera lens.
Do not hit or apply strong force to the Forward Sensing Camera (FSC) or the area around

it. If the Forward Sensing Camera (FSC) is severely hit or if there are cracks or damage
caused by flying gravel or debris in the area around it, stop using the following systems
and consult an Authorized Mazda Dealer.

High Beam Control System (HBC)
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS)
Traffic Sign Recognition System (TSR)
Advanced Smart City Brake Support (Advanced SCBS)
Smart City Brake Support (SCBS)
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go function)
Smart Brake Support (SBS)

The direction in which the Forward Sensing Camera (FSC) is pointed has been finely

adjusted. Do not change the installation position of the Forward Sensing Camera (FSC) or
remove it. Otherwise, it could result in damage or malfunction.

Always use tires for all wheels that are of the specified size, and the same manufacturer,

brand, and tread pattern. In addition, do not use tires with significantly different wear
patterns on the same vehicle as the system may not operate normally.

When Driving

i-ACTIVSENSE

4-204

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47

The Forward Sensing Camera (FSC) includes a function for detecting a soiled windshield

and informing the driver, however, depending on the conditions, it may not detect plastic
shopping bags, ice or snow on the windshield. In such cases, the system cannot accurately
determine a vehicle ahead and may not be able to operate normally. Always drive carefully
and pay attention to the road ahead.

NOTE



In the following cases, the Forward Sensing Camera (FSC) cannot detect target objects
correctly, and each system may be unable to operate normally.



The height of the vehicle ahead is low.



You drive your vehicle at the same speed as the vehicle ahead.



Headlights are not turned on during the night or when going through a tunnel.



In the following cases, the Forward Sensing Camera (FSC) may not be able to detect
target objects correctly.



Under bad weather condition, such as rain, fog and snow.



The window washer is being used or the windshield wipers are not used when it's
raining.



Ice, fog, snow, frost, rainfall, dirt, or foreign matter such as a plastic bag is stuck on the
windshield.



Trucks with low loading platforms and vehicles with an extremely low or high profile.



When driving next to walls with no patterning (including fences and longitudinally
striped walls).



The taillights of the vehicle ahead are turned off.



A vehicle is outside the illumination range of the headlights.



The vehicle is making a sharp turn, or ascending or descending a steep slope.



Entering or exiting a tunnel.



Heavy luggage is loaded causing the vehicle to tilt.



Strong light is shone at the front of the vehicle (back light or high-beam light from
on-coming vehicles).



There are many light emitters on the vehicle ahead.



When the vehicle ahead is not equipped with taillights or the taillights are turned off at
nighttime.



Elongated luggage or cargo is loaded onto installed roof rails and covers the Forward
Sensing Camera (FSC).



Exhaust gas from the vehicle in front, sand, snow, and water vapor rising from
manholes and grating, and water splashed into the air.



When towing a malfunctioning vehicle.



The vehicle is driven with tires having significantly different wear.



The vehicle is driven on down slopes or bumpy roads.



There are water puddles on the road.

When Driving

i-ACTIVSENSE

4-205

CX-5_8HE3-EA-18I_Edition1

2018-6-29 13:44:47
