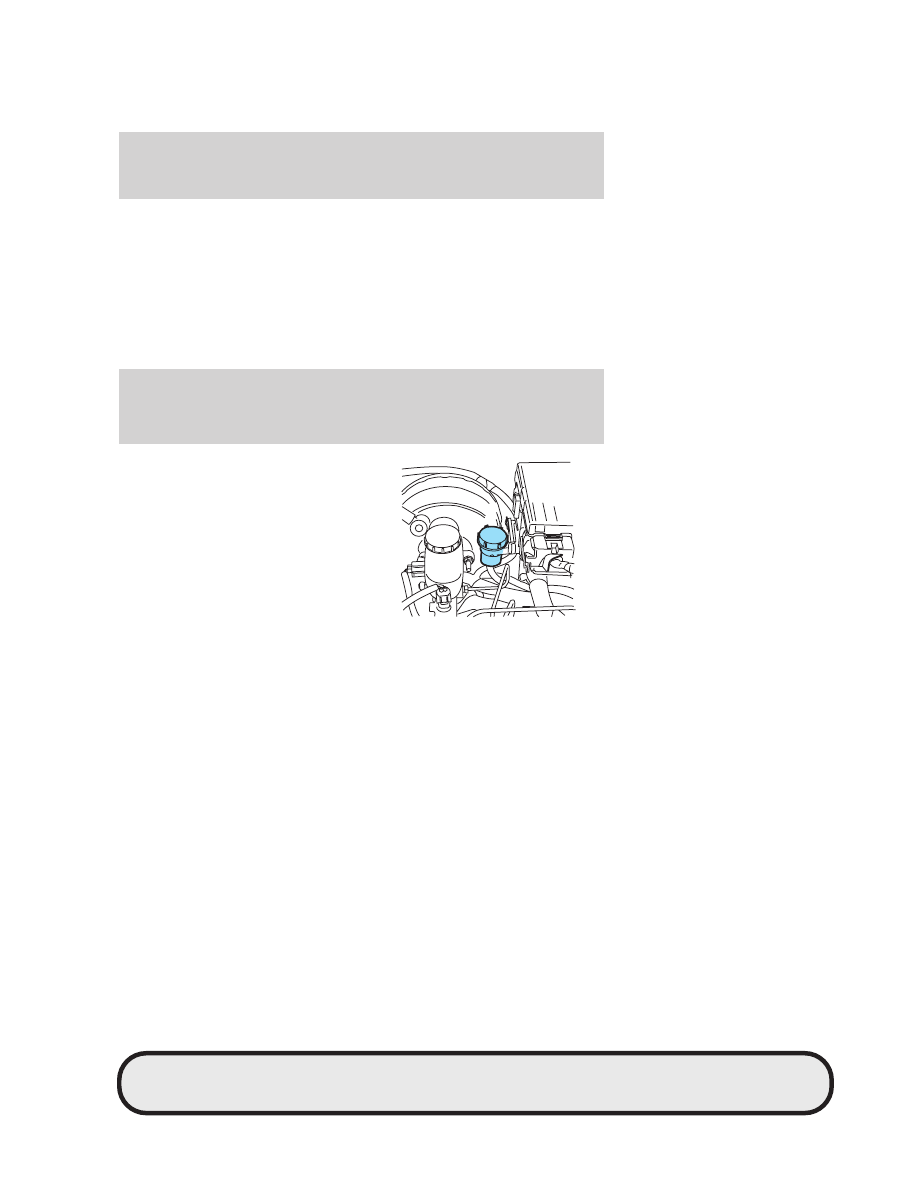

CLUTCH FLUID (IF EQUIPPED)

Check the fluid level. Refer to scheduled maintenance for the service
interval schedules.

During normal operation, the fluid level in the clutch reservoir should
remain constant. If the fluid level drops, refill the fluid level to the step
in the reservoir.

Use only a DOT 3 brake fluid designed to meet Mazda specification.
Refer to Maintenance product specifications and capacities in this
chapter.

WARNING: Carefully read cautionary information on product
label. For MEDICAL EMERGENCY INFORMATION contact a
physician or Poison Control Center immediately. Failure to
follow these instructions may result in personal injury.

1. Clean the reservoir cap before

removal to prevent dirt and
water from entering the
reservoir.

2. Remove cap and rubber

diaphragm from reservoir.

3. Add fluid until the level reaches

the step in the reservoir.

4. Reinstall rubber diaphragm and

cap onto reservoir.

TRANSMISSION FLUID

Checking automatic transmission fluid

• Refer to scheduled maintenance information for scheduled check

and change intervals.

• Transmission does not consume fluid.
• Check fluid when transmission is not operating properly or if you see

a leak.

• Fluid level must be checked at normal operating temperature, 20 miles

(30 km) of driving.

To check and add fluid:

1. Drive the vehicle 20 miles (30 km) to reach normal operating

temperatures.

CIMS #918853

com_clutch.truck.mbs

itdseq=314

CIMS #80235

com_transmission-fluid

itdseq=315

CIMS #953918

com_check_autotran.fly

itdseq=316

art=ranmc153_a

REVIEW COPY ——
2007 B-Series (mbs), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)

PAGE: 261 OP: root EDIT SESSION: 1 DATE: AUG 3 2006 at 11:45 JOB: @ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og

Maintenance and Specifications

261

2. If driven in hot weather, city traffic, pulling a trailer, allow

transmission to cool for 30 minutes before checking.

3. Engage parking brake, start engine.

4. Put your foot on the brake pedal and move the gearshift lever slowly

through all of the gear ranges.

5. Shift to P (Park) and leave the engine running.

6. Remove the dipstick, wipe clean with a dry lint free rag.

7. Install and fully seat the dipstick into the filler tube.

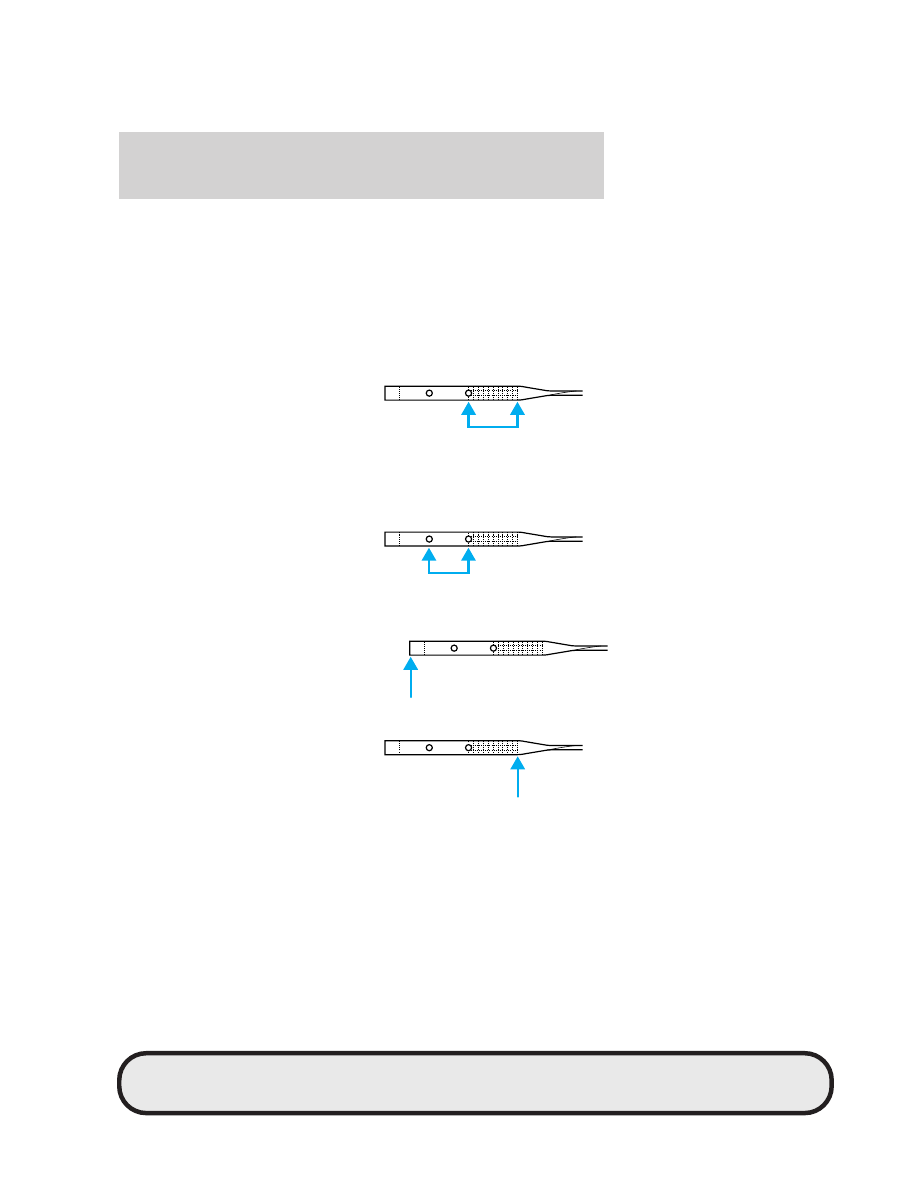

8. Remove the dipstick and inspect

the fluid level. Level should be
in the cross-hatched area.

9. If necessary, add fluid in 1/2 pint (250ml) increments through the

filler tube until the level is correct at normal operating temperatures.
Refer to the Maintenance product specifications and capacities
section in this chapter for the correct fluid type. The use of any
other non-approved fluid may cause internal transmission damage.

10. Fluid can be checked at ambient

temperatures between 50–95°F
(10–30°C). DO NOT ADD fluid
until the transmission is at
normal operating temperatures or the transmission will be overfilled.

Low fluid level

Do not drive the vehicle if the fluid
level is at or below the bottom of
the dipstick.

High fluid level

Fluid levels above the safe range
may cause overheating, shift and/or
engagement concerns and internal
transmission damage. If an overfill
condition occurs, excess fluid should
be removed by an authorized dealer.

CIMS #953919

com_trans-level.fly

itdseq=317

art=ranmc130_a

art=ranmc131_a

art=ranmc129_b

art=ranmc132_a

REVIEW COPY ——
2007 B-Series (mbs), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)

PAGE: 262 OP: root EDIT SESSION: 1 DATE: AUG 3 2006 at 11:45 JOB: @ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og

Maintenance and Specifications

262

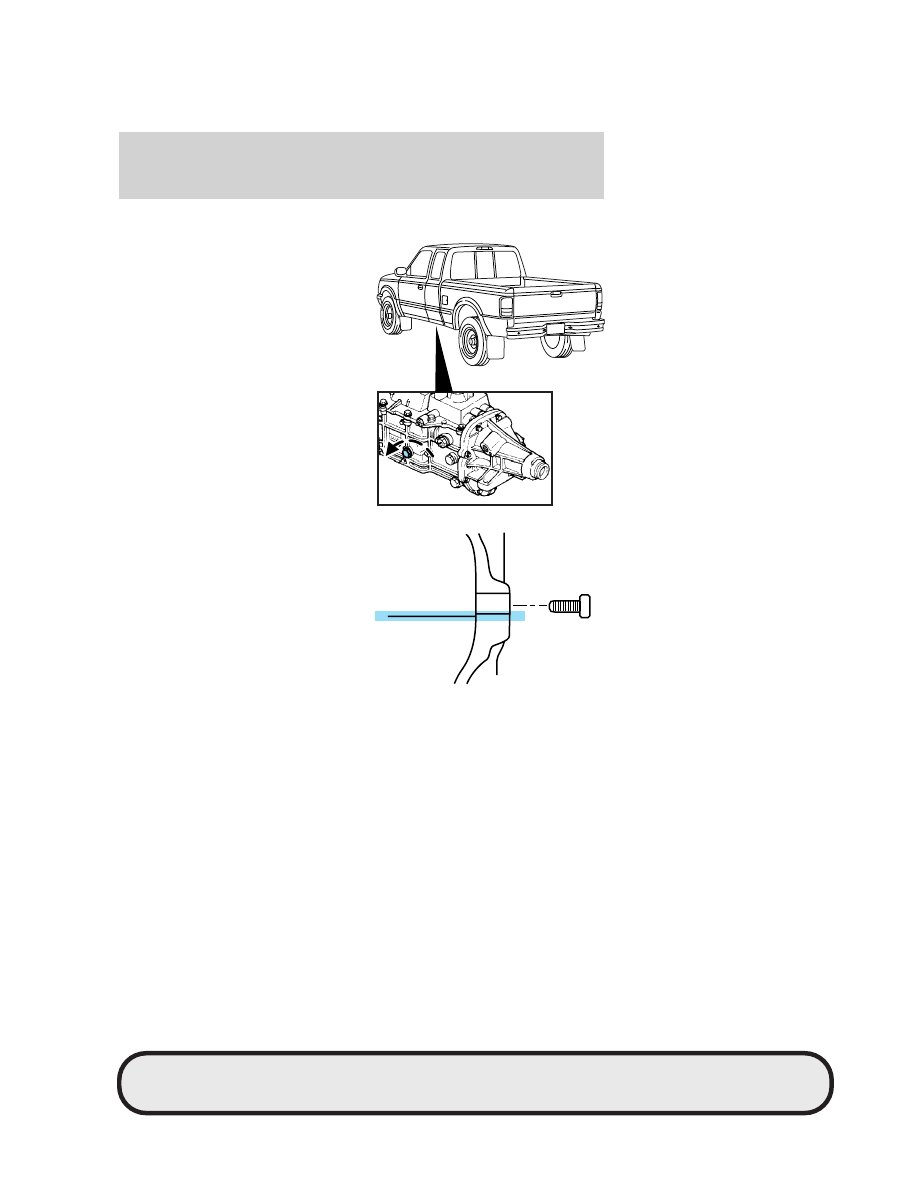

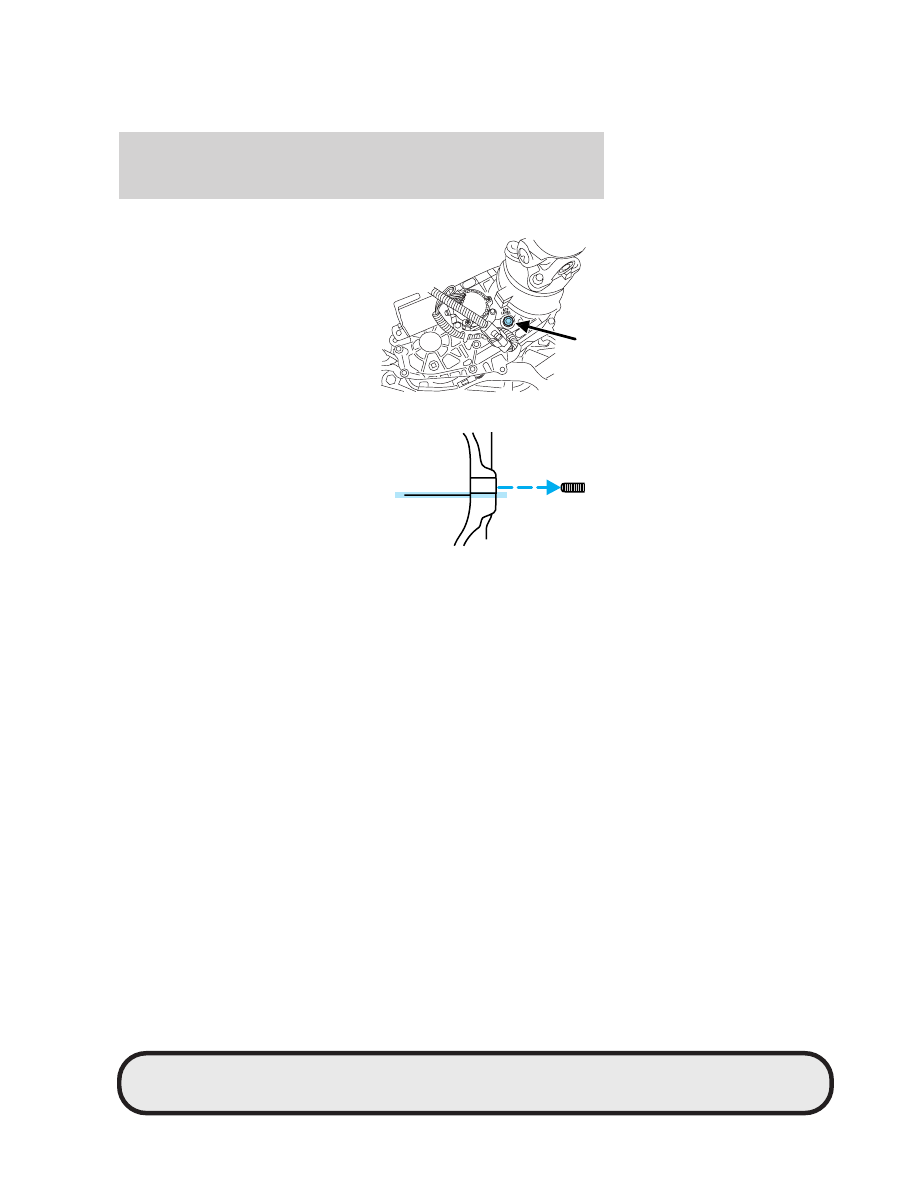

Checking and adding manual transmission fluid (if equipped)

1. Park the vehicle on a level

surface.

2. Engage the parking brake fully –

put in first gear.

3. Ensure that the vehicle cannot

move.

4. Clean the filler plug.

5. Remove the filler plug and

inspect the fluid level.

6. Fluid level should be at the

bottom of the opening.

7. Add enough fluid through the

filler opening so that the fluid
level is at the bottom of the
opening.

8. Install and tighten the fill plug

securely.

Use only fluid that meets Mazda specifications. Refer to the
Maintenance product specifications and capacities section in this
chapter.

CIMS #1126961

com_chk-man-trans.maz

itdseq=318

art=mbsmc002_a

art=f23mc115_a

REVIEW COPY ——
2007 B-Series (mbs), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)

PAGE: 263 OP: root EDIT SESSION: 1 DATE: AUG 3 2006 at 11:45 JOB: @ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og

Maintenance and Specifications

263

TRANSFER CASE FLUID (IF EQUIPPED)

1. Park the vehicle on a level

surface.

2. Engage the parking brake fully –

put in first gear.

3. Ensure the vehicle cannot move.

4. Clean the filler plug.

5. Remove the filler plug and

inspect the fluid level.

6. Fluid level should be at the

bottom of the opening.

7. Add enough fluid through the

filler opening so that the fluid
level is at the bottom of the
opening.

8. Install and tighten the fill plug

securely.

Use only fluid that meets Mazda specifications. Refer to the
Maintenance product specifications and capacities section in this
chapter.

DRIVELINE UNIVERSAL JOINT AND SLIP YOKE

Your vehicle may be equipped with universal joints that require
lubrication. If the original universal joints are replaced with universal
joints equipped with grease fittings, lubrication will also be necessary.

CIMS #918861

com_check-add-tcase.mbs

itdseq=319

CIMS #918862

com_serv-shaft-yoke.mbs

itdseq=320

art=ranmc128_d

art=f12mc022_a

REVIEW COPY ——
2007 B-Series (mbs), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)

PAGE: 264 OP: root EDIT SESSION: 1 DATE: AUG 3 2006 at 11:45 JOB: @ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og

Maintenance and Specifications

264

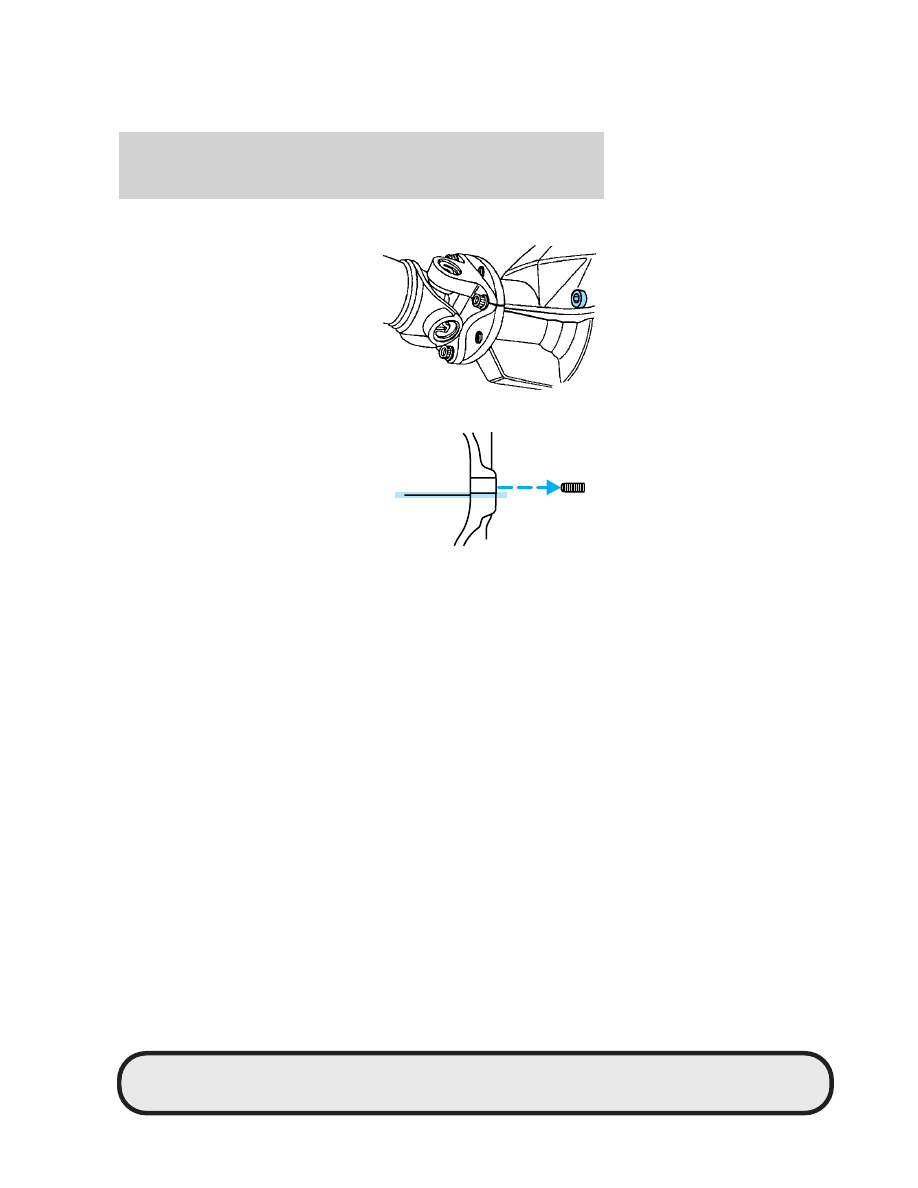

CHECKING AND ADDING REAR DIFFERENTIAL FLUID

1. Park the vehicle on a level

surface.

2. Engage the parking brake fully –

put in first gear.

3. Assure the vehicle cannot move.

4. Clean the filler plug.

5. Remove the filler plug and

inspect the fluid level.

6. Fluid level should be at the

bottom of the opening.

7. Add enough fluid through the

filler opening so that the fluid
level is at the bottom of the
opening.

8. Install and tighten the fill plug

securely.

Use only fluid that meets Mazda specifications. Refer to the
Maintenance product specifications and capacities section in this
chapter.

art=mbsmc003_a

art=f12mc022_a

REVIEW COPY ——
2007 B-Series (mbs), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)

PAGE: 265 OP: root EDIT SESSION: 1 DATE: AUG 3 2006 at 11:45 JOB: @ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og

Maintenance and Specifications

265

Job

Name

PAGE:

266

SESS:

1
OUTPUT:

Thu

Aug

11:45:36

2006

/ford_pdm/ford/own2002/mbs/og

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES

Item

Application

Mazda part name or

equivalent

Capacity

Brake fluid and clutch

fluid (if equipped)

All

High Performance DOT 3

Motor Vehicle Brake

Fluid

Between MIN and MAX

on reservoir

Door weather strips

All

Silicone Lubricant

—

Hinges, door checks,

latches, striker plates,

fuel filler door hinge

and seat tracks

All

Multi-Purpose Grease

—

Transmission

/steering/parking brake

linkages and pivots,

brake and clutch pedal

shaft, clutch pilot

bearing and input shaft

spline (manual

transmission)

All

Premium Long-Life

Grease

—

CIMS

#1541546

com_lubes-caps.mbs

itdseq=321

REVIEW

COPY

——

2007

B-Series

(mbs)

Owners

Guide

(post-2002-fmt)

(own2002)

Market:

USA

(fus)

AGE:

266

OP:

root

EDIT

SESSION:

1
DA
TE:

AUG

3
2006

1:45

JOB:

@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og

Maintenance

and

Specifications

266

Job

Name

PAGE:

267

SESS:

1
OUTPUT:

Thu

Aug

11:45:36

2006

/ford_pdm/ford/own2002/mbs/og

Item

Application

Mazda part name or

equivalent

Capacity

Engine coolant

2.3 L I4 engine

with manual

transmission

Premium Engine

Coolant

10.5 quarts (10.0L)

2.3L I4 engine

with automatic

transmission

10.2 quarts (9.7L)

3.0L V6 engine

with manual

transmission

15.1 quarts (14.3L)

3.0L V6 engine
with automatic

transmission

14.8 quarts (14.0L)

4.0L V6 engine

with manual

transmission

13.7 quarts (13.0L)

4.0L V6 engine
with automatic

transmission

13.2 quarts (12.5L)

Engine oil

2.3L I4 engine

SAE 5W-20 Motor Oil

4.0 quarts (3.8L)

3.0L V6 engine

4.5 quarts (4.3L)

4.0L V6 engine

SAE 5W-30 Motor Oil

5.0 quarts (4.7L)

REVIEW

COPY

——

2007

B-Series

(mbs)

Owners

Guide

(post-2002-fmt)

(own2002)

Market:

USA

(fus)

AGE:

267

OP:

root

EDIT

SESSION:

1
DA
TE:

AUG

3
2006

1:45

JOB:

@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og

Maintenance

and

Specifications

267

Job

Name

PAGE:

268

SESS:

1
OUTPUT:

Thu

Aug

11:45:36

2006

/ford_pdm/ford/own2002/mbs/og

Item

Application

Mazda part name or

equivalent

Capacity

Power steering fluid

All

MERCON

t ATF

Fill between MAX / MIN

line on reservoir

Transfer case fluid

(4X4)

4x4 Vehicles

1.25 quarts (1.2L)

Manual transmission

fluid

5-speed manual

2.8 quarts (2.65L)

Automatic transmission

fluid (5R44E and

5R55E)

4x2 vehicles with

2.3L I4 engine

MERCON

tV ATF

9.9 quarts (9.4L)

4x2 vehicles with

3.0L or 4.0L

engines

10.0 quarts (9.5L)

4x4 vehicles with

3.0L or 4.0L

engines

10.3 quarts (9.8L)

Front axle fluid (4X4)

4x4 Vehicles

SAE 80W-90 Premium

Rear Axle Lubricant

3.6 pints (1.7L)

Rear axle fluid

All

SAE 80W-90 Premium

Rear Axle Lubricant

5.0-5.3 pints (2.4-2.5L)

Windshield washer fluid

All

Ultra-clear Windshield

Washer Concentrate

2.75 quarts (2.6L)

REVIEW

COPY

——

2007

B-Series

(mbs)

Owners

Guide

(post-2002-fmt)

(own2002)

Market:

USA

(fus)

AGE:

268

OP:

root

EDIT

SESSION:

1
DA
TE:

AUG

3
2006

1:45

JOB:

@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og

Maintenance

and

Specifications

268

Job

Name

PAGE:

269

SESS:

1
OUTPUT:

Thu

Aug

11:45:36

2006

/ford_pdm/ford/own2002/mbs/og

Item

Application

Mazda part name or

equivalent

Capacity

Fuel tank

Regular cab

(Short wheel

base)

—

17 gallons (64.4L)

Cab Plus 4

19.5 gallons (73.8L)

Brake fluid will drop slowly as the brakes wear and will rise when brake components are replaced.

Fluid levels below the MAX line that do not trigger the brake warning light are within the normal
operating range, there is no need to add fluid. If the levels are outside the normal operating range,
the performance of your brake system could be compromised, seek service from your authorized
dealer immediately.

Add the coolant type originally equipped in your vehicle. Do not mix different colors or types of

coolant. Do not use Mazda Extended Life Engine Coolant (orange in color). Refer to Adding
engine coolant, in this chapter.

Service refill capacity is determined by filling the transmission to the bottom of the filler hole with

the vehicle on a level surface.

Automatic transmissions that require MERCON

t V should only use MERCONt V fluid or fluid that

is specified dual usage MERCON

t/ MERCONt V. Refer to scheduled maintenance to determine

the correct service interval. Use of any fluid other than the recommended fluid may cause
transmission damage.

Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and

if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range.

Traction-Lok axles use 4.75–5.0 pints (2.2–2.4L) of rear axle lubricant. Add 4 oz. (118 ml) of

Additive Friction Modifier meeting Mazda specifications for complete refill of Traction-Lok axles.
Service refill capacities are determined by filling the rear axle 1/4 inch to 9/16 inch (6 mm to 14
mm) below the bottom of the filler hole.

If submerged in water, the rear axle lubricant should be changed.

REVIEW

COPY

——

2007

B-Series

(mbs)

Owners

Guide

(post-2002-fmt)

(own2002)

Market:

USA

(fus)

AGE:

269

OP:

root

EDIT

SESSION:

1
DA
TE:

AUG

3
2006

1:45

JOB:

@ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og

Maintenance

and

Specifications

269

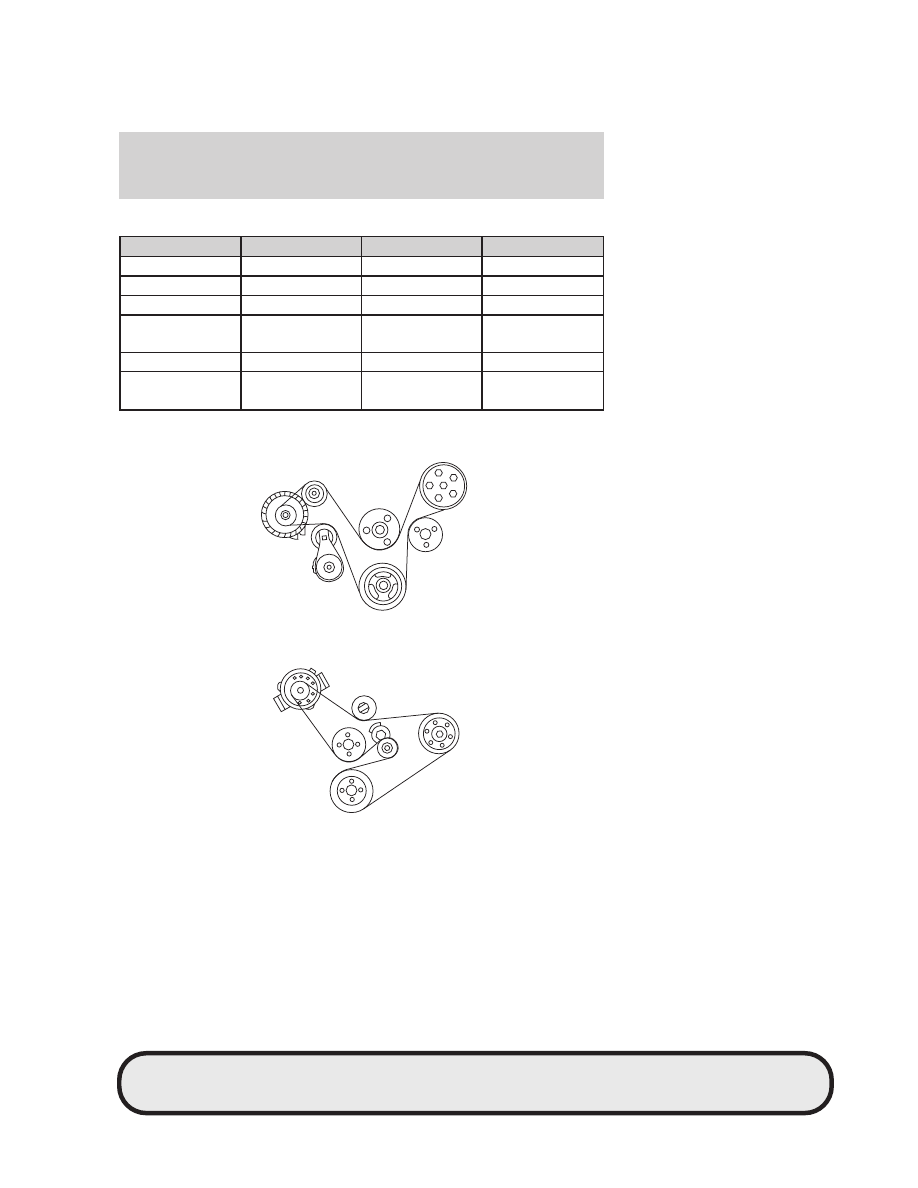

ENGINE SPECIFICATIONS

Engine

2.3L I4 engine

3.0L V6 engine

4.0L V6 engine

Cubic inches

138

182

245

Required fuel

87 octane

Firing order

1-3-4-2

1-4-2-5-3-6

Spark plug gap

0.049–0.053 inch
(1.25–1.35mm)

0.051–0.057 inch
(1.29–1.45mm)

0.052–0.056 inch
(1.32–1.42mm)

Ignition system

EDIS

Compression
ratio

9.7:1

9.6:1

9.7:1

Engine drivebelt routing

• 2.3L I4 Engine without A/C (with A/C similar)

• 3.0L V6 Engine without A/C

CIMS #716286

com_data.mazda

itdseq=322

CIMS #685183 com_data.mbs

itdseq=323

CIMS #1549961

com_acc-belt.ran.mbs

itdseq=324

art=ranmc203_a

art=ranmc202_a

REVIEW COPY ——
2007 B-Series (mbs), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)

PAGE: 270 OP: root EDIT SESSION: 1 DATE: AUG 3 2006 at 11:45 JOB: @ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og

Maintenance and Specifications

270

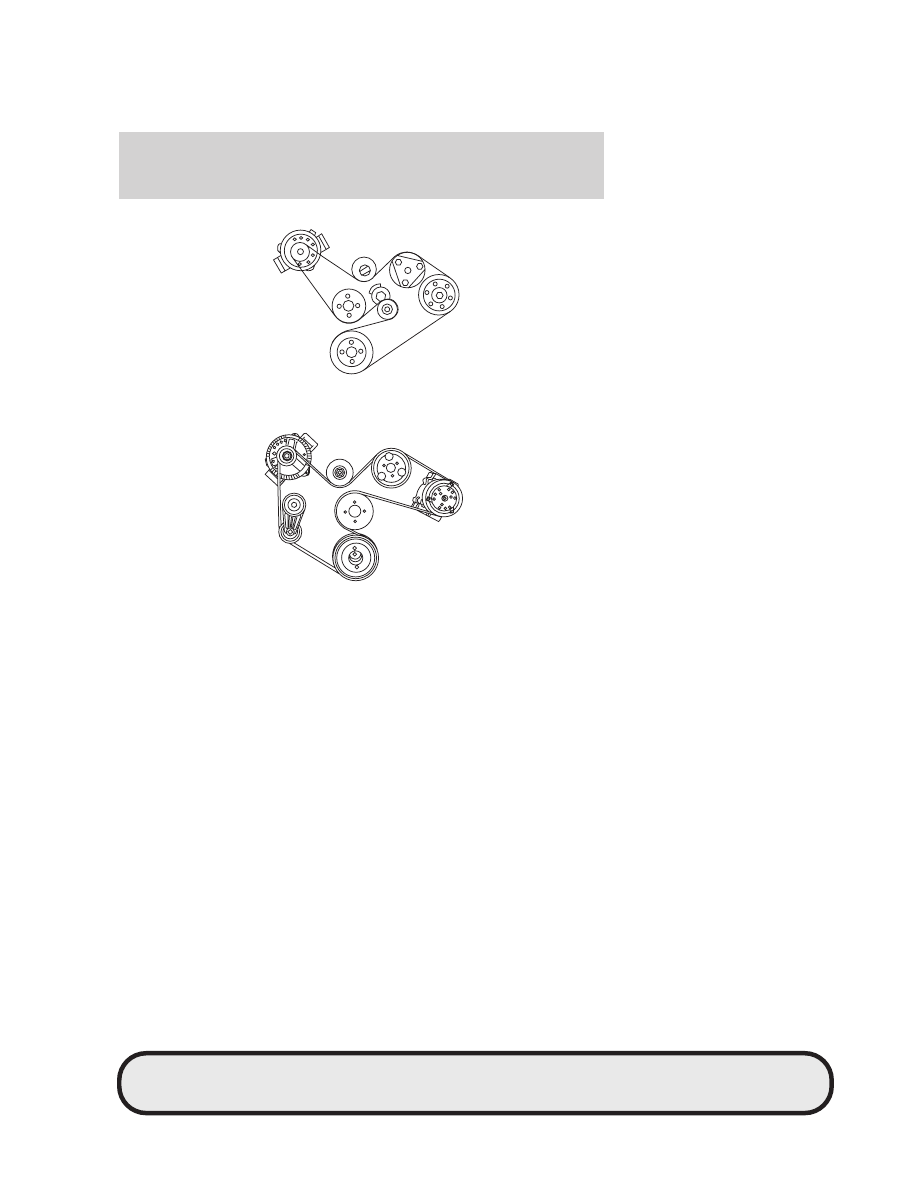

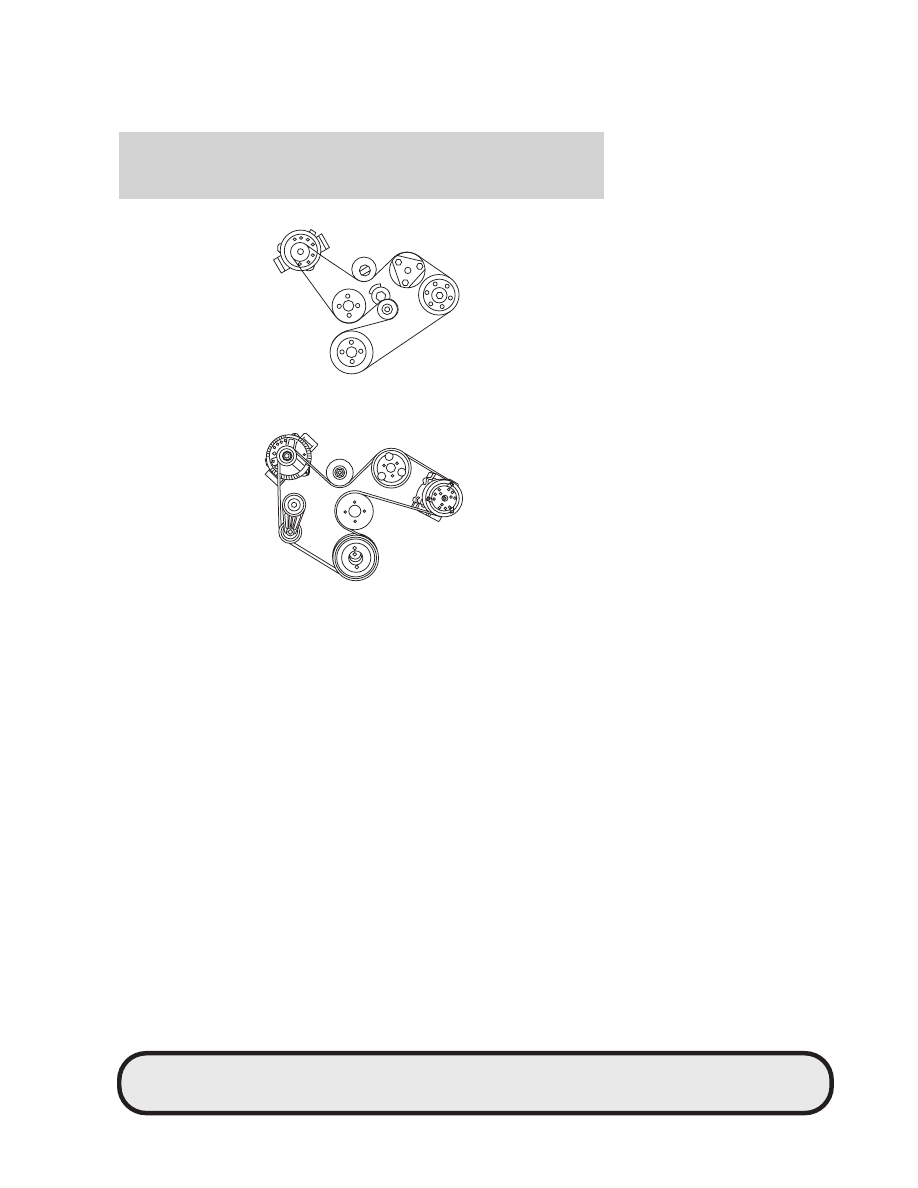

• 3.0L V6 Engine with A/C

• 4.0L V6 Engine

art=ranmc201_a

art=ranmc200_a

REVIEW COPY ——
2007 B-Series (mbs), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)

PAGE: 271 OP: root EDIT SESSION: 1 DATE: AUG 3 2006 at 11:45 JOB: @ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og

Maintenance and Specifications

271

IDENTIFYING YOUR VEHICLE

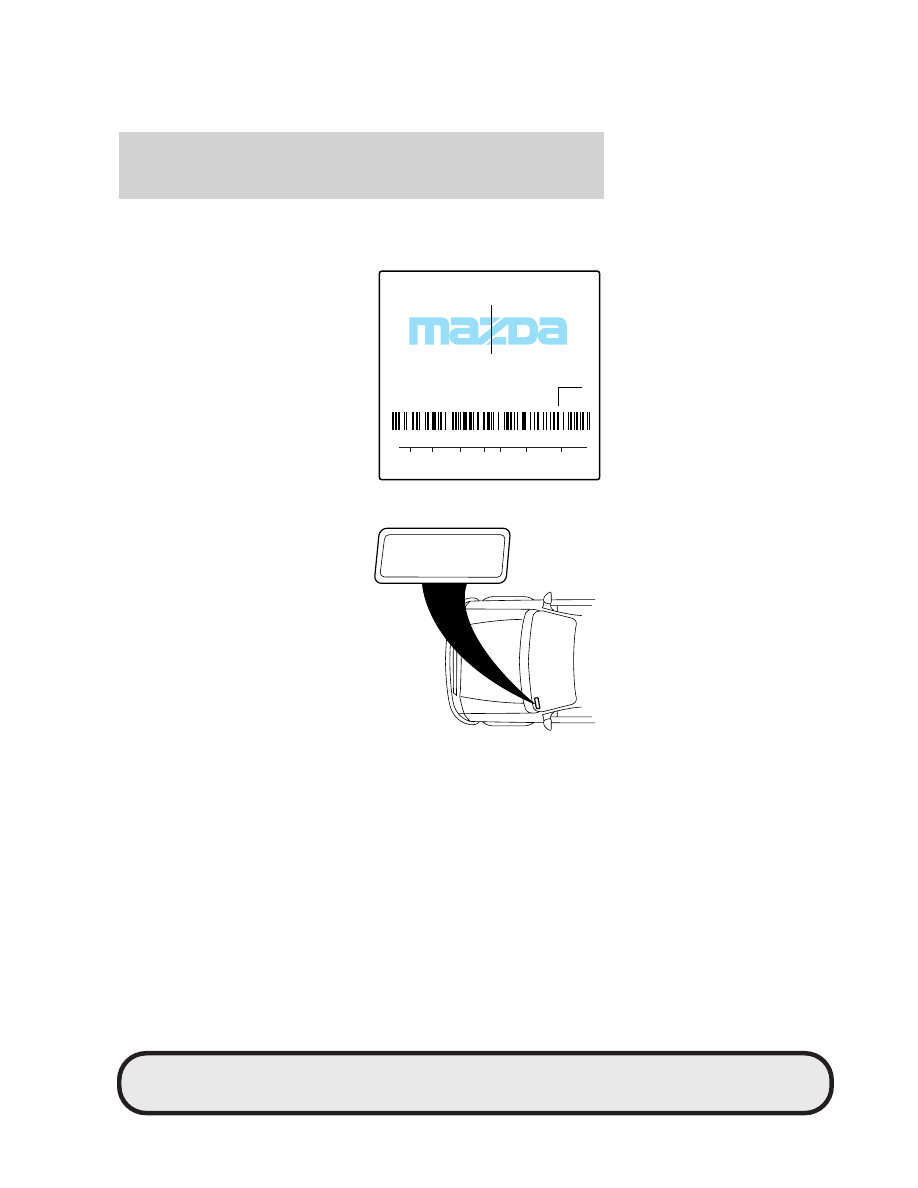

Safety Compliance Certification Label

The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.

Vehicle identification number (VIN)

The vehicle identification number is
located on the driver side
instrument panel.

Please note that in the graphic,
XXXX is representative of your
vehicle identification number.

MFD. BY FORD MOTOR CO. IN U.S.A.

EXT PNT:

RC:

DSO:

WB BRK INT TR TP/PS R AXLE TR SPR

XXXXX

XXX X XX X XX X XX XXX

XXXXXXXXXXXXX

XXX XXXX-XXXXXXX-XX

THIS VEHICLE CONFORMS TO ALL APPLICABLE FEDERAL MOTOR
VEHICLE SAFETY AND THEFT PREVENTION STANDARDS IN
EFFECT ON THE DATE OF MANUFACTURE SHOWN ABOVE.

VIN:

XXXXXXXXXXXXXXXXX

XXXXX

TYPE:

XXX

XXXXX

DATE:

XX/XX

GVWR:

XXXXX

FRONT GAWR:

XXXX

REAR GAWR:

XXXX

XXX

kPa/XX

PSI COLD

XXX

kPa/

PSI

COLD

XXXX

WITH

XXXX/XXXXXXX

TIRES

XXXX.XX

RIMS

XXXX

WITH

XXXX/XXXXXXX

TIRES

XXXX.XX

RIMS

FOR MAZDA MOTOR CORPORATION

XXXXXXXXXXXXXXXXX

CIMS #52653

com_vehicle-info.01

itdseq=325

CIMS #80651

com_vinplate

itdseq=326

CIMS #72686

com_vin-numbers.02

itdseq=327

art=mazmc001_a

art=navmc710_a

REVIEW COPY ——
2007 B-Series (mbs), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)

PAGE: 272 OP: root EDIT SESSION: 1 DATE: AUG 3 2006 at 11:45 JOB: @ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og

Maintenance and Specifications

272

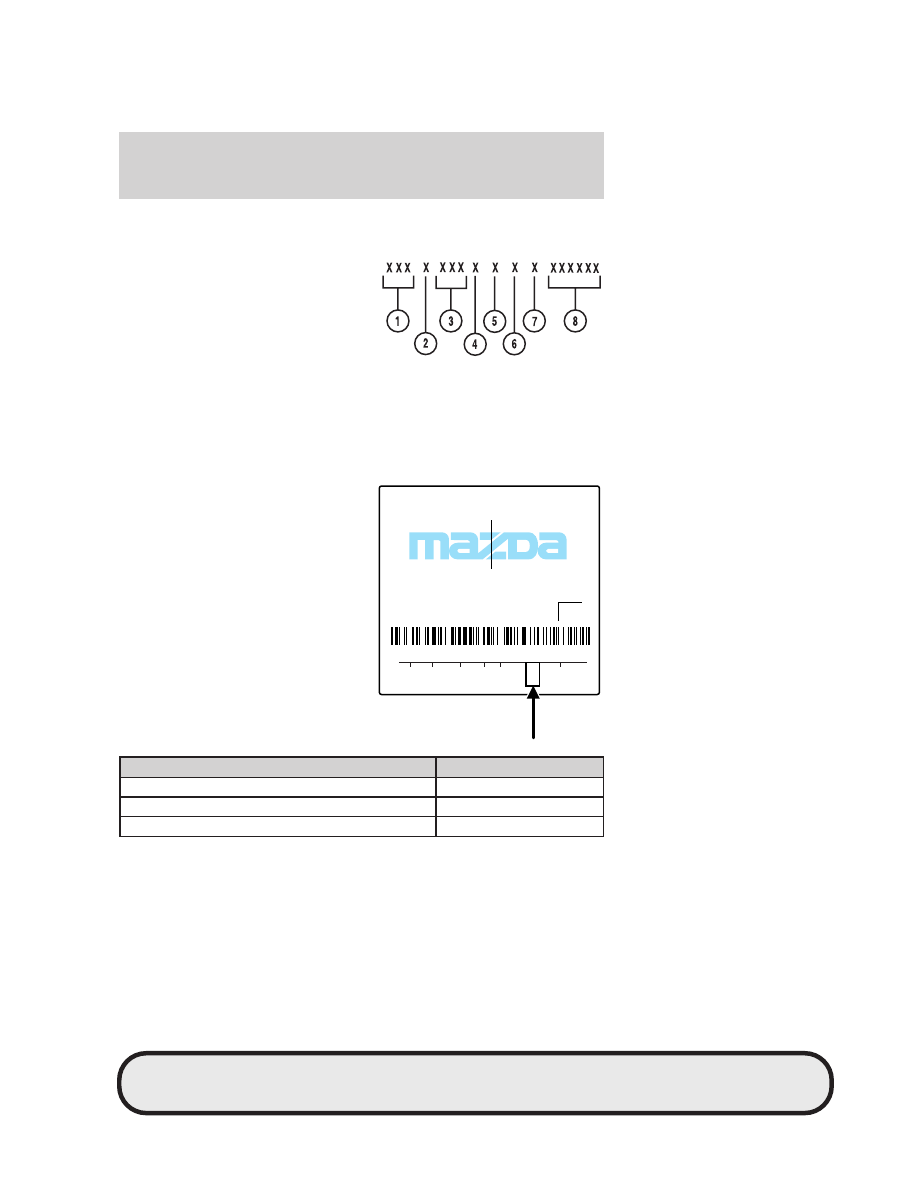

The Vehicle Identification Number (VIN) contains the following
information:

1. World manufacturer identifier

2. Brake system / Gross Vehicle

Weight Rating (GVWR) /
Restraint System

3. Vehicle line, series, body type

4. Engine type

5. Check digit

6. Model year

7. Assembly plant

8. Production sequence number

TRANSMISSION/TRANSAXLE CODE DESIGNATIONS

You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label . The following table tells you
which transmission or transaxle
each code represents.

Description

Code

Five-speed automatic (5R44E/5R55E)

Five-speed manual (HD)

Five-speed manual (R1)

MFD. BY FORD MOTOR CO. IN U.S.A.

EXT PNT:

RC:

DSO:

WB BRK INT TR TP/PS R AXLE TR SPR

XXXXX

XXX X XX X XX X XX XXX

XXXXXXXXXXXXX

XXX XXXX-XXXXXXX-XX

THIS VEHICLE CONFORMS TO ALL APPLICABLE FEDERAL MOTOR
VEHICLE SAFETY AND THEFT PREVENTION STANDARDS IN
EFFECT ON THE DATE OF MANUFACTURE SHOWN ABOVE.

VIN:

XXXXXXXXXXXXXXXXX

XXXXX

TYPE:

XXX

XXXXX

DATE:

XX/XX

GVWR:

XXXXX

FRONT GAWR:

XXXX

REAR GAWR:

XXXX

XXX

kPa/XX

PSI COLD

XXX

kPa/

PSI

COLD

XXXX

WITH

XXXX/XXXXXXX

TIRES

XXXX.XX

RIMS

XXXX

WITH

XXXX/XXXXXXX

TIRES

XXXX.XX

RIMS

FOR MAZDA MOTOR CORPORATION

CIMS #734836

com_vin-info.all

itdseq=328

CIMS #1519411

com_trans-code.maz

itdseq=329

CIMS #1466219

com_trans-code.ran

itdseq=330

art=204mc036_a

art=mazmc000_a

REVIEW COPY ——
2007 B-Series (mbs), Owners Guide (post-2002-fmt) (own2002), Market: USA (fus)

PAGE: 273 OP: root EDIT SESSION: 1 DATE: AUG 3 2006 at 11:45 JOB: @ibm2/ford_pdm/CLS_ford/GRP_own2002/JOB_mbs/DIV_og

Maintenance and Specifications

273

Content .. 15 16 17
