Mazda B4000 4WD Truck (2004 year). Instruction

If you install a child seat with rigid LATCH attachments, do not tighten
the tether strap enough to lift the child seat off the vehicle seat cushion
when the child is seated in it. Keep the tether strap just snug without
lifting the front of the child seat. Keeping the child seat just touching the
vehicle seat gives the best protection in a severe crash.

Each time you use the safety seat, check that the seat is properly
attached to the lower anchors and tether anchor. Try to tilt the child
seat from side to side. Also try to tug the seat forward. Check to see if
the anchors hold the seat in place.

WARNING: If the safety seat is not anchored properly, the risk
of a child being injured in a crash greatly increases.

WARNING: If the tether strap is clipped incorrectly, the child
safety seat may not be retained properly in the event of a
collision.

Seating and Safety Restraints

104

STARTING

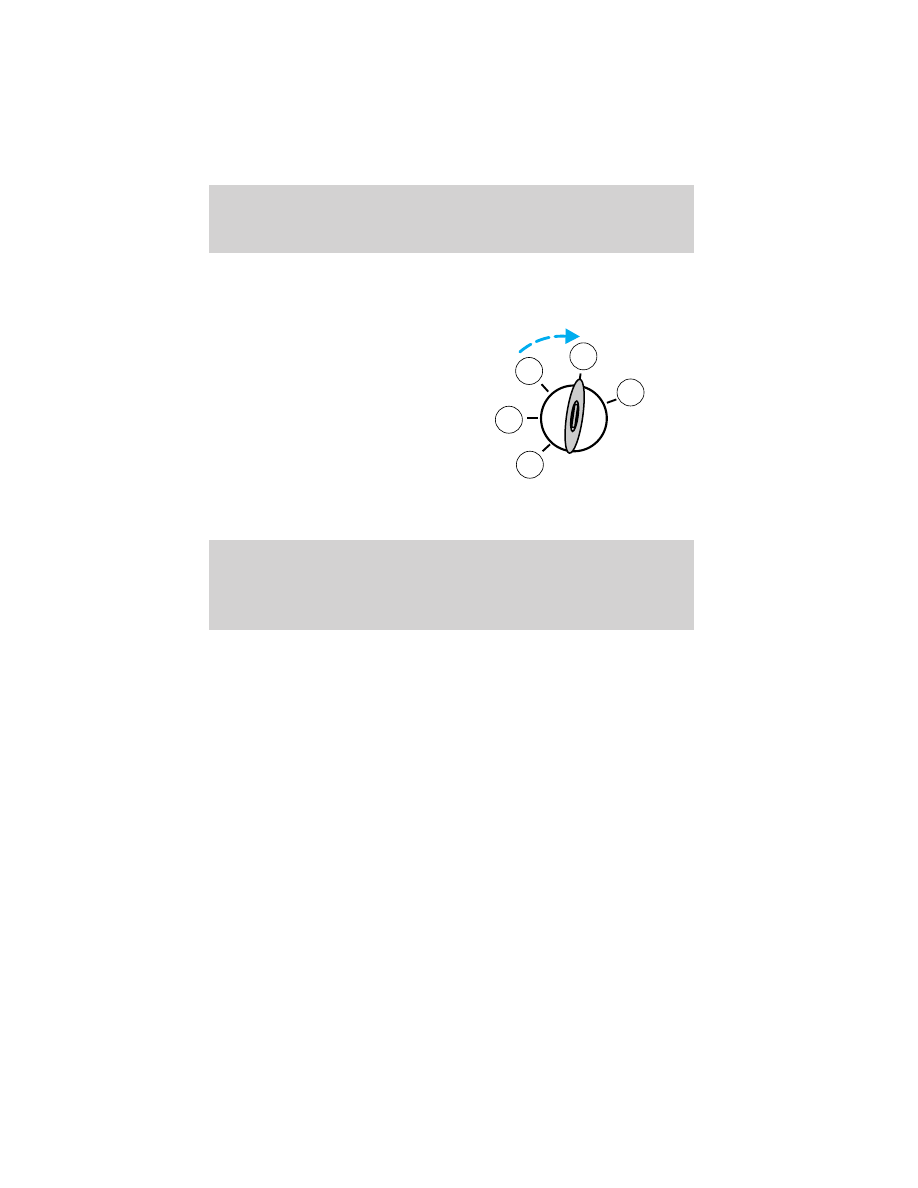

Positions of the ignition

1. ACCESSORY, allows the

electrical accessories such as
the radio to operate while the
engine is not running.

2. LOCK, locks the steering wheel,

automatic transmission gearshift
lever and allows key removal.

3. OFF, shuts off the engine and

all accessories without locking
the steering wheel. This position
also allows the automatic transmission shift lever to be moved from
the P (Park) position without the brake pedal being depressed.

WARNING: When the key is in the ignition and in the OFF
position, the automatic transmission shift lever can be moved
from the P (Park) position without the brake pedal depressed.
To avoid unwanted vehicle movement, always set the parking
brake.

4. ON, all electrical circuits operational. Warning lights illuminated. Key

position when driving.

5. START, cranks the engine. Release the key as soon as the engine

starts.

Preparing to start your vehicle

Engine starting is controlled by the powertrain control system.

When starting a fuel-injected engine, don’t press the accelerator before
or during starting. Only use the accelerator when you have difficulty
starting the engine. For more information on starting the vehicle, refer to
Starting the engine in this chapter.

Driving

Driving

105

WARNING: Extended idling at high engine speeds can produce
very high temperatures in the engine and exhaust system,
creating the risk of fire or other damage.

WARNING: Do not park, idle, or drive your vehicle in dry grass
or other dry ground cover. The emission system heats up the
engine compartment and exhaust system, which can start a fire.

WARNING: Do not start your vehicle in a closed garage or in
other enclosed areas. Exhaust fumes can be toxic. Always open
the garage door before you start the engine. See Guarding
against exhaust fumes

in this chapter for more instructions.

WARNING: If you smell exhaust fumes inside your vehicle,
have your dealer inspect your vehicle immediately. Do not drive
if you smell exhaust fumes.

Important safety precautions

When the engine starts, the idle RPM runs faster to warm the engine. If
the engine idle speed does not slow down automatically, have the vehicle
checked.

Before starting the vehicle:

1. Make sure all occupants buckle their safety belts. For more

information on safety belts and their proper usage, refer to the
Seating and Safety Restraints chapter.

2. Make sure the headlamps and electrical accessories are off.

Driving

106

If starting a vehicle with an automatic transmission:
• Make sure the parking brake is

set.

• Make sure the gearshift is in P

(Park).

If starting a vehicle with a manual
transmission:

1. Make sure the parking brake is

set.

2. Push the clutch pedal to the

floor.

3. Turn the key to 4 (ON) without

turning the key to 5 (START).

If there is difficulty in turning the key, firmly rotate the steering wheel
left and right until the key turns freely. This condition may occur when:
• front wheels are turned
• front wheel is against the curb

• steering wheel is turned when getting in or out of the vehicle

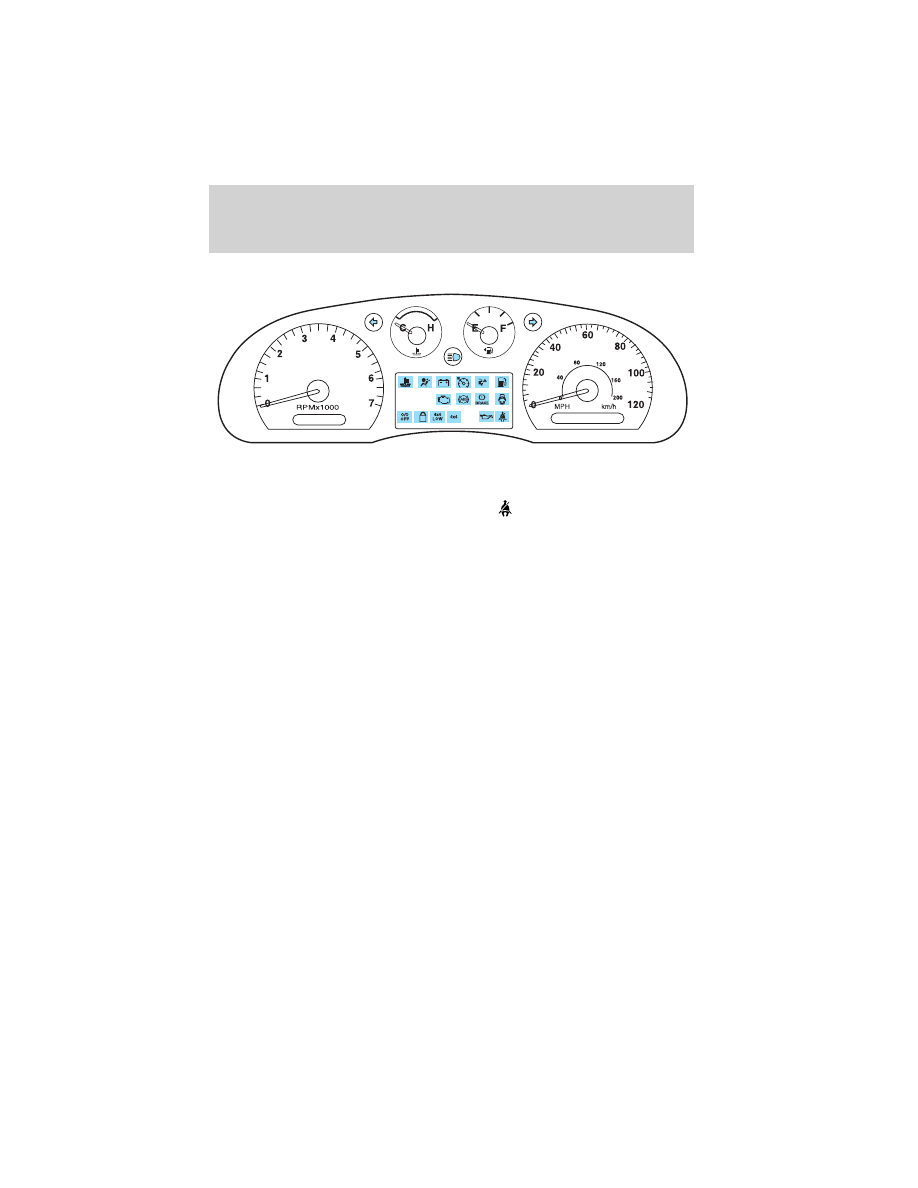

Make sure the corresponding lights illuminate or illuminate briefly. If a
light fails to illuminate, have the vehicle serviced.
• If the driver’s safety belt is fastened, the

light may not illuminate.

Refer to the Instrument Cluster chapter for more information.

Starting the engine

Note: Whenever you start your vehicle, release the key as soon as the
engine starts. Excessive cranking could damage the starter.

1. Turn the key to 4 (ON) without

turning the key to 5 (START). If
there is difficulty in turning the
key, rotate the steering wheel
until the key turns freely. This
condition may occur when:

• the front wheels are turned
• a front wheel is against the curb
Turn the key to 5 (START), then
release the key as soon as the
engine starts. Excessive cranking could damage the starter.

Note: If the engine does not start within five seconds on the first try,
turn the key to OFF, wait 10 seconds and try again. If the engine still
fails to start, press the accelerator to the floor and try again; this will
allow the engine to crank with the fuel shut off in case the engine is
flooded with fuel.

Cold weather starting (flexible fuel vehicles only)

In cold weather, ethanol fuel distributors should supply winter grade
(E

85) ethanol. If summer grade (E

85) ethanol is used in cold weather,

you may experience increased cranking times, rough idle or hesitation
until the engine has warmed up. Consult your fuel distributor for the
availability of winter grade (E

85) ethanol. High-quality blends of winter

grade (E

85) ethanol will produce satisfactory cold weather starting and

driving results.

Cold starting performance can also be improved by using an engine block
heater. Engine block heaters are available as an option and can be
obtained from your Mazda dealer. Consult the engine block heater
section for proper use of the engine block heater.

If you experience cold weather starting problems on (E

85) ethanol, and

neither an alternative brand of (E

85) ethanol nor an engine block

heater is available, adding unleaded gasoline to your tank will improve
cold starting performance. Your vehicle is designed to operate on (E

85)

ethanol, unleaded gasoline alone, or any mixture of the two.

If the engine fails to start using the preceding instructions (flexible
fuel vehicles only)

1. Press and hold down the accelerator 1/3 to 1/2 way to floor, then

crank the engine.

2. When the engine starts, release the key, then gradually release the

accelerator pedal as the engine speeds up. If the engine still fails to
start, repeat Step 1.

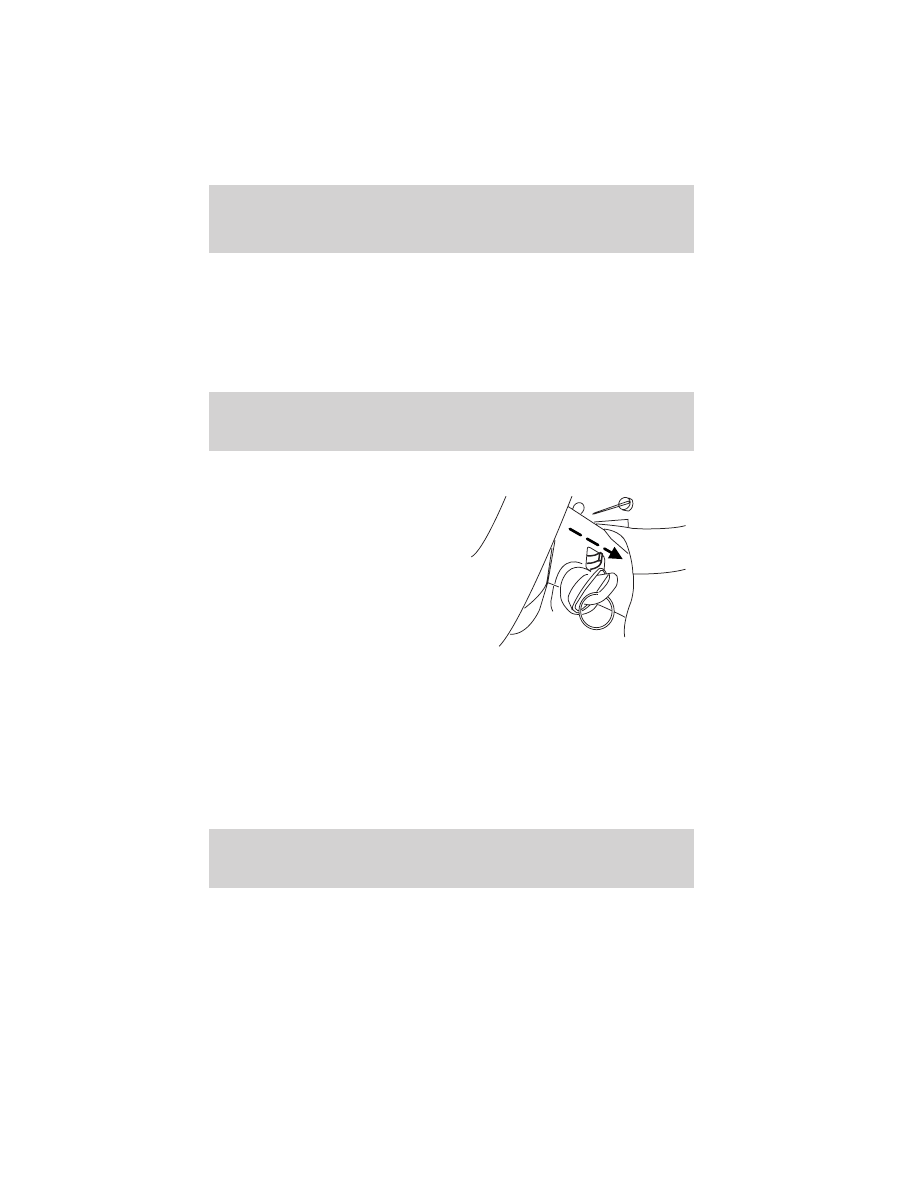

Using the engine block heater (if equipped)

An engine block heater warms the engine coolant which aids in starting
and heater/defroster performance. Use of an engine block heater is
strongly recommended if you live in a region where temperatures reach
-23° C (-10° F) or below. For best results, plug the heater in at least
three hours before starting the vehicle. The heater can be plugged in the
night before starting the vehicle.

WARNING: To reduce the risk of electrical shock, do not use
your heater with ungrounded electrical systems or two-pronged
(cheater) adapters.

Driving

109

Guarding against exhaust fumes

Carbon monoxide is present in exhaust fumes. Take precautions to avoid
its dangerous effects.

WARNING: If you smell exhaust fumes inside your vehicle,
have your dealer inspect your vehicle immediately. Do not drive
if you smell exhaust fumes.

Important ventilating information

If the engine is idling while the vehicle is stopped for a long period of
time, open the windows at least 2.5 cm (one inch) or adjust the heating
or air conditioning to bring in fresh air.

BRAKES

Occasional brake noise is normal. If a metal-to-metal, continuous grinding
or continuous squeal sound is present, the brake linings may be worn-out
and should be inspected by a qualified service technician. If the vehicle
has continuous vibration or shudder in the steering wheel while braking,
the vehicle should be inspected by a qualified service technician.

Refer to Brake system warning
light in the Instrument Cluster
chapter for information on the brake
system warning light.

Four-wheel anti-lock brake system (ABS)

This vehicle is equipped with an anti-lock braking system (ABS), a noise
from the hydraulic pump motor and pulsation in the pedal may be
observed during ABS braking events. Pedal pulsation coupled with noise
while braking under panic conditions or on loose gravel, bumps, wet or
snowy roads is normal and indicates proper functioning of the vehicle’s
anti-lock brake system.

NOTE: The ABS performs a self-check after you start the engine and
begin to drive away.

A brief mechanical noise may be heard during this test. This is normal. If
a malfunction is found, the ABS warning light will come on. If the vehicle
has continuous vibration or shudder in the steering wheel while braking,
the vehicle should be inspected by an authorized Mazda dealership.

BRAKE

Driving

110

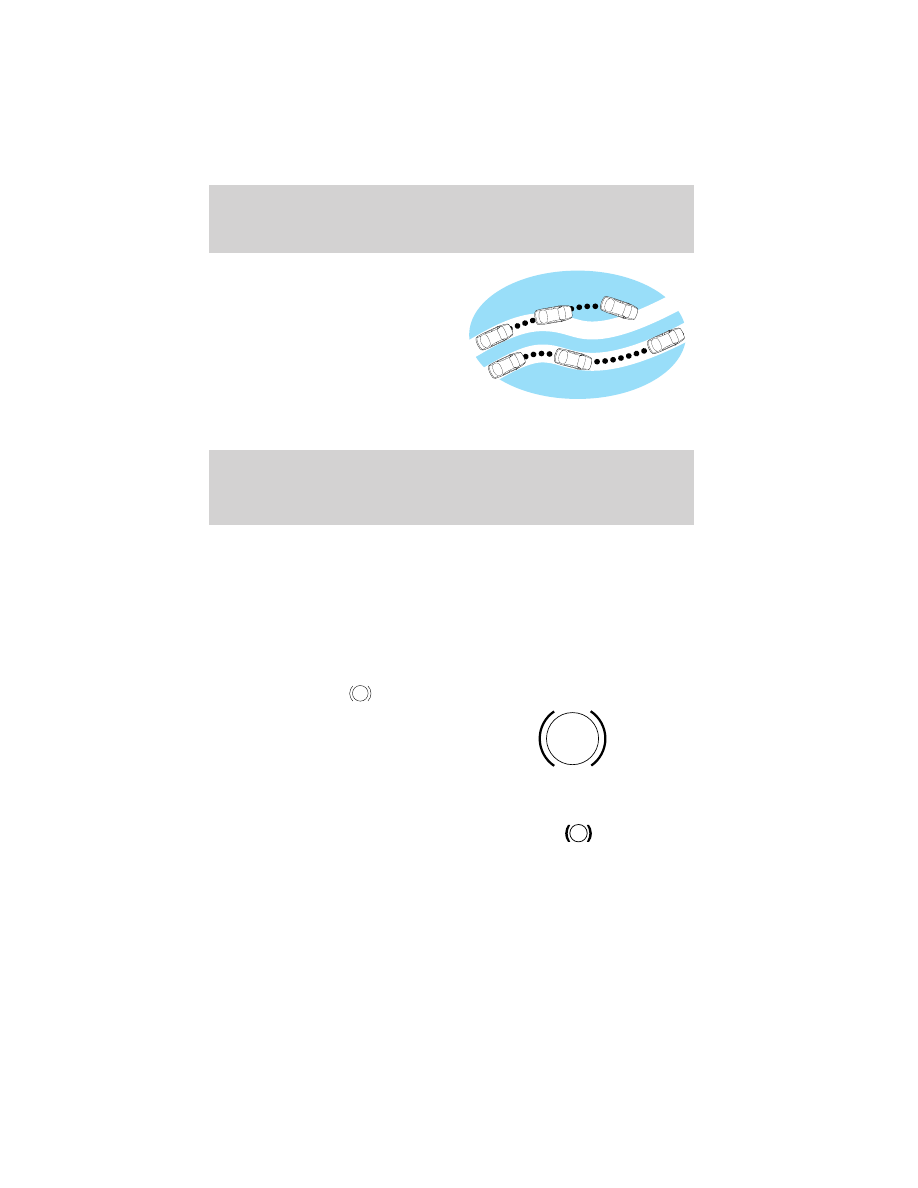

The ABS operates by detecting the
onset of wheel lockup during brake
applications and compensates for
this tendency. The wheels are
prevented from locking even when
the brakes are firmly applied. The
accompanying illustration depicts
the advantage of an ABS equipped
vehicle (on bottom) to a non-ABS
equipped vehicle (on top) during hard braking with loss of front braking
traction.

WARNING: The Anti-Lock system does not decrease the time
necessary to apply the brakes or always reduce stopping
distance. Always leave enough room between your vehicle and
the vehicle in front of you to stop.

Using ABS

When hard braking is required, apply continuous force on the brake
pedal; do not pump the brake pedal since this will reduce the
effectiveness of the ABS and will increase your vehicle’s stopping
distance. The ABS will be activated immediately, allowing you to retain
full steering control during hard braking and on slippery surfaces.
However, the ABS does not decrease stopping distance.

ABS warning lamp

ABS

The ABS lamp in the instrument
cluster momentarily illuminates
when the ignition is turned to ON. If
the light does not illuminate during
start up, remains on or flashes, the
ABS may be disabled and may need to be serviced.

Even when the ABS is disabled,
normal braking is still effective. (If
your BRAKE warning lamp
illuminates with the parking brake
released, have your brake system
serviced immediately.)

ABS

BRAKE

Driving

111

Parking brake

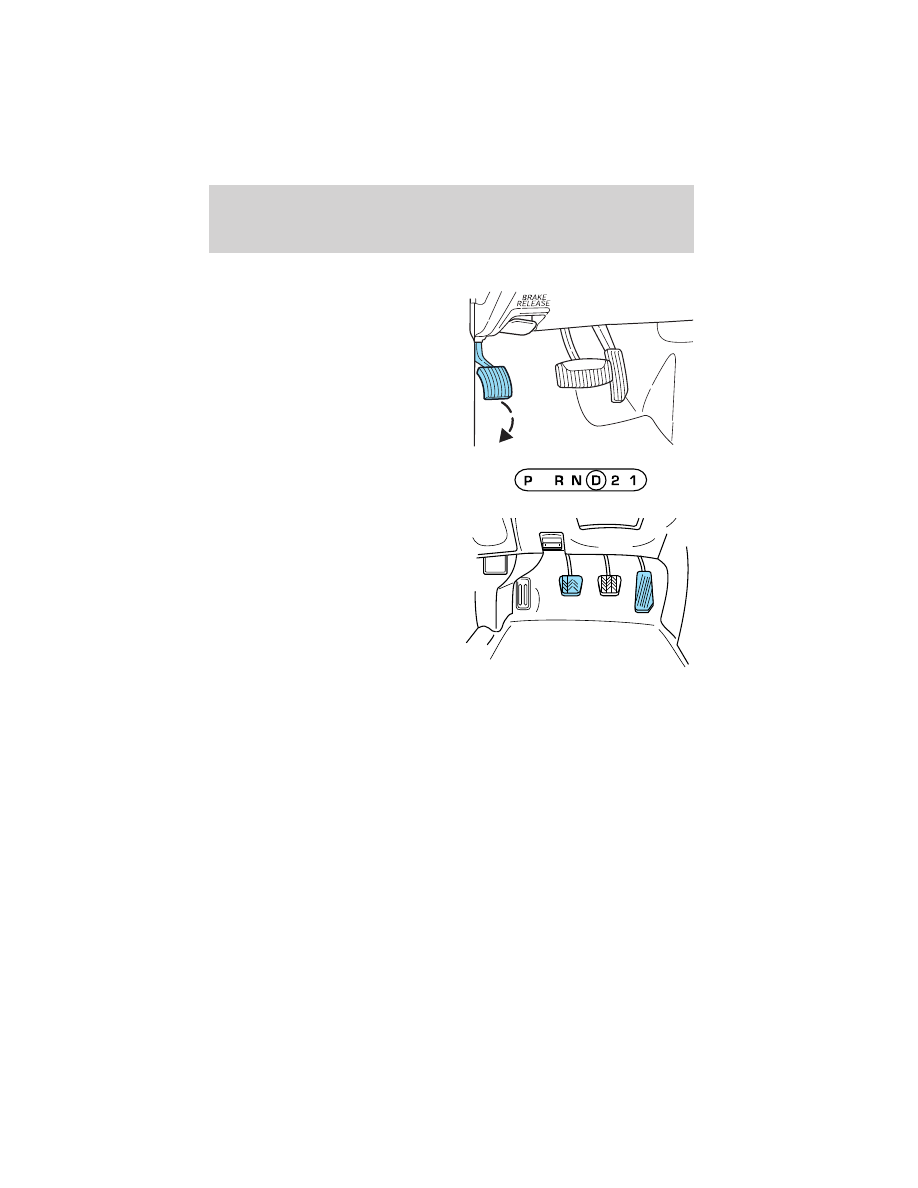

Apply the parking brake whenever
the vehicle is parked. To set the
parking brake, press the parking
brake pedal down until the pedal
stops.

The BRAKE warning lamp in the
instrument cluster illuminates and
remains illuminated (when the
ignition is turned ON) until the
parking brake is released.

WARNING: Always set the parking brake fully and make sure
that the gearshift is securely latched in P (Park) (automatic
transmission) or in 1 (First) (manual transmission).

NOTE: The parking brake is not recommended to stop a moving vehicle.
However, if the normal brakes fail, the parking brake can be used to stop
your vehicle in an emergency. Since the parking brake applies only the
rear brakes, the vehicle’s stopping distance will increase greatly and the
handling of your vehicle will be adversely affected.

Pull the release lever to release the
brake.

Driving with the parking brake
on will cause the brakes to wear
out quickly and reduce fuel
economy.

STEERING

Your vehicle is equipped with power steering. Power steering uses energy
from the engine to decrease the driver’s effort in steering the vehicle.

To prevent damage to the power steering pump:

• Never hold the steering wheel to the extreme right or the extreme left

for more than a few seconds when the engine is running.

• Do not operate the vehicle with the power steering pump fluid level

below the MIN mark on the reservoir.

If the power steering system breaks down (or if the engine is turned
off), you can steer the vehicle manually, but it takes more effort.

If the steering wanders or pulls, check for:
• Underinflated tire(s) on any wheel(s)
• Uneven vehicle loading
• High crown in center of road
• High crosswinds
• Wheels out of alignment
• Loose or worn suspension components

TRACTION-LOK AXLE/LIMITED SLIP DIFFERENTIAL (IF EQUIPPED)

This axle provides added traction on slippery surfaces, particularly when
one wheel is on a poor traction surface. Under normal conditions, the
Traction-Lok axle functions like a standard rear axle.

PREPARING TO DRIVE YOUR VEHICLE

WARNING: Utility vehicles have a significantly higher rollover
rate than other types of vehicles.

WARNING: In a rollover crash, an unbelted person is
significantly more likely to die than a person wearing a safety
belt.

Your vehicle has larger tires and increased ground clearance, giving the
vehicle a higher center of gravity than a passenger car.

Driving

113

WARNING: Vehicles with a higher center of gravity such as
utility and four-wheel drive vehicles handle differently than
vehicles with a lower center of gravity. Utility and four-wheel
drive vehicles are not designed for cornering at speeds as high
as passenger cars any more than low-slung sports cars are
designed to perform satisfactorily under off-road conditions.
Avoid sharp turns, excessive speed and abrupt maneuvers in
these vehicles. Failure to drive cautiously could result in an
increased risk of loss of vehicle control, vehicle rollover,
personal injury and death.

WARNING: Loaded vehicles, with a higher center of gravity,
may handle differently than unloaded vehicles. Extra
precautions, such as slower speeds and increased stopping
distance, should be taken when driving a heavily loaded vehicle.

AUTOMATIC TRANSMISSION OPERATION (IF EQUIPPED)
Brake-shift interlock

This vehicle is equipped with a brake-shift interlock feature that prevents
the gearshift lever from being moved from P (Park) when the ignition is
in the ON position unless the brake pedal is depressed.
If you cannot move the gearshift lever out of P (Park) with ignition in
the ON position and the brake pedal depressed:

1. Apply the parking brake, turn

ignition key to LOCK, then
remove the key.

2. Insert the key and turn it to

OFF. Apply the brake pedal
and shift to N (Neutral).

3. Start the vehicle.

If it is necessary to use the above procedure to move the gearshift lever,
it is possible that a fuse has blown or the vehicle’s brakelamps are not
operating properly. Refer to Fuses and relays in the Roadside
emergencies chapter.

WARNING: Do not drive your vehicle until you verify that the
brakelamps are working.

WARNING: Always set the parking brake fully and make sure
the gearshift is latched in P (Park). Turn the ignition to the
LOCK position and remove the key whenever you leave your
vehicle.

WARNING: If the parking brake is fully released, but the brake
warning lamp remains illuminated, the brakes may not be
working properly. See your authorized Mazda dealership.

Driving with a 5–speed automatic transmission (if equipped)

Your transmission is equipped with an adaptive learning strategy found in
the vehicle computer. This feature is designed to increase durability, and
provide consistent shift feel over the life of the vehicle. A new vehicle or
transmission may have firm and/or soft shifts. This operation is
considered normal and will not affect function or durability of the
transmission. Over time, the adaptive learning process will fully update
transmission operation. Additionally, whenever the battery is
disconnected or a new battery is installed, the strategy must relearn.

WARNING: Hold the brake pedal down while you move the
gearshift lever from P (Park) to another position. If you do not
hold the brake pedal down, your vehicle may move unexpectedly
and injure someone.

Driving

115

P (Park)

This position locks the transmission and prevents the rear wheels from
turning.

To put your vehicle in gear:
• Start the engine
• Depress the brake pedal
• Move the gearshift lever into the desired gear
To put your vehicle in P (Park):
• Come to a complete stop
• Move the gearshift lever and securely latch it in P (Park)

WARNING: Always set the parking brake fully and make sure
the gearshift is latched in P (Park). Turn the ignition to the
LOCK position and remove the key whenever you leave your
vehicle.

R (Reverse)

With the gearshift lever in R (Reverse), the vehicle will move backward.
Always come to a complete stop before shifting into and out of R
(Reverse).

N (Neutral)

With the gearshift lever in N (Neutral), the vehicle can be started and is
free to roll. Hold the brake pedal down while in this position.

(Overdrive)

The normal driving position for the
best fuel economy. Transmission
operates in gears one through
five.

(Overdrive) can be

deactivated by pressing the
transmission control switch on the end of the gearshift lever. This will
illuminate the O/D OFF lamp and activate Drive.

Drive (not shown)

Drive is activated when the transmission control switch is pressed.
• This position allows for all forward gears except overdrive.
• O/D OFF lamp is illuminated.
• Provides engine braking.

O/D

ON/OFF

Driving

116

• Use when driving conditions cause excessive shifting from O/D to

other gears. Examples: city traffic, hilly terrain, heavy loads, trailer
towing and when engine braking is required.

• To return to O/D (overdrive mode), press the transmission control

switch. The O/D OFF lamp will not be illuminated.

• O/D (Overdrive) is automatically returned each time the key is turned

off.

2 (Second)

Use 2 (Second) to start-up on slippery roads or to provide additional
engine braking on downgrades.

1 (First)
• Provides maximum engine braking.
• Allows upshifts by moving gearshift lever.
• Will not downshift into 1 (First) at high speeds; allows for 1 (First)

when vehicle reaches slower speeds.

Forced downshifts
• Allowed in

(Overdrive) or Drive.

• Depress the accelerator to the floor.
• Allows transmission to select an appropriate gear.

MANUAL TRANSMISSION OPERATION (IF EQUIPPED)

Using the clutch

The manual transmission has a starter interlock that prevents cranking
the engine unless the clutch pedal is fully depressed.

To start the vehicle:

1. Make sure the parking brake is fully set.

2. Press the clutch pedal to the floor, then put the gearshift lever in the

neutral position.

Driving

117

3. Start the engine, then press the brake pedal and release the parking

brake.

4. Move the gearshift lever to the desired gear, then slowly release the

clutch pedal while slowly pressing on the accelerator.

During each shift, the clutch pedal must be fully depressed to the floor.
Failure to fully depress the clutch pedal to the floor may cause increased
shift efforts and prematurely wear components in the transmission. Make
sure the floor mat is properly positioned so it doesn’t interfere with the
full extension of the clutch pedal.
Do not drive with your foot resting on the clutch pedal or use the clutch
pedal to hold your vehicle at a standstill while waiting on a hill. These
actions will reduce the life of the clutch.

Recommended shift speeds

Downshift according to the following charts for your specific
engine/drivetrain combination:

Upshifts

Shift from:

Transfer case position (if equipped)

2WD and 4H

1 -2

16 km/h (10 mph)

6 km/h (4 mph)

2 - 3

26 km/h (19 mph)

10 km/h (8 mph)

3 - 4

43 km/h (28 mph)

16 km/h (12 mph)

4 - 5 (Overdrive)

68 km/h (40 mph)

26 km/h (16 mph)

Maximum downshift speeds

Shift from:

Transfer case position (if equipped)

2WD and 4H

5 (Overdrive) - 4

88 km/h (55 mph)

34 km/h (22 mph)

4 - 3

72 km/h (45 mph)

27 km/h (18 mph)

3 - 2

56 km/h (35 mph)

21 km/h (14 mph)

2 - 1

32 km/h (20 mph)

11 km/h (8 mph)

Reverse

1. Make sure that your vehicle is at a complete stop before you shift

into R (Reverse). Failure to do so may damage the transmission.

2. Move the gearshift lever into the neutral position and wait at least

three seconds before shifting into R (Reverse).

• The gearshift lever can only be moved into R (Reverse) by moving it

from left of 3 (Third) and 4 (Fourth) before shifting into R (Reverse).

Driving

118

This is a lockout feature that protects the transmission from
accidentally being shifted into R (Reverse) from 5 (Overdrive).

Parking your vehicle

1. Apply the brake and shift into the neutral position.
2. Fully apply the parking brake, then shift into 1 (First).
3. Turn the ignition off.

WARNING: Do not park your vehicle in Neutral, it may move
unexpectedly and injure someone. Use 1 (First) gear and set
the parking brake fully.

Removing the key

Turn the ignition off, push the
release lever (located above the
ignition), then turn the key toward
you and remove the key.

If your vehicle gets stuck in mud or snow

If your vehicle gets stuck in mud or snow, it may be rocked out by
shifting from forward and reverse gears, stopping between shifts in a
steady pattern. Press lightly on the accelerator in each gear.
Do not rock the vehicle if the engine is not at normal operating
temperature or damage to the transmission may occur.
Do not rock the vehicle for more than a minute or damage to the
transmission and tires may occur, or the engine may overheat.

FOUR-WHEEL DRIVE (4WD) OPERATION (IF EQUIPPED)

WARNING: For important information regarding safe operation
of this type of vehicle, see Preparing to drive your vehicle in
this chapter.

Four–wheel drive (4WD) supplies power to all four wheels. 4WD should
not be operated on dry pavement; driveline damage may occur.

PUSH

Driving

119

Mazda B4000 4WD Truck (2004 year). Instruction - part 7
