Mazda B3000 (2002 year). Instruction - part 2

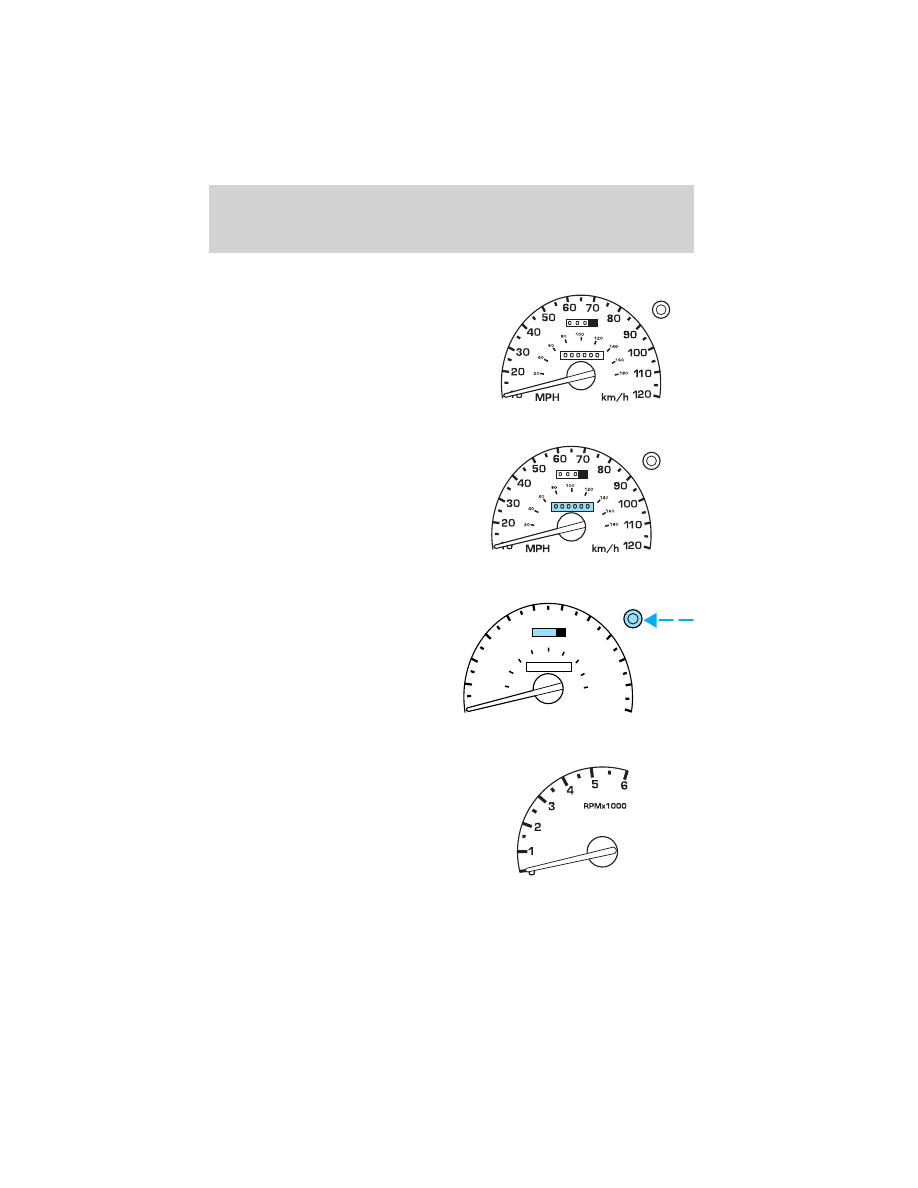

Speedometer

Indicates the current vehicle speed.

Odometer

Registers the total kilometers
(miles) of the vehicle.

Trip odometer

Registers the kilometers (miles) of
individual journeys. To reset,
depress the control.

Tachometer

Indicates the engine speed in
revolutions per minute.

Driving with your tachometer
pointer continuously at the top
of the scale may damage the
engine.

MPH

60 70

km/h

0 0 0

0 0 0 0 0 0

100

120

140

160

180

Instrument Cluster

AM/FM STEREO

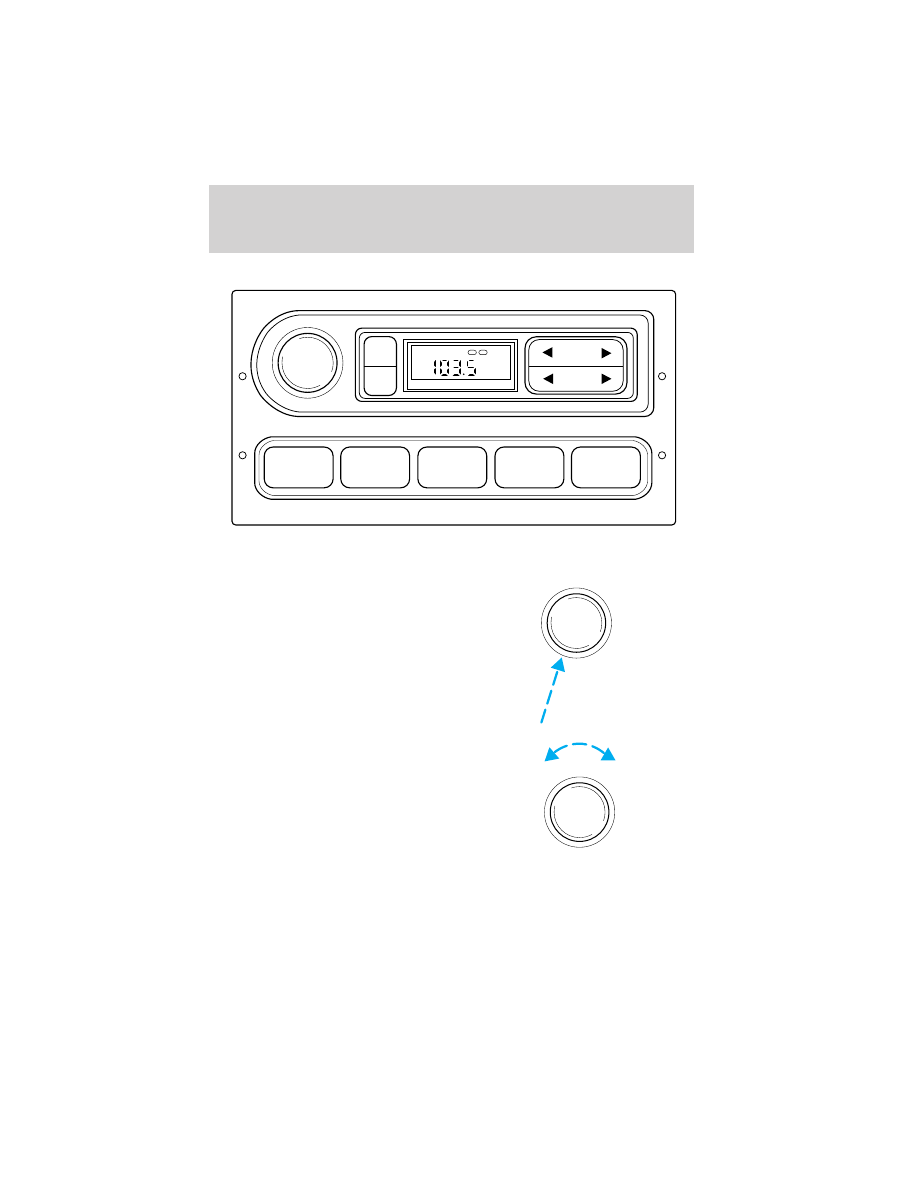

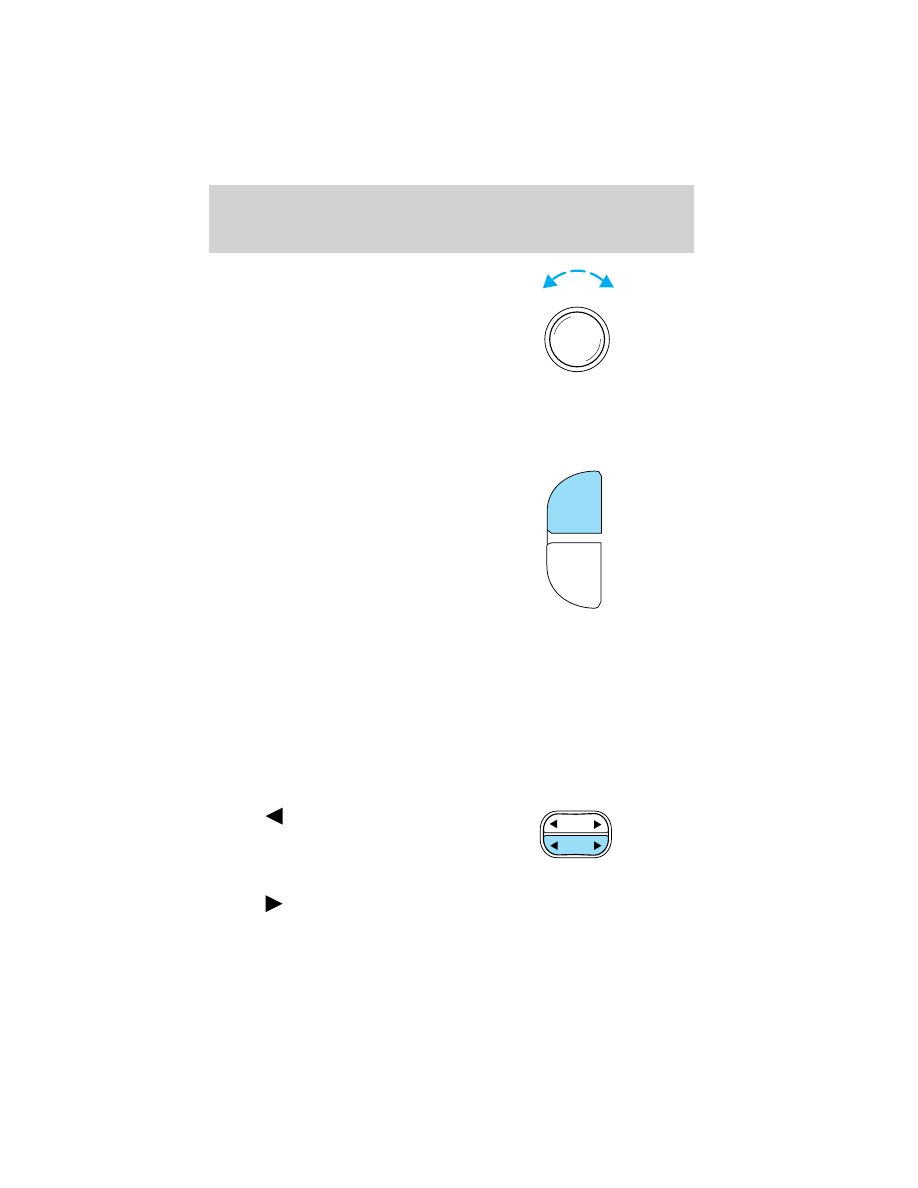

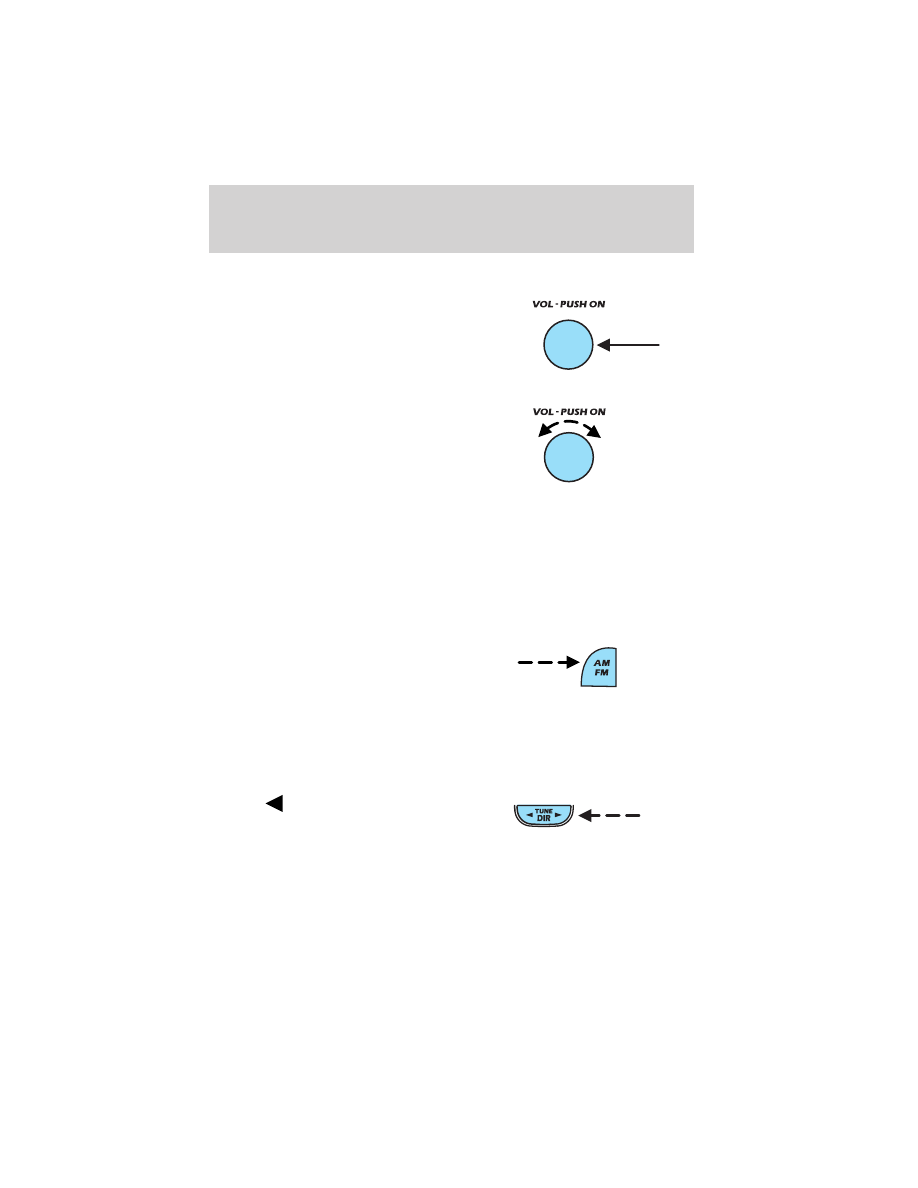

Volume/power control

Press the control to turn the audio
system on or off.

Turn the control to raise or lower
volume.

If the volume is set above a certain level and the ignition is turned off,
the volume will come back on at a “nominal” listening level when the
ignition switch is turned back on.

AM/FM

SEEK

TONE

CLK

TUNE

TONE VOL

VOL

PUSH

VOL

PUSH

VOL

PUSH

Entertainment Systems

AM/FM select

The AM/FM select control works in
radio mode.

AM/FM select in radio mode

This control allows you to select AM or FM frequency bands. Press the
control to switch between AM, FM1 or FM2 memory preset stations.

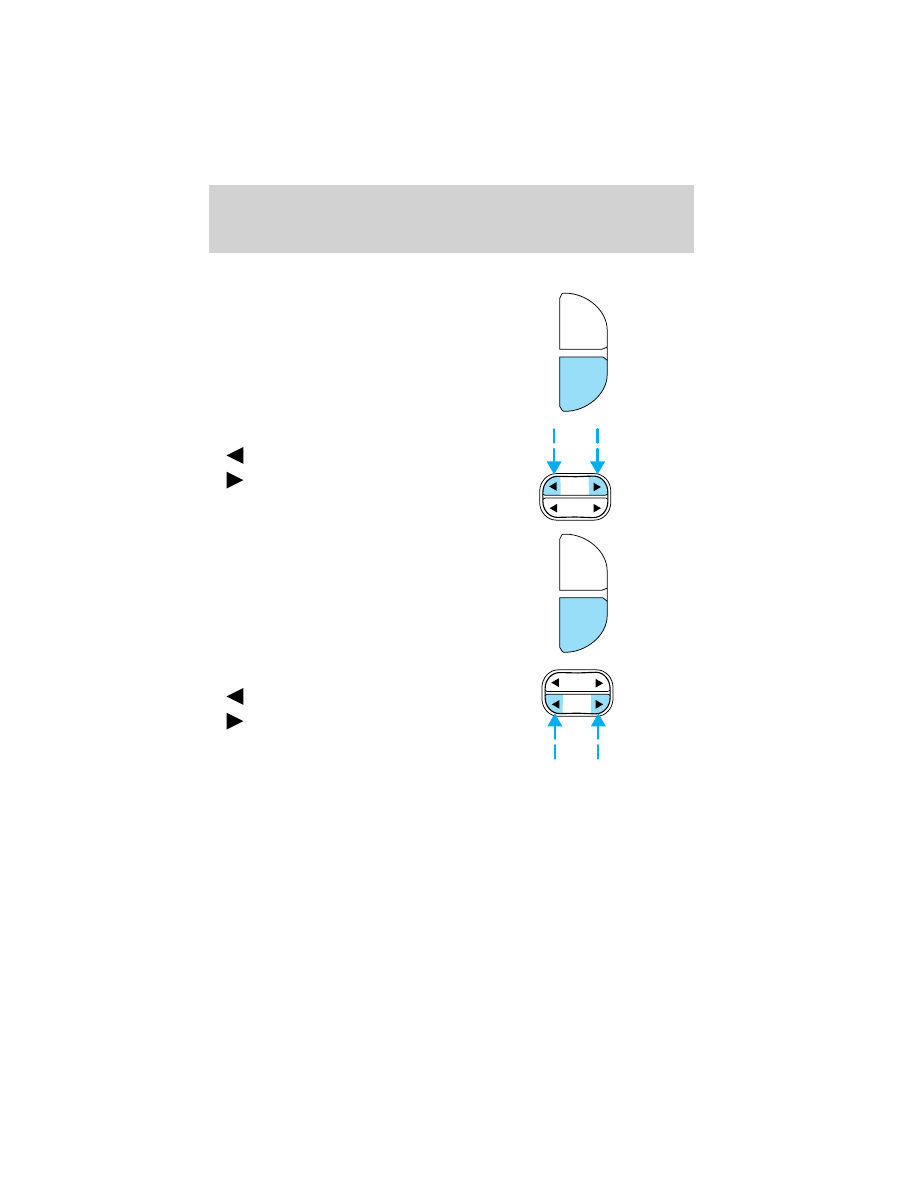

Tune adjust

The tune control works in radio mode.

Tune adjust in radio mode

• Press

to move to the next

frequency down the band
(whether or not a listenable
station is located there). Hold the
control to move through the frequencies quickly.

• Press

to move to the next frequency up the band (whether or not

a listenable station is located there). Hold for quick movement.

Seek function

The seek function control works in radio mode.

Seek function in radio mode

• Press

to find the next

listenable station down the
frequency band.

• Press

to find the next

listenable station up the frequency band.

AM/FM

SEEK

TUNE

SEEK

TUNE

Entertainment Systems

Radio station memory preset

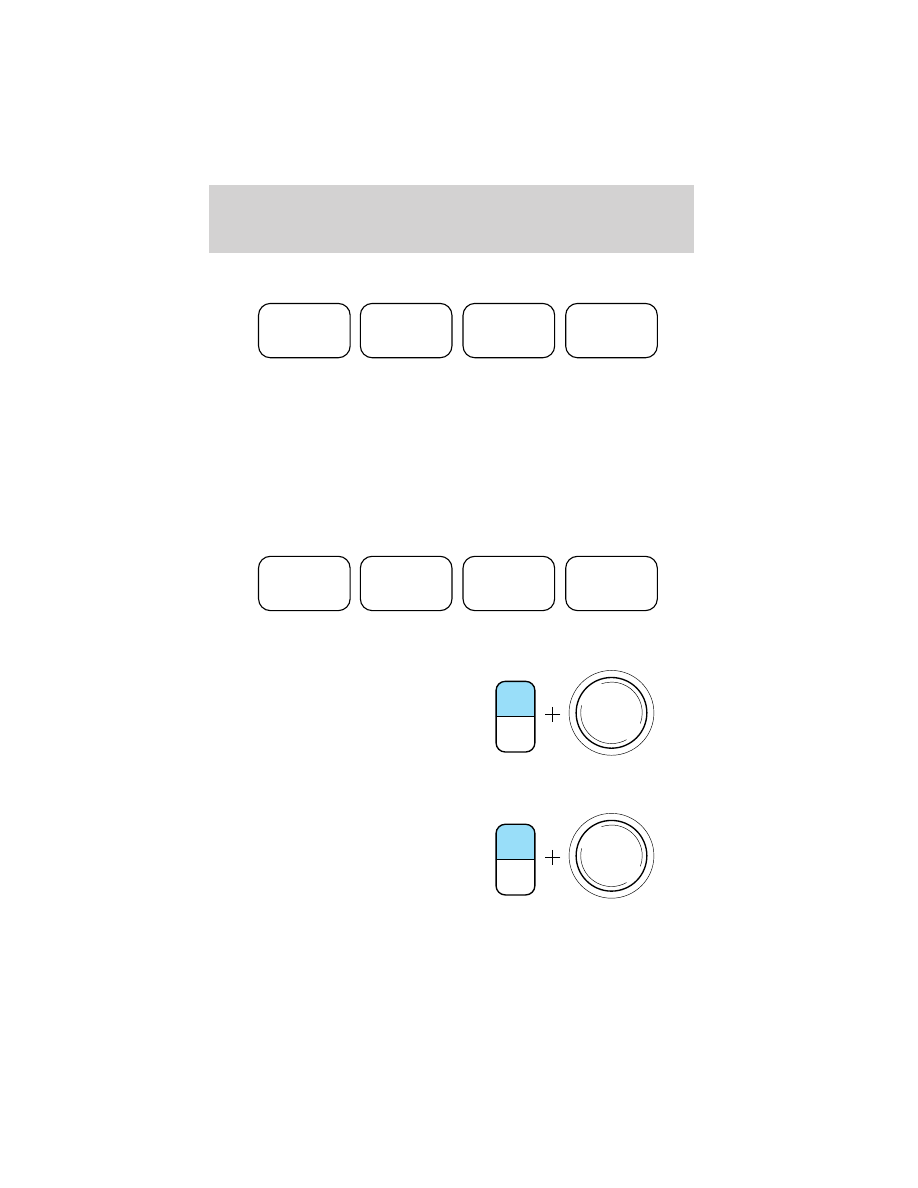

The radio is equipped with four station memory preset controls. These
controls can be used to select up to four preset AM stations and eight
FM stations (four in FM1 and four in FM2).

Setting memory preset stations

1. Select the frequency band with the AM/FM select control.

2. Select a station. Refer to Tune adjust or Seek function for more

information on selecting a station.

3. Press and hold a memory preset control until the sound returns,

indicating the station is held in memory on the control you selected.

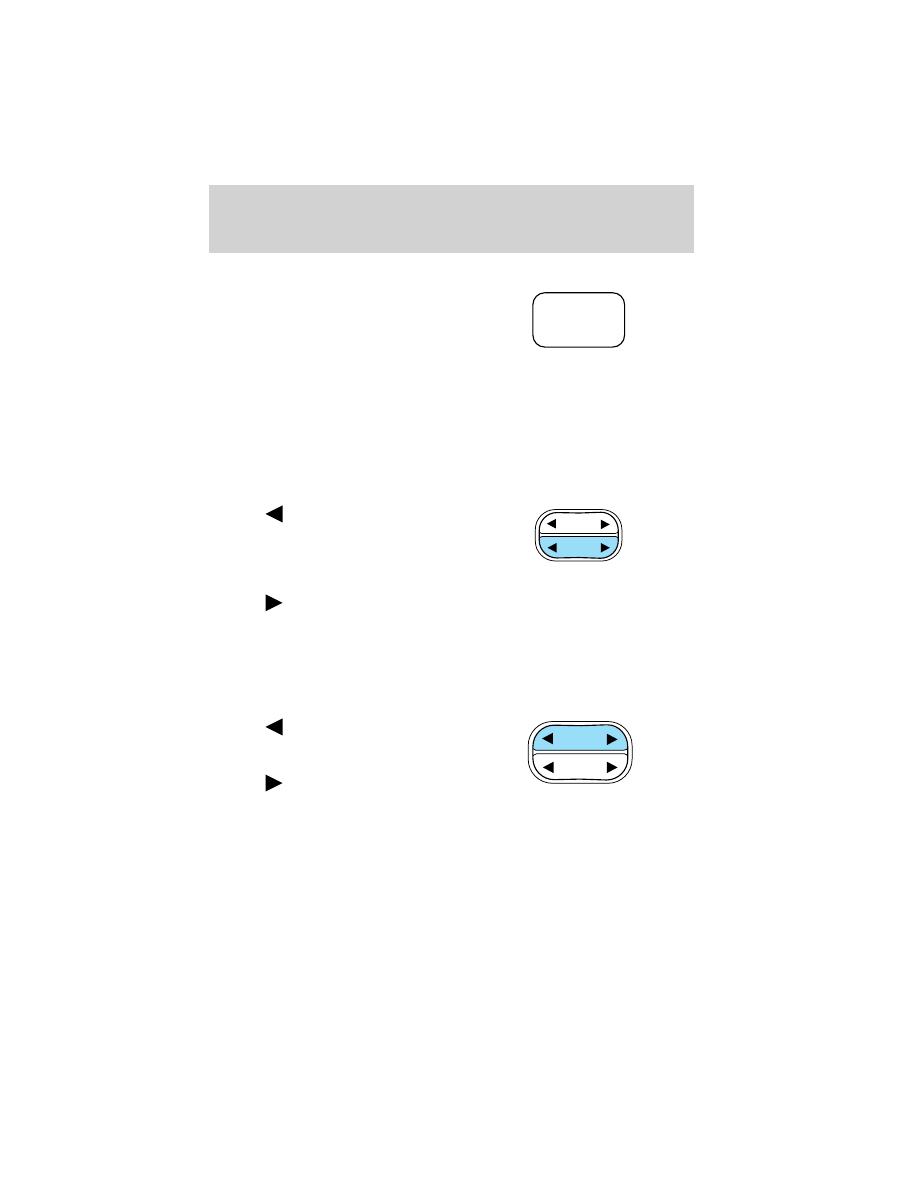

Bass adjust

The bass adjust control allows you
to increase or decrease the audio
system’s bass output.

Press the TONE control once, then
use the volume knob to adjust the
desired level.

Treble adjust

The treble adjust control allows you
to increase or decrease the audio
system’s treble output.

Press the TONE control twice, then
use the volume knob to adjust the
desired level.

TONE

CLK

VOL

PUSH

TONE

CLK

VOL

PUSH

Entertainment Systems

Speaker balance adjust

Speaker sound distribution can be
adjusted between the right and left
speakers.

Press the TONE control three times,
then use the volume knob to adjust
the desired level.

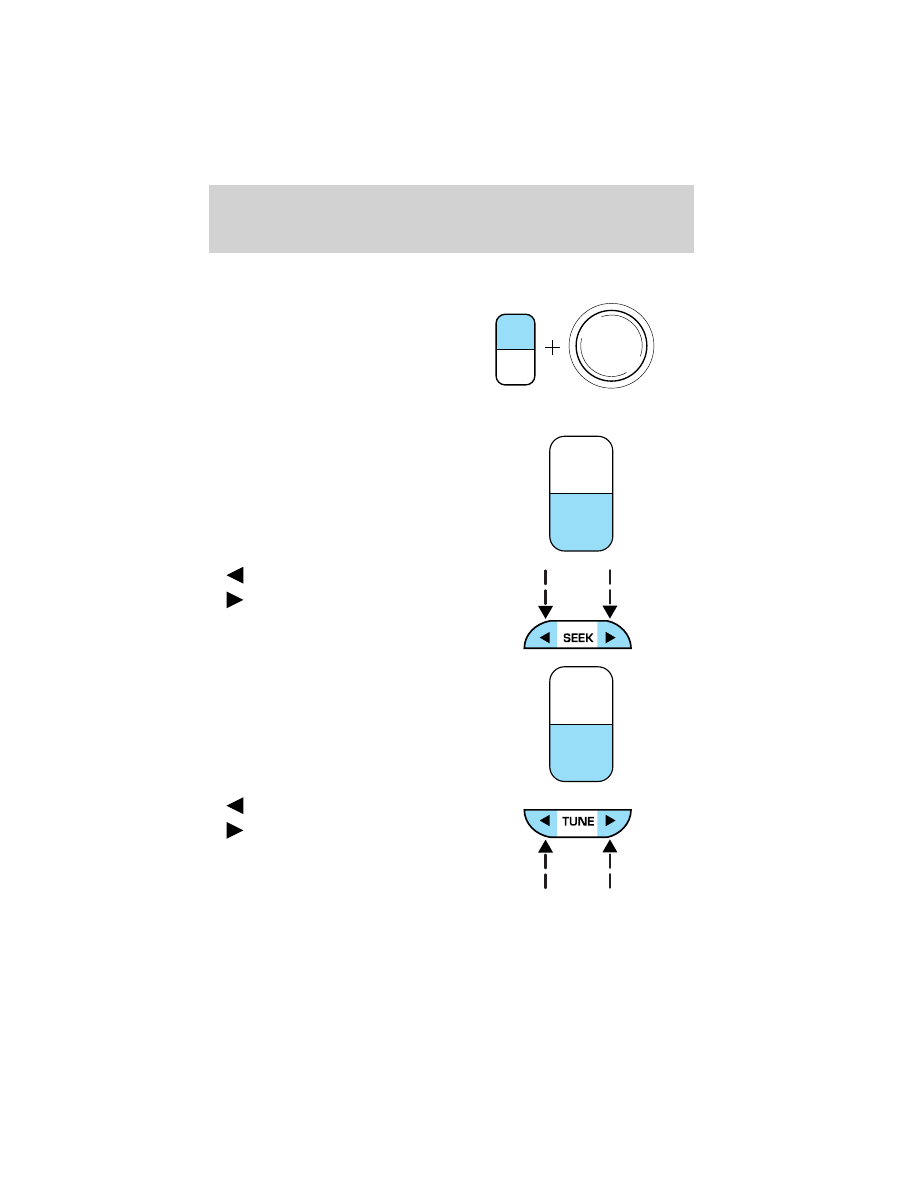

Setting the clock

Press CLK to toggle between
listening frequencies and clock
mode.

To set the hour, press and hold the
CLK control until CLOCK SET
appears in the display and press the
SEEK control:

•

to decrease hours and

•

to increase hours.

To set the minute, press and hold
the CLK control until CLOCK SET
appears in the display and press the
TUNE control:

•

to decrease minutes and

•

to increase minutes.

The CLK control will allow you to
switch between media display mode
(radio station, stereo information,
etc.) and clock display mode (time).
When in clock mode, the media information will display for ten seconds,

TONE

CLK

VOL

PUSH

TONE

CLK

TONE

CLK

Entertainment Systems

when the radio is turned on, and then revert to clock information. Any
time that the media is changed, (new radio station, etc.), the media
information will again display for ten seconds before reverting back to
the clock. In media mode, the media information will always be
displayed.

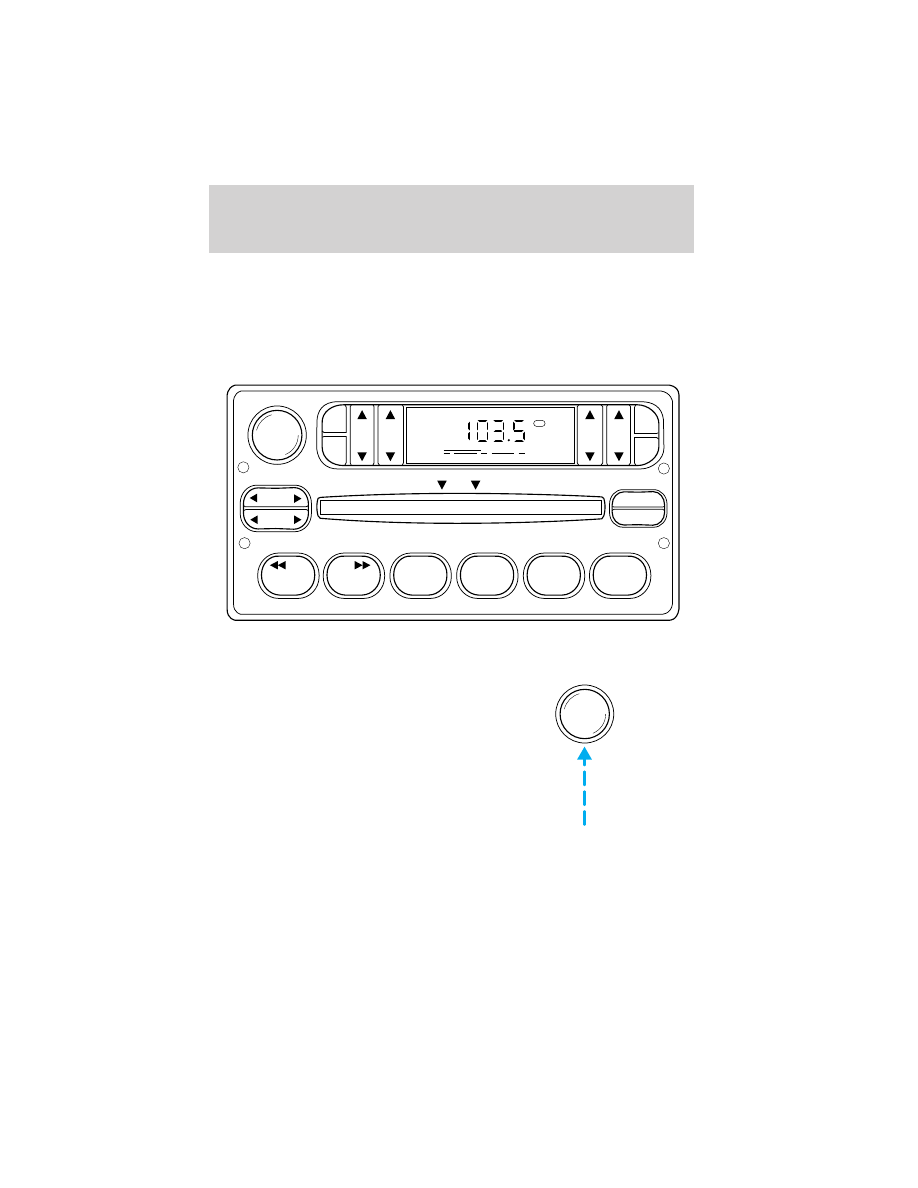

AM/FM STEREO / SINGLE CD RADIO

Volume/power control

Press the control to turn the audio
system on or off.

BASS

TREB

BAL

FADE

SCN

CLK

VOL - PUSH ON

SEEK

COMP

DISC

DISCS

TUNE

FM1

SHUFFLE

VOL - PUSH ON

Entertainment Systems

Turn the control to raise or lower
volume.

If the volume is set above a certain level and the ignition is turned off,
the volume will come back on at a “nominal” listening level when the
ignition switch is turned back on.

AM/FM select

The AM/FM select control works in
radio and CD modes.

AM/FM select in radio mode

This control allows you to select AM or FM frequency bands. Press the
control to switch between AM, FM1 or FM2 memory preset stations.

AM/FM select in CD mode

Press this control to stop CD play and begin radio play.

Tune adjust

The tune control works in radio mode.

Tune adjust in radio mode

• Press

to move to the next

frequency down the band
(whether or not a listenable
station is located there). Hold the
control to move through the frequencies quickly.

• Press

to move to the next frequency up the band (whether or not

a listenable station is located there). Hold for quick movement.

VOL - PUSH ON

SEEK

DISCS

TUNE

Entertainment Systems

Seek function

The seek function control works in radio or CD mode.

Seek function in radio mode

• Press

to find the next

listenable station down the
frequency band.

• Press

to find the next

listenable station up the frequency band.

Seek function for CD mode

• Press

to seek to the previous

track of the current disc. If a
selection has been playing for
three seconds or more and you
press

, the CD changer will

replay that selection from the beginning.

• Press

to seek forward to the next track of the current disc. After

the last track has been completed, the first track of the current disc
will automatically replay.

Scan function

The scan function works in radio or
CD mode.

Scan function in radio mode

Press SCN to hear a brief sampling of all listenable stations on the
frequency band. Press SCN again to stop the scan mode.

Scan function in CD mode

Press SCN to hear a short sampling of all selections on the CD. (The CD
scans in a forward direction, wrapping back to the first track at the end
of the CD.) To stop on a particular selection, press the control again.

Radio station memory preset

The radio is equipped with four or six station memory preset controls.
These controls can be used to select up to four or six preset AM stations
and eight or twelve FM stations (four to six in FM1 and four to six in
FM2).

SEEK

TUNE

DISCS

SEEK

TUNE

DISCS

SCN

Entertainment Systems

Setting memory preset stations

1. Select the frequency band with the AM/FM select control.

2. Select a station. Refer to Tune adjust or Seek function for more

information on selecting a station.

3. Press and hold a memory preset control until the sound returns,

indicating the station is held in memory on the control you selected.

Bass adjust

The bass adjust control allows you
to increase or decrease the audio
system’s bass output.

Treble adjust

The treble adjust control allows you
to increase or decrease the audio
system’s treble output.

BASS

TREB

Entertainment Systems

Speaker balance adjust

Speaker sound distribution can be
adjusted between the right and left
speakers.

Speaker fade adjust

Speaker sound can be adjusted
between the front and rear
speakers.

CD select

• To begin CD play (if CD[s] are

loaded), press the CD control.
The first track of the disc will
begin playing. After that, CD play
will begin where it stopped last.

This player is designed to use standard 4

⁄

compact discs. Do not

insert any promotional (odd shaped or sized) discs, or discs with
removable labels into the CD player as jamming may occur.

Rewind

The rewind control works in CD mode.

To rewind in CD mode press the CD
control (preset 1).

Pressing the control for less than
three seconds results in slow
rewind. Pressing the control for more than three seconds results in fast
rewind.

BAL

FADE

Entertainment Systems

Fast forward

The fast forward control works in CD mode.

To fast forward in CD mode, press
the CD control (preset 2).

Pressing the control for less than
three seconds results in slow
forward action. Pressing the control for more than three seconds results
in fast forward action.

Eject function

Press the control to stop and eject a
CD.

Compression feature

Compression adjust brings soft and
loud CD passages together for a
more consistent listening level.

Press the COMP control to activate and deactivate compression adjust.

Shuffle feature (if equipped)

The shuffle feature operates in CD
mode only and plays all tracks on
the current disc in random order.

Press the SHUFFLE control to start
this feature. Random order play will continue until the SHUFFLE control
is pressed again.

COMP

SHUFFLE

Entertainment Systems

Setting the clock

Press CLK to toggle between
listening frequencies and clock
mode while in radio mode.

To set the hour, press and hold the
CLK control.

Press the SEEK control:
•

to decrease hours and

•

to increase hours.

To set the minute, press and hold
the CLK control.

Press the TUNE control:
•

to decrease minutes and

•

to increase minutes.

SCN

CLK

SEEK

DISCS

TUNE

SCN

CLK

SEEK

DISCS

TUNE

Entertainment Systems

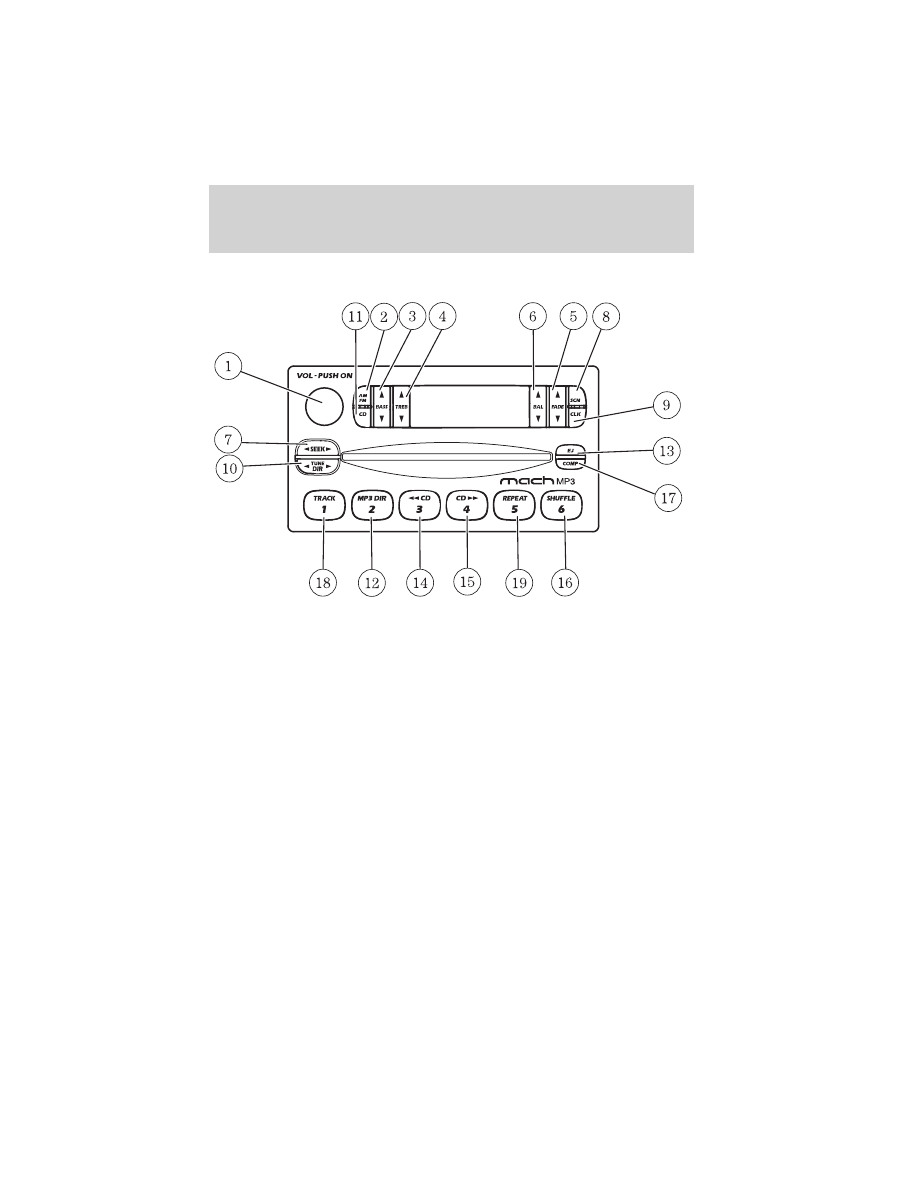

MACH

MP3 MUSIC SYSTEM

1. ON/OFF and volume control

2. AM/FM control

3. Bass control

4. Treble control
5. Fade control
6. Balance control
7. Seek control
8. Scan control
9. Clock control

10. Tune/Directory control

11. CD control

12. MP3 directory control

13. Eject control

14. CD rewind control

15. CD fast forward control

16. Shuffle control

17. Compression control

18. Track control

19. Repeat control

Entertainment Systems

Volume/power control

Press the control to turn the audio
system on or off.

Turn the control to raise or lower
the volume.

If the volume is set above a certain level and the ignition is turned off,
the volume will come back on at a “nominal” listening level when the
ignition switch is turned back on.

AM/FM select

The AM/FM select control works in radio mode.

AM/FM select in radio mode

This control allows you to select AM
or FM frequency bands. Press the
control to switch between AM, FM1
or FM2 memory preset stations.

Tune adjust

The tune adjust control works in radio mode.

Tune adjust in radio mode

• Press

to move to the next

frequency down the band. Hold
for quick movement through the
frequencies.

Entertainment Systems

• Press

to move to the next frequency up the band. Hold for quick

movement through the frequencies. When the top of the band is
reached, the tuner will continue to select from the lowest frequency
upward.

When a radio frequency is in tune, the ST icon will appear in the display
for stereo broadcasts.

MP3 functions

Your audio system is equipped with MP3 capability which allows you to
listen to songs in MP3 flat file mode and MP3 directory mode.

To engage MP3 flat file mode, insert an MP3 disc. If an MP3 disc is
already present in the player, press the CD control. The MP3 icon will
display while the player is in MP3 mode.

While in MP3 flat file mode, press
the MP3 DIR control to enter into
MP3 directory mode. The MP3 icon
and the DIR icon will display while
the player is in directory mode.

Your MACH

t MP3 player is also equipped with an anti-shock buffer for

MP3 discs.

MP3 file directory structure

The MACH

t MP3 music system recognizes MP3 disc file and directory

(folder) structure as follows:
• There are two different modes for MP3 disc playback: MP3 flat file

mode (default) and MP3 directory mode.

• MP3 flat file mode ignores any directory structure present on the MP3

disc. The player sequentially numbers each MP3 track on the disc
(denoted by the .mp3 file extension) from T001 to T255.

• MP3 directory mode represents a directory structure consisting of one

level of directories (folders). The CD player sequentially numbers all
MP3 tracks on the disc (denoted by .mp3 extension) and all
directories containing MP3 files, from 01–01 to 99–99. The first two
digits denote the directory number and the last two digits denote the
track number within that directory.

• Creating discs with only one level of subdirectories will help with

navigation through the disc files.

Seek function

The seek function control works in radio, CD, MP3 flat file mode and
MP3 directory modes.

Entertainment Systems

Seek function in radio mode

• Press

to find the next

listenable station down the
frequency band.

• Press

to find the next

listenable station up the
frequency band.

Seek function in CD, MP3 flat file and MP3 directory modes

• Press

to select and play the

previous track on the disc. If the
current track is the first track on
the disc, pressing

will select

the last track on the disc.

• Press

to select and play the

next track on the disc. If the current track is the last track on the
disc, pressing

will select the first track on the disc.

Press and hold the SEEK control to quickly seek through all tracks in
MP3 flat file mode or all tracks in the current MP3 directory.

Note: If a track has been playing for three seconds or more and you
press

on the SEEK control, the player will replay that track from the

beginning.

Scan function

The scan function works in radio, CD, MP3 flat file and MP3 directory
modes.

Scan function in radio mode

Press SCN to engage scan mode and
to hear a brief sampling of all
listenable stations on the frequency
band. When the top of the band is
reached, the tuner will continue to
scan from the lowest frequency upward.

Press SCN again to disengage scan mode.

Entertainment Systems

Content .. 1 2 3 ..
