Black plate (426,1)

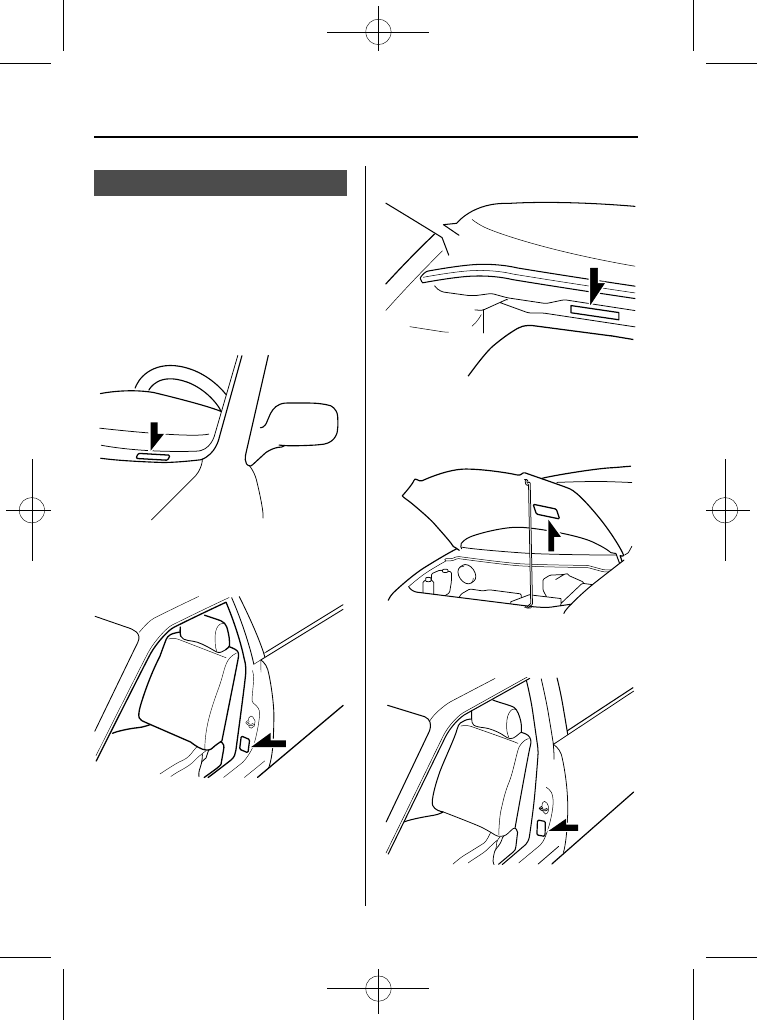

Vehicle Information Labels

qVehicle Identification Number

The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the cowl panel located
on the left corner of the dashboard. This
plate can easily be seen through the
windshield.

qMotor Vehicle Safety Standard

Label

qChassis Number

qVehicle Emission Control

Information Label

qTire Pressure Label

10-2

Some models.

Identification Numbers

Mazda5_8FN4-EA-16G_Edition1 Page426
Monday, May 23 2016 7:37 PM

Black plate (427,1)

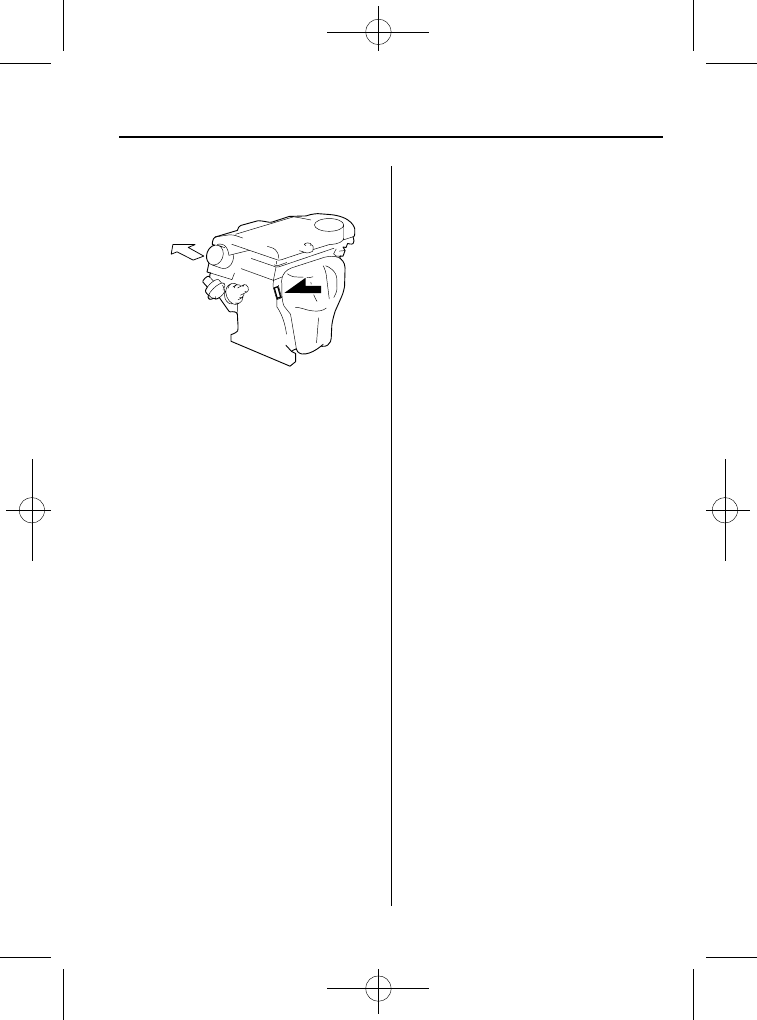

qEngine Number

Forward

Identification Numbers

10-3

Mazda5_8FN4-EA-16G_Edition1 Page427
Monday, May 23 2016 7:37 PM

Black plate (428,1)

Specifications

qEngine

Item

Specification

Type

DOHC-16V in-line, 4-cylinder

Bore × Stroke

89.0 × 100 mm (3.50 × 3.94 in)

Displacement

2,488.5 ml (2,488.5 cc)

Compression ratio

9.7

qElectrical System

Item

Classification

Battery

12V-60Ah/20HR or 12V-65Ah/20HR

Spark-plug number

Mazda Genuine spark
plug

LFJD-18-110 or L3Y2-18-110

CAUTION

When cleaning the iridium plugs, do not use a wire brush. The fine particulate
coating on the iridium alloy and platinum tips could be damaged.

qLubricant Quality

Lubricant

Classification

Engine oil

Refer to Recommended Oil on page 8-11.

Manual transaxle oil

API Service

GL-4

SAE

75W-80

Automatic transaxle fluid

Mazda Genuine ATF M-V

Power steering fluid

Mazda Genuine ATF M-III , M-V, or equivalent

(e.g. Dexron® II)

Brake/Clutch fluid

SAE J1703 or FMVSS116 DOT-3

NOTE

Refer to Introduction on (page 8-2) for owner's responsibility in protecting your investment.

10-4

Specifications

Mazda5_8FN4-EA-16G_Edition1 Page428
Monday, May 23 2016 7:37 PM

Black plate (429,1)

qCapacities

(Approximate Quantities)

Item

Capacity

Engine oil

With oil filter replacement

5.0 L (5.3 US qt, 4.4 Imp qt)

Without oil filter replacement

4.6 L (4.9 US qt, 4.0 Imp qt)

Coolant

Manual transaxle

6.7 L (7.1 US qt, 5.9 Imp qt)

Automatic transaxle

6.6 L (7.0 US qt, 5.8 Imp qt)

Manual transaxle oil

2.85 L (3.01 US qt, 2.51 Imp qt)

Automatic transaxle fluid

8.14 L (8.60 US qt, 7.16 Imp qt)

Fuel tank

60.0 L (15.9 US gal, 13.2 Imp gal)

Check oil and fluid levels with dipsticks or reservoir gauges.

qDimensions

Item

Vehicle specification

Overall length

4,585 mm (180.5 in)

Overall width

1,750 mm (68.9 in)

Overall height

1,615 mm (63.6 in)

Front tread

1,530 mm (60.2 in)

Rear tread

1,520 mm (59.8 in)

Wheelbase

2,750 mm (108.3 in)

qWeights

(Manual transaxle)

Item

Weight

GVWR (Gross Vehicle Weight Rating)

2,091 kg (4,610 lb)

GAWR (Gross Axle Weight Rating)

Front

1,021 kg (2,251 lb)

Rear

1,085 kg (2,392 lb)

(Automatic transaxle)

Item

Weight

GVWR (Gross Vehicle Weight Rating)

2,125 kg (4,685 lb)

GAWR (Gross Axle Weight Rating)

Front

1,056 kg (2,328 lb)

Rear

1,084 kg (2,390 lb)

qAir Conditioner

Item

Classification

Refrigerant Type

HFC134a (R-134a)

Specifications

10-5

Mazda5_8FN4-EA-16G_Edition1 Page429
Monday, May 23 2016 7:37 PM

Black plate (430,1)

qLight Bulbs

Exterior light

Light bulb

Category

Wattage

UNECE

Luggage compartment light

―

Overhead lights (Front)/Map lights

W5W

Overhead light (Rear)

―

*1 UNECE stands for United Nations Economic Commission for Europe.

qTires

NOTE

The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.

Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-27.

Standard tire

Tire size

Inflation pressure

Front

Rear

P205/55R16 89H

240 kPa (35 psi)

205/50R17 89V

230 kPa (34 psi)

10-6

Some models.

Specifications

Mazda5_8FN4-EA-16G_Edition1 Page430
Monday, May 23 2016 7:37 PM

Black plate (431,1)

Temporary tire

Tire size

Inflation pressure

T125/70D16 96M

420 kPa (60 psi)

Lug nut tightening torque

When installing a tire, tighten the lug nut to the following torque.
88

―118 N·m (9―12 kgf·m, 65―87 ft·lbf)

qFuses

Refer to Fuses on page 8-41.

Specifications

10-7

Mazda5_8FN4-EA-16G_Edition1 Page431
Monday, May 23 2016 7:37 PM

Black plate (432,1)

Personalization Features

The following

“Personalization Features” are available. These settings can only be changed by an Authorized

Mazda Dealer.

Item

Feature

Factory Setting

Available Settings

Key reminder
warning alarm

The volume of the key reminder warning alarm
can be changed

High

Low

Lights-on reminder
warning alarm

The volume of the lights-on reminder warning
alarm can be changed

High

Low/Deactivated

Turn indicator

The beep volume level can be changed

High

Low/Deactivated

Illumination entry

The time required for the interior lamp to turn off
automatically after all the doors are closed can be
changed

15 seconds

7.5/30/60 seconds

The time required for the interior lamp to
illuminate after unlocking any door can be
changed

30 seconds

7.5/15/60 seconds

The function that allows the interior lamp to
illuminate automatically when the doors are
unlocked can be changed

Activated

Deactivated

The function allowing the interior lamp to turn off
automatically when any door is opened
(or not securely closed) can be changed

Activated

Deactivated

The time required for the interior lamp to turn off
automatically can be changed
(prevents battery depletion when a door is open/
ajar)

30 minutes

10/60 minutes

Keyless entry

The unlocking method using the retractable key
can be changed

Press × 2

Press × 1

The time required for the doors to relock
automatically after unlocking with the transmitter
can be changed

30 seconds

60/90 seconds

The flashing of the hazard warning lights when the
doors are locked/unlocked can be changed

Activated

Deactivated

The function allowing the horn to sound
automatically when the doors are locked by
pressing the transmitter two times consecutively
can be changed

Activated

Deactivated

Auto headlight
on/off

The headlight illumination on/off timing based on
surrounding lightness/darkness can be changed

Standard

(Illuminates under

average levels of

darkness)

Earlier/Somewhat

earlier/Somewhat

later/Later

Two-step down
power window

The two-step down power window function can be
changed

Activated

Deactivated

Auto-wiper control The auto wipers can be set to inoperable.

On/Off

*1 The type of wipers can be changed to an intermittent operation type. If you want to change the wipers to an

intermittent operation type, the wiper lever needs to be replaced.

10-8

Personalization Features

Mazda5_8FN4-EA-16G_Edition1 Page432
Monday, May 23 2016 7:37 PM
