Mazda 5 (2017 year). Instruction - part 13

Black plate (200,1)

Operating Tips

qOperating the Climate Control

System

Operate the climate control system with
the engine running.

NOTE

To prevent the battery from being discharged,
do not leave the fan control dial on for a long
period of time with the ignition switched ON
when the engine is not running.

qClearing the Air Inlet

Clear all obstructions such as leaves,
snow and ice from the hood and the air
inlet in the cowl grille to improve the
system efficiency.

qFoggy Windows

The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.

To help defog the windows, operate the
air conditioner to dehumidify the air.

NOTE

The air conditioner may be used along with the
heater to dehumidify the air.

qOutside/Recirculated Air Position

Use the outside air mode for ventilation or
windshield defrosting. The recirculate
mode should be used when the air inside
tunnels or while in traffic jams is polluted,
or you would like to shut off outside air
for quick cooling of the interior.

qParking in Direct Sunlight

If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.

qNot Using for a Long Period

Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.

qCheck the Refrigerant before the

Weather Gets Hot

Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient.
The refrigerant specifications are
indicated on a label attached to the inside
of the engine compartment. Check the
label before refilling the refrigerant. If the
wrong type of refrigerant is used, it could
result in a serious malfunction of the air
conditioner.
For details, consult an Authorized Mazda
Dealer.

qReplacement of the Cabin Air Filter

Your vehicle is equipped with an air filter
for the air conditioner. It is necessary to
change the filter periodically as indicated
in scheduled maintenance (page 8-4).
Consult an Authorized Mazda Dealer for
replacement of the cabin air filter.

6-2

Interior Comfort

Climate Control System

Mazda5_8FN4-EA-16G_Edition1 Page200
Monday, May 23 2016 7:35 PM

Black plate (201,1)

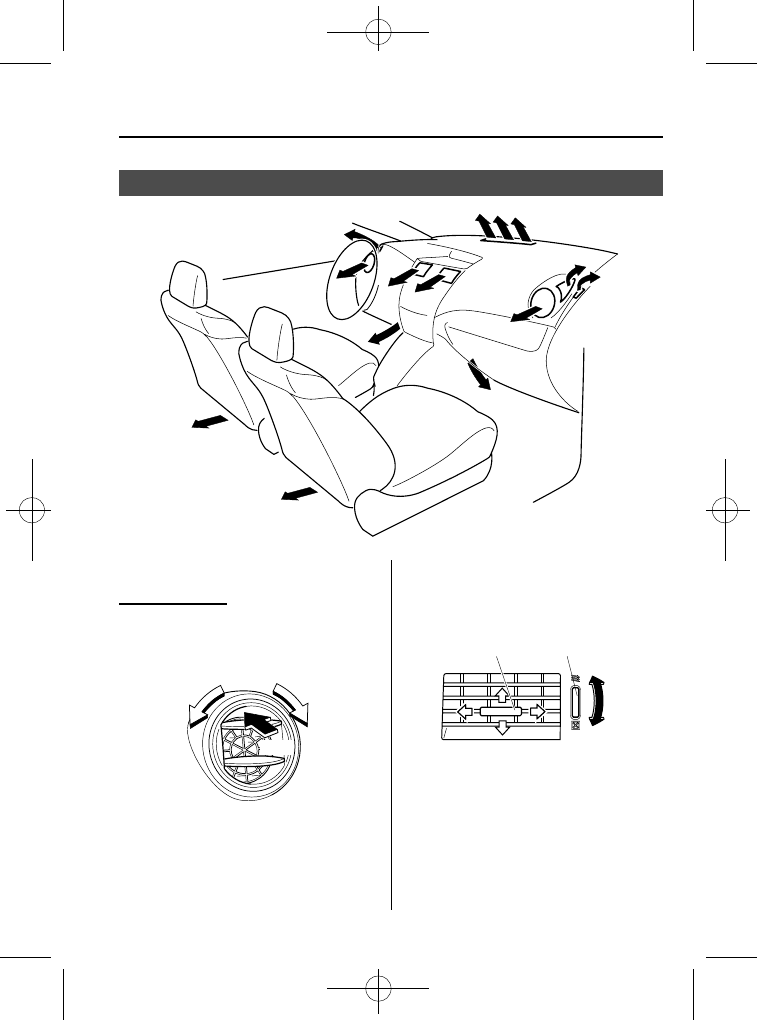

Vent Operation

qAdjusting the Vents

Directing airflow

Side Vents

To adjust the direction of airflow, open the
vents and rotate them left and right.

Push

Center Vents

To adjust the direction of airflow, move
the adjustment knob.

Knob

Dial

Open

NOTE

When using the air conditioner under
humid ambient temperature conditions, the
system may blow fog from the vents. This is
not a sign of trouble but a result of humid
air being suddenly cooled.

The air vents can be fully opened and
closed by operating the dial.

Interior Comfort

Climate Control System

6-3

Mazda5_8FN4-EA-16G_Edition1 Page201
Monday, May 23 2016 7:35 PM

Black plate (202,1)

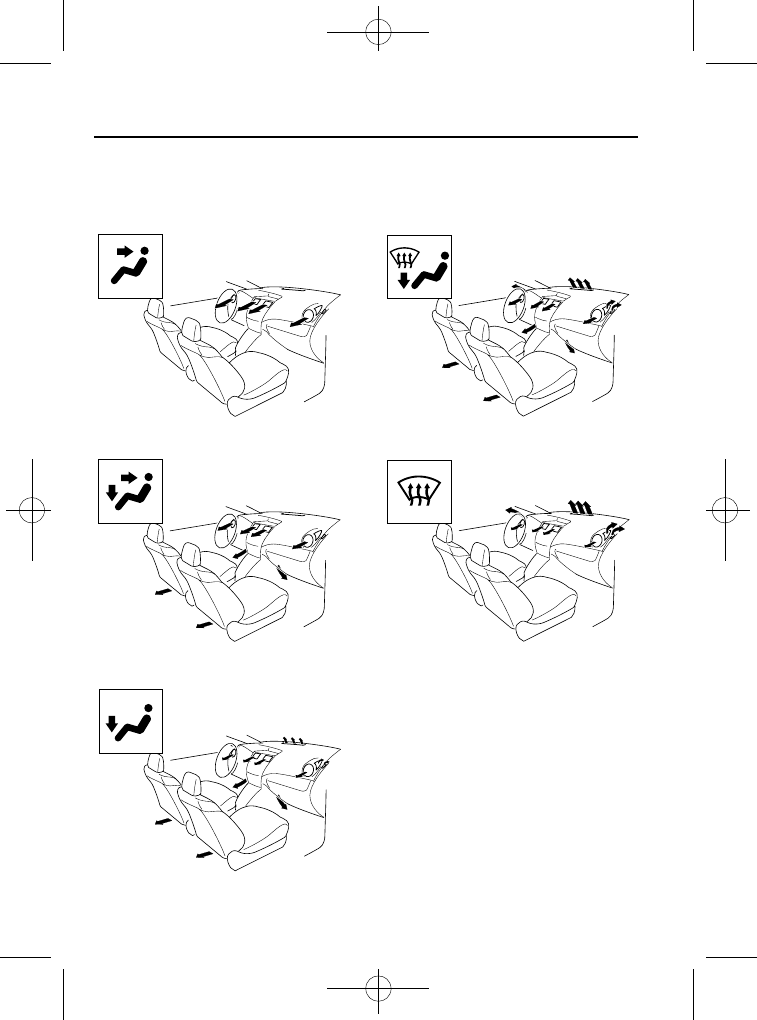

qSelecting the Airflow Mode

Floor Vents

Dashboard and Floor Vents

Dashboard Vents

Defroster and Floor Vents

Defroster Vents

6-4

Interior Comfort

Climate Control System

Mazda5_8FN4-EA-16G_Edition1 Page202
Monday, May 23 2016 7:35 PM

Black plate (203,1)

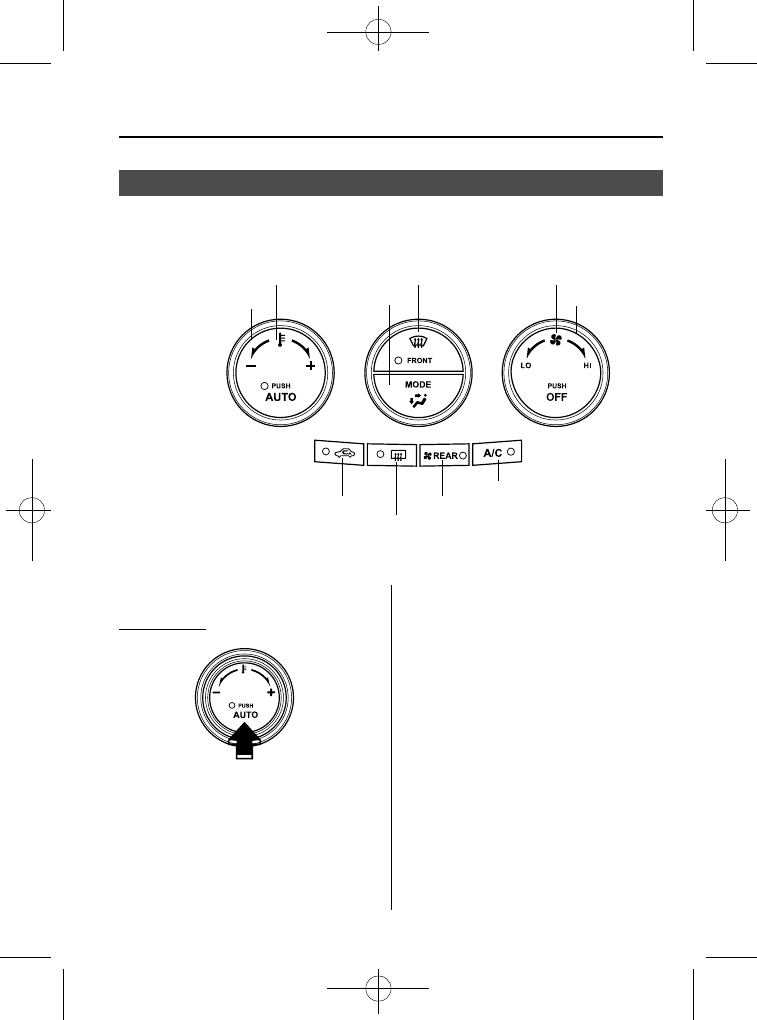

Fully Automatic Type

Climate control information is displayed on the information display.

Auto switch

Mode selector switch

Temperature control dial

Fan control dial

Windshield defroster switch

OFF switch

A/C switch

Rear ventilation control switch

Rear window defogger switch

Air intake selector

qControl Switches

AUTO switch

By pressing the AUTO switch the
following functions will be automatically
controlled in accordance with the selected
set temperature:

Airflow temperature

Amount of airflow

Selection of airflow mode

Outside/Recirculated air selection

Air conditioner operation

NOTE

AUTO switch indicator light

When on, it indicates AUTO operation, and
the system will function automatically.

If any of the following dials or switches are
operated while in AUTO control, the AUTO
switch indicator turns off.

Mode selector switch

Fan control dial

Windshield defroster switch

The functions for dials and switches other
than those operated in the above continue
to operate in AUTO control.

Interior Comfort

Climate Control System

6-5

Mazda5_8FN4-EA-16G_Edition1 Page203
Monday, May 23 2016 7:35 PM

Black plate (204,1)

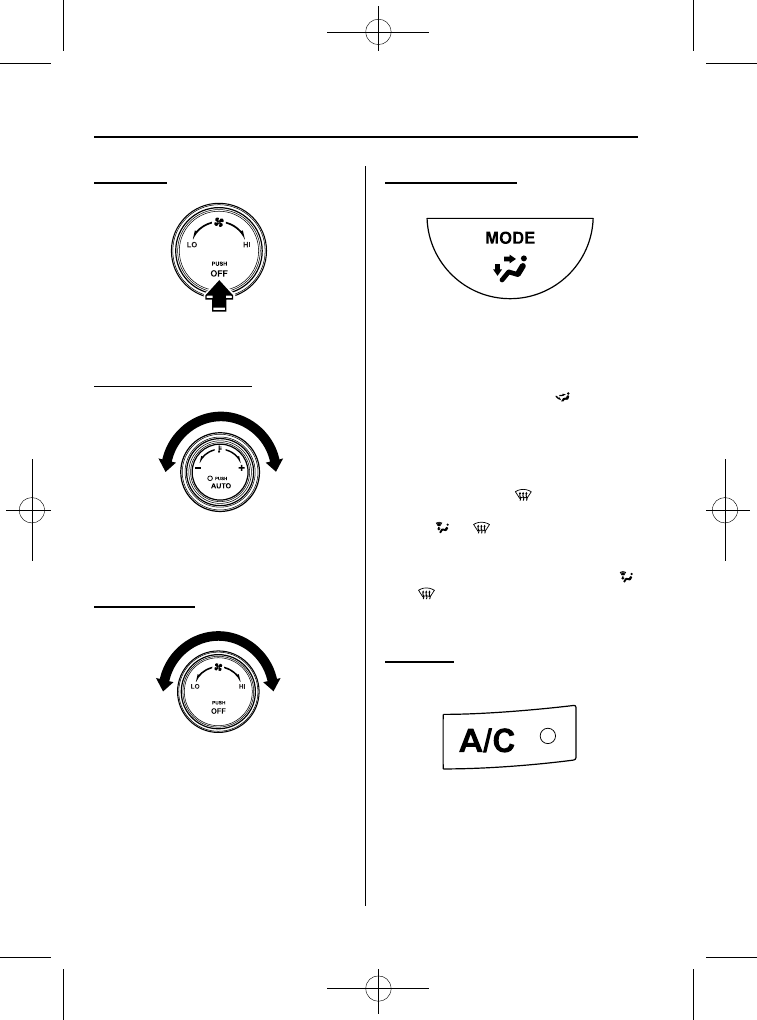

OFF switch

Pressing the OFF switch shuts off the
climate control system.

Temperature control dial

Cold

Hot

This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.

Fan control dial

Slow

Fast

The fan has seven speeds. The selected
speed will be displayed.

Mode selector switch

The desired airflow mode can be selected
(page 6-4).

NOTE

With the airflow mode set to

position

and the temperature control dial set at a
medium temperature, heated air is directed
to the feet and a comparably lower air
temperature will flow through the central,
left and right vents.

To set the air vent to

, press the

windshield defroster switch.

In the

position, the air

conditioner is automatically turned on and
the outside air mode is automatically
selected to defrost the windshield. In the
or

position, the outside air mode

cannot be changed to the recirculated air
mode.

A/C switch

6-6

Interior Comfort

Climate Control System

Mazda5_8FN4-EA-16G_Edition1 Page204
Monday, May 23 2016 7:35 PM

Black plate (205,1)

Pressing the A/C switch while the AUTO
switch is turned on will turn off the air-
conditioning (cooling/dehumidifying
functions). The air-conditioning can be
turned on and off by pressing the A/C
switch while the fan control dial is on.

NOTE

The air-conditioning operates when the A/C
switch is pressed even if the fan is off.

The air conditioner may not function when
the outside temperature approaches 0 °C
(32 °F).

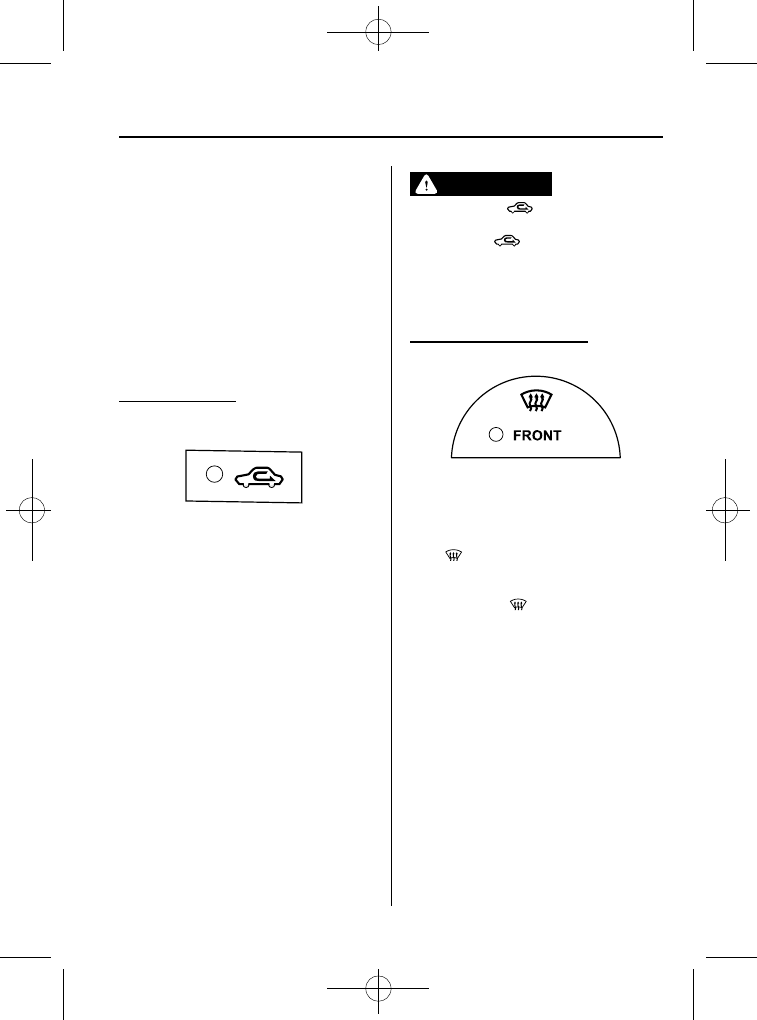

Air intake selector

Outside or recirculated air positions can
be selected. Press the switch to select
outside/recirculated air positions.

Recirculated air position (indicator
light illuminated)

Use this position when going through
tunnels, driving in congested traffic (high
engine exhaust areas) or when quick
cooling is desired.

Outside air position (indicator light
turned off)

Use this mode for ventilation or
windshield defrosting.

WARNING

Do not use the

position in cold or

rainy weather:

Using the

position in cold or

rainy weather is dangerous as it will
cause the windows to fog up. Your
vision will be hampered, which could
lead to a serious accident.

Windshield defroster switch

Press the switch to defrost the windshield
and front door windows.

NOTE

In the

position, the air conditioner is

automatically turned on and the outside air
mode is automatically selected to defrost the
windshield. In the

position, the outside air

mode cannot be changed to the recirculated
air mode.

Interior Comfort

Climate Control System

6-7

Mazda5_8FN4-EA-16G_Edition1 Page205
Monday, May 23 2016 7:35 PM

Black plate (206,1)

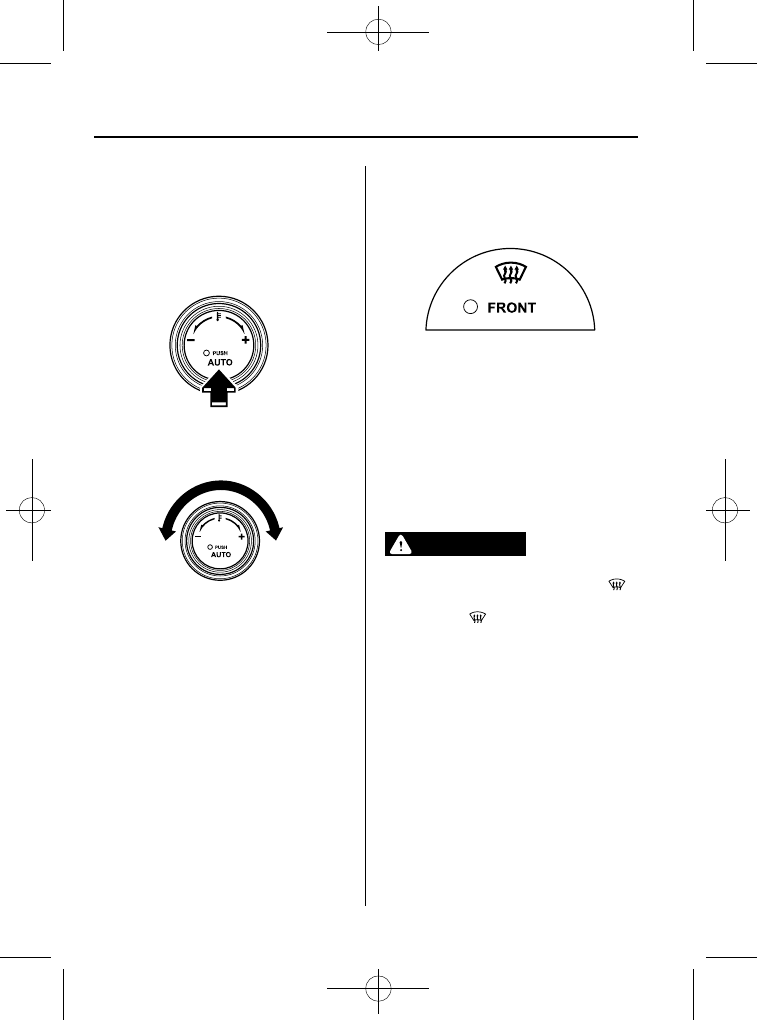

qOperation of Automatic Air-

conditioning

1. Press the AUTO switch. Selection of

the airflow mode, air intake selector
and amount of airflow will be
automatically controlled.

2. Use the temperature control dial to

select a desired temperature.

Cold

Hot

To turn off the system, press the OFF
switch.

NOTE

Setting the temperature to maximum high
or low will not provide the desired
temperature at a faster rate.

When selecting heat, the system will restrict
airflow until it has warmed to prevent cold
air from blowing out of the vents.

qWindshield Defrosting and Defogging

Press the windshield defroster switch.
In this position, the outside air position is
automatically selected, and the air
conditioner automatically turns on. The
air conditioner will directly dehumidify
the air to the front windshield and side
windows (page 6-4). Airflow amount will
be increased.

WARNING

Set the temperature control to the hot
or warm position when defogging (
position):

Using the

position with the

temperature control set to the cold
position is dangerous as it will cause
the outside of the windshield to fog
up. Your vision will be hampered,
which could lead to a serious
accident.

NOTE

Use the temperature control dial to increase
the air flow temperature and defog the
windshield more quickly.

6-8

Interior Comfort

Climate Control System

Mazda5_8FN4-EA-16G_Edition1 Page206
Monday, May 23 2016 7:35 PM

Black plate (207,1)

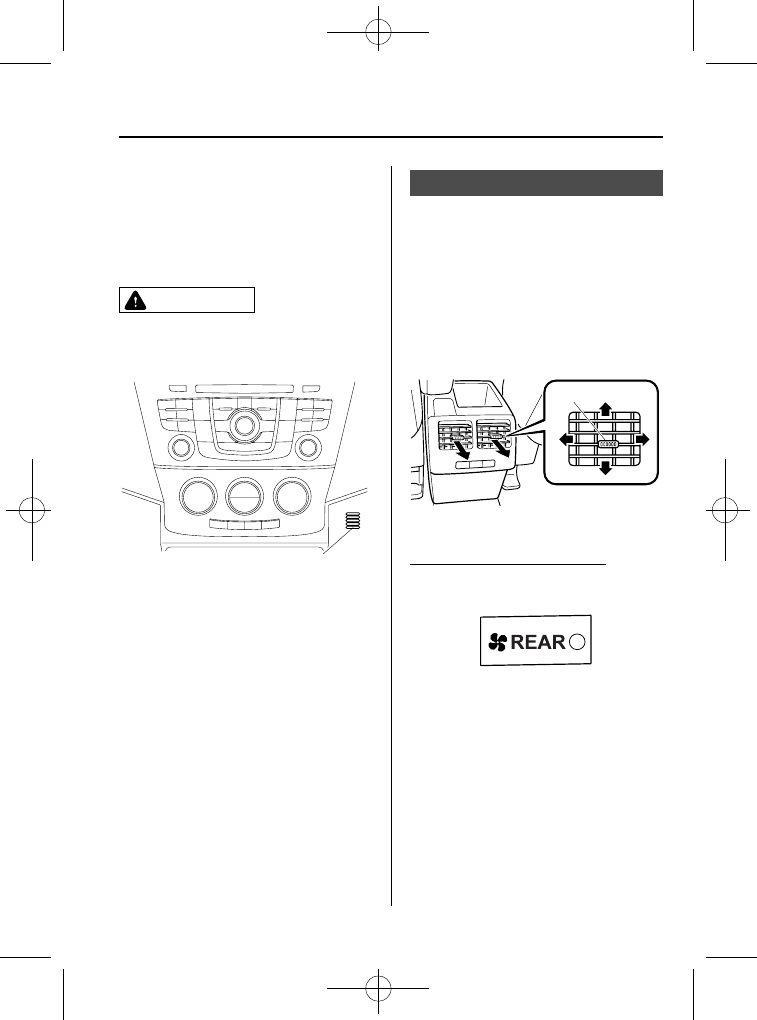

qTemperature Sensor

The fully automatic air conditioner uses
the temperature sensor to measure the
temperature inside the passenger
compartment. It then sets the passenger
compartment temperature accordingly.

CAUTION

Do not obstruct the temperature
sensor, otherwise the automatic air
conditioner will not operate properly.

Interior temperature sensor

Rear Ventilation System

The rear ventilation system only blows
cool air through the rear vents while the
front climate control system is on. It does
not blow air when the front climate
control is off. The rear vents blow either
outside air or recirculated air, depending
on the position in which the air intake
selector switch is set.
Front climate control is given priority
over the rear ventilation control.

Knob

qControl Switches

Rear ventilation control switch

To get air flowing through the rear vents,
first operate the fan control dial or turn on
the AUTO switch on the front climate
control operation panel. Then, switch on
the rear ventilation control switch on the
front climate control panel, or switch on
either the low or high rear vent button on
the rear console.

Interior Comfort

Climate Control System

6-9

Mazda5_8FN4-EA-16G_Edition1 Page207
Monday, May 23 2016 7:35 PM

Black plate (208,1)

Rear vent buttons

The rear vent switches adjust the airflow
volume flowing from the rear vent.
OFF: Fan off
LO: Low speed
HI: High speed

NOTE

Only cool or cold air (no heat) blows through
the rear vents while the front climate control is
on. Heat for the rear passengers comes from
under the front seats when the front heater is
on and set to floor mode.
When pressing the rear ventilation control
switch on the front control panel (with climate
control system on), the rear ventilation system
operates at low speed only. To change to high
speed, press the HI rear vent button.

6-10

Interior Comfort

Climate Control System

Mazda5_8FN4-EA-16G_Edition1 Page208
Monday, May 23 2016 7:35 PM

Black plate (209,1)

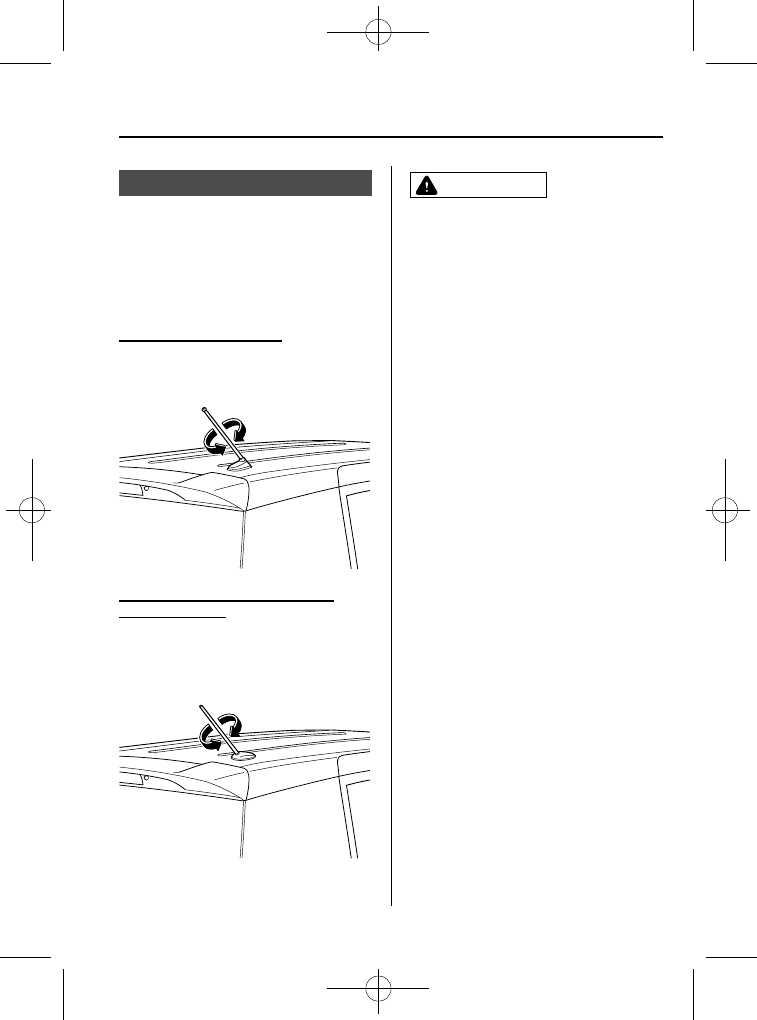

Antenna

qDetachable Type

To remove the antenna, turn it
counterclockwise.
To install the antenna, turn it clockwise.
Make sure the antenna is securely
installed.

AM/FM Radio Antenna

The AM/FM radio antenna receives both
AM and FM signals.

Install

Remove

Antenna for AM/FM and Satellite
Radio Antenna

The antenna for AM/FM and satellite
radio antenna receives both AM and FM
signals and SIRIUS signals.

Install

Remove

CAUTION

Ø To prevent damage to the

antenna, remove it before entering
a car wash facility or passing
beneath a low overhead clearance.

Ø Be careful around the antenna

when removing snow from the
roof. Otherwise the antenna could
be damaged.

NOTE

When leaving your vehicle unattended, we
recommend that you remove the antenna and
store it inside the vehicle.

Interior Comfort

Audio System

6-11

Some models.

Mazda5_8FN4-EA-16G_Edition1 Page209
Monday, May 23 2016 7:35 PM

Black plate (210,1)

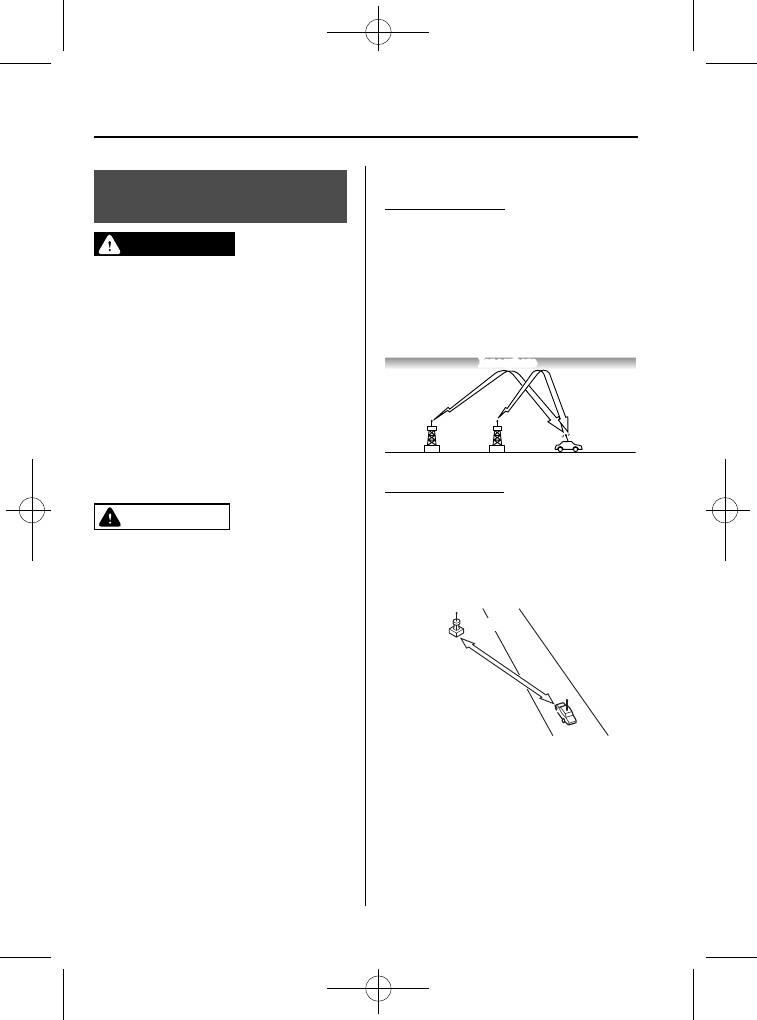

Operating Tips for Audio
System

WARNING

Do not adjust the audio control
switches while driving the vehicle:

Adjusting the audio while driving the
vehicle is dangerous as it could
distract your attention from the
vehicle operation which could lead to
a serious accident. Always adjust the
audio while the vehicle is stopped.
Even if the audio control switches are
equipped on the steering wheel, learn
to use the switches without looking
down at them so that you can keep
your maximum attention on the road
while driving the vehicle.

CAUTION

For the purposes of safe driving,
adjust the audio volume to a level
that allows you to hear sounds
outside of the vehicle including car
horns and particularly emergency
vehicle sirens.

NOTE

To prevent the battery from being
discharged, do not leave the audio system
on for a long period of time when the
engine is not running.

If a cellular phone or CB radio is used in
or near the vehicle, it could cause noise to
occur from the audio system, however, this
does not indicate that the system has been
damaged.

qRadio Reception

AM characteristics

AM signals bend around such things as
buildings or mountains and bounce off the
ionosphere. Therefore, they can reach
longer distances than FM signals. Because
of this, two stations may sometimes be
picked up on the same frequency at the
same time.

Station 2

Station 1

Ionosphere

FM characteristics

An FM broadcast range is usually about
40

―50 km (25―30 miles) from the

source. Because of extra coding needed to
break the sound into two channels, stereo
FM has even less range than monaural
(non-stereo) FM.

FM Station

40—50km
(25—30 miles)

6-12

Interior Comfort

Audio System

Mazda5_8FN4-EA-16G_Edition1 Page210
Monday, May 23 2016 7:35 PM

Black plate (211,1)

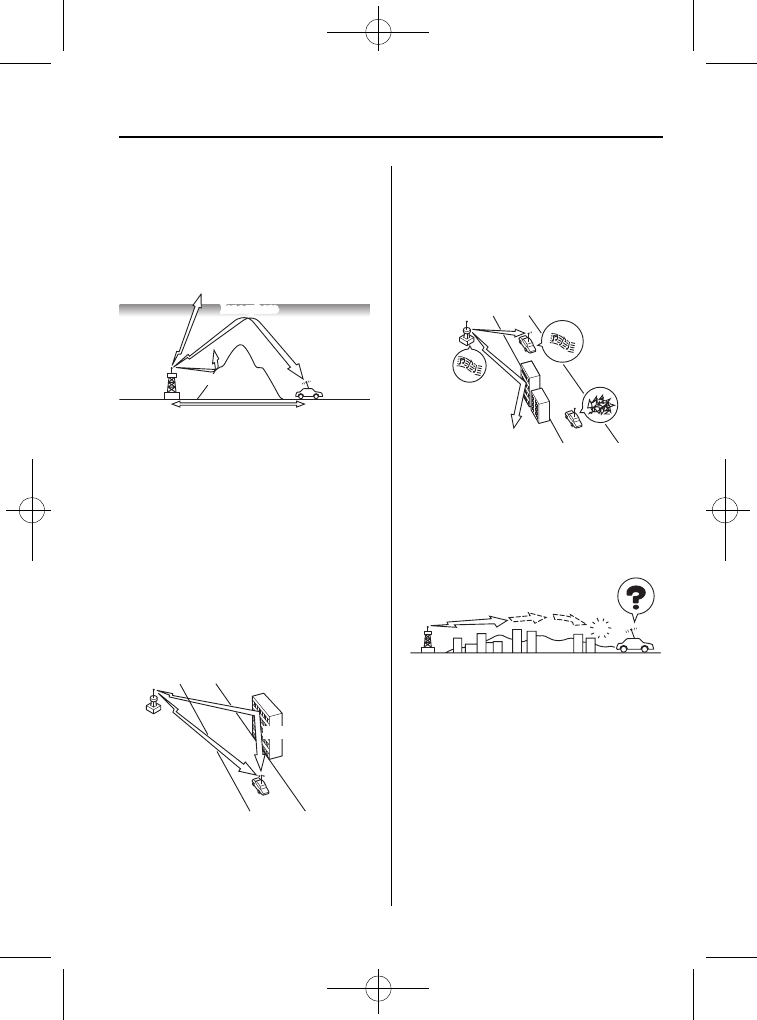

Signals from an FM transmitter are similar
to beams of light because they do not
bend around corners, but they do reflect.
Unlike AM signals, FM signals cannot
travel beyond the horizon. Therefore, FM
stations cannot be received at the great
distances possible with AM reception.

AM wave

FM wave

100—200 km (60—120 miles)

Ionosphere

Atmospheric conditions can also affect
FM reception. High humidity will cause
poor reception. However, cloudy days
may provide better reception than clear
days.

Multipath noise

Since FM signals can be reflected by
obstructions, it is possible to receive both
the direct signal and the reflected signal at
the same time. This causes a slight delay
in reception and may be heard as a broken
sound or a distortion. This problem may
also be encountered when in close
proximity to the transmitter.

Reflected wave

Direct

Flutter/Skip noise

Signals from an FM transmitter move in
straight lines and become weak in valleys
between tall buildings, mountains, and
other obstacles. When a vehicle passes
through such an area, the reception
conditions may change suddenly, resulting
in annoying noise.

Weak signal noise

In suburban areas, broadcast signals
become weak because of distance from
the transmitter. Reception in such fringe
areas is characterized by sound breakup.

Interior Comfort

Audio System

6-13

Mazda5_8FN4-EA-16G_Edition1 Page211
Monday, May 23 2016 7:35 PM

Black plate (212,1)

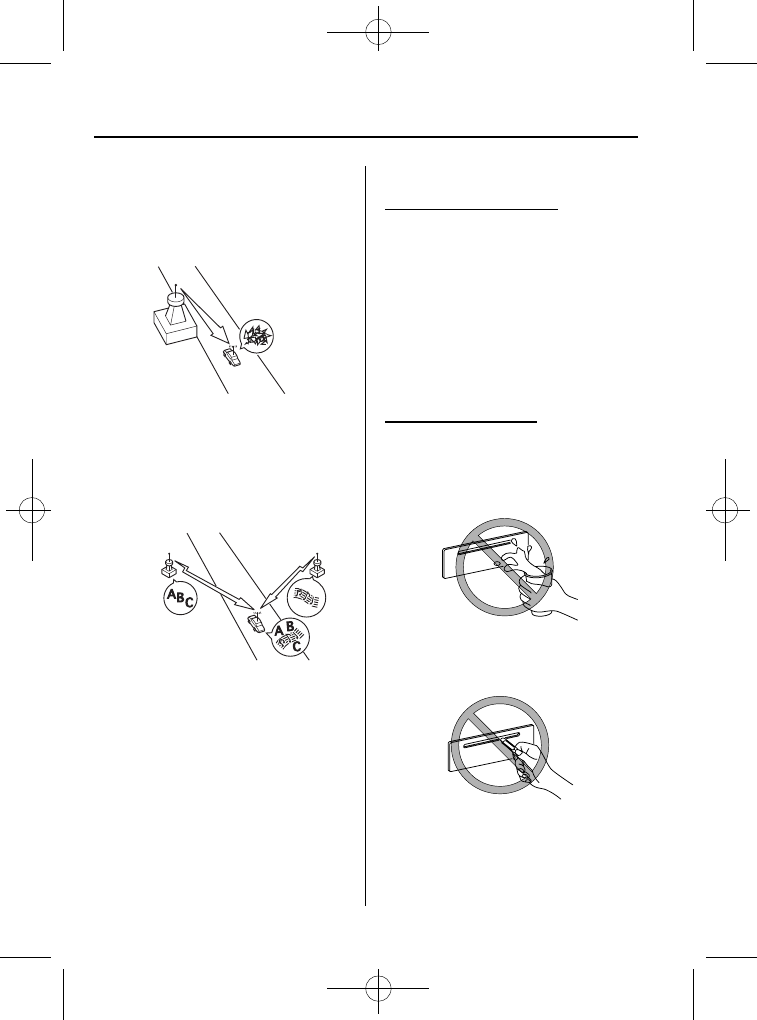

Strong signal noise

This occurs very close to a transmitter
tower. The broadcast signals are
extremely strong, so the result is noise and
sound breakup at the radio receiver.

Station drift noise

When a vehicle reaches the area of two
strong stations broadcasting at similar
frequencies, the original station may be
temporarily lost and the second station
picked up. At this time there will be some
noise from this disturbance.

Station 2
88.3 MHz

Station 1
88.1 MHz

qOperating Tips for CD Player

Condensation phenomenon

Immediately after turning on the heater
when the vehicle is cold, the CD or
optical components (prism and lens) in the
CD player may become clouded with
condensation. At this time, the CD will
eject immediately when placed in the unit.
A clouded CD can be corrected simply by
wiping it with a soft cloth. Clouded
optical components will clear naturally in
about an hour. Wait for normal operation
to return before attempting to use the unit.

Handling the CD player

The following precautions should be
observed.

Do not spill any liquid on the audio
system.

Do not insert any objects, other than
CDs, into the slot.

6-14

Interior Comfort

Audio System

Mazda5_8FN4-EA-16G_Edition1 Page212
Monday, May 23 2016 7:35 PM

Black plate (213,1)

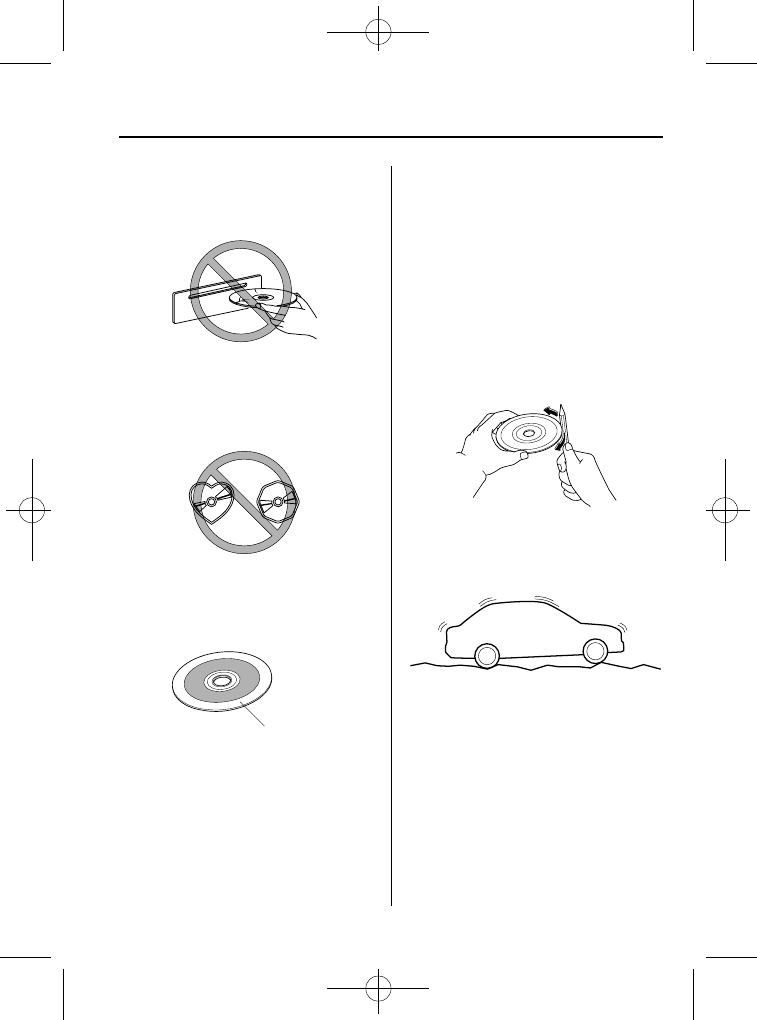

The CD revolves at high speed within
the unit. Defective (cracked or badly
bent) CDs should never be used.

Do not use non-conventional discs
such as heart-shaped, octagonal discs,
etc. The disc may not eject resulting in
a malfunction.

If the memory portion of the CD is
transparent or translucent, do not use
the disc.

Transparent

A new CD may have rough edges on
its inner and outer perimeters. If a disc
with rough edges is used, proper
setting will not be possible and the CD
player will not play the CD. In
addition, the disc may not eject
resulting in a malfunction. Remove the
rough edges in advance by using a ball-
point pen or pencil as shown in the
following. To remove the rough edges,
rub the side of the pen or pencil against
the inner and outer perimeter of the
CD.

When driving over uneven surfaces,
the sound may jump.

Interior Comfort

Audio System

6-15

Mazda5_8FN4-EA-16G_Edition1 Page213
Monday, May 23 2016 7:35 PM

Black plate (214,1)

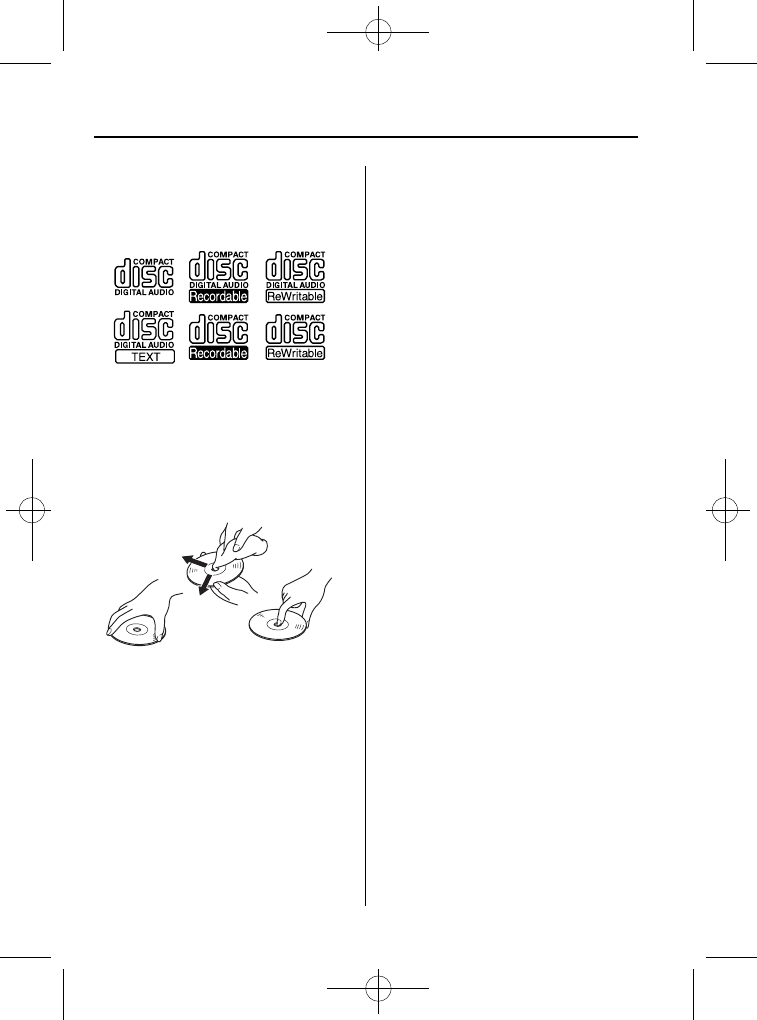

The CD player has been designed to
play CDs bearing the identification
logo as shown in the following. No
other discs can be played.

Use discs that have been legitimately
produced. If illegally-copied discs such
as pirated discs are used, the system
may not operate properly.

Be sure never to touch the signal
surface when handling the CDs. Pick
up a CD by grasping the outer edge or
the edge of the hole and the outer edge.

Do not stick paper or tape on the CD.
Avoid scratching the reverse side (the
side without a label). The disc may not
eject resulting in a malfunction.

Dust, finger smudges, and dirt can
decrease the amount of light reflected
from the signal surface, thus affecting
sound quality. If the CD should
become soiled, gently wipe it with a
soft cloth from the center of the CD to
the edge.

Do not use record sprays, antistatic
agents, or household spray cleaners.
Volatile chemicals such as benzine and
thinner can also damage the surface of
the CD and must not be used. Anything
that can damage, warp, or fog plastic
should never be used to clean CDs.

Insert discs one by one. If two discs are
inserted at the same time, the system
may not operate properly.

The CD player ejects the CD if the CD
is inserted upside down. Also dirty
and/or defective CDs may be ejected.

Do not insert cleaning discs in the CD
player.

Do not insert any disc with a peel-off
seal affixed to it.

This unit may not be able to play
certain CD-R/CD-RWs made using a
computer or music CD recorder due to
disc characteristics, scratches,
smudges, dirt, etc., or due to dust or
condensation on the lens inside the
unit.

Storing CDs in the vehicle exposed to
direct sunlight or high temperature may
damage the CD-R/CD-RWs, and make
them unplayable.

CD-R/CD-RW exceeding 700 MB
cannot be played.

This unit may not be able to play
certain discs made using a computer
due to the application (writing
software) setting used. (For details,
consult the store where the application
was purchased.)

It is possible that certain text data, such
as titles, recorded on a CD-R/CD-RW
may not be displayed when musical
data (CD-DA) is playing.

The period from when a CD-RW is
inserted to when it begins playing is
longer than a normal CD or CD-R.

6-16

Interior Comfort

Audio System

Mazda5_8FN4-EA-16G_Edition1 Page214
Monday, May 23 2016 7:35 PM

Black plate (215,1)

Completely read the instruction manual
and cautions for CD-R/CD-RWs.

Do not use discs with cellophane tape
adhering, partially peeled off labels, or
adhesive material exuding from the
edges of the CD label. Also, do not use
discs with a commercially-available
CD-R label affixed. The disc may not
eject resulting in a malfunction.

qOperating tips for MP3

NOTE

Supply of this product only conveys a license
for private, non-commercial use and does not
convey a license nor imply any right to use this
product in any commercial (i.e. revenue-
generating) real time broadcasting (terrestrial,
satellite, cable and/or any other media),
broadcasting/streaming via the Internet,
intranets and/or other networks or in other
electronic content distribution systems, such as
pay-audio or audio-on-demand applications.
An independent license for such use is
required. For details, please visit
http://www.mp3licensing.com.

This audio system handles MP3 files
that have been recorded on CD-R/CD-
RW/CD-ROMs. Discs that have been
recorded using the following formats
can be played:

ISO 9660 level 1

ISO 9660 level 2

Joliet extended format

Romeo extended format

This unit handles MP3 files
conforming to the MP3 format
containing both header frames and data
frames.

This unit can play multi-session
recorded discs that have up to 40
sessions.

This unit can play MP3s with sampling
frequencies of 8/11.025/12/16/22.05/
24/32/44.1/48 kHz.

This unit can play MP3 files that have
been recorded in bit rates of 8 kbps to
320 kbps. Nonetheless, to insure
enjoyment of music with consistent
sound quality, it is recommended to use
discs that have been recorded at a bit
rate of 128 kbps or more.

If a disc has both music data (CD-DA)
and MP3 files, playback of the two file
types differs depending on how the
disc was recorded.

Packet written discs cannot be played
on this unit.

This unit does not play CDs recorded
using MP3i (MP3 interactive), MP3
PRO and RIFF MP3 formats.

Interior Comfort

Audio System

6-17

Mazda5_8FN4-EA-16G_Edition1 Page215
Monday, May 23 2016 7:35 PM

Content .. 11 12 13 14 ..
