EPB manual release

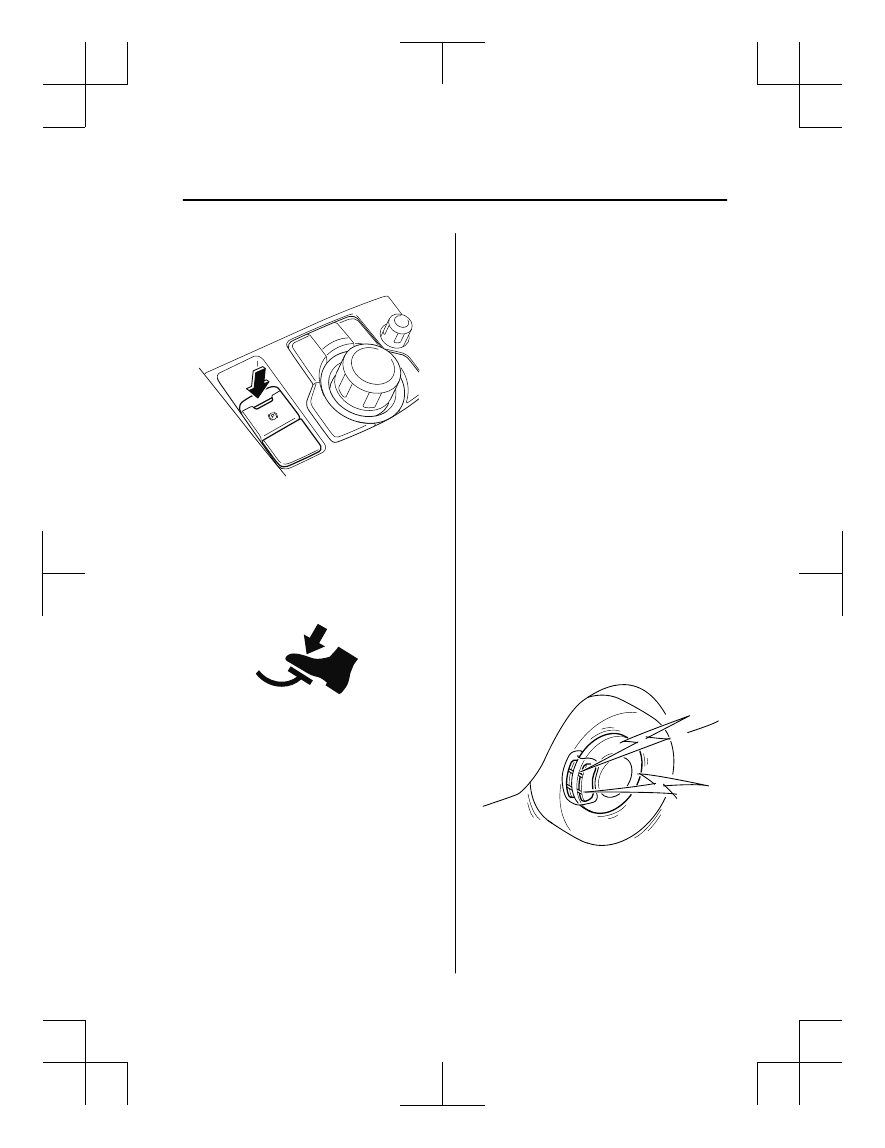

Firmly depress the brake pedal and press
the EPB switch.

If the EPB switch is pressed without
depressing the brake pedal, the indicator
light in the instrument cluster notifies the
driver that the brake is not depressed.
The brake pedal operation demand
indicator light in the instrument cluster
turns on.

EPB automatic release

If the accelerator pedal is depressed with
the EPB applied and all of the following
conditions met, the parking brake is
released automatically.



The engine is running.



The driver's door is closed.



The driver's seat belt is fastened.

(Manual transaxle)



The change lever is in a position other
than neutral.



The clutch pedal is depressed halfway

(Automatic transaxle)



Selector lever is in the D, M, or R
position

NOTE
If something such as the driver's foot
contacts the accelerator pedal with the
engine running and the EPB applied, the
parking brake may be released
automatically. If you do not intend to drive
immediately, shift the change lever
(manual transaxle) to the neutral position,
or shift the selector lever (automatic
transaxle) to the P or N position.

▼ Warning Light

The warning light turns on when the
system has a malfunction.
Refer to Warning Lights on page 4-24.

▼ Brake Pad Wear Indicator

When the disc brake pads become worn,
the built-in wear indicators contact the
disc plates. This causes a screeching noise
to warn that the pads should be replaced.

When you hear this noise, consult an
Authorized Mazda Dealer as soon as
possible.

When Driving

Brake

4-63

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

WARNING

Do not drive with worn disc pads:
Driving with worn disc pads is dangerous.
The brakes could fail and cause a serious
accident. As soon as you hear a screeching
noise consult an Authorized Mazda Dealer.

▼ Brake Assist

During emergency braking situations
when it is necessary to depress the brake
pedal with greater force, the brake assist
system provides braking assistance, thus
enhancing braking performance.

When the brake pedal is depressed hard or
depressed more quickly, the brakes apply
more firmly.

NOTE



When the brake pedal is depressed hard
or depressed more quickly, the pedal
will feel softer but the brakes will apply
more firmly. This is a normal effect of
the brake assist operation and does not
indicate a malfunction.



When the brake pedal is depressed hard
or depressed more quickly, a motor/
pump operation noise may be heard.
This is a normal effect of the brake
assist and does not indicate a
malfunction.



The brake assist equipment does not
supersede the functionality of the
vehicle's main braking system.

Hill Launch Assist (HLA)

HLA is a function which assists the driver
in accelerating from a stop while on a
slope. When the driver releases the brake
pedal and depresses the accelerator pedal
while on a slope, the function prevents the
vehicle from rolling. The braking force is
maintained automatically after the brake
pedal is released on a steep grade.
For vehicles with a manual transaxle,
HLA operates on a downward slope when
the shift lever is in the reverse (R)
position, and on an upward slope when the
shift lever is in a position other than the
reverse (R) position.
For vehicles with an automatic transaxle,
HLA operates on a downward slope when
the selector lever is in the reverse (R)
position, and on an upward slope when the
selector lever is in a forward gear.

WARNING

Do not rely completely on HLA:
HLA is an auxiliary device for accelerating
from a stop on a slope. The system only
operates for about two seconds and
therefore, relying only on the system, when
accelerating from a stop is dangerous
because the vehicle may move (roll)
unexpectedly and cause an accident.
The vehicle could roll depending on the
vehicle's load or if it is towing something. In
addition, for vehicles with a manual
transaxle, the vehicle could still roll
depending on how the clutch pedal or the
accelerator pedal is operated.
Always confirm the safety around the
vehicle before starting to drive the vehicle.

When Driving

Brake

4-64

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

NOTE



HLA does not operate on a gentle slope.
In addition, the gradient of the slope on
which the system will operate changes
depending on the vehicle's load.



HLA does not operate if the parking
brake is applied, the vehicle has not
stopped completely, or the clutch pedal
is released.



While HLA is operating, the brake pedal
may feel stiff and vibrate, however, this
does not indicate a malfunction.



HLA does not operate while the
TCS/DSC indicator light is illuminated.
Refer to Warning/Indicator Lights on
page 4-23.



HLA does not turn off even if the DSC
OFF switch is pressed to turn off the
TCS/DSC.

When Driving

Brake

4-65

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

Antilock Brake System

(ABS)

The ABS control unit continuously
monitors the speed of each wheel. If one
wheel is about to lock up, the ABS
responds by automatically releasing and
reapplying that wheel's brake.

The driver will feel a slight vibration in
the brake pedal and may hear a chattering
noise from the brake system. This is
normal ABS system operation. Continue
to depress the brake pedal without
pumping the brakes.

The warning light turns on when the
system has a malfunction.
Refer to Warning Lights on page 4-24.

WARNING

Do not rely on ABS as a substitute for safe
driving:
The ABS cannot compensate for unsafe
and reckless driving, excessive speed,
tailgating (following another vehicle too
closely), driving on ice and snow, and
hydroplaning (reduced tire friction and
road contact because of water on the road
surface). You can still have an accident.

NOTE



Braking distances may be longer on
loose surfaces (snow or gravel, for
example) which usually have a hard
foundation. A vehicle with a normal
braking system may require less
distance to stop under these conditions
because the tires will build up a wedge
of surface layer when the wheels skid.



The sound of the ABS operating may be
heard when starting the engine or
immediately after starting the vehicle,
however, it does not indicate a
malfunction.

When Driving

ABS/TCS/DSC

4-66

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

Traction Control System

(TCS)

The Traction Control System (TCS)
enhances traction and safety by controlling
engine torque and braking. When the TCS
detects driving wheel slippage, it lowers
engine torque and operates the brakes to
prevent loss of traction.

This means that on a slick surface, the
engine adjusts automatically to provide
optimum power to the drive wheels,
limiting wheel spin and loss of traction.

The warning light turns on when the
system has a malfunction.
Refer to Warning Lights on page 4-24.

WARNING

Do not rely on the Traction Control System
(TCS) as a substitute for safe driving:
The Traction Control System (TCS) cannot
compensate for unsafe and reckless
driving, excessive speed, tailgating
(following another vehicle too closely), and
hydroplaning (reduced tire friction and
road contact because of water on the road
surface). You can still have an accident.

Use snow tires or tire chains and drive at
reduced speeds when roads are covered
with ice and/or snow:
Driving without proper traction devices on
snow and/or ice-covered roads is
dangerous. The Traction Control System
(TCS) alone cannot provide adequate
traction and you could still have an
accident.

NOTE
To turn off the TCS, press the DSC OFF
switch (page 4-69).

▼ TCS/DSC Indicator Light

This indicator light stays on for a few
seconds when the ignition is switched ON.
If the TCS or DSC is operating, the
indicator light flashes.

If the light stays on, the TCS, DSC or the
brake assist system may have a
malfunction and they may not operate
correctly. Take your vehicle to an
Authorized Mazda Dealer.

NOTE



In addition to the indicator light
flashing, a slight lugging sound will
come from the engine. This indicates
that the TCS/DSC is operating properly.



On slippery surfaces, such as fresh
snow, it will be impossible to achieve
high rpm when the TCS is on.

When Driving

ABS/TCS/DSC

4-67

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

Dynamic Stability Control

(DSC)

The Dynamic Stability Control (DSC)
automatically controls braking and engine
torque in conjunction with systems such as
ABS and TCS to help control side slip
when driving on slippery surfaces, or
during sudden or evasive maneuvering,
enhancing vehicle safety.

Refer to ABS (page 4-66) and TCS (page
4-67).

DSC operation is possible at speeds
greater than 20 km/h (12 mph).

The warning light turns on when the
system has a malfunction.
Refer to Warning Lights on page 4-24.

WARNING

Do not rely on the Dynamic Stability
Control as a substitute for safe driving:
The Dynamic Stability Control (DSC)
cannot compensate for unsafe and reckless
driving, excessive speed, tailgating
(following another vehicle too closely), and
hydroplaning (reduced tire friction and
road contact because of water on the road
surface). You can still have an accident.

CAUTION

The DSC may not operate correctly

unless the following are observed:

Use tires of the correct size specified for

your Mazda on all four wheels.

Use tires of the same manufacturer,

brand and tread pattern on all four
wheels.

Do not mix worn tires.

The DSC may not operate correctly when

tire chains are used or a temporary spare
tire is installed because the tire diameter
changes.

▼ TCS/DSC Indicator Light

This indicator light stays on for a few
seconds when the ignition is switched ON.
If the TCS or DSC is operating, the
indicator light flashes.

If the light stays on, the TCS, DSC or the
brake assist system may have a
malfunction and they may not operate
correctly. Take your vehicle to an
Authorized Mazda Dealer.

When Driving

ABS/TCS/DSC

4-68

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

▼ DSC OFF Indicator Light

This indicator light stays on for a few
seconds when the ignition is switched ON.
It also illuminates when the DSC OFF
switch is pressed and TCS/DSC is
switched off.
Refer to DSC OFF Switch on page 4-69.

If the light remains illuminated and the
TCS/DSC is not switched off, take your
vehicle to an Authorized Mazda Dealer.
The DSC may have a malfunction.

▼ DSC OFF Switch

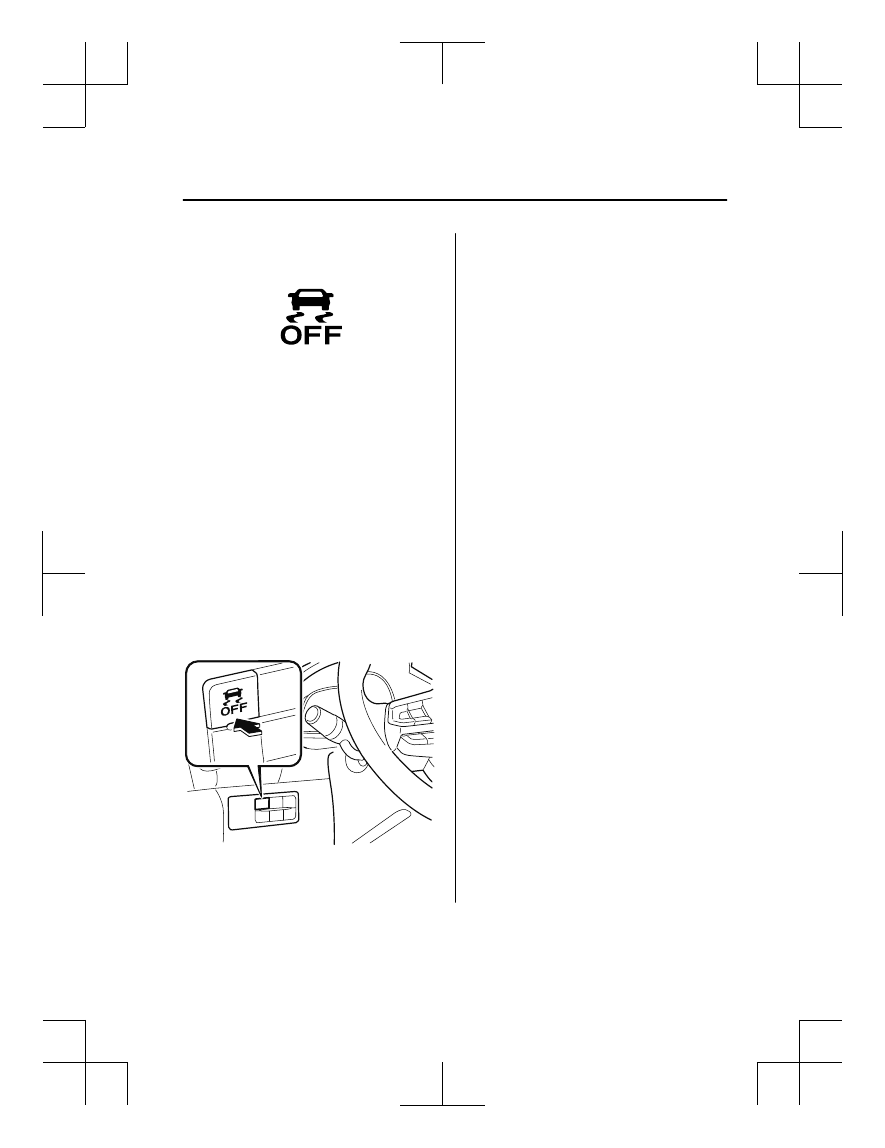

Press the DSC OFF switch to turn off the
TCS/DSC. The DSC OFF indicator light
in the instrument cluster will illuminate.

Press the switch again to turn the
TCS/DSC back on. The DSC OFF
indicator light will turn off.

NOTE



When DSC is on and you attempt to free
the vehicle when it is stuck, or drive it
out of freshly fallen snow, the TCS (part
of the DSC system) will activate.
Depressing the accelerator will not
increase engine power and freeing the
vehicle may be difficult. When this
happens, turn off the TCS/DSC.



If the TCS/DSC is off when the engine is
turned off, it automatically activates
when the ignition is switched ON.



Leaving the TCS/DSC on will provide
the best traction.



If the DSC OFF switch is pressed and
held for 10 seconds or more, the DSC
OFF switch malfunction detection
function operates and the DSC system
activates automatically. The DSC OFF
indicator light turns off while the DSC
system is operative.



(Vehicles with Smart City Brake
Support (SCBS))
If the Smart City Brake Support (SCBS)
operates with the TCS/DSC turned off,
the TCS/DSC becomes operational
automatically.

When Driving

ABS/TCS/DSC

4-69

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

i-ELOOP

*

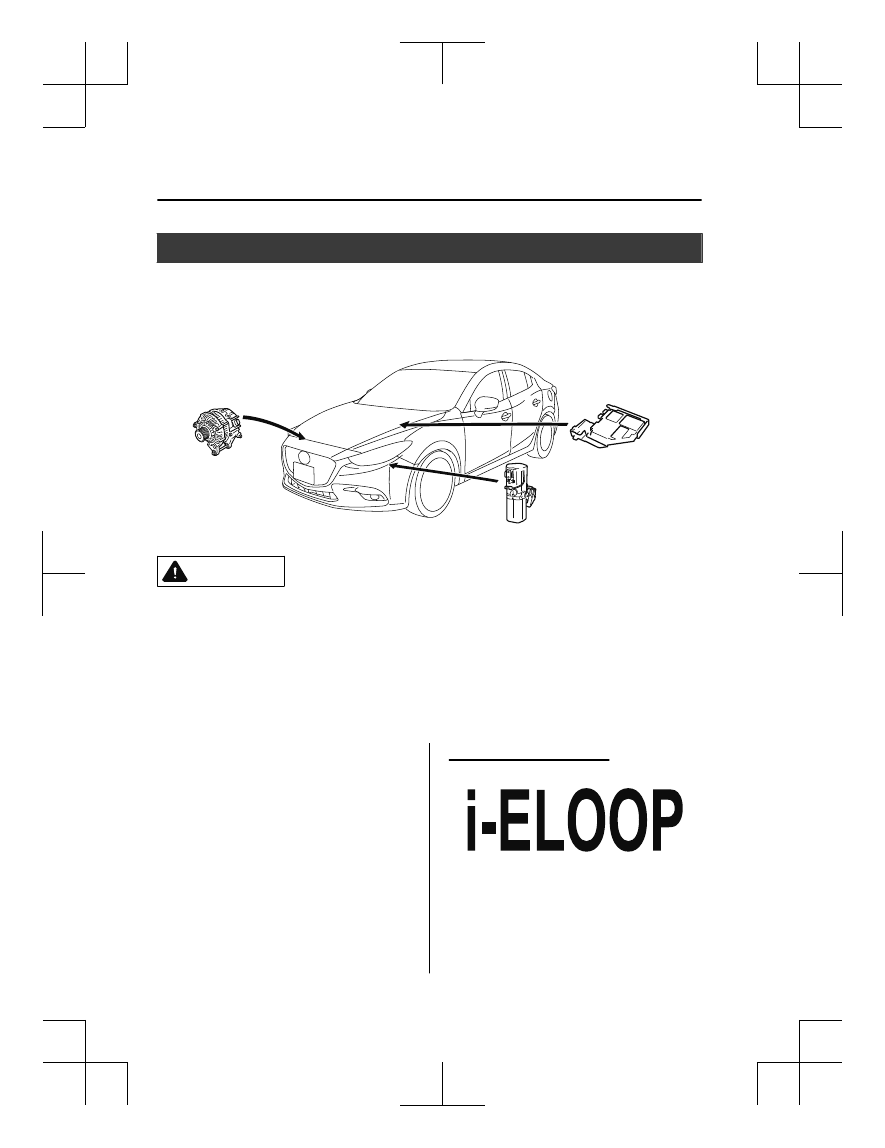

The i-ELOOP system suppresses engine load used for generating power and improves
driveability and fuel economy by generating electricity with the kinetic energy that is
generated when the vehicle slows down by applying the brakes or during engine braking.
Stores large amounts of electricity instantly and efficiently uses the electricity for electrical
devices and accessories.

Variable
voltage
alternator

Capacitor

DC-DC converter

CAUTION

High-current electricity flows through the following parts, therefore do not touch them.

Variable voltage alternator
DC-DC converter
Capacitor

If the capacitor is to be disposed of, always consult an Authorized Mazda Dealer.

For details, go to the following URL.
http://www.mazda.com/csr/environment/recycling

▼ i-ELOOP Indicator Light/Control

Status Display

The driver is notified of the i-ELOOP
power generating status and the vehicle
conditions by the i-ELOOP indicator light
and the control status display.

i-ELOOP Indicator Light



Illuminated (vehicle without type B
audio)

The light turns on during power
generation.

When Driving

i-ELOOP

4-70

*Some models.

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

Flashing

If the engine is started after the vehicle has
not been driven for a long period of time,
the i-ELOOP indicator light may flash.
Leave the engine idling and wait until the
indicator light turns off.

NOTE



The beep will sound if the vehicle is
driven while the i-ELOOP indicator
light is flashing. In addition, if you turn
the steering wheel while the light is
flashing, it will feel heavier than
normal, but this does not indicate an
abnormality. Stop the vehicle in a safe
location with the engine running and do
not attempt to turn the steering wheel.
The steering operation will return to
normal after the i-ELOOP indicator
light stops flashing.



(Vehicles with type B audio)
A notification is displayed in the center
display and the i-ELOOP indicator light
flashes at the same time.
Refer to Warning Message Indicated on
Display on page 7-36.

Control status display (vehicles with
type B audio)

The i-ELOOP power generating status is
displayed in the center display.
Refer to Control Status Display on page
4-73.

When Driving

i-ELOOP

4-71

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

Fuel Economy Monitor

*

For vehicles with type B audio, the Control Status and Fuel Consumption are switched and
displayed by operating each icon in the display.
In addition, after completing a trip, the total energy efficiency to date is displayed in the
ending display when the ending display is turned on.

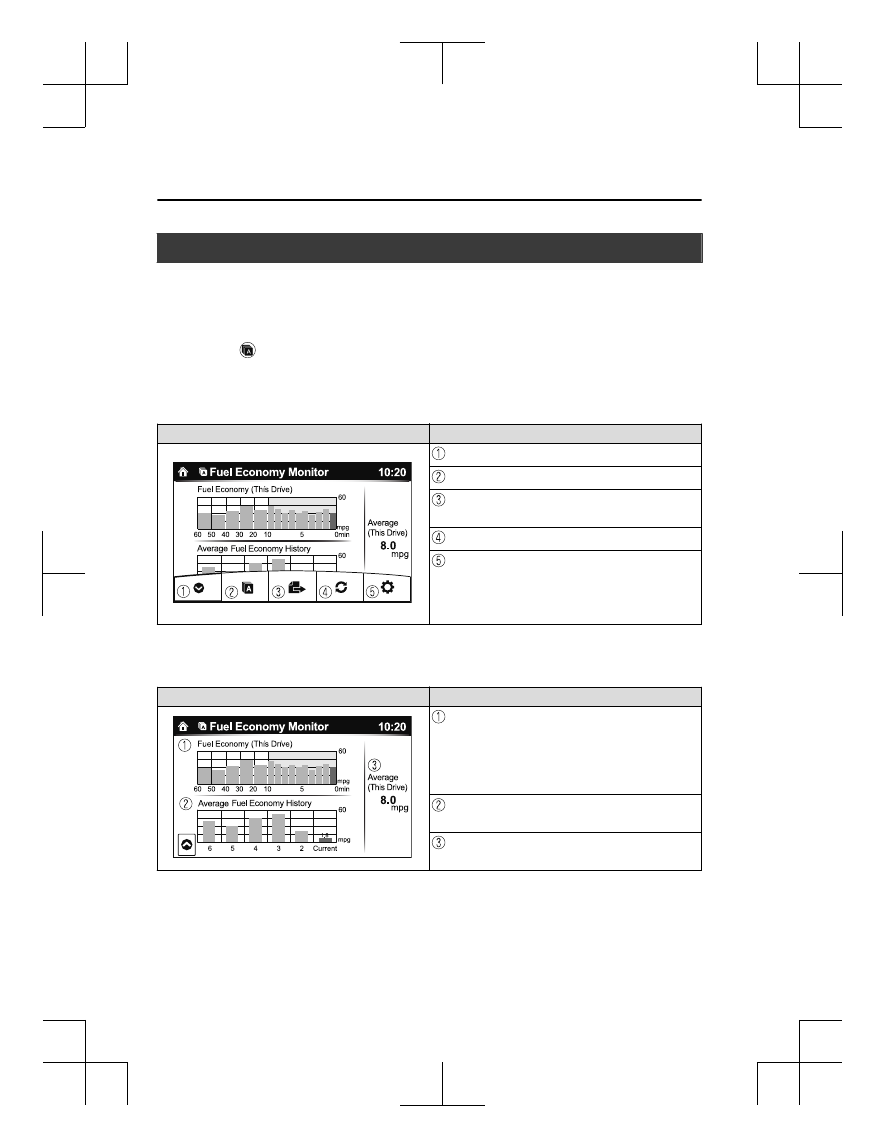

1. Select the   icon on the home screen to display the applications screen.
2. Select the “Fuel Economy Monitor”.
3. Operate the commander switch or touch the screen and display the menu.
4. Select the icon in the menu and perform the operation. Each icon operates as follows:

Indication on display

Control status

 Hides the menu display.

 Displays the application screen.

 Switches the Fuel Economy Monitor in the order of

Control Status and Fuel Consumption.

 Resets the fuel economy data.

 Displays the following setting screen.



Ending display on/off switching



On/off switching for function which synchronizes re-
set fuel economy data to trip meter (Trip A)

▼ Fuel Consumption Display

Information regarding the fuel economy is displayed.

Indication on display

Control status

 Displays the fuel economy for the past 60 minutes.



Displays the fuel economy every minute for the past 1
to 10 minutes.



Displays the fuel economy every 10 minutes for the
past 10 to 60 minutes.

 Displays the average fuel economy over the past 5

resets and after the current reset.

 Calculates the average fuel economy every minute

after vehicle travel begins, and displays it.

When Driving

Fuel Economy Monitor

4-72

*Some models.

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

NOTE



The fuel economy data can be reset by doing the following operation:



Press the reset switch from the menu screen.



When the function which synchronizes the fuel economy monitor and the trip meter is
on, reset trip A of the trip meter.



Delete the average fuel economy information displayed in the trip computer.



After resetting the fuel economy data, “-- -” is displayed while the average fuel economy
is calculated.

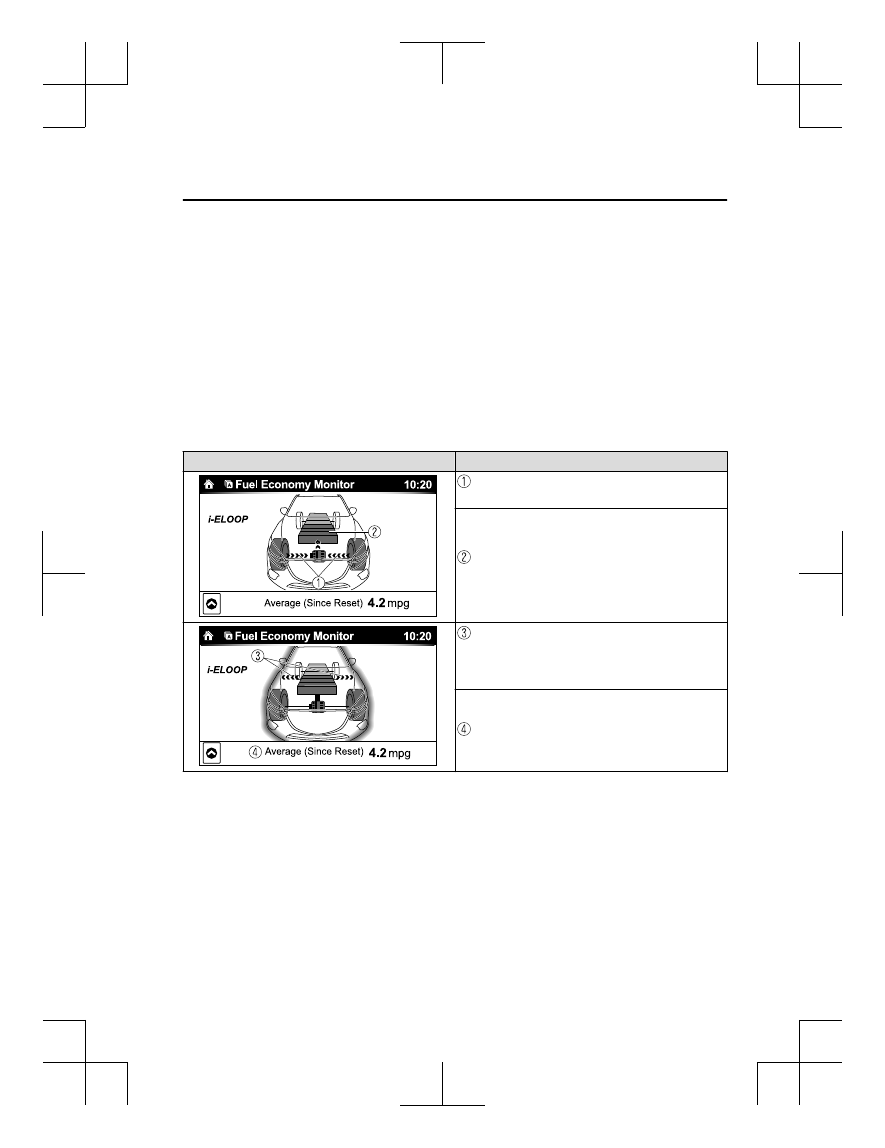

▼ Control Status Display

The power generating status is displayed

Indication on display

Control status

 Displays the level of electricity generated by regen-

erative braking.

 Displays the amount of the electricity stored in the

capacitor.

 Displays the status of the electricity stored in the

capacitor and being supplied to the electrical devices
(whole vehicle in display is illuminated simultaneous-
ly).

 Displays the accumulated fuel economy.

▼ Ending Screen Display

If the ending display on the fuel economy monitor is on when the ignition is switched from
ON to OFF, the information regarding the fuel economy is displayed.

When Driving

Fuel Economy Monitor

4-73

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

Drive Selection

*

Drive selection is a system to switch the vehicle's drive mode. When the sport mode is
selected, vehicle's response against accelerator operation is enhanced. This provides
additional quick acceleration which may be needed to safely make maneuvers such as lane
changes, merging onto freeways, or passing other vehicles.

CAUTION

Do not use the sport mode when driving on slippery roads such as wet or snow-covered roads.
It may cause tire slipping.

NOTE



When the sport mode is selected, driving at higher engine speeds increases and it may
increase fuel consumption. Mazda recommends that you cancel the sport mode on normal
driving.



Drive mode cannot be switched in the following conditions:



ABS/TCS/DSC is operating



The Mazda Radar Cruise Control (MRCC) system/cruise control is operating.



Steering wheel is being operated abruptly

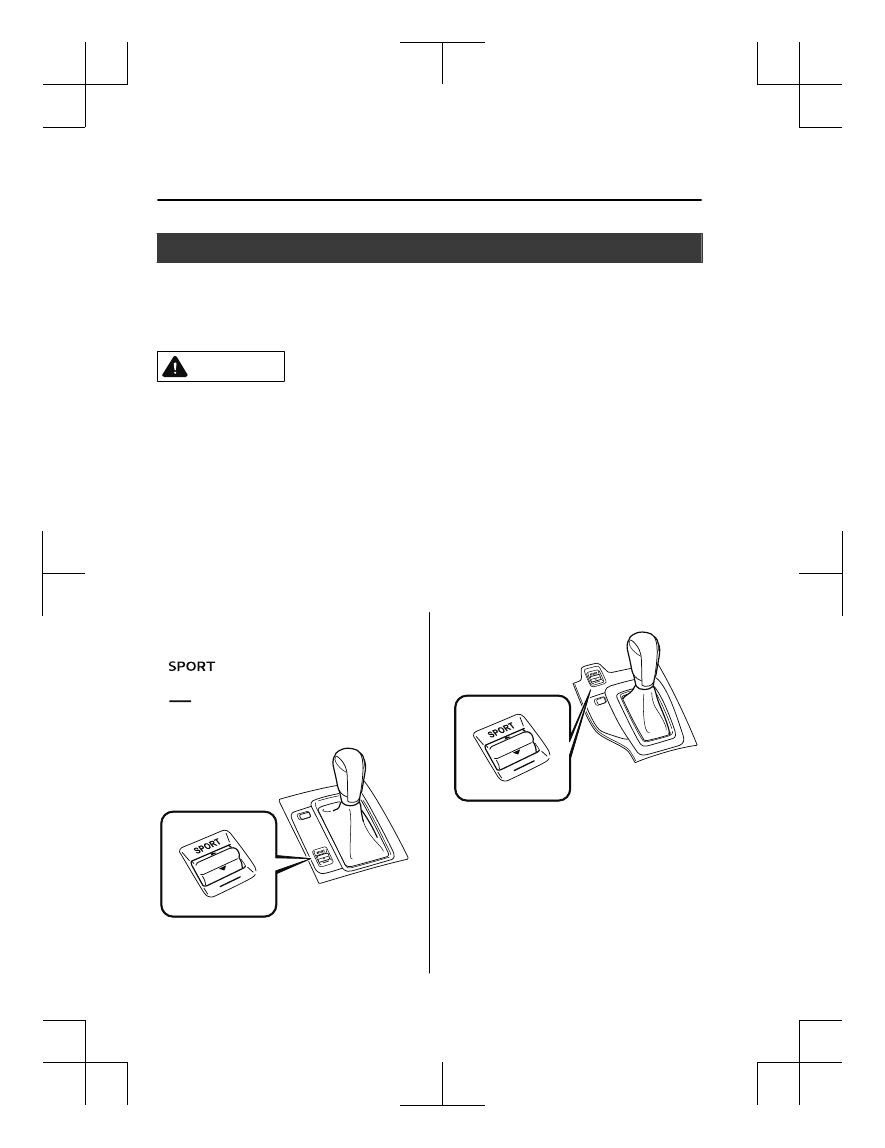

▼ Drive Selection Switch

Press the drive selection switch forward
(“

”) to select the sport mode.

Pull the drive selection switch back
(“

”) to cancel the sport mode.


With Electric Parking Brake (EPB)

Without Electric Parking Brake (EPB)

NOTE



When the ignition is switched off, the
sport mode is canceled.



Depending on the driving conditions
when sport mode is selected, the vehicle
may perform shift-down or slightly
accelerate.

When Driving

Drive Selection

4-74

*Some models.

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

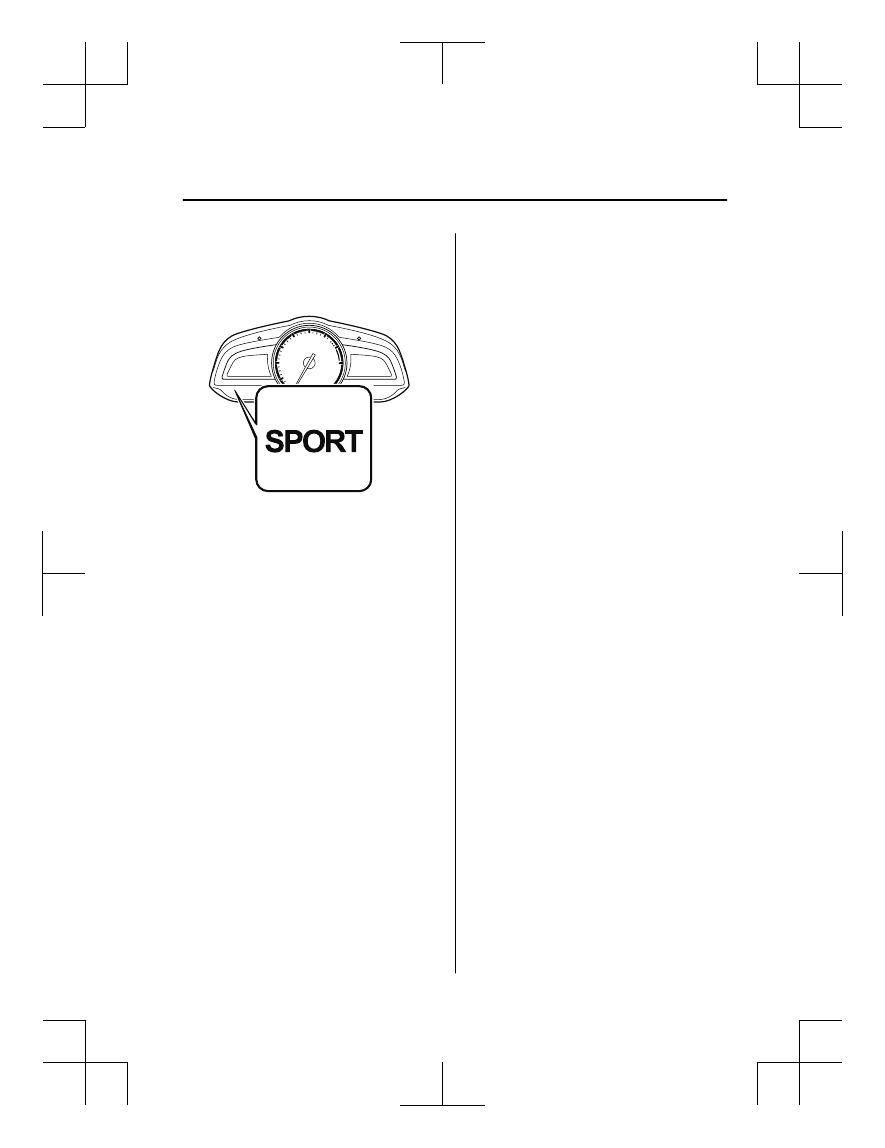

▼ Select Mode Indicator Light

When the sport mode is selected, the select
mode indicator light turns on in the
instrument cluster.

NOTE
If the drive selection cannot be switched to
sport mode, the select mode indicator light
flashes to notify the driver.

When Driving

Drive Selection

4-75

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

Power Steering



Power steering is only operable when
the engine is running. If the engine is off
or if the power steering system is
inoperable, you can still steer, but it
requires more physical effort.
If the steering feels stiffer than usual
during normal driving or the steering
vibrates, consult an Authorized Mazda
Dealer.



The warning light notifies the driver of
system abnormalities and operation
conditions.
In addition, the buzzer may also activate
depending on the system abnormality or
operation condition.
Refer to Warning Lights on page 4-24.
Refer to Power Steering Warning
Buzzer on page 7-41.

CAUTION

Never hold the steering wheel to the
extreme left or right for more than 5
seconds with the engine running. This
could damage the power steering system.

When Driving

Power Steering

4-76

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

i-ACTIVSENSE

i-ACTIVSENSE is a collective term covering a series of advanced safety and driver support
systems which make use of a Forward Sensing Camera (FSC) and radar sensors. These
systems consist of active safety and pre-crash safety systems.
These systems are designed to assist the driver in safer driving by reducing the load on the
driver and helping to avert collisions or reduce their severity. However, because each system
has its limitations, always drive carefully and do not rely solely on the systems.

▼ Active Safety Technology

Active Safety Technology supports safer driving by helping the driver to recognize potential
hazards and avert accidents.

Driver awareness support systems

Nighttime visibility

Adaptive Front Lighting System (AFS)..................................................................... page 4-80
High Beam Control System (HBC)............................................................................page 4-81

Left/right side and rear side detection

Lane Departure Warning System (LDWS)...............................................................page 4-113
Blind Spot Monitoring (BSM)................................................................................... page 4-84

Road sign recognition

Traffic Sign Recognition System (TSR).................................................................... page 4-90

Inter-vehicle distance recognition

Distance Recognition Support System (DRSS)......................................................... page 4-96

Rear obstruction detection when leaving a parking space

Rear Cross Traffic Alert (RCTA)............................................................................... page 4-98

Driver support systems

Inter-vehicle distance

Mazda Radar Cruise Control (MRCC).................................................................... page 4-102

Lane departure

Lane-keep Assist System (LAS)...............................................................................page 4-113

When Driving

i-ACTIVSENSE

4-77

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21

▼ Pre-Crash Safety Technology

Pre-crash safety technology is designed to assist the driver in averting collisions or reduce
their severity in situations where they cannot be avoided.

Collision damage reduction in low vehicle speed range

Forward driving

Smart City Brake Support (SCBS).......................................................................... page 4-124

Collision damage reduction in medium/high speed range

Smart Brake Support (SBS).....................................................................................page 4-128

▼ Camera and Sensors

Forward Sensing Camera (FSC)

The Forward Sensing Camera (FSC) detects lane indications and recognizes headlights,
taillights and city lights during nighttime driving. In addition, it also detects the vehicle
ahead, pedestrians, or obstructions. The following systems also use the Forward Sensing
Camera (FSC).



High Beam Control system (HBC)



Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS)



Traffic Sign Recognition System (TSR)



Smart City Brake Support (SCBS)



Smart Brake Support (SBS)

The Forward Sensing Camera (FSC) is installed at the top of the windshield near the
rearview mirror.
Refer to Forward Sensing Camera (FSC) on page 4-131.

Radar sensor (front)

The radar sensor (front) functions by detecting the radio waves reflected off a vehicle ahead
sent from the radar sensor. The following systems also use the radar sensor (front).



Mazda Radar Cruise Control (MRCC)



Distance Recognition Support System (DRSS)



Smart Brake Support (SBS)

The radar sensor (front) is mounted behind the radiator grille.
Refer to Radar Sensor (Front) on page 4-136.

When Driving

i-ACTIVSENSE

4-78

Mazda3_8GE4-EA-17F_Edition1

2017-4-7 11:59:21
