Interior Features

Audio Set [Type B (touchscreen)]

Icon

Function

Advances to the beginning of the next song.
Long-press to fast forward.

Displays sound settings to adjust audio quality level.
Refer to Volume/Display/Sound Controls on page 5-86 .

NOTE

If a

¿ le name in the USB memory is too long, it could cause operation problems such

as not being able to playback the song.

(Recommended: Within 80 characters)

To move to the desired location on the track, move the slider indicating the playback

time.

The appearance of the repeat and shuf

À e icons changes depending on the type of

operation in which the function is used.

Category list

Select the

icon to display the following category list.

Select a desired category and item.

Category

Function

Playlist

Displays playlists on the device.

Artist

Displays the artist name list.
All the tracks or tracks for each album of the selected artist can be played.

Album

Displays the album name list.

Song

All the tracks in the device are displayed.

Genre

Displays the genre list.
All the tracks or tracks per album or artist in the selected genre can be played.

Audiobook

Displays the audiobook list.
Chapters can be selected and played.

Podcast

Displays the podcast list.
Episode can be selected and played.

Folder

Displays the folder/

¿ le list.

   *1   Playlist folders of Apple devices are not supported.
*2   Apple  device  only
*3   USB-Sticks  and  USB-Android

™

device only

5–103

Interior Features

Audio Set [Type B (touchscreen)]

Example of use (to play all tracks in
USB device)

(Method 1)

1. Select

to display the category list.

2. Select

All the tracks in the USB device are
displayed.

3. Select a desired track.

The selected track is played. All the
tracks in the USB device can be played
by continuing playback.

NOTE

Only the tracks in the desired category
selected in Step 2 are played.

(Method 2)

1. Select

to display the category list.

2. Select

All the folders in the USB device are
displayed.

3. Select

All the tracks in the USB device are
displayed.

4. Select a desired track.

The selected track is played. All the
tracks in the USB device can be played
by continuing playback.

*1 Can be operated using an Android

™

device or USB

À ash memory.

NOTE

Only the tracks in the desired folder
selected in Step 3 are played.

5–104

Interior Features

Audio Set [Type B (touchscreen)]

Gracenote Database

When a USB device is connected to this unit and the audio is played, the album name,
artist name, genre and title information are automatically displayed if there is a match in
the vehicle's database compilation to the music being played. The information stored in this
device uses database information in the Gracenote music recognition service.

CAUTION

For information related to the most recent Gracenote database which can be used and how
to install it, go to the Mazda Hands Free Website:
http://www.mazdahandsfree.com

Introduction

Music recognition technology and related data are provided by Gracenote

. Gracenote is the

industry standard in music recognition technology and related content delivery. For more
information visit www.gracenote.com.

  CD and music-related data from Gracenote, Inc., copyright © 2000 to present Gracenote.
  Gracenote Software, copyright © 2000 to present Gracenote. One or more patents owned
by Gracenote apply to this product and service. See the Gracenote website for a non-
exhaustive list of applicable Gracenote patents. Gracenote, CDDB, MusicID, MediaVOCS,
the Gracenote logo and logotype, and the “Powered by Gracenote” logo are either registered
trademarks or trademarks of Gracenote in the United States and/or other countries.

Gracenote

End User License Agreement

This application or device contains software from Gracenote, Inc. of Emeryville, California
(“Gracenote”). The software from Gracenote (the “Gracenote Software”) enables this
application to perform disc and/or

¿ le identi¿ cation and obtain music-related information,

including name, artist, track, and title information (“Gracenote Data”) from online servers
or embedded databases (collectively, “Gracenote Servers”) and to perform other functions.
You may use Gracenote Data only by means of the intended End-User functions of this
application or device.

5–105

Interior Features

Audio Set [Type B (touchscreen)]

  You agree that you will use Gracenote Data, the Gracenote Software, and Gracenote Servers
for your own personal non-commercial use only. You agree not to assign, copy, transfer or
transmit the Gracenote Software or any Gracenote Data to any third party. YOU AGREE
NOT TO USE OR EXPLOIT GRACENOTE DATA, THE GRACENOTE SOFTWARE, OR
GRACENOTE SERVERS, EXCEPT AS EXPRESSLY PERMITTED HEREIN.
  You agree that your non-exclusive license to use the Gracenote Data, the Gracenote
Software, and Gracenote Servers will terminate if you violate these restrictions. If your
license terminates, you agree to cease any and all use of the Gracenote Data, the Gracenote
Software, and Gracenote Servers. Gracenote reserves all rights in Gracenote Data, the
Gracenote Software, and the Gracenote Servers, including all ownership rights. Under no
circumstances will Gracenote become liable for any payment to you for any information
that you provide. You agree that Gracenote, Inc. may enforce its rights under this Agreement
against you directly in its own name.
  The Gracenote service uses a unique identi

¿ er to track queries for statistical purposes. The

purpose of a randomly assigned numeric identi

¿ er is to allow the Gracenote service to count

queries without knowing anything about who you are. For more information, see the web
page for the Gracenote Privacy Policy for the Gracenote service.
The Gracenote Software and each item of Gracenote Data are licensed to you “AS IS.”
Gracenote makes no representations or warranties, express or implied, regarding the
accuracy of any Gracenote Data from in the Gracenote Servers. Gracenote reserves the right
to delete data from the Gracenote Servers or to change data categories for any cause that
Gracenote deems suf

¿ cient. No warranty is made that the Gracenote Software or Gracenote

Servers are error-free or that functioning of Gracenote Software or Gracenote Servers will
be uninterrupted. Gracenote is not obligated to provide you with new enhanced or additional
data types or categories that Gracenote may provide in the future and is free to discontinue
its services at any time.
GRACENOTE DISCLAIMS ALL WARRANTIES EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND
NON-INFRINGEMENT. GRACENOTE DOES NOT WARRANT THE RESULTS THAT
WILL BE OBTAINED BY YOUR USE OF THE GRACENOTE SOFTWARE OR ANY
GRACENOTE SERVER. IN NO CASE WILL GRACENOTE BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL DAMAGES OR FOR ANY LOST PROFITS OR
LOST REVENUES.
© 2000 to present. Gracenote, Inc.

5–107

Interior Features

Audio Set [Type B (touchscreen)]

Bluetooth

Introduction

Bluetooth

Hands-Free outline

When a Bluetooth

device (mobile phone) is connected to the vehicle's Bluetooth

unit via

radio wave transmission, a call can be made or received by pressing the talk button, pick-
up button, or hang-up button on the audio remote control switch, or by operating the centre
display. For example, even if a device (mobile phone) is in your coat pocket, a call can be
made without taking the device (mobile phone) out and operating it directly.

Bluetooth

audio outline

When a portable audio unit equipped with the Bluetooth

communication function is paired

to the vehicle, you can listen to music stored on the paired portable audio device from the
vehicle's speakers. It is not necessary to connect the portable audio device to the vehicle's
external input terminal. After programming, operate the vehicle audio control panel to play/
stop the audio.

NOTE

For your safety, a device can be paired only when the vehicle is parked. If the vehicle

starts to move, the pairing procedure will end. Park the vehicle in a safe place before
pairing.

The communication range of a Bluetooth

equipped device is about 10 meters (32 ft)

or less.

Basic audio operation is available using voice commands even if Bluetooth

is not

connected.

For safety reasons, operation of the centre display is disabled while the vehicle is being

driven. However, items not displayed in grey can be operated using the commander
switch while the vehicle is being driven.

5–109

Interior Features

Audio Set [Type B (touchscreen)]

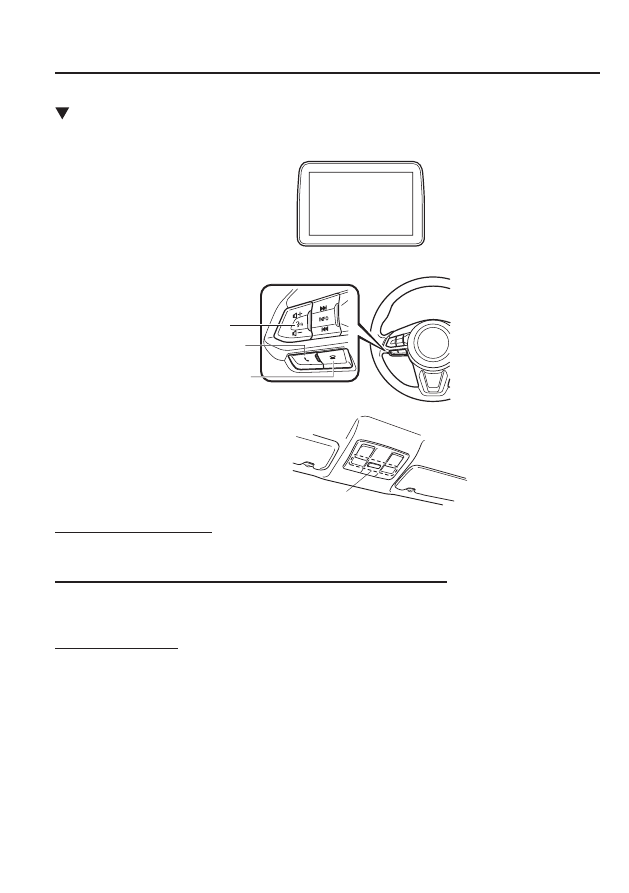

Component Parts

Microphone

Talk button, Pick-up button and Hang-up button

Microphone

Audio unit

Talk button

Hang-up button

Pick-up button

Microphone (hands-free)

The microphone is used for speaking voice commands or when making a Hands-free call.

Talk button, Pick-Up button and Hang-Up button (hands-free)

The basic functions of Bluetooth

Hands-Free can be used for such things as making calls or

hanging up using the talk, pick-up and hang-up buttons on the steering wheel.

Commander switch

The commander switch is used for volume adjustment and display operation. Tilt or turn the
commander knob to move the cursor. Press the commander knob to select the icon.

5–111

Interior Features

Audio Set [Type B (touchscreen)]

Bluetooth

Preparation

Device pairing

To use Bluetooth

audio and Hands-Free,

the device equipped with Bluetooth

has

to be paired to the unit using the following
procedure. A maximum of seven devices
including Bluetooth

audio devices and

hands-free mobile phones can be paired.

NOTE

The Bluetooth

system may not

operate for 1 or 2 minutes after the
ignition is switched to ACC or ON.
However, this does not indicate a
problem. If the Bluetooth

system

does not connect automatically after
1 or 2 minutes have elapsed, make
sure that the Bluetooth

setting on

the device is normal and attempt to
reconnect the Bluetooth

device from

the vehicle side.

If Bluetooth

-enabled devices are

used in the following locations
or conditions, connection via
Bluetooth

may not be possible.

The device is in a location hidden

from the centre display such as
behind or under a seat, or inside
the glove compartment.

The device contacts or is covered

by a metal object or body.

The device is set to power-saving

mode.

Pairing Procedure

1. Select the

icon on the home screen

to display the Settings screen.

2. Select the

tab.

3. Select

4. Turn the Bluetooth

setting on.

5. Select

to display the

message and switch to the device
operation.

6. Using your device, perform a search

for the Bluetooth

device (Peripheral

device).

7. Select “Mazda” from the device list

searched by the device.

8. (Device with Bluetooth

version 2.0)

Input the displayed 4-digit pairing code
into the device.

(Device with Bluetooth

version 2.1

or higher)

Make sure the displayed 6-digit code
on the audio is also displayed on the
device, and touch the

Connection permission and phonebook
access permission for your mobile
device may be required depending on
the mobile device.

9. If pairing is successful, the functions of

the device connected to Bluetooth

are

displayed.

10. (Devices compatible with Mazda

E-mail / SMS function)

SMS (Short Message Service)
messages, and E-mail for the device are
downloaded automatically. A download
permission operation for your device
may be required depending on the
device.

5–112

Interior Features

Audio Set [Type B (touchscreen)]

NOTE

When Call history and messages
are downloaded automatically, each
automatic download setting must be on.
Refer to Communication Settings on
page 5-133 .

After a device is registered, the system
automatically identi

¿ es the device. By

activating Bluetooth

Hands-Free again, or

by activating Bluetooth

Hands-Free

¿ rst

after switching the ignition from OFF to
ACC, the device connection condition is
indicated in the centre display.

IMPORTANT note about pairing and
automatic reconnection:

If pairing is redone on the same

mobile phone device,

¿ rst clear

“Mazda” displayed on the Bluetooth

setting screen of the mobile device.

When the OS of the device is updated,

the pairing information may be deleted.
If this happens, reprogramme the pairing
information to the Bluetooth

unit.

Before you pair your device, make sure

that Bluetooth

is “ON”, both on your

phone and on the vehicle.

Device selection

If several devices have been paired, the
Bluetooth

unit links the device last

paired. If you would like to link a different
paired device, it is necessary to change the
link. The order of device priority after the
link has been changed is maintained even
when the ignition is switched off.

Connecting other devices

1. Select the

icon on the home screen

to display the Settings screen.

2. Select the

tab.

3. Select

4. Turn the Bluetooth

setting on.

5. Select the name of the device you

would like to connect.

selection

Connects both devices as hands-free
and Bluetooth

audio.

selection

Connects as a hands-free device.

selection

Connects as Bluetooth

audio.

NOTE

The following functions can be used for
the Hands-free or audio.

Hands-free: Phone calls and E-mail/

SMS

Audio: Bluetooth

audio, Aha

™

Stitcher

™

radio

Disconnecting a device

1. Select the

icon on the home screen

to display the Settings screen.

2. Select the

tab.

3. Select

4. Turn the Bluetooth

setting on.

5. Select the device name which is

currently connected.

6. Select

5–113

Interior Features

Audio Set [Type B (touchscreen)]

*Some models.

Deleting a device

Selecting and deleting devices

1. Select the

icon on the home screen

to display the Settings screen.

2. Select the

tab.

3. Select

4. Turn the Bluetooth

setting on.

5. Select the device name which you

would like to delete.

6. Select

7. Select

Deleting all devices

1. Select the

icon on the home screen

to display the Settings screen.

2. Select the

tab.

3. Select

4. Select

5. Select

6. Select

Changing PIN code

PIN code (4 digits) can be changed.

1. Select the

icon on the home screen

to display the Settings screen.

2. Select the

tab.

3. Select

4. Select

5. Select

6. Input the new PIN code to be set.
7. Select

Available Language

The language can be changed.
Refer to Settings on page 5-137 .

NOTE

Depending on the language, it may only
be available for the screen display, but
not for the voice recognition.

5–114

Interior Features

Audio Set [Type B (touchscreen)]

Bluetooth

Audio

Applicable Bluetooth

speci

¿ cation

(Recommended)
Ver. 1.1/1.2/2.0 EDR/2.1 EDR/3.0
(conformity)
Response pro

¿ le

A2DP (Advanced Audio Distribution

Pro

¿ le) Ver. 1.0/1.2

AVRCP (Audio/Video Remote Control

Pro

¿ le) Ver. 1.0/1.3/1.4

A2DP is a pro

¿ le which transmits only

audio to the Bluetooth

unit. If your

Bluetooth

audio device corresponds

only to A2DP, but not AVRCP, you
cannot operate it using the control panel
of the vehicle's audio system. In this
case, only the operations on the mobile
device are available the same as when a
portable audio device for a non-compliant
Bluetooth

device is connected to the

AUX terminal.

Function

A2DP

AVRCP

Ver.

1.0

Ver. 1.3

Ver. 1.4

Playback

Pause

File (Track)
up/down

—

Reverse

—

Fast-forward

—

Text display

—

Repeat

—

Depends

on device

Depends

on device

Shuf

À e

—

Depends

on device

Depends

on device

Scan

—

Depends

on device

Depends

on device

Folder up/
down

—

Depends

on device

X: Available
—: Not available

NOTE

The battery consumption of

Bluetooth

audio devices increases

while Bluetooth

is connected.

If a general mobile phone device

is USB connected during music
playback over the Bluetooth

connection, the Bluetooth

connection is disconnected. For
this reason, you cannot have
music playback over a Bluetooth

connection and music playback using
a USB connection at the same time.

The system may not operate

normally depending on the
Bluetooth

audio device.

5–115

Interior Features

Audio Set [Type B (touchscreen)]

Switching to Bluetooth

audio mode

To listen to music or voice audio recorded to a Bluetooth

audio device, switch to the

Bluetooth

audio mode to operate the audio device using the audio system control panel.

Any Bluetooth

audio device must be paired to the vehicle's Bluetooth

unit before it can be

used.
Refer to Bluetooth

Preparation on page 5-111 .

1. Turn on the Bluetooth

audio device's power.

2. Switch the ignition to ACC or ON.

3. Select the

icon on the home screen to display the Entertainment screen.

4. When

is selected, switches to the Bluetooth

audio mode to begin playback.

NOTE

If Bluetooth

audio is used after using Aha

™

or Stitcher

™

radio, the application on the

mobile device has to be closed

¿ rst.

If the Bluetooth

audio device does not begin playback, select the

icon.

If the mode is switched from Bluetooth

audio mode to another mode (radio mode),

audio playback from the Bluetooth

audio device stops.

5–116

Interior Features

Audio Set [Type B (touchscreen)]

Playback

To listen to a Bluetooth

audio device over the vehicle's speaker system, switch the mode to

Bluetooth

audio mode. (Refer to “Switching to Bluetooth

audio mode”)

After switching to the Bluetooth

audio mode, the following icons are displayed in the

lower part of the display. Icons which can be used differ depending on the version of the
Bluetooth

audio device which you are currently using.

Icon

Function

Displays the Entertainment menu. Use to switch to a different audio source.

(AVRCP Ver. 1.4 only)
Displays the top level folder/

¿ le list.

Select the folder which you want to select.
The

¿ les in the selected folder are displayed.

Select the

¿ le you want to play.

  (AVRCP Ver. 1.3 or higher)
  Replays the song currently being played repeatedly.
  When selected again, the songs in the folder are played repeatedly.
  Select it again to cancel.
  Icons change when the song is repeated or the folder is repeated.

  (AVRCP Ver. 1.3 or higher)
  Plays songs in the folder in random order.
  When selected again, the songs on the device are played in random order.
  Select it again to cancel.
  Icons change during folder shuf

À e or device shufÀ e.

Scans the titles in a folder and plays the beginning of each song to aid in

¿ nding a desired

song.
When selected again, the beginning of each song on the device is played.
When selected again, the operation is cancelled and the song currently being played
continues.

Returns to the beginning of the previous song.
Long-press to fast reverse. It stops when you remove your hand from the icon or the
commander knob.

Plays the Bluetooth

audio. When selected again, playback is temporarily stopped.

Advances to the beginning of the next song.
Long-press to fast forward. It stops when you remove your hand from the icon or the
commander knob.

Displays sound settings to adjust audio quality level.
Refer to Volume/Display/Sound Controls on page 5-86 .

5–117

Interior Features

Audio Set [Type B (touchscreen)]

Bluetooth

Audio Device

Information Display

If a Bluetooth

audio device is connected,

the following information is displayed in
the centre display.

AVRCP

Ver. lower

than 1.3

AVRCP

Ver. 1.3

AVRCP

Ver. 1.4 or

higher

Device name

Remaining
battery
charge of
device

Song name

—

Artist name

—

Album name

—

Playback
time

—

Genre name

—

Album art

—

X: Available
—: Not available

NOTE

Some information may not display
depending on the device, and if the
information cannot be displayed,
“Unknown - - -” is indicated.

Mazda 2 (2017 year). Instruction - part 29
