Mazda 2 (2017 year). Instruction - part 15





4–90

When Driving

i-ELOOP

*Some models.

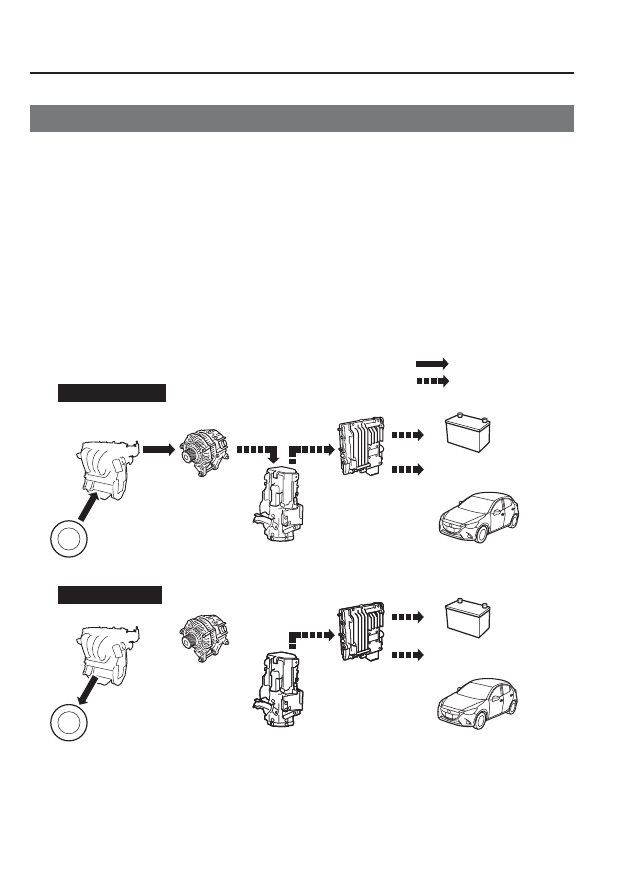

      i-ELOOP

*



              i-ELOOP  is  a  regenerative  braking  system.  When  you  depress  the  brake  pedal  or  use
engine braking, the kinetic energy that occurs is converted to electrical energy by the power
generator and the converted electrical energy is stored in the rechargeable battery (capacitor
and battery). The stored electricity is used as power to charge the battery and the vehicle's
electrical devices.





 A variable voltage alternator is incorporated in the power generator which converts

the kinetic energy to electricity and can generate electricity ef

¿ ciently according to the

vehicle conditions.



 A capacitor is used to store large amounts of electricity instantly which can be utilized

quickly.



 A DC-DC converter is incorporated which steps down the stored electricity to voltage

useable by the vehicle's electrical devices.





Vehicle electric
devices

Vehicle electric
devices

Accelerator OFF

Accelerator ON

Energy
regeneration

Charge

Battery

Battery

Power

Power

Engine

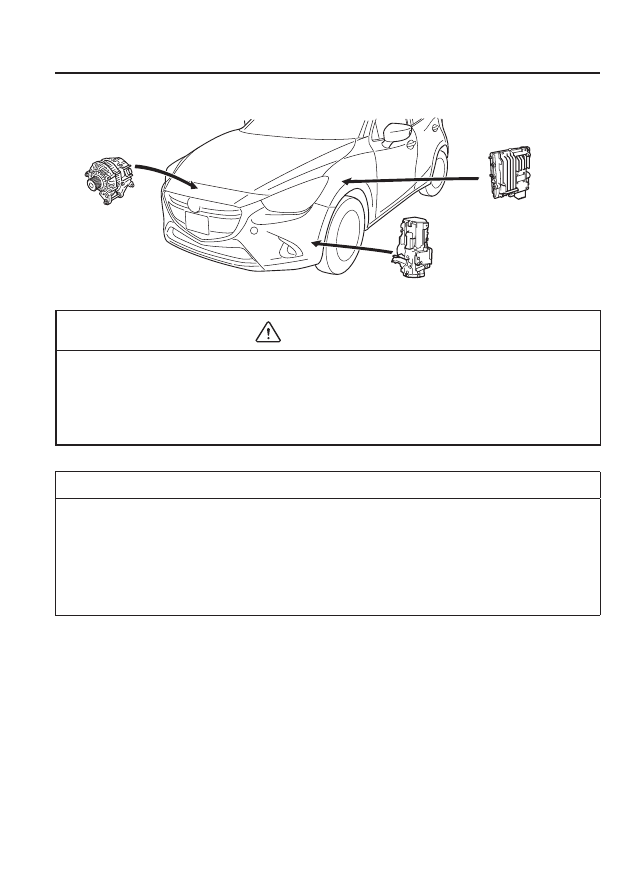

Variable
voltage
alternator

Variable
voltage
alternator

Engine

Tyre

Tyre

Capacitor

Capacitor

DC-DC converter

DC-DC converter

Kinetic energy
Electrical power



4–91

When Driving

i-ELOOP



Variable
voltage
alternator

Capacitor

DC-DC converter



 CAUTION

 High-current  electricity

À ows through the following parts, therefore do not touch them.





  Variable voltage alternator



 DC-DC converter



 Capacitor

 NOTE



  A difference in the fuel economy may occur depending on how the vehicle's electrical

devices are used.



  If the capacitor is to be disposed of, always consult an expert repairer, we recommend

an Authorised Mazda Repairer.



  For details, go to the following URL.



 http://www.mazda.com/csr/environment/recycling

4–92

When Driving

i-ELOOP

          i-ELOOP Indicator Light/Control

Status Display

              The driver is noti

¿ ed of the i-ELOOP

power generating status and the vehicle
conditions by the i-ELOOP indicator light
(green) and the control status display.

  i-ELOOP indicator light (green) (vehicle
without type B audio)







  The light turns on during power
generation.

  Control status display (vehicles with
type B audio)

    The i-ELOOP power generating status is
displayed in the centre display.
  Refer to Control Status Display on page
 4-95 .

4–93

When Driving

Fuel Economy Monitor

*Some models.

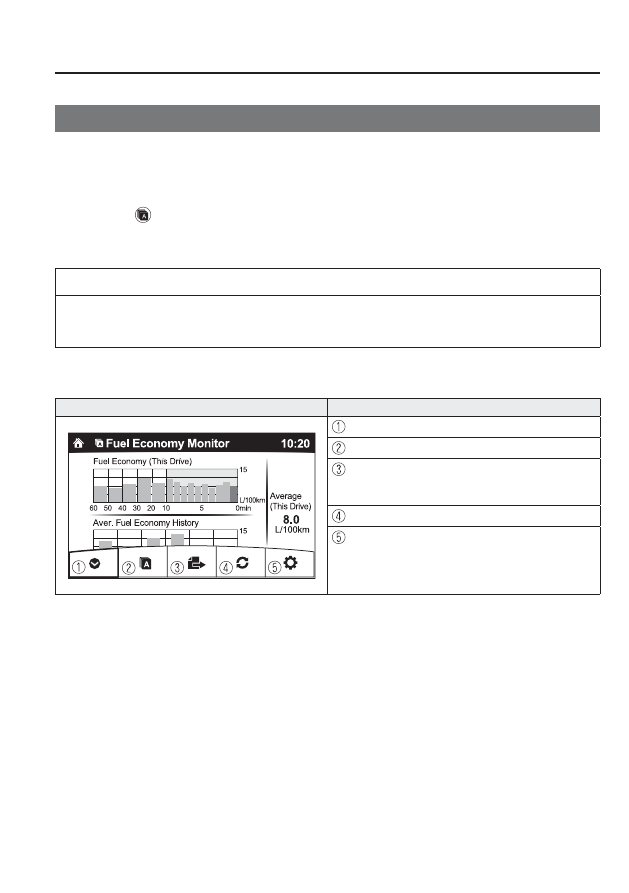

      Fuel  Economy  Monitor

*



            For  vehicles  with  type  B  audio,  the  Control  Status,  Fuel  Consumption,  and  Effectiveness

*1



are switched and displayed by operating each icon in the display.
  In addition, after completing a trip, the total energy ef

¿ ciency to date is displayed in the

ending display when the ending display is turned on.



   1.   Select  the

  icon on the home screen to display the applications screen.

   2.   Select  the  “Fuel  Economy  Monitor”.
   3.   Operate the commander switch or touch the screen and display the menu.

 NOTE

 When the menu is displayed by touching the screen, the display is hidden automatically
after 6 seconds.

   4.   Select the icon in the menu and perform the operation. Each icon operates as follows:


 Indication on display

 Control status





     Hides the menu display.

     Displays the application screen.

      Switches the Fuel Economy Monitor in the order of

Control Status, Fuel Consumption, and
Effectiveness

*1

 .

     Resets the fuel economy data.

     Displays the following setting screen.







  Ending display on/off switching





   On/off switching for function which synchronizes
reset fuel economy data to trip meter (Trip A)



      *1   With  i-stop  function.




4–94

When Driving

Fuel Economy Monitor

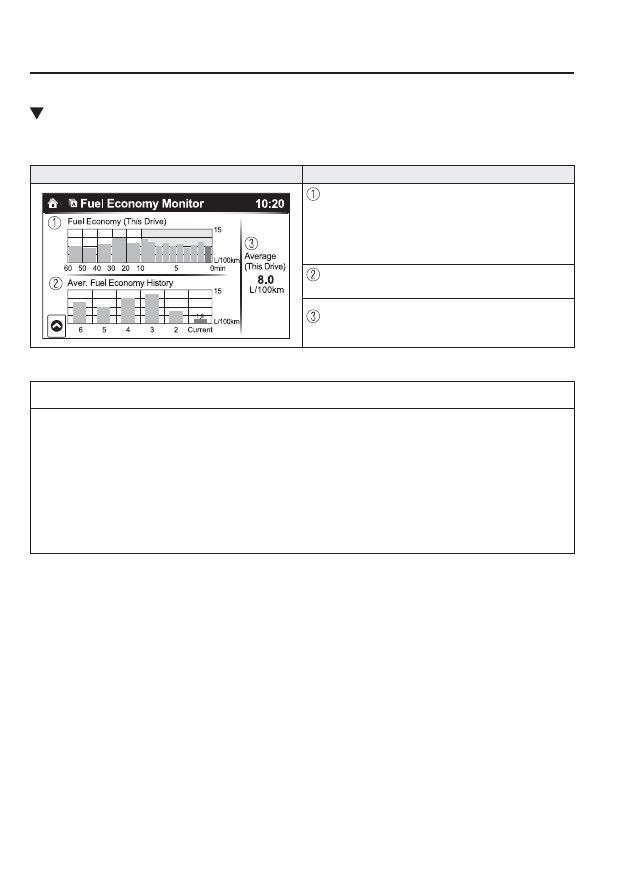

          Fuel Consumption Display

              Information  regarding  the  fuel  economy  is  displayed.


 Indication on display

 Control status





     Displays the fuel economy for the past 60 minutes.







   Displays the fuel economy every minute for the
past 1 to 10 minutes.





   Displays the fuel economy every 10 minutes for
the past 10 to 60 minutes.



      Displays the average fuel economy over the past 5

resets and after the current reset.

      Calculates the average fuel economy every minute

after vehicle travel begins, and displays it.



 NOTE



  The fuel economy data can be reset by doing the following operation:





  Press the reset switch from the menu screen.



  When the function which synchronizes the fuel economy monitor and the trip meter

is on, reset trip A of the trip meter.



  Delete the average fuel economy information displayed in the trip computer.



  After resetting the fuel economy data, “-- -” is displayed while the average fuel

economy is calculated.

4–95

When Driving

Fuel Economy Monitor

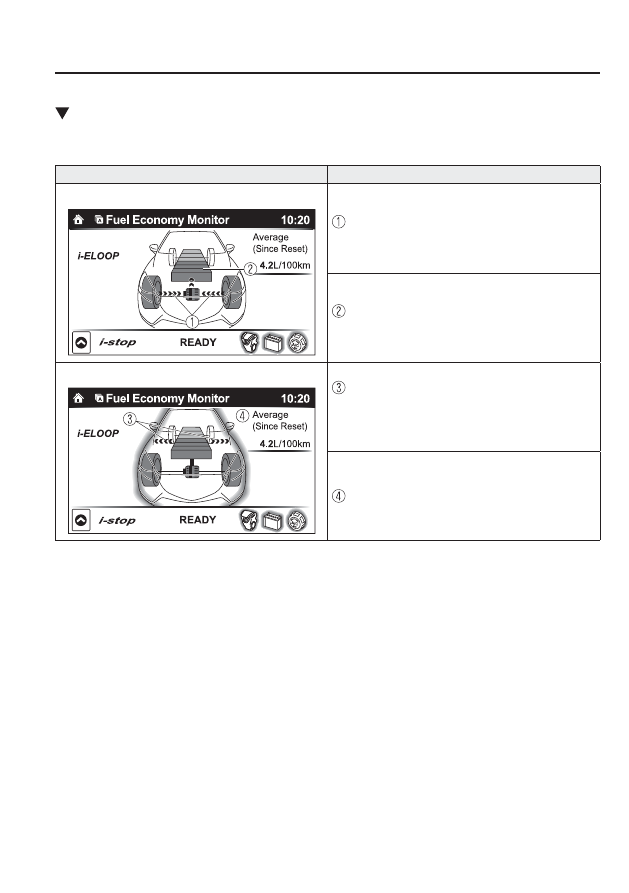

           Control Status Display

              The  i-stop  operation  status  and  the  i-ELOOP  power  generating  status  are  displayed.


 Indication on display

 Control status

  With i-ELOOP system





      Displays the level of electricity generated by

regenerative braking.

      Displays the amount of the electricity stored in the

rechargeable battery.

  With i-ELOOP system





      Displays the status of the electricity stored in the

rechargeable battery and being supplied to the
electrical devices (whole vehicle in display is
illuminated simultaneously).

     Displays the accumulated fuel economy.

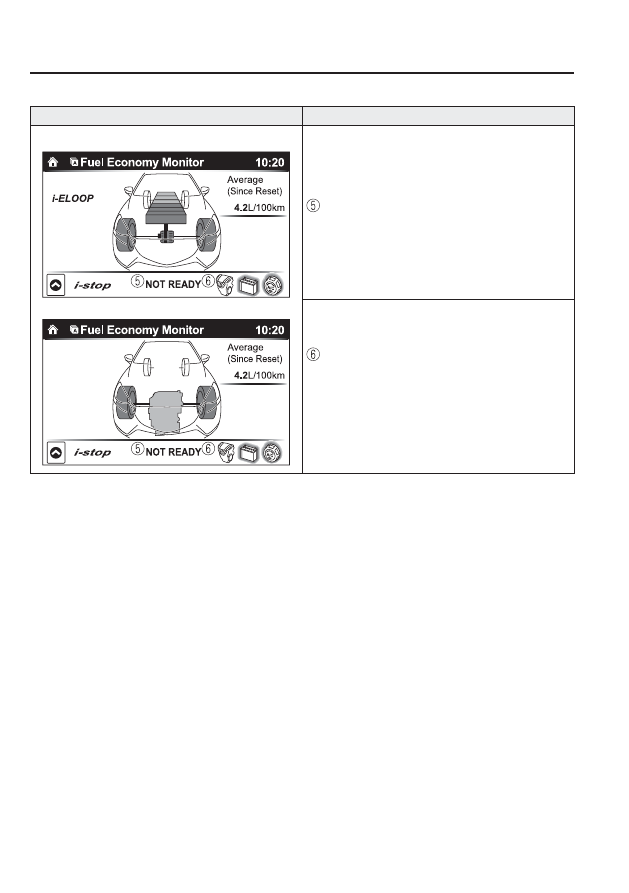

4–96

When Driving

Fuel Economy Monitor

 Indication on display

 Control status

  With i-ELOOP system



   Without i-ELOOP system





      Displays the readiness status as to whether operation

of the i-stop function is available.

      Displays the operation readiness status of the i-stop

function on the vehicle side (engine, battery, and
A/C) using icon colouring. The blue colour indicates
that the i-stop function is ready to operate, and the
grey colour indicates that it is not ready for
operation.

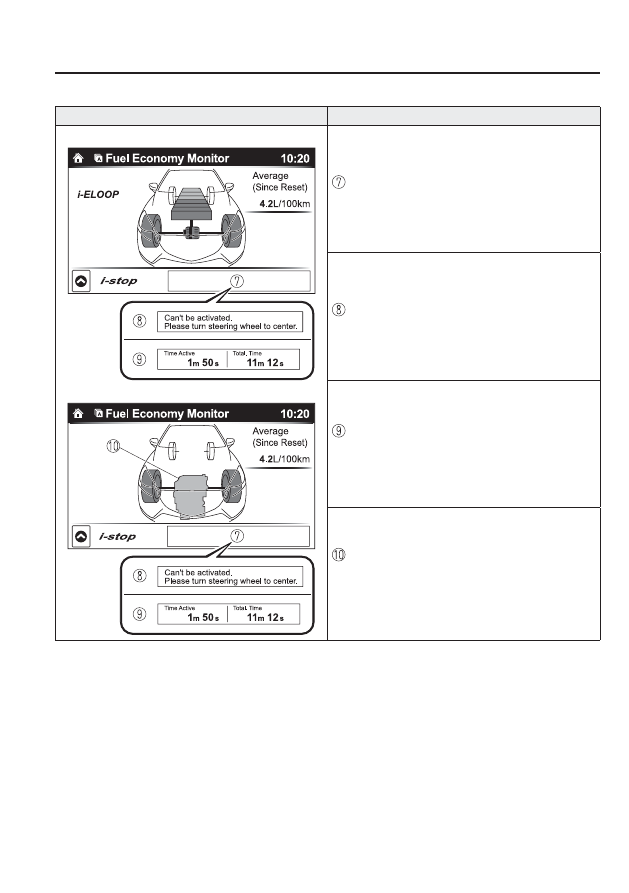

4–97

When Driving

Fuel Economy Monitor

 Indication on display

 Control status

  With i-ELOOP system





  Without i-ELOOP system





      Displays the i-stop function status while the vehicle

is stopped.

      Indicates the operations required by the driver to

operate the i-stop function while it is not operating.

      Displays the current amount of time that the i-stop

function has been operating and the accumulated
amount of time that it has been operating.

      The i-stop function operation status is indicated by

the colour of the engine area. The colour is blue
during i-stop function operation, and grey when it is
not operating.



4–98

When Driving

Fuel Economy Monitor

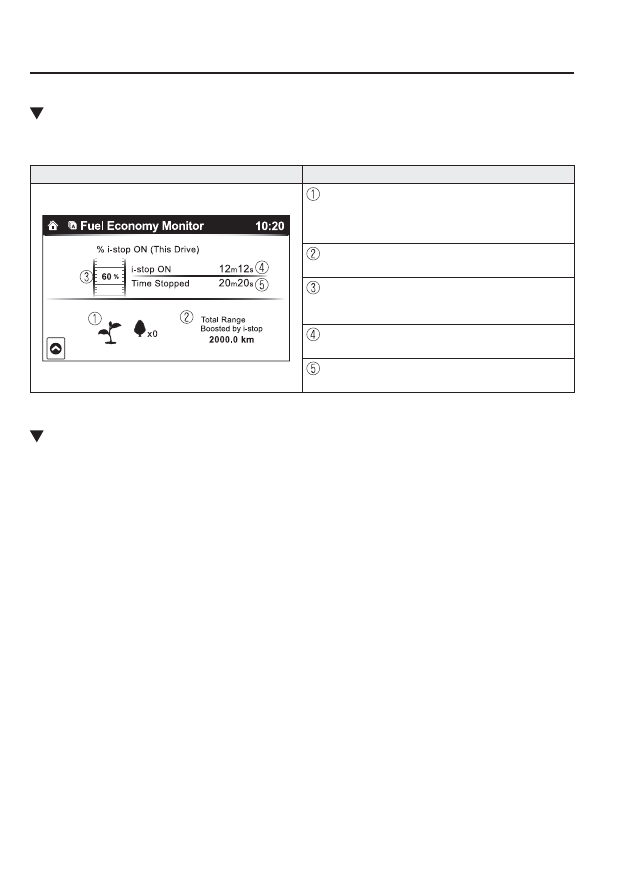

           Effectiveness  Display

              The  actual  performance  of  the  energy  ef

¿ ciency is displayed.



 Indication on display

 Control status





      The leaf graphic grows according to the amount of

CO 2  emissions reduced by the system effects. The
cumulative total amount of leaf growth is indicated
in terms of the number of tree graphics.

      Displays the total driving distance which could be

extended by the operation of the i-stop function.

      Displays the percentage of time that the vehicle was

stopped by the i-stop function operation out of the
total amount of time that the vehicle was stopped.

      Displays the amount of time that the i-stop function

has operated.

      Displays the total amount of time that the vehicle

was stopped.



           Ending Screen Display

              If the ending display on the fuel economy monitor is on when the ignition is switched from
ON to OFF, the actual energy ef

¿ ciency (with i-stop function) or the information regarding

the fuel economy (without i-stop function) is displayed.

4–99

When Driving

Drive Selection

*Some models.

      Drive  Selection

*



            Drive selection is a system to switch the vehicle's drive mode. When the sport mode is
selected, vehicle's response against accelerator operation is enhanced. Use the sport mode
when higher vehicle response is required such as merging onto expressway or accelerating
to overtake.

 CAUTION

 Do not use the sport mode when driving on slippery roads such as wet or snow-covered
roads. It may cause tyre slipping.

 NOTE



  When the sport mode is selected, driving at higher engine speeds increases and it may

increase fuel consumption. Mazda recommends to cancel the sport mode on normal
driving.



  Drive mode cannot be switched in the following conditions:





  ABS/TCS/DSC is operating



  Steering wheel is being operated abruptly

4–100

When Driving

Drive Selection

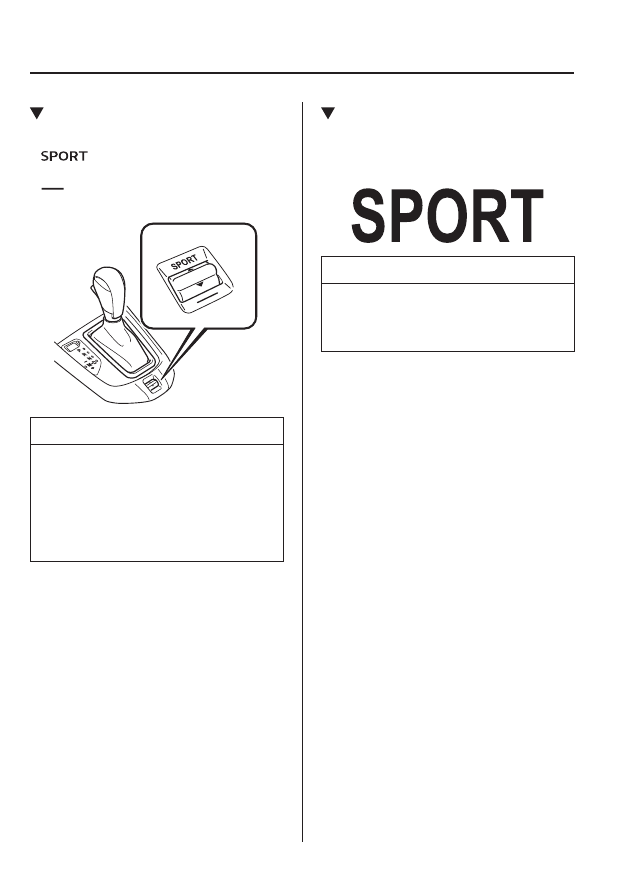

          Drive Selection Switch

    Press the drive selection switch forward
(“

 ”) to select the sport mode.

  Pull the drive selection switch back
(“

 ”) to cancel the sport mode.







 NOTE



  When the ignition is switched off, the

sport mode is cancelled.



  Depending on the driving conditions

when sport mode is selected, the
vehicle may perform shift-down or
slightly accelerate.

           Select Mode Indicator Light

    When the sport mode is selected, the
select mode indicator light turns on in the
instrument cluster.





 NOTE

 If the drive selection cannot be switched
to sport mode, the select mode indicator
light

À ashes to notify the driver.

4–101

When Driving

Power Steering

      Power  Steering



 Power steering is only operable when

the engine is running. If the engine is
off or if the power steering system is
inoperable, you can still steer, but it
requires more physical effort.



  If the steering feels stiffer than usual

during normal driving or the steering
vibrates, consult an expert repairer,
we recommend an Authorised Mazda
Repairer.



 The warning light noti

¿ es the driver

of system abnormalities and operation
conditions.



  In addition, the buzzer may also activate

depending on the system abnormality or
operation condition.



  Refer to Warning Lights on page

 4-38 .



  Refer to Power Steering Warning Buzzer

on page  7-53 .



 CAUTION

 Never hold the steering wheel to the
extreme left or right for more than
5 seconds with the engine running.
This could damage the power steering
system.

4–102

When Driving

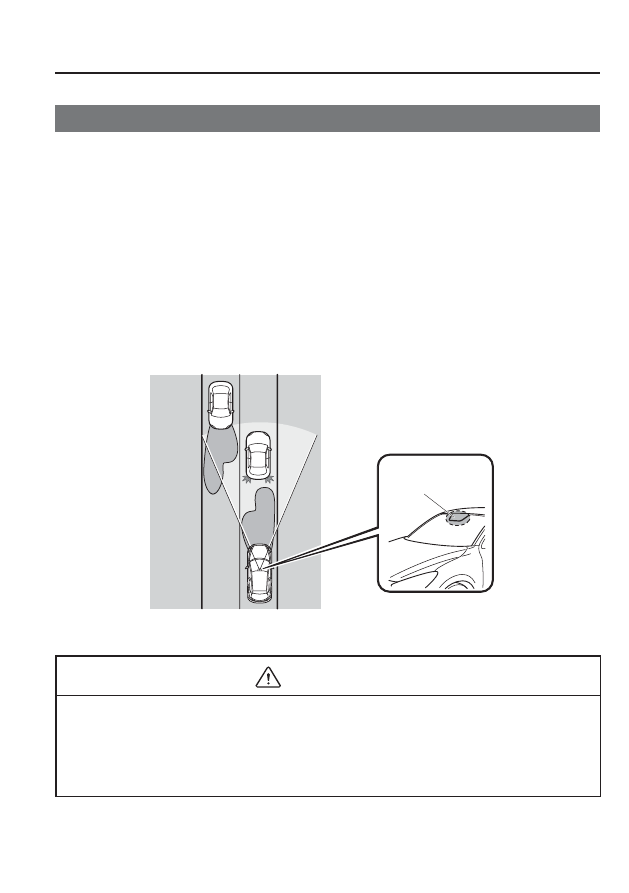

i-ACTIVSENSE

*Some models.

      i-ACTIVSENSE

*



            i-ACTIVSENSE is a collective term covering a series of advanced safety and driver support
systems which make use of a Forward Sensing Camera (FSC) and radar sensors. These
systems consist of active safety and pre-crash safety systems.
  These systems are designed to assist the driver in safer driving by reducing the load on the
driver and helping to avert collisions or reduce their severity. However, because each system
has its limitations, always drive carefully and do not rely solely on the systems.

          Active  Safety  Technology

            Active  Safety  Technology  supports  safer  driving  by  helping  the  driver  to  recognise  potential
hazards and avert accidents.

  Driver awareness support systems

    Nighttime  visibility

Adaptive  LED  Headlights  (ALH) .....................................................................................      4-108
High Beam Control System (HBC) ..................................................................................  4-105

 Left/right side and rear side detection

Lane  Departure  Warning  System  (LDWS)  .......................................................................       4-111
Blind Spot Monitoring (BSM) ..........................................................................................  4-117

 Inter-vehicle distance recognition

Distance  Recognition  Support  System  (DRSS) ................................................................      4-124

 Driver fatigue detection

Driver  Attention  Alert  (DAA) ...........................................................................................      4-127

 Rear obstruction detection when leaving a parking space

Rear Cross Traf

¿ c  Alert  (RCTA)  ......................................................................................      4-130

 Driver support systems

    Inter-vehicle  distance

Mazda  Radar  Cruise  Control  (MRCC)  .............................................................................      4-135

 Speed  control

Adjustable  Speed  Limiter  .................................................................................................      4-148

4–103

When Driving

i-ACTIVSENSE

        Pre-Crash  Safety  Technology

            Pre-crash safety technology is designed to assist the driver in averting collisions or reduce
their severity in situations where they cannot be avoided.

  Collision damage reduction in low vehicle speed range

    Forward  driving

Smart  City  Brake  Support  [Forward]  (SCBS  F)  ...............................................................      4-155

 Reverse  driving

Smart  City  Brake  Support  [Reverse]  (SCBS  R)  ...............................................................      4-161

 Collision damage reduction in medium/high speed range

Smart  Brake  Support  (SBS)  ..............................................................................................      4-167

           Camera and Sensors

            Forward  Sensing  Camera  (FSC)

    The Forward Sensing Camera (FSC) detects lane indications and recognises headlights, tail
lights and city lights during nighttime driving. The following systems also use the Forward
Sensing Camera (FSC).





 High Beam Control System (HBC)



 Adaptive LED Headlights (ALH)



 Driver Attention Alert (DAA)



 Lane Departure Warning System (LDWS)



 Smart Brake Support (SBS)



  The Forward Sensing Camera (FSC) is installed at the top of the windscreen near the
rearview mirror.
  Refer to Forward Sensing Camera (FSC) on page  4-170 .

  Radar  sensor  (front)

    The radar sensor (front) functions by detecting the radio waves re

À ected off a vehicle ahead

sent from the radar sensor. The following systems also use the radar sensor (front).





 Distance Recognition Support System (DRSS)



 Mazda Radar Cruise Control (MRCC)



 Smart Brake Support (SBS)



  The radar sensor (front) is mounted behind the radiator grille.
  Refer to Radar Sensor (Front) on page  4-176 .

4–104

When Driving

i-ACTIVSENSE

  Laser  sensor  (front)

    The laser sensor (front) emits a near-infrared laser beam and receives the beam re

À ected

off the re

À ective surface of a vehicle in front, and the detected beam is then used for

measurement. The following systems also use the laser sensor (front).





 Smart City Brake Support [Forward] (SCBS F)



 Smart Brake Support (SBS)



  The laser sensor (front) is installed at the top of the windscreen near the rearview mirror.
  Refer to Laser Sensor (Front) on page  4-179 .

  Radar  sensors  (rear)

    The radar sensors (rear) function by detecting the radio waves re

À ected off a vehicle

approaching from the rear or an obstruction sent from the radar sensors. The following
systems also use the radar sensors (rear).





 Blind Spot Monitoring (BSM)



 Rear Cross Traf

¿ c Alert (RCTA)



  The radar sensors (rear) are installed inside the rear bumper, one each on the left and right
sides.
  Refer to Radar Sensors (Rear) on page  4-181 .

  Ultrasonic  sensors  (rear)

    The ultrasonic sensors (rear) function by detecting the ultrasonic waves re

À ected off

obstructions at the rear sent from the ultrasonic sensors. The following systems also use the
ultrasonic sensors (rear).





 Smart City Brake Support [Reverse] (SCBS R)



  The ultrasonic sensors (rear) are mounted in the rear bumper.
  Refer to Ultrasonic Sensors (Rear) on page  4-183 .

4–105

When Driving

i-ACTIVSENSE

*Some models.

 High Beam Control System (HBC)

*



              The  High  Beam  Control  System  (HBC)  determines  the  conditions  in  front  of  the  vehicle
using the Forward Sensing Camera (FSC) while driving in darkness to automatically switch
the headlights between high and low beams.
  Refer to Warning/Indicator Lights on page  4-38 .
  While driving the vehicle at a speed of about 30 km/h (19 mph) or more, the headlights are
switched to high beams when there are no vehicles ahead or approaching in the opposite
direction.
  The system switches the headlights to low beams when one of the following occurs:





 The system detects a vehicle or the headlights/lights of a vehicle approaching in the

opposite direction.



 The vehicle is driven on roads lined with streetlamps or on roads in well-lit cities and

towns.



 The vehicle is driven at less than about 20 km/h (12 mph).





Forward Sensing
Camera (FSC)

The recognition distance of the
Forward Sensing Camera (FSC)
varies according to the
surrounding conditions.



  The  warning  light

À ashes when the system has a malfunction.

  Refer to Warning Lights on page  4-38 .

 CAUTION



  Do not adjust the vehicle height, modify the headlight units, or remove the camera,

otherwise the system will not operate normally.



  Do not rely excessively on the High Beam Control System (HBC) and drive the

vehicle while paying suf

¿ cient attention to safety. Switch the headlights between the

high beams and low beams manually if necessary.















Content   ..  13  14  15  16   ..
