GENERAL INFORMATION

00-00–2

Service Procedure

Inspection, adjustment

• Inspection and adjustment procedures are

divided into steps. Important points regarding the

location and contents of the procedures are

explained in detail and shown in the illustrations.

Repair procedure

1. Most repair operations begin with an overview illustration. It identifies the components, shows how the parts fit

together, and describes visual part inspection. However, only removal/installation procedures that need to be

performed methodically have written instructions.

2. Expendable parts, tightening torques, and symbols for oil, grease, and sealant are shown in the overview

illustration. In addition, symbols indicating parts requiring the use of special service tools or equivalent are also

shown.

3. Procedure steps are numbered and the part that is the main point of that procedure is shown in the illustration

with the corresponding number. Occasionally, there are important points or additional information concerning a

procedure. Refer to this information when servicing the related part.

49 H002 671

49 H032 322

49 1232 670A

SHOWS PROCEDURE ORDER
FOR SERVICE

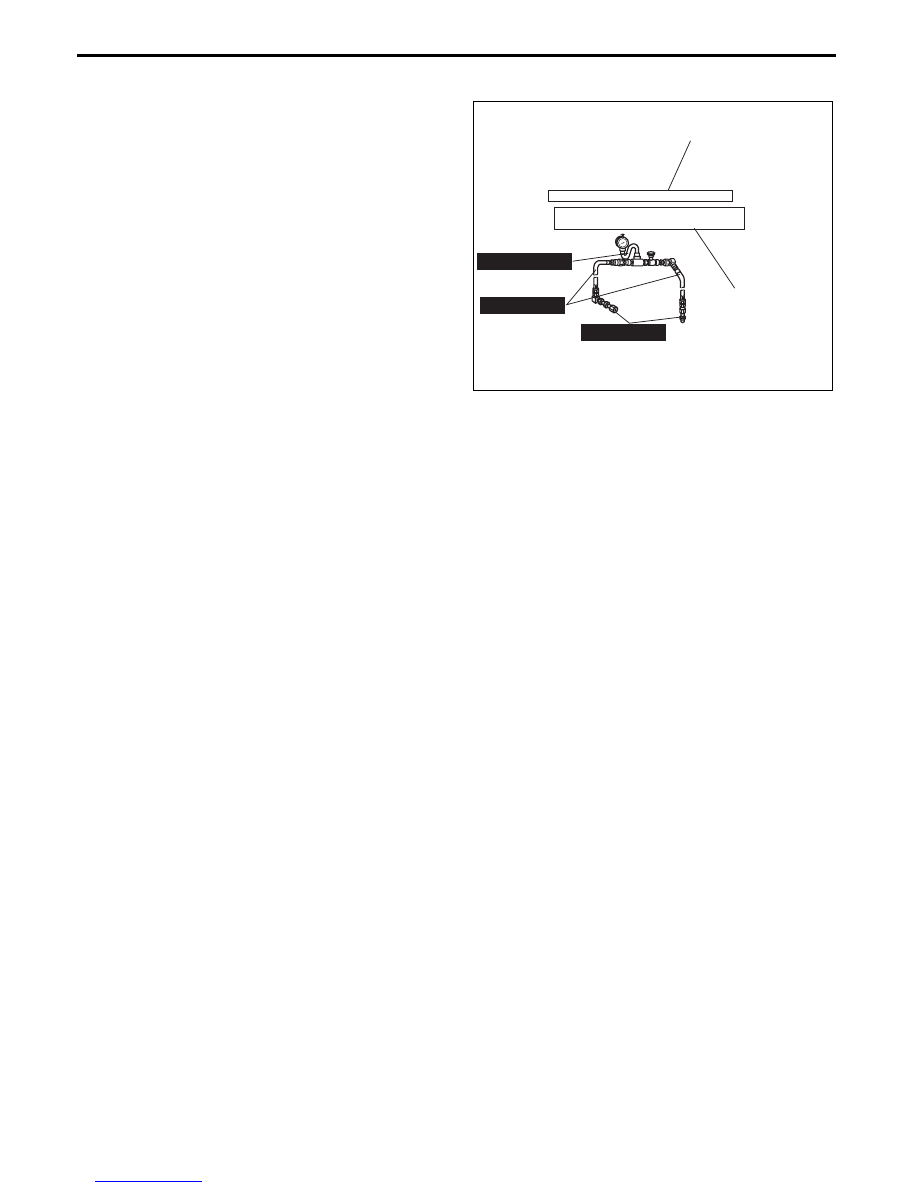

Fluid Pressure Inspection

1. Assemble the SSTs as shown in the figure.

Tightening torque

SHOWS TIGHTENING
TORQUE
SPECIFICATIONS

 Caution

Connect the gauge set from under
the vehicle to prevent contact with
the drive belt and the cooling fan.

39—49 N·m {4.0—5.0 kgf·m, 29—36 ft·lbf}

bpe2ue00000101

GENERAL INFORMATION

00-00–3

00-00

GREASEG

R

E

A

S

E

GREASEG

R

E

A

S

E

SHOWS NON-REUSEABLE PARTS

SHOWS DETAILS

KNUCKLE

UPPER TRAILING LINK

LOWER TRAILING LINK

SST

SST

SST

SST

R

R

R

R

9

2

1

4

5

3

6

1

2

8

7

12

10

11

N·m {kgf·m, ft·lbf}

118—156 {12.0—16.0, 87—115}

94—116 {9.5—11.9, 69—86}

43—56 {4.3—5.8, 32—41}

49 T028  304

49 T028  305

49 T028  303

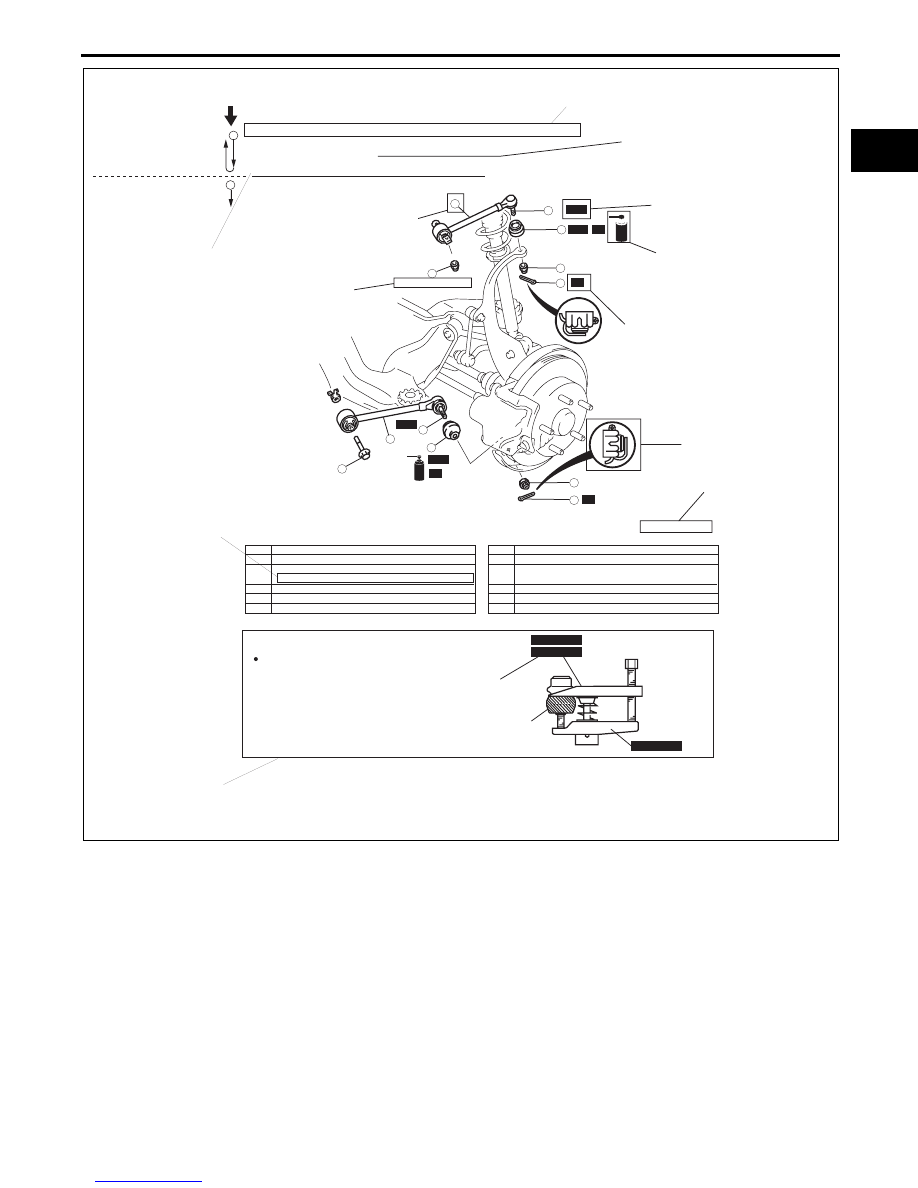

Procedure

LOWER TRAILING LINK, UPPER TRAILING LINK REMOVAL/INSTALLATION

1. Jack up the rear of the vehicle and support it with safety stands.

2. Remove the undercover. (See 01-10-4 Undercover Removal)
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5. Inspect the rear wheel alignment and adjust it if necessary.

1

Split pin

2

Nut

3

Lower trailing link ball joint

4

(See 02-14-5 Lower Trailing Link Ball Joint Removal Note)

Bolt

5

Lower trailing link

6

Dust boot (lower trailing link)

7

Split pin

8

Nut

9

Upper trailing link ball joint

(See 02-14-5 Upper Trailing Link Ball Joint Removal Note)

10

Nut

11

Upper trailing link

12

Dust boot (upper trailing link)

Lower Trailing Link Ball Joint, Upper Trailing Link
Ball Joint Removal Note

Remove the ball joint using the SSTs.

—

44—60 {4.4—6.2, 32—44}

"Removal/Installation"
Portion

"Inspection After
Installation" Portion

INSTALL THE PARTS BY
PERFORMING STEPS
1—3 IN REVERSE ORDER

SHOWS PROCEDURE ORDER
FOR SERVICE

SHOWS TIGHTENING
TORQUE
SPECIFICATIONS

SHOWS SERVICE
ITEM (S)

INDICATES ANY RELEVANT
REFERENCES WHICH NEED
TO BE FOLLOWED DURING
INSTALLATION

SHOWS SPECIAL
SERVICE TOOL  (SST)
FOR SERVICE OPERATION

SHOWS APPLICATION
POINTS OF GREASE, ETC.

SHOWS TIGHTENING
TORQUE UNITS

SHOWS SPECIAL
SERVICE TOOL  (SST)
NO.

SHOWS REFERRAL
NOTES FOR
SERVICE

SHOWS THERE
ARE REFERRAL
NOTES FOR SERVICE

bpe2ue00000001

GENERAL INFORMATION

00-00–4

Symbols

• There are eight symbols indicating oil, grease, fluids, sealant, and the use of SST or equivalent. These symbols

show application points or use of these materials during service.

Advisory Messages

• You will find several Warnings, Cautions, Notes, Specifications and Upper and Lower Limits in this

manual.

Warning

• A Warning indicates a situation in which serious injury or death could result if the warning is ignored.

Caution

• A Caution indicates a situation in which damage to the vehicle or parts could result if the caution is ignored.

Note

• A Note provides added information that will help you to complete a particular procedure.

Specification

• The values indicate the allowable range when performing inspections or adjustments.

Upper and lower limits

• The values indicate the upper and lower limits that must not be exceeded when performing inspections or

adjustments.

End Of Sie

Symbol

Meaning

Kind

Apply oil

New appropriate engine oil or gear oil

Apply brake fluid

New appropriate brake fluid

Apply automatic transaxle/

transmission fluid

New appropriate automatic

transaxle/

transmission fluid

Apply grease

Appropriate grease

Apply sealant

Appropriate

sealant

Apply petroleum jelly

Appropriate

petroleum jelly

Replace part

O-ring, gasket, etc.

Use SST or

equivalent

Appropriate tools

OIL

OIL

BRAKE

BRAKE
FLUID

FLUID

ATF

ATF

GREASEG

R

E

A

S

E

SEALANT

SEALANT

P

P

R

SST

GENERAL INFORMATION

00-00–5

00-00

UNITS

id000000100400

Conversion From SI Units (Système International d'Unités)

• All numerical values in this manual are based on SI units. Numbers shown in conventional units are converted

from these values.

Number Of Digits For Converted Values

• The number digits for converted values is the same as the number of significant figures

*1

 of the SI unit.

• For the torque value, the number of significant figures is, in principle, is 2 digits, in consideration of market

practicalities. However, if the number of decimal places at the upper and lower limits of the converted value

differs, the one with least number of decimal places is used. In addition, if the integer part is 3 digits or more,

the integer part becomes the significant number of figures.

*1 : The number of significant figures is the number of digits from the left-most non-zero digit to the right-most digit

including 0. (Example: 0.12 is 2 digits, 41.0 is 3 digits)

Converted Value Rounding Off And Rounding Up/down

• If there is no tolerance in the SI unit value, after conversion, rounding off is to within the number of significant

digits.

• If there is tolerance in the SI unit value and the figure after conversion indicates the upper limit, the number of

digits is rounded down to within the number of significant figures. If it indicates the lower limit, they are rounded

up to within the number of significant figures.

• Even if the SI unit value is the same, the converted value may differ based on whether that value is the upper or

lower limit.

End Of Sie

Electric current

A (ampere)

Electric power

W (watt)

Electric resistance

ohm

Electric voltage

V (volt)

Length

mm (millimeter)
in (inch)

Negative pressure

kPa (kilo pascal)
mmHg (millimeters of mercury)
inHg (inches of mercury)

Positive pressure

kPa (kilo pascal)
kgf/cm

2

 (kilogram force per square centimeter)

psi (pounds per square inch)

Number of revolutions

rpm (revolutions per minute)

Torque

N·m (Newton meter)
kgf·m (kilogram force meter)
kgf·cm (kilogram force centimeter)
ft·lbf (foot pound force)
in·lbf (inch pound force)

Volume

L (liter)
US qt (U.S. quart)
Imp qt (Imperial quart)
ml (milliliter)
cc (cubic centimeter)
cu in (cubic inch)
fl oz (fluid ounce)

Weight

g (gram)
oz (ounce)
