B–48

ENGINE

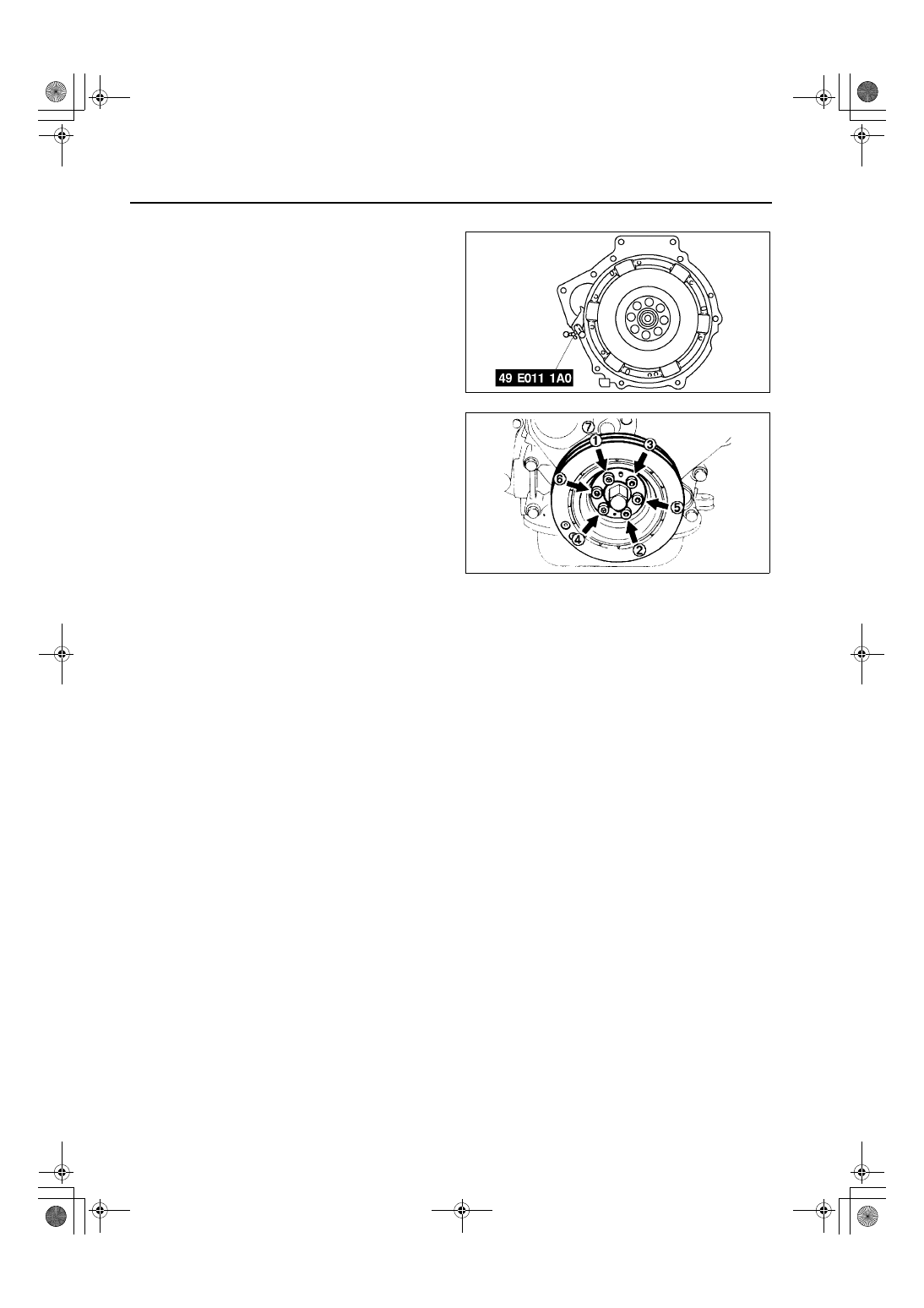

Crankshaft Pulley Assembly Note

1. Hold the crankshaft using the SST.

2. Tighten the bolts in the order shown.

End Of Sie

AME2524E065

AME2524E013

TD–1

TD

TD

TECHNICAL DATA

TECHNICAL DATA ............................................. TD-2

ENGINE ............................................................ TD-2

TD–2

TECHNICAL DATA

ENGINE

AME931001001101

TECHNICAL DATA

Item

Specification

Cylinder head

Valve clearance

IN

0.12—0.18 {0.0048—0.0070} (0.15

±

 0.03 {0.0059

±

 0.0012})

[Engine cold]

(mm {in}) EX

0.32—0.38 {0.0126—0.0149} (0.35

±

 0.03 {0.0138

±

 0.0012})

Cylinder head gasket contact surfaces

Maximum

X direction:0.01 {0.0004}

distortion

(mm {in})

Y direction:0.04 {0.0016}

Manifold contact surfaces direction

(mm {in})

Maximum

0.06 {0.0024}

Maximum

0.20 {0.008}

grinding

Valve and valve guide

Margin thickness

(mm {in})

IN

0.8 {0.0315}

EX

1.0 {0.0394}

Valve length

(mm{in})

IN

Standard

115.01—115.51 {4.528—4.547}

Minimum

114.785 {4.519}

EX

Standard

114.35—114.85 {4.502—4.521}

Minimum

114.125 {4.493}

Valve stem diameter

(mm {in})

IN

Standard

5.970—5.985 {0.2351—0.2356}

Minimum

5.920 {0.2331}

EX

Standard

5.965—5.980 {0.2349—0.2354}

Minimum

5.915 {0.2329}

Valve guide inner diameter

(mm {in})

6.030—6.050 {0.2374—0.2381}

Valve guide protrusion height

(mm {in})

IN

18.7—19.2 {0.737—0.755}

EX

17.6—18.1 {0.693—0.712}

Valve seat contact width

(mm {in})

IN

1.3—1.9 {0.052—0.074}

EX

1.3—1.9 {0.052—0.074}

Valve seat angle

IN

45

°

EX

45

°

Valve recession

(mm{in})

IN

Standard

0.42—0.90 {0.017—0.035}

Maximum

1.25 {0.049}

EX

Standard

0.46—0.94 {0.019—0.037}

Maximum

1.29 {0.051}

Valve spring

Standard height

(mm {in})

IN

38.0 {1.50}

EX

38.0 {1.50}

Pressing force/height

(N {kgf, lbf}/mm{in})

IN

172.1—194.9 {17.55—19.87,38.61—43.79}/38.0 {1.50}

EX

172.1—194.9 {17.55—19.87,38.61—43.79}/38.0 {1.50}

Out-of-square

(mm{in}) Maximum

1.55 {0.061}

Camshaft

Runout

(mm {in}) Maximum

0.03 {0.0012}

Cam lobe height

(mm {in})

IN

Standard

40.140 {1.5803}

Minimum

39.940 {1.5724}

EX

Standard

39.809 {1.5673}

Minimum

39.609 {1.5594}

Journal diameter

(mm {in})

Standard

31.950—31.975 {1.2579—1.2588}

Minimum

31.920 {1.2567}

Journal oil clearance

(mm {in})

Standard

0.025—0.030 {0.0010—0.0011}

Maximum

0.075 {0.0030}

End play

(mm {in})

Standard

0.03—0.16 {0.0012—0.0062}

Maximum

0.20 {0.0079}

TECHNICAL DATA

TD–3

TD

Cylinder block

Cylinder head gasket contact surfaces

Maximum

X direction: 0.01 {0.0004}

distortion

(mm {in})

Y direction: 0.03 {0.0012}

Cylinder bore diameter

(mm {in})

Standard

86.000—86.022 {3.3859—3.3866}

0.25 {0.01} oversize

86.250—86.272 {3.3957—3.3965}

0.50 {0.02} oversize

86.500—86.522 {3.4055—3.4063}

Wear limit

(mm {in})

0.15 {0.006}

Oil jet valve,nozzle

Nozzle opening pressure

(kPa{kgf/cm

2

,psi})

138—196 {1.4—2.0,20—28}

Piston

Piston diameter

Standard

85.973—86.015 {3.3848—3.3864}

[Measured at 90

°

 to pin bore axis

0.25 {0.01} oversize

86.223—86.265 {3.3946—3.3962}

 and 10mm {0.39 in} above
the bottom of piston] (mm {in})

0.50 {0.02} oversize

86.473—86.515 {3.4045—3.4061}

Piston-to-cylinder clearance

(mm {in})

Standard

0—0.034 {0—0.0013}

Maximum

0.10 {0.0039}

Piston pin bore diameter

(mm {in})

29.997—30.007 {1.1810—1.1813}

Piston ring

Piston ring-to-ring groove clearance

Top

0.05—0.09 {0.0020—0.0035}

Second

0.04—0.08 {0.0016—0.0031}

(mm {in}) Oil

0.03—0.07 {0.0012—0.0027}

Maximum

0.15 {0.0059}

End gap

Top

0.20—0.30 {0.008—0.011}

Second

0.20—0.30 {0.008—0.011}

[Measured in cylinder]

(mm {in}) Oil

0.20—0.30 {0.008—0.011}

Maximum

1.0 {0.039}

Piston pin

Diameter

(mm {in})

29.994—30.000 {1.1809—1.1811}

Connecting rod-to-piston pin clearance

(mm {in})

0.014—0.036 {0.00056—0.00141}

Piston-to-piston pin clearance

(mm {in})

-0.003—0.013 {-0.00011—0.00051}

Crankshaft

Runout

(mm {in})

0.03 {0.001}

Main journal diameter

(mm {in}

Standard

59.937—59.955 {2.3598—2.3604}

0.25{0.01} undersize

59.687—59.705 {2.3499—2.3505}

0.50{0.02} undersize

59.437—59.455 {2.3401—2.3407}

0.75{0.03} undersize

59.187—59.205 {2.3302—2.3309}

Out-of-round

(mm {in})

0.03 {0.001}

Crank pin diameter

mm {in})

Standard

50.940—50.955 {2.0056—2.0060}

0.25{0.01} undersize

50.690—50.705 {1.9957—1.9962}

0.50{0.02} undersize

50.440—50.455 {1.9859—1.9864}

0.75{0.03} undersize

50.190—50.205 {1.9760—1.9765}

Out-of-round

(mm {in})

0.03 {0.001}

Main journal oil clearance

(mm {in})

Standard

0.025—0.044 {0.0010—0.0017}

Maximum

0.08 {0.003}

Main journal brearing thickness

Standard

2.007—2.022 {0.0791—0.0796}

0.25{0.01} undersize

2.129—2.139 {0.0839—0.0842}

(mm {in} 0.50{0.02} undersize

2.254—2.264 {0.0888—0.0891}

0.75{0.03} undersize

2.379—2.389 {0.0937—0.0940}

Crankshaft end play

(mm {in}

Standard

0.040—0.282 {0.00158—0.01110}

Maximum

0.30 {0.012}

Trust bearing thickness

Standard

2.00—2.05 {0.0788—0.0807}

(mm {in} 0.35{0.01}undersize

2.175—2.225 {0.0857—0.0876}

Item

Specification
