AUTOMATIC TRANSAXLE

K1–49

K1

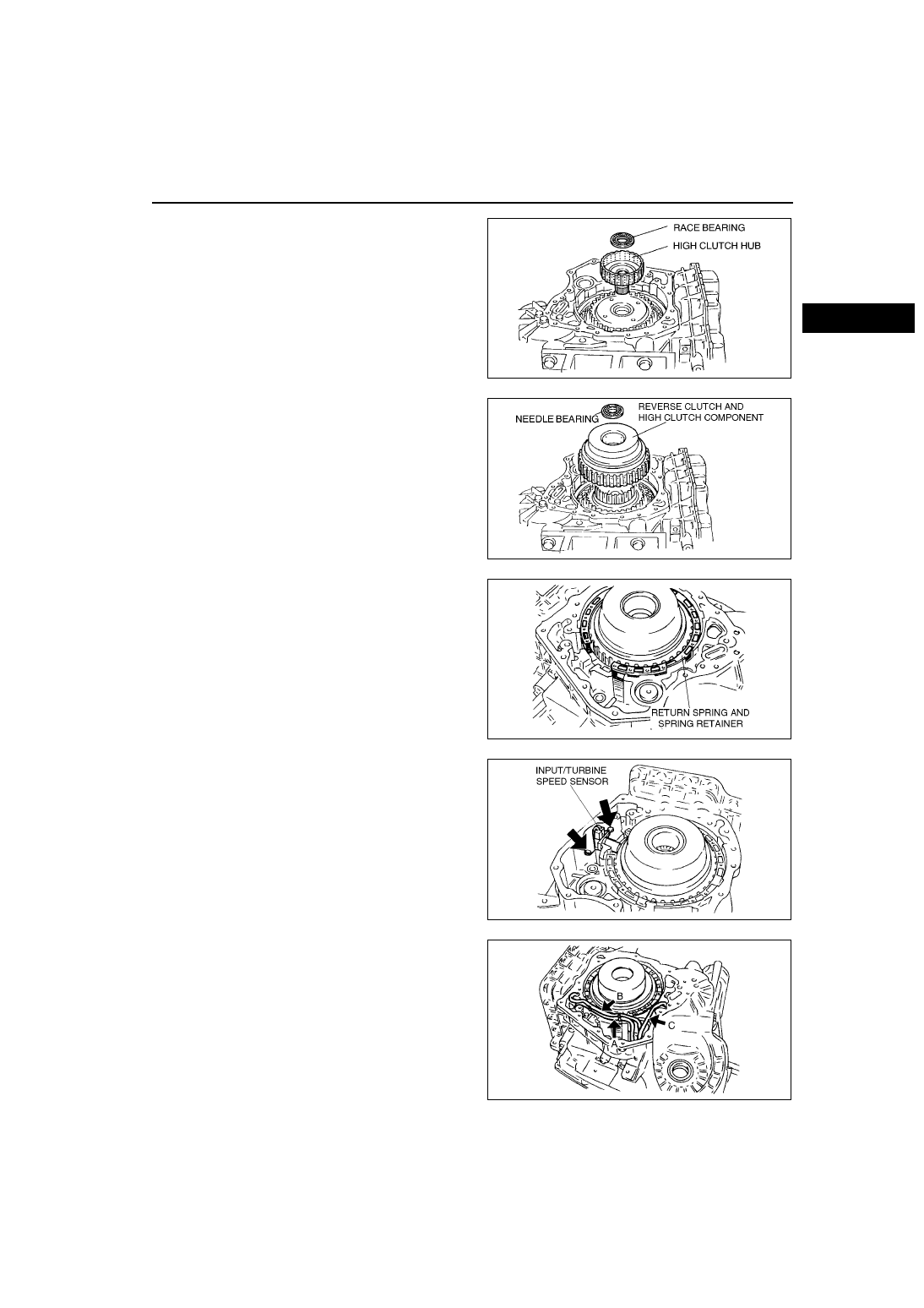

19. Apply petroleum jelly to the race bearing, and

then install it to the high clutch hub with the black

surface towards the high clutch hub.

20. Install the high clutch hub.

21. Apply petroleum jelly to the needle bearing, and

then install it to the reverse and high clutch

component.

22. Install the reverse clutch and high clutch

component.

23. Install the return spring and spring retainer.

24. Install the input/turbine speed sensor.

Tightening torque

6.9—8.8 N·m

{0.70—0.90 kgf·m, 5.1—6.5 ft·lbf}

25. Connect the input/turbine speed sensor

connector.

26. Install the oil pipes in the order of A, B, and C.

AMU0517A035

AMU0517A034

AMU0517A033

AMU0517A032

AMU0517A129

K1–50

AUTOMATIC TRANSAXLE

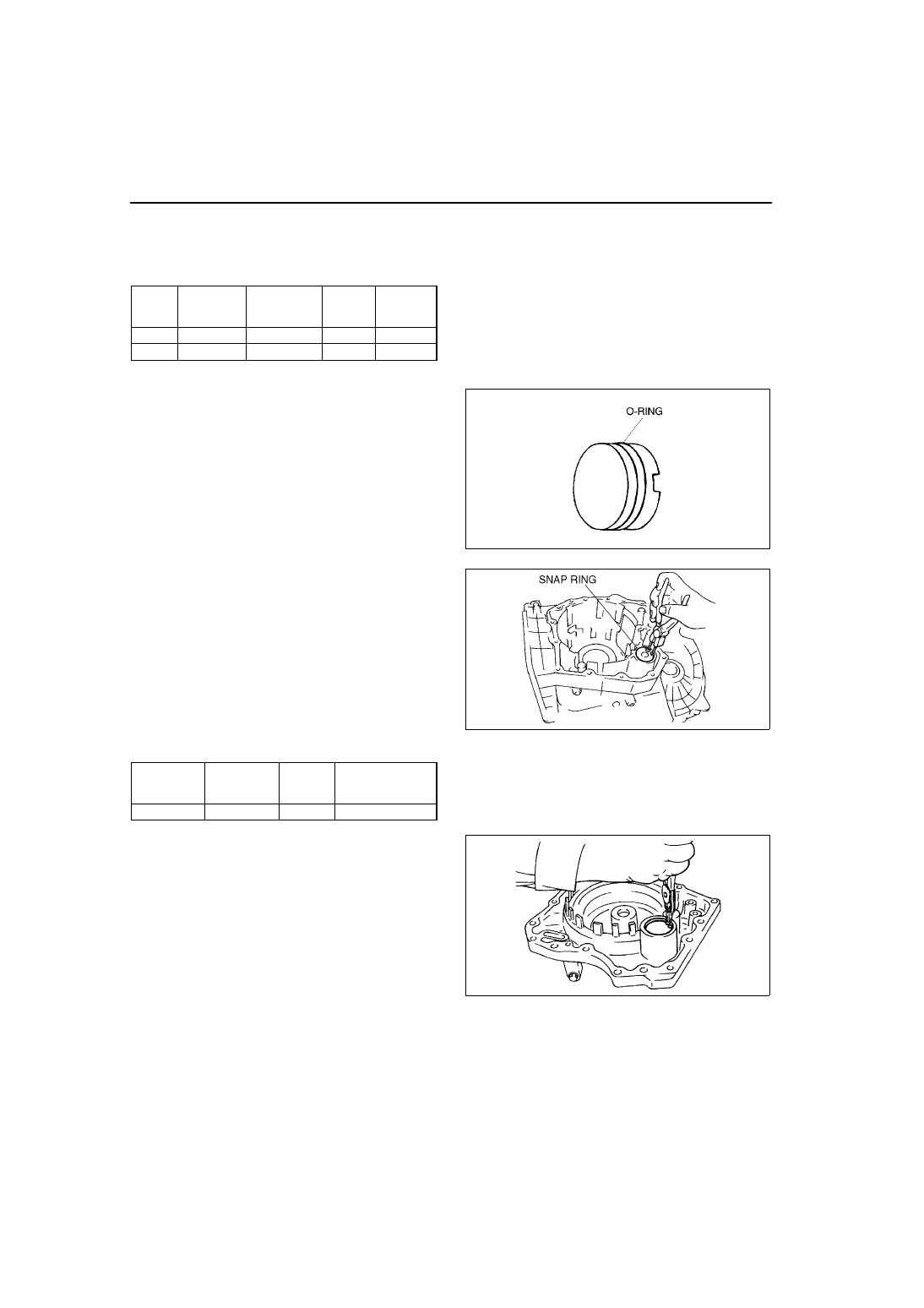

27. Install the direct clutch accumulator.

(1) Measure the free length of the springs and inspect for deformation.

• If not within the specification, replace the spring.

Specification

(2) Install the direct clutch accumulator large spring and direct clutch accumulator small spring.

(3) Apply coat of ATF to a new O-rings, then

assemble them to the direct clutch

accumulator piston.

(4) Install the direct clutch accumulator piston.

(5) Install the snap ring.

28. Install the 2-4 brake accumulator.

(1) Measure the free length of the spring and

inspect for deformation.

• If not within the specification, replace the

spring.

Specification

(2) Apply coat of ATF to a new O-ring, and then

install it to the 2-4 brake accumulator cover.

(3) Install the 2-4 brake accumulator cover and

spring.

(4) Install the snap ring which sercures the 2-4

brake accumulator onto the end cover.

29. Check the end play using a dial depth gauge and

the SST.

Note

• When measuring the end play, do not install

the needle bearing on the reverse clutch and

high clutch component.

Type

Outer

diameter

(mm {in})

Free length

(mm {in})

No. of

coils

Wire

diameter

(mm {in})

Large

27.0 {1.06}

54.6 {2.15}

5.2

2.5 {0.10}

Small

20.0 {0.79}

54.5 {2.15}

7.5

1.9 {0.07}

AMU0517A130

AMU0517A159

Outer

diameter

(mm {in})

Free length

(mm {in})

No. of

coils

Wire diameter

(mm {in})

27.0 {1.06}

73.8 {2.91}

6.8

2.6 {0.10}

AMU0517A029

AUTOMATIC TRANSAXLE

K1–51

K1

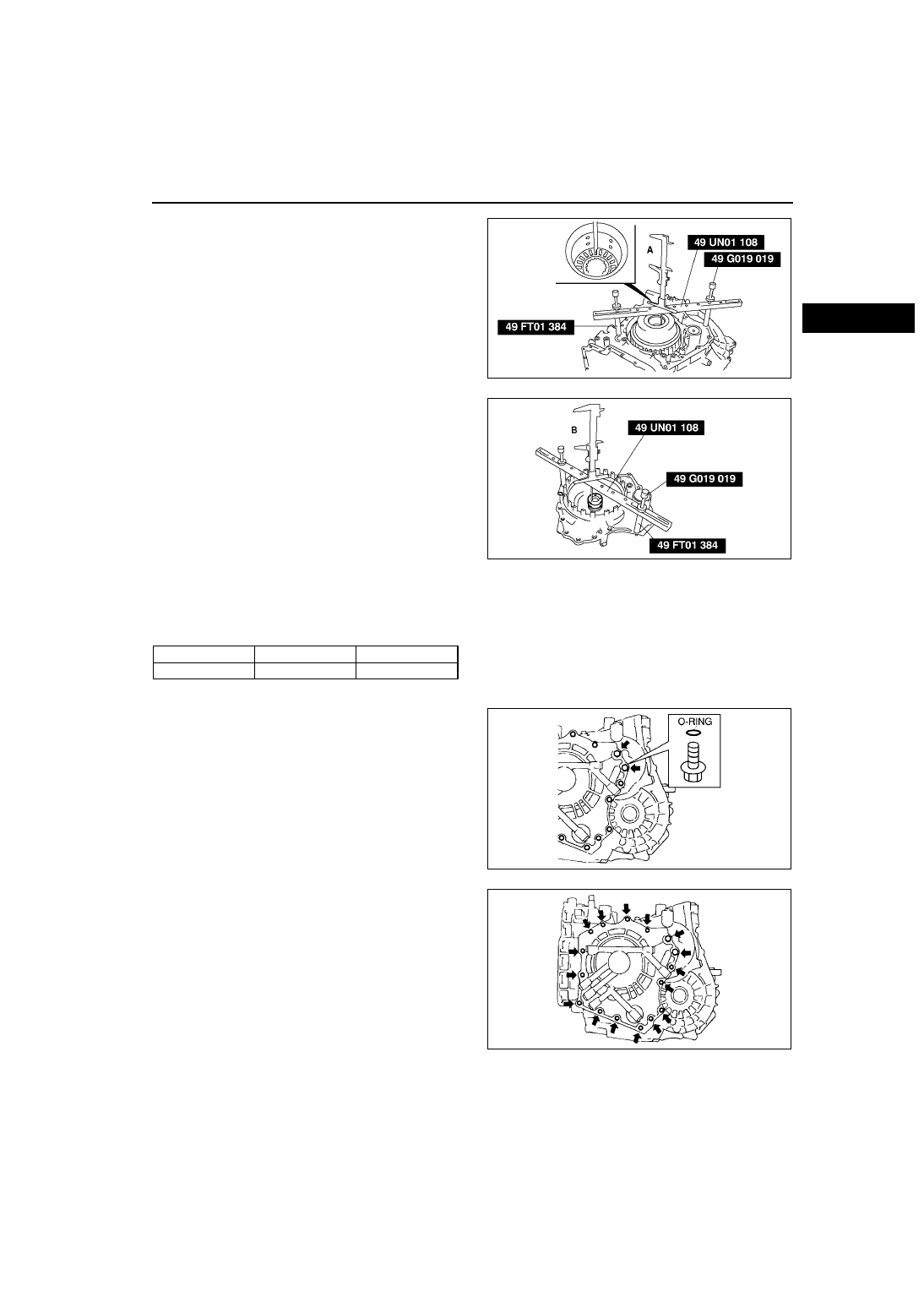

(1) Measure dimension A as shown in the figure.

Note

• When measuring the end play, do not install

the needle bearing on the surface of the end

cover where it contacts the needle bearing.

(2) Measure dimension B as shown in the figure.

Note

• When measuring the end play, do not install

the needle bearing on the reverse clutch and

high clutch component.

(3) Measure the bearing race thickness C.

(4) Measure the SSTs height D.

(5) Calculate the end play using the following

formula.

End play = (A – D) – (D – B) – C

Specification: 0.25—0.55 mm {0.01—0.02 in}

(6) If the end play is out of specification, select a suitable bearing race.

Bearing race sizes

mm {in}

30. Apply a light coat of silicone sealant to the contact surfaces of the transaxle case and the end cover.

31. Assemble a new O-ring to two bolts.

Caution

•••• Do not hammer the end cover.

32. Install the end cover.

Tightening torque

19—22 N·m {1.9—2.2 kgf·m, 14—16 ft·lbf}

1.4 {0.055}

1.6 {0.063}

1.8 {0.071}

2.0 {0.079}

2.2 {0.087}

–

AMU0517A174

AMU0517A173

AMU0517A026

AMU0517A025

K1–52

AUTOMATIC TRANSAXLE

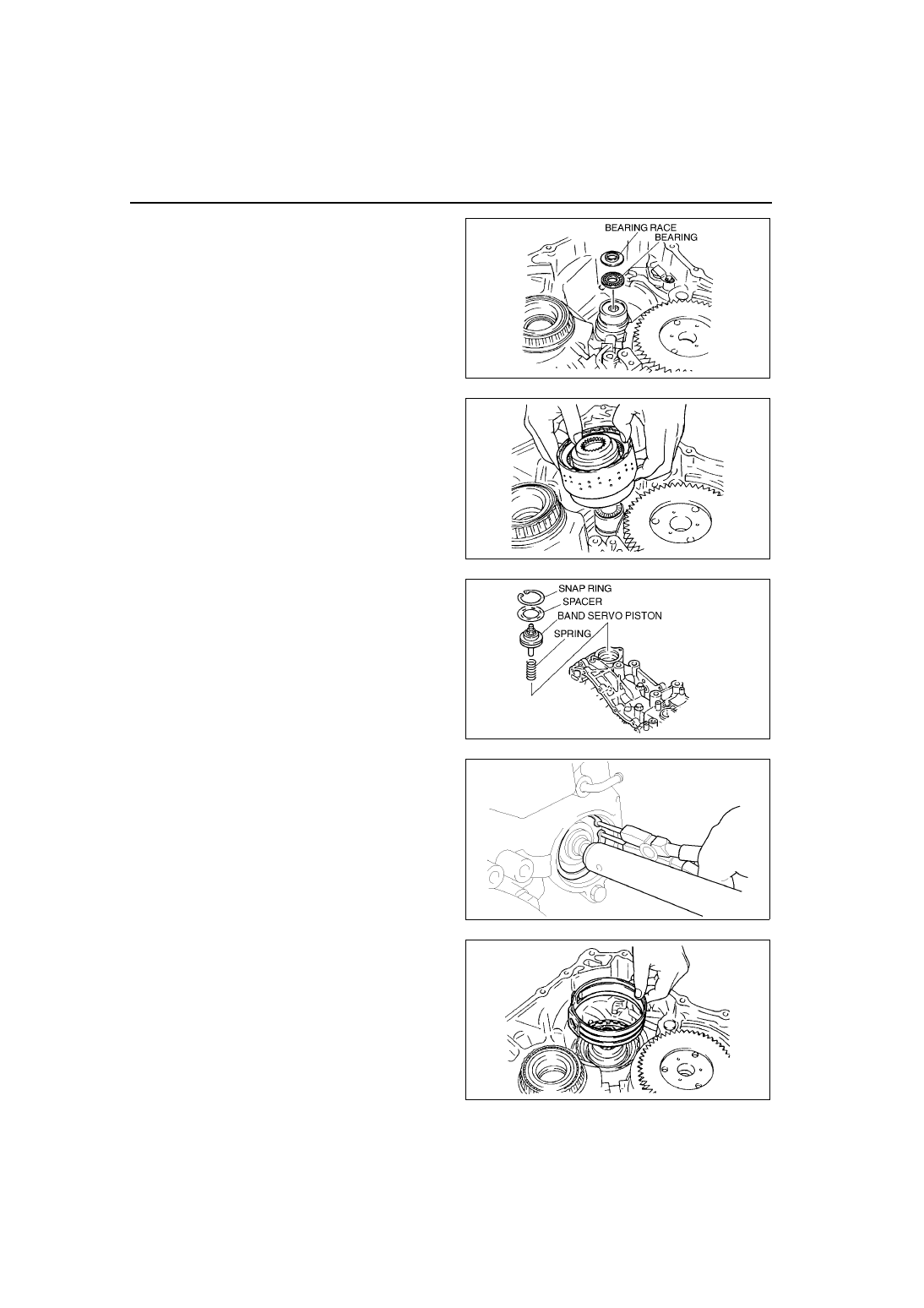

33. Apply petroleum jelly to the needle bearing,

bearing race, and then install them to the one-

way clutch inner race.

34. Install the direct clutch component.

35. Install the reduction brake band.

(1) Apply a coat of ATF to a new O-ring, then

install it to the reduction brake band piston.

(2) Install the spring, band servo piston, and

spacer.

(3) Pushing the piston stem using a wood stick,

install the snap ring.

36. Apply a coat of ATF to the friction surface of

reduction brake band, then install it to the direct

clutch component.

Note

• Do not reuse the anchor end bolt.

• The tip of anchor end bolt must be inserted

to the band groove.

AMU0517A022

AMU0517A021

AMU0517A133

AMU0517A160

AMU0517A020
