4. B-pillar lower trim (LH) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)

5. Trunk box. (See TRUNK BOX REMOVAL/INSTALLATION .)

6. Seat side box. (See SEAT SIDE BOX REMOVAL/INSTALLATION .)

7. Trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)

8. Third-row seat. (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)

9. Third-row seat belt lower anchor installation bolt. (Driver side) (See THIRD-ROW SEAT BELT

REMOVAL/INSTALLATION .)

10. Trunk side trim. (Driver side) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)

3. Remove the fuel-filler lid release cover in the direction of the arrow.

4. Slightly bend back the floor covering.

5. Remove in the order indicated in the table.

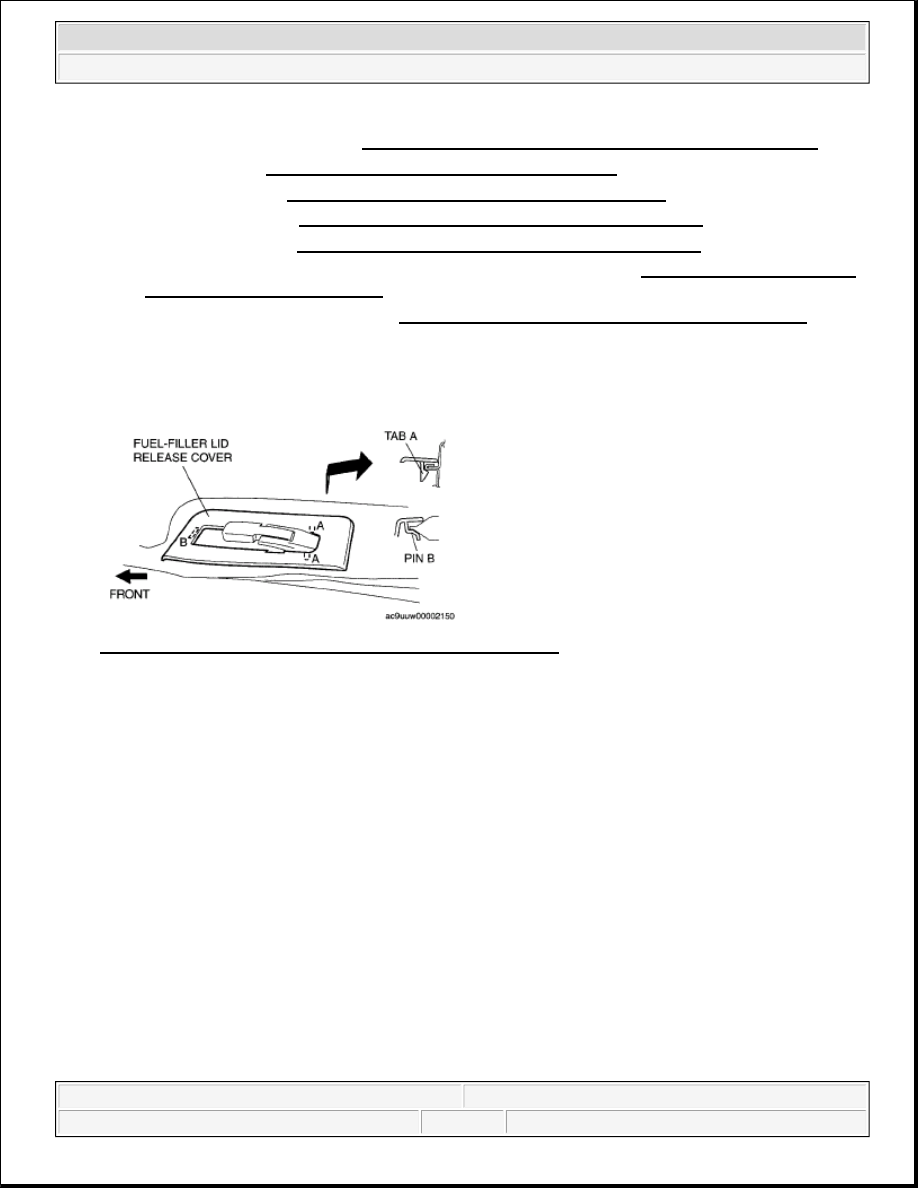

Fig. 50: Identifying Fuel-Filler Lid Release Cover With Tab
Courtesy of MAZDA MOTORS CORP.

6. Install in the reverse order of removal.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:58 AM

Page 27

© 2005 Mitchell Repair Information Company, LLC.

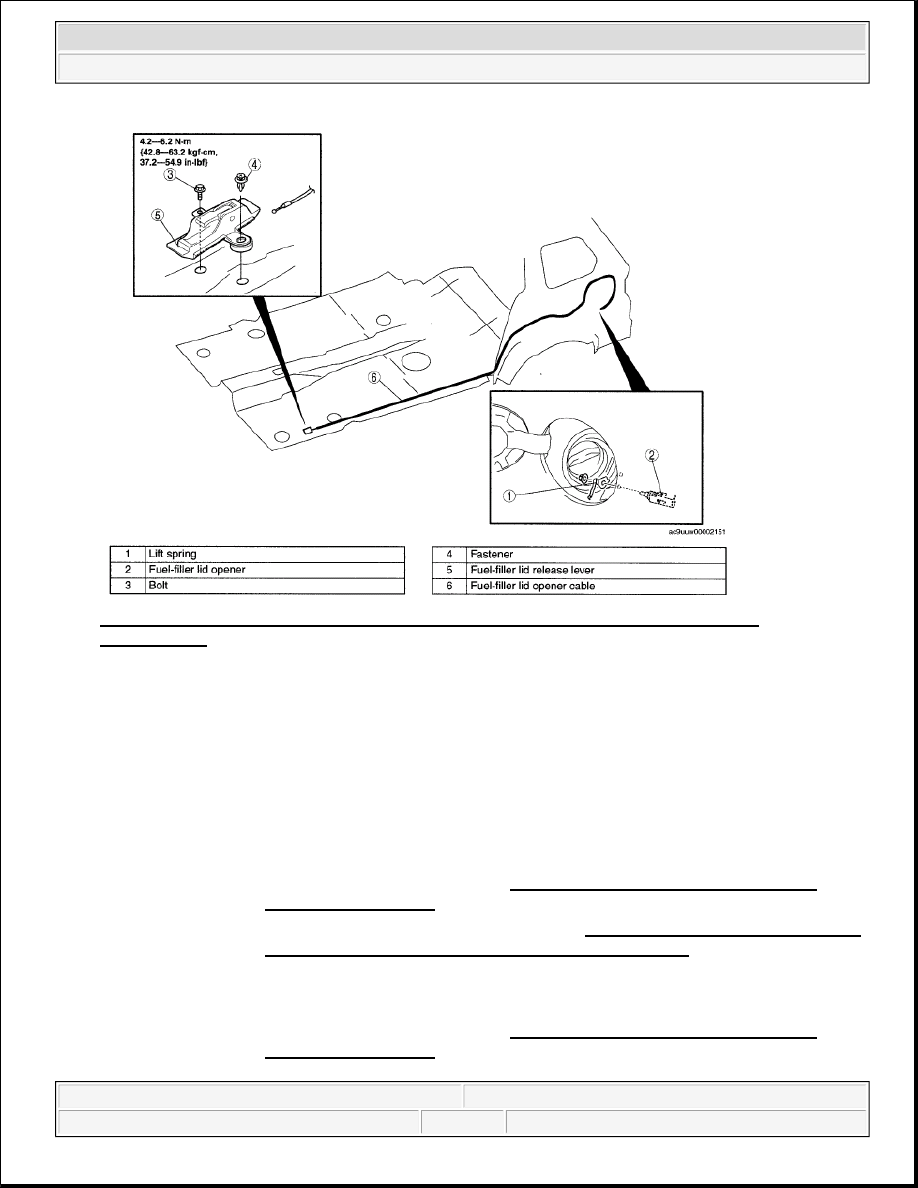

Fig. 51: View Of Fuel-Filler Lid Opener Components Installation Sequence & Torque
Specifications
Courtesy of MAZDA MOTORS CORP.

KEYLESS CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED
KEYLESS SYSTEM]

NOTE:



If the keyless control module is replaced, always perform the following
procedure.

Without immobilizer system



Card key programming (See CLEARING CARD KEY [ADVANCED
KEYLESS SYSTEM].)



Steering lock unit programming (See STEERING LOCK UNIT ID CODE
REGISTRATION [ADVANCED KEYLESS SYSTEM].)

With immobilizer system



Card key programming (See CLEARING CARD KEY [ADVANCED
KEYLESS SYSTEM].)



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:58 AM

Page 28

© 2005 Mitchell Repair Information Company, LLC.

1. Disconnect the negative battery cable.

2. Remove the dashboard under cover (Driver side). (See DASHBOARD UNDER COVER

REMOVAL/INSTALLATION .)

3. Remove the auto light/wiper control module. (Vehicles with auto light/wiper system) (See AUTO

LIGHT/WIPER CONTROL MODULE REMOVAL/INSTALLATION .)

4. Remove the auto light-off control module. (Vehicles without auto light/wiper system) (See AUTO

LIGHT-OFF CONTROL MODULE REMOVAL/INSTALLATION .)

5. Remove in the order indicated in the table.

6. Install in the reverse order of removal.

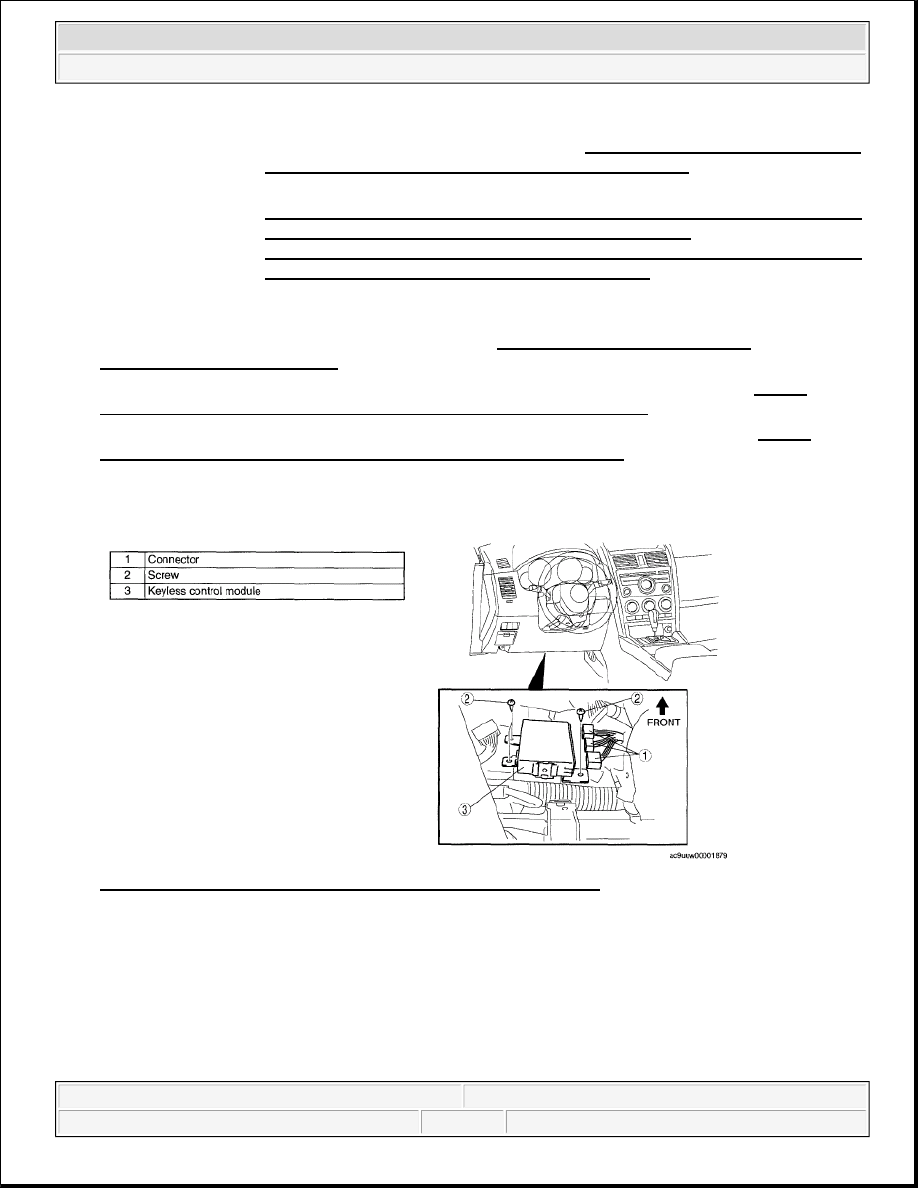

Fig. 52: Identifying Keyless Control Module, Connector & Screw
Courtesy of MAZDA MOTORS CORP.

KEYLESS CONTROL MODULE INSPECTION [ADVANCED KEYLESS
SYSTEM]

1. Measure the voltage or inspect for continuity according to the Terminal Voltage Table (Reference).



If the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts under
"Inspection item(s)" and related wiring harnesses.



Steering lock unit programming (See STEERING LOCK UNIT ID CODE
REGISTRATION [ADVANCED KEYLESS SYSTEM].)



Immobilizer system resetting (with immobilizer system) (See
IMMOBILIZER SYSTEM COMPONENT REPLACEMENT/KEY ADDITION
AND CLEARING [ADVANCED KEYLESS SYSTEM].) (See
IMMOBILIZER SYSTEM COMPONENT REPLACEMENT/KEY ADDITION
AND CLEARING [KEYLESS ENTRY SYSTEM].)



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Security and Locks - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:47:58 AM

Page 29

© 2005 Mitchell Repair Information Company, LLC.

TERMINAL VOLTAGE TABLE (REFERENCE)

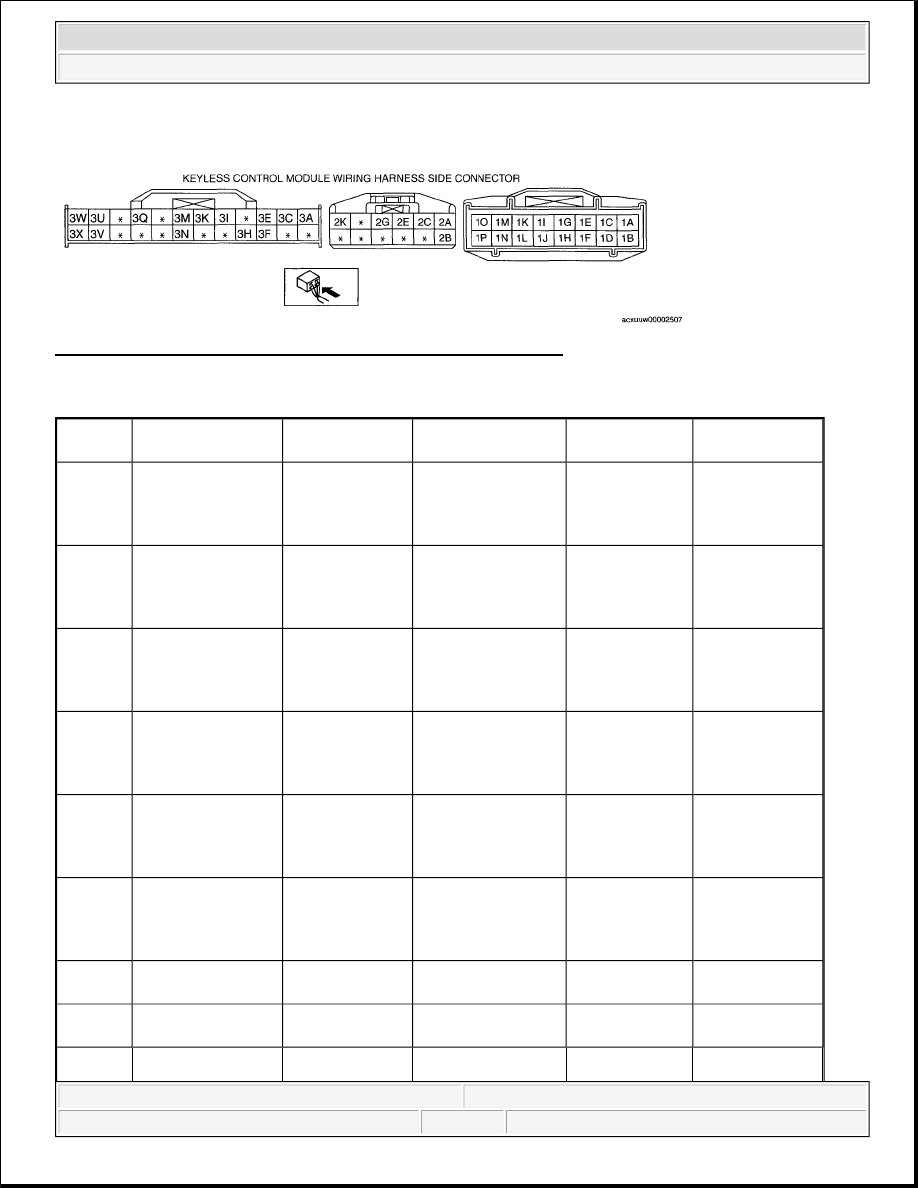

Fig. 53: Identifying Keyless Control Module Connector Terminals
Courtesy of MAZDA MOTORS CORP.

CONNECTOR TERMINALS REFERENCE

Terminal

Signal name

Connected to

Measured

condition

Voltage

(V)/Continuity

Inspection item

(s)

1A

Keyless antenna
(Exterior, LF)(+)

Keyless antenna
(Exterior, LF)

Under any
condition: Inspect
for continuity to
keyless antenna.

Continuity

detected

Keyless antenna
(Exterior, LF)

1B

Keyless antenna
(Exterior, LF)(-)

Keyless antenna
(Exterior, LF)

Under any
condition: Inspect
for continuity to
Keyless antenna.

Continuity

detected

Keyless antenna
(Exterior, LF)

1C

Keyless antenna
(Exterior, RF)(+)

Keyless antenna
(Exterior, RF)

Under any
condition: Inspect
for continuity to
keyless antenna.

Continuity

detected

Keyless antenna
(Exterior, RF)

1D

Keyless antenna
(Exterior, RF)(-)

Keyless antenna
(Exterior, RF)

Under any
condition: Inspect
for continuity to
keyless antenna.

Continuity

detected

Keyless antenna
(Exterior, RF)

1E

Keyless antenna
(Exterior, rear)(+)

Keyless antenna
(Exterior, rear)

Under any
condition: Inspect
for continuity to
keyless antenna.

Continuity

detected

Keyless antenna
(Exterior, rear)

1F

Keyless antenna
(Exterior, rear)(-)

Keyless antenna
(Exterior, rear)

Under any
condition: Inspect
for continuity to
keyless antenna.

Continuity

detected

Keyless antenna
(Exterior, rear)

1G

GND

Body ground

Under any condition

1.0 or less

Related wiring
harnesses

1H

GND

Body ground

Under any condition

1.0 or less

Related wiring
harnesses

Under any
