3

INSPECT FUEL INJECTOR NO.6 CONNECTOR
FOR POOR CONNECTION



Turn the ignition switch off.



Disconnect the fuel injector No.6 connector.



Inspect for poor connection (such as
damaged/pulled-out pins, corrosion).



Are there malfunction?

Yes

Repair or replace suspected part,
then go to Step 8.

No

Go to the next step.

4

INSPECT PCM CONNECTOR FOR POOR
CONNECTION



Turn the ignition switch off.



Disconnect the PCM connector.



Inspect for poor connection (such as
damaged/pulled-out pins, corrosion).



Is there malfunction?

Yes

Repair or replace suspected part,
then go to Step 8.

No

Go to the next step.

5

INSPECT FUEL INJECTOR NO.6 POWER SUPPLY
CIRCUIT FOR OPEN CIRCUIT



Turn the ignition switch to the ON position (Engine
off).



Measure the voltage between fuel injector No.6
connector terminal B and body ground.



Is the voltage B+?

Yes Go to the next step.

No

Repair or replace suspected part,

then go to Step 8.

6

INSPECT FUEL INJECTOR NO.6 SIGNAL
CIRCUIT FOR OPEN CIRCUIT



Inspect continuity between fuel injector No.6
terminal A (wiring harness-side) and PCM terminal
2BD (wiring harness-side).



Is there continuity?

Yes Go to the next step.

No

Repair or replace suspected part,

then go to Step 8.

7

INSPECT FUEL INJECTOR NO.6



Inspect the fuel injector No.6. (See FUEL
INJECTOR INSPECTION [MZI-3.7] .)



Is there any malfunction?

Yes

Replace the fuel injector No.6, then
go to the next step.

No

Go to the next step.

8

VERIFY TROUBLESHOOTING OF DTC P0206
HAS BEEN COMPLETED



Verify that all disconnected connectors reconnected.



Clear DTC from memory using M-MDS.



Start the engine.



Perform the "KOEO/KOER self-test" (See

Yes

Replace the PCM, then go to the
next step.



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:36 AM

Page 133

© 2005 Mitchell Repair Information Company, LLC.

DTC P0222 [MZI-3.7]

DTC P0222 (MZI-3.7) DETECTION CONDITIONS AND POSSIBLE CAUSES

KOEO/KOER SELF TEST [MZI-3.7].)



Is same DTC present?

No

Go to the next step.

9

VERIFY AFTER REPAIR PROCEDURE



Perform the "AFTER REPAIR PROCEDURE".
(See AFTER REPAIR PROCEDURE [MZI-
3.7].)



Are any DTCs present?

Yes

Go to the applicable DTC
inspection. (See DTC TABLE
[MZI-3.7].)

No

Troubleshooting completed.

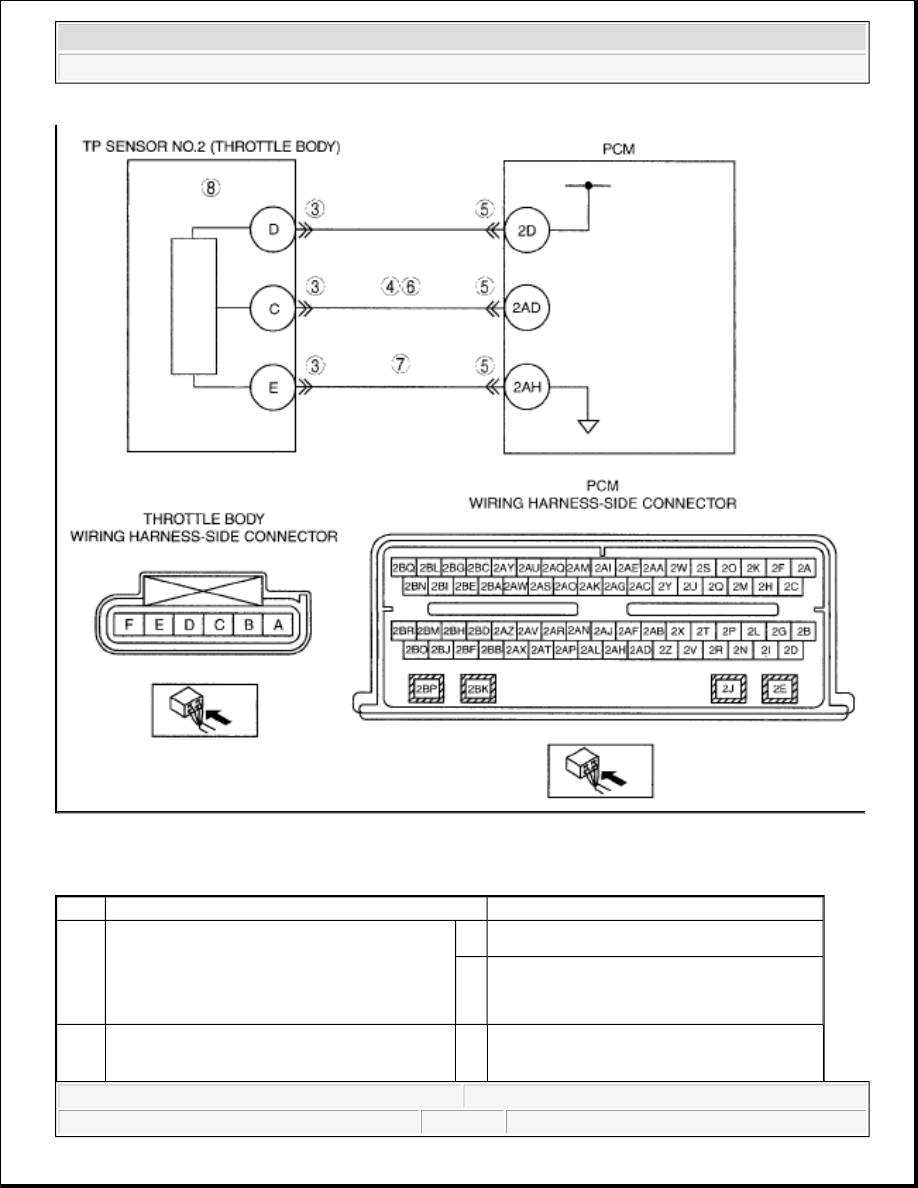

DTC P0222

TP sensor No.2 circuit low input

DETECTION

CONDITION



The TP sensor No.2 circuit was flagged as a concern by the PCM indicating a
low voltage or open circuit.

POSSIBLE CAUSE



TP sensor No.2 malfunction



Connector or terminal malfunction



Open circuit between throttle body terminal C and PCM terminal 2AD



Short to ground circuit between throttle body terminal C and PCM terminal
2AD



Open circuit between throttle body terminal E and PCM terminal 2AH



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:36 AM

Page 134

© 2005 Mitchell Repair Information Company, LLC.

DIAGNOSTIC PROCEDURE

DTC P0222 (MZI-3.7) DIAGNOSTIC PROCEDURE

STEP

INSPECTION

ACTION

1

VERIFY FREEZE FRAME DATA HAS
BEEN RECORDED



Has FREEZE FRAME DATA been
recorded?

Yes Go to the next step.

No

Record FREEZE FRAME DATA on the

repair order, then go to the next step.

VERIFY RELATED REPAIR
INFORMATION AVAILABILITY

Perform repair or diagnosis according to the
available Service Bulletins.



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE On-Board Diagnostic (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:08:36 AM

Page 135

© 2005 Mitchell Repair Information Company, LLC.

2



Verify related Service Bulletins and/or
on-line repair information availability.



Is any related Service Bulletins
available?

Yes



If the vehicle is not repaired, go to the
next step.

No

Go to the next step.

3

INSPECT TP SENSOR CONNECTOR FOR
POOR CONNECTION



Turn the ignition switch off.



Disconnect the throttle body connector.



Inspect for poor connection (such as
damaged/pulled-out pins, corrosion).



Are there any malfunction?

Yes

Repair or replace suspected part, then go to
Step 9.

No

Go to the next step.

4

INSPECT TP SENSOR CIRCUIT FOR
SHORT TO GROUND



Turn the ignition switch to the ON
position (Engine off).



Inspect for continuity between the
following circuits:



TP sensor terminal D (wiring
harness-side) and body ground



TP sensor terminal C (wiring
harness-side) and body ground



Are there continuity?

Yes

Repair or replace suspected part, then go to
Step 9.

No

Go to the next step.

5

INSPECT PCM CONNECTOR FOR POOR
CONNECTION



Turn the ignition switch off.



Disconnect the PCM connector.



Inspect for poor connection (such as
damaged/pulled-out pins, corrosion).



Are there any malfunction?

Yes

Repair or replace suspected part, then go to
Step 9.

No

Go to the next step.

6

INSPECT TP SIGNAL CIRCUIT FOR
OPEN CIRCUIT



Inspect for continuity between throttle
body connector terminal C (wiring
harness-side) and PCM terminal 2AD
(wiring harness-side).



Is there continuity?

Yes Go to the next step.

No

Repair or replace suspected part, then go to

Step 9.

INSPECT TP GROUND CIRCUIT FOR
OPEN CIRCUIT

Yes Go to the next step.
