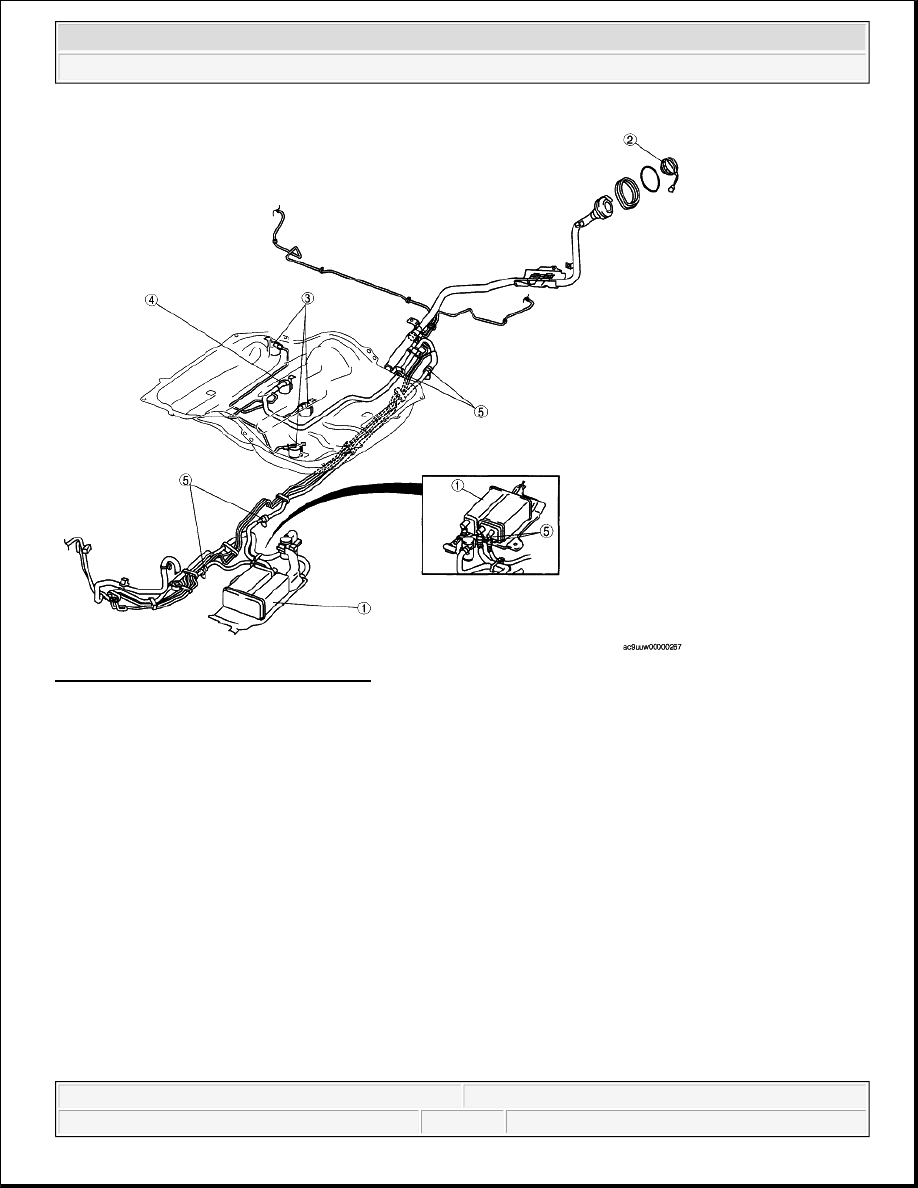

Fig. 3: Identifying Fuel Tank Side - 2WD
Courtesy of MAZDA MOTORS CORP.

AWD



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE Emission System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:04:04 AM

Page 3

© 2005 Mitchell Repair Information Company, LLC.

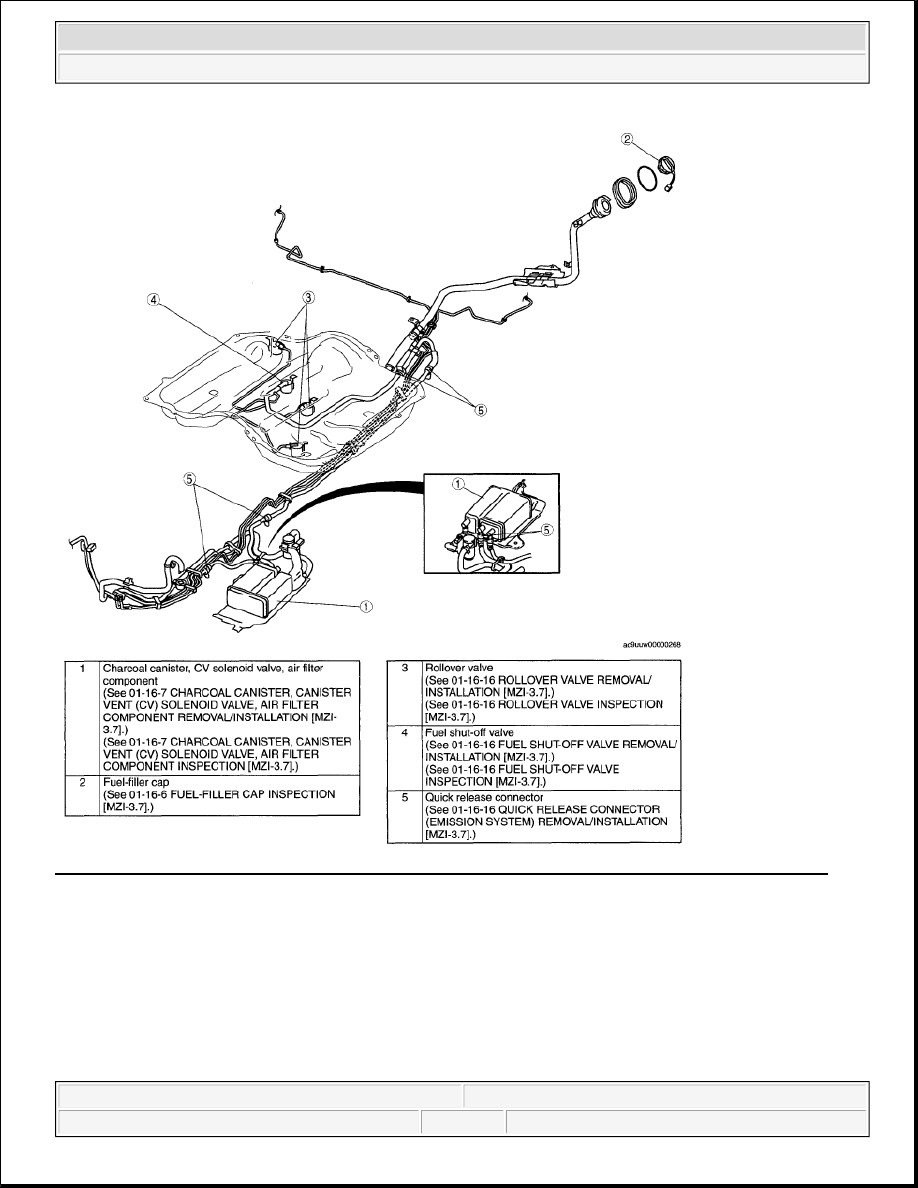

Fig. 4: Identifying Charcoal Canister, Fuel-Filler Cap, Rollover Valve And Quick Release Connector
Courtesy of MAZDA MOTORS CORP.

EMISSION SYSTEM DIAGRAM [MZI-3.7]



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE Emission System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:04:04 AM

Page 4

© 2005 Mitchell Repair Information Company, LLC.

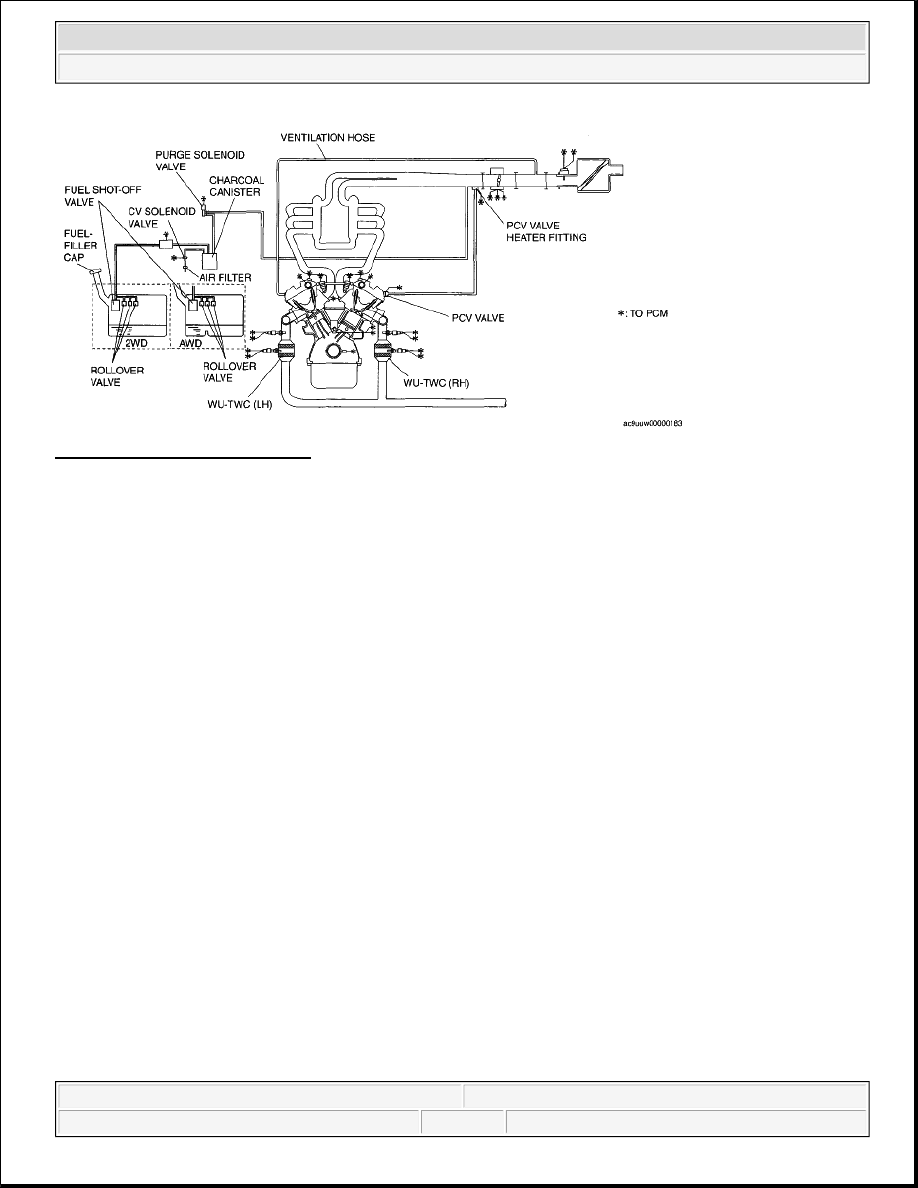

Fig. 5: Emission System Diagram
Courtesy of MAZDA MOTORS CORP.

FUEL-FILLER CAP INSPECTION [MZI-3.7]

LEAKAGE INSPECTION

1. Perform the following SST (Evaporative Emission System Tester 134-01049) self-test:

1. Verify that the gas cylinder valve is closed and the control valve located on the tester is in the

TEST position. All tester displays should be off at this time.

2. Connect the long hose (part of SST ) to the tester.

3. Connect the manifold assembly (part of SST ) to the long hose as shown.

4. Open the gas cylinder valve and verify the gas cylinder regulator left gauge reads 69-82 kPa {0.71-

0.83 kgf/cm

2

 , 10-12 psi}

(preset at factory).



If not, refer to the tester operators manual to contact tester manufacturer.

NOTE:



If the tester does not work correctly during self-test, refer to the
tester operators manual for more detailed procedures.



2008 Mazda CX-9 Grand Touring

2008 ENGINE PERFORMANCE Emission System (MZI-3.7) - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:04:04 AM

Page 5

© 2005 Mitchell Repair Information Company, LLC.

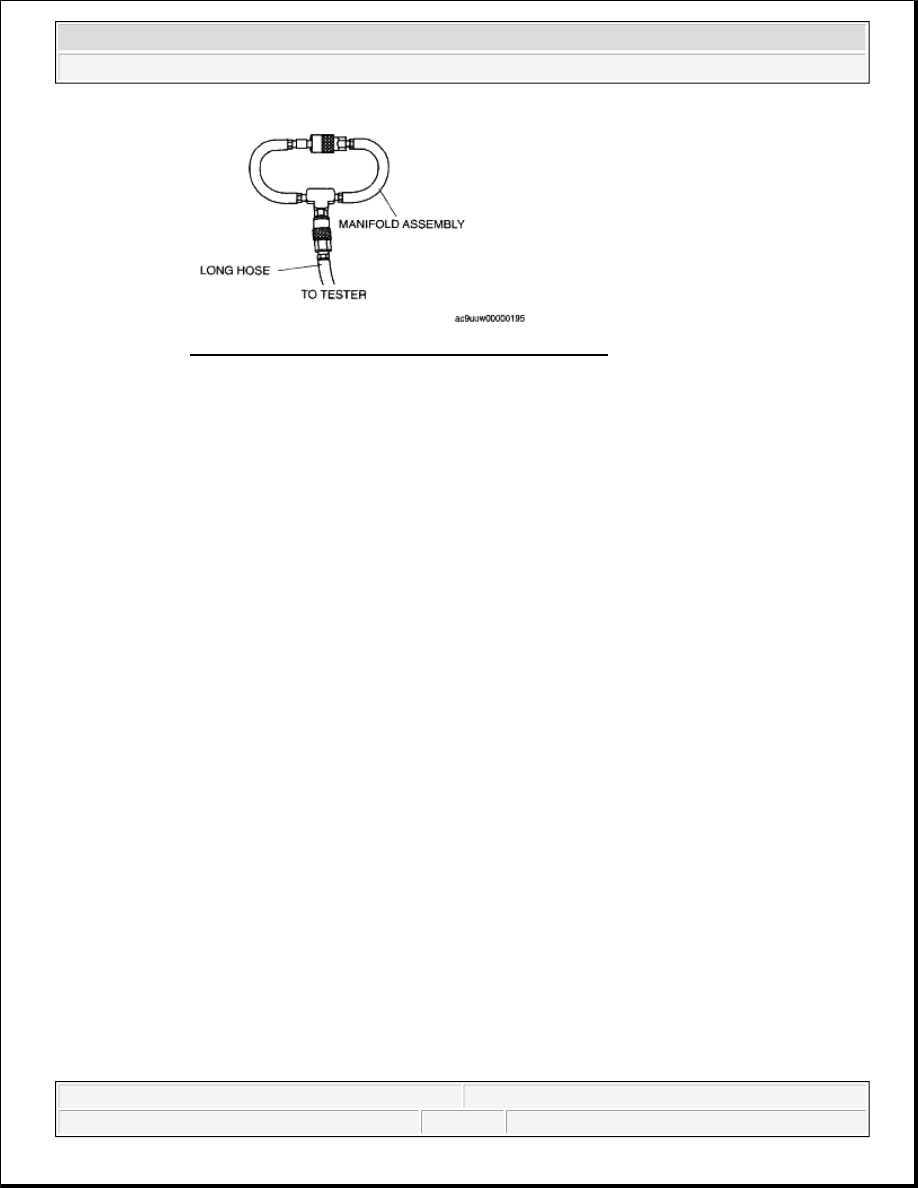

Fig. 6: Identifying Manifold Assembly And Long Hose
Courtesy of MAZDA MOTORS CORP.

5. Press the ON/OFF switch to turn on the SST and make sure the left display reads 0.0.

6. Turn the control valve on the tester to the FILL position.

7. Verify the left display reading is within 13.9 to 14.0 in of water.



If not, adjust the pressure using the regulator knob located on the right side of the tester.

8. Turn the control valve to TEST position and press the START switch.

9. After the 2-min countdown (left display) is completed, the right display shows the total pressure

loss for that period. A 0.5 in of water loss is acceptable on the self-test.



If the loss is more than 0.5 in of water, do one or more self-test. If the failed test repeats,
check for leak using the ultrasonic leak detector (part of SST).

2. Press the RESET switch to set the left display reading to 0.0.

3. Connect the fuel cap receiver assembly (part of SST ) to the manifold assembly and fuel-filler cap from

the vehicle.



If the fuel-filler cap is not a genuine part, replace it.

4. Turn the control valve to the FILL position.

5. Wait (maximum 20 s ) until the left display reads 13.9 to 14.0 in of water.



If the reading is slightly below the specification, adjust it using the regulator knob.



If the reading is far below, the fuel-filler cap has leak. Replace it.

6. Turn the control valve to the TEST position and press the START switch.

7. After the 2-min countdown (left display) is completed, check the test result (the failed/passed light on the

tester).



If the green light turns on, the fuel-filler cap is normal.



If the red light turns on, the fuel-filler cap has leakage. Replace it.
