III–30

PANEL REPLACEMENT

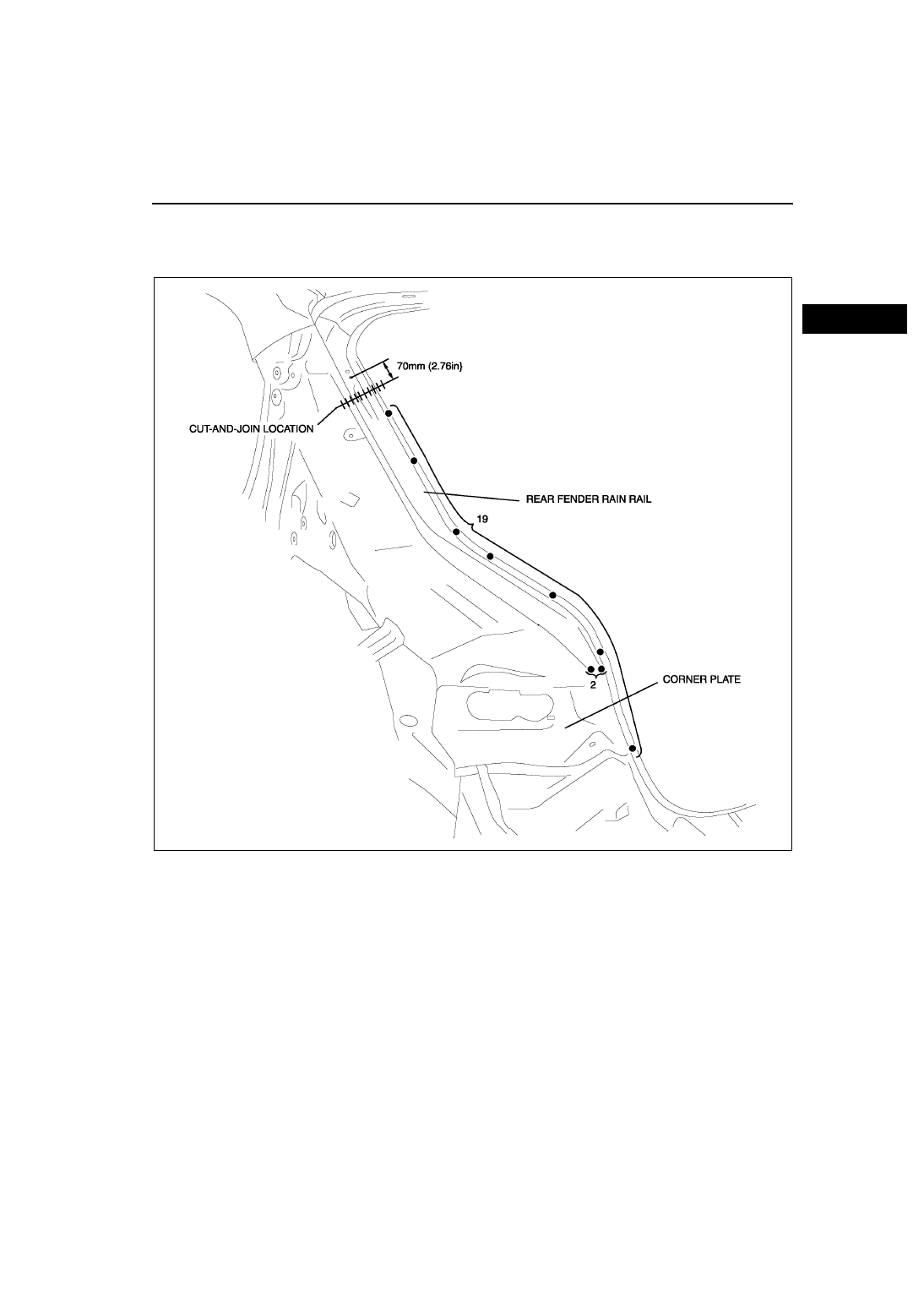

REAR FENDER RAIN RAIL AND CORNER PLATE INSTALLATION

A6E981270440B02

SEDAN

1. When installing new parts, position each part so that the section measurement aligns to the body dimension.
2. Drill holes for plug welds before installing new parts.
3. After trial-fitting new parts, make sure the related parts fit properly.

A6E9812B028

PANEL REPLACEMENT

III–31

III

5HB

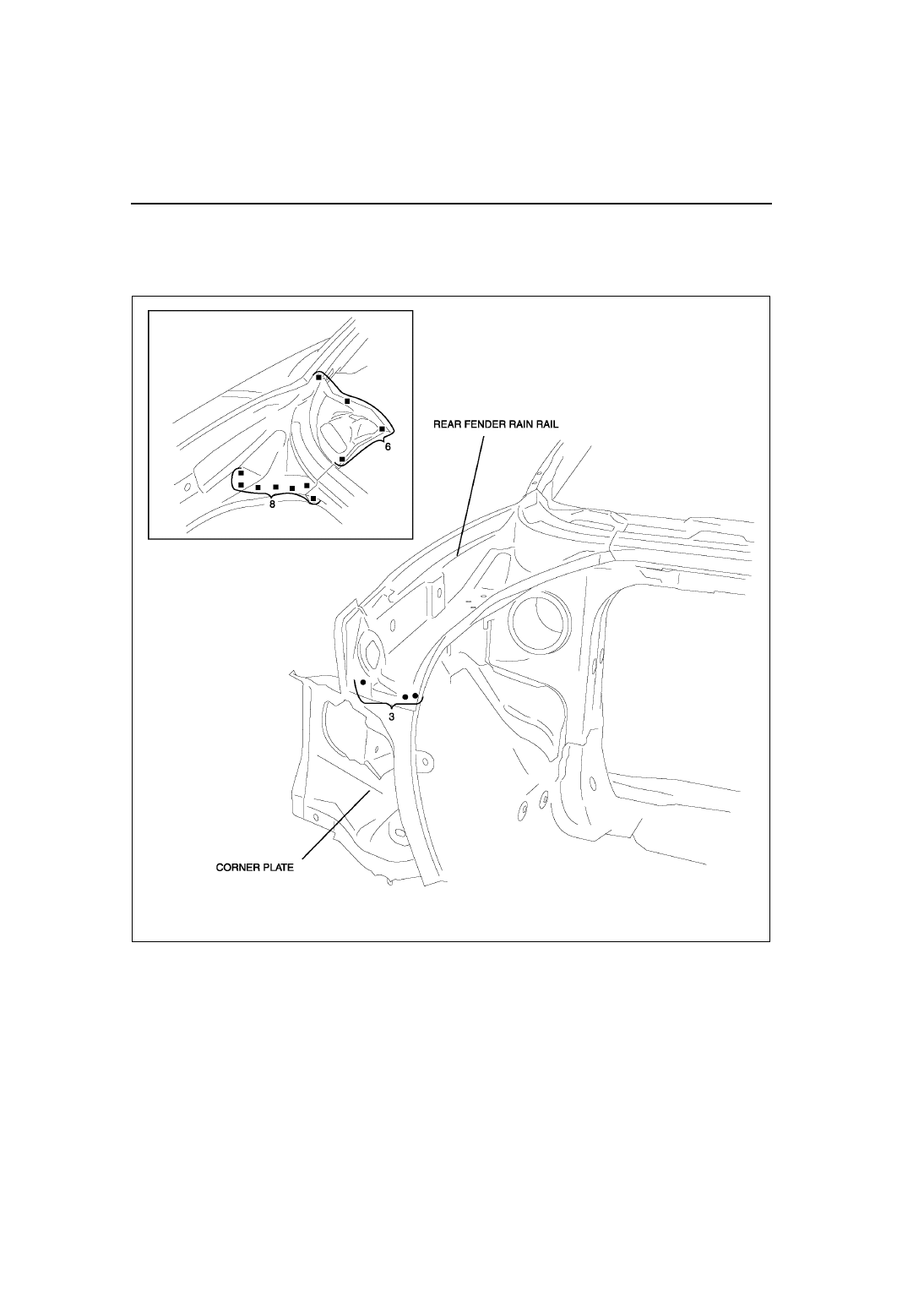

1. When joining the new and old parts, temporarily install and fit the new part in position, measure each dimension

according to the body dimension, then adjust the position to align it to the standard dimensions.

2. After trial-fitting new parts, make sure the related parts fit properly.

End Of Sie

A6E9812B030

III–32

PANEL REPLACEMENT

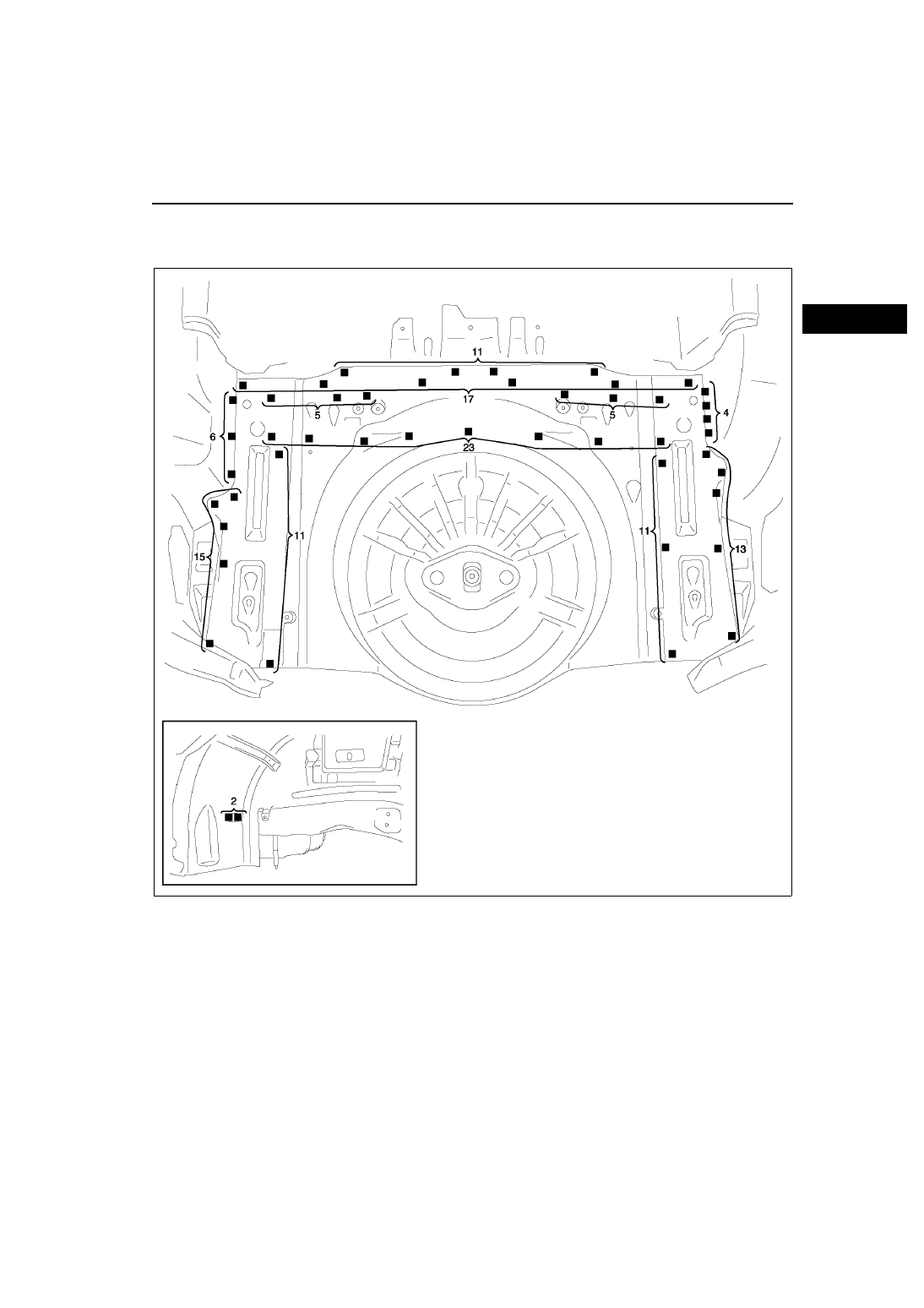

REAR FLOOR PAN REMOVAL

A6E981253750B01

1. Remove the rear floor pan.

End Of Sie

A6E9812B035

PANEL REPLACEMENT

III–33

III

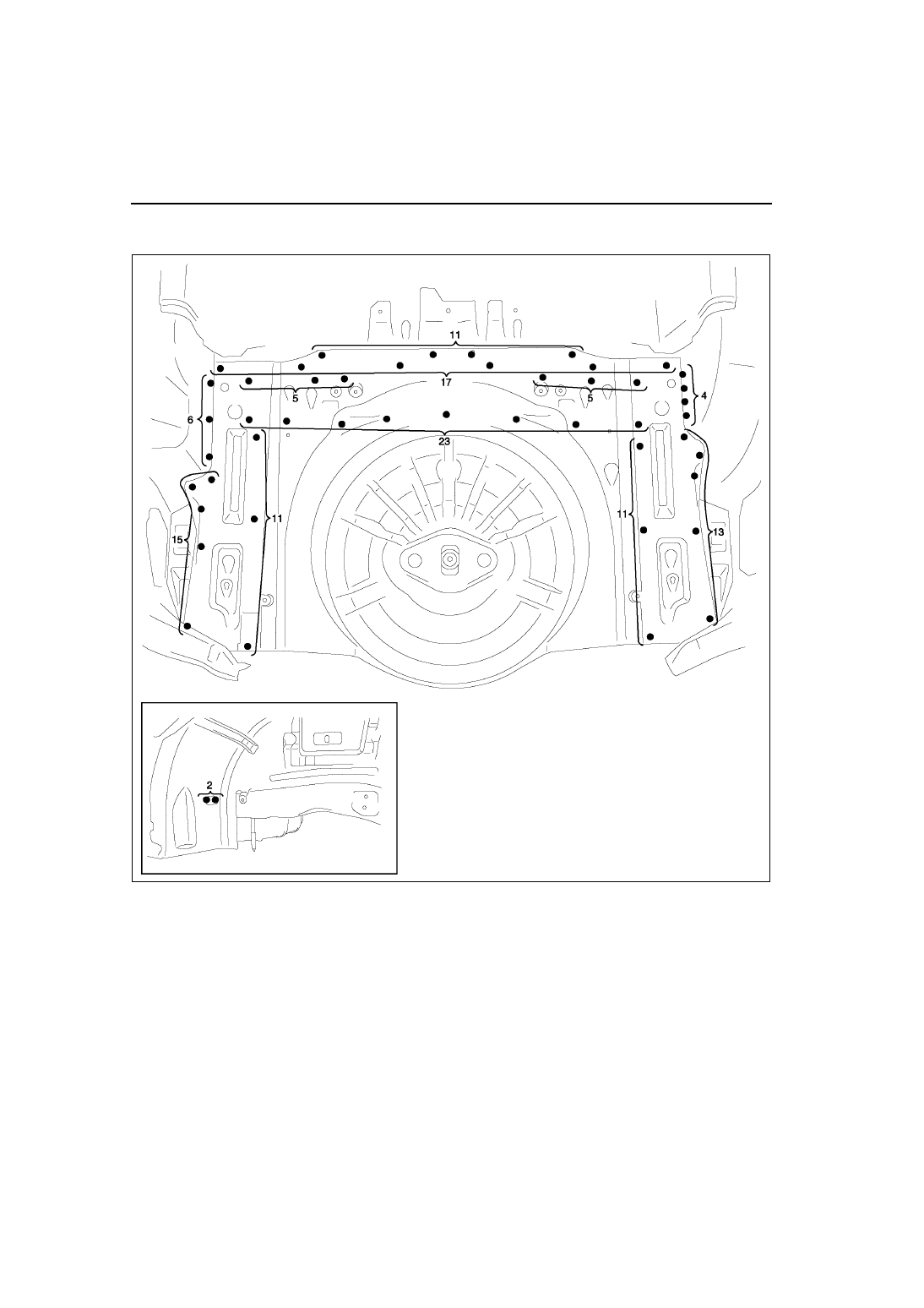

REAR FLOOR PAN INSTALLATION

A6E981253750B02

1. Drill holes for plug welds before installing new parts.
2. After trial-fitting new parts, make sure the related parts fit properly.

End Of Sie

A6E9812B036
