I–4

HOW TO USE THIS MANUAL

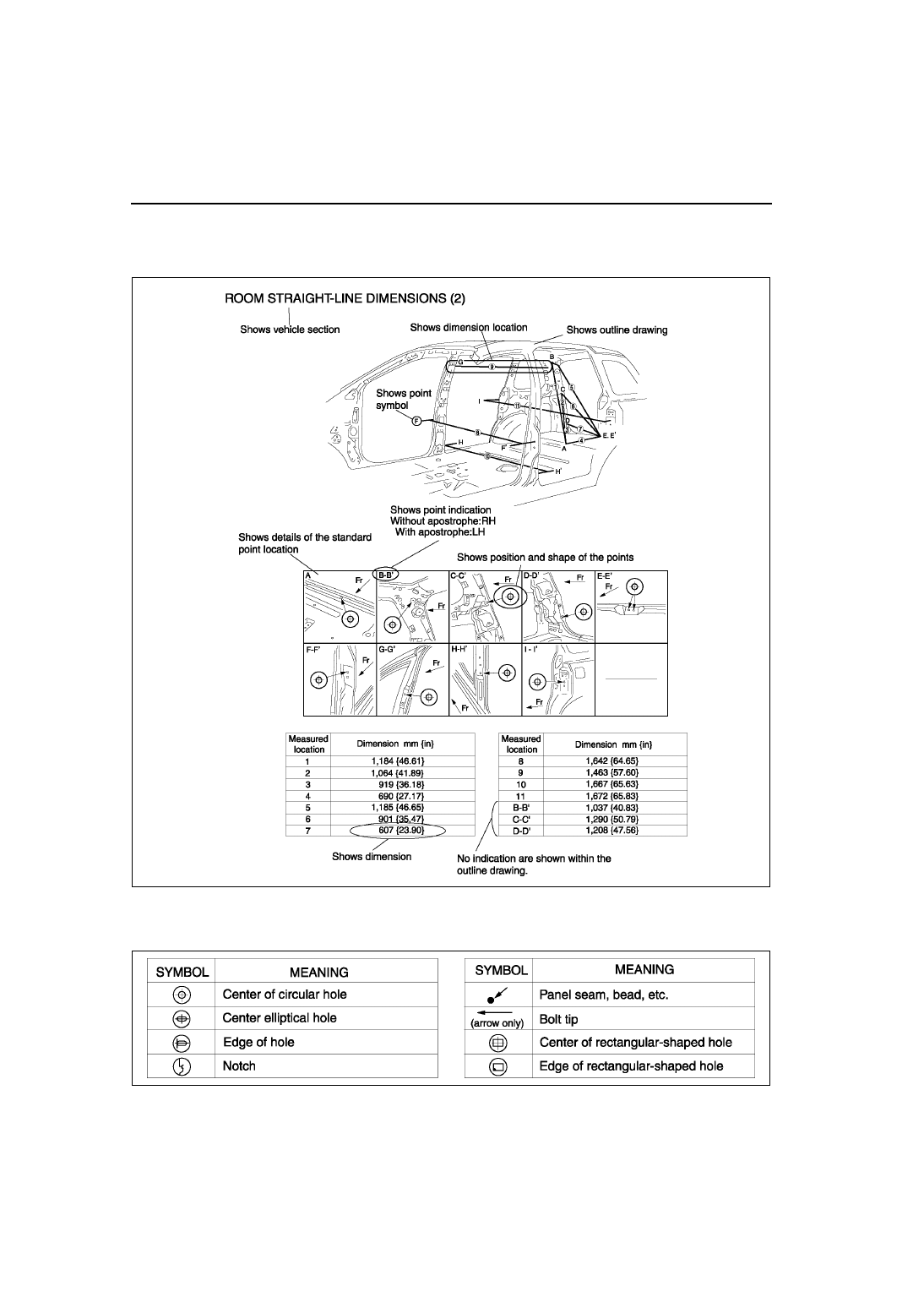

Body Dimensions (Straight-line Dimensions)

• Straight-line dimensions are the actual dimensions between two standard points.

• When there are no specific indications, the standard points and dimensions are symmetrical in regard to the

center of the vehicle.

Symbols of Body Dimensions

• The following 8 symbols are used to indicate the standard points.

End Of Sie

MZZ2010B004

MZZ2010B005

SERVICE PRECAUTIONS

I–5

I

SERVICE PRECAUTIONS

A6E203600025B01

Arrangement of Workshop

• Arrangement of the workshop is important for safe and efficient work.

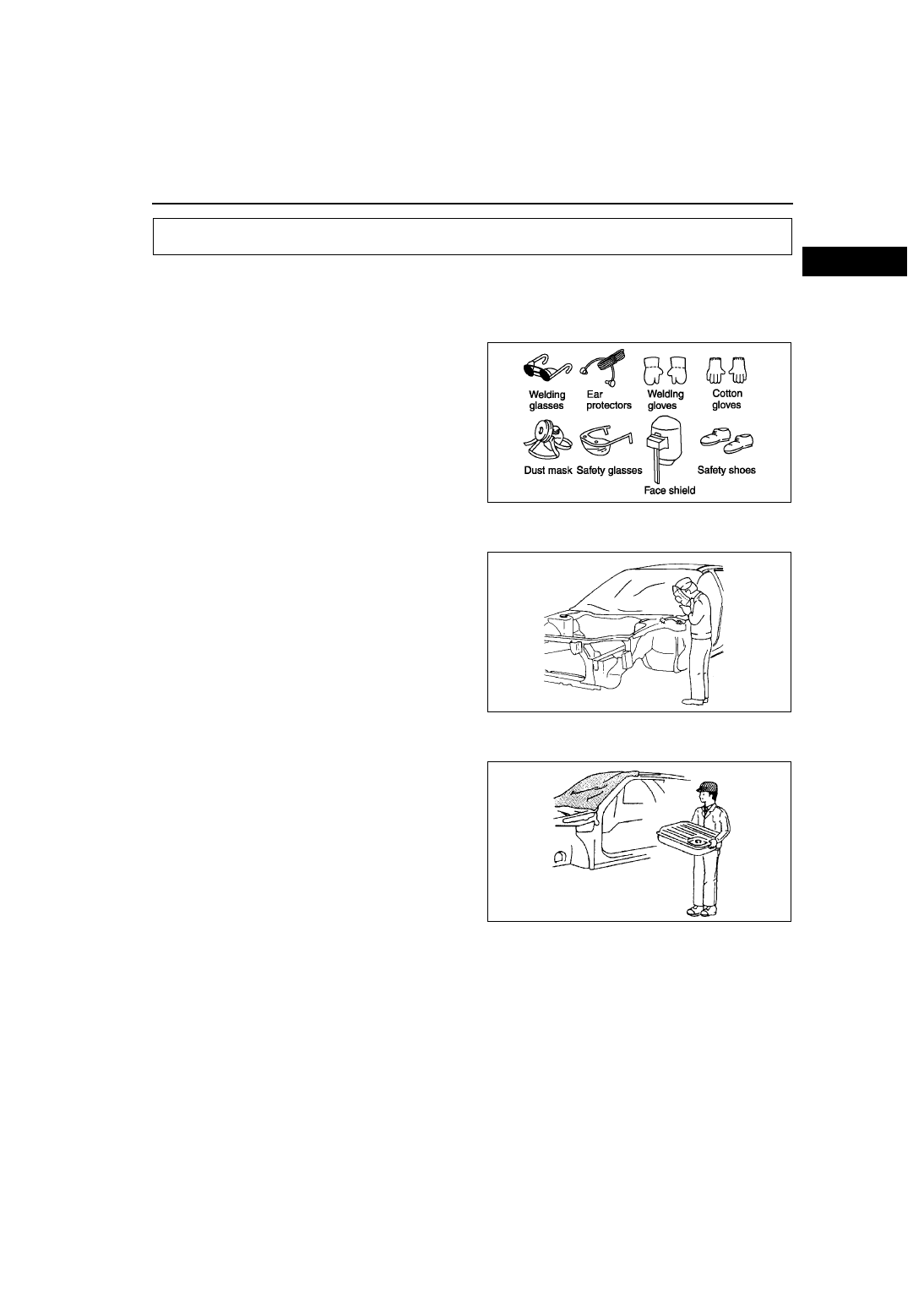

Safety Precautions

• Protective head covering and safety shoes should

always be worn. Depending upon the nature of
the work, gloves, safety glasses, ear protectors,
face shield, etc., should also be used.

Vehicle Protection

• Use seat covers and floor covers.

• Use heat-resistant protective covers to protect

glass areas and seats from heat or sparks during
welding.

• Protect items such as moldings, garnishes, and

ornaments with tape when welding.

Remove Dangerous Articles

• Remove the fuel tank before using an open flame

in that area. Plug connection piping to prevent
fuel leakage.

SERVICE PRECAUTIONS

MZZ2036B001

MZZ2036B002

MZZ2036B003

I–6

SERVICE PRECAUTIONS

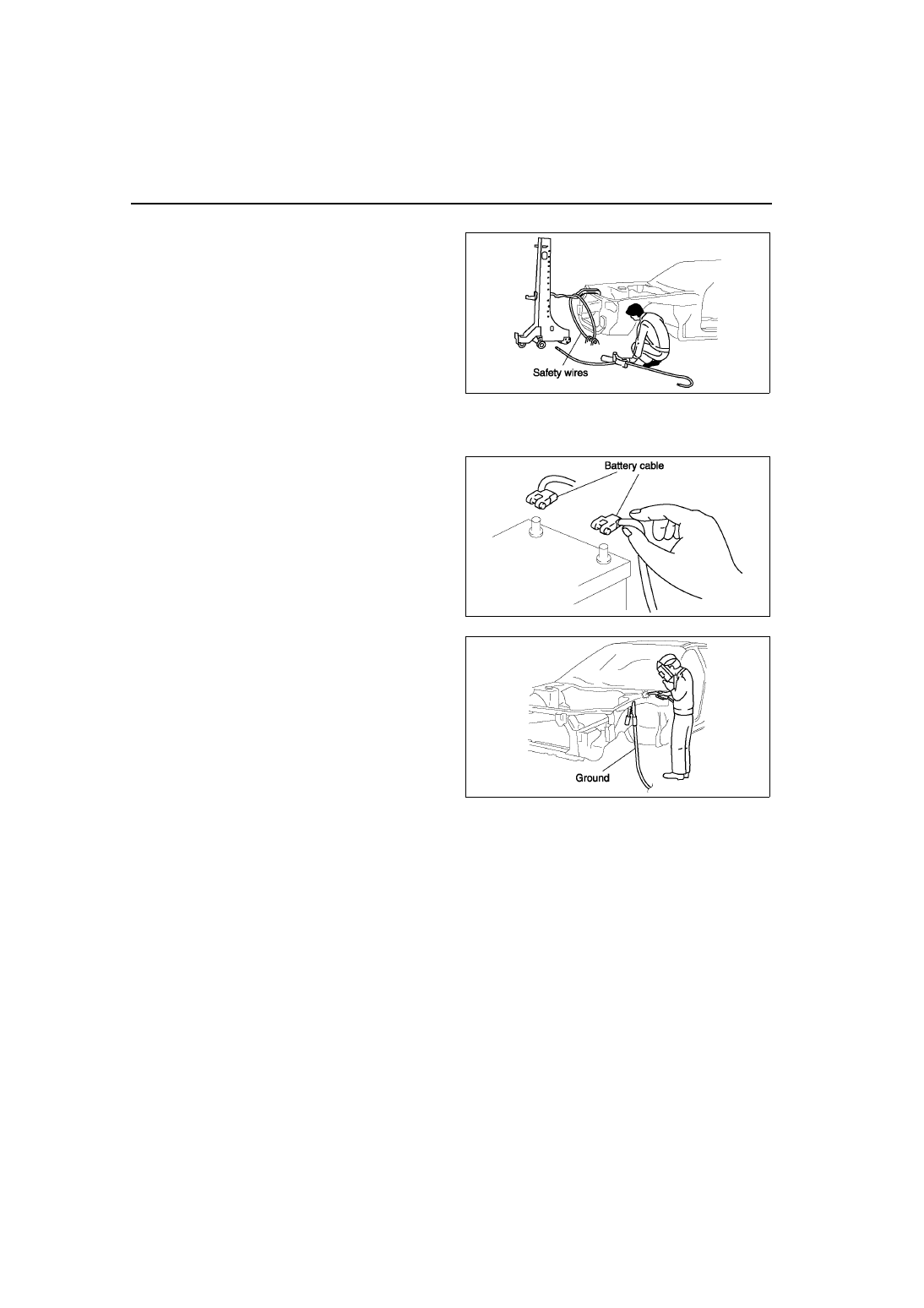

Use of Pulling Equipment

• When using pulling equipment, keep away from

the pulling area and use safety wires to prevent
accidents.

Prevent Short Circuits

• Turn the ignition switch to the LOCK position.

• Disconnect the buttery cables.

• Securely connect the welding machine ground

near the welding area.

End Of Sie

MZZ2036B004

MZZ2036B005

MZZ2036B006

EFFICIENT REPLACEMENT OF BODY PANELS

I–7

I

EFFICIENT REMOVAL OF BODY PANELS

A6E203800026B01

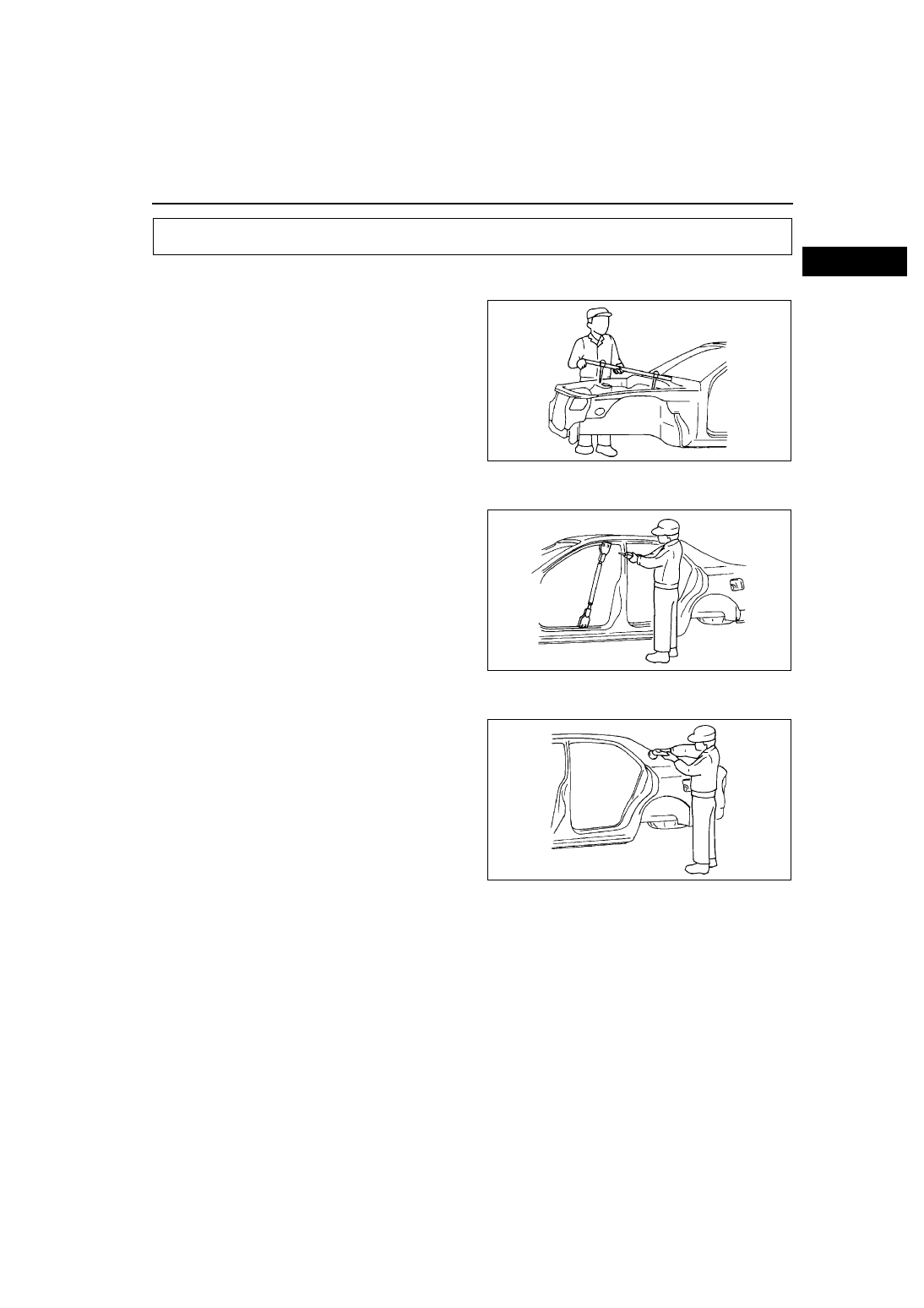

Body Measurements

• Before removal or rough-cutting, first measure the

body at and around the damaged area against
the standard reference dimension specifications.
If there is deformation, use frame repair
equipment to make a rough correction.

Prevention of Body Deformation

• Use a clamp or a jack for removal and reinforce at

and around the rough-cutting location to prevent
deforming of the body.

Selection of Cut-and-join Locations

• For parts where complete replacement is not

feasible, careful cutting and joining operations
should be followed. If the location to be cut is a
flat area where there is no reinforcement, the
selected cutting location should be where the
welding distortion will be minimal.

Remove of Associated Parts

• Protect moldings, garnishes, and ornaments with tape when removing associated parts.

EFFICIENT REPLACEMENT OF BODY PANELS

MZJ2038B001

MZJ2038B002

MZJ2038B003
