AIR BAG SYSTEM

T–123

T

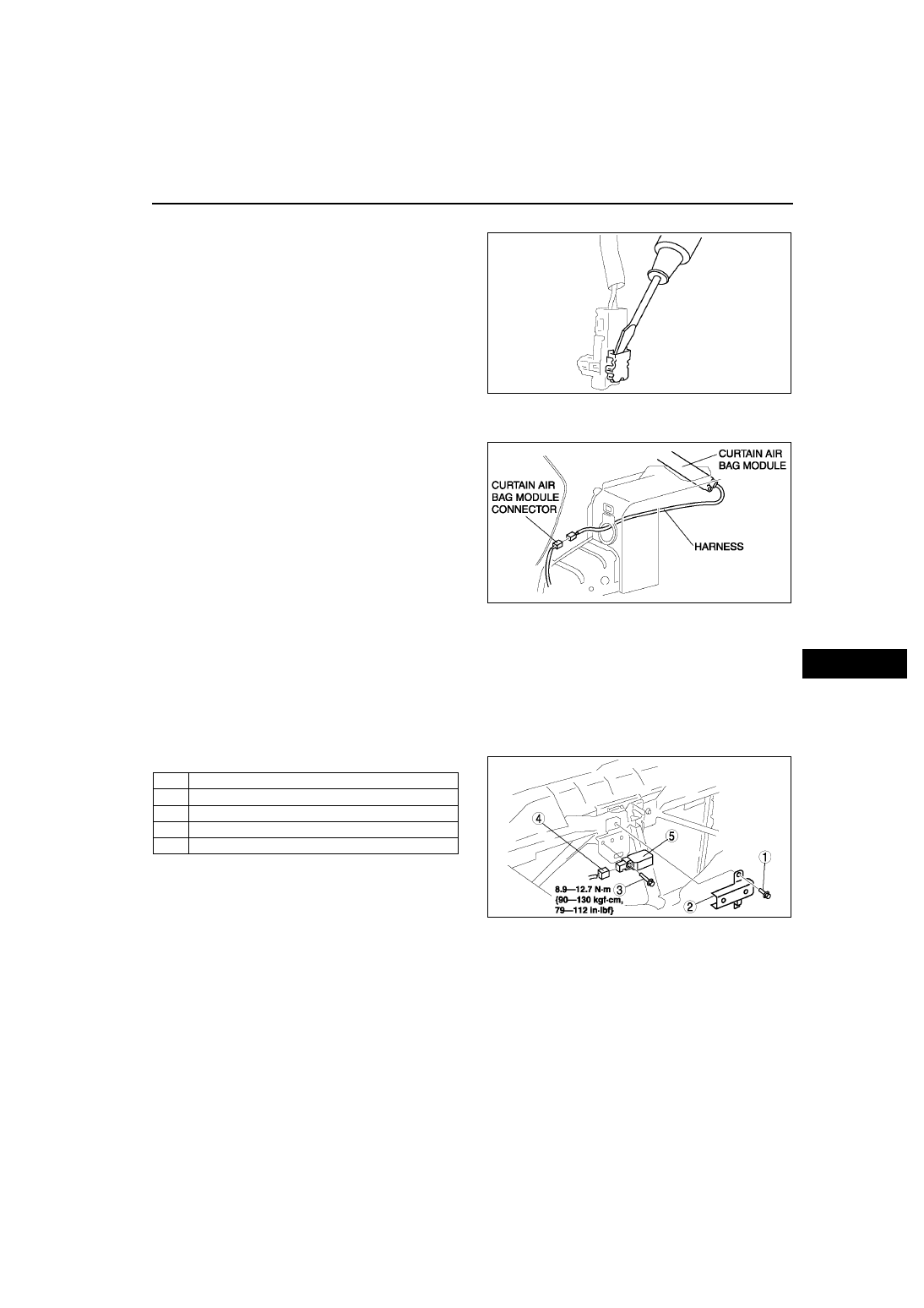

Connector Removal Note

1. Using a flathead screwdriver, pry out the

connector's stopper plate.

2. Disconnect the connector.

Curtain Air Bag Module Installation Note (4SD Right Side)

1. Pass the curtain air bag module harness through

the hole in the body.

End Of Sie

CRASH ZONE SENSOR REMOVAL/INSTALLATION

A6E813000145W01

Warning

• Handling the crash zone sensor improperly can accidentally deploy the air bag module and pre-tensioner

seat belt, which may seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the
crash zone sensor. (See

T–

117 SERVICE WARNINGS

.)

1. Turn the ignition switch to LOCK position.
2. Disconnect the negative battery cable and wait for more than 1 minute.
3. Remove the radiator grille.
4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.
6. Turn the ignition switch to ON position.
7. Verify that the air bag system warning light

illuminates for approximately 6 seconds and
then goes off.

• If the air bag system warning light does not

operate in the manner described above, there are malfunctions in the system. Inspect the system using the
on-board diagnostic function.

End Of Sie

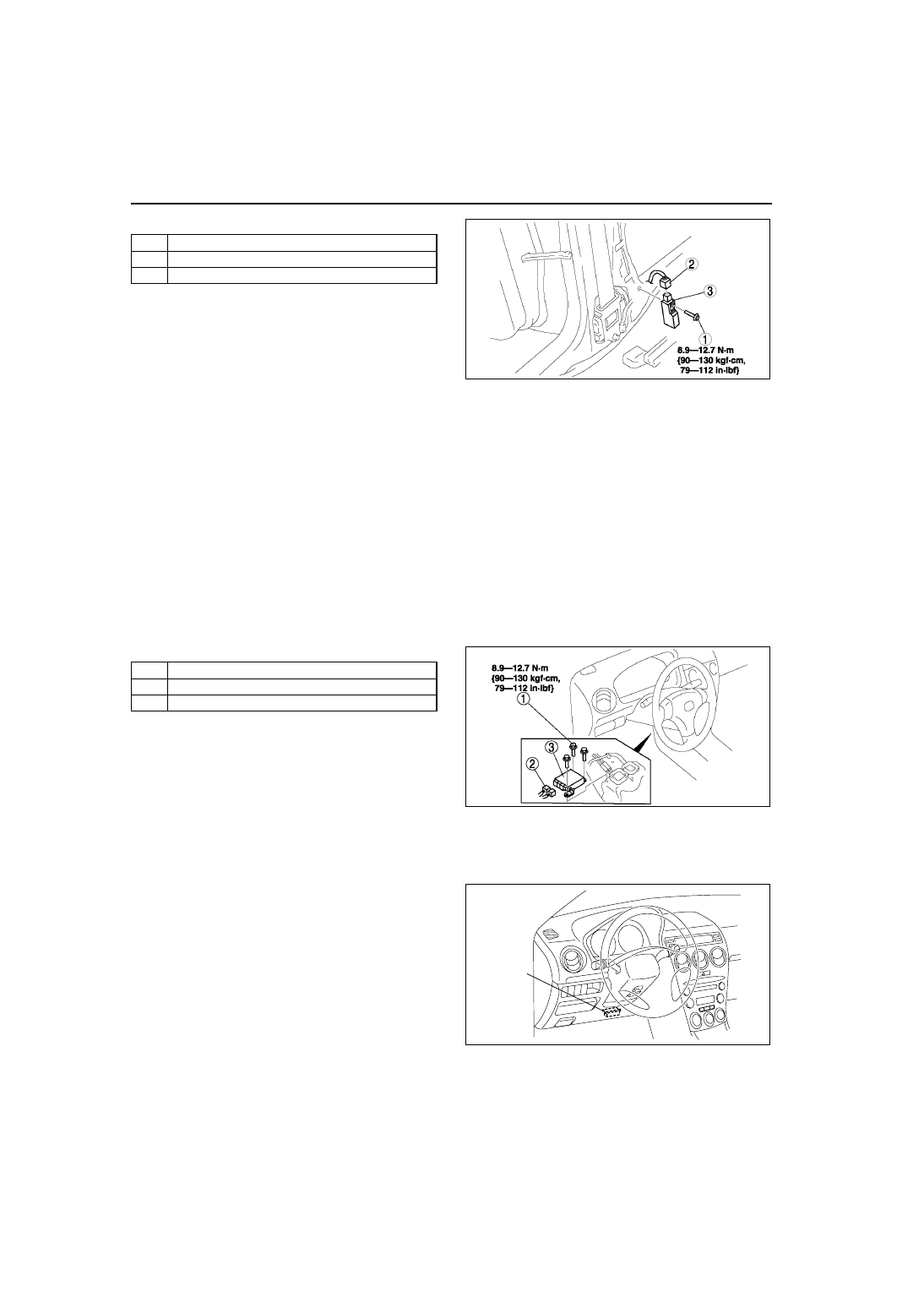

SIDE AIR BAG SENSOR REMOVAL/INSTALLATION

A6E813000146W01

Warning

• Handling the side air bag sensor improperly can accidentally deploy the side air bag module,

which may seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the
side air bag sensor. (See

T–117 SERVICE WARNINGS

.)

1. Turn the ignition switch to LOCK position.
2. Disconnect the negative battery cable and wait for more than 1 minute.
3. Remove the B-pillar lower trim.

A6E8130W002

A6E8130W056

1

Bolt

2

Cover

3

Bolt

4

Connector

5

Crash zone sensor

A6E8130W007

T–124

AIR BAG SYSTEM

4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.
6. Turn the ignition switch to ON position.
7. Verify that the air bag system warning light

illuminates for approximately 6 seconds and
then goes off.

• If the air bag system warning light does not

operate in the manner described above, there
are malfunctions in the system. Inspect the
system using the on-board diagnostic function.

End Of Sie

SAS UNIT REMOVAL/INSTALLATION

A6E813057030W01

Warning

• Handling the SAS unit improperly can accidentally deploy the air bag modules and pre-tensioner

seat belt, which may seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before
handling the SAS unit. (See

T–117 SERVICE WARNINGS

.)

Caution

• When replacing the SAS unit, configuration procedure must be done before removing the SAS

unit. If configuration is not completed before removing the SAS unit, DTC B1921 will detected.

1. Configurate the SAS unit (when only replacing it). (See

T–124 SAS UNIT CONFIGURATION

.)

2. Turn the ignition switch to LOCK position.
3. Disconnect the negative battery cable and wait for more than 1 minute.
4. Partially peel off the floor covering.
5. Remove in the order indicated in the table.

6. Install in the reverse order of removal.
7. Turn the ignition switch to ON position.
8. Verify that the air bag system warning light

illuminates for approximately 6 seconds and
then goes off.

• If the air bag system warning light does not

operate in the manner described above, there
are malfunctions in the system. Inspect the
system using the on-board diagnostic.

End Of Sie

SAS UNIT CONFIGURATION

A6E813057030W02

1. Connect the SST (WDS or equivalent) to the

DLC-2.

2. Input vehicle information following the directions

on the screen.

3. Select “Module programming”.
4. Select “Programmable module installation”.
5. Select the following items and perform

procedures according to directions on the screen.

Items

• “RCM”

6. Retrieve DTCs by the SST (WDS or equivalent),

then verify that there is no DTC present.

• If DTC is present, perform applicable DTC inspection.

End Of Sie

1

Bolt

2

Connector

3

Side air bag sensor

A6E8130W005

1

Bolt

2

Connector

3

SAS unit

A6E8130W006

DLC-2

A6E3970W002

AIR BAG SYSTEM

T–125

T

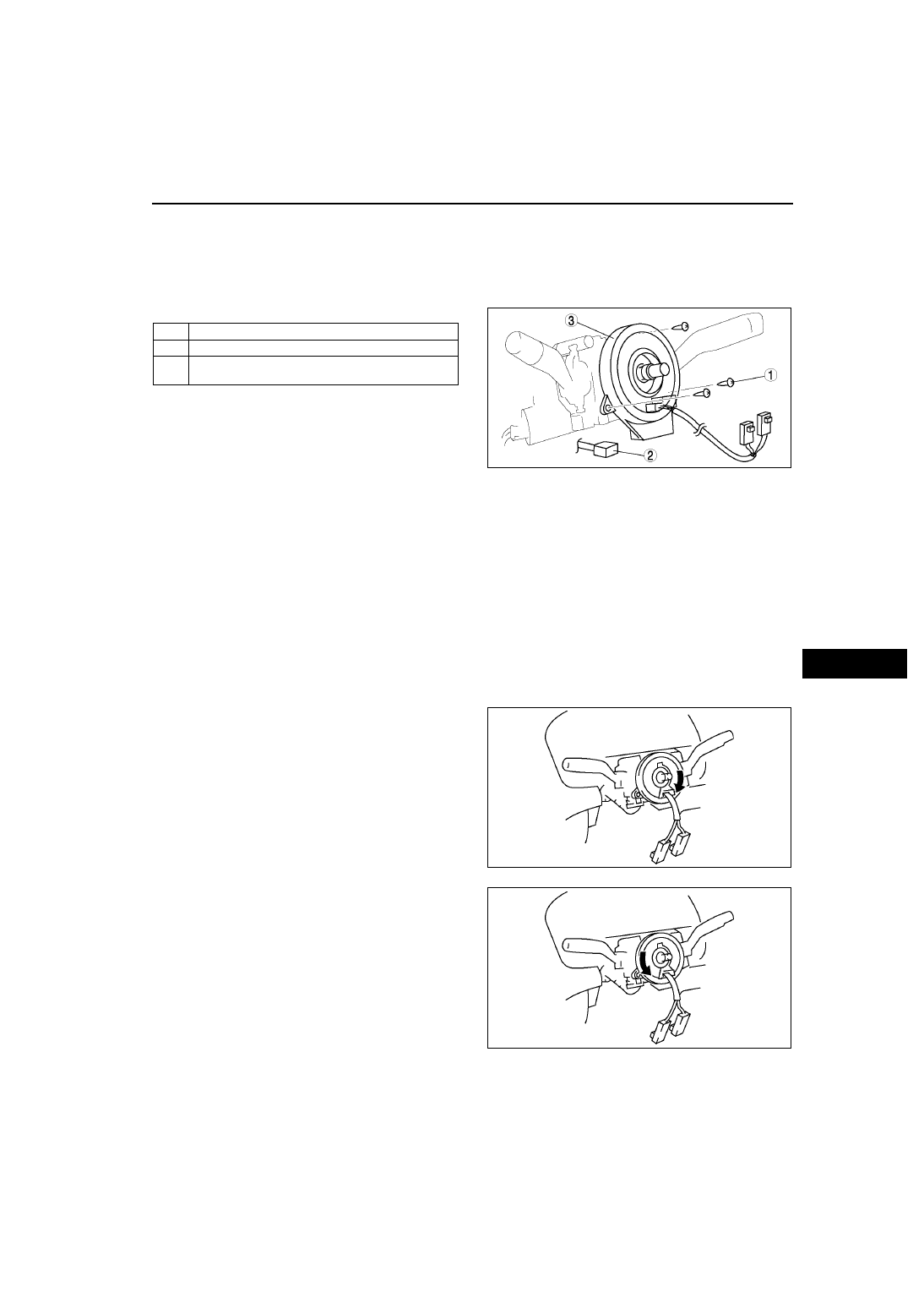

CLOCK SPRING REMOVAL/INSTALLATION

A6E813066123W01

1. Disconnect the negative battery cable.
2. Remove the driver-side air bag module. (See

T–120 DRIVER-SIDE AIR BAG MODULE REMOVAL/

INSTALLATION

.)

3. Remove the steering wheel. (See

N–7 STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION

.)

4. Remove the column cover.
5. Remove in the order indicated in the table.

6. Install in the reverse order of removal.
7. Verify that the air bag system warning light

illuminates for approximately 6 seconds and
then goes off.

• If the air bag system warning light does not

operate in the manner described above, there
are malfunctions in the system. Inspect the
system using the on-board diagnostic.

Clock Spring Installation Note

Caution

• If the clock spring is not adjusted, the spring wire in the clock spring will break due to overtension

when the steering wheel is turned. Always adjust the clock spring after installing it.

• Adjust the clock spring after installing it. (See

T–125 CLOCK SPRING ADJUSTMENT

.)

End Of Sie

CLOCK SPRING ADJUSTMENT

A6E813066123W02

Note

• The adjustment procedure is also specified on the caution label of the clock spring.

1. Set the front wheels straight ahead.

Caution

• The clock spring will break if

over-wound. Do not forcibly turn the
clock spring.

2. Turn the clock spring clockwise until it stops.

3. Turn the clock spring counterclockwise 2 3/4

turns.

1

Screw

2

Connector

3

Clock spring
(See

T–125 Clock Spring Installation Note

)

A6E8130W008

A6E8130W046

A6E8130W047

T–126

AIR BAG SYSTEM

4. Align the mark on the clock spring with the mark

on the outer housing.

End Of Sie

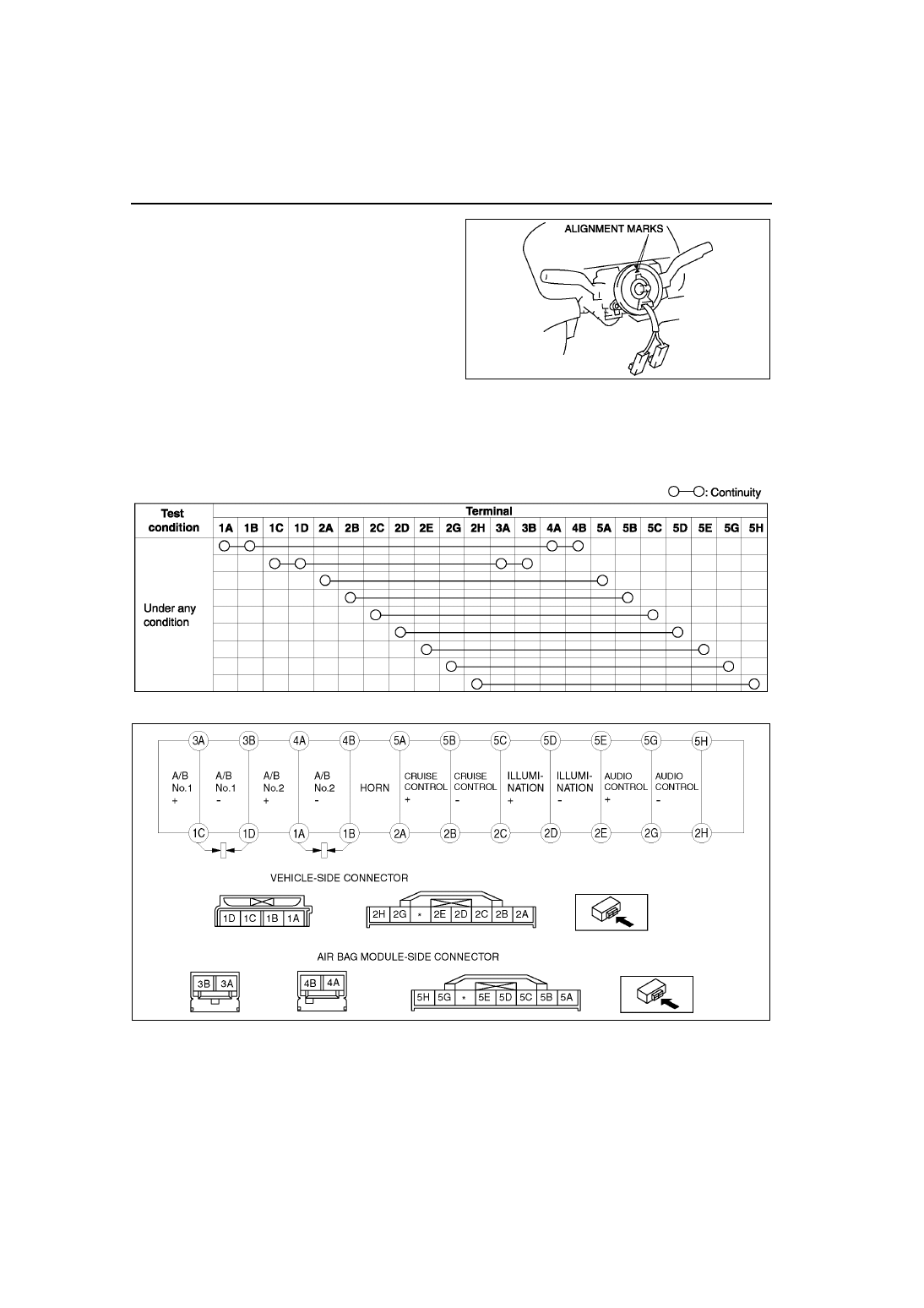

CLOCK SPRING INSPECTION

A6E813066123W03

1. Remove the clock spring.
2. Inspect for continuity between the clock spring terminals using an ohmmeter.

• If not as specified, replace the clock spring.

Note

• When the vehicle-side connector of clock spring is disconnected, the terminals 1A,1B, 1C and 1D are

shorted to prevent unexpected deployment of the air bag module. When it is connected, the terminals are
open.

A6E8130W048

A6E8130W009

A6E8130W010
