T–16

LOCATION INDEX

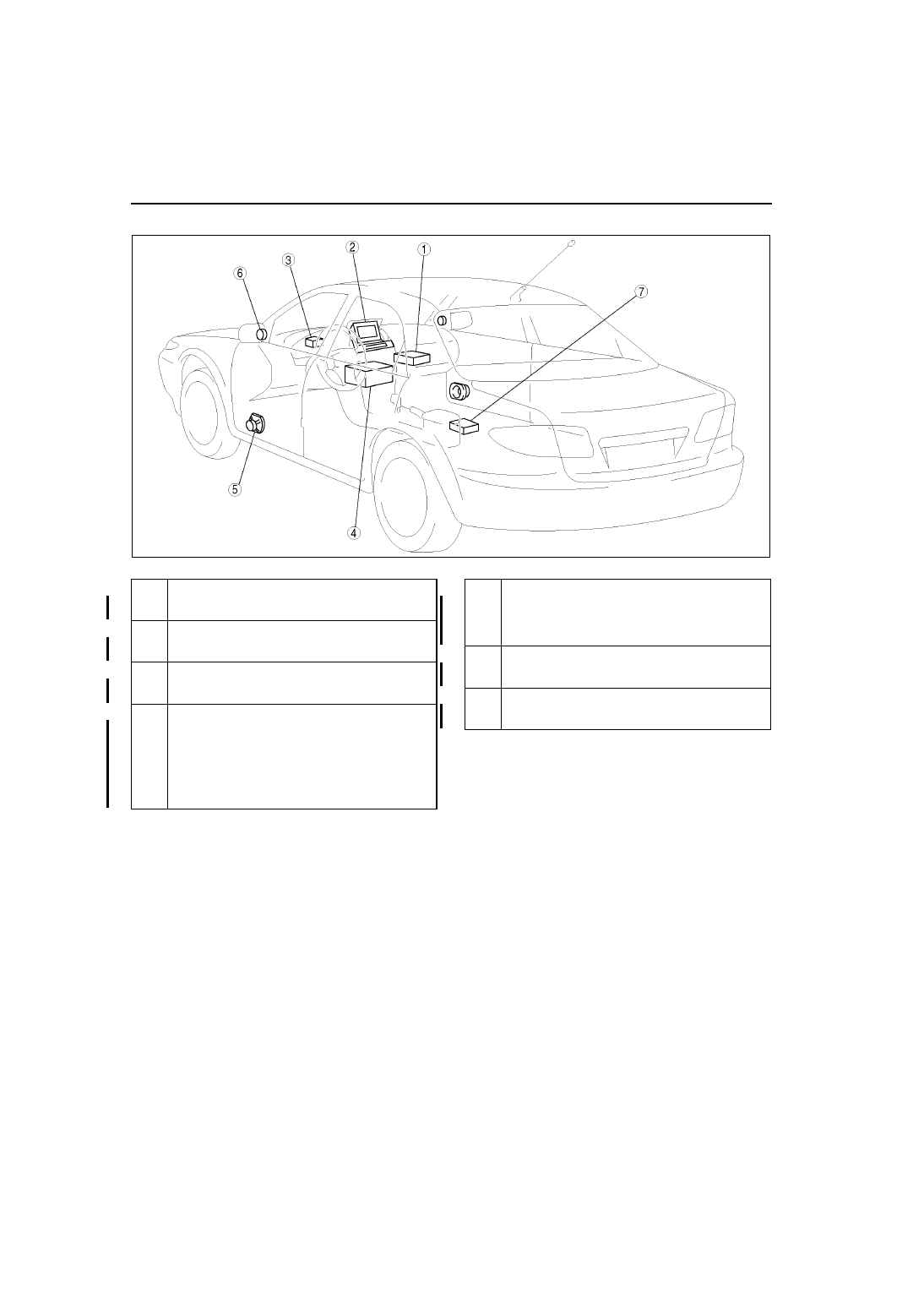

Car-navigation System

.

End Of Sie

A6E8124W045

1

Car-navigation unit
(See

T–98 CAR-NAVIGATION UNIT REMOVAL/

INSTALLATION

)

2

Car-navigation unit
(See

T–98 CAR-NAVIGATION UNIT REMOVAL/

INSTALLATION

)

3

GPS antenna
(See

T–108 GPS ANTENNA REMOVAL/

INSTALLATION

)

4

Audio unit
(See

T–93 ANTI-THEFT SYSTEM

)

(See

T–96 CENTER PANEL MODULE REMOVAL/

INSTALLATION

)

(See

T–97 CENTER PANEL MODULE

DISASSEMBLY/ASSEMBLY

)

(See

T–97 AUDIO UNIT DISASSEMBLY/

ASSEMBLY

)

5

Front door speaker
(See

T–101 FRONT DOOR SPEAKER REMOVAL/

INSTALLATION

)

(See

T–101 FRONT DOOR SPEAKER

INSPECTION

)

6

Tweeter
(See

T–103 TWEETER REMOVAL/INSTALLATION

)

(See

T–103 TWEETER INSPECTION

)

7

Audio amplifier
(See

T–100 AUDIO AMPLIFIER REMOVAL/

INSTALLATION

)

LOCATION INDEX

T–17

T

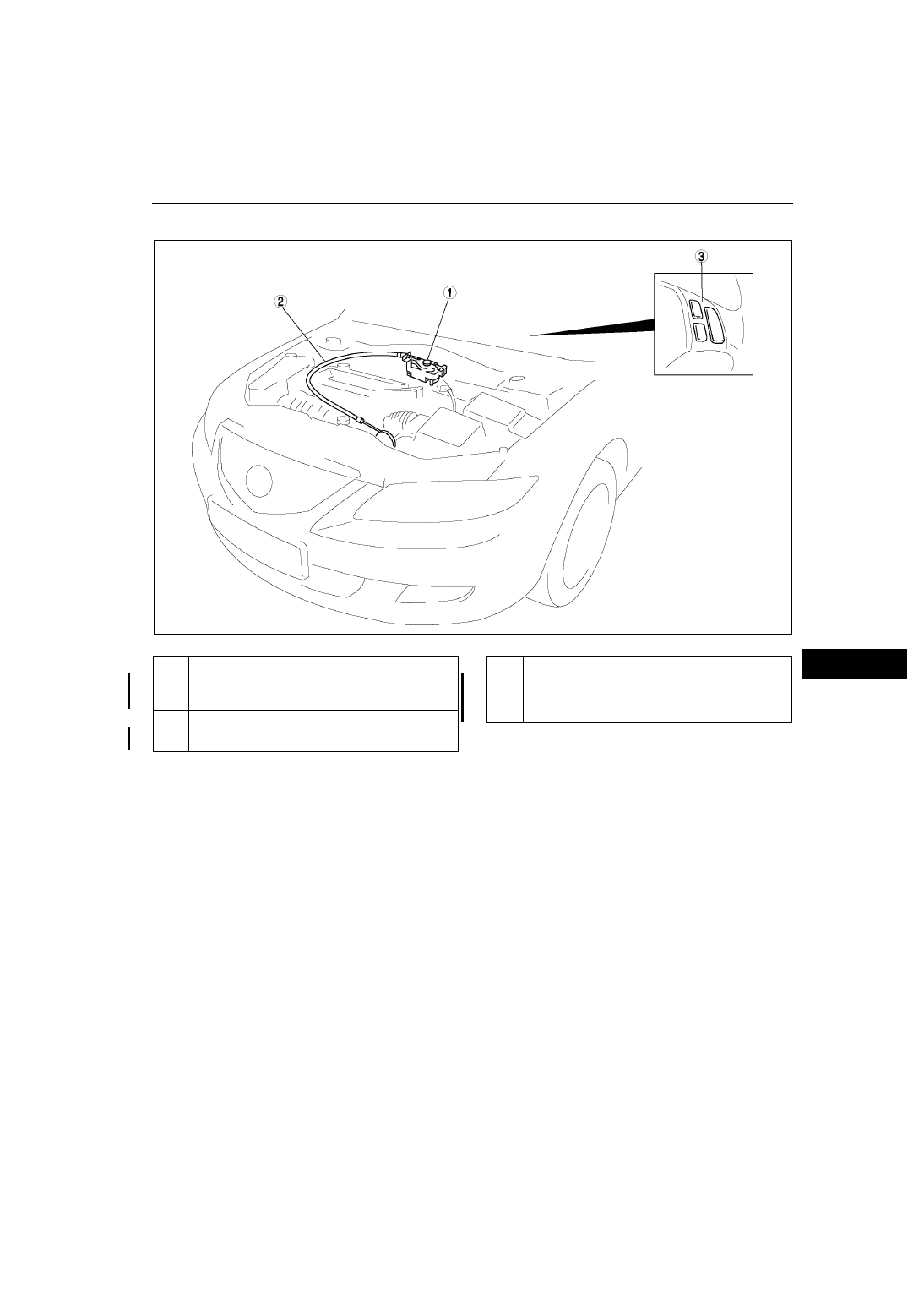

CRUISE CONTROL SYSTEM

A6E810001011W01

.

End Of Sie

A6E8128W017

1

Cruise actuator
(See

T–110 CRUISE ACTUATOR REMOVAL/

INSTALLATION

)

(See

T–110 CRUISE ACTUATOR INSPECTION

)

2

Actuator cable
(See

T–112 ACTUATOR CABLE REMOVAL

)

(See

T–114 ACTUATOR CABLE INSTALLATION

)

3

Cruise control switch
(See

T–115 CRUISE CONTROL SWITCH

REMOVAL/INSTALLATION

)

(See

T–116 CRUISE CONTROL SWITCH

INSPECTION

)

T–18

LOCATION INDEX

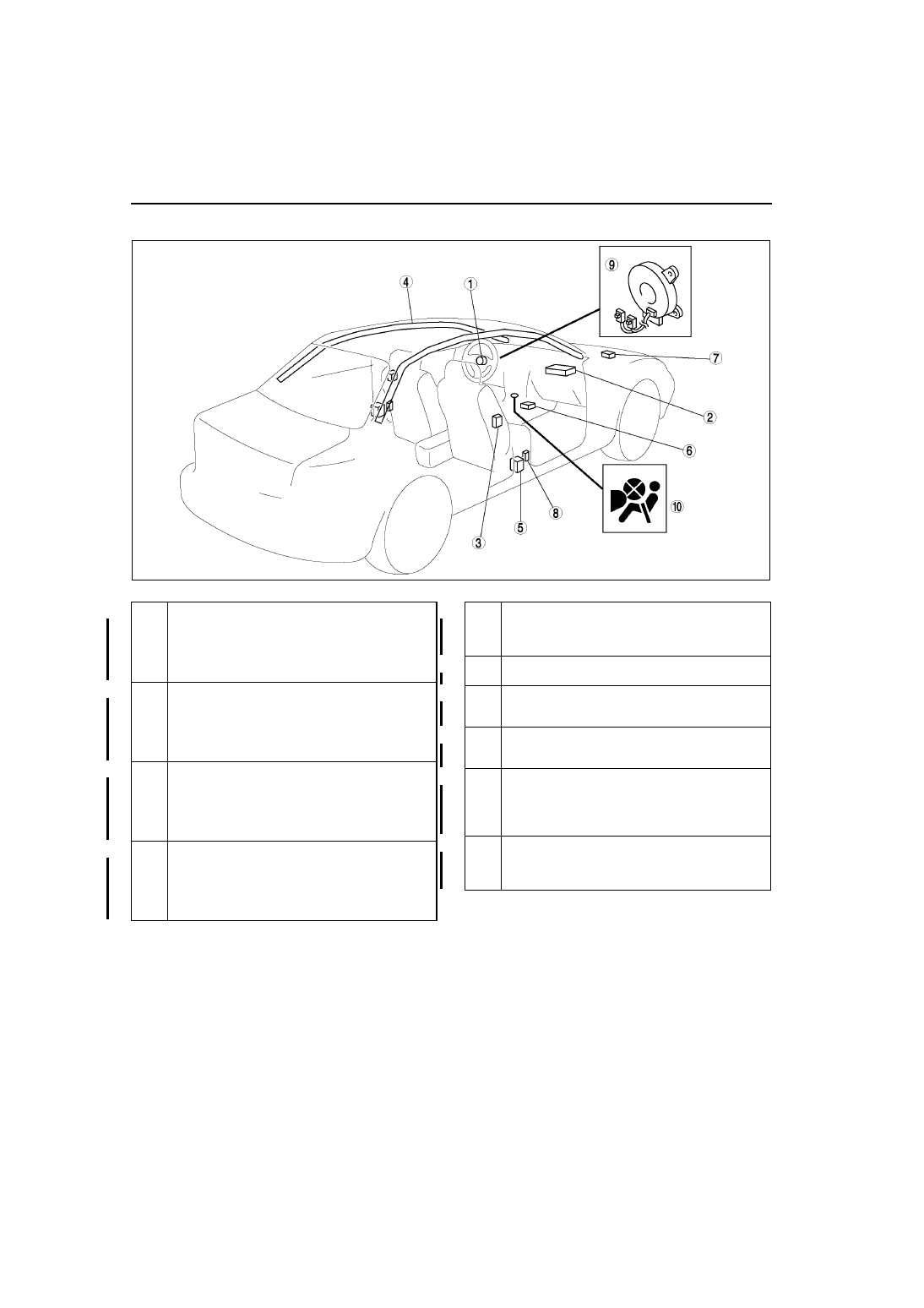

AIR BAG SYSTEM

A6E810001046W01

.

End Of Sie

A6E8130W049

1

Driver-side air bag module
(See

T–120 DRIVER-SIDE AIR BAG MODULE

REMOVAL/INSTALLATION

)

(See

T–127 AIR BAG MODULE AND PRE-

TENSIONER SEAT BELT DEPLOYMENT
PROCEDURES

)

2

Passenger-side air bag module
(See

T–121 PASSENGER-SIDE AIR BAG MODULE

REMOVAL/INSTALLATION

)

(See

T–127 AIR BAG MODULE AND PRE-

TENSIONER SEAT BELT DEPLOYMENT
PROCEDURES

)

3

Side air bag module
(See

T–121 SIDE AIR BAG MODULE REMOVAL/

INSTALLATION

)

(See

T–127 AIR BAG MODULE AND PRE-

TENSIONER SEAT BELT DEPLOYMENT
PROCEDURES

)

4

Curtain air bag module
(See

T–122 CURTAIN AIR BAG MODULE

REMOVAL/INSTALLATION

)

(See

T–127 AIR BAG MODULE AND PRE-

TENSIONER SEAT BELT DEPLOYMENT
PROCEDURES

)

5

Pre-tensioner seat belt
(See

T–127 AIR BAG MODULE AND PRE-

TENSIONER SEAT BELT DEPLOYMENT
PROCEDURES

)

6

SAS unit
(See

T–124 SAS UNIT REMOVAL/INSTALLATION

)

7

Crash zone sensor
(See

T–123 CRASH ZONE SENSOR REMOVAL/

INSTALLATION

)

8

Side air bag sensor
(See

T–123 SIDE AIR BAG SENSOR REMOVAL/

INSTALLATION

)

9

Clock spring
(See

T–125 CLOCK SPRING REMOVAL/

INSTALLATION

)

(See

T–126 CLOCK SPRING INSPECTION

)

(See

T–125 CLOCK SPRING ADJUSTMENT

)

10

Passenger-side air bag cut-off indicator light
(See

T–127 PASSENGER-SIDE AIR BAG

CUT-OFF INDICATOR LIGHT REMOVAL/
INSTALLATION

)

POWER SYSTEM

T–19

T

FUSE SERVICE CAUTION

A6E811066000W01

Caution

• Determine and correct the cause of the burnt fuse before replacing it with the specified type. If the

fuse is replaced before doing this, it may burn again.

End Of Sie

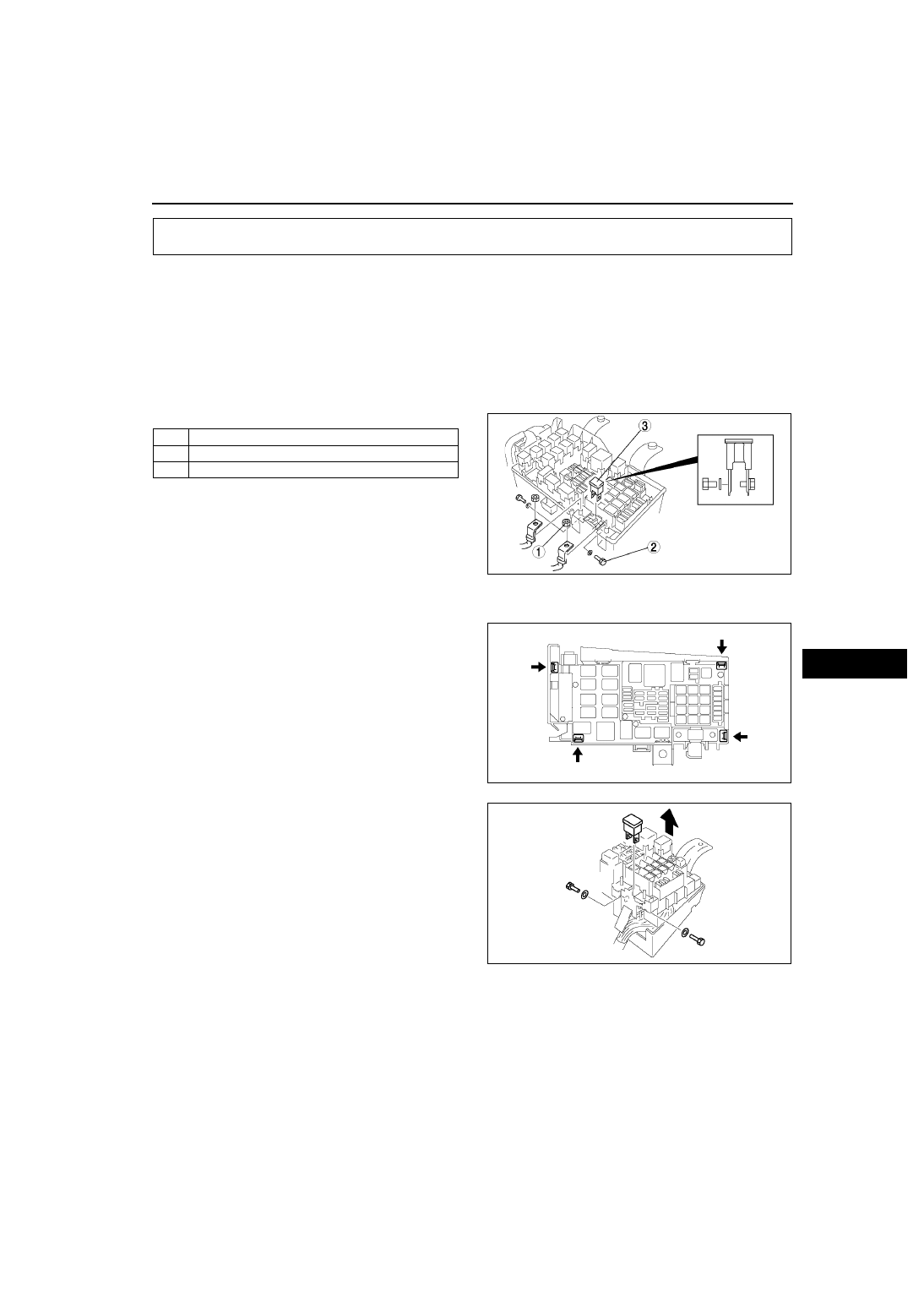

MAIN FUSE REMOVAL/INSTALLATION

A6E811066761W01

1. Disconnect the negative battery cable.
2. Remove the main fuse block cover.
3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

Bolt Removal Note

1. Press and remove the tabs on the main fuse

block at the positions indicated by the arrows.

2. Lift up the main fuse block and remove the bolts.

End Of Sie

POWER SYSTEM

1

Nut

2

Bolt (See

T–19 Bolt Removal Note

)

3

Main  fuse

A6E8110W108

A6E8110W119

A6E8110W120
