P–40

DYNAMIC STABILITY CONTROL

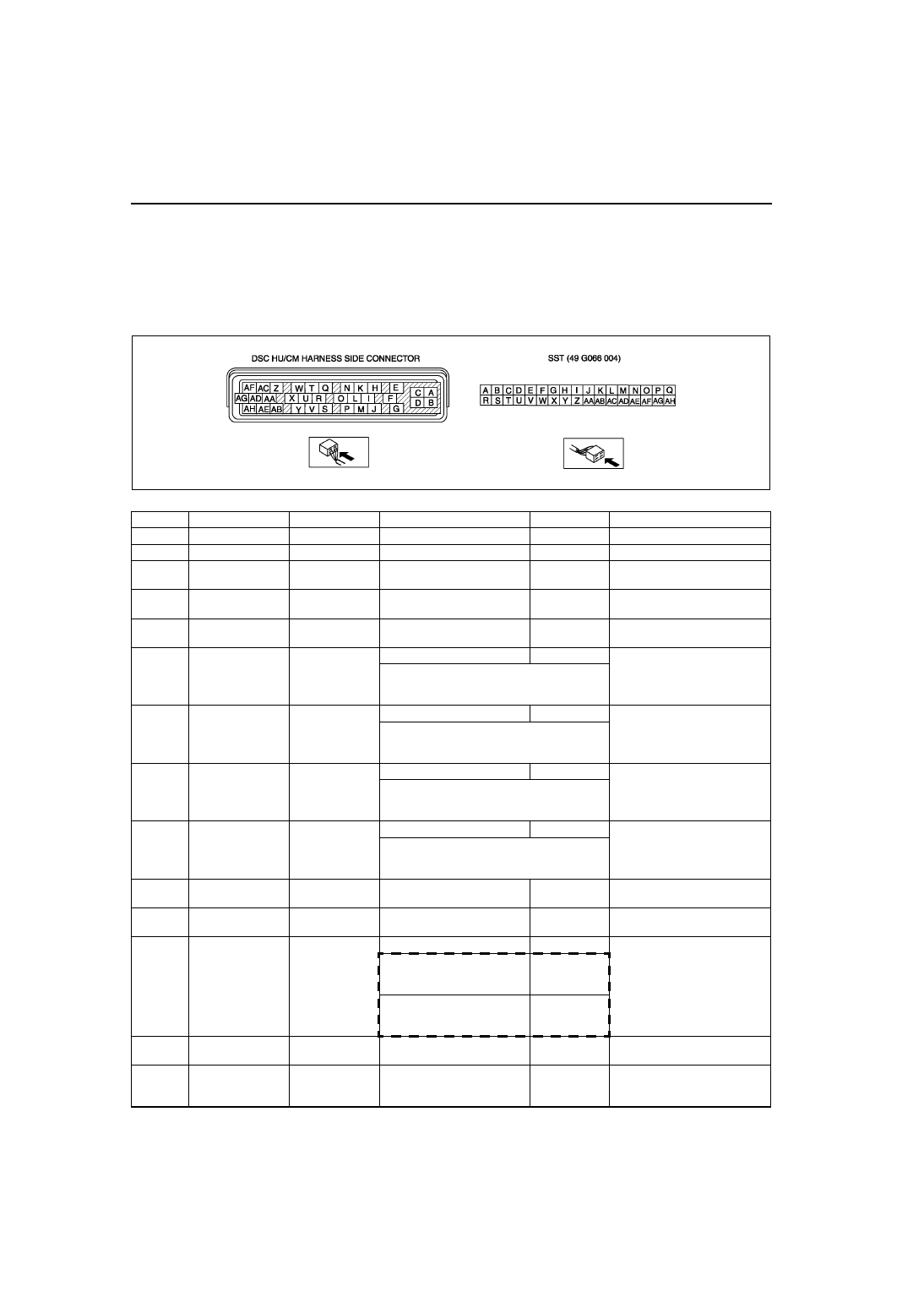

DSC HU/CM INSPECTION

A6E692067650W04

1. Remove the battery and battery bracket.
2. Disconnect the DSC HU/CM connector.
3. Connect the SST (49 G066 004) to the DSC HU/CM connector and harness side connector.
4. Inspect voltage referring the table below.

Terminal Voltage Table (reference value)
(Ignition switch is at ON, and connector is connected unless indicated otherwise.)

Terminal

Signal

Connected to

Test condition

Voltage (V)

Action

A

Ground (1)

Ground part 1

—

Below 1.0

• Inspect related harness

B

Ground (2)

Ground part 2

—

Below 1.0

• Inspect related harness

C

Solenoid valve
(power supply)

Battery

—

B+

• Inspect DSC HU/CM

• Inspect related harness

D

Pump motor
(power supply)

Battery

—

B+

• Inspect DSC HU/CM

• Inspect related harness

E

*

—

Check
connector

—

No need to

check

• Inspect related harness

F

J

LF wheel-speed

LF wheel-speed
sensor

Vehicle is stopped

0 (AC)

• Inspect related harness

• Inspect wheel-speed

sensor

• Inspect using the wave profile.

(See

P–41 Inspection Using An

Oscilloscope (Reference)

)

K
H

RR wheel-speed

RR wheel-
speed sensor

Vehicle is stopped

0 (AC)

• Inspect related harness

• Inspect wheel-speed

sensor

• Inspect using the wave profile.

(See

P–41 Inspection Using An

Oscilloscope (Reference)

)

M

I

RF wheel-speed

RF wheel-
speed sensor

Vehicle is stopped

0 (AC)

• Inspect related harness

• Inspect wheel-speed

sensor

• Inspect using the wave profile.

(See

P–41 Inspection Using An

Oscilloscope (Reference)

)

Q
N

LR wheel-speed

LR wheel-speed
sensor

Vehicle is stopped

0 (AC)

• Inspect related harness

• Inspect wheel-speed

sensor

• Inspect using the wave profile.

(See

P–41 Inspection Using An

Oscilloscope (Reference)

)

G

Battery (IG)

Ignition switch

Ignition switch ON

B+

• Inspect related harness

• Inspect ignition switch

L

Brake switch

Brake switch

When brake pedal is
depressed

10—14

• Inspect related harness

• Inspect brake switch

O

Lateral-G
(lateral-G signal)

Combine
sensor

Vehicle is stopped

2.1—2.9

• Inspect related harness

• Inspect combine sensor

Right cornering

Fluctuation

between
2.5—4.0

Left cornering

Fluctuation

between
2.5—1.0

P

Combine sensor
power output

Combine
sensor

Ignition switch ON

4.75—5.25

• Inspect related harness

• Inspect combine sensor

R

Steering angle
(ground)

Steering angle
sensor

—

Below 1.0

• Inspect related harness

• Inspect steering angle

sensor

A6E6920W009

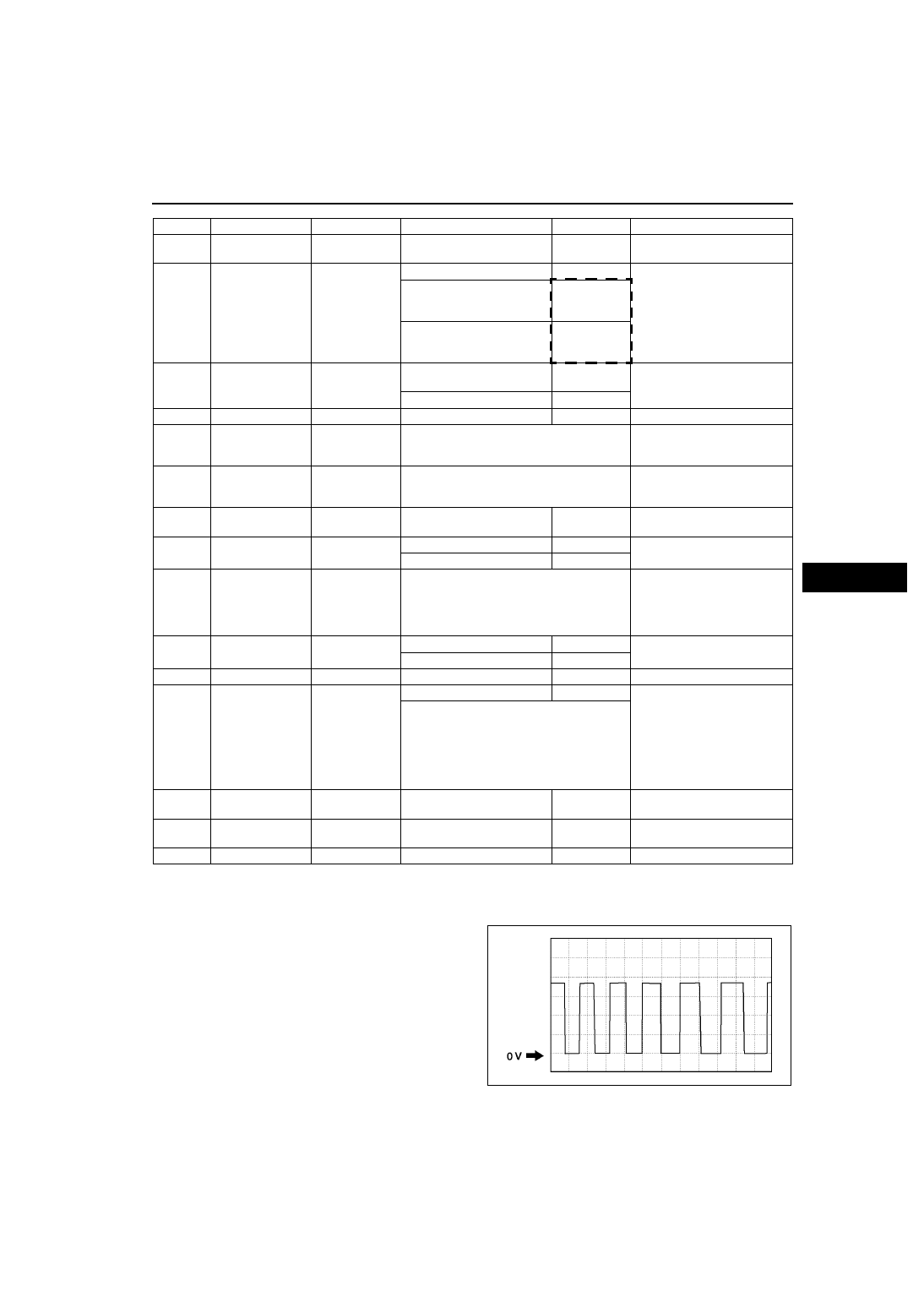

DYNAMIC STABILITY CONTROL

P–41

P

*

: Used for vehicle manufacturing, not used for DSC.

Inspection Using An Oscilloscope (Reference)
Steering angle (steering angle signal 1 and 2)

• DSC HU/CM terminal:

Steering angle signal 2 : W ( + ) — R ( - )
Steering angle signal 1 : X ( + ) — R ( - )

• Oscilloscope setting:

1 V/DIV (Y), 25 ms/DIV (X), DC range

• Vehicle condition: Rotating steering wheel at one

revolution per second

Note

• As steering wheel rotation speed increases,

period of wave shortens.

• As for shape of steering angle signals 1 and

2, the phase is different.

S

Combine sensor

Combine
sensor

—

3.5—5.0

• Inspect related harness

• Inspect combine sensor

T

Yaw rate
(yaw rate signal)

Combine
sensor

Vehicle is stopped

2.3—2.7

• Inspect related harness

• Inspect yaw rate sensor

Right cornering

Fluctuation

between

2.5—4.62

Left cornering

Fluctuation

between

2.5—0.33

U

Steering angle
(neutral signal)

Steering angle
sensor

Steering position:
center position  25

°—29°

Below 1.0

• Inspect related harness

• Inspect steering angle

sensor

Except above condition

Approx. 4

V

—

—

—

—

—

W

Steering angle
(steering angle
signal 2)

Steering angle
sensor

• Inspect using the wave profile.

(See

P–41 Inspection Using An

Oscilloscope (Reference)

)

• Inspect related harness

• Inspect steering angle

sensor

X

Steering angle
(steering angle
signal 1)

Steering angle
sensor

• Inspect using the wave profile.

(See

P–41 Inspection Using An

Oscilloscope (Reference)

)

• Inspect related harness

• Inspect steering angle

sensor

Y

Combine sensor
(ground)

Combine
sensor

—

Below 1.0

• Inspect related harness

• Inspect combine sensor

AA

DSC OFF switch

DSC OFF
switch

When switch is pressed

Below 1.0

• Inspect related harness

• Inspect DSC OFF switch

When switch is not pressed

B+

AB

OBD

KLN terminal of
DLC-2

It cannot be determined with terminal
voltage whether the condition is good or bad
because advanced function diagnostic
output is performed with serial
communication. Inspect with service codes.

• Inspect related harness

• Inspect DSC HU/CM

AC

Auto cruise set
signal output

Auto cruise unit

When auto cruise is ON

Below 1.0

• Inspect related harness

• Inspect DSC HU/CM

When auto cruise is OFF

B+

AD

—

—

—

—

—

AE

Vehicle speed
output

Audio unit,
Wiper and
washer switch,
Car-navegation
unit, Auto
leveling control
unit, Cruise
actuator

Vehicle is stopped

0

• Inspect related harness

• Inspect front wheel-speed

sensor

• Inspect using the wave profile.

(See

P–41 Inspection Using An

Oscilloscope (Reference)

)

AF

CAN-L

—

—

No need to

check

—

AG

CAN-H

—

—

No need to

check

—

AH

—

—

—

—

—

Terminal

Signal

Connected to

Test condition

Voltage (V)

Action

A6E6921W014

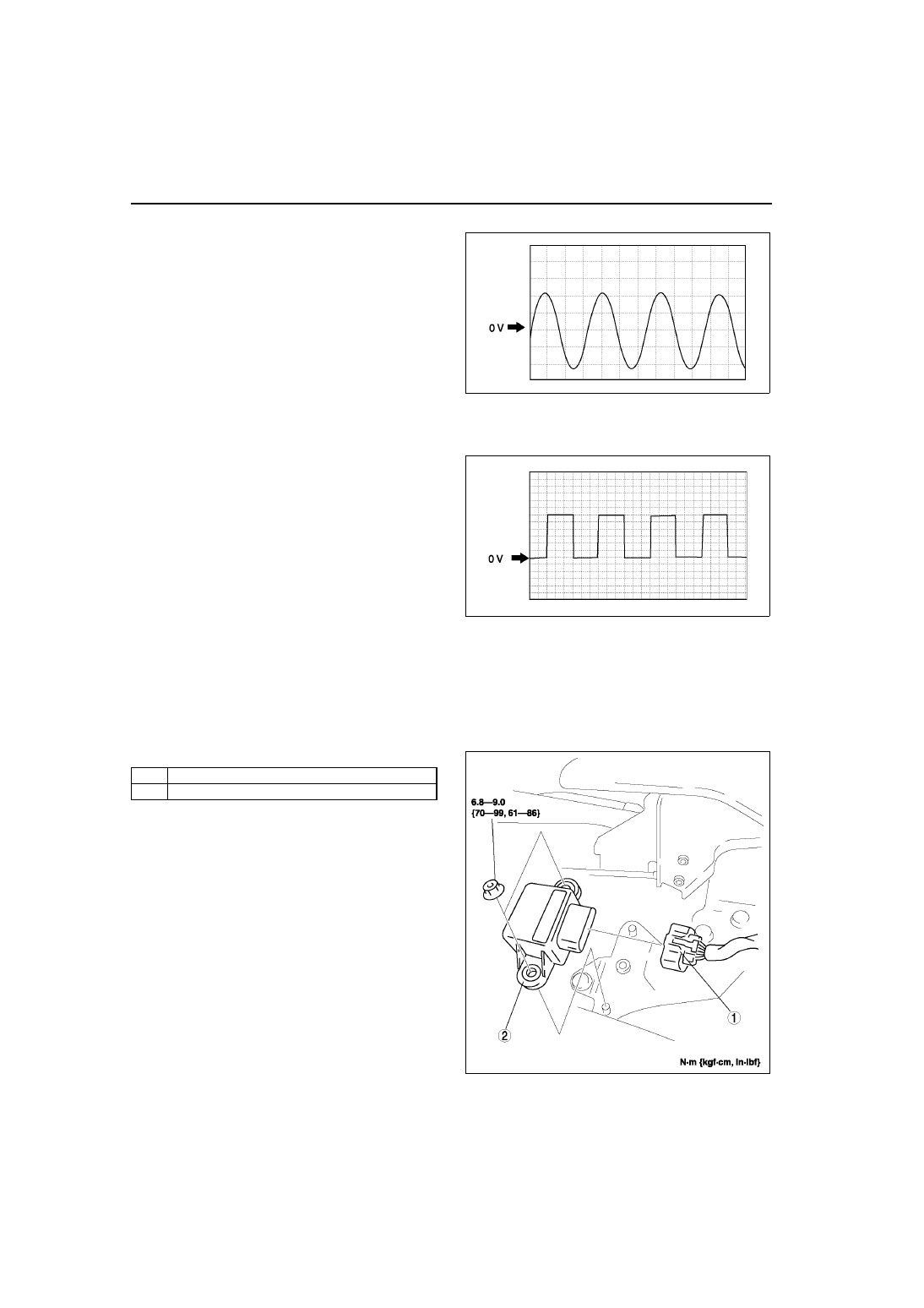

P–42

DYNAMIC STABILITY CONTROL

Wheel speed

• DSC HU/CM terminal:

RF : M ( + ) — I ( - )
RR : K ( + ) — H ( - )
LF : F ( + ) — J ( - )
LR : Q ( + ) — N ( - )

• Oscilloscope setting:

1 V/DIV (Y), 2 ms/DIV (X), AC range

• Vehicle condition: Driving 30 km/h (18.6 mph)

Note

• As vehicle speed increases, period of wave

shortens.

• If there is malfunctioning in the sensor rotor,

wave profile warps.

Vehicle speed output

• DSC HU/CM terminal: AE ( + ) — A( - )

• Oscilloscope setting:

1 V/DIV (Y), 5 ms/DIV (X), DC range

• Vehicle condition: Driving 30 km/h (18.6 mph)

Note

• As vehicle speed increases, period of wave

shortens.

End Of Sie

COMBINE SENSOR REMOVAL/INSTALLATION

A6E692067650W05

Caution

• Be careful and do not allow the combine sensor to fall. If by chance it is subjected to strong

impact, replace it.

1. Remove the center console.
2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.
4. After installation, perform the combine sensor

initialization procedure. (See

P–44 COMBINE

SENSOR INITIALIZATION PROCEDURE

.)

End Of Sie

A6E6921W013

A6E6921W012

1

Combine sensor connector

2

Combine sensor

A6E6920W004

DYNAMIC STABILITY CONTROL

P–43

P

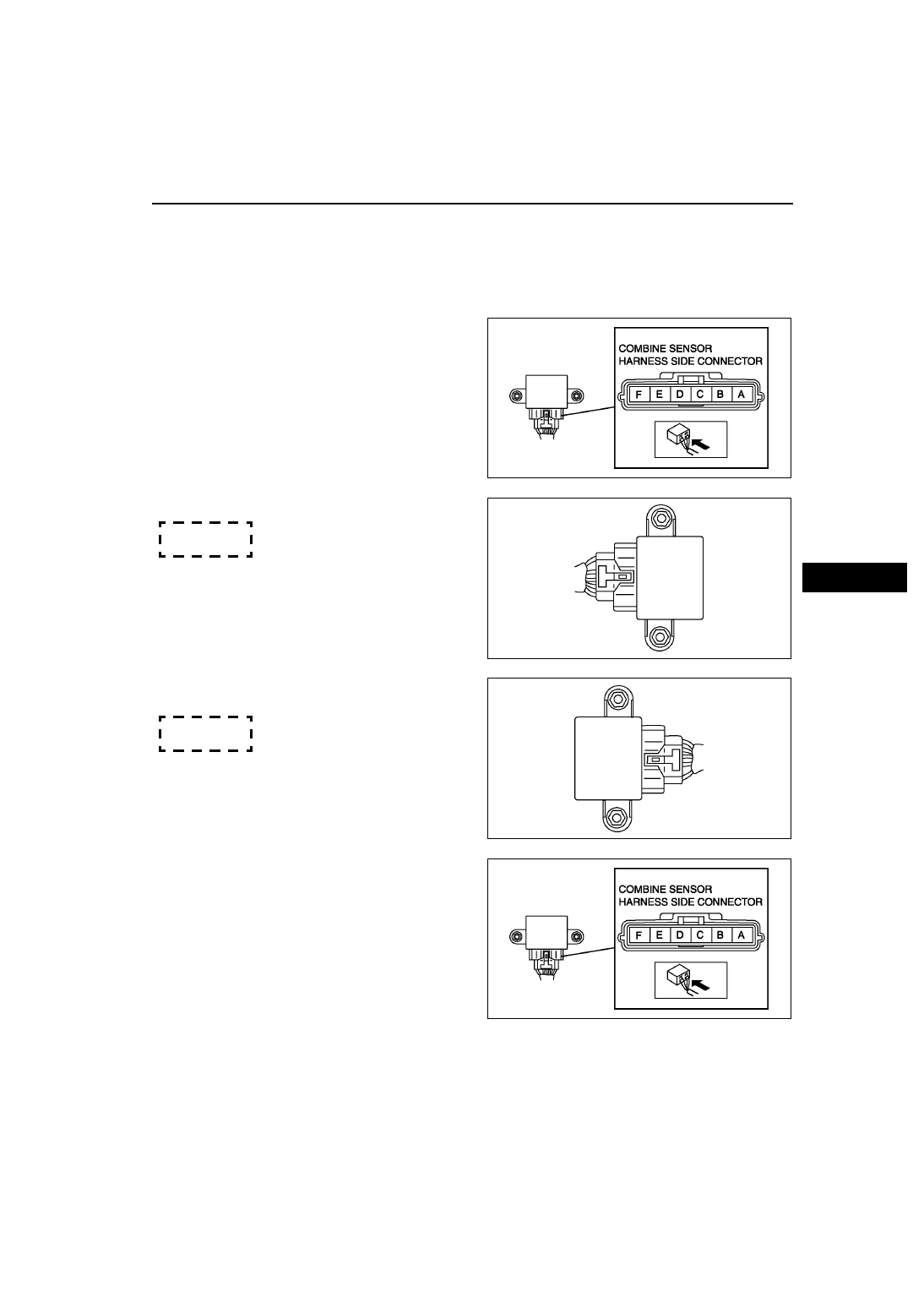

COMBINE SENSOR INSPECTION

A6E692067650W06

Caution

• Be careful and do not allow the lateral-G sensor to fall. If by chance it is subjected to strong

impact, replace it.

1. Connect the connector.
2. Turn ignition switch on, verify the voltage between

terminals B and E under the following conditions.

• If not within the specification, replace the

lateral-G sensor.

(1) Lateral-G

1)

Horizontal

Voltage

2.4—2.6 V

2)

Facing up (inclined 90

° from horizontal)

Voltage

3.3—3.7 V

3)

Facing down (declined 90

° from

horizontal)

Voltage

1.3—1.7 V

(2) Yaw rate

1)

Measure yaw rate sensor voltage under
static condition.

A6E6920W008

A6E6920W002

A6E6920W003

A6E6920W008
