F–36

EXHAUST SYSTEM

.

A6E3914W002

EXHAUST SYSTEM

F–37

F

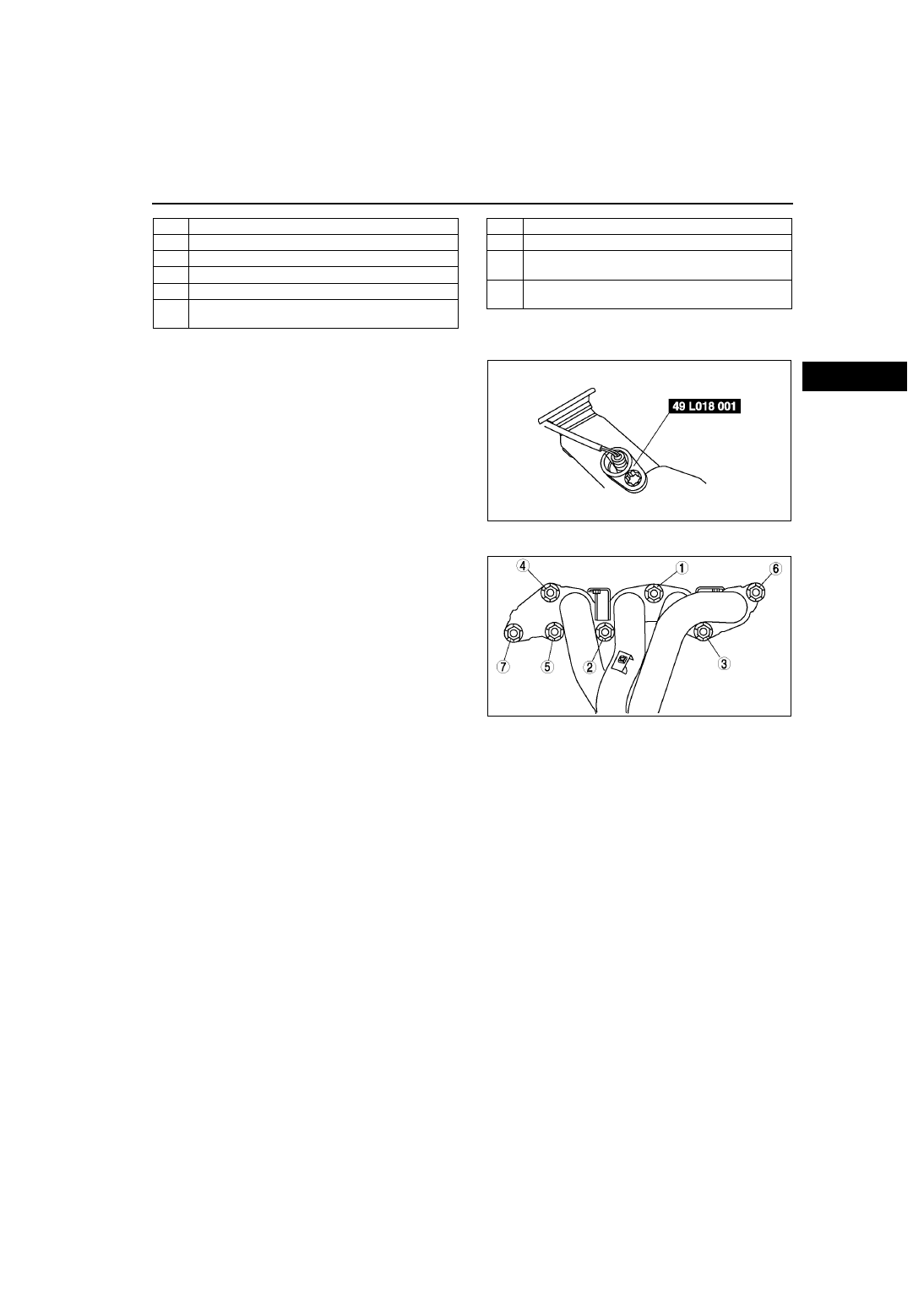

HO2S Removal Note

1. Remove the HO2S using the SST before

removing the exhaust manifold.

Exhaust Manifold Installation Note

1. Tighten the exhaust manifold installation nuts in

the order shown.

End Of Sie

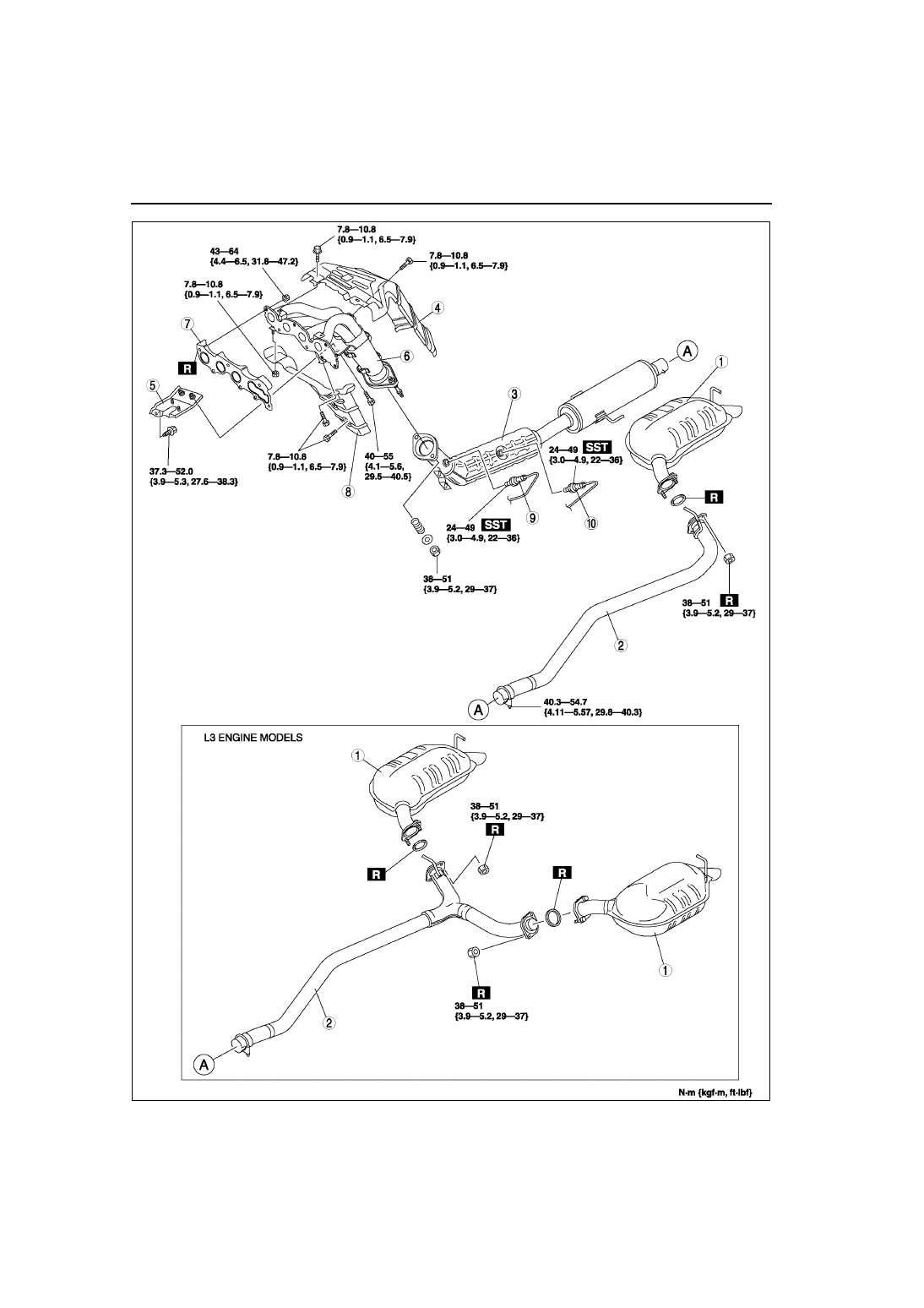

1

Main silencer

2

Middle pipe

3

TWC

4

Exhaust manifold insulator (upper)

5

Bracket

6

Exhaust manifold
(See

F–37 Exhaust Manifold Installation Note

)

7

Exhaust manifold gasket

8

Exhaust manifold insulator (lower)

9

HO2S (front)
(See

F–37 HO2S Removal Note

)

10

HO2S (rear)
(See

F–37 HO2S Removal Note

)

A6J3914W004

A6E3914W003

F–38

EMISSION SYSTEM

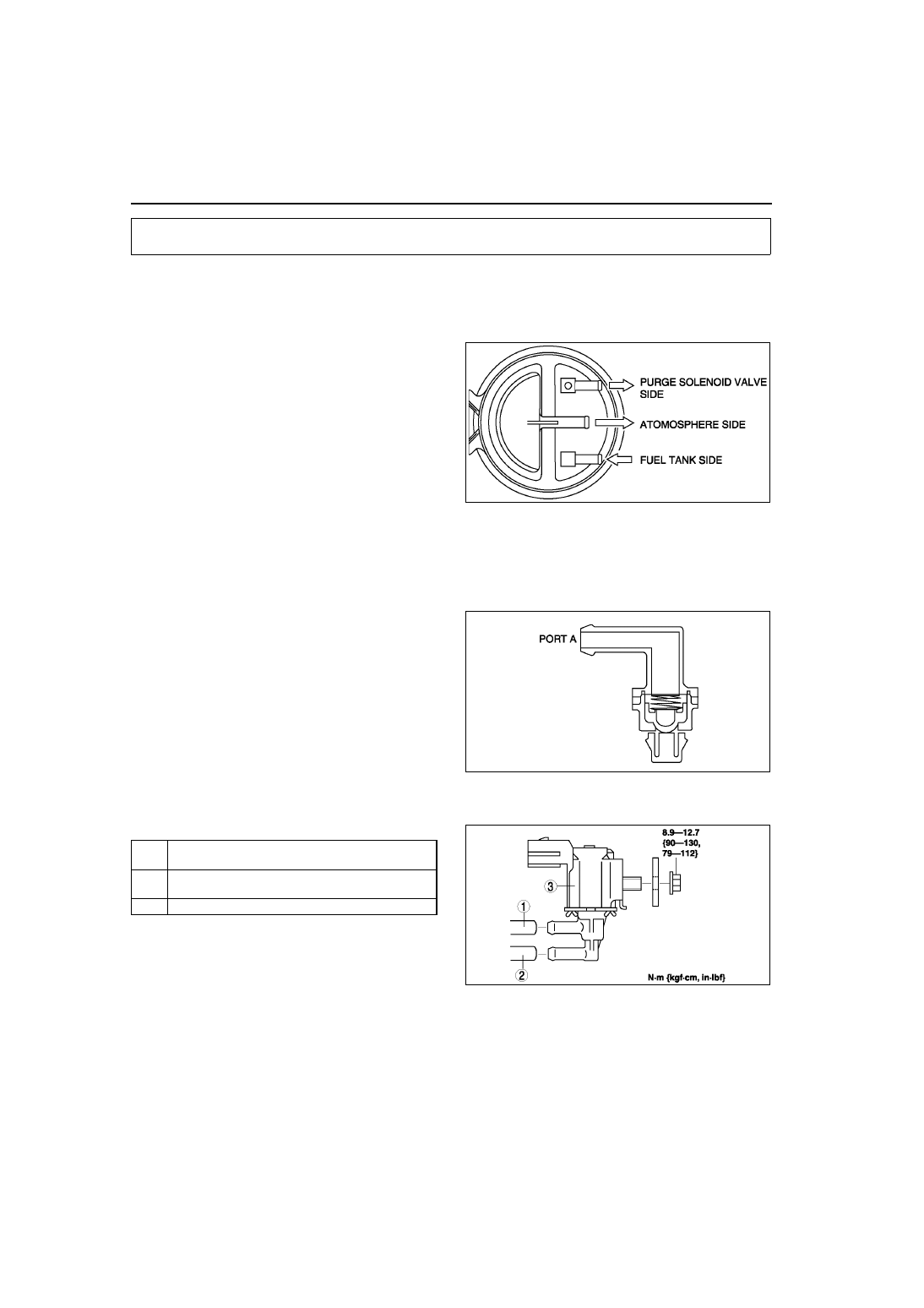

CHARCOAL CANISTER INSPECTION

A6E391613970W01

1. Remove the charcoal canister.
2. Plug the atmosphere side port and purge solenoid valve side port of the charcoal canister.
3. Blow air into the charcoal canister from the fuel tank side port and verify that there is no air leakage.

• If there is air leakage, replace the charcoal canister.

End Of Sie

EVAPORATIVE GAS CHECK VALVE (ONE-WAY) INSPECTION (L.H.D.)

A6E391613988W01

1. Remove the evaporative gas check valve (one-way).
2. Apply pressure to port A, and verify that there is no airflow.

• If there is airflow, replace the evaporative gas check valve (one-way).

3. Apply negative pressure to port A, and verify that there is air flow.

• If there is no airflow, replace the evaporative gas check valve (one-way).

End Of Sie

PURGE SOLENOID VALVE REMOVAL/INSTALLATION

A6E391618740W01

1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

Vacuum Hose Installation Note

1. Attach the vacuum hose onto the purge solenoid valve until it contacts the stopper.

Evaporative Hose Installation Note

1. Attach the evaporative hose onto the purge solenoid valve until it contacts the stopper.

End Of Sie

EMISSION SYSTEM

A6E3916W002

A6E3916W001

1

Evaporative hose (to charcoal canister)
(See

F–38 Evaporative Hose Installation Note

)

2

Vacuum hose (to intake manifold)
(See

F–38 Vacuum Hose Installation Note

)

3

Purge solenoid valve

A6E3916W024

EMISSION SYSTEM

F–39

F

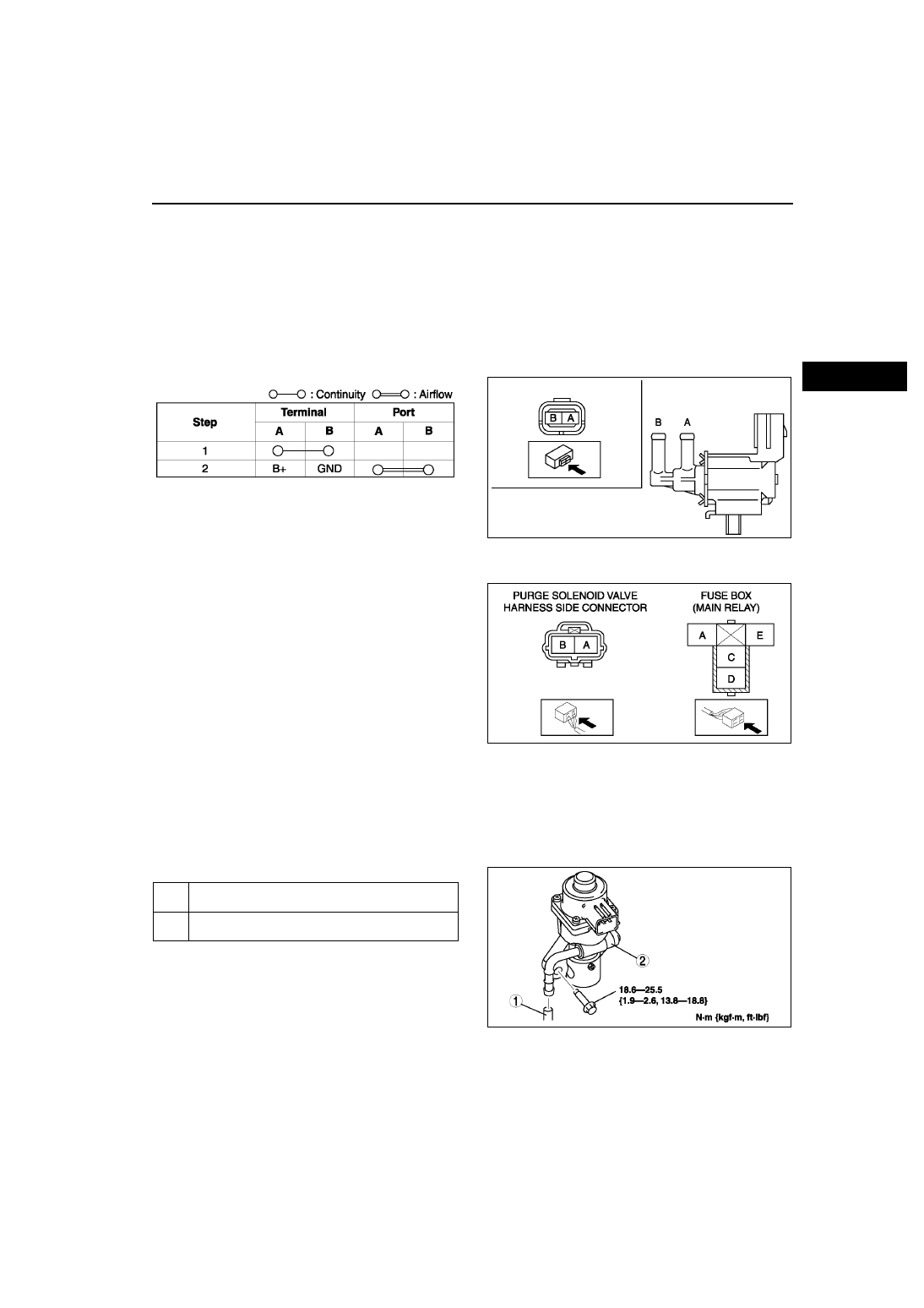

PURGE SOLENOID VALVE INSPECTION

A6E391618740W02

Airflow Inspection

Note

• Perform the following test only when directed.

1. Disconnect the negative battery cable.
2. Remove the purge solenoid valve. (See

F–38 PURGE SOLENOID VALVE REMOVAL/INSTALLATION

.)

3. Inspect airflow between the ports under the following conditions.

• If not as specified, replace the purge solenoid valve.

• If as specified, carry out the “Circuit Open/Short Inspection”.

Circuit Open/Short Inspection

1. Disconnect the PCM connector. (See

F–43 PCM REMOVAL/INSTALLATION

.)

2. Inspect the following wiring harness for open or

short (continuity check).
Open circuit

• If there is no continuity, the circuit is open.

Repair or replace the harness.
— Purge solenoid valve terminal A

(harness-side) and PCM terminal 4U

— Purge solenoid valve terminal B

(harness-side) and main relay terminal C
(harness-side)

Short circuit

• If there is continuity, the circuit is shorted.

Repair or replace the harness.
— Purge solenoid valve terminal A

(harness-side) and body GND

— Purge solenoid valve terminal B (harness-side) and power supply

End Of Sie

EGR VALVE REMOVAL/INSTALLATION

A6E391620300W01

1. Disconnect the negative battery cable.
2. Disconnect the EGR valve connector.
3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

Water Hose Removal Note

• Drain the engine coolant. (See

E–4 ENGINE

COOLANT REPLACEMENT

.)

EGR Valve Removal Note

1. Remove the air hose. (See

F–10 INTAKE-AIR

SYSTEM REMOVAL/INSTALLATION

)

2. Remove the upper radiator hose. (See

E–6 RADIATOR REMOVAL/INSTALLATION

.)

End Of Sie

A6E3916W004

A6E3916W005

A6E3916W006

1

Water hose
(See

F–39 Water Hose Removal Note

)

2

EGR  valve
(See

F–39 EGR Valve Removal Note

)

A6E3916W008
