ENGINE

LOCATION INDEX ................................................. B-2

MECHANICAL LOCATION INDEX ...................... B-2

DRIVE BELT ........................................................... B-3

DRIVE BELT INSPECTION ................................. B-3
DRIVE BELT REPLACEMENT ............................ B-3
DRIVE BELT AUTO TENSIONER
INSPECTION ....................................................... B-4

VALVE CLEARANCE............................................. B-4

VALVE CLEARANCE INSPECTION.................... B-4
VALVE CLEARANCE ADJUSTMENT ................. B-5

COMPRESSION PRESSURE ................................ B-9

COMPRESSION INSPECTION ........................... B-9

TIMING CHAIN ..................................................... B-10

TIMING CHAIN REMOVAL/INSTALLATION ..... B-10

CYLINDER HEAD GASKET................................. B-18

CYLINDER HEAD GASKET REPLACEMENT .. B-18

FRONT OIL SEAL ................................................ B-21

FRONT OIL SEAL REPLACEMENT.................. B-21

REAR OIL SEAL .................................................. B-25

REAR OIL SEAL REPLACEMENT .................... B-25

ENGINE ................................................................ B-26

ENGINE REMOVAL/INSTALLATION ................ B-26
ENGINE DISASSEMBLY/ASSEMBLY............... B-31

VARIABLE VALVE TIMING ................................. B-32

VARIABLE VALVE TIMING ACTUATOR

INSPECTION .................................................. B-32

VARIABLE VALVE TIMING ACTUATOR

REMOVAL/INSTALLATION ............................ B-32

OIL CONTROL VALVE (OCV) ............................. B-33

OIL CONTROL VALVE (OCV)

REMOVAL/INSTALLATION ............................ B-33

OIL CONTROL VALVE (OCV) INSPECTION .... B-33

B–2

LOCATION INDEX

MECHANICAL LOCATION INDEX

A6E220001002W01

.

LOCATION INDEX

A6E2200W300

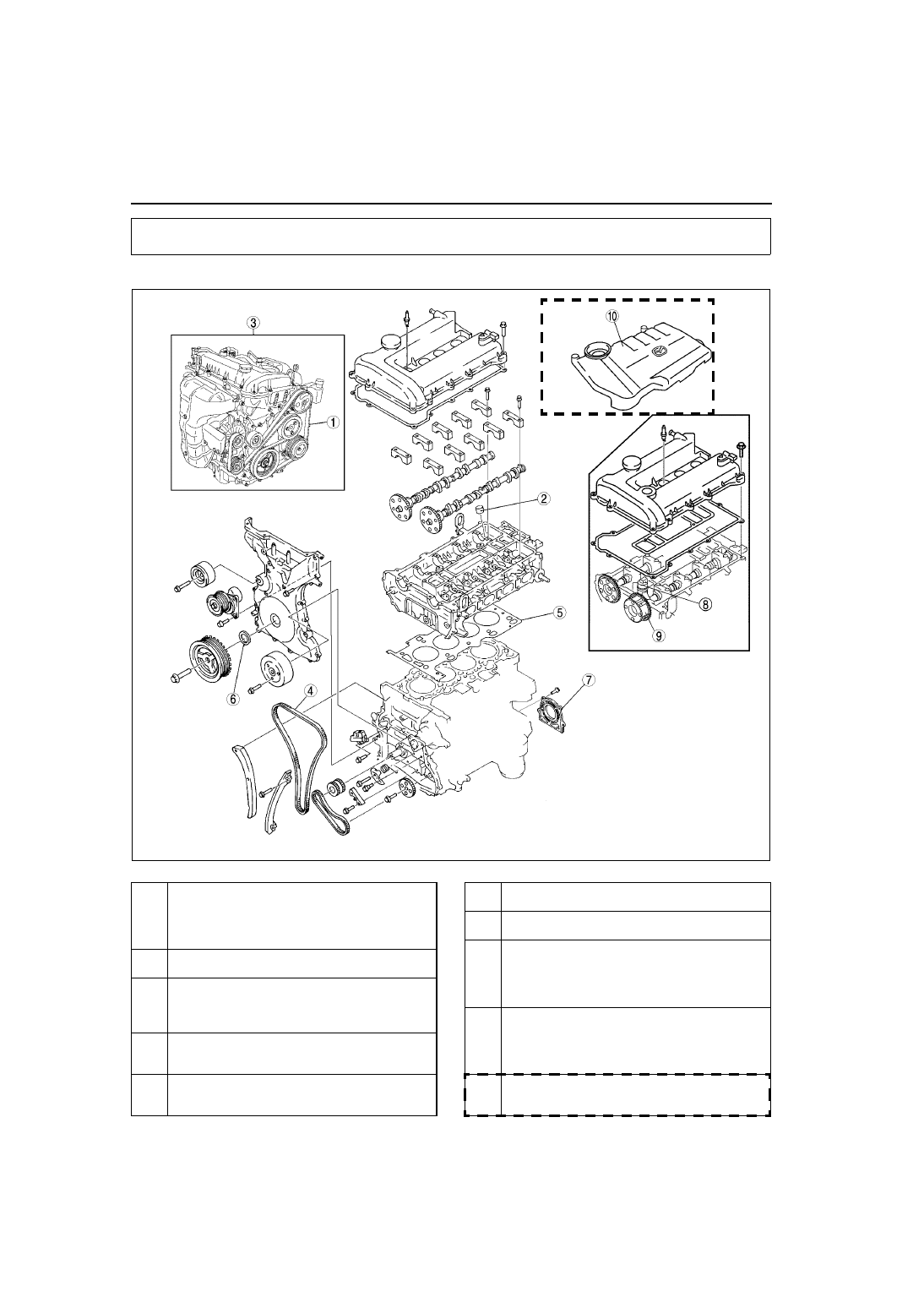

1

Drive  belt
(See

B–3 DRIVE BELT INSPECTION

)

(See

B–3 DRIVE BELT REPLACEMENT

)

(See

B–4 DRIVE BELT AUTO TENSIONER

INSPECTION

)

2

Tappet
(See

B–4 VALVE CLEARANCE INSPECTION

)

3

Engine
(See

B–9 COMPRESSION INSPECTION

)

(See

B–26 ENGINE REMOVAL/INSTALLATION

)

(See

B–31 ENGINE DISASSEMBLY/ASSEMBLY

)

4

Timing Chain
(See

B–10 TIMING CHAIN REMOVAL/

INSTALLATION

)

5

Cylinder head gasket
(See

B–18 CYLINDER HEAD GASKET

REPLACEMENT

)

6

Front oil seal
(See

B–21 FRONT OIL SEAL REPLACEMENT

)

7

Rear oil seal
(See

B–25 REAR OIL SEAL REPLACEMENT

)

8

Oil control valve (OCV) (L3)
(See

B–33 OIL CONTROL VALVE (OCV)

REMOVAL/INSTALLATION

)

(See

B–33 OIL CONTROL VALVE (OCV)

INSPECTION

)

9

Variable valve timing actuator (L3)
(See

B–32 VARIABLE VALVE TIMING ACTUATOR

REMOVAL/INSTALLATION

)

(See

B–32 VARIABLE VALVE TIMING ACTUATOR

INSPECTION

)

10

Plug hole plate
(See

G–10 SPARK PLUG REMOVAL/

INSTALLATION

)

DRIVE BELT

B–3

B

End Of Sie

DRIVE BELT INSPECTION

A6E221015800W01

Note

• Front and water pump drive belt deflection/tension inspection is not necessary because of the use of the

front drive belt auto tensioner.

Front Drive Belt

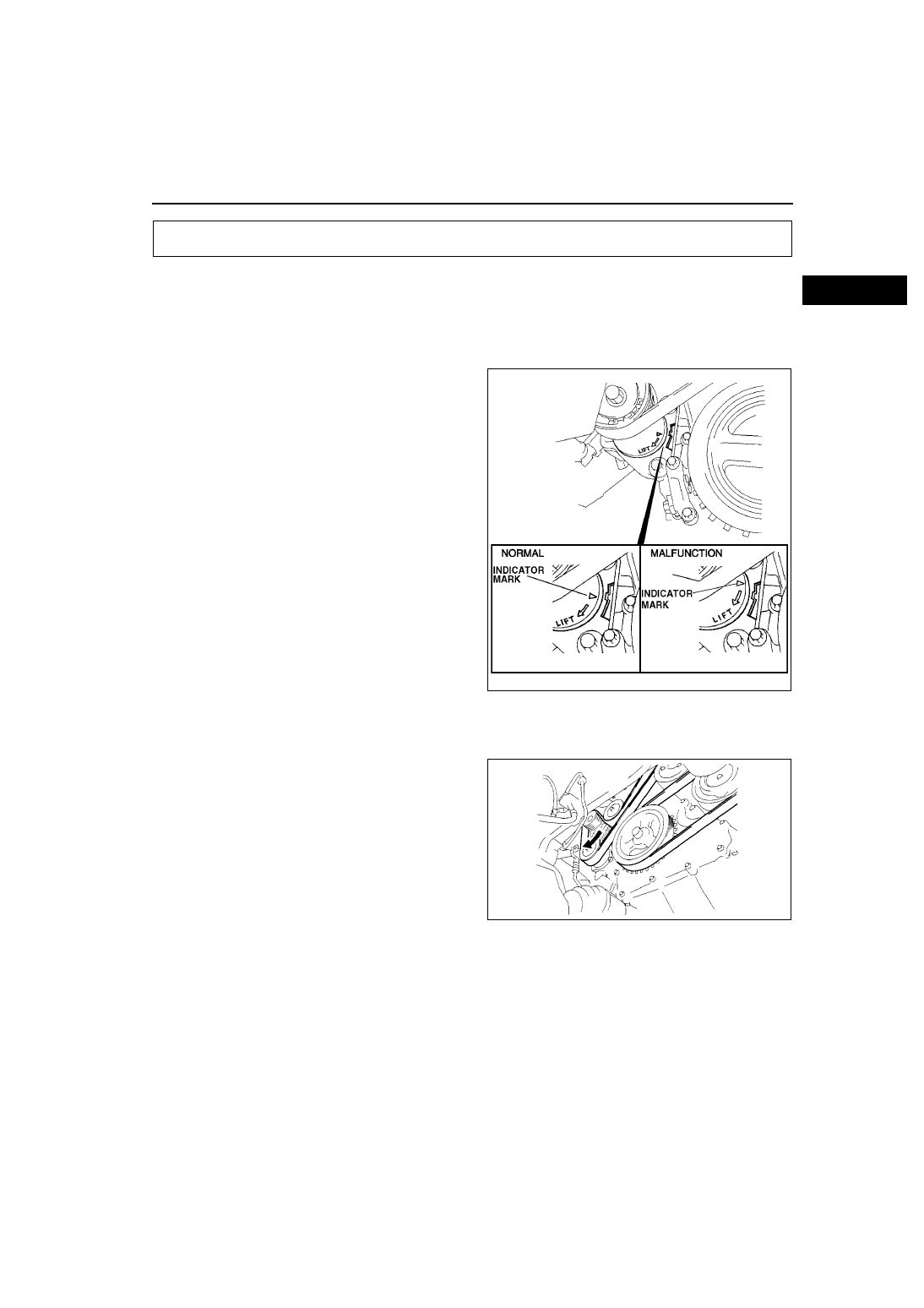

1. Verify that the drive belt auto tensioner indicator

mark does not exceeds the limit.

• If it exceeds the limit, replace the drive belt.

(See

B–3 DRIVE BELT REPLACEMENT

.)

End Of Sie

DRIVE BELT REPLACEMENT

A6E221015800W03

1. Remove the splash shield (RH).
2. Turn the center of the tensioner pulley clockwise

to release tension to the drive belt.

3. Remove the drive belt.
4. Reinstall the drive belt or install a new drive belt.
5. Verify that the drive belt auto tensioner indicator

mark does not exceeds the limit. (See

B–3 DRIVE

BELT INSPECTION

.)

• If it exceeds the limit, replace the drive belt.

6. Install the splash shield (RH).

End Of Sie

DRIVE BELT

AME2210W001

AME2210W002

B–4

DRIVE BELT, VALVE CLEARANCE

DRIVE BELT AUTO TENSIONER INSPECTION

A6E221015980W01

1. Remove the drive belt. (See

B–3 DRIVE BELT REPLACEMENT

.)

2. Verify that the drive belt auto tensioner moves

smoothly in the operational direction.

• Replace the drive belt auto tensioner if

necessary.

3. Turn the drive belt auto tensioner pulley by hand

and verify that it rotates smoothly.

• Replace the drive belt auto tensioner if

necessary.

4. Install the drive belt. (See

B–3 DRIVE BELT

REPLACEMENT

.)

End Of Sie

VALVE CLEARANCE INSPECTION

A6E221212111W01

1. Disconnect the negative battery cable.
2. Remove the tire (RH).
3. Remove the splash shield (RH).
4. Remove the spark plugs. (See

G–10 SPARK PLUG REMOVAL/INSTALLATION

.)

5. Remove the oil control valve (OCV) connector.
6. Remove the ventilation hose.
7. Remove the cylinder head cover.
8. Verify that the engine is in cold condition.
9. Measure the valve clearance.

(1) Turn the crankshaft clockwise so that the No.1 piston is at TDC of the compression stroke.

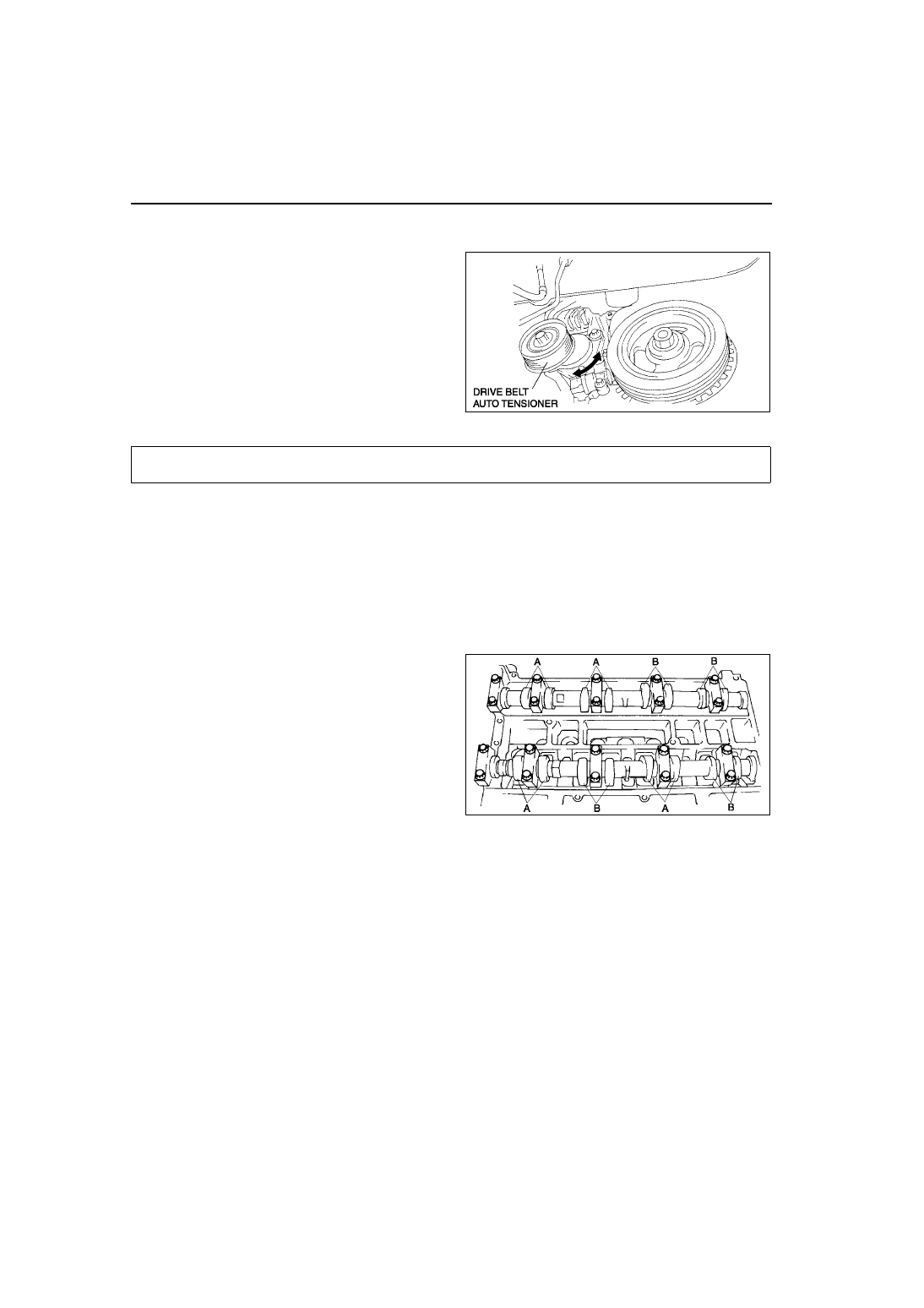

(2) Measure the valve clearance at A in the

figure.

• If the valve clearance exceeds the space

the tappet. (See

B–5 VALVE

CLEARANCE ADJUSTMENT

.)

Note

• Make sure to note the measured values for

choosing the suitable replacement tappets.

Standard [Engine cold]

IN: 0.22—0.28 mm {0.0087—0.0110 in}

(0.25

±0.03 mm {0.0098±0.0011 in})

EX: 0.27—0.33 mm {0.0106—0.0130 in}

(0.30

±0.03 mm {0.0118±0.0011 in})

(3) Turn the crankshaft 360

° clockwise so that the No.4 piston is at TDC of the compression stroke.

(4) Measure the valve clearance at B in the figure.

• If the valve clearance exceeds the standard, replace the tappet. (See

B–5 VALVE CLEARANCE

ADJUSTMENT

.)

Note

• Make sure to note the measured values for choosing the suitable replacement tappets.

Standard [Engine cold]

IN: 0.22—0.28 mm {0.0087—0.0110 in} (0.25

±0.03 mm {0.0098±0.0011 in})

EX: 0.27—0.33 mm {0.0106—0.0130 in} (0.30

±0.03 mm {0.0118±0.0011 in})

10. Install the cylinder head cover. (See

B–17 Cylinder Head Cover Installation Note

.)

11. Install the ventilation hose.
12. Install the oil control valve connector.
13. Install the high-tension lead. (See

G–10–1 HIGH-TENSION LEAD REMOVAL/INSTALLATION

.)

14. Install the spark plugs. (See

G–10 SPARK PLUG REMOVAL/INSTALLATION

.)

15. Install the splash shield (RH).

AME2210W003

VALVE CLEARANCE

AME2212W001
