MULITIPLE COMMUNICATION SYSTEM

T–5

T

T

End Of Sie

OUTLINE

A6E811155430T01

•

Due to the simplification of the wiring harness, a controller area network (CAN) system for transmission of
multiplex input/output signals among electrical modules has been adopted.

•

Twisted-pair wiring is used for connections between the following modules (Each electrical module hereafter
referred to as a CAN system-related module):
— PCM to ABS (ABS/TCS) HU/CM (with ABS (ABS/TCS) or DSC HU/CM (with DSC) to instrument cluster.
— Instrument cluster to audio unit.

• With an on-board diagnostic function included for each multiplex module, display of DTCs using the SST (WDS

or equivalent) has improved serviceability.

End Of Sie

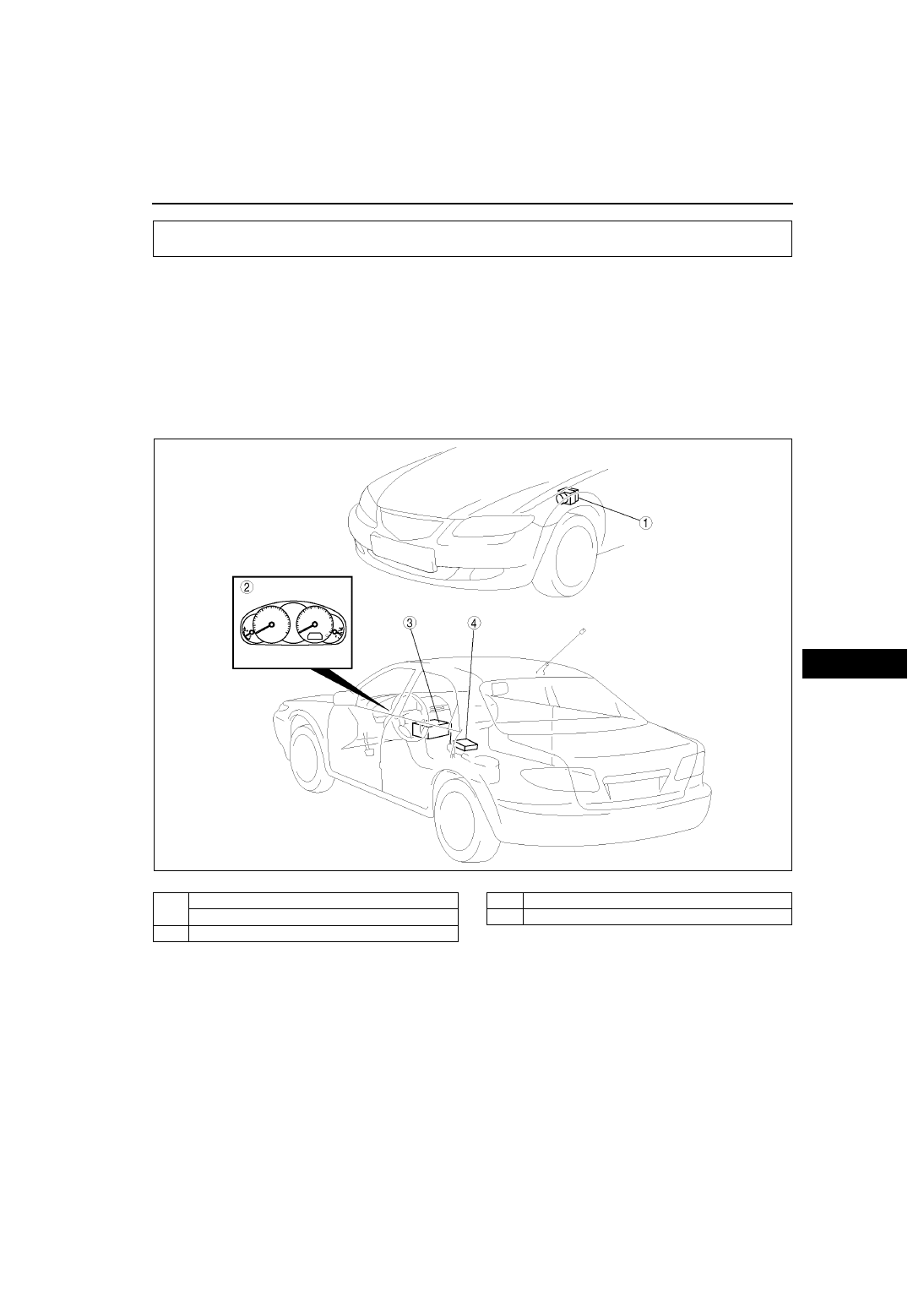

STRUCTRURAL VIEW

A6E811155430T02

.

End Of Sie

MULITIPLE COMMUNICATION SYSTEM

A6E8111T001

1

ABS (ABS/TCS) HU/CM (with ABS (ABS/TCS))

DSC HU/CM (with DSC)

2

Instrument cluster

3

Audio unit

4

PCM

T–6

MULITIPLE COMMUNICATION SYSTEM

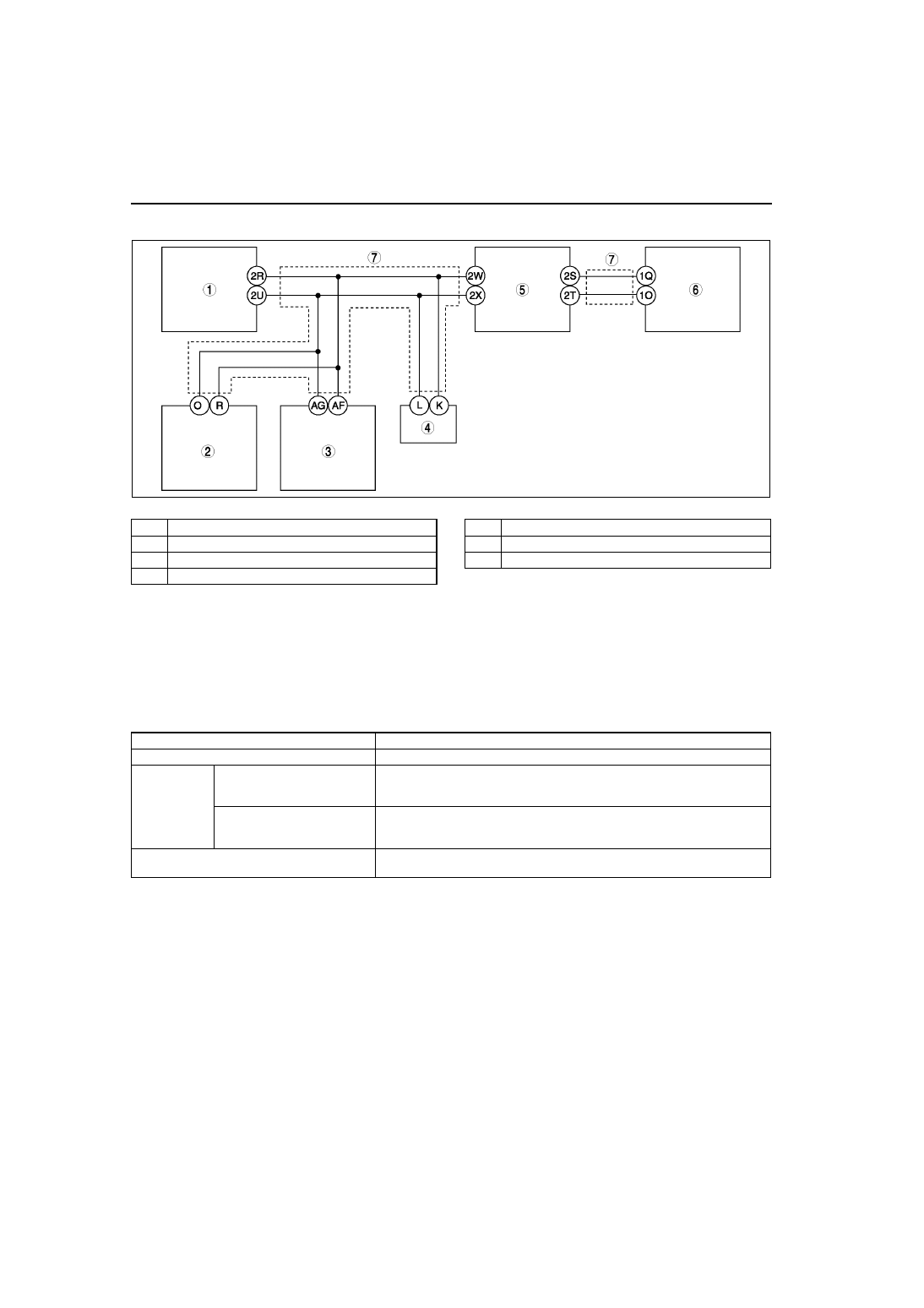

SYSTEM WIRING DIAGRAM

A6E811155430T03

.

End Of Sie

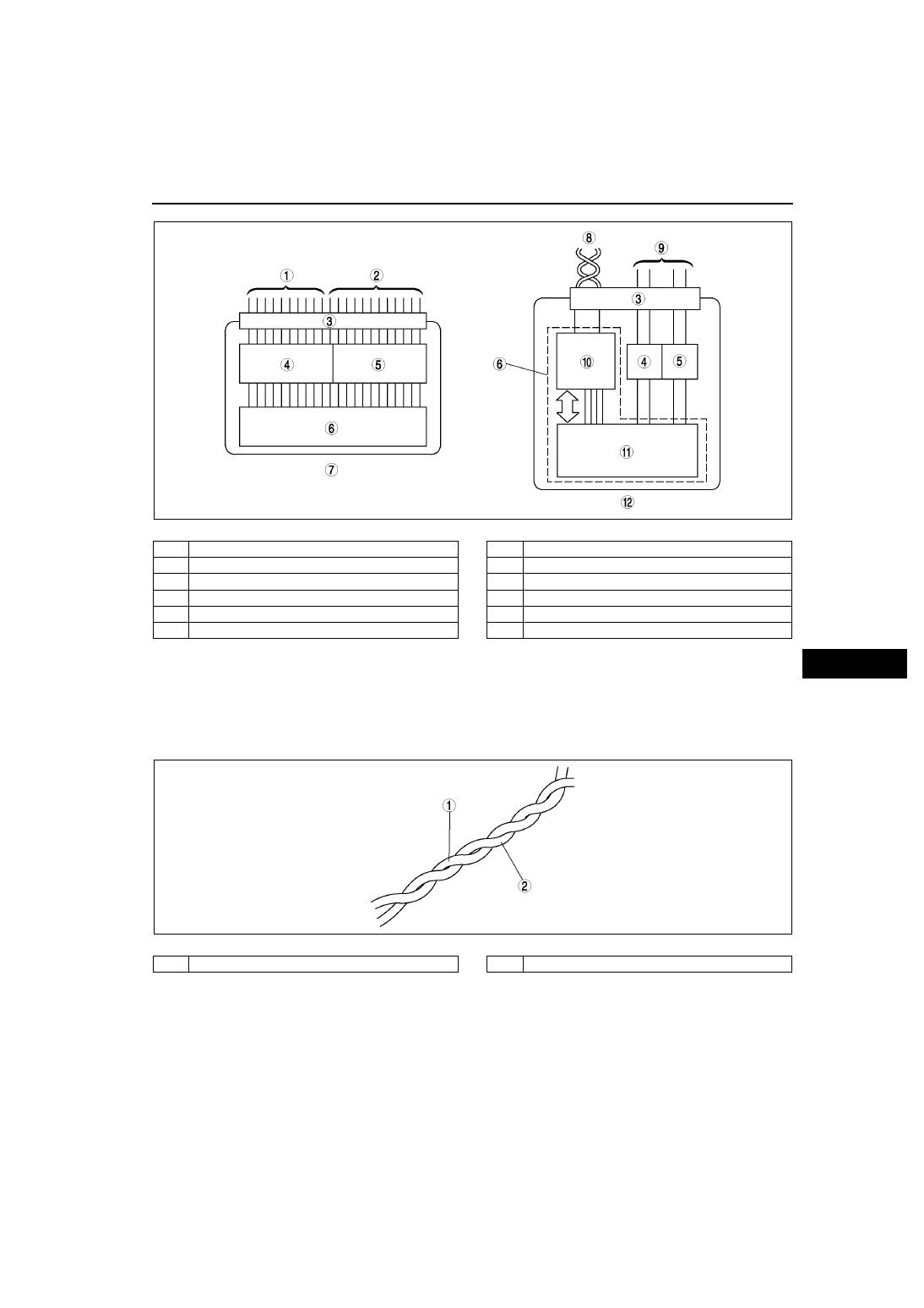

MECHANISM OF CAN SYSTE-RELATED MODULE

A6E811155430T04

•

A CAN system-related module is composed of an electrical circuit, CPU, and input/output interface.

•

The size of the module has been reduced due to the elimination of the bulky, superfluous, input/output interface
in the conventional type of electrical module.

•

The CPU (multiplex block) controls all signals exchanged on the CAN harness.

•

Communication with non-multiplex parts is carried out by conventional input/output interface.

•

The functions of each component are shown below.

A6E8111T002

1

PCM

2

ABS (ABS/TCS) HU/CM (with ABS (ABS/TCS))

3

DSC HU/CM (with DSC)

4

Data link connector

5

Instrument cluster

6

Audio unit

7

Twist  pair

Component

Function

Electrical circuit

Supplies power to CPU and vicinity, and to input/output interface.

CPU

Computation processing block Control function has been expanded, and when transmission is necessary,

transmitted data is stored in a multiplex block. If a multiplex block receives a
request to read stored data, transmitted data is read from the multiplex block.

Multiplex block

Transmits to computation processing block data received from bus line. In
addition, sends to bus line transmitted data stored from computation
processing block.

Input/Output interface

Electrically converts information signals from switches practically input to
CPU, and signals output from CPU for operating actuator or indicator lights.

MULITIPLE COMMUNICATION SYSTEM

T–7

T

T

.

End Of Sie

TWIST PAIR

A6E811155430T05

•

The multichannel use two spirally twisted wires called the twist pair, and each wire, bus line A and bus line B,
has its own special function.

•

Both bus lines are opposite phase voltage. This allows for hardly any noise being emitted and makes if difficult
for noise interference to be received.

.

End Of Sie

A6E8111T003

1

Input signal

2

Output signal

3

Connector

4

Input interface

5

Output interface

6

CPU

7

Conventional module

8

CAN harness

9

Conventional wiring harness

10

Multiplex block

11

Computation processing block

12

CAN system-related module

A6E8111T004

1

Bus line A

2

Bus line B

T–8

MULITIPLE COMMUNICATION SYSTEM

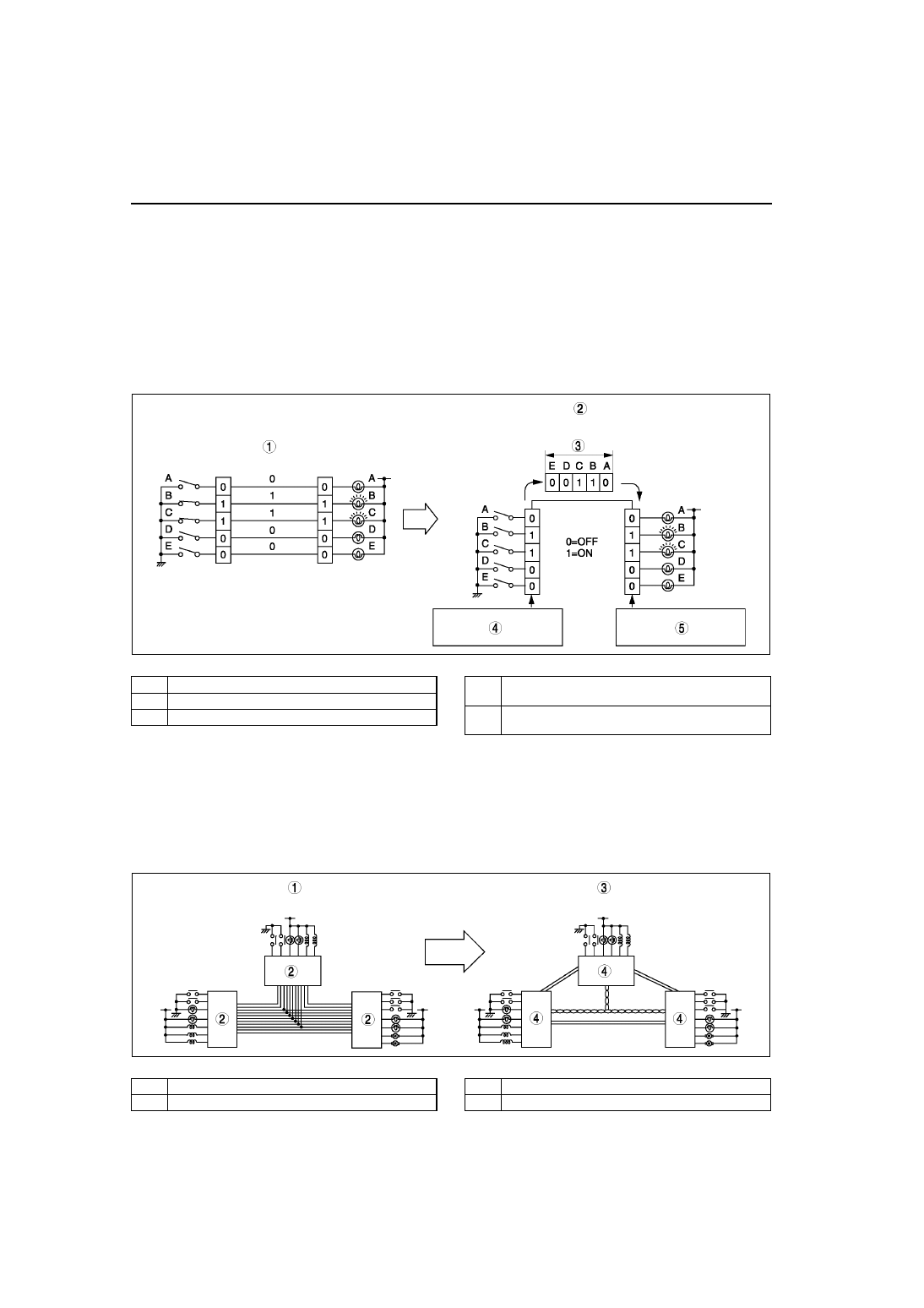

CAN SYSTEM OUTLINE

A6E811155430T06

Time Division Multiplex

•

For information exchange between the electrical modules in the conventional system, a wire connection was
necessary for each information signal. However, by sending the different signal at varying times over one
channel, it is possible to send a large amount of information via a small harness.

•

In the conventional, non-multiplex system, in order to control the illumination of the five bulbs, one switch and
one channel was necessary for each bulb. For bulbs B and C to illuminate, switches B and C must be ON and
electricity must flow through the channel. With the time multiplex system, this can be done through one
channel. The channel is comprised of five data signal transmitters which transmit either “0” or “1” signal to
indicate for a bulb to turn ON or OFF. For example, to illuminate bulbs B and C, transmitters B and C transmit a
“1” and transmitters A, D, and E transmit a “0”. When the receiver receives these signal, bulbs B and C
illuminate.

.

End Of Sie

VEHICLE CAN SYSTEM

A6E811155430T07

•

By rearranging the multiple signal, common information between the CAN system-related modules is
transmitted and received through the multichannel.

•

The signal transmitted by one CAN system-related module is sent through the multichannel to all the CAN
system-related modules, but only the concerned module(s) receives the signal and performs the appropriate
operation (ex. light illumination, fan operation).

.

A6E8111T005

1

Non-multiplex system

2

Time division multiplex system

3

Data

4

Each signal is transmitted one by one through the
channel as it is received.

5

Each signal is output one by one it is received from
the channel.

A6E8111T006

1

Conventional system

2

Electrical module

3

CAN system

4

CAN system-related module
