D–8

LUBRICATION SYSTEM

.

A silent chain (link connecting type) has been adopted to the oil pump chain to reduce chain operation noise
when the chain and the sprocket engage.

The engine oil in the engine front cover lubricates the oil pump chain. The wear resistance has been improved
by the nitriding processing of the pin constructing the oil pump chain.

The durability has been improved by heating the sintering material on the oil pump sprocket inside of a furnace.

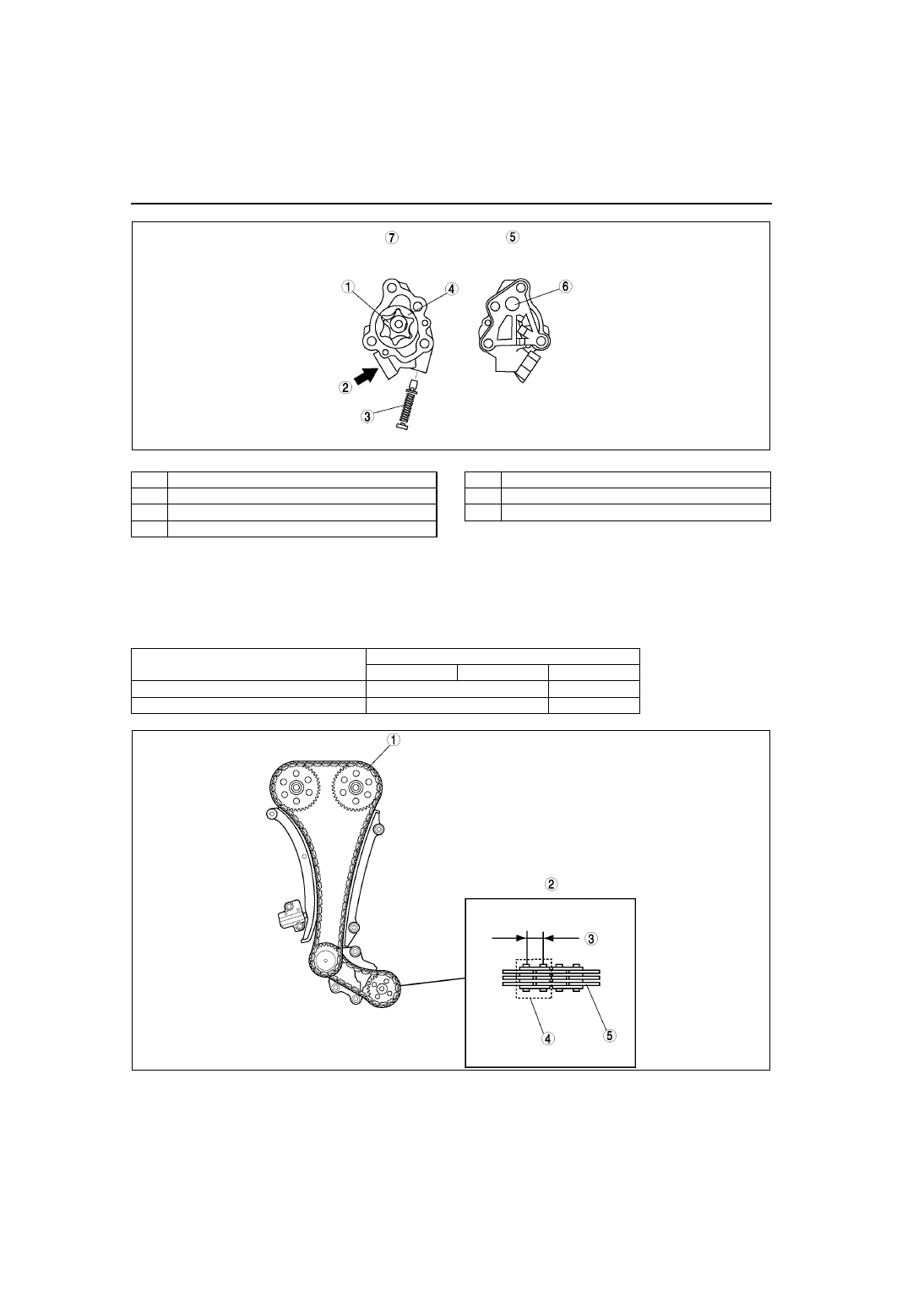

OIL PUMP DRIVEN CHAIN SPEC.

.

AME3300N007

1

Inner rotor

2

Oil in

3

Relief valve assembly

4

Outer rotor

5

Back

6

Oil out

7

Front

ITEM

ENGINE

L8

LF

L3

Pitch size

(mm {in})

8 {0.4}

6.35 {0.25}

Number of pitches

54

66

AME3300N008

LUBRICATION SYSTEM

D–9

D

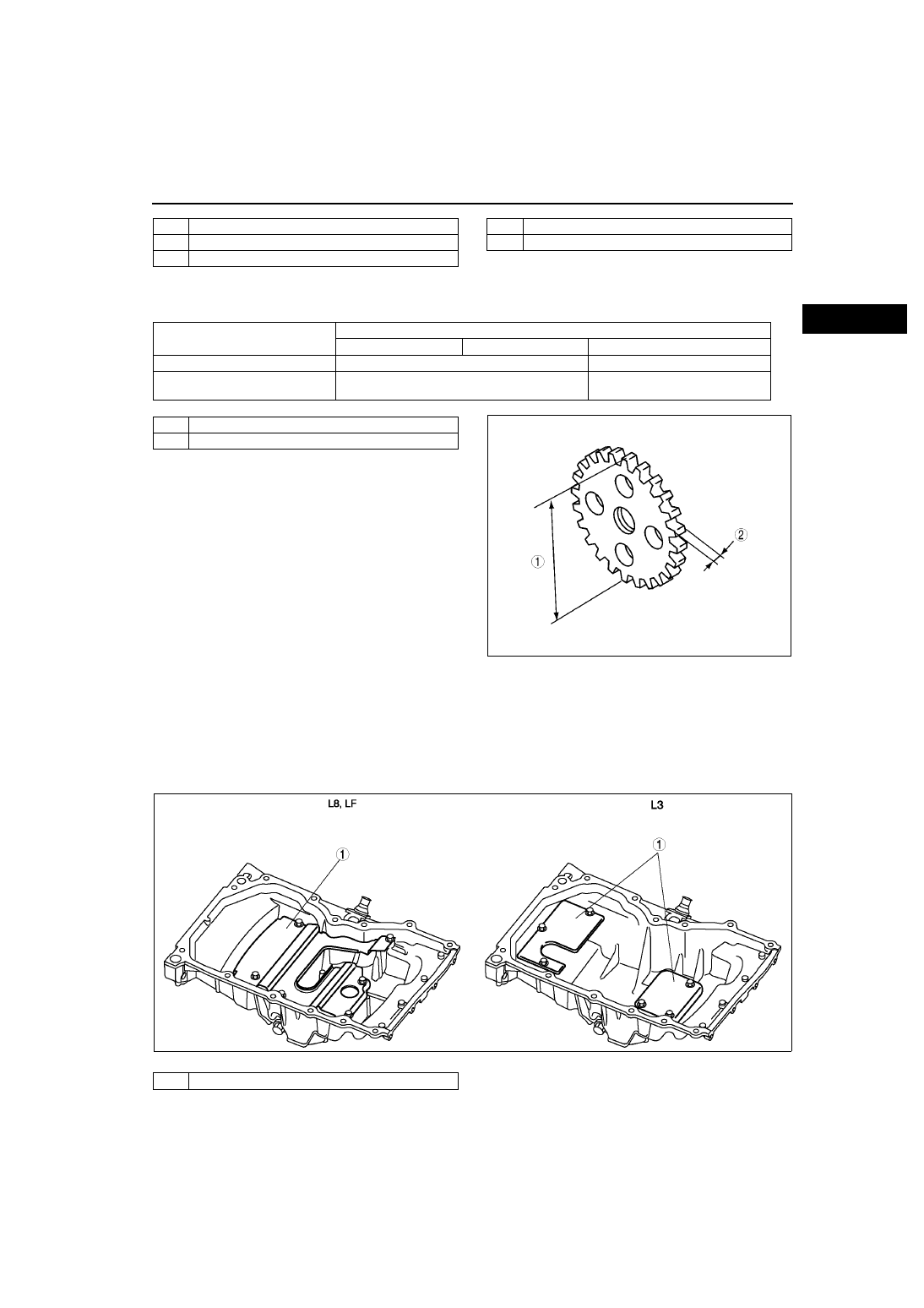

 The oil pump sprocket is heat forged from sintered metals to improve durability.

OIL PUMP SPROCKET SPEC.

.

End Of Sie

OIL PAN

A6E333010040T01

Structure

An aluminum alloy oil pan has been adopted for weight reduction. A silicon sealant with excellent sealing
qualities has been also adopted.

Oil pan baffle plates have been adopted inside the oil pan to stabilize engine oil diffusion by crankshaft rotation
and oil level when the vehicle rolls.

.

End Of Sie

1

Timing chain

2

Oil pump driven chain

3

Pitch size

4

Pitch

5

Link

ITEM

ENGINE

L8

LF

L3

Outer diameter

(mm {in})

60.78 {2.394}

46.46 {1.829}

Drive tooth
width

(mm {in})

6.15 {0.242}

5.7 {0.23}

1

Outer diameter

2

Drive tooth width

AME3300N009

AME3300N010

1

Oil pan baffle plate

D–10

LUBRICATION SYSTEM

OIL STRAINER

A6E333014700T01

Structure

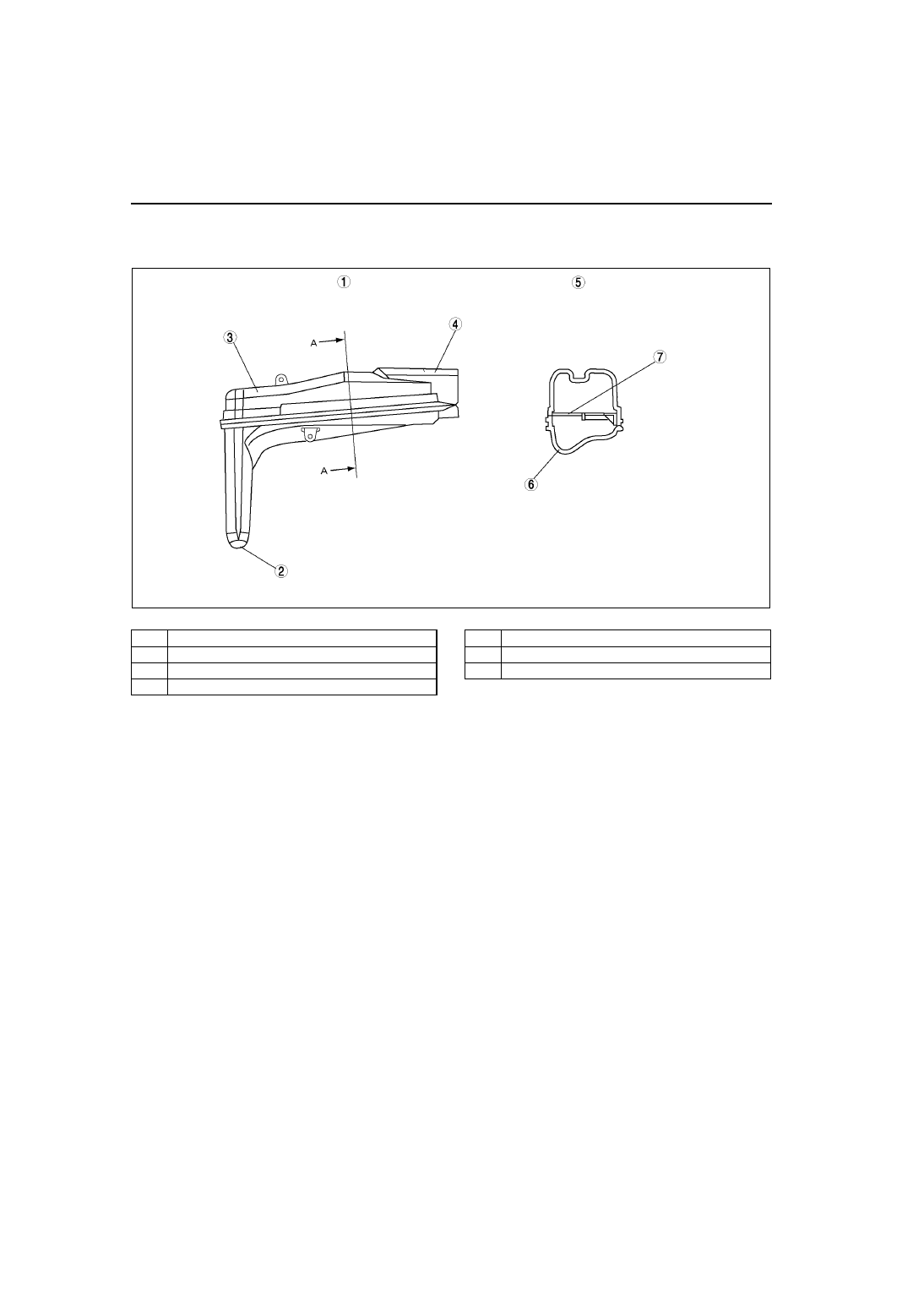

A plastic oil strainer with a resin filter in the middle of the strainer has been adopted for weight reduction.

.

End Of Sie

OIL FILTER

A6E333014300T01

Structure

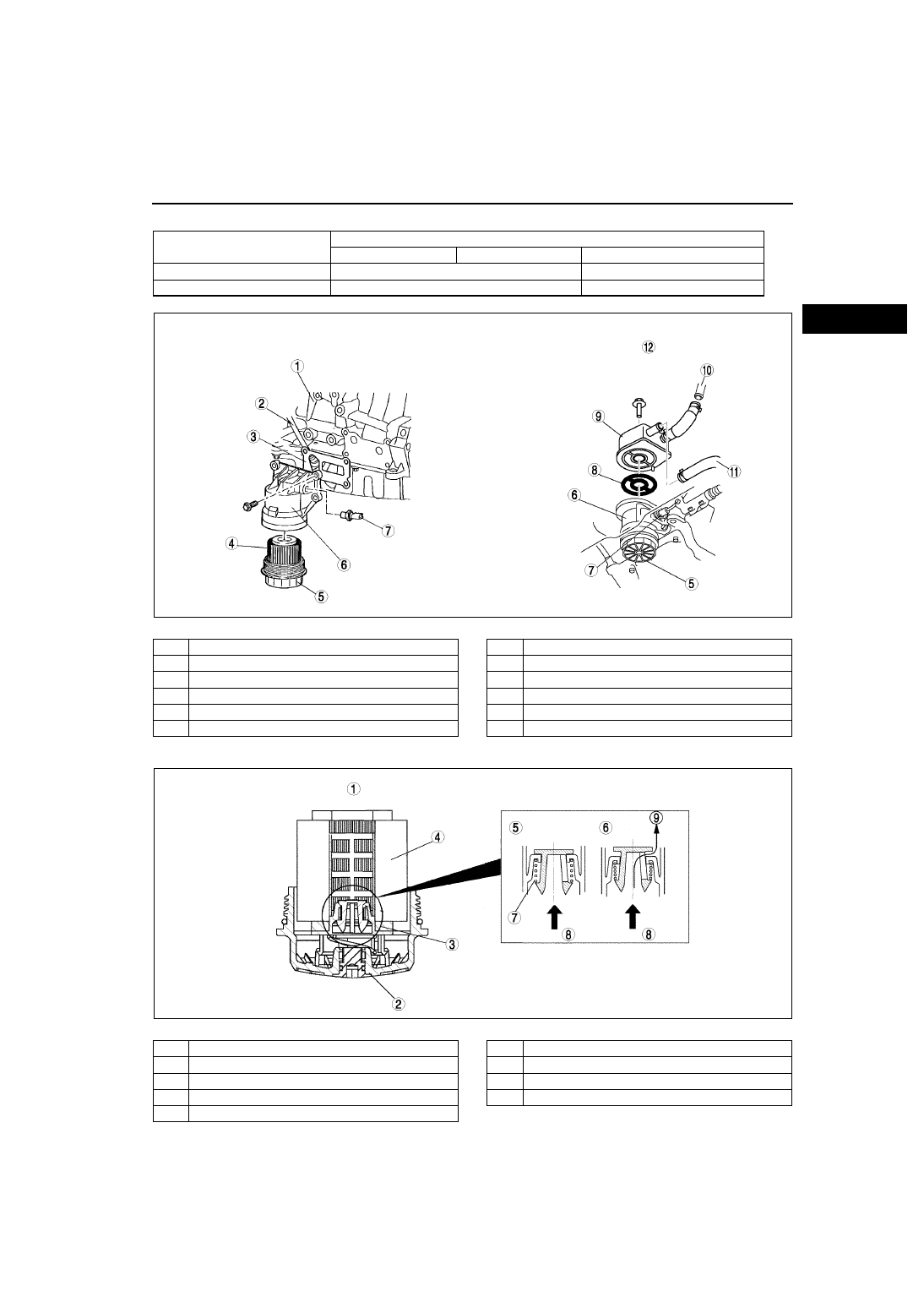

The oil filter is attached to the right side of the oil level gage (oil pan side) on cylinder block.

The oil filter adapter has been adopted for weight reduction. The oil pressure switch is installed on the oil filter
adapter.

A resin oil filter has been adopted for weight reduction. A drain has been installed on the bottom of the oil filter
replacement service ability.

An environment-friendly oil filter, designed so that only the internal oil filter (rather than entire assembly) need
to be replaced, has been adopted. The replaceable oil filter is made of a material that can be completely
incinerated.

A water-cooled oil cooler has been adopted to reduce the engine oil degradation. Also, the exclusive use oil
filter adapter has been adapted for the oil cooler. (LF and L3 engine models)

AME3300N011

1

Appearance figure

2

Oil supply mouth

3

Oil strainer

4

Oil pump attachment side

5

A - A sectional view

6

Oil strainer

7

Filter

LUBRICATION SYSTEM

D–11

D

OIL FILTER SPEC.

.

.

ITEM

ENGINE

L8

LF

L3

Outer diameter

(mm {in})

67—69 {2.4—2.7}

65.2—65.8 {2.57—2.59}

Height

(mm {in})

73.5—75.5 {2.89—2.97}

72.6—74.4 {2.86—2.92}

AME3300N012

1

Cylinder block

2

Oil level gage

3

Gasket

4

Oil filter

5

Oil filter cover

6

Oil filter adapter

7

Oil pressure switch

8

O-ring

9

Oil  cooler

10

To water outlet case

11

To thermostat

12

LF and L3 engine models

AME3300N013

1

Oil filter

2

Oil filter cover

3

Relief valve

4

Oil filter

5

Normal

6

Relief

7

Spring

8

Oil  pressure

9

Oil passage
