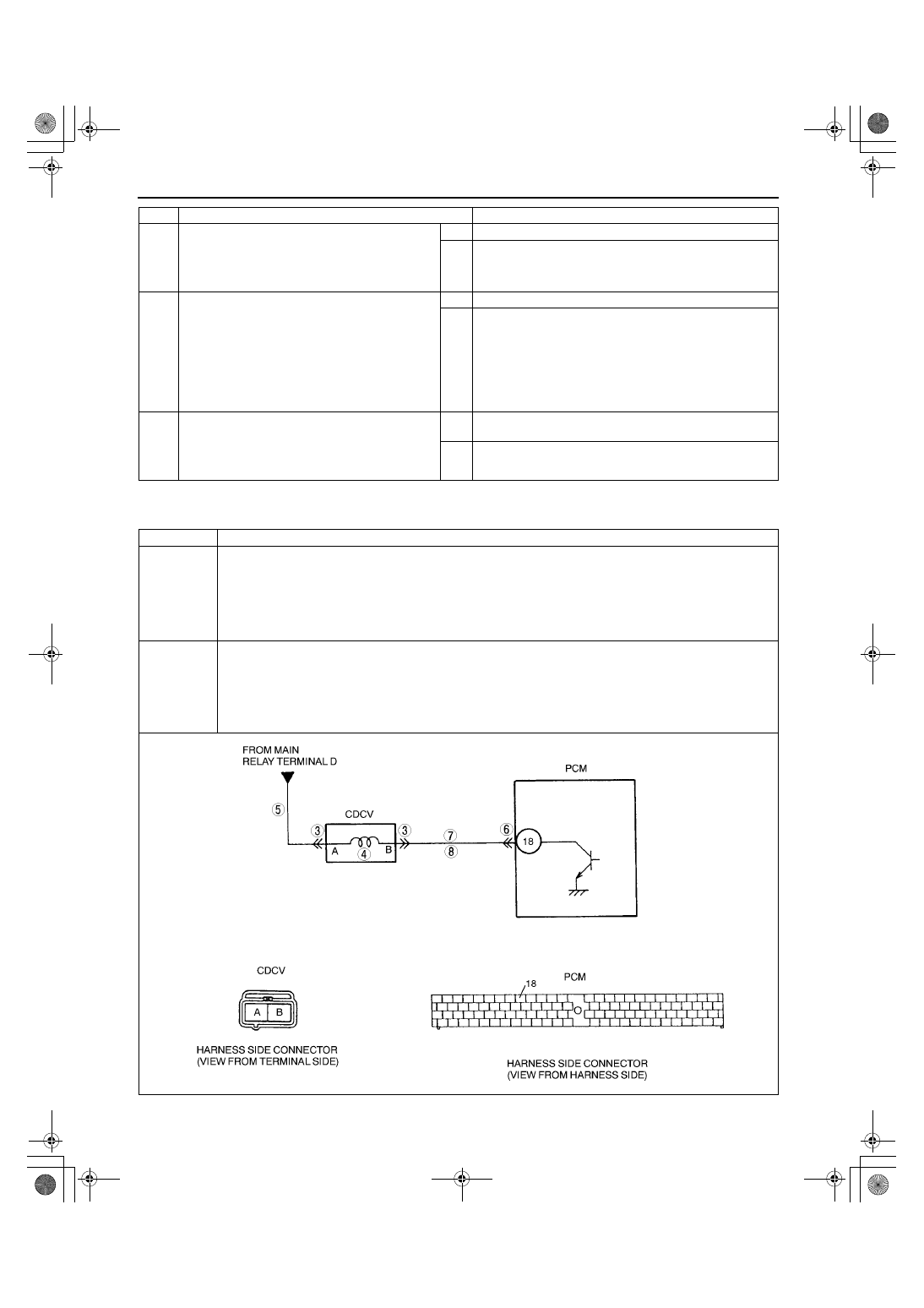

ON-BOARD DIAGNOSTIC [ENGINE CONTROL SYSTEM (ZM)]

01–02A–118

End Of Sie

DTC P1449 [ZM]

A3U010201083W24

7

INSPECT CMP SENSOR

•

Check pulsation signal coming out from PCM
terminal 85 (harness-side) using voltmeter
while cranking engine.

•

Is there signal?

Yes Go to next step.

No

Replace CMP sensor, then go to next step.

8

VERIFY TROUBLESHOOTING OF DTC P1345
COMPLETED

•

Make sure to reconnect all disconnected
connectors.

•

Turn ignition key to ON (engine OFF).

•

Clear DTC from PCM memory using WDS or
equivalent.

•

Start engine.

•

Is same DTC present?

Yes Replace PCM, then go to next step.

No

Go to next step.

9

VERIFY AFTER REPAIR PROCEDURE

•

Perform “After Repair Procedure”.
(See 01–02A–10 AFTER REPAIR
PROCEDURE [ZM].)

•

Is there any DTC present?

Yes Go to applicable DTC inspection.

(See 01–02A–15 DTC TABLE [ZM].)

No

Troubleshooting completed.

STEP

INSPECTION

ACTION

DTC P1449

Canister drain cut valve (CDCV) circuit malfunction

DETECTION

CONDITION

•

PCM monitors the input voltages from CDCV just after turning the ignition key to ON. If voltage at PCM
terminal 18 remains low or high, PCM determines that CDCV circuit has malfunction.

Diagnostic support note

•

This is a diagnostic support DTC (monitored one per key cycle).

•

MIL does not illuminate.

•

FREEZE FRAME DATA is not available.

•

DTC is not stored in PCM memory.

POSSIBLE

CAUSE

•

CDCV malfunction

•

Connector or terminal malfunction

•

Short to ground in wiring between CDCV terminal B and PCM terminal 18

•

Open circuit in wiring between main relay terminal D and CDCV terminal A

•

Open circuit in wiring between CDCV terminal B and PCM terminal 18

•

Short to power circuit between CDCV terminal B and PCM terminal 18

•

PCM malfunction
