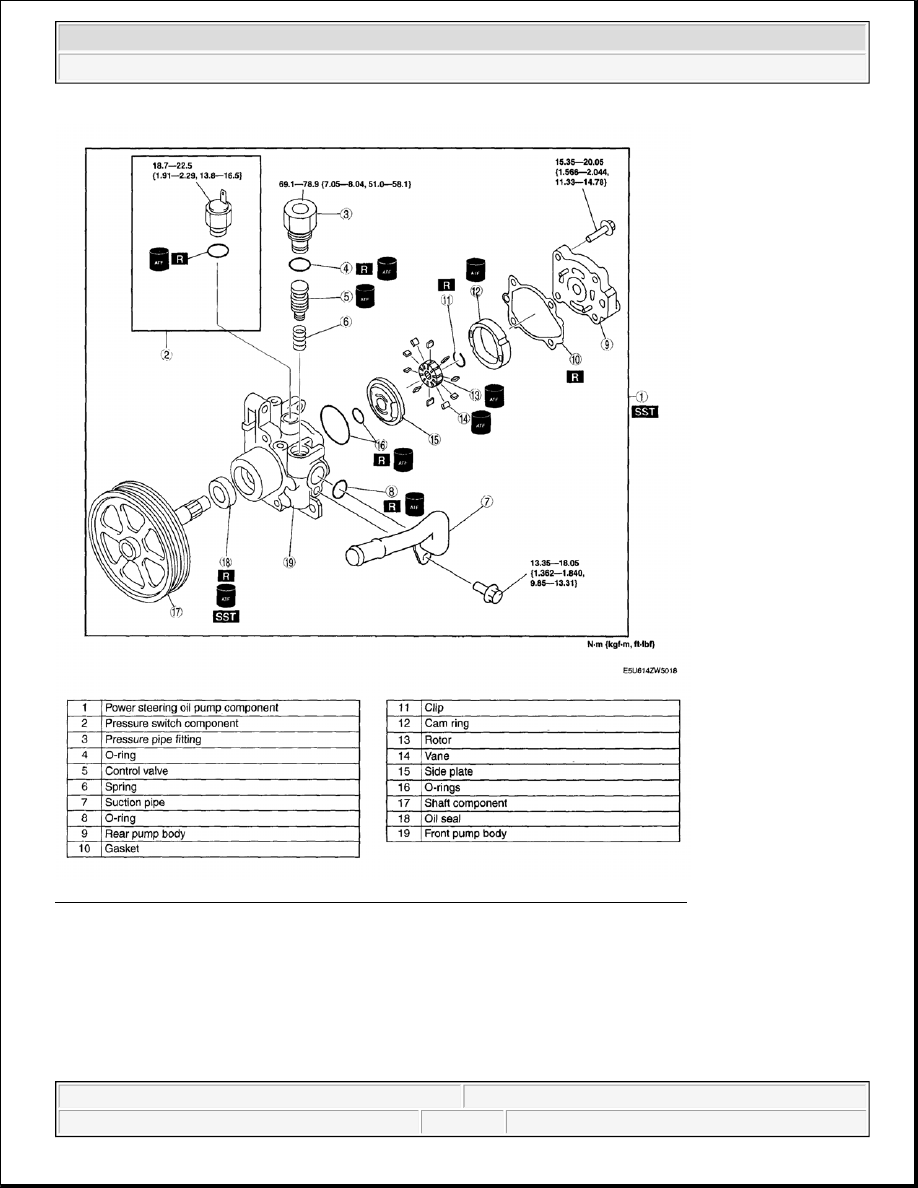

Fig. 47: Exploded View Of Power Steering Oil Pump (With Torque Specifications)
Courtesy of MAZDA MOTORS CORP.

POWER STEERING OIL PUMP COMPONENT DISASSEMBLY NOTE

1. Secure the power pressure oil pump using the SST .

CAUTION:



Use the SST to prevent damage to the pump when securing it in
a vise.



2008 Mazda MX-5 Miata Grand Touring

2008 STEERING Power Steering - MX-5 Miata



Fig. 48: Securing Power Pressure Oil Pump Using SST
Courtesy of MAZDA MOTORS CORP.

OIL SEAL ASSEMBLY NOTE

1. Install the oil seal in the front pump body using the SST and plastic hammer.



2008 Mazda MX-5 Miata Grand Touring

2008 STEERING Power Steering - MX-5 Miata



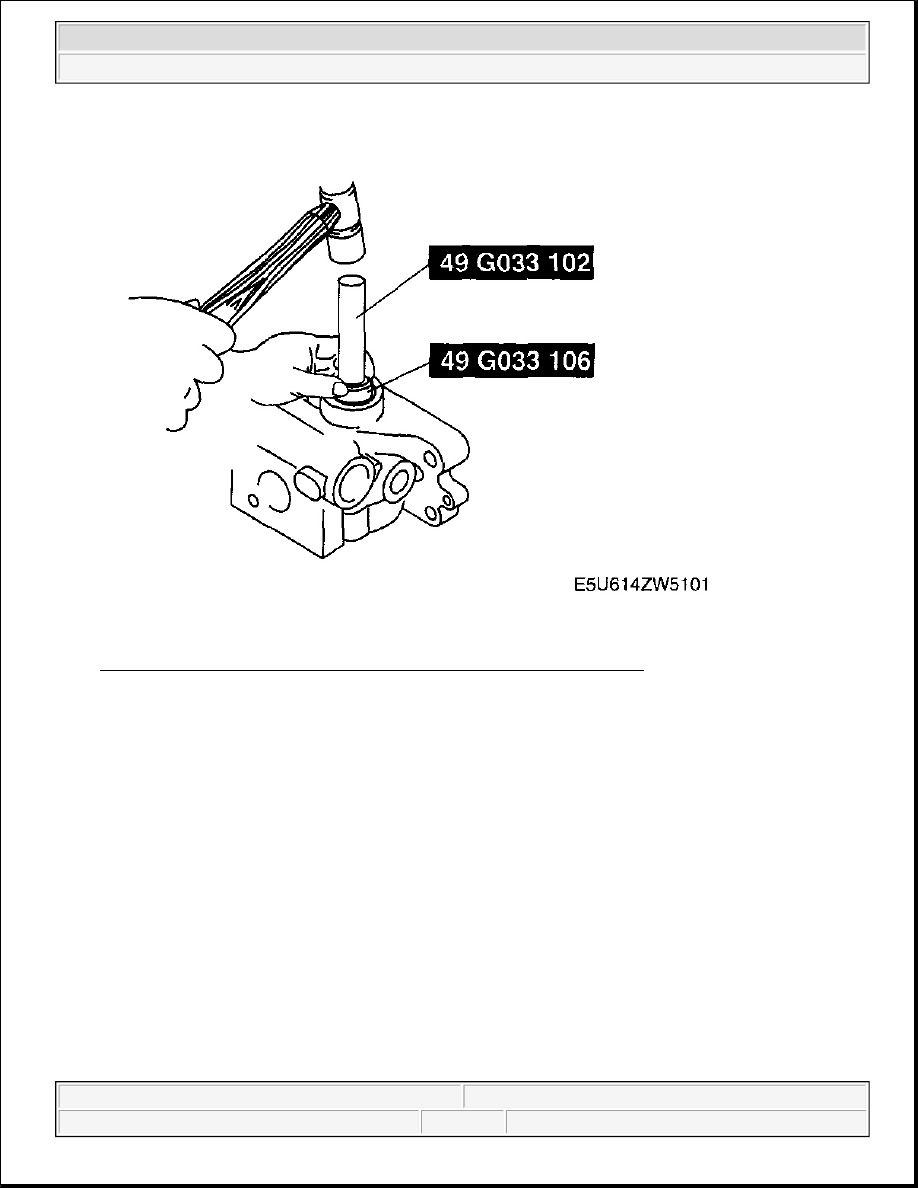

Fig. 49: Installing Oil Seal In Front Pump Body Using SST & Hammer
Courtesy of MAZDA MOTORS CORP.

VANE ASSEMBLY NOTE

1. Place the vanes in the rotor with the rounded edges contacting the cam.



2008 Mazda MX-5 Miata Grand Touring

2008 STEERING Power Steering - MX-5 Miata



Fig. 50: Placing Vanes In Rotor With Rounded Edges Contacting Cam
Courtesy of MAZDA MOTORS CORP.

CAM RING ASSEMBLY NOTE

1. Install the cam ring in the front pump body with the mark facing upward.



2008 Mazda MX-5 Miata Grand Touring

2008 STEERING Power Steering - MX-5 Miata
