Mazda MX-5 Miata / Grand Touring. Manual - part 131

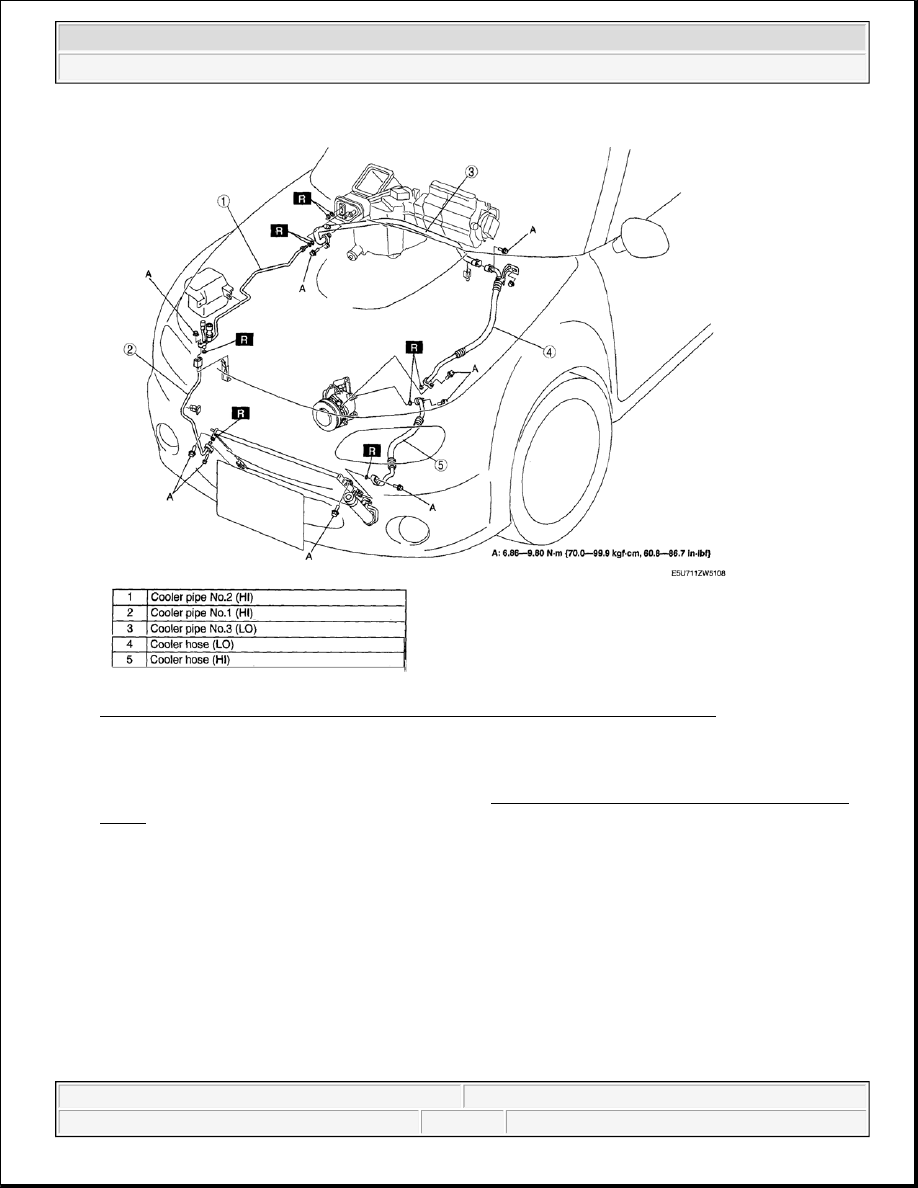

Fig. 14: View Of Refrigerant Lines & Components (With Torque Specifications)
Courtesy of MAZDA MOTORS CORP.

8. Install in the reverse order of removal.

9. Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE

TEST .)

REFRIGERANT LINE REMOVAL NOTE

1. Disconnect the block joint type pipes by grasping the female side of the block with pliers or similar tool

and holding firmly, and then remove the connection bolt or nut.



2008 Mazda MX-5 Miata Grand Touring

2008 HVAC Basic System - MX-5 Miata



Fig. 15: Disconnecting Block Joint Type Pipes
Courtesy of MAZDA MOTORS CORP.

REFRIGERANT LINE INSTALLATION NOTE

1. Temporarily tighten the joint bolt by hand.

2. Connect the block joint type pipes by grasping the female side of the block with pliers or similar tool and

holding firmly, and then tighten the connection bolt or nut with a torque wrench.



2008 Mazda MX-5 Miata Grand Touring

2008 HVAC Basic System - MX-5 Miata

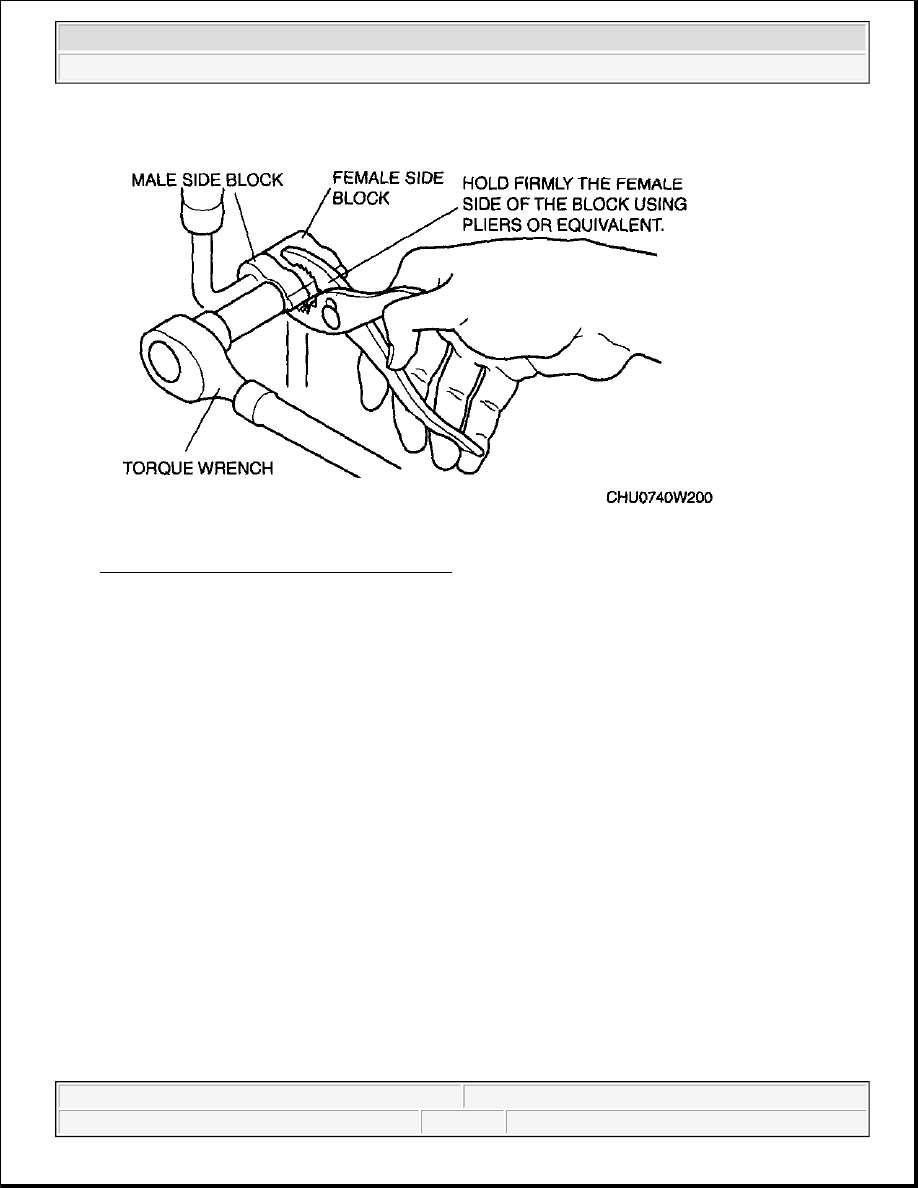

Fig. 16: Connecting Block Joint Type Pipes
Courtesy of MAZDA MOTORS CORP.



2008 Mazda MX-5 Miata Grand Touring

2008 HVAC Basic System - MX-5 Miata



2008 ENGINE

Ignition System - MX-5 Miata

IGNITION SYSTEM LOCATION INDEX [LF]

Fig. 1: Identifying Location Of Ignition System Components
Courtesy of MAZDA MOTORS CORP.

IGNITION COIL REMOVAL/INSTALLATION [LF]

1. Remove the battery cover.

2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)

3. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [LF] .)

4. Remove the front suspension tower bar (joint). (See FRONT SUSPENSION TOWER BAR

REMOVAL/INSTALLATION .)

5. Remove in the order indicated in Fig. 2 .

6. Install in the reverse order of removal.
